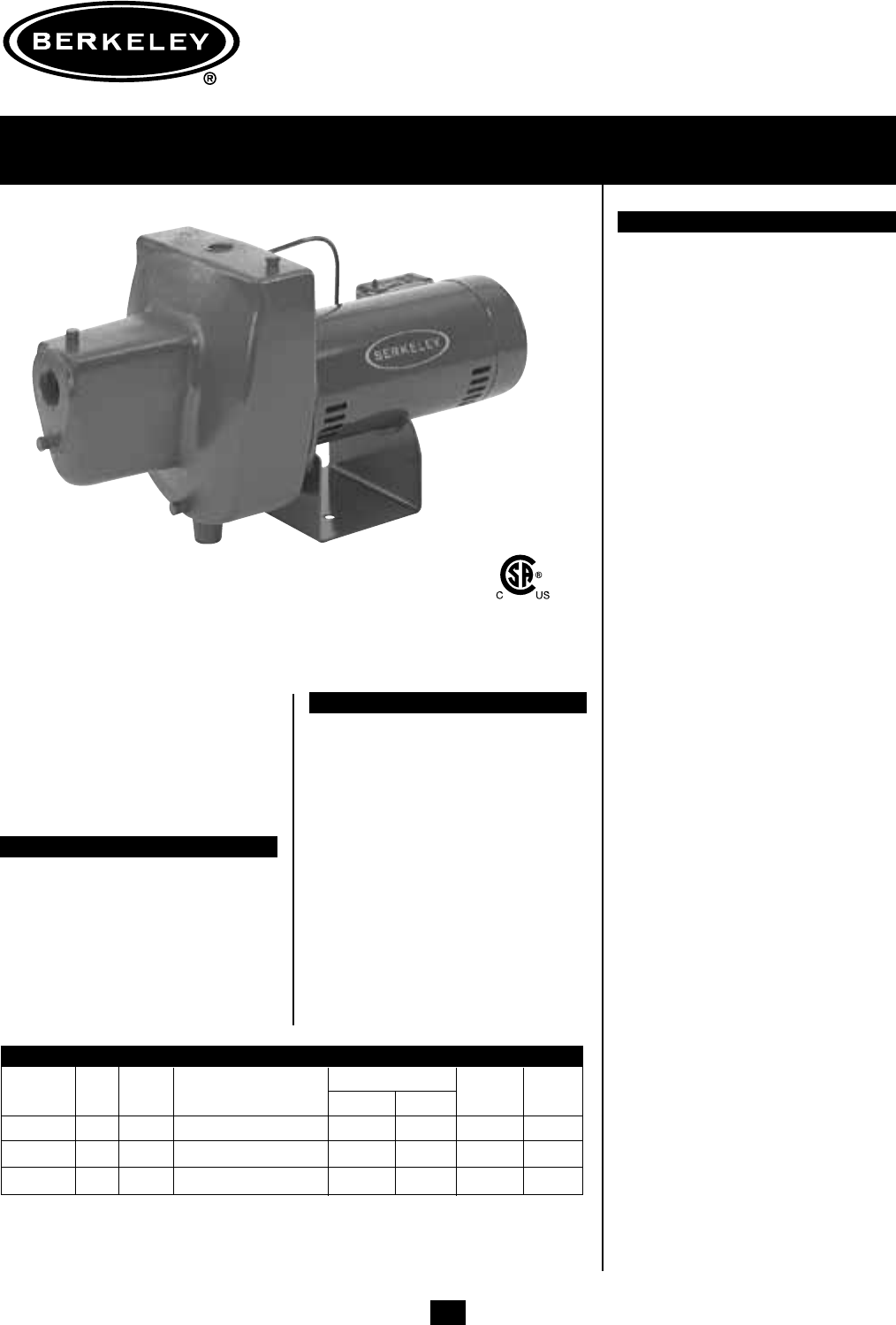

Customer Service: 1-888-782-7483 (USA) • 1-888-363-PUMP (Canada) www.berkeleypumps.com • Pentair Water • Delavan, WI 53115 USA CB5135WS (10/24/11)
1
The ProJet
™
HN models provide
excellent performance with good
pressure for wells to 25’ deep.
Self-priming after the priming
chamber has been filled with
water.
APPLICATIONS
■
Water systems and sprinkling…
for homes, farms and cottages.
SPECIFICATIONS
Max. Liquid Temperature – 140
°
F
Max. Inlet Pressure – 50 PSI
Average Priming time at 15 feet –
5HN = 1.7; 7HN = 1.1; 10HN = 1.3
Average Priming time at 25 feet –
5HN = 4.4; 7HN = 4.4; 10HN = 2.6
Body – Close-grained cast iron
Nozzle – High strength Lexan®
Venturi – Lexan®
Impeller – Noryl®
Diffuser – Reinforced polypropylene
Shaft – One-piece threaded, 416
grade stainless steel
Base – Steel, 12 gauge
Lexan® and Noryl® are registered trademarks of General Electric Co. ProJet™ and
PRO-Source™ are trademarks of Pentair Water.
In order to provide the best products possible, specifications are subject to change.
ORDERING INFORMATION
Catalog Switch Pipe Tapping Sizes Motor Approx.
Number HP Setting Description Suct. Disch. Voltage Wt. Lbs.
5HN 1/2 30-50 Shallow Well Jet 1-1/4” 1” 115/230 47
7HN 3/4 30-50 Shallow Well Jet 1-1/4” 1” 115/230 65
10HN 1 30-50 Shallow Well Jet 1-1/4” 1” 115/230 70
FEATURES
Quality Construction – Close-
grained cast iron body, specially
treated for corrosion resistance. Drain
port provided for easy winterizing.
Built-in Jet – High strength Lexan®
nozzle and venturi for maximum
resistance to corrosion and abrasion.
Clean out plug provided for ease
of service.
Noryl® Impeller – Precision-molded
for perfect balance… ultra-smooth for
highest performance and efficiency.
Precision Molded Diffuser – Pump
primes faster, handles more air,
with multi-port, precision-molded,
reinforced polypropylene diffuser.
Mechanical Shaft Seal – Precision
lapped and highly polished carbon-
ceramic, stainless steel construc tion.
Internal design guarantees contin-
uous water lubrication.
Motor Windings – Superior insula-
tion materials protect against exces-
sive moisture and contaminants…
assure prolonged motor life.
Balanced Rotor – Die cast
under high pressures for uniform
perfor mance and greater efficiency,
dynamically balanced.
Heavy-duty Ball Bearings –
Shielded, permanently lubricated
bearings, extensively tested to ensure
extended life and smooth, quiet oper-
ation.
Pump and Motor Shaft – Stain less
steel for maximum corrosion resis-
tance; one-piece threaded shaft for
positive impeller drive and alignment.
Pressure Switch – Professional
quality, allows cut-in and differential
adjustments.
Self-Priming Shallow Well Jet Pumps
UL778/CSA108
ProJet™ HN series - cast iron
Customer Service: 1-888-782-7483 (USA) • 1-888-363-PUMP (Canada) www.berkeleypumps.com • Pentair Water • Delavan, WI 53115 USA CB5135WS (10/24/11)
2
3-13/32
L
(TYP.)
1-1/4
NPT
1 NPT
10-3/16
13/32
4-1/8
2
B
(TYP.)
SLOT
5-31/32
9-17/32
2-7/16
4-7/8
7/8
9-15/32
3-15/16
(TYP)
.88 SLOT
1-1/4 NPT
10.97
2.44
7.96
10.48
4.67
4.88
(TYP)
.40 SLOT
1 NPT
5.81
2.00 4.21
10.41
L
B
Cat. No. L B
5HN 18.7 7.1
7HN 21.3 7.0
10HN 22.4 8.0
7HN and 10HN
5HN
OUTLINE DIMENSIONS
PUMP PERFORMANCE
Pump will operate at all depths shown, with pressure switch set at 30-50 PSI.
Tested and rated in accordance with Water Systems Council Standards.
NOTE: Pumps installed with a PRO-Source™ tank require a 100 PSI relief
valve. Pumps installed with a conventional tank require a 75 PSI
relief valve. Relief valve must be capable of relieving entire flow of
pump at relief pressure.
PUMP PERFORMANCE
(Capacity in Gallons Per Minute)
TOTAL HEAD IN FEET
CAPACITY GALLONS PER MINUTE
CAPACITY LITERS PER MINUTE
TOTAL HEAD IN METERS
20
40
60
80
100
120
140
160
10 20 3050152
53
5
10HN
7HN
5HN
050 10075 125
50
40
30
20
10
0
25
2.31 FT. OF HEAD = 1 PSI
1 FT. OF HEAD = .433 PSI
Disch. Shut-Off
Catalog Pressure Dynamic Suction Lift Pressure
Number HP PSI 5’ 10’ 15’ 20’ 25’ PSI
30 15.0 13.0 11.6 8.7 6.9
5HN 1/2 40 12.5 11.4 10.1 8.2 6.8 70
50 8.0 6.8 6.1 4.8 3.5
30 21.4 19.1 16.5 13.3 9.5
7HN 3/4 40 20.8 18.7 15.8 13.2 9.3 67
50 13.5 11.6 10.1 7.4 2.4
30 28.5 25.0 21.4 17.4 12.6
10HN 1 40 28.3 24.4 21.0 17.2 12.3 67
50 21.5 18.3 10.9 3.1 1.6
Dimensions (in inches) are for estimating purposes only.
Self-Priming Shallow Well Jet Pumps
ProJet™ HN series - cast iron
