Wastewater • Water Systems • HVAC • Industrial • Engineered Products
•1 gallon collection tank
• Vertical centrifugal pump design
• Automatic start and stop operation
• Some models equipped with float (solid polymer)
activated switch for automatic high level water
detection (safety overflow switch)
• For models with safety overflow switch: dual function
NO and NC operation (set to NO from factory for
equipment shut down connection)
• Models equipped with safety overflow switch include
two 5” switch lead wires
• 1/4” NPT x 3/8” barbed discharge adapter (for use
with 3/8” I.D. vinyl tubing)*
•*Optional ¼” NPT check valve adapter for
3/8” vinyl tubing sold separately
(Part Number 599065)
•*Optional ¼” NPT check valve for 3/8”
copper tube sold separately
(Part Number 599063)
• Two 1-1/8” diameter inlet openings
• Thermally protected, fan cooled motor
• Maximum water temperature: 120 ºF
• 6 ft 3-conductor cable with grounded 3-prong plug
• Designed for automatic collection and removal of
condensate from air conditioning, refrigeration and
dehumidification equipment when gravity drainage
is not possible or practical. Also suitable for high
efficiency oil and gas-fired condensing furnace and
condensing boiler equipment.
Features
•Pump housing — ABS
•Switch housing — ABS
• Tank — ABS
• Tank cover — Galvanized steel
• Motor shaft — Stainless steel
• Impeller — Polypropylene
•Discharge adapter — Acetal
Applications
Construction
VCL-24ULS Series
HVAC
Engineering Data
Replacement Parts
Item Part Number
Tank 153502
Cover, volute 153110
Impeller 153131
Adapter, 3/8" 153300
Seal ring 924038
Switch, pump 950337
Switch, safety 950333
Head - Meters
Flow - Liters/Hour
Head - Feet
Flow - Gallons/Hour
0
1
2
3
4
5
6
7
0 200 400 600 800 1000
0
5
10
15
20
25
0 50 100 150 200 250 300
P.O. Box 12010
Oklahoma City, OK 73157-2010
Phone: 1.800.701.7894
Fax: 1.800.678.7867
www.LittleGiantPump.com Form 995127 – 08/12

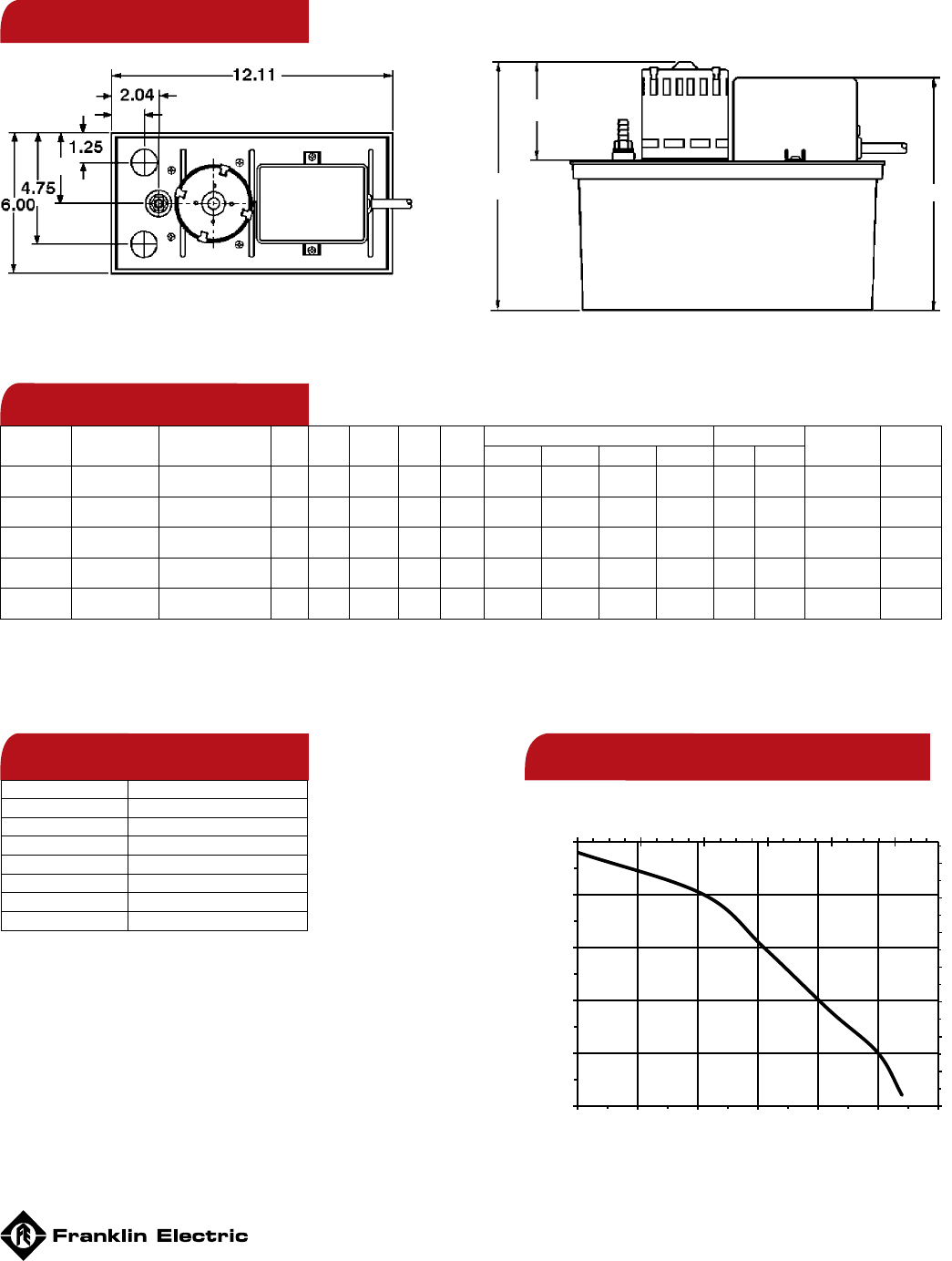

Specications
Item
No.
Model
No.
Discharge
Size HP Volts Hertz Amps Watts
Performance (GPH@Head) Shutoff Cord
Length (ft)
Weight
(lbs)1' 3' 5' 9' Ft PSI
553206 VCL-24UL 1/4" FNPT x
3/8" OD Barbed 1/18 115 60 2.5 148 270 260 250 210 24 10.4 6 8.20
553201 VCL-24ULS 1/4" FNPT x
3/8" OD Barbed 1/18 115 60 2.5 148 270 260 250 210 24 10.4 6 8.20
14940371 VCL-24ULS* 1/4" FNPT x
3/8" OD Barbed 1/18 115 60 2.5 148 270 260 250 210 24 10.4 6 9.25
553211 VCL-24ULS 1/4" FNPT x
3/8" OD Barbed 1/18 230 50/60 1.2 148 270 260 250 210 24 10.4 6 8.20
14940372 VCL-24ULS* 1/4" FNPT x
3/8" OD Barbed 1/18 230 50/60 1.2 148 270 260 250 210 24 10.4 6 9.25
*With 3/8" ID X 20 ft. tubing
Performance Data
"
"
3.00"
"
"
1.40"
"
"
"
8.88"
4.72"
10.40"
