grundfos HOT WATER RECIRCULATION
Hot water without the wait
Before Grundfos, hot water recirculation
solutions were dicult, if not impossible. Now,
installations in both new construction and
existing homes are quick, easy and profitable.
Features & Benefits:
makes it all possible with no return line and no
need for electricity under the sink
Comfort System
UP 15-10 SU7P TLC
grundfos.us
COMFORT PM AUTO
UP 10-16 A PM BN5/LC
ADAPT™ and line cord
www.grundfos.us
The name Grundfos, the Grundfos logo, and be think innovate are registered trademarks owned by Grundfos Holding A/S or Grundfos A/S, Denmark. All rights reserved worldwide.
L-UP-SL-024 Rev. 07-14
GRUNDFOS Kansas City
GRUNDFOS Canada
GRUNDFOS Mexico
L-UP-SL- / (US)
– Comfort System UP 15-10 SU7P TLC (Part# 595916)
– COMFORT PM AUTO
Pump Technical Data:
Flow Range: 0 to 6.5 U.S. GPM
Head Range: 0 to 6.0 U.S. Feet
Motor: Single Phase, 115V
Min. Fluid Temperature: 36°F (2°C)
Max. Fluid Temperature: 150°F (66°C)
Max. Working Pressure: 145 PSI
Electrical Data:
Volts: 1X115V
Watts: 25W
Amps: 0.23A
Approvals:
ANSI/NSF61 and IAPMO listed
Water Quality
ANSI/NSF61
Pump Technical Data:
Flow Range: 0 to 3.5 U.S. GPM
Head Range: 1 to 5 U.S. Feet
Motor: 5 - 8.5W, Single Phase, 115V
Min. Fluid Temperature: 36°F (2°C)
Max. Fluid Temperature: 203°F (95°C)
Max. Working Pressure: 145 PSI
Standard Features: 5ft. line-cord w/plug
Optional Features: Timer, Aquastat

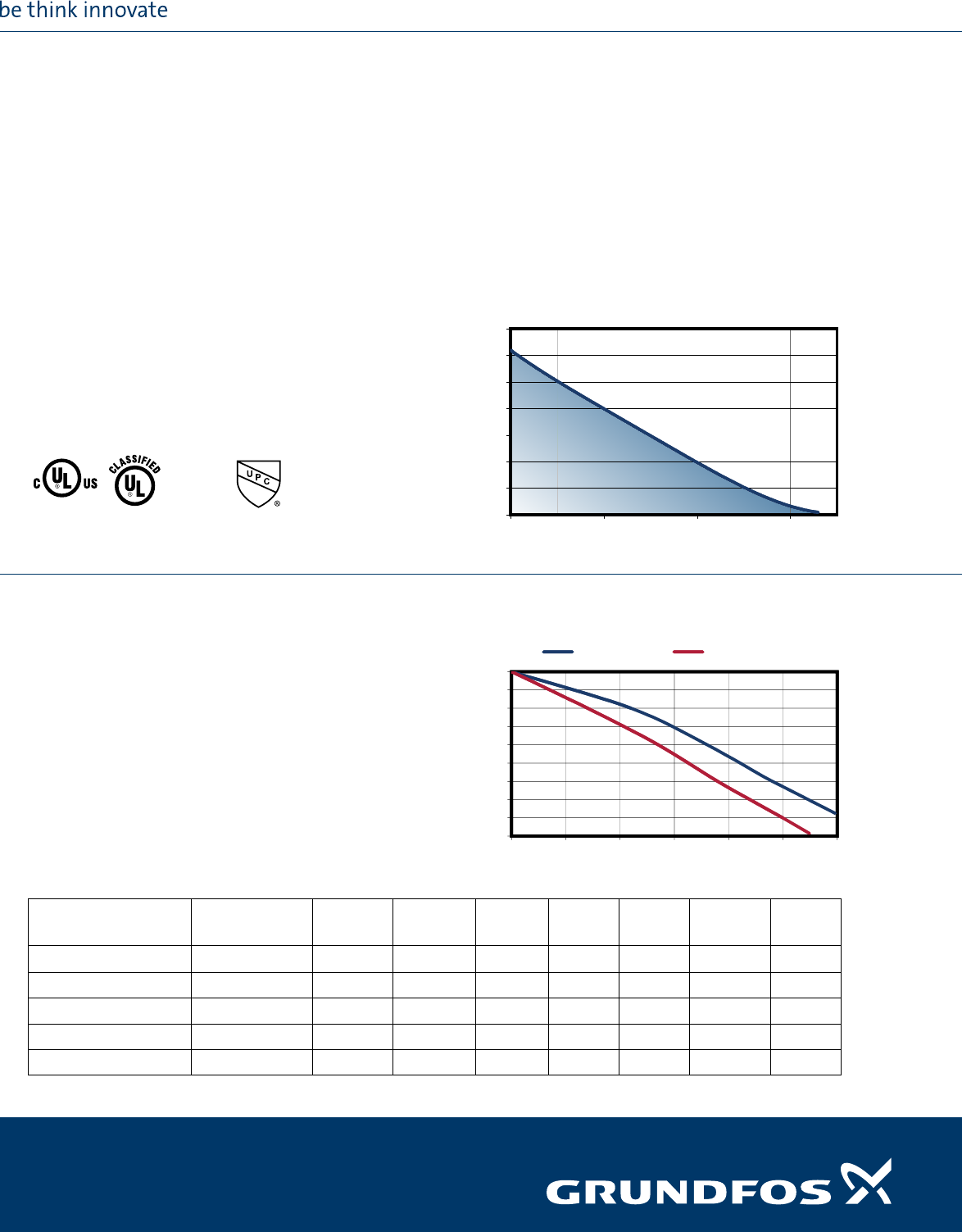

Performance Curve:
UP10-16B5/BN5/BU
Technical Data
Flow Range: 0 - 2.5 GPM
Head Range: 1 - 5 Feet
Motor: 25W
Voltage: 1 x 115V
Fluid Temperature Range: 36F (2C) to 203F 95C
Max. Working Pressure: 145 PSI
Flange to Flange Length:
UP10-16B5/BN5 3-1/8"
UP10-16BU 4-1/3"
Pump Housing: Brass MS 58
Connection Type:
UP10-16B5 1/2" Sweat
UP10-16BN5 1/2" F NPT
UP10-16BU GF 125 Union - 1-1/4" NPSM
5 foot line cord w/plug standard
Optional Features: Timer, Aquastat
Add product picture
UP10-16B5/BN5 BU Performance Curves
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
0 0.5 1 1.5 2 2.5 3
Flow (gpm)
Head (ft.)
UP10-16B5/BN5 UP10-16BU
Models Part Number 1/2”
Sweat
1/2” F
FNPT
1 1/4”
Union
Line
Cord
Check
Valve
Isolation
Valve AUTO
UP10-16 PM B5/LC 98420206 • •
UP10-16 PM BN5/LC 98420210 • •
UP10-16 A PM B5/LC 98420222 • • •
UP10-16 A PM BN5/LC 98420223 • • •
UP10-16 A PM BU/LC 98420224 • • • • •
Electrical Connection: The pump is
fitted with a 10 foot cord and 115V plug.
Timer: 3 control options available:
• Continuous
• 15-minute intervals
• OFF
Performance Curve:
UP15-10SU7P
COMFORT SYSTEM
Technical Data
Flow Range: 0 - 6.5 GPM
Head Range: 0 - 6 Feet
Motor: 1/25Hp
Voltage: 1 x 115V
Fluid Temperature Range: 36F (2C) to 150F (66C)
Max. Working Pressure: 145 PSI
Flange to Flange Length: 5-7/16"
Pump Housing: S.S. Steel
Pump Connection Type: 3/4"M X 3/4"F NPT
Valve Connection Type: 1/2"M NPS (Faucet)
Flex S.S. Stainless Hoses: (2) 1/2"FNPSx1/2"FNPSx12"
Power Cord: 10 Feet
Timer: Integrated 24Hr.
UP15-10SU7P/TLC Performance Curve
0
1
2
3
4
5
6
7
0 2 4 6
Flow (gpm)
Head (ft.)
