Indoor Duplex Contol/Alarm Device

Wastewater • Water Systems • HVAC • Industrial • Engineered Products

Applications

Wastewater

Easy-to-install, NEMA 1, ¾ hp device•

Low-cost alternative to conventional •

duplex control panels

Normal/silent alarm switch mounted •

externally for easy installation

Operates two manual sump, sewage •

or effluent pumps

Green power on indicator•

Green pump run indicators •

(pump 1 and 2)

Automatically alternates between •

pumps every cycle for even wear

Audible alarm and red indicator light, •

alarm sounds when the water level

rises too high

Alternates to standby pump if energized

•

pump fails to turn on and sounds the

alarm

Operates single-phase pumps with

•

15 max. run amps

cULus listed

•

NOTE: The IDC-115 will only operate one

pump at a time.

The IDC is an easy to use pump alternator

with built-in high water alarm designed

specifically for use with two manual sump,

sewage or effluent pumps. If a pump should

fail the high water alarm and alternator

will activate the alarm switch sounding the

alarm, alerting you of the problem and

automatically activates the standby pump.

Features

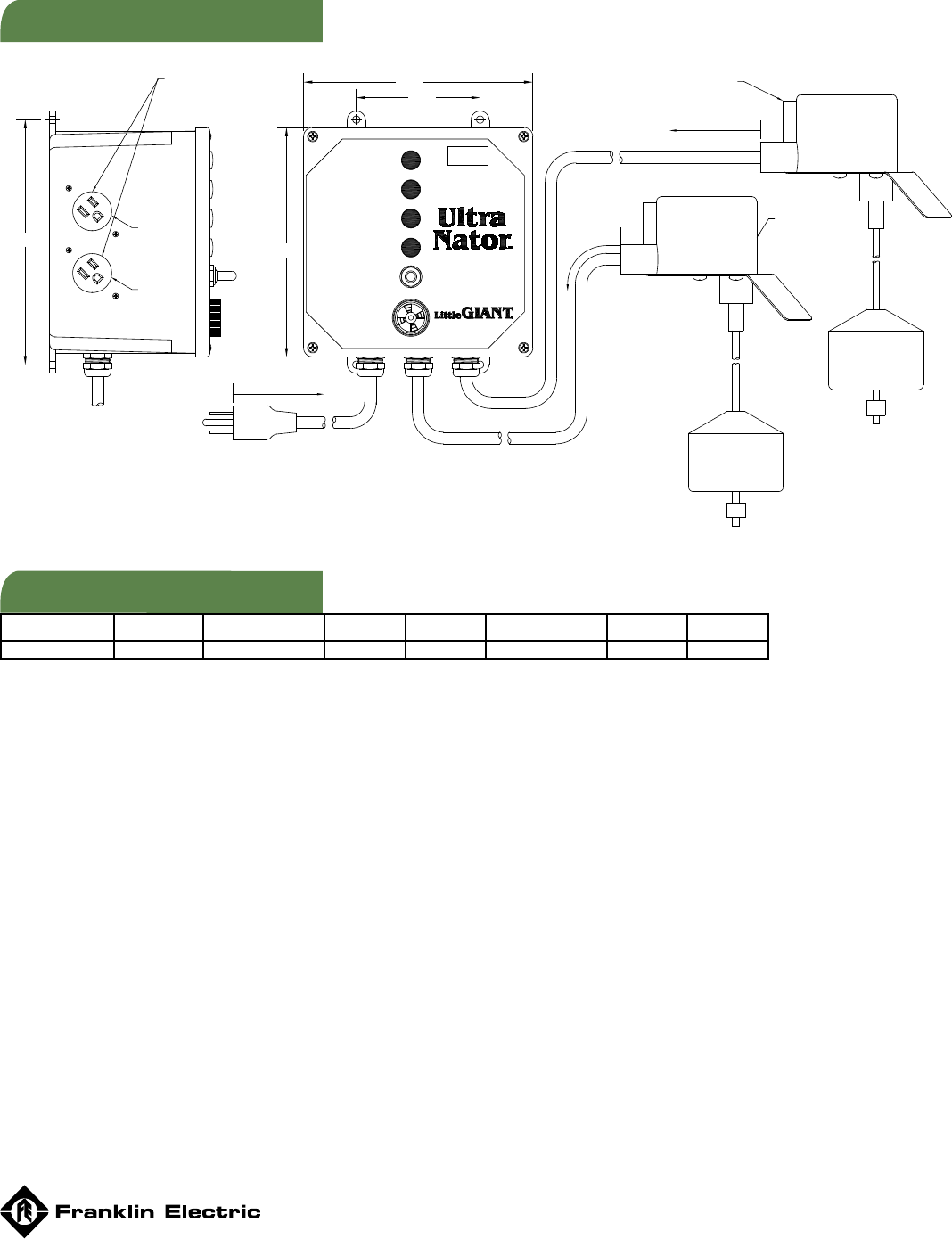

Dimensional Outline

P.O. Box 12010

Oklahoma City, OK 73157-2010

Phone: 1.800.701.7894

Fax: 1.800.678.7867

www.LittleGiantPump.com

©2011 Franklin Electric Co., Inc.

Little Giant® is a registered trademark of Franklin Electric Co., Inc.

Form 996156 — 03/11

Specications

High Water Alarm

Normal

Pump 2 Run

Silence

Pump 1 Run

Power

3.40

6.30

6.30

6.70

RECEPTACLES: 120V

NEMA TYPE 5-15

ALARM

(TOP FLOAT)

PUMP

(BOTTOM FLOAT)

PUMP 1

PUMP 2

10 FT. TO PANEL

10 FT. TO PANEL

10 FT. TO

PANEL

Model No. Item No. Listing(s) Max HP Volts Max. Amps Cord Weight

IDC-115 513289 cULus 1 115 15 10' 13

Enclosure: 6” x 6” x 4” NEMA-1 weatherproof thermoplastic enclosure with

angled receptacles to accept standard or right angled pump plugs.

Switches: Vertical mechanical float switch. Impact resistant, non-corrosive, PVC plastic for use in liquids up to

140 °. Cord is a flexible 10’, 16 gauge, 2 conductor SJOW-A (UL) SJOW (CSA) water resistant cord.

NOTE: This alarm switch must be used only with a PumpGuard Plus duplex pump alternator and alarm system.

Alarm: 80 dB at 10 ft.

Indicator Lights: Power On, Pump 1 Running, Pump Two Running, and Alarm
