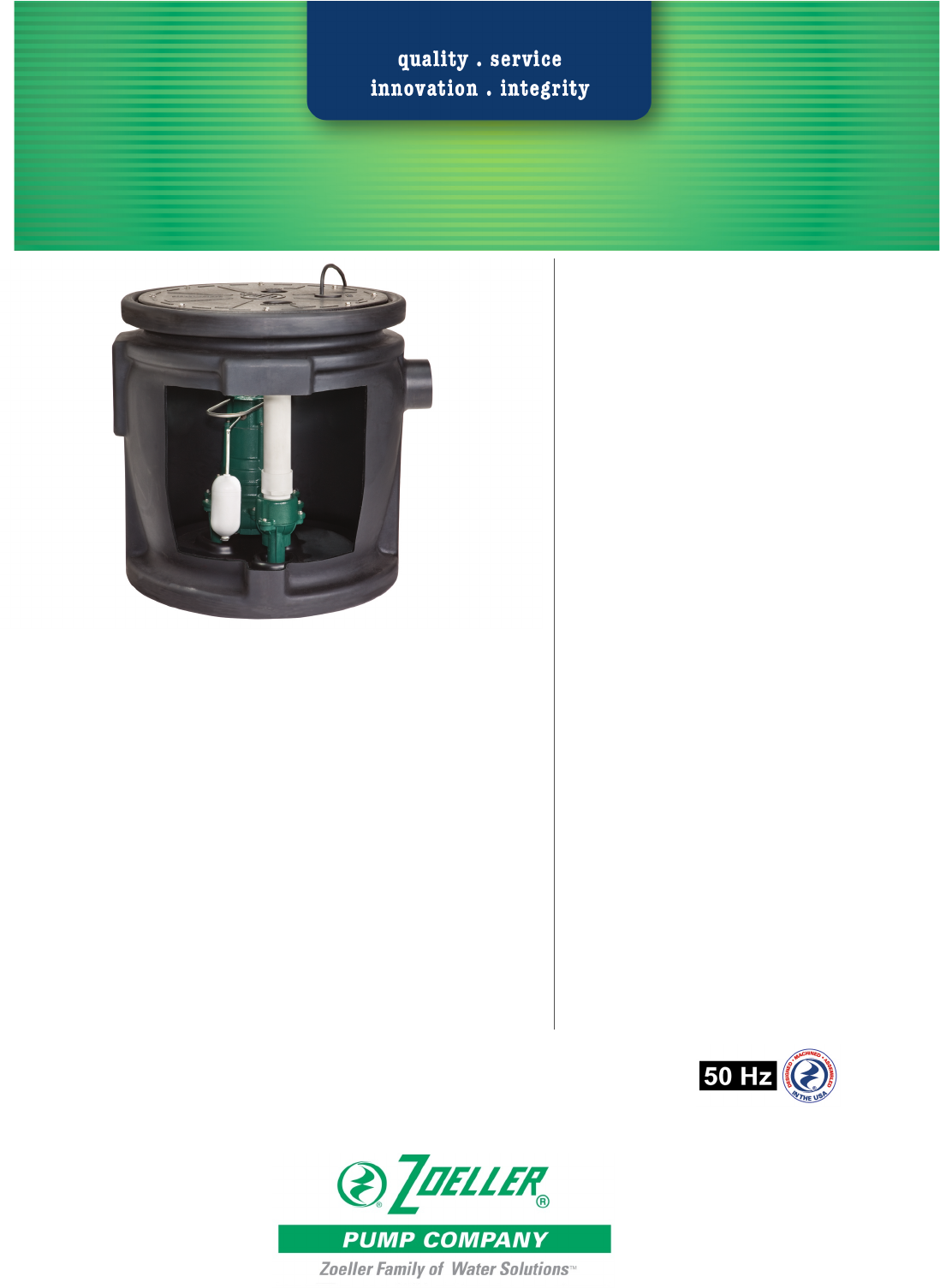

Preassembled Package Systems
Features
The 912 Series Preassembled Package Systems are drop-in sewage removal
systems. This series is ideal for new construction or additions, villas, beach
houses, basements, cabins, and other applications where gravity flow to the
sewer main is not an option. All 912 Systems come with a 50 mm (2") solids
passing sewage pump, a durable polyethylene or poly-structure foam basin, a
pre-manufactured PVC or cast iron inlet, and a gasket-sealed cover to reduce
odor. They are also available with alarms and a pre-installed alarm float.
Premium indoor systems are available with a split cover for easy pump
installation and system maintenance, torque stops, and an anti-flotation device.
Side discharge systems are rated for outdoor burial and include solid,
polypropylene covers. Every pump is 100% pressure-tested, submerged and
run to ensure quality and reliability for years of trouble-free performance! This
attention to detail is an inherent feature of every pump in this series, making it
one of the best in the industry.
Specifications
Motor Characteristics
Horse Power 0.7 - 1.7 KW
Voltage 220 V
Phase 1 Ph
Hertz 50 Hz
RPM 1400 or 2800 RPM
Type Split phase or permanent split capacitor
Insulation Class B
Amps 4.4 - 8.5 Amps
Pump Characteristics
Operation Automatic
Auto On/ Off Points Vary based on package
Discharge Size 2" NPT
Solids Handling 50 mm (2") spherical solids
Cord Length 6m (20') standard
Cord Type SOW/SOOW (CE model H07RN-F)
Max Head 4.3 m (14'), 6.7 m (22'), 13.9m (45.6')
Max Flow Rate 20.9 m3/hr (92 GPM), 24 m3/hr (106 GPM),
33.8 m3/hr (149 GPM)
Max Operating Temp 54°C (130°F)
Cooling Oil filled
Motor Protection Auto reset thermal overload
Materials Characteristics
Cap Cast iron
Motor Housing Cast iron
Pump Housing Cast iron
Base Engineered plastic or cast iron
Upper Bearing Sleeve bearing
Lower Bearing Sleeve or ball bearing
Mechanical Seals Carbon and ceramic
Impeller Type Non-clogging vortex
Impeller Engineered plastic or bronze
Hardware Stainless steel
Motor Shaft AISI 1215 cold roll steel, 1144 steel or JIS
S45C steel
Gasket Neoprene
FM2728_Eb
Section W2.50.090
Updated 0313
Supersedes 1011
Model
Model Number Mode Volts Phase Amps KW (p1) Hz Kg Lbs
WU266 Auto 220 1 4.4 0.7 50 34 76
WU270 Auto 220 1 6.2 1.1 50 34 76
WU271 Auto 220 1 8.5 1.7 50 34 76
Power cords less than 10m (33') on CE rated models are intended for indoor use only.
46 x 76 cm (18" x 30") simplex systems ship four units to a skid. 61 x 61 cm (24" x 24") and 61 x 91 cm (24" x 36") simplex systems ship individually.
Reserve Powered Design: For unusual conditions, a reserve safety factor is engineered into the design of every pump.
