User Manual: Pump 1989 1 Zoeller 3161-0004 Brochure

Open the PDF directly: View PDF PDF.
Page Count: 2

3098 Automatic
3282 Nonautomatic
SECTION: 2.60.120
FM0806
0811
Supersedes
0809

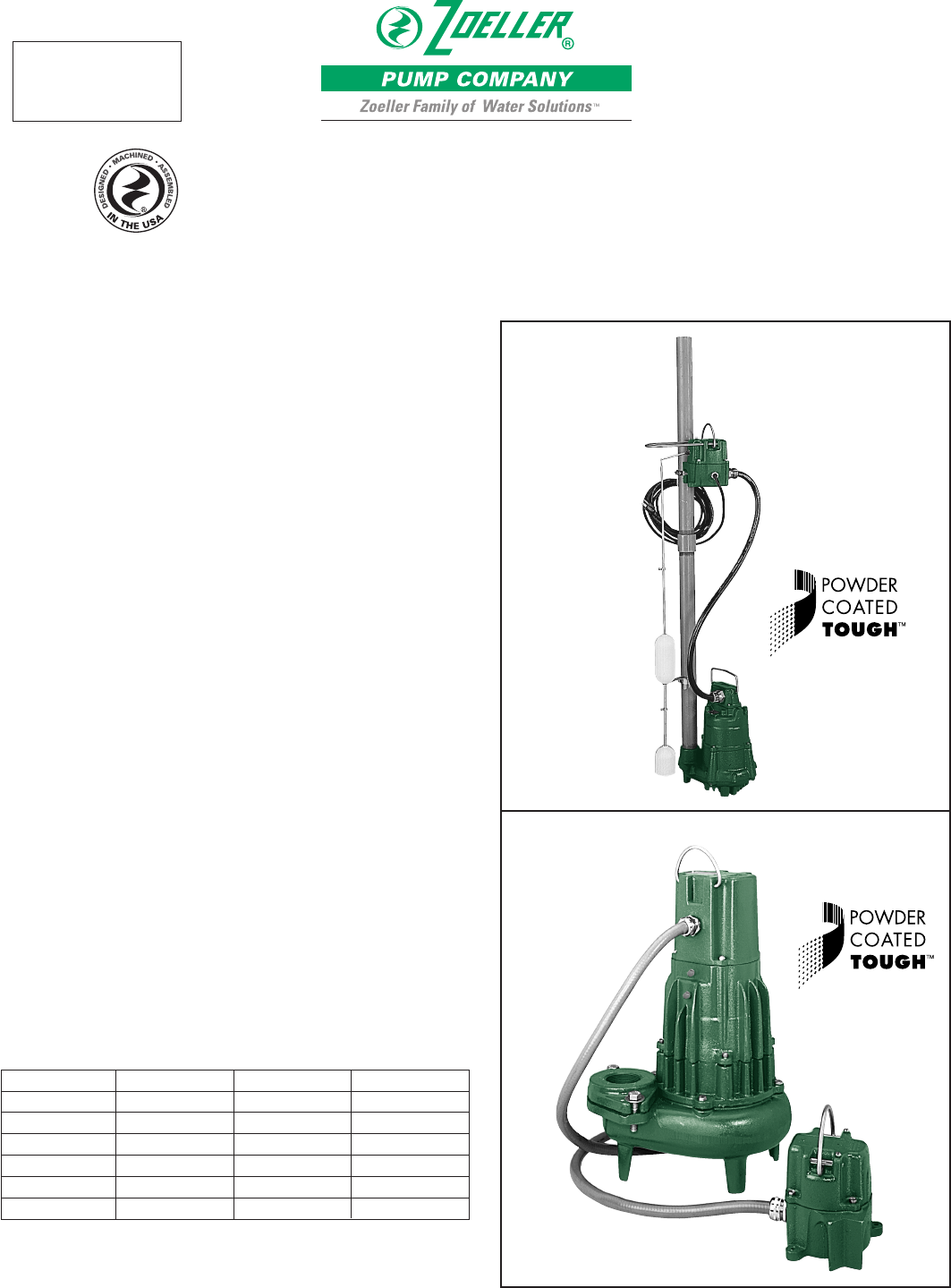

HIGH TEMPERATURE
SUBMERSIBLE PUMPS
FOR USE IN DEWATERING APPLICATIONS UP TO 200 DEGREES F.
COMPARE THESE FEATURES
• A High temperature submersible pump series with
electrical components meeting the National
Electrical Code requirements for 200° F service
• Comprehensive line of models, styles and modes
• Conduit length is 3 feet for automatic models and 6 feet for
nonautomatic models
• Power cord length is 15 feet for automatic models and
supplied by others for nonautomatic models
• High temperature liquid-tight conduit used with high
temperature cable
• High temperature motor windings
• High temperature Viton® gaskets
• High temperature thermal overload protected
• All control components in contact with the water are high
temperature rated
• All models have vortex impeller design
• All models have stainless steel screws, guards, handles
and control arm & seal assemblies
• Float operated mechanical switch box which is mounted
on the discharge pipe above the operating level (Switch
box is not intended to come in continuous contact with
200° F water)
• Mechanical seal has NI-Resist rotary face and Viton®
elastomer
• Corrosion-resistantpowdercoatedepoxynish
FLOAT ADJUSTMENT LEVELS
FOR AUTOMATIC UNITS
MODEL NO. MIN. "OFF" MIN. "ON" * MAX. "ON" *
3098 3" 12" 24"
3137 3" 12" 26"
3139 3" 12" 26"
3161 4½" 14" 28½"
3163 4½" 14" 28½"
3282 4½" 14" 28½"
*See note 3 on back for additional lengths.
(For Pump Prex Identication see News & Views 0052)
© Copyright 2011 Zoeller Co. All rights reserved.
Product may not be
exactly as pictured.
Product information presented
here reects conditions at time
of publication. Consult factory
regarding discrepancies or
inconsistencies.
MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624
visit our web site:
www.zoeller.com
®
Your Peace of Mind is Our Top Priority ®
AVAILABLE IN THE FOLLOWING MODELS
*Specify 2" or 3" discharge size (i.e. M3282 with 3" discharge).
NOTE: 1) Cable from disconnect to control box
(customer furnished) should be rated
105°C (221°F).
2) Nonautomatic models available with
6 ft. of High Temperature liquid-tight
conduit cable (200°F) and a watertight
junction box for outdoor or above the
waterline installation.
3) The maximum "On" levels can be extended
for automatic pumps by adding additional
cord and conduit length. Float rods are
extended in 1' increments. Order an
extender kit P/N 10-0656 for each
additional foot of length desired.
4)
CAUTION
Check valves used in High
Temperature service must be all metal
swing type check valves.
5)
CAUTION
The basin material must be
able to withstand the sustained, elevated
temperature anticipated.
CAUTION
All installation of controls, protection devices and wiring
should be done by a qualied licensed electrician. All
electrical and safety codes should be followed including
the most recent National Electrical Code (NEC) and the
Occupational Safety and Health Act (OSHA).
009789
© Copyright 2011 Zoeller Co. All rights reserved.
Model Mode HP
Discharge
Solid Volts Ph Material Amps Wt.
M3098 Auto 1/2 1-1/2" 1/2" 115V 1 Cast Iron 9.4 52
N3098 Non 1/2 1-1/2" 1/2" 115V 1 Cast Iron 9.4 49
D3098 Auto 1/2 1-1/2" 1/2" 230V 1 Cast Iron 4.7 52
E3098 Non 1/2 1-1/2" 1/2" 230V 1 Cast Iron 4.7 49
M3137 Auto 1/2 1-1/2" 5/8" 115V 1 Cast Iron 10.7 57
N3137 Non 1/2 1-1/2" 5/8" 115V 1 Cast Iron 10.7 53
D3137 Auto 1/2 1-1/2" 5/8" 230V 1 Cast Iron 5.8 57
E3137 Non 1/2 1-1/2" 5/8" 230V 1 Cast Iron 5.8 53
M3139 Auto 1/2 1-1/2" 5/8" 115V 1 Bronze 10.7 60
N3139 Non 1/2 1-1/2" 5/8" 115V 1 Bronze 10.7 56
D3139 Auto 1/2 1-1/2" 5/8" 230V 1 Bronze 5.8 60
E3139 Non 1/2 1-1/2" 5/8" 230V 1 Bronze 5.8 56
Model Mode HP
Discharge
Solid Volts Ph Material Amps Wt.
M3161 Auto 1/2 1-1/2" (2",3")* 3/4" 115V 1 Cast Iron 15.5 87
N3161 Non 1/2 1-1/2" (2",3")* 3/4" 115V 1 Cast Iron 15.5 83
D3161 Auto 1/2 1-1/2" (2",3")* 3/4" 230V 1 Cast Iron 7.0 87
E3161 Non 1/2 1-1/2" (2",3")* 3/4" 230V 1 Cast Iron 7.0 83
M3163 Auto 1/2 1-1/2" (2",3")* 3/4" 115V 1 Cast Iron 15.0 87
N3163 Non 1/2 1-1/2" (2",3")* 3/4" 115V 1 Cast Iron 15.0 83
D3163 Auto 1/2 1-1/2" (2",3")* 3/4" 230V 1 Cast Iron 7.5 87
E3163 Non 1/2 1-1/2" (2",3")* 3/4" 230V 1 Cast Iron 7.5 83
M3282 Auto 1/2 2" (3")* 2" 115V 1 Cast Iron 10.3 90
N3282 Non 1/2 2" (3")* 2" 115V 1 Cast Iron 10.3 86
D3282 Auto 1/2 2" (3")* 2" 230V 1 Cast Iron 5.0 90
E3282 Non 1/2 2" (3")* 2" 230V 1 Cast Iron 5.0 86
0
10 20 30 40 50 60 70 80 90 100 110 120
0
5
10
15
20
25
30
35
40
45
50
55
65
LITERS
GALLONS
FEET
METERS
40 80 120 160 200 240 280 320 360 400 440
2
4
6
8
10
12
14
16
18

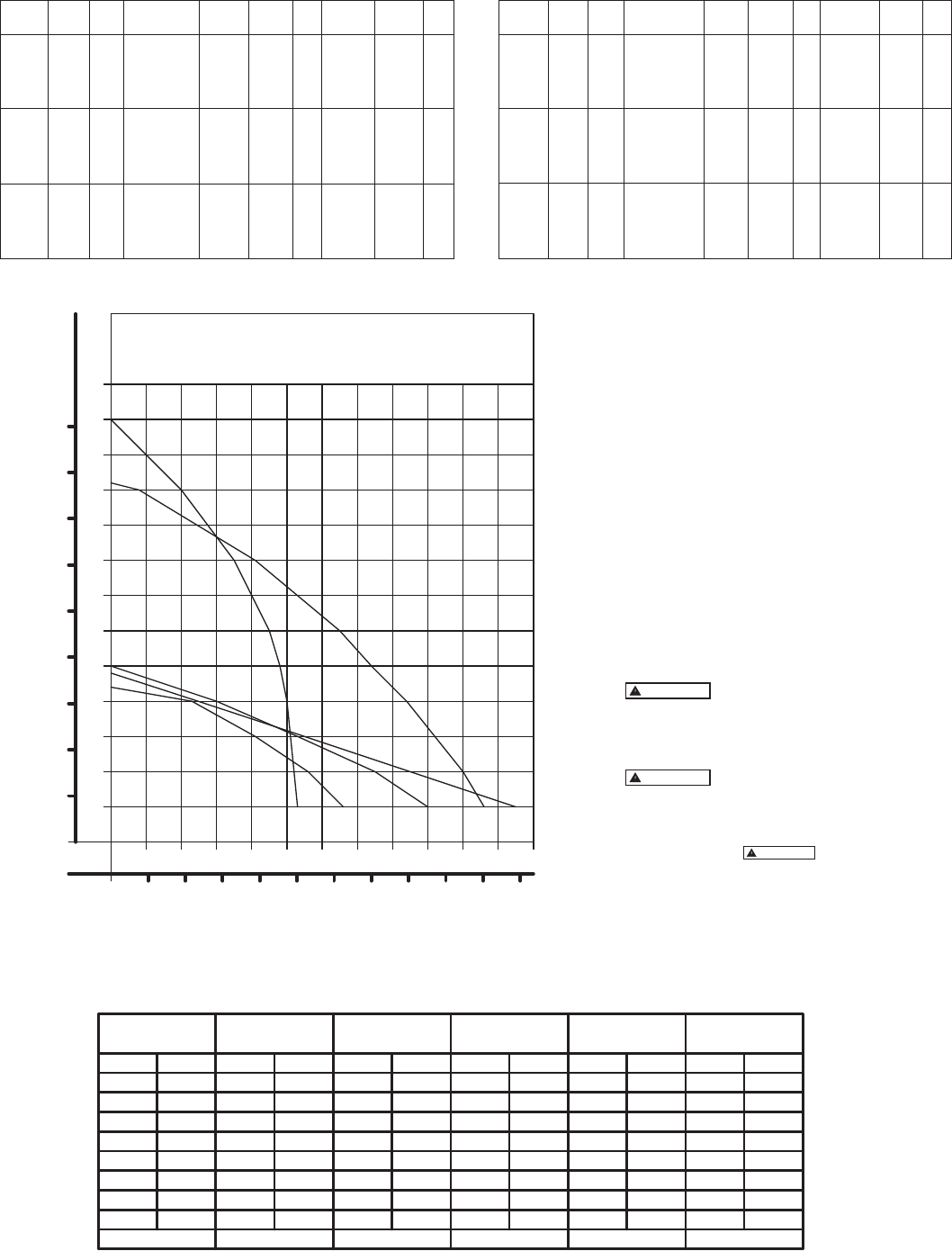

PUMP PERFORMANCE CURVE
MODELS 3098-3137-3139-3161-3163-3282
200° F. WATER TEMPERATURE
3163 3098 3137/
3139
3161 3282
Feet
MODEL
Shut-off Head:
Meters LitersGal. Gal. Liters Gal. Liters Gal. Liters Gal. Liters
3098 3137/3139 3161 3163 3282
5 1.5
10
15
20
25
30
40
50
4.6
15.2
12.2
9.1
7.6
6.1
3.0
21 ft.(6.4m) 25 ft.(7.6m) 51 ft.(15.5m) 60 ft.(18.3m) 24 ft.(7.3m)
41 155
23 87
66
56
250
212
20153
30 114
90
75
341
284
34892
84 318
106
100
401
378
41 155
308
246
28074
65
19351
189
182
170
132
20
35
76
45
48
50
201
197
53
52
20855
25 95
115
85
435
322
-- -- -- --
--
--
----
--
----
--
----
--
--
-- --
--
--
----
--
--
TOTAL DYNAMIC HEAD/FLOW PER MINUTE
SEWAGE AND DEWATERING
FLOW PER MINUTE
TOTAL DYNAMIC HEAD
60
