INSTALL A QWIK JON® ULTIMA
JUST ABOUT ANYWHERE
• Contains 1/2 HP mini-grinder pump, cCSAus Certifi ed
• Preassembled pump and tank for easy installation
• Model 202 includes a comfort height, ADA compliant
Zoeller rear outlet toilet with elongated bowl or, you can use
Model 203 Ultima with a variety of rear outlet toilet styles
• No need to destroy concrete fl oors
• No need to elevate fl oor
• Designed to accommodate a toilet, lavatory, bathtub and/or
shower
• Perfect for basements, cabins, workshops,
garages, additions, pool houses, etc.
• Reduces construction cost
• 1" discharge (can be reduced to 3/4" to
replace existing systems)
• Pumps any direction
SECTION: 2.60.025
FM2368
0810
Supersedes
1109
© Copyright 2010 Zoeller Co. All rights reserved.
Product information presented
here re fl ects con di tions at time
of publication. Consult factory
re gard ing dis crep an cies or
in con sis ten cies. MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624
visit our web site:
www.zoeller.com
by Zoeller
®
SEWAGE
REMOVAL
SYSTEM
Economical sewage systems designed for freestanding or built in installation.
The Qwik Jon® Ultima
can be installed either
freestanding or behind a
wall with the 2" MPT or
1-1/2" internal slip
side inlets.
ADD VALUE TO
YOUR PROPERTY
No need to raise the fl oor in your basement. The Qwik
Jon® Ultima installs behind the toilet.
Model 202 Cutaway
Model 202
Ndtith flibtTh Qik
UPC
®
C
Complies with
ASME A112.3.4
and CSA B45.9.
With dual cutting
action that provides
over 70,000 cuts
per minute!
© Copyright 2010 Zoeller Co. All rights reserved.
TOTAL DYNAMIC HEAD/FLOW
PER MINUTE
QWIK JON® ULTIMA
FEET METERS GALLONS LITERS
5 1.5 45 170
10 3.0 40 151
15 4.6 35 132
20 6.1 27 102
25 7.6 16 61
Shut-off Head - 30 ft. ( 9.1 meters)
QWIK JON® ULTIMA FEATURES:
• Non-corrosive engineered thermoplastic mini-grinder pump
• Dual cutting action provides over 70,000 cuts per minute, greatly reducing
the potential for clogging and increasing pump reliability
• Pump 100% factory tested after assembly
• 1/2 HP motor, 115 V, 60 Hz, 3450 RPM
• Automatic reset thermal overload protected
• Hardened stainless steel cutter and disc
• Carbon/Ceramic mechanical shaft seal
• Upper and lower ball bearing running in a bath of oil
• 1" discharge (can be reduced to 3/4" to replace existing systems)
• All stainless steel hardware
• ABS tank with 2" MPT or 1-1/2" slip side inlets
• Preassembled with preset piggyback vertical fl oat switch
• 2 models available, complete with toilet (Model 202) or tank only
adaptable to standard rear-outlet toilets (Model 203)
Model 203 not compatible with Zoeller rear outlet toilet.
These pumps are not designed for use in any other application.

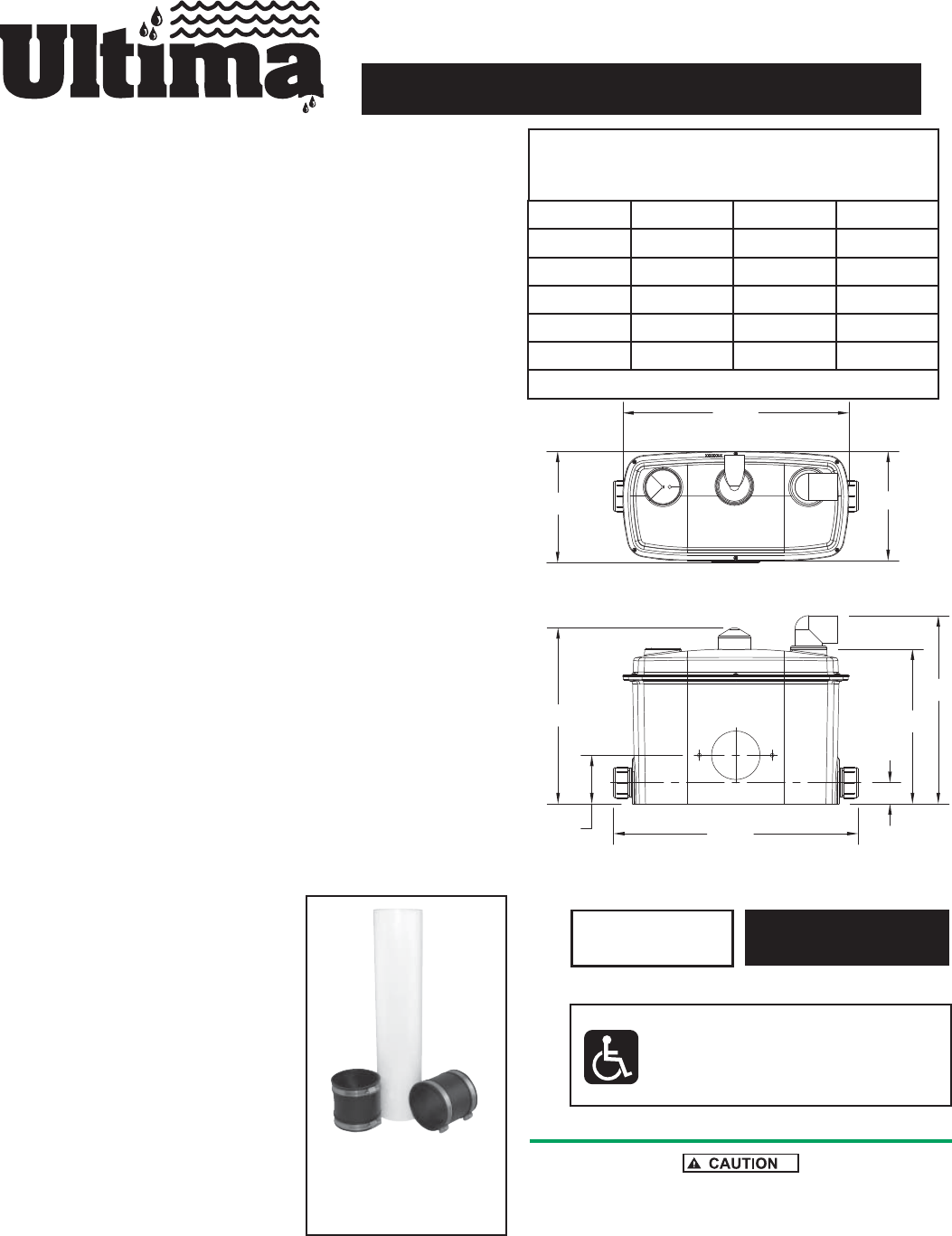

TECHNICAL INFORMATION
by Zoeller
®
SEWAGE REMOVAL SYSTEM
All installation of controls, protection devices and wiring should be
done by a qualifi ed licensed electrician. All elec tri cal and safety codes
should be followed including the most recent National Electrical
Code (NEC) and the Occupational Safety and Health Act (OSHA).
Must be installed per local codes.
QWIK JON® ULTIMA SYSTEMS INCLUDE:
MODEL 202 includes the tank, mini-grinder pump and a comfort height, ADA
compliant toilet with elongated bowl.
MODEL 203 includes the tank and mini-grinder pump. A standard rear outlet
toilet with a discharge height of 4" from fl oor to centerline must be purchased
separately.
Pump
• cCSAus Listed
• Automatic level control switch
• Thermal overload protected motor
• Stainless steel screws, bolts & handle
• Non-clogging vortex impeller
• UL Listed 3-wire neoprene 9 ft. cord & plug
• Maximum temperature 130°F (54°C), 7.0 FLA
Tank
MODEL 202 or MODEL 203
• Durable ABS tank w/white fi nish
• Lightweight
• Built-in check valve
Model 202 meets the Americans with
Disabilities Act guidelines and ANSI
A117.1 requirements for accessible and
usable facilities - check local codes.
1 3/4
4
(MODEL 203 ONLY)
14 1/2
15 1/2
9
9 3/16
18 5/8
12 3/4
20 1/8
SK2626
1.6 GPF
Patent No. 7,203,976
Other Patents Pending
ITEMS INCLUDED:
• Comfort height, ADA compliant toilet
with elongated bowl (Model 202 only)
• Tank, lid & gasket
• 1/2 HP mini-grinder pump
• Back-fl ow device (check local codes)
• 1" Discharge & 1-1/2" Vent
• Extension kit (Model 203 only)
• Hardware pack
• Installation instructions
• Shipping weight:
Model 202 - 121 lbs. / Model 203 - 37 lbs.
ITEMS NEEDED BY INSTALLER:
• Supply fi ttings & waste pipe
• Toilet (Model 203 only)
• Toilet seat (Models 202 & 203)
• Electrical source with ground fault interrupter (GFCI) protected receptacle
• Water supply • Tools • Hardware to mount toilet to fl oor
Optional Qwik Jon Ultima
Extension Kit for Model
202. For behind-the-wall
installations. P/N 10-2123*
*Not
IAPMO
approved.
