© Copyright 2005 Zoeller Co. All rights reserved.
SECTION: 2.30.010
FM1784
0305
Supersedes
0803
ALL MODELS ARE
COMPLETELY SUBMERSIBLE
HERMETICALLY SEALED
Watertight - dust tight. MODELS AVAILABLE
• Automatic or Nonautomatic
AUTOMATIC
MODEL
COMPARE THESE FEATURES
• 115V single phase/60 Hz, .4 HP,
5.5 Amps, 3400 RPM.
• Thermal overload protection.
• Non-corrosive engineered plastic motor
housing, pump housing, base, and impeller.
• Oil Free.
• No steel sheet metal parts to rust or corrode.
• All stainless steel screws, switch arm, and
lower motor housing.
• 2-pole fl oat operated mechanical switch.
• Solid polypropylene fl oat.
• UL Listed 15' cord with 3-prong plug.
• Maximum temperature for dewatering -
110°F (43°C).
• Passes 2" inch spherical solids.
• 2" NPT discharge.
• Non-clogging vortex impeller.
• On point— 13" • Off point— 5-3/4"
• Major width - 9-5/16" • Height - 15-7/8"
Model 211
(For Pump Prefi x Identifi cation
see News & Views 0052)
“AQUA-MATE”
SUBMERSIBLE PUMP
FOR
SEWAGE/EFFLUENT OR DEWATERING
PASSES 2" SOLIDS
2" NPT DISCHARGE
Manufacturers of . . .
Product information presented
here refl ects conditions at time
of publication. Consult factory
regarding discrepancies or
inconsistencies. MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624
visit our web site:
www.zoeller.com
Note: The sizing of effl uent systems normally requires variable level
fl oat(s) controls and properly sized basins to achieve required
pumping cycles or dosing timers with nonautomatic pumps.
(Tested to UL778 and
CSA22.2 108 Standards)
© Copyright 2005 Zoeller Co. All rights reserved.
SELECTION GUIDE
1. Integral fl oat operated mechanical switch, no external control required.
2. For automatic use single piggyback variable level fl oat switch or double piggyback vari-
able level fl oat switch. Refer to FM0477.
3. See FM1663 for a residential alternator system.
• Variable level Float Switches available.
• Variable level long cycle systems available.
• Alarm systems available.
CONSULT FACTORY
FOR SPECIAL APPLICATIONS
RESERVE POWERED DESIGN
For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.
MAIL TO: P.O. BOX 16347
Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road
Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP
FAX (502) 774-3624
Manufacturers of . .
www.zoeller.com
All installation of controls, protection devices and wiring should be done by a qualifi ed licensed
electrician. All electrical and safety codes should be followed including the most recent National
Electric Code (NEC) and the Occupational Safety and Health Act (OSHA).
For information on additional Zoeller products refer to catalog on Piggyback Variable Level Float
Switches, FM0477; Sump/Sewage Basins, FM0487; and Single Phase Simplex Pump Control/Alarm
Systems, FM0732.
Single Seal
Control Selection
Model Volts - Ph Mode Amps Simplex Duplex
M 211 115 1 Auto 5.5 1 3
N 211 115 1 NonAuto 5.5 2 2 & 3
014718A
014718B
Recommended for 2" pipe only.
FLOW PER MINUTE
0
LITERS
GALLONS
0
1208040
2010 30
200160
40 50
TOTAL DYNAMIC HEAD
10
25
15
4
METERS
25
6
FEET

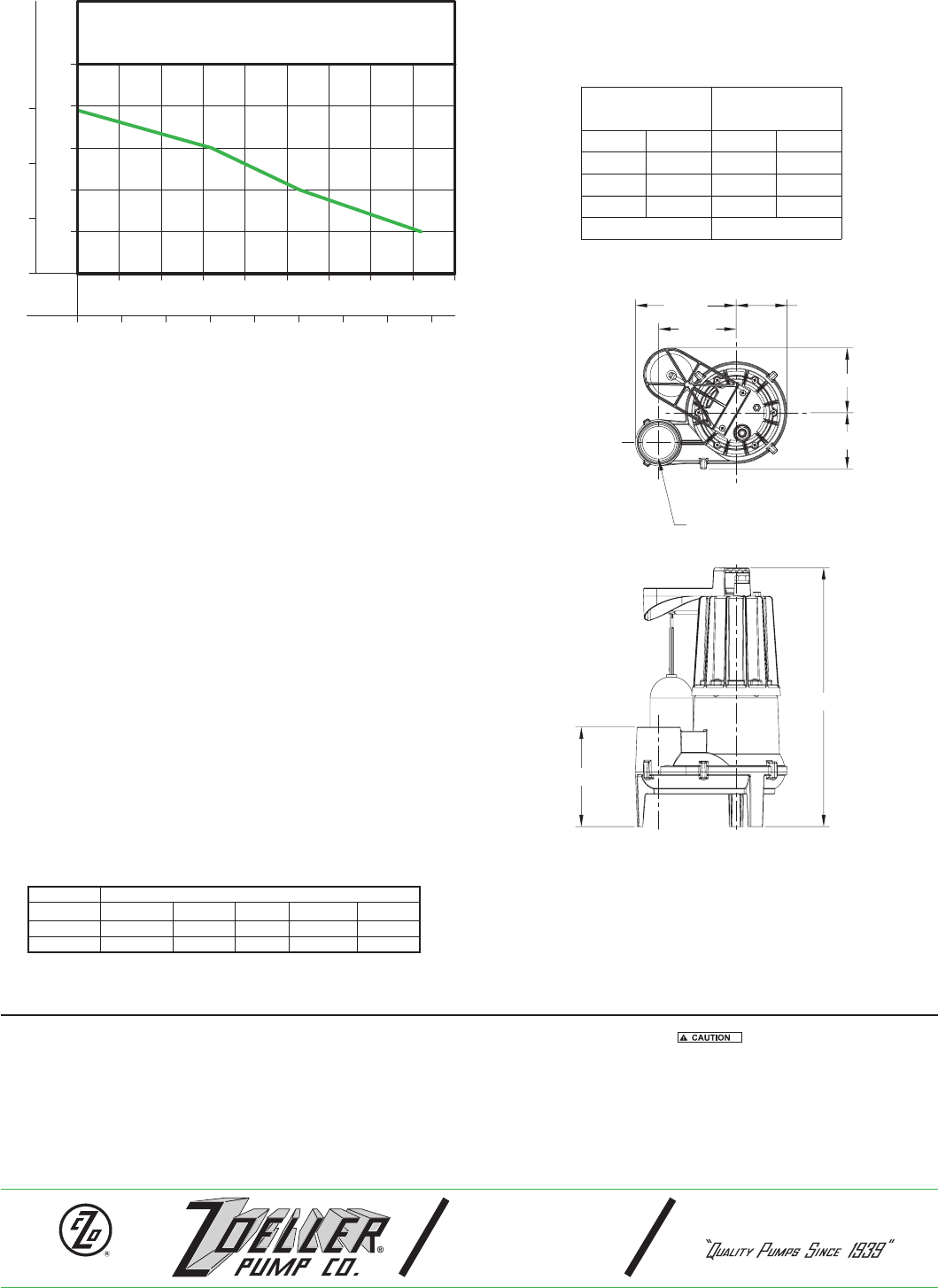

PUMP PERFORMANCE CURVE
MODEL 211
80
280240
60 70
320
90
20
19.5 ft. (5.9m)
Gal.
Shut-off Head:
15
10
5
Feet
4.6
3.0
32
53
1.5
Meters
82
MODEL
121
201
310
Liters
211
TOTAL DYNAMIC HEAD/FLOW
PER MINUTE
SEWAGE AND DEWATERING
6 1/8
15 7/8
2" - 11 1/2 N.P.T.
4
3 7/16
4 3/4
6 3/16 3 1/8
SK2092A
