© Copyright 2009 Zoeller Co. All rights reserved.
SECTION: 2.20.007
FM2419
1109
Supersedes
1108
Product information presented
here re fl ects con di tions at time
of publication. Consult factory
re gard ing dis crep an cies or
in con sis ten cies. MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624
visit our web site:
www.zoeller.com

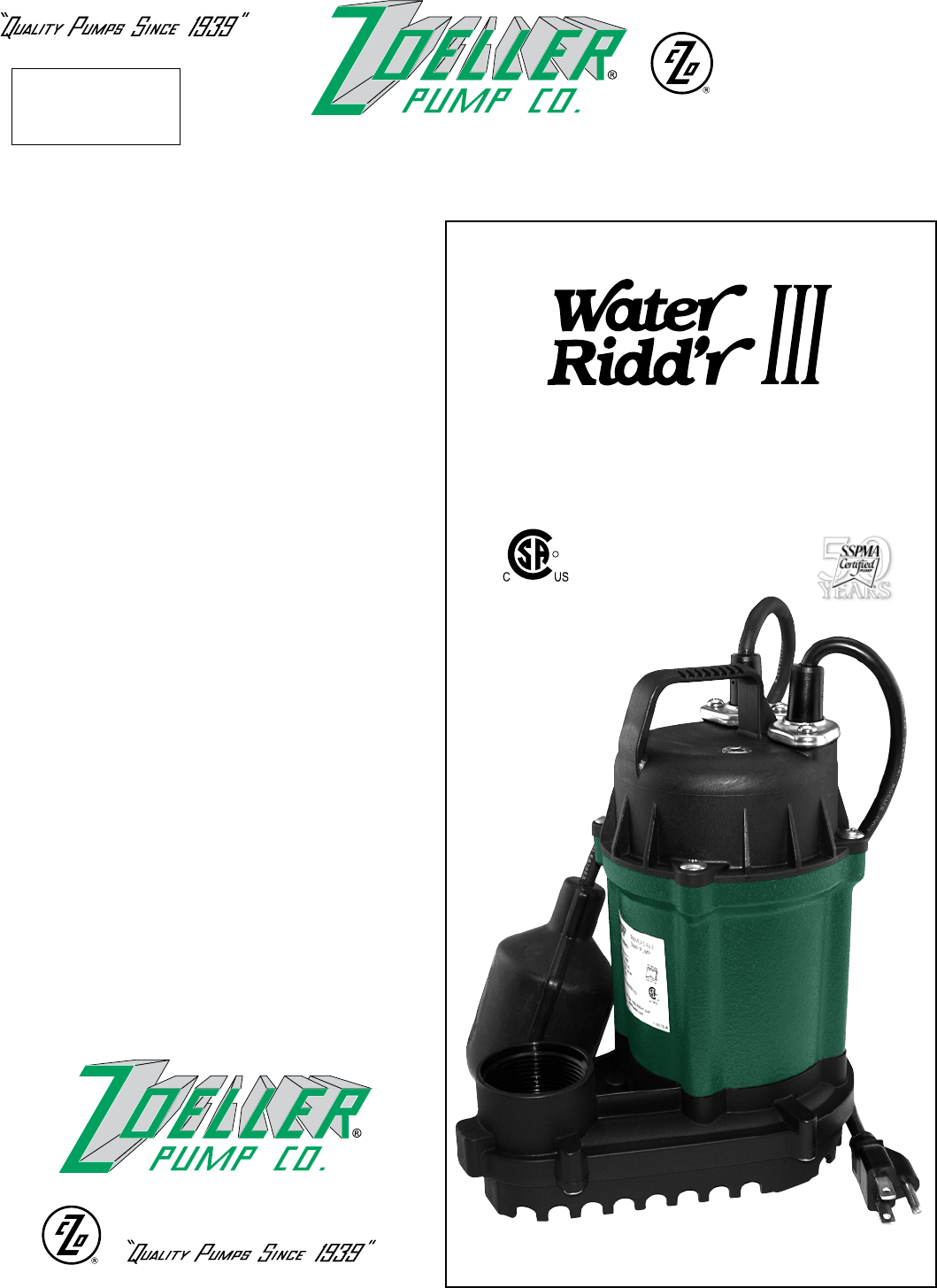

SUBMERSIBLE PUMP
DEWATERING (SUMP)
PASSES 3/8" SPHERICAL SOLIDS
1½" NPT Discharge
COMPARE THESE FEATURES
MOTOR:
115 Volts, single phase, 60 Hz, ¼ HP, 3.8 amps, 3450
RPM, oil-fi lled, hermetically sealed, automatic reset
thermal over load protected.
MOTOR HOUSING:
Rugged cast iron motor housing with rust resistant baked-
on enamel fi nish.
Effi cient heat sink for heat dissipation.
BASE/PUMP HOUSING:
Glass-fi lled polypropylene with no screen.
Passes 3/8" spherical solids.
IMPELLER:
Non-Clog vortex impeller, engineered glass-fi lled
thermoplastic with metal insert.
POWER CORD:
UL Listed 9 ft., 3-wire cord and plug.
SWITCH:
Reliable tethered fl oat switch.
SEALS:
Carbon & ceramic rotary seal.
Watertight neoprene seal between motor and cover.
FASTENERS:
Stainless steel screws and hardware.
TEMPERATURE RATING:
104°F (40°C).
CYCLE:
On point: 11-1/4" • Off Point - 4-1/8"
DIMENSIONS:
Maximum width: 8-3/32" • Height: 10-1/2"
Weight: 11.0 lbs • Fits 12" Diameter Pits.
100% Factory Tested After Assembly
Manufacturers of . . .
R
227875
Certifi ed to CSA
Standard C22.2 No. 108
49 Cast Iron Series
Available Model:
Automatic only
© Copyright 2009 Zoeller Co. All rights reserved.
TOTAL DYNAMIC HEAD
FLOW PER MINUTE
15
LITERS 0
GALLONS
20 40
510
0
25
25
100
8060
20 35

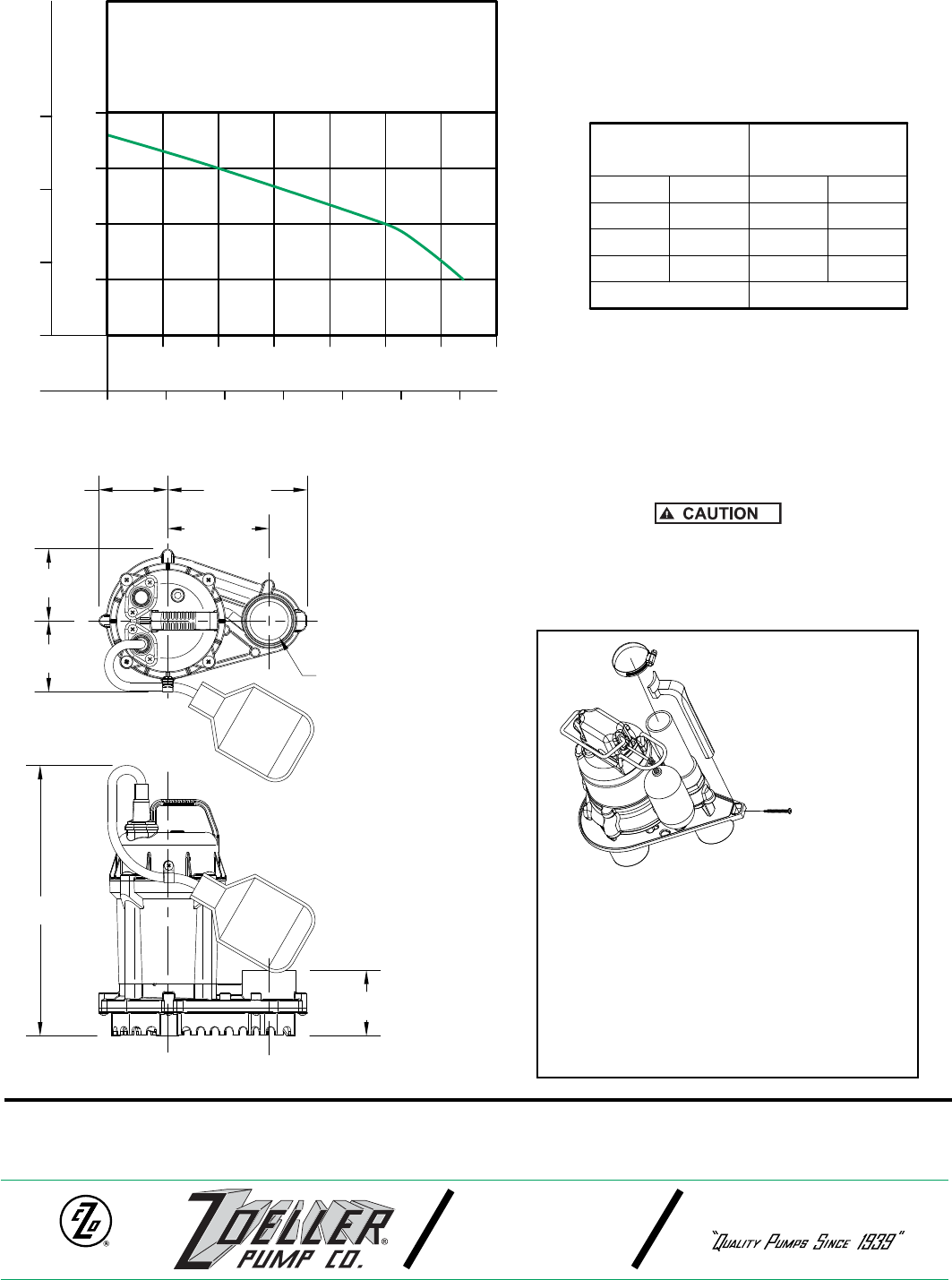

PUMP PERFORMANCE CURVE
MODEL 49
FEET
METERS
4
10
15
620
30
120
018141
For information on additional Zoeller products refer to catalog on Sump/Sewage Basins,
FM0487; Alarm Sys tems, FM0732; and Disconnect/Rail Sys tems, FM0787.
All installation of controls, protection devices and wiring should be done by a quali-
fi ed licensed electrician. All electrical and safety codes should be followed including
the most recent National Elec trical Code (NEC) and the Occupational Safety and
Health Act (OSHA).
MAIL TO: P.O. BOX 16347
Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road
Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP
FAX (502) 774-3624
Manufacturers of . .
www.zoeller.com
RESERVE POWERED DESIGN
For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.
TOTAL DYNAMIC HEAD/FLOW
PER MINUTE
DEWATERING ONLY
Shut-off Head:
15 4.6
Feet Meters
5
10
1.5
3.0
MODEL
18 ft. (5.5m)
10 38
Gal. Liters
32
25
121
95
49
10 1/2
2 9/16
1-1/2 X 11-1/2 NPT
2 3/4
2 11/16
2 25/32
5 13/32
3 15/16
SK2635
OPTIONAL PUMP STAND P/N 10-2421
• Reduces potential clogging by debris.
• Replaces rocks or bricks under the pump.
• Made of durable, noncorrosive ABS.
• Raises pump 2" off bottom of basin.
• Provides the ability to raise intake by adding sections of 1½"
or 2" PVC piping.
• Attaches securely to pump.
• Accommodates sump, dewatering and effl uent applications.
NOTE: Make sure fl oat is free from obstruction.
"Easy assembly"
(pump & discharge pipe
not included.)
