Professional Plumbing
2
Fountain Pumps
page 5
Vertical and unique horizontal submersible
pumps specially designed for use in
decorative water displays.
page
Submersible effl uent pumps designed to
effi ciently handle septic tank effl uent
applications for the long term.
Submersible effl uent pumps designed
efficiently handle septic tank effluent
Effl uent Pumps
page 6
Sewage & Grinder Pumps
page 8
Submersible sewage ejector and grinder
pumps for a wide variety of relatively light
through heavy duty wastewater services.
pa

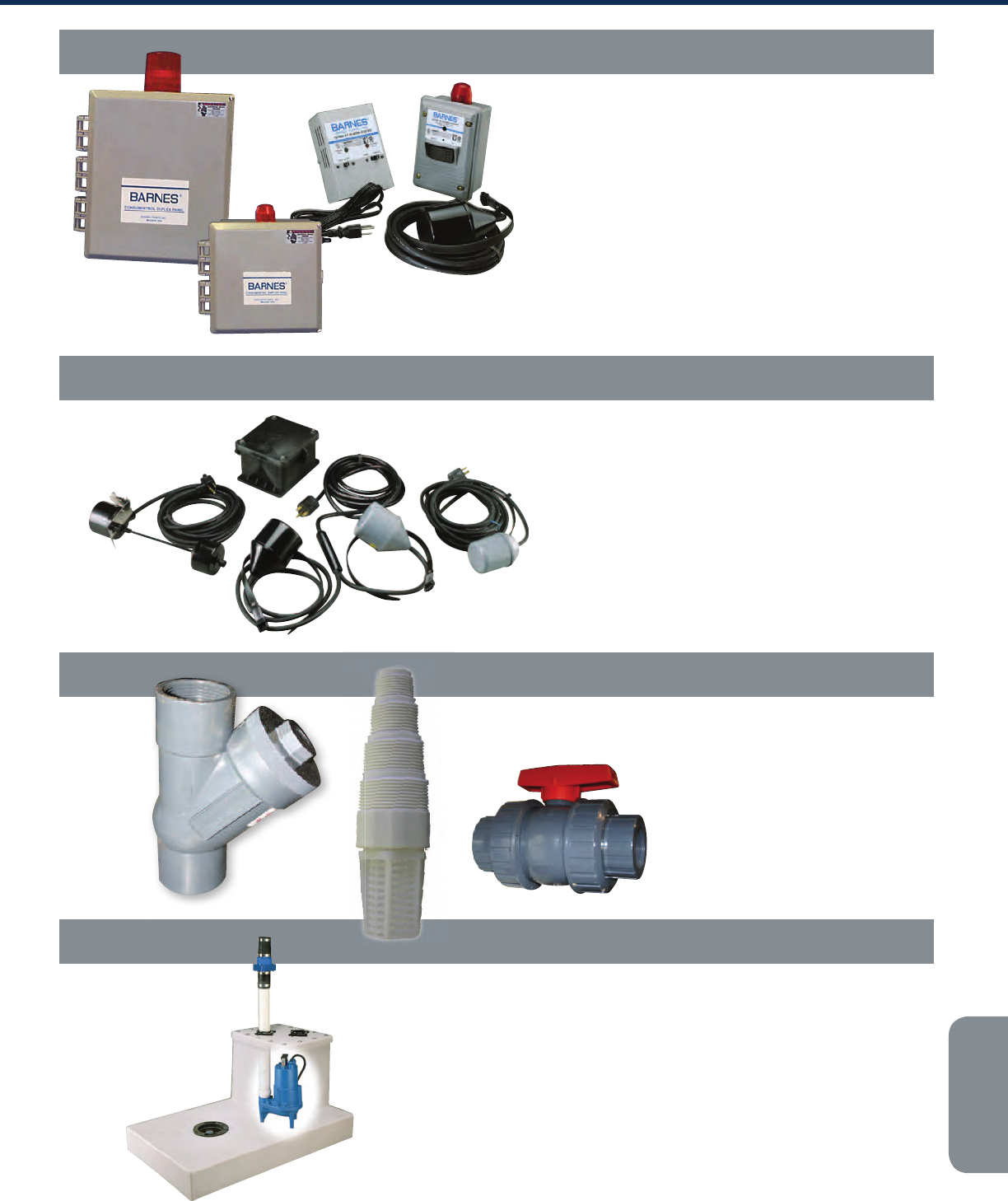

Accessories
Complete line of level controls, control
panels, break away fi ttings (BAF's) and
other accessories.
page 14
Sump Pumps
Submersible pumps for general
purpose residential, commercial
and light industrial sump applications.
page 3
Package Systems
Complete line of pre-assembled
sewage ejector packages.
page 13
pa
pa
Plumbing Supply Products
3

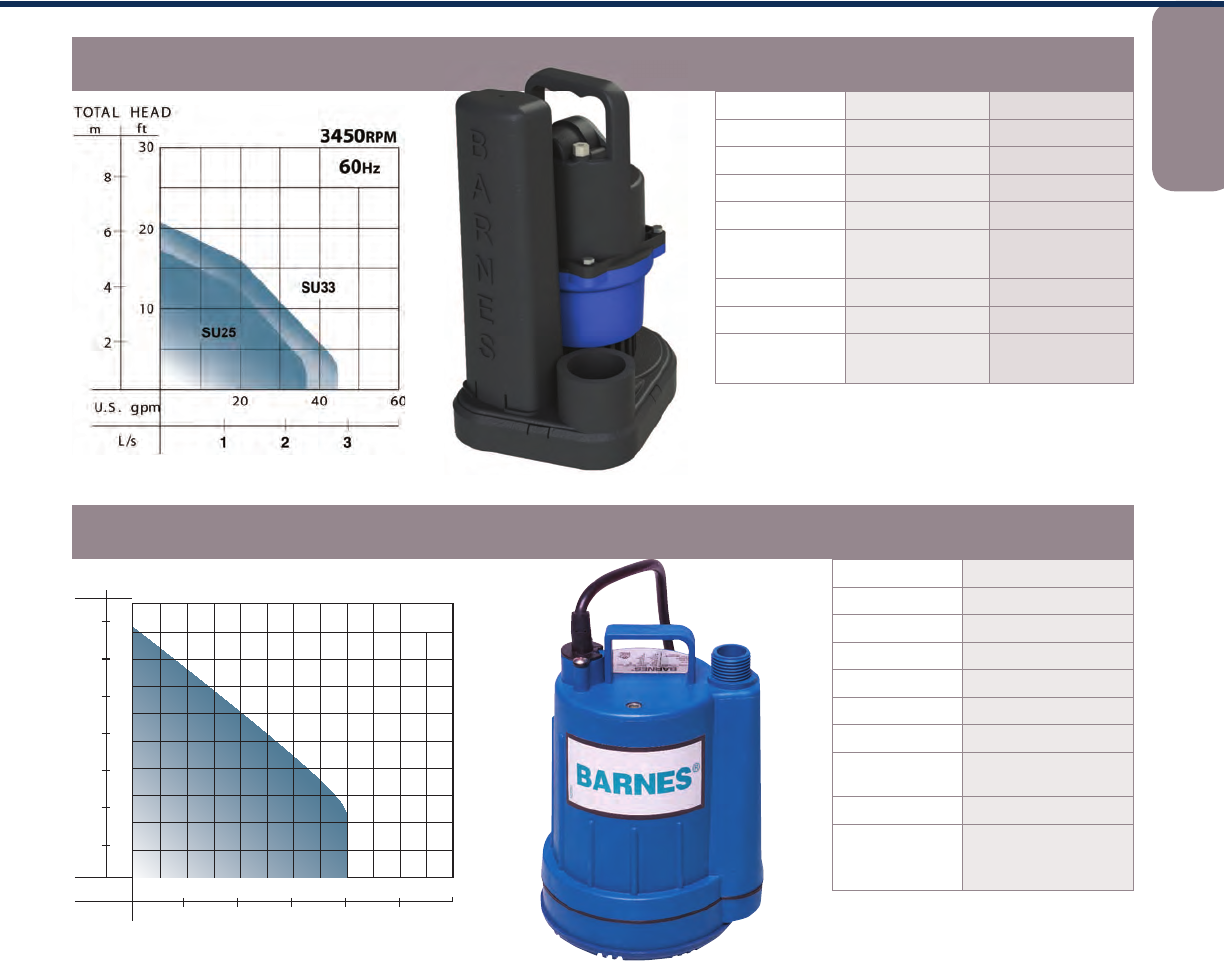

SHUR-SwitchTM SU25 • SU33
UT17 Utility Submersible Pump
Model UT17
Motor 1/6hp
RPM 3450
Electrical 120v 1ph
Cord Length 8'
Construction Thermoplastic
Impeller Thermoplastic
Discharge .75"
(garden hose thread)
Solids .13"
Automatic
Operation
(manual available)
No
TOTAL HEAD
mft
5
10
15
20
25
1
2
3
4
5
6
7
.25 .50 .75 1
20161284
U.S. gpm
L/s 1.25
3450RPM
60Hz
Removes water from any fl at surface down to 1/8".
Sump Pumps
SHU
Model SU25 SU33
Motor 1/4hp 1/3hp
RPM 3450 3450
Electrical 120v 1ph 120v 1ph
Cord Length 9' 9'
Construction Cast Iron/
Thermoplastic
Cast Iron/
Thermoplastic
Impeller Thermoplastic Thermoplastic
Discharge 1.5" 1.5"
Automatic
Operation
Vertical Float
Integral to Pump
Vertical Float
Integral to Pump
GFCI Compatible for safety•
Fully protected level switch•
Cast Iron motor enclosure•
US Patent 8,167,578
4

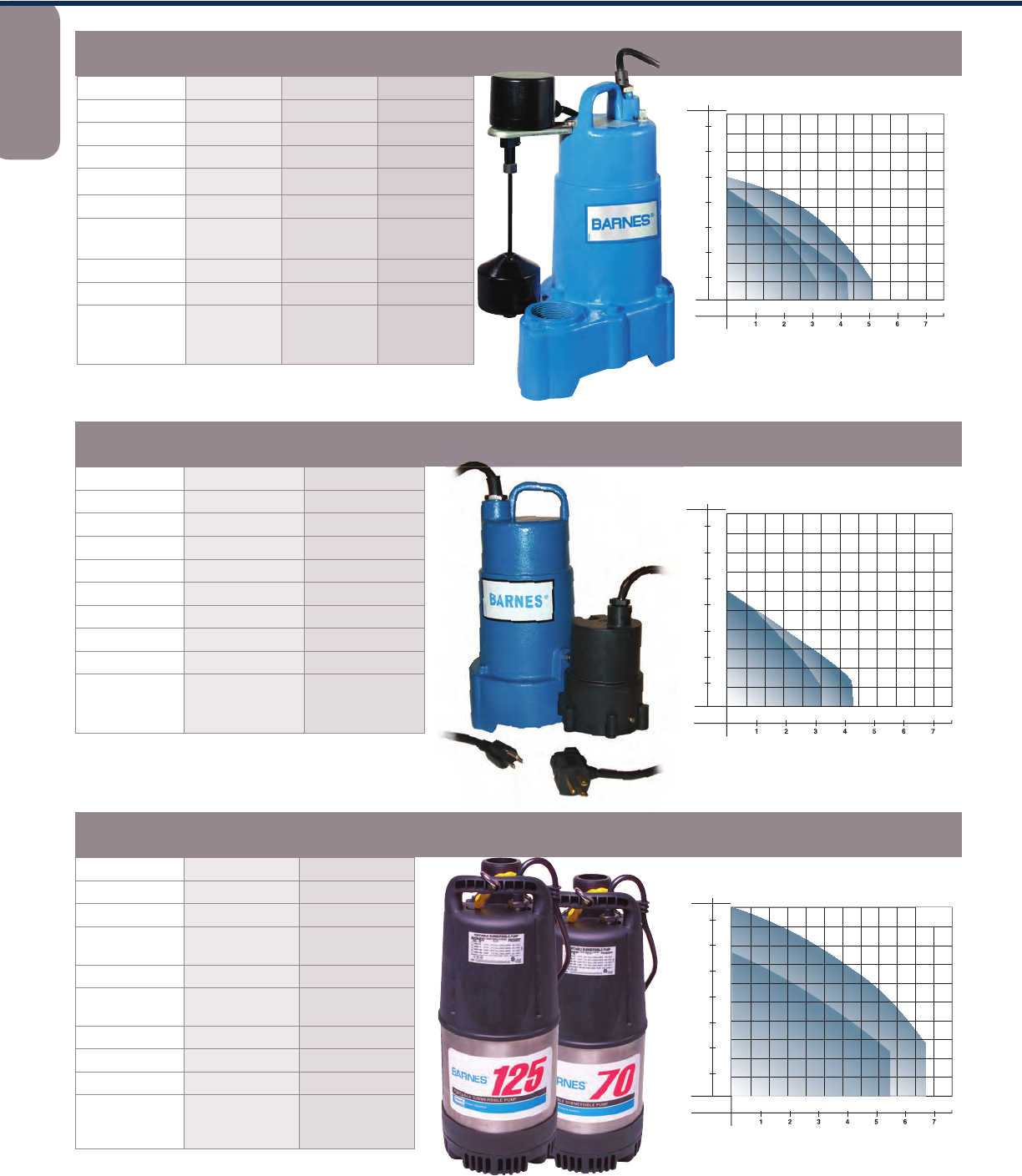

SP33 • 50 • 75 Series
Model SP33 SP50 SP75
Motor 1/3hp 1/2hp 3/4hp
RPM 3450 3450 3450
Electrical 120v 1ph 120v 1ph 120v 1ph
Cord Length 10' / 20' 20' 20'
Construction Cast Iron Cast Iron Cast Iron
Impeller Cast Iron
Vortex
Cast Iron
Vortex
Cast Iron
Vortex
Discharge 1.5" 1.5" 1.5"
Solids .5" .5" .5"
Automatic
Operation
(manual available)
Mechanical
Float
Vertical Float
Mechanical
Float
Vertical Float
Mechanical
Float
Vertical Float Available in high temperature model •
(SP33HTX) for 185˚F intermittent
service.
GFCI Compatible for Safety•
TOTAL HEAD
mft
10
20
30
40
50
2
4
6
8
10
12
14
12010080604020
U.S. gpm
L/s
SP50
SP33 SP75
3450RPM
60Hz
SP33D • SP50DX
Model SP33D SP50DX
Motor 1/3hp 1/2hp
RPM 3450 3450
Electrical 120v 1ph 120v 1ph
Cord Length 10' 20'
Construction Cast Iron Cast Iron
Impeller Cast Iron Vortex Cast Iron Vortex
Discharge 1.5" 1.5"
Solids .5" .5"
Automatic
Operation
(manual available)
Diaphragm
switch with
piggy-back cord
Diaphragm
switch with
piggy-back cord
Sump Pumps
Model 70 125
Motor 7/10hp 11/4hp
RPM 3450 3450
Electrical 120v 1ph
240v 1ph
120v 1ph
240v 1ph
Cord Length 50' 50'
Construction Stainless Steel
Motor Shell
Stainless Steel
Motor Shell
Impeller Polyurethane Polyurethane
Discharge 2" 2"
Solids .25" .25"
Automatic
Operation
(manual available)
No No
70 & 125 Submersible Dewatering Pumps
TOTAL HEAD
mft
10
20
30
40
50
2
4
6
8
10
12
14
12010080604020
U.S. gpm
L/s
.7hp
1.25hp
3450RPM
60Hz
GFCI Compatible for Safety
Plumbing Supply Products
SF & 3SF-L
Model SF & 3SF-L
Motor 1/2hp • 1hp
RPM 1750
Electrical 115v 1ph (1/2hp only)
230v 1ph
Cord Length 15'
Construction Cast Iron
Impeller Cast Iron
Discharge 2"
Automatic
Operation
(manual available)
No
TOTAL HEAD
mft
10
20
30
40
50
2
4
6
8
10
12
14
2 4 6 8 10 12 14 16 18
30025020015010050
U.S. gpm
L/s
1/2hp
1hp
3/4hp
1750RPM
60Hz
SFU Series
Motor 1/3hp • 1/2hp • 3/4hp • 1hp
RPM 3450
Electrical 115v 1ph (1/3,1/2, 3/4
hp)
230v 1ph (3/4, 1 hp)
Cord Length 12'
Construction Stainless Steel Screen
Impeller Brass
Discharge 1.75"
Solids .25"
Automatic
Operation
(manual available)
No
TOTAL HEAD
mft
10
20
30
40
50
4
6
8
10
12
14
1 2 3 4 5 6 7
12010080604020
U.S. gpm
L/s
1hp
3450RPM
60Hz
16
1/3hp
1/2hp
3/4hp

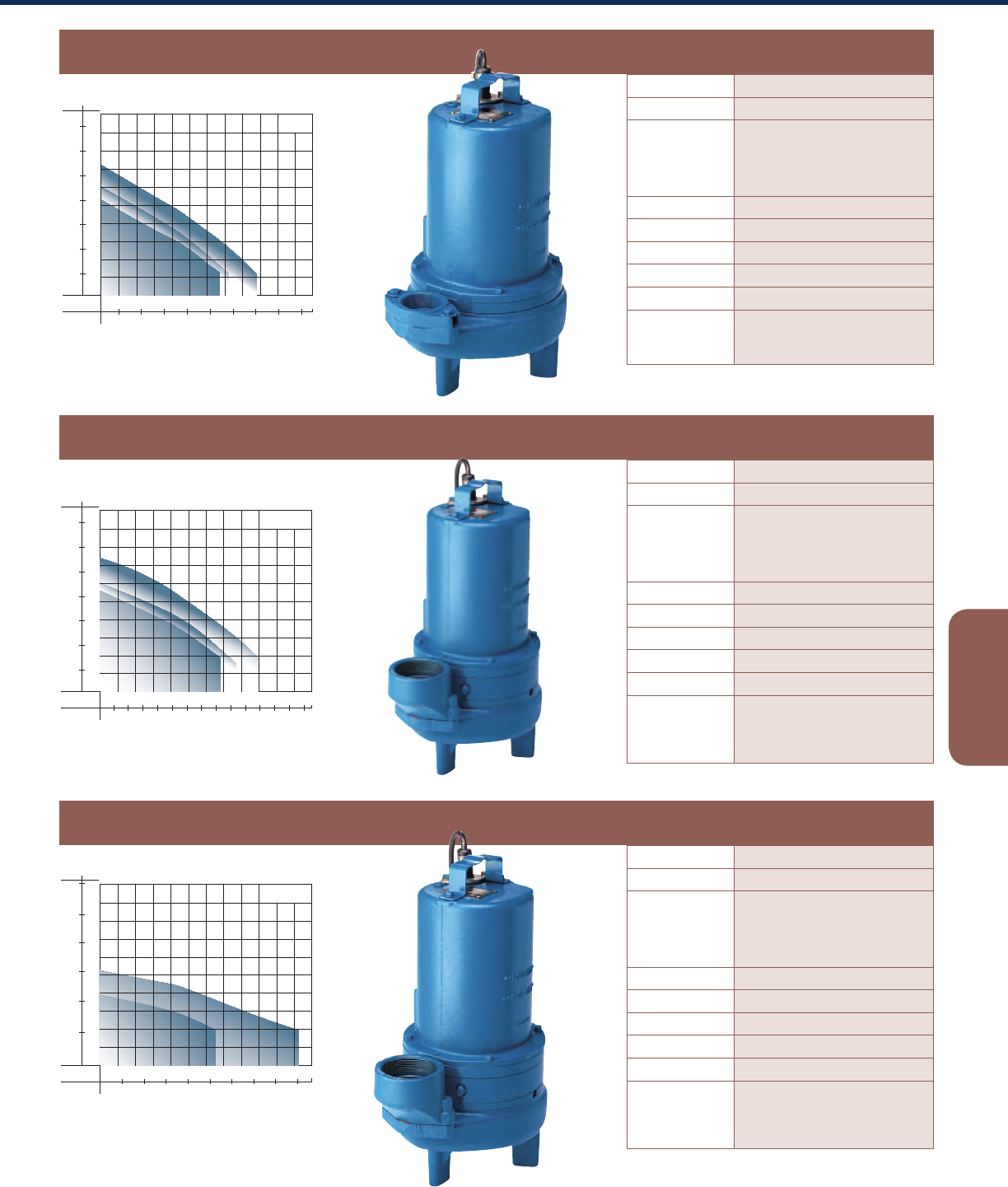

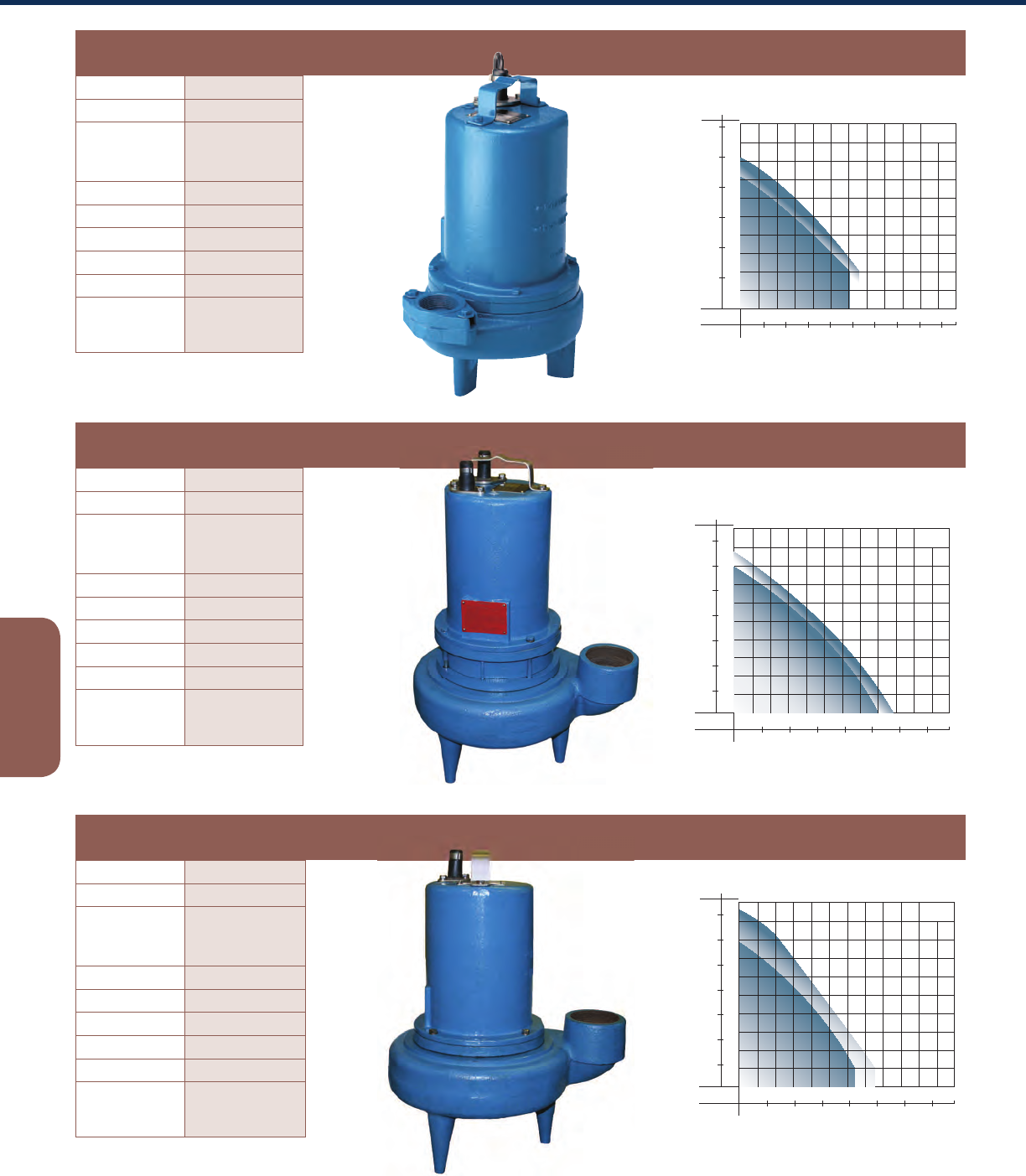

3SF-HD
Model 3SF-HD
Motor 11/2hp • 2hp
RPM 1750
Electrical 230v 1ph & 3ph
460v 3ph
Cord Length 25'
Construction Cast Iron
Impeller Cast Iron
Discharge 3"
Automatic
Operation
(manual available)
No
TOTAL HEAD
mft
10
20
30
40
50
2
4
6
8
10
12
14
510 15 20 25 30 35
600500400300200100
U.S. gpm
L/s
2hp
11/2hp
1750RPM
60Hz
5
Fountain Pumps
6

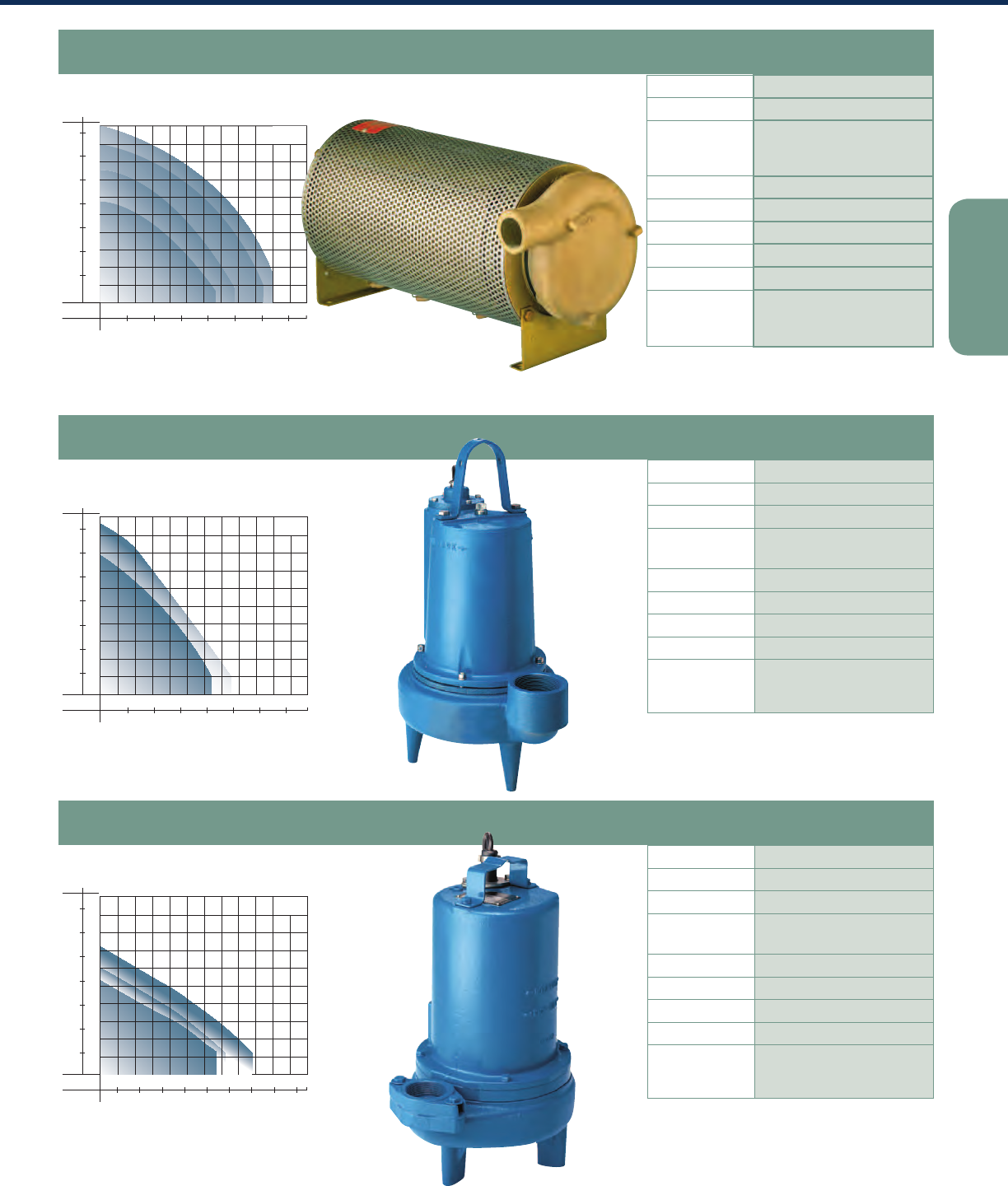

EH-L • EH-DS Series
Motor 1/2hp, 1hp & 11/2hp
RPM 3450
Electrical 115v 1ph (1/2hp only)
230v 1ph & 3ph
460v 3ph
575v 3ph
Cord Length 20'
Construction Cast Iron
Impeller Polypropylene
Discharge 2"
Solids .75"
Automatic
Operation
(manual available)
No
Single seal model shown. Also available •
with double seal design.
Available in high temperature manual •
(1/2hp & 11/2hp only).
TOTAL HEAD
mft
20
40
60
80
100
5
10
15
20
25
30
12010080604020
U.S. gpm
L/s
1hp
1
1/2hp
1/2hp
3450RPM
60Hz
EHV412 Series
Model EHV412
Motor 1/2hp
RPM 3450
Electrical 115v 1ph
Cord Length 20'
Construction Cast Iron
Impeller Vortex Cast Iron
Discharge 2"
Solids .75"
Automatic
Operation
(manual available)
Mechanical
Float
Vertical Float
TOTAL HEAD
mft
10
20
30
40
50
2
4
6
8
10
12
14
12010080604020
U.S. gpm
L/s
EHV412
3450RPM
60Hz
Effl uent Pumps
Plumbing Supply Products
BP314 • 324 Series
Model BP314 BP324
Motor 1/3hp 1/3hp
RPM 1750 1750
Electrical 115v 1ph 230v 1ph
Cord Length 15' 15'
Construction Cast Iron
Bronze Available
Cast Iron
Bronze Available
Impeller Thermoplastic
Bronze Available
Thermoplastic
Bronze Available
Discharge 2" 2"
Solids .75" .75"
Automatic
Operation
(manual available)
Mechanical Float
Vertical Float
Mechanical Float
Vertical Float
Features inboard seal design, ideal for •
agricultural use.
Available in high temperature manual/ •
automatic.
TOTAL HEAD
mft
10
20
30
40
50
2
4
6
8
10
12
14
U.S. gpm
L/s
20 40 60 80 100 120
1750RPM
60Hz
STEP-SS • STEP-DS Series
Motor 1/2hp, 1hp
RPM 3450
Electrical 115v 1ph (1/2hp only)
230v 1ph & 3ph
460v 3ph
575v 3ph
Cord Length 20'
Construction Cast Iron
Impeller Polypropylene
Discharge 2"
Solids .75"
Automatic
Operation
(manual available)
Mechanical Float
Single seal model shown.•
Also available with double seal design. •
TOTAL HEAD
mft
30
60
90
120
150
5
10
15
20
25
30
35
12010080604020
U.S. gpm
L/s
1/2hp
1hp
3450RPM
60Hz
EP52 • EP72
TOTAL HE AD
mft
10
20
30
40
2
4
6
8
10
12
10080604020
U.S . gpm
L /s
EP72X
EP52X
60Hz
3450RPM
7
Effl uent Pumps
Model EP52X EP72X
Motor 1/2hp 3/4hp
RPM 3450 3450
Electrical 240v 1ph 240v 1ph
Cord Length 20' 20'
Construction Cast Iron Cast Iron
Impeller Cast Iron Vortex Cast Iron Vortex
Discharge 1.5" 1.5"
Solids .75" .75"
Effl uent Pumps
8

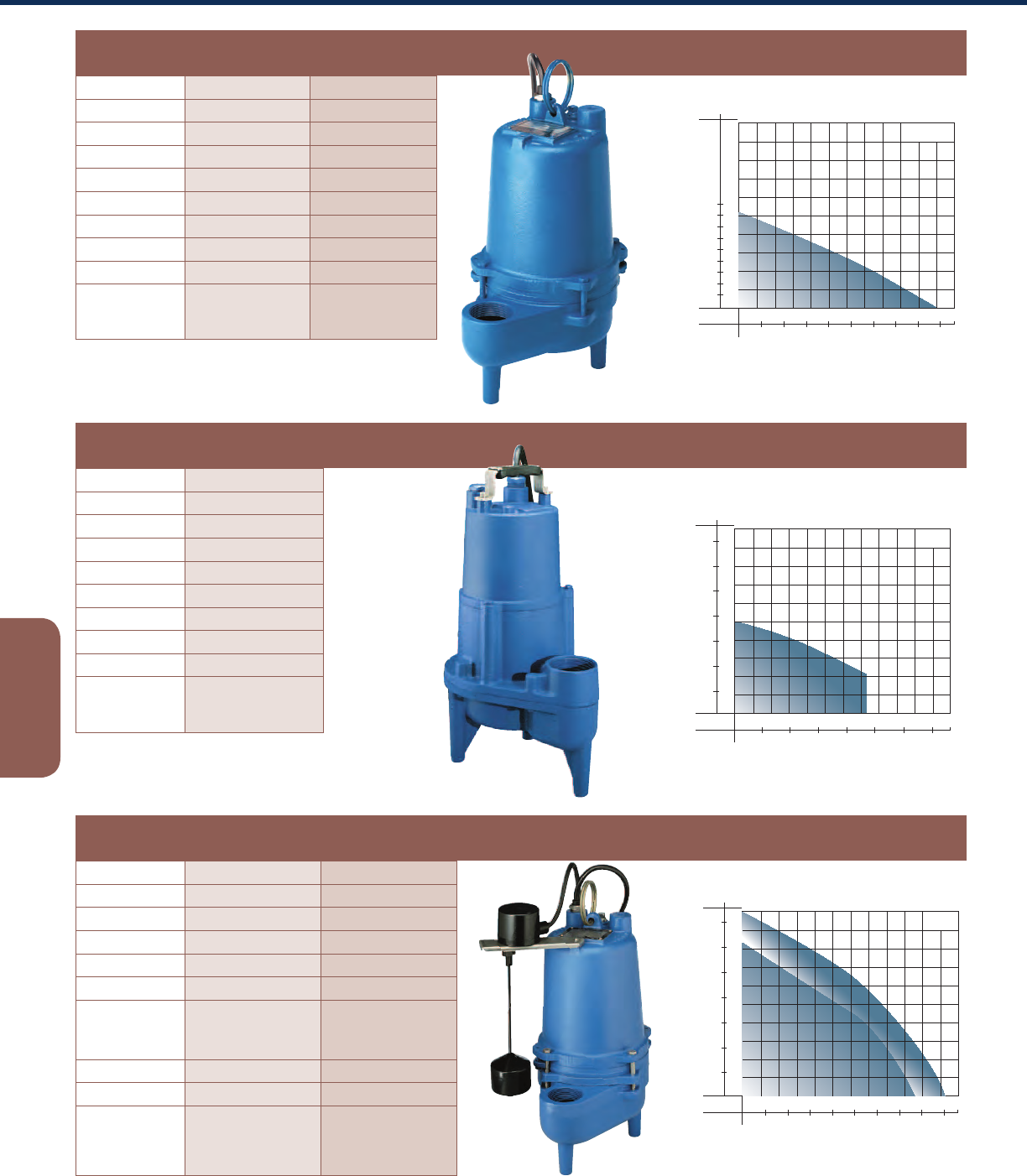

SE411 • 421 Series
Model SE411 SE421
Motor 4/10hp 4/10hp
RPM 1750 1750
Electrical 115v 1ph 230v 1ph
Cord Length 15' 15'
Construction Cast Iron Cast Iron
Impeller Cast Iron Cast Iron
Discharge 2" 2"
Solids 2" 2"
Automatic
Operation
(manual available)
Mechanical Float
Vertical Float
Mechanical Float
Vertical Float
Features inboard seal design, ideal for •
agricultural use.
Available in high temperature manual/ •
automatic.
TOTAL HEAD
mft
10
20
30
40
50
1
2
3
4
5
6
7
8
9
12 3 4 5 6 7 8 9
150125100755025
U.S. gpm
L/s
1750RPM
60Hz
SEV412 Series
Model SEV412
Motor 1/2hp
RPM 3450
Electrical 115v 1ph
Cord Length 20'
Construction Cast Iron
Impeller Cast Iron Vortex
Discharge 2"
Solids 2"
Automatic
Operation
(manual available)
Mechanical Float
Vertical Float
TOTAL HEAD
mft
10
20
30
40
50
2
4
6
8
10
12
14
12 3 4 5 6 7
12010080604020
U.S. gpm
L/s
3450RPM
60Hz
SE511 • 521 & SEV511 • 521 Series
Model SE511 • SEV511 SE521 • SEV521
Motor 1/2hp 1/2hp
RPM 1750 1750
Electrical 115v 1ph 230v 1ph
Cord Length 15' 15'
Construction Cast Iron Cast Iron
Impeller Cast Iron (Se)
Bronze Vortex
(SEV)
Cast Iron (Se)
Bronze Vortex
(SEV)
Discharge 2" 2"
Solids 2" 2"
Automatic
Operation
(manual
available)
Mechanical Float
Vertical Float
Mechanical Float
Vertical Float
Features inboard seal design, ideal for
agricultural use.
TOTAL HEAD
mft
5
10
15
20
25
1
2
3
4
5
6
7
123456789
150125100755025
U.S. gpm
L/s
SEV
SE
1750RPM
60Hz
Sewage & Grinder
Pumps
Plumbing Supply Products
SE Series
Available in high temperature manual •
automatic (1/2hp only).
Also available with double seal design or in •
fountain duty.
Motor 1/2hp, 3/4hp, 1hp
RPM 1750
Electrical 115v 1ph (1/2hp only)
230v 1ph & 3ph
460v 3ph
575v 3ph
Cord Length 20'
Construction Cast Iron
Impeller Cast Iron
Discharge 2"
Solids 2"
Automatic
Operation
(manual available)
Mechanical Float (1/2hp Only)
TOTAL HEAD
mft
10
20
30
40
50
2
4
6
8
10
12
14
2 4 6 8 10 12 14 16 18
30025020015010050
U.S. gpm
L/s
1/2hp
1hp
3/4hp
1750RPM
60Hz
2SEV • 2SEV-DS 1750 Series
Double seal model shown.•
Also available with single seal design.•
Motor 1/2hp, 3/4hp, 1hp
RPM 1750
Electrical 115v 1ph (1/2hp only)
230v 1ph & 3ph
460v 3ph
575v 3ph
Cord Length 20'
Construction Cast Iron
Impeller Cast Iron Vortex
Discharge 2"
Solids 2"
Automatic
Operation
(manual
available)
No
TOTAL HEAD
mft
10
20
30
40
50
2
4
6
8
10
12
14
2 4 6 8 10 12 14
2402001601208040
gpm
L/s
1/2hp
1hp
3/4hp
1750RPM
60Hz
2SEV • 2SEV-DS 3450 Series
Double seal model shown.•
Also available with single seal design.•
Motor 1/2hp, 1hp
RPM 3450
Electrical 115v 1ph (1/2hp only)
230v 1ph & 3ph
460v 3ph
575v 3ph
Cord Length 20'
Construction Cast Iron
Impeller Cast Iron Vortex
Discharge 2"
Solids 2"
Automatic
Operation
(manual
available)
No
TOTAL HEAD
mft
20
40
60
80
100
5
10
15
20
25
30
123456789
150125100755025
U.S. gpm
L/s
1/2hp
1hp
3450RPM
60Hz
9
Sewage & Grinder
Pumps
10
3SE-DS Series
Motor 11/2hp, 2hp
RPM 1750
Electrical 230v 1ph & 3ph
460v 3ph
575v 3ph
Cord Length 30'
Construction Cast Iron
Impeller Cast Iron
Discharge 3"
Solids 2.5"
Automatic
Operation
(manual available)
No
TOTAL HEAD
mft
10
20
30
40
60
2
4
6
8
10
12
14
510 15 20 25 30 35
600500400300200100
U.S. gpm
L/s
11/2hp
2hp
1750RPM
60Hz
3SE-L Series
Motor 11/2hp, 2hp
RPM 1750
Electrical 230v 1ph & 3ph
460v 3ph
575v 3ph
Cord Length 30'
Construction Cast Iron
Impeller Cast Iron
Discharge 3"
Solids 2.5"
Automatic
Operation
(manual available)
No
Features inboard seal design, ideal for •
agricultural use.
TOTAL HEAD
mft
10
20
30
40
50
2
4
6
8
10
12
14
510 15 20 25 30 35
600500400300200100
U.S. gpm
L/s
2hp
11/2hp
1750RPM
60Hz
2SEV • 2SEV-DS Series
Motor 11/2hp, 2hp
RPM 3450
Electrical 230v 1ph & 3ph
460v 3ph
575v 3ph
Cord Length 20'
Construction Cast Iron
Impeller Bronze Vortex
Discharge 2"
Solids 2"
Automatic
Operation
(manual available)
No
Single seal model shown.•
Also available with double seal design.•
TOTAL HEAD
mft
20
40
60
80
100
5
10
15
20
25
30
2 4 6 8 10 12 14 16 18
30025020015010050
U.S. gpm
L/s
11/2hp
2hp
3450RPM
60Hz
Sewage & Grinder
Pumps
Plumbing Supply Products
3SE-L • 3SE-DS Series
Motor 3hp 3hp
RPM 1750 3450
Electrical 230v 1ph & 3ph
460v 3ph
575v 3ph
230v 1ph & 3ph
460v 3ph
575v 3ph
Cord Length 30' 30'
Construction Cast Iron Cast Iron
Impeller Cast Iron Cast Iron
Discharge 3" 3"
Solids 2.5" 1.5"
Automatic
Operation
(manual available)
No No
TOTAL HEAD
mft
20
40
60
80
100
5
10
15
20
25
30
600500400300200100
U.S. gpm
L/s 5 10 15 20 25 30 35
1750rpm
3450rpm
1750 • 3450RPM
60Hz
3SE-L • 1½-2hp Series
Motor 11/2hp, 2hp
RPM 3450
Electrical 230v 1ph & 3ph
460v 3ph
575v 3ph
Cord Length 30'
Construction Cast Iron
Impeller Cast Iron
Discharge 3"
Solids 1.5"
Automatic
Operation
(manual available)
No
3
TOTA L HE AD
mft
20
40
60
80
100
5
10
15
20
25
30
2 4 6 8 10 12 14 16 18
30025020015010050
U.S . gpm
L /s
11/2hp
2hp
3450RPM
60Hz
11
Sewage & Grinder
Pumps
4SE-L Series
Motor 0.9, 1.4 & 1.9 hp
RPM 1750
Electrical 230v 1ph & 3ph
460v 3ph
575v 3ph
Cord Length 30'
Construction Cast Iron
Impeller Cast Iron
Discharge 3" / 4"
Solids 2"
Automatic
Operation
(manual available)
No
100 200 300
10
20
30
40
50
ft
m
4812 16 20
2
U.S. gpm
L/s
4
6
8
10
12
16
14
TOTAL HEAD
1.9hp
1.4hp
0.9hp
Model 4SE-L
Motor 2.8hp • 3.7hp • 5hp
RPM 1750
Electrical 230v sp 3p
460v 3p
Cord Length 40'
Construction Cast Iron
Impeller Cast Iron
Discharge 4"
Solids 2.5"
Automatic
Operation
(manual available)
No
4SE-L
100 200 300 400 500
10
20
30
40
50
60
ft
m
4812 16 20 24
2
U.S. gpm
L/s
4
6
8
10
12
16
14
TOTAL HEAD
18
20
28
5.0hp
3.7hp
2.8hp
12
PGPP • PGPH Grinder Pump
Motor 2hp
RPM 3450
Electrical 240v 1ph
Cord Length 20' quick connect
Construction Cast Iron
Impeller Cast Iron
Discharge 1.25"
Automatic
Operation
(manual available)
Piggy Back Float
TOT
A
L
H
E
AD
m
ft
20
40
60
80
5
10
15
20
25
30
.
5 1 1
.
5 2 2
.
5 3 3
.
5
605040302010
U
.S.
gp
m
L/
s
3450RPM
60Hz
100
35 120
PGPP
PGPH
Exclusive Slicerator™
The staggered slicing
action of the grinder radial
cutter dramatically reduces
the torque requirement of
the motor, cuts with less
horsepower, and increases
the unit’s effi ciency. This
helps prevent clogging with
particularly troublesome
objects such as plastic, rubber,
sanitary napkins, disposable
diapers and cloth items.
Sewage & Grinder
Pumps
Plumbing Supply Products
30 Gallon Sewage Systems
Barnes 41 gallon simplex systems are suitable
for residential and commercial sewage or sump
applications. They are designed to handle wastes
and will pump the water from below ground “uphill”
to the sewer.
Tank Capacity
41 gallons
Two Sizes:
20" Dia. x 30" Deep•
25" Dia. x 24" Deep•
13
PACKAGE SYSTEMS
System comes complete as shown using the Barnes reliable
SE411 or SEV412 sewage ejector pre-assembled. The 18"x30"
basin is available as standard or IAPMO approved. Ideal for
residential, industrial and commercial applications.
Tank Capacity
30 gallons
SP33LT Laundry Tray Pump
Package comes complete as shown with SP33VF pump
pre-assembled. The 12"x14"x16" basin package can be
used to remove water where gravity ! ow is not available
without breaking concrete.
Typical Applications
Laundry tray pump, sinks, dehumidi# er water and air
conditioning condensate removal, wet bars.
Tank Capacity
11 gallons
41 Gallon Pre Assembled Sewage Systems
Package Systems
Inlet stub for use with
4" rubber coupling
Discharge with check valve
Float Tree
Sewage Ejector Pump
Ribbed ! oor prevents
pump rotation (Not Shown)
Vent connection
Slot provides for
concrete anchorage
SU33LT Laundry Tray Pump
Package comes complete with SU33 pump and integral check
valve. The 15"x15"x14" basin package # ts easily under utility
sinks and removes water when gravity ! ow is not an option.
Typical Applications
Laundry tray pump, sinks, dehumidi# er water and air
conditioning condensate removal, wet bars.
Tank Capacity
6 gallons
14
Basins & Covers
Accessories
A full line of heavy duty fi berglass
basins and covers are available for
the large jobs requiring extra storage
capacity and/or tank depth.
With the battery backup sump pump system your
pumping power is never interrupted. The BUS
switches automatically to battery power when the
power fails or it pumps along with your primary
pump when there is more water coming into your
sump than your main pump can handle.
Break Away Fittings (BAF)
Barnes break away fi ttings allow pump installation and
removal without wet well entry or piping disconnection.
Break away fi ttings provide easy access to all Barnes 1¼”
(32mm) thru 4” (101mm) submersible pumps; units may
be adapted for other submersibles with similar discharge
openings. Available in non-sparking design.
Battery Backup System
Plumbing Supply Products
Control Panels • Indoor/Outdoor High Water Alarms
Barnes control panels provide proven, reliable
performance and potential malfunction warning.
Simplex and Duplex models are contained within a
NEMA 4X enclosure and are available with single or
three phase power. All components are UL listed.
A variety of remote alarms with warning lights and/
or annunciators for indoor or outdoor use may be
speci• ed. Require 120v power supply.
Junction Boxes & Floats
Junction boxes are available in Simplex and
Duplex models with NEMA 4X ratings. UL
listed for select models.
Level controls may be speci• ed to meet
pump installation requirements.
Battery Backup systems available.
System comes complete as shown using the Barnes
reliable SE411 or SEV412 sewage ejector. Assembly
required. Allows for the installation of a bathroom where
gravity ! ow is not available without breaking concrete.
15
Basement Genie
Check Valves & Union Valves
Accessories
Check and Ball Valves are available
in a variety of con• gurations for
solution, back! ow prevention and
easy pump removal.
Model hp Solids
Size (in)
Shut
Off (ft)
Total Head (ft)
5' 10' 15' 20' 25' 30' 35' 40' 50' 60' 70' 80' 90' 100'
SUMP PUMPS
SU25 1/4 17 35 26 12
SU33 1/3 20 41 33 23 4
UT17 1/6 1/4 23 16 13 8 3
SP33 1/3 1/2 30 58 43 35 25 15
SP33D 1/3 1/2 30 58 43 35 25 15
SP33DX 1/2 1/2 30 58 43 35 25 15
SP50 1/2 1/2 30 66 58 46 35 20
SP75 3/4 1/2 33 80 72 65 52 40 20
70 7/10 1/4 38 75 61 48 30 11
125 1¼ 1/4 50 105 95 85 74 60 45
EFFLUENT PUMPS
BP314 1/3 3/4 30 66 60 53 44 26
EHV412 1/2 3/4 45 48 45 42 38 33 28 20 10
EH512L 1/2 3/4 50 100 92 85 75 65 52 35 20
EP52 1/2 3/4 23 81 68 51 30
EP72 3/4 3/4 31 88 77 65 53 37 10
EH1022L 1 3/4 70 100 96 90 81 70 45 17
STEP522L 1/2 3/4 80 78 75 70 67 62 57 53 48 36 25 13
STEP1022L 1 3/4 110 86 84 83 80 77 74 71 68 61 52 44 35 23 11
EH1522L 1½ 3/4 85 100 83 60 31 10
SEWAGE PUMPS
SE411 4/10 2 26 116 95 70 38 3
SEV412 1/2 2 25 86 74 56 35
SE51 1/2 2 26 175 138 100 50 2
SE511 1/2 2 25 138 114 87 45
SEV524 1/2 2 27 140 130 100 65 20
2SEV522 1/2 2 39 85 85 85 80 64 50 35
2SEV724 3/4 2 30 160 142 115 90 50
2SE1024 1 2 36 225 195 165 132 95 50 10
2SEV1022 1 2 53 140 140 140 138 120 100 85 70 20
3SE1022L 1 1½ 48 152 142 130 110 93 75 55 35 10
3SE1524L 1½ 2½ 39 370 340 300 250 190 120 50
3SE1524HD 1½ 2½ 37 320 290 250 230 170 120 60
2SEV1522 1½ 2 71 150 138 125 113 98 70 38 5
3SE1522L 1½ 1½ 66 163 155 150 142 135 125 115 100 60 23
3SE2024L 2 2½ 47 410 375 340 290 250 200 150 90
3SE2024HD 2 2½ 48 370 335 300 265 235 190 150 110
2SEV2022 2 2 81 165 155 140 130 120 95 73 40 5
3SE2022L 2 1½ 78 170 165 160 156 152 150 140 130 105 65 26
3SE3032L 3 1½ 96 190 187 185 180 175 170 165 160 145 120 85 55 25
3SE3024L 3 2½ 66 350 330 300 255 170 60
4SE-L 0.9 2 26 180 138 97 50
4SE-L 1.4 2 30 185 156 124 86 42
4SE-L 1.9 2 37 226 195 167 132 94 48
4SE-L 2.8 2½ 35 405 340 275 208 140 65
4SE-L 3.7 2½ 41 435 375 330 270 212 150 81 13
4SE-L 5 2½ 47 485 445 400 350 295 232 171 100 25
PGPP 2 105 102 101 99 97 94 93 90 85 75
PGPH 2 125 120 114 109 104 97 12
General Pump Specifi cations & Performance
Grinder Pump High Temperature pumps available (Sewage Pumps can be used for Effl uent service)
•
•
•
2012 Crane Pumps & Systems, Inc.
A Crane Co. Company
Printed in U.S.A.
BPPFL - Rev. H (6/12)
Crane Pumps & Systems Canada
83 West Drive
Brampton, Ont. Canada L6T 2J6
(905) 457-6223
Fax (905) 457-2650
Crane Pumps & Systems
420 Third Street
Piqua, Ohio 45356
(937) 778-8947
Fax (937) 773-7157
www.cranepumps.com
A Crane Co. Company
brands you trust.

Navigation menu
