P380-P1 R10/26/2015 ©Copyright 2015 Liberty Pumps Inc. All rights reserved. Specifications subject to change without notice.

Product Specifications

c

P380-Series

Submersible Sewage Simplex Package

P380-P2 R10/26/2015 ©Copyright 2015 Liberty Pumps Inc. All rights reserved. Specifications subject to change without notice.

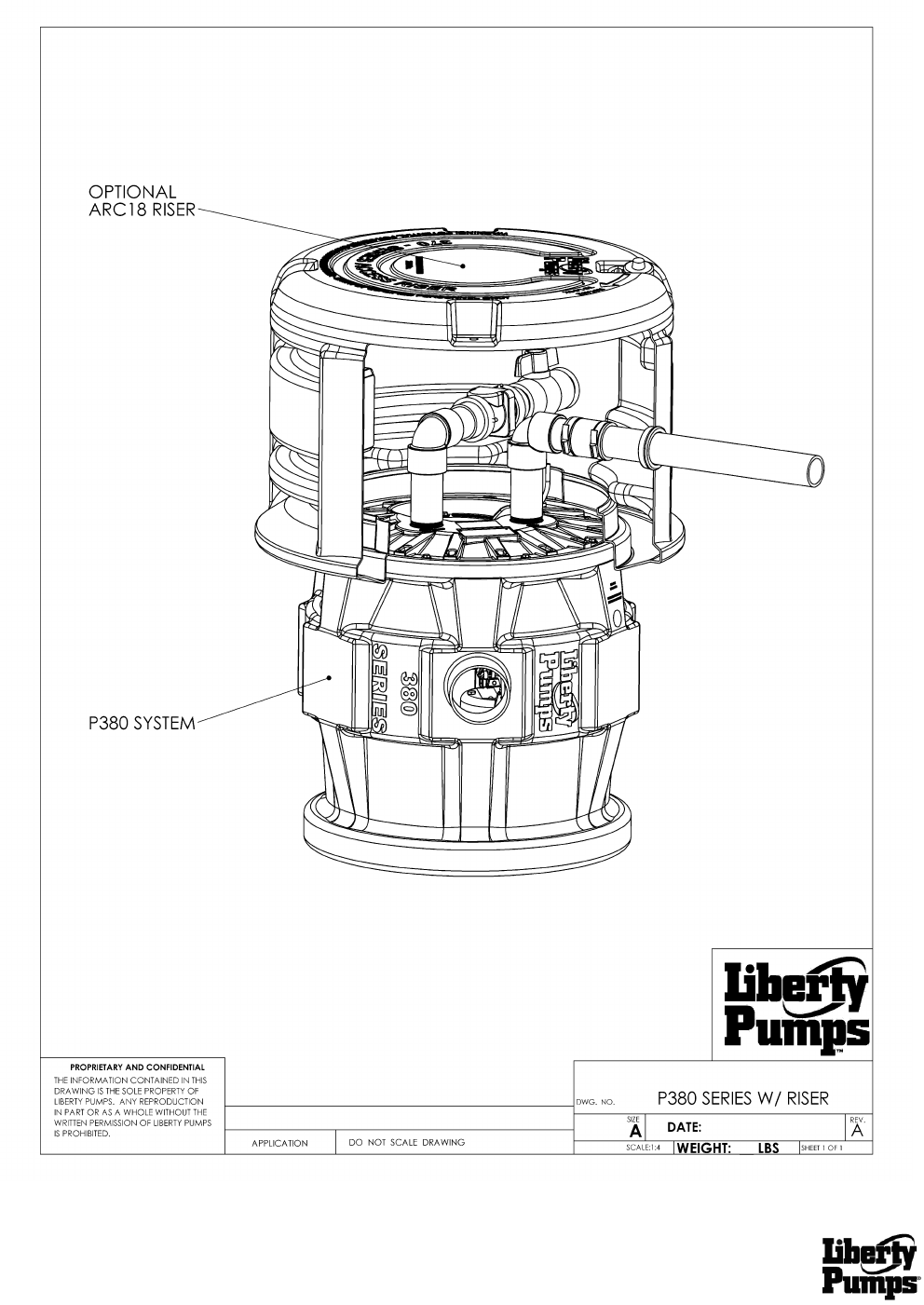

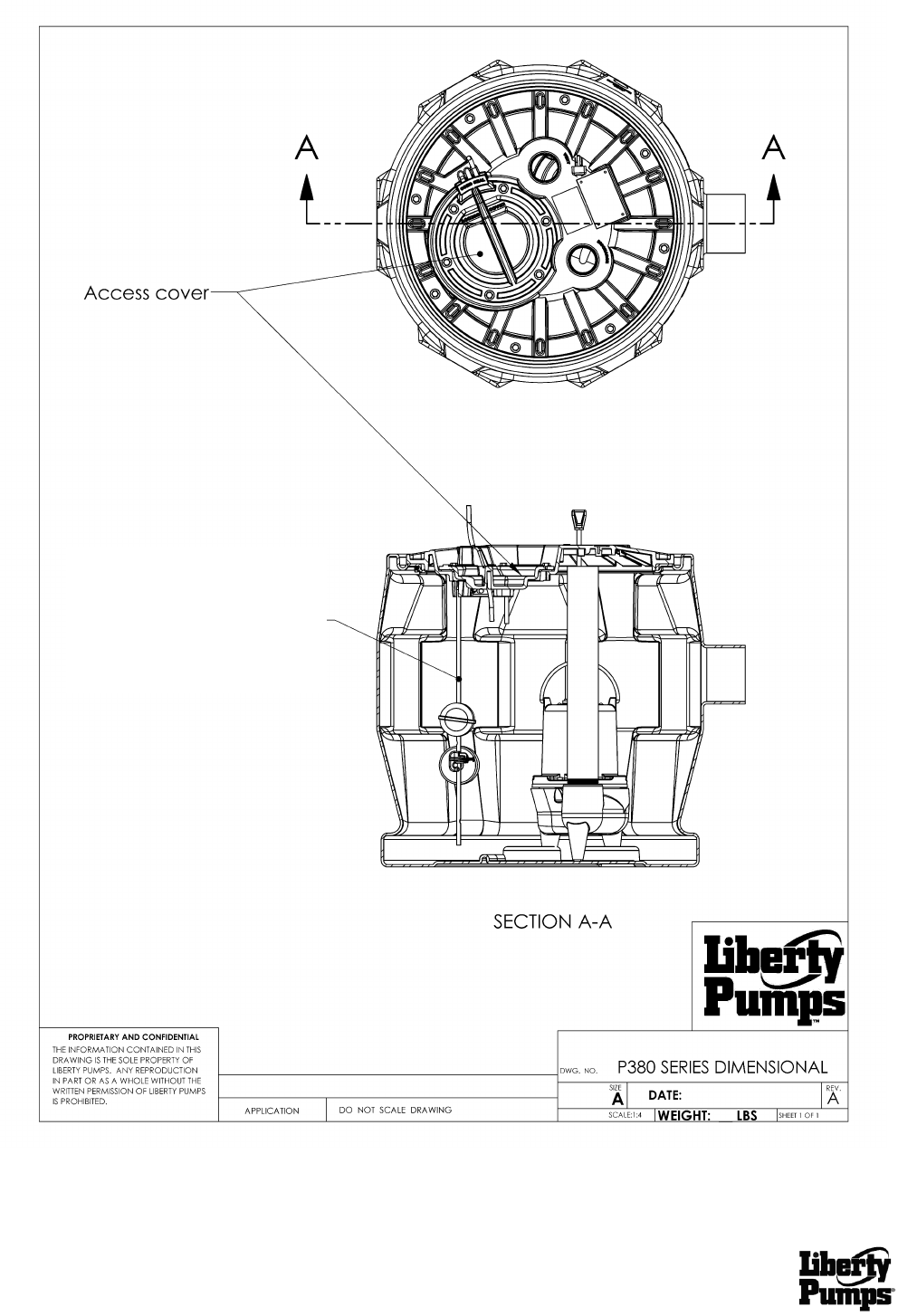

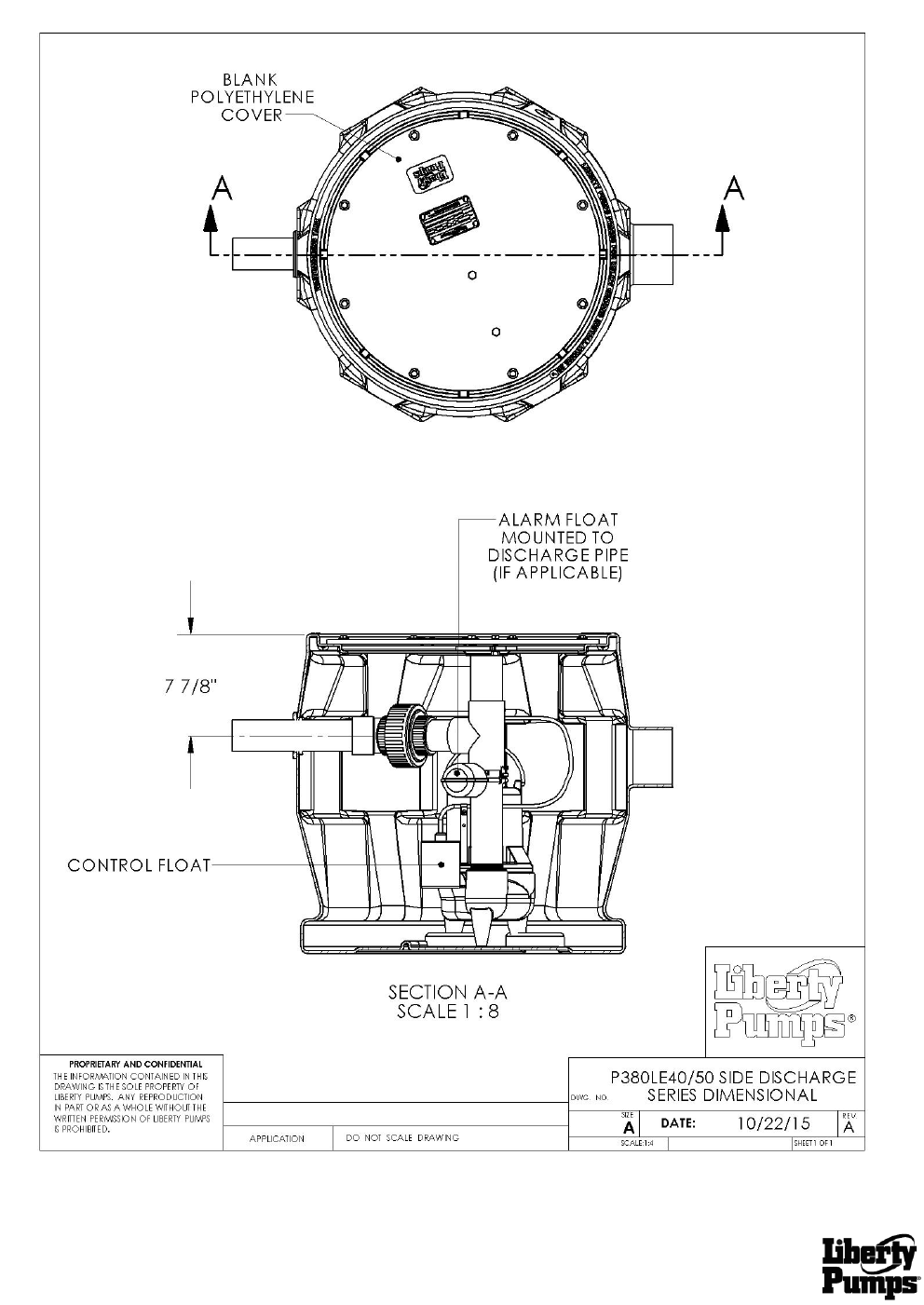

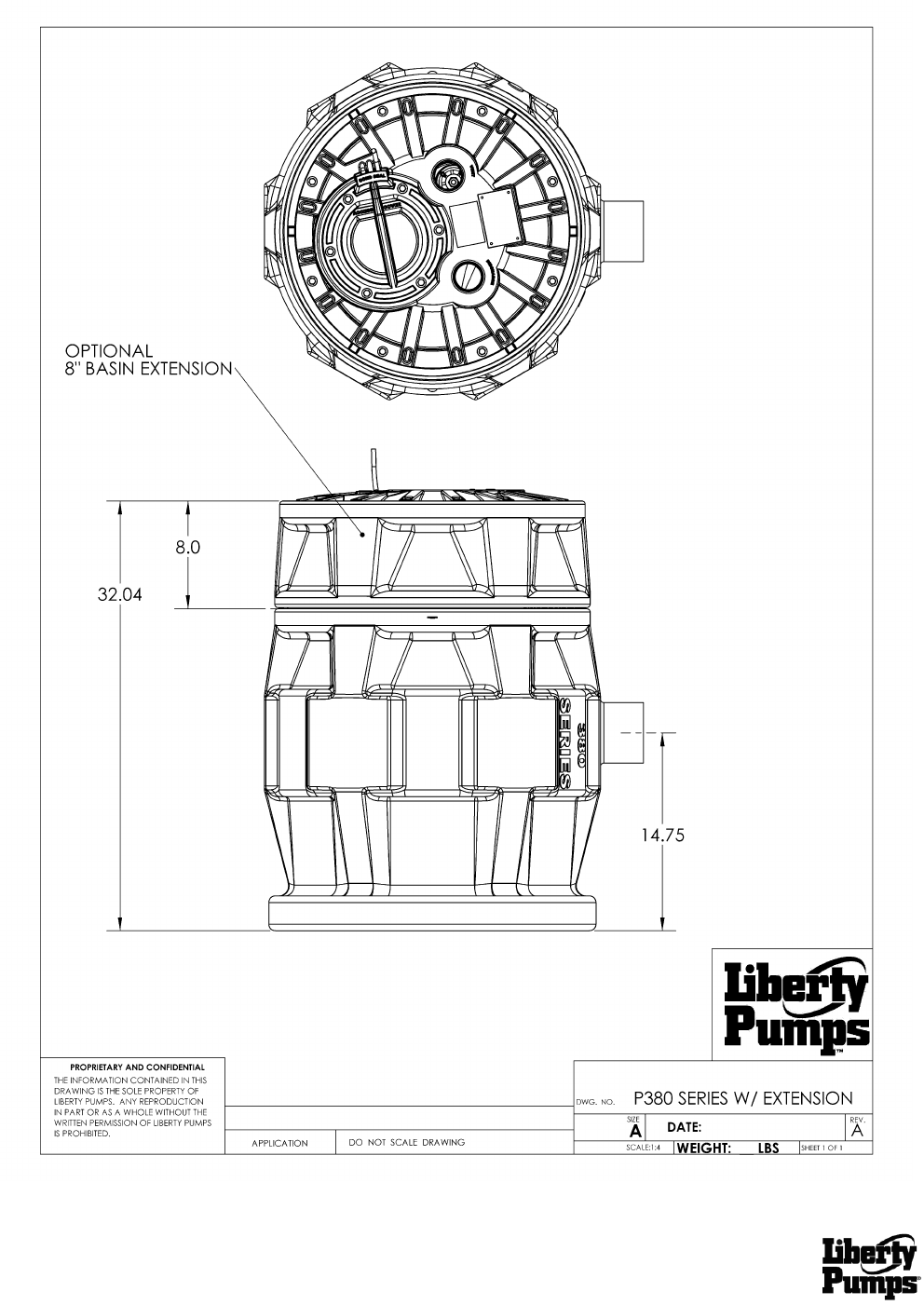

P380-Series Dimensional Data

P380-P3 R10/26/2015 ©Copyright 2015 Liberty Pumps Inc. All rights reserved. Specifications subject to change without notice.

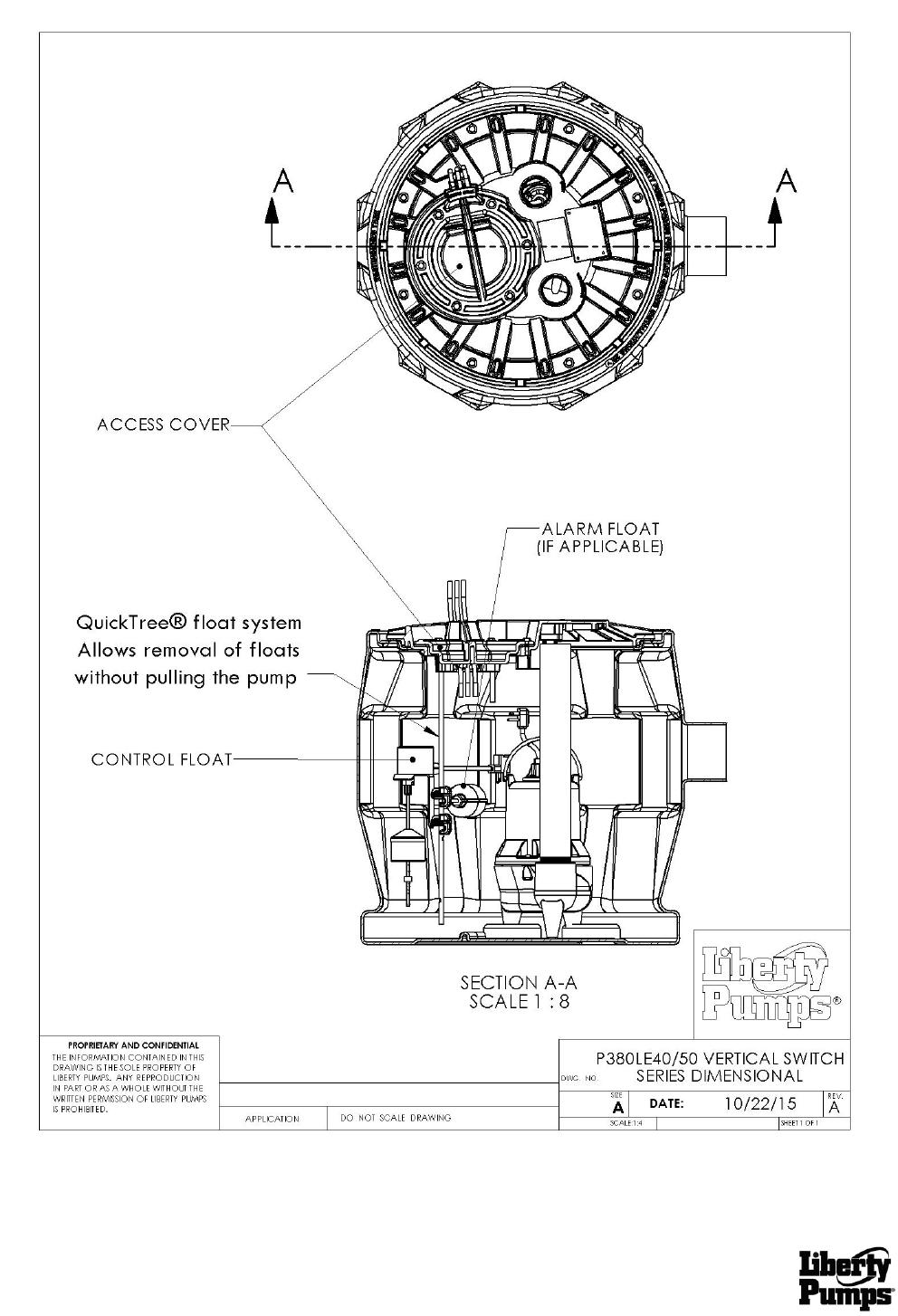

QuickTree® float system

Allows removal of floats

without pulling the pump

P380-P4 R10/26/2015 ©Copyright 2015 Liberty Pumps Inc. All rights reserved. Specifications subject to change without notice.

P380-P5 R10/26/2015 ©Copyright 2015 Liberty Pumps Inc. All rights reserved. Specifications subject to change without notice.

P380-P6 R10/26/2015 ©Copyright 2015 Liberty Pumps Inc. All rights reserved. Specifications subject to change without notice.

P380-P7 R10/26/2015 ©Copyright 2015 Liberty Pumps Inc. All rights reserved. Specifications subject to change without notice.

P380-P8 R10/26/2015 ©Copyright 2015 Liberty Pumps Inc. All rights reserved. Specifications subject to change without notice.

P380-Series Electrical Data

MODEL

HP

VOLTAGE

PHASE

SF

FULL

LOAD

AMPS

LOCKED

ROTOR

AMPS

THERMAL

OVERLOAD

TEMP

STATOR

WINDING

CLASS

DISCHARGE

AUTOMATIC

SYSTEM

P382LE41

4/10

115

1

1.00

12

22.5

105˚C 221°F

B

2”

YES

P382LE41SD-2

4/10

115

1

1.00

12

22.5

105˚C 221°F

B

2” (SIDE)

YES

P382LE41V

4/10

115

1

1.00

12

22.5

105˚C 221°F

B

2”

YES

(VERTICAL)

P382LE51

1/2

115

1

1.00

12

22.5

105˚C 221°F

B

2”

YES

P382LE51SD-2

1/2

115

1

1.00

12

22.5

105˚C 221°F

B

2” (SIDE)

YES

P382LE51V

1/2

115

1

1.00

12

22.5

105˚C 221°F

B

2”

YES

(VERTICAL)

P382LE52

1/2

208-230

1

1.00

6.8

12

105˚C 221°F

B

2”

YES

P382LE71

3/4

115

1

1.00

12

28

105˚C 221°F

B

2”

YES

P382LE72

3/4

208-230

1

1.00

6

13

105˚C 221°F

B

2”

YES

P382LE102

1

208-230

1

1.00

8

21

105˚C 221°F

B

2”

YES

P382LEH102

1

208-230

1

1.00

12

30

105°C 221°F

B

2”

YES

P383LE41

4/10

115

1

1.00

12

22.5

105˚C 221°F

B

3”

YES

P383LE51

1/2

115

1

1.00

12

22.5

105˚C 221°F

B

3”

YES

P383LE52

1/2

208-230

1

1.00

6.8

12

105˚C 221°F

B

3”

YES

P383LE71

3/4

115

1

1.00

12

28

105˚C 221°F

B

3”

YES

P383LE72

3/4

208-230

1

1.00

6

13

105˚C 221°F

B

3”

YES

P383LE102

1

208-230

1

1.00

8

21

105˚C 221°F

B

3”

YES

P383LEH102

1

208-230

1

1.00

12

30

105°C 221°F

B

3”

YES

P380-P9 R10/26/2015 ©Copyright 2015 Liberty Pumps Inc. All rights reserved. Specifications subject to change without notice.

P380-Series Technical Data

TANK

POLYETHYLENE *

COVER

POLYPROPYLENE

(HDPE ON SIDE DISCHARGE MODELS)

GUIDE RAIL

NONE – PUMPS PULL OUT WITH COVER

INLET HUB

INCORPORATED INTO TANK

DISCHARGE PIPE

SCHEDULE 80 PVC

CONTROLS

PIGGY BACK FLOATS

IMPELLER

SEE INDIVIDUAL PUMP MODELS SPEC SHEET

SOLIDS HANDLING SIZE

SEE INDIVIDUAL PUMP MODELS SPEC SHEET

PAINT

SEE INDIVIDUAL PUMP MODELS SPEC SHEET

MAX LIQUID TEMP

SEE INDIVIDUAL PUMP MODELS SPEC SHEET

MAX STATOR TEMP

SEE INDIVIDUAL PUMP MODELS SPEC SHEET

THERMAL OVERLOAD

SEE INDIVIDUAL PUMP MODELS SPEC SHEET

POWER CORD TYPE

SEE INDIVIDUAL PUMP MODELS SPEC SHEET

MOTOR HOUSING

SEE INDIVIDUAL PUMP MODELS SPEC SHEET

VOLUTE

SEE INDIVIDUAL PUMP MODELS SPEC SHEET

SHAFT

SEE INDIVIDUAL PUMP MODELS SPEC SHEET

HARDWARE

SEE INDIVIDUAL PUMP MODELS SPEC SHEET

ORINGS

SEE INDIVIDUAL PUMP MODELS SPEC SHEET

MECHANICAL SEAL

SEE INDIVIDUAL PUMP MODELS SPEC SHEET

MIN BEARING LIFE

SEE INDIVIDUAL PUMP MODELS SPEC SHEET

P380-Series Specifications

See individual pump specification for more details on the pumps.

WARRANTY

Standard limited warranty shall be 3 years.

*XL MODELS UTILIZE A UPC LISTED

POLYETHYLENE BASIN WHICH

MEETS IAPMO PS52 10’ STACK TEST
