16

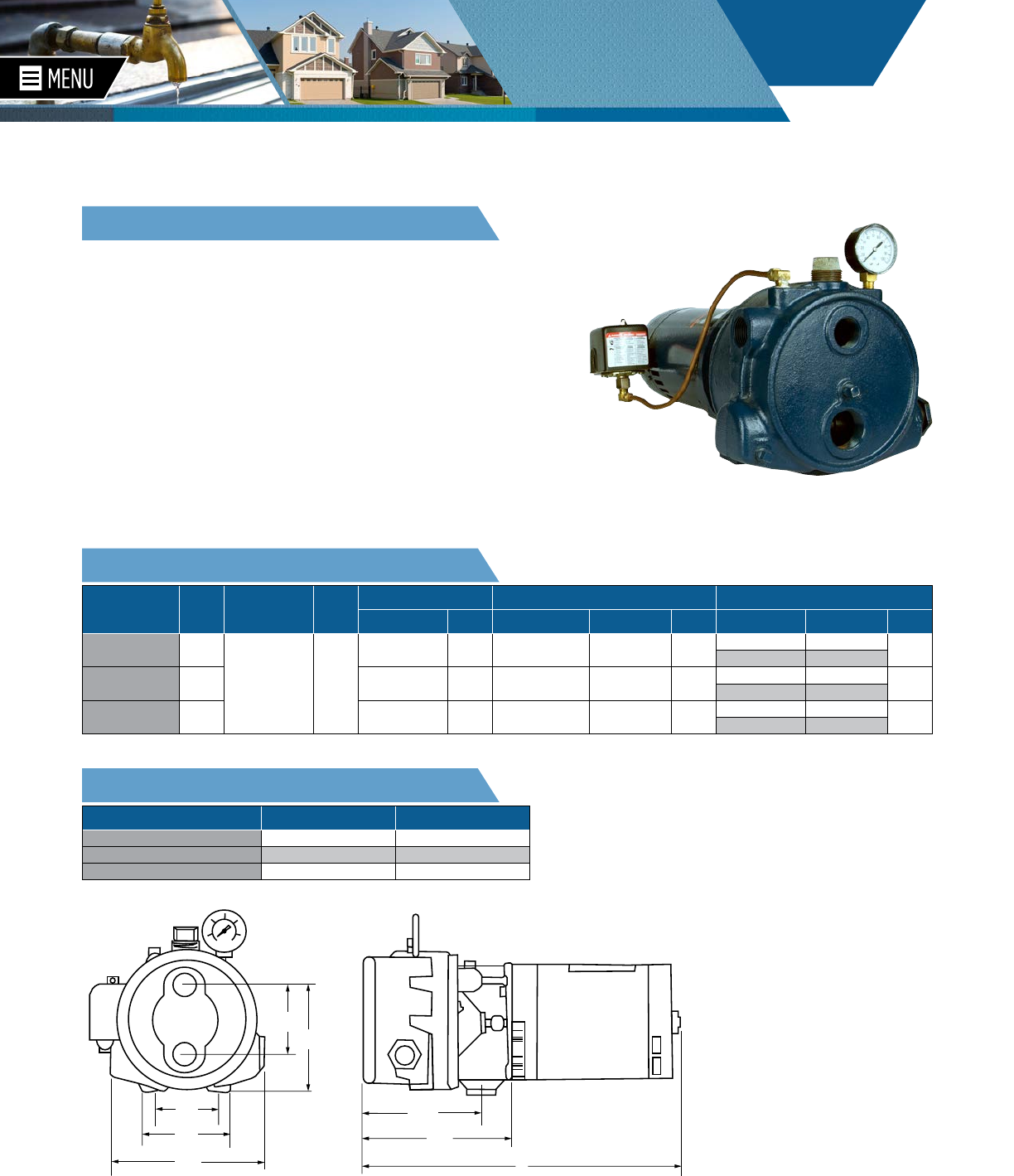

JET PUMPS - CONVERTIBLE PRO (RM2) SERIES
FEATURES
ORDERING INFORMATION
� Heavy-duty cast iron case and stainless steel impeller ensure optimum durability
� Thermoplastic diuser is molded for eciency and dependability
� Screw-in injector for easy conversion from shallow- to deep-well installation
� Shaft coupling designed for easy removal of motor
� Mechanical shaft seal ensures leakproof fit and continuous water lubrication
� High service factor 56C-frame motor for maximum performance
� Hardware kit allows for versatility of installation and includes pressure gauge, plugs,
shallow-well injector, and bypass plug
� Adjustable pressure switch installed and set at 30/50 psi
� Maximum temperature of 140 °F/60 °C
Model HP Dis. x Suc. (FNPT) Voltage Pump Unit Shallow-Well Injector Deep-Well Injector
Order No. Wt. (lbs) Total Suction Lift (ft) Order No. Wt. (lbs) Total Suction Lift (ft) Order No. Wt. (lbs)
FP05CI-C 1/2
1" x 1-1/4" 115/230
91140005 48 5-25 18127803R 1 30-60 147E1120 7
50-100 147E0915
FP07CI-C 3/4 91140007 51 5-25 18127902R 1 30-60 147E1023 7
50-100 147E1118
FP1CI-C 1 91140010 53 5-25 18128009R 1 30-60 147E1125 7
50-100 147E1120
NOTES: Order deep-well injector separately; minimum inside well diameter requirement of 4" for deep-well injectors; parallel pipe injectors are required for deep well installtions
DIMENSIONS
Model HP A
FP05CI-C 1/2 18.65"
FP07CI-C 3/4 19.15"
FP1CI-C 1 19.65"
NOTE: Dimensions will vary according to motor manufacturer
4.25"
5.25"
8.13"
3.88"
6.00"
6.47"
7.97
A
17
JET PUMPS - CONVERTIBLE PRO (RM2) SERIES
SHALLOW-WELL PERFORMANCE
1" Dis. x 1-1/4" Suc. Discharge Pressure (PSI) Shut-o
Pressure
(PSI)
Model HP Injector
Order No.
Total Suction
Lift (ft)
30 35 40 45 50 55 60 65 70 75 80 85 90
Gallons Per Minute (GPM)
FP05CI-C 1/2 18127803R
5 15.5 13.5 11.0 8.5 6.0 4.0 2.0 ------ 65
10 13.5 12.5 10.0 7.5 5.0 3.0 1.0 ------ 63
15 11.5 10.5 8.5 6.0 4.0 2.0 ------- 60
20 9.5 9.0 7.5 5.0 3.0 1.0 ------- 58
25 7.0 7.0 6.0 4.0 2.0 -------- 55
FP07CI-C 3/4 18127902R
519.0 18.5 18.0 16.0 12.5 9.5 6.5 3.5 - - - - - 70
10 16.5 16.0 15.5 14.0 10.0 8.0 4.5 1.5 - - - - - 68
15 14.5 14.0 13.5 12.5 9.5 6.5 3.5 - - - - - - 66
20 - 11.5 11.0 10.0 8.0 5.0 2.0 ------ 63
25 - - 8.5 8.0 6.5 3.5 1.0 ------ 61
FP1CI-C 1 18128009R
5 23.0 22.5 22.0 21.5 20.0 17.5 14.0 10.5 7.0 - - - - 81
10 - 19.5 19.0 18.5 17.5 15.5 12.5 9.0 5.5 ---- 78
15 - 16.5 16.0 15.5 15.0 13.5 11.0 7.5 4.5 ---- 76
20 - - 13.5 13.0 12.5 11.5 9.5 6.0 2.5 - - - - 74
25 - - - 10.0 10.0 9.5 7.5 4.5 1.0 - - - - 71
FP1CI-C
(High Head) 1 18127803R
5 - - - - - - 11.0 10.0 7.5 5.5 3.5 1.5 - 90
10 ------10.0 8.5 6.5 4.5 2.5 - - 88
15 ------9.0 7.5 5.5 3.5 1.5 - - 84
20 ------8.0 6.0 4.0 2.0 - - - 81
25 ------7.0 5.0 3.0 1.0 --- 78
NOTES: Pressure switch pre-set 30-50 psi; the appropriate injector is included with the units; maximum pump working pressure is 150 psi; all the above discharge pressures were measured using
1.25" PVC suction pipe and 1.25" foot valve
18
DEEP-WELL PERFORMANCE
JET PUMPS - CONVERTIBLE PRO (RM2) SERIES
1" Dis. x 1-1/4" Suc. 1" Drive Pipe Discharge Pressure (PSI) Shut-o
Pressure
(PSI)
Inj. Min.
Operating
Pressure
Model HP Injector
Order No.
Total Suction
Lift (ft)
30 35 40 45 50 55 60 65 70
Gallons Per Minute (GPM)
FP05CI-C 1/2
147E1120
30 9.0 7.0 5.5 4.0 2.5 1.5 - - - 65
18
40 7.5 6.0 4.0 3.0 1.5 - - - - 59
50 6.0 4.5 3.0 2.0 1.0 - - - - 56
60 5.0 3.5 2.0 1.0 ----- 52
147E0915
50 6.0 5.0 4.0 3.0 2.5 2.0 1.0 - - 74
23
60 5.0 4.0 3.5 2.5 2.0 1.0 --- 70
70 4.0 3.5 2.5 2.0 1.5 - - - - 65
80 3.5 3.0 2.0 1.5 1.0 ---- 61
90 3.0 2.0 1.5 1.0 - - - - 57
100 2.5 1.5 1.0 ------ 52
FP07CI-C 3/4
147E1023
30 15.5 13.5 11.0 8.5 6.5 4.0 2.0 - - 66
18
40 13.5 11.5 9.0 7.0 4.5 2.4 --- 61
50 11.0 9.5 7.0 5.0 3.0 ---- 57
60 9.0 7.5 5.0 3.0 1.0 ---- 53
147E1118
50 9.0 8.0 7.0 6.0 4.5 3.5 3.0 2.0 1.0 80
23
60 8.0 7.0 6.0 4.5 4.0 3.0 2.0 1.5 - 77
70 6.5 5.5 4.5 3.5 3.0 2.0 1.0 - - 72
80 6.0 5.0 4.0 3.0 2.0 1.5 - - - 67
90 5.0 4.0 3.0 2.0 1.5 - - - - 63
100 4.0 3.0 2.5 1.5 1.0 - - - - 30
FP1CI-C 1
147E1125
30 19.5 17.0 14.5 12.0 9.5 7.0 5.0 - - 72
30
40 17.5 15.0 12.5 10.0 7.5 5.0 3.0 - - 67
50 15.5 13.0 10.5 8.0 5.5 3.5 1.0 - - 63
60 13.0 10.5 8.5 6.0 3.5 1.5 - - - 59
147E1120
50 - 11.0 9.5 8.0 6.5 5.0 4.0 3.0 2.0 82
36
60 - 10.0 8.0 7.0 5.5 4.0 3.0 2.0 1.0 78
70 -8.0 7.0 6.0 4.5 3.0 2.0 1.0 - 73
80 - 7.0 6.0 4.5 3.5 2.0 1.5 - - 70
90 - 6.0 5.0 3.5 2.5 1.5 - - - 65
100 - 5.0 4.0 3.0 1.5 - - - - 61
NOTES: Pressure switch pre-set 30-50 psi; maximum pump working pressure 150 psi; all above discharge pressures were measured using 1.25" PVC suction pipe and 1.25" foot valve and 1 drive pipe
