3

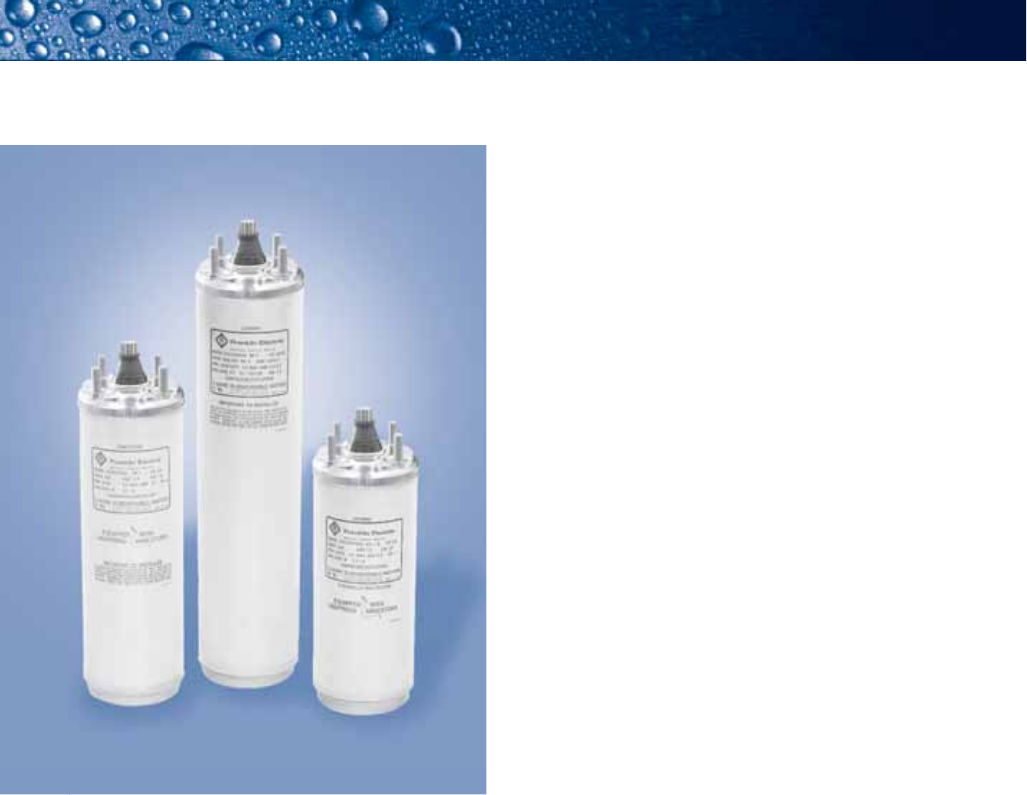

4” Submersible Motors Super Stainless

Applications

These motors are built for dependable operation in 4”

diameter or larger water wells.

Basic Features

Corrosion-resistant stainless steel exterior

■

Stainless steel splined shaft

■

Hermetically-sealed windings

■

StatorShield™ resin system

■

Filter check valve

■

Water lubrication

■

Kingsbury-type thrust bearing

■

Pressure-equalizing diaphragm

■

Built-in lightning arrestors (All single-phase; 200 &

■

300 V three-phase)

Removable water bloc lead

■

Franklin-manufactured control boxes available for

■

single-phase motors

UL 778 recognized (North American voltages)

■

CSA certifi ed

■

ANSI/NSF 61 certifi ed

■

Industry standard NEMA mounting dimensions

■

Special Features

Flow inducer sleeve not required in water up to 86 °F (30 °C) for motors through 2 hp.

■

Two-wire motors are split-phase designs with integral starting components and do not require a control box.

■

They feature Franklin’s patented 2-wire BIAC starting switch which provides Reverse Impact Torque to aid

starting in adverse environments and prevents extreme fast cycling (e.g. water logged tank).

Three-wire motors through 1 hp use Franklin’s exclusive three-wire QD (Quick Disconnect) Control Box with the

■

patented QD Relay. This relay provides the ultimate in operational life.

Single-phase motors can be used with Pumptec products to protect against dry-run and other installation

■

conditions that can damage motors and/or pumps. See Single-phase Protection Devices for details.

Constant Pressure Options

Use Franklin’s MonoDrive controller with 1

■1⁄2 hp three-wire single-phase motors to provide constant

water pressure.

Three-phase motors can be used with SubDrive controllers to provide constant water pressure.

■

Pollution Recovery Option

Pollution Recovery motors are equipped for use in monitoring and recovery wells in which hydrocarbons and

■

other chemicals may be present.

Special Viton

■® rubber parts and other chemical resistant materials as listed in Construction Materials chart.

4

4” Submersible Motors Super Stainless

4-Inch Super Stainless Motor Specifi cations

Hz Ph Hp Range kW Range Poles RPM Max. Ambient

Temp. Duty Rating

60 2-Wire 0.3 - 1.5 0.25 - 1.1 2 3450 86 °F / 30 °C Continuous

50 2-Wire 0.5 - 1.5 0.37 - 1.1 2 2875 86 °F / 30 °C Continuous

60 3-Wire 0.3 - 3 0.25 - 2.2 2 3450 86 °F / 30 °C Continuous*

50 3-Wire 0.3 - 3 0.25 - 2.2 2 2875 86 °F / 30 °C Continuous*

60 Three-Phase 0.5 - 3 0.37 - 2.2 2 3450 86 °F / 30 °C Continuous*

50 Three-Phase 0.5 - 3 0.37 - 2.2 2 2875 86 °F / 30 °C Continuous*

4-Inch Pollution Recovery Motor Specifi cations

Hz Ph Hp Range kW Range Poles RPM Max. Ambient

Temp. Duty Rating

60 2-Wire 0.3 - 1.5 0.25 - 1.1 2 3450 86 °F / 30 °C Continuous

50 2-Wire 0.5 - 1.5 0.37 - 1.1 2 2875 86 °F / 30 °C Continuous

60 3-Wire 0.3 - 2 0.25 - 1.5 2 3450 86 °F / 30 °C Continuous*

50 3-Wire 0.3 - 2 0.25 - 1.5 2 2875 86 °F / 30 °C Continuous*

60 Three-Phase 0.5 - 2 0.37 - 1.5 2 3450 86 °F / 30 °C Continuous*

50 Three-Phase 0.5 - 2 0.37 - 1.5 2 2875 86 °F / 30 °C Continuous*

* 3 hp motors require 0.25 ft/sec fl ow past motor.

Construction Type

Component Standard Water Well Pollution Recovery

Castings 304 SS over Iron 304 SS over Iron

Stator Shell 301 SS 301 SS

Shaft Extension 17-4 SS or 303 SS 303 SS

Fasteners 305 SS or 302 SS 316 SS

Seal Cover Acetal Tefzel®

Seal Nitrile Rubber Lip Viton®

Diaphragm Nitrile Rubber Viton®

Slinger Nitrile Rubber Viton®

Lead Wire (or Cable) XLPE Lead not furnished with motor

Lead Potting Epoxy Lead not furnished with motor

Lead Jam Nut 303 SS Lead not furnished with motor

Specifi cations subject to change without notice. Contact Franklin Electric if current material types are required for bid specifi cations.

Viton® is a registered trademark of DuPont Dow Elastomers.

Tefzel® is a registered trademark of E.I. du Pont Nemours and Company.

4-Inch Construction Materials

5

4” Submersible Motors Super Stainless

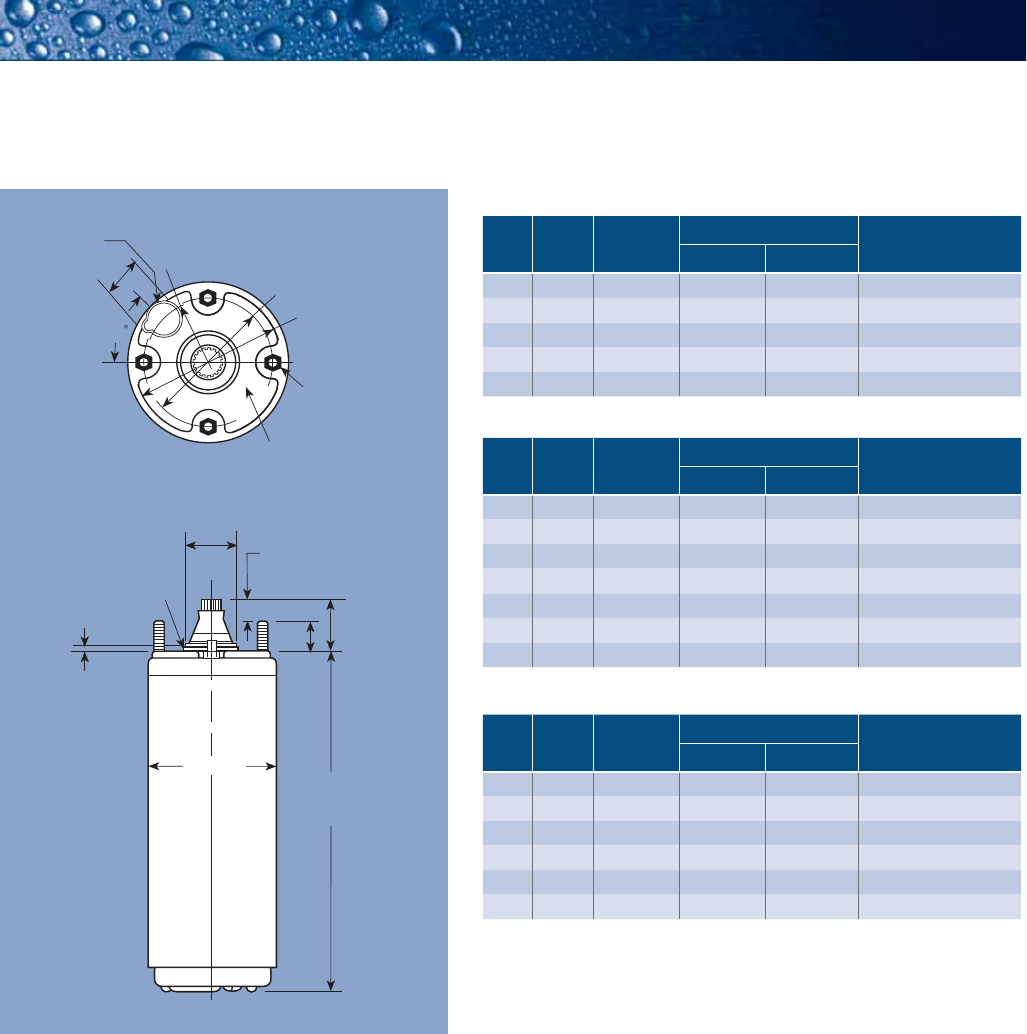

4-Inch Dimensions and Weights

1.508

1.498

0.97

0.79

1.48

MAX

0.030 R

MAX

" L"

SEE

TABLE

0.161 MAX LEAD

BOSS HEIGHT

1.44 R

LEAD

AREA

1.00

INLET FILTER

(UNDER COVER)

3.438

3.435

4 STUDS

5/16 -24 UNF-2A THREAD

3.00

3.75 DIA.

0.50 MIN.

FULL SPLINE

45

Single-Phase Motors - 2-wire

HP KW “L”

(inches) SHIPPING WEIGHT MOTOR CARTON

SIZE (in inches)LBS KG

1/3 0.25 8.78 16 7.3 4 x 4.375 x 16

0.5 0.37 9.53 18 8.2 4 x 4.375 x 16

0.75 0.55 10.66 21 9.5 4 x 4.375 x 19

1 0.75 11.75 24 10.9 4 x 4.375 x 19

1.5 1.1 15.12 31 14.1 4 x 4.375 x 21

Single-Phase Motors - 3-wire

HP KW “L”

(inches) SHIPPING WEIGHT MOTOR CARTON

SIZE (in inches)LBS KG

1/3 0.25 8.78 17 7.7 4 x 4.375 x 16

0.5 0.37 9.53 19 8.6 4 x 4.375 x 16

0.75 0.55 10.66 21 9.5 4 x 4.375 x 19

1 0.75 11.75 24 10.9 4 x 4.375 x 19

1.5 1.1 13.62 28 12.7 4 x 4.375 x 21

2 1.5 15.12 33 15.0 5 x 4.375 x 21

3 2.2 19.06 41 18.6 6 x 4.375 x 21

Three-Phase Motors

HP KW “L”

(inches) SHIPPING WEIGHT MOTOR CARTON

SIZE (in inches)LBS KG

0.5 0.37 9.53 18 8.2 4 x 4.375 x 16

0.75 0.55 10.66 21 9.5 4 x 4.375 x 16

1 0.75 11.75 24 10.9 4 x 4.375 x 19

1.5 1.1 11.75 24 10.9 4 x 4.375 x 19

2 1.5 13.62 28 12.7 4 x 4.375 x 21

3 2.2 16.06 35 15.9 4 x 4.375 x 21

All dimensions listed above are for models supplied with lead. Consult

factory for other models.

6

4” Submersible Motors Super Stainless

4-Inch 2-wire Models

HP (kW)

DESCRIPTION

MODEL STOCK

STATUS

DOWNWARD

THRUST

RATINGW/PH CONSTRUCTION VOLTS HZ S.F. LEAD

IN MTR

1⁄3 hp

0.25 kW 2-WIRE

WATER WELL

115 60 1.75 244 502 01--S

300 LBS

(1500 N)

115 60 1.75 YES 244 502 90--S YES

230 60 1.75 244 503 01--S

230 60 1.75 YES 244 503 90--S YES

POLLUTION

RECOVERY

115 60 1.75 244 502 09--S

230 60 1.75 244 503 09--S

1⁄2 hp

0.37 kW 2-WIRE

WATER WELL

115 60 1.60 244 504 01--S

300 LBS

(1500 N)

115 60 1.60 YES 244 504 90--S YES

220 50 1.00 244 555 01--S

230 60 1.60 244 505 01--S

230 60 1.60 YES 244 505 90--S YES

POLLUTION

RECOVERY

115 60 1.60 244 504 09--S

230 60 1.60 244 505 09--S

3⁄4 hp

0.55 kW 2-WIRE

WATER WELL

220 50 1.00 244 557 01--S

300 LBS

(1500 N)

230 60 1.50 244 507 01--S

230 60 1.50 YES 244 507 90--S YES

POLLUTION

RECOVERY 230 60 1.50 244 507 09--S

1 hp

0.75 kW 2-WIRE

WATER WELL

220 50 1.00 244 558 12--S

650 LBS

(3000 N)

230 60 1.40 244 508 12--S

230 60 1.40 YES 244 508 90--S YES

POLLUTION

RECOVERY 230 60 1.40 244 508 23--S

1.5 hp

1.1 kW 2-WIRE

WATER WELL

220 50 1.00 244 359 12--S

650 LBS

(3000 N)

230 60 1.30 244 309 12--S

230 60 1.30 YES 244 309 90--S YES

POLLUTION

RECOVERY 230 60 1.30 244 309 23--S

NOTES:

1. Pack Designation: --S = Single Pack, available in any quantity. All 3 hp motors are single-packed.

2. Contact factory for lead time for non-stocked items.

3. Pallet packs available but not shown. Please contact customer service for availability.

7

4” Submersible Motors Super Stainless

HP (KW)

DESCRIPTION

MOTOR MODEL CONTROL

BOX MODEL STOCK

STATUS

DOWNWARD

THRUST

RATINGW/PH CONSTRUCTION VOLTS HZ S.F. LEAD

IN MTR

1⁄3 hp

0.25 kW 3-WIRE

WATER WELL

115 60 1.75 214 502 44--S 280 102 49

300 LBS

(1500 N)

115 60 1.75 YES 214 502 90--S 280 102 49 YES

220 50 1.00 214 553 41--S 280 353 01

230 60 1.75 214 503 44--S 280 103 49

230 60 1.75 YES 214 503 90--S 280 103 49 YES

POLLUTION

RECOVERY

115 60 1.75 214 502 49--S 280 102 49

230 60 1.75 214 503 49--S 280 103 49

1⁄2 hp

0.37 kW 3-WIRE

WATER WELL

115 60 1.60 214 504 44--S 280 104 49

300 LBS

(1500 N)

115 60 1.60 YES 214 504 90--S 280 104 49 YES

220 50 1.00 214 555 41--S 280 355 01 YES

230 60 1.60 214 505 44--S 280 105 49

230 60 1.60 YES 214 505 90--S 280 105 49 YES

POLLUTION

RECOVERY

115 60 1.60 214 504 49--S 280 104 49

230 60 1.60 214 505 49--S 280 105 49

3⁄4 hp

0.55 kW 3-WIRE

WATER WELL

220 50 1.00 214 557 41--S 280 357 01 YES

300 LBS

(1500 N)

230 60 1.50 214 507 44--S 280 107 49

230 60 1.50 YES 214 507 90--S 280 107 49 YES

POLLUTION

RECOVERY 230 60 1.50 214 507 49--S 280 107 49

SERIES 600M 230 60 1.50 YES 214 507 0600S YES

1 hp

0.75 kW 3-WIRE

WATER WELL

220 50 1.00 214 558 19--S 280 358 01 YES

650 LBS

(3000 N)

230 60 1.40 214 508 12--S 280 108 49

230 60 1.40 YES 214 508 90--S 280 108 49 YES

POLLUTION

RECOVERY 230 60 1.40 214 508 23--S 280 108 49

SERIES 600M 230 60 1.40 YES 214 508 0610S YES

1.5 hp

1.1 kW 3-WIRE

WATER WELL

220 50 1.00 224 350 19--S 282 350 81 YES

650 LBS

(3000 N)

230 60 1.30 224 300 19--S 282 300 81 YES

230 60 1.30 YES 224 300 92--S 282 300 81 YES

POLLUTION

RECOVERY 230 60 1.30 224 300 23--S 282 300 81

SERIES 600M 230 60 1.30 YES 224 300 0610S YES

2 hp

1.5 kW 3-WIRE

WATER WELL

220 50 1.00 224 351 19--S 282 351 81 YES

650 LBS

(3000 N)

230 60 1.25 224 301 19--S 282 301 81 YES

230 60 1.25 YES 224 301 92--S 282 301 81 YES

POLLUTION

RECOVERY 230 60 1.25 224 301 23--S 282 301 81

SERIES 600M 230 60 1.25 YES 224 301 0610S YES

3 hp

2.2 kW 3-WIRE WATER WELL

220 50 1.00 224 352 25 282 352 81 YES

900 LBS

(4000 N)

230 60 1.15 224 302 25 282 302 81

230 60 1.15 YES 224 302 26 282 302 81 YES

SERIES 600M 230 60 1.15 YES 224 302 0620 YES

NOTES:

1. Pack Designation: --S = Single Pack, available in any quantity. All 3 hp motors are single-packed.

2. Contact factory for lead time for non-stocked items.

3. Pallet packs available but not shown. Please contact customer service for availability.

4-Inch 3-wire Models

8

4” Submersible Motors Super Stainless

HP (KW)

DESCRIPTION

MODEL STOCK

STATUS

DOWNWARD

THRUST

RATINGW/PH CONSTRUCTION VOLTS HZ S.F. LEAD

IN MTR

1⁄2 hp

0.37 kW 3-PHASE

WATER WELL

200 60 1.60 234 501 41--S

3 0 0 LBS

(1500 N)

200 60 1.60 YES 234 501 92--S

220 50 1.00 234 551 41--S

230 60 1.60 234 511 41--S

230 60 1.60 YES 234 511 92--S

380/415 50 1.00 234 561 31--S YES

460 60 1.60 234 521 31--S

460 60 1.60 YES 234 521 94--S

POLLUTION

RECOVERY

200 60 1.60 234 501 49--S

230 60 1.60 234 511 49--S

460 60 1.60 234 521 49--S

3⁄4 hp

0.55 kW 3-PHASE

WATER WELL

200 60 1.50 234 502 41--S

3 0 0 LBS

(1500 N)

200 60 1.50 YES 234 502 92--S

220 50 1.00 234 552 41--S

230 60 1.50 234 512 41--S

230 60 1.50 YES 234 512 92--S

380/415 50 1.00 234 562 31--S YES

460 60 1.50 234 522 31--S

460 60 1.50 YES 234 522 94--S

POLLUTION

RECOVERY

200 60 1.50 234 502 49--S

230 60 1.50 234 512 49--S

460 60 1.50 234 522 49--S

SERIES 600M 230 60 1.50 YES 234 512 0600S YES

460 60 1.50 YES 234 522 0600S

1 hp

0.75 kW 3-PHASE

WATER WELL

200 60 1.40 234 503 19--S

6 50 L B S

(3000 N)

200 60 1.40 YES 234 503 92--S

220 50 1.00 234 553 41--S

230 60 1.40 234 513 19--S

230 60 1.40 YES 234 513 92--S YES

380/415 50 1.00 234 563 31--S YES

460 60 1.40 234 523 16--S

460 60 1.40 YES 234 523 94--S YES

POLLUTION

RECOVERY

200 60 1.40 234 503 23--S

230 60 1.40 234 513 23--S

460 60 1.40 234 523 23--S

SERIES 600M 230 60 1.40 YES 234 513 0610S YES

460 60 1.40 YES 234 523 0610S

4-Inch Three-Phase Models

9

4” Submersible Motors Super Stainless

HP (KW)

DESCRIPTION

MODEL STOCK

STATUS

DOWNWARD

THRUST

RATINGW/PH CONSTRUCTION VOLTS HZ S.F. LEAD

IN MTR

1.5 hp

1.1 kW 3-PHASE

WATER WELL

200 60 1.30 234 504 19--S

6 50 L B S

(3000 N)

200 60 1.30 YES 234 504 92--S YES

220 50 1.00 234 554 19--S

230 60 1.30 234 514 19--S

230 60 1.30 YES 234 514 92--S YES

460/380 60/50 1.30/1.00 234 524 16--S

460/380 60/50 1.30/1.00 YES 234 524 94--S YES

575 60 1.30 234 534 16--S

575 60 1.30 YES 234 534 94--S YES

POLLUTION

RECOVERY

200 60 1.30 234 504 23--S

230 60 1.30 234 514 23--S

460/380 60/50 1.30/1.00 234 524 23--S

SERIES 600M 230 60 1.30 YES 234 514 0610 YES

460/380 60 1.30/1.00 YES 234 524 0610

2 hp

1.5 kW 3-PHASE

WATER WELL

200 60 1.25 234 305 16--S

6 50 L B S

(3000 N)

200 60 1.25 YES 234 305 92--S YES

220 50 1.00 234 355 19--S

230 60 1.25 234 315 16--S YES

230 60 1.25 YES 234 315 92--S YES

460/380 60/50 1.25/1.00 234 325 16--S YES

460/380 60/50 1.25/1.00 YES 234 325 94--S YES

575 60 1.25 234 335 16--S

575 60 1.25 YES 234 335 94--S YES

POLLUTION

RECOVERY

200 60 1.25 234 305 23--S

230 60 1.25 234 315 23--S

460/380 60/50 1.25/1.00 234 325 23--S

SERIES 600M 230 60 1.25 YES 234 315 0610 YES

460/380 60 1.25/1.00 YES 234 325 0610

3 hp

2.2 kW 3-PHASE

WATER WELL

200 60 1.15 234 306 25

9 0 0 L B S

(4000 N)

200 60 1.15 YES 234 306 26 YES

220 50 1.00 234 356 25

230 60 1.15 234 316 25

230 60 1.15 YES 234 316 26 YES

380 60 1.15 234 346 25

380 60 1.15 YES 234 346 26 YES

460/380 60/50 1.15/1.00 234 326 25

460/380 60/50 1.15/1.00 YES 234 326 26 YES

575 60 1.15 234 336 25

575 60 1.15 YES 234 336 26 YES

SERIES 600M 230 60 1.15 YES 234 316 0620

460/380 60 1.15/1.00 YES 234 326 0620

4-Inch Three-Phase Models

NOTES:

1. Pack Designation: --S = Single Pack, available in any quantity. All 3 hp motors are single-packed.

2. Contact factory for lead time for non-stocked items.

3. Pallet packs available but not shown. Please contact customer service for availability.
