AREAS OF USE

The flexibility of Saniflo systems make any sanitary application imaginable. Compact and

ready to plug and pump, they find multiple applications to solve multiple challenges:

FAMILY HOUSE

The Saniflo macerators and pumps are widely used in residential applications. They make it possible

to install a toilet, a full bathroom, a kitchen or laundry room anywhere in one or two family houses,

vacation homes, pool cabanas, etc.

APARTMENT BUILDINGS / CONDOMINIUMS

Saniflo offers sanitary solutions for many residential and commercial applications around the globe.

Various restaurants, hotels, bars, spa centers, business offices and also public buildings such as

schools, hospitals, airports, museums are all equipped with Saniflo units.

COMMERCIAL APPLICATIONS

Saniflo is a partner of choice for manufacturing industries. The reliable and cost-effective Saniflo

systems offer intelligent and dedicated solutions in commercial and industrial environments.

MOBILE UNITS / CABINS

Compact and easy to connect to sewer lines or a septic tank, Saniflo macerators and pumps are the

perfect choice to install a toilet, wash basin or shower on trailers, bungalows, modular structures,

floating bathhouses, etc.

Floors, walls and structural integrity

remain intact while the project time is

reduced and construction mess is

virtually eliminated.

With Saniflo, you decide where your new

bathroom goes. You are no longer limited

to locations where downhill drainage or

gravity evacuates waste. You don't even

need to be in close proximity to the main

waste pipe (soil stack).

Saniflo offers a range of macerating

and grinder pump systems that greatly

reduces the size of the waste products.

Because of this, larger diameter discharge

lines are unnecessary. In fact, all that is

needed is a 3⁄4" diameter discharge pipe.

Using above-floor plumbing technology, there

is no need to dig the ground which means no

disruptive or destructive remodeling.

INTRODUCING THE SANIFLO SYSTEM

Where Bathrooms Defy Gravity!

Saniflo offers high quality, low cost

and superior installation flexibility.

Saniflo systems are a very economical

way to increase the value of any

home with the addition of a toilet,

full bathroom or even a laundry room

anywhere.

Saniflo systems are the ideal solution

for installing a new bathroom or

fixture by simplifying construction

without the long hours of labor.

SANIFLO MAKES IT SIMPLE!

We will counsel you on which product

is best for you and direct you to a

distributor in your area. Saniflo is the

easy solution for all bathroom

installations.

The motor of Saniflo’s units have no

gears or brushes to wear out. It is

filled with oil and sealed at our factory

which provides a maintenance-free

product. It’s macerating systems are

equipped with stainless steel blades

eliminating the need to replace them.

Note: Toilet displayed in photo is not a Saniflo toilet.

Before

After

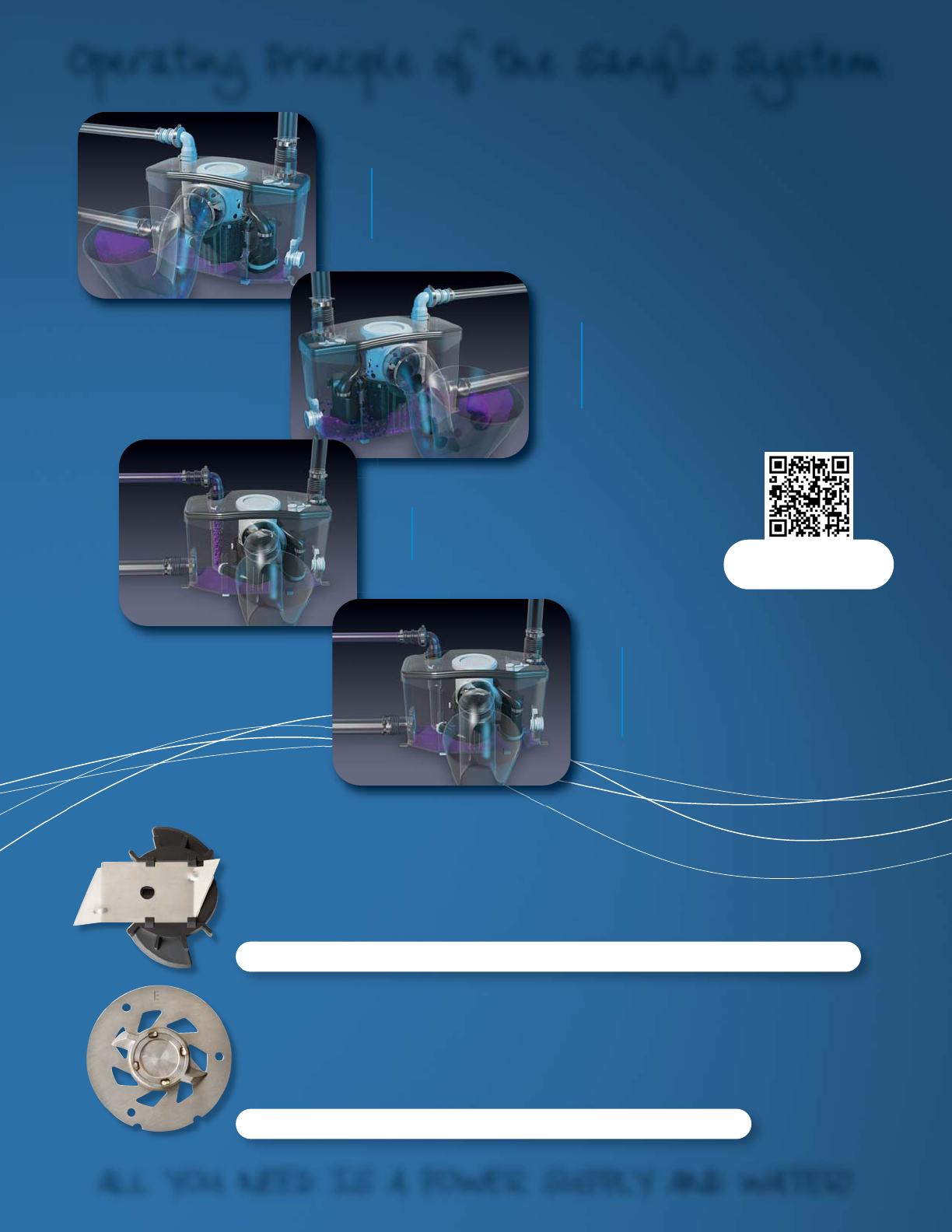

The toilet is flushed, the

water level rises and the

Saniflo grinder motor

turns on automatically.

The blades driven

by the motor

grind the contents

into tiny particles

in 3 or 4 seconds.

The finely ground particles are

pumped through a standard pipe

just 3/4 or 1 inch in diameter.

The macerating tank

is now empty (apart

from the water seal)

and the system is

ready for use again.

1

2

3

4

Operating Principle of the Saniflo System

Scan with your smart phone

to watch a video clip of the Saniflo

system operating principle!

ALL YOU NEED IS A POWER SUPPLY AND WATER!

WHAT IS A MACERATOR?

To “macerate” is to soften and break in pieces.

Our Saniflo macerating systems use a stainless steel rotating blade to liquefy human waste and toilet

paper. When mixed with flushing water the waste is pumped into a sanitary sewer as a fine slurry.

SaniAccess3 •SaniPlus •SaniPack •SaniTop •SaniCompact •SaniStar

WHAT IS A GRINDER?

The grinder will accept accidental flushing of sanitary items such as feminine hygiene products. It

grinds up waste produced in your home (i.e. toilet use, shower, washing machine, etc.) and

pumps it into the public sewer system or septic tanks.

SaniBest Pro •SaniGrind Pro •SaniCubic 1 •SaniCubic 2

ACHIEVE THE BEST LOOK BY

CONCEALING ALL THE PLUMBING

If you have installation questions about our products or possible applications, please contact

our technical department at our toll free number US: 800-571-8191, Canada: 800-363-5874

Part # 030

DIMENSIONS:

Length: 18"

Diameter of pipe (smaller end): 4"

Diameter of bell housing (Large end): 5"

A A

SFA Saniflo introduced the Extension Pipe to ease the installation process

and make it easier to hide the pump and plumbing behind any finished

wall. This extension pipe is used with the Saniaccess3, Saniplus, Sanibest

Pro and Sanitop systems.

The 18" extension pipe was designed with the idea to reduce time when

installing the macerating and grinding systems. It has an inner gasket

which connects to the rear spigot of the Saniflo toilet without any difficulty.

Its sealed connection keeps water from seeping out once the toilet is flushed.

The ease of installation is the reason why installers recommend the

extension pipe for any Saniflo installation. When using the extension pipe,

the toilet bowl should be raised 3/8 inch for additional gravity flow toward

the macerating or grinding system.

•Macerating and grinding

units for residential and

commercial applications

•No breaking of

concrete or finished floor

eliminating any possible

mess

•Easy installation that

allows you to complete your

dream bathroom in a timely

fashion

•A cost effective way to

install extra bathroom

facilities virtually anywhere

Conceal your pump behind the wall

using our Extension Pipe (Page 5)

SANI

SANI

3

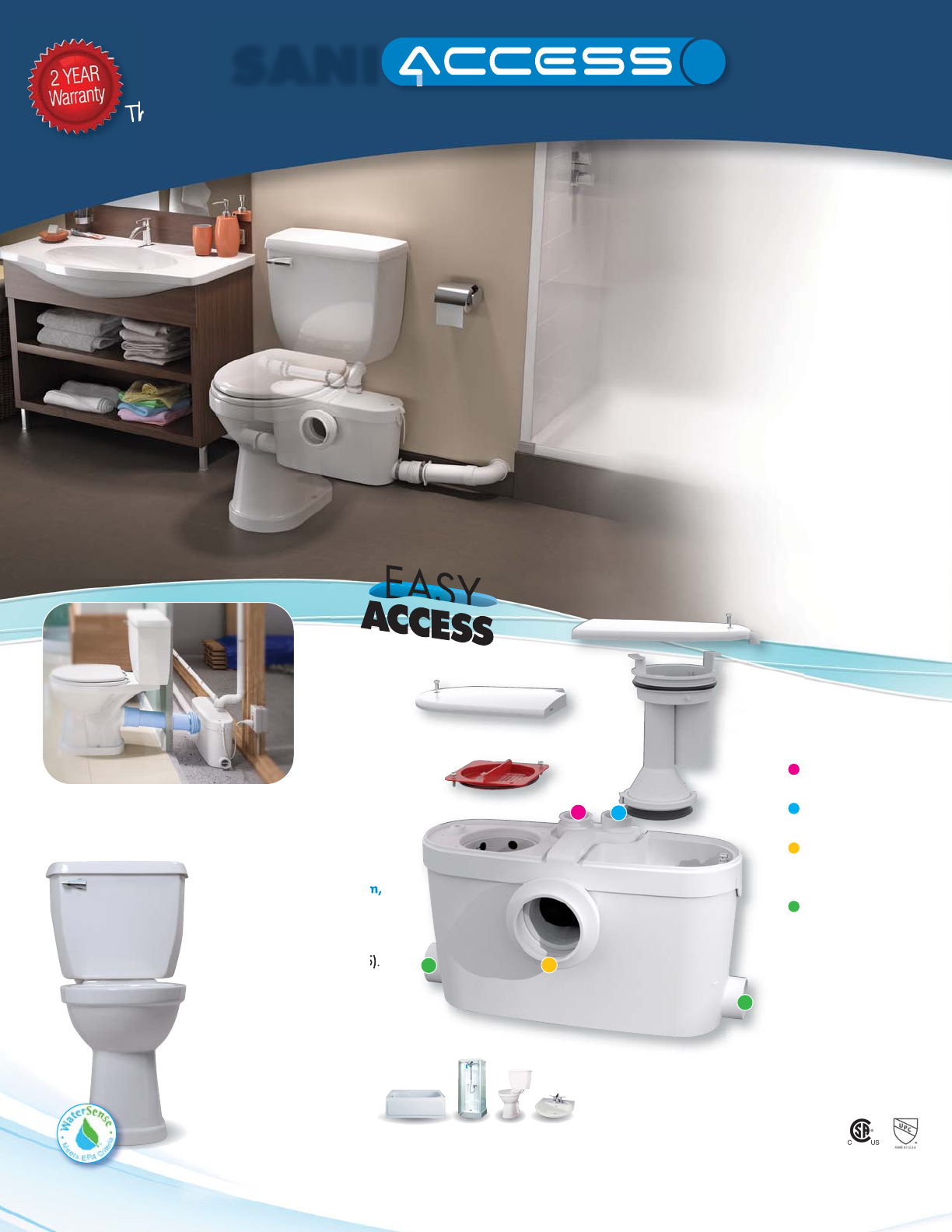

The most advanced macerator with dual accessibility in the world

•Saniflo's 1.28 gallon

per flush toilet tank (005).

•Saniflo's rear discharge

toilet which comes in

either round (003) or

elongated* (007).

To complete your system,

all you need is:

3⁄4“ Discharge

11⁄2“Vent

Connect to

Saniflo toilet

Connect to shower,

bathtub or sink

Choose any shower, bathtub or sink and enjoy your dream bathroom.

Possible Connections

* Americans with Disabilities

Act (ADA) compliant.

Discharge up to:

↑15 Ft. ↑and/or ←150 Ft.→

Power/Electrical Information:

115V – 60 Hz / 0.5 HP / 4.5 A

Dimensions:

H 103⁄4” (27cm) x W 183⁄4“

(47.5cm) x D 63⁄4“ (17cm)

Discharge pipe diameter:

3⁄4“ rigid pipe

Discharge flow rate at 15’:

17 gal per min (66 liters per min)

Discharge flow rate at 3’:

27 gal per min (103 liters per min)

Max. Temperature:

104˚F (40˚C)

Part# 082

Conceal your pump behind the wall

using our Extension Pipe (Page 5)

* Americans with Disabilities

Act (ADA) compliant.

Possible Connections

Discharge up to:

↑15 Ft. ↑and/or ←150 Ft.→

Power/Electrical Information:

115V – 60 Hz / 0.5 HP / 4.5 A

Dimensions:

H 105⁄8” (27 cm) x W 20“

(51 cm) x D 7“ (17.5 cm)

Discharge pipe diameter:

3⁄4“ rigid pipe

Discharge flow rate at 15’:

17 gal per min (66 liters per min)

Discharge flow rate at 3’:

27 gal per min (103 liters per min)

Max. Temperature:

104˚F (40˚C)

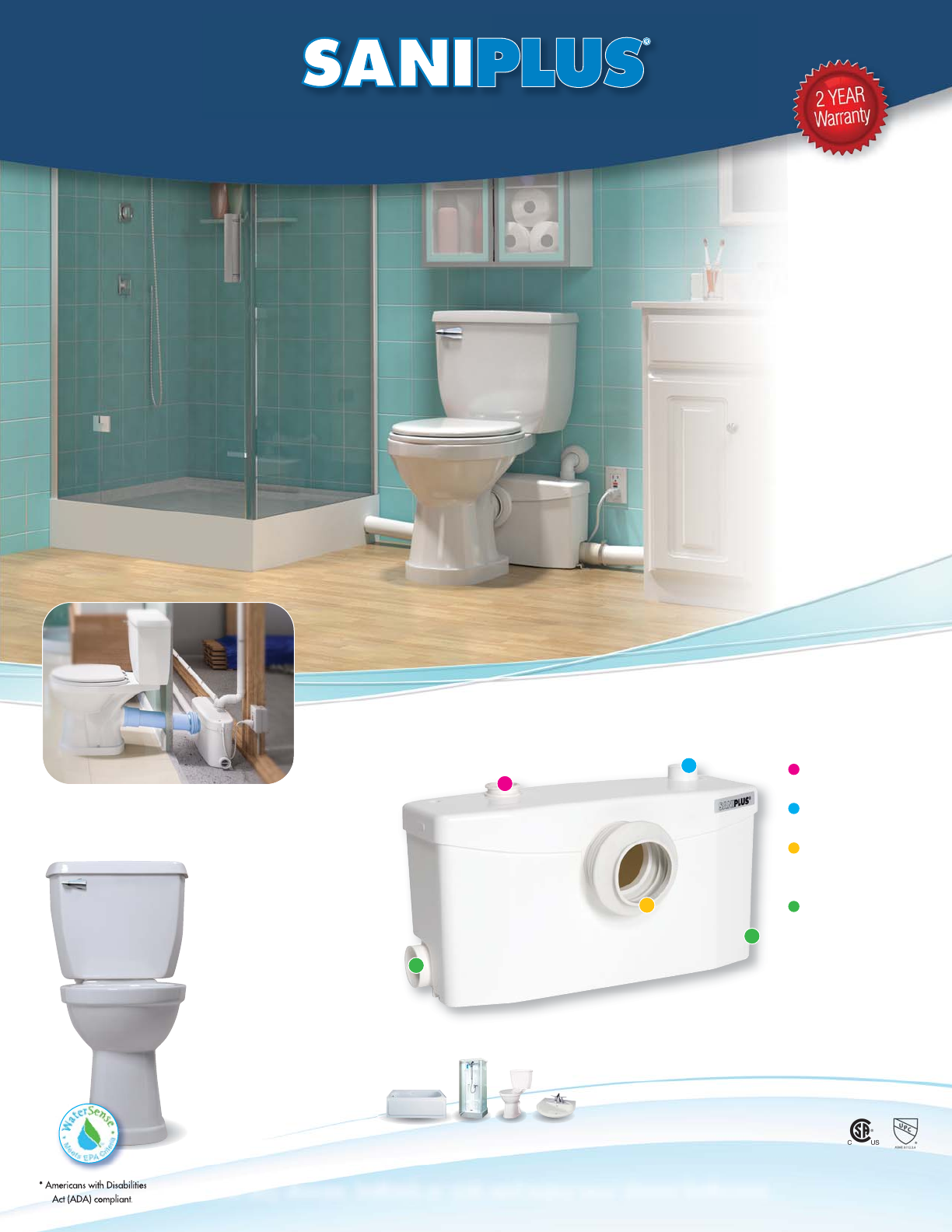

The original macerator for a full bathroom

Part# 002

•Saniflo's 1.28 gallon

per flush toilet tank (005).

•Saniflo's rear discharge

toilet which comes in

either round (003) or

elongated* (007).

To complete your system,

all you need is:

3⁄4“ Discharge

11⁄2“Vent

Connect to

Saniflo toilet

Connect to shower,

bathtub or sink

Choose any shower, bathtub or sink and enjoy your dream bathroom.

Discharge up to:

↑25 Ft. ↑and/or ←150 Ft.→

Power/Electrical Information:

115V – 60 Hz / 1 HP / 9.0 A

Dimensions:

H 101⁄2” (26.8cm) x W 205⁄16“

(52cm) x D 8“ (20.5cm)

Discharge pipe diameter:

3⁄4“ rigid pipe

Discharge flow rate at 25’:

19 gal per min (72 liters per min)

Discharge flow rate at 3’:

38 gal per min (145 liters per min)

Max. Temperature:

104˚F (40˚C)

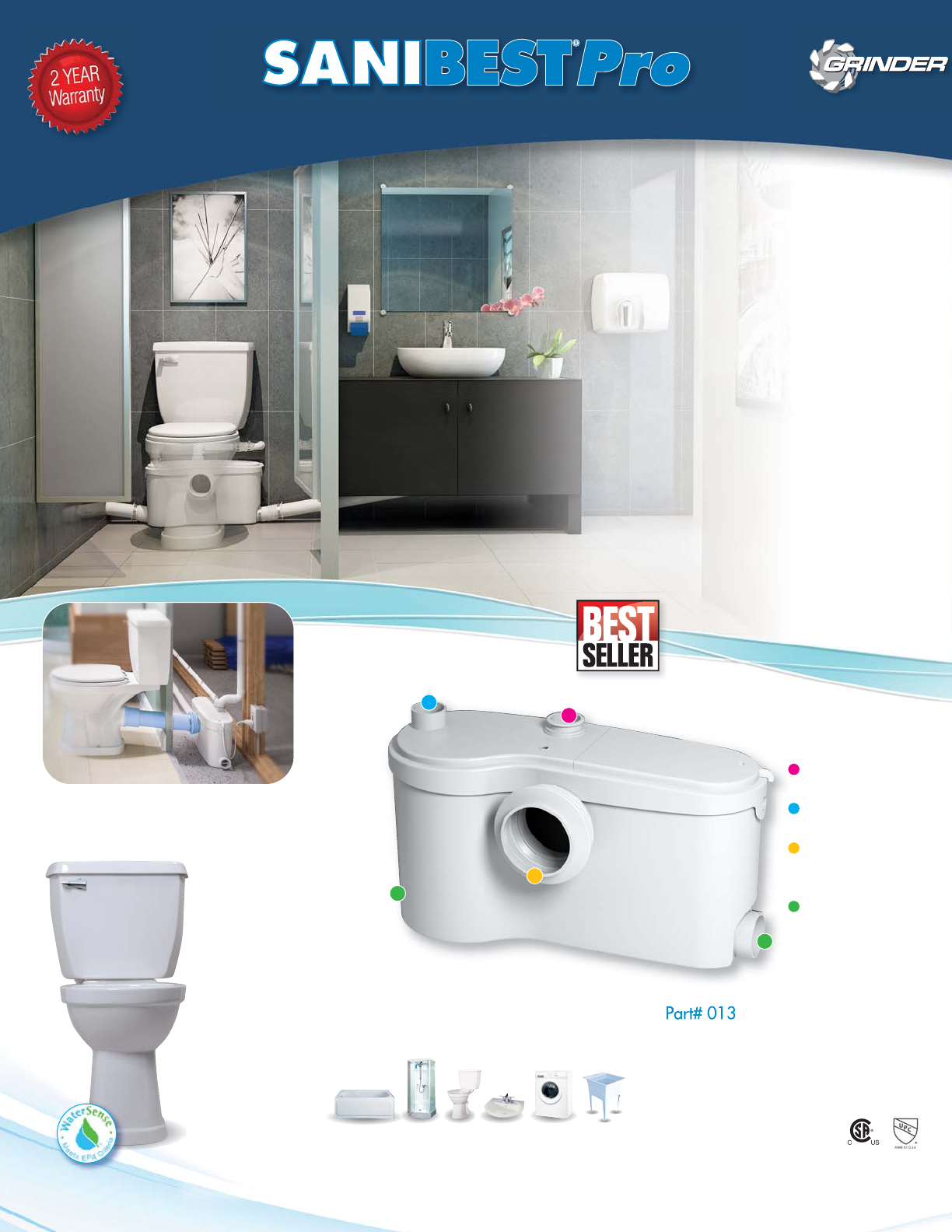

Full bathroom for demanding situations

Part# 013

3⁄4“ Discharge

11⁄2“Vent

Connect to

Saniflo toilet

Connect to shower,

bathtub, sink or

washing machine**

Choose any shower, bathtub or sink and enjoy your dream bathroom.

Possible Connections

Conceal your pump behind the wall

using our Extension Pipe (Page 5)

•Saniflo's 1.28 gallon

per flush toilet tank (005).

•Saniflo's rear discharge

toilet which comes in

either round (003) or

elongated* (007).

To complete your system,

all you need is:

* Americans with Disabilities

Act (ADA) compliant.

**Indirect Connection.

Discharge up to:

↑25 Ft. ↑and/or ←150 Ft.→

Power/Electrical Information:

115V – 60 Hz / 1 HP / 9.0 A

Dimensions:

H 101⁄2” (26.8cm) x W 205⁄16“

(52cm) x D 8“ (20.5cm)

Discharge pipe diameter:

3⁄4“ rigid pipe

Discharge flow rate at 25’:

19 gal per min (72 liters per min)

Discharge flow rate at 3’:

38 gal per min (145 liters per min)

Max. Temperature:

104˚F (40˚C)

A solution for any conventional toilet

Part# 014

3⁄4“ Discharge

11⁄2“Vent

Connect to a

conventional toilet

Connect to shower,

bathtub, sink or

washing machine**

Choose any conventional toilet, shower, bathtub or sink and enjoy your dream bathroom.

Possible Connections

•Great for retrofitting applications.

Designed to work with conventional

toilets not supplied by Saniflo.

•There are no limitations when it comes

to designing your bathroom as you can

select any conventional toilet of your

choice.

•The unit can either be installed on the

floor while the rest of the fixtures are

installed on a raised platform or you can

lower the pump eliminating the need to

create a subfloor.

**Indirect Connection.

Discharge up to:

↑15 Ft. ↑and/or ←150 Ft.→

Power/Electrical Information:

115V – 60 Hz / 0.5 HP / 4.5 A

Dimensions:

H 115⁄8” (29.5cm) x W 163⁄4“

(42.5cm) x D 53⁄4“ (14.6cm)

Discharge pipe diameter:

3⁄4“ rigid pipe

Discharge flow rate at 15’:

17 gal per min (66 liters per min)

Discharge flow rate at 3’:

27 gal per min (103 liters per min)

Max. Temperature:

104˚F (40˚C)

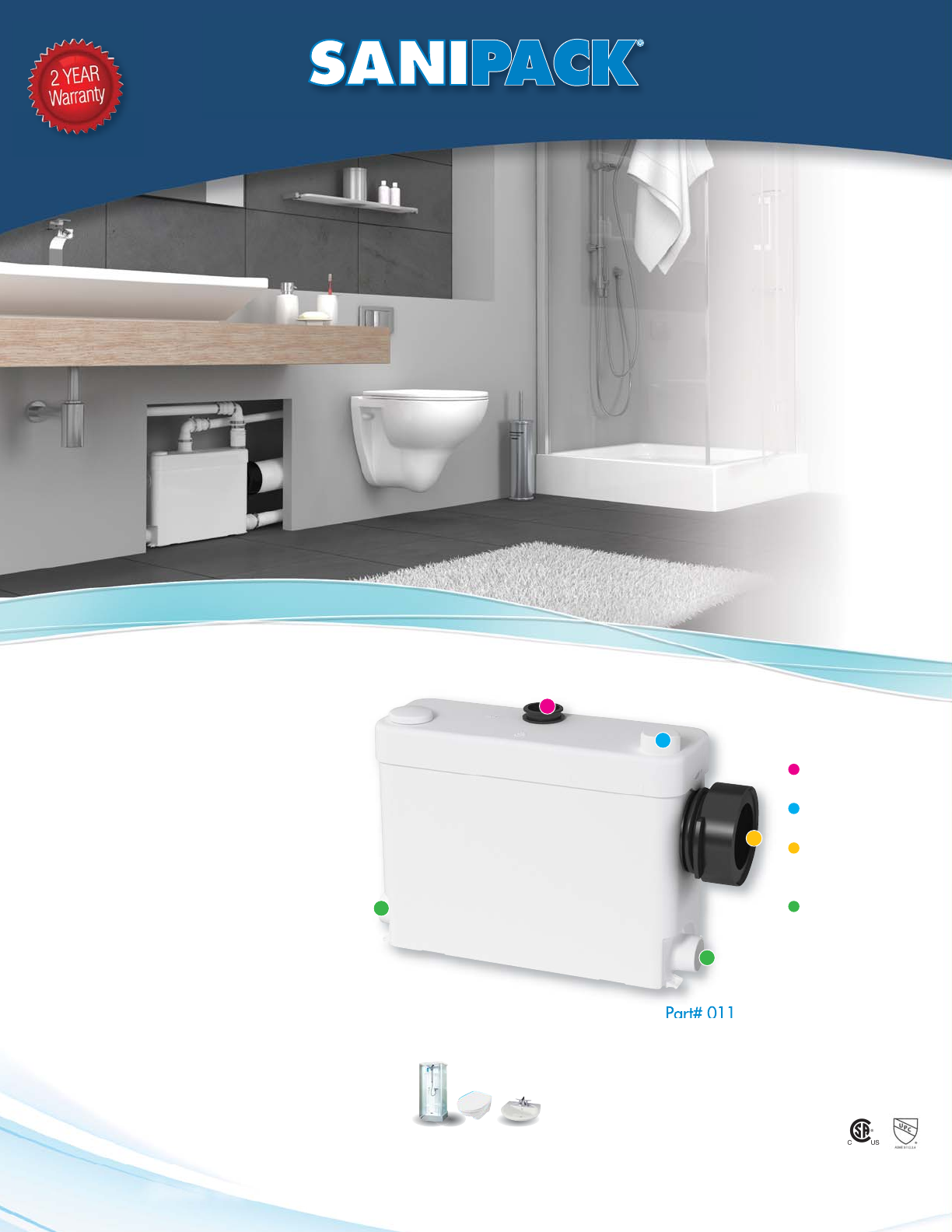

A full bathroom with style

Part# 011

3⁄4“ Discharge

11⁄2“Vent

Connect to

a wall-hung toilet

Connect to shower

or sink

Choose any wall-hung toilet, shower or sink and enjoy your dream bathroom.

Possible Connections

•Designed to work with any

wall-hung toilet not supplied by Saniflo.

•The macerating system is easy to

conceal with versatile and quiet

operation.

•As the water supply, macerating pump

and pipes are hidden inside the wall,

this type of installation gives you the

clean look of a European bathroom.

•Macerating units for

residential applications

•No breaking of

concrete or finished floor

eliminating any possible mess

•Easy installation that

allows you to complete your

dream half bathroom in a

timely fashion

•A cost effective way to

install extra bathroom

facilities virtually anywhere

Discharge up to:

↑12 Ft. ↑and/or ←120 Ft.→

Power/Electrical Information:

115V – 60 Hz / 0.3 HP / 5.0 A

Dimensions:

H 107⁄16” (26.5cm) x W 13“

(33cm) x D 61⁄2“ (16.5cm)

Discharge pipe diameter:

3⁄4“ rigid pipe

Discharge flow rate at 12’:

14 gal per min (53 liters per min)

Discharge flow rate at 3’:

21 gal per min (80 liters per min)

Max. Temperature:

104˚F (40˚C)

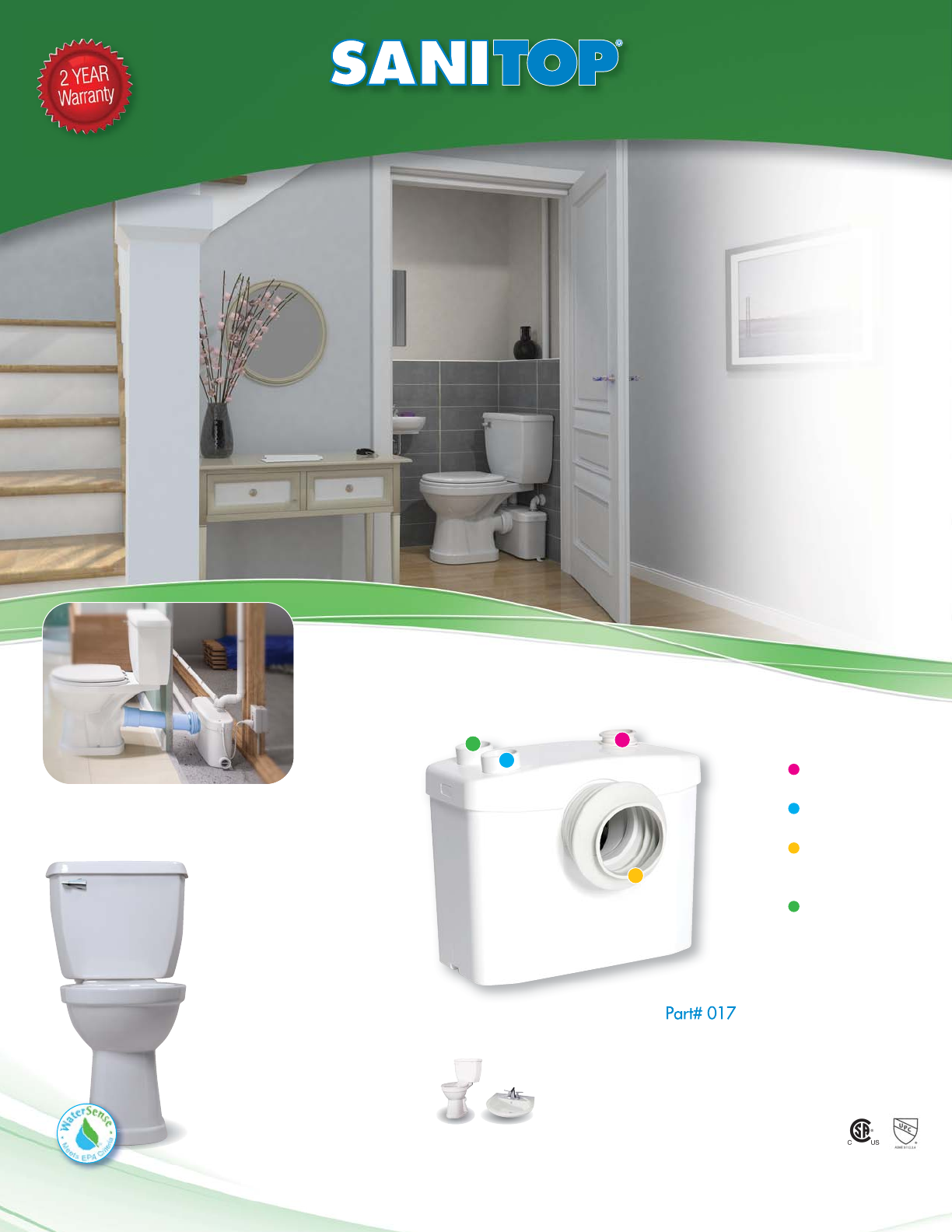

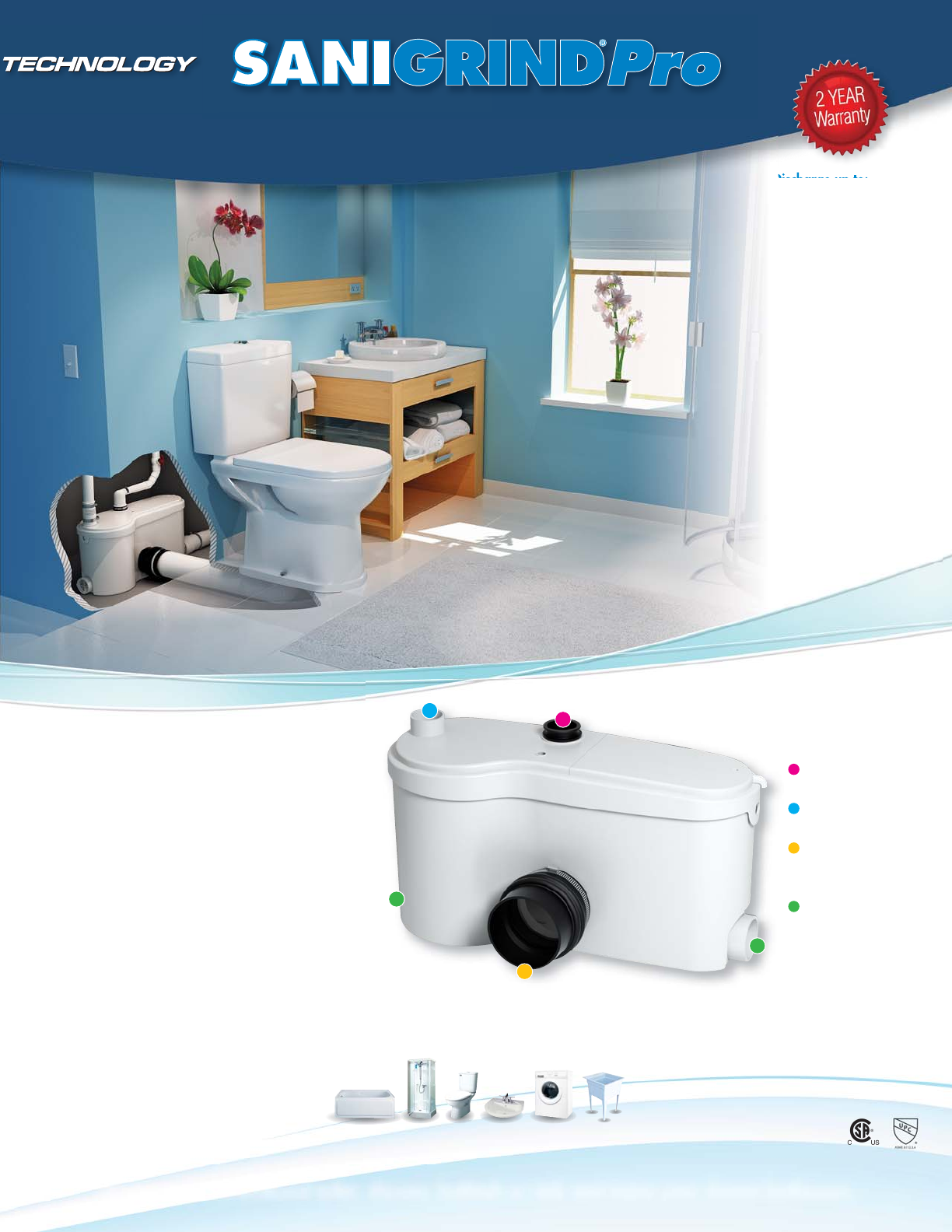

A half bathroom anywhere

Part# 017

3⁄4“ Discharge

11⁄2“Vent

Connect to

Saniflo toilet

Connect to sink

Choose any sink and enjoy your dream half-bathroom.

Possible Connections

Conceal your pump behind the wall

using our Extension Pipe (Page 5)

•Saniflo's 1.28 gallon

per flush toilet tank (005).

•Saniflo's rear discharge

toilet which comes in

either round (003) or

elongated* (007).

To complete your system,

all you need is:

* Americans with Disabilities

Act (ADA) compliant.

Discharge up to:

↑9 Ft. ↑and/or ←100 Ft.→

Power/Electrical Information:

115V – 60 Hz / 0.3 HP / 7.2 A

Dimensions:

H 181⁄2” (47cm) x W 141⁄2“ (36cm)

x D 211⁄2“ (55cm)

Discharge pipe diameter:

1“ rigid pipe

Discharge flow rate at 9’:

13 gal per min (49 liters per min)

Discharge flow rate at 3’:

16 gal per min (61 liters per min)

Max. Temperature:

95˚F (35˚C)

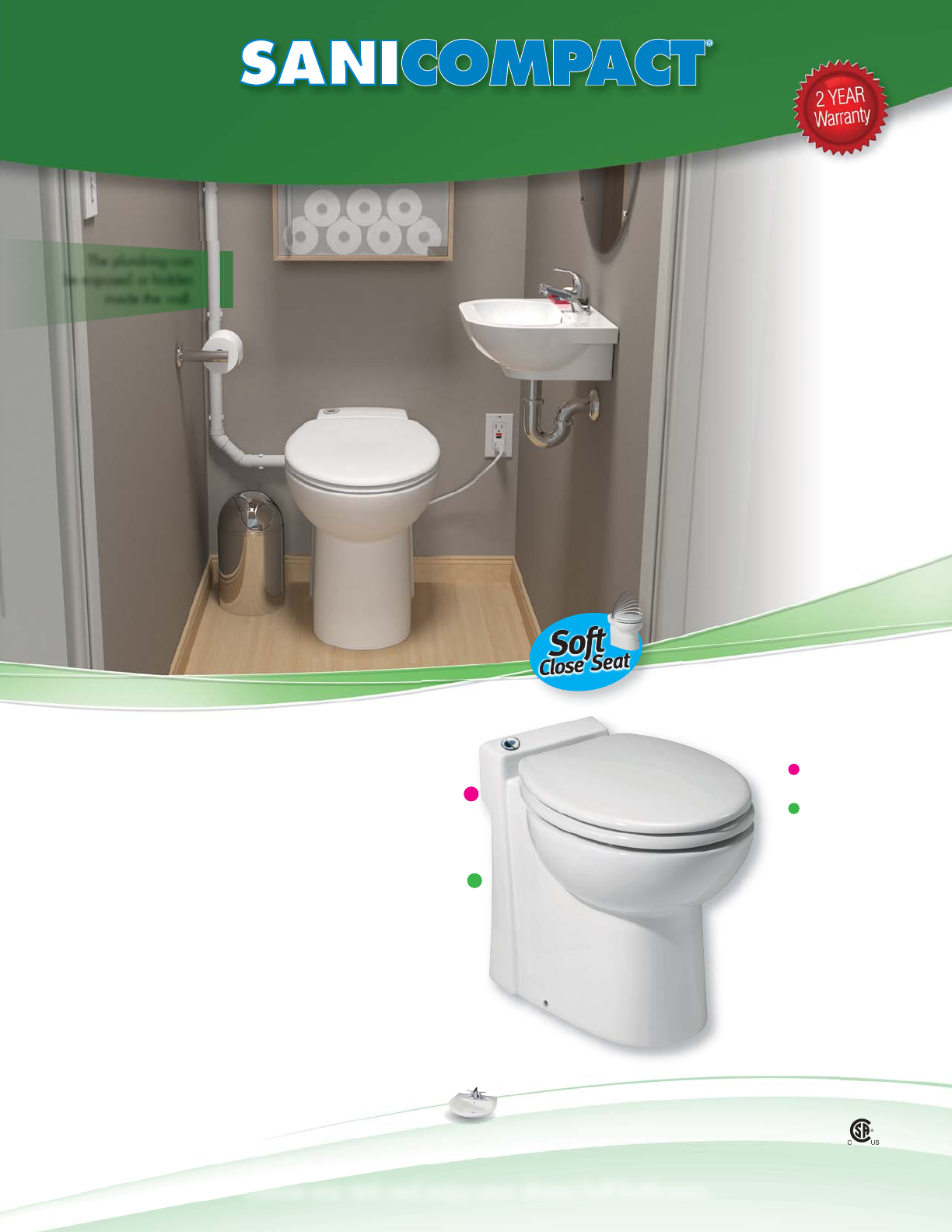

The green solution

Part# 023

1“ Discharge

Connect to a sink

Choose any sink and enjoy your dream half-bathroom.

Possible Connections

•A newly designed toilet with built-in

macerator for green conscious users that

want to save water.

•Standard dual flush version uses

1.28 gallons per flush (4.8 lpf) and

1 gallon per flush (3.8 lpf).

•A toilet that’s ideal for tight spots where

conventional toilets can’t fit and for people

with physical limitations requiring easy

access to a toilet.

The plumbing can

be exposed or hidden

inside the wall.

Discharge up to:

↑9 Ft. ↑and/or ←100 Ft.→

Power/Electrical Information:

115V – 60 Hz / 0.4 HP / 9.0 A

Dimensions:

H 163⁄8” (42cm) x W 153⁄4” (40cm)

x D 201⁄2“ (52cm)

Discharge pipe diameter:

1“ rigid pipe

Discharge flow rate at 9’:

9 gal per min (34 liters per min)

Discharge flow rate at 3’:

15 gal per min (58 liters per min)

Max. Temperature:

95˚F (36˚C)

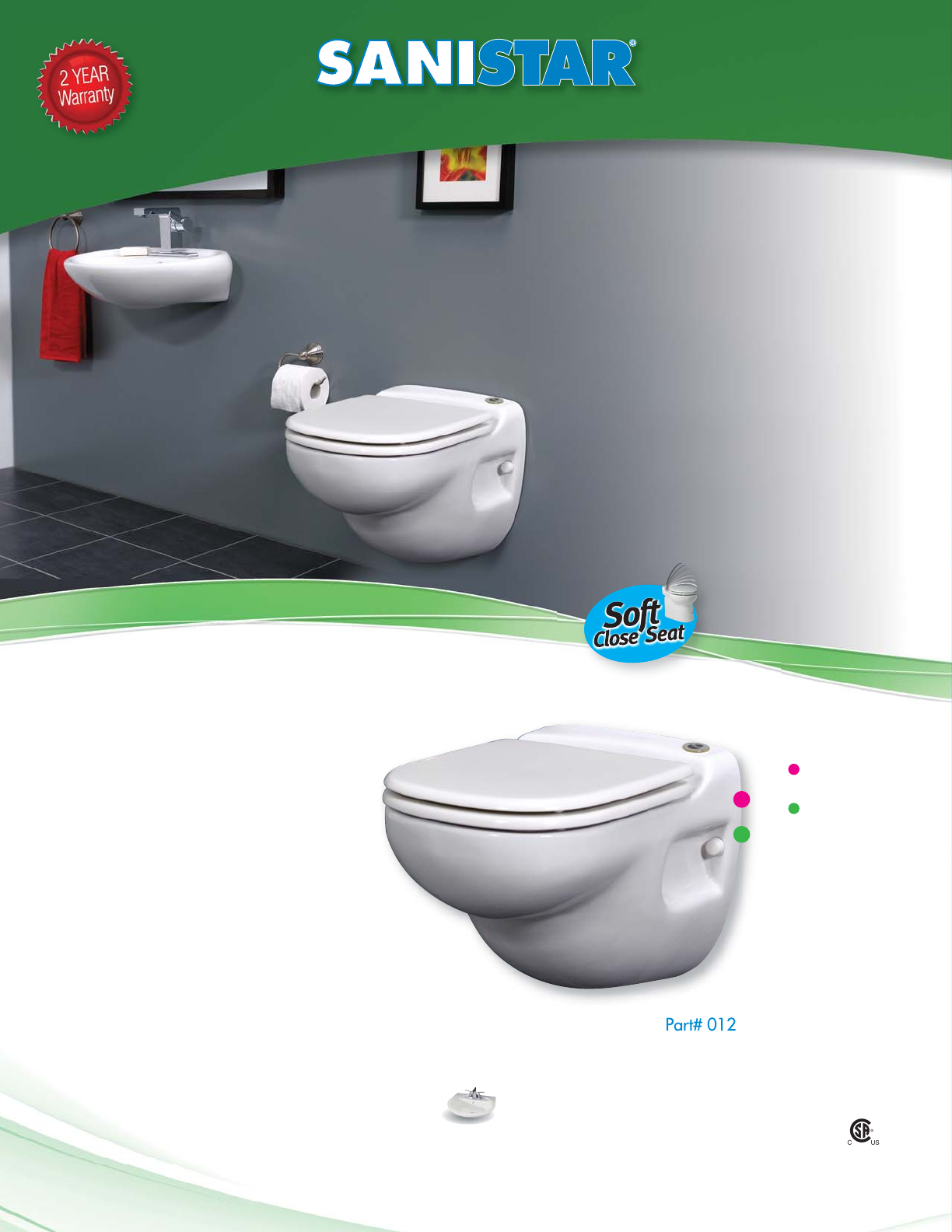

A wall−hung toilet with Saniflo inside

Part# 012

1“ Discharge

Connect to a sink

Choose any sink and enjoy your dream half-bathroom.

Possible Connections

•A wall-hung toilet with built-in macerator for

green conscious users that want to save water.

•Standard dual flush version uses

1.28 gallons per flush (4.8 lpf) and

1 gallon per flush (3.8 lpf).

•A modern shaped wall-hung toilet that saves

space and can be hung on any sturdy wall

(includes the wall carrier for mounting) giving

a stylish and luxurious style appearance.

•Simplex and Duplex grinder

systems for residential and

commercial applications.

Our grinders provide superior

performance and absolute

reliability.

•No breaking of concrete or

finished floor eliminating any

possible mess and without

compromising structural integrity of

the home or building.

•Easy installation that allows

you to add multiple fixtures and

bathrooms to a residence or

building in a timely manner.

•A cost effective way to install

extra bathroom facilities and

plumbing fixtures virtually

anywhere.

Discharge up to:

↑36 Ft. ↑and/or ←328 Ft.→

Power/Electrical Information:

115V - 60 Hz / 1 HP / 10 A

Dimensions:

H 133⁄4” (35cm) x W 18“ (46cm)

x D 163⁄4” (42.6cm)

Discharge pipe diameter:

11⁄2“ rigid pipe

Discharge flow rate at 36’:

26 gal per min (98 liters per min)

Discharge flow rate at 3’:

50 gal per min (189 liters per min)

Max. Temperature:

158˚F (70˚C)

Above the floor simplex system

11⁄2“ Discharge

11⁄2“Vent

Connect to any

toilet, sink, shower,

bathtub, washing

machine, etc.

Make the impossible possible with Saniflo!

Possible Connections

Part# 089

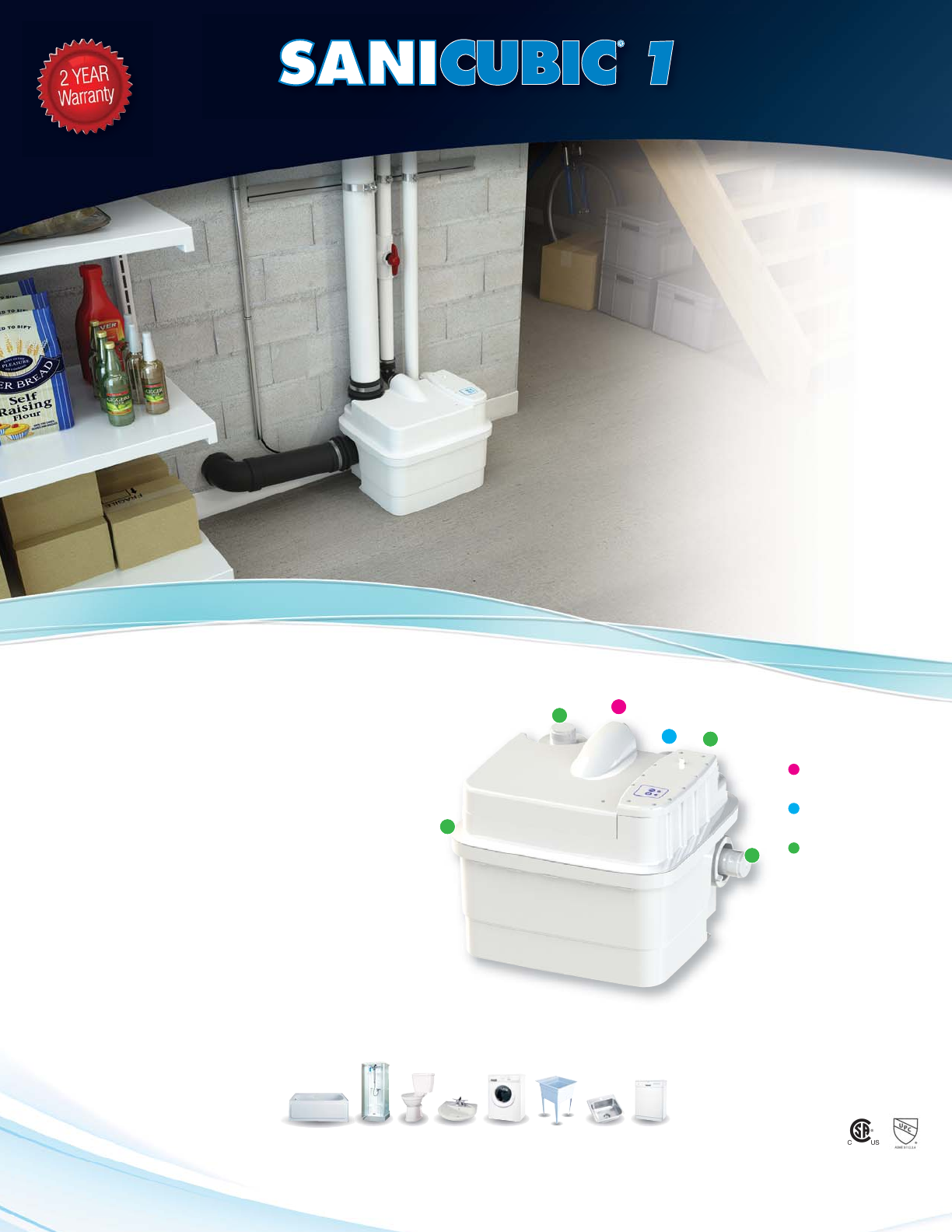

•The Sanicubic 1 is a pre-assembled simplex grinder

system designed for residential and commercial

applications.

•Handles the waste from multiple bathrooms and

fixtures throughout a home or building.

•Easy installation above the floor eliminates any

possible mess and cuts down on additional expenses.

•It can be retrofitted into an existing sewage ejector

basin of at least 24" diameter for a quick and easy

pump exchange.

New grinding technology eliminates clogging issues

found on sewage ejector stations as it can handle

feminine hygiene products.

BENEFITS OF THE SANICUBIC 1

• Sanicubic 1 can handle up to 50 gallons per

minute from several fixtures

• Powerful motor for absolute reliability and

efficiency

• Visual LED alarm mounted on the unit (wired

audible alarm included with the system)

• Easy installation above the floor

• Accepts accidental flushing of sanitary items,

such as feminine hygiene products.

4

5

6

2

3

3

3

3

1SANICUBIC®1 comes equipped

with a visual and audible external

alarm box (15 ft. long wire)

Scan with your smart

phone to watch a clip of

the SaniCubic 1 system.

21

80 100 120 140 160 180 200 220 240 260 280 300 320 340 36

0

(meters) (feet)

36

33

30

26

23

20

16

13

10

7

3

11

10

9

8

7

6

5

4

3

2

1

26 32

P1

37 42 48 53 58 63 69 74 79 85 90 95

Performance Curve

Flow Rate: (gallons/minute)

(liters/minute)

211⁄4"

18"

163⁄4"

133⁄4"

173⁄8"

51⁄2"

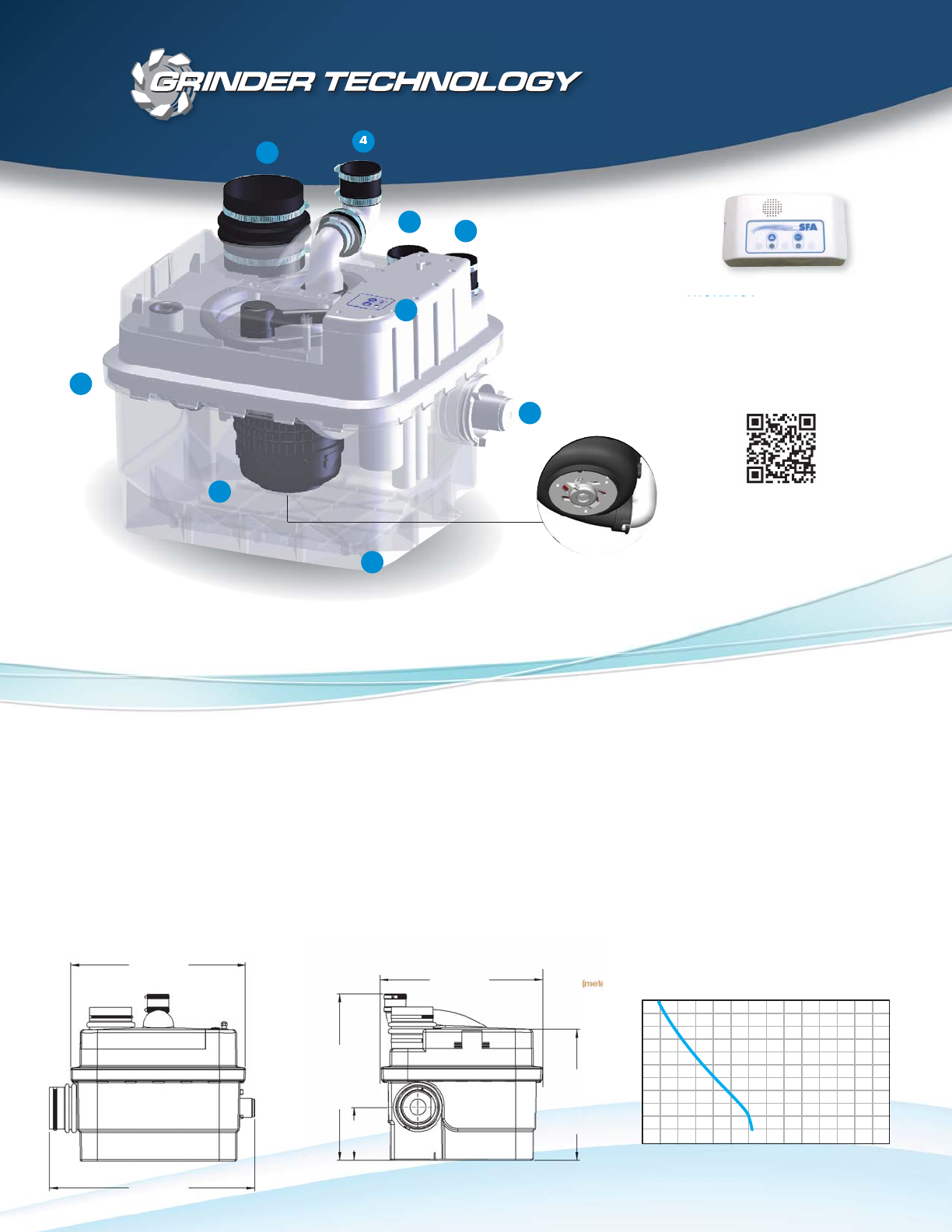

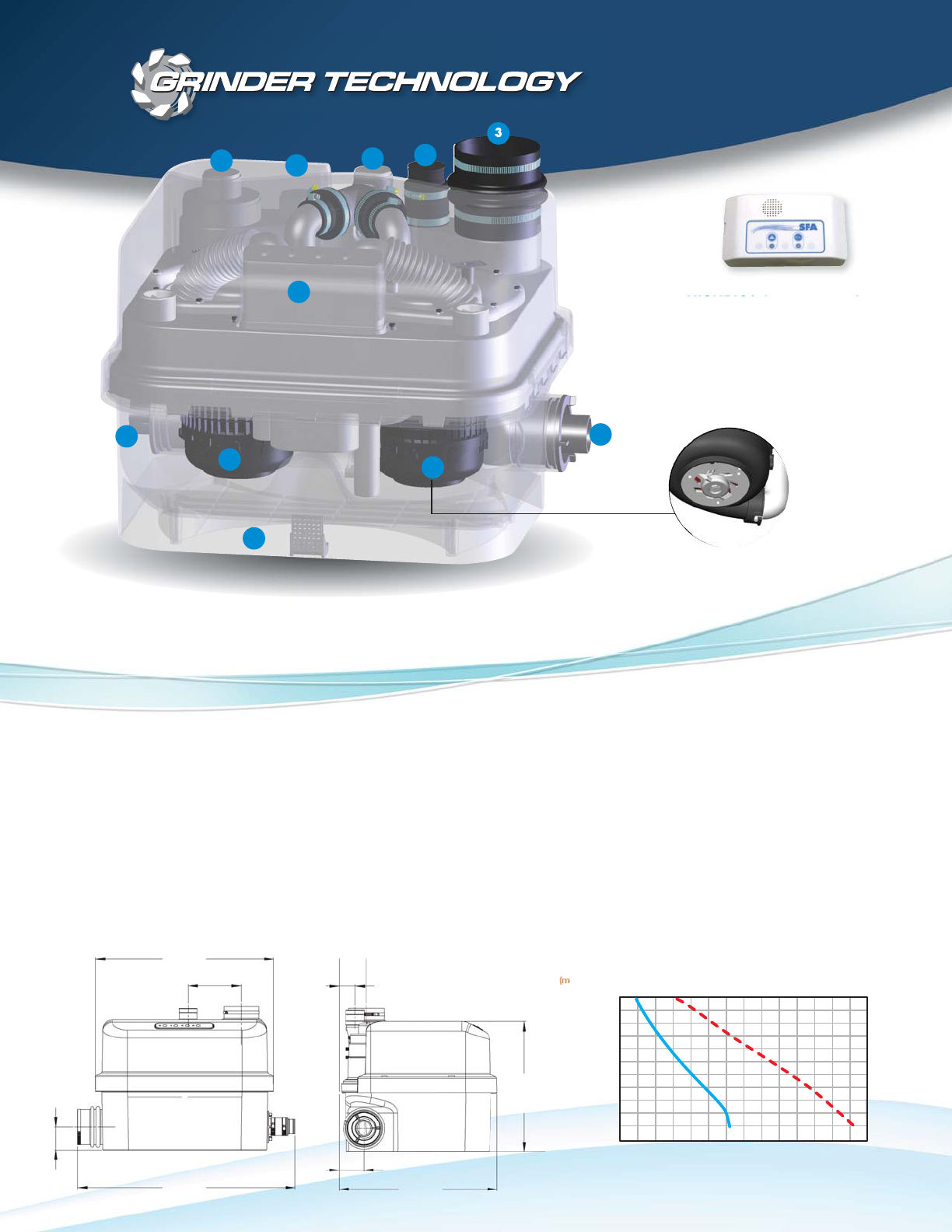

1CONTROL PANEL

Visual mounted alarm, wired audible

alarm, LED power control and overload

indicator

2MOTOR

A powerful 1 HP grinder pump

3INLET - UP TO 4 INLETS

3 inlets – 1 ½" or 4" / 1 inlet – 1 ½"

(coupling provided)

4DISCHARGE

11⁄2" with check valve built inside

5VENT

11⁄2"

6DIMENSIONS

H 13 3⁄4'' (35cm) x W 18'' (46cm)

x D 16 3⁄4'' (42.6cm)

Discharge up to:

↑36 Ft. ↑and/or ←328 Ft.→

Power/Electrical Information:

220/240V - 60 Hz / 2 x 1 HP / 13 A

Dimensions:

H 161⁄2” (42cm) x W 233⁄4“ (60cm) x

D 191⁄4“ (49cm)

Discharge pipe diameter:

11⁄2“ rigid pipe

Discharge flow rate at 36’:

38 gal per min (144 liters per min)**

Discharge flow rate at 3’:

90 gal per min (341 liters per min)**

Max. Temperature:

158˚F (70˚C)

**Both motors in operation

Above the floor duplex system

Part# 029

11⁄2“ Discharge

11⁄2“Vent

Connect to any

toilet, sink, shower,

bathtub, washing

machine, etc.

Make the impossible possible with Saniflo!

Possible Connections

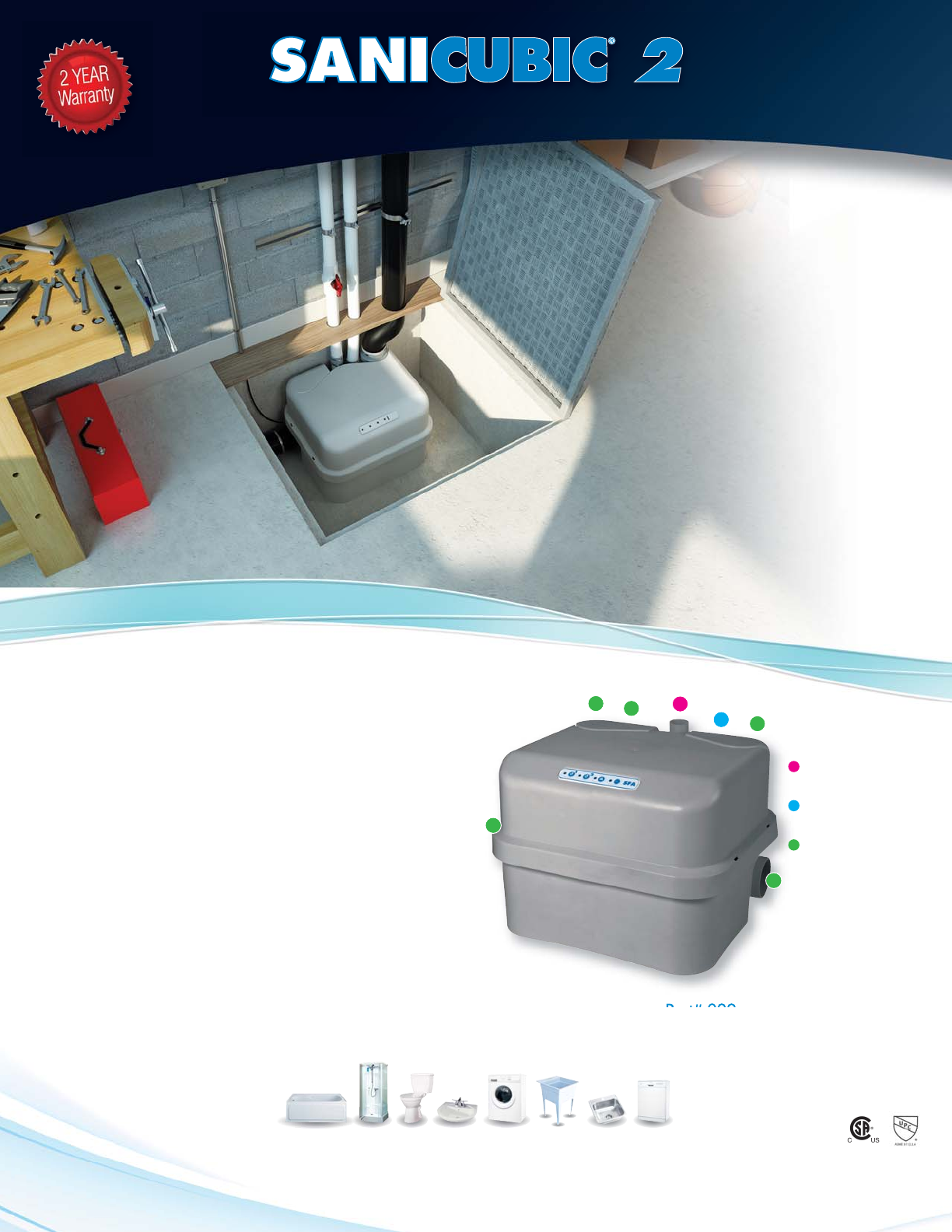

•The Sanicubic 2 is a pre-assembled duplex grinder system

designed for both residential and commercial applications.

•Heavy duty grinders meet the demanding need to handle the

waste from multiple bathrooms and fixtures throughout

commercial or residential building.

•Easy installation above the floor eliminates any possible mess

and cuts down on additional expenses without impacting the

structural integrity of the building.

•Smart-pump technology allows both pumps to work

simultaneously if the incoming rate is higher than the discharge

rate of the single pump. The discharge rate increases roughly

80% until the condition is alleviated.

3

3

2

2

45

3

3

3

1

6

BENEFITS OF THE SANICUBIC 2

• Sanicubic 2 can handle up to 90 gallons per

minute from several fixtures

• Dual motor for absolute reliability and power

• Visual LED and audible alarm mounted on the unit

(wired audible alarm included with the system)

• Easy installation above the floor

• Accepts accidental flushing of sanitary items,

such as feminine hygiene products

New grinding technology eliminates clogging issues

found on sewage ejector stations as it can handle

feminine hygiene products.

21

80 100 120 140 160 180 200 220 240 260 280 300 320 340 36

0

(meters) (feet)

36

33

30

26

23

20

16

13

10

7

3

11

10

9

8

7

6

5

4

3

2

1

26 32

P1

37 42 48 53 58 63 69 74 79 85 90 95

P1+P2

Performance Curve

Flow Rate: (gallons/minute)

(liters/minute)

SANICUBIC®2 comes equipped

with a visual and audible external

alarm box (15 ft. long wire)

271⁄8"191⁄4"

161⁄2"

233⁄4"

2"

3"

3"

1CONTROL PANEL

Visual and audible mounted

alarm, wired audible alarm,

LED power control and

overload indicator

2MOTORS

Two powerful grinder pumps

of 1 HP each

3INLET - UP TO 5 INLETS

4 inlets – 1 ½" or 4” / 1 inlet – 1 ½"

(coupling provided)

4DISCHARGE

11⁄2" with check valves built inside

5VENT

11⁄2"

6DIMENSIONS

H 161⁄2" x W 233⁄4" x D 191⁄4"

•Drain water pumps for

residential and

commercial applications

•Silent technology

and modern design with

unprecedented performance

and features

•Powerful and yet

economical drain

pumps for various types

of installations

Discharge up to:

↑16 Ft. ↑and/or ←150 Ft.→

Power/Electrical Information:

115V – 60 Hz / 0.4 HP / 4.5 A

Dimensions:

H 101⁄8” (26cm) x W 145⁄8“ (37cm)

x D 71⁄4“ (18.5cm)

Discharge pipe diameter:

1“ rigid pipe

Discharge flow rate at 16’:

18 gal per min (68 liters per min)

Discharge flow rate at 3’:

29 gal per min (110 liters per min)

Max. Temperature:

140˚F (60˚C)

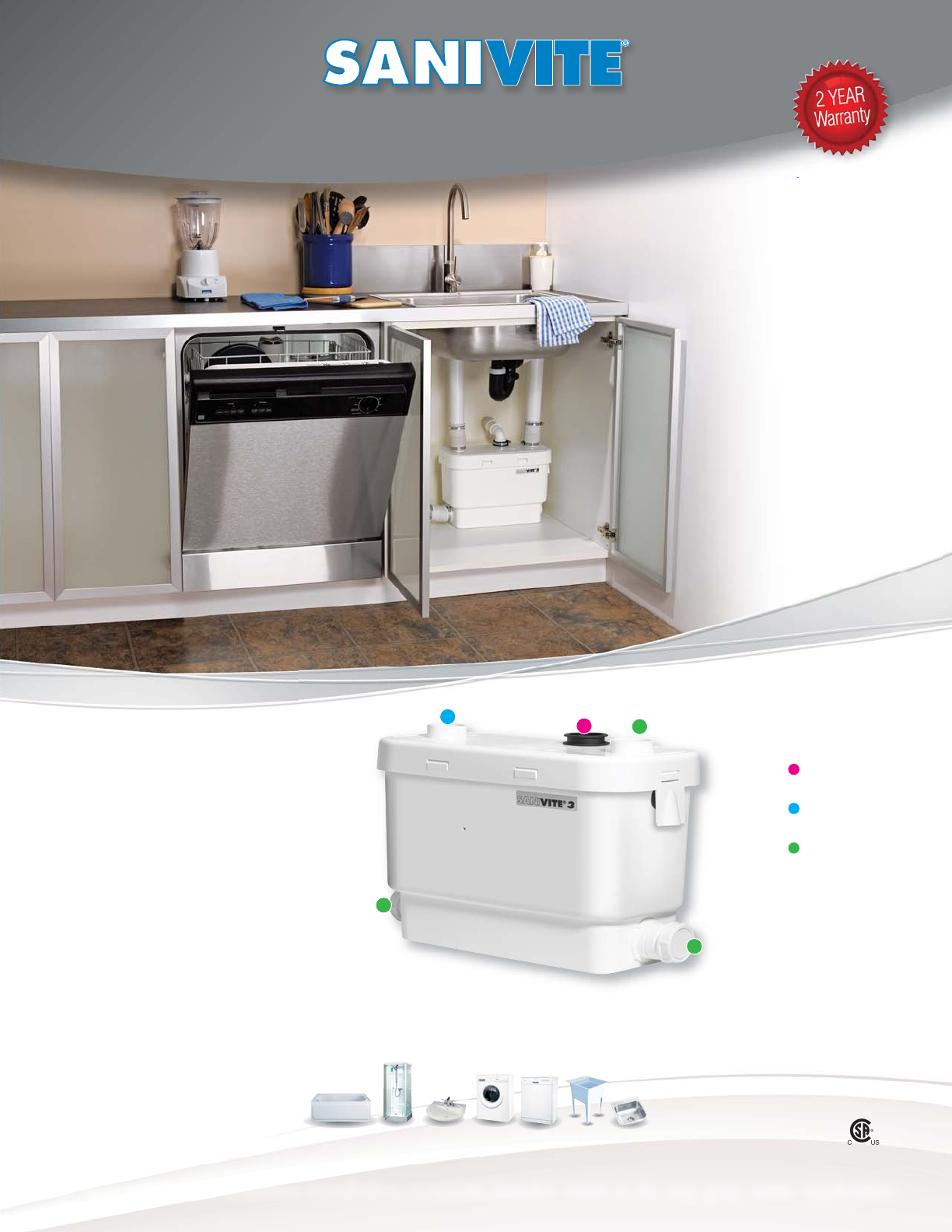

Commercial drain water pump

Part# 008

1“ Discharge

11⁄2“Vent

Connect to shower,

bathtub or sink

An easy solution for a kitchen installation, a remote laundry room or for any gray water application.

Possible Connections

•The perfect quiet solution to install a kitchen

or sink anywhere you never thought possible.

•Ideal for heavy-duty residential and

commercial applications.

•Pre-assembled system with low inlets and

built-in check valves.

•Small enough to fit inside a kitchen cabinet

with the capability to handle hot water and

grease buildup.

Discharge up to:

↑14 Ft. ↑and/or ←140 Ft.→

Power/Electrical Information:

115V – 60 Hz / 0.3 HP / 4.5 A

Dimensions:

H 83⁄4” (22cm) x W 9“ (23cm) x

D 101⁄4“ (26cm)

Discharge pipe diameter:

1“ rigid pipe

Discharge flow rate at 14’:

18 gal per min (70 liters per min)

Discharge flow rate at 3’:

24 gal per min (89 liters per min)

Max. Temperature:

140˚F (60˚C)

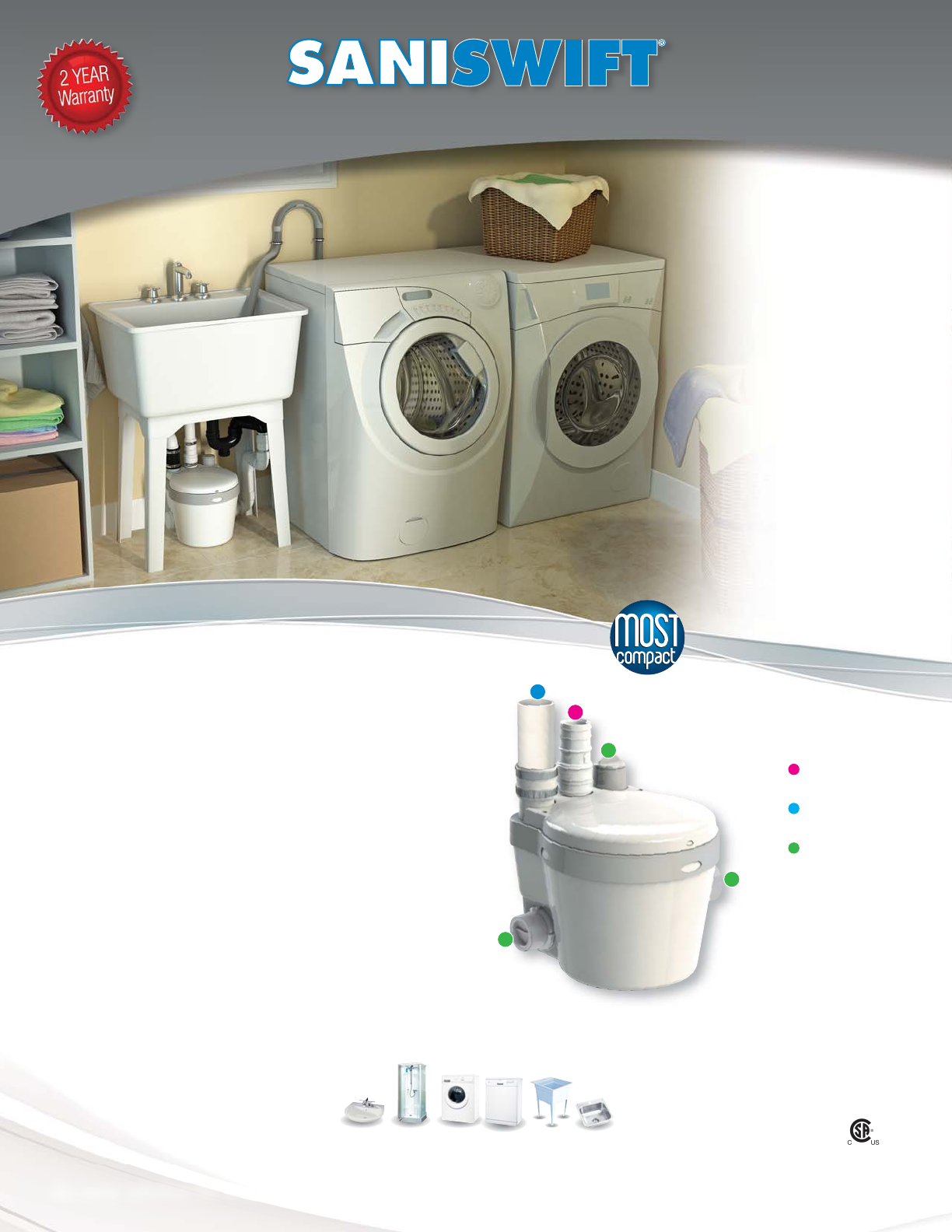

Residential drain water pump

1“ Discharge

11⁄2“Vent

Connect to shower,

bathtub or sink

An easy solution for a kitchen installation, a remote laundry room or for any gray water application.

Possible Connections

Part# 021

•With unprecedented performance and features,

the Saniswift is unmatched in its class.

•Ideal for residential applications.

•Powerful and economical with a compact design

which makes it perfect for installations anywhere you

never thought possible.

•Pre-assembled system with low inlets and built-in

check valves.

Discharge up to:

↑12 Ft. ↑and/or ←100 Ft.→

Power/Electrical Information:

115V – 60 Hz / 0.2 HP / 5.5 A

Dimensions:

H 53⁄4” (15cm) x W 115⁄8“

(29.5cm) x D 63⁄8“ (16cm)

Discharge pipe diameter:

3⁄4“ rigid pipe

Discharge flow rate at 12’:

14 gal per min (50 liters per min)

Discharge flow rate at 3’:

20 gal per min (77 liters per min)

Max. Temperature:

104˚F (40˚C)

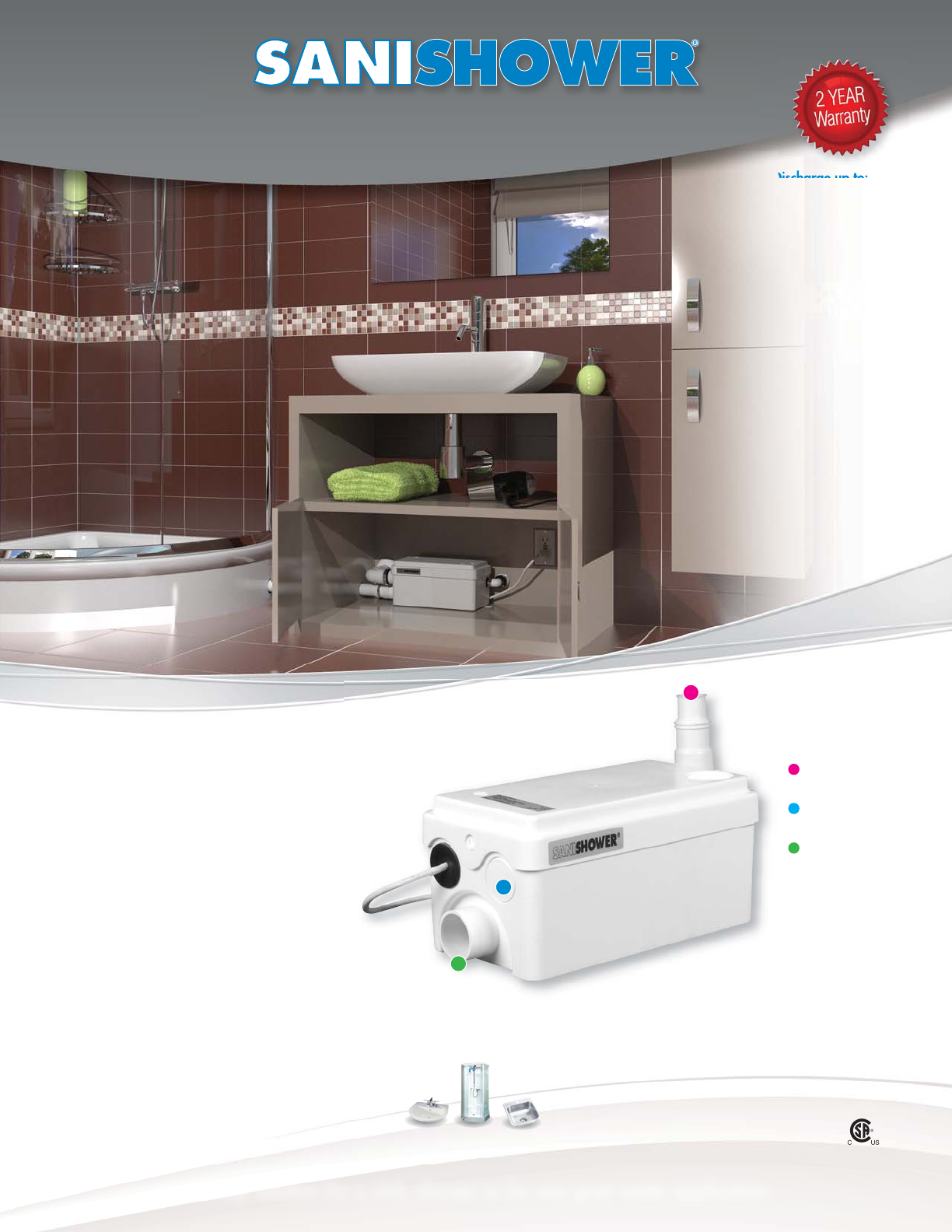

Imagine your new shower anywhere

Part# 010

3⁄4“ Discharge

11⁄2“Vent

Connect to shower

or sink

An easy solution for a sink, shower or for any gray water application.

Possible Connections

•Easy to install and small enough to fit

underneath a shower base.

•Ideal for medium duty applications.

•Pre-assembled system with a low inlet and

a built-in check valve.

•It gives you a fast and easy way to add an

additional sink or shower to your home.

Discharge up to:

↑15 Ft. ↑and/or ←150 Ft.→

Power/Electrical Information:

115V – 60 Hz / 1/30HP / 1.5 A

Dimensions:

H 65⁄8” (17cm) x W 91⁄2“ (24.2cm) x

D 55⁄8“ (14.3cm)

Discharge pipe diameter:

3⁄8“ vinyl tubing

Discharge flow rate at 15’:

30 gal per hour (114 liters per hour)

Discharge flow rate at 3’:

86 gal per hour (326 liters per hour)

Max. Temperature:

160˚F (70˚C)

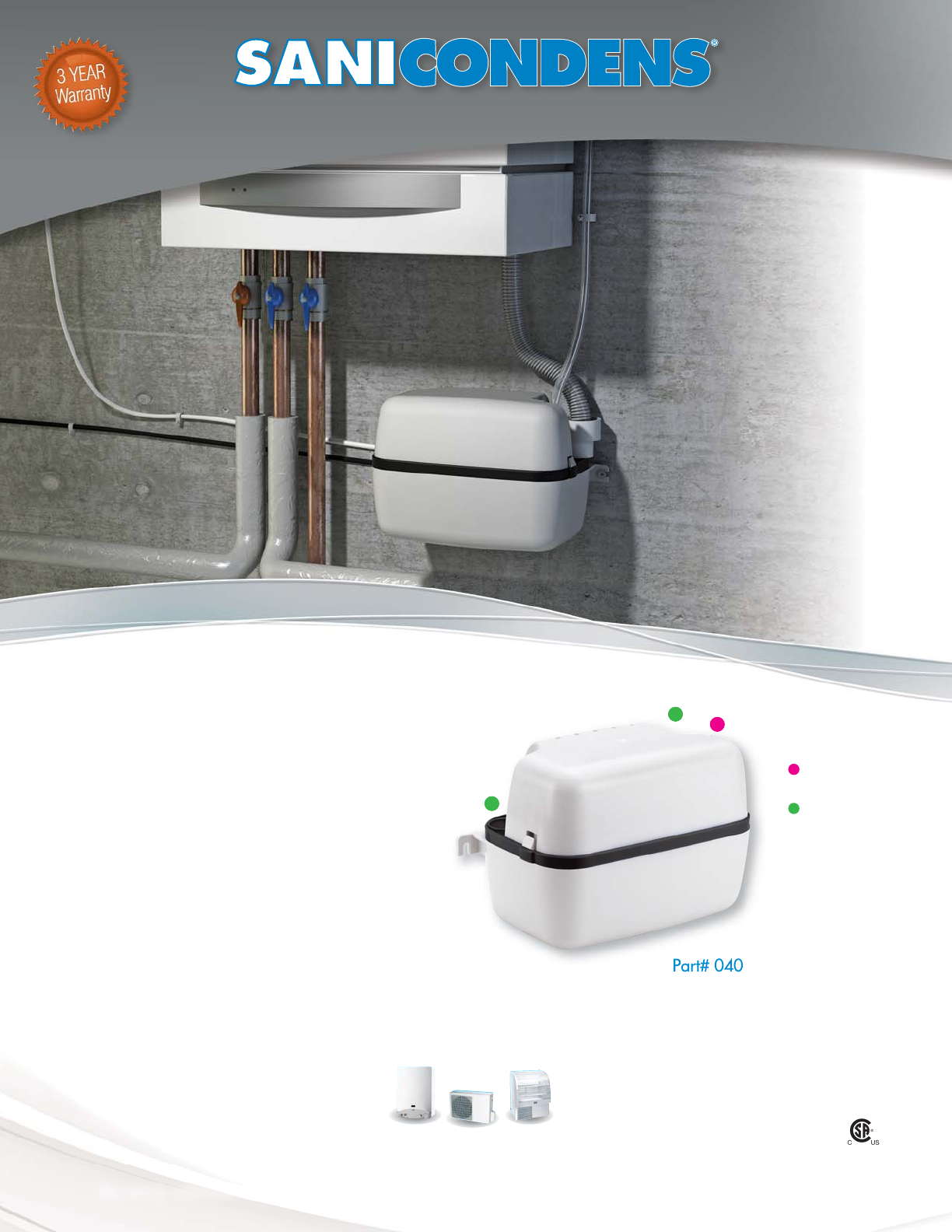

Pumps away condensate

Part# 040

3⁄8“ Discharge

Connect to boiler,

air conditioner, etc.

An easy solution to pump condensate away from condensing boilers and air conditioners.

Possible Connections

•One of the most powerful and quiet condensate

pumps on the market with standard features that

no competitor can match.

•Pumps the condensate discharge from a

condensing boiler or other water producing

fixtures to an existing drain.

•Comes with provisions for a ready-to-wire

connection to an external overflow switch that will

shut down an appliance or alert the consumer.

•The two quart capacity condensate pump comes

equipped with 20 feet of vinyl tubing and with a

discharge connection to adapt to a PVC pipe.

Protection for your ease of mind

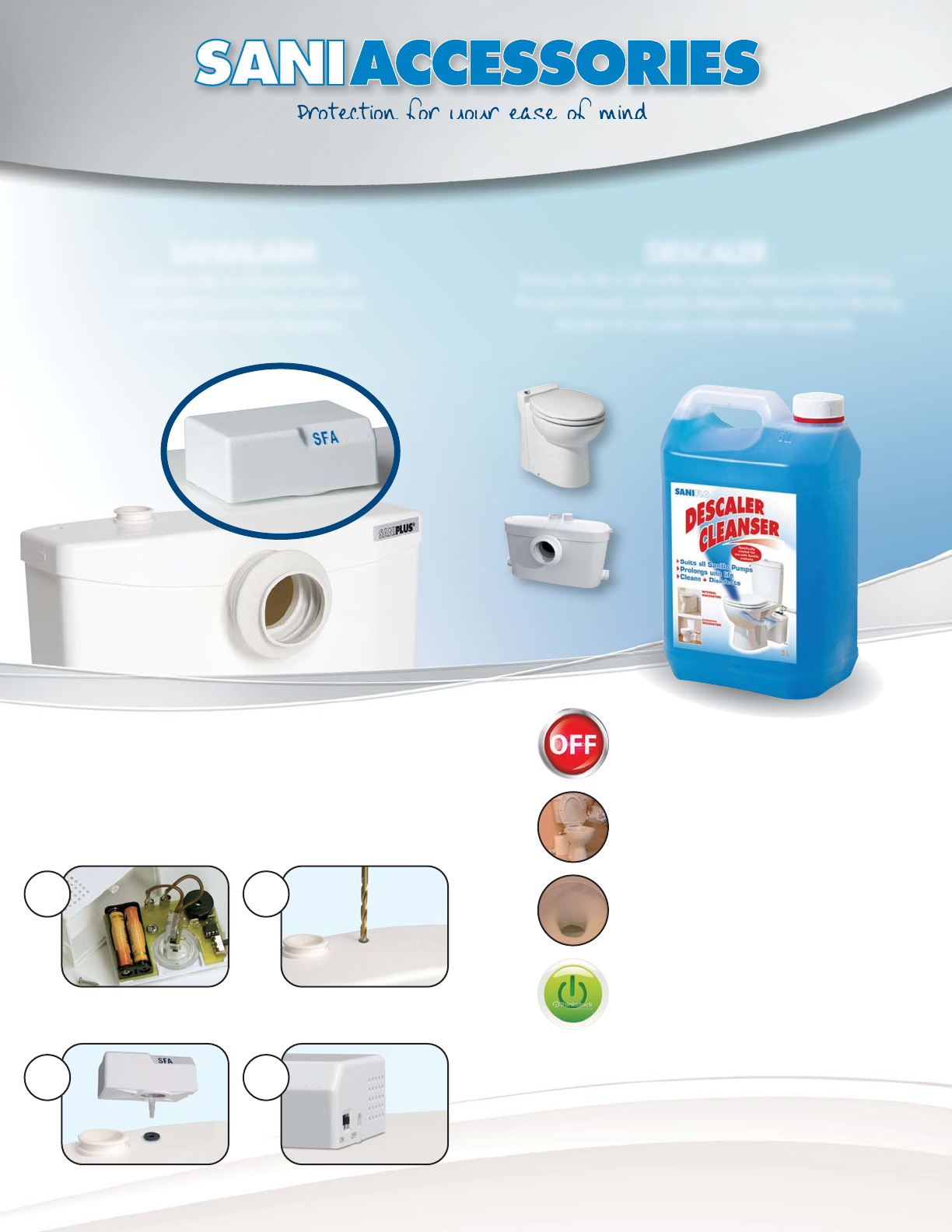

SANIALARM

Saniflo provides an efficient solution that

instantly alerts to prevent inappropriate use

and carry out a prompt intervention.

The SaniAlarm has a level pressure switch that triggers an alarm fixed on the

top of the unit if the volume of water exceeds the maximum allowed level.

The alarm emits a continuous 80 dB warning sound until it is switched off or

the problem is rectified. The SaniAlarm is battery operated and can be

installed on most Saniflo macerating units and drain water pumps.

*Suitable for use with Saniplus, Sanibest Pro, Sanipack, Sanigrind Pro and Sanivite

Part# 050

DESCALER

Prolongs the life of all Saniflo pumps by cleaning and disinfecting.

This special formula is perfectly designed for cleaning and descaling

the heart of your system and its internal components.

Drill a 3/8" diameter hole on

top of the case where indicated.

Turn the switch to

the ON position.

Install two AA batteries

(not included)

Insert the tube and position

the Sanialarm on top.

Disconnect from the main power.

Pour the solution inside the bowl

and flush the toilet once.

Let the solution sit inside the toilet

and pump for a couple of hours.

Connect to main power supply and

flush the toilet a couple of times.

•Specifically created for use with Saniflo products

•Laboratory formulated with phosphoric acid

•Concentrated solution for optimum cleaning power

•Regular usage prolongs unit life and maintains efficiency

•Harmless to septic tank operation

12

34

Saniflo will proudly guide and advise you throughout this entire process. During the course, you will find the different

strengths and advantages of our systems. You will have the satisfaction of designing and creating your new bathroom.

It's as easy as Saniflo!

SANIFLO

IS WITH YOU

EVERY

STEP

OF THE WAY!

Want to turn an

unfinished room into

a finished bathroom or

laundry room?

Plan your project using the

tools provided on our

website to choose the best

system for your application.

Find dealers and

installers near your area.

You can find answers

to frequently asked

questions by visiting our

website or by calling our

live toll free number

and speaking with a

certified technician.

Enjoy your new addition with the confidence of owning a great system

from a reputable company with more than 56 years of experience.

FOLLOW US

ON FACEBOOK!

See installations and

common questions from

users all over the country.

The operating principle!

Scan with your smart phone to watch a video clip of the following:

Saniaccess3 Sanicubic 1 TV Advertisement

Post a photo of your installation and

enter for a chance to WIN FREE PRIZES!

WHAT IS A MACERATOR?

To “macerate” is to soften, to break in

pieces. Our macerating systems use a

rotating cutting blade to liquefy human waste

and toilet paper. When mixed with flushing

water the waste is pumped into a sanitary

sewer as a fine slurry.

WHERE CAN I USE MACERATING SYSTEMS?

These systems can be used anywhere extra

sanitary facilities are needed or wanted. Extra

bathrooms can be installed in basements,

cottages, hotels, motels, etc.

IS SANIFLO EXPENSIVE?

The greatly reduced labor costs and the

incredible flexibility makes Saniflo an

economical and viable alternative when

gravity flow systems cannot be installed.

CAN I ALSO INSTALL A SHOWER OR

BATHTUB?

When installing a bathtub a platform of 2 x 8

inch is needed to allow for the installation of

a P-Trap and pipe with some gravity flow

towards the macerating unit.

DO I NEED TO BREAK UP THE FLOOR TO

INSTALL THE MACERATING SYSTEM?

No, Saniflo can easily be installed on top

of any finished floor, which totally

eliminates the need to dig up a floor as

present methods using a sump and

sewage ejector pump requires.

Additionally, there is no need to leave an

accessible space, as is the case with an

in-floor sump system.

WHERE IS THE WASTE DISCHARGED?

The waste is pumped into a sewer

system, septic tank or holding tank by

means of a proper waste pipe system

that complies with applicable codes.

CAN I DISCHARGE THE WASTE BY

MEANS OF UPWARD SLOPES?

The best method to install a discharge

pipe is to rise vertically at the unit as

high as necessary and from that point

slope down at a fall of 1⁄4inch per linear

foot to the point of discharge.

CAN A WASHING MACHINE BE

DISCHARGED INTO THE SANIPLUS?

Our Saniswift, Sanivite, Sanibest Pro,

Sanigrind Pro, Sanicubic 1 and Sanicubic

2 units are designed for this type of

application. The washing machine must be

drained into a laundry tub or sink first if

using any of these units.

CAN I DISCHARGE A KITCHEN SINK

INTO A MACERATING SYSTEM?

No, the greases and larger food particles

associated with kitchen sinks would clog the

smaller diameter pipe and eventually create

a problem. The Sanivite and Saniswift are

designed for this purpose.

DO I NEED TO INSTALL A P-TRAP IN VANITIES,

BATHTUBS, AND SHOWERS?

Yes, even though macerating systems have

built-in mechanical traps most plumbing codes

require a regular P-Trap to be installed. It is also

necessary to prevent odors and sewer gases

from escaping into the room.

WILL I VOID THE WARRANTY,

IF I INSTALL THE SYSTEM MYSELF?

No, but since proper building plumbing and

electrical codes must be followed, we suggest

that the system is installed by a trade

professional.

CAN THE WARRANTY BE VOIDED?

Yes, when any foreign objects are found in the

macerating unit that has to be retrieved by a

plumbing or service person. Also, by pouring

automotive anti-freeze, solvents, paints, etc.,

into the system, or by opening the motor or

pump of the macerating unit.

DO MACERATING SYSTEMS, DRAIN WATER

PUMPS AND FIXTURES NEED TO BE VENTED?

All macerators and drain water pumps have

been designed with a vent connection on

the lid. All plumbing codes require

connection to a vent system. Please note

that the vent system should be a two-way

air vent. The use of mechanical vents, air

admittance valves or similar devices are

not permitted as these are considered one-

way vent systems. The Sanicompact and

Sanistar units are “forced mains” and they

do not need to be vented.

HOW MUCH WATER DOES THE

SYSTEM USE?

All models in the Saniflo line are low

consumption type water closets. The

Sanitop/Saniplus/Saniaccess3/Sanibest

Pro uses 1.28 gallons (4.8 liters) of water

per flush. The Sanistar and the

Sanicompact48 are dual flush systems as

they use 1.28 gpf (4.8 lpf) and 1 gpf (3.8

lpf). This compares very favorably with

older style water closets that may use up to

3.5 gallons (30 liters) of water per flush.

WHAT IS THE DISCHARGE CAPACITY?

Depending upon the discharge installation,

the Saniplus/Sanibest Pro/Saniaccess3 can

pump up to 27 gallons per minute and the

Sanivite can pump up to 18 gallons per

minute. The Sanicompact/Sanistar cannot

pump more than 1.28 gallons at a time as it is

an electrically timed system.

WHAT ARE THE NEW FEATURES

OF THE SANIACCESS3?

Two service panels provide direct access to

different segments of the macerating unit,

allowing easy inspection and servicing of all

major components. Through one opening, one

can access the electrical components such as

the level sensor mechanism of the pump. The

second panel provides ready access to the

macerating blades for easy removal of large

objects.

HOW LONG WILL MACERATING

SYSTEMS LAST?

A nationally recognized laboratory tested the

Saniplus system for 50,000 cycles, e.g. flushed

10 x a day = 3650 x a year = 13.69 years

lifetime. As this is a standard test, it was

stopped after 50,000 cycles; therefore the

Saniplus may last much longer.

SHOULD I WINTERIZE THE SYSTEM?

When installed in areas that are prone to

freezing, all parts need to be properly

drained, e.g. the macerating unit, the

discharge piping, the tank, the supply pipe

etc. Alternatively, plumbers anti freeze may

be poured into the system until the

macerating systems start up.

DOES THE SYSTEM NEED MAINTENANCE?

No, the motor is filled with oil and sealed

for life.

WHERE CAN WE PURCHASE PARTS?

Parts can be purchased through our

Technical Department by calling toll free

US: 800-571-8191, Canada:

800-363-5874 and from our

website at www.saniflo.com

WHAT WARRANTY IS PROVIDED

BY SANIFLO?

The pump units have a 2-year warranty

while the porcelain (toilet bowl and tank)

have a 1-year warranty from date of

purchase.

WHAT ARE THE UPGRADES ON THE NEW

SANIBEST PRO AND SANIGRIND PRO?

The basics were kept the same for these

two models. The motor for both systems

was upgraded to a 1 HP motor – 25%

more power than the previous generation.

Another unique advantage is the removable

service panel on the top of the macerator

which provides direct access to the main

pump components.

DOES SANIFLO OFFER OTHER TOILET

DESIGNS?

We offer toilets with elongated bowls for

greater comfort. These toilets are also ADA

compliant and measure 163⁄4inches in height.

FAQ’s

MACERATING TOILETS AND DRAIN WATER PUMPS

15’ 150’ 3⁄4” 104˚F

(4.6m) (50m) (20mm) (40˚C)

15’ 150’ 3⁄4” 104˚F

(4.6m) (50m) (20mm) (40˚C)

25’ 150’ 3⁄4” 104˚F

(7.62m) (50m) (20mm) (40˚C)

25’ 150’ 3⁄4” 104˚F

(7.62m) (50m) (20mm) (40˚C)

15’ 150’ 3⁄4” 104˚F

(4.6m) (50m) (20mm) (40˚C)

36’ 328’ 11⁄2” 158˚F

(11m) (100m) (38mm) (70˚C)

36’ 328’ 11⁄2” 158°F

(11m) (100m) (38mm) (70˚C)

16‘ 150‘ 1“ 140˚F

(5m) (50m) (25mm) (60˚C)

14‘ 140’ 1” 140˚F

(4.3m) (43m) (25mm) (60˚C)

12’ 100’ 3⁄4” 104˚F

(3.7m) (33m) (20mm) (40˚C)

15’ 150’ 3⁄8” 160˚F

(4.6m) (50m) (10mm) (70˚C)

Distance Distance Pipe Max.

Up Long Size Temp.

SOME POSSIBLE SITUATIONS WHERE

OUR SYSTEMS CAN BE INSTALLED:

LOFT/ATTIC | UPPER FLOOR | GROUND FLOOR | BASEMENT

GARAGE | CABINS | POOL HOUSE | SLAB CONSTRUCTIONS

ALL PRODUCTS COMPLY WITH NORTH AMERICAN STANDARDS

This unit can be used for HVAC applications -

boilers, air conditioners, etc.

FULL BATHROOMS

✓ ✓✓✓

✓ ✓✓✓

✓ ✓✓✓✓ ✓

✓ ✓✓✓✓ ✓

✓✓✓

HALF BATHROOMS

✓✓

✓✓

✓✓

ENTIRE HOME AND BUILDINGS

✓ ✓✓✓✓✓✓✓

✓ ✓✓✓✓✓✓✓

DRAIN WATER PUMPS

✓✓✓✓✓✓✓

✓✓ ✓✓✓✓

✓✓ ✓

12’ 120’ 3⁄4” 104˚F

(3.7m) (37m) (20mm) (40˚C)

9’ 100’ 1” 95˚F

(3m) (33m) (25mm) (35˚C)

9’ 100’ 1” 95˚F

(3m) (33m) (25mm) (35˚C)

U.S. -105 Newfield Avenue, Suite B,

Edison, NJ 08837

Toll Free: 1-800-571-8191

www.saniflo.com

Canada -

1 - 685 Speedvale Avenue West,

Guelph, ON N1K 1E6

Toll Free: 1-800-363-5874

www.saniflo.ca

Copyright 2014 SFA SANIFLO, Inc. All rights reserved JAW-0114

With 56 years of experience and knowledge helping people around the world,

Saniflo is the company you can trust. Our reputation in providing high quality

products has been put to the test more than 7 million times in some of the world’s

most recognized buildings. We pledge that same quality for your home.

SFA SANIBROY, Germany

SFA BENELUX BV, Holland

SFA SANIRISH, Ireland

SFA SANIFLO INC., USA

SFA SANIFLO INC., Canada

SFA SANITRIT, Italy

SFA GRUPO, Spain

SFA, Portugal

SFA SANIFLO SRL, Romania

SANIFLO, Austria

SFA SANIBROY, Czech Republic

SFA Sanibroy, Switzerland

SANIFLO, New Zealand

SANIFLO, Australia

SFA Sanihydro, Turkey

SFA, Japan

SFA, China

SANIFLO, S. Africa (PTY) LTD

Groupe SFA International, France

SANIFLO AB, Sweden

SANIFLO, England

SFA, Poland

SFA, Russia

SFA, Brazil Ltda
