BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com
SECTION 6
GAUGES/SWITCHES, PUMP & MOTOR CONTROLS
PRODUCT LINE PAGE
Pressure Gauges ................................................................................... 1
Stainless Steel Pressure Gauges ................................................... 2
Low Pressure Gauges ........................................................................ 5
Contractor Pressure Gauges .................................................................. 5

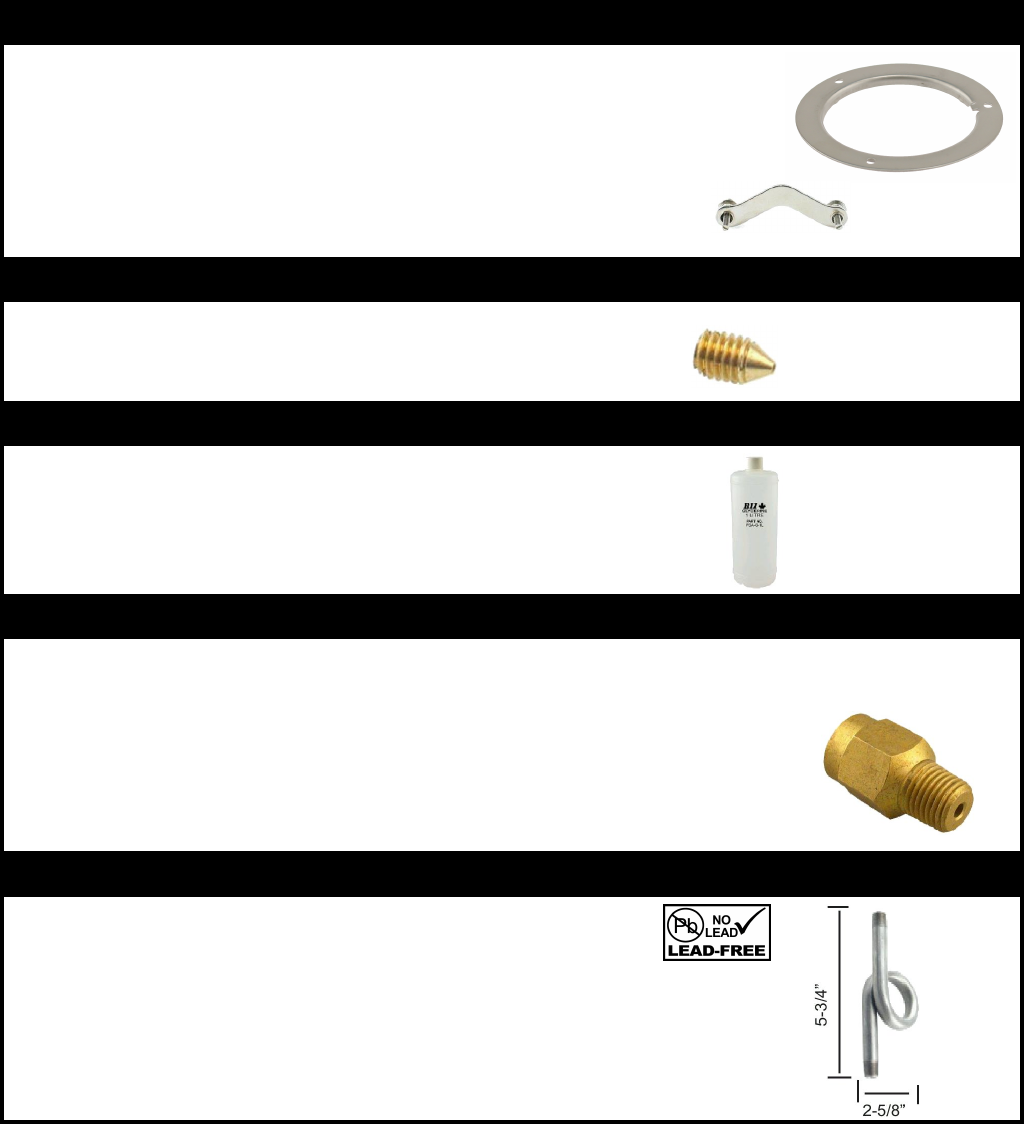

Panel Mount Flanges .............................................................................. 7
Restrictor Screw ................................................................................... 7
Refill Glycerine .................................................................................... 7
Pig Tail Syphons .................................................................................. 7

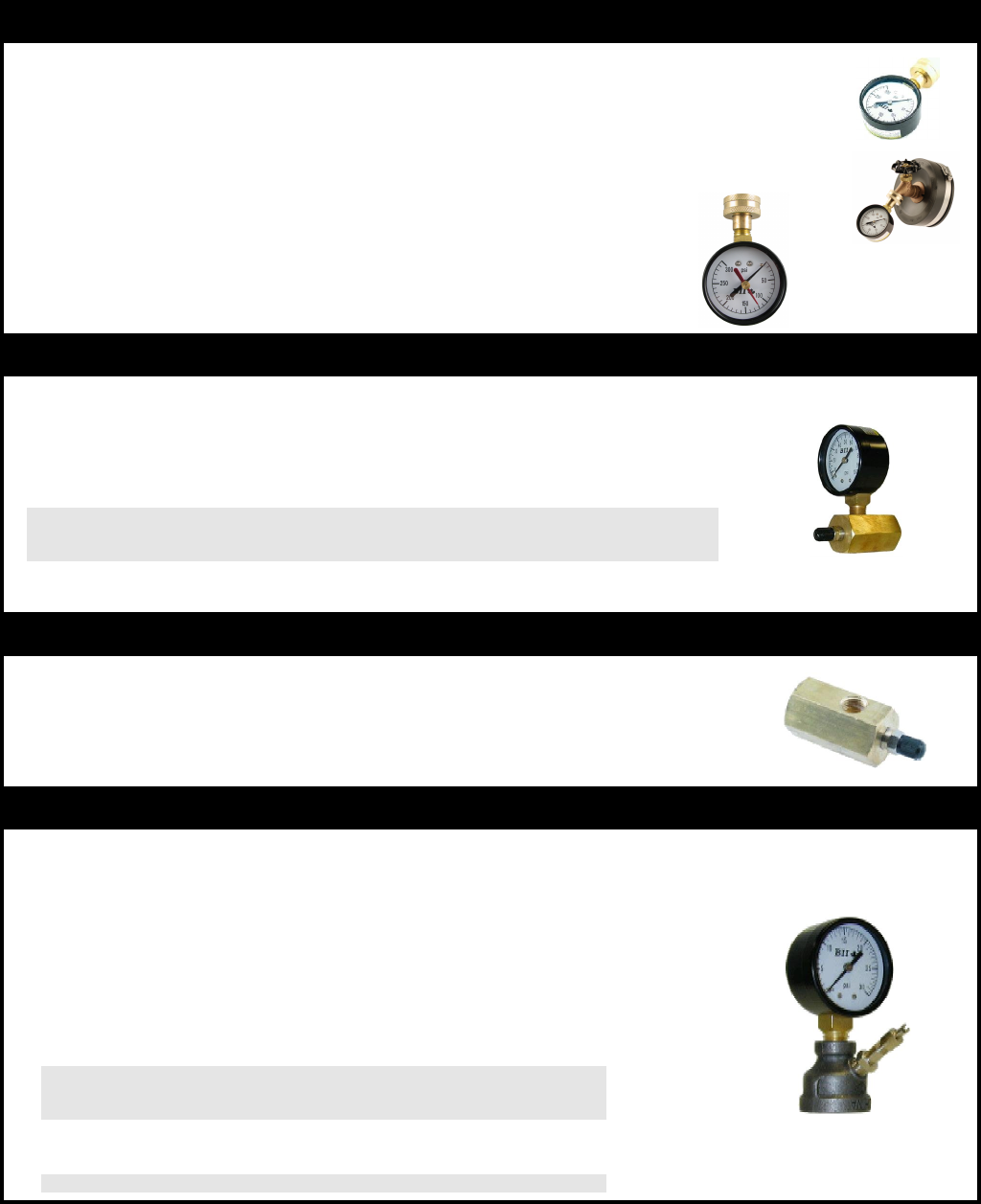

Water & Gas Test Gauges .......................................................................... 8
Water Level Gauge ................................................................................ 9
Thermometers ..................................................................................... 9
Thermowells ....................................................................................... 9
Tridicators ........................................................................................ 9

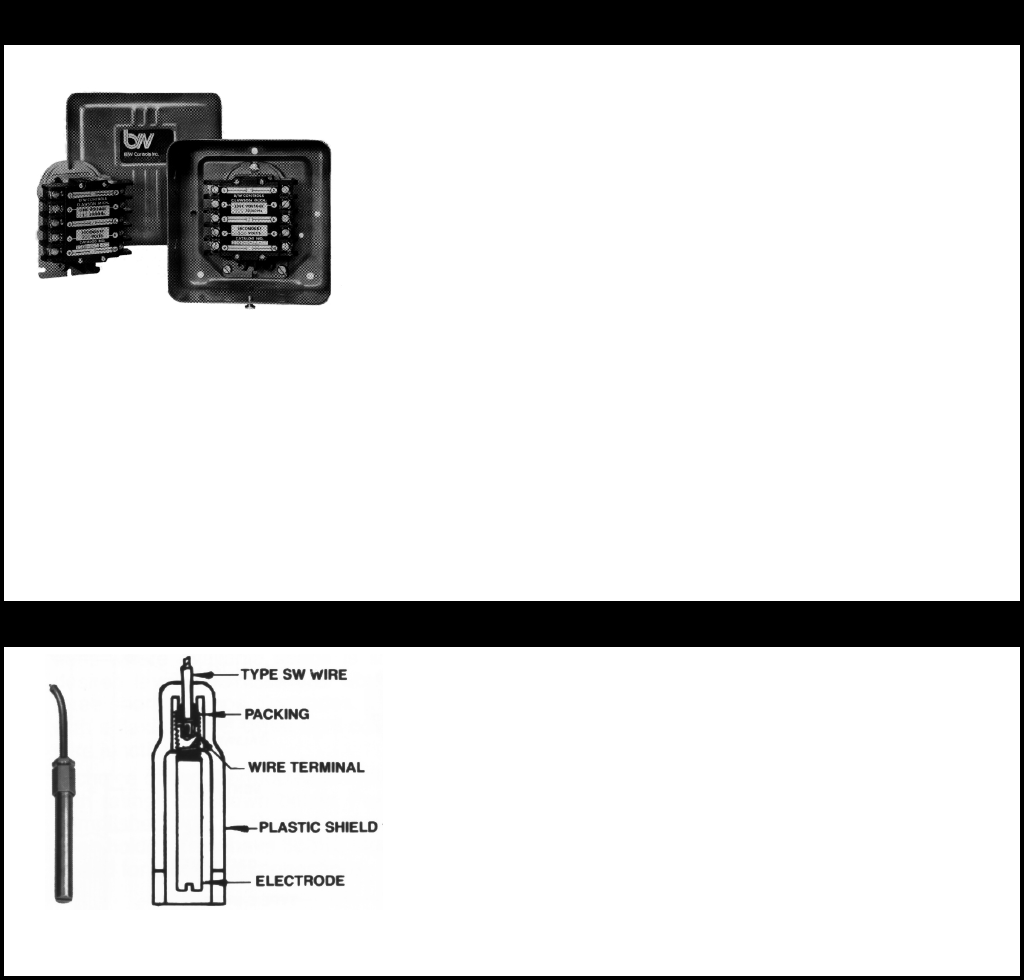

Floatless Liquid Level Control Systems ............................................................. 10
Electrodes ........................................................................................ 10
Square D Products ............................................................................... 12

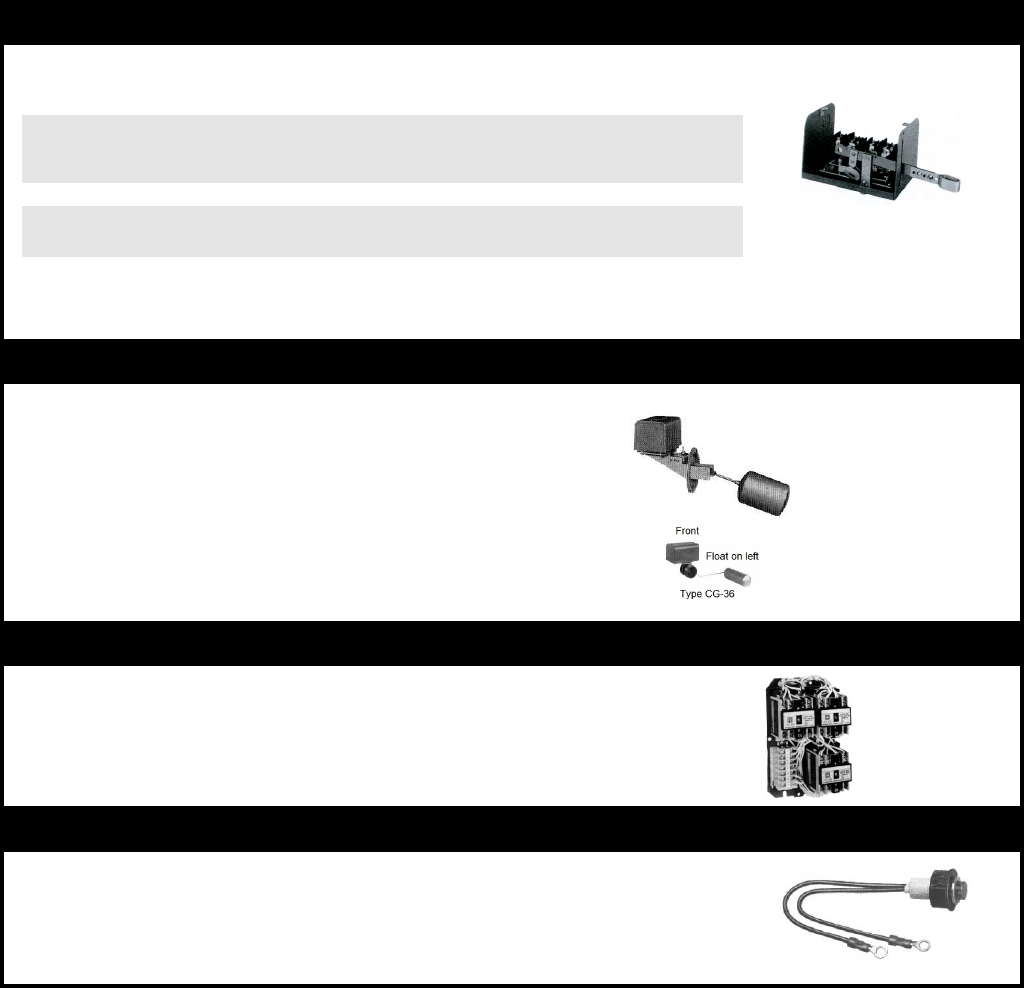

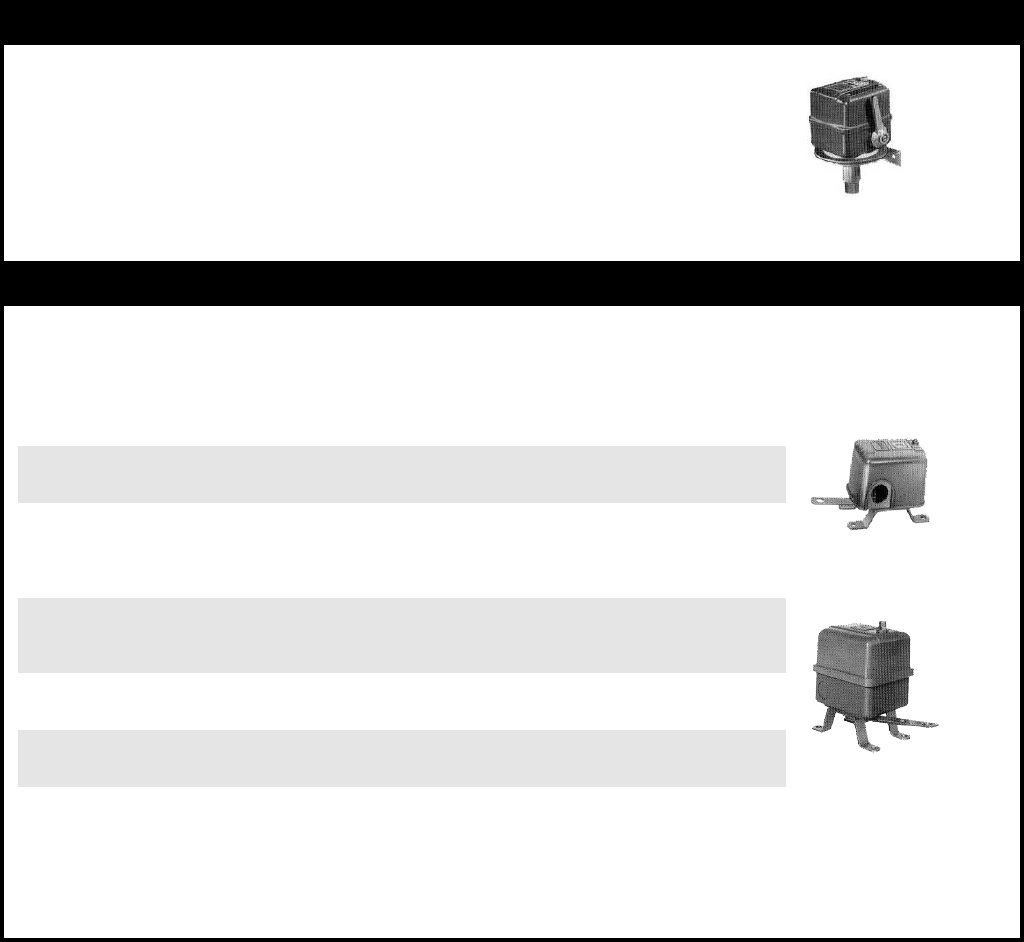

Square D Pressure Switches ................................................................. 12
Square D Float Switches .................................................................... 13
Alternators ................................................................................. 15
Pressure Switch Indicator Light ............................................................. 15

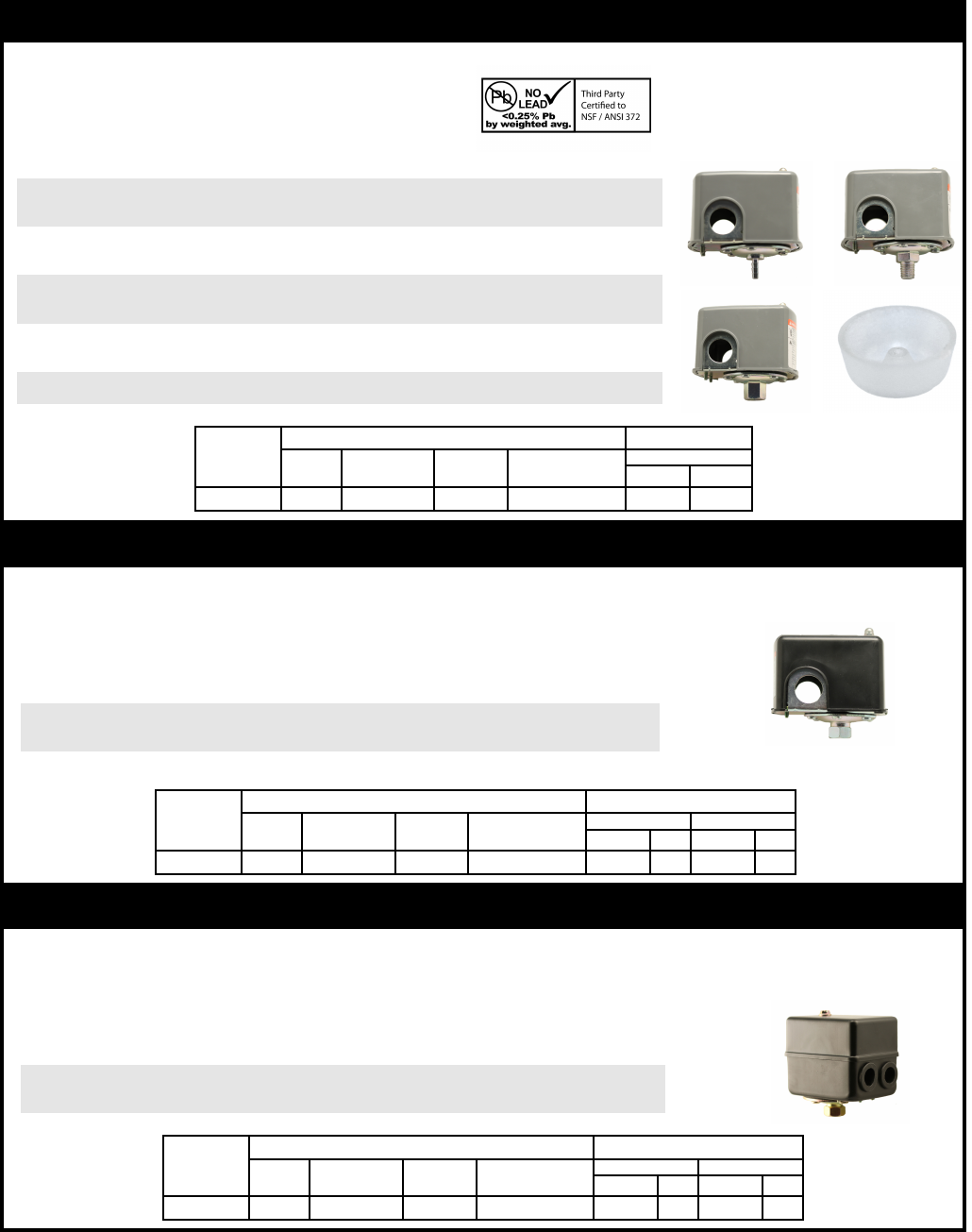

BII Pressure Switches ............................................................................. 16

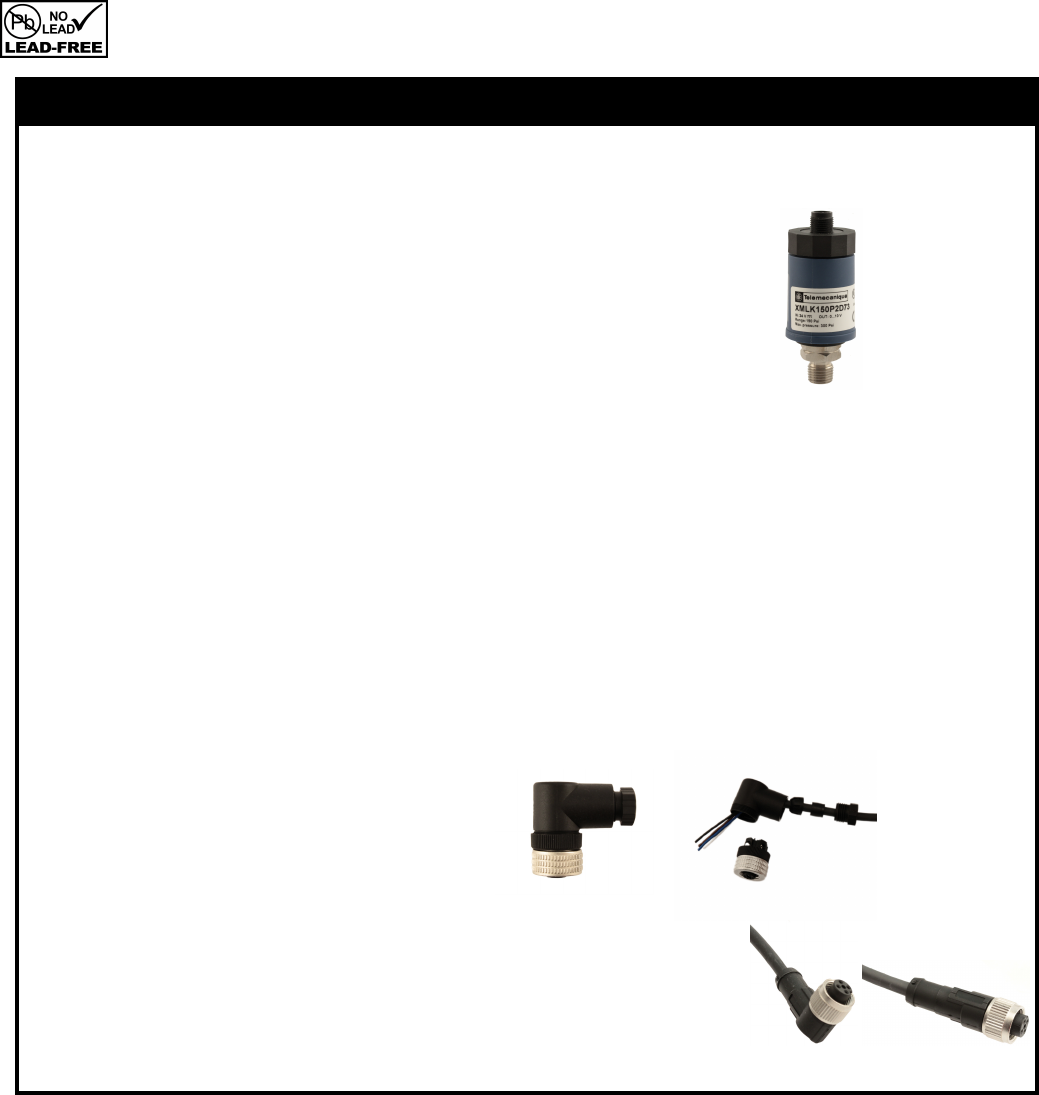

Pressure Sensors .................................................................................. 17
Hubbell Pressure Switches ........................................................................ 18
Rev. 1.0 US
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com
6-1
May 16/14

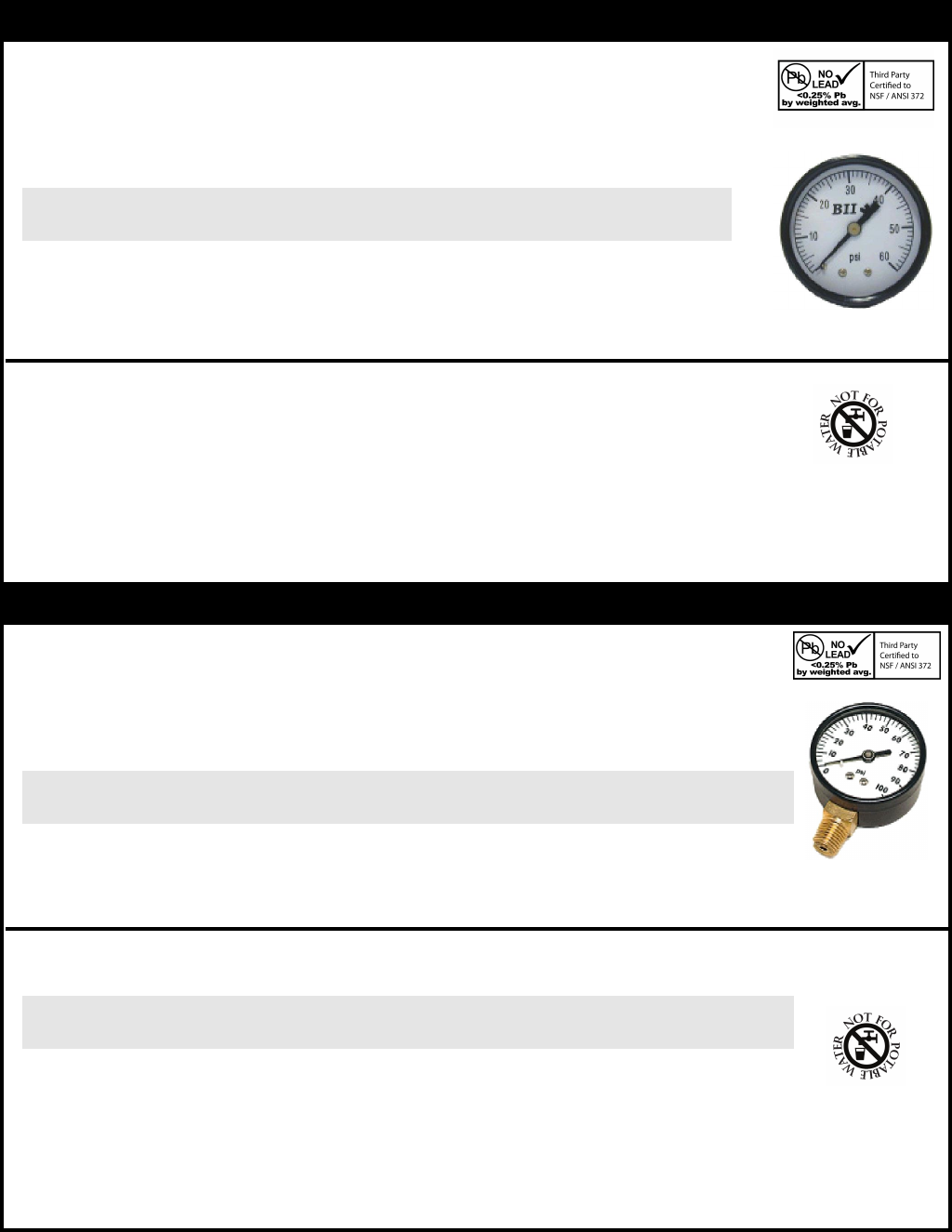

1-1/2"& 2"DIAL PRESSURE GAUGES - CENTER BACK MOUNT
Not For Conveying
Potable Water
•General Purpose - not for use with oxygen •Accuracy: 3% - 2% - 3% Grade B
•Brass or Lead Free Brass Male NPT Connection •Bourdon Tube
•Steel or ABS Case •Acrylic Window
•Ambient Operating Temperature: 32 to 104◦F (0 to 40◦C) •Maximum Media Temperature: 104◦F (40◦C)
NO LEAD LIST NO LEAD LIST RANGE INCRE- CASE
PART NO. PRICE-A PART NO. PRICE-A PSI MENTS QTY
1-1/2"DIAL - 1/8"CBM 2"DIAL - 1/4"CBM (*1/8"CBM)
PG15CBM-0-30NL 5.12 PGCBM-1-30NL 5.57 0-30 0.5 100
PG15CBM-0-60NL 5.12 PGCBM-1-60NL 5.57 0-60 1 100
PGCBM-0-100NL * 5.49 0-100 1 100
PG15CBM-0-100NL 5.12 PGCBM-1-100NL 5.49 0-100 1 100
PG15CBM-0-160NL 5.12 PGCBM-1-160NL 5.57 0-160 2 100
PG15CBM-0-200NL 5.12 PGCBM-1-200NL 5.57 0-200 2 100
2"PLASTIC ABS CASE
PGPCBM-1-60NL 5.45 0-60 1 100
LIST LIST RANGE INCRE- CASE
PART NO. PRICE-A PART NO. PRICE-A PSI MENTS QTY
1-1/2"DIAL - 1/8"CBM 2"DIAL - 1/4"CBM
PG15CBM-0-100 3.70 PGCBM-1-100 4.18 0-100 1 100
PG15CBM-0-160 3.70 PGCBM-1-160 4.18 0-160 2 100
PGCBM-1-200 4.18 0-200 2 100
2"PLASTIC ABS CASE
PGPCBM-1-60 4.05 0-60 1 100
2"DIAL PRESSURE GAUGES - LOWER MOUNT
Not For Conveying
Potable Water
•General Purpose - not for use with oxygen •Accuracy: 3% - 2% - 3% Grade B
•Brass or Lead Free Brass Connection •Bourdon Tube
•Steel or ABS Case •Acrylic Window
•Ambient Operating Temperature: 32 to 104◦F (0 to 40◦C) •Maximum Media Temperature: 104◦F (40◦C)
NO LEAD LIST NO LEAD LIST RANGE INCRE- CASE
PART NO. PRICE-A PART NO. PRICE-A PSI MENTS QTY
STEEL CASE - 1/4"LM (* 1/8"LM) ABS CASE - 1/4"LM
PG-15NL 5.38 0-15 0.1
PG-30NL 5.38 PGP-30NL 4.80 0-30 0.5
PG-60NL 5.38 PGP-60NL 4.96 0-60 1
PG-0-100NL * 5.38 0-100 1
PG-100NL 5.21 PGP-100NL 4.96 0-100 1 100
PG-160NL 5.47 0-160 2
PG-200NL 5.38 PGP-200NL 5.04 0-200 2 100
PG-300NL 5.47 0-300 5
LIST LIST RANGE INCRE- CASE
PART NO. PRICE-A PART NO. PRICE-A PSI MENTS QTY
STEEL CASE - 1/4"LM ABS CASE - 1/4"LM (*1/8"LM)
PG-30 3.83 PGP-30 3.70 0-30 0.5 100
3.70 PGP-0-60 * 3.70 0-60 1 100
PG-60 3.83 PGP-60 3.70 0-60 1 100
PG-100 3.83 0-100 1 100
PG-160 3.83 0-160 2 100
PG-200 3.83 0-200 2 100
PG-300 3.83 0-300 5 100
VACUUM GAUGE
PGV-30 4.03 30-0Hg 0.5 100
VACUUM / PRESSURE
PGC-30-30 4.03 30Hg-0-30 0.5 100
PGC-30-150 4.03 30Hg-0-150 1 100
Rev. 1.0 US
6-2
May 16/14
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com

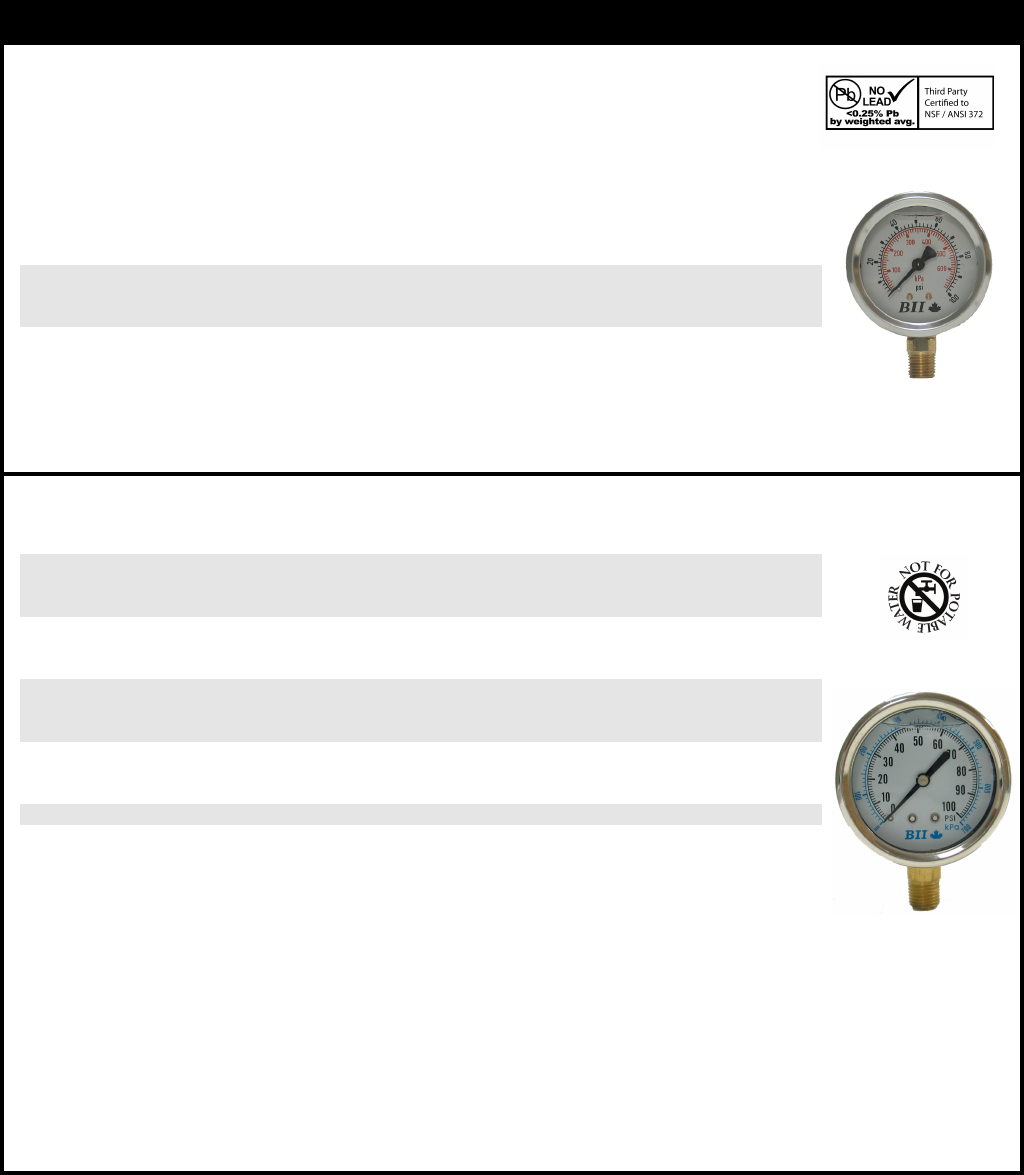

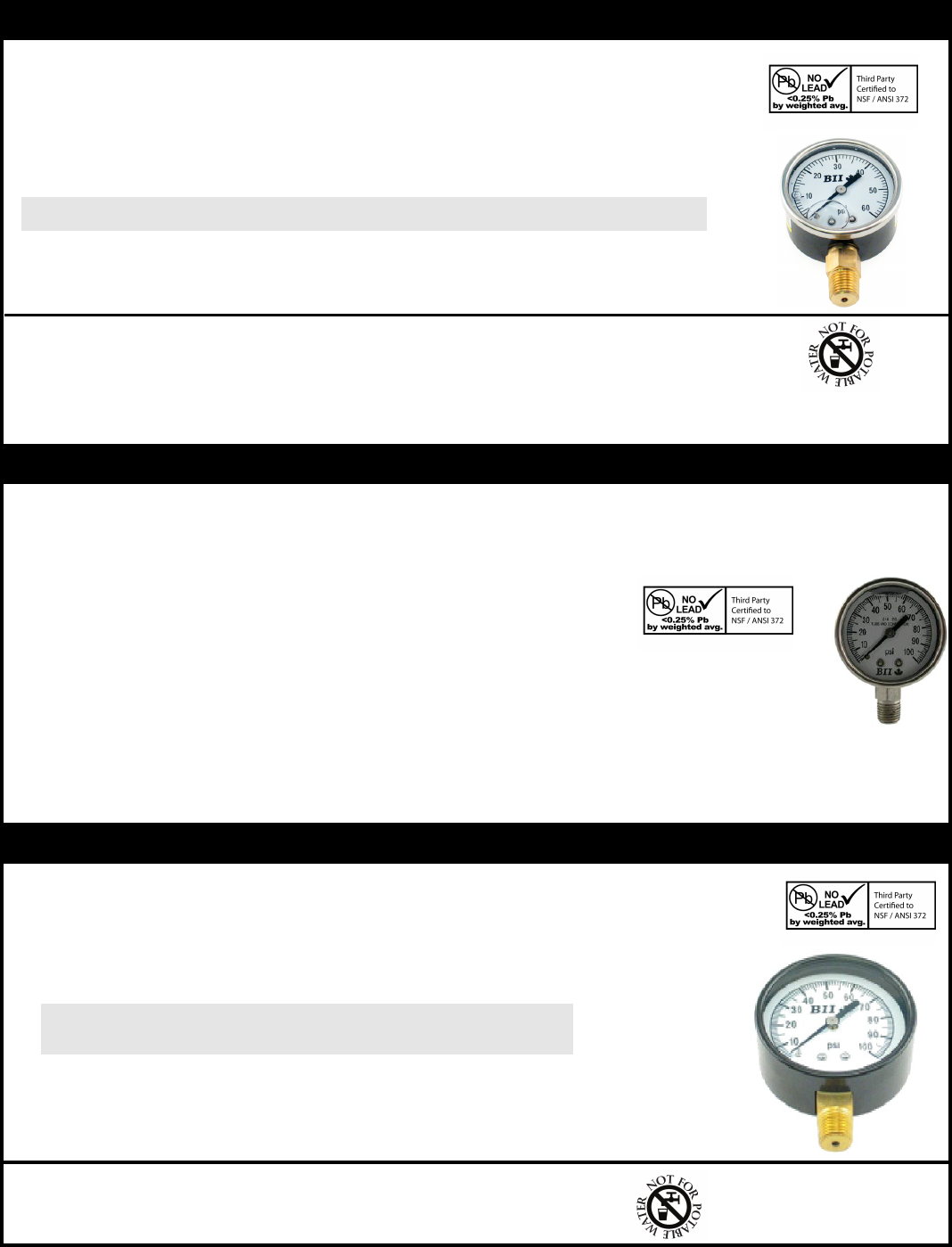

2"DIAL PRESSURE GAUGES - LIQUID FILLED - LOWER & CENTER BACK MOUNT
Not For Conveying
Potable Water
•General Purpose - not for use with oxygen •Ideal for use where vibration or pressure pulsation occurs
•Accuracy: 3% - 2% - 3% Grade B •Bourdon Tube
•Brass or Lead Free Brass Connection •Polycarbonate Window
•Steel Case •Glycerine Filled
•Ambient Operating Temperature: -4 to 104◦F (-20 to 40◦C) •Maximum Media Temperature: 140◦F (60◦C)
NO LEAD LIST NO LEAD LIST RANGE INCRE- CASE
PART NO. PRICE-A PART NO. PRICE-A PSI MENTS QTY
1/4"LM 1/4"CBM ( * 1/8"CBM)
PG-30-GNL 8.82 0-30 0.5
PG-60-GNL 8.82 0-60 1
PGCBM-0-100-GNL * 8.82 0-100 1
PG-100-GNL 8.66 PGCBM-1-100-GNL 8.82 0-100 1 100
PG-160-GNL 8.82 0-160 2
PG-200-GNL 8.82 0-200 2 100
LIST LIST RANGE INCRE- CASE
PART NO. PRICE-A PART NO. PRICE-A PSI MENTS QTY
1/4"LM 1/4"CBM ( * 1/8"CBM)
PGCBM-0-100-G * 7.62 0-100 1
VACUUM / PRESSURE GAUGE
PGC-30-30-G 8.05 30Hg-0-30 0.5 100
2"DIAL STAINLESS STEEL PRESSURE GAUGES - LIQUID FILLED - LOWER & CENTER BACK MOUNT
•General Purpose - not for use with oxygen •Ideal for use where vibration or pressure pulsation occurs
•Accuracy: 3% - 2% - 3% Grade B •Bourdon Tube
•Stainless Steel Internals and Connection •Polycarbonate Window
•304 Stainless Steel Case w/ vent plug •Glycerine Filled •Ambient Operating Temperature: -4 to 140◦F (-20 to 40◦C)
•Maximum Media Temperature: 212◦F (100◦C)
LIST LIST RANGE INCRE- CASE
PART NO. PRICE-A PART NO. PRICE-A PSI MENTS QTY
1/4"LM 1/4"CBM
PGS-100-G 27.42 PGSCBM-100-G 27.42 0-100 1 100
IMPORTANT: Liquid Filled Gauges are sealed with a rubber plug to prevent leaking during shipment. Upon
installation the tip of the plug must be cut off to allow the equalization of the internal gauge pressure to the
atmospheric pressure. FAILURE TO DO SO WILL ADVERSELY AFFECT THE FUNCTION OF THE GAUGE.
GLYCERINE TEMPERATURE RATINGS
”BII” gauges are filled with 100% (99.7% min.) glycerine, which starts to become viscous at +17◦C. As temp. decreases, the
more viscous glycerine becomes, causing the pointer to move slower to its correct position, it can take several minutes. At -5◦C
these gauges no longer operate. For operating temps. less than -5◦C, glycerine is mixed: 2 parts glycerine with 1 part water
(66.7%), which actually lowers the freezing point of the solution allowing the gauge to be used in temps. as low as -46◦C.
2-1/2"DIAL PRESSURE GAUGES - LOWER MOUNT
Not For Conveying Potable Water
•General Purpose - not for use with oxygen •Accuracy: 3% - 2% - 3% Grade B
•Brass or Lead Free Brass Connection •Bourdon Tube
•Steel Case •Acrylic Window
•Ambient Operating Temperature: 32 to 104◦F (0 to 40◦C) •Maximum Media Temperature: 104◦F (40◦C)
NO LEAD RANGE INCRE- CASE LIST
PART NO. PSI MENTS QTY PRICE-A
1/4"LM
PG25-15NL 0-15 0.2 50 6.47
PG25-30NL 0-30 0.5 50 6.06
PG25-60NL 0-60 1 50 6.06
PG25-100NL 0-100 1 50 6.06
PG25-160NL 0-160 2 50 6.06
PG25-200NL 0-200 2 50 6.06
PG25-300NL 0-300 5 50 6.06
PG25-400NL 0-400 5 50 6.06
PG25-600NL 0-600 10 50 6.06
PG25-100 0-100 1 50 4.56
PG25-160 0-160 2 50 4.56
PG25-200 0-200 2 50 4.56
US Rev. 1.0
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com
6-3
May 16/14

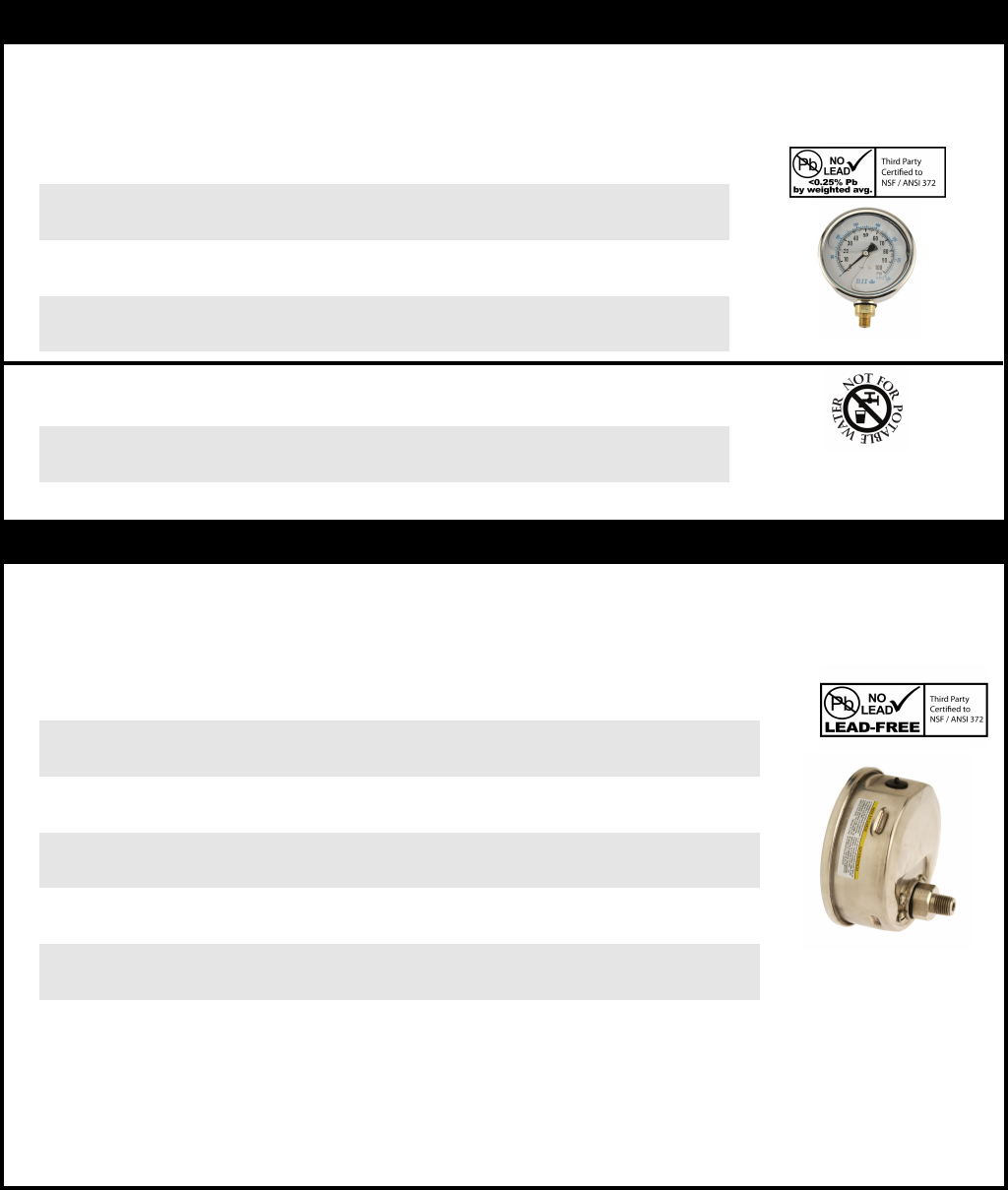

2-1/2"DIAL PRESSURE GAUGES - LIQUID FILLED - LOWER & CENTER BACK MOUNT
Not For Conveying
Potable Water
•General Purpose - not for use with oxygen •Ideal for use where vibration or pressure pulsation occurs
•Accuracy: +/- 1.5% Full Scale Value •Bourdon Tube
•Brass or Lead Free Brass Connection •Polycarbonate Window
•304 Stainless Steel Case w/ vent plug •Glycerine Filled
•Ambient Operating Temperature: -4 to 140◦F (-20 to 60◦C) •Maximum Media Temperature: 140◦F (60◦C)
•Gauges 15 to 600 PSI are tapped for a Restrictor Screw (not included) 1000 PSI or more are tapped and include Restrictor Screw
NO LEAD LIST NO LEAD LIST DUAL RANGE INCRE- CASE
PART NO. PRICE-A PART NO. PRICE-A PSI kPa MENTS QTY
1/4"LM 1/4"CBM
PG25-15-GNL 14.68 PG25CBM-15-GNL 15.29 0-15 0-100 0.2 50
PG25-30-GNL 14.88 PG25CBM-30-GNL 14.88 0-30 0-200 0.5 50
PG25-60-GNL 14.88 PG25CBM-60-GNL 14.88 0-60 0-400 1 50
PG25-100-GNL 13.66 PG25CBM-100-GNL 14.88 0-100 0-700 1 50
PG25-160-GNL 14.27 PG25CBM-160-GNL 14.88 0-160 0-1100 2 50
PG25-200-GNL 14.27 PG25CBM-200-GNL 14.88 0-200 0-1400 2 50
PG25-300-GNL 14.27 PG25CBM-300-GNL 14.88 0-300 0-2000 5 50
PG25-400-GNL 14.88 PG25CBM-400-GNL 14.88 0-400 0-2800 5 50
PG25-600-GNL 14.88 PG25CBM-600-GNL 14.88 0-600 0-4000 10 50
LIST LIST DUAL RANGE INCRE- CASE
PART NO. PRICE-A PART NO. PRICE-A PSI kPa MENTS QTY
1/4"LM 1/4"CBM
2-PG25-15-G 14.54 0-15 0-100 0.2 50
2-PG25-30-G 14.10 0-30 0-200 0.5 50
2-PG25-60-G 14.10 0-60 0-400 1 50
2-PG25-100-G 14.10 0-100 0-700 1 50
2-PG25-160-G 14.10 0-160 0-1100 2 50
2-PG25-200-G 14.10 0-200 0-1400 2 50
2-PG25-300-G 14.10 0-300 0-2000 5 50
2-PG25-1000-G 14.54 2-PG25CBM-1000-G 14.49 0-1000 0-7000 20 50
2-PG25-1500-G 14.54 2-PG25CBM-1500-G 14.49 0-1500 0-10000 20 50
2-PG25-2000-G 14.54 2-PG25CBM-2000-G 14.49 0-2000 0-14000 20 50
2-PG25-3000-G 14.54 2-PG25CBM-3000-G 14.49 0-3000 0-20000 50 50
2-PG25-4000-G 14.54 2-PG25CBM-4000-G 14.49 0-4000 0-28000 50 50
2-PG25-5000-G 14.98 2-PG25CBM-5000-G 14.97 0-5000 0-35000 50 50
2-PG25-10000-G 15.42 2-PG25CBM-10000-G 15.40 0-10000 0-70000 100 50
VACUUM GAUGE
2-PGV25-30-G 14.54 2-PGV25CBM-30-G 14.49 30-0Hg 0.5 50
VACUUM/PRESSURE GAUGE
2-PGC25-30-30-G 14.54 2-PGC25CBM-30-30G 14.49 30Hg-0-30 2/1 50
2-PGC25-30-150-G 14.54 2-PGC25CBM-30150G 14.49 30Hg-0-150 10/5 50
IMPORTANT: Liquid Filled Gauges are sealed with a rubber plug to prevent leaking during shipment. Upon
installation the tip of the plug must be cut off to allow the equalization of the internal gauge pressure to the
atmospheric pressure. FAILURE TO DO SO WILL ADVERSELY AFFECT THE FUNCTION OF THE GAUGE.
GLYCERINE TEMPERATURE RATINGS
”BII” gauges are filled with 100% (99.7% min.) glycerine, which starts to become viscous at +17◦C. As temp. decreases, the
more viscous glycerine becomes, causing the pointer to move slower to its correct position, it can take several minutes. At -5◦C
these gauges no longer operate. For operating temps. less than -5◦C, glycerine is mixed: 2 parts glycerine with 1 part water
(66.7%), which actually lowers the freezing point of the solution allowing the gauge to be used in temps. as low as -46◦C.
Rev. 1.0 US
6-4
May 16/14
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com
2-1/2"DIAL STAINLESS STEEL PRESSURE GAUGES - LOWER & CENTER BACK MOUNT
•General Purpose - not for use with oxygen •Ideal for use in corrosive environments
•Accuracy: +/- 1.5% Full Scale Value •Bourdon Tube
•Stainless Steel Internals and Connection •Polycarbonate Window
•304 Stainless Steel Case •Dry and Glycerine Filled
•Ambient Operating Temperature: -4 to 140◦F (-20 to 60◦C) •Maximum Media Temperature: 212◦F (100◦C)
•Gauges 15 to 600 PSI are tapped for a Restrictor Screw (not included) 1000 PSI or more are tapped and include Restrictor Screw
LIST LIST DUAL RANGE INCRE- CASE
PART NO. PRICE-A PART NO. PRICE-A PSI kPa MENTS QTY
1/4"LM 1/4"CBM
PGS25-15 33.06 PGS25CBM-15 33.06 0-15 0-100 0.2 50
PGS25-30 32.63 PGS25CBM-30 32.63 0-30 0-200 0.5 50
PGS25-60 32.63 PGS25CBM-60 32.63 0-60 0-400 1 50
PGS25-100 32.63 PGS25CBM-100 32.63 0-100 0-700 1 50
PGS25-160 32.63 PGS25CBM-160 32.63 0-160 0-1100 2 50
PGS25-200 32.63 PGS25CBM-200 32.63 0-200 0-1400 2 50
PGS25-300 32.63 PGS25CBM-300 32.63 0-300 0-2000 5 50
PGS25-400 32.63 PGS25CBM-400 32.63 0-400 0-2800 10 50
PGS25-600 32.63 PGS25CBM-600 32.63 0-600 0-4000 10 50
PGS25-1000 33.06 PGS25CBM-1000 33.06 0-1000 0-7000 20 50
PGS25-1500 33.06 PGS25CBM-1500 33.06 0-1500 0-10000 20 50
PGS25-2000 33.06 PGS25CBM-2000 33.06 0-2000 0-14000 50 50
PGS25-3000 33.06 PGS25CBM-3000 32.73 0-3000 0-20000 50 50
PGS25-5000 33.93 PGS25CBM-5000 33.93 0-5000 0-35000 50 50
PGS25-10000 35.22 PGS25CBM-10000 35.22 0-10000 0-70000 200 50
VACUUM GAUGE
PGSV25-30 33.06 30-0Hg 0.5 50
VACUUM/PRESSURE GAUGE
PGSC25-30-30 32.63 PGSC25CBM-30-30 32.63 30Hg-0-30 2/1 50
LIQUID FILLED w/ vent plug
PGS25-15-G 34.75 PGS25CBM-15-G 38.73 0-15 0-100 0.2 50
PGS25-30-G 34.44 PGS25CBM-30-G 38.30 0-30 0-200 0.5 50
PGS25-60-G 34.44 PGS25CBM-60-G 38.30 0-60 0-400 1 50
PGS25-100-G 34.44 PGS25CBM-100-G 34.44 0-100 0-700 1 50
PGS25-160-G 34.44 PGS25CBM-160-G 38.30 0-160 0-1100 2 50
PGS25-200-G 34.44 PGS25CBM-200-G 38.30 0-200 0-1400 2 50
PGS25-300-G 34.44 PGS25CBM-300-G 38.30 0-300 0-2000 5 50
PGS25-400-G 38.30 PGS25CBM-400-G 38.30 0-400 0-2800 10 50
PGS25-600-G 38.30 PGS25CBM-600-G 38.30 0-600 0-4000 10 50
PGS25-1000-G 38.73 PGS25CBM-1000-G 38.73 0-1000 0-7000 20 50
PGS25-1500-G 38.73 PGS25CBM-1500-G 38.73 0-1500 0-10000 20 50
PGS25-2000-G 38.73 PGS25CBM-2000-G 38.73 0-2000 0-14000 50 50
PGS25-3000-G 38.73 PGS25CBM-3000-G 38.73 0-3000 0-20000 50 50
PGS25-5000-G 39.58 PGS25CBM-5000-G 39.58 0-5000 0-35000 50 50
PGS25-10000-G 40.85 PGS25CBM-10000-G 40.85 0-10000 0-70000 200 50
VACUUM GAUGE
PGSV25-30-G 38.48 30-0Hg 0.5 50
VACUUM/PRESSURE GAUGE
PGSC25-30-30-G 38.30 PGSC25CBM-30-30-G 38.30 30Hg-0-30 2/1 50
IMPORTANT: Liquid Filled Gauges are sealed with a rubber plug to prevent leaking during shipment. Upon
installation the tip of the plug must be cut off to allow the equalization of the internal gauge pressure to the
atmospheric pressure. FAILURE TO DO SO WILL ADVERSELY AFFECT THE FUNCTION OF THE GAUGE.
GLYCERINE TEMPERATURE RATINGS
”BII” gauges are filled with 100% (99.7% min.) glycerine, which starts to become viscous at +17◦C. As temp. decreases, the
more viscous glycerine becomes, causing the pointer to move slower to its correct position, it can take several minutes. At -5◦C
these gauges no longer operate. For operating temps. less than -5◦C, glycerine is mixed: 2 parts glycerine with 1 part water
(66.7%), which actually lowers the freezing point of the solution allowing the gauge to be used in temps. as low as -46◦C.
US Rev. 1.0
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com
6-5
May 16/14

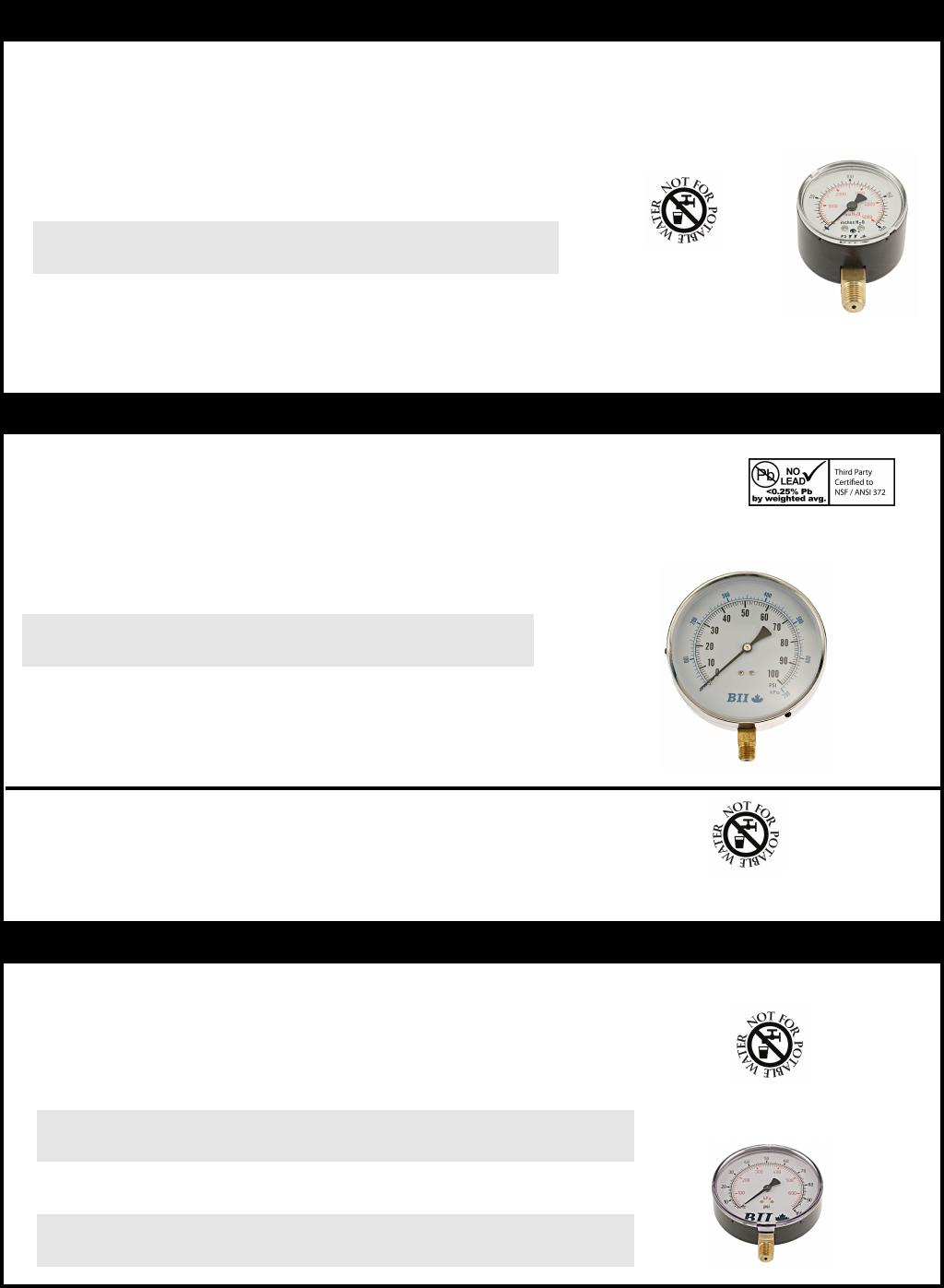

2-1/2"DIAL LOW PRESSURE GAUGES - LOWER MOUNT
Not For Conveying
Potable Water
•General Purpose - not for use with oxygen •Ideal for use in low pressure pneumatic systems
•Accuracy: +/- 1.5% Full Scale Value •For accurate measurement shown in inches of water (1/2 thru 10 PSI)
•Brass Connection •Zero adjustment screw on dial
•Steel Case •Acrylic Window
•Ambient Operating Temperature: -4 to 140◦F (-20 to 60◦C) •Maximum Media Temperature: 140◦F (60◦C)
•Gauges are tapped and include Restrictor Screw
RANGE INCRE- CASE LIST
PART NO. PSI MENTS QTY PRICE-A
1/4"LM
PG25-0-15IN 0-15 IN H2O 0.2 100 116.98
PG25-0-30IN 0-30 IN H2O 0.5 100 157.07
PG25-0-60IN 0-60 IN H2O 1 100 157.07
PG25-0-100IN 0-100 IN H2O 1 100 147.78
PG25-0-200IN 0-200 IN H2O 2 100 114.69
PG25-0-5PSI 0-5 PSI 2 100 147.57
PG25-0-10PSI 0-10 PSI 5 100 116.98
Note: Additional Error when temperature changes from reference temperature of 68◦F (20◦C) +/- 0.4% for every 18◦F (10◦C)
rising or falling.
4-1/2"DIAL CONTRACTOR GAUGES - LOWER MOUNT
Not For Conveying
Potable Water
•General Purpose - not for use with oxygen •Extra large dial face with readjustable pointer
•Accuracy: +/- 1% Full Scale Value (3000 & 5000 PSI 2%) •Bourdon Tube
•Brass or Lead Free Brass Connection •Acrylic Window
•304 Stainless Steel Case and bezel
•Ambient Operating Temperature: -4 to 140◦F (-20 to 60◦C) •Maximum Media Temperature: 140◦F (60◦C)
•Gauges 15 to 600 PSI are tapped for a Restrictor Screw (not included) 1000 PSI or more are tapped and include Restrictor Screw
PART NO. DUAL RANGE INCRE- CASE LIST
PSI kPa MENTS QTY PRICE-A
1/4"LM
PG45-15NL 0-15 0-100 0.2 20 21.31
PG45-30NL 0-30 0-200 0.5 20 19.72
PG45-60NL 0-60 0-400 1 20 19.72
PG45-100NL 0-100 0-700 1 20 19.72
PG45-160NL 0-160 0-1100 2 20 19.72
PG45-200NL 0-200 0-1400 2 20 19.72
PG45-300NL 0-300 0-2000 5 20 19.72
PG45-400NL 0-400 0-2800 5 20 19.72
PG45-600NL 0-600 0-4000 10 20 19.72
PART NO. DUAL RANGE INCRE- CASE LIST
PSI kPa MENTS QTY PRICE-A
VACUUM GAUGE
PGV45-30 30-0Hg 0.5 20 19.37
VACUUM/PRESSURE GAUGE
PGC45-30-30 30Hg-0-30 2/1 20 19.37
4"DIAL PRESSURE GAUGES - LOWER MOUNT
•General Purpose - not for use with oxygen •Accuracy: +/- 2.5% Full Scale Value
•Brass Connection •Bourdon Tube
•Steel Case •Acrylic Window
•Ambient Operating Temperature: -4 to 140◦F (-20 to 60◦C)
•Maximum Media Temperature: 140◦F (60◦C)
Not For Conveying
Potable Water
PART NO. LIST DUAL RANGE INCRE- CASE
1/4"LM PRICE-A PSI kPa MENTS QTY
PG40-15 33.42 0-15 0-100 0.2 50
PG40-30 29.49 0-30 0-200 0.5 50
PG40-60 29.49 0-60 0-400 1 50
PG40-100 29.49 0-100 0-700 1 50
PG40-160 29.49 0-160 0-1100 2 50
PG40-200 29.49 0-200 0-1400 2 50
PG40-300 29.49 0-300 0-2000 5 50
PG40-400 29.49 0-400 0-2800 5 50
PG40-600 44.43 0-600 0-4000 10 50
Rev. 1.0 US
6-6
May 16/14
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com
4"DIAL PRESSURE GAUGES - LIQUID FILLED - LOWER MOUNT
•General Purpose - not for use with oxygen •Ideal for use where vibration or pressure pulsation occurs
•Accuracy: +/- 1.5% Full Scale Value •Bourdon Tube
•Brass or Lead Free Brass Connection •Polycarbonate Window
•304 Stainless Steel Case w/ vent plug •Glycerine Filled
•Ambient Operating Temperature: -4 to 140◦F (-20 to 60◦C) •Maximum Media Temperature: 140◦F (60◦C)
Not For Conveying
Potable Water
PART NO. LIST DUAL RANGE INCRE- CASE
1/4"LM PRICE-A PSI kPa MENTS QTY
PG40-15-GNL 39.56 0-15 0-100 0.2 20
PG40-30-GNL 39.16 0-30 0-200 0.5 20
PG40-60-GNL 39.16 0-60 0-400 1 20
PG40-100-GNL 39.16 0-100 0-700 1 20
PG40-160-GNL 39.16 0-160 0-1100 2 20
PG40-200-GNL 39.16 0-200 0-1400 2 20
PG40-300-GNL 39.16 0-300 0-2000 5 20
PG40-400-GNL 39.16 0-400 0-2800 5 20
PG40-600-GNL 39.16 0-600 0-4000 10 20
PG40-1000-G 38.15 0-1000 0-7000 10 20
PG40-1500-G 38.15 0-1500 0-10000 20 20
PG40-2000-G 38.15 0-2000 0-14000 20 20
PG40-3000-G 38.15 0-3000 0-20000 50 20
PG40-5000-G 38.59 0-5000 0-35000 50 20
PG40-10000-G 39.02 0-10000 0-70000 100 20
4"DIAL STAINLESS STEEL PRESSURE GAUGES - LIQUID FILLED - LOWER BACK MOUNT
•General Purpose - not for use with oxygen •Ideal for use where vibration or pressure pulsation occurs
•Accuracy: +/- 1.5% Full Scale Value •Bourdon Tube
•Stainless Steel Internals and Connection •Polycarbonate Window
•304 Stainless Steel Case w/ vent plug •Glycerine Filled
•Ambient Operating Temperature: -4 to 140◦F (-20 to 60◦C) •Maximum Media Temperature: 140◦F (60◦C)
PART NO. LIST DUAL RANGE INCRE- CASE
1/4"LM PRICE-A PSI kPa MENTS QTY
PG40LBM-15-G 84.81 0-15 0-100 0.2 20
PG40LBM-30-G 84.81 0-30 0-200 0.5 20
PG40LBM-60-G 84.81 0-60 0-400 1 20
PG40LBM-100-G 84.81 0-100 0-700 1 20
PG40LBM-160-G 84.81 0-160 0-1100 2 20
PG40LBM-200-G 84.81 0-200 0-1400 2 20
PG40LBM-300-G 84.81 0-300 0-2000 5 20
PG40LBM-400-G 84.81 0-400 0-2800 5 20
PG40LBM-600-G 84.81 0-600 0-4000 10 20
PG40LBM-1000-G 85.24 0-1000 0-7000 10 20
PG40LBM-1500-G 85.24 0-1500 0-10000 20 20
PG40LBM-2000-G 85.24 0-2000 0-14000 20 20
PG40LBM-3000-G 85.24 0-3000 0-20000 50 20
PG40LBM-5000-G 86.11 0-5000 0-35000 50 20
PG40LBM-10000-G 86.11 0-10000 0-70000 100 20
IMPORTANT: Liquid Filled Gauges are sealed with a rubber plug to prevent leaking during shipment. Upon
installation the tip of the plug must be cut off to allow the equalization of the internal gauge pressure to the
atmospheric pressure. FAILURE TO DO SO WILL ADVERSELY AFFECT THE FUNCTION OF THE GAUGE.
GLYCERINE TEMPERATURE RATINGS
”BII” gauges are filled with 100% (99.7% min.) glycerine, which starts to become viscous at +17◦C. As temp. decreases, the
more viscous glycerine becomes, causing the pointer to move slower to its correct position, it can take several minutes. At -5◦C
these gauges no longer operate. For operating temps. less than -5◦C, glycerine is mixed: 2 parts glycerine with 1 part water
(66.7%), which actually lowers the freezing point of the solution allowing the gauge to be used in temps. as low as -46◦C.
US Rev. 1.0
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com
6-7
May 16/14
PANEL MOUNT FLANGES
PART NO. DESCRIPTION LIST PRICE-A
3-HOLE FRONT FLANGE FOR 2 1/2"
PG25CBM-FF 3-Hole Front Flange - 2 1/2"Dial back mount only 1.85
PG25CBM-UC U-Clamp Mounting Flange - 2 1/2"Dial 2.11
3-HOLE FRONT FLANGE FOR 4"
PG40LBM-FF 3-Hole Front Flange - 4"Dial 3.87
PG40LBM-UC U-Clamp Mounting Flange - 4"Dial 2.67
For use with Stainless Steel gauges only
RESTRICTOR SCREW
•Threaded into socket to dampen pulsation surges
PART NO. DESCRIPTION LIST PRICE-A
2-PG25-RS Restrictor Screw for 2-Series Gauges 0.10
REFILL GLYCERINE
•1 litre bottle - 99.9% glycerine starts to become viscous@ (+)17deg.c.
PART NO. DESCRIPTION LIST PRICE-A
PGA-G-1L 1 L Refill glycerine for liquid filled guages 59.39
BRASS SNUBBERS - BRASS SNUBBING ELEMENT
Brass body and Brass snubbing element and Brass retainer. These snubbers allow the screen to be removed from the
body for cleaning.
•Maximum Operating Pressure: 10,000 PSI •Operating Temperature: -40◦C to +60◦C
•Burst Pressure: 20,000 PSI
PART NO. CONNECTION SERVICE/ VICOSITY RANGE LIST
INLET x OUTLET APPLICATION MICRON/SSU PRICE-A
2-PGA-BS-D 1/4"MPT x 1/4 FPT Heavy Oils 50 micra (0.002")4.78
2-PGA-BS-E 1/4"MPT x 1/4"FPT Gasoline, Water or Light Oil 25 micra (0.001")4.78
2-PGA-BS-G 1/4"MPT x 1/4"FPT Air and Other Gases 15 micra (0.0006")4.78
PIG TAIL SYPHONS
Used to reduce steam or other process media temperature prior to entering pressure
gauge or transmittor. Available in STEEL or BRASS Weight: 7 ounces (200 grams)
PART NO. DESCRIPTION LIST PRICE-A
STEEL
PGA-PTS-02 Schedule 40 Steel Pipe 3.83
Will function properly and withstand pressure and temperature of 600 lbs per square inch and 750◦F.
RED BRASS
PGA-PTB-02 Schedule 40 Red Brass Pipe 15.53
Will function properly and withstand a combined pressure and temperature of 200 lbs. per inch and 406◦F.
Rev. 1.0 US
6-8
January 17/14
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com
WATER TEST GAUGE/MAX PRESSURE INDICATOR GAUGE
APPLICATION
This gauge provides a quick and easy way to test a wide range of pressure systems for leakage. With a
standard 3/4"garden hose connection complete with washer this gauge attaches to hose bibbs, boiler drains
and lawn faucets. Often used in conjunction with rubber test caps offering a quick and easy way to fill and drain
water used in testing cast iron or Schedule 40 plastic pipe often used in sewer, drain and waste water systems.
Part numbers with the MP suffix come with a maximum pressure indicator pointer. The indicator pointer is ideal
for recording the maximum system pressure reached. The pointer can be reset by turning the external knob
counter clockwise.
PART NO. RANGE INCRE- QUANTITY LIST
PSI MENTS CTN CASE PRICE-A
PG25-WTG200MP 0-200 10 1 50 8.21
PG25-WTG300 0-300 10 1 50 6.99
PG25-WTG300MP 0-300 10 1 50 8.21
Connection - 3/4"Brass Female Hose Thread - Swivel
GAS TEST GAUGES
APPLICATION
These gauges come completely assembled on a brass hex manifold incorporating a snifter (air) valve
complete with a plastic cap. The manifold is threaded with a 3/4"FPT connection. This test gauge
package provides a quick and easy means of pressurizing and monitoring a gas system for leakage.
PART NO. CONNECTIONS RANGE INCRE- QUANTITY LIST
PSI MENTS CTN CASE PRICE-A
PG-GT15 3/4"FPT 0 - 15 1/5 PSI 1 50 13.34
PG-GT30 3/4"FPT 0 - 30 1 PSI 1 50 13.34
PG-GT100 3/4"FPT 0 - 100 1 PSI 1 50 13.34
PG-GT200 3/4"FPT 0 - 200 1 PSI 1 50 13.34
Note: Bushing not included. Please purchase separately
GAS TEST MANIFOLD W/O GAUGE
This is a brass hex manifold incorporating a snifter (air) valve complete with a plastic cap. The
manifold is threaded with a 3/4"FPT connection. This test gauge package provides a quick and easy
means of pressurizing and monitoring a gas system for leakage. Gauges sold separately.
PART NO. LIST PRICE-A
PG-GTM 9.23
GAS TEST MANIFOLD COUPLING
•Trouble free alternative to test gas systems
•Black malleable iron 3/4"x 1/4"reducer
•Coupling drilled and tapped 1/8"
PART NO. RANGE QUANTITY LIST
PSI CTN CASE PRICE-A
PG-GTMC 30 180 2.44
(Coupling Only)
CHOICE OF ACCESSORY PACKAGES AVAILABLE
Complete with 1/8"Snifter Valve
PG-GTMC-SV 100 4.31
Complete with Pressure Gauge and Snifter Valve
PG-GTMC-15 0 - 15 1 50 8.78
PG-GTMC-30 0 - 30 1 50 8.38
PG-GTMC-60 0 - 60 1 50 8.38
PG-GTMC25-15 0 - 15 1 50 9.88
PG-GTMC25-30 0 - 30 1 50 9.88
PG-GTMC25-60 0 - 60 1 50 9.88
PG-GTMC25-100 0 - 100 1 50 9.88
US Rev. 1.0
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com
6-9
May 16/14
WATER LEVEL GAUGE
This gauge is used to indicate the depth of water in a well. The gauge and an air line reaching the well bottom are charged with air.
The pressure required to permit air to escape from the end of the air line is a measure of the head of water above the end of the air line.
The length of air line may be set on the adjustable dial to permit reading water level in feet below the ground surface.
•Accuracy: +/- 3% - 2% - 3% •4-1/2"Aluminum rotating dial
•Brass 1/4"LM Connection •Acrylic Window
•304 Stainless Steel Case and bezel with side screws •Brass pointer with black finish
•Bourdon tube - phosphor bronze, soft soldered
PART NO. LIST PRICE-A RANGE INCREMENTS CASE QTY
PG45-WL 21.35 0-390’ H2O 0.2 20
2-1/2"& 3"DIAL BI-METAL THERMOMETERS
•General purpose industrial thermometer
•Accuracy: +/- 2% Working Range - Max Scale Value
•Coiled bi-metal element
•Aluminum case
•Brass or Stainless Steel Thermowell
•Acrylic Window
•Thermowell Max Pressure Rating: 87 PSI (600 kPa)
PART NO. LIST CONNECTION DUAL RANGE DIMENSIONS CASE
PRICE-A ◦F◦C A B C QTY
TW25-CB2-250-25 12.95 1/2"CBM Brass 32-250 ◦F 0-120 ◦C 2-1/2"2-9/16"1"150
TW30-CB2-250-25 20.37 1/2"CBM Brass 32-250 ◦F 0-120 ◦C 3-5/16"3-11/16"2-7/16"50
TW25-CB2-250-SS25 16.87 1/2"CBM SS 32-250 ◦F 0-120 ◦C 2-1/2"2-9/16"1"150
HOT WATER THERMOMETERS
•General purpose use with hot water •Red Organic Kerosene Liquid
•Brass Thermowell
PART NO. LIST CONNECTION DUAL RANGE DIMENSIONS CASE
ANGLE PRICE-A ◦F◦C A B QTY
THW8-A2-280 15.04 1/2"MPT BRASS 40 to 280 5 to 135 6-15/16"3-1/8"50
STRAIGHT
THW8-S2-280 14.21 1/2"MPT BRASS 40 to 280 5 to 135 10-7/8"3-1/8"50
THERMOWELLS
PART NO. LIST PRICE-A CONNECTION FOR USE WITH
TW-05/40MM 6.14 1/2"MPT BRASS TW25-CB2-250-25
2-1/2"& 3"DIAL TRIDICATORS
•General purpose industrial combination pressure gauge/thermometer •Accuracy: Pressure +/- 3% - 2% - 3% Temperature +/- 2%
•Bourdon tube and Coiled bi-metal element •Red (2-1/2") or Black (3") Steel Case
•Brass Connection •Acrylic Window
•3"Dial face comes with adjustable indicator
PART LIST TEMP. PRESSURE DIMENSIONS CASE
NO. PRICE-A RANGE RANGE A B C QTY
2-1/2"DIAL RED STEEL CASE - 1/4"CBM
TR25-CB1-60/250 16.17 30-250 ◦F 0-75 PSI 2-11/16"3-9/16"1-9/16"100
0-120 ◦C 0-500 kPa
TR25X1-CB1-60/250 18.65 30-250 ◦F 0-75 PSI 2-11/16"4-7/8"1-5/8"75
0-120 ◦C 0-500 kPa
3"DIAL BLACK STEEL CASE - 1/2"CBM
TR30-CB2S-60/250 19.48 30-250 ◦F 0-75 PSI 3-5/16"3-3/16"11/16"50
0-120 ◦C 0-500 kPa
TR30-CB2-60/250 19.48 30-250 ◦F 0-75 PSI 3-5/16"4-7/8"2-1/4"50
0-120 ◦C 0-500 kPa
3"DIAL BLACK STEEL CASE - 1/2"LM
TR30-LM2-60/250 22.38 30-250 ◦F 0-75 PSI 3-5/16"6-3/4"2-1/4"50
0-120 ◦C 0-500 kPa
TR30-LM2-80/290 22.32 80-290 ◦F 0-200 PSI 3-5/16"6-3/4"2-1/4"50
26-143 ◦C 0-1400 kPa
Rev. 1.0 US
6-10
October 29/12
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com

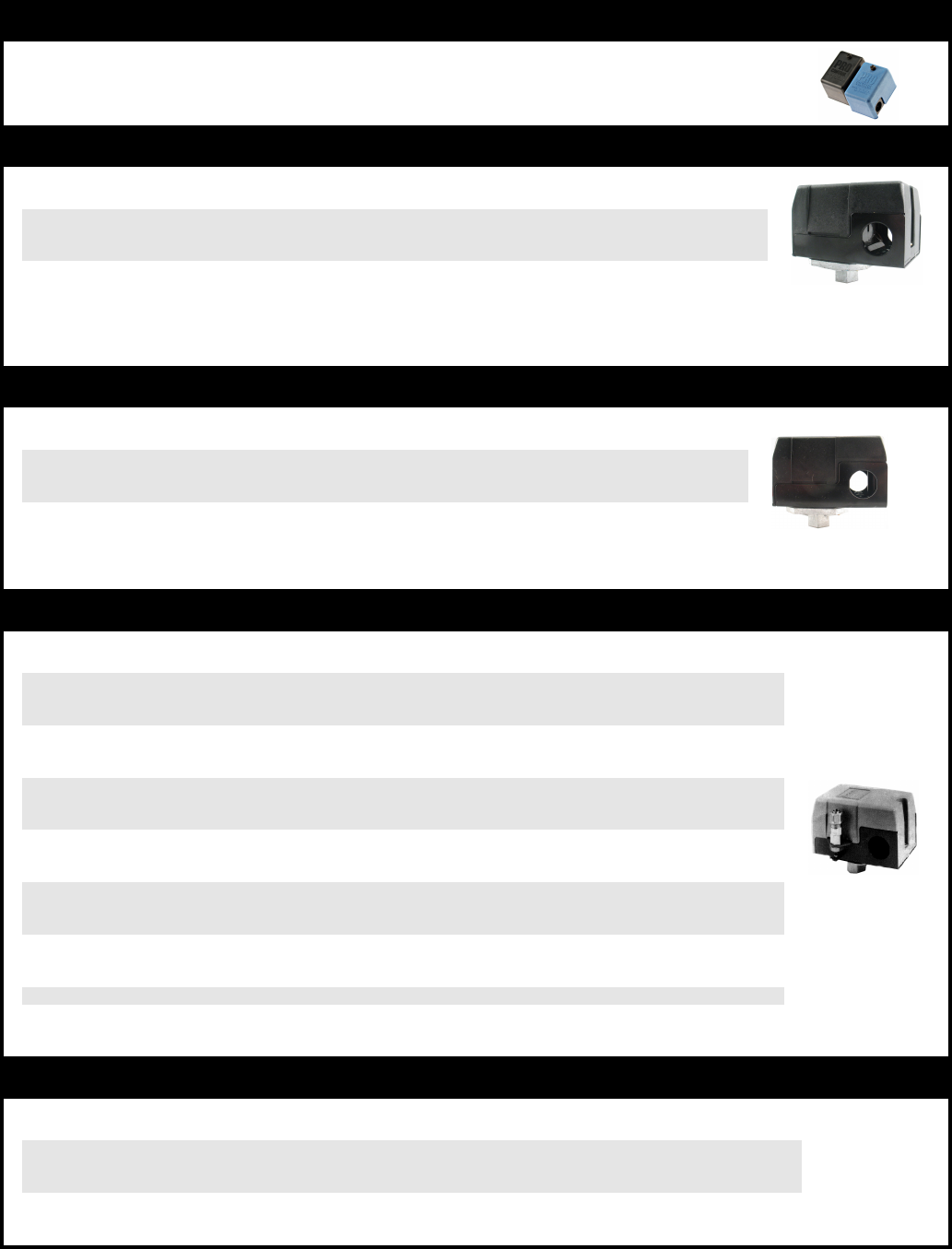

FLOATLESS LIQUID LEVEL CONTROL SYSTEMS
Provides automatic low level cut-off protection for submersible pumps and deep
well turbines. Liquid level submersible pump control system consists of a standard
enclosed type LH induction relay which operates from two types of electrodes - ELB
or ELS - suspended at desired levels. Properly installed, these components provide
reliable automatic low level cut-off protection for submersible pumps and deep well
turbines. Permits efficient operation at full capacity and eliminates danger of pumping
air or sand.
NOTE: ELB or ELS not included
Nema 1 General Purpose Metal Enclosure
Rated at 1 H.P. Single Phase, 115 or 230 volts, 25 AMP
TYPE LH RELAY - The LH Relay is a pump down control for sewage and
sump pump, condensate return systems.
TYPE RH RELAY - The RH Relay is a pump up control for supply pumps
on elevated tanks and towers.
TYPE DH RELAY - The DH Relay is a two way control system for pump up
or pump down.
PART MODEL # LINE SECONDARY DESCRIPTION/OPERATION LIST
NO. VOLTAGE COIL VOLT PRICE-A
LH-115 1500-C-L1-S8-NI-X 110/120V 360V AC Pump Down - Submersible POR
LH-230 1500-C-L2-S8-NI-X 208/240V 360V AC Pump Down - Submersible POR
RH-115 1500-D-L1-S8-NI-X 110/120V 360V AC Pump Up - Open System POR
RH-230 1500-D-L2-S8-NI-X 208/240V 360V AC Pump Up - Open System POR
DH-115 1500-G-L1-S8-NI-X 110/120V 360V AC Pump Up / Down - Submersible & Open POR
DH-230 1500-G-L2-S8-NI-X 208/240V 360V AC Pump Up / Down - Submersible & Open POR
ELECTRODES
The Electrode is made of brass or stainless steel, 2” long. They are
assembled in molded plastic insulating shields, and suspended at
desired levels in the well by means of suspension wire. Wiring diagrams
and complete installation instructions are included with each control. 2 or 3
electrodes are required depending on application. A system ground return circuit
is required from the indicated relay terminal to the liquid in order to complete the
secondary circuit of relay. Conduit should not be used. Instead, connection should
be made directly to uninsulated metal tank, or to metal pipe connected to tank
below normal low liquid level. In wells, or insulated tanks, use an extra common
electrode extending slightly below the longest operating electrode.
PART NO. DESCRIPTION LIST PRICE-A
ELB Brass Electrode 75.00
ELS Stainless Steel Electrode 79.68
US Rev. 1.0
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com
6-11
October 29/12

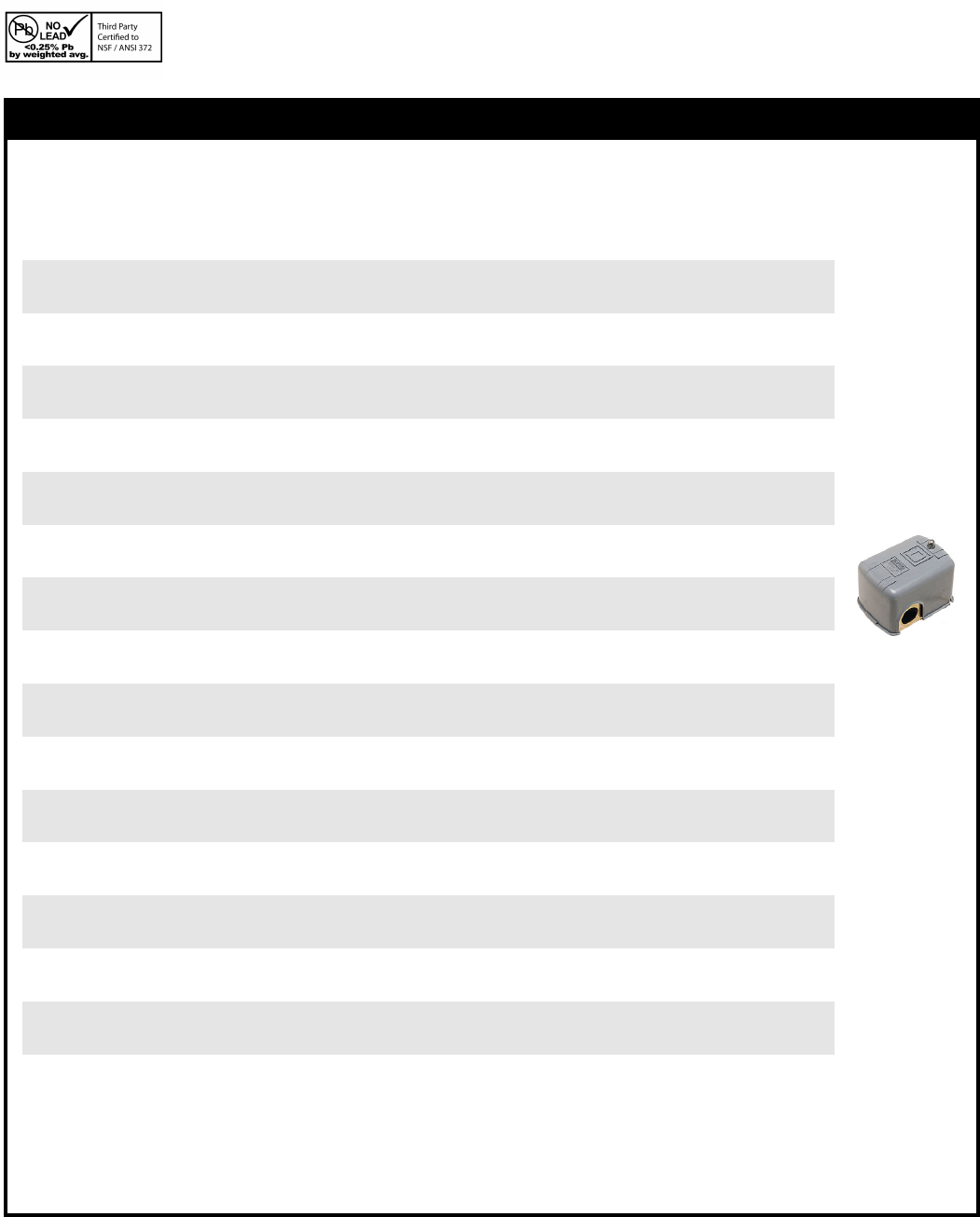

PUMPTROL R
SMALL WATER PUMP PRESSURE SWITCHES - TYPES FSG & FYG
For complete details please refer to Square D Mini Catalogue
INDIVIDUALLY BOXED & BULK PACKED BULK PACKED SWITCHES MUST BE ORDERED BY CARTON QUANTITIES & C20
MUST BE SHOWN ON THE PART NUMBER.
Accessories
are supplied
separately. No
assembly done by
Boshart Industries
Inc.
PART NUMBER PRES SETTING QTY LIST
CLASS TYPE CODE FORM CLOSE-OPEN CONNECTION / DESCRIPTION CTN PRICE-A
9013 FSG2 J20 20 - 40 1/4"FPT - Standard Duty Switch 1 30.22
9013 FSG2 J20 C20 20 - 40 1/4"FPT - Standard Duty Switch 20 29.72
9013 FSG2 J21 30 - 50 1/4"FPT - Standard Duty Switch 1 30.22
9013 FSG2 J21 C20 30 - 50 1/4"FPT - Standard Duty Switch 20 29.72
9013 FSG2 J24 40 - 60 1/4"FPT - Standard Duty Switch 1 30.22
9013 FSG2 J24 C20 40 - 60 1/4"FPT - Standard Duty Switch 20 29.72
9013 FSG2 J20 M1 20 - 40 1/4"FPT - Manual Cut Out Lever 1 35.90
9013 FSG2 J21 M1 30 - 50 1/4"FPT - Manual Cut Out Lever 1 35.90
9013 FSG2 J24 M1 40 - 60 1/4"FPT - Manual Cut Out Lever 1 35.90
9013 FSG2 J20 M4 20 - 40 1/4"FPT - Low Pressure Cut-off 1 39.82
9013 FSG2 J20 M4C20 20 - 40 1/4"FPT - Low Pressure Cut-off 20 39.16
9013 FSG2 J21 M4 30 - 50 1/4"FPT - Low Pressure Cut-off 1 39.82
9013 FSG2 J21 M4C20 30 - 50 1/4"FPT - Low Pressure Cut-off 20 39.16
9013 FSG2 J24 M4 40 - 60 1/4"FPT - Low Pressure Cut-off 1 39.82
9013 FSG2 J24 M4C20 40 - 60 1/4"FPT - Low Pressure Cut-off 20 39.16
9013 FSG2 J20 P 20 - 40 1/4"FPT - Pulsation Plug 1 30.93
9013 FSG2 J21 P 30 - 50 1/4"FPT - Pulsation Plug 1 30.93
9013 FSG2 J21 PC20 30 - 50 1/4"FPT - Pulsation Plug 20 30.55
9013 FSG2 J24 P 40 - 60 1/4"FPT - Pulsation Plug 1 30.93
9013 FSG9 J20 20 - 40 1/4"MPT 1 30.22
9013 FSG9 J21 30 - 50 1/4"MPT 1 30.22
9013 FSG9 J21 C20 30 - 50 1/4"MPT 20 29.72
9013 FSG9 J24 40 - 60 1/4"MPT 1 30.22
9013 FSG9 J20 P 20 - 40 1/4"MPT - Pulsation Plug 1 30.93
9013 FSG9 J21 P 30 - 50 1/4"MPT - Pulsation Plug 1 30.93
9013 FSG10 J20 20 - 40 Mini Barb 1 30.22
9013 FSG10 J21 30 - 50 Mini Barb 1 30.22
9013 FSG10 J21 C20 30 - 50 Mini Barb 20 29.72
9013 FSG10 J20 T 20 - 40 Mini Barb - 1/2"Conduit Bushing - on left 1 34.85
9013 FSG10 J21 T 30 - 50 Mini Barb - 1/2"Conduit Bushing - on left 1 34.85
9013 FSG10 J21 TC16 30 - 50 Mini Barb - 1/2"Conduit Bushing - on left 16 38.50
9013 FSG14 J20 20 - 40 1/4"Barb 1 30.22
9013 FSG14 J21 30 - 50 1/4"Barb 1 30.22
9013 FSG14 J21 C20 30 - 50 1/4"Barb 20 29.72
9013 FSG14 J21 T 30 - 50 1/4"Barb - 1/2"Conduit Bushing - on left 1 34.85
9013 FSG42 J99 615 6 - 15 1/4"FPT 1 38.40
9013 FSG52 J25 60 - 80 1/4"FPT 1 32.34
9013 FSG52 J33 50 - 70 1/4"FPT 1 32.34
9013 FYG2 J20 C20 20 - 40 1/4"FPT - Medium Duty 20 49.27
9013 FYG2 J21 30 - 50 1/4"FPT - Medium Duty 1 49.27
9013 FYG2 J24 40 - 60 1/4"FPT - Medium Duty 1 49.27
9013 FYG2 J25 60 - 80 1/4"FPT - Medium Duty 1 49.27
9013 FYG2 J33 50 - 70 1/4"FPT - Medium Duty 1 49.19
9013 FYG2 J21 M4 30 - 50 1/4"FPT - Medium Duty low pressure cut off 1 59.92
9013 FYG2 J24 M4 40 - 60 1/4"FPT - Medium Duty low pressure cut off 1 59.92
9013 FYG2 J25 M4 60 - 80 1/4"FPT - Medium Duty low pressure cut off 1 59.92
9013 FYG29 J99 1020 10 - 20 1/4"MPT - Medium Duty 1 36.24
9013 FYG42 J99 615 6 - 15 1/4"FPT - Medium Duty 1 58.41
ACCESSORIES LIST PRICE-A
1530S6G1 Pulsation Plug 1.04
9998PC241 Contact Kit, All FSG 16.22
9998PC242 Contact Kit, All FYG 25.96
Rev. 1.0 US
6-12
October 29/12
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com

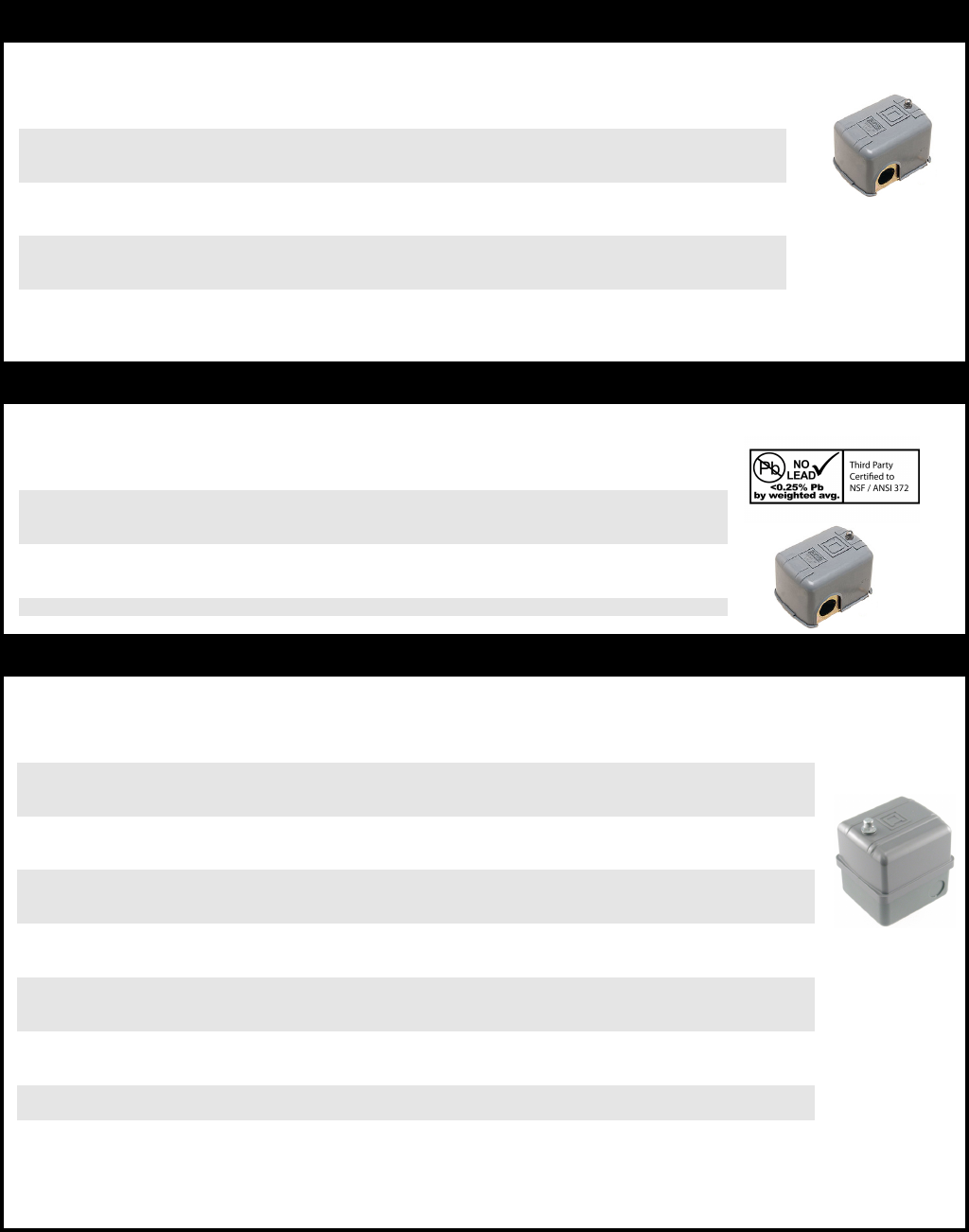

PUMPTROL R
SMALL COMPRESSOR PRESSURE SWITCHES - TYPE FHG
For complete details please refer to Square D Mini Catalogue
INDIVIDUALLY BOXED
Accessories are
supplied separately.
No assembly done by
Boshart Industries Inc.
PART NUMBER PRES SETTING LIST
CLASS TYPE CODE FORM CLOSE-OPEN CONNECTION / DESCRIPTION PRICE-A
9013 FHG2 J27 OFF 100 1/4"FPT - Contacts open on pressure rise 33.78
9013 FHG2 J27 X OFF 100 1/4"FPT - Two-Way Pressure Release Valve 46.69
9013 FHG12 J52 X OFF 125 1/4"FPT - Two-Way Pressure Release Valve 46.69
9013 FHG12 J55 X OFF 150 1/4"FPT - Two-Way Pressure Release Valve 46.69
9013 FHG22 J27 X OFF 100 1/4"FPT - Two-Way Pressure Release Valve 62.11
9013 FHG32 J55 M1 OFF 150 1/4"FPT - Manual Cut Out Lever 55.55
9013 FHG32 J55 X OFF 150 1/4"FPT - Two-Way Pressure Release Valve 62.11
9013 FHG42 J59 X OFF 175 1/4"FPT - Two-Way Pressure Release Valve 46.69
9013 FHG52 J59 X OFF 175 1/4"FPT - Two-Way Pressure Release Valve 62.11
ACCESSORIES LIST PRICE-A
9998PC242 Contact Kit, All FHG 25.96
PUMPTROL R
SMALL WATER PUMP PRESSURE SWITCHES - TYPE FRG
For complete details please refer to Square D Mini Catalogue
INDIVIDUALLY BOXED
PART NUMBER PRES SETTING LIST
CLASS TYPE CODE FORM CLOSE-OPEN CONNECTION / DESCRIPTION PRICE-A
9013 FRG2 J23 40 - 20 1/4"FPT - Reverse action 61.60
9013 FRG2 J23 M5 40 - 20 1/4"FPT - Reverse action - auto on 67.95
9013 FRG2 J35 50 - 30 1/4"FPT - Reverse action 61.60
9013 FRG2 J99 6040 60 - 40 1/4"FPT - Reverse action 61.60
9013 FRG22 J22 1/4"FPT - Reverse action 67.54
9013 FRG22 J70 35 - 20 1/4"FPT - Reverse action 67.54
9013 FRG42 J36 10 - 5 1/4"FPT - Reverse action 67.54
PUMPTROL R
COMMERCIAL/LIGHT INDUSTRIAL PRESSURE SWITCHES - TYPE G
For complete details please refer to Square D Mini Catalogue
INDIVIDUALLY BOXED
Accessories
are supplied
separately. No
assembly done by
Boshart Industries
Inc.
PART NUMBER PRES SETTING LIST
CLASS TYPE CODE FORM CLOSE-OPEN CONNECTION / DESCRIPTION PRICE-A
9013 GHB2 J30 80 - 100 1/4"FPT - NEMA 3R - Rainproof 209.09
9013 GHG2 J25 60 - 80 1/4"FPT - NEMA 1 - General purpose 119.15
9013 GHG2 J30 80 - 100 1/4"FPT - NEMA 1 - General purpose 119.15
9013 GHG2 J30 X 80 - 100 1/4"FPT - Two way pressure release 161.87
9013 GHG2 J31 90 - 120 1/4"FPT - NEMA 1 - General purpose 119.15
9013 GHG2 J33 50 - 70 1/4"FPT - NEMA 1 - General purpose 119.15
9013 GHG2 J51 R 100 - 80 1/4"FPT - NEMA 1 - General purpose reverse action 140.06
9013 GHG2 J53 100 - 125 1/4"FPT - NEMA 1 - General purpose 119.15
9013 GHG2 J57 120 - 150 1/4"FPT - NEMA 1 - General purpose 119.15
9013 GHG2 J58 125 - 150 1/4"FPT - NEMA 1 - General purpose 119.15
9013 GHG2 J62 140 - 175 1/4"FPT - NEMA 1 - General purpose 119.15
9013 GHG2 J63 145 - 175 1/4"FPT - NEMA 1 - General purpose 119.15
9013 GHG2 J63 X 145 - 175 1/4"FPT - Two way pressure release valve 161.87
9013 GHG5 J65 215 - 250 1/4"FPT - NEMA 1 - General purpose 119.15
9013 GSB2 J24 40 - 60 1/4"FPT - NEMA 3R - Rainproof 209.09
9013 GSG2 J20 20 - 40 1/4"FPT - NEMA 1 - General purpose 119.15
9013 GSG2 J21 30 - 50 1/4"FPT - NEMA 1 - General purpose 119.15
9013 GSG2 J24 40 - 60 1/4"FPT - NEMA 1 - General purpose 119.15
9013 GSG2 J25 60 - 80 1/4"FPT - NEMA 1 - General purpose 119.15
9013 GSR2 J20 20 - 40 1/4"FPT - NEMA 7 &9 - Hazardous locations 634.00
ACCESSORIES LIST PRICE-A
9049A52 Mounting Bracket for GHG, GSG 15.67
9998PC205 Contacts - GHG, GSG, GHR, GSR, GMG (Except Forms H and R) 35.21
9998PC208 Diaphragm Assembly - GHG, GSG 19.80
US Rev. 1.0
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com
6-13
October 29/12
COMMERCIAL VACUUM SWITCH - CLASS 9016 - TYPE GVG-1
For complete details please refer to Square D Mini Catalogue
The Class 9016 Type GVG 1 is designed as a companion to the Class 9036 Type GG and
the Class 9037 Type GG float switches in common use on vacuum heating pumps.
Electrical ratings of float and vacuum switch types are equal.
PART NUMBER PRES SETTING LIST
CLASS TYPE CODE CLOSE-OPEN CONNECTION / DESCRIPTION PRICE-A
9016 GVG1 J10 16.5 - 25 in HG Pressure Conn. 1/4-18 NPSF 635.14
FLOAT SWITCHES - TYPES D & G - OPEN TANK OR SUMP - CLASS 9036
For complete details please refer to Square D Mini Catalogue
INDIVIDUALLY BOXED
PART NUMBER LIST
CLASS TYPE CODE FORM CONNECTION / DESCRIPTION PRICE-A
9036 DG2 NEMA 1 - Contacts close on liquid rise 83.91
9036 DG2 R NEMA 1 - Contacts open on liquid rise 91.71
9036 GG2 NEMA 1 - Contacts close on liquid rise 160.98
9036 GG2 R NEMA 1 - Contacts open on liquid rise 160.98
9036 DW31 NEMA 4 - Contacts close on liquid rise 556.13
9036 DR31 NEMA 7 & 9 - Contacts close on liquid rise 534.67
ACCESSORIES
9049 A54 Mounting Bracket - 9036GG 37.05
9049 A58 Form R Lever - 9036DG 7.60
9049 A13 Compensating Spring - 9036GG 19.18
9049 A6C 7"Center Hole #304 S.S. Float, 5’ Brass Rod, 4 Stops 247.01
9049 A6CA 7"Center Hole #304 S.S. Float, 5’ Alum Rod, 4 Stops 162.46
9049 A6CS 7"Center Hole #316 S.S. Float, 5’ S.S. Rod, 4 S.S. Stops 591.40
9049 A6 7"Tapped at top #304 S.S. Float, 5’ Brass Rod, 2 Stops 211.39
9049 A6A 7"Tapped at top #304 S.S Float, 5’ Alum Rod, 2 Stops 220.88
9049 T1 2-1/2"Brass Rod and Connector 48.22
9049 T1S 2-1/2"S.S. Rod and Connector 118.76
9998PC205 Replacement Contact Kits GG, GR, GW, except Forms H & R 35.21
9998PC242 Contact Kit, DG, DR, DW 25.96
Accessories are supplied separately. No assembly done by Boshart Industries Inc.
Rev. 1.0 US
6-14
October 29/12
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com
FLOAT SWITCHES - TYPES D, E - CLOSED TANK - CLASS 9037
INDIVIDUALLY BOXED E SERIES FLOAT & ROD SOLD SEPARATELY
TYPE EG
Accessories are supplied
separately. No assembly done
by Boshart Industries Inc.
PART NUMBER LIST
CLASS TYPE CONNECTION / DESCRIPTION PRICE-A
9037 EG8 NEMA 1 - Contacts open / close on liquid rise 304.01
9037 EG9 NEMA 1 - Contacts open / close on liquid rise 304.01
ACCESSORIES
9049 EF1 #304 S.S. Float 44.66
9049 ER1 1 3/4"Stainless Steel Rod 18.52
9049 ER2 2-1/2"Stainless Steel Rod 18.52
9049 ER3 3-1/4"Stainless Steel Rod 18.52
9049 ER5 5-1/4"Stainless Steel Rod 18.52
9049 ER7 7-1/4"Stainless Steel Rod 18.52
9049 ER12 12-1/4"Stainless Steel Rod 18.52
ACCESSORIES
INDIVIDUALLY BOXED
PART NUMBER LIST
CLASS TYPE CONNECTION / DESCRIPTION PRICE-A
ACCESSORIES
9049 AF1 7"Round Center Hole #304 S.S. Replacement Float 147.72
9049 GBR5 5"Brass Rod 18.52
FLOAT SWITCHES - TYPES H - CLOSED TANK - CLASS 9037
INDIVIDUALLY BOXED
PART NUMBER LIST
CLASS TYPE FORM CONNECTION / DESCRIPTION PRICE-A
9037 TYPE H SERIES
COMPLETE WITH #304
S.S. FLOAT and ROD
Accessories are supplied
separately. No assembly done
by Boshart Industries Inc.
9037 HG30 NEMA 1 - Contacts close on liquid rise 220.88
9037 HG31 NEMA 1 - Contacts close on liquid rise 220.88
9037 HG31 R NEMA 1 - Contacts open on liquid rise 220.88
9037 HG32 NEMA 1 - Contacts close on liquid rise 220.88
9037 HG33 NEMA 1 - Contacts close on liquid rise 220.88
9037 HG33 R NEMA 1 - Contacts open on liquid rise 220.88
9037 HG34 NEMA 1 - Contacts close on liquid rise 220.88
9037 HG35 NEMA 1 - Contacts close on liquid rise 220.88
9037 HG35 R NEMA 1 - Contacts open on liquid rise 220.88
9037 HG36 NEMA 1 - Contacts close on liquid rise 220.88
9037 HG37 NEMA 1 - Contacts close on liquid rise 220.88
9037 HG38 NEMA 1 - Contacts close on liquid rise 220.88
9037 HR33 NEMA 7 & 9 - Contacts close on liquid rise 663.11
9037 HW33 NEMA 4 - Contacts close on liquid rise 684.02
ACCESSORIES
9049 HF3 #304 Stainless Steel Float 48.22
9049 HF4 #316 Stainless Steel Float 152.00
9998 PC242 Contact Kit, All HG, HW, HR 30 Through 39 25.96
US Rev. 1.0
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com
6-15
October 29/12
MECHANICAL ALTERNATORS - TYPES A - OPEN TANK - CLASS 9038
INDIVIDUALLY BOXED
PART NUMBER LIST
CLASS TYPE CODE CONNECTION / DESCRIPTION PRICE-A
Accessories are supplied
separately. No assembly done
by Boshart Industries Inc.
9038 AG1 NEMA 1 - Float Operated Alternator 288.08
9038 AW1 NEMA 4 - Float Operated Alternator 1015.49
9038 AG1N5 NEMA 1 - Float Operated Alternator 475.34
with high water alarm circuit
ACCESSORIES
9049 A6 7"Tapped at top #304 S.S. Float, 5’ Brass Rod, 2 Stops 211.39
9049 A6A 7"Tapped at top #304 S.S Float, 5’ Alum Rod, 2 Stops 220.88
9049 A6C 7"Center Hole #304 S.S. Float, 5’ Brass Rod, 4 Stops 247.01
9049 A6CA 7"Center Hole #304 S.S. Float, 5’ Alum Rod, 4 Stops 162.46
9049 A6CS 7"Center Hole #316 S.S. Float, 5’ S.S. Rod, 4 S.S. Stops 591.40
9049 UMS1 Universal Mounting Bracket 59.14
9049 A15 Compensating Spring 57.52
MECHANICAL ALTERNATORS - TYPES B & C - CLOSED TANK - CLASS 9038
For Type B Only:
Accessories are supplied
separately. No assembly done
by Boshart Industries Inc.
INDIVIDUALLY BOXED
PART NUMBER LIST
CLASS TYPE CODE CONNECTION / DESCRIPTION PRICE-A
9038 CG 31 NEMA 1 - 2 1/2"MPT Conn. Float to right* 612.17
9038 CG 32 NEMA 1 - 2 1/2"MPT Conn. Float to left* 612.17
9038 CG 36 NEMA 1 - 2 1/2"MPT Conn. Float to left* 612.17
*Complete with Rod and Float
ACCESSORIES
9049 HF3 #304 Stainless Steel Float - Type C & D 48.22
9049 HF4 #316 Stainless Steel Float - Type C & D 152.00
9049 GBR5 5"Brass Rod 18.52
ELECTRIC ALTERNATORS - CLASS 9039 - TYPE X
PRICE ON REQUEST
Class 9039 alternators are used with two separately enclosed motor starters to
alternate the operation of the pump motors of a duplex pump installation.
PRESSURE SWITCH INDICATOR LIGHT
PART NO. DESCRIPTION LIST PRICE-A
FSG-PL Pressure Switch Indicator Light 24.29
This pump light can be used with two or three wire motors in either 115 volt or 230 volt applications.
It is easy to install at the pressure switch, where it is used to indicate that the pump is running or
at the control box, where it is used to indicate that current is available to the submersible pump.
Rev. 1.0 US
6-16
May 4/12
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com
BII STANDARD DUTY - SMALL WATER PUMP SWITCHES - PS02 SERIES
Standard water pump switch designed for the control of electrically driven water pumps of all types (Jets, Submersible, Reciprocating, etc.)
•Temperature Ambient: Min. -30◦C(-22◦F) Max. 70◦C(158◦F)
•Temperature Media: Min. -30◦C(-22◦F) Max. 125◦C(257◦F)
•Standard action - contacts open on rising pressure
•Enclosure - Type 1 Indoor use
•Individually Boxed •UL Approved •CSA approved
PRESSURE QUANTITY LIST
PART NO. SETTING CONNECTION/DESCRIPTION CTN CASE PRICE-A
PS02-2040 20 - 40 1/4"FPT - Standard Duty Switch 1 20 15.39
PS02-3050 30 - 50 1/4"FPT - Standard Duty Switch 1 20 15.39
PS02-4060 40 - 60 1/4"FPT - Standard Duty Switch 1 20 15.39
PS02AO-3050 * 30 - 50 1/4"FPT Auto/Manual Off 1 20 16.71
PS02AO-4060 * 40 - 60 1/4"FPT Auto/Manual Off 1 20 16.71
PS02LP-2040 20 - 40 1/4"FPT - Low Level Cut Off Switch 1 20 16.71
PS02LP-3050 30 - 50 1/4"FPT - Low Level Cut Off Switch 1 20 16.71
PS02LP-4060 40 - 60 1/4"FPT - Low Level Cut Off Switch 1 20 16.71
PS02B-3050 30 - 50 1/4"Barb Connection 1 20 15.39
PS02M-3050 30 - 50 1/4"MPT - Standard Duty Switch 1 20 15.52
PS02M-4060 40 - 60 1/4"MPT - Standard Duty Switch 1 20 15.52
PS02P-3050 30 - 50 1/4"FPT w/Pulsation Plug 1 20 15.13
PS02P-4060 40 - 60 1/4"FPT w/Pulsation Plug 1 20 15.13
PS02-PP PULSATION PLUG (FOR 1/4"FPT) 10 1000 0.09
Pressure Range/Rating (PSI) Horsepower (HP)
Model No Cut-In Differential Cut-Out Max Allowable Single Phase
115V 230V
PS02 5-45 15-30 20-65 220 1.5 2
BII MEDIUM DUTY - WATER PUMP SWITCHES - PSMD02 SERIES
Medium duty pressure switches designed for the control of electrically driven water pumps of all types.
•Temperature Ambient: Min. -30◦C(-22◦F) Max. 70◦C(158◦F)
•Temperature Media: Min. -30◦C(-22◦F) Max. 125◦C(257◦F)
•Standard action - contacts open on rising pressure
•Enclosure - Type 1 Indoor use
•Individually Boxed •UL Approved
PRESSURE QUANTITY LIST
PART NO. SETTING CONNECTION/DESCRIPTION CTN CASE PRICE-A
PSMD02-2040 20 - 40 1/4"FPT - Medium Duty 1 25 27.05
PSMD02-3050 30 - 50 1/4"FPT - Medium Duty 1 25 27.05
PSMD02-4060 40 - 60 1/4"FPT - Medium Duty 1 25 27.05
PSMD02-5070 50 - 70 1/4"FPT - Medium Duty 1 25 27.05
PSMD02-6080 60 - 80 1/4"FPT - Medium Duty 1 25 27.05
Pressure Range/Rating (PSI) 2-Pole Horsepower (HP)
Model No Cut-In Differential Cut-Out Max Allowable Single Phase Three Phase
115V 230V 115V 230V
PSMD02 20-60 15-30 40-80 220 2 3 3 5
BII HEAVY DUTY - WATER PUMP SWITCHES - PSHD02 SERIES
Heavy duty pressure switches designed for the control of electrically driven water pumps of all types.
•Temperature Ambient: Min. -30◦C(-22◦F) Max. 70◦C(158◦F)
•Temperature Media: Min. -30◦C(-22◦F) Max. 125◦C(257◦F)
•Standard action - contacts open on rising pressure
•Enclosure - Type 1 Indoor use
•Individually Boxed •CSA Approved
PRESSURE QUANTITY LIST
PART NO. SETTING CONNECTION/DESCRIPTION CTN CASE PRICE-A
PSHD02-3050 30 - 50 1/4"FPT - Heavy Duty 1 25 68.41
PSHD02-4060 40 - 60 1/4"FPT - Heavy Duty 1 25 68.41
PSHD02-6080 60 - 80 1/4"FPT - Heavy Duty 1 25 68.41
PSHD02-80100 80 - 100 1/4"FPT - Heavy Duty 1 25 68.41
Pressure Range/Rating (PSI) 2-Pole Horsepower (HP)
Model No Cut-In Differential Cut-Out Max Allowable Single Phase Three Phase
115V 230V 115V 230V
PSHD02 30-80 20-60 50-100 300 2 3 3 5
US Rev. 1.0
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com
6-17
October 29/12
PRESSURE SENSORS / TRANSDUCERS - FOR PUMP APPLICATIONS
APPLICATIONS:
The new range of OsiSense R
90-XMLK pressure sensors provides a high degree of
accuracy for controlling water pressure in constant pressure pumping applications.
90-XMLK sensors help to optimize motor efficiency and reduce the energy
consumption of pumps.
FEATURES / CONSTRUCTION / RATINGS:
•Available in two analog outputs, 4-20 mA or 0-10 V
•Available in four pressure ranges, 0-100, 150, 200 or 300 psi
•Max permissible accidental pressure is 2X rated pressure
•Response time: <2 ms Accuracy: +/- 0.3% of the measuring range
•Operating Temperature: 32◦F to 176◦F (0◦C to 80◦C)
•1/4"MPT fluid connection, 303 Stainless Steel
•M12 electrical connection (connectors sold separately)
•Nitrile Buna Rubber (NBR) seal and Ceramic measuring cell
•UL and CSA listed
PRESSURE SENSORS
PART NO. RANGE PSI CONNECTION/DESCRIPTION QUANTITY LIST
CTN CASE PRICE-A
90-XMLK100P2D23 0-100 1/4"MPT, 4-20 mA Output 1 152.33
90-XMLK150P2D23 0-150 1/4"MPT, 4-20 mA Output 1 152.33
90-XMLK200P2D23 0-200 1/4"MPT, 4-20 mA Output 1 152.33
90-XMLK300P2D23 0-300 1/4"MPT, 4-20 mA Output 1 152.33
90-XMLK100P2D73 0-100 1/4"MPT, 0-10 V Output 1 152.33
90-XMLK150P2D73 0-150 1/4"MPT, 0-10 V Output 1 152.33
90-XMLK200P2D73 0-200 1/4"MPT, 0-10 V Output 1 152.33
90-XMLK300P2D73 0-300 1/4"MPT, 0-10 V Output 1 152.33
SCREW TERMINAL CONNECTOR
•Allows for wiring long runs of sensor cable directly to connector without any splices!
PART NO. CONNECTION LIST
PRICE-A
90-XZCC12FCM40B M12, ELBOW 29.46
PRE-WIRED CONNECTORS
PART NO. CONNECTION LENGTH QUANTITY LIST
CTN CASE PRICE-A
90-XZCP1141L2 M12, STRAIGHT 2 m (6.56 ft) 1 53.87
90-XZCP1141L5 M12, STRAIGHT 5 m (16.40 ft) 1 71.83
90-XZCP1141L10 M12, STRAIGHT 10 m (32.80 ft) 1 96.51
90-XZCP1241L2 M12, ELBOW 2 m (6.56 ft) 1 53.87
90-XZCP1241L5 M12, ELBOW 5 m (16.40 ft) 1 71.83
90-XZCP1241L10 M12, ELBOW 10 m (32.80 ft) 1 96.51
Rev. 1.0 US
6-18
April 23/12
BOSHART INDUSTRIES
Telephone: 1-519-595-4444 - Toll Free: 1-800-561-3164
Fax: 1-519-595-4380 - www.boshart.com
HUBBELL BRAND CLASS 69ES PRESSURE SWITCH - WATER SYSTEM
PART NUMBER PRES SETTING QTY LIST
CLASS TYPE FORM CODE CLOSE-OPEN CONNECTION / DESCRIPTION CTN PRICE-A
69 ES1 Z3050 30 - 50 1/4"FPT - General Purpose 44 57.95
69 ES1 Z4060 40 - 60 1/4"FPT - General Purpose 44 57.95
HUBBELL BRAND CLASS 69W HEAVY DUTY PRESSURE SWITCH - WATER SYSTEM
PART NUMBER PRES SETTING LIST
CLASS TYPE FORM CODE CLOSE-OPEN CONNECTION / DESCRIPTION PRICE-A
69 WB5 Z3050 30 - 50 1/4"FPT-NEMA 1 Water Sys Switch 68.68
69 WB3 Z510 5 - 10 1/4"FPT-NEMA 1 Water Sys Switch 68.68
69 WB2 Z37 3 - 7 1/4"FPT-NEMA 1 Water Sys Switch 68.68
69 WB5W Z3050 30 - 50 1/4"FPT-NEMA 3 Weather Proof 214.62
69 WB5W Z4060 40 - 60 1/4"FPT-NEMA 3 Weather Proof 214.62
LOW PRESSURE
69 WEC Z3050 30 - 50 1/4"FPT-NEMA 1-Gard All 62.24
69 WFC Z2040 20 - 40 1/4"FPT-NEMA 1-Gard All 85.85
HUBBELL BRAND CLASS 69 SPECIAL APPLICATION PRESSURE SWITCH - WATER/AIR SYSTEMS
PART NUMBER PRES SETTING LIST
CLASS TYPE FORM CODE CLOSE-OPEN CONNECTION / DESCRIPTION PRICE-A
69 WR7 Z12595 125 - 95 1/4"FPT-NEMA 1-Reverse Action 81.56
69 WR6 Z10075 100 - 75 1/4"FPT-NEMA 1-Reverse Action 81.56
69 WR5 Z5030 50 - 30 1/4"FPT-NEMA 1-Reverse Action 81.56
69 WR5L Z5030 50 - 30 1/4"FPT Reverse Action Auto Off 85.85
69 WR3 Z105 10 - 5 1/4"FPT-NEMA 1-Reverse Action 81.56
69 WR2 Z73 7 - 3 1/4"FPT-NEMA 1-Reverse Action 81.56
69 WC7 Z12 12 1/4"FPT-NEMA 1-Gard-It 62.24
69 WH6 Z80 80 1/4"FPT-NEMA 1-Hi-Gard 66.53
HUBBELL BRAND CLASS 69J PRESSURE SWITCH - AIR SYSTEM
PART NUMBER PRES SETTING LIST
CLASS TYPE FORM CODE CLOSE-OPEN CONNECTION / DESCRIPTION PRICE-A
69 JF6 Z80100 80 - 100 1/4"FPT-NEMA 1 - General Purpose 50.44
69 JF6 L Z80100 80 - 100 1/4"FPT-NEMA 1 - Lever 54.73
69 JF6 LY Z80100 80 - 100 1/4"FPT-NEMA 1 - Lever & Unloader 68.68
69 JF6 Y Z80100 80 - 100 1/4"FPT-NEMA 1 - Unloader Valve 64.39
69 JG6 Z80100 80 - 100 1/4"FPT-NEMA 1 - General Purpose 57.95
69 JG6 Y Z80100 80 - 100 1/4"FPT-NEMA 1 - Unloader Valve 71.90
69 JF7 Z95125 95 - 125 1/4"FPT-NEMA 1 - General Purpose 50.44
69 JF7 L Z95125 95 - 125 1/4"FPT-NEMA 1 - Lever 54.73
69 JF7 LY Z95125 95 - 125 1/4"FPT-NEMA 1 - Lever & Unloader 68.68
69 JF7 Y Z95125 95 - 125 1/4"FPT-NEMA 1 - Unloader valve 64.39
69 JG7 Z95125 95 - 125 1/4"FPT-NEMA 1 - General Purpose 57.95
69 JG7 L Z95125 95 - 125 1/4"FPT-NEMA 1 - Lever 62.24
69 JG7 LY Z95125 95 - 125 1/4"FPT-NEMA 1 - Lever & Unloader 74.05
69 JG7 Y Z95125 95 - 125 1/4"FPT-NEMA 1 - Unloader Valve 71.90
69 JF8 Z115150 115 - 150 1/4"FPT-NEMA 1 - General Purpose 50.44
69 JF8 L Z115150 115 - 150 1/4"FPT-NEMA 1 - Lever 54.73
69 JF8 LY Z115150 115 - 150 1/4"FPT-NEMA 1 - Lever & Unloader 68.68
69 JF8 Y Z115150 115 - 150 1/4"FPT-NEMA 1 - Unloader Valve 64.39
69 JG8 Z115150 115 - 150 1/4"FPT-NEMA 1 - General Purpose 57.95
69 JG8 L Z115150 115 - 150 1/4"FPT-NEMA 1 - Lever 62.24
69 JG8 LY Z115150 115 - 150 1/4"FPT-NEMA 1 - Lever & Unloader 74.05
69 JG8 Y Z115150 115 - 150 1/4"FPT-NEMA 1 - Unloader Valve 71.90
HUBBELL BRAND CLASS 69H HEAVY DUTY PRESSURE SWITCH - AIR SYSTEM
PART NUMBER PRES SETTING LIST
CLASS TYPE FORM CODE CLOSE-OPEN CONNECTION / DESCRIPTION PRICE-A
69 HA1 Z115150 115 - 150 3/8"FPT NEMA 1 - General Purpose 210.33
69 HAU1 Z115150 115 - 150 3/8"FPT NEMA 1 - with Unloader Valve 214.62
69 HA2 Z100125 100 - 125 3/8"FPT NEMA 1 - General Purpose 210.33
69 HAU2 Z100125 100 - 125 3/8"FPT NEMA 1 - with Unloader Valve 214.62
69 HAU3 Z3040 30 - 40 3/8"FPT NEMA 1 - with Unloader Valve 214.62
69 HBU1 Z115150 115 - 150 3/8"FPT NEMA 1 - with Unloader Valve 223.21
US Rev. 1.0

Navigation menu
