Job:
Engineer:
Contractor:
Representative:
Ordered by: Date:
Submitted by: Date:
Approved by: Date:
File No: 10.65
Date: march 28, 2014
Supersedes: 10.65
Date: august 01, 2013
technical data
COMPASS
|
DESIGN ENVELOPE VARIABLE SPEED
WET ROTOR CIRCULATORS
|
SUBMITTAL
materials of construction
Pump body: Cast iron (closed systems)
Stainless steel* (open systems)
Impeller: pa66
Shaft: Ceramic
Bearings: Ceramic
Gasket material: epdm
hardware kit
Companion flange kit (contains two (2) flanges, hardware
and gaskets)
Cast iron: 0.75", 1", 1.25", 1.5"
Bronze: 0 . 75", 1", 1 . 2 5", 1 . 5"
Supply voltage: 1 × 115 v – 10%/+ 6%, 60 Hz
Motor protection: The pump requires no external
motor protection.
Maximum working temperature: 230°f (110°c) maximum
Maximum working pressure: 150 psi (10 bar).
Maximum relative air humidity (rh): 95%.
Flow range: 0 – 20 USgpm (0 to 1.26 L/s)
Head range: 0 – 20.0 feet (0 to 6.09 m)
Enclosure class: Type 2
Insulation class: h
Certification: etl listed for US and Canada (conforms to
ulstd.778 certified to csa std. c22.2 no.108-01)
*nsf 372 (for stainless steel models)
inlet pressure
Minimum inlet pressure in relation to liquid temperature:
Sound pressure level: The sound pressure level of the pump is
lower than 43 dB(A).
Ambient temperature: 32°f (0°c) – 104°f (40°c)
Pumped liquids: Water or water Glycol mix.
Liquid temperature: 36°f (2°c) – 230°f (110°c)**
minimum maximum
Amp 0.05 0.65
Watt 545
liquid temperature minimum inlet pressure
150°f (65°c) 3.0 ft (0.91 m)
167°f (75°c) 4.4 ft (1.34 m)
194°f (90°c) 9.2 ft (2.8 m)
230°f (110°c) 36.1 ft (11.0 m)
To avoid condensation in the control box and stator, the
liquid temperature must always be higher than the
ambient temperature.
ambient
temperature liquid temperature
min. max.
32°f (0°c) 35.6°f (2°c) 230°f (110°c)
50°f (10°c) 10°c (50°f) 230°f (110°c)
68°f (20°c) 68°f (20°c) 230°f (110°c)
86°f (30°c) 86°f (30°c) 230°f (110°c)
95°f (35°c) 95°f (35°c) 194°f (90°c)
104°f (40°c) 104°f (40°c) 176°f (80°c)
submittal
Compass - Design Envelope
variable speed wet rotor circulators
2
compass performance curves
pc4pc3
pc2pc1
i
ii
iii
speed pressure curve
auto
compass performance curves
pc1
pc2
pc3
pc4
iii
ii
head - ft.wg.
flow - usgpm
i
20
22
24
20
22
18
18
16
16
14
14
12
12
10
10
8
8
4
4
6
6
2
2
0
0
auto
birmingham
buffalo
toronto
manchester
bangalore
shanghai armstrongfluidtechnology.com
+91 (0) 80 4906 3555
+44 (0) 8444 145 145
+44 (0) 8444 145 145
+1 716 693 8813
+1 416 755 2291
+86 21 3756 6696
armstrong fluid technology
established 1934
Lights on the display indicate the Control mode selected.

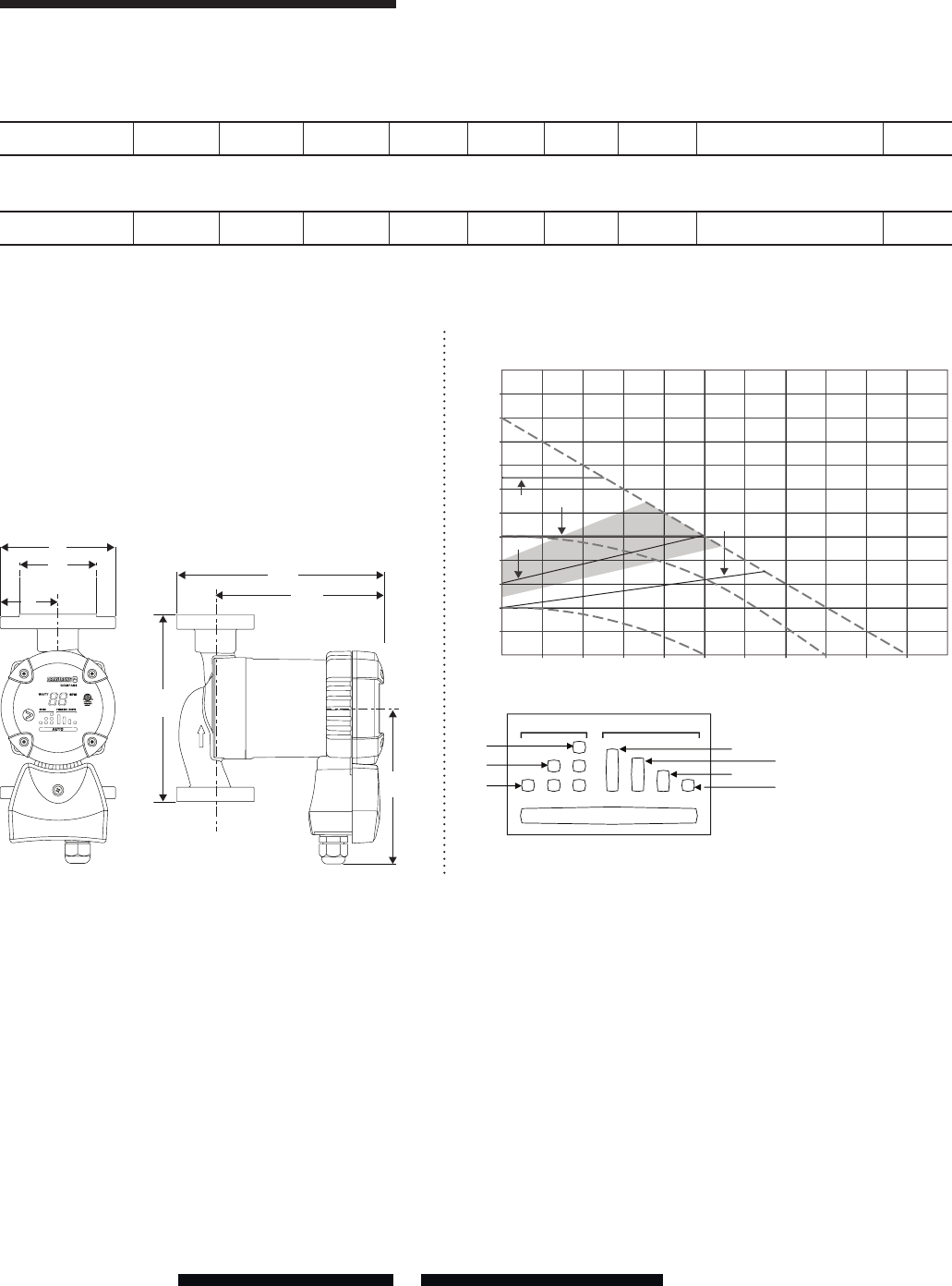

dimensions and weights
stainless steel* a b c d e f g connection type & size weight
Compass 20-20 ss
flange 6.50 (165) 7.08 (180) 5.75 (146) 4.00 (102) 2.00 (50) 3.25 (80) 5.31 (135) Flange – (2) ½" dia. bolt
holes 8.0 (3.6)
cast iron a b c d e f gconnection type & size weight
Compass 20-20 ci
flange 6.50 (165) 7.08 (180) 5.75 (146) 4.00 (102) 2.00 (50) 3.25 (80) 5.31 (135) Flange – (2) ½" dia. bolt
holes 8.0 (3.6)
note:
All dimensions are in inches (mm) and weights in lbs (kg).
*Certified <0.25 weighted average percent lead and complies
with California Health and Safety Code Section 116875
(commonly known as ab 1953).
** For open systems, it is recommended that the liquid temperature be
less than 150°f (65°c) to avoid precipitation of calcium.
e
f
d
b
c
a
g
(on center)
compass flange
