ZOELLER ENGINEERED PRODUCTS

NEMA 4X SIMPLEX & DUPLEX PANELS

1 - 20 BHP

COMMERCIAL DUTY EJECTORS, SOLIDS HANDLING AND GRINDER PUMPS

HAZARDOUS ENVIRONMENT SERIES**

(Class 1, Division 1, Group C & D)

 Commercial Efuent - Pg. 2

 Commercial Sewage - Pg. 3

 61 HD Series - Pg. 6

Standard Features:

1. NEMA-4X Thermoplastic Enclosure

2. cULus Labeled

3. Input Power Terminal Block

4. Float Switch Terminal Block

5. Ground Lug

6. Control Side Fuses

7. Control On/Off Switch

8. Lockable Hasp

9. HOA Switch(es)

10. IEC Rated Motor Contactor(s)

11. 120 Volt Control Circuit or Transformer

12. Pump Circuit Breaker(s) or Motor Overload

Protection w/ Disconnect (3 Phase and 61 HD Series)

13. External High Water Alarm Light

14. Audible High Water Alarm Horn

15. High Water Alarm Dry Contact

16. Alarm Test and Silence Switch (Externally Mounted)

17. Green Pump Run Light(s)

18. Capacitors and Start Relay (1 Phase 61 HD Series)

19. Alternating Circuit Board (Duplex)

20. Float Status Indicator Lights

* Standard Options



Seal Fail Indicator w/ Relay & Thermal Cutout Circuit 61 HD



Seal Fail Indicator w/ Relay

 Elapsed Time Meter(s)

 Event Counter(s)

 Flasher for High Water Alarm Light

 Redundant Off

 Inner Door

 Lightning Arrestor

 Anti-Condensation Heater

 Manual Alarm Reset

 Pump Run Dry Contact

 Seal Fail Dry Contact

 Main Non-Fused Disconnect

 Alternator 1-2 Selector Switch

* Consult Factory for Options Not Listed

 62 HD Series - Pg. 8

 Grinder Pumps - Pg. 9

Standard Features:

1. NEMA-4X Thermoplastic Enclosure

2. cULus Labeled

3. Input Power Terminal Block

4. Float Switch Terminal Block

5. Ground Lug

6. Control Side Fuses

7. Control On/Off Switch

8. Lockable Hasp

9. HOA Switch(es)

10. IEC Rated Motor Contactor(s)

11. 120 Volt Control Circuit or Transformer

12. Pump Disconnect(s) and Motor Overload

Protection

13. External High Water Alarm Light

14. Audible High Water Alarm Horn

15. High Water Alarm Dry Contact

16. Alarm Test and Silence Switch (Externally Mounted)

17. Green Pump Run Light(s)

18. Capacitors and Start Relay (Single Phase)

19. Alternating Circuit Board (Duplex)

20. Float Status Indicator Lights

21. Seal Fail Relay(s) w/ Indication

Thermal Cut-out Circuit(s)

* Standard Options

 Elapsed Time Meter(s)

 Event Counter(s)

 Flasher for High Water Alarm Light

 Redundant Off

 Inner Door

 Lightning Arrestor

 Anti-Condensation Heater

 Manual Alarm Reset

 Automatic Reversing (Grinder Pump Only)

 Pump Run Dry Contact

 Seal Fail Dry Contact

 Main Non-Fused Disconnect

 Alternator 1-2 Selector Switch

 Commercial Duty Ejectors - Pg. 4 & 5

 X61 HD and X62 HD Series - Pg. 7 & 8

 X70 & X71 Series Grinder Pumps - Pg. 10

Standard Features:

1. NEMA-4X Thermoplastic Enclosure

2. cULus Labeled

3. Input Power Terminal Block

4. Float Switch Terminal Block

5. Ground Lug

6. Control Side Fuses

7. Control On/Off Switch

8. Lockable Hasp

9. HOA Switch(es)

10. IEC Rated Motor Contactor(s)

11. 120 Volt Control Circuit or Transformer

12. Pump Circuit Breaker(s) or Motor Overload

Protection w/ Disconnect

13. External High Water Alarm Light

14. Audible High Water Alarm Horn

15. High Water Alarm Dry Contact

16. Alarm Test and Silence Switch (Externally Mounted)

17. Green Pump Run Light(s)

18. Capacitors and Start Relay (1 Phase Models)

19. Alternating Circuit Board (Duplex)

20. Float Status Indicator Lights

21. Seal Fail Relay(s) w/ Indication, Thermal Cut-out

Circuit(s), Intrinsically Safe Relays

* Standard Options

 Elapsed Time Meter(s)

 Event Counter(s)

 Flasher for High Water Alarm Light

 Redundant Off

 Inner Door

 Lightning Arrestor

 Anti-Condensation Heater

 Manual Alarm Reset

 Automatic Reversing (Grinder Pump Only)

 Pump Run Dry Contact

 Seal Fail Dry Contact

 Main Non-Fused Disconnect

 Alternator 1-2 Selector Switch

** Control Panel must be wired according to NEC and

located outside the hazardous area.

NOTES: (1) Single phase panels furnished with three (3) oat switches with 20' cords.

(2) The above listed panels meet our standard congurations as listed. If any standard or nonstandard options are required, consult factory.

*Weights and dimensions are approximations and could vary.

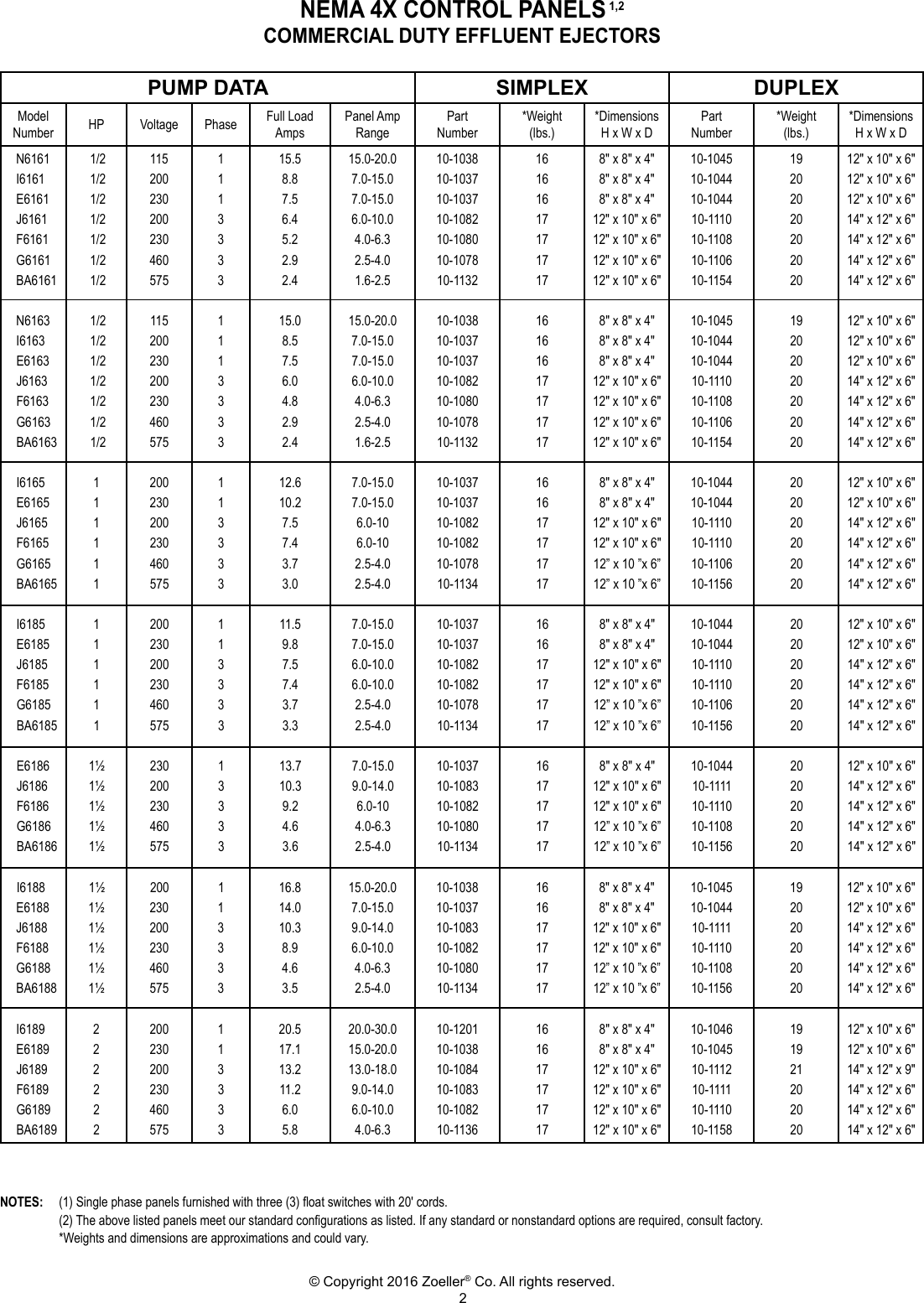

NEMA 4X CONTROL PANELS 1,2

COMMERCIAL DUTY EFFLUENT EJECTORS

PUMP DATA SIMPLEX DUPLEX

Model

Number HP Voltage Phase Full Load

Amps

Panel Amp

Range

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

N6161 1/2 115 1 15.5 15.0-20.0 10-1038 16 8" x 8" x 4" 10-1045 19 12" x 10" x 6"

I6161 1/2 200 1 8.8 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

E6161 1/2 230 1 7.5 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

J6161 1/2 200 3 6.4 6.0-10.0 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

F6161 1/2 230 3 5.2 4.0-6.3 10-1080 17 12" x 10" x 6" 10-1108 20 14" x 12" x 6"

G6161 1/2 460 3 2.9 2.5-4.0 10-1078 17 12" x 10" x 6" 10-1106 20 14" x 12" x 6"

BA6161 1/2 575 3 2.4 1.6-2.5 10-1132 17 12" x 10" x 6" 10-1154 20 14" x 12" x 6"

N6163 1/2 115 1 15.0 15.0-20.0 10-1038 16 8" x 8" x 4" 10-1045 19 12" x 10" x 6"

I6163 1/2 200 1 8.5 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

E6163 1/2 230 1 7.5 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

J6163 1/2 200 3 6.0 6.0-10.0 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

F6163 1/2 230 3 4.8 4.0-6.3 10-1080 17 12" x 10" x 6" 10-1108 20 14" x 12" x 6"

G6163 1/2 460 3 2.9 2.5-4.0 10-1078 17 12" x 10" x 6" 10-1106 20 14" x 12" x 6"

BA6163 1/2 575 3 2.4 1.6-2.5 10-1132 17 12" x 10" x 6" 10-1154 20 14" x 12" x 6"

I6165 1 200 1 12.6 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

E6165 1 230 1 10.2 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

J6165 1 200 3 7.5 6.0-10 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

F6165 1 230 3 7.4 6.0-10 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

G6165 1 460 3 3.7 2.5-4.0 10-1078 17 12” x 10 ”x 6” 10-1106 20 14" x 12" x 6"

BA6165 1 575 3 3.0 2.5-4.0 10-1134 17 12” x 10 ”x 6” 10-1156 20 14" x 12" x 6"

I6185 1 200 1 11.5 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

E6185 1 230 1 9.8 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

J6185 1 200 3 7.5 6.0-10.0 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

F6185 1 230 3 7.4 6.0-10.0 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

G6185 1 460 3 3.7 2.5-4.0 10-1078 17 12” x 10 ”x 6” 10-1106 20 14" x 12" x 6"

BA6185 1 575 3 3.3 2.5-4.0 10-1134 17 12” x 10 ”x 6” 10-1156 20 14" x 12" x 6"

E6186 1½ 230 1 13.7 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

J6186 1½ 200 3 10.3 9.0-14.0 10-1083 17 12" x 10" x 6" 10-1111 20 14" x 12" x 6"

F6186 1½ 230 3 9.2 6.0-10 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

G6186 1½ 460 3 4.6 4.0-6.3 10-1080 17 12” x 10 ”x 6” 10-1108 20 14" x 12" x 6"

BA6186 1½ 575 3 3.6 2.5-4.0 10-1134 17 12” x 10 ”x 6” 10-1156 20 14" x 12" x 6"

I6188 1½ 200 1 16.8 15.0-20.0 10-1038 16 8" x 8" x 4" 10-1045 19 12" x 10" x 6"

E6188 1½ 230 1 14.0 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

J6188 1½ 200 3 10.3 9.0-14.0 10-1083 17 12" x 10" x 6" 10-1111 20 14" x 12" x 6"

F6188 1½ 230 3 8.9 6.0-10.0 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

G6188 1½ 460 3 4.6 4.0-6.3 10-1080 17 12” x 10 ”x 6” 10-1108 20 14" x 12" x 6"

BA6188 1½ 575 3 3.5 2.5-4.0 10-1134 17 12” x 10 ”x 6” 10-1156 20 14" x 12" x 6"

I6189 2 200 1 20.5 20.0-30.0 10-1201 16 8" x 8" x 4" 10-1046 19 12" x 10" x 6"

E6189 2 230 1 17.1 15.0-20.0 10-1038 16 8" x 8" x 4" 10-1045 19 12" x 10" x 6"

J6189 2 200 3 13.2 13.0-18.0 10-1084 17 12" x 10" x 6" 10-1112 21 14" x 12" x 9"

F6189 2 230 3 11.2 9.0-14.0 10-1083 17 12" x 10" x 6" 10-1111 20 14" x 12" x 6"

G6189 2 460 3 6.0 6.0-10.0 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

BA6189 2 575 3 5.8 4.0-6.3 10-1136 17 12" x 10" x 6" 10-1158 20 14" x 12" x 6"

NOTES: (1) Single phase panels furnished with three (3) oat switches with 20’ cords.

(2) Three phase panels have multi-tap transformers for 200-230-460 volt applications and are selected based on pump features and rated full load amps (FLA).

(3) The above listed panels meet our standard congurations as listed. If any standard or nonstandard options are required, consult factory.

*Weights and dimensions are approximations and could vary.

NEMA 4X CONTROL PANELS 2,3

COMMERCIAL DUTY SEWAGE EJECTORS

PUMP DATA SIMPLEX DUPLEX

Model

Number HP Voltage Phase Full Load

Amps

Panel Amp

Range

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

N6282 1/2 115 1 10.3 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

I6282 1/2 200 1 6.1 0-7.0 10-1036 16 8" x 8" x 4" 10-1043 18 12" x 10" x 6"

E6282 1/2 230 1 5.0 0-7.0 10-1036 16 8" x 8" x 4" 10-1043 18 12" x 10" x 6"

J6282 1/2 200 3 3.6 2.5-4.0 10-1078 17 12" x 10" x 6" 10-1106 20 14" x 12" x 6"

F6282 1/2 230 3 3.0 2.5-4.0 10-1078 17 12" x 10" x 6" 10-1106 20 14" x 12" x 6"

G6282 1/2 460 3 1.7 1.6-2.5 10-1076 17 12" x 10" x 6" 10-1104 20 14" x 12" x 6"

BA6282 1/2 575 3 1.4 1.0-1.6 10-1130 17 12" x 10" x 6" 10-1152 20 14" x 12" x 6"

I6284 1 200 1 9.3 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

E6284 1 230 1 8.9 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

J6284 1 200 3 5.5 4.0-6.3 10-1080 17 12" x 10" x 6" 10-1108 20 14" x 12" x 6"

F6284 1 230 3 5.0 4.0-6.3 10-1080 17 12" x 10" x 6" 10-1108 20 14" x 12" x 6"

G6284 1 460 3 2.6 2.5-4.0 10-1078 17 12" x 10" x 6" 10-1106 20 14" x 12" x 6"

BA6284 1 575 3 2.2 1.6-2.5 10-1132 17 12" x 10" x 6" 10-1154 20 14" x 12" x 6"

N6292 1/2 115 1 15.0 15.0-20.0 10-1038 16 8" x 8" x 4" 10-1045 19 12" x 10" x 6"

E6292 1/2 230 1 7.5 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

I6292 1/2 200 1 8.8 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

J6292 1/2 200 3 6.4 6.0-10.0 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

F6292 1/2 230 3 5.2 4.0-6.3 10-1080 17 12" x 10" x 6" 10-1108 20 14" x 12" x 6"

G6292 1/2 460 3 2.9 2.5-4 10-1078 17 12" x 10" x 6" 10-1106 20 14" x 12" x 6"

BA6292 1/2 575 3 2.4 1.6-2.5 10-1132 17 12" x 10" x 6" 10-1154 20 14" x 12" x 6"

I6293 1 200 1 12.0 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

E6293 1 230 1 10.2 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

J6293 1 200 3 8.2 6.0-10.0 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

F6293 1 230 3 7.6 6.0-10.0 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

G6293 1 460 3 4.0 4.0-6.3 10-1080 17 12" x 10" x 6" 10-1108 20 14" x 12" x 6"

BA6293 1 575 3 3.3 2.5-4.0 10-1134 17 12" x 10" x 6" 10-1156 20 14" x 12" x 6"

I6294 1½ 200 1 17.8 15.0-20.0 10-1038 16 8" x 8" x 4" 10-1045 19 12" x 10" x 6"

E6294 1½ 230 1 13.7 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

J6294 1½ 200 3 10.8 9.0-14.0 10-1083 17 12" x 10" x 6" 10-1111 20 14" x 12" x 6"

F6294 1½ 230 3 9.5 9.0-14.0 10-1083 17 12" x 10" x 6" 10-1111 20 14" x 12" x 6"

G6294 1½ 460 3 4.8 4.0-6.3 10-1080 17 12" x 10" x 6" 10-1108 20 14" x 12" x 6"

BA6294 1½ 575 3 3.8 2.5-4.0 10-1134 17 12" x 10" x 6" 10-1156 20 14" x 12" x 6"

I6295 2 200 1 20.5 20.0-30.0 10-1201 16 8" x 8" x 4" 10-1046 19 12" x 10" x 6"

E6295 2 230 1 17.1 15.0-20.0 10-1038 16 8" x 8" x 4" 10-1045 19 12" x 10" x 6"

J6295 2 200 3 14.3 13.0-18.0 10-1084 17 12" x 10" x 6" 10-1112 21 14" x 12" x 9"

F6295 2 230 3 12.2 9.0-14.0 10-1083 17 12" x 10" x 6" 10-1111 21 14" x 12" x 9"

G6295 2 460 3 6.1 6.0-10.0 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

BA6295 2 575 3 4.9 4.0-6.3 10-1136 17 12" x 10" x 6" 10-1158 20 14" x 12" x 6"

I6404 2 200 1 14.4 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

E6404 2 230 1 12.9 7.0-15.0 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

J6404 2 200 3 13.8 13.0-18.0 10-1084 17 12" x 10" x 6" 10-1112 21 14" x 12" x 9"

F6404 2 230 3 10.5 9.0-14.0 10-1083 17 12" x 10" x 6" 10-1111 21 14" x 12" x 9"

G6404 2 460 3 5.2 4.0-6.3 10-1080 17 12" x 10" x 6" 10-1108 20 14" x 12" x 6"

BA6404 2 575 3 4.1 4.0-6.3 10-1136 17 12" x 10" x 6" 10-1158 20 14" x 12" x 6"

I6405 3 200 1 20.2 20.0-30.0 10-1201 16 8" x 8" x 4" 10-1046 19 12" x 10" x 6"

E6405 3 230 1 19.0 15-20 10-1038 16 8" x 8" x 4" 10-1045 19 12" x 10" x 6"

J6405 3 200 3 14.8 13.0-18.0 10-1084 17 12" x 10" x 6" 10-1112 21 14" x 12" x 9"

F6405 3 230 3 12.2 9.0-14.0 10-1083 17 12" x 10" x 6" 10-1111 21 14" x 12" x 9"

G6405 3 460 3 6.1 6.0-10.0 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

BA6405 3 575 3 4.8 4.0-6.3 10-1136 17 12" x 10" x 6" 10-1158 20 14" x 12" x 6"

NOTES: (1) Three phase panels have multi-tap transformers for 200-230-460 volt applications and are selected based on pump features and rated full load amps (FLA).

(2) The above listed panels meet our standard congurations as listed. If any standard or nonstandard options are required, consult factory.

(3) See Front **.

*Weights and dimensions are approximations and could vary.

NEMA 4X CONTROL PANELS 1,2,3

INTRINSICALLY SAFE FOR HAZARDOUS ENVIRONMENT SERIES

EXPLOSION PROOF COMMERICAL DUTY EFFLUENT EJECTORS

PUMP DATA SIMPLEX DUPLEX

Model

Number HP Voltage Phase Full Load

Amps

Panel Amp

Range

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

NX6161 1/2 115 1 15.5 15.0-20.0 10-1294 26 16" x 14" x 6" 10-1233 28 16" x 14" x 6"

EX6161 1/2 230 1 7.5 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

IX6161 1/2 200 1 8.8 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

JX6161 1/2 200 3 6.4 6.0-10.0 10-1222 25 16" x 14" x 6" 10-1228 28 16" x 14" x 6"

FX6161 1/2 230 3 5.2 4.0-6.3 10-1218 25 16" x 14" x 6" 10-1224 28 16" x 14" x 6"

GX6161 1/2 460 3 2.9 2.5-4.0 10-1219 25 16" x 14" x 6" 10-1225 28 16" x 14" x 6"

BAX6161 1/2 575 3 2.4 1.6-2.5 10-1248 25 16" x 14" x 6" 10-1254 28 16" x 14" x 6"

NX6163 1/2 115 1 15.0 15.0-20.0 10-1294 26 16" x 14" x 6" 10-1233 28 16" x 14" x 6"

EX6163 1/2 230 1 7.5 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

IX6163 1/2 200 1 8.5 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

JX6163 1/2 200 3 6.0 4.0-6.3 10-1218 25 16" x 14" x 6" 10-1224 28 16" x 14" x 6"

FX6163 1/2 230 3 4.8 4.0-6.3 10-1218 25 16" x 14" x 6" 10-1224 28 16" x 14" x 6"

GX6163 1/2 460 3 2.9 2.5-4.0 10-1219 25 16" x 14" x 6" 10-1225 28 16" x 14" x 6"

BAX6163 1/2 575 3 2.4 1.6-2.5 10-1248 25 16" x 14" x 6" 10-1254 28 16" x 14" x 6"

EX6165 1 230 1 10.2 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

IX6165 1 200 1 12.6 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

JX6185 1 200 3 7.5 6.0-10.0 10-1222 25 16" x 14" x 6" 10-1228 28 16" x 14" x 6"

FX6165 1 230 3 7.4 6.0-10.0 10-1222 25 16" x 14" x 6" 10-1228 28 16" x 14" x 6"

GX6165 1 460 3 3.7 2.5-4.0 10-1219 25 16" x 14" x 6" 10-1225 28 16" x 14" x 6"

BAX6165 1 575 3 3.0 2.5-4.0 10-1250 25 16" x 14" x 6" 10-1256 28 16" x 14" x 6"

EX6185 1 230 1 9.8 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

IX6185 1 200 1 11.5 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

JX6185 1 200 3 7.5 6.0-10.0 10-1222 25 16" x 14" x 6" 10-1228 28 16" x 14" x 6"

FX6185 1 230 3 7.4 6.0-10.0 10-1222 25 16" x 14" x 6" 10-1228 28 16" x 14" x 6"

GX6185 1 460 3 3.7 2.5-4.0 10-1219 25 16" x 14" x 6" 10-1225 28 16" x 14" x 6"

BAX6185 1 575 3 3.3 2.5-4.0 10-1250 25 16" x 14" x 6" 10-1256 28 16" x 14" x 6"

EX6186 1½ 230 1 13.7 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

IX6186 1½ 200 1 17.2 15.0-20.0 10-1294 26 16" x 14" x 6" 10-1233 28 16" x 14" x 6"

JX6186 1½ 200 3 10.3 9.0-14.0 10-1229 25 16" x 14" x 6" 10-1231 28 16" x 14" x 6"

FX6186 1½ 230 3 9.2 6.0-10.0 10-1222 25 16" x 14" x 6" 10-1228 28 16" x 14" x 6"

GX6186 1½ 460 3 4.6 4.0-6.3 10-1218 25 16" x 14" x 6" 10-1224 28 16" x 14" x 6"

EX6188 1½ 230 1 14.0 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

IX6188 1½ 200 1 16.8 15.0-20.0 10-1294 26 16" x 14" x 6" 10-1233 28 16" x 14" x 6"

JX6188 1½ 200 3 10.3 9.0-14.0 10-1229 25 16" x 14" x 6" 10-1231 28 16" x 14" x 6"

FX6188 1½ 230 3 8.9 6.0-10.0 10-1222 25 16" x 14" x 6" 10-1228 28 16" x 14" x 6"

GX6188 1½ 460 3 4.6 4.0-6.3 10-1218 25 16" x 14" x 6" 10-1224 28 16" x 14" x 6"

BAX6188 1½ 575 3 3.5 2.5-4.0 10-1250 25 16" x 14" x 6" 10-1256 28 16" x 14" x 6"

EX6189 2 230 1 17.1 15.0-20.0 10-1294 26 16" x 14" x 6" 10-1233 28 16" x 14" x 6"

IX6189 2 200 1 20.5 20.0-30.0 10-1295 26 16" x 14" x 6" 10-1235 28 16" x 14" x 6"

JX6189 2 200 3 13.2 13.0-18.0 10-1571 25 16" x 14" x 6" 10-1232 28 16" x 14" x 6"

FX6189 2 230 3 11.2 9.0-14.0 10-1229 25 16" x 14" x 6" 10-1231 28 16" x 14" x 6"

GX6189 2 460 3 6.0 4.0-6.3 10-1218 25 16" x 14" x 6" 10-1224 28 16" x 14" x 6"

BAX6189 2 575 3 5.8 4.0-6.3 10-1252 25 16" x 14" x 6" 10-1258 28 16" x 14" x 6"

NEMA 4X CONTROL PANELS 1,2,3, continued

PUMP DATA SIMPLEX DUPLEX

Model

Number HP Voltage Phase Full Load

Amps

Panel Amp

Range

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

NX6282 1/2 115 1 10.3 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

EX6282 1/2 230 1 5.0 0-7.0 10-1241 26 16" x 14" x 6" 10-1296 28 16" x 14" x 6"

IX6282 1/2 200 1 6.1 0-7.0 10-1241 26 16" x 14" x 6" 10-1296 28 16" x 14" x 6"

JX6282 1/2 200 3 3.6 2.5-4.0 10-1219 25 16" x 14" x 6" 10-1225 28 16" x 14" x 6"

FX6282 1/2 230 3 3.0 2.5-4.0 10-1219 25 16" x 14" x 6" 10-1225 28 16" x 14" x 6"

GX6282 1/2 460 3 1.7 1.6-2.5 10-1562 24 16" x 14" x 6" 10-1590 27 16" x 14" x 6"

BAX6282 1/2 575 3 1.4 1.0-1.6 10-1247 25 16" x 14" x 6" 10-1253 28 16" x 14" x 6"

EX6284 1 230 1 8.9 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

IX6284 1 200 1 9.3 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

JX6284 1 200 3 5.5 4.0-6.3 10-1218 25 16" x 14" x 6" 10-1224 28 16" x 14" x 6"

FX6284 1 230 3 5.0 4.0-6.3 10-1218 25 16" x 14" x 6" 10-1224 28 16" x 14" x 6"

GX6284 1 460 3 2.6 2.5-4.0 10-1219 25 16" x 14" x 6" 10-1225 28 16" x 14" x 6"

BAX6284 1 575 3 2.2 1.6-2.5 10-1248 25 16" x 14" x 6" 10-1254 28 16" x 14" x 6"

NX6292 1/2 115 1 15.0 15.0-20.0 10-1294 26 16" x 14" x 6" 10-1233 28 16" x 14" x 6"

EX6292 1/2 230 1 7.5 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

IX6292 1/2 200 1 8.8 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

JX6292 1/2 200 3 6.4 6.0-10.0 10-1222 25 16" x 14" x 6" 10-1228 28 16" x 14" x 6"

FX6282 1/2 230 3 5.2 4.0-6.3 10-1218 25 16" x 14" x 6" 10-1224 28 16" x 14" x 6"

GX6292 1/2 460 3 2.9 2.5-4.0 10-1219 25 16" x 14" x 6" 10-1225 28 16" x 14" x 6"

BAX6292 1/2 575 3 2.4 1.6-2.5 10-1248 25 16" x 14" x 6" 10-1254 28 16" x 14" x 6"

EX6293 1 230 1 10.2 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

IX6293 1 200 1 12.0 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

JX6293 1 200 3 8.2 6.0-10.0 10-1222 25 16" x 14" x 6" 10-1228 28 16" x 14" x 6"

FX6293 1 230 3 7.6 6.0-10.0 10-1222 25 16" x 14" x 6" 10-1228 28 16" x 14" x 6"

GX6293 1 460 3 4.0 4.0-6.3 10-1218 25 16" x 14" x 6" 10-1224 28 16" x 14" x 6"

BAX6293 1 575 3 3.3 2.5-4.0 10-1250 25 16" x 14" x 6" 10-1256 28 16" x 14" x 6"

EX6294 1½ 230 1 13.7 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

IX6294 1½ 200 1 17.8 15.0-20.0 10-1294 26 16" x 14" x 6" 10-1233 28 16" x 14" x 6"

JX6294 1½ 200 3 10.8 9.0-14.0 10-1229 25 16" x 14" x 6" 10-1231 28 16" x 14" x 6"

FX6294 1½ 230 3 9.5 6.0-10.0 10-1222 25 16" x 14" x 6" 10-1228 28 16" x 14" x 6"

GX6294 1½ 460 3 4.8 4.0-6.3 10-1218 25 16" x 14" x 6" 10-1224 28 16" x 14" x 6"

BAX6294 1½ 575 3 3.8 2.5-4.0 10-1250 25 16" x 14" x 6" 10-1256 28 16" x 14" x 6"

EX6295 2 230 1 17.1 15.0-20.0 10-1294 26 16" x 14" x 6" 10-1233 28 16" x 14" x 6"

IX6295 2 200 1 20.5 20.0-30.0 10-1295 26 16" x 14" x 6" 10-1235 28 16" x 14" x 6"

JX6295 2 200 3 14.3 13.0-18.0 10-1571 25 16" x 14" x 6" 10-1232 28 16" x 14" x 6"

FX6295 2 230 3 12.2 9.0-14.0 10-1229 25 16" x 14" x 6" 10-1231 28 16" x 14" x 6"

GX6295 2 460 3 6.1 4.0-6.3 10-1218 25 16" x 14" x 6" 10-1224 28 16" x 14" x 6"

BAX6295 2 575 3 4.9 4.0-6.3 10-1252 25 16" x 14" x 6" 10-1258 28 16" x 14" x 6"

EX6404 3 230 1 12.9 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

IX6404 3 200 1 14.4 7.0-15.0 10-1242 26 16" x 14" x 6" 10-1297 28 16" x 14" x 6"

JX6404 3 200 3 13.8 13.0-18.0 10-1571 25 16" x 14" x 6" 10-1232 28 16" x 14" x 6"

FX6404 3 230 3 10.5 9.0-14.0 10-1229 25 16" x 14" x 6" 10-1231 28 16" x 14" x 6"

GX6404 3 460 3 5.2 4.0-6.3 10-1218 25 16" x 14" x 6" 10-1224 28 16" x 14" x 6"

BAX6404 3 575 3 4.1 4.0-6.3 10-1252 25 16" x 14" x 6" 10-1258 28 16" x 14" x 6"

EX6405 3 200 1 19.0 15.0-20.0 10-1294 26 16" x 14" x 6" 10-1233 28 16" x 14" x 6"

IX6405 3 200 1 20.2 20.0-30.0 10-1295 26 16" x 14" x 6" 10-1235 28 16" x 14" x 6"

JX6405 3 200 3 14.8 13.0-18.0 10-1571 25 16" x 14" x 6" 10-1232 28 16" x 14" x 6"

FX6405 3 230 3 12.2 9.0-14.0 10-1229 25 16" x 14" x 6" 10-1231 28 16" x 14" x 6"

GX6405 3 460 3 6.1 4.0-6.3 10-1218 25 16" x 14" x 6" 10-1224 28 16" x 14" x 6"

BAX6405 3 575 3 4.8 4.0-6.3 10-1252 25 16" x 14" x 6" 10-1258 28 16" x 14" x 6"

NEMA 4X CONTROL PANELS 1,2,3

FOR STANDARD SOLIDS HANDLING PUMPS

61 HD SERIES • 1 - 10 BHP

NOTES: (1) Single phase panels have starting capacitors and relays mounted in the enclosure. Use with Zoeller pumps listed only.

(2) Three phase panels have multi-tap transformers for 200-230-460 volt applications and are selected based on pump features and rated full load amps (FLA).

(3) The above listed panels meet our standard congurations as listed. If any standard or nonstandard options are required, consult factory.

*Weights and dimensions are approximations and could vary.

PUMP DATA SIMPLEX DUPLEX

Model

Number HP Voltage Phase Full Load

Amps

Panel Amp

Range

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

E6120 1 230 1 6.9 5.5-8.0 10-0920 27 14" x 12" x 6" 10-0925 45 16" x 14" x 6"

J6120 1 200 3 4.8 4.0-6.3 10-1080 17 12" x 10" x 6" 10-1108 20 14" x 12" x 6"

F6120 1 230 3 4.2 4.0-6.3 10-1080 17 12" x 10" x 6" 10-1108 20 14" x 12" x 6"

G6120 1 460 3 2.1 1.6-2.5 10-1076 17 12" x 10" x 6" 10-1104 20 14" x 12" x 6"

BA6120 1 575 3 1.7 1.6-2.5 10-1132 17 12" x 10" x 6" 10-1154 20 14" x 12" x 6"

E6121 1½ 230 1 8.9 7.0-10.0 10-0921 27 14" x 12" x 6" 10-0926 45 16" x 14" x 6"

J6121 1½ 200 3 5.9 4.0-6.3 10-1080 17 12" x 10" x 6" 10-1108 20 14" x 12" x 6"

F6121 1½ 230 3 5.1 4.0-6.3 10-1080 17 12" x 10" x 6" 10-1108 20 14" x 12" x 6"

G6121 1½ 460 3 2.6 2.5-4.0 10-1078 17 12" x 10" x 6" 10-1106 20 14" x 12" x 6"

BA6121 1½ 575 3 2 1.6-2.5 10-1132 17 12" x 10" x 6" 10-1154 21 14" x 12" x 6"

E6122 2 230 1 14.5 12.0-18.0 10-0922 27 14" x 12" x 6" 10-0927 45 16" x 14" x 6"

J6122 2 200 3 7.8 6.0-10.0 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

F6122 2 230 3 6.8 6.0-10.0 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

G6122 2 460 3 3.4 2.5-4.0 10-1078 17 12" x 10" x 6" 10-1106 20 14" x 12" x 6"

BA6122 2 575 3 2.7 2.5-4.0 10-1134 17 12" x 10" x 6" 10-1156 20 14" x 12" x 6"

E6123 3 230 1 17 16.0-24.0 10-0923 27 14" x 12" x 6" 10-0928 45 16" x 14" x 6"

J6123 3 200 3 11 9.0-14.0 10-1083 17 12" x 10" x 6" 10-1111 20 14" x 12" x 6"

F6123 3 230 3 9.6 9.0-14.0 10-1083 17 12" x 10" x 6" 10-1111 20 14" x 12" x 6"

G6123 3 460 3 4.8 4.0-6.3 10-1080 17 12" x 10" x 6" 10-1108 20 14" x 12" x 6"

BA6123 3 575 3 3.9 2.5-4.0 10-1134 17 12" x 10" x 6" 10-1156 20 14" x 12" x 6"

E6124 5 230 1 28 23.0-32.0 10-0924 27 14" x 12" x 6" 10-0929 45 16" x 14" x 6"

J6124 5 200 3 17.5 17.0-23.0 10-1086 17 12" x 10" x 6" 10-1114 20 14" x 12" x 6"

F6124 5 230 3 15.2 13.0-18.0 10-1084 17 12" x 10" x 6" 10-1112 20 14" x 12" x 6"

G6124 5 460 3 7.6 6.0-10.0 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

BA6124 5 575 3 6.1 6.0-10.0 10-1138 17 12" x 10" x 6" 10-1160 20 14" x 12" x 6"

E6111 5 230 1 28 23.0-32.0 10-1307 27 14" x 12" x 6" 10-1308 45 16" x 14" x 6"

J6111 5 200 3 17.5 17.0-23.0 10-1086 17 12" x 10" x 6" 10-1114 20 14" x 12" x 6"

F6111 5 230 3 15.2 13.0-18.0 10-1084 17 12" x 10" x 6" 10-1112 20 14" x 12" x 6"

G6111 5 460 3 7.6 6.0-10.0 10-1082 17 12" x 10" x 6" 10-1110 20 14" x 12" x 6"

BA6111 5 575 3 6.1 6.0-10.0 10-1138 17 12" x 10" x 6" 10-1160 20 14" x 12" x 6"

J6125 7½ 200 3 25.3 24.0-32.0 10-1174 20 12" x 10" x 6" 10-1183 26 14" x 12" x 6"

F6125 7½ 230 3 22 20.0-25.0 10-1087 17 12" x 10" x 6" 10-1115 20 14" x 12" x 6"

G6125 7½ 460 3 11 9.0-14.0 10-1083 17 12" x 10" x 6" 10-1111 20 14" x 12" x 6"

BA6125 7½ 575 3 9 6.0-10.0 10-1138 17 12" x 10" x 6" 10-1160 20 14" x 12" x 6"

J6112 7½ 200 3 25.3 24.0-32.0 10-1174 20 12" x 10" x 6" 10-1183 26 14" x 12" x 6"

F6112 7½ 230 3 22 20.0-25.0 10-1087 17 12" x 10" x 6" 10-1115 20 14" x 12" x 6"

G6112 7½ 460 3 11 9.0-14.0 10-1083 17 12" x 10" x 6" 10-1111 20 14" x 12" x 6"

BA6112 7½ 575 3 9 6.0-10.0 10-1138 17 12" x 10" x 6" 10-1160 20 14" x 12" x 6"

J6113 10 200 3 32.2 30.0-40.0 10-1175 20 14" x 12" x 6" 10-1184 26 18" x 16" x 10"

F6113 10 230 3 28 24.0-32.0 10-1174 20 18" x 16" x 6" 10-1183 26 24" x 16" x 9"

G6113 10 460 3 14 13.0-18.0 10-1084 17 12" x 10" x 6" 10-1112 20 24" x 16" x 9"

BA6113 10 575 3 11 9.0-14.0 10-1139 17 12" x 10" x 6" 10-1161 20 14" x 12" x 6"

NEMA 4X CONTROL PANELS

1,2,3

INTRINSICALLY SAFE FOR EXPLOSION PROOF SOLIDS HANDLING UNITS

X61 HD SERIES • 1 - 10 BHP

NOTES: (1) Single phase panels have starting capacitors and relays mounted in the enclosure. Use with Zoeller pumps listed only.

(2) Three phase panels up to 20 - 25 amps have multi-tap transformers for 200-230-460 volt applications and are selected based on pump features and rated full load

amps (FLA).

(3) The above listed panels meet our standard congurations as listed. If any standard or nonstandard options are required, consult factory.

*Weights and dimensions are approximations and could vary.

PUMP DATA SIMPLEX DUPLEX

Model

Number HP Voltage Phase Full Load

Amps

Panel Amp

Range

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

EX6120 1 230 1 6.9 5.5-8.0 10-1559 30 16" x 14" x 6" 10-1587 35 28" x 20" x 10"

JX6120 1 200 3 4.8 4.0-6.3 10-1560 25 16" x 14" x 6" 10-1588 28 16" x 14" x 6"

FX6120 1 230 3 4.2 4.0-6.3 10-1560 25 16" x 14" x 6" 10-1588 28 16" x 14" x 6"

GX6120 1 460 3 2.1 1.6-2.5 10-1562 25 16" x 14" x 6" 10-1590 28 16" x 14" x 6"

BAX6120 1 575 3 1.7 1.6-2.5 10-1563 25 16" x 14" x 6" 10-1591 28 16" x 14" x 6"

EX6121 1½ 230 1 8.9 7.0-10.0 10-1564 30 16" x 14" x 6" 10-1592 35 28" x 20" x 10"

JX6121 1½ 200 3 5.9 4.0-6.3 10-1560 25 16" x 14" x 6" 10-1588 28 16" x 14" x 6"

FX6121 1½ 230 3 5.1 4.0-6.3 10-1560 25 16" x 14" x 6" 10-1588 28 16" x 14" x 6"

GX6121 1½ 460 3 2.6 2.5-4.0 10-1561 25 16" x 14" x 6" 10-1589 28 16" x 14" x 6"

BAX6121 1½ 575 3 2 1.6-2.5 10-1563 25 16" x 14" x 6" 10-1591 28 16" x 14" x 6"

EX6122 2 230 1 14.5 12.0-18.0 10-1573 30 16" x 14" x 6" 10-1601 35 28" x 20" x 10"

JX6122 2 200 3 7.8 6.0-10.0 10-1565 25 16" x 14" x 6" 10-1593 28 16" x 14" x 6"

FX6122 2 230 3 6.8 6.0-10.0 10-1565 25 16" x 14" x 6" 10-1593 28 16" x 14" x 6"

GX6122 2 460 3 3.4 2.5-4.0 10-1561 25 16" x 14" x 6" 10-1589 28 16" x 14" x 6"

BAX6122 2 575 3 2.7 2.5-4.0 10-1566 25 16" x 14" x 6" 10-1594 28 16" x 14" x 6"

EX6123 3 230 1 17 16.0 -24.0 10-1567 30 16" x 14" x 6" 10-1595 35 28" x 20" x 10"

JX6123 3 200 3 11 9.0-14.0 10-1568 25 16" x 14" x 6" 10-1596 28 16" x 14" x 6"

FX6123 3 230 3 9.6 9.0-14.0 10-1568 25 16" x 14" x 6" 10-1596 28 16" x 14" x 6"

GX6123 3 460 3 4.8 4.0-6.3 10-1560 25 16" x 14" x 6" 10-1588 28 16" x 14" x 6"

BAX6123 3 575 3 3.9 2.5-4.0 10-1566 25 16" x 14" x 6" 10-1594 28 16" x 14" x 6"

EX6124 5 230 1 28 23.0-32.0 10-1569 30 16" x 14" x 6" 10-1597 35 24" x 16" x 10"

JX6124 5 200 3 17.5 17.0-23.0 10-1570 25 16" x 14" x 6" 10-1598 28 16" x 14" x 6"

FX6124 5 230 3 15.2 13.0-18.0 10-1571 25 16" x 14" x 6" 10-1599 28 16" x 14" x 6"

GX6124 5 460 3 7.6 6.0-10.0 10-1565 25 16" x 14" x 6" 10-1593 28 16" x 14" x 6"

BAX6124 5 575 3 6.1 6.0-10.0 10-1572 25 16" x 14" x 6" 10-1600 28 16" x 14" x 6"

EX6111 5 230 1 28 23.0-32.0 10-1574 27 16" x 14" x 6" 10-1602 35 28" x 20" x 10"

JX6111 5 200 3 17.5 17.0-23.0 10-1570 25 16" x 14" x 6" 10-1598 28 16" x 14" x 6"

FX6111 5 230 3 15.2 13.0-18.0 10-1571 25 16" x 14" x 6" 10-1599 28 16" x 14" x 6"

GX6111 5 460 3 7.6 6.0-10.0 10-1565 25 16" x 14" x 6" 10-1593 28 16" x 14" x 6"

BAX6111 5 575 3 6.1 6.0-10.0 10-1572 25 16" x 14" x 6" 10-1600 28 16" x 14" x 6"

JX6125 7½ 200 3 25.3 24.0-32.0 10-1577 25 16" x 14" x 6" 10-1605 30 16" x 14" x 6"

FX6125 7½ 230 3 22 20.0-25.0 10-1575 25 16" x 14" x 6" 10-1603 28 16" x 14" x 6"

GX6125 7½ 460 3 11 9.0-14.0 10-1568 25 16" x 14" x 6" 10-1596 28 16" x 14" x 6"

BAX6125 7½ 575 3 9 9.0-14.0 10-1576 25 16" x 14" x 6" 10-1604 28 16" x 14" x 6"

JX6112 7½ 200 3 25.3 24.0-32.0 10-1577 25 16" x 14" x 6" 10-1605 30 16" x 14" x 6"

FX6112 7½ 230 3 22 20.0-25.0 10-1575 25 16" x 14" x 6" 10-1603 28 16" x 14" x 6"

GX6112 7½ 460 3 11 9.0-14.0 10-1568 25 16" x 14" x 6" 10-1596 28 16" x 14" x 6"

BAX6112 7½ 575 3 9 9.0-14.0 10-1576 25 16" x 14" x 6" 10-1604 28 16" x 14" x 6"

JX6113 10 200 3 32.2 30.0-40.0 10-1578 27 18" x 16" x 8" 10-1606 30 28" x 20" x 10"

FX6113 10 230 3 28 24.0-32.0 10-1577 27 18" x 16" x 6" 10-1605 30 24" x 16" x 9"

GX6113 10 460 3 14 13.0-18.0 10-1571 25 16" x 14" x 6" 10-1599 28 16" x 14" x 6"

BAX6113 10 575 3 11 9.0-14.0 10-1576 25 16" x 14" x 6" 10-1604 28 16" x 14" x 6"

NOTES: (1) Single phase panels have starting capacitors and relays mounted in the enclosure. Therefore, these panels can only be used with Zoeller pumps.

(2)

Three phase panels up to 20-25 amps have multi-tap transformers for 200-230-460 volt applications and are selected based on pump features and rated full load amps (FLA).

(3) The above listed panels meet our standard congurations. If any standard or nonstandard options are required, consult factory.

*Weights and dimensions are approximations and could vary.

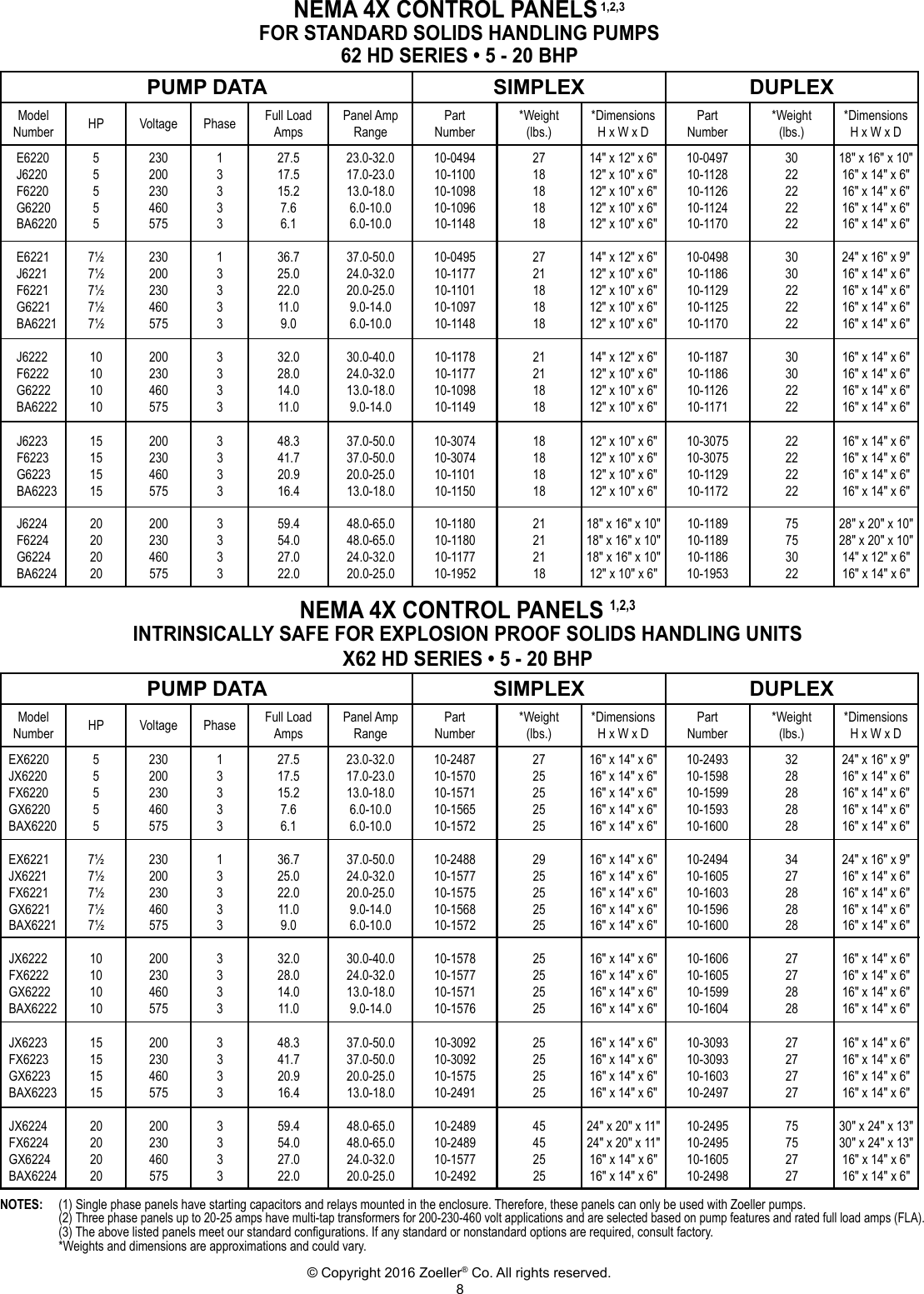

NEMA 4X CONTROL PANELS 1,2,3

FOR STANDARD SOLIDS HANDLING PUMPS

62 HD SERIES • 5 - 20 BHP

NEMA 4X CONTROL PANELS

1,2,3

INTRINSICALLY SAFE FOR EXPLOSION PROOF SOLIDS HANDLING UNITS

X62 HD SERIES • 5 - 20 BHP

PUMP DATA SIMPLEX DUPLEX

Model

Number HP Voltage Phase Full Load

Amps

Panel Amp

Range

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

E6220 5 230 1 27.5 23.0-32.0 10-0494 27 14" x 12" x 6" 10-0497 30 18" x 16" x 10"

J6220 5 200 3 17.5 17.0-23.0 10-1100 18 12" x 10" x 6" 10-1128 22 16" x 14" x 6"

F6220 5 230 3 15.2 13.0-18.0 10-1098 18 12" x 10" x 6" 10-1126 22 16" x 14" x 6"

G6220 5 460 3 7.6 6.0-10.0 10-1096 18 12" x 10" x 6" 10-1124 22 16" x 14" x 6"

BA6220 5 575 3 6.1 6.0-10.0 10-1148 18 12" x 10" x 6" 10-1170 22 16" x 14" x 6"

E6221 7½ 230 1 36.7 37.0-50.0 10-0495 27 14" x 12" x 6" 10-0498 30 24" x 16" x 9"

J6221 7½ 200 3 25.0 24.0-32.0 10-1177 21 12" x 10" x 6" 10-1186 30 16" x 14" x 6"

F6221 7½ 230 3 22.0 20.0-25.0 10-1101 18 12" x 10" x 6" 10-1129 22 16" x 14" x 6"

G6221 7½ 460 3 11.0 9.0-14.0 10-1097 18 12" x 10" x 6" 10-1125 22 16" x 14" x 6"

BA6221 7½ 575 3 9.0 6.0-10.0 10-1148 18 12" x 10" x 6" 10-1170 22 16" x 14" x 6"

J6222 10 200 3 32.0 30.0-40.0 10-1178 21 14" x 12" x 6" 10-1187 30 16" x 14" x 6"

F6222 10 230 3 28.0 24.0-32.0 10-1177 21 12" x 10" x 6" 10-1186 30 16" x 14" x 6"

G6222 10 460 3 14.0 13.0-18.0 10-1098 18 12" x 10" x 6" 10-1126 22 16" x 14" x 6"

BA6222 10 575 3 11.0 9.0-14.0 10-1149 18 12" x 10" x 6" 10-1171 22 16" x 14" x 6"

J6223 15 200 3 48.3 37.0-50.0 10-3074 18 12" x 10" x 6" 10-3075 22 16" x 14" x 6"

F6223 15 230 3 41.7 37.0-50.0 10-3074 18 12" x 10" x 6" 10-3075 22 16" x 14" x 6"

G6223 15 460 3 20.9 20.0-25.0 10-1101 18 12" x 10" x 6" 10-1129 22 16" x 14" x 6"

BA6223 15 575 3 16.4 13.0-18.0 10-1150 18 12" x 10" x 6" 10-1172 22 16" x 14" x 6"

J6224 20 200 3 59.4 48.0-65.0 10-1180 21 18" x 16" x 10" 10-1189 75 28" x 20" x 10"

F6224 20 230 3 54.0 48.0-65.0 10-1180 21 18" x 16" x 10" 10-1189 75 28" x 20" x 10"

G6224 20 460 3 27.0 24.0-32.0 10-1177 21 18" x 16" x 10" 10-1186 30 14" x 12" x 6"

BA6224 20 575 3 22.0 20.0-25.0 10-1952 18 12" x 10" x 6" 10-1953 22 16" x 14" x 6"

PUMP DATA SIMPLEX DUPLEX

Model

Number HP Voltage Phase Full Load

Amps

Panel Amp

Range

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

EX6220 5 230 1 27.5 23.0-32.0 10-2487 27 16" x 14" x 6" 10-2493 32 24" x 16" x 9"

JX6220 5 200 3 17.5 17.0-23.0 10-1570 25 16" x 14" x 6" 10-1598 28 16" x 14" x 6"

FX6220 5 230 3 15.2 13.0-18.0 10-1571 25 16" x 14" x 6" 10-1599 28 16" x 14" x 6"

GX6220 5 460 3 7.6 6.0-10.0 10-1565 25 16" x 14" x 6" 10-1593 28 16" x 14" x 6"

BAX6220 5 575 3 6.1 6.0-10.0 10-1572 25 16" x 14" x 6" 10-1600 28 16" x 14" x 6"

EX6221 7½ 230 1 36.7 37.0-50.0 10-2488 29 16" x 14" x 6" 10-2494 34 24" x 16" x 9"

JX6221 7½ 200 3 25.0 24.0-32.0 10-1577 25 16" x 14" x 6" 10-1605 27 16" x 14" x 6"

FX6221 7½ 230 3 22.0 20.0-25.0 10-1575 25 16" x 14" x 6" 10-1603 28 16" x 14" x 6"

GX6221 7½ 460 3 11.0 9.0-14.0 10-1568 25 16" x 14" x 6" 10-1596 28 16" x 14" x 6"

BAX6221 7½ 575 3 9.0 6.0-10.0 10-1572 25 16" x 14" x 6" 10-1600 28 16" x 14" x 6"

JX6222 10 200 3 32.0 30.0-40.0 10-1578 25 16" x 14" x 6" 10-1606 27 16" x 14" x 6"

FX6222 10 230 3 28.0 24.0-32.0 10-1577 25 16" x 14" x 6" 10-1605 27 16" x 14" x 6"

GX6222 10 460 3 14.0 13.0-18.0 10-1571 25 16" x 14" x 6" 10-1599 28 16" x 14" x 6"

BAX6222 10 575 3 11.0 9.0-14.0 10-1576 25 16" x 14" x 6" 10-1604 28 16" x 14" x 6"

JX6223 15 200 3 48.3 37.0-50.0 10-3092 25 16" x 14" x 6" 10-3093 27 16" x 14" x 6"

FX6223 15 230 3 41.7 37.0-50.0 10-3092 25 16" x 14" x 6" 10-3093 27 16" x 14" x 6"

GX6223 15 460 3 20.9 20.0-25.0 10-1575 25 16" x 14" x 6" 10-1603 27 16" x 14" x 6"

BAX6223 15 575 3 16.4 13.0-18.0 10-2491 25 16" x 14" x 6" 10-2497 27 16" x 14" x 6"

JX6224 20 200 3 59.4 48.0-65.0 10-2489 45 24" x 20" x 11" 10-2495 75 30" x 24" x 13"

FX6224 20 230 3 54.0 48.0-65.0 10-2489 45 24" x 20" x 11" 10-2495 75 30" x 24" x 13"

GX6224 20 460 3 27.0 24.0-32.0 10-1577 25 16" x 14" x 6" 10-1605 27 16" x 14" x 6"

BAX6224 20 575 3 22.0 20.0-25.0 10-2492 25 16" x 14" x 6" 10-2498 27 16" x 14" x 6"

NEMA 4X CONTROL PANELS 1,2,3

GRINDER PUMPS, 2 - 7½ BHP

SINGLE DIRECTIONAL

NEMA 4X CONTROL PANELS 1,2,3

GRINDER PUMPS, 2 - 7½ BHP

AUTOMATIC REVERSING PUMPS

NOTES: PLEASE SEE PAGE 8 NOTATIONS.

PUMP DATA SIMPLEX DUPLEX

Model

Number HP Voltage Phase Full Load

Amps

Panel Amp

Range

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

E7010 2 230 1 13.7 7 - 15 10-1037 16 8" x 8" x 4" 10-1044 20 12" x 10" x 6"

I7010 2 200 1 15.5 15 - 20 10-1038 16 8" x 8" x 4" 10-1045 20 12" x 10" x 6"

E7012 2 230 1 17.2 15.0-20.0 10-4166 15 14" x 12" x 6" 10-1755 22 18" x 16" x 8"

I7012 2 200 1 20.0 15.0-20.0 10-4166 15 14" x 12" x 6" 10-1755 22 18" x 16" x 8"

J7012 2 200 3 12.3 9.0-14.0 10-1097 18 12" x 10" x 6" 10-1125 22 16" x 14" x 6"

F7012 2 230 3 10.8 9.0-14.0 10-1097 18 12" x 10" x 6" 10-1125 22 16" x 14" x 6"

G7012 2 460 3 5.5 4.0-6.3 10-1094 18 12" x 10" x 6" 10-1122 22 16" x 14" x 6"

BA7012 2 575 3 4.5 4.0-6.3 10-1146 18 12" x 10" x 6" 10-1168 22 16" x 14" x 6"

E7013 2 230 1 17.2 15.0-20.0 10-4166 15 14" x 12" x 6" 10-1755 22 18" x 16" x 10"

I7013 2 200 1 20.0 15.0-20.0 10-4166 15 14" x 12" x 6" 10-1755 22 18" x 16" x 10"

J7013 2 200 3 12.3 9.0-14.0 10-1097 18 12" x 10" x 6" 10-1125 22 16" x 14" x 6"

F7013 2 230 3 10.8 9.0-14.0 10-1097 18 12" x 10" x 6" 10-1125 22 16" x 14" x 6"

G7013 2 460 3 5.5 4.0-6.3 10-1094 18 12" x 10" x 6" 10-1122 22 16" x 14" x 6"

BA7013 2 575 3 4.5 4.0-6.3 10-1146 18 12" x 10" x 6" 10-1168 22 16" x 14" x 6"

E7110 3 230 1 23.6 21.0-30.0 10-1309 27 14" x 12" x 6" 10-1310 45 18" x 16" x 10"

J7110 3 200 3 17.3 17.0-23.0 10-1100 18 12" x 10" x 6" 10-1128 22 16" x 14" x 6"

F7110 3 230 3 15.1 13.0-18.0 10-1098 18 12" x 10" x 6" 10-1126 22 16" x 14" x 6"

G7110 3 460 3 7.5 6.0-10.0 10-1096 18 12" x 10" x 6" 10-1124 22 16" x 14" x 6"

BA7110 3 575 3 6.0 4.0-6.3 10-1146 18 12" x 10" x 6" 10-1168 22 16" x 14" x 6"

E7111 5 230 1 28.0 25.0-30.0 10-0963 27 14" x 12" x 6" 10-0968 45 18" x 16" x 10"

J7111 5 200 3 20.7 20.0-25.0 10-1101 18 12" x 10" x 6" 10-1129 22 16" x 14" x 6"

F7111 5 230 3 18.0 17.0-23.0 10-1100 18 12" x 10" x 6" 10-1128 22 16" x 14" x 6"

G7111 5 460 3 9.0 9.0-14.0 10-1097 18 12" x 10" x 6" 10-1125 22 16" x 14" x 6"

BA7111 5 575 3 7.2 6.0-10.0 10-1148 18 12" x 10" x 6" 10-1170 22 16" x 14" x 6"

J7112 7½ 200 3 25.3 24.0-32.0 10-1177 21 12" x 10" x 6" 10-1186 30 16" x 14" x 6"

F7112 7½ 230 3 22.0 20.0-25.0 10-1101 18 12" x 10" x 6" 10-1129 22 16" x 14" x 6"

G7112 7½ 460 3 11.0 9.0-14.0 10-1097 18 12" x 10" x 6" 10-1125 22 16" x 14" x 6"

BA7112 7½ 575 3 9.0 9.0-14.0 10-1149 18 12" x 10" x 6" 10-1171 22 16" x 14" x 6"

PUMP DATA SIMPLEX DUPLEX

Model

Number HP Voltage Phase Full Load

Amps

Panel Amp

Range

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

E7011 2 230 1 17.2 15.0-20.0 10-1551 22 14" x 12" x 6" 10-1552 33 16 "x 14" x 6"

I7011 2 200 1 20.0 15.0-20.0 10-1551 22 14" x 12" x 6" 10-1552 33 16 "x 14" x 6"

J7011 2 200 3 12.3 9.0-14.0 10-1701 26 16" x 14" x 6" 10-1700 30 18"x 16"x 10"

F7011 2 230 3 10.8 9.0-14.0 10-1701 26 16" x 14" x 6" 10-1700 30 18"x 16"x 10"

G7011 2 460 3 5.5 4.0-6.3 10-3850 26 16" x 14" x 6" 10-3299 30 18"x 16"x 10"

BA7011 2 575 3 4.5 4.0-6.3 10-3851 26 16" x 14" x 6" 10-3852 30 18"x 16"x 10"

J7110RV 3 200 3 17.3 17.0-23.0 10-2433 26 16" x 14" x 6" 10-1530 30 18"x 16"x 10"

F7110RV 3 230 3 15.1 13.0-18.0 10-1858 26 16 "x 14" x 6" 10-1498 30 18"x 16"x 10"

G7110RV 3 460 3 7.5 6.0-10.0 10-3860 26 16 "x 14" x 6" 10-1341 30 18"x 16"x 10"

BA7110RV 3 575 3 6.0 6.0-10.0 10-3851 26 16 "x 14" x 6" 10-3852 30 18"x 16"x 10"

J7111RV 5 200 3 20.7 17.0-23.0 10-2433 26 16 "x 14" x 6" 10-1530 30 18"x 16"x 10"

F7111RV 5 230 3 18.0 17.0-23.0 10-2433 26 16 "x 14" x 6" 10-1530 30 18"x 16"x 10"

G7111RV 5 460 3 9.0 9.0-14.0 10-1701 26 16 "x 14" x 6" 10-1700 30 18"x 16"x 10"

BA7111RV 5 575 3 7.2 6.0-10.0 10-3861 26 16 "x 14" x 6" 10-3862 30 18"x 16"x 10"

J7112RV 7½ 200 3 25.3 23.0-32.0 10-3863 26 16 "x 14" x 6" 10-1466 30 18"x 16"x 10"

F7112RV 7½ 230 3 22.0 20.0-25.0 10-3864 26 16 "x 14" x 6" 10-1790 30 18"x 16"x 10"

G7112RV 7½ 460 3 11.0 9.0-14.0 10-1701 26 16 "x 14" x 6" 10-1700 30 18"x 16"x 10"

BA7112RV 7½ 575 3 9.0 9.0-14.0 10-3865 26 16 "x 14" x 6" 10-3866 30 18"x 16"x 10"

NEMA 4X CONTROL PANELS

1,2,3

INTRINSICALLY SAFE

EXPLOSION PROOF GRINDER PUMPS, 2 - 7½ BHP, SINGLE DIRECTIONAL PUMPS

NEMA 4X CONTROL PANELS

1,2,3

INTRINSICALLY SAFE

EXPLOSION PROOF GRINDER PUMPS, 2 - 7½ BHP, AUTOMATIC REVERSING PUMPS

NOTES: (1) Single phase panels have starting capacitors and relays mounted in the enclosure. Therefore, these panels can only be used with Zoeller pumps.

(2) Three phase panels up to 20-25 amps have multi-tap transformers for 200-230-460 volt applications and are selected based on pump features and rated full load amps (FLA).

(3) The above listed panels meet our standard congurations. If any standard or nonstandard options are required, consult factory.

*Weights and dimensions are approximations and could vary.

PUMP DATA SIMPLEX DUPLEX

Model

Number HP Voltage Phase Full Load

Amps

Panel Amp

Range

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

EX7012 2 230 1 17.2 15.0-20.0 10-2717 25 16" x 14" x 6" 10-2721 30 24" x 16" x 10"

IX7012 2 200 1 20.0 15.0-20.0 10-2717 25 16" x 14" x 6" 10-2721 30 24" x 16" x 10"

JX7012 2 200 3 12.3 9.0-14.0 10-1568 25 16" x 14" x 6" 10-1596 25 16" x 14" x 6"

FX7012 2 230 3 10.8 9.0-14.0 10-1568 25 16" x 14" x 6" 10-1596 25 16" x 14" x 6"

GX7012 2 460 3 5.5 4.0-6.3 10-1560 25 16" x 14" x 6" 10-1588 25 16" x 14" x 6"

BAX7012 2 575 3 4.5 4.0-6.3 10-2720 25 16" x 14" x 6" 10-2724 25 16" x 14" x 6"

EX7013 2 230 1 17.2 15.0-20.0 10-2717 25 16" x 14" x 6" 10-2721 30 16" x 14" x 6"

IX7013 2 200 1 20.0 15.0-20.0 10-2717 25 16" x 14" x 6" 10-2721 30 16" x 14" x 6"

JX7013 2 200 3 12.3 9.0-14.0 10-1568 25 16" x 14" x 6" 10-1596 30 16" x 14" x 6"

FX7013 2 230 3 10.8 9.0-14.0 10-1568 25 16" x 14" x 6" 10-1596 30 16" x 14" x 6"

GX7013 2 460 3 5.5 4.0-6.3 10-1560 25 16" x 14" x 6" 10-1588 30 16" x 14" x 6"

BAX7013 2 575 3 4.5 4.0-6.3 10-2720 25 16" x 14" x 6" 10-2724 30 16" x 14" x 6"

EX7110 3 230 1 23.6 20.0-30.0 10-3847 25 16" x 14" x 6" 10-3848 35 28" x 20" x 10"

JX7110 3 200 3 17.3 17.0-23.0 10-1570 25 16" x 14" x 6" 10-1598 27 16" x 14" x 6"

FX7110 3 230 3 15.1 13.0-18.0 10-1571 25 16" x 14" x 6" 10-1599 27 16" x 14" x 6"

GX7110 3 460 3 7.5 6.0-10.0 10-1565 25 16" x 14" x 6" 10-1593 27 16" x 14" x 6"

BAX7110 3 575 3 6.0 6.0-10.0 10-1572 25 16" x 14" x 6" 10-1600 27 16" x 14" x 6"

EX7111 5 230 1 28.0 20.0-30.0 10-1574 25 16" x 14" x 6" 10-1602 35 28" x 20" x 10"

JX7111 5 200 3 20.7 17.0-23.0 10-1570 25 16" x 14" x 6" 10-1598 25 16" x 14" x 6"

FX7111 5 230 3 18.0 17.0-23.0 10-1570 25 16" x 14" x 6" 10-1598 25 16" x 14" x 6"

GX7111 5 460 3 9.0 9.0-14.0 10-1568 25 16" x 14" x 6" 10-1596 25 16" x 14" x 6"

BAX7111 5 575 3 7.2 6.0-10.0 10-1572 25 16" x 14" x 6" 10-1600 25 16" x 14" x 6"

JX7112 7½ 200 3 25.3 24.0-32.0 10-1577 25 16" x 14" x 6" 10-1605 27 16" x 14" x 6"

FX7112 7½ 230 3 22.0 17.0-23.0 10-1570 25 16" x 14" x 6" 10-1598 27 16" x 14" x 6"

GX7112 7½ 460 3 11.0 9.0-14.0 10-1568 25 16" x 14" x 6" 10-1596 27 16" x 14" x 6"

BAX7112 7½ 575 3 9.0 9.0-14.0 10-1576 25 16" x 14" x 6" 10-1604 27 16" x 14" x 6"

PUMP DATA SIMPLEX DUPLEX

Model

Number HP Voltage Phase Full Load

Amps

Panel Amp

Range

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

Part

Number

*Weight

(lbs.)

*Dimensions

H x W x D

EX7011 2 230 1 17.2 15.0-20.0 10-2709 26 18" x 16" x 10" 10-2713 34 28" x 20" x 10"

IX7011 2 200 1 20.0 15.0-20.0 10-2709 26 18" x 16" x 10" 10-2713 34 28" x 20" x 10"

JX7011 2 200 3 12.3 9.0-14.0 10-2710 25 16" x 14" x 6" 10-2714 31 24" x 16" x 9"

FX7011 2 230 3 10.8 9.0-14.0 10-2710 25 16" x 14" x 6" 10-2714 31 24" x 16" x 9"

GX7011 2 460 3 5.5 4.0-6.3 10-2711 25 16" x 14" x 6" 10-2715 31 24" x 16" x 9"

BAX7011 2 575 3 4.5 4.0-6.3 10-2712 25 16" x 14" x 6" 10-2716 31 24" x 16" x 9"

JX7110RV 2 200 3 17.3 17.0-23.0 10-3870 27 24" x 16" x 9" 10-2759 31 24" x 16" x 9"

FX7110RV 2 230 3 15.1 13.0-18.0 10-3869 27 24" x 16" x 9" 10-2246 31 24" x 16" x 9"

GX7110RV 2 460 3 7.5 6.0-10.0 10-1862 27 24" x 16" x 9" 10-2548 31 24" x 16" x 9"

BAX7110RV 2 575 3 6.0 6.0-10.0 10-3868 27 24" x 16" x 9" 10-3872 31 24" x 16" x 9"

JX7111RV 5 200 3 20.7 17.0-23.0 10-3870 27 24" x 16" x 9" 10-2759 31 24" x 16" x 9"

FX7111RV 5 230 3 18.0 17.0-23.0 10-3870 27 24" x 16" x 9" 10-2759 31 24" x 16" x 9"

GX7111RV 5 460 3 9.0 9.0-14.0 10-2710 27 24" x 16" x 9" 10-2714 31 24" x 16" x 9"

BAX7111RV 5 575 3 7.2 6.0-10.0 10-3868 27 24" x 16" x 9" 10-3872 31 24" x 16" x 9"

JX7112RV 7½ 200 3 25.3 24.0-32.0 10-3871 27 24" x 16" x 9" 10-1913 34 28" x 20" x 10"

FX7112RV 7½ 230 3 22.0 17.0-23.0 10-3870 27 24" x 16" x 9" 10-2759 34 28" x 20" x 10"

GX7112RV 7½ 460 3 11.0 9.0-14.0 10-2710 27 24" x 16" x 9" 10-2714 31 24" x 16" x 9"

BAX7112RV 7½ 575 3 9.0 9.0-14.0 10-3867 27 24" x 16" x 9" 10-3873 31 24" x 16" x 9"

r _________________________________

NON STANDARD OPTIONS

TYPICAL DUPLEX CONTROL PANEL FEATURES

1. NEMA-4X Thermoplastic Enclosure

2. cULus Labeled

3. Input Power Terminal Block

4. Float Switch Terminal Block

5. Ground Lug

6. Control Side Fuse

7. Control On/Off Switch

8. Lockable Hasp

9. HOA Switch(es)

10. IEC Rated Motor Contactor(s)

11. 120 Volt Control Circuit Transformer

Used on 3 Phase Panels

12. Pump Disconnect(s) and Motor Overload

Protection (3 Phase and Large Single Phase)

13. External High Water Alarm Light

14. Audible High Water Alarm Horn

15. Dry Auxilliary Contacts For High Water Alarm

16. Alarm Test and Silence Switch (Externally Mounted)

17. Green Pump Run Light(s)

18. Capacitors and Start Relay (Not pictured)

19. Alternating Circuit Board (Duplex)

20. Float Status Indicator Lights

21. Seal Fail Relay(s) (set at 110K*) w/ Indication

Thermal Cut-out Circuit(s)

121 211 19

16 13 21

17 14

*Should be veried at time of installation.

MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347

SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961

(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624

Your Peace of Mind is Our Top Priority

®visit our web site:

www.zoeller.com

537017 3 Zoeller Explosion Proof Simplex And Duplex Control Panel Data User Manual

548087 3 Zoeller Explosion Proof Simplex And Duplex Control Panel Data 548087_3_Zoeller Explosion Proof Simplex and Duplex Control Panel Data

Navigation menu

Versions of this User Manual:

Views

Navigation
