– with Grundfos Zone Valves
Control your comfort
GRUNDFOS UP-ZV
68 72 76 82
° ° ° °
CAMERA-READY LOGOTYPE FOR TYPE L AND TYPE R LISTING MARKS FOR CANADA AND THE U.S.
These Marks are registered by Underwriters Laboratories Inc.
The minimum height of the registered trademark symbol ® shall be 3/64 of an inch. When the overall diameter of the
UL Mark is less than 3/8 of an inch, the trademark symbol may be omitted if it is not legible to the naked eye.
The font for all letter forms is Helvetica Condensed Black, except for the trademark symbol ®, which is
Helvetica Condensed Medium. No other fonts are acceptable.
Please Note:
The word "MARINE" should only be used for UL Classified marine products.
200-195F 20M/11/97
UP-ZV
The Grundfos UP Zone Valve incorporates
the latest in robust motor and gearing
technology, ensuring long life and quiet
operation.
• In-line removable actuator for ease of
installation and service
• With or without sealed end switch
• Silent Close-O Technology
• Compact / Economical design
www.grundfos.us
Being responsible is our foundation
Thinking ahead makes it possible
Innovation is the essence
L-UP-SL-035 8/10 (US)
Canada
GRUNDFOS Canada Inc.
2941 Brighton Road
Oakville, Ontario
L6H 6C9
Phone: (905) 829-9533
Telefax: (905) 829-9512
U.S.A.
GRUNDFOS Pumps Corporation
17100 West 118th Terrace
Olathe, Kansas 66061
Phone: (913) 227-3400
Telefax: (913) 227-3500
Mexico
Bombas GRUNDFOS de Mexico S.A. de C.V.
Boulevard TLC No. 15
Parque Industrial Stiva Aeropuerto
C.P. 66600 Apodaca, N.L. Mexico
Phone: 011-52-81-8144 4000
Telefax: 011-52-81-8144 4010

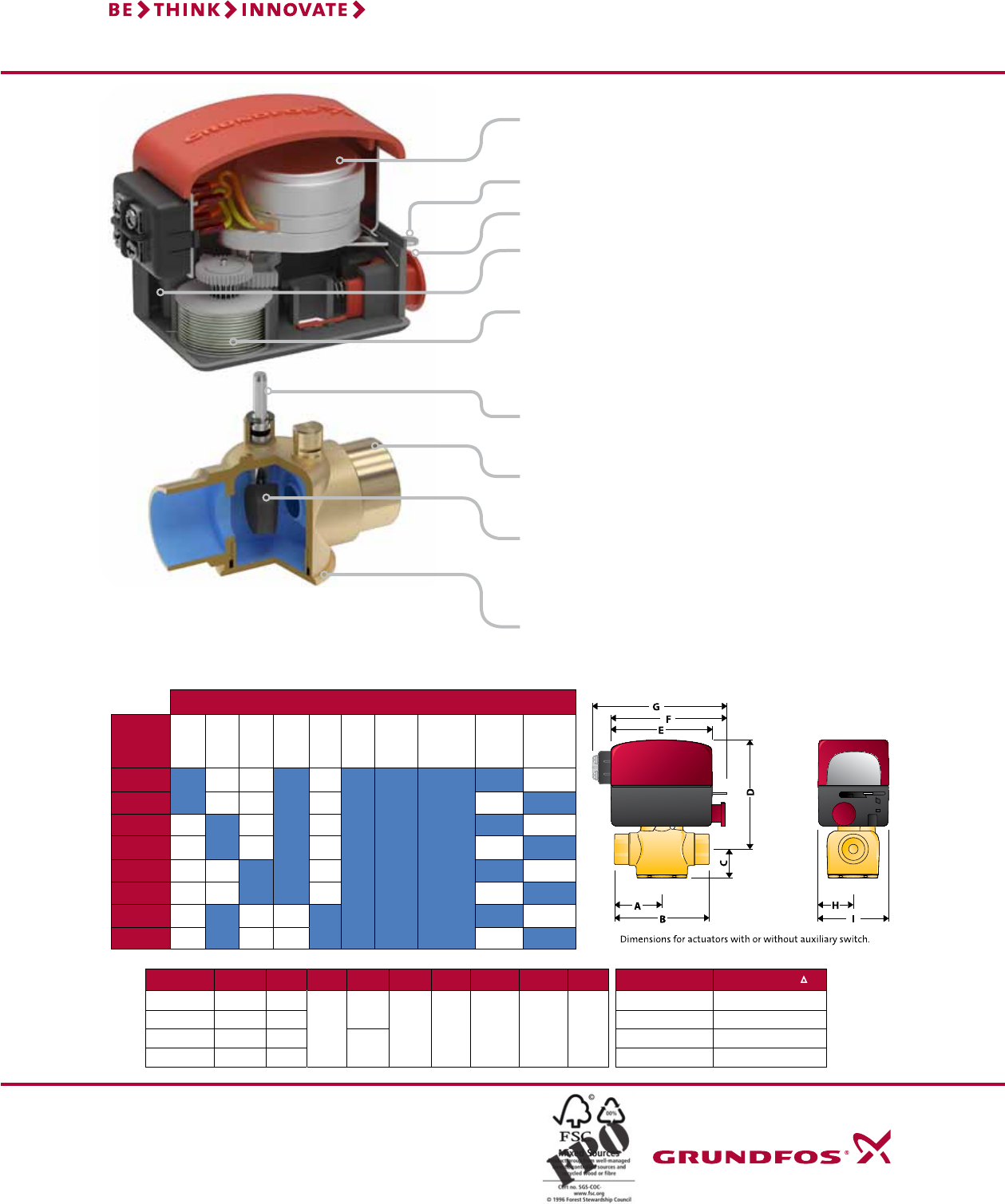

• Sychronous Hysteresis Motor
- 7VA, 5W
• Valve position indicator and Manual Open/Close lever
• “Easy Push” Actuator Removal Button
• Sealed End Switch
- Normally closed
• Enlarged Geared Transmission/Coil Spring
- Delivers 20 PSI Close O @ 7.5 Cv
• Stainless Steel Valve Stem
- Closed and Open System Rated
• Durable Forged Brass Body
- 300 PSI Rated
• High temp. EPDM Paddle and O-rings
- 32°F to 240°F Rated
- 50% Glycol Rated
• Convenient Clean Out Cap
DESCRIPTION
Material
Number
1/2
Inch
3/4
Inch
1
Inch SWT NPT 24
VAC
2-Way
Valve
Body
Normally
Closed
End
Switch
Without
End
Switch
97627415
•
•
• • •
•
97627416
97627419
•
97627420
97627421
•
97627422
97627417
• •
97627418
– Zone Valve Features – Zone Valve Dimensions
•
•
•
•
•
•
•
Connection A B C D E F G H I
4”
4”
3/4” Sweat
1/2” Sweat
1” Sweat
3/4” NPT
1-5/16”
1-3/8”
1-11/16”
1-13/16”
2-5/8”
2-3/4” 15/16”
3-3/8”
3-5/8” 4-3/16”
3-7/16” 4-17/32” 1-3/16” 2-3/8” 7.5 Cv (6.5 Kv)
7.5 Cv (6.5 Kv)
3.5 Cv (3.0 Kv)
3.5 Cv (3.0 Kv)
Flow Coecient Max. Close O / P
20 psi (138 kPa)
20 psi (138 kPa)
30 psi (207 kPa)
30 psi (207 kPa)
