SECTION: 2.50.020
FM1569
0806
Supersedes
0603
Complete System As Shown Above (P/N 922-0009) Includes:
Qty. Part No. Description
1 820-0011 230 Volt, 1 Ph, 2 HP Automatic 820 Grinder Pump
1 10-1494 Indoor Alarm (Not Shown)
1 10-0689 Weight Assembly
1 32-0011 Basin Assembly - 24" X 36"
Approximate Weight: 184 lbs.

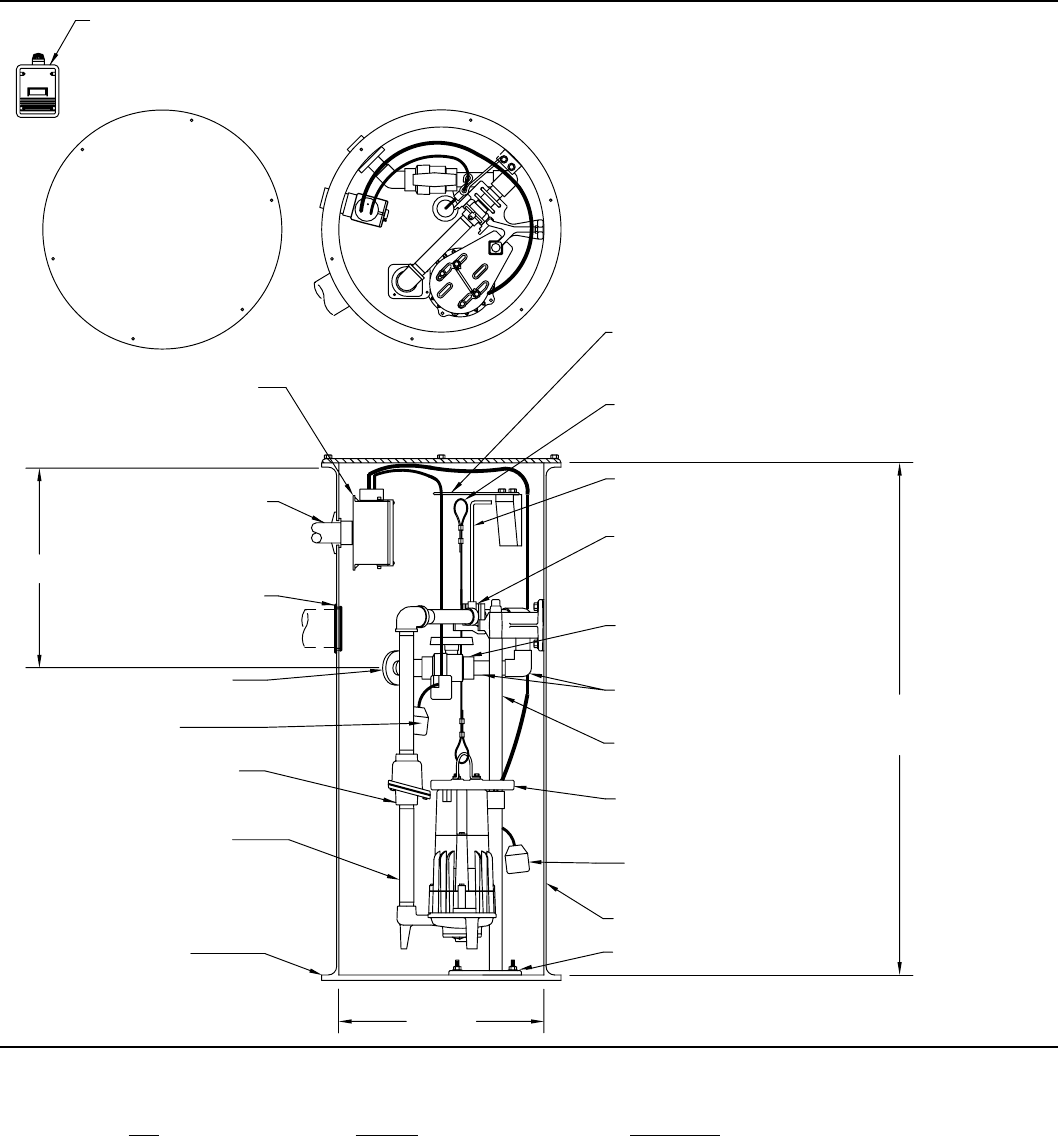

SIMPLEX 820 GRINDER SYSTEM
P/N 922-0009 INDOOR PREPACKAGED
Product information presented
here refl ects conditions at time
of publication. Consult factory
regarding discrepancies or
inconsistencies. MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347
SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961
(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624
visit our web site:
www.zoeller.com
© Copyright 2006 Zoeller Co. All rights reserved.
SK1691
TO ALARM PANEL
ON
(FIELD INSTALLED)
ALARM
4" FIBERGLASS HUB
CAST IRON ADAPTERS
OFF
24" NOMINAL
TO ALARM PANEL
24" X 1/4" STEEL
(VENT CONNECTION)
10" X 1/4" STEEL
CORD SEAL
INSPECTION PLATE
3" GROMMET SEAL
SWITCH CORD
ALARM FLOAT
BASIN COVER
BALL VALVE
(FIELD INSTALLED)
GALVANIZED PIPE
1 1/4" X 32"
GALVANIZED PIPE
1 1/4" X 12"
GRINDER PUMP
SINGLE PHASE,2HP
1 1/4" GROMMET SEAL
(FIELD INSTALLED)
CAST IRON CHECK VALVE
1 1/4" FEMALE NPT
AUTOMATIC
36"
LIFTING BOLT
16" X 1/4" STEEL
5/16" 304 STAINLESS STEEL
1 1/4" PVC SLIP X SLIP
PUMP PLATE
PUMP POWER CORD
W/RUBBER GROMMET
HIGH WATER ALARM
(FIELD INSTALLED)
Note: All variable level fl oat switches
in this section are mechanically acti-
vated and do not contain mercury.
Complete System As Shown Above (P/N 922-0005) Includes:
Qty. Part No. Description
1 820-0011 230 Volt, 1 Ph, 2 HP Automatic 820 Grinder Pump
1 10-0623 Indoor/Outdoor Alarm (Not Shown)
1 10-0580 Qwik Box Connection
1 10-0661 Weight & Bracket Assembly
1 33-0186* 24" X 60" Fiberglass Basin and Cover, Rail System,
8' SS Lifting Cable and 1' Pull Rod
Approximate Weight: 316 lbs.
SIMPLEX 820 GRINDER SYSTEM
P/N 922-0005 OUTDOOR PREPACKAGED WITH SQUARE GUIDE RAIL SYSTEM
© Copyright 2006 Zoeller Co. All rights reserved.
SK1670A
ANTI-FLOTATION FLANGE
FIBERGLASS
DISCHARGE FITTING
1 1/4" BULK HEAD
(FIELD INSTALLED)
ALARM FLOAT
CAST IRON CHECK VALVE
1 1/4" FEMALE NPT
DISCHARGE PIPE
1 1/4" GALVANIZED
HIGH LEVEL
24" MIN.
24"
SOLID FIBERGLASS COVER
RECEPTACLE & ALARM
WATERTIGHT "QWIK BOX"
2" ELECTRICAL PVC PIPE
4" RUBBER INLET PIPE SEAL
CONNECTIONS
1 1/4" PVC SLIP X SLIP
CAST IRON RAIL BASE PLATE
FIBERGLASS BASIN
"ON - OFF" FLOAT
PUMP CONTROL
CAST IRON MOUNT BRACKET
304 STAINLESS STEEL 16 GA.
1 1/2" SQ. GUIDE RAIL
BALL VALVE
PIPE AND FITTINGS
1 1/4" PVC SCH 40
STAINLESS STEEL FLOAT HOOK
STEEL LIFTING CABLE
1/8" 302 STAINLESS
DISCONNECT FITTING
1 1/4" NPT BRASS
STEEL PULL ROD
3/8" X 1' 416 STAINLESS
HIGH WATER ALARM
(FIELD INSTALLED)
*60"
*OTHER BASIN SIZES
ARE READILY AVAILABLE
Note: All variable level fl oat switches
in this section are mechanically acti-
vated and do not contain mercury.
