FILE NO.: 6043.136

DATE: March 15, 200

5

SUPERSEDES: 6043.136

DATE:

A

u

g

ust 1, 2000

PARTS LIST

1-5/8" IMPELLER BORE -- 2-1/8" MECHANICAL SEAL OR PACKING GLAND

NEW DESIGN

SERIES 4300

TC/TSC/TCZ MOTORS

EQUAL SUCTION & DISCHARGE

VERTICAL IN-LINE

SPLIT COUPLER

"L" DESIGNATION - GROUPS 21 TO 24

GROUPS 21 TO 24 SELECTION CHART (L) 1 5/8" IMPELLER HUB

SERIES 4300 MOTOR FRAME

MOTOR 143 182 FT215 254 284 324 404 444 447

213

FRAME 145 184 215 256 286 326 405 445 449

PUMP SIZE GROUP NO.

21 TC

10X10X13 22

23 TC

24 TC TC

21 TC

8X8X15 22

23 TC

24 TC TC

21 TC

10X10X15 22

23 TC

24 TC TC

21 22 23 24

SEAL SIZE AND PUMP SHAFT DIAMETER 2 1/8 2 1/8 2 1/8 2 1/8

IMPELLER BORE:- 1 5/8 1 5/8 1 5/8 1 5/8

COUPLING BORE:- MOTOR SHAFT DIA. 2 1/8 2 3/8 2 7/8 3 3/8

:- PUMP SHAFT DIA. 2 1/8 2 1/8 2 1/8 1 5/8

SHAFT GAP BETWEEN PUMP AND MOTOR 1.375 1.375 2.625 1.375

4300 GROUP NO.

TC

TC

TC

FF300/FF350

364

365

MODEL 4300 - VERTICAL PUMP - SPLIT COUPLING

TC MOTORS - SINGLE SUCTION

3/22/2005 SelectionChart Page 1 of 17

MODEL 4300 TC

CROSS SECTION VIEW

GROUPS 5,6,7,8,9 & 10 - 1 1/4" IMPELLER BORE - 1 5/8" MECHANICAL SEAL

MECHANICAL SEAL ASSEMBLY EXPLODED VIEWS ON PAGE 5A

SEE PAGE FOR PARTS INDEX

3/22/2005 viewL Page 2 of 17

MODEL 4300 TC

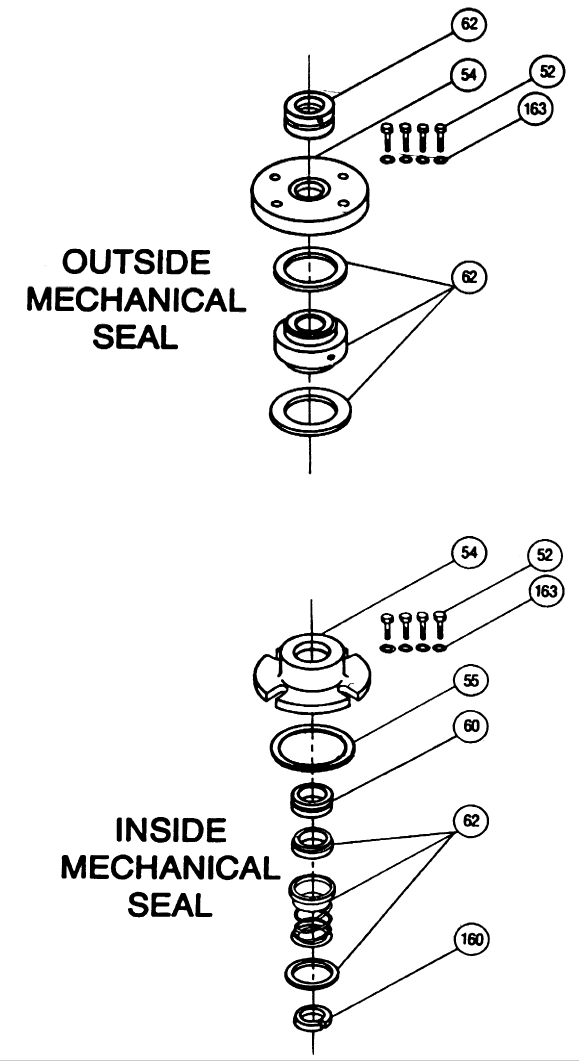

MECHANICAL SEAL EXPLODED VIEWS

GROUPS 21 TO 24 - 1 5/8" IMPELLER BORE - 2 1/8" MECHANICAL SEAL

3/22/2005 mechsealL Page 3 of 17

PARTS INDEX

ITEM DESCRIPTION PAGE ITEM DESCRIPTION PAGE

21 SHAFT 14 80 IMPELLER 6

36 IMPELLER KEY 14 83 IMPELLER WASHER 14

43 LOCKWASHER 11 86 IMPELLER ACORN NUT 14

44 MOTOR CAPSCREW 11 90 CASE WEAR RING 7

50 STUFF. BOX/ADAPTER 8&9 100 CASING 5

51 SEAL CHAMBER BUSH. 14 101 CASING GASKET 7

52 SEAL COV. CAPSCREW 15 103 CASING CAPS. WASHER 11

54 SEAL COVER 15 104 CASING CAPSCREW 11

55 INSIDE SEAL CVR. GSKT. 16 105 CASING DRAIN PLUG 5

58 MALE STRAIGHT CONN. 17 140 COUPLER 13

59 TUBING 17 144 COUPLER CAPSCREW 14

60 INSIDE SEAL SEAT 16 145 LOCKWASHER 14

62 OUTSIDE MECH. SEAL 15 146 COUPLER COLLAR SET SCREW 14

ARMSTRONG STD. 147 MOTOR SHAFT CPLR. COLLAR 12

62 OUTSIDE MECH. SEAL 15 148 PUMP SHAFT CPLR. COLLAR 14

JOHN CRANE STD. 149 COUPLER SQUARE KEY (PUMP) 14

62 OUTSIDE MECH. SEAL 15 150 COUPLING GUARD (NOT SHOWN) 10

JOHN CRANE T.C. 151 CPLR. GUARD BOLT (NOT SHOWN) 10

62 OUTSIDE MECH. SEAL 15 152 NUT (NOT SHOWN) 10

DURA STD. 153 WASHER (NOT SHOWN) 10

62 OUTSIDE MECH. SEAL 15 154 COUP. SQUARE KEY (MOTOR) 12

DURA T.C. 155 CAPSCREW LOCKWASHER 14

62 INSIDE MECH. SEAL HD. 16 156 SHAFT CAPSCREW 14

B.F. & A.I. CONST. 160 INSIDE SEAL RETAINING RING 16

63 1/4"NPT TEE 17 163 SEAL COVER CAPS. WASHER 15

68 AIR VENT 17 194 MALE 90 DEG. ANGLE CONN. 17

3/22/2005 itemno Page 4 of 17

V

ERTICAL IN-LINE - SPLIT COUPLER

MODEL 4300

PUMP PARTS FOR TC MOTORS

EQUAL SUCTION AND DISCHARGE

ITEM 100 CASING**

PUMP SIZE MATERIAL PART NUMBER BAR CODE

10X10X13 125# C.I. 427330-011

10X10X13 250# D.I. 427331-031

8X8X15 125# C.I. 427087-011

8X8X15 250# D.I. 427088-031

10X10X15 125# C.I. 427083-011

10x10x15 250# D.I. 427084-031

NOTES:

C.I.* DENOTES CAST IRON

D.I.* DENOTES DUCTILE IRON

** CASING PART NUMBERS ARE FOR CASING ONLY, CASING WEAR RING IS SOLD SEPARATELY.

IF NEW CASING IS REQUIRED, IT MUST BE ORDERED C/W WEAR RING.

ITEM 105 CASING DRAIN PLUG

PUMP SIZE MATERIAL NO. SIZE PART BAR CODE

REQ'D NUMBER

10X10X13

8X8X15 CAD. 1 1/2" NPT 937105-203

10X10X15 PLATED

GROUPS 21 TO 24 - 1 5/8" IMPELLER BORE - 2 1/8" MECHANICAL SEAL

3/22/2005 casingL Page 5 of 17

V

ERTICAL IN-LINE - SPLIT COUPLER

MODEL 4300

PUMP PARTS FOR TC MOTORS

EQUAL SUCTION AND DISCHARGE

ITEM 80 IMPELLER** 1 1/4" BORE

PUMP SIZE MATERIAL IMP. MAX. PART BAR CODE

BORE DIA. NUMBER

10X10X13 BRONZE 1 5/8 13" 427333-041

10X10X13 CAST IRON 1 5/8 13" 427333-011

8X8X15 BRONZE 1 5/8 15" 427214-041

8X8X15 CAST IRON 1 5/8 15" 427214-011

10X10X15 BRONZE 1 5/8 15" 427218-041

10X10X15 CAST IRON 1 5/8 15" 427218-011

NOTES:

** Impeller Part Numbers are for full or maximum diameter Impellers. Always specify Pump Serial Number and where possible, measure and advise

the diameter of the Impeller being replaced on these Pumps.

GROUPS 21 TO 24 - 1 5/8" IMPELLER BORE - 2 1/8" MECHANICAL SEAL

3/22/2005 impellerL Page 6 of 17

VERTICAL IN-LINE - SPLIT COUPLER

MODEL 4300

PUMP PARTS

EQUAL SUCTION AND DISCHARGE

ITEM 90 CASE WEAR RING

PUMP SIZE CONST. MATERIAL PART BAR CODE

NUMBER

10X10X13

10X10X13 AB-BF SAE 660 BRONZE 426413-417

10X10X15 AI-DI CLASS 30 C.I. 426413-117

10x10x15

8X8X15 AB-BF SAE 660 BRONZE 426413-415

8X8X15 AI-DI CLASS 30 C.I. 426413-115

ITEM 101 CASING GASKET

PUMP SIZE CONSTRUCTION PART NUMBER BAR CODE

10X10X13 ALL 426401-005

8X8X15

10X10X15 ALL 426401-008

GROUPS 21 TO 24 - 1 5/8" IMPELLER BORE - 2 1/8" MECHANICAL SEAL

3/22/2005 wearingcasegasktL Page 7 of 17

VERTICAL IN-LINE - SPLIT COUPLER

MODEL 4300

PUMP PARTS FOR TC MOTORS

EQUAL SUCTION AND DISCHARGE

ITEM 50 ADAPTER B.F. & A.I. CONSTRUCTION

PUMP SIZE MOTOR MATERIAL PART BAR CODE

FRAME SIZE NUMBER

10X10X13 363 - 366TSC

10X10X13 364 - 365TC 427843-011

10X10X13 CAST 427845-011

10X10X13 IRON

10X10X13 427846-011

324 - 326TC 427842-011

8X8X15 364 - 365TC CAST 427842-011

10X10X15 IRON 427847-011

427846-011

ITEM 50 PUMPS STUFFING BOX B.F. & A.I. CONSTRUCTION

PUMP SIZE MOTOR MATERIAL PART BAR CODE

FRAME SIZE NUMBER

CAST

10X10X13 IRON 427885-011

8X8X15 CAST

10X10X15 IRON 427886-011

PUMP SIZE MOTOR MATERIAL PART BAR CODE

FRAME SIZE NUMBER

ALL STEEL 427730-000

GROUPS 21 TO 24 - 1 5/8" IMPELLER BORE - 2 1/8" MECHANICAL SEAL

ALL

404 - 405TC

444/445/447/449TC

444/445/447/449TC

404 - 405TC

ITEM 150 13 & 15" MOTOR ADAPTER RING ALL CONSTRUCTIONS

364 - 365TC

403 - 406TSC

ALL

3/22/2005 adaptstuffboxLBFAI Page 8 of 17

VERTICAL IN-LINE - SPLIT COUPLER

MODEL 4300

PUMP PARTS FOR TC MOTORS

EQUAL SUCTION AND DISCHARGE

ITEM 50 ADAPTER D.I. CONSTRUCTION

PUMP SIZE MOTOR MATERIAL PART BAR CODE

FRAME SIZE NUMBER

10X10X13 363 - 366TSC ?

10X10X13 364 - 365TC 427843-011

10X10X13 CAST 427845-011

10X10X13 IRON ?

10X10X13 427846-011

324 - 326TC 427842-011

8X8X15 364 - 365TC CAST 427842-011

10X10X15 IRON 427847-011

427846-011

ITEM 50 PUMPS STUFFING BOX D.I. CONSTRUCTION

PUMP SIZE MOTOR MATERIAL PART BAR CODE

FRAME SIZE NUMBER

DUCTILE

10X10X13 IRON 427885-031

8X8X15 DUCTILE

10X10X15 IRON 427886-031

PUMP SIZE MOTOR MATERIAL PART BAR CODE

FRAME SIZE NUMBER

ALL STEEL 427730-000

364 - 365TC

444/445/447/449TC

ALL

ALL

ITEM 150 13 & 15" MOTOR ADAPTER RING ALL CONSTRUCTIONS

404 - 405TC

GROUPS 21 TO 24 - 1 5/8" IMPELLER BORE - 2 1/8" MECHANICAL SEAL

404 - 405TC

403 - 406TSC

444/445/447/449TC

3/22/2005 adaptstuffboxLAB Page 9 of 17

VERTICAL IN-LINE - SPLIT COUPLER

MODEL 4300

PUMP PARTS FOR TC MOTORS

EQUAL SUCTION AND DISCHARGE

ITEM 150 COUPLER GUARD

PUMP SIZE MOTOR PART BAR CODE

FRAME SIZ

E

NUMBER

324 - 326TC 427858-000

364 - 365TC

404 - 405TC 427860-000

444/445/447/449TC

COUPLER GUARD FASTENERS

ITEM DESCRIPTION NO. SIZE PART BAR

NO. REQ'D NUMBER CODE

151 BOLT - RD. HD. 2 #8-32 X 1 1/2" 916262-132

152 NUT 2 #8-32 913162-100

153 WASHER 2 #8-32 927105-100

8X8X15

10x10x15

GROUPS 21 TO 24 - 1 5/8" IMPELLER BORE - 2 1/8" MECHANICAL SEAL

10X10X13

8X8X15

10X10X13

10x10x15

3/22/2005 couplerguardL Page 10 of 17

VERTICAL IN-LINE - SPLIT COUPLER

MODEL 4300

PUMP PARTS FOR TC MOTORS

EQUAL SUCTION AND DISCHARGE

ITEM 44 MOTOR CAPSCREW & ITEM 43 LOCKWASHER

PUMP SIZE MOTOR ITEM PART BAR CODE

FRAME SIZE DESCRIPTION NUMBER

10X10X13 324-326TC

8X8X15 CAPSCREW 911129-112

10X10X15 444/445/447/449TC LOCKWASHER 927215-100

ITEM 104 CASING CAPSCREW & ITEM 103 WASHER

PUMP SIZE NO. PART

REQ'D DESCRIPTION SIZE NUMBER BAR CODE

16 CAPSCREW 5/8-11NCX1 3/4" 911129-234

10X10X13

16 WASHER 5/8" FLAT 927121-100

8X8X15 16 CAPSCREW 5/8-11NCX2" 911129-218

16 LOCKWASHER 5/8" 927213-100

10X10X15 16 WASHER 5/8" FLAT 927121-100

404 - 405TC

GROUPS 21 TO 24 - 1 5/8" IMPELLER BORE - 2 1/8" MECHANICAL SEAL

3/22/2005 motcasecapscrewL Page 11 of 17

VERTICAL IN-LINE - SPLIT COUPLER

MODEL 4300

PUMP PARTS FOR TC MOTORS

EQUAL SUCTION AND DISCHARGE

ITEM 154 MOTOR KEY

PUMP SIZE MOTOR PART BAR CODE

FRAME SIZE NUMBER

8X8X15

10X10X15 324 - 326TC 428164-116

10X10X13

8X8X15 428165-117

10X10X15

10X10X13

8X8X15 428167-103

10X10X15

10X10X13

8X8X15 428167-305

10X10X15

ITEM 147 MOTOR COUPLER COLLAR

PUMP SIZE MOTOR PART BAR CODE

FRAME SIZE NUMBER

8X8X15

10X10X15 324 - 326TC 427753-000

10X10X13

8X8X15 427754-000

10X10X15

10X10X13

8X8X15 427889-000

10X10X15

10X10X13

8X8X15 427883-000

10X10X15

GROUPS 21 TO 24 - 1 5/8" IMPELLER BORE - 2 1/8" MECHANICAL SEAL

364 - 365TC

404 - 405TC

444/445/447/449TC

364 - 365TC

404 - 405TC

444/445/447/449TC

3/22/2005 motkeyL Page 12 of 17

VERTICAL IN-LINE - SPLIT COUPLER

MODEL 4300

PUMP PARTS FOR TC MOTORS

EQUAL SUCTION AND DISCHARGE

ITEM 140 COUPLER

PUMP SIZE MOTOR PART BAR CODE

FRAME SIZE NUMBER

8X8X15

10X10X15 324 - 326TC 427867-000

10X10X13

8X8X15 427868-000

10X10X15

10X10X13

8X8X15 427869-000

10X10X15

10X10X13

8X8X15 427870-000

10X10X15

GROUPS 21 TO 24 - 1 5/8" IMPELLER BORE - 2 1/8" MECHANICAL SEAL

364 - 365TC

404 - 405TC

4

4/445/447/449

T

3/22/2005 couplerL Page 13 of 17

VERTICAL IN-LINE - SPLIT COUPLER

MODEL 4300

PUMP PARTS FOR TC MOTORS

EQUAL SUCTION AND DISCHARGE

ITEM DESCRIPTION PART BAR CODE

NUMBER NUMBER

21 2 1/8" PUMP SHAFT 427849-000

36 IMPELLER KEY 428163-714

51 SEAL CHAMBER BUSHING 425520-003

83 IMPELLER WASHER 425742-006

86 IMPELLER ACORN NUT (BRASS) 425745-001

86 IMPELLER ACORN NUT (SST) 425745-002

102 GAUGE PLUG ( 4 REQ'D ) 937105-201

1/4"NPT. CAD PLATED

144 COUPLER CAPSCREW (6 REQ'D) 911821-118

FRAMES 182 TO 365TC AND 324 - 446TSC

145 LOCKWASHER (FOR ITEM 144) 927211-100

148 SHAFT COUPLER COLLAR 427882-000

N/S COUPLER COLLAR SET SCREW 916519-106

149 CPLR. KEY (PUMP SHAFT) 428164-724

155 CAPSCREW LOCKWASHER 927215-400

156 COUPLER COLLAR CAPSCREW 911129-108

COMMON PARTS, ALL CONSTRUCTION

S

GROUPS 21 TO 24 - 1 5/8" IMPELLER BORE - 2 1/8" MECHANICAL SEAL

3/22/2005 compartsL Page 14 of 17

PARTS FOR 2 1/8" OUTSIDE SEAL

ITEM DESCRIPTION CONSTRUCTION PART BAR CODE

NO. NUMBER

62 MECHANICAL SEAL

ARMSTRONG SEAL ALL 975002-374

DURAMETALLIC STD. ALL 975002-073

DURAMETALLIC T.C. ALL 975002-071

JOHN CRANE STD. ALL 975000-957

JOHN CRANE T.C. ALL 975000-967

52 CAPSCREW - 4REQ'D

1/2"-13NCX2" S/S ALL 911125-416

163 WASHER - 4 REQ'D

1/2" FLAT 316 S/S ALL 427118-100

54 SEAL COVER BF - DBF 426486-002

AI - DI 426486-001

NOTES:

BF - DBF ---- DENOTES BRONZE FITTED - DUCTILE BRONZE FITTED

AI - DI -------- DENOTES ALL IRON - DUCTILE IRON

GROUPS 21 TO 24 - 1 5/8" IMPELLER BORE - 2 1/8" MECHANICAL SEAL

VERTICAL IN-LINE - SPLIT COUPLER

MODEL 4300

PUMP PARTS FOR TC MOTORS

EQUAL SUCTION AND DISCHARGE

3/22/2005 outsealL Page 15 of 17

PARTS FOR 2 1/8" INSIDE MECH. SEAL ARRANGEMENT

ITEM DESCRIPTION CONSTRUCTION PART BAR CODE

NO. NUMBER

62 MECHANICAL SEAL ALL 975001-577

60 SEAL SEAT ALL 975000-931

52 CAPSCREW - 4 REQ'D

1/2"-13NCX2" S/S ALL 911125-416

163 WASHER - 4 REQ'D

1/2" FLAT ALL 427117-100

54 SEAL COVER BF - DBF 426466-011

55 SEAL COVER GASKET ALL 426467-002

160 RETAINING RING ALL 927117-100

PARTS FOR 2 1/8" PACKED GLAND ARRANGEMENT

ITEM DESCRIPTION CONSTRUCTION PART BAR CODE

NO. NUMBER

52 STUDBOLT - 2 REQ'D

1/2"-13NCX3" S/S ALL 915225-424

53 NUT - 2 REQ'D

1/2"-13NC S/S ALL 913125-400

163 WASHER - 2 REQ'D

1/2" FLAT ALL 426451-001

54 SPLIT GLAND ALL 426463-011

65 PACKING - 5 REQ'D

2 1/8"X3/8" JC #1340 ALL 966302-001

66 LANTERN RING ALL 426451-005

NOTES:

BF - DBF ---- DENOTES BRONZE FITTED - DUCTILE BRONZE FITTED

AI - DI -------- DENOTES ALL IRON - DUCTILE IRON

GROUPS 21 TO 24 - 1 5/8" IMPELLER BORE - 2 1/8" MECHANICAL SEAL

VERTICAL IN-LINE - SPLIT COUPLER

MODEL 4300

PUMP PARTS FOR TC MOTORS

EQUAL SUCTION AND DISCHARGE

3/22/2005 insealL Page 16 of 17

VERTICAL IN-LINE - SPLIT COUPLER

MODEL 4300

PUMP PARTS

EQUAL SUCTION AND DISCHARGE

GROUPS 6 & 7 - 1 5/8" IMPELLER BORE

2 1/8" MECHANICAL SEAL OR PACKING GLAND

COMMON PARTS FOR OUTSIDE AND INSIDE SEAL ARRANGEMENTS

ITEM DESCRIPTION CONSTRUCTION PART BAR CODE

NO. NUMBER

57 MALE CONNECTOR BF - DBF 939001-114

3/8" TUBE X 1/4"NPT AI - DI 939001-214

59 TUBING 24" REQUIRED BF - DBF 997531-004

3/8"OD X .035 WALL AI - DI 997153-004

63 TEE BF - DBF 935101-001

1/4" NPT AI - DI 931101-101

64 BUSHING BF - DBF 935123-050

1/4" X 1/8" NPT AI - DI 931123-150

67 NIPPLE BF - DBF 938103-001

1/4" X 2 1/2" AI - DI 938003-101

68 AIR RELEASE VALVE BF - DBF 939018-101

AI - DI 218644-000

NOTES:

BF - DBF ---- DENOTES BRONZE FITTED - DUCTILE BRONZE FITTED

AI - DI -------- DENOTES ALL IRON - DUCTILE IRON

3/22/2005 flushL Page 17 of 17
