FEATURES
Battery powered sump pump runs automatically during
a power outage.
Provides a backup to your standard sump pump if it
breaks down.
Automatic start-up
Self-charging
Indicator lights on charger
Alarm sounds when pumping and battery won’t charge.

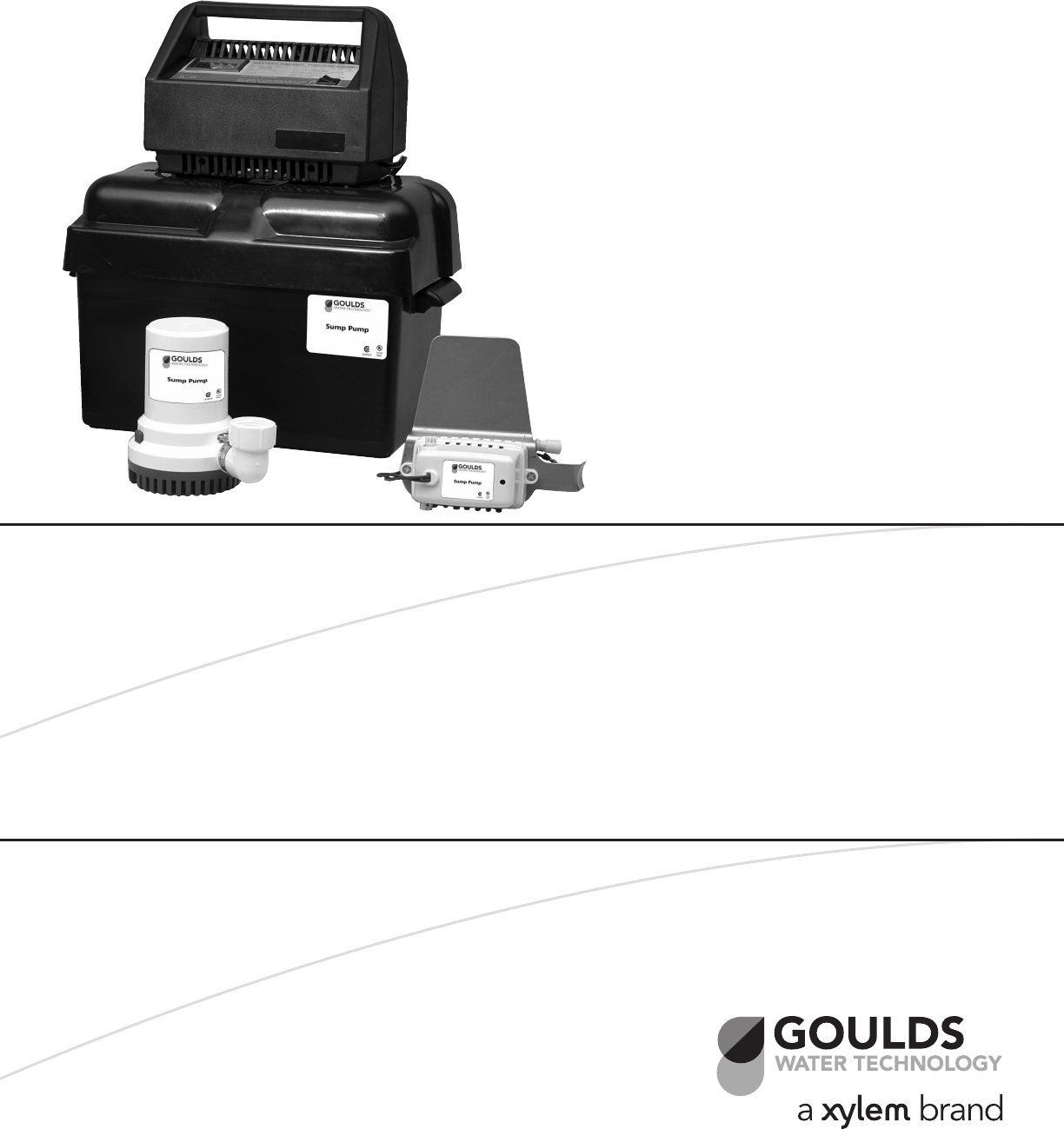

SPBB/SPBB2
BATTERY BACKUP SUMP PUMPS
TECHNICAL BROCHURE
BSPBB
Wastewater
Goulds Water Technology
Standard Installation
TEE
SW
FLOAT
SW
BACK UP
PUMP
11⁄2
MAX.
11⁄2
MAX.
*PRIMARY
PUMP
SUMP CHECK
VALVE
Must be
installed
to prevent
recirculation
into sump.
“ON”
POSITION
(Primary pump
normal high
water level)
TOP OF SUMP
C
L
2" MIN.
2" MIN.
1.6 REF.
NOTE: *PRIMARY PUMP NOT INCLUDED.
APPLICATIONS
Designed to provide emergency backup service for
primary pump in the event of a power outage. Will also
operate if main pump can’t keep up with inflow.
SPECIFICATIONS
• 12 volt pump
• Float switch
• 10 amp battery charger
• Check valve
• Pipe fittings
• Battery box is 7.5" W, 14.5" L, 8" D and is sized for
Group 24-30 batteries.
• System requires minimum 105 amp deep cycle marine
battery, Series 27, (not included).
SPBB PERFORMANCE CHART
Discharge Height GPH Battery Life
5' 1380 9 hours
10' 900 9 hours
13' 480 11 hours
SPBB2 PERFORMANCE CHART
Discharge Height GPH Battery Life
5' 2250 7 hours
10' 1500 8 hours
13' 1000 9 hours
Goulds is a registered trademark of Goulds Pumps, Inc. and is used under license.
© 2012 Xylem Inc. BSPBB R1 April 2012
Xylem, Inc.
2881 East Bayard Street Ext., Suite A
Seneca Falls, NY 13148
Phone: (866) 325-4210
Fax: (888) 322-5877
www.xyleminc.com/brands/gouldswatertechnology
