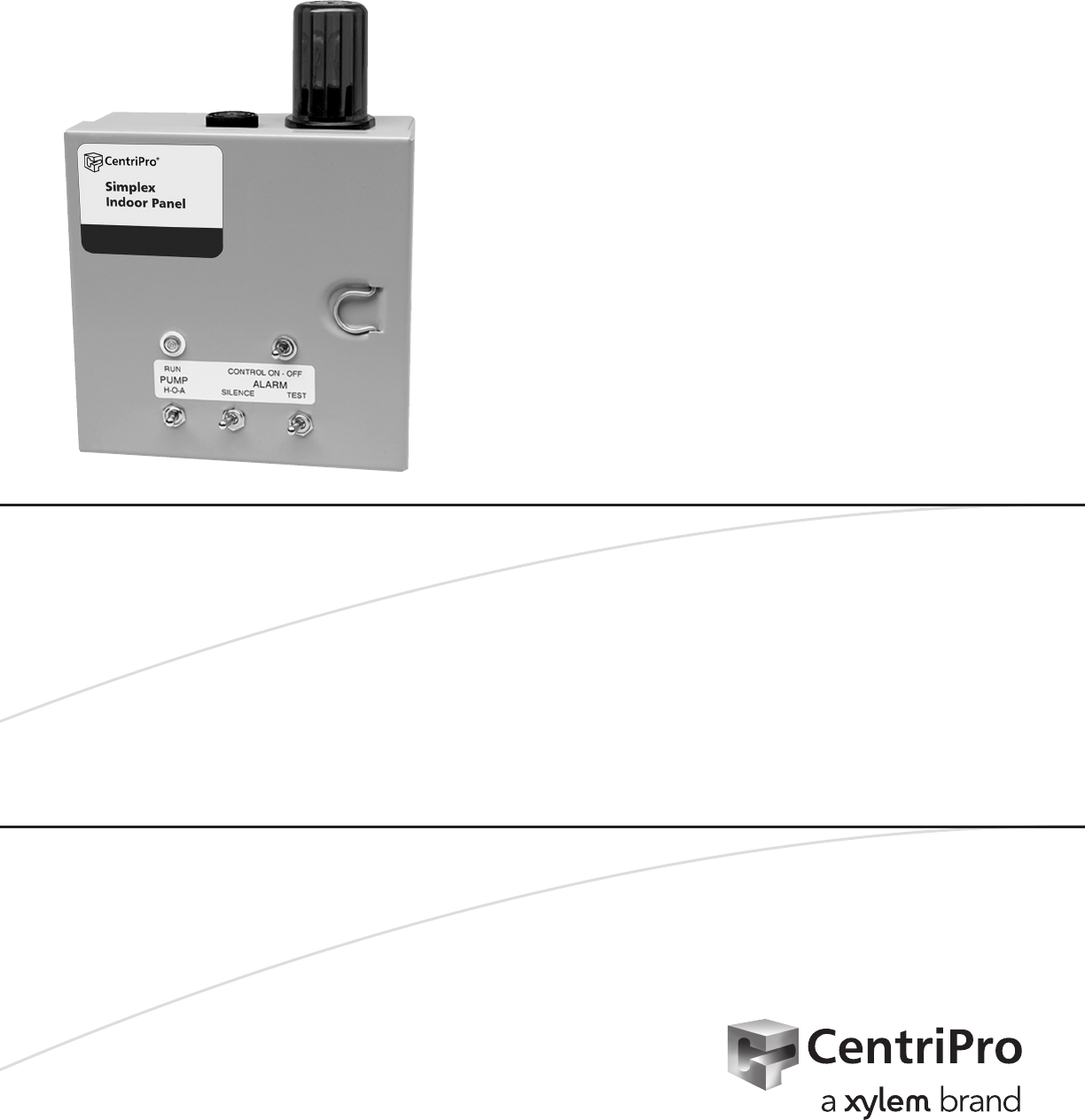

SIMPLEX INDOOR PANEL

S10020N1 SINGLE PHASE CONTROL PANEL

TECHNICAL BROCHURE

BCP1 R6

PAGE 2

Wastewater

CentriPro

APPLICATIONS

Superior quality simplex liquid level controller, auto-

matically maintains pump operation. High level alarm

warning for a variety of sump, effluent, sewage and

water transfer applications. Not for use in damp, out-

door, or weatherproof applications.

SPECIFICATIONS

• Non-modifiable — No options available.

• Accepts single or dual power feed.

• Hand-off-automatic (H-O-A) pump selection switch.

• On-off control circuit switch.

• Oversized magnetic contactors.

• Numbered terminal strip-screw type.

• NEMA 1, 30 watt, flashing red light.

• NEMA 1, steel enclosure.

• NEMA 1, alarm horn – 95db.

• Auxiliary alarm contacts.

Single Phase

• Field adjustable for 115 or 230 V, 60 Hz.

• Enclosure: 8.0" H x 8.0" W x 4.0" D.

NOTE: Enclosure dimensions do not include 3" high

light.

ADDITIONAL FEATURES

• Panel can be wired for a single power feed for pump

and control circuit or the control circuit can be wired

to a separate power supply to insure alarm integrity

in case of a tripped pump breaker.

• Auxiliary alarm contacts provided for remote alarm

connection.

• Float Switches – Note: Please order float switches

separately. We offer several types and models. See

the Float Switch bulletin for available options. The

type selected determines the quantity needed.

The basin depth and panel location determine the

required cord length. Contact your distributor or

Customer Service for additional information.

ORDER NUMBER AMP RANGE

S10020N1 0-20

PANEL MODEL INFORMATION

FEATURES

High level alarm circuit includes spring loaded

through door-mounted silence switch for manual

silence of alarm horn.

Through door mounted alarm test switch insures

proper operation of the alarm circuit without the need

to open the panel.

Through door mounted pump run light.

Top mounted high intensity flashing red light provides

360° visibility.

Pulsating, corrosion proof alarm horn.

Color coded wiring, screw type terminals and plug in

sockets, insure ease of field servicing.

Field wiring diagram, panel schematic and installation

instructions included.

Entire unit is UL and CUL listed.

PAGE 3

Wastewater

CentriPro

GND

S1

T1

PUMP

WHITE

CONTROL

ON-OFF

BLACK

BROWN

HAND

OFF

AUTO

PURPLE S1

RUN

RED TEST

YEL

YELLOW

TEST

MUTE

RESET

WHITE

OFF

ALARM

R1

C

L1

BLACK

HL1 N1 2345678

J1

OFF FLOAT

ON FLOAT

ALARM FLOAT

DRY CONTACTS

FOR SEPARATE 120 VAC

CONTROL POWER SUPPLY,

REMOVE JUMPER (J1) FROM

TERMINALS (H) AND (L1).

CONNECT 15 AMP MAX.

PROTECTED 120 VAC SUPPLY

TO TERMINALS (L1) AND (N).

WITH THE NEUTRAL OF THE

SUPPLY TO (N).

FOR USE WITH WIDE ANGLE FLOAT SWITCH (ONE FLOAT FOR BOTH ON AND OFF OPERATION).

JUMP TERMINALS (3) AND (4), INSTALL WIDE ANGLE FLOAT TO TERMINALS (1) AND (2).

PROVIDE DISCONNECT AND

BRANCH CIRCUIT PROTECTION

PER NEC CODE

115/230 VAC (FOR 115 VAC, USE TERMINALS L1 AND N, JUMP L2 AND N.)

SINGLE PHASE 60 HZ

T2

L1

L2

N

ON

NEU

WHT

WHT

PINK

FLASH

HORN

FLASHING

SONALERT

SILENCE

RED

RED

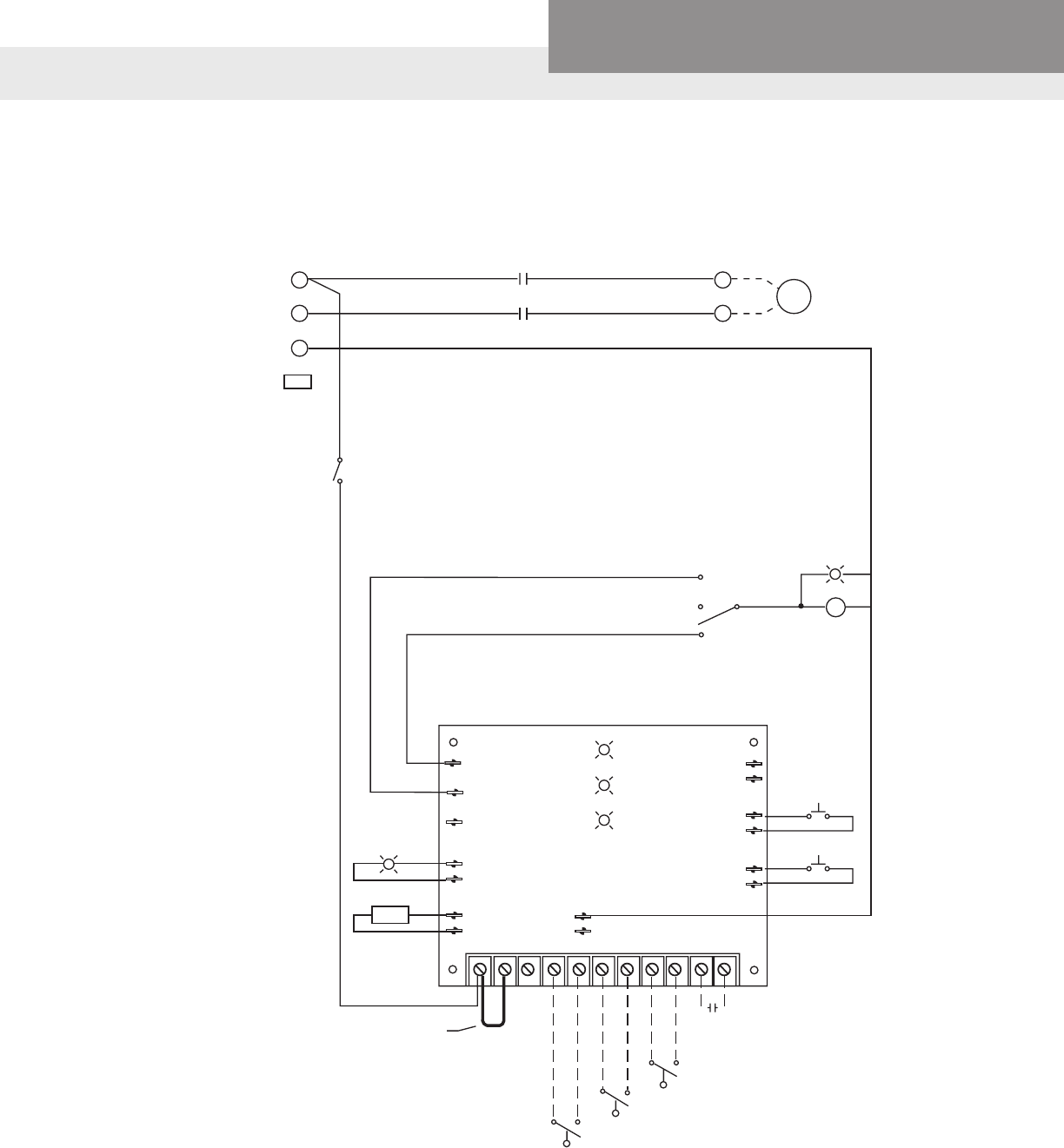

SIMPLEX SINGLE PHASE WIRING DIAGRAM – S10020 After October 1, 2003

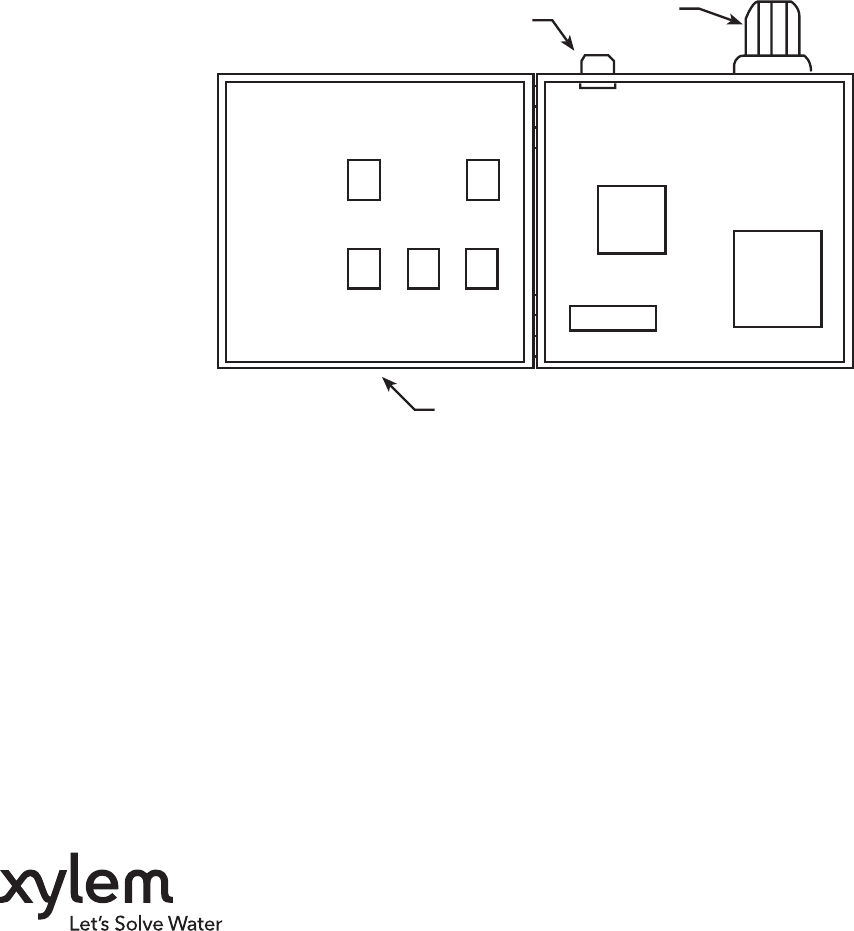

1. NEMA 1 enclosure

2. Flashing alarm light

3. Alarm horn

4. Pump run light

5. Alarm silence selector switch

6. Alarm test selector switch

32

1

8

4

56

7

10

9

11

7. Control power on/off selector switch

8. H-O-A selector switch

9. Simplex control board

10. Contactor

11. Terminal strip

S10020N1 COMPONENTS
