BRBUYGD R1
Buying Guide
Electrical Controls for Wastewater MADE EASY
FEATURING…
• Easy selection of Panels • Step by Step Criteria to follow for selection
PAGE 2
Buying Guide

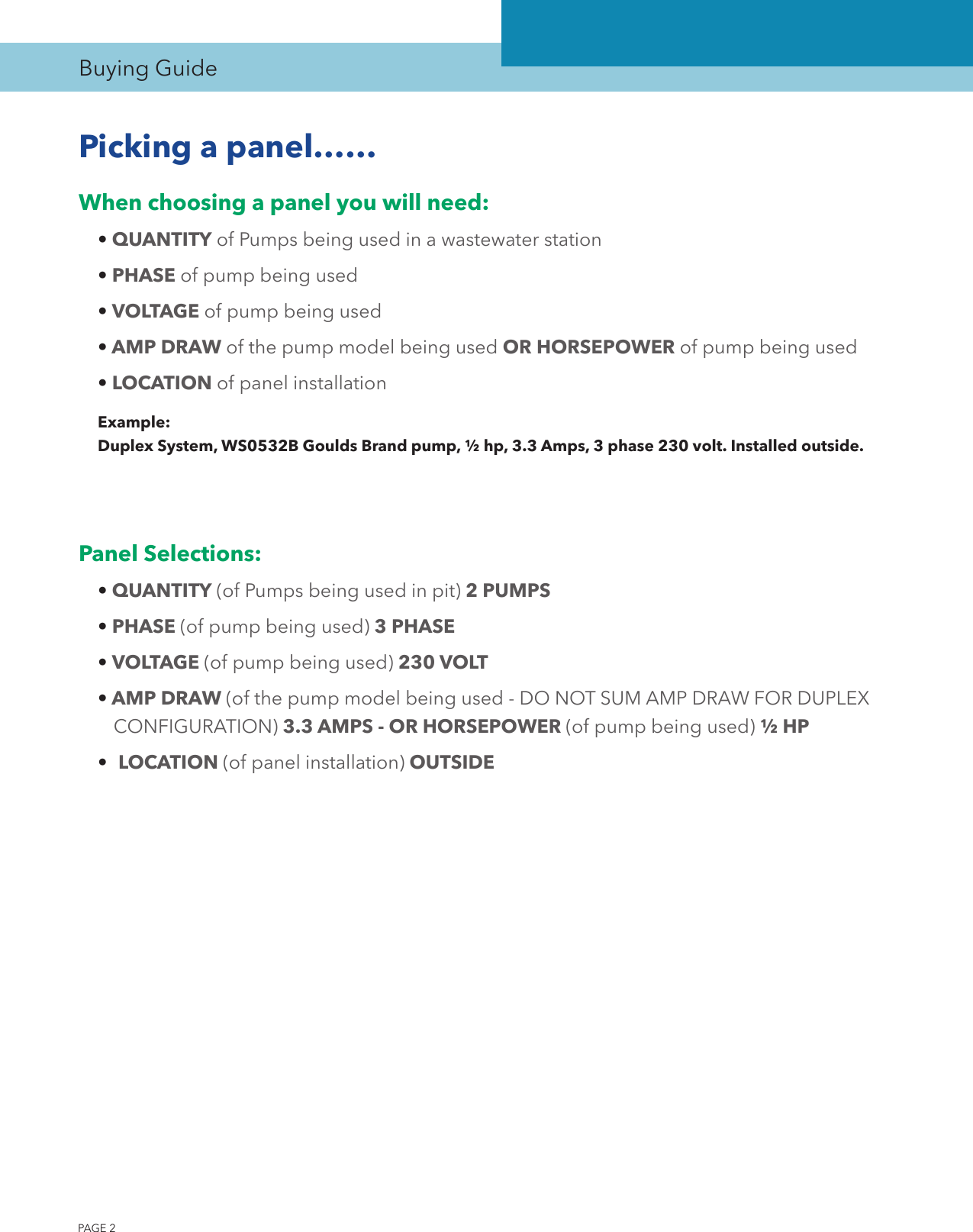

Picking a panel……
When choosing a panel you will need:
• QUANTITY of Pumps being used in a wastewater station
• PHASE of pump being used
• VOLTAGE of pump being used
• AMP DRAW of the pump model being used OR HORSEPOWER of pump being used
• LOCATION of panel installation
Example:
Duplex System, WS0532B Goulds Brand pump, ½ hp, 3.3 Amps, 3 phase 230 volt. Installed outside.
Panel Selections:
• QUANTITY (of Pumps being used in pit) 2 PUMPS
• PHASE (of pump being used) 3 PHASE
• VOLTAGE (of pump being used) 230 VOLT
• AMP DRAW (of the pump model being used - DO NOT SUM AMP DRAW FOR DUPLEX
CONFIGURATION) 3.3 AMPS - OR HORSEPOWER (of pump being used) ½ HP
• LOCATION (of panel installation) OUTSIDE
PAGE 3
Buying Guide

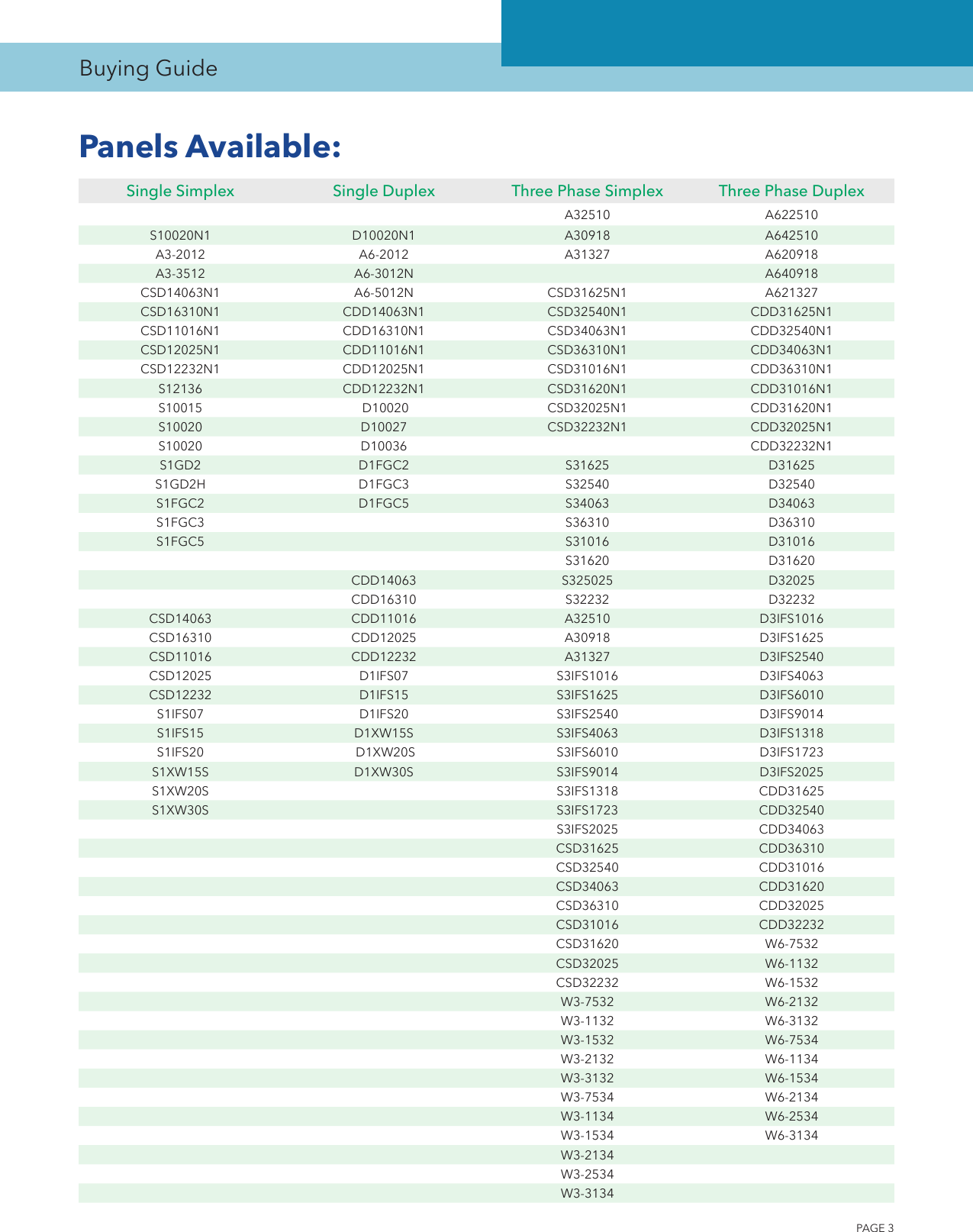

Panels Available:
Single Simplex Single Duplex Three Phase Simplex Three Phase Duplex
A32510 A622510
S10020N1 D10020N1 A30918 A642510
A3-2012 A6-2012 A31327 A620918
A3-3512 A6-3012N A640918
CSD14063N1 A6-5012N CSD31625N1 A621327
CSD16310N1 CDD14063N1 CSD32540N1 CDD31625N1
CSD11016N1 CDD16310N1 CSD34063N1 CDD32540N1
CSD12025N1 CDD11016N1 CSD36310N1 CDD34063N1
CSD12232N1 CDD12025N1 CSD31016N1 CDD36310N1
S12136 CDD12232N1 CSD31620N1 CDD31016N1
S10015 D10020 CSD32025N1 CDD31620N1
S10020 D10027 CSD32232N1 CDD32025N1
S10020 D10036 CDD32232N1
S1GD2 D1FGC2 S31625 D31625
S1GD2H D1FGC3 S32540 D32540
S1FGC2 D1FGC5 S34063 D34063
S1FGC3 S36310 D36310
S1FGC5 S31016 D31016
S31620 D31620
CDD14063 S325025 D32025
CDD16310 S32232 D32232
CSD14063 CDD11016 A32510 D3IFS1016
CSD16310 CDD12025 A30918 D3IFS1625
CSD11016 CDD12232 A31327 D3IFS2540
CSD12025 D1IFS07 S3IFS1016 D3IFS4063
CSD12232 D1IFS15 S3IFS1625 D3IFS6010
S1IFS07 D1IFS20 S3IFS2540 D3IFS9014
S1IFS15 D1XW15S S3IFS4063 D3IFS1318
S1IFS20 D1XW20S S3IFS6010 D3IFS1723
S1XW15S D1XW30S S3IFS9014 D3IFS2025
S1XW20S S3IFS1318 CDD31625
S1XW30S S3IFS1723 CDD32540
S3IFS2025 CDD34063
CSD31625 CDD36310
CSD32540 CDD31016
CSD34063 CDD31620
CSD36310 CDD32025
CSD31016 CDD32232
CSD31620 W6-7532
CSD32025 W6-1132
CSD32232 W6-1532
W3-7532 W6-2132
W3-1132 W6-3132
W3-1532 W6-7534
W3-2132 W6-1134
W3-3132 W6-1534
W3-7534 W6-2134
W3-1134 W6-2534
W3-1534 W6-3134
W3-2134
W3-2534
W3-3134
PAGE 4
Buying Guide

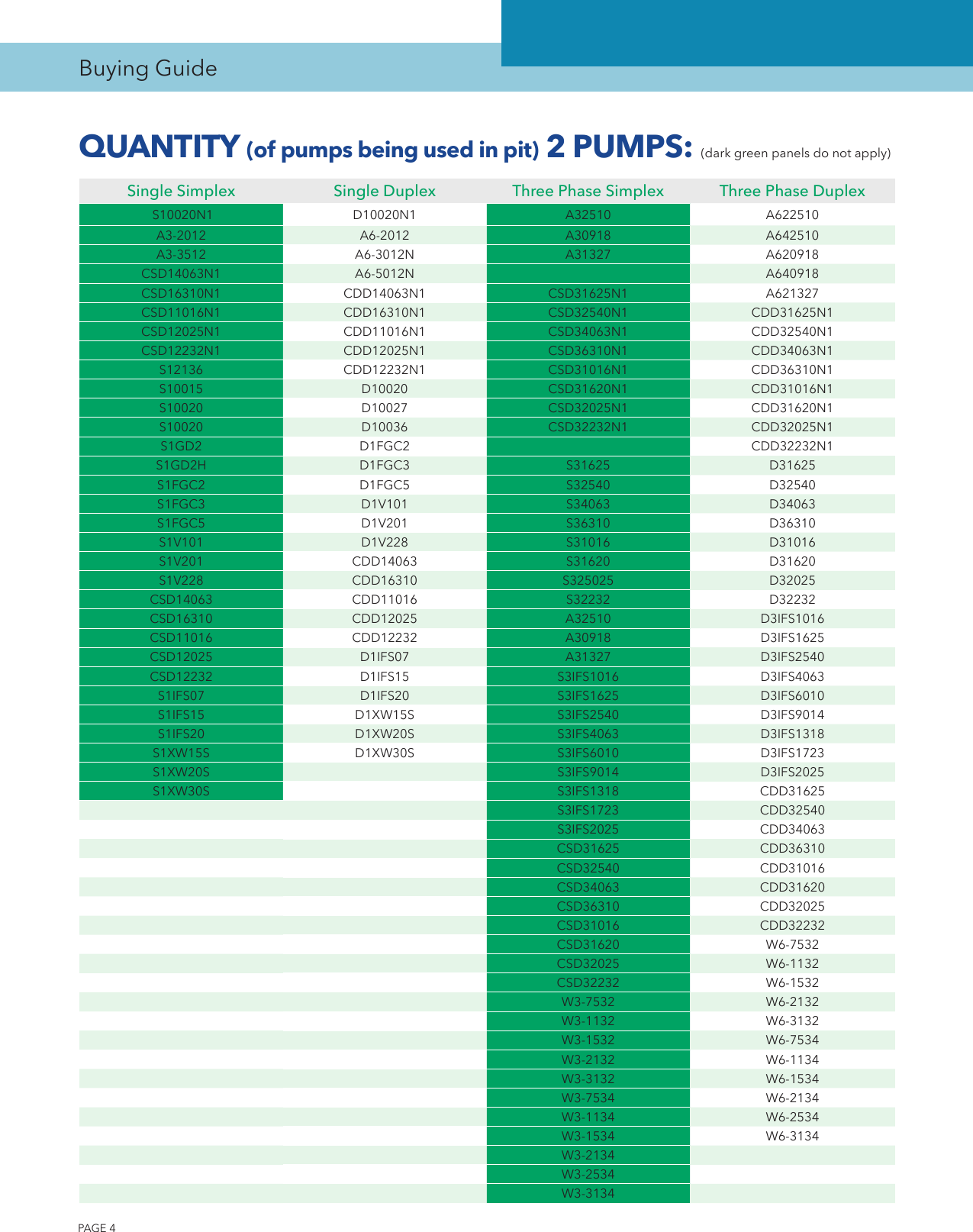

QUANTITY (of pumps being used in pit) 2 PUMPS: (dark green panels do not apply)
Single Simplex Single Duplex Three Phase Simplex Three Phase Duplex
S10020N1 D10020N1 A32510 A622510
A3-2012 A6-2012 A30918 A642510
A3-3512 A6-3012N A31327 A620918
CSD14063N1 A6-5012N A640918
CSD16310N1 CDD14063N1 CSD31625N1 A621327
CSD11016N1 CDD16310N1 CSD32540N1 CDD31625N1
CSD12025N1 CDD11016N1 CSD34063N1 CDD32540N1
CSD12232N1 CDD12025N1 CSD36310N1 CDD34063N1
S12136 CDD12232N1 CSD31016N1 CDD36310N1
S10015 D10020 CSD31620N1 CDD31016N1
S10020 D10027 CSD32025N1 CDD31620N1
S10020 D10036 CSD32232N1 CDD32025N1
S1GD2 D1FGC2 CDD32232N1
S1GD2H D1FGC3 S31625 D31625
S1FGC2 D1FGC5 S32540 D32540
S1FGC3 D1V101 S34063 D34063
S1FGC5 D1V201 S36310 D36310
S1V101 D1V228 S31016 D31016
S1V201 CDD14063 S31620 D31620
S1V228 CDD16310 S325025 D32025
CSD14063 CDD11016 S32232 D32232
CSD16310 CDD12025 A32510 D3IFS1016
CSD11016 CDD12232 A30918 D3IFS1625
CSD12025 D1IFS07 A31327 D3IFS2540
CSD12232 D1IFS15 S3IFS1016 D3IFS4063
S1IFS07 D1IFS20 S3IFS1625 D3IFS6010
S1IFS15 D1XW15S S3IFS2540 D3IFS9014
S1IFS20 D1XW20S S3IFS4063 D3IFS1318
S1XW15S D1XW30S S3IFS6010 D3IFS1723
S1XW20S S3IFS9014 D3IFS2025
S1XW30S S3IFS1318 CDD31625
S3IFS1723 CDD32540
S3IFS2025 CDD34063
CSD31625 CDD36310
CSD32540 CDD31016
CSD34063 CDD31620
CSD36310 CDD32025
CSD31016 CDD32232
CSD31620 W6-7532
CSD32025 W6-1132
CSD32232 W6-1532
W3-7532 W6-2132
W3-1132 W6-3132
W3-1532 W6-7534
W3-2132 W6-1134
W3-3132 W6-1534
W3-7534 W6-2134
W3-1134 W6-2534
W3-1534 W6-3134
W3-2134
W3-2534
W3-3134
PAGE 5
Buying Guide

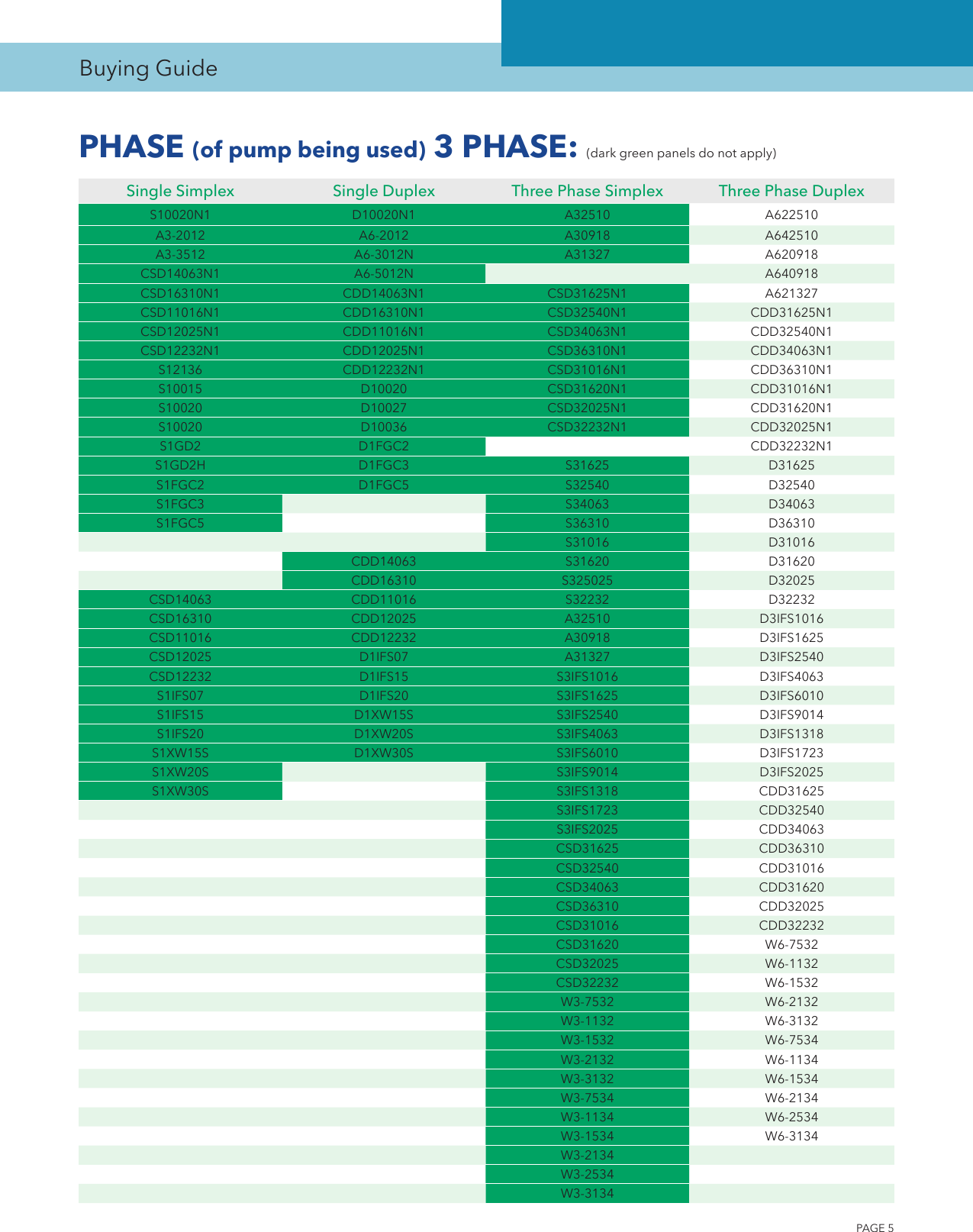

PHASE (of pump being used) 3 PHASE: (dark green panels do not apply)
Single Simplex Single Duplex Three Phase Simplex Three Phase Duplex
S10020N1 D10020N1 A32510 A622510
A3-2012 A6-2012 A30918 A642510
A3-3512 A6-3012N A31327 A620918
CSD14063N1 A6-5012N A640918
CSD16310N1 CDD14063N1 CSD31625N1 A621327
CSD11016N1 CDD16310N1 CSD32540N1 CDD31625N1
CSD12025N1 CDD11016N1 CSD34063N1 CDD32540N1
CSD12232N1 CDD12025N1 CSD36310N1 CDD34063N1
S12136 CDD12232N1 CSD31016N1 CDD36310N1
S10015 D10020 CSD31620N1 CDD31016N1
S10020 D10027 CSD32025N1 CDD31620N1
S10020 D10036 CSD32232N1 CDD32025N1
S1GD2 D1FGC2 CDD32232N1
S1GD2H D1FGC3 S31625 D31625
S1FGC2 D1FGC5 S32540 D32540
S1FGC3 S34063 D34063
S1FGC5 S36310 D36310
S31016 D31016
CDD14063 S31620 D31620
CDD16310 S325025 D32025
CSD14063 CDD11016 S32232 D32232
CSD16310 CDD12025 A32510 D3IFS1016
CSD11016 CDD12232 A30918 D3IFS1625
CSD12025 D1IFS07 A31327 D3IFS2540
CSD12232 D1IFS15 S3IFS1016 D3IFS4063
S1IFS07 D1IFS20 S3IFS1625 D3IFS6010
S1IFS15 D1XW15S S3IFS2540 D3IFS9014
S1IFS20 D1XW20S S3IFS4063 D3IFS1318
S1XW15S D1XW30S S3IFS6010 D3IFS1723
S1XW20S S3IFS9014 D3IFS2025
S1XW30S S3IFS1318 CDD31625
S3IFS1723 CDD32540
S3IFS2025 CDD34063
CSD31625 CDD36310
CSD32540 CDD31016
CSD34063 CDD31620
CSD36310 CDD32025
CSD31016 CDD32232
CSD31620 W6-7532
CSD32025 W6-1132
CSD32232 W6-1532
W3-7532 W6-2132
W3-1132 W6-3132
W3-1532 W6-7534
W3-2132 W6-1134
W3-3132 W6-1534
W3-7534 W6-2134
W3-1134 W6-2534
W3-1534 W6-3134
W3-2134
W3-2534
W3-3134
PAGE 6
Buying Guide

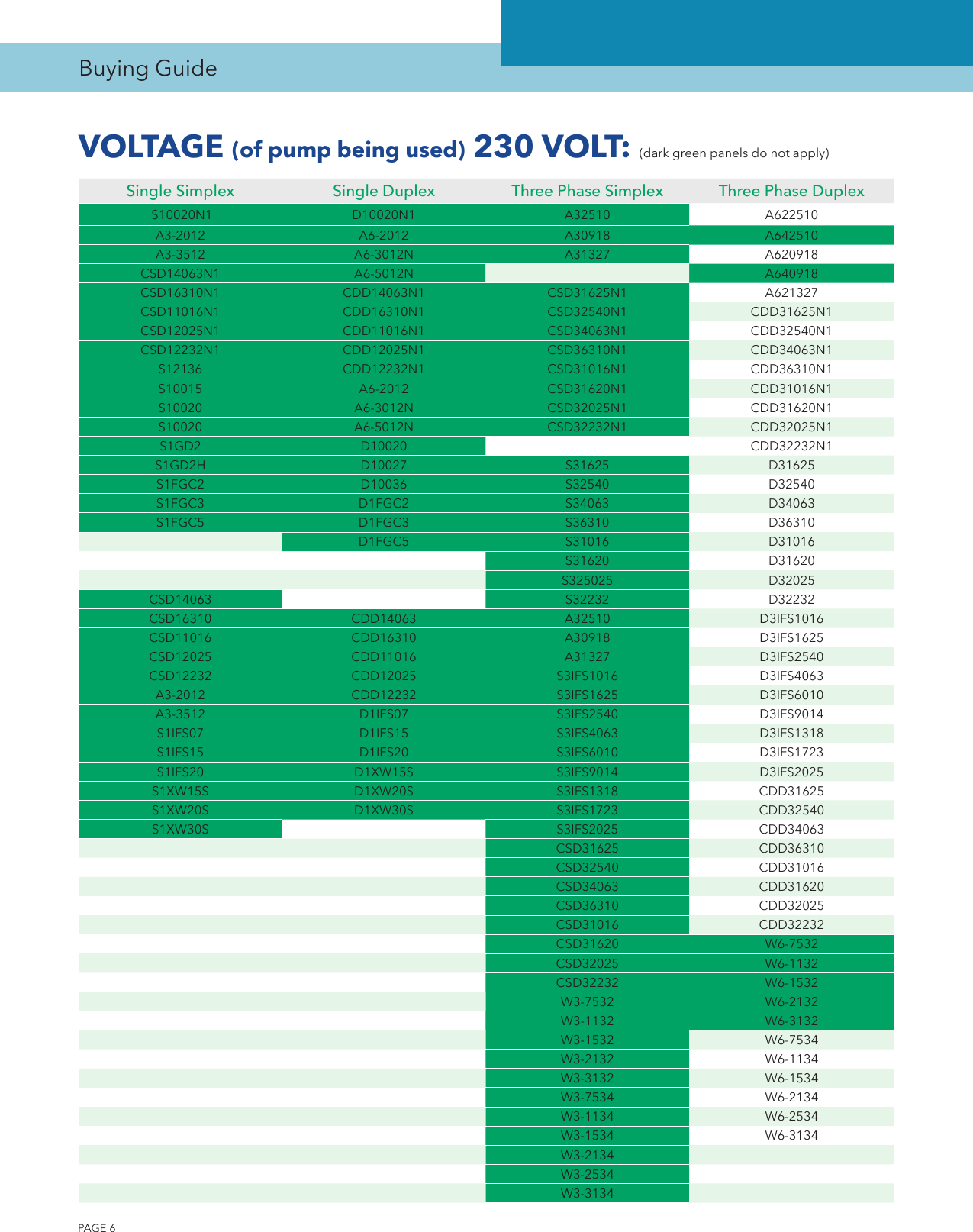

VOLTAGE (of pump being used) 230 VOLT: (dark green panels do not apply)
Single Simplex Single Duplex Three Phase Simplex Three Phase Duplex
S10020N1 D10020N1 A32510 A622510
A3-2012 A6-2012 A30918 A642510
A3-3512 A6-3012N A31327 A620918
CSD14063N1 A6-5012N A640918
CSD16310N1 CDD14063N1 CSD31625N1 A621327
CSD11016N1 CDD16310N1 CSD32540N1 CDD31625N1
CSD12025N1 CDD11016N1 CSD34063N1 CDD32540N1
CSD12232N1 CDD12025N1 CSD36310N1 CDD34063N1
S12136 CDD12232N1 CSD31016N1 CDD36310N1
S10015 A6-2012 CSD31620N1 CDD31016N1
S10020 A6-3012N CSD32025N1 CDD31620N1
S10020 A6-5012N CSD32232N1 CDD32025N1
S1GD2 D10020 CDD32232N1
S1GD2H D10027 S31625 D31625
S1FGC2 D10036 S32540 D32540
S1FGC3 D1FGC2 S34063 D34063
S1FGC5 D1FGC3 S36310 D36310
D1FGC5 S31016 D31016
S31620 D31620
S325025 D32025
CSD14063 S32232 D32232
CSD16310 CDD14063 A32510 D3IFS1016
CSD11016 CDD16310 A30918 D3IFS1625
CSD12025 CDD11016 A31327 D3IFS2540
CSD12232 CDD12025 S3IFS1016 D3IFS4063
A3-2012 CDD12232 S3IFS1625 D3IFS6010
A3-3512 D1IFS07 S3IFS2540 D3IFS9014
S1IFS07 D1IFS15 S3IFS4063 D3IFS1318
S1IFS15 D1IFS20 S3IFS6010 D3IFS1723
S1IFS20 D1XW15S S3IFS9014 D3IFS2025
S1XW15S D1XW20S S3IFS1318 CDD31625
S1XW20S D1XW30S S3IFS1723 CDD32540
S1XW30S S3IFS2025 CDD34063
CSD31625 CDD36310
CSD32540 CDD31016
CSD34063 CDD31620
CSD36310 CDD32025
CSD31016 CDD32232
CSD31620 W6-7532
CSD32025 W6-1132
CSD32232 W6-1532
W3-7532 W6-2132
W3-1132 W6-3132
W3-1532 W6-7534
W3-2132 W6-1134
W3-3132 W6-1534
W3-7534 W6-2134
W3-1134 W6-2534
W3-1534 W6-3134
W3-2134
W3-2534
W3-3134
PAGE 7
Buying Guide
AMP DRAW (of the pump model being used) OR HORSEPOWER
(of the pump being used) 3.3 AMPS OR ½ HP: (dark green panels do not apply)
Single Simplex Single Duplex Three Phase Simplex Three Phase Duplex
S10020N1 D10020N1 A32510 A622510
A3-2012 A6-2012 A30918 A642510
A3-3512 A6-3012N A31327 A620918
CSD14063N1 A6-5012N A640918
CSD16310N1 CDD14063N1 CSD31625N1 A621327
CSD11016N1 CDD16310N1 CSD32540N1 CDD31625N1
CSD12025N1 CDD11016N1 CSD34063N1 CDD32540N1
CSD12232N1 CDD12025N1 CSD36310N1 CDD34063N1
S12136 CDD12232N1 CSD31016N1 CDD36310N1
S10015 A6-2012 CSD31620N1 CDD31016N1
S10020 A6-3012N CSD32025N1 CDD31620N1
S10020 A6-5012N CSD32232N1 CDD32025N1
S1GD2 D10020 CDD32232N1
S1GD2H D10027 S31625 D31625
S1FGC2 D10036 S32540 D32540
S1FGC3 D1FGC2 S34063 D34063
S1FGC5 D1FGC3 S36310 D36310
D1FGC5 S31016 D31016
S31620 D31620
S325025 D32025
CSD14063 S32232 D32232
CSD16310 CDD14063 A32510 D3IFS1016
CSD11016 CDD16310 A30918 D3IFS1625
CSD12025 CDD11016 A31327 D3IFS2540
CSD12232 CDD12025 S3IFS1016 D3IFS4063
A3-2012 CDD12232 S3IFS1625 D3IFS6010
A3-3512 D1IFS07 S3IFS2540 D3IFS9014
S1IFS07 D1IFS15 S3IFS4063 D3IFS1318
S1IFS15 D1IFS20 S3IFS6010 D3IFS1723
S1IFS20 D1XW15S S3IFS9014 D3IFS2025
S1XW15S D1XW20S S3IFS1318 CDD31625
S1XW20S D1XW30S S3IFS1723 CDD32540
S1XW30S S3IFS2025 CDD34063
CSD31625 CDD36310
CSD32540 CDD31016
CSD34063 CDD31620
CSD36310 CDD32025
CSD31016 CDD32232
CSD31620 W6-7532
CSD32025 W6-1132
CSD32232 W6-1532
W3-7532 W6-2132
W3-1132 W6-3132
W3-1532 W6-7534
W3-2132 W6-1134
W3-3132 W6-1534
W3-7534 W6-2134
W3-1134 W6-2534
W3-1534 W6-3134
W3-2134
W3-2534
W3-3134

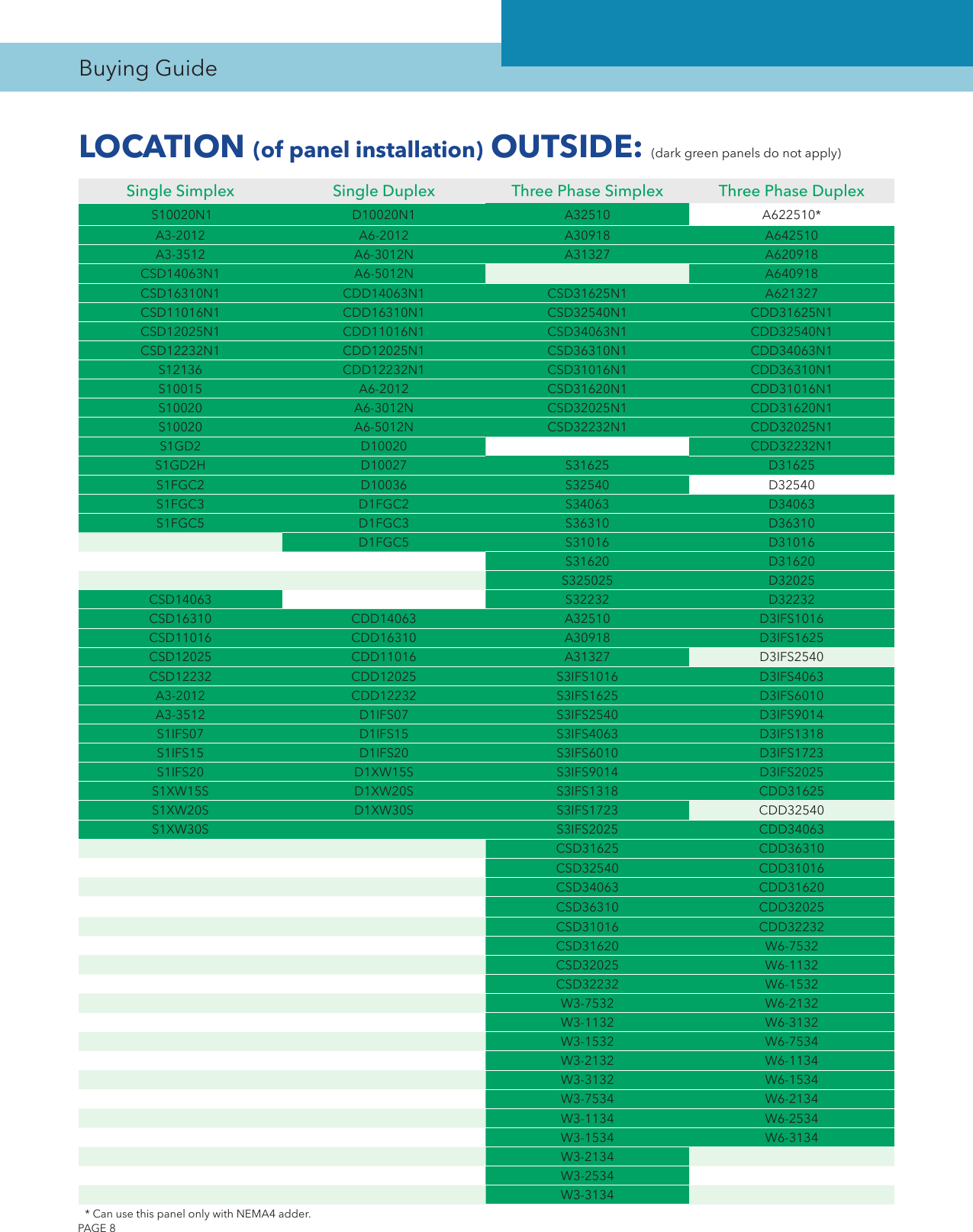

PAGE 8
Buying Guide
LOCATION (of panel installation) OUTSIDE: (dark green panels do not apply)
Single Simplex Single Duplex Three Phase Simplex Three Phase Duplex
S10020N1 D10020N1 A32510 A622510*
A3-2012 A6-2012 A30918 A642510
A3-3512 A6-3012N A31327 A620918
CSD14063N1 A6-5012N A640918
CSD16310N1 CDD14063N1 CSD31625N1 A621327
CSD11016N1 CDD16310N1 CSD32540N1 CDD31625N1
CSD12025N1 CDD11016N1 CSD34063N1 CDD32540N1
CSD12232N1 CDD12025N1 CSD36310N1 CDD34063N1
S12136 CDD12232N1 CSD31016N1 CDD36310N1
S10015 A6-2012 CSD31620N1 CDD31016N1
S10020 A6-3012N CSD32025N1 CDD31620N1
S10020 A6-5012N CSD32232N1 CDD32025N1
S1GD2 D10020 CDD32232N1
S1GD2H D10027 S31625 D31625
S1FGC2 D10036 S32540 D32540
S1FGC3 D1FGC2 S34063 D34063
S1FGC5 D1FGC3 S36310 D36310
D1FGC5 S31016 D31016
S31620 D31620
S325025 D32025
CSD14063 S32232 D32232
CSD16310 CDD14063 A32510 D3IFS1016
CSD11016 CDD16310 A30918 D3IFS1625
CSD12025 CDD11016 A31327 D3IFS2540
CSD12232 CDD12025 S3IFS1016 D3IFS4063
A3-2012 CDD12232 S3IFS1625 D3IFS6010
A3-3512 D1IFS07 S3IFS2540 D3IFS9014
S1IFS07 D1IFS15 S3IFS4063 D3IFS1318
S1IFS15 D1IFS20 S3IFS6010 D3IFS1723
S1IFS20 D1XW15S S3IFS9014 D3IFS2025
S1XW15S D1XW20S S3IFS1318 CDD31625
S1XW20S D1XW30S S3IFS1723 CDD32540
S1XW30S S3IFS2025 CDD34063
CSD31625 CDD36310
CSD32540 CDD31016
CSD34063 CDD31620
CSD36310 CDD32025
CSD31016 CDD32232
CSD31620 W6-7532
CSD32025 W6-1132
CSD32232 W6-1532
W3-7532 W6-2132
W3-1132 W6-3132
W3-1532 W6-7534
W3-2132 W6-1134
W3-3132 W6-1534
W3-7534 W6-2134
W3-1134 W6-2534
W3-1534 W6-3134
W3-2134
W3-2534
W3-3134
* Can use this panel only with NEMA4 adder.
PAGE 9
Buying Guide

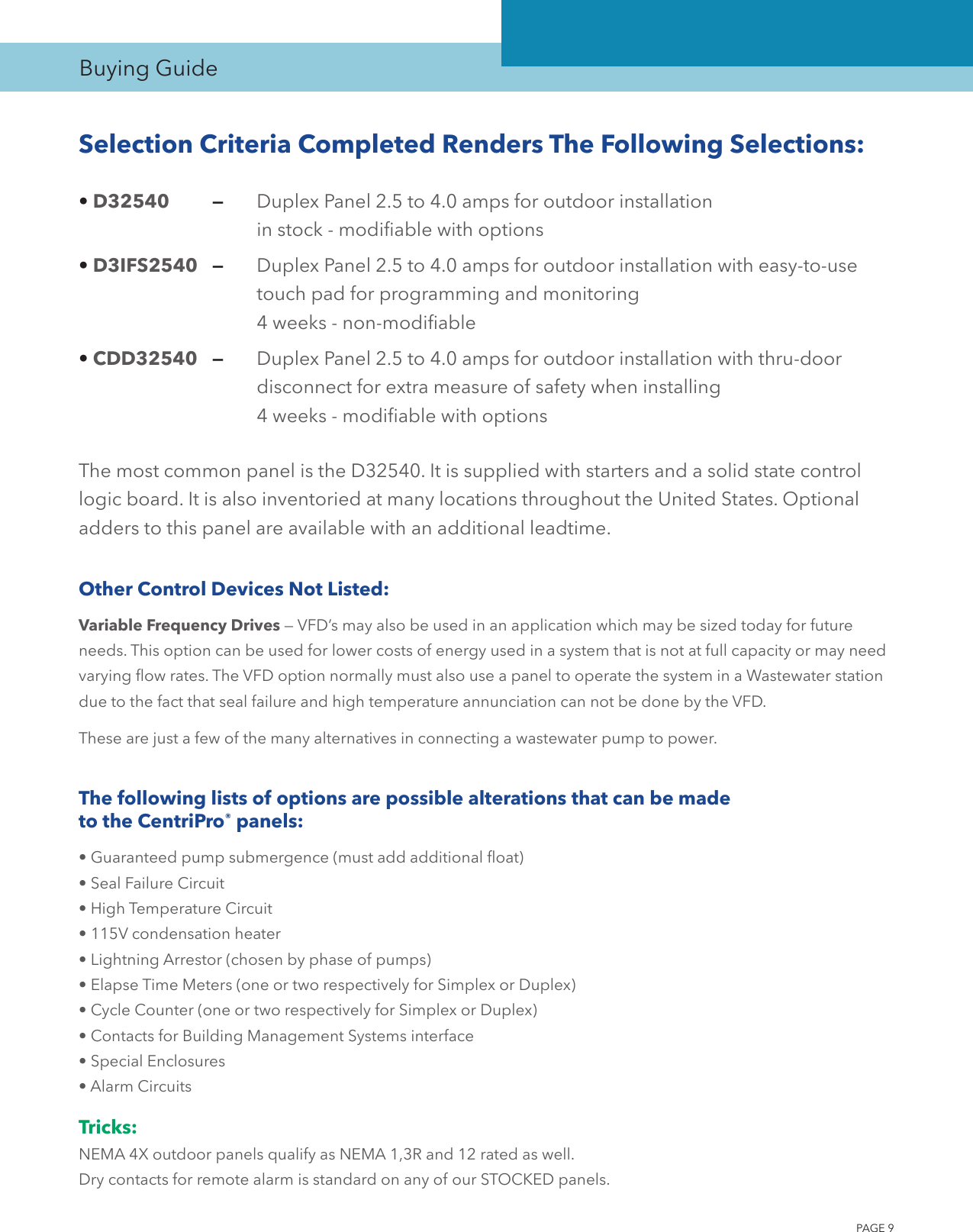

Selection Criteria Completed Renders The Following Selections:
• D32540 — Duplex Panel 2.5 to 4.0 amps for outdoor installation
in stock - modifiable with options
• D3IFS2540 — Duplex Panel 2.5 to 4.0 amps for outdoor installation with easy-to-use
touch pad for programming and monitoring
4 weeks - non-modifiable
• CDD32540 — Duplex Panel 2.5 to 4.0 amps for outdoor installation with thru-door
disconnect for extra measure of safety when installing
4 weeks - modifiable with options
The most common panel is the D32540. It is supplied with starters and a solid state control
logic board. It is also inventoried at many locations throughout the United States. Optional
adders to this panel are available with an additional leadtime.
Other Control Devices Not Listed:
Variable Frequency Drives — VFD’s may also be used in an application which may be sized today for future
needs. This option can be used for lower costs of energy used in a system that is not at full capacity or may need
varying flow rates. The VFD option normally must also use a panel to operate the system in a Wastewater station
due to the fact that seal failure and high temperature annunciation can not be done by the VFD.
These are just a few of the many alternatives in connecting a wastewater pump to power.
The following lists of options are possible alterations that can be made
to the CentriPro® panels:
• Guaranteed pump submergence (must add additional float)
• Seal Failure Circuit
• High Temperature Circuit
• 115V condensation heater
• Lightning Arrestor (chosen by phase of pumps)
• Elapse Time Meters (one or two respectively for Simplex or Duplex)
• Cycle Counter (one or two respectively for Simplex or Duplex)
• Contacts for Building Management Systems interface
• Special Enclosures
• Alarm Circuits
Tricks:
NEMA 4X outdoor panels qualify as NEMA 1,3R and 12 rated as well.
Dry contacts for remote alarm is standard on any of our STOCKED panels.
PAGE 10
Buying Guide
Notes

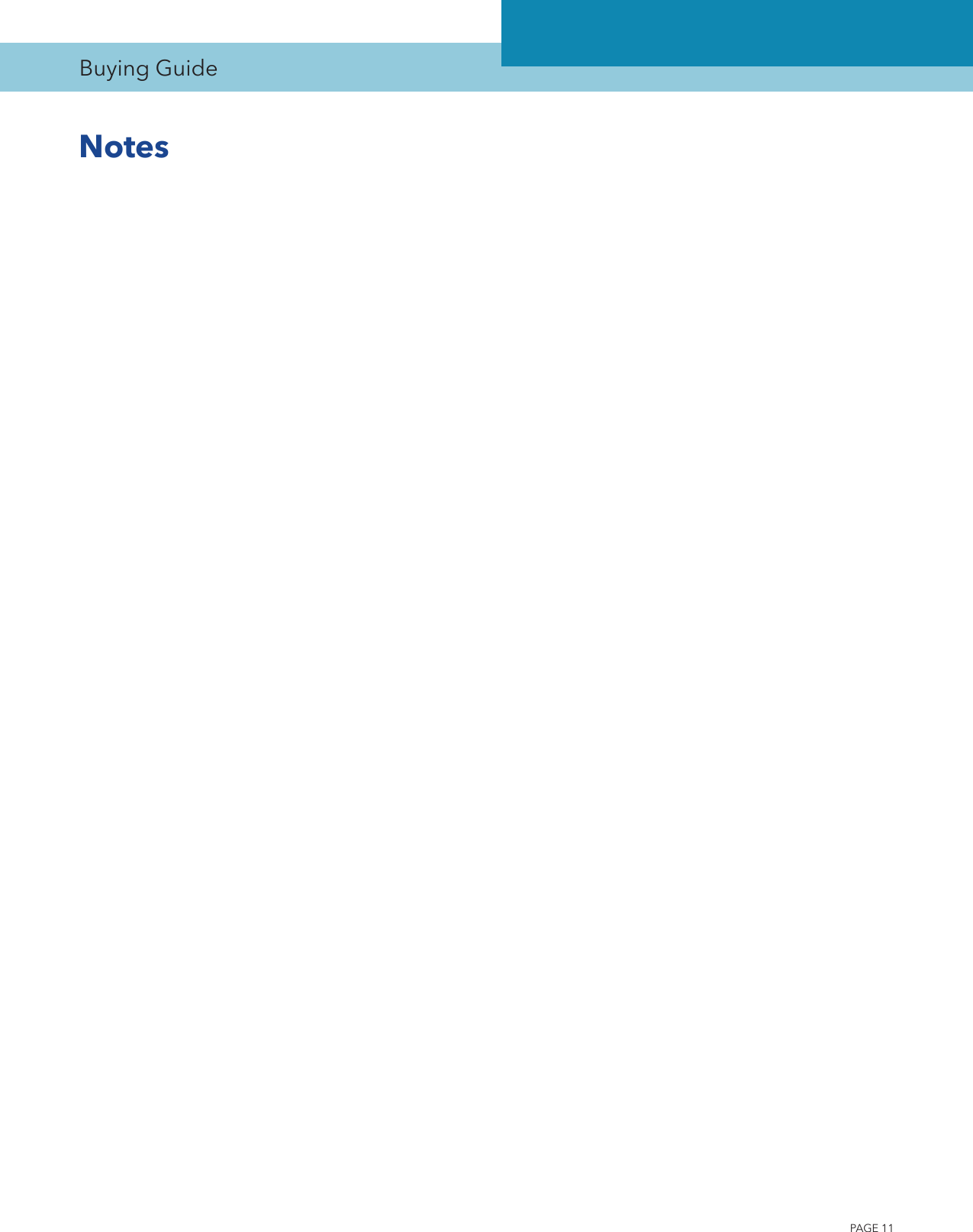

PAGE 11
Buying Guide
Notes

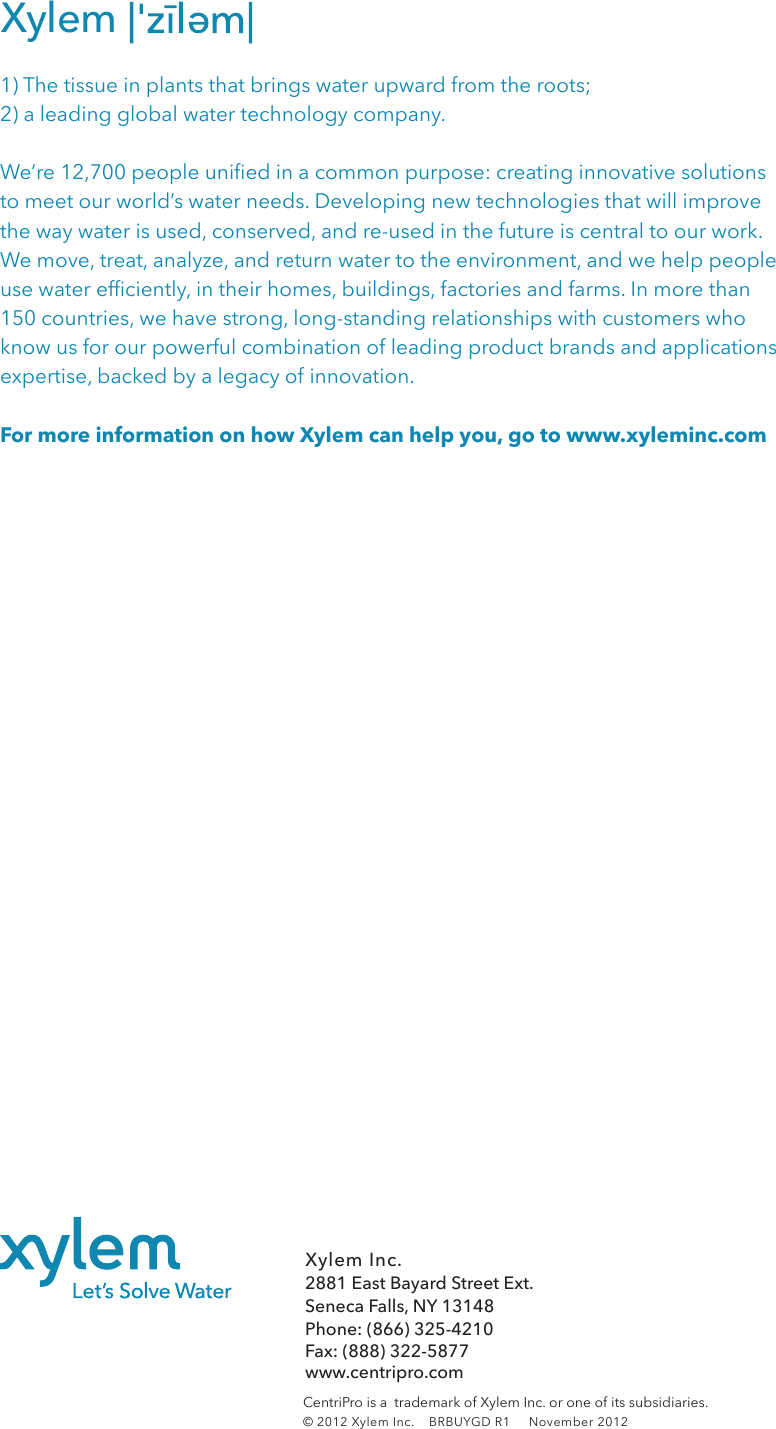

CentriPro is a trademark of Xylem Inc. or one of its subsidiaries.
© 2012 Xylem Inc. BRBUYGD R1 November 2012
Xylem Inc.
2881 East Bayard Street Ext.
Seneca Falls, NY 13148
Phone: (866) 325-4210
Fax: (888) 322-5877
www.centripro.com
1) The tissue in plants that brings water upward from the roots;
2) a leading global water technology company.
We’re 12,700 people unied in a common purpose: creating innovative solutions
to meet our world’s water needs. Developing new technologies that will improve
the way water is used, conserved, and re-used in the future is central to our work.
We move, treat, analyze, and return water to the environment, and we help people
use water efciently, in their homes, buildings, factories and farms. In more than
150 countries, we have strong, long-standing relationships with customers who
know us for our powerful combination of leading product brands and applications
expertise, backed by a legacy of innovation.
For more information on how Xylem can help you, go to www.xyleminc.com
Xylem
