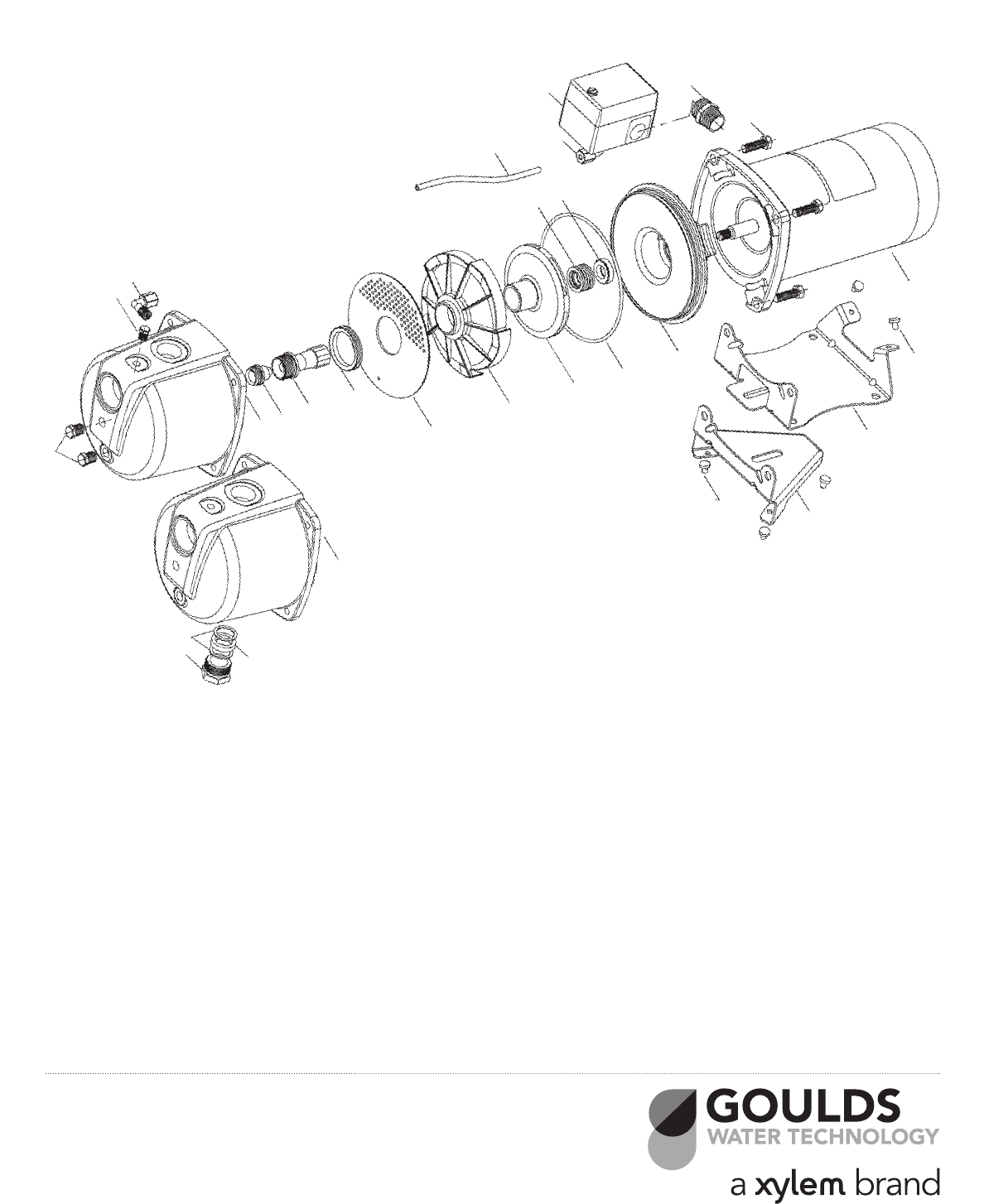

JRS REPAIR PARTS
REPAIR PARTS
RJRS R1
Item Part Description Material Repair Part No.
No. JRS5 JRS5H JRS5LT JRS7 JRS10
1 Drain plug 1⁄4" NPT Steel 6K2
2 Vent plug 1⁄8" NPT Steel 6K1
3 Elbow connector – tubing Polypropylene 6K94
4 Casing Cast iron 1K342 1K382 1K342
5 Nozzle Delrin® AN018 AN020 AN018
6 Venturi tube Lexan® AD3330 AD3325 AD3330 AD3336 AD3339
7 Separator plate seal ring BUNA-N 5K323
8 Separator plate Polypropylene 5K253
9 Diffuser (guidevane) Lexan® 3K64 3K65
10 Impeller Noryl® 2K900 2K901 2K902
11 O-ring BUNA 5K230
12 Mechanical seal – Rotary Teepelite 10K10
13 Mechanical seal – Stationary Ceramic
14 Seal housing Amodel® 1K366
15 Connector with locknut Steel 6K24
16 Pressure switch NA AS4
17 Tubing – pressure switch Polypropylene 6K92 6K101 6K108
18 Motor Stainless steel shaft SFJ04860 SFJ05860 SFJ06860
19 Hex cap screw Steel 13K80
20 Grommet – base BUNA 4K405
21 Base – JRS5, JRS7, JRS10 (off tank) Steel 4K399 4K449 4K399
Tank base – JRS5LT (on tank model)
22 Discharge gland washers (pkg 2) N-8090 – 5K10 –
23 Discharge gland packing BUNA – 5K8 –
24 Dis. gland nut assembly (includes 22 & 23) Brass – 4K12 –
Goulds is a registered trademark of Goulds Pumps, Inc. and is used under license.
© 2012 Xylem Inc. RJRS R1 August 2012
Xylem Inc.
2881 East Bayard Street Ext., Suite A, Seneca Falls, NY 13148
Phone: (866) 325-4210 Fax: (888) 322-5877
www.xyleminc.com/brands/gouldswatertechnology
JRS5LT
1
23
4
567
8
910
4
11
12 13
14
15
16
17
18
19
20
3
20 21
21
22
23
24
