Open the PDF directly: View PDF .
Page Count: 12

BRCPVFD R2

Variable Speed and

Soft Start Product Line

Variable Speed

Product Line

Since 1997, CentriPro has been providing variable speed pump control solutions

to its customers. The rst product was the AQUAVAR® variable speed controller.

Today, the AQUAVAR controls family offers a wide range of capabilities for

the variable speed pump control market. Our philosophy has not changed: To

provide quality, variety and systems solutions for our pump customers.

2

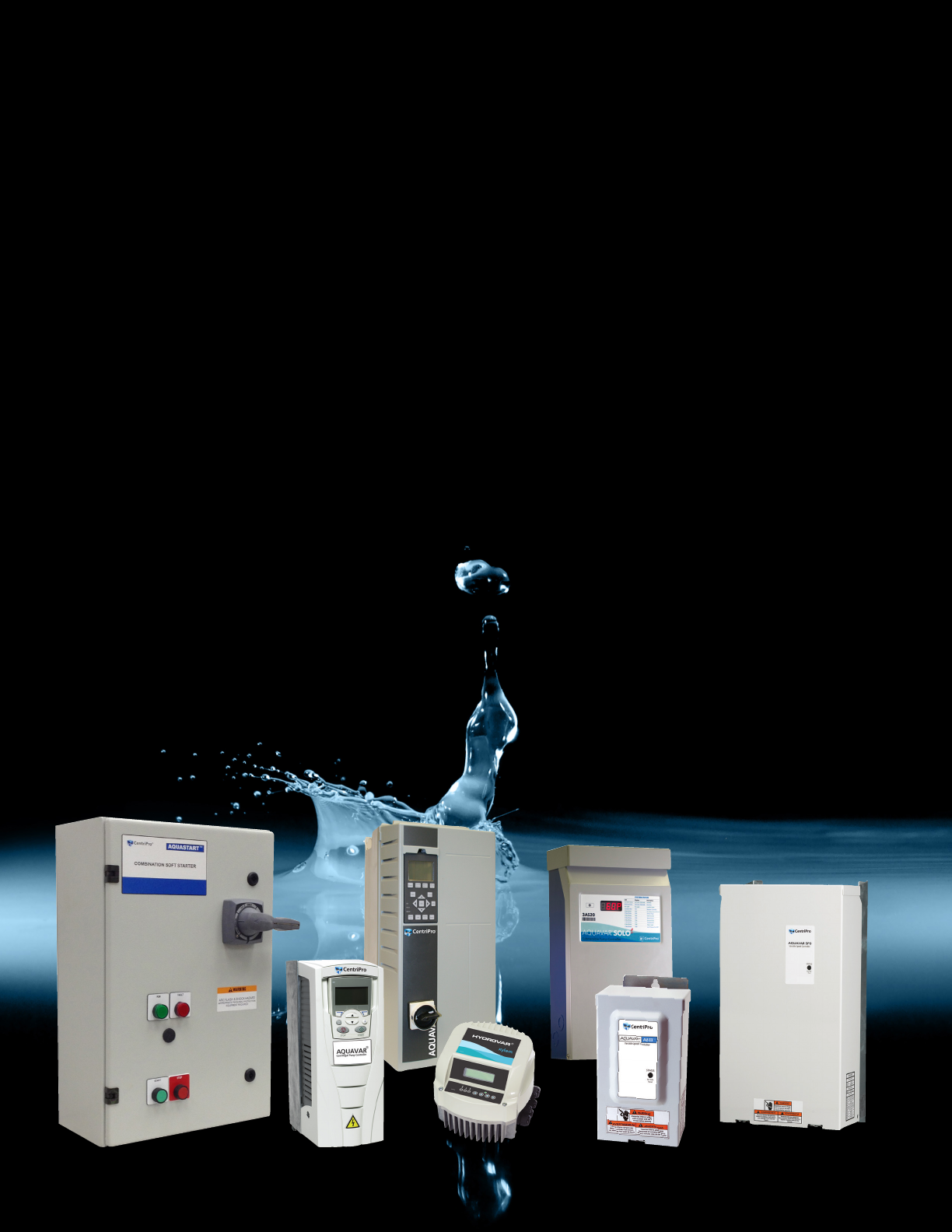

Our variable speed products include the following:

APPLICATIONS

Designed to provide variable frequency pumping

control of speed, pressure, ow and level over a wide

range of submersible and above ground applications.

FEATURES

• Input Supply: 1Ø Input 208-230 volt 1.5 - 30 HP

3Ø Input 208-230 volt 1.5 - 60 HP

3Ø Input 380-460 volt 1.5 - 125 HP

3Ø Input 575 volt 1.5 – 125 HP

• Three phase output to motor

• Wall mounted with fan cooling

• Ambient temperatures up to 113º F (Up to 122º F with 10%

derate)

• Indoor Enclosures to meet IP20 Open, UL TYPE 1, UL TYPE

12

• Outdoor enclosures to meet UL TYPE 3R and UL TYPE 4X

• Removable, graphical control panel with display

• Fully backlit display with large text makes the control pad

easy to read

• Alarm Log key for quick access to last 5 alarms and

maintenance events

• My Personal Menu allows user to focus on specic user

selected and saved Parameters

• USB Connectivity – Remotely commission and monitor

through PC Software

• Duplex variable speed pumping control with auto lead/lag

and alternate

• Capable of controlling up to 2 xed speed lag pumps, with

one standard drive

• Hand on, Auto on, and Off buttons for easy pump operation

at the keypad

– No toggling between local and remote operation

• Modbus® RTU, included in standard drive – Other

communications available with option cards

• Standard dual DC-link reactors – Reduces the level of

harmonics similar to a 5% AC line reactor without the

voltage drop across the full load range

• EMC/RFI lters designed to reduce drive noise emissions

and interference to strict standards

YOUR WISH IS AQUAVAR’S COMMAND!

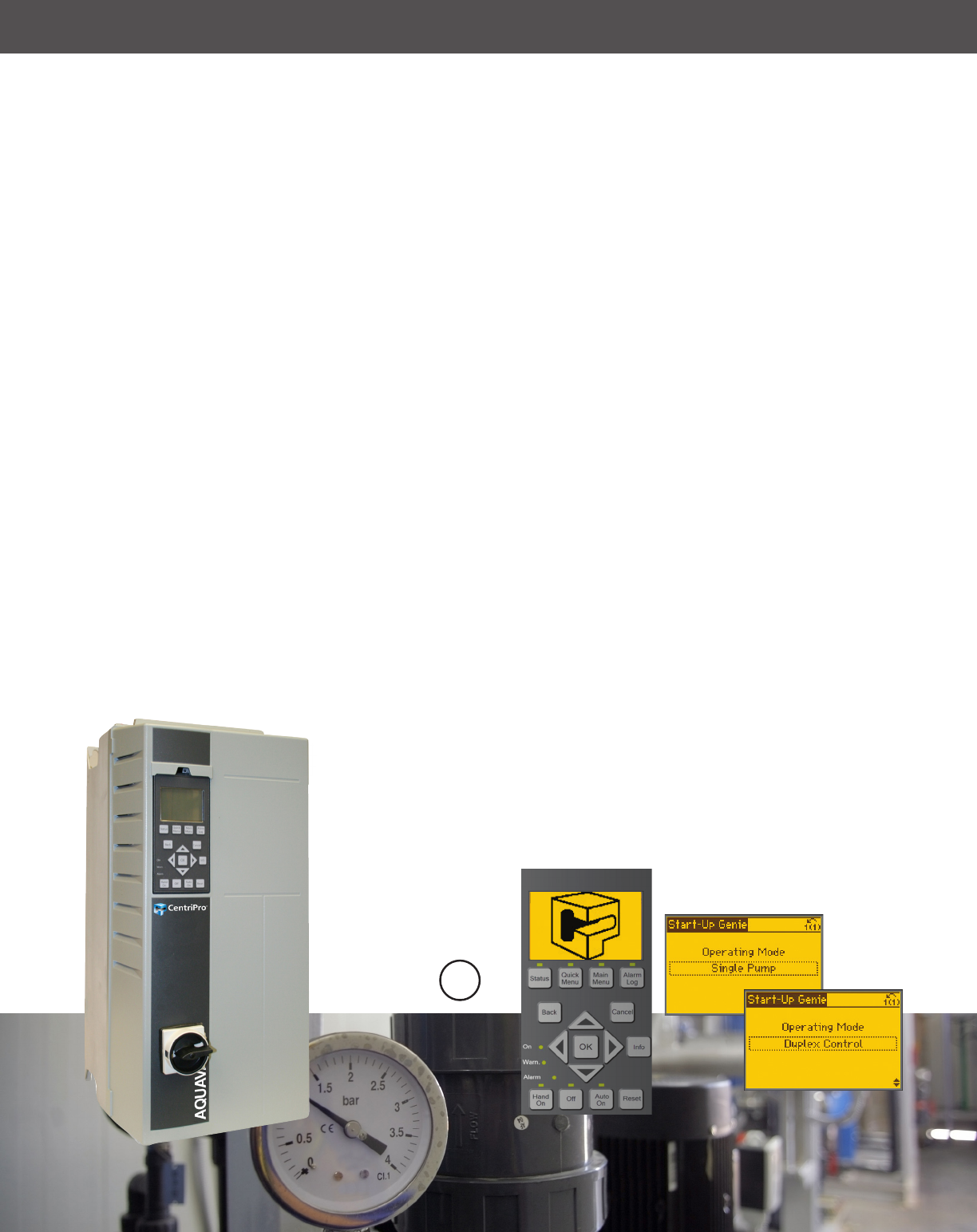

The proprietary CentriPro Start-Up Genie guides you through

quick and easy commissioning. Take advantage of the

complete Genie with 10 sections to congure applications

with pump protections, I/O options, and Duplex operation,

or for the more straightforward applications just set your

motor information, operation mode and “Autoset” the rest of

the parameters. With support for the most common control

congurations, the Genie reduces set-up and conguration

time to about 15 minutes!

3

1 AQUAVAR

®

IPC

The Aquavar® Intelligent Pump Controller from CentriPro utilizes an all new Aquavar platform,

and combines it with over 20 years of variable speed pumping experience.

UL

®

USC

4

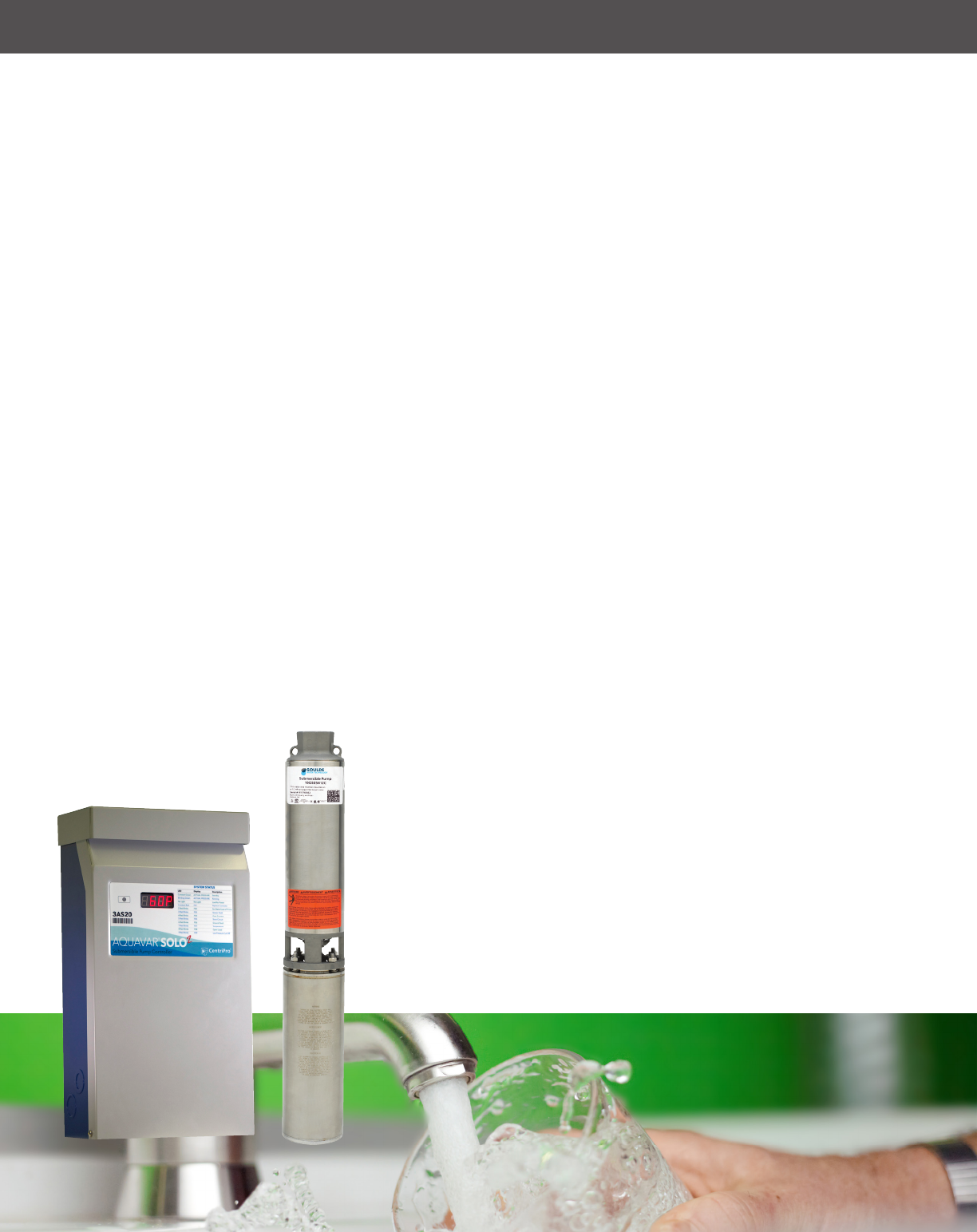

2 AQUAVAR SOLO2

The Aquavar Solo is a variable speed, constant pressure controller designed for submersible

well pumps! The controller monitors pressure and adjusts pump speed to maintain a constant

pressure. Retrot a conventional system into a premium constant pressure system using the

Aquavar Solo controller.

APPLICATIONS

For residential, irrigation, and greenhouse applications.

FEATURES

• Input Supply: 1Ø Input 208-230 volt

• Single phase output to motor for ½ - 2 HP motors

• Three phase output to motor for ¾ - 5 HP motors

• Wall mounted with fan cooling

• Provides motor protection on long motor leads.

• Ambient temperatures up to 122º F

• Auto cooling fan with lter

• Outdoor rated painted steel enclosure, NEMA 3R

• LED display clearly indicates actual system pressure, output

frequency, current draw and error log.

• Flashing LED for troubleshooting and status.

• Easy to adjust pressure control pushbuttons.

• More room for easy cable/wire connections

• Larger wiring terminals

• Dual system set points for advanced system application.

• Programmable output relay can be congured to run

optional accessories such as a chlorinator, or link to a home

monitoring system.

• Adjustable current overload protection to match motor

Service Factor SFA.

• Built-in power surge protection

• Includes pressure sensor and shielded cable.

• The Aquavar Solo2 controllers and GS stainless steel

submersible pumps are now available in convenient ProPak

kits.

APPLICATIONS

Low water pressure applicaitons

Domestic and light commercial applications

Homes with multiple showers/baths

Irrigation

FEATURES

• Input Supply: 1Ø Input 115 volt 1 HP

1Ø Input 208-230 volt 1 - 5 HP

• Three phase output to motor, 208 – 230 volt, ±10%

• Wall mounted with convection air cooling

• Maximum ambient temperature 104º F

• Outdoor rated, NEMA 3R enclosure, rain-tight

• Signal lights for pump running, faults, stopped

• Self-diagnostic, plug-in display not needed

• Field setting for booster pumps

• Simple and quick installation

• Pressure factory set for 50 psi

• Field programmable pressure setting up to 80 psi,

packaged system

• FCC compliant for interference

• UL, CUL, CE approvals

• Flows up to 110 GPM, with 5 HP pump

*Tank not available on all package systems.

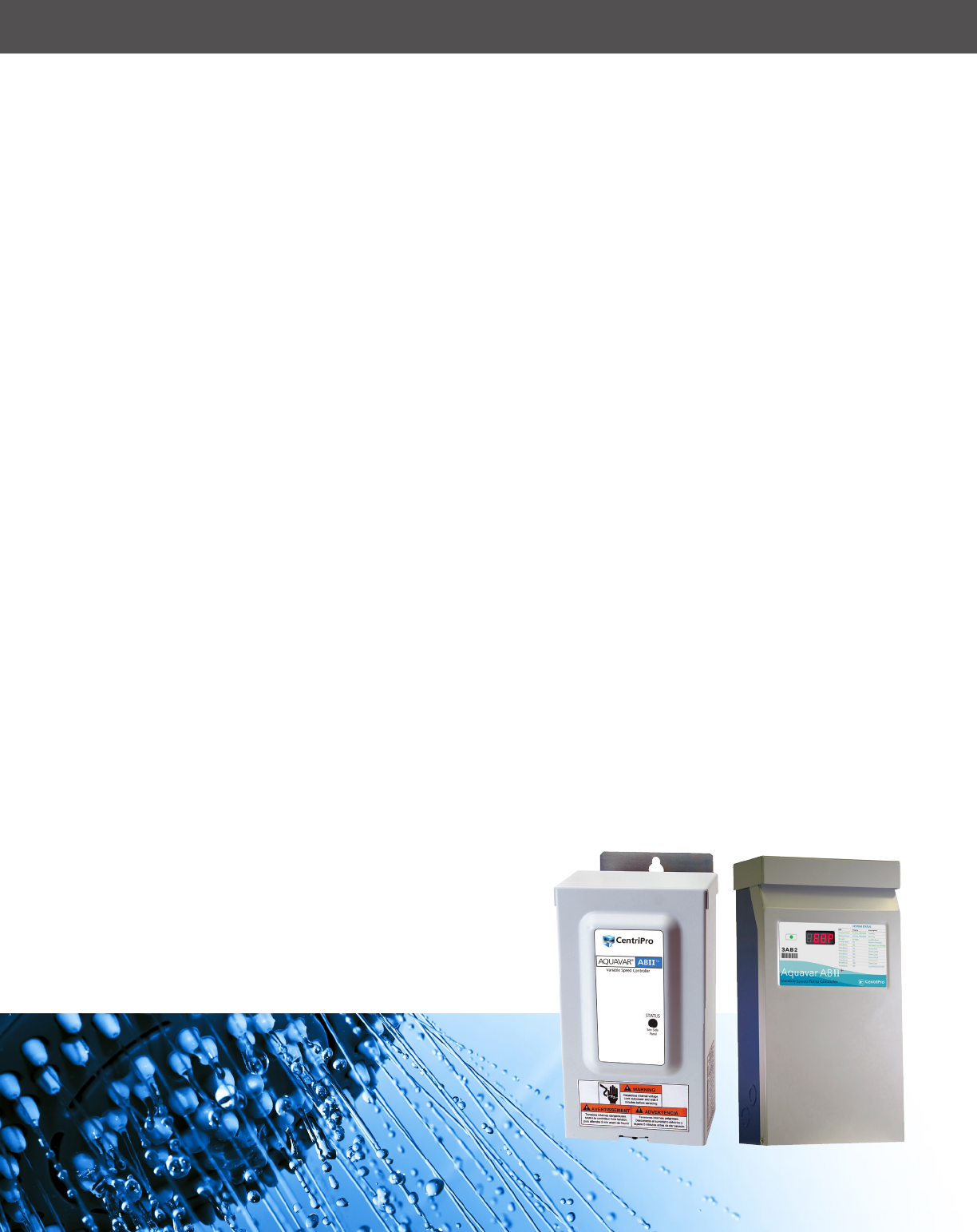

3 AQUAVAR

®

ABII

Pre-packaged system that includes: pump/motor, pressure tank*, pressure transducer, piping

tee, pressure gauge, wiring with exible conduit. Self diagnostic variable speed controller is the

next generation of constant pressure. Sold as stand alone unit or with packaged system.

5

APPLICATIONS

Water pumps serving commercial buildings.

Pressure boosting for light industry, wash

systems, ltration.

Rural water and municipal systems.

Groundwater/Irrigation

FEATURES

• Input Supply: 1Ø Input 208-230 volt 2 - 15 HP

3Ø Input 208-230 volt 5 - 30 HP

3Ø Input 380-460 volt 5 - 30 HP

• Dual Phase Input → The same drive can be used for either

three phase or single phase input (de-rated).

• Three phase output to motor

• True Motor Match → Rated for the higher amps typical of

higher HP submersible pumps.

• Wall mounted with fan cooling

• With Filter → for Submersible applications with long wire

runs.

• Without Filter → for Surface Mount Systems with short wire

runs.

• Filter Pack → Available with output lter rated to 1000 feet

of motor lead. Programming is pre-set to 30 Hz minimum

speed.

• NEMA 3R → Outdoor rated enclosure. Operating

temperature -22º F to 122º F!

• Easy Set-up → Pre-set for submersible or surface motor

characteristics. No complicated menus or programming,

total set up time is less than 30 minutes.

• Hand/Auto Option → Allows the drive to be run at full speed

without a pressure transducer for longer periods of time as

in the case of new well development or system start up.

6

4 AQUAVAR SPD™

• Pressure Drop → The reaction time of the drive to pressure

drops can be adjusted from the typical 5 PSI drop to as much

as 20 PSI.

• Dual Set Point → May be programmed with two pressure set

points. An external contact such as a timer can be used to

change between them.

• Remote on/off → Permits external control by timers

(irrigation), oat or pressure switches (tank draining) or

manual control. Dry contact closure required.

• Remote Monitoring → External monitors may be connected

to the drive for monitoring pump running speed (4-20 mA

output based on speed), pump on, and system fault. The

4-20 mA output can be utilized for functions such as an

external dosing system, chlorine injection and auto dialer

fault indication.

• Full Diagnostics → Full range of pump protection features

such as bound pump or motor shut down, low water or loss

of prime shut down.

• No Water Restart → The time delay between “dry well” faults

is adjustable from 10 minutes to 2 hours.

• Pressure Transducer → 316 SS, 17-4 PH stainless steel, ¼“

NPT connection, shielded two wire cable, 0 – 300 PSI range.

Included with drive. It is pre-wired and tested.

APPLICATIONS

Specically designed for single or multipump systems

in any submersible or above ground application.

FEATURES

• Input Supply: 1Ø Input 208-230 volt 1 - 50 HP

3Ø Input 208-230 volt 1 - 100 HP

3Ø Input 380-460 volt 3 - 550 HP

3Ø Input 575 volt 2 – 150 HP

• Output: 3 phase 380 V to 480 V +10%/-15%

1 phase 208 V to 240 V +10%/-15%

3 phase 208 V to 240 V +10%/-15%

3 phase 575 V +10%/-15%

Frequency 48 to 63 Hz

.98 power factor

• Three phase output to motor

• Wall or oor mounted with fan cooling

• Ambient temperatures up to 104º F (Up to 122º F with

10% derate)

• NEMA 1 standard design (indoor), with NEMA 12

enclosures available.

• Help text and programming “Wizards” to assist with set up.

• Multi-Pump without additional PLC’s or controls. Automatic

Lead-lag and alternation up to four (4) Aquavar controlled

pumps.

• Compatible with some older model Aquavars for existing

multi-pump applications.

• Control: Analog input control (4 – 20mA) control based on

pressure, ow, level or differential pressure.

• Dual pressure control with programmable differential

pressure starting.

• Fixed speed control relays. Control up to three xed speed

pumps with one Aquavar CPC with programmable relays

(additional motor starters required).

• Pump protection built in! Protects based on RUN-DRY,

“DEAD-HEADING”, CAVITATION and “RUN-OUT”

conditions.

• Motor protection built in! Protects based on

OVERCURRENT, OVER/UNDER VOLTAGE, PHASE LOSS,

SHORT CIRCUIT, GROUND FAULT, OVERTEMPERATURE.

• MODBUS® compatible. MODBUS is standard protocol with

SCADA networks.

• Built-in line choke. Similar to a line reactor, it provides the

equivalent of 3% impedance against transient voltage

spikes and surges. Reduces harmonic distortion.

• EMC/RFI lters reduce drive noise interference and

emissions.

• Pressure Transducer: 316 SS, 17-4 PH stainless steel, ¼“

NPT connection, shielded two wire cable, 0 – 300 PSI range.

Included with drive.

• UL, CUL, CE approvals.

• Preventative maintenance reminders.

7

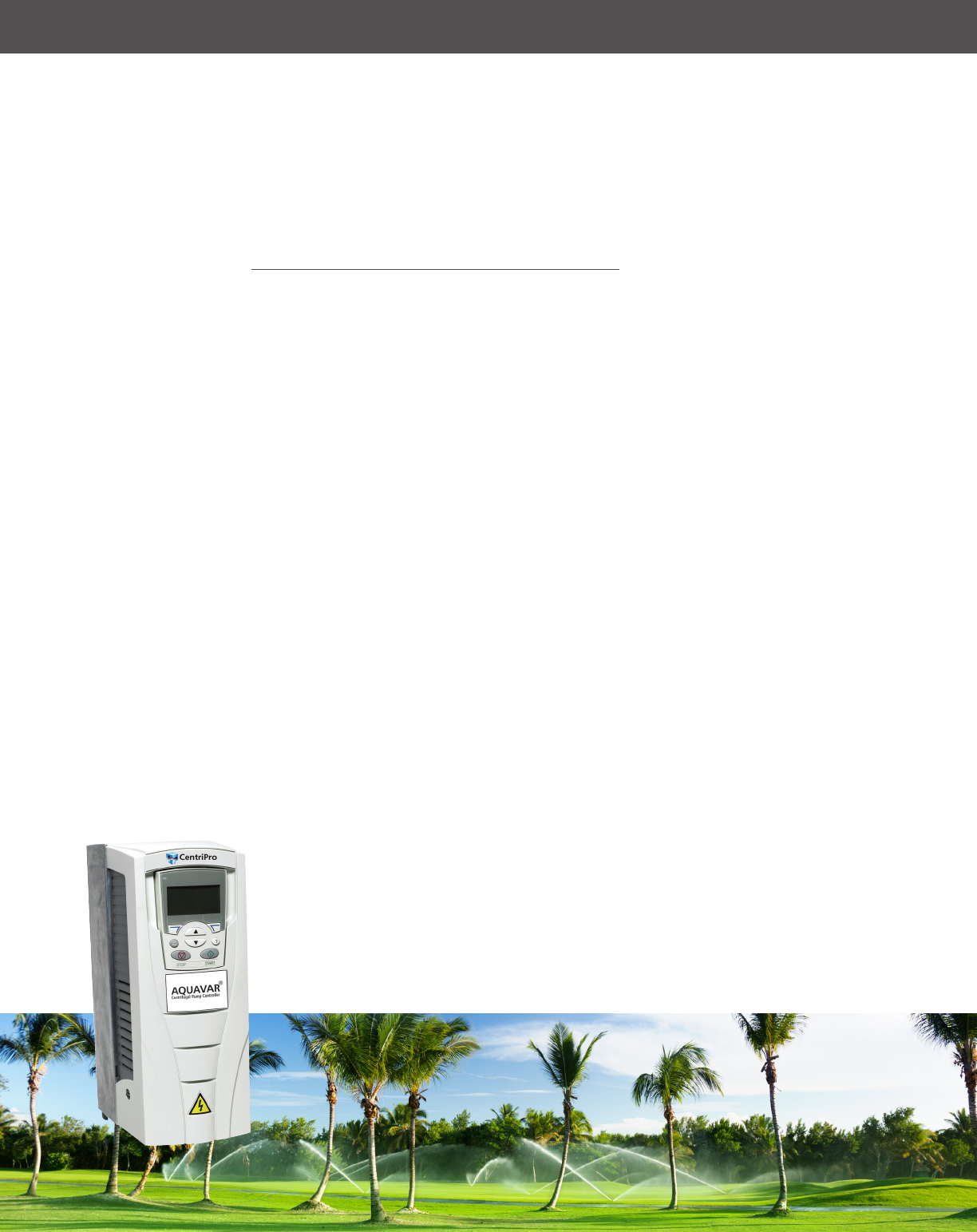

5 AQUAVAR® CPC

The Aquavar CPC is offered in a wall or oor mounted design up to 550 HP, 460 volt*, single

phase input up to 50 HP, 208-230 volt and three phase 208-230 volt up to 100 HP*! The latest

software provides more versatility and exibility with centrifugal pump applications than ever

before! With all the available Aquavar Products, CentriPro provides the pump professional with

more options for a complete variable speed pumping system.

APPLICATIONS

Designed for centrifugal pump systems requiring

constant pressure, ow control or differential pressure

in commercial and municipal applications.

FEATURES

• Input Supply: 1Ø Input 230 volt 2 - 3 HP

3Ø Input 460 volt 3 - 15 HP

• Three Phase, 460V, 3 HP to 15 HP (380 – 460V ± 15%,

40 – 70 Hz)

• Motor Requirements: 3 phase, TEFC, 208 – 230V or 460V, 0

– 60 HZ, Class F insulation, NEMA design A or B

• Motor mount to fan cover of TEFC motor for a packaged

unit with a small footprint

• Maximum ambient temperature 104º F.

• Indoor enclosure: NEMA 4, IP 55. Avoid excessive dust,

corrosives, salts and direct sunlight.

• Display: Two line LCD display. Easy to read pump language,

pump on, system pressure, fault codes and system

conditions are displayed.

• Control up to 8 pumps in parallel

• Control: Analog input control (4 – 20mA) two point control

®

CUS

based on pressure, ow or differential pressure.

• Alternate Input: Up to two transducers may be used with

each controller. These may be pressure, ow, differential

pressure, temperature or other 4 – 20mA signals.

• Remote start/stop via switch input (low water, low pressure,

etc.) and emergency stop.

• Dry relay contacts available for pump run and fault.

• Protection: Over/Under voltage, motor overload, short

circuit, ground fault, programmable no/low ow shut-down,

low suction pressure, pump run-out.

• MODBUS® compatible. MODBUS is standard protocol with

SCADA networks.

• Pressure Transducer: 316 SS, 17-4 PH stainless steel, ¼“

NPT connection, shielded two wire cable, 0 – 300 PSI range.

Included with drive.

Pump Mounted

Variable Speed

Controller

6 HYDROVAR®

The HYDROVAR Pump controller is a combination of a variable frequency drive (VFD) and

a PLC for pump mounted applications. Controllers are specically designed to work with all

congurations of centrifugal pumps, matching pump output to varying system conditions while

protecting the pump, the motor and the pumping system.

8

99

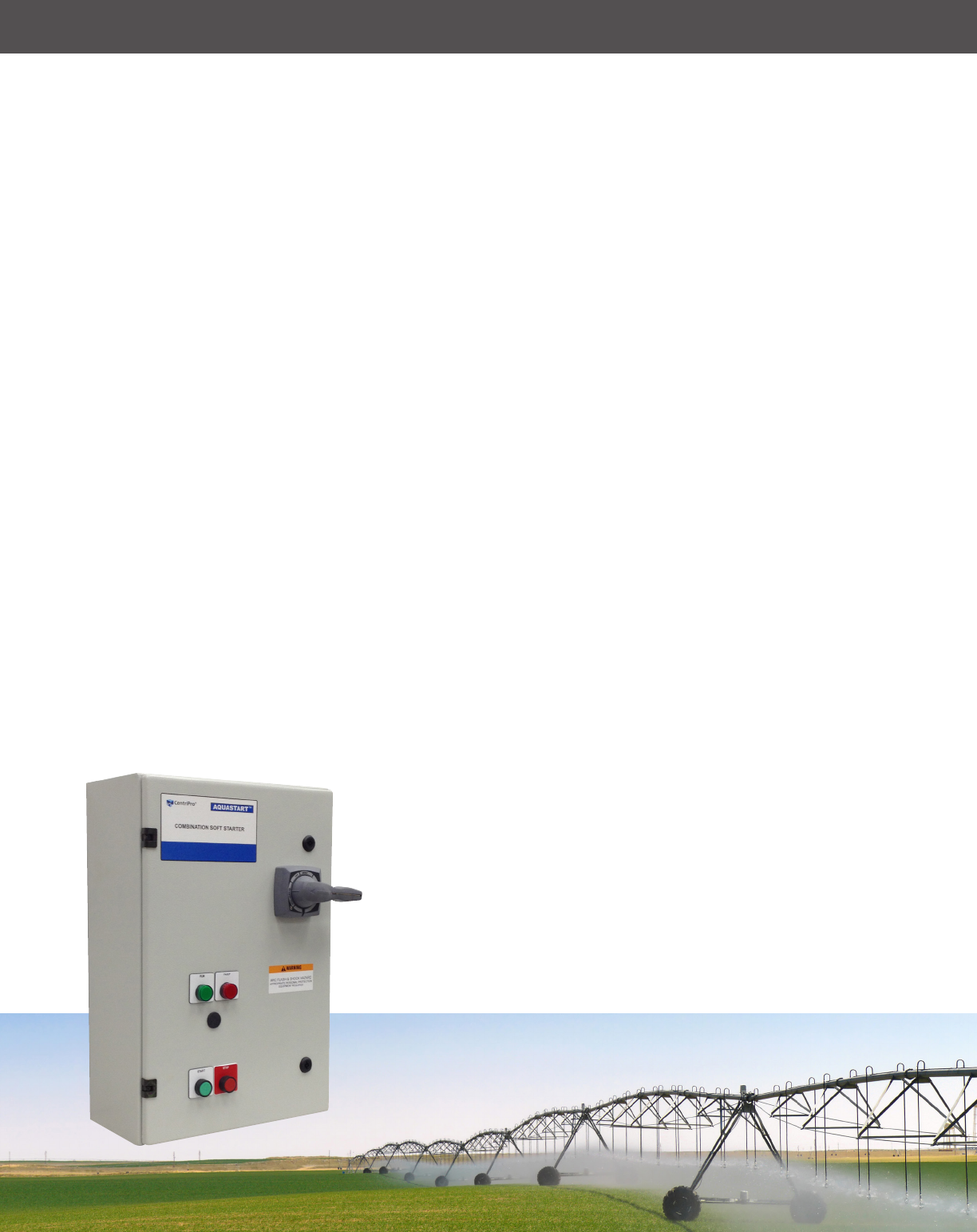

7 AQUASTART COMBINATION SOFT STARTERS

AquaStart is a combination soft starter that allows easy installation with factory pre-set pump

parameters. It is designed to work directly with centrifugal and submersible pumps with ease of

installation. AquaStart utilizes Thermal Image Motor Protection (TIMP) to get the highest level of

motor performance while fully protecting the motor for longer life.

APPLICATIONS

AquaStart offers enhanced motor and system

protection for irrigation, commercial and industrial

pumping applications.

FEATURES

• Input Supply: 3Ø Input 208-230 volt 5 - 175 HP

3Ø Input 380 volt 10 - 200 HP

3Ø Input 460 volt 10 - 200 HP

3Ø Input 575 volt 15 – 200 HP

• Three phase output to motor

• Wall-mounted enclosure - Frames A-D

• Floor mount kit for Frame Size E

• Maximum ambient temperature 131º F

• Standard NEMA 4 outdoor rated enclosures

• Built-in fusible disconnect

• Optional keypad control available

• Standard, built-in AC1 Run Rated Bypass, between start

and stop

• AC3 Bypass Contactor and DOL selector switch as option

(allows user to bypass SSW-07 for DOL start and stop)

• 3 programmable inputs (120V)

• 2 relay outputs with NO contacts

• 240V, 11A programmable output

• Adjustable current, ramp time and voltage overloads

• Protection from: – Excess starting time – Locked rotor–

Current imbalance– Phase loss– Over / under current–

Under voltage

• cULus Certied, CE available as option.

10

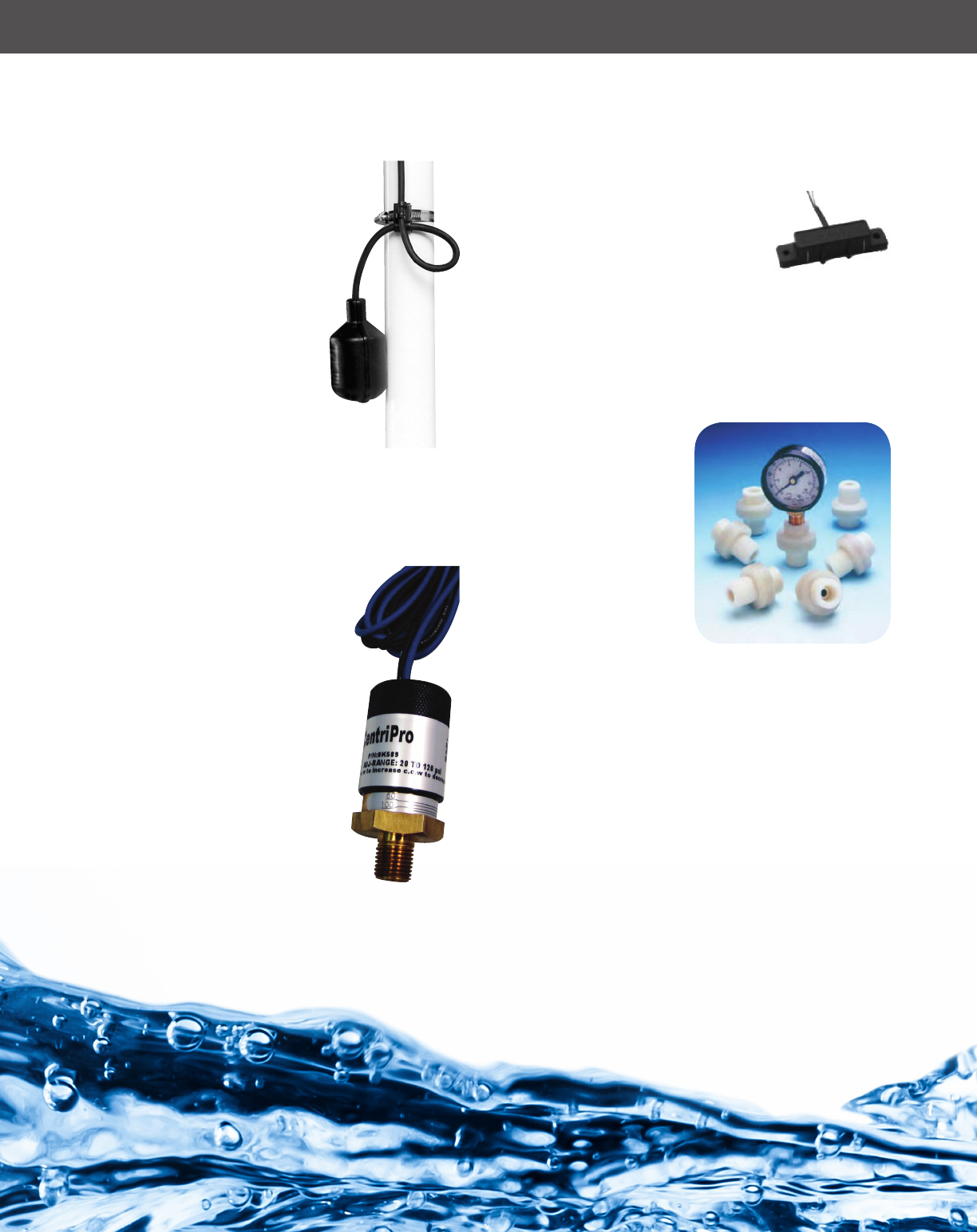

FLOAT SWITCHES

• Gold plated contacts for low

current applications

• Operates on a 45º differential,

above or below horizontal

• Includes a mounting clamp for

attaching to pipe (as shown)

• Not sensitive to rotation

• 18 gauge, 2 conductor wire

• Maximum submergence is 30’

• Maximum water temperature 140º F

• Polypropylene oat housing is impact and corrosion

resistant

9K589 – OVER PRESSURE SWITCH

• Range scale from 60 - 120 PSI

• Factory set at 80 PSI

• Lead-free brass construction

• Gold plated contacts for long life

• Use as over-pressure protection on

Aquavar SOLO or S-Drive Controller

• Normally Closed contacts -

connect leads to Secondary (dry)

Contact Switch

• Wire length - 72 inches

• Use a 5/32” Allen wrench to unlock

barrel to change pressure setting

• Snap action, opens and closes on ± 1 - 2 PSI range,

not a differential pressure switch.

8 ACCESSORIES

9K585 – MOISTURE SENSOR WITH RELAY

• 5 VDC power supply is provided by

VFD

• Will detect any conductive non-

ammable liquid

• Ideal anywhere water damage could occur

• Automatic reset

6K210 GAUGE GUARD

• Low unit cost - makes

it feasible to protect

even moderate priced

instruments.

• Compact size makes

these isolators ideal

for limited-space

installations.

• Hermetically-sealed,

molded uni-body

construction - avoids possibility of leaks

• Glass-lled Polypro bodies for chemical compatibility

and maximum temperatures to 100° F

• Each Gauge Guard features a durable and exible

Buna-N diaphragm which serves as a protective

barrier between the process uid and instrument

11

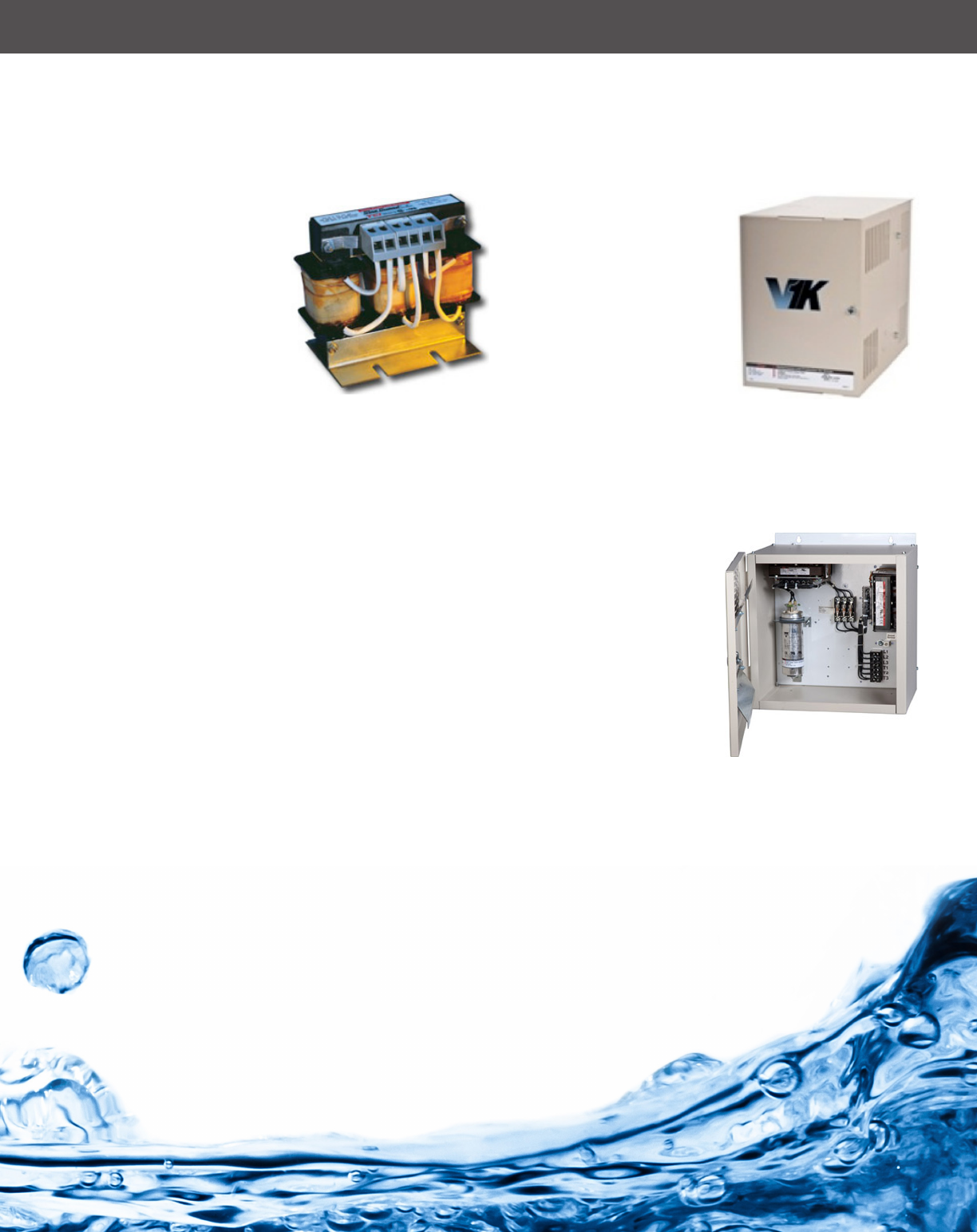

LINE/LOAD REACTORS

• High Z (Application

where 5% reactor would

be applied)

• 208/240V

• NEMA 3R Enclosure

• Ambient Temperature

40° C

• Fundamental

Frequency: 50/60 Hz

• Agency Approvals: UL, cUL; UL Recognized,

CE Marked

• Short term overload rating –

200% rated current for minimum of 3 minutes

• Inductance Characteristics

– Min 95% L at 110% Load

– Min 80% L at 150% Load

TCI MODEL V1K DV/DT FILTERS

• 2 – 130 amps; 240V –

600V; 2 - 125HP

• NEMA 3R Enclosure

• Carrier Frequency:

1 – 12 kHz

• Fundamental Frequency:

0 – 60 Hz

• Efciency: > 98%

• Insulation Rating

600V Class

TCI MODEL HG7 HARMONIC FILTER

• 3 Phase 240 – 600V

• NEMA 3R Enclosure

• Ambient Temperature

40° C

• Typical Efciency:

98 – 99%

• Internal fusing protection

• Fundamental Frequency:

60 Hz (50 Hz for 400V)

• Agency Approvals: UL, cUL

• Maximum Altitude: 6,000 feet

Whatever your application; whether it is for above ground booster systems or controlling a

submersible pump, CentriPro brand of high quality pumps and controls are behind you with over

100 years of experience.

Ask your authorized CentriPro distributor or check us out on the web at www.centripro.com.

CentriPro, Aquavar, Aquavar Solo, Aquavar SPD and Aquavar

ABII are trademarks of Xylem Inc. or one of its subsidiaries.

Modbus is a registered trademark of Modicon Inc.

© 2015 Xylem Inc. BRCPVFD R2 February 2015

Xylem Inc.

2881 East Bayard Street Ext.

Seneca Falls, NY 13148

Phone: (800) 453-6777

Fax: (888) 322-5877

www.centripro.com
