Page Count: 8

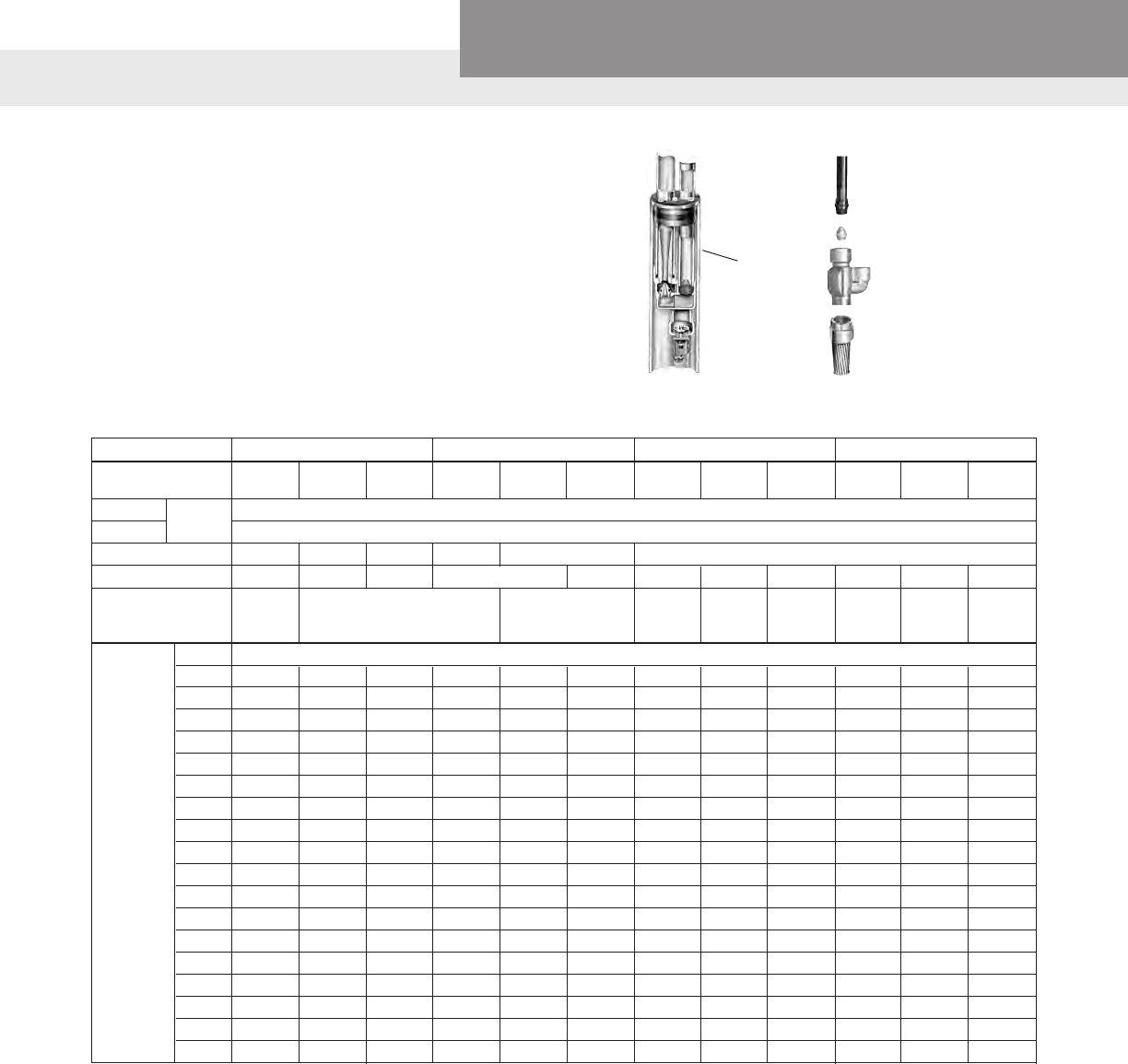

PAGE 2

Residential Water Systems

Goulds Water Technology

SHALLOW WELL PERFORMANCE RATINGS

HP/Model ½ HP – J5 ½ HP – J5 ¾ HP – J7 1 HP – J10 1½ HP – J15

Shallow Well FH5 FH5H (High Pressure Model) FH7 FH10 FH15

Package

Adapter 4K62

Nozzle AN017 AN019 AN018 AN018 AN022

Venturi AD3731 AD3528 AD3536 AD3538 AD3542

Discharge Pressure – PSI Discharge Pressure – PSI Discharge Pressure – PSI Discharge Pressure – PSI Discharge Pressure – PSI

20 30 40 50 20 30 40 50 60 30 40 50 60 30 40 50 60 30 40 50 60

5 17.5 16.5 10.2 5.0 63 11.5 11.3 11.0 7.7 4.8 83 21.3 18.3 12.5 6.6 70 24.8 24.4 16.6 9.9 74 26.6 26.3 25.0 15.6 80

10 15.7 14.4 9.2 4.3 61 10.3 10.0 9.6 7.0 4.2 81 18.8 17.3 11.3 5.0 68 22.9 22.2 15.8 8.6 72 24.7 24.3 22.6 13.9 77

15 13.7 12.5 8.0 3.6 59 8.8 8.6 8.3 6.3 3.7 79 16.4 15.5 9.6 3.7 66 19.8 19.5 13.8 6.9 70 21.6 21.5 20.4 12.9 75

20 11.5 10.4 7.1 2.3 57 7.0 7.0 6.8 5.8 3.2 76 13.6 13.2 8.3 2.0 63 16.6 16.6 12.2 5.6 67 18.1 18.0 17.6 12.0 73

25 8.7 8.6 6.2 1.3 54 5.3 5.2 5.2 5.0 2.8 73 10.0 9.9 6.4 1.0 59 12.5 12.4 10.4 3.6 65 14.0 14.0 14.0 10.1 71

Gallons per minute

Max.

Shut

off

(PSI)

Gallons per

minute

Max.

Shut

off

(PSI)

Gallons per

minute

Max.

Shut

off

(PSI)

Gallons per

minute

Max.

Shut

off

(PSI)

Max.

Shut

off

(PSI)

Total Suction

Lift (feet) Gallons per

minute

APPLICATIONS

Specically designed for:

• Homes

• Farms

• Cottages

• Booster service

SPECIFICATIONS

Pump:

• Pipe connections: 1¼" NPT suction, 1" NPT dis-

charge,

1" NPT drive (pressure)

• Pressure switch: AS4 preset at 30-50 PSI

Motor:

• NEMA standard

• 60 Hz

• ½ – 1½ HP, 115/230 V capacitor start

• Single phase

• 3500 RPM

• Built-in overload with automatic reset

• Stainless steel shaft

• Rotation: clockwise when viewed from motor end

• UL778 listed

Maximum temperature: 140°F

SYSTEM COMPONENTS

• Basic Pump Unit: Includes pump and motor, pres-

sure gauge and bushing, pressure switch with tub-

ing and ttings.

NOTE: THE TUBING COMES CONNECTED FOR

SHALLOW WELL USE. A DEEP WELL SET UP RE-

QUIRES A JDW FITTINGS PACKAGE OR AN AV22

KIT.

Both include additional ttings and a 24" tubing to

connect to a pressure control valve.

ADDITIONAL COMPONENTS REQUIRED

• Shallow Well Package: Includes shallow well adapter,

nozzle, venturi (diffuser), gasket, bolts

and pipe plugs OR

• Deep Well Package: Choose either a twin pipe or

packer style.

• Twin pipe includes jet body, nozzle, venturi (dif-

fuser) and foot valve.

• Packer includes packer body, nozzle, venturi (dif-

fuser), and built-in check valve.

NOTE: Packer systems also require a packer adapter

on the wellhead.

Deep well systems require a pressure control valve.

NOTE: YOU MUST HAVE A JDW OR AV22 KIT TO

MAKE THE PRESSURE SWITCH CONNECTION.

Pressure tank required on all systems.

MODEL INFORMATION

CSA Listed U.L. Listed (Indoor use)① HP

Order No.Order No.

J5 J5UL ½

J7 J7UL ¾

J10 J10NUL 1

J15 J15UL 1½

PAGE 3

Residential Water Systems

Goulds Water Technology

TWIN PIPE PERFORMANCE RATINGS

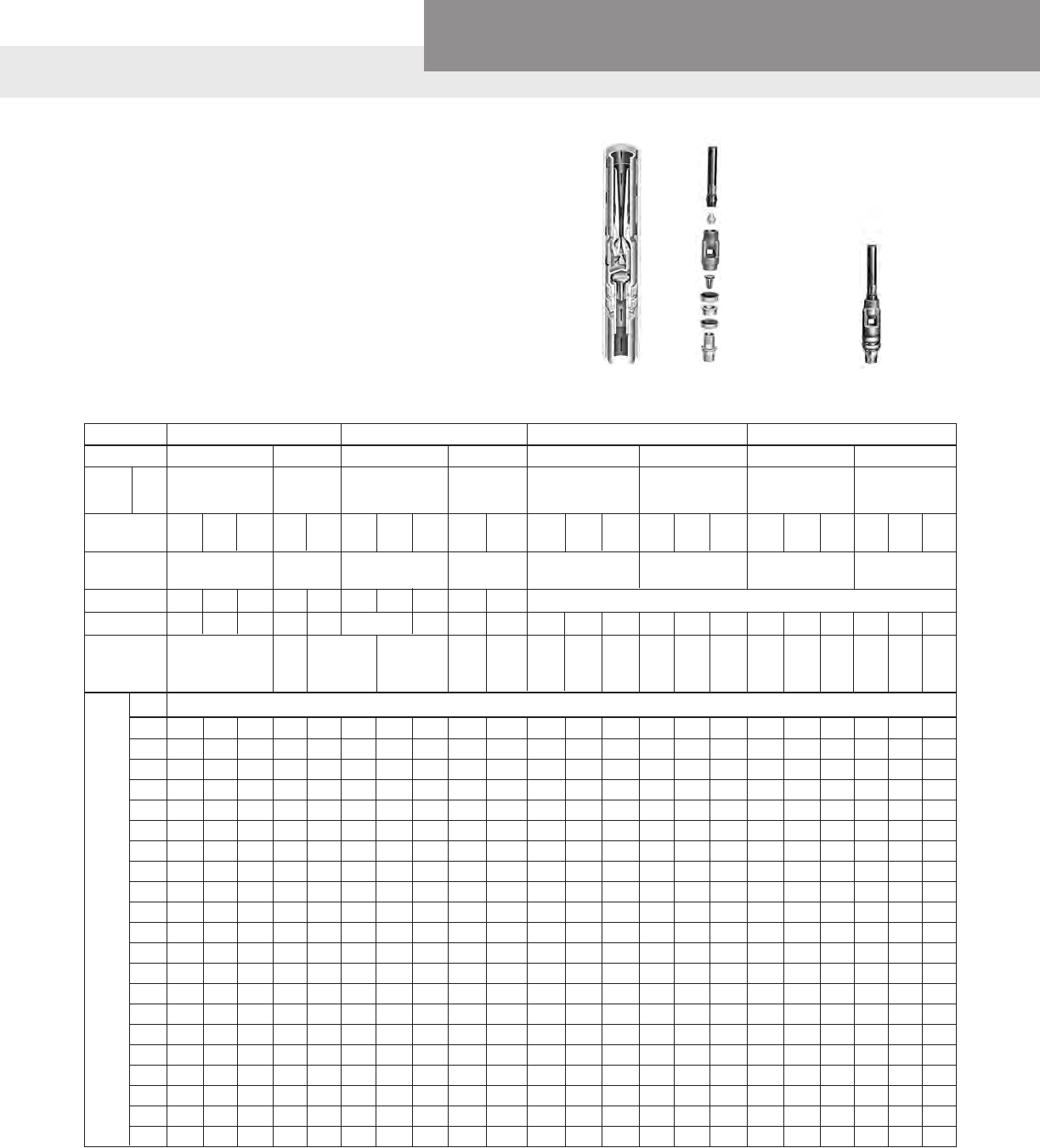

PACKER SYSTEM PERFORMANCE RATINGS

HP/Model ½ HP – J5 ¾ HP – J7 1 HP – J10 1½ HP – J15

Well Casing 2 3 2 3 2 3 3

Suction

Pipe Size (in.) 1¼ 1½ 1¼ 1½ 1¼ 1½ 1½

Jet Assembly

FP2-13 FP2-31 FP2-08 FP3-36 FP3-24 FP2-40 FP2-47 FP3-53 FP3-54 FP2-48 FP2-43 FP3-55 FP3-14 FP3-16 FP3-18 FP3-21 FP3-24

Package ➀

Jet Body (only) AP2 AP3 AP2 AP3 AP2 AP3 AP3

Nozzle

AN017 AN016 AN015 AN021 AN018 AN015 AN015 AN018 AN017 AN016 AN016 AN019 AN018 AN019 AN021 AN023 AN018

Venturi

AD726 AD723 AD720 AD730 AD724 AD727 AD723 AD730 AD725 AD729 AD725 AD732 AD727 AD735 AD723 AD731 AD724

Control Valve 30 30 30 30 30 30 32 27 30 35 36 28 32 34 34 34 39

Setting (PSI) ➁

Feet Gallons Per Minute (GPM) 30-50 PSI Pressure Switch Setting

30 11.9 9.5 13.1 13.8 16.8 16.7 19.3 24.4

40 10.6 7.9 12.6 13.5 16.8 14.6 19.3 23.1

50 7.6 10.7 6.9 11.5 15.3 13.5 18.0 20.2

60 6.7 4.8 8.8 6.5 9.0 7.8 13.5 11.0 9.2 15.3 16.9 15.0

70 4.3 7.3 5.6 7.1 11.5 9.8 9.0 12.7 14.4

80 3.5 4.8 5.1 8.6 7.3 10.2 10.3 12.9

90 4.3 7.3 5.6 8.8 10.9 10.3

100 6.2 4.2 7.2 9.6 7.3

110 5.0 5.8 8.2 6.5

120 4.5 6.9 5.8

130 5.8 5.0

140 4.7 4.5

150 3.4 4.0

160 3.3

170 2.8

NOTE: An offset of 50 feet will result in a decrease of about 25% from ratings as shown. Special turned (diameter) couplings are required on

2" packer systems, order no. 64655 in Jet and Sub price book.

➀ Jet Assembly Package includes jet body, AP2 or AP3; built-in check valve, nozzle and venturi.

➁ Same as above

Depth to Jet Assembly

(based on submergence of 5 feet)

HP/Model ½ HP – J5 ¾ HP – J7 1 HP – J10 1½ HP – J15

Well Casing min. I.D. 4 4½ 4 4½ 4 4½ 4½

Pressure 1 1¼ 1 1¼ 1 1¼ 1¼

Suction 1¼ 1½ 1¼ 1½ 1¼ 1½ 1½

➀

Jet Assembly Package

FT4-13 FT4-31 FT4-08 FT5-14 FT4-14 FT4-34 FT4-18 FT5-47 FT5-48 FT4-44 FT4-43 FT4-18 FT5-49 FT5-11 FT5-12 FT5-11

Jet Body (only) AT4 AT5 AT4 AT5 AT4 AT5 AT5

Nozzle

AN017 AN016 AN015 AN018 AN017 AN016 AN016 AN018 AN017 AN017 AN017 AN016 AN019 AN018 AN019 AN018

Venturi

AD726 AD723 AD720 AD724 AD729 AD725 AD722 AD730 AD725 AD730 AD727 AD722 AD732 AD727 AD734 AD727

➁

Control Valve Setting (PSI)

30 30 30 30 28 29 30 28 30 31 33 35 30 32 35 40

Feet Gallons Per Minute (GPM) 30-50 PSI Pressure Switch Setting

30 13.0 11.0 15.8 16.6 17.0 19.3 21.2

40 11.8 9.0 15.7 16.0 16.6 18.0 20.0

50 7.6 6.9 13.2 15.0 14.4 16.0 16.1

60 7.0 5.2 6.4 10.2 13.0 11.5 11.2 14.3 15.0

70 4.7 5.6 8.2 11.0 10.0 9.3 12.6 14.0 11.2

80 3.8 4.8 6.5 8.6 7.3 6.2 10.0 10.0 10.6

90 3.1 4.1 5.0 5.0 7.3 6.1 8.7 9.0

100 4.4 6.0 5.4 7.0 7.6

110 3.5 5.0 4.5 5.7 6.2

120 4.5 5.2

130 4.0

140 2.8

150 1.5

160

170

NOTE: An offset of 50 feet will result in a decrease of about 25% from ratings as shown.

➀ Jet assembly package includes jet body (AT4), venturi, nozzle and foot valve.

➁ Deep well jet pumps require a pressure control device on the discharge to provide back pressure to the jet assembly. Failure to control

the amount of discharge by adjusting the back pressure (pressure control valve setting) will cause the pump to lose prime. On pumps with

Iow control valve settings, up to 40 psi, a simple ball valve or AV15 will work. On systems with control valve settings of 40 - 80 psi an AV22,

AV22KIT or AV21 is required. They measure the pressure on the outbound side so that the high pressure does not open the 30-50 psi

switch and turn the pump off.

Pipe

Size (in.)

Depth to Jet Assembly

(based on submergence of 5 feet)

PAGE 2

Residential Water Systems

Goulds Water Technology

HP/Model ½ HP-VJ05 ¾ HP-VJ07 1HP-VJ10

Well Casing 4

Min. I.D. (In.)

Pressure 1

Suction 1¼

Jet Assembly FT4-46 FT4-08 FT4-47 FT4-46 FT4-06 FT4-14 FT4-09

Package ➀

Jet Body (only) AT4

Nozzle AN014 AN015 AN013 AN014 AN017 AN015

Venturi AD722 AD720 AD724 AD722 AD720 AD729 AD721

Control Valve 23 34 40 34 36

Setting (PSI) ➁

Feet Gallons per Minute 30-50 Pressure Switch Setting

30 12.2 15.2 18.8

40 11.7 13.2 16.7

50 10.0 11.7 15.0

60 8.2 8.3 9.7 10.0 12.7

70 5.8 8.3 10.0

80 5.0 7.1 7.9

90 3.8 5.8 5.8 5.3 5.8

100 5.0 5.0

110 3.8 4.6

120 3.3

NOTE: An offset of 50 feet will result in a decrease of about 25% from ratings as shown.

➀ Jet assembly package includes jet body (AT4), venturi, nozzle and foot valve.

➁ Deep well jet pumps require a pressure control device on the discharge to provide back pressure to the jet assembly. Failure to control the

amount of discharge by adjusting the back pressure (pressure control valve setting) will cause the pump to lose prime. The AV21 measures

the pressure on the outbound side so that the high pressure does not open the 30-50 psi switch and turn the pump off.

PERFORMANCE RATINGS – TWIN PIPE SYSTEMS

Pipe

Size In.

Depth to Jet Assembly

(based on submergence of 5 feet)

APPLICATIONS

Specifically designed for:

• Homes

• Farms

• Cottages

SPECIFICATIONS

Pump

Pipe connection:

1" NPT drive (pressure)

1¼" NPT suction

1" NPT discharge.

Pressure switch: AS4, preset (30-50 PSI).

Motor

• NEMA standard.

• ½–1 HP, 115/230 V, 60 Hz, capacitor start.

• Single phase, 3500 RPM.

• Built-in overload with automatic reset.

• Stainless steel shaft.

• Rotation: clockwise when viewed from motor end.

Maximum temperature: 140° F

REQUIRED SYSTEM COMPONENTS

• Basic Pump Unit: Includes pump, motor, pressure

switch, tubing, fittings, pressure gauge, bushing and

pressure control valve (AV21).

• Deep Well Jet Assembly Package: Twin Pipe

includes: Jet body, nozzle, venturi and foot valve.

Packer includes: Jet body with built-in check valve,

nozzle and venturi. See Performance Charts on

following pages for Jet Assembly package order

numbers.

ADDITIONAL ACCESSORIES REQUIRED

For Packer: well casing adapter AWD2 (2") or AWD3

(3"). Must be ordered separately.

AGENCY LISTINGS

®Canadian Standards Association

UL

®

Underwriters Laboratories①

PAGE 3

Residential Water Systems

Goulds Water Technology

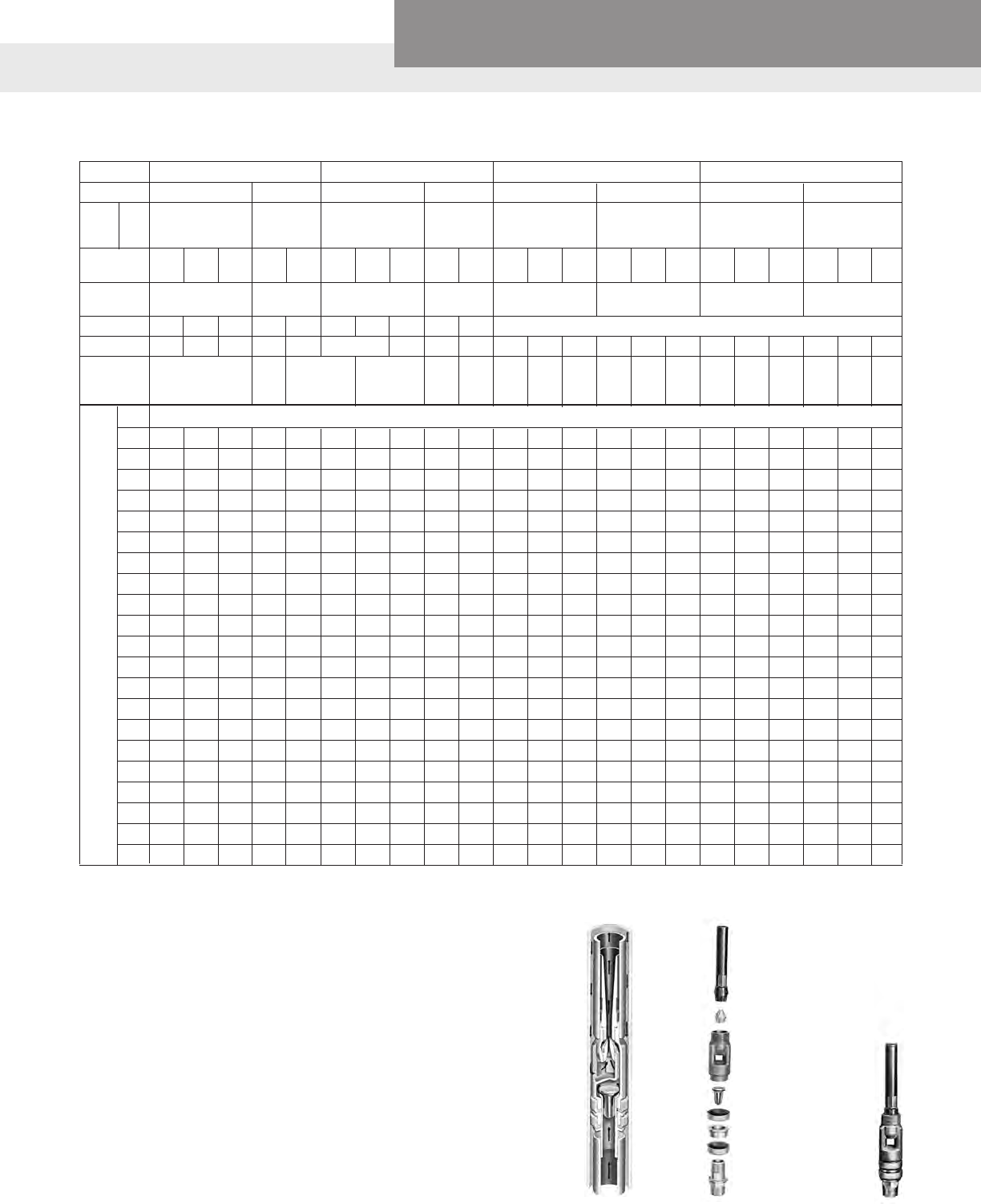

PERFORMANCE RATINGS – PACKER SYSTEM

HP/Model ½ HP-VJ05 ¾ HP-VJ07 1HP-VJ10

Well Casing (In.) 2 3 2 3 2 3

Suction 1¼ 1½ 1¼ 1½ 1¼ 1½

Jet Assembly FP2-38 FP2-08 FP3-42 FP3-09 FP2-50 FP2-47 FP2-09 FP3-40 FP3-43 FP2-48 FP2-43 FP2-08 FP3-40 FP3-49

Package ➀

Jet Body (only) AP2 AP3 AP2 AP3 AP2 AP3

Nozzle AN014 AN015 AN014 AN016 AN013 AN015 AN013 AN014 AN016 AN015

Venturi AD722 AD720 AD722 AD721 AD724 AD723 AD721 AD724 AD721 AD729 AD725 AD720 AD724 AD723

Control Valve ➁ 23 34 36 34 36

Setting (PSI)

Feet Gallons per Minute 30-50 Pressure Switch Setting

30 12.2 12.5 15.2 15.8 18.8 18.8

40 10.8 11.3 13.2 13.7 16.7 16.7

50 9.0 10.0 11.3 11.7 14.2 15.0

60 7.5 7.7 8.2 8.3 9.3 10.3 10.0 10.3 11.7 11.0 12.5

70 5.5 6.8 8.7 9.6 9.3 10.0

80 4.6 5.8 6.8 8.2 7.7 8.3

90 3.4 4.3 5.3 6.7 5.7 6.3 6.5

100 3.5 4.0 4.2 5.4 4.6 4.6 5.8

110 3.3 4.3 3.3 5.0

120 2.3 3.3 2.9 4.2

130 2.9 3.3

140 2.9

NOTE: An offset of 50 feet will result in a decrease of about 25% from ratings as shown. Special turned (diameter) couplings are required on

2" packer systems, order no. 64655 in Jet and Sub price book.

➀ Jet Assembly Package includes jet body, AP2 or AP3; built-in check valve, nozzle and venturi.

➁ Deep well jet pumps require a pressure control device on the discharge to provide back pressure to the jet assembly. Failure to control the

amount of discharge by adjusting the back pressure (pressure control valve setting) will cause the pump to lose prime. The AV21 measures

the pressure on the outbound side so that the high pressure does not open the 30-50 psi switch and turn the pump off.

Depth to Jet Assembly

(based on submergence of 5 feet)

Pipe

Size In.

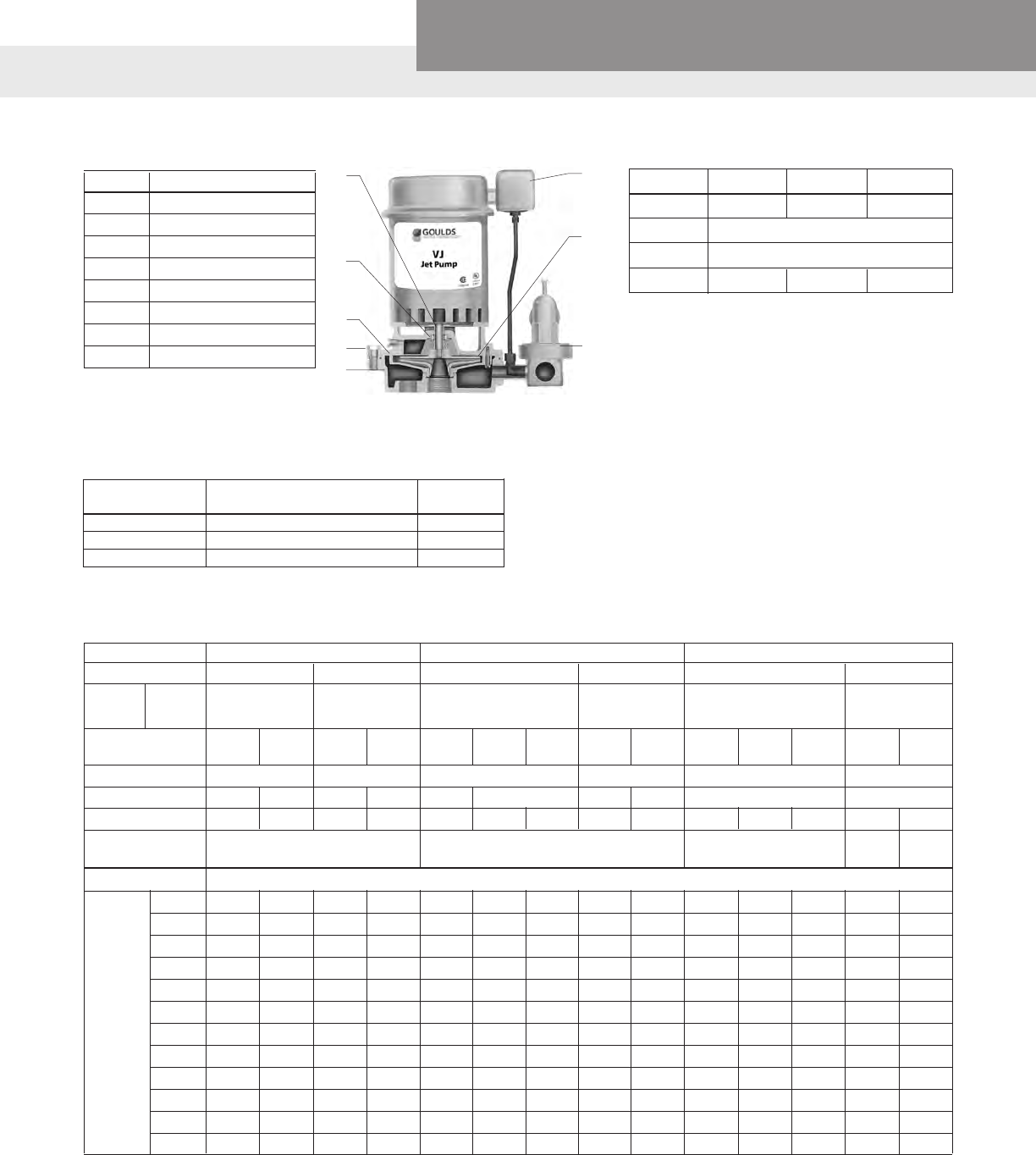

COMPONENTS

4

2

8

6

5

3

1

7

DIMENSIONS AND WEIGHTS

HP/Model ½-VJ05 ¾-VJ07 1-VJ10

Weight 50 53 56

Length 12¾

Width 12¾

Height 13½ 14¼ 14¾

Pressure control valve not included in dimensions.

(All dimensions are in inches and weights in lbs. Do

not use for construction purposes.)

Item No. Description

1 Mechanical seal

2 Impeller

3 Diffuser (Guidevane)

4 Pressure control valve

5 Motor adapter

6 Casing

7 Stainless steel shaft

8 Pressure switch

CSA Listed U.L. Listed (Indoor use)① HP

Order No. Order No.

VJ05 VJ05UL ½

VJ07 VJ07UL ¾

VJ10 VJ10UL 1

MODEL INFORMATION

PAGE 2

Residential Water Systems

Goulds Water Technology

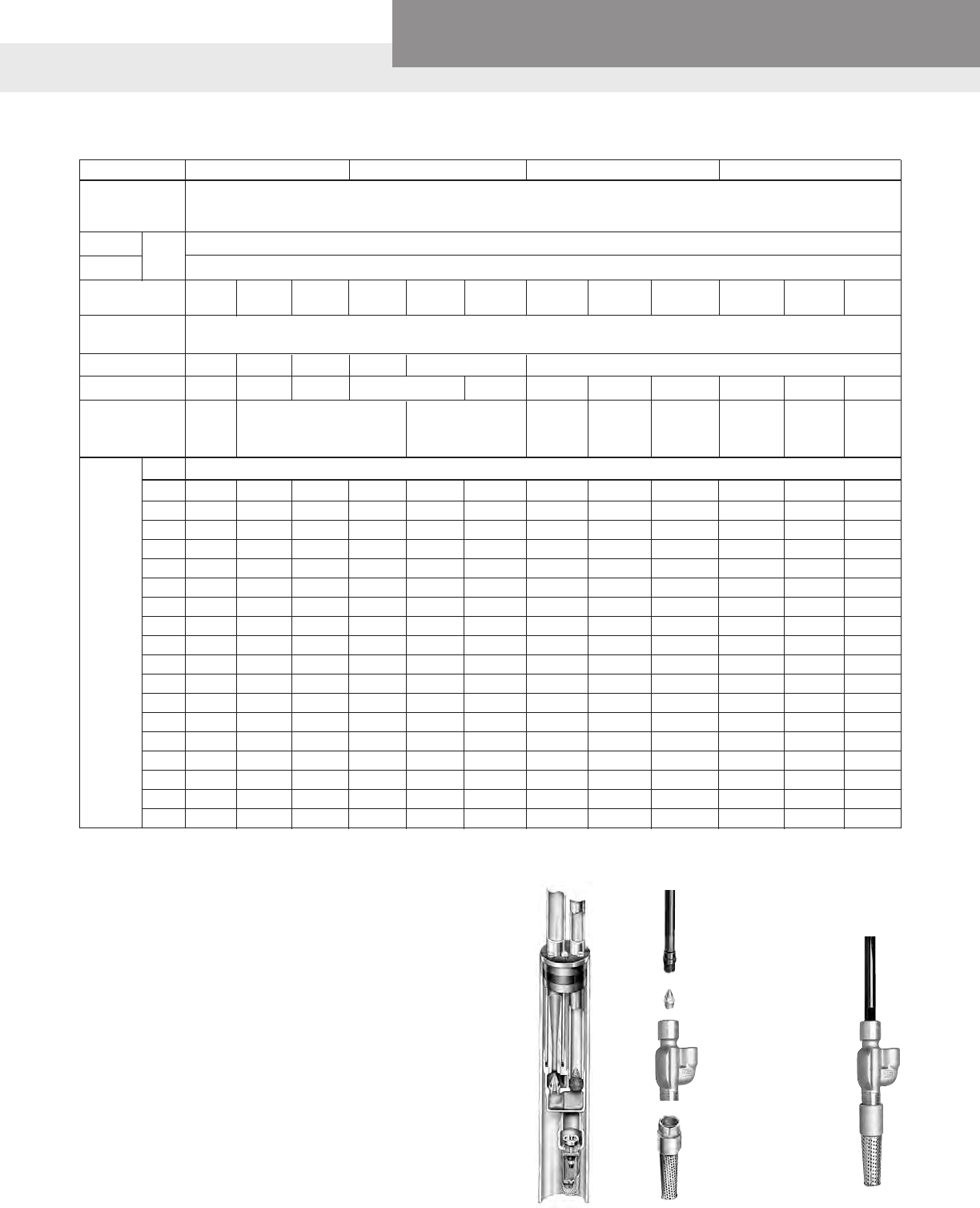

VENTURI

NOZZLE

JET BODY

FOOT VALVE

PERFORMANCE RATINGS — TWIN PIPE SYSTEMS

HP/Model ¾ HP – SJ07 1 HP – SJ10 1½ HP – SJ15 2 HP – SJ20

Well

Casing 4

Min. I.D. in.

Pressure 1

Suction 1¼

Jet Assembly FT4-48 FT4-47 FT4-06 FT4-47 FT4-24 FT4-08 FT4-45 FT4-30 FT4-29 FT4-45 FT4-30 FT4-29

Package ➀

Jet Body AT4

(Only)

Nozzle AN012 AN013 AN014 AN013 AN015 AN013

Venturi AD727 AD724 AD720 AD724 AD720 AD726 AD722 AD719 AD726 AD722 AD719

Control

Valve Setting 37 40 43 62 65 67 76 78 80

(PSI) ➁

Feet Gallons Per Minute (GPM) 30-50 Pressure Switch Setting

30 15.2 16.0 13.0 13.0

40 13.5 15.2 13.0 13.0

50 11.8 14.7 13.0 13.0

60 10.7 13.7 12.8 12.8

70 8.5 9.0 11.7 11.7 12.2 12.8

80 7.5 10.5 10.6 12.0

90 6.2 6.2 9.0 9.2 9.3 11.3

100 5.8 7.5 9.0 9.5 9.5

110 5.0 6.3 6.0 8.0 9.4

120 4.6 5.0 7.0 8.5

130 4.0 4.3 6.2 5.8 7.7

140 4.0 5.6 6.8

150 3.5 5.2 6.0 5.7

160 4.7 5.5

170 4.2 5.3

180 3.7 5.0

190 3.2 4.7

200 3.8

NOTE: An offset of 50 feet will result in a decrease of about 25% from ratings as shown.

➀ Jet assembly package includes jet body (AT4), venturi, nozzle and foot valve.

➁ Deep well jet pumps require a pressure control device on the discharge

to provide back pressure to the jet assembly. Failure to control the

amount of discharge by adjusting the back pressure (pressure control

valve setting) will cause the pump to lose prime. On pumps with Iow

control valve settings, up to 40 psi, a simple ball valve or AV15 will work.

On systems with control valve settings of 40 - 80 psi an AV22, AV22KIT

or AV21 is required. They measure the pressure on the outbound side so

that the high pressure does not open the 30-50 psi switch and turn the

pump off.

Pipe

Size

(in.)

Depth to Jet Assembly

(based on submergence of 5 feet)

PAGE 3

Residential Water Systems

Goulds Water Technology

VENTURI

NOZZLE

PACKER BODY

FOOT VALVE

(POPPET)

LEATHER CRIMP

SPACER

LEATHER CRIMP

VALVE SEAT

PERFORMANCE RATINGS — PACKER SYSTEM

HP/Model ¾ HP SJ07 1 HP SJ10 1½ HP SJ15 2 HP SJ20

Well Casing In.

2 3 2 3 2 3 2 3

Suction

1¼ 1½ 1¼ 1½ 1¼ 1½ 1¼ 1½

Jet Assembly FP2-51 FP2-50 FP2-06 FP3-40 FP3-42 FP2-50 FP2-07 FP2-08 FP3-40 FP3-49 FP2-49 FP2-30 FP2-29 FP3-47 FP3-46 FP3-34 FP2-49 FP2-30 FP2-29 FP3-47 FP3-46 FP3-34

Package ➀

Jet Body

AP2 AP3 AP2 AP3 AP2 AP3 AP2 AP3

(Only)

Nozzle

AN012 AN013 AN014 AN013 AN014 AN013 AN014 AN015 AN013 AN015 AN013

Venturi

AD727 AD724 AD720 AD724 AD722 AD724 AD720 AD724 AD723 AD726 AD722 AD719 AD727 AD722 AD719 AD726 AD722 AD719 AD727 AD722 AD719



Pressure

➁

Control Valve

40 36 40 45 40 43 62 65 67 62 64 66 76 78 80 75 78 80

Setting (PSI)

Feet Gallons Per Minute 30-50 Pressure Switch Setting

30 14.9 15.3 15.8 16.3 13.0 14.7 13.0 14.7

40 13.1 13.5 14.0 16.0 13.0 14.5 13.0 14.7

50 11.6 12.5 12.5 15.5 12.9 14.3 13.0 14.7

60 10.5 12.2 11.2 11.3 14.2 12.7 14.3 13.0 14.5

70 8.4 8.8 11.8 10.0 12.5 11.8 14.2 12.8 14.5

80 7.6 10.2 8.5 8.7 10.0 10.2 12.2 11.8 13.5

90 6.1 6.2 7.8 7.3 8.3 9.0 8.3 9.1 10.0 10.5 12.7

100 5.7 6.9 5.5 8.2 8.3 7.8 9.1 8.5 9.1 10.5

110 4.3 6.0 4.2 4.8 7.3 7.3 8.8 8.9 8.3 9.1

120 3.8 5.3 4.0 6.7 6.2 7.6 7.9 9.1

130 2.2 4.5 3.5 5.8 5.4 5.6 6.9 6.9 8.8

140 3.0 4.8 5.3 6.2 6.0 8.2

150 2.4 4.1 4.8 5.4 5.6 5.2 5.6 7.3

160 4.3 5.5 5.4 6.5

170 5.0 4.9 5.7 5.7

180 4.7 4.3 5.6

190 4.3 3.8 5.5

200 3.8 3.3 5.3

210 3.3 4.8

220 4.5

230 4.0

NOTE: An offset of 50 feet will result in a decrease of about 25% from ratings as shown. Special turned (diameter) couplings are required on

2" packer systems, order no. 64655 in Jet and Sub price book.

➀ Jet Assembly Package includes jet body, AP2 or AP3; built-in check valve, nozzle

and venturi.

➁ Deep well jet pumps require a pressure control device on the discharge to

provide back pressure to the jet assembly. Failure to control the amount of dis-

charge by adjusting the back pressure (pressure control valve setting) will cause

the pump to lose prime. On pumps with Iow control valve settings, up to 40 psi,

a simple ball valve or AV15 will work. On systems with control valve settings of

40 - 80 psi an AV22, AV22KIT or AV21 is required. They measure the pressure on

the outbound side so that the high pressure does not open the 30-50 psi switch

and turn the pump off.

Pipe

Size

(in.)

Depth to Jet Assembly

(based on submergence of 5 feet)

PAGE 5

Residential Water Systems

Goulds Water Technology

NOZZLE

JET BODY

FOOT VALVE

VENTURI

Deep Well

Twin Pipe System

PERFORMANCE RATINGS — TWIN PIPE SYSTEMS – 4” WELL

4K107

STRAINER

(OPTIONAL)

HP/Model ¾ HP – HSJ07N 1 HP – HSJ10N 1½ HP – HSJ15N 2 HP – HSJ20N

Jet Assembly FT4-48 FT4-47 FT4-06 FT4-47 FT4-24 FT4-08 FT4-45 FT4-30 FT4-29 FT4-45 FT4-30 FT4-29

Package ➀

Pressure 1"

Suction 1¼"

Nozzle AN012 AN013 AN014 AN013 AN015 AN013

Venturi AD727 AD724 AD720 AD724 AD720 AD726 AD722 AD719 AD726 AD722 AD719

Pressure Control

Valve Setting 37 40 43 62 65 67 76 78 80

(PSI) ➁

Feet Gallons Per Minute (GPM) 30-50 Pressure Switch Setting

30 15.1 16.0 13.0 13.0

40 13.5 15.2 13.0 13.0

50 11.8 14.7 13.0 13.0

60 10.7 13.7 12.8 12.8

70 8.5 9.0 11.7 11.7 12.2 12.8

80 7.5 10.5 10.6 12.0

90 6.2 6.2 9.0 9.2 9.3 11.3

100 5.8 7.5 9.0 9.5 9.5

110 5.0 6.3 6.0 8.0 9.4

120 4.6 5.0 7.0 8.5

130 4.0 4.3 6.2 5.8 7.7

140 4.0 5.6 6.8

150 3.5 5.2 6.0 5.7

160 4.7 5.5

170 4.2 5.3

180 3.7 5.0

190 3.2 4.5

200 3.8

NOTE: An offset of 50 feet will result in a decrease of about 25% from ratings as shown.

➀ Jet assembly package includes jet body (AT4), venturi, nozzle and foot valve.

➁ Deep well jet pumps require a pressure control device on the discharge to provide back pressure to the jet assembly. Failure to control the amount

of discharge by adjusting the back pressure (pressure control valve setting) will cause the pump to lose prime. On pumps with Iow control valve

settings, up to 40 psi, a simple ball valve or AV15 will work. On systems with control valve settings of 40 - 80 psi an AV22, AV22KIT or AV21 is

required. They measure the pressure on the outbound side so that the high pressure does not open the 30-50 psi switch and turn the pump off.

Depth to Jet Assembly

(based on submergence of 5 feet)

Pipe

Size (in.)

PAGE 6

Residential Water Systems

Goulds Water Technology

PERFORMANCE RATINGS — PACKER SYSTEM

VENTURI

NOZZLE

JET BODY

BUILT IN

FOOT VALVE

LEATHER CRIMP

SPACER

LEATHER CRIMP

FITTING

Deep Well

Packer System

HP/Model ¾ HP – HSJ07N 1 HP – HSJ10N 1½ HP – HSJ15N 2 HP – HSJ20N

Well Casing (in.)

2 3 2 3 2 3 2 3

Suction 1¼ 1½ 1¼ 1½ 1¼ 1½ 1¼ 1½

Jet Assembly FP2- FP2- FP2- FP3- FP3- FP2- FP2- FP2- FP3- FP3- FP2- FP2- FP2- FP3- FP3- FP3- FP2- FP2- FP2- FP3- FP3- FP3-

Package

➀

51 50 06 40 42 50 07 08 40 49 49 30 29 47 46 34 49 30 29 47 46 34

Jet Body AP2 AP3 AP2 AP3 AP2 AP3 AP2 AP3

(Only)

Nozzle

AN012 AN013 AN014 AN013 AN014 AN013 AN014 AN015 AN013 AN015 AN013

Venturi

AD727 AD724 AD720 AD724 AD722 AD724 AD720 AD724 AD723 AD726 AD722 AD719 AD727 AD722 AD719 AD726 AD722 AD719 AD727 AD722 AD719

Pressure

➁

Control Valve

40 36 40 45 40 43 62 65 67 62 64 66 76 78 80 75 78 80

Setting (PSI)

Feet Gallons Per Minute (GPM) 30-50 Pressure Switch Setting

30 14.9 15.3 15.8 16.3 13.0 14.7 13.0 14.7

40 13.1 13.5 14.0 16.0 13.0 14.5 13.0 14.7

50 11.6 12.5 12.5 15.5 12.9 14.3 13.0 14.7

60 10.5 12.2 11.2 11.3 14.2 12.7 14.3 13.0 14.5

70 8.4 8.8 11.8 10.0 12.5 11.8 14.2 12.8 14.5

80 7.6 10.2 8.5 8.7 10.0 10.2 12.2 11.8 13.5

90 6.0 6.2 7.8 7.3 8.3 9.0 8.3 9.1 10.0 10.5 12.7

100 5.7 6.9 5.5 8.2 8.3 7.8 9.1 8.5 9.1 10.5

110 4.3 6.0 4.2 4.8 7.3 7.3 8.8 8.9 8.3 9.1

120 3.8 5.3 4.0 6.7 6.2 7.6 7.9 9.1

130 2.2 4.5 3.5 5.8 5.4 5.6 6.9 6.9 8.8

140 3.0 4.8 5.3 6.2 6.0 8.2

150 2.4 4.1 4.8 5.4 5.6 5.2 5.6 7.3

160 4.3 5.5 5.4 6.5

170 3.6 5.0 4.9 5.7 5.7

180 3.0 4.7 4.3 5.6

190 4.3 3.8 5.5

200 3.8 3.3 5.3

210 3.3 4.8

220 4.5

230 4.0

NOTE: An offset of 50 feet will result in a decrease of about 25% from ratings as shown. Special turned (diameter) couplings are required on 2"

packer systems, order no. 64655 in Jet and Sub price book.

➀ Jet Assembly Package includes jet body, AP2 or AP3; built-in check valve, nozzle and venturi.

➁ Deep well jet pumps require a pressure control device on the discharge to provide back pressure to the jet assembly. Failure to control the amount

of discharge by adjusting the back pressure (pressure control valve setting) will cause the pump to lose prime. On pumps with Iow control valve

settings, up to 40 psi, a simple ball valve or AV15 will work. On systems with control valve settings of 40 - 80 psi an AV22, AV22KIT or AV21 is

required. They measure the pressure on the outbound side so that the high pressure does not open the 30-50 psi switch and turn the pump off.

Pipe

Size

(in.)

Depth to Jet Assembly

(based on submergence of 5 feet)
