FEATURES
Powered for Continuous Operation: All ratings are within the working limits of the motor
as recommended by the motor manufacturer. Pump can be operated continuously without
damage to the motor.
Field Serviceable: Units have left hand threads and are eld serviceable with common
tools and readily available repair parts.
Sand Handling Design: Our face clearance, oating impeller stack has proven itself for
over 50 years as a superior sand handling, durable pump design.
FDA Compliant Non-Metallic Parts: Impellers, diffusers and bearing spiders are construct-
ed of glass lled engineered composites. They are corrosion resistant and non-toxic.
Discharge Head/Check Valve: Cast 303 stainless steel for strength and durability. Two
cast-in safety line loops for installer convenience. The built-in check valve is constructed of
stainless steel and FDA compliant BUNA rubber for abrasion resistance and quiet opera-
tion.
Motor Adapter: Cast 303 stainless steel for rigid, accurate alignment of pump and motor.
Easy access to motor mounting nuts using standard open end wrench.
Stainless Steel Casing: Polished stainless steel is strong and corrosion resistant.
Hex Shaft Design: Six sided shafts for positive impeller drive.
Engineered Polymer Bearings: The proprietary, engineered polymer bearing material is
strong and resistant to abrasion and wear. The enclosed upper bearing is mounted in a
durable Noryl® bearing spider for excellent abrasion resistance.
33GS, 40GS, 55GS,
60GS, 75GS & 80GS
33-80 GPM, 1 – 10 HP, 60 HZ, SUBMERSIBLE PUMPS
TECHNICAL BROCHURE
B33-80GS R4
PAGE 2
Residential Water Systems
Goulds Water Technology
Flow Horse- Best Discharge Minimum
 Model Range power Efciency Well Rotation①
GPM Range GPM
Connection Size
33GS 10 – 50 1 – 10 33 2” 4” CCW
40GS 20 – 65 1½ – 7½ 40 2” 4” CCW
55GS 20 – 80 1½ – 10 55 2” 4” CCW
60GS 40 – 80 1½ – 7½ 60 2” 4” CCW
75GS 40 – 100 3 – 10 75 2” 4” CCW
80GS 50 – 120 3 – 7½ 80 2” 4” CCW
① Rotation is counterclockwise when observed from pump discharge end.

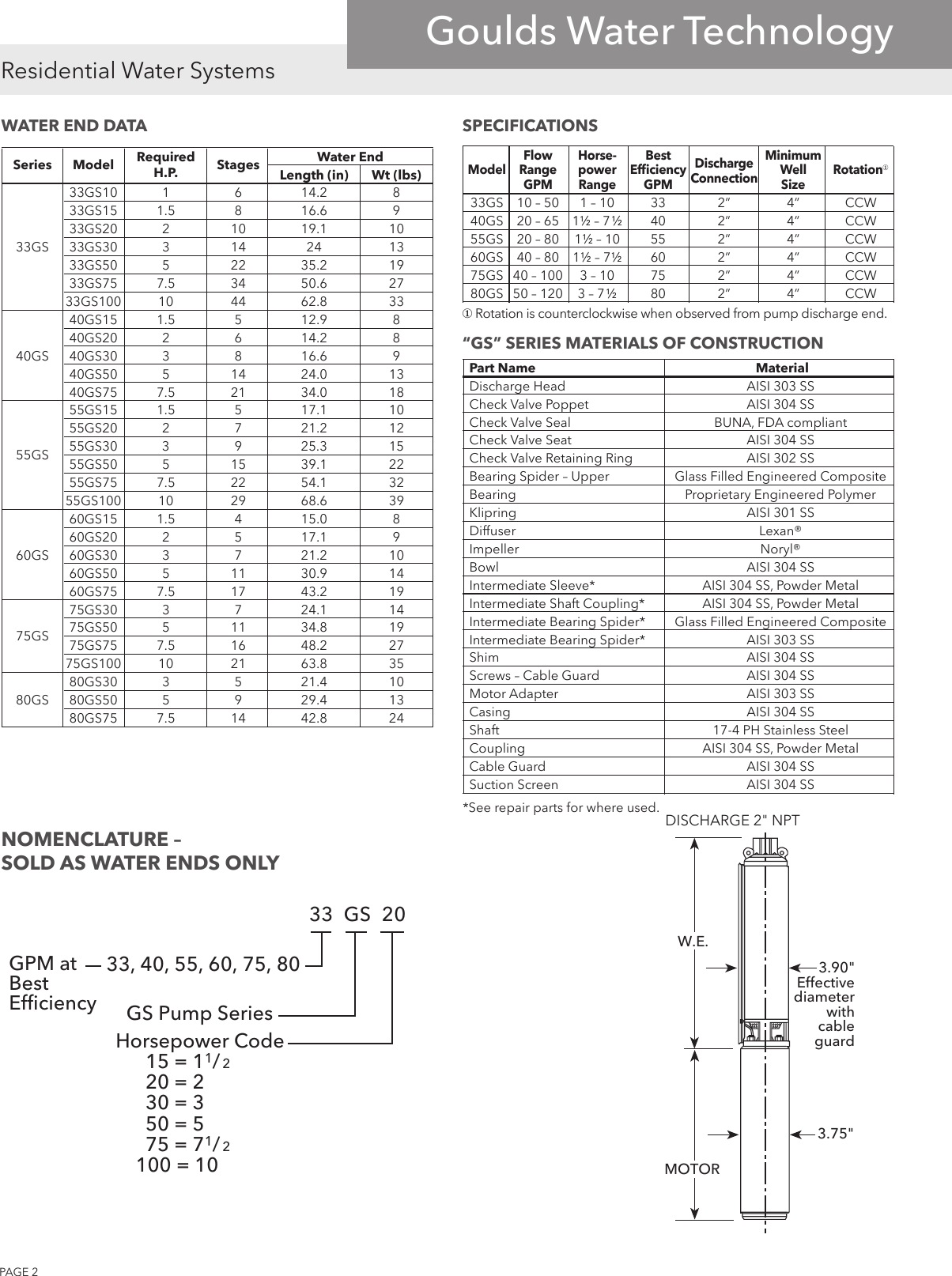

NOMENCLATURE –
SOLDASWATERENDSONLY
Series Model Required Stages WaterEnd
H.P. Length(in) Wt(lbs)
33GS10 1 6 14.2 8
33GS15 1.5 8 16.6 9
33GS20 2 10 19.1 10
33GS 33GS30 3 14 24 13
33GS50 5 22 35.2 19
33GS75 7.5 34 50.6 27
33GS100 10 44 62.8 33
40GS15 1.5 5 12.9 8
40GS20 2 6 14.2 8
40GS 40GS30 3 8 16.6 9
40GS50 5 14 24.0 13
40GS75 7.5 21 34.0 18
55GS15 1.5 5 17.1 10
55GS20 2 7 21.2 12
55GS 55GS30 3 9 25.3 15
55GS50 5 15 39.1 22
55GS75 7.5 22 54.1 32
55GS100 10 29 68.6 39
60GS15 1.5 4 15.0 8
60GS20 2 5 17.1 9
60GS 60GS30 3 7 21.2 10
60GS50 5 11 30.9 14
60GS75 7.5 17 43.2 19
75GS30 3 7 24.1 14
75GS 75GS50 5 11 34.8 19
75GS75 7.5 16 48.2 27
75GS100 10 21 63.8 35
80GS30 3 5 21.4 10
80GS 80GS50 5 9 29.4 13
80GS75 7.5 14 42.8 24
Horsepower Code
15 = 11/2
20 = 2
30 = 3
50 = 5
75 = 71/2
100 = 10
GPM at
Best
Efficiency
33 GS 20
GS Pump Series
33, 40, 55, 60, 75, 80
SPECIFICATIONSWATERENDDATA
“GS” SERIES MATERIALS OF CONSTRUCTION
Part Name Material
Discharge Head AISI 303 SS
Check Valve Poppet AISI 304 SS
Check Valve Seal BUNA, FDA compliant
Check Valve Seat AISI 304 SS
Check Valve Retaining Ring AISI 302 SS
Bearing Spider – Upper Glass Filled Engineered Composite
Bearing Proprietary Engineered Polymer
Klipring AISI 301 SS
Diffuser Lexan®
Impeller Noryl®
Bowl AISI 304 SS
Intermediate Sleeve* AISI 304 SS, Powder Metal
Intermediate Shaft Coupling* AISI 304 SS, Powder Metal
Intermediate Bearing Spider* Glass Filled Engineered Composite
Intermediate Bearing Spider* AISI 303 SS
Shim AISI 304 SS
Screws – Cable Guard AISI 304 SS
Motor Adapter AISI 303 SS
Casing AISI 304 SS
Shaft 17-4 PH Stainless Steel
Coupling AISI 304 SS, Powder Metal
Cable Guard AISI 304 SS
Suction Screen AISI 304 SS
*See repair parts for where used.
3.75"
3.90"
Effective
diameter
with
cable
guard
MOTOR
W.E.
DISCHARGE 2" NPT
PAGE 3
Residential Water Systems
Goulds Water Technology
  Length Weight
OrderNo. Type HP Volts in.(mm) lb.(kg.)
M10422 2-wire 1 230 13.3 (337) 24.5 (11.1)
M15422 PSC 1.5 14.9 (378) 28.9 (13.1)
M10412 1 11.7 (297) 23.1 (10.5)
M15412 1.5 13.6 (345) 27.4 (12.4)
M20412 3-wire 2 230 15.1 (383) 31.0 (14.1)
M30412 3 18.3 (466) 40.0 (18.1)
M50412 5 27.7 (703) 70.0 (31.8)

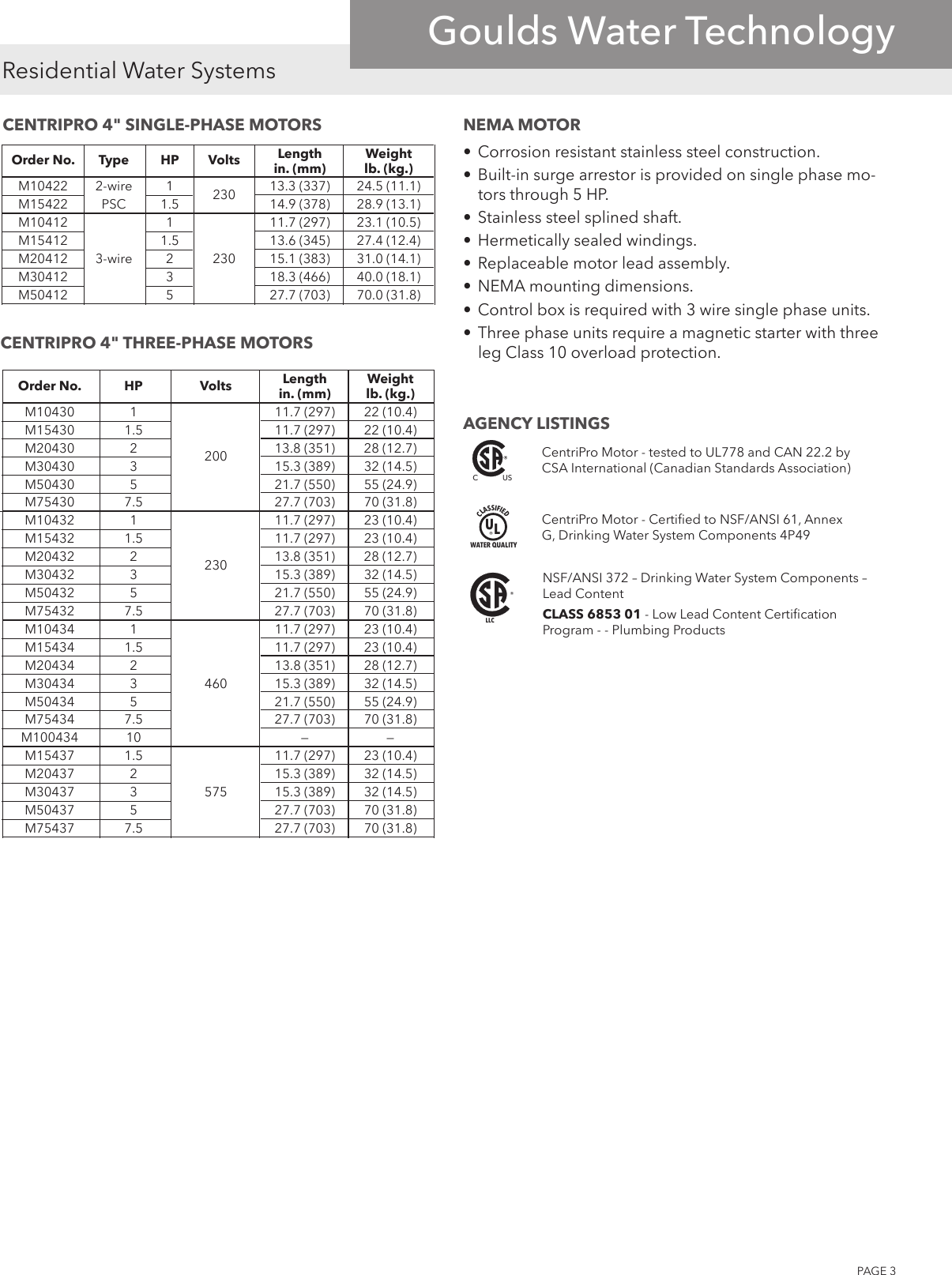

CENTRIPRO 4" THREE-PHASE MOTORS
Length Weight
OrderNo. HP Volts in.(mm) lb.(kg.)
M10430 1 11.7 (297) 22 (10.4)
M15430 1.5 11.7 (297) 22 (10.4)
M20430 2 200 13.8 (351) 28 (12.7)
M30430 3 15.3 (389) 32 (14.5)
M50430 5 21.7 (550) 55 (24.9)
M75430 7.5 27.7 (703) 70 (31.8)
M10432 1 11.7 (297) 23 (10.4)
M15432 1.5 11.7 (297) 23 (10.4)
M20432 2 230 13.8 (351) 28 (12.7)
M30432 3 15.3 (389) 32 (14.5)
M50432 5 21.7 (550) 55 (24.9)
M75432 7.5 27.7 (703) 70 (31.8)
M10434 1 11.7 (297) 23 (10.4)
M15434 1.5 11.7 (297) 23 (10.4)
M20434 2 13.8 (351) 28 (12.7)
M30434 3 460 15.3 (389) 32 (14.5)
M50434 5 21.7 (550) 55 (24.9)
M75434 7.5 27.7 (703) 70 (31.8)
M100434 10 — —
M15437 1.5 11.7 (297) 23 (10.4)
M20437 2 15.3 (389) 32 (14.5)
M30437 3 575 15.3 (389) 32 (14.5)
M50437 5 27.7 (703) 70 (31.8)
M75437 7.5 27.7 (703) 70 (31.8)
NEMA MOTOR
• Corrosion resistant stainless steel construction.
• Built-in surge arrestor is provided on single phase mo-
tors through 5 HP.
• Stainless steel splined shaft.
• Hermetically sealed windings.
• Replaceable motor lead assembly.
• NEMA mounting dimensions.
• Control box is required with 3 wire single phase units.
• Three phase units require a magnetic starter with three
leg Class 10 overload protection.
CENTRIPRO 4" SINGLE-PHASE MOTORS
AGENCYLISTINGS
CU
S
®CentriPro Motor - tested to UL778 and CAN 22.2 by
CSA International (Canadian Standards Association)
CentriPro Motor - Certied to NSF/ANSI 61, Annex
G, Drinking Water System Components 4P49
UL
®
C
L
A
S
S
I
F
I
E
D
WATER QUALITY
NSF/ANSI 372 – Drinking Water System Components –
Lead Content
CLASS 6853 01 - Low Lead Content Certication
Program - - Plumbing Products
®
LLC

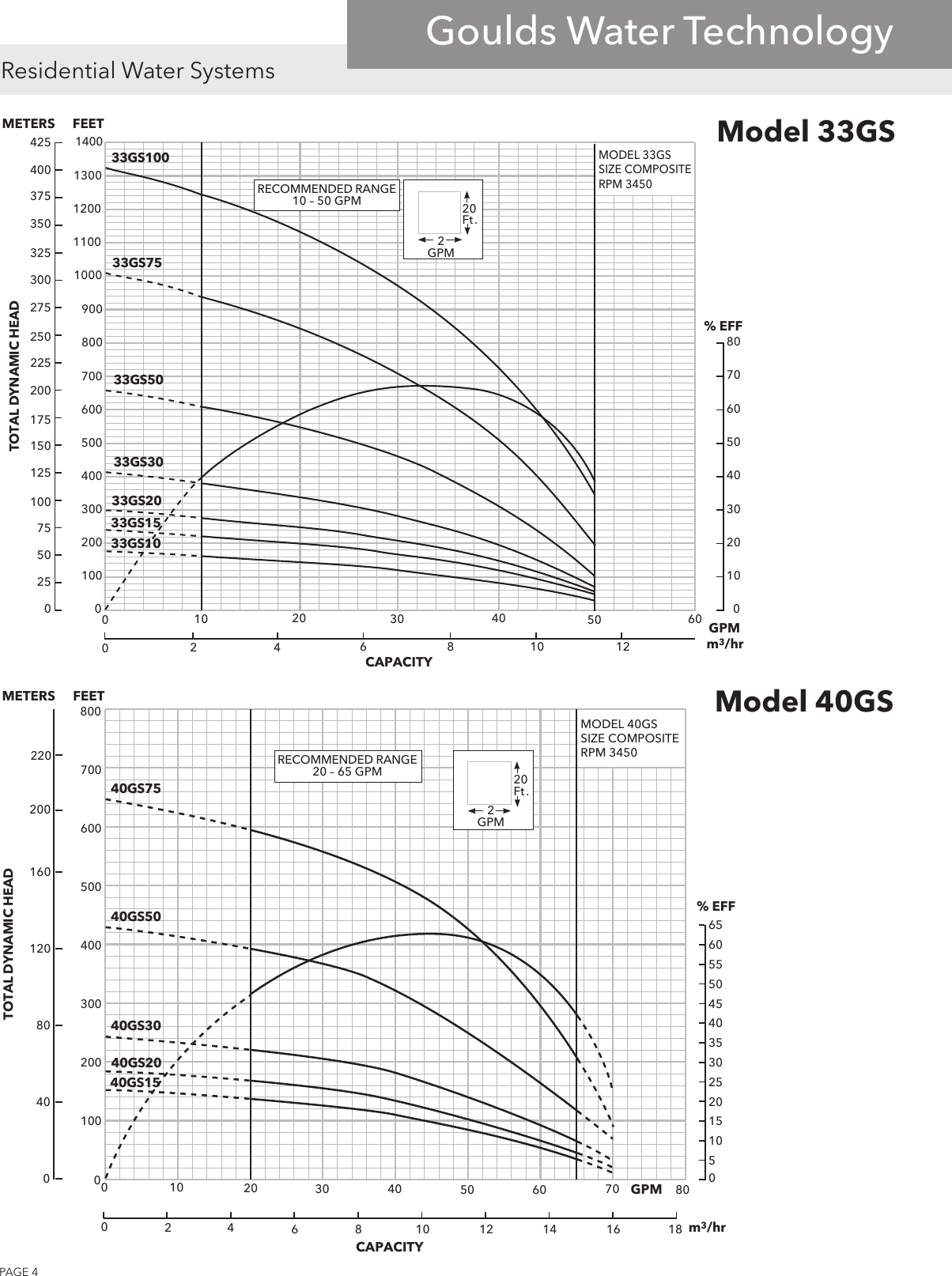

PAGE 4
Residential Water Systems
Goulds Water Technology
Model 40GS
024
61
8
10 20 30 40 50 60 70 80
0
0
CAPACITY
0
40
80
100
200
300
400
120
500
160
200
600
700
220
800
GPM
m3/hr
TOTAL DYNAMIC HEAD
METERS
MODEL 40GS
SIZE COMPOSITE
RPM 3450
FEET
810121416
40GS75
40GS50
40GS30
40GS20
40GS15
0
5
10
15
20
25
30
35
40
45
50
55
60
65
% EFF
20
Ft .
2
GPM
RECOMMENDED RANGE
20 – 65 GPM
Model 33GS
0246
10 20 30 40 50 60
0
0
CAPACITY
0
50
75
100
200
300
400
100
500
150
200
600
700
225
1400
m3/hr
TOTAL DYNAMIC HEAD
METERS FEET
81012
800
900
1000
GPM
MODEL 33GS
SIZE COMPOSITE
RPM 3450
0
10
20
30
40
50
60
% EFF
70
175
25
125
250
275
300
325
350
375
400
425
1100
1200
1300
80
RECOMMENDED RANGE
10 – 50 GPM
33GS50
33GS30
33GS20
33GS15
33GS10
33GS75
33GS100
20
Ft .
2
GPM
PAGE 5
Residential Water Systems
Goulds Water Technology
 DepthtoWaterinFeet/RatingsinGPM(GallonsperMinute)
20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 520 560 600
0 48 45 41 36 30 22 11
20 44 39 34 28 19
33GS10
1 30 39 33 27 17
40 32 25 15
50 24 14
60 12
Shut-off PSI 67 58 50 41 32 24 15 6
0 50 48 46 43 40 37 32 26 19
20 48 45 43 39 35 31 24 17
33GS15
1½ 30 45 42 39 35 30 23 15
40 42 38 34 29 22 14
50 38 33 28 21 12
60 33 27 20 11
Shut-off PSI 95 86 78 69 60 52 43 34 26 17
0 49 48 46 44 41 38 35 32 28 22
20 49 47 45 43 40 38 34 31 26 21 14
33GS20
2 30 47 45 42 40 37 34 30 25 20 13
40 44 42 40 37 33 29 24 19 11
50 42 39 36 33 29 24 18
60 39 36 32 28 23 16
Shut-off PSI 121 112 103 95 86 77 69 60 51 43 34 26
0 49 48 46 45 43 41 40 38 35 33 31 28 24 20 15
20 50 49 47 46 44 43 41 39 37 35 32 30 27 23 19 13
33GS30
3 30 49 47 46 44 42 41 39 37 34 32 29 26 22 18 12
40 47 45 44 42 40 38 36 34 32 29 25 22 17 11
50 45 44 42 40 38 36 34 31 28 25 21 16
60 43 42 40 38 36 33 31 28 24 20 15
Shut-off PSI 170 161 152 144 135 126 118 109 100 92 83 74 66 57 48 40 31 23
 DepthtoWaterinFeet/RatingsinGPM(GallonsperMinute)
50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350
0 50 48 46 44 41 38 35 31 27 20 11
20 50 48 46 44 41 38 35 32 27 21 11
33GS50
5 30 49 47 45 43 40 37 34 30 25 17
40 48 46 44 41 39 36 32 27 21 12
50 47 45 43 40 37 34 30 25 18
60 46 44 42 39 36 32 28 22 13
Shut-off PSI 264 242 220 199 177 156 134 112 91 69 47 26
0 50 48 47 46 44 42 40 38 36 33 31 27 23 19 14
20 50 49 47 46 44 42 41 38 36 34 31 28 24 19 14
33GS75
7½ 30 50 49 48 46 45 43 42 40 37 35 32 29 26 22 17 12
40 50 49 47 46 44 43 41 39 36 34 31 28 24 20 15
50 49 48 47 45 43 42 40 38 35 33 30 26 22 17 12
60 50 49 47 46 44 43 41 39 37 34 31 28 24 20 15
Shut-off PSI 415 393 371 350 328 306 285 263 241 220 198 176 155 133 111 90 68 47
0 49 48 46 45 43 42 41 40 39 38 36 34 31 28 25 22 18 13
20 50 48 46 45 43 42 41 40 39 38 36 34 31 29 25 22 18 14
33GS100
10 30 49 47 45 44 43 42 41 40 38 37 35 33 30 27 24 20 16 12
40 50 48 46 45 44 43 42 40 39 38 36 34 32 29 26 22 18 14
50 49 47 45 44 43 42 41 40 39 37 35 33 30 27 24 20 16 12
60 50 48 46 45 44 43 42 41 39 38 36 34 32 29 26 22 19 14
Shut-off PSI 551 529 508 486 464 443 421 399 378 356 334 313 291 269 248 226 205 183 161 140 118 96 75 53
HP PSI
Pump
Model
Pump
Model
HP PSI
Horsepower Range 5-10, Recommended Range 10 – 50 GPM, 60 Hz, 3450 RPM
MODEL 33GS
SELECTION CHART
Horsepower Range 1 – 3, Recommended Range 10 – 50 GPM, 60 Hz, 3450 RPM

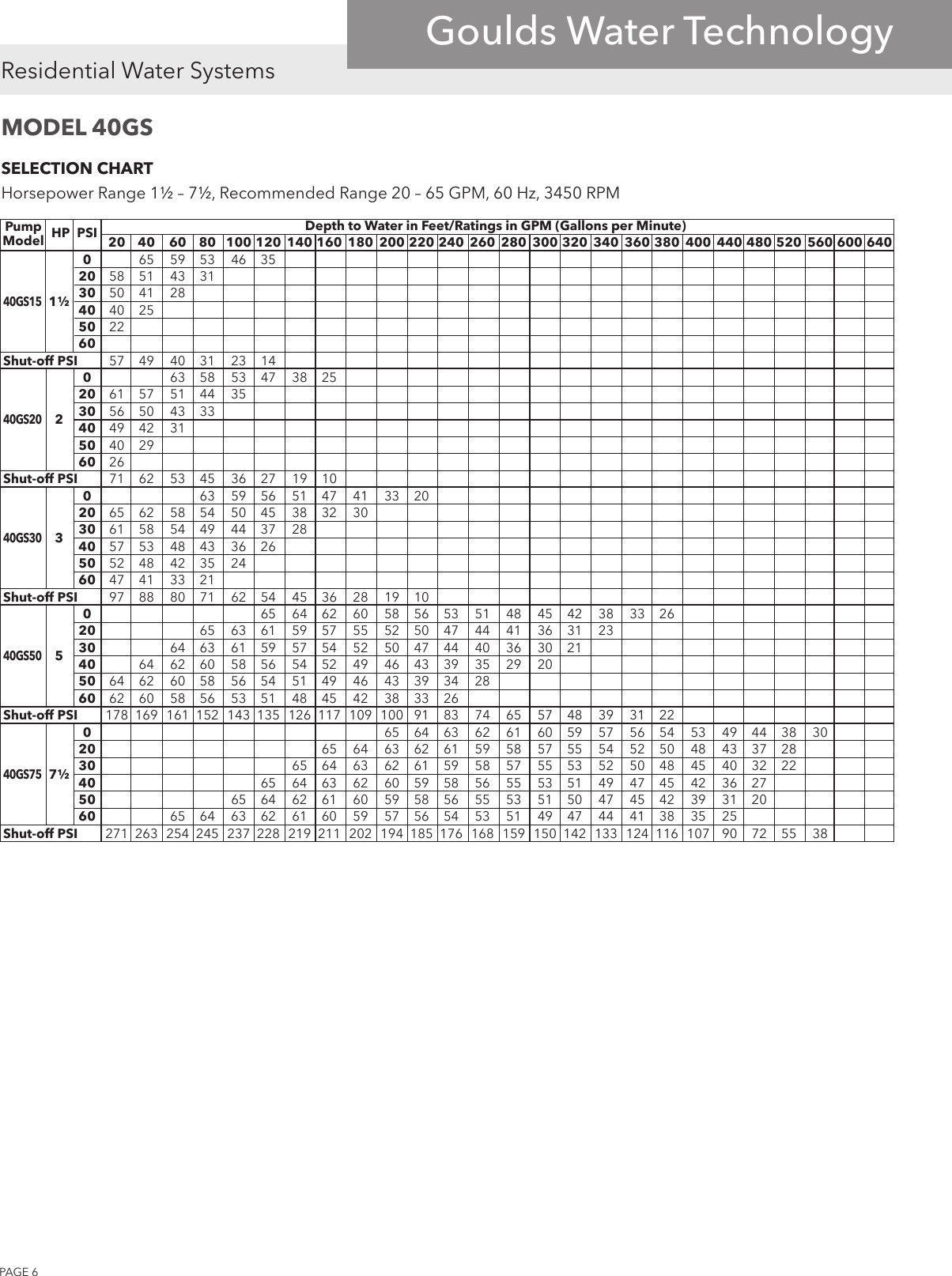

PAGE 6
Residential Water Systems
Goulds Water Technology
 DepthtoWaterinFeet/RatingsinGPM(GallonsperMinute)
20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 440 480 520 560 600 640
0 65 59 53 46 35
20 58 51 43 31
40GS15
1½ 30 50 41 28
40 40 25
50 22
60
Shut-off PSI 57 49 40 31 23 14
0 63 58 53 47 38 25
20 61 57 51 44 35
40GS20
2 30 56 50 43 33
40 49 42 31
50 40 29
60 26
Shut-off PSI 71 62 53 45 36 27 19 10
0 63 59 56 51 47 41 33 20
20 65 62 58 54 50 45 38 32 30
40GS30
3 30 61 58 54 49 44 37 28
40 57 53 48 43 36 26
50 52 48 42 35 24
60 47 41 33 21
Shut-off PSI 97 88 80 71 62 54 45 36 28 19 10
0 65 64 62 60 58 56 53 51 48 45 42 38 33 26
20 65 63 61 59 57 55 52 50 47 44 41 36 31 23
40GS50
5 30 64 63 61 59 57 54 52 50 47 44 40 36 30 21
40 64 62 60 58 56 54 52 49 46 43 39 35 29 20
50 64 62 60 58 56 54 51 49 46 43 39 34 28
60 62 60 58 56 53 51 48 45 42 38 33 26
Shut-off PSI 178 169 161 152 143 135 126 117 109 100 91 83 74 65 57 48 39 31 22
0 65 64 63 62 61 60 59 57 56 54 53 49 44 38 30
20 65 64 63 62 61 59 58 57 55 54 52 50 48 43 37 28
40GS75
7½ 30 65 64 63 62 61 59 58 57 55 53 52 50 48 45 40 32 22
40 65 64 63 62 60 59 58 56 55 53 51 49 47 45 42 36 27
50 65 64 62 61 60 59 58 56 55 53 51 50 47 45 42 39 31 20
60 65 64 63 62 61 60 59 57 56 54 53 51 49 47 44 41 38 35 25
Shut-off PSI 271 263 254 245 237 228 219 211 202 194 185 176 168 159 150 142 133 124 116 107 90 72 55 38
HP PSI
Pump
Model
MODEL 40GS
SELECTION CHART
Horsepower Range 1½ – 7½, Recommended Range 20 – 65 GPM, 60 Hz, 3450 RPM
PAGE 7
Residential Water Systems
Goulds Water Technology
 DepthtoWaterinFeet/RatingsinGPM(GallonsperMinute)
20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 500
0 78 71 64 54 42 24
20 61 51 37
55GS15
1½ 30 49 35
40 32
50
60
Shut-off PSI 52 43 35 26 17 9
0 76 71 65 58 50 41 28
20 69 63 56 48 37 24
55GS20
2 30 62 55 46 35 21
40 54 45 34
50 43 32
60 29
Shut-off PSI 76 67 58 50 41 32 24 15
0 80 76 72 68 63 58 52 44 35
20 75 71 67 62 56 49 42 32
55GS30
3 30 70 66 61 55 48 40 30
40 65 60 54 47 39 28
50 59 53 46 37 26
60 52 45 36 25
Shut-off PSI 102 94 85 76 68 59 50 42 33 24
0 80 78 76 73 71 68 65 62 58 55 50 46 40 34 27
20 80 77 75 73 70 67 64 61 57 53 49 44 39 32 25
55GS50
5 30 79 77 75 72 70 67 64 60 57 53 48 43 38 31 24
40 77 74 72 69 66 63 60 56 52 47 42 37 30 23
50 74 71 69 66 63 59 55 51 47 42 36 29 22
60 71 68 65 62 59 55 51 46 41 35 28 20
Shut-off PSI 178 169 161 152 143 135 126 117 109 100 91 83 74 65 57 48 39 31
HP PSI
 DepthtoWaterinFeet/RatingsinGPM(GallonsperMinute)
20 60 100 140 180 220 260 300 340 380 420 460 500 540 580 620 660 700 740 780 820 860 900 940 980
0 79 76 73 70 66 62 58 52 46 39 31 22
20 78 76 73 69 66 61 57 52 45 38 30 20
55GS75
7½ 30 80 77 74 71 67 63 59 54 48 41 33 24
40 78 75 72 69 65 61 56 51 44 37 28
50 76 73 70 67 63 58 53 47 40 32 23
60 75 72 68 64 60 55 50 43 36 27
Shut-off PSI 261 243 226 209 191 174 157 139 122 105 88 70 53 36
0 80 78 76 75 73 71 68 66 63 60 56 51 47 41 35 28
20 80 78 76 74 73 70 68 65 62 59 55 51 46 40 33 26
55GS100
10 30 79 77 75 73 71 69 67 64 61 57 53 48 42 36 29 22
40 79 78 76 74 72 70 68 65 62 59 55 50 45 39 32 25
50 78 77 75 73 71 69 66 63 60 56 52 47 42 35 28 21
60 77 76 74 72 70 67 65 61 58 54 49 44 38 31 24
Shut-off PSI 353 336 319 301 284 267 250 232 215 198 180 163 146 128 111 94 76 59
HP PSI
Horsepower Range 7½ – 10, Recommended Range 20 – 80 GPM, 60 Hz, 3450 RPM
Pump
Model
Pump
Model
MODEL 55GS
SELECTION CHART
Horsepower Range 1½ – 5, Recommended Range 20 – 80 GPM, 60 Hz, 3450 RPM
PAGE 8
Residential Water Systems
Goulds Water Technology
Model 60GS
0525
20 40 60
0
0
CAPACITY
0
25
50
100
200
300
400
120
500
150
200
600
700
225
800
GPM
m3/hr
TOTAL DYNAMIC HEAD
METERS
MODEL 60GS
SIZE COMPOSITE
RPM 3450
FEET
10 15 20
175
125
75
80 100 0
5
10
15
20
25
30
35
40
45
50
55
60
% EFF
60GS75
60GS50
60GS30
60GS20
60GS15
RECOMMENDED RANGE
40 – 80 GPM
20
Ft .
4
GPM
Model 55GS
RECOMMENDED RANGE
20 – 80 GPM
55GS15
55GS20
55GS30
55GS75
55GS100
55GS50
05
20 40 60 80 100
0
0
CAPACITY
0
50
75
100
200
300
400
100
500
150
700
TOTAL DYNAMIC HEAD
METERS FEET
10
GPM
0
10
20
30
40
50
60
% EFF
175
25
125
600
200
15
55
45
35
25
15
5
m3/hr
20
MODEL 55GS
SIZE COMPOSITE
RPM 3450
225
250 800
20
Ft .
4
GPM
PAGE 9
Residential Water Systems
Goulds Water Technology
 DepthtoWaterinFeet/RatingsinGPM(GallonsperMinute)
20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480
0 75 64 51
20 60 47
60GS15
1½ 30 44
40
50
60
Shut-off PSI 45 36 28 19
0 73 63 52
20 70 60 48
60GS20
2 30 58 46
40 44
50
60
Shut-off PSI 58 50 41 32 24 15 6
0 77 70 62 54 45
20 74 67 59 51 42
60GS30
3 30 73 66 58 50 40
40 65 57 48
50 56 47
60 45
Shut-off PSI 86 77 68 60 51 42 34 25
0 75 70 65 60 55 49 43
20 73 69 64 59 53 47 41
60GS50
5 30 73 68 63 58 52 47 40
40 76 72 67 62 57 52 46 39
50 76 71 66 62 56 51 45 38
60 70 66 61 55 50 44
Shut-off PSI 140 131 123 114 105 97 88 79 71 62 53 45 36
0 78 75 72 69 66 62 59 55 51 47 42
20 80 77 74 71 68 65 61 58 54 50 46 41
60GS75
7½ 30 80 77 74 71 68 64 61 57 53 49 45 40
40 79 76 73 70 67 64 60 56 52 48 44 40
50 79 76 73 70 67 63 60 56 52 48 43
60 78 76 73 69 66 63 59 55 51 47 43
Shut-off PSI 224 215 207 198 189 181 172 163 155 146 137 129 120 111 103 94 85 77 68 59 51
Pump
Model
HP PSI

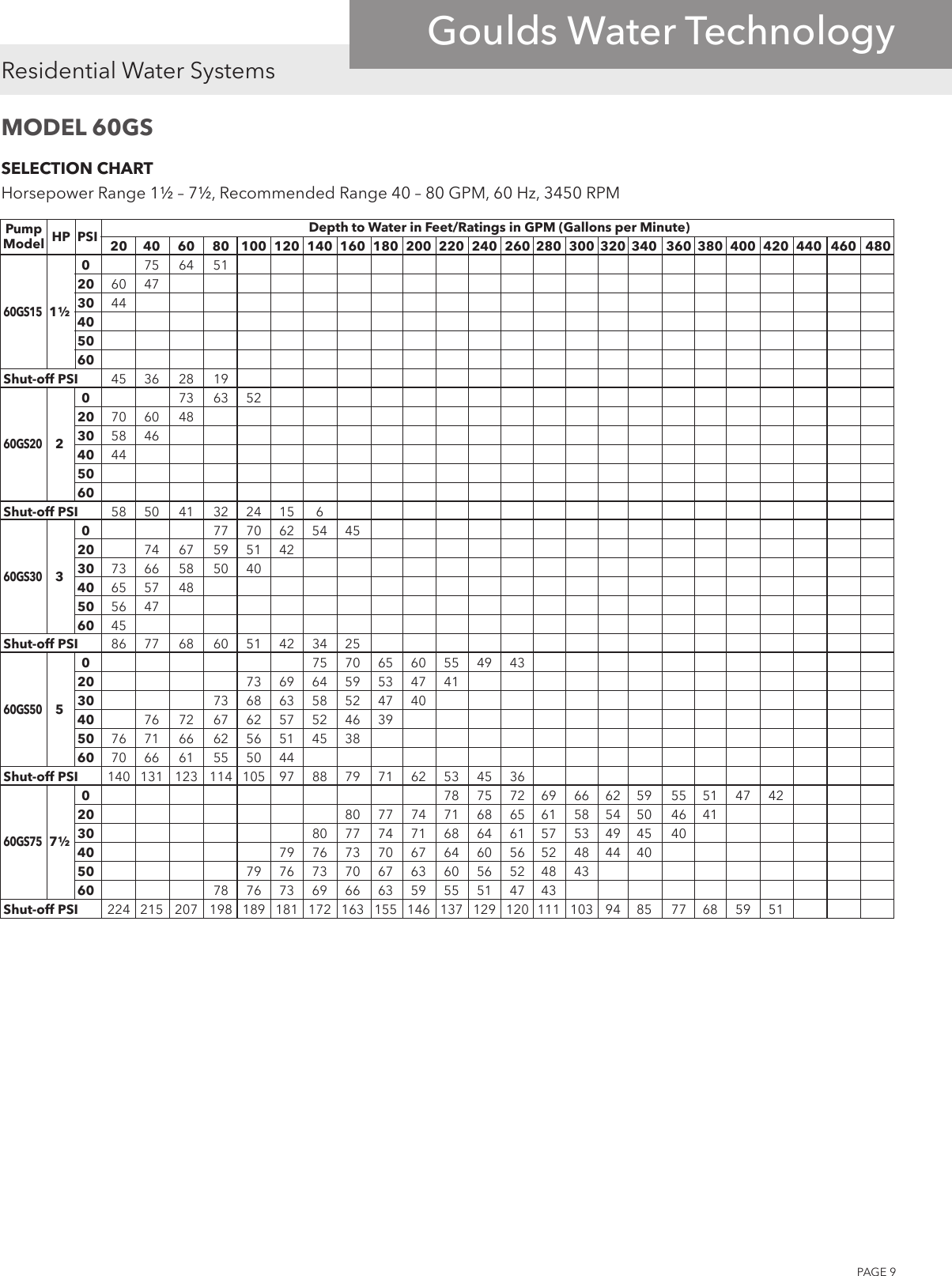

MODEL 60GS
SELECTION CHART
Horsepower Range 1½ – 7½, Recommended Range 40 – 80 GPM, 60 Hz, 3450 RPM
PAGE 10
Residential Water Systems
Goulds Water Technology
Pump
Model
HP PSI
 DepthtoWaterinFeet/RatingsinGPM(GallonsperMinute)
20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 500 520
0 80 67 52
20 77 63 47
75GS30
3 30 75 61 45
40 73 58 42
50 56 39
60 37
Shut-off PSI 77 69 60 51 43 34 25
0 90 83 75 65 55 44
20 80 72 62 51 41
75GS50
5 30 79 70 60 50
40 78 69 59 48
50 77 67 57 47
60 75 66 55 45
Shut-off PSI 120 111 102 94 85 76 68 59 50 42 33
0 80 75 68 61 54 47 40
20 79 73 66 59 52 45
75GS75
7½ 30 78 72 65 58 51 44
40 77 71 64 57 50 43
50 76 70 63 56 49 42
60 75 69 62 55 48 41
Shut-off PSI 146 137 129 120 111 103 94 85 77 68 59 51 42
0 100 97 95 92 88 85 81 76 72 67 62 56 51 45 40
20 99 96 94 91 87 84 79 75 70 65 60 55 49 44
75GS100
10 30 99 96 94 91 87 83 79 74 69 64 59 54 48 43
40 98 96 93 90 86 82 78 74 69 64 58 53 48 42
50 98 95 92 89 86 82 77 73 68 63 57 52 47 41
60 100 97 95 92 89 85 81 77 72 67 62 57 51 46 40
Shut-off PSI 272 263 254 246 237 228 220 211 202 194 185 176 168 159 150 142 133 124 116 107 98 90 81 72 64 55
 DepthtoWaterinFeet/RatingsinGPM(GallonsperMinute)
20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480
0 114 100 82 63
20 94 77 57
80GS30
3 30 74 53
40 50
50
60
Shut-off PSI 55 46 38 29 20
0 115 106 98 89 79 68 55
20 120 112 104 95 86 75 64 51
80GS50
5 30 111 102 94 84 74 62
40 101 92 83 72 60
50 91 81 70 58
60 79 69 56
Shut-off PSI 107 98 90 81 72 64 55 46 38 29
0 118 113 107 101 95 89 82 75 68 60
20 122 117 111 105 100 93 87 80 73 66
80GS75
7½ 30 121 116 110 105 99 92 86 79 72 65
40 120 115 109 104 98 91 85 78 71 63
50 114 109 103 97 90 84 77 70 62
60 108 102 96 89 83 76 69 61
Shut-off PSI 171 162 153 145 136 127 119 110 101 93 84 75 67 58 49
Pump
Model
HP PSI

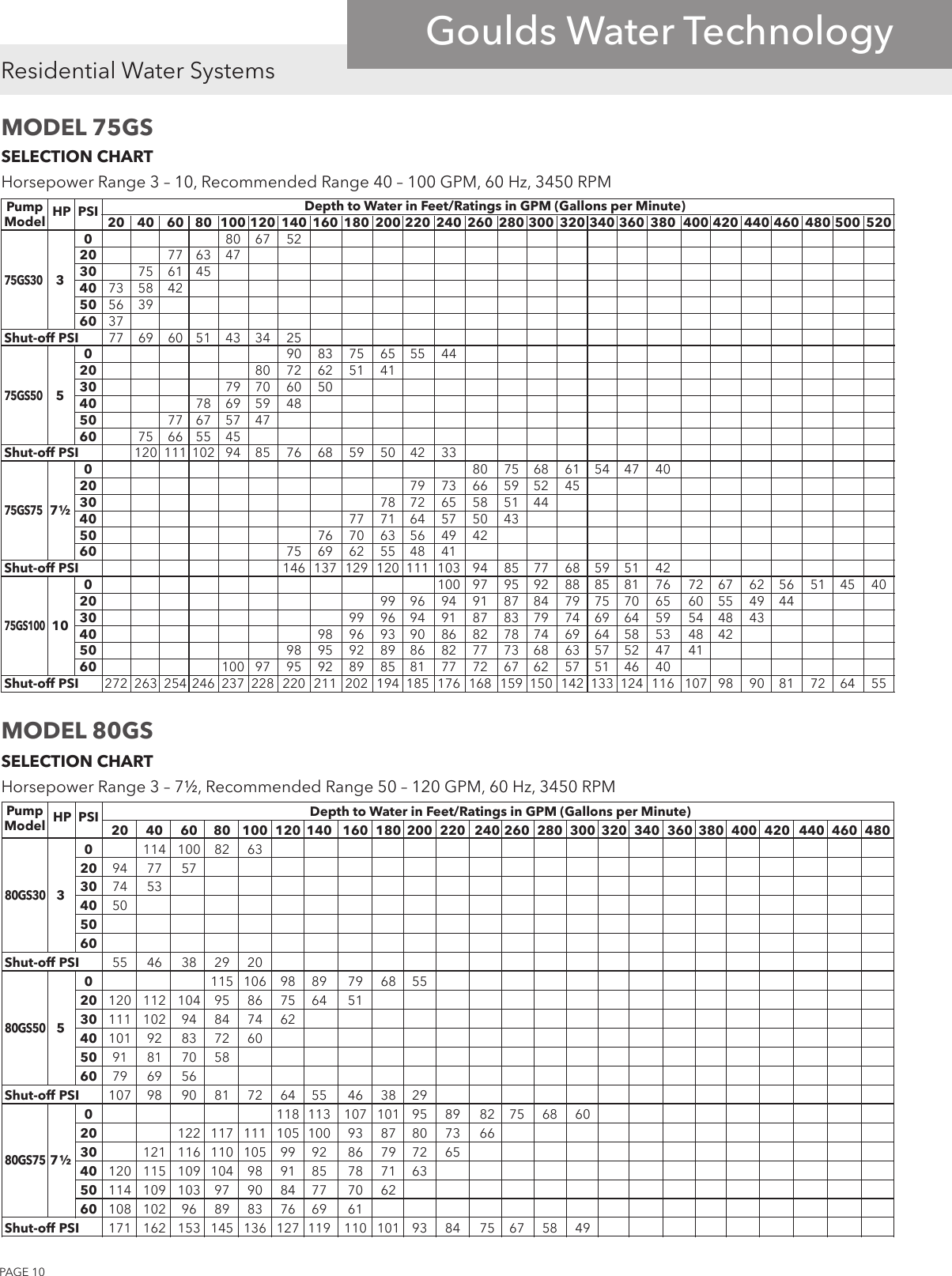

MODEL 75GS
MODEL 80GS
SELECTION CHART
Horsepower Range 3 – 10, Recommended Range 40 – 100 GPM, 60 Hz, 3450 RPM
SELECTION CHART
Horsepower Range 3 – 7½, Recommended Range 50 – 120 GPM, 60 Hz, 3450 RPM
PAGE 11
Residential Water Systems
Goulds Water Technology
Model 80GS
0525
20 40 60
0
0
CAPACITY
0
25
50
100
200
300
400
500
150
175
600
700
GPM
m3/hr
TOTAL DYNAMIC HEAD
METERS
MODEL 80GS
SIZE COMPOSITE
RPM 3450
FEET
10 15 20
125
75
80 100 120
100
0
10
20
30
40
50
60
70
% EFF
80GS75
80GS50
80GS30
RECOMMENDED RANGE
50 – 120 GPM
20
Ft .
4
GPM

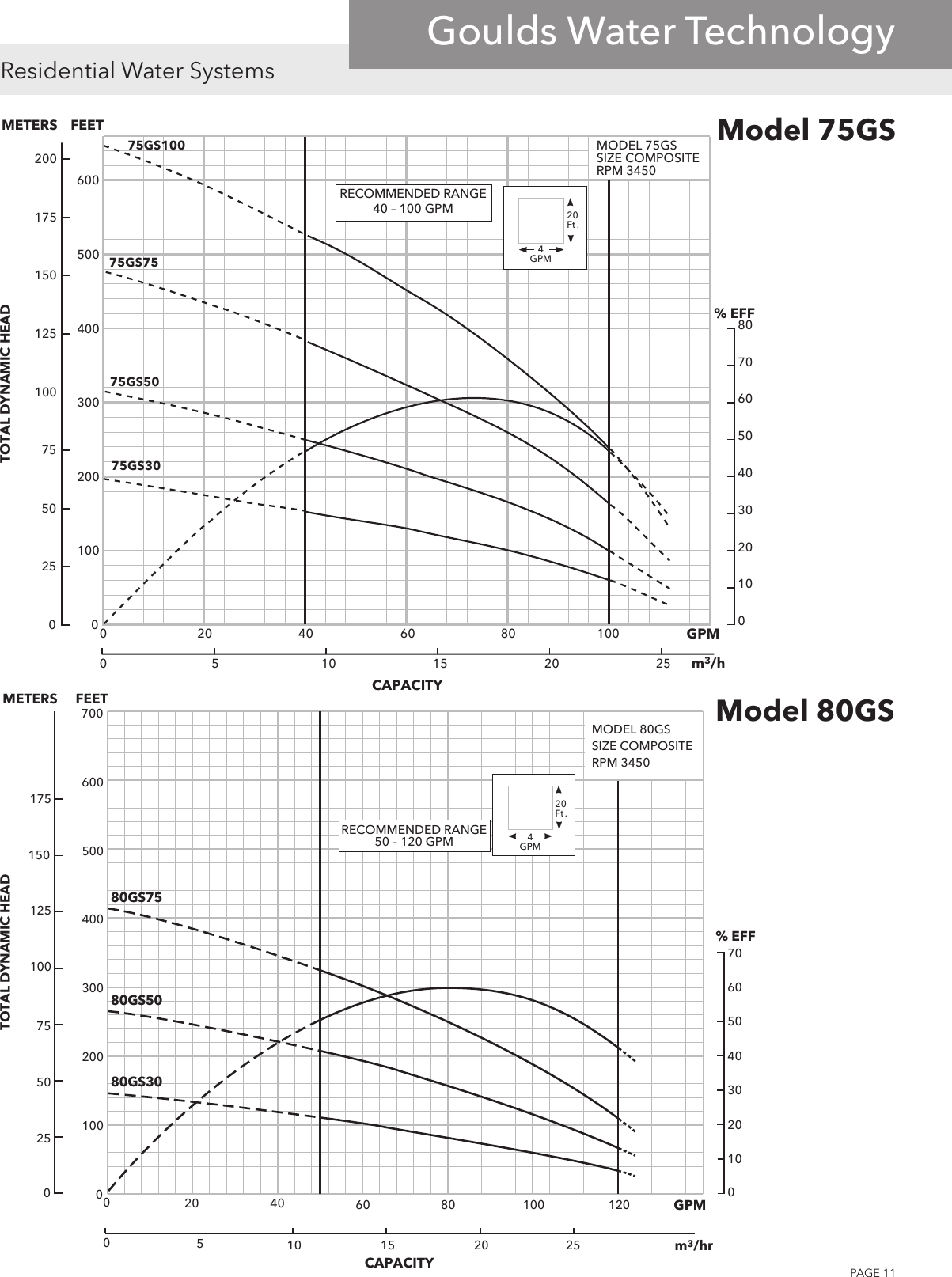

Model 75GS
2550
0
020 40 60
100
80 100
200
300
400
500
0
25
50
75
100
125
150
CAPACITY
TOTAL DYNAMIC HEAD
METERS
GPM
m3/h
FEET
201510
0
20
40
% EFF
60
80
175
200
600
70
50
30
10
MODEL 75GS
SIZE COMPOSITE
RPM 3450
75GS50
75GS30
75GS75
75GS100
20
Ft .
4
GPM
RECOMMENDED RANGE
40 – 100 GPM
Goulds is a registered trademark of Goulds Pumps, Inc. and is used under license.
CentriPro is a trademark of Xylem Inc. or one of its subsidiaries.
Noryl and Lexan are trademarks of GE Plastic.
© 2012 Xylem Inc. B33-80GS R4 July 2014

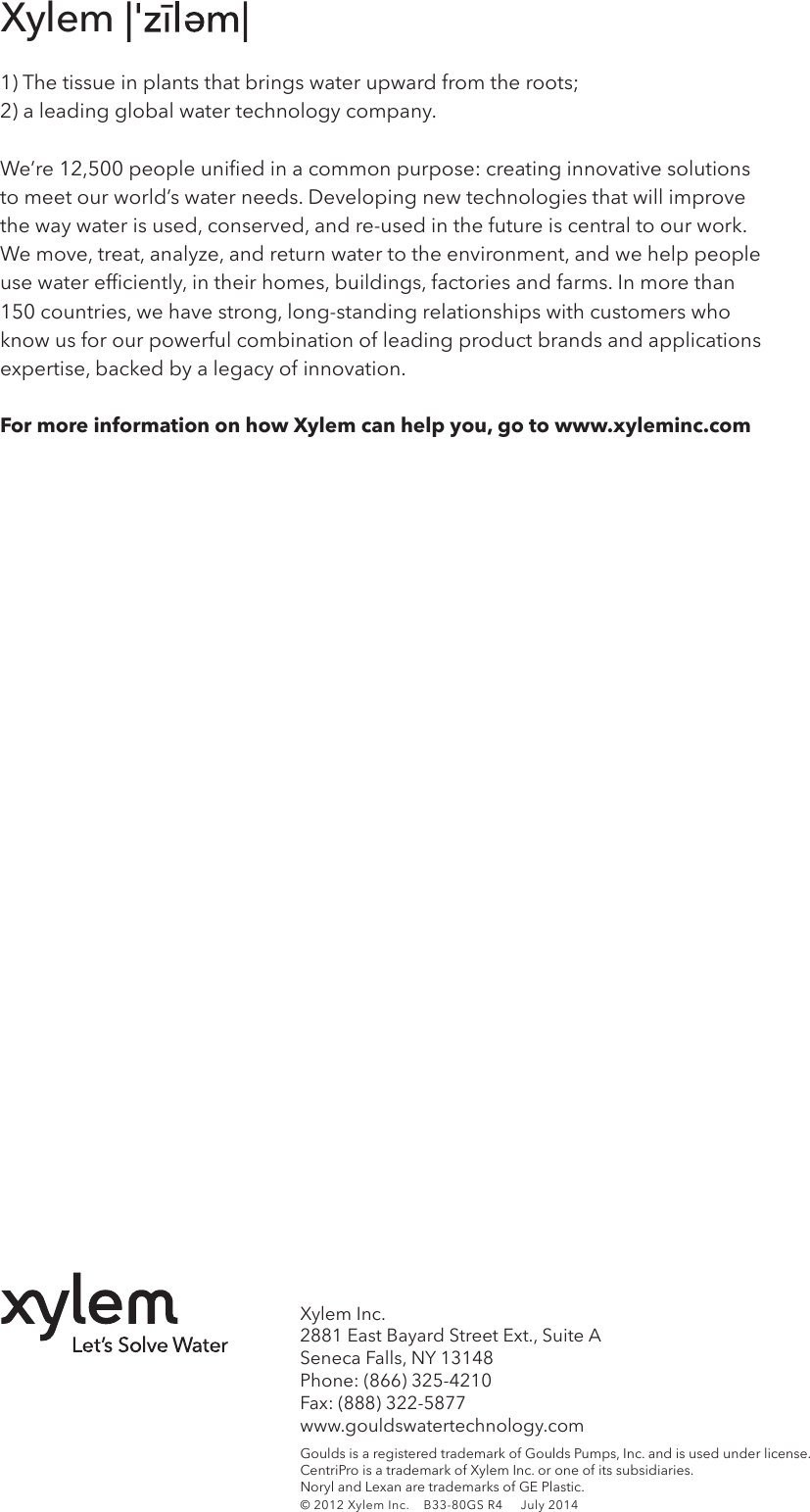

Xylem Inc.
2881 East Bayard Street Ext., Suite A
Seneca Falls, NY 13148
Phone: (866) 325-4210
Fax: (888) 322-5877
www.gouldswatertechnology.com
1) The tissue in plants that brings water upward from the roots;
2) a leading global water technology company.
We’re 12,500 people unied in a common purpose: creating innovative solutions
to meet our world’s water needs. Developing new technologies that will improve
the way water is used, conserved, and re-used in the future is central to our work.
We move, treat, analyze, and return water to the environment, and we help people
use water efciently, in their homes, buildings, factories and farms. In more than
150 countries, we have strong, long-standing relationships with customers who
know us for our powerful combination of leading product brands and applications
expertise, backed by a legacy of innovation.
FormoreinformationonhowXylemcanhelpyou,gotowww.xyleminc.com
Xylem
Page 1 of 12 - 539444 1 Goulds GS Series (33- 80 GPM) Submersible Pump Brochure
Page 2 of 12 - 539444 1 Goulds GS Series (33- 80 GPM) Submersible Pump Brochure
Page 3 of 12 - 539444 1 Goulds GS Series (33- 80 GPM) Submersible Pump Brochure
Page 4 of 12 - 539444 1 Goulds GS Series (33- 80 GPM) Submersible Pump Brochure
Page 5 of 12 - 539444 1 Goulds GS Series (33- 80 GPM) Submersible Pump Brochure
Page 6 of 12 - 539444 1 Goulds GS Series (33- 80 GPM) Submersible Pump Brochure
Page 7 of 12 - 539444 1 Goulds GS Series (33- 80 GPM) Submersible Pump Brochure
Page 8 of 12 - 539444 1 Goulds GS Series (33- 80 GPM) Submersible Pump Brochure
Page 9 of 12 - 539444 1 Goulds GS Series (33- 80 GPM) Submersible Pump Brochure
Page 10 of 12 - 539444 1 Goulds GS Series (33- 80 GPM) Submersible Pump Brochure
Page 11 of 12 - 539444 1 Goulds GS Series (33- 80 GPM) Submersible Pump Brochure
Page 12 of 12 - 539444 1 Goulds GS Series (33- 80 GPM) Submersible Pump Brochure

Navigation menu
