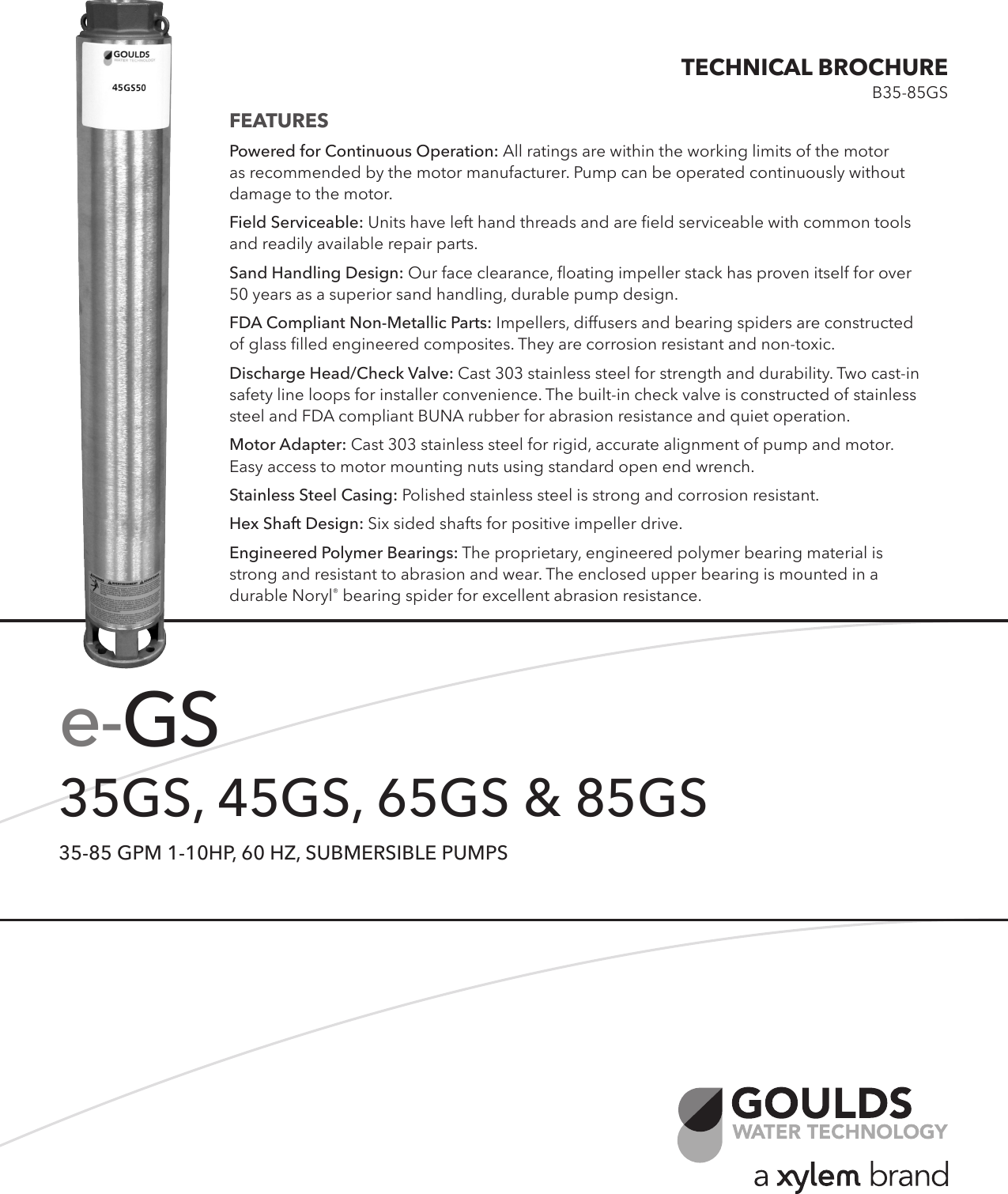

FEATURES

Powered for Continuous Operation: All ratings are within the working limits of the motor

as recommended by the motor manufacturer. Pump can be operated continuously without

damage to the motor.

Field Serviceable: Units have left hand threads and are eld serviceable with common tools

and readily available repair parts.

Sand Handling Design: Our face clearance, oating impeller stack has proven itself for over

50 years as a superior sand handling, durable pump design.

FDA Compliant Non-Metallic Parts: Impellers, diffusers and bearing spiders are constructed

of glass lled engineered composites. They are corrosion resistant and non-toxic.

Discharge Head/Check Valve: Cast 303 stainless steel for strength and durability. Two cast-in

safety line loops for installer convenience. The built-in check valve is constructed of stainless

steel and FDA compliant BUNA rubber for abrasion resistance and quiet operation.

Motor Adapter: Cast 303 stainless steel for rigid, accurate alignment of pump and motor.

Easy access to motor mounting nuts using standard open end wrench.

Stainless Steel Casing: Polished stainless steel is strong and corrosion resistant.

Hex Shaft Design: Six sided shafts for positive impeller drive.

Engineered Polymer Bearings: The proprietary, engineered polymer bearing material is

strong and resistant to abrasion and wear. The enclosed upper bearing is mounted in a

durable Noryl® bearing spider for excellent abrasion resistance.

e-GS

35GS, 45GS, 65GS & 85GS

35-85 GPM 1-10HP, 60 HZ, SUBMERSIBLE PUMPS

TECHNICAL BROCHURE

B35-85GS

PAGE 2

Residential Water Systems

Goulds Water Technology

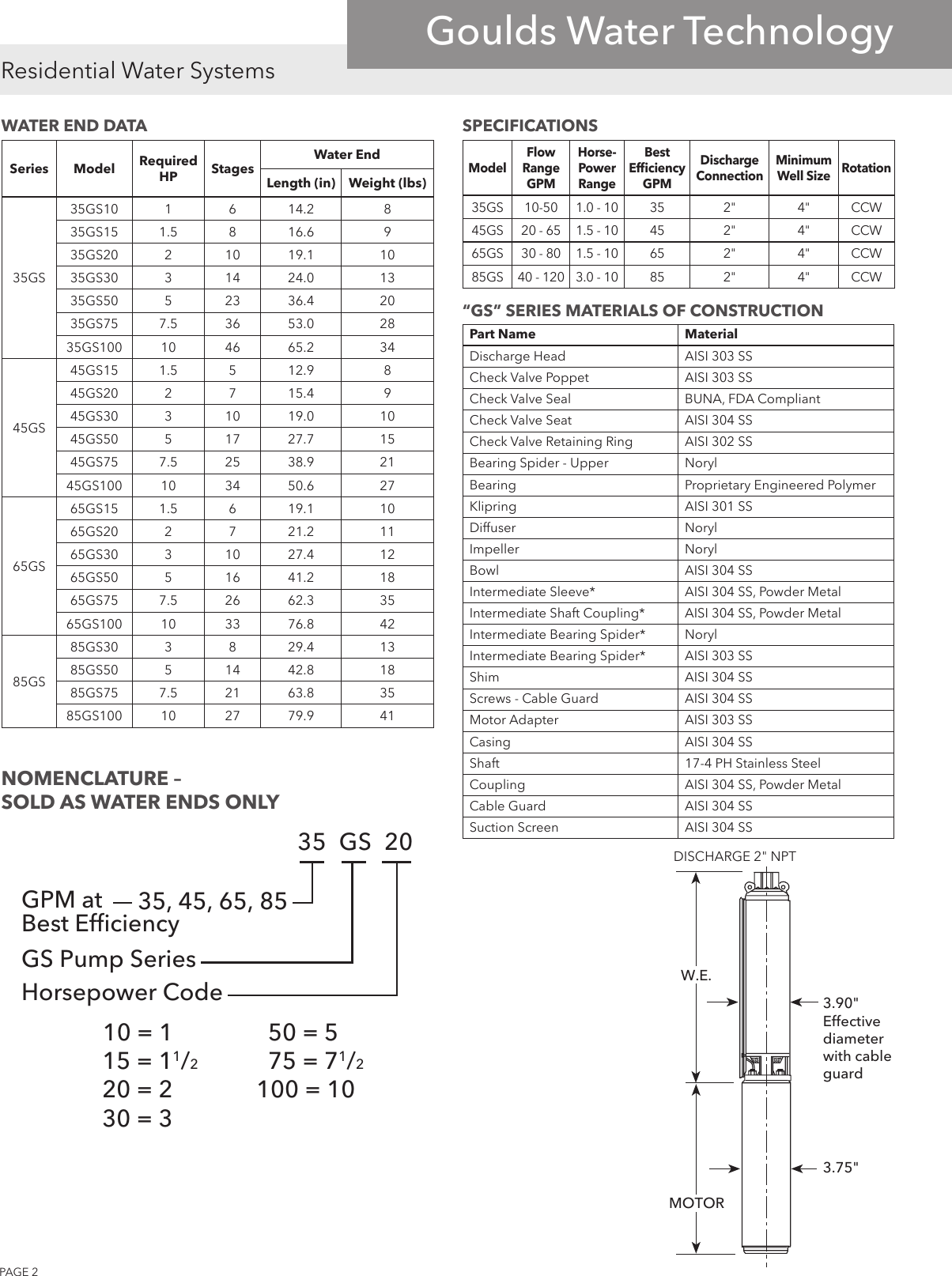

NOMENCLATURE –

SOLD AS WATER ENDS ONLY

Horsepower Code

15 = 11/2

20 = 2

30 = 3

50 = 5 10 = 1

75 = 71/2

100 = 10

GPM at

Best Efﬁciency

35 GS 20

GS Pump Series

35, 45, 65, 85

SPECIFICATIONSWATER END DATA

“GS” SERIES MATERIALS OF CONSTRUCTION

3.75"

3.90"

Effective

diameter

with cable

guard

MOTOR

W.E.

DISCHARGE 2" NPT

Series Model Required

HP Stages

Water End

Length (in) Weight (lbs)

35GS

35GS10 1 614.2 8

35GS15 1.5 8 16.6 9

35GS20 2 10 19.1 10

35GS30 314 24.0 13

35GS50 523 36.4 20

35GS75 7.5 36 53.0 28

35GS100 10 46 65.2 34

45GS

45GS15 1.5 512.9 8

45GS20 2 7 15.4 9

45GS30 310 19.0 10

45GS50 517 27.7 15

45GS75 7.5 25 38.9 21

45GS100 10 34 50.6 27

65GS

65GS15 1.5 619.1 10

65GS20 2 7 21.2 11

65GS30 310 27.4 12

65GS50 516 41.2 18

65GS75 7.5 26 62.3 35

65GS100 10 33 76.8 42

85GS

85GS30 38 29.4 13

85GS50 514 42.8 18

85GS75 7.5 21 63.8 35

85GS100 10 27 79.9 41

Model

Flow

Range

GPM

Horse-

Power

Range

Best

Efciency

GPM

Discharge

Connection

Minimum

Well Size Rotation

35GS 10-50 1.0 - 10 35 2" 4" CCW

45GS 20 - 65 1.5 - 10 45 2" 4" CCW

65GS 30 - 80 1.5 - 10 65 2" 4" CCW

85GS 40 - 120 3.0 - 10 85 2" 4" CCW

Part Name Material

Discharge Head AISI 303 SS

Check Valve Poppet AISI 303 SS

Check Valve Seal BUNA, FDA Compliant

Check Valve Seat AISI 304 SS

Check Valve Retaining Ring AISI 302 SS

Bearing Spider - Upper Noryl

Bearing Proprietary Engineered Polymer

Klipring AISI 301 SS

Diffuser Noryl

Impeller Noryl

Bowl AISI 304 SS

Intermediate Sleeve* AISI 304 SS, Powder Metal

Intermediate Shaft Coupling* AISI 304 SS, Powder Metal

Intermediate Bearing Spider* Noryl

Intermediate Bearing Spider* AISI 303 SS

Shim AISI 304 SS

Screws - Cable Guard AISI 304 SS

Motor Adapter AISI 303 SS

Casing AISI 304 SS

Shaft 17-4 PH Stainless Steel

Coupling AISI 304 SS, Powder Metal

Cable Guard AISI 304 SS

Suction Screen AISI 304 SS

PAGE 3

Residential Water Systems

Goulds Water Technology

Length Weight

Order No. Type HP Volts in. (mm) lb. (kg.)

M10422 2-wire 1 230 13.3 (337) 24.5 (11.1)

M15422 PSC 1.5 14.9 (378) 28.9 (13.1)

M10412 1 11.7 (297) 23.1 (10.5)

M15412 1.5 13.6 (345) 27.4 (12.4)

M20412 3-wire 2 230 15.1 (383) 31.0 (14.1)

M30412 3 18.3 (466) 40.0 (18.1)

M50412 5 27.7 (703) 70.0 (31.8)

CENTRIPRO 4" THREE-PHASE MOTORS

Length Weight

Order No. HP Volts in. (mm) lb. (kg.)

M10430 1 11.7 (297) 22 (10.4)

M15430 1.5 11.7 (297) 22 (10.4)

M20430 2 200 13.8 (351) 28 (12.7)

M30430 3 15.3 (389) 32 (14.5)

M50430 5 21.7 (550) 55 (24.9)

M75430 7.5 27.7 (703) 70 (31.8)

M10432 1 11.7 (297) 23 (10.4)

M15432 1.5 11.7 (297) 23 (10.4)

M20432 2 230 13.8 (351) 28 (12.7)

M30432 3 15.3 (389) 32 (14.5)

M50432 5 21.7 (550) 55 (24.9)

M75432 7.5 27.7 (703) 70 (31.8)

M10434 1 11.7 (297) 23 (10.4)

M15434 1.5 11.7 (297) 23 (10.4)

M20434 2 13.8 (351) 28 (12.7)

M30434 3 460 15.3 (389) 32 (14.5)

M50434 5 21.7 (550) 55 (24.9)

M75434 7.5 27.7 (703) 70 (31.8)

M100434 10 — —

M15437 1.5 11.7 (297) 23 (10.4)

M20437 2 15.3 (389) 32 (14.5)

M30437 3 575 15.3 (389) 32 (14.5)

M50437 5 27.7 (703) 70 (31.8)

M75437 7.5 27.7 (703) 70 (31.8)

NEMA MOTOR

• Corrosion resistant stainless steel construction.

• Built-in surge arrestor is provided on single phase mo-

tors through 5 HP.

• Stainless steel splined shaft.

• Hermetically sealed windings.

• Replaceable motor lead assembly.

• NEMA mounting dimensions.

• Control box is required with 3 wire single phase units.

• Three phase units require a magnetic starter with three

leg Class 10 overload protection.

CENTRIPRO 4" SINGLE-PHASE MOTORS

AGENCY LISTINGS

®CentriPro Motor - tested to UL778 and CAN 22.2 by

CSA International (Canadian Standards Association)

CentriPro Motor - Certied to NSF/ANSI 61, Annex

G, Drinking Water System Components 4P49

WATER QUALITY

NSF/ANSI 372 – Drinking Water System Components –

Lead Content

CLASS 6853 01 - Low Lead Content Certication

Program - - Plumbing Products

LLC

PAGE 4

Residential Water Systems

Goulds Water Technology

Model 45GS

Model 35GS

10%

20%

30%

40%

50%

60%

70%

80%

EFF.

2468

10 20 30 40 50

CAPACITY

200

400

100

150

200

600

1400

m3/hr

TOTAL DYNAMIC HEAD

METERS FEET

800

1000

GPM

MODEL 35GS

SIZE COMPOSITE

RPM 3450

250

300

350

400

450

1200

1600

RECOMMENDED RANGE

10 – 50 GPM 20

Ft.

GPM

35GS50

35GS30

35GS75

35GS100

35GS20

35GS15

35GS10

EFF.

02468

10 20 30 40 50 60 70

CAPACITY

200

400

100

150

200

600

m3/hr

TOTAL DYNAMIC HEAD

METERS FEET

12 14

800

1000

GPM

MODEL 45GS

SIZE COMPOSITE

RPM 3450

250

300

350

1200

RECOMMENDED RANGE

20 – 65 GPM 20

Ft.

GPM

45GS50

45GS30

45GS20

45GS15

45GS75

45GS100

10%

20%

30%

40%

50%

60%

70%

80%

EFF.

PAGE 5

Residential Water Systems

Goulds Water Technology

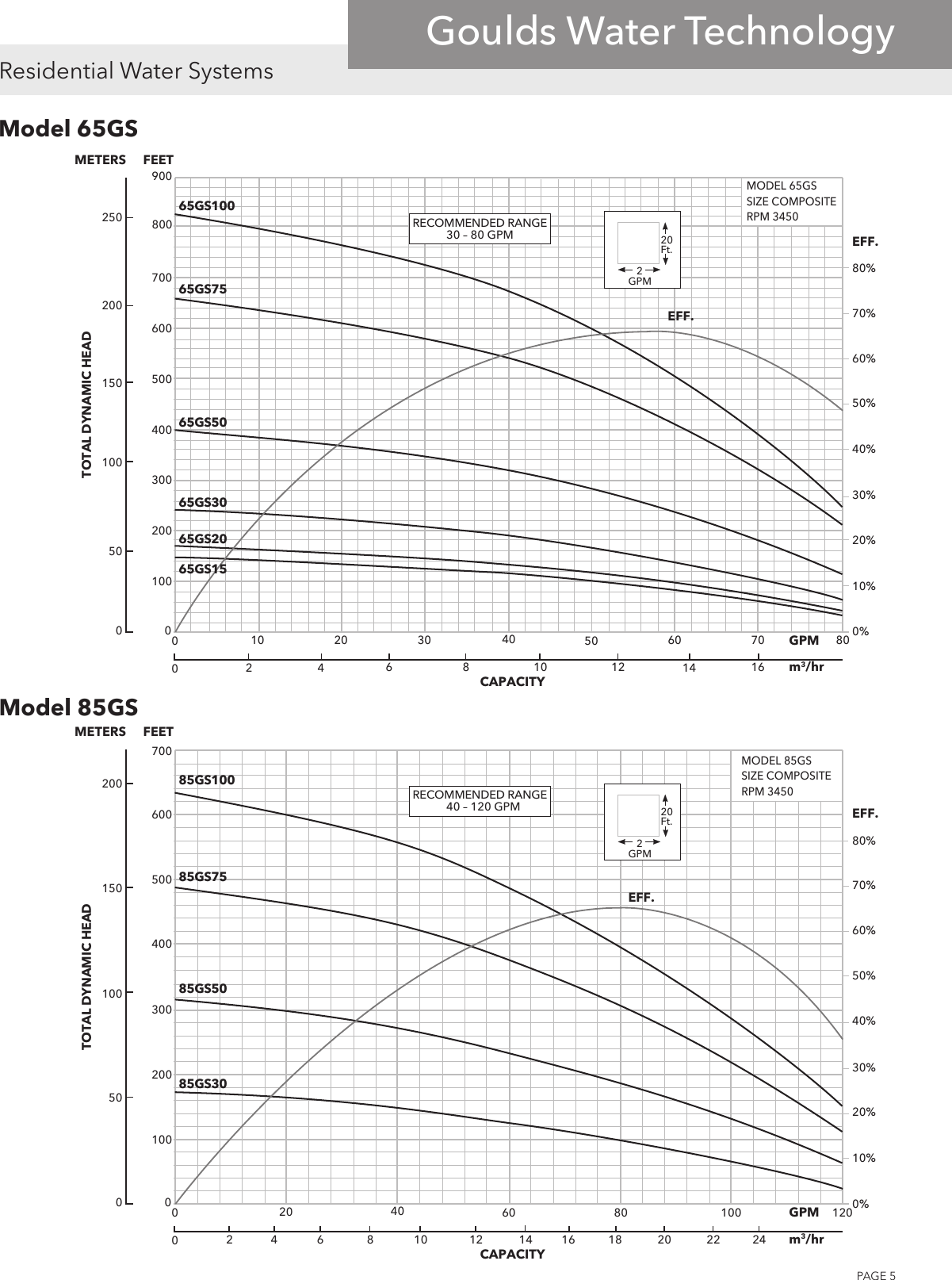

Model 85GS

Model 65GS

02468

10 20 30 40 50 60 70 80

CAPACITY

200

400

100

300

100

150

200

600

500

m3/hr

TOTAL DYNAMIC HEAD

METERS FEET

12 16

800

700

GPM

MODEL 65GS

SIZE COMPOSITE

RPM 3450

250

900

RECOMMENDED RANGE

30 – 80 GPM

65GS50

65GS30

65GS20

65GS15

65GS75

65GS100

Ft.

GPM

10%

20%

30%

40%

50%

60%

70%

80%

EFF.

02468

20 40 60 80 120100

CAPACITY

200

400

100

300

100

150

200

600

500

m3/hr

TOTAL DYNAMIC HEAD

METERS FEET

12 16

700

GPM

MODEL 85GS

SIZE COMPOSITE

RPM 3450

RECOMMENDED RANGE

40 – 120 GPM

85GS50

85GS30

85GS75

85GS100

Ft.

GPM

18 20 22 24

10%

20%

30%

40%

50%

60%

70%

80%

EFF.

PAGE 6

Residential Water Systems

Goulds Water Technology

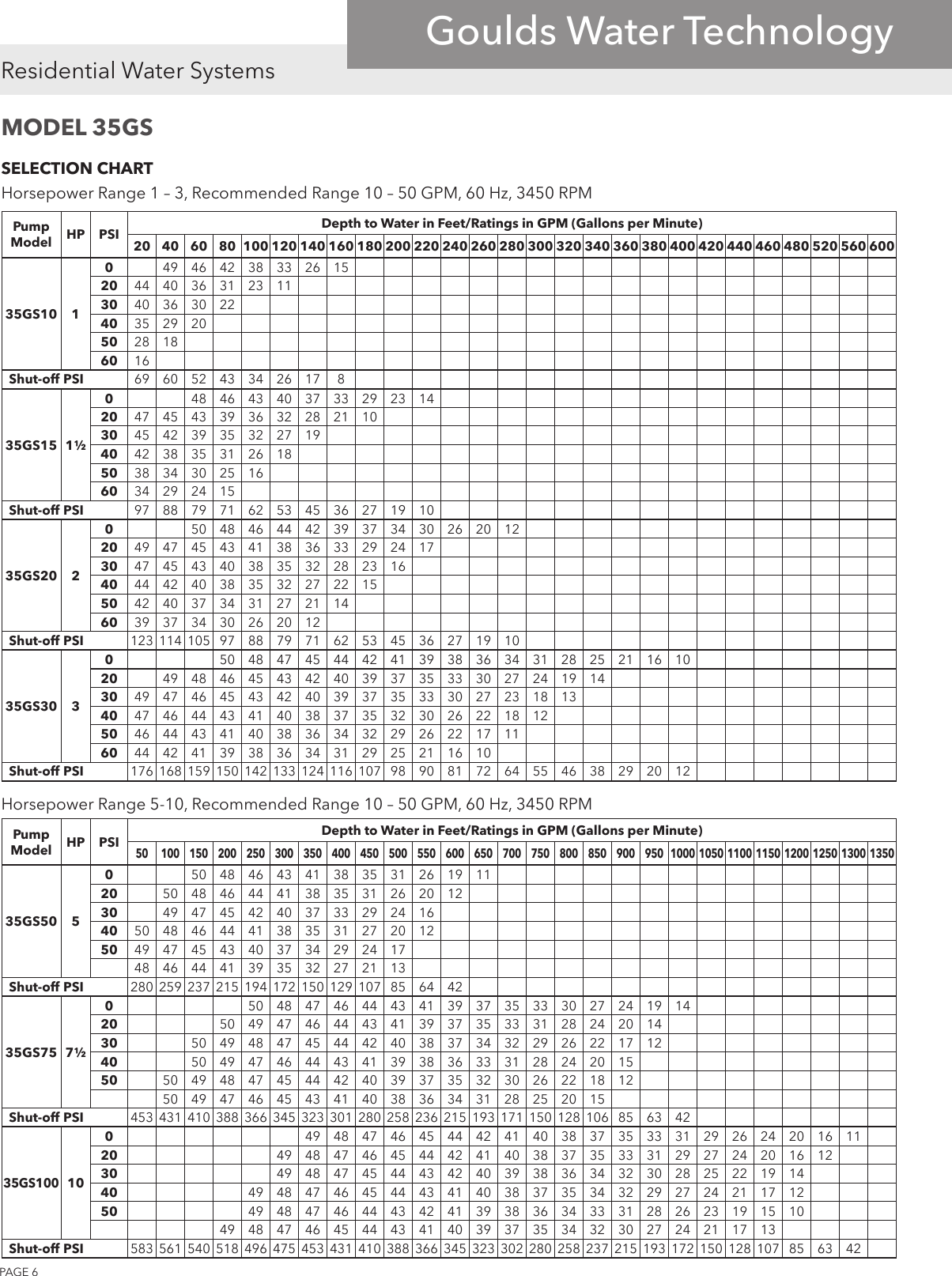

Horsepower Range 5-10, Recommended Range 10 – 50 GPM, 60 Hz, 3450 RPM

MODEL 35GS

SELECTION CHART

Horsepower Range 1 – 3, Recommended Range 10 – 50 GPM, 60 Hz, 3450 RPM

Pump

Model HP PSI Depth to Water in Feet/Ratings in GPM (Gallons per Minute)

20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 520 560 600

35GS10 1

049 46 42 38 33 26 15

20 44 40 36 31 23 11

30 40 36 30 22

40 35 29 20

50 28 18

60 16

Shut-off PSI 69 60 52 43 34 26 17 8

35GS15 1½

048 46 43 40 37 33 29 23 14

20 47 45 43 39 36 32 28 21 10

30 45 42 39 35 32 27 19

40 42 38 35 31 26 18

50 38 34 30 25 16

60 34 29 24 15

Shut-off PSI 97 88 79 71 62 53 45 36 27 19 10

35GS20 2

050 48 46 44 42 39 37 34 30 26 20 12

20 49 47 45 43 41 38 36 33 29 24 17

30 47 45 43 40 38 35 32 28 23 16

40 44 42 40 38 35 32 27 22 15

50 42 40 37 34 31 27 21 14

60 39 37 34 30 26 20 12

Shut-off PSI 123 114 105 97 88 79 71 62 53 45 36 27 19 10

35GS30 3

050 48 47 45 44 42 41 39 38 36 34 31 28 25 21 16 10

20 49 48 46 45 43 42 40 39 37 35 33 30 27 24 19 14

30 49 47 46 45 43 42 40 39 37 35 33 30 27 23 18 13

40 47 46 44 43 41 40 38 37 35 32 30 26 22 18 12

50 46 44 43 41 40 38 36 34 32 29 26 22 17 11

60 44 42 41 39 38 36 34 31 29 25 21 16 10

Shut-off PSI 176 168 159 150 142 133 124 116 107 98 90 81 72 64 55 46 38 29 20 12

Pump

Model HP PSI Depth to Water in Feet/Ratings in GPM (Gallons per Minute)

50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350

35GS50 5

050 48 46 43 41 38 35 31 26 19 11

20 50 48 46 44 41 38 35 31 26 20 12

30 49 47 45 42 40 37 33 29 24 16

40 50 48 46 44 41 38 35 31 27 20 12

50 49 47 45 43 40 37 34 29 24 17

48 46 44 41 39 35 32 27 21 13

Shut-off PSI 280 259 237 215 194 172 150 129 107 85 64 42

35GS75 7½

050 48 47 46 44 43 41 39 37 35 33 30 27 24 19 14

20 50 49 47 46 44 43 41 39 37 35 33 31 28 24 20 14

30 50 49 48 47 45 44 42 40 38 37 34 32 29 26 22 17 12

40 50 49 47 46 44 43 41 39 38 36 33 31 28 24 20 15

50 50 49 48 47 45 44 42 40 39 37 35 32 30 26 22 18 12

50 49 47 46 45 43 41 40 38 36 34 31 28 25 20 15

Shut-off PSI 453 431 410 388 366 345 323 301 280 258 236 215 193 171 150 128 106 85 63 42

35GS100

049 48 47 46 45 44 42 41 40 38 37 35 33 31 29 26 24 20 16 11

20 49 48 47 46 45 44 42 41 40 38 37 35 33 31 29 27 24 20 16 12

30 49 48 47 45 44 43 42 40 39 38 36 34 32 30 28 25 22 19 14

40 49 48 47 46 45 44 43 41 40 38 37 35 34 32 29 27 24 21 17 12

50 49 48 47 46 44 43 42 41 39 38 36 34 33 31 28 26 23 19 15 10

49 48 47 46 45 44 43 41 40 39 37 35 34 32 30 27 24 21 17 13

Shut-off PSI 583 561 540 518 496 475 453 431 410 388 366 345 323 302 280 258 237 215 193 172 150 128 107 85 63 42

PAGE 7

Residential Water Systems

Goulds Water Technology

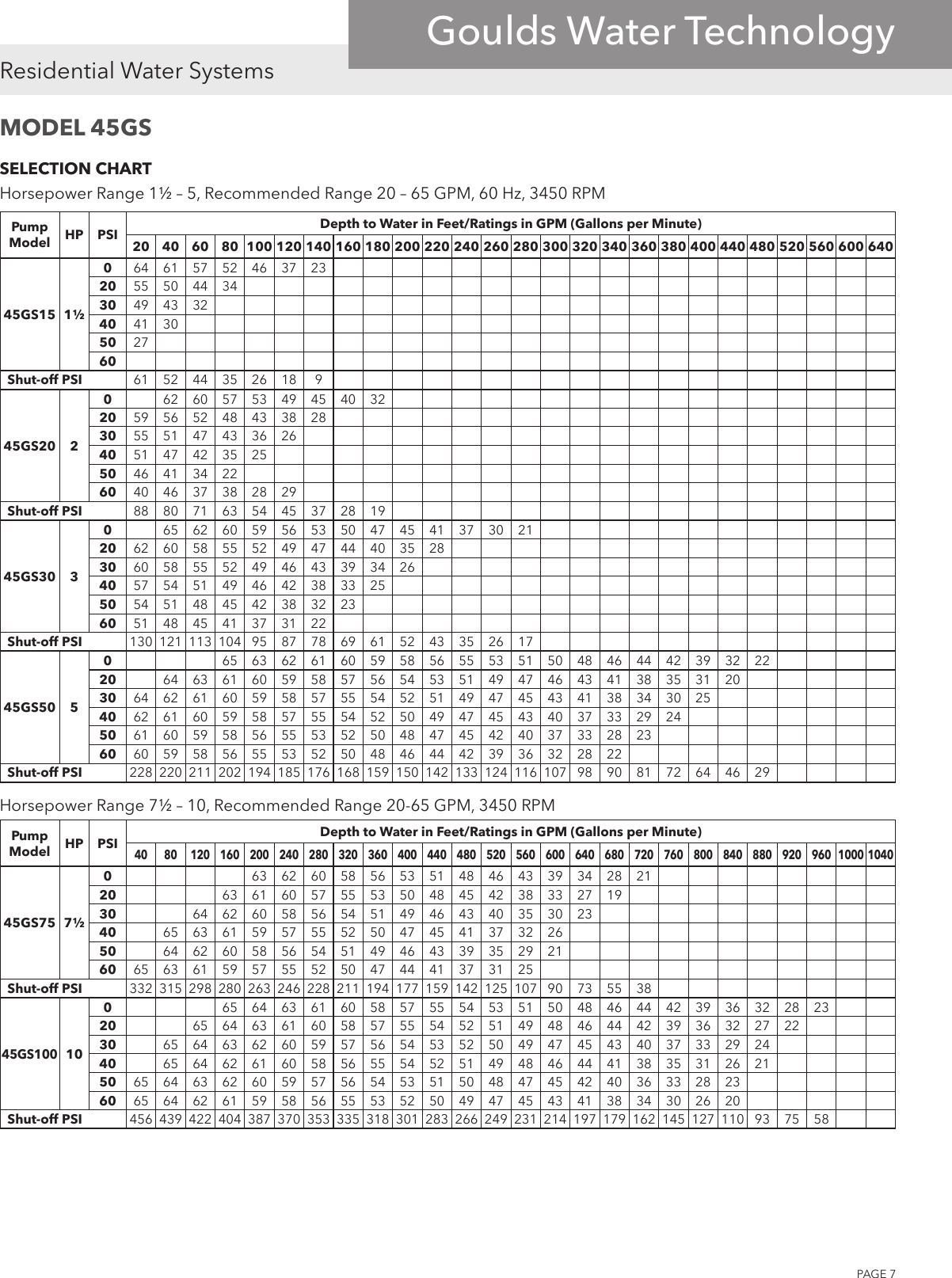

Horsepower Range 7½ – 10, Recommended Range 20-65 GPM, 3450 RPM

MODEL 45GS

SELECTION CHART

Horsepower Range 1½ – 5, Recommended Range 20 – 65 GPM, 60 Hz, 3450 RPM

Pump

Model HP PSI Depth to Water in Feet/Ratings in GPM (Gallons per Minute)

20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 440 480 520 560 600 640

45GS15 1½

064 61 57 52 46 37 23

20 55 50 44 34

30 49 43 32

40 41 30

50 27

Shut-off PSI 61 52 44 35 26 18 9

45GS20 2

062 60 57 53 49 45 40 32

20 59 56 52 48 43 38 28

30 55 51 47 43 36 26

40 51 47 42 35 25

50 46 41 34 22

60 40 46 37 38 28 29

Shut-off PSI 88 80 71 63 54 45 37 28 19

45GS30 3

065 62 60 59 56 53 50 47 45 41 37 30 21

20 62 60 58 55 52 49 47 44 40 35 28

30 60 58 55 52 49 46 43 39 34 26

40 57 54 51 49 46 42 38 33 25

50 54 51 48 45 42 38 32 23

60 51 48 45 41 37 31 22

Shut-off PSI 130 121 113 104 95 87 78 69 61 52 43 35 26 17

45GS50 5

065 63 62 61 60 59 58 56 55 53 51 50 48 46 44 42 39 32 22

20 64 63 61 60 59 58 57 56 54 53 51 49 47 46 43 41 38 35 31 20

30 64 62 61 60 59 58 57 55 54 52 51 49 47 45 43 41 38 34 30 25

40 62 61 60 59 58 57 55 54 52 50 49 47 45 43 40 37 33 29 24

50 61 60 59 58 56 55 53 52 50 48 47 45 42 40 37 33 28 23

60 60 59 58 56 55 53 52 50 48 46 44 42 39 36 32 28 22

Shut-off PSI 228 220 211 202 194 185 176 168 159 150 142 133 124 116 107 98 90 81 72 64 46 29

Pump

Model HP PSI Depth to Water in Feet/Ratings in GPM (Gallons per Minute)

40 80 120 160 200 240 280 320 360 400 440 480 520 560 600 640 680 720 760 800 840 880 920 960 1000 1040

45GS75 7½

063 62 60 58 56 53 51 48 46 43 39 34 28 21

20 63 61 60 57 55 53 50 48 45 42 38 33 27 19

30 64 62 60 58 56 54 51 49 46 43 40 35 30 23

40 65 63 61 59 57 55 52 50 47 45 41 37 32 26

50 64 62 60 58 56 54 51 49 46 43 39 35 29 21

60 65 63 61 59 57 55 52 50 47 44 41 37 31 25

Shut-off PSI 332 315 298 280 263 246 228 211 194 177 159 142 125 107 90 73 55 38

45GS100

065 64 63 61 60 58 57 55 54 53 51 50 48 46 44 42 39 36 32 28 23

20 65 64 63 61 60 58 57 55 54 52 51 49 48 46 44 42 39 36 32 27 22

30 65 64 63 62 60 59 57 56 54 53 52 50 49 47 45 43 40 37 33 29 24

40 65 64 62 61 60 58 56 55 54 52 51 49 48 46 44 41 38 35 31 26 21

50 65 64 63 62 60 59 57 56 54 53 51 50 48 47 45 42 40 36 33 28 23

60 65 64 62 61 59 58 56 55 53 52 50 49 47 45 43 41 38 34 30 26 20

Shut-off PSI 456 439 422 404 387 370 353 335 318 301 283 266 249 231 214 197 179 162 145 127 110 93 75 58

PAGE 8

Residential Water Systems

Goulds Water Technology

Horsepower Range 7½ – 10, Recommended Range 30 – 80 GPM, 60 Hz, 3450 RPM

MODEL 65GS

SELECTION CHART

Horsepower Range 1½ – 5, Recommended Range 30 – 80 GPM, 60 Hz, 3450 RPM

Pump

Model HP PSI Depth to Water in Feet/Ratings in GPM (Gallons per Minute)

20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 440 480

65GS15 1½

078 70 61 51 36

20 68 58 47 30

30 57 45

40 42

Shut-off PSI 55 46 38 29 20 12

65GS20 2

081 74 67 59 48 35

20 72 64 56 45 30

30 63 54 43

40 53 41

50 39

Shut-off PSI 65 56 48 39 30 22 13

65GS30 3

081 76 71 66 59 53 45 35

20 80 75 69 64 57 51 42 32

30 74 69 63 56 49 41 30

40 68 62 55 48 39

50 61 54 47 38

60 53 46 36

Shut-off PSI 96 87 79 70 61 53 44 35 27 18

65GS50 5

080 77 73 70 67 63 59 55 50 45 39 32

20 79 76 72 69 66 62 58 54 49 44 37 30

30 78 75 72 69 65 61 57 53 48 43 36

40 78 75 71 68 64 61 57 52 47 42 35

50 77 74 71 67 64 60 56 52 47 41 34

60 74 70 67 63 59 55 51 46 40 33

Shut-off PSI 164 155 147 138 129 121 112 103 95 86 77 69 60 51 43 34 26

Pump

Model HP PSI Depth to Water in Feet/Ratings in GPM (Gallons per Minute)

40 80 120 160 200 240 280 320 360 400 440 480 520 560 600 640 680 720 760 800 840 880

65GS75 7½

078 74 70 66 61 56 50 44 35

20 80 77 73 69 65 60 55 50 42 33

30 79 75 71 67 62 57 52 46 38

40 80 77 73 69 64 60 54 49 41 32

50 78 75 70 66 62 57 51 45 36

60 79 76 72 68 64 59 54 48 40 30

Shut-off PSI 268 251 233 216 199 181 164 147 129 112 95 77 60 43

65GS100

080 78 75 72 69 66 62 58 54 50 45 39 31

20 80 78 75 72 69 65 62 58 54 49 44 37 30

30 79 76 73 70 67 63 59 55 51 46 40 33

40 80 77 74 71 68 65 61 57 53 48 43 36

50 78 76 73 69 66 63 59 55 50 45 39 32

60 79 77 74 71 68 64 60 57 52 48 42 35

Shut-off PSI 339 322 305 288 270 253 236 218 201 184 166 149 132 114 97 80 62 45

PAGE 9

Residential Water Systems

Goulds Water Technology

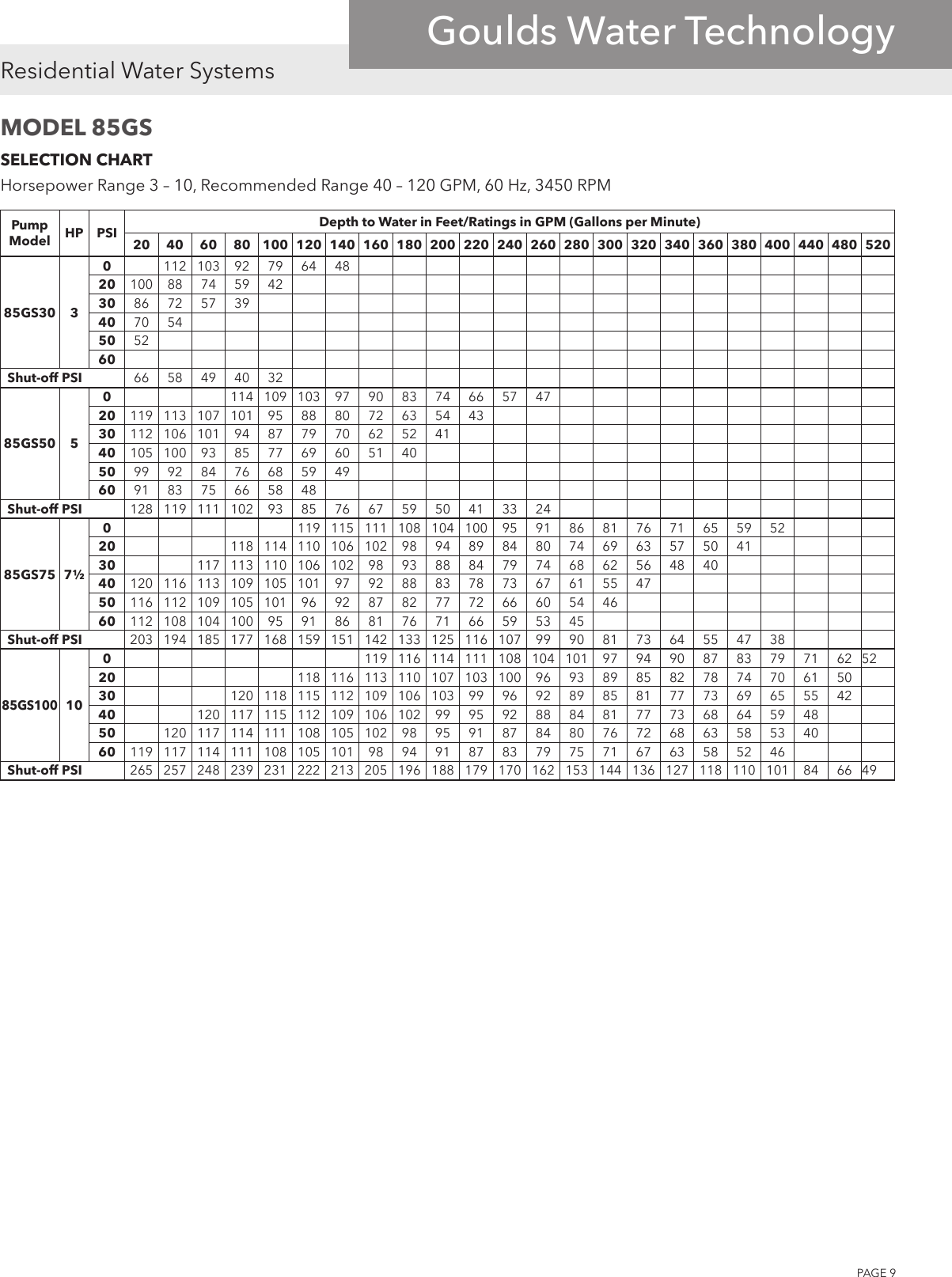

MODEL 85GS

SELECTION CHART

Horsepower Range 3 – 10, Recommended Range 40 – 120 GPM, 60 Hz, 3450 RPM

Pump

Model HP PSI Depth to Water in Feet/Ratings in GPM (Gallons per Minute)

20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 440 480 520

85GS30 3

0112 103 92 79 64 48

20 100 88 74 59 42

30 86 72 57 39

40 70 54

50 52

Shut-off PSI 66 58 49 40 32

85GS50 5

0114 109 103 97 90 83 74 66 57 47

20 119 113 107 101 95 88 80 72 63 54 43

30 112 106 101 94 87 79 70 62 52 41

40 105 100 93 85 77 69 60 51 40

50 99 92 84 76 68 59 49

60 91 83 75 66 58 48

Shut-off PSI 128 119 111 102 93 85 76 67 59 50 41 33 24

85GS75 7½

0119 115 111 108 104 100 95 91 86 81 76 71 65 59 52

20 118 114 110 106 102 98 94 89 84 80 74 69 63 57 50 41

30 117 113 110 106 102 98 93 88 84 79 74 68 62 56 48 40

40 120 116 113 109 105 101 97 92 88 83 78 73 67 61 55 47

50 116 112 109 105 101 96 92 87 82 77 72 66 60 54 46

60 112 108 104 100 95 91 86 81 76 71 66 59 53 45

Shut-off PSI 203 194 185 177 168 159 151 142 133 125 116 107 99 90 81 73 64 55 47 38

85GS100

0119 116 114 111 108 104 101 97 94 90 87 83 79 71 62 52

20 118 116 113 110 107 103 100 96 93 89 85 82 78 74 70 61 50

30 120 118 115 112 109 106 103 99 96 92 89 85 81 77 73 69 65 55 42

40 120 117 115 112 109 106 102 99 95 92 88 84 81 77 73 68 64 59 48

50 120 117 114 111 108 105 102 98 95 91 87 84 80 76 72 68 63 58 53 40

60 119 117 114 111 108 105 101 98 94 91 87 83 79 75 71 67 63 58 52 46

Shut-off PSI 265 257 248 239 231 222 213 205 196 188 179 170 162 153 144 136 127 118 110 101 84 66 49

PAGE 10

Residential Water Systems

Goulds Water Technology

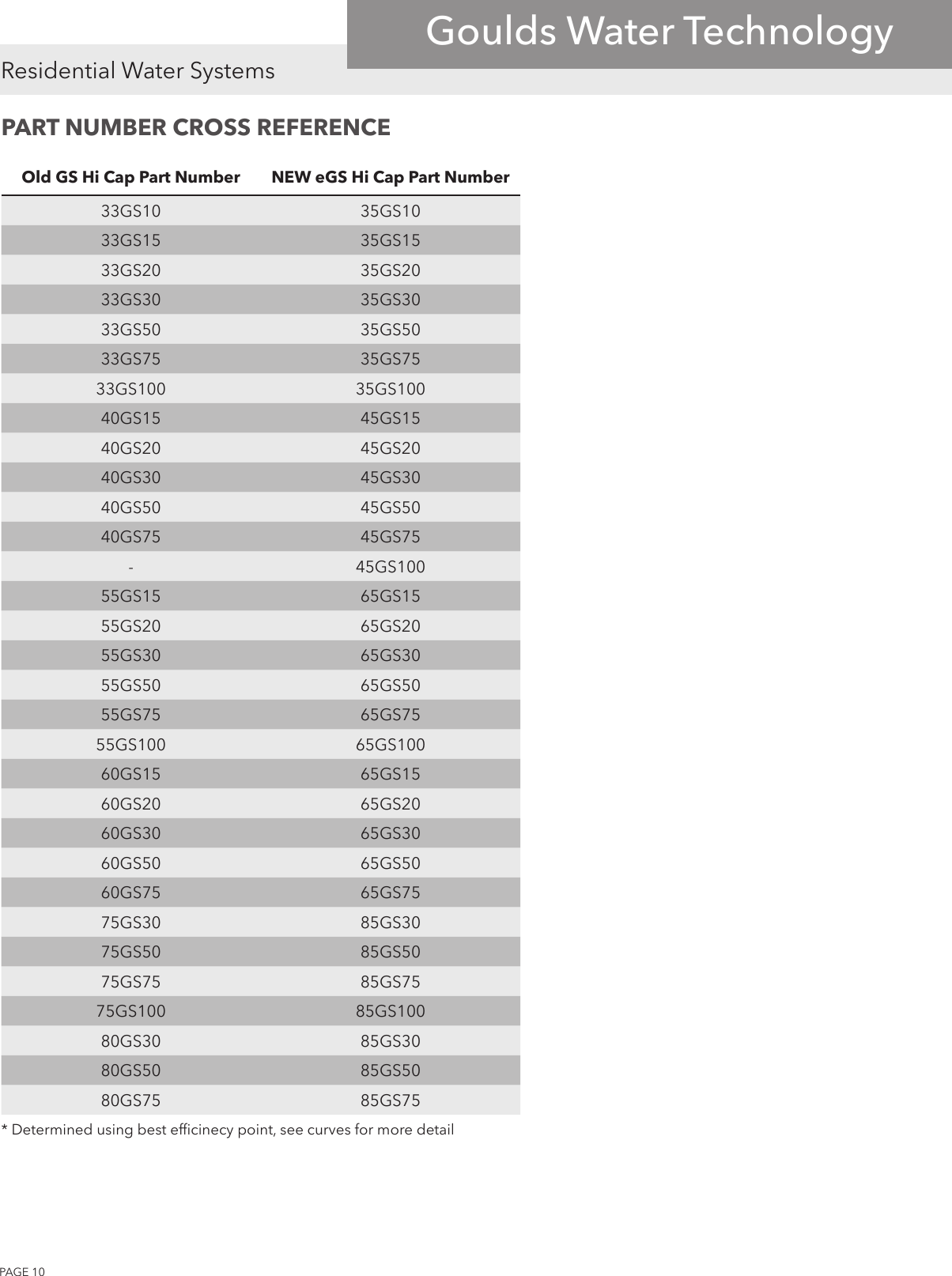

PART NUMBER CROSS REFERENCE

Old GS Hi Cap Part Number NEW eGS Hi Cap Part Number

33GS10 35GS10

33GS15 35GS15

33GS20 35GS20

33GS30 35GS30

33GS50 35GS50

33GS75 35GS75

33GS100 35GS100

40GS15 45GS15

40GS20 45GS20

40GS30 45GS30

40GS50 45GS50

40GS75 45GS75

- 45GS100

55GS15 65GS15

55GS20 65GS20

55GS30 65GS30

55GS50 65GS50

55GS75 65GS75

55GS100 65GS100

60GS15 65GS15

60GS20 65GS20

60GS30 65GS30

60GS50 65GS50

60GS75 65GS75

75GS30 85GS30

75GS50 85GS50

75GS75 85GS75

75GS100 85GS100

80GS30 85GS30

80GS50 85GS50

80GS75 85GS75

* Determined using best efcinecy point, see curves for more detail

PAGE 11

Residential Water Systems

Goulds Water Technology

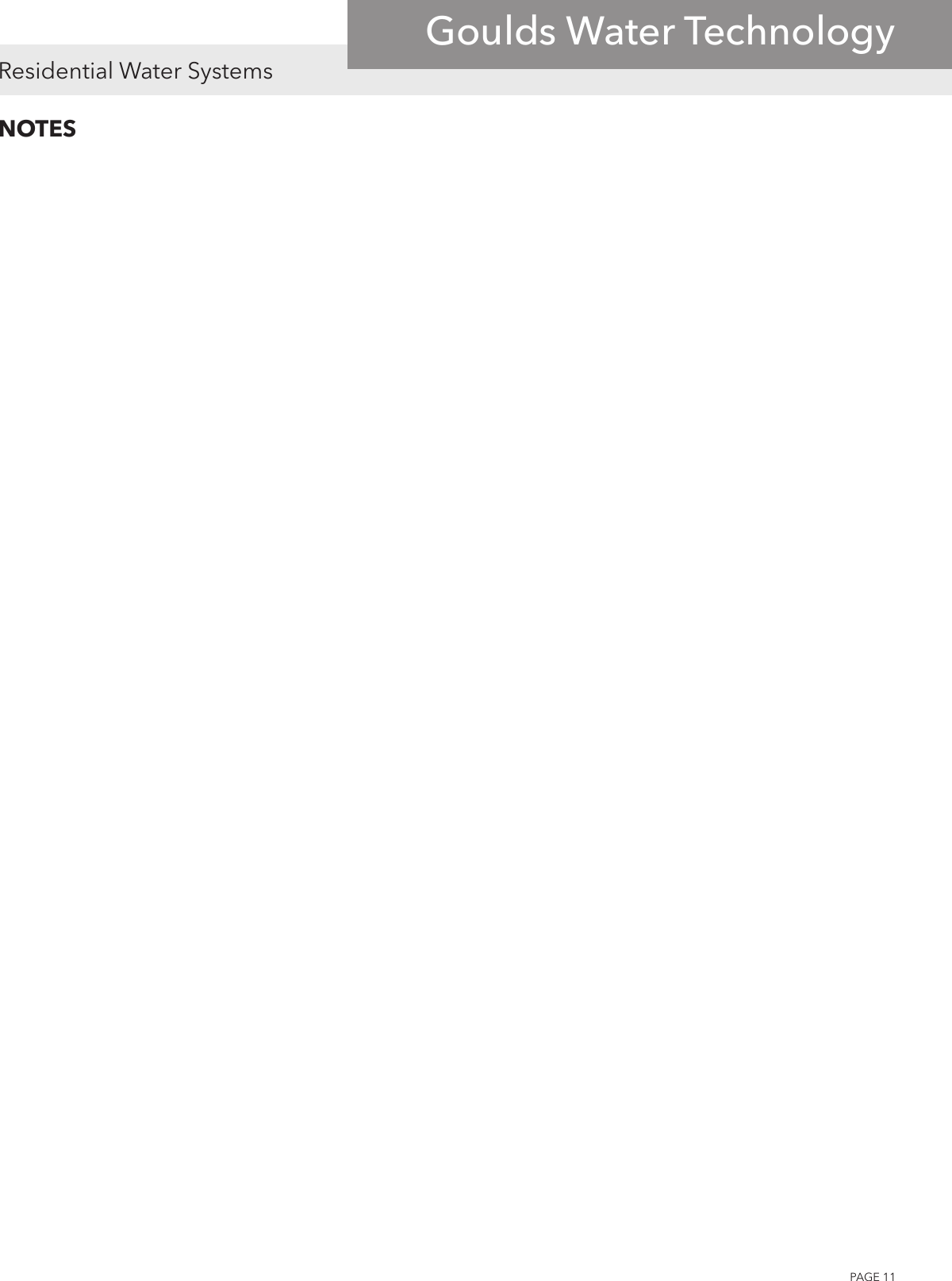

NOTES

Goulds is a registered trademark of Goulds Pumps, Inc. and is used under license.

CentriPro is a trademark of Xylem Inc. or one of its subsidiaries.

Noryl and Lexan are trademarks of GE Plastic.

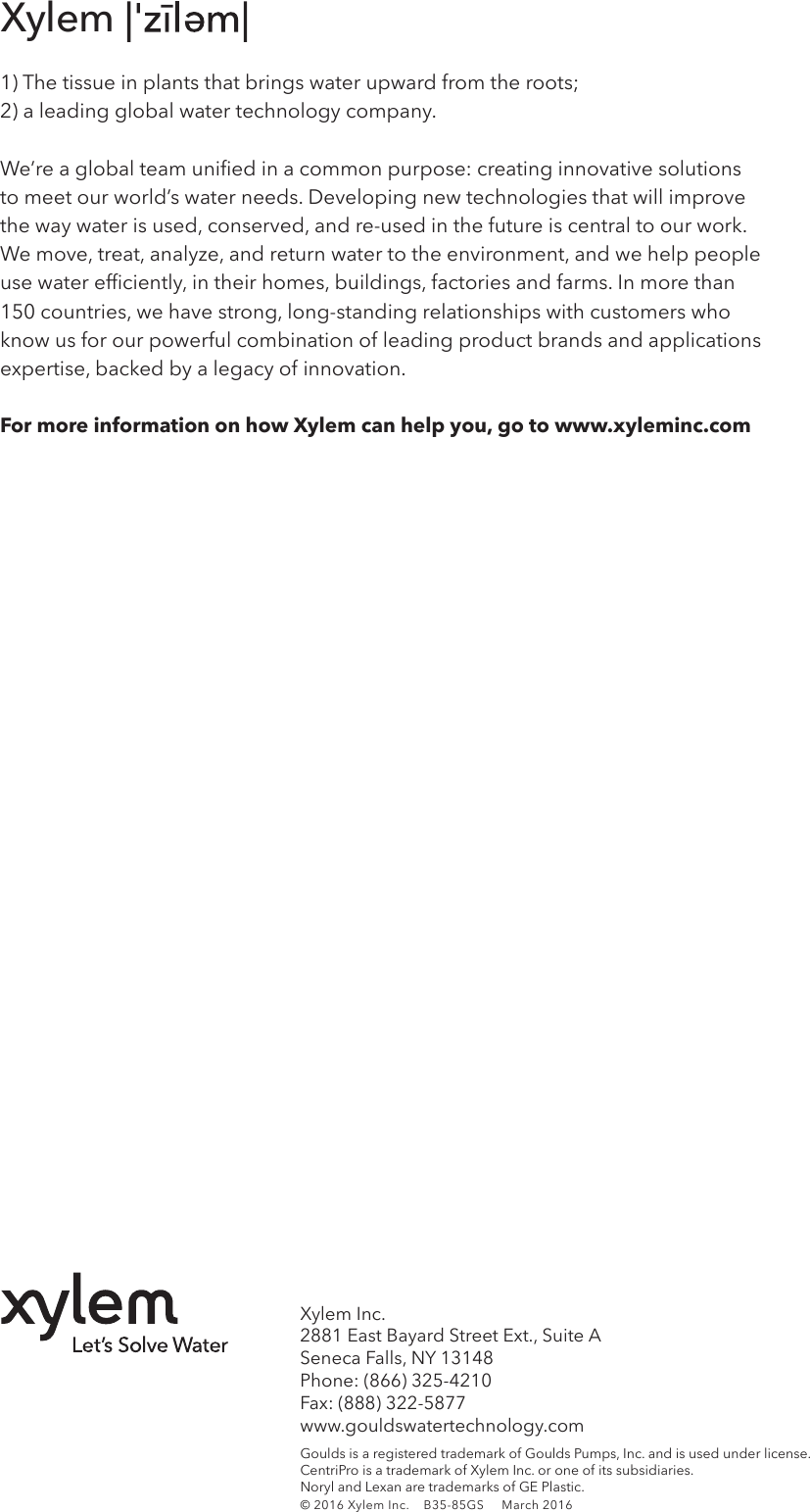

Xylem Inc.

2881 East Bayard Street Ext., Suite A

Seneca Falls, NY 13148

Phone: (866) 325-4210

Fax: (888) 322-5877

www.gouldswatertechnology.com

1) The tissue in plants that brings water upward from the roots;

2) a leading global water technology company.

We’re a global team unied in a common purpose: creating innovative solutions

to meet our world’s water needs. Developing new technologies that will improve

the way water is used, conserved, and re-used in the future is central to our work.

We move, treat, analyze, and return water to the environment, and we help people

use water efciently, in their homes, buildings, factories and farms. In more than

150 countries, we have strong, long-standing relationships with customers who

know us for our powerful combination of leading product brands and applications

expertise, backed by a legacy of innovation.

For more information on how Xylem can help you, go to www.xyleminc.com

Xylem

539451 1 Goulds E GS Series (35 85 GPM) Brochure

Navigation menu

Versions of this User Manual:

Views

Navigation
