WASTEWATER
HVAC
INDUSTRIAL
WATER SYSTEMS
ENGINEERED PRODUCTS
WASTEWATER
P.O. Box 12010
Oklahoma City, OK 73157-2010
PH: 1-800-701-7894
FX: 1-800-678-7867
www.franklinwater.com
Form 995288 11-12Form 995580 07-14
PRODUCT CATALOG
UTILITY PUMPS
SUMP PUMPS
EFFLUENT PUMPS
SEWAGE PUMPS
GRINDER PUMPS
PACKAGE SYSTEMS
WASTEWATER
PRODUCT CATALOG
Franklin Electric engineers
design products for
easy installation, high
performance, long life, and
exceptional value.
More than 4,300 responsive employees
are ready to offer expert assistance.
Our 200,000 sq ft centrally
located warehouse in Oklahoma
City enables fast and complete
ll rates.
Corporate Headquarters
Serving all corners of the world with more than
14 manufacturing and distribution facilities.
GIANT ADVANTAGES
Recognized as the world’s leading manufacturer of submersible electric motors since 1944,
Franklin Electric has grown into a water systems enterprise providing innovative products for
a multitude of applications across the globe. North American markets include groundwater,
plumbing, hvac, agriculture, and municipal. Franklin Electric provides pumping solutions
to these primary markets, which include pumps, motors, drives, controls, protection
equipment, and packaged systems.
For over 70 years professionals in the water transfer market have trusted the Little Giant
brand for its reliable pump solutions, packaged system options, accessories, and total
value. With a vast offering of sump, sewage, efuent products; dewatering and trash
pumps; condensate pumps; magnetic drive pumps; low pressure sewer systems; water
garden products and a wide variety of utility pumps, Little Giant is the brand of choice to
hundreds of thousands worldwide representing Franklin’s commitment to quality, innovation,
availability, and service.
TABLE OF CONTENTS
TABLE OF CONTENTS
Hotline: 1.800.701.7894 www.franklinwater.com
UTILITY PUMPS
PONY PUMP® SERIES ........................................... 4
UPSP SERIES .......................................................... 6
5 SERIES ................................................................ 8
UP16 SERIES ........................................................ 10
FLS/FS SERIES ..................................................... 12
B50S SERIES ........................................................ 14

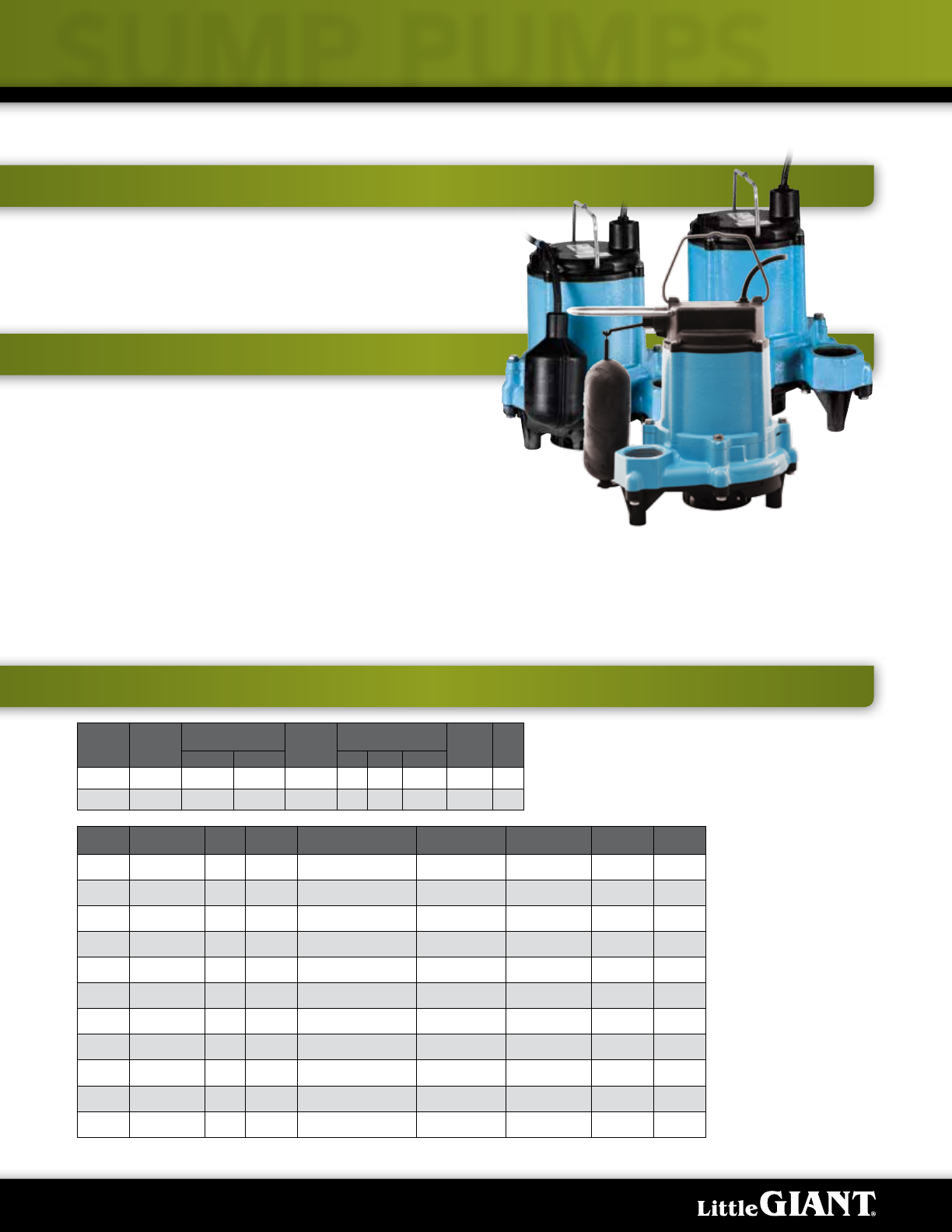

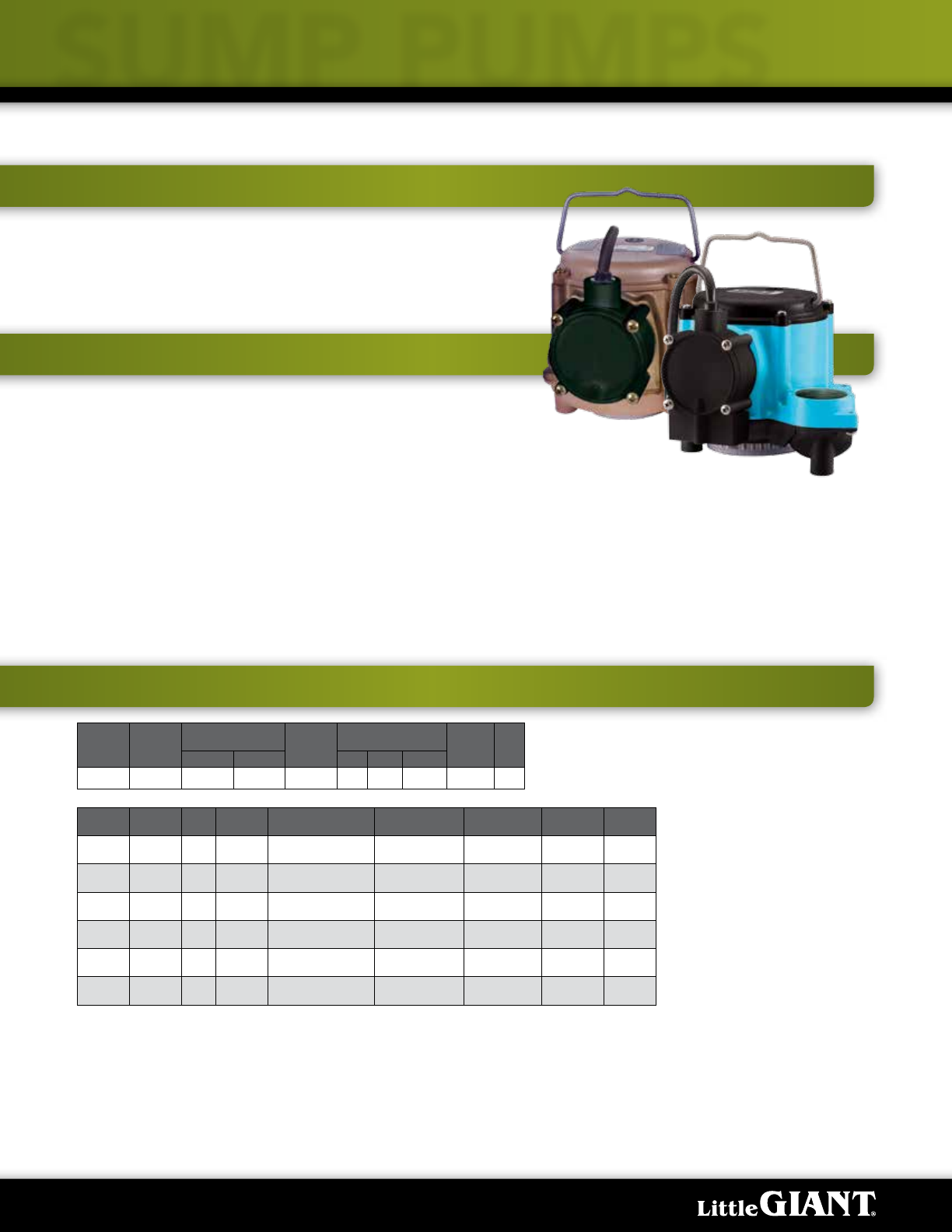

SUMP PUMPS
5.5 SERIES ........................................................... 18
SP25 SERIES ........................................................ 20
SP33 SERIES ........................................................ 22
ESP33 SERIES ...................................................... 24
6 SERIES .............................................................. 26
VS-P SERIES ......................................................... 28
6EN SERIES ......................................................... 30
HT-6E SERIES (HIGH TEMPERATURE) ................. 32
ES33 SERIES ........................................................ 34
8 SERIES .............................................................. 36
TSW SERIES ......................................................... 38
TSW-APS ............................................................. 38
WRS SERIES ......................................................... 42
CS-SS SERIES ...................................................... 46

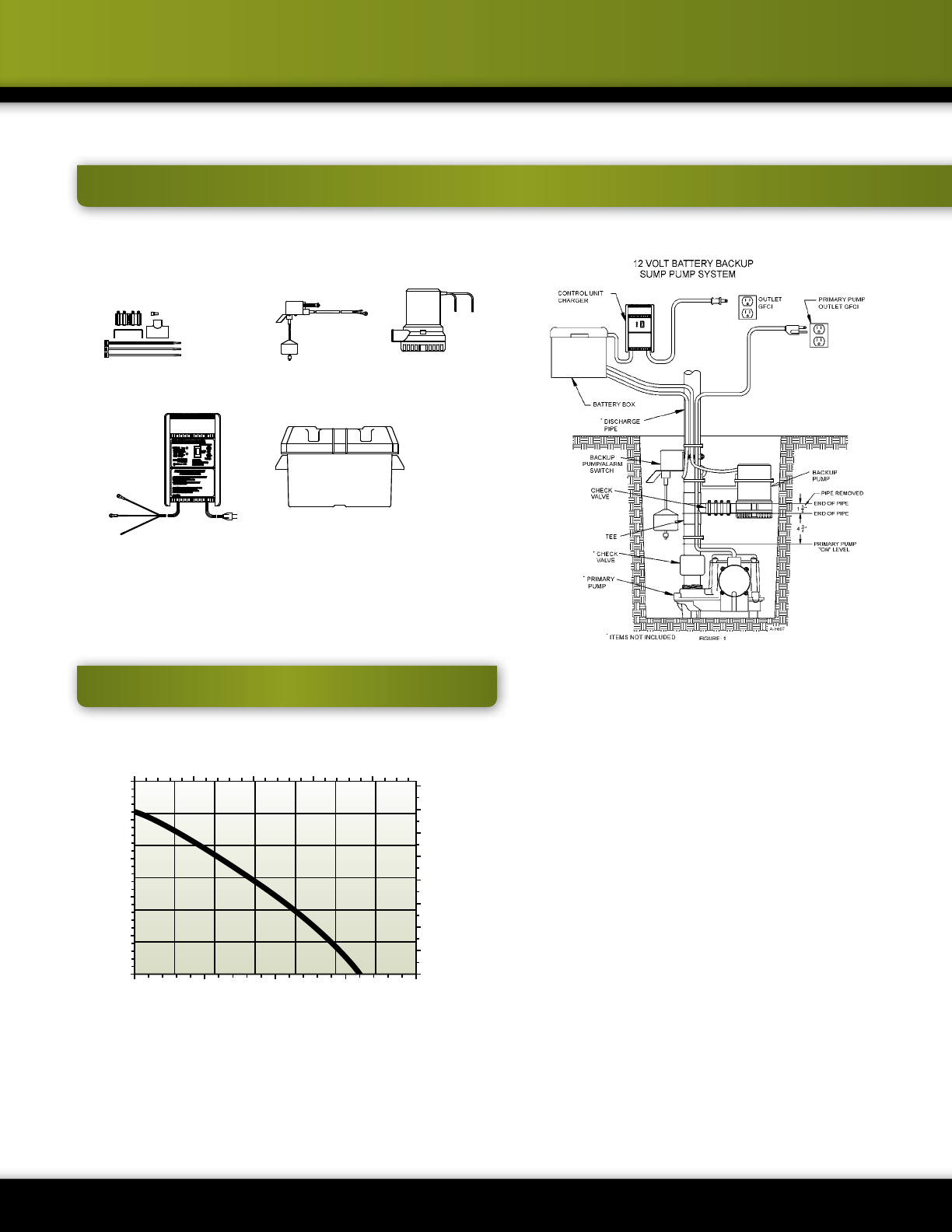

BATTERY BACK-UP SYSTEMS
APS-115 ............................................................... 48
SPBS-12 ............................................................... 50

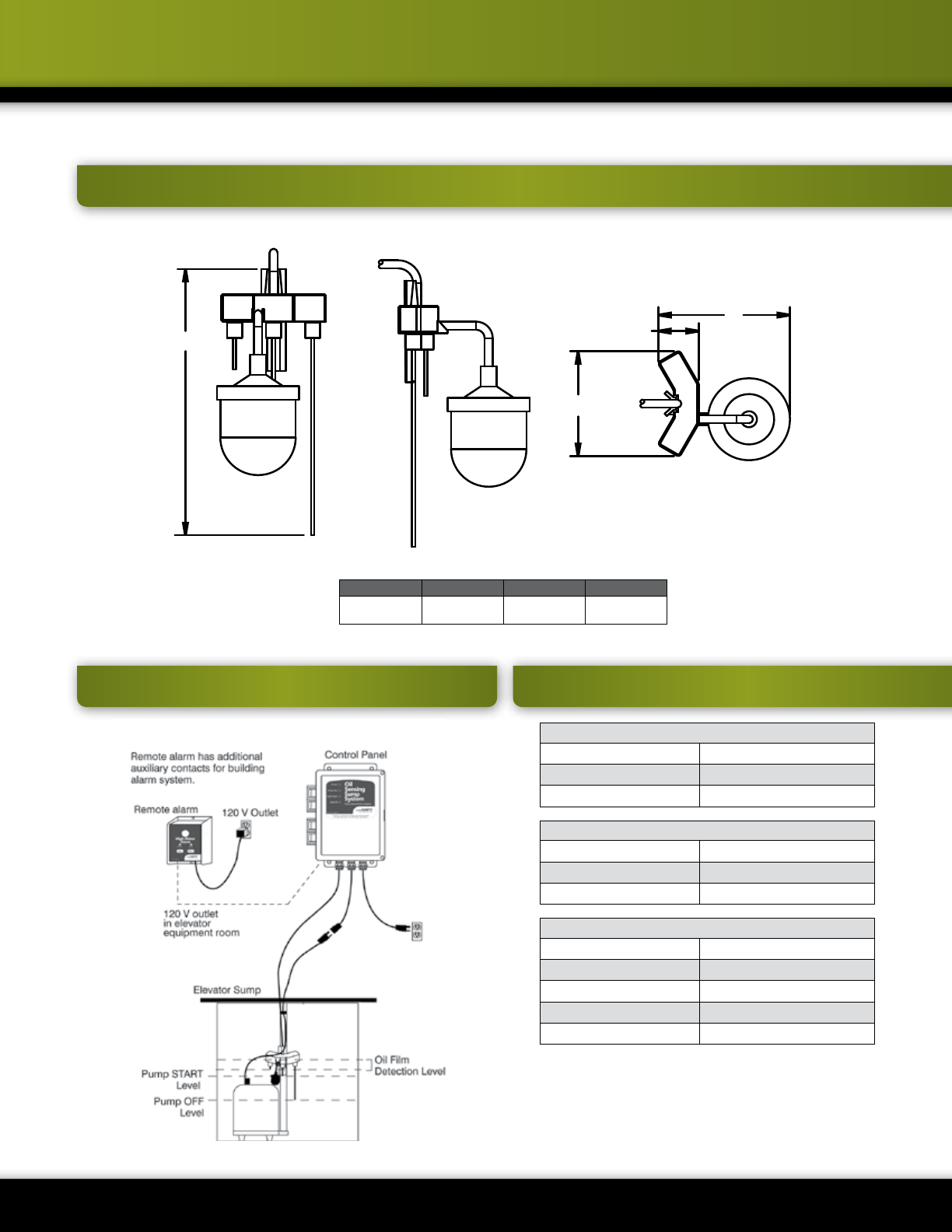

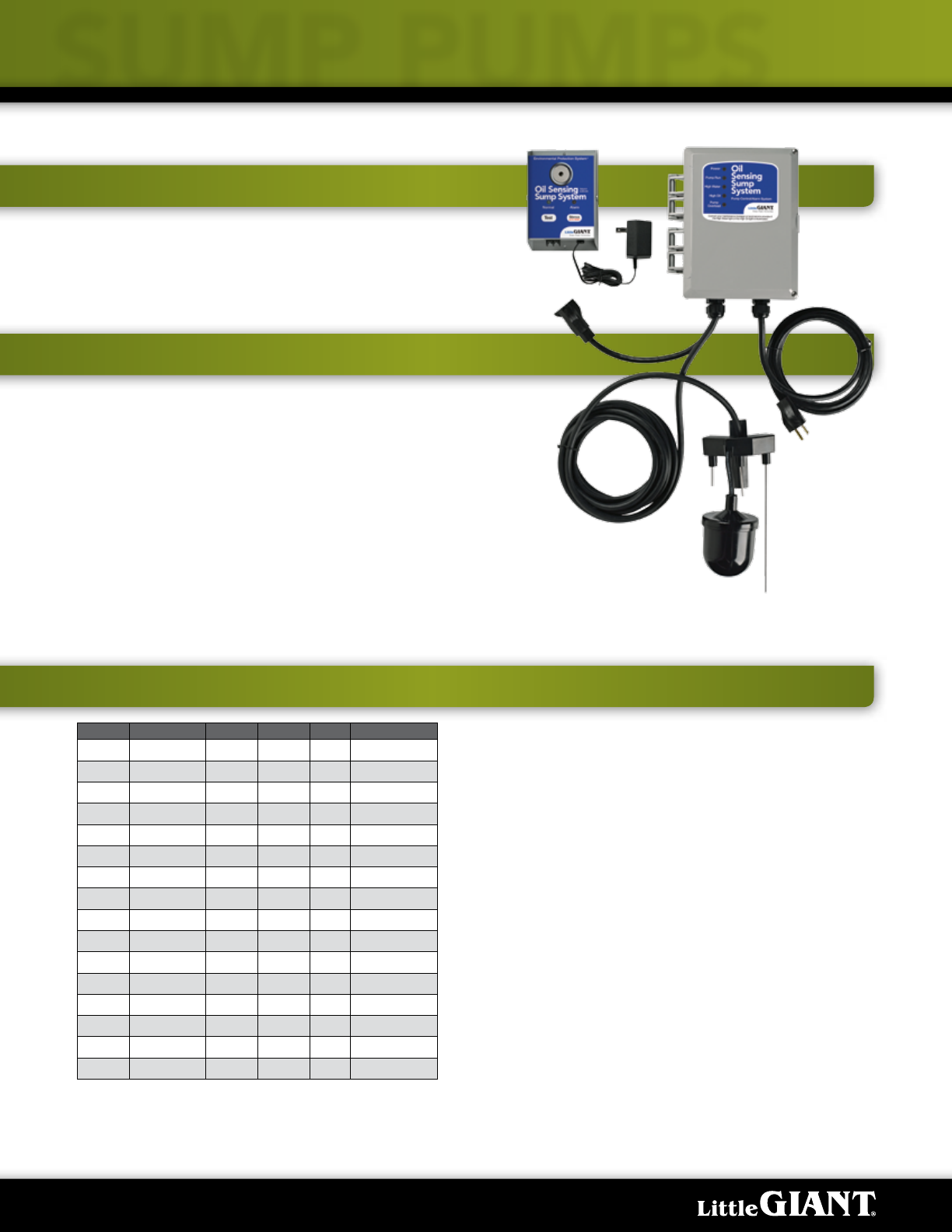

OS3 SERIES (OIL SENSING SUMP SYSTEM) ....... 52

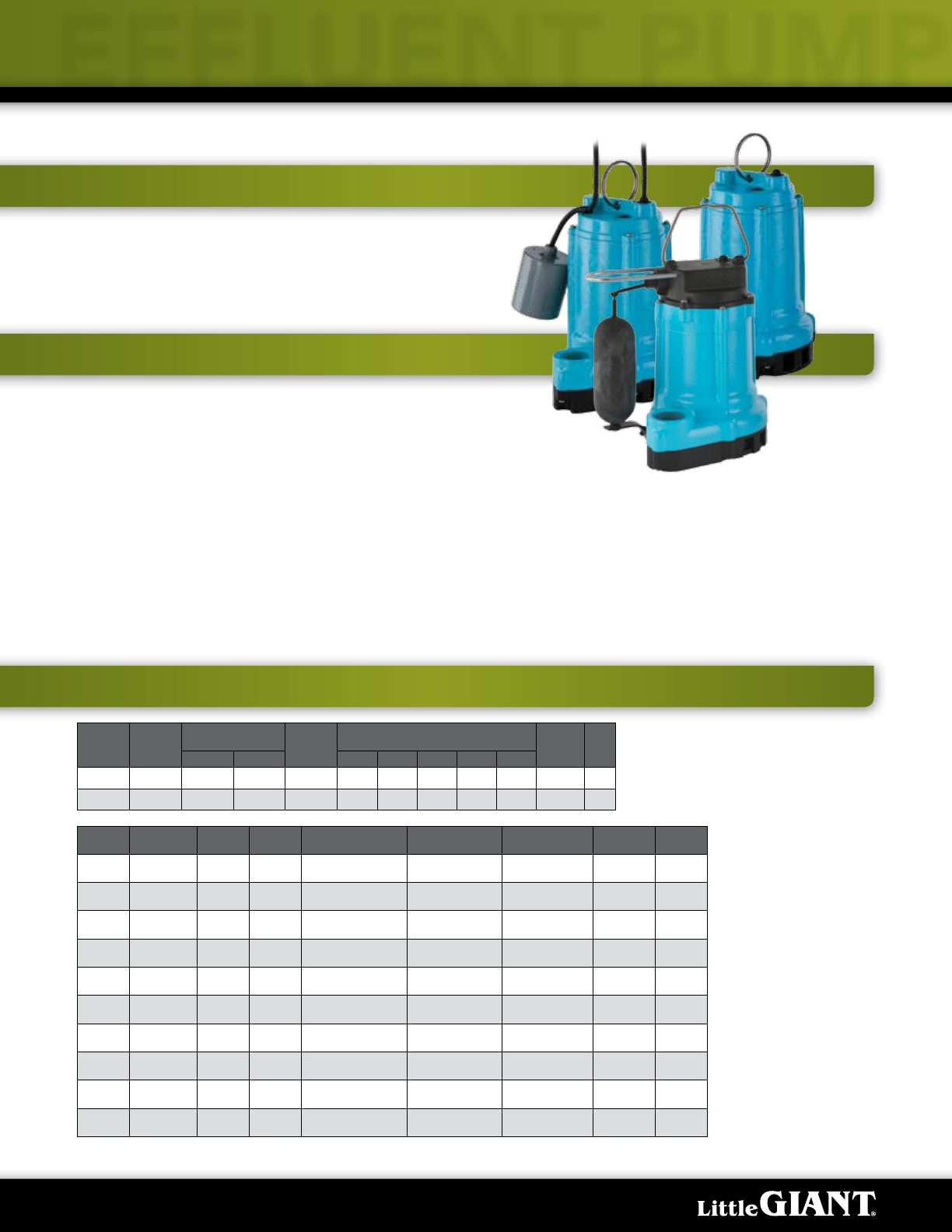

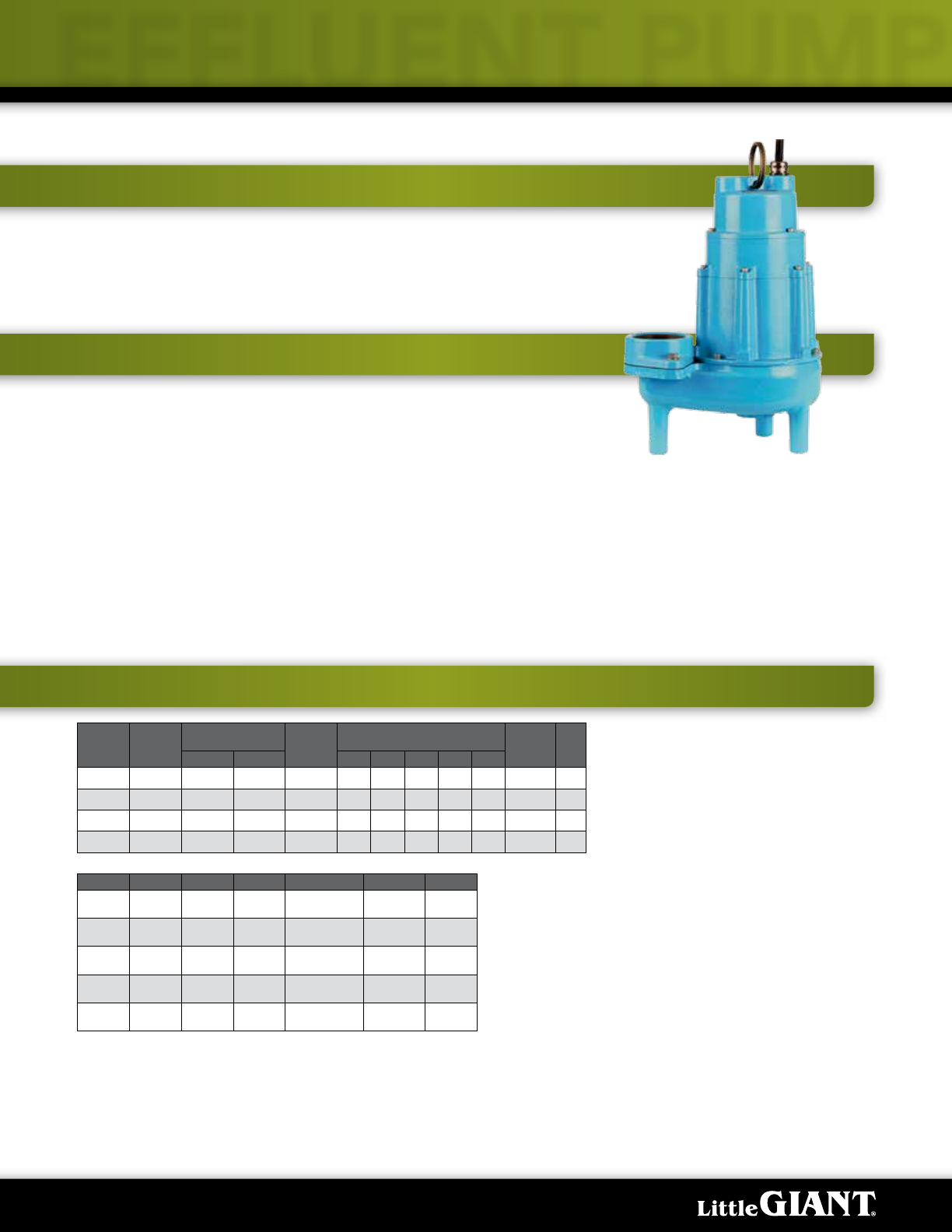

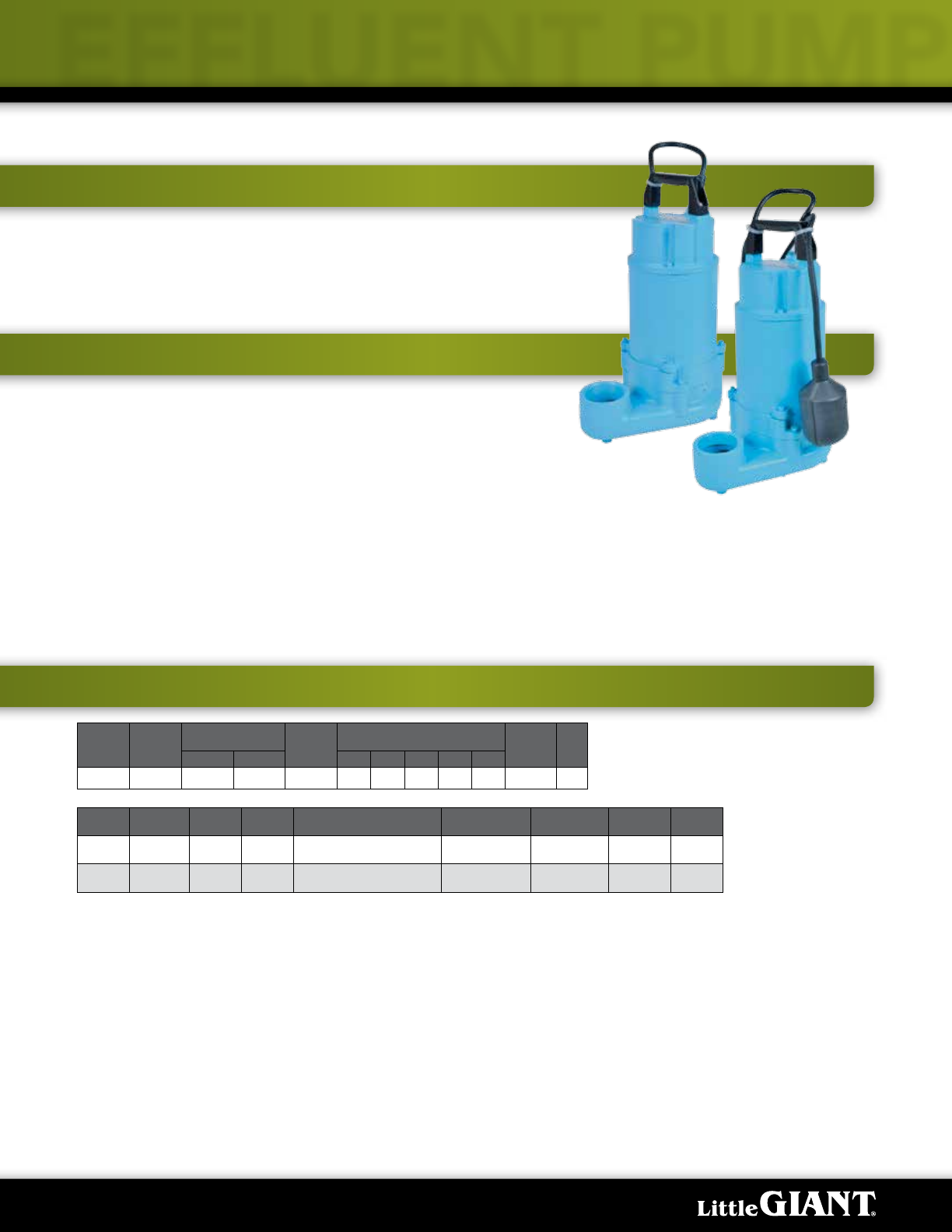

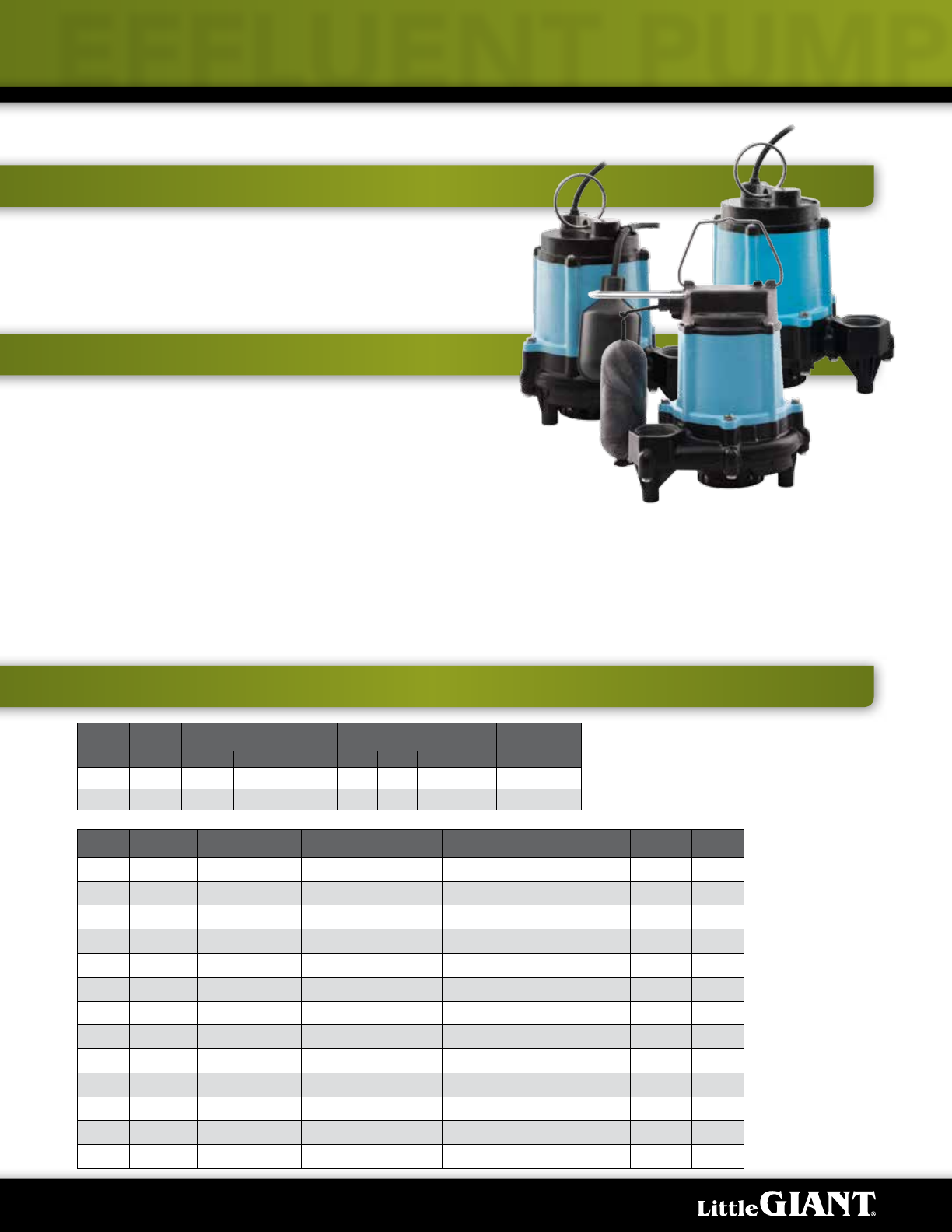

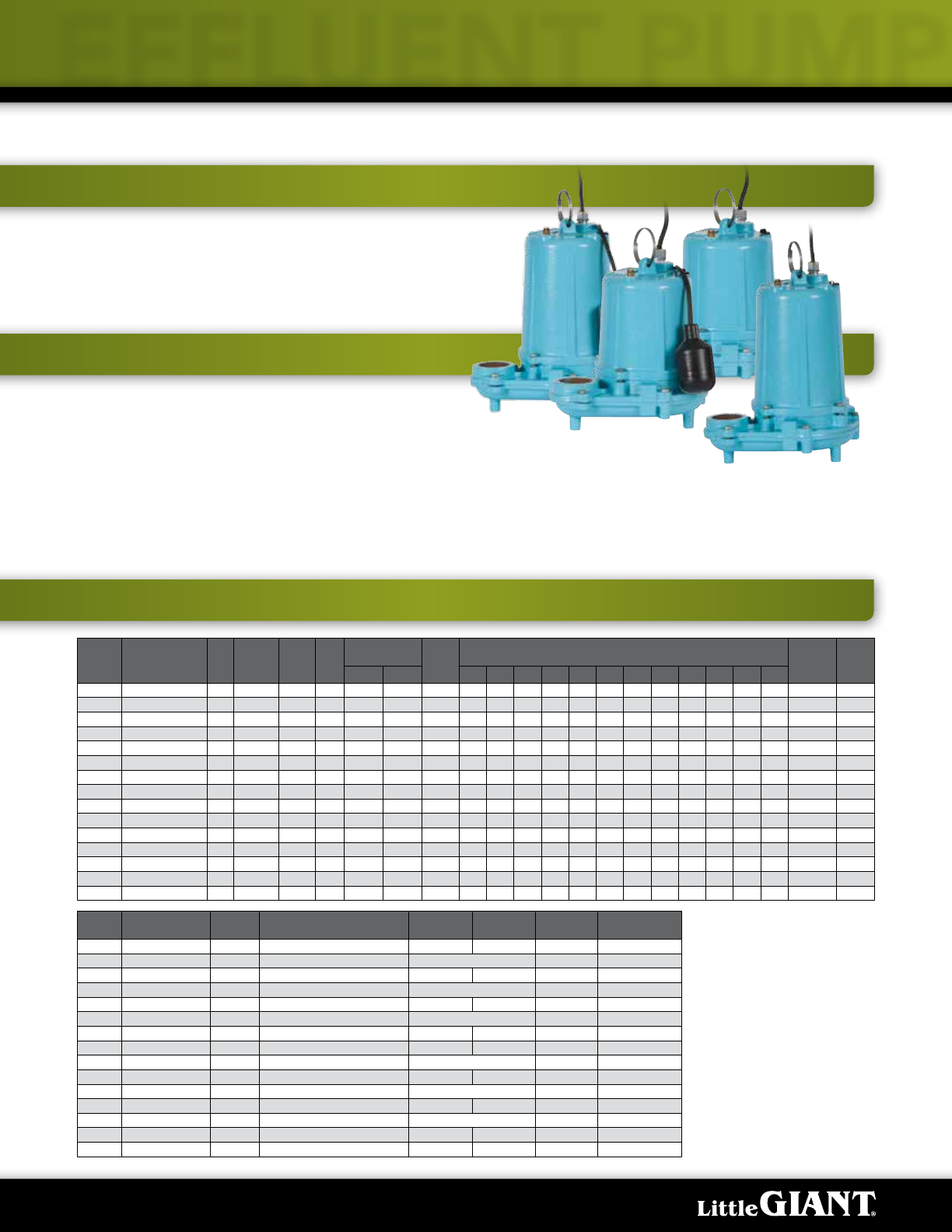

EFFLUENT PUMPS
6EN SERIES ......................................................... 56
9EN SERIES ......................................................... 58
9ENH SERIES ....................................................... 60
10EN SERIES ....................................................... 62
10ENH SERIES ..................................................... 64
HT-10E HIGH TEMPERATURE ............................. 66
ESP50 SERIES ...................................................... 68
14EH/16EH SERIES ............................................. 70
WS EFFLUENT SERIES ........................................ 72
WSV50 EFFLUENT SERIES .................................. 74
20E SERIES .......................................................... 76
WE SERIES ........................................................... 78
BE SERIES ............................................................ 80

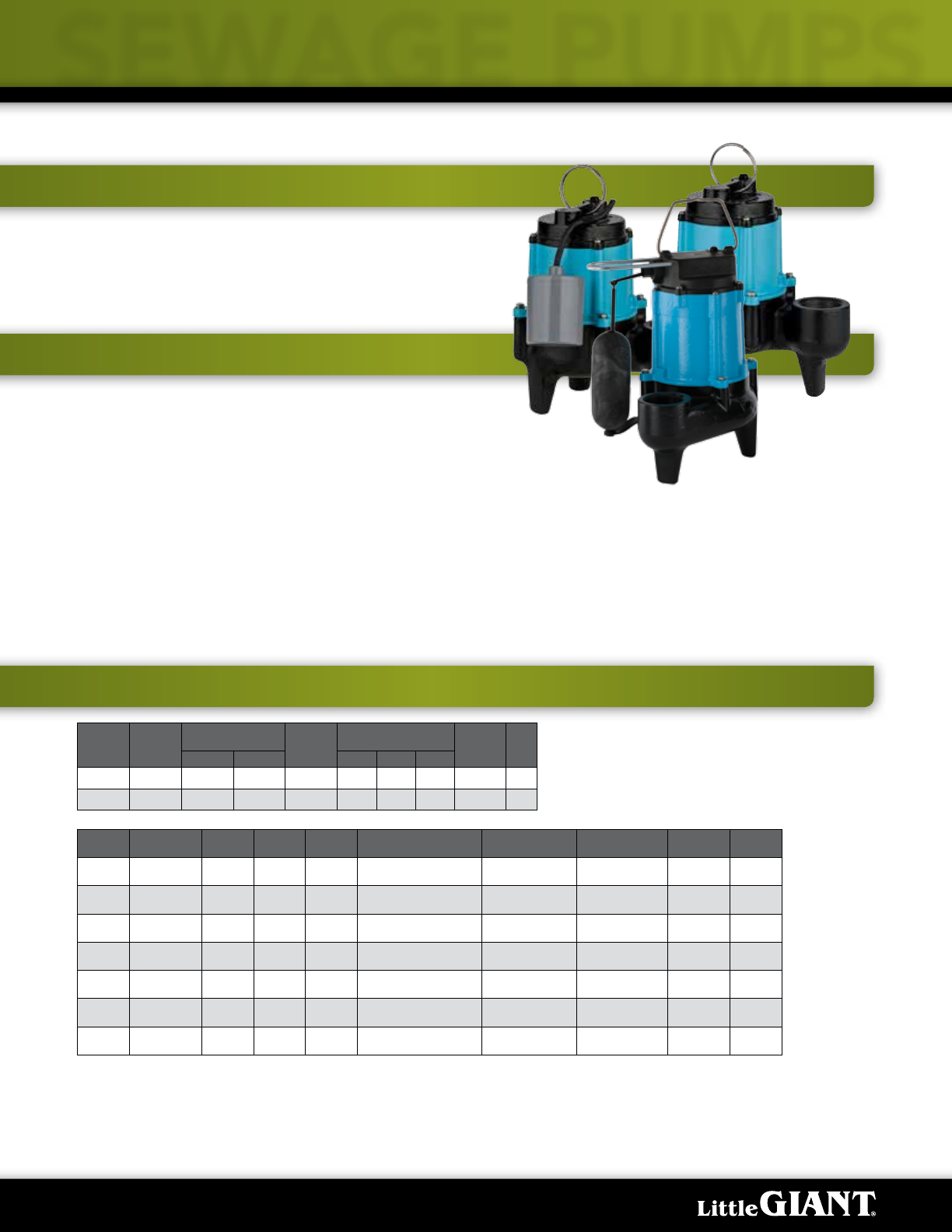

SEWAGE PUMPS
9SN SERIES ......................................................... 84
10SN SERIES ....................................................... 86
WSV52 SERIES ..................................................... 88
14S SERIES .......................................................... 90
WS SERIES ........................................................... 92
16S SERIES .......................................................... 94
18S SERIES .......................................................... 96
20S SERIES .......................................................... 98

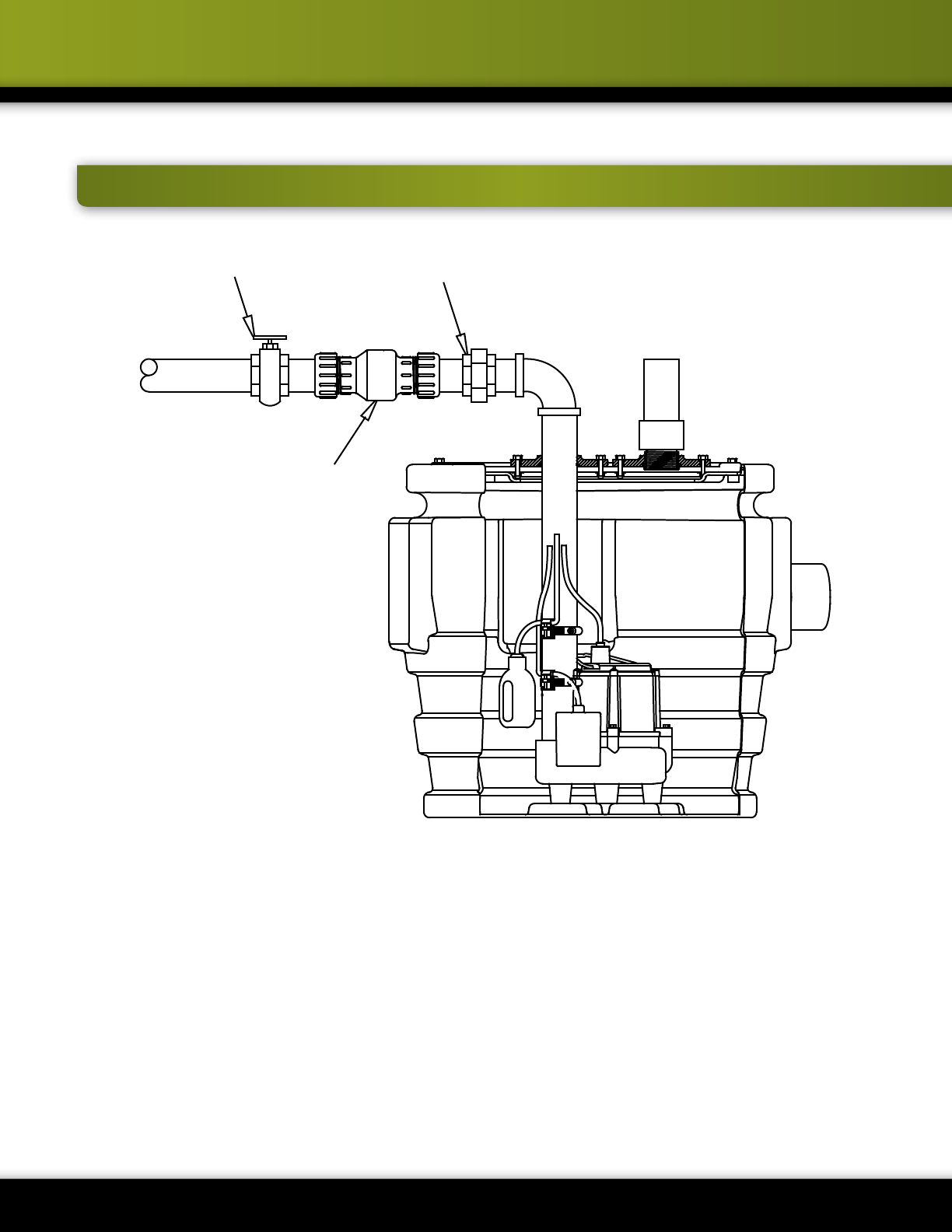

PACKAGE SYSTEMS
PIT+PLUS® JR .................................................... 100
PIT+PLUS® ......................................................... 104
SIMPLEX AND DUPLEX SYSTEMS .................... 108
WCR SERIES ...................................................... 114
GRINDER PUMPS
GP SERIES ......................................................... 118
SIMPLEX GRINDER PACKAGES ........................ 120
DUPLEX GRINDER PACKAGES ......................... 122
SIMPLEX HARD PIPED PACKAGES ................... 124
DUPLEX HARD PIPED PACKAGES .................... 126
GRINDER RETROFIT KIT ................................... 128

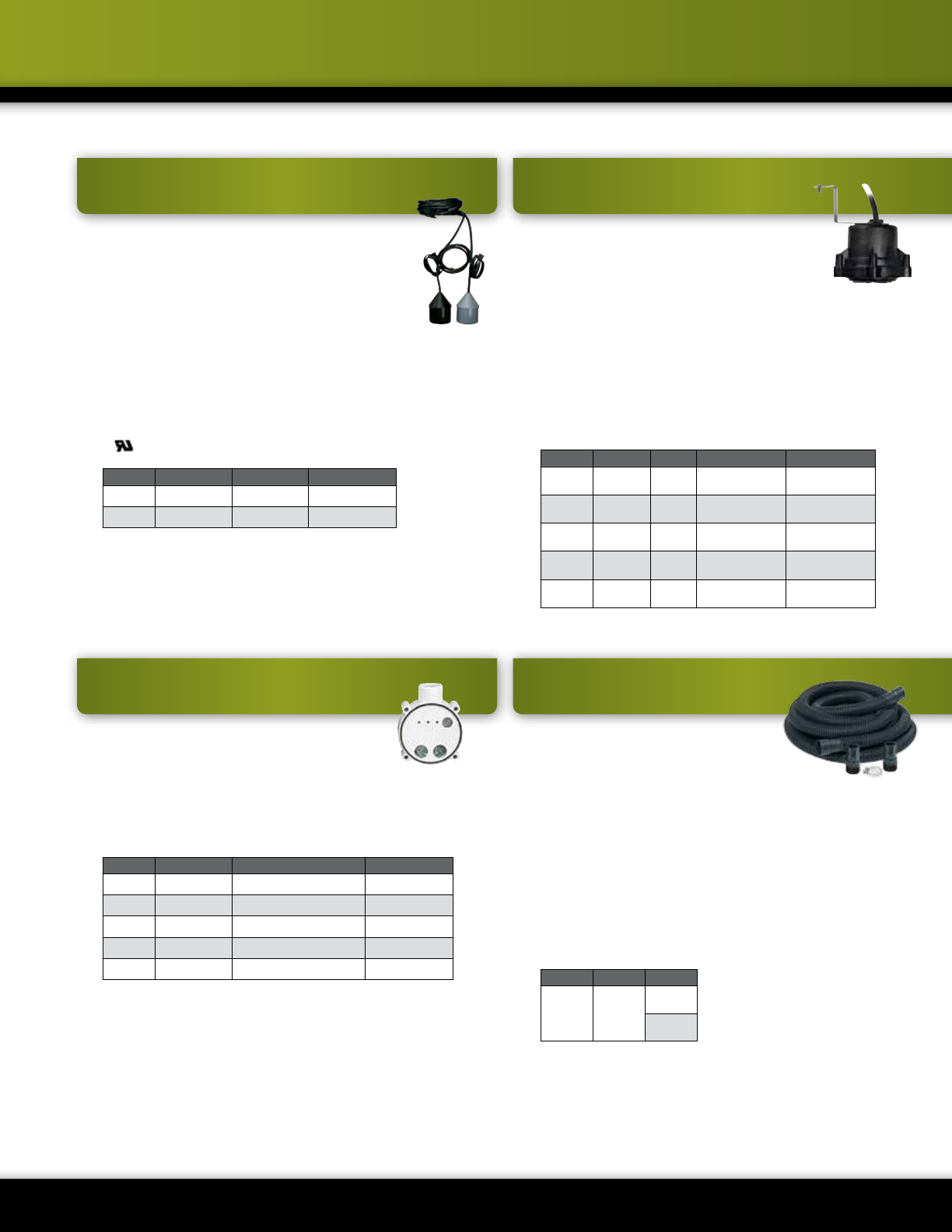

ACCESSORIES
ACCESSORIES ................................................... 130

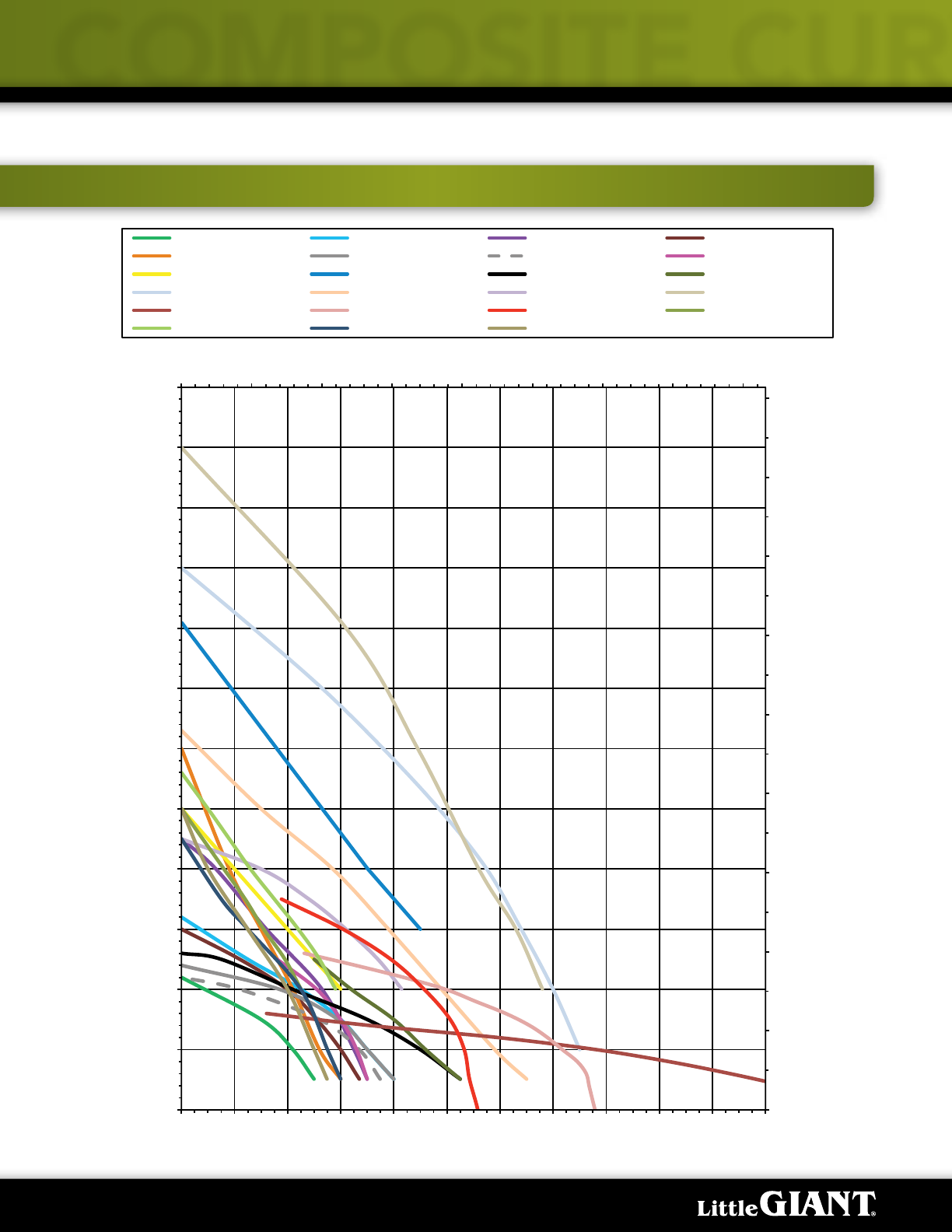

COMPOSITE CURVES

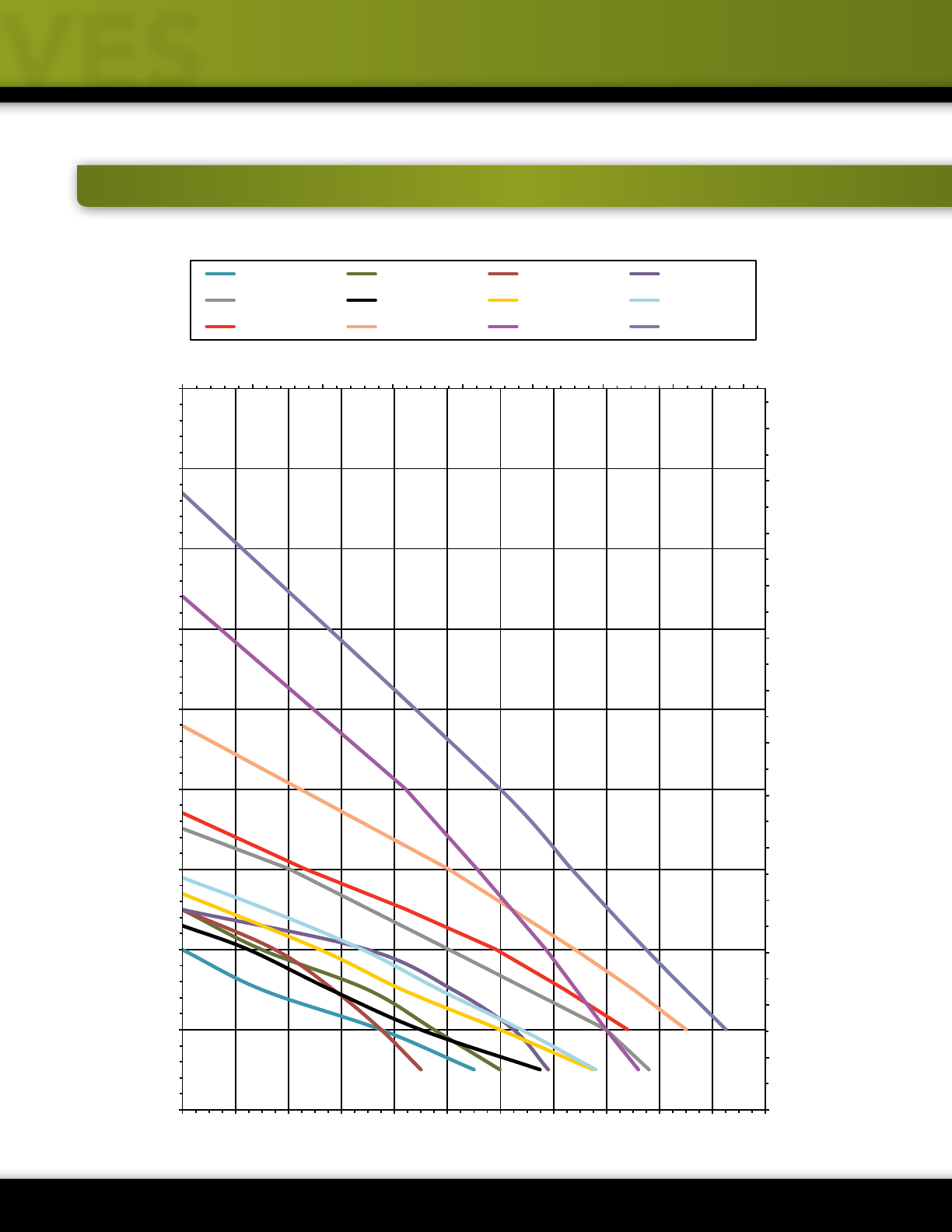

COMPOSITE CURVES ....................................... 138
REFERENCE
WHAT’S THE APPLICATION .............................. 140

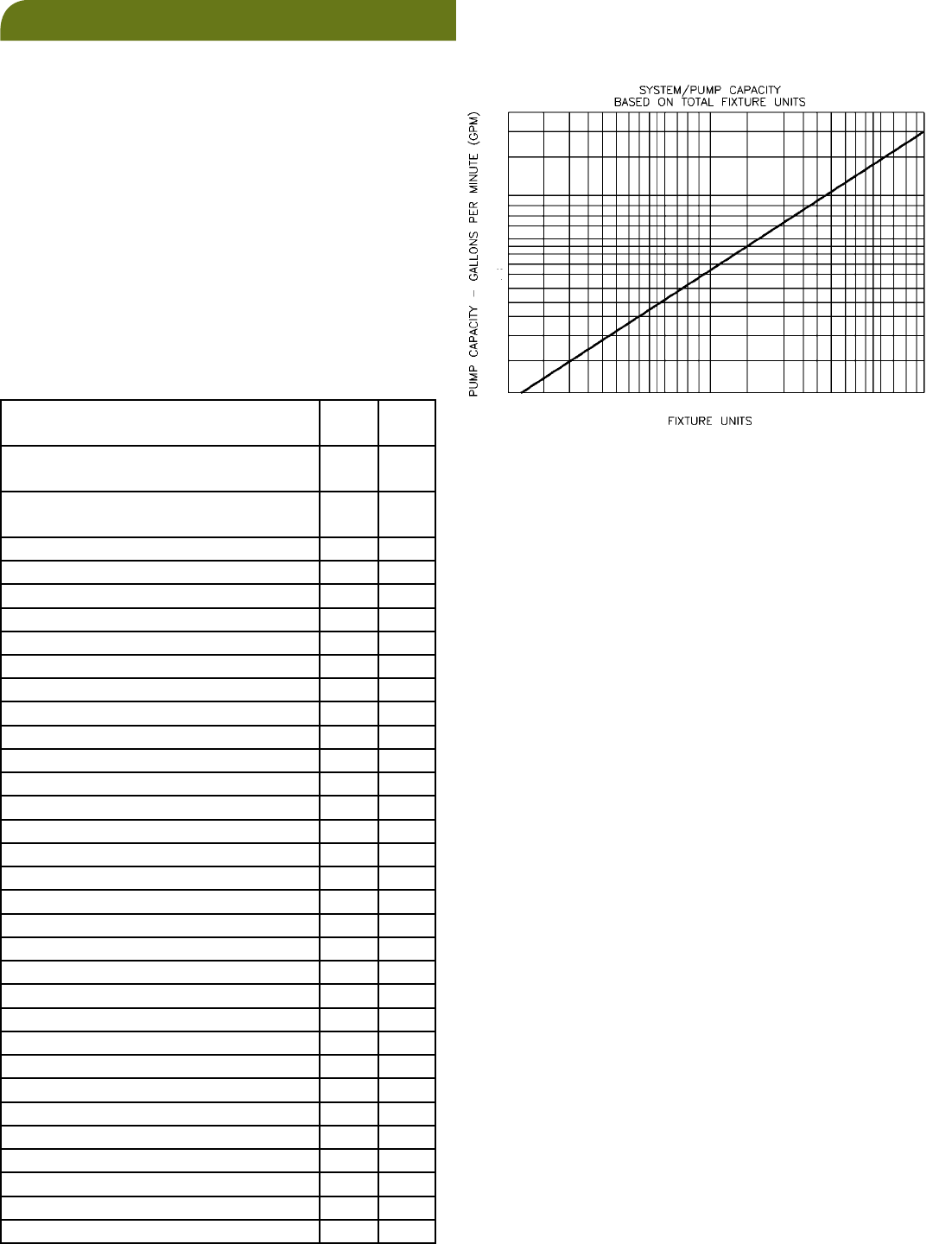

GUIDELINES FOR SIZING ................................. 141
Whether it’s for dewatering a waterbed or a storm cellar, circulating water for welding
and pipe threading machines, pumping mild chemicals such as soaps or fertilizers,
or meeting the highly specialized applications found in pressure-washers and
carpet-cleaners, Little Giant’s general purpose utility pumps are the true generals of
efciency and reliability.
UTILITY PUMPS
UTILITY PUMPS
UTILITY PUMPS
4

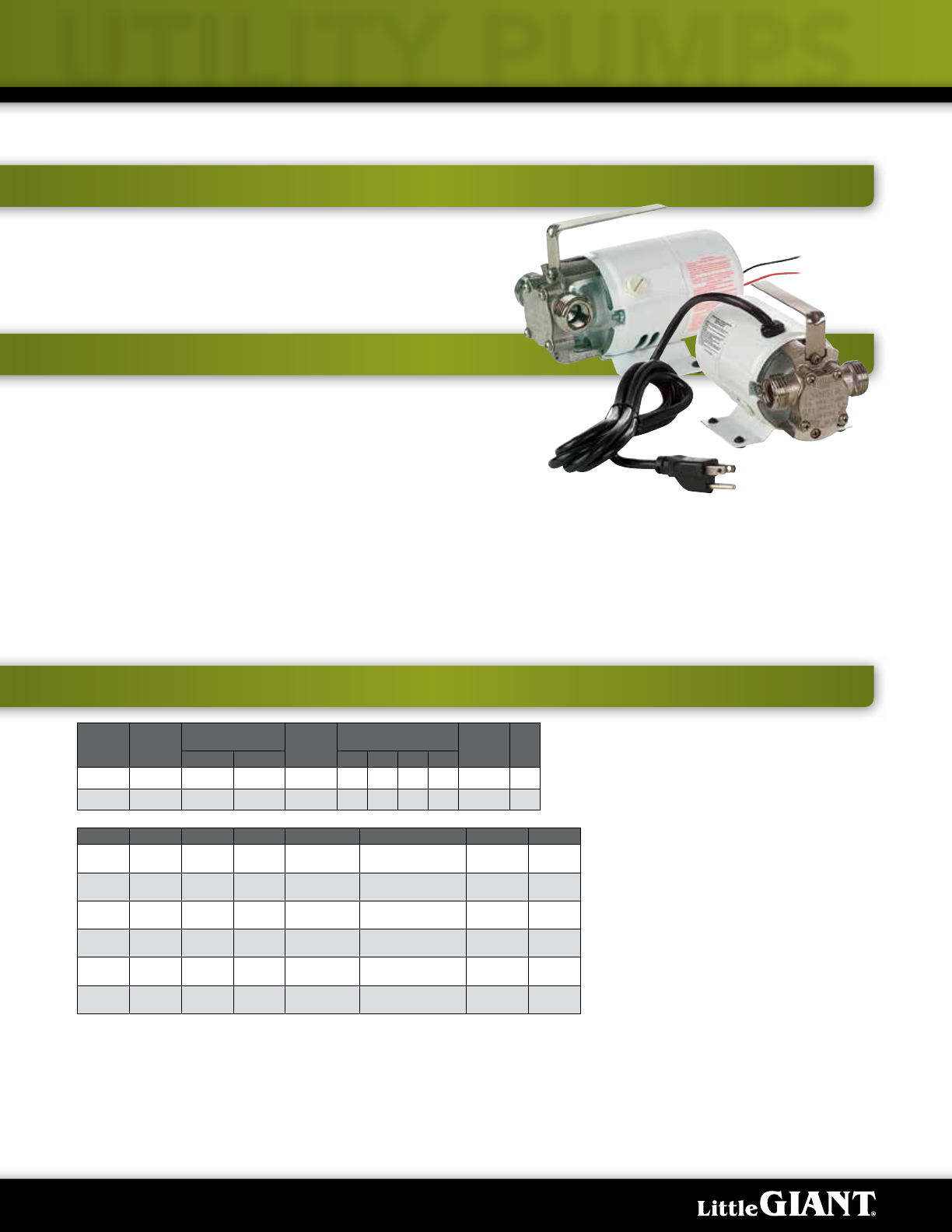

PONY PUMP® SERIES 1/10 HP
Volts Hz Amps Watts
Performance
(GPH @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 1' 5' 10' 20'
115 60 1.6 2.4 91 360 330 300 250 25' 20.9
12 VDC –7 14 84 300 270 240 202 25' 19.9
Item No. Model HP Volts Material Operation Cord Weight
555502 360 1/10 115 Plated Brass Self-Priming 6'
1.8 m
3.4 lbs
1.54 Kg
555103 360S 1/10 115 Stainless Steel Self-Priming 6'
1.8 m
3.4 lbs
1.54 Kg
555507 370 1/10 115 Plated Brass Self-Priming 6'
1.8 m
4.7 lbs
2.12 Kg
555602 365 1/10 12 VDC Plated Brass Self-Priming 12" Leads
30.5 cm
4.7 lbs
2.12 Kg
555203 365S 1/10 12 VDC Stainless Steel Self-Priming 12" Leads
30.5 cm
4.7 lbs
2.12 Kg
555122 360K 1/10 115 Plated Brass Self-Priming 6'
1.8 m
4.7 lbs
2.12 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Commercial, industrial, and home uses where liquid
must be transferred
• Self-priming for instant delivery or dewatering up to 6' (1.8 m)
• Non-submersible stainless steel or plated brass pump body
• Rugged metallic handle or easy portability
• Dual threaded intake and discharge with both 3/4” (19 mm)
male garden hose thread and 3/8” FNPT (9.5 mm)
• Model 360K includes pump, hose, strainer, and suction adapter
• Pump only models available with separate kit options
• cULus listing on models 555502, 555103, 555507, and 555122
UTILITY PUMPS
5
Hotline: 1.800.701.7894 www.franklinwater.com
SERIES SPECIFICATIONS CONT.
PERFORMANCE DATA REPLACEMENT & BRUSH KITS
Flow - Gallons per Hour
Flow - Liters per Hour
Total Head in Feet
Total Head in Meters
0
3
6
9
0 180 360 540 720 900 1080 1260 1440
0
5
10
15
20
25
30
0 50 100 150 200 250 300 350 400
365/365S 360/360S/360K/370
Item No. Model Includes Kit Used On
555702 HRK-360S
(2) Each - Buna Impeller with SST Insert,
Buna Cover Gaskets
(1) Each - SST Cam, SST Cam Screws, SST
Volute Cover, Cam Gasket
(4) Each - Volute Cover Screws
All Models
555706 IRK-360 (2) Each - Buna Impellers with Brass Insert,
Buna Cover Gaskets
555502,
555122,
555602
555710 HW-360 (1) Each - 10' ft Garden Hose, SST Spring
Strainer, Suction Adapter All Models
555713 IRK-360S (2) Each - Buna Impellers with SST Insert,
Buna Cover Gaskets
555103,
555203,
555503
555714 ISRK-360S
(2) Each - Buna Impellers with SST Insert,
Buna Cover Gaskets
(1) Each - Slinger, Viton U-Cup Seal, Felt
Washer, Retainer Ring
All Models
555705 WB-360 Brush Kit: (2) Each - White Caps, Brushes,
Covers with Springs All Models
Spec Sheet 996287

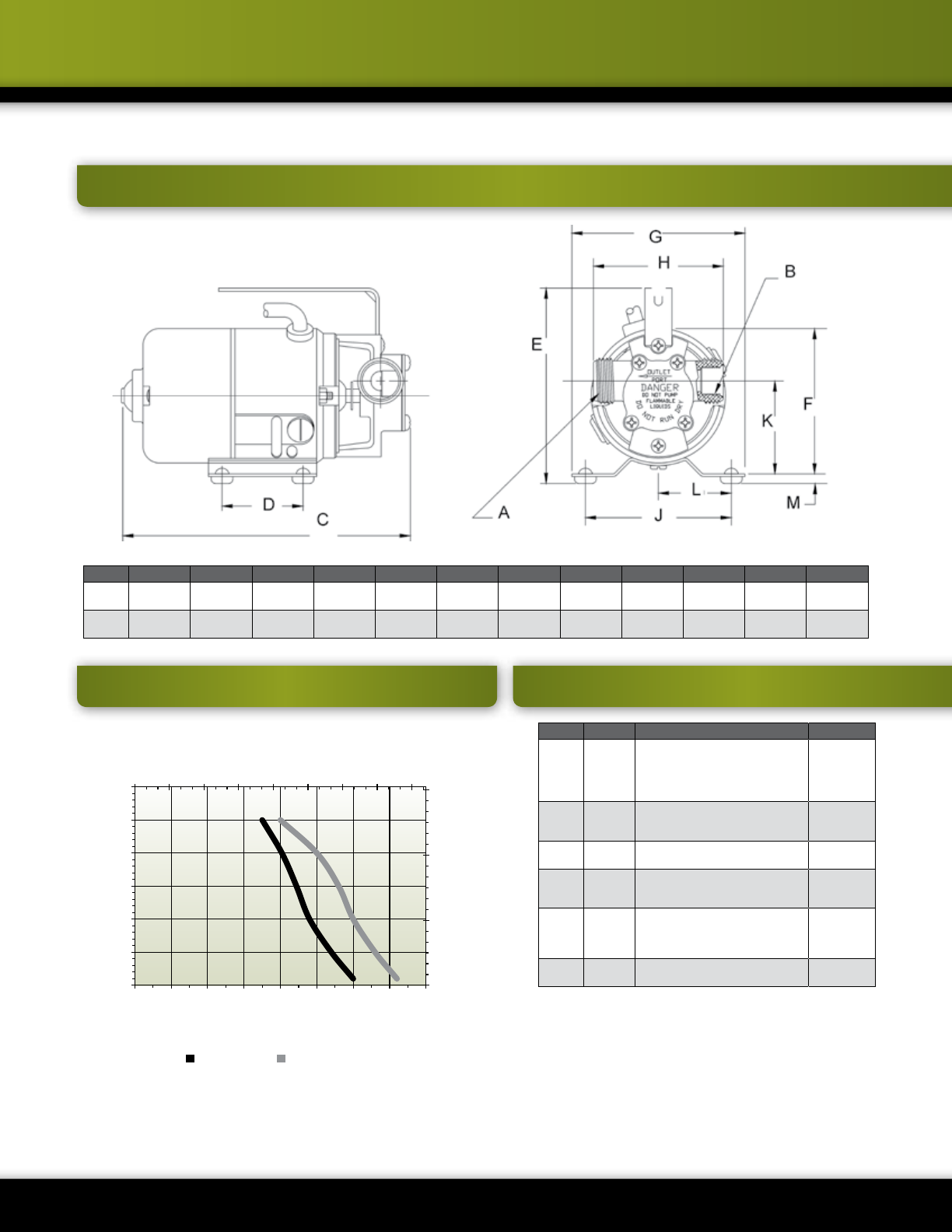

PONY PUMP® SERIES 1/10 HP
Model A B C D E F G H J K L M
115 V 3/4" MGHT
1.91 cm
3/8" FNPT
9.5 mm
6.62"
16.81 cm
1.87"
4.75 cm
4.5"
11.43 cm
3.35"
8.51 cm
4"
10.16 cm
3"
7.62 cm
3.37"
8.56 cm
2.14"
5.44 cm
1.69"
4.29 cm
0.22"
5.6 mm
12 VDC 3/4" MGHT
1.91 cm
3/8" FNPT
9.5 mm
5.93"
15.06 cm
1.87"
4.75 cm
4.18"
10.62 cm
3.13"
7.95 cm
4"
10.16 cm
3"
7.62 cm
3.37"
8.56 cm
1.82"
4.62 cm
1.69"
4.29 cm
0.22"
5.6 mm
UTILITY PUMPS
6

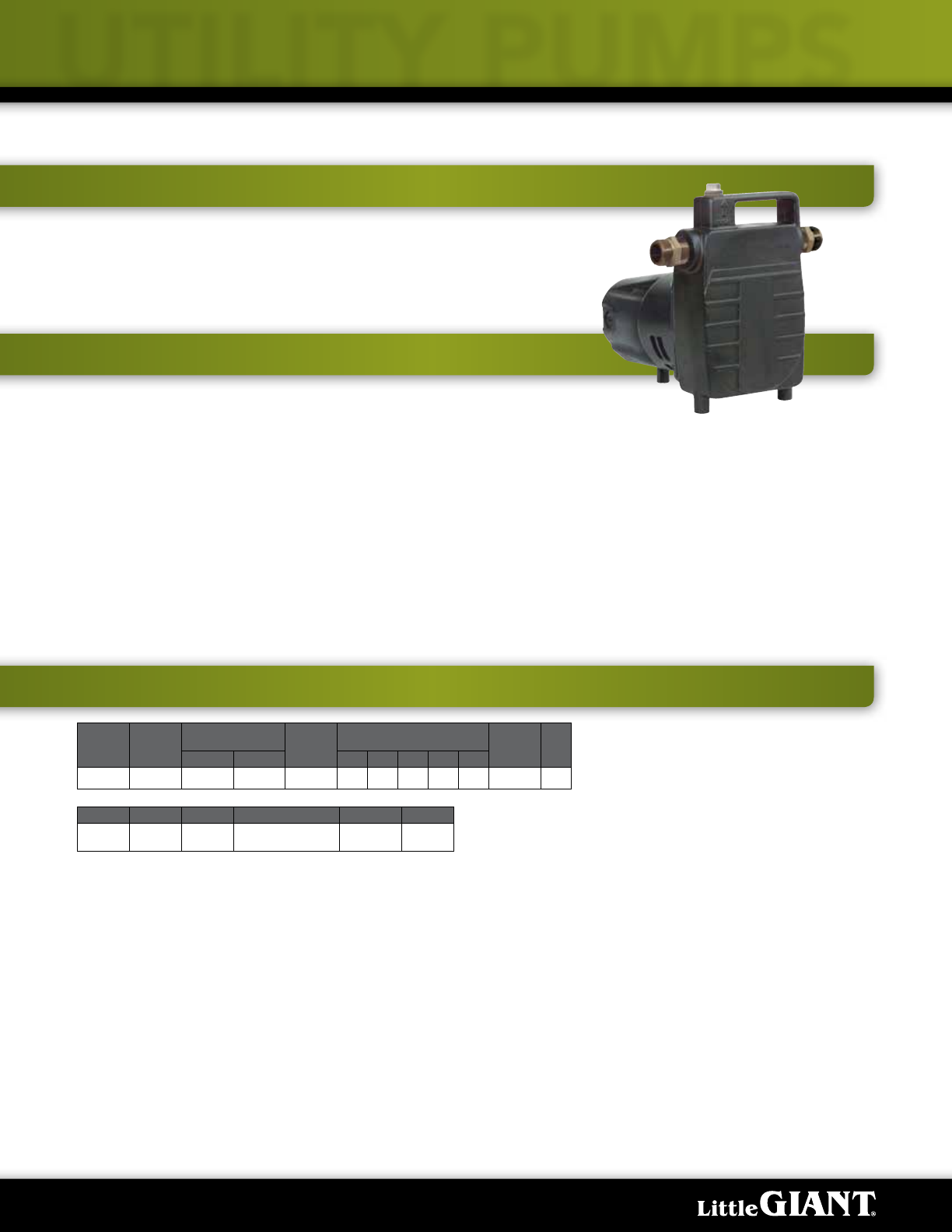

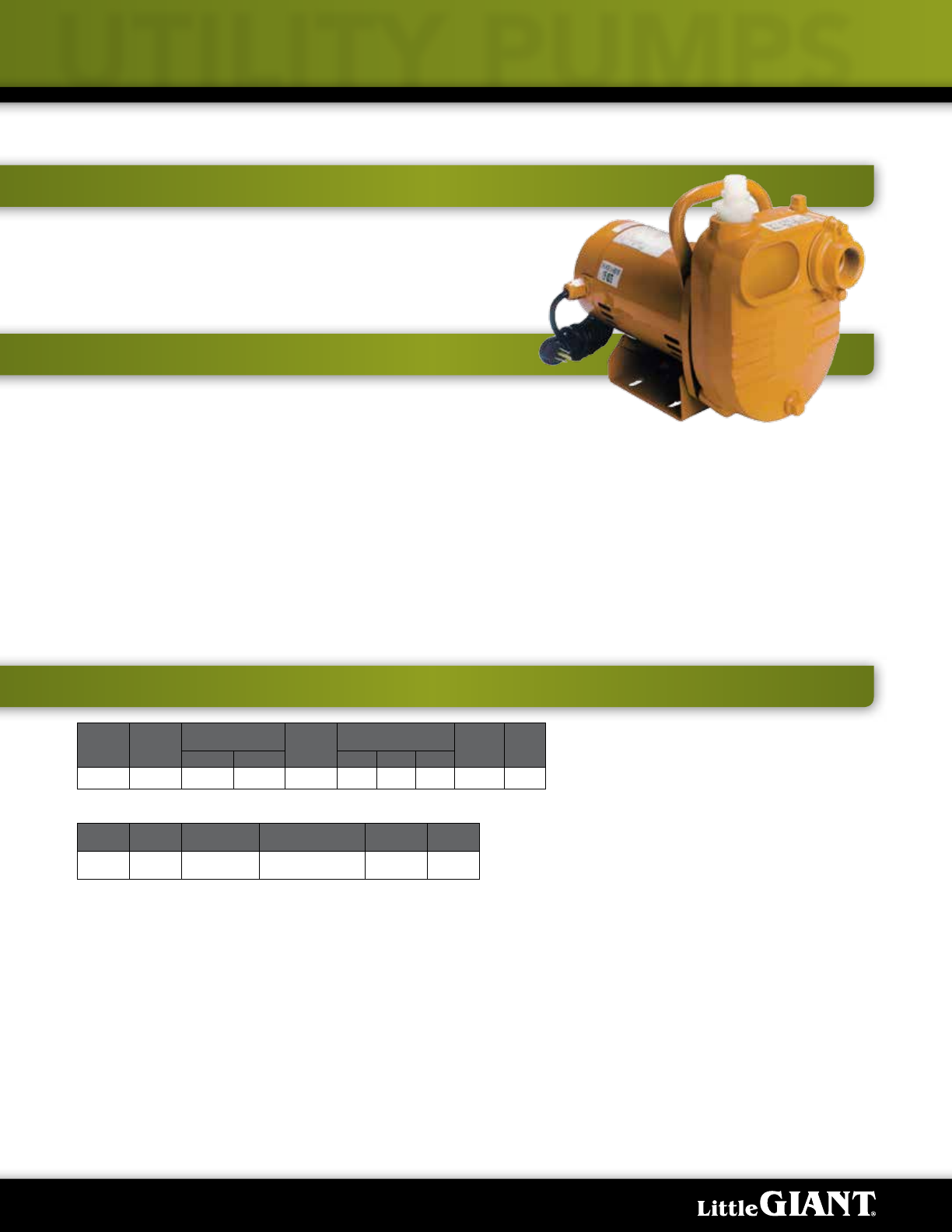

UPSP SERIES 1/2 HP
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Pressure boosting for washing vehicles • Flooded basements
• Watering lawns • Draining water heaters
• Non-submersible, inline, portable utility transfer pump with rugged
one-piece cast iron housing and integral carrying handle
• Self-priming to 15' (4.6 m) when priming chamber is lled
• Can also be used to boost water pressure for washing vehicles,
sidewalks, and more
• Convenient 3/4" (19 mm) brass garden hose adapters on intake and discharge
• Engineered thermoplastic impeller
• 3/4" (19 mm) FNPT discharge
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed
Volts Hz Amps Watts
Performance
(GPH @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 20' 40' 60' 80' 100'
115 60 9 25 900 1152 912 648 372 90 105 45.4
Item No. Model Volts Operation Cord Weight
555101 UPSP-5 115 Self-Priming 10'
3 m
17.8 lbs
8.07 Kg
UTILITY PUMPS
7
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA CONSTRUCTION
Total Head in Feet
Capacity - Gallons per Hour
Capacity - Liters per Hour
Total Head in Meters
0 250 500 750 1000 1250
0
20
40
60
80
100
120
140
0
5
10
15
20
25
30
35
40
0 1000 2000 3000 4000
Motor Housing Cast iron
Impeller Material Thermoplastic
Impeller Type Semi-open
Volute Cast iron
Motor Shaft Carbon steel
Shaft Seal Carbon/ceramic
Fasteners Stainless steel
Bearings Front and back ball bearings
Power Cord SJT
Spec Sheet 995272

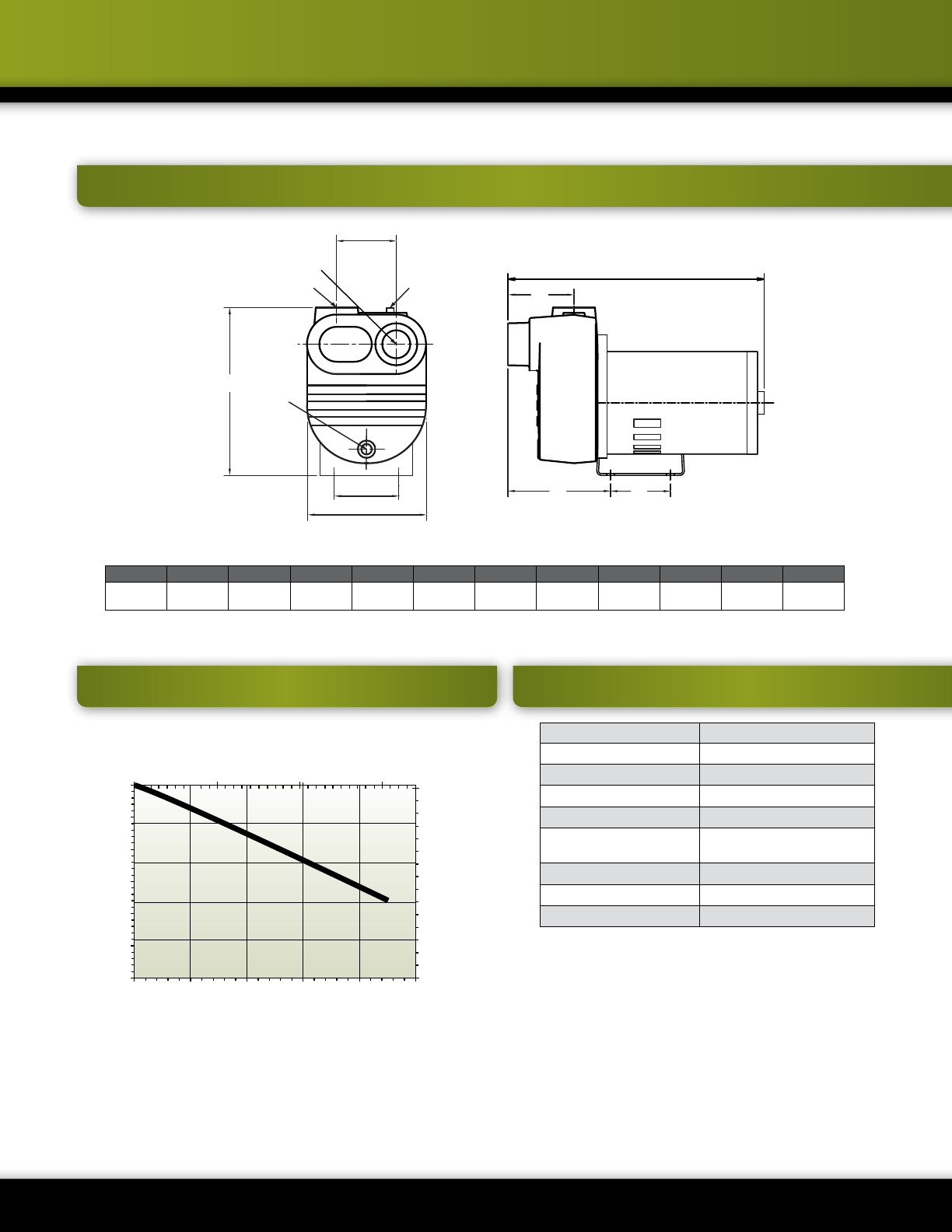

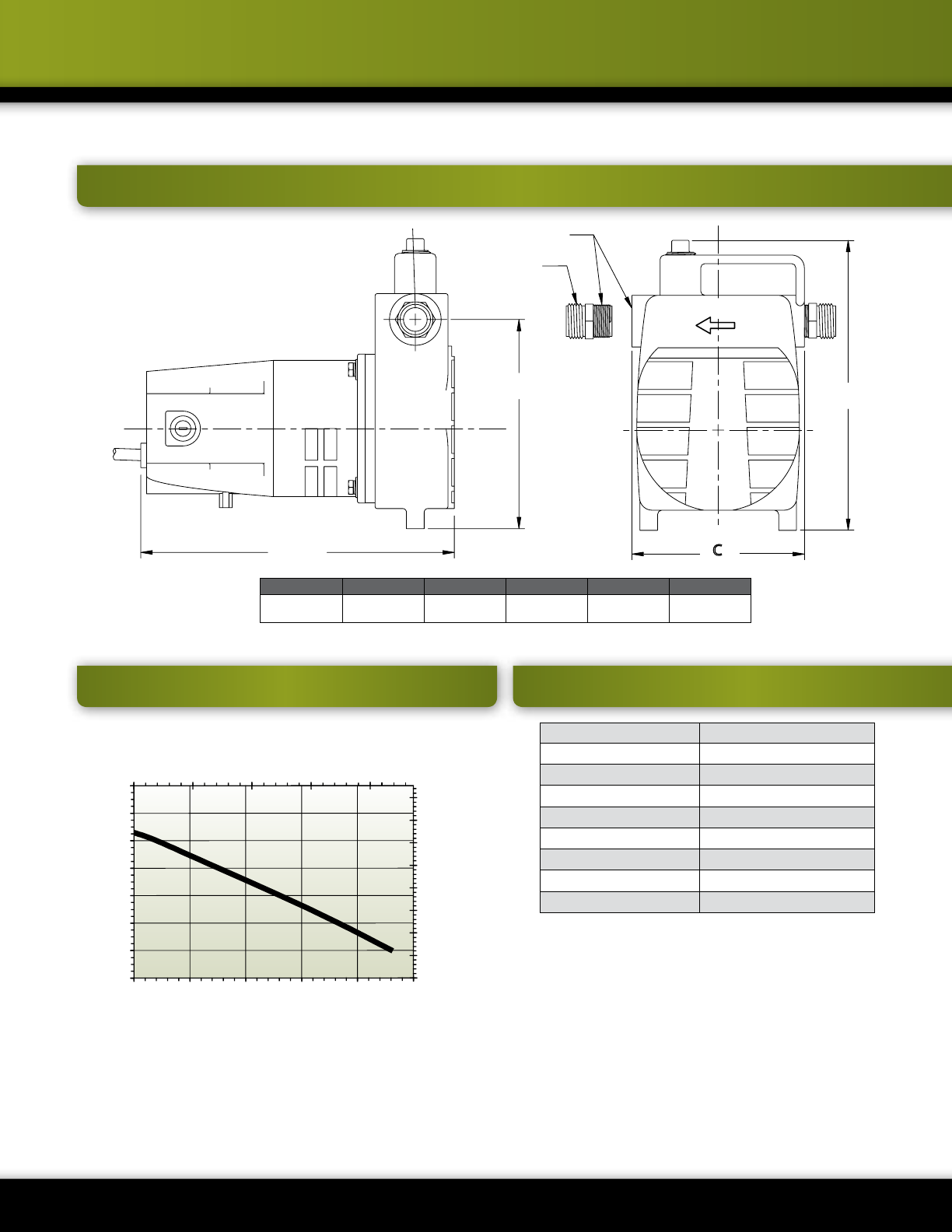

UPSP SERIES 1/2 HP
INOUT
FLOW
A
C
B
D
E
F
A B C D E F
9.15"
23.24 cm
6.6"
16.76 cm
5.5"
14 cm
9.9"
25.15 cm
3/4" MGHT
1.91 cm
3/4" MGHT
1.91 cm
UTILITY PUMPS
8

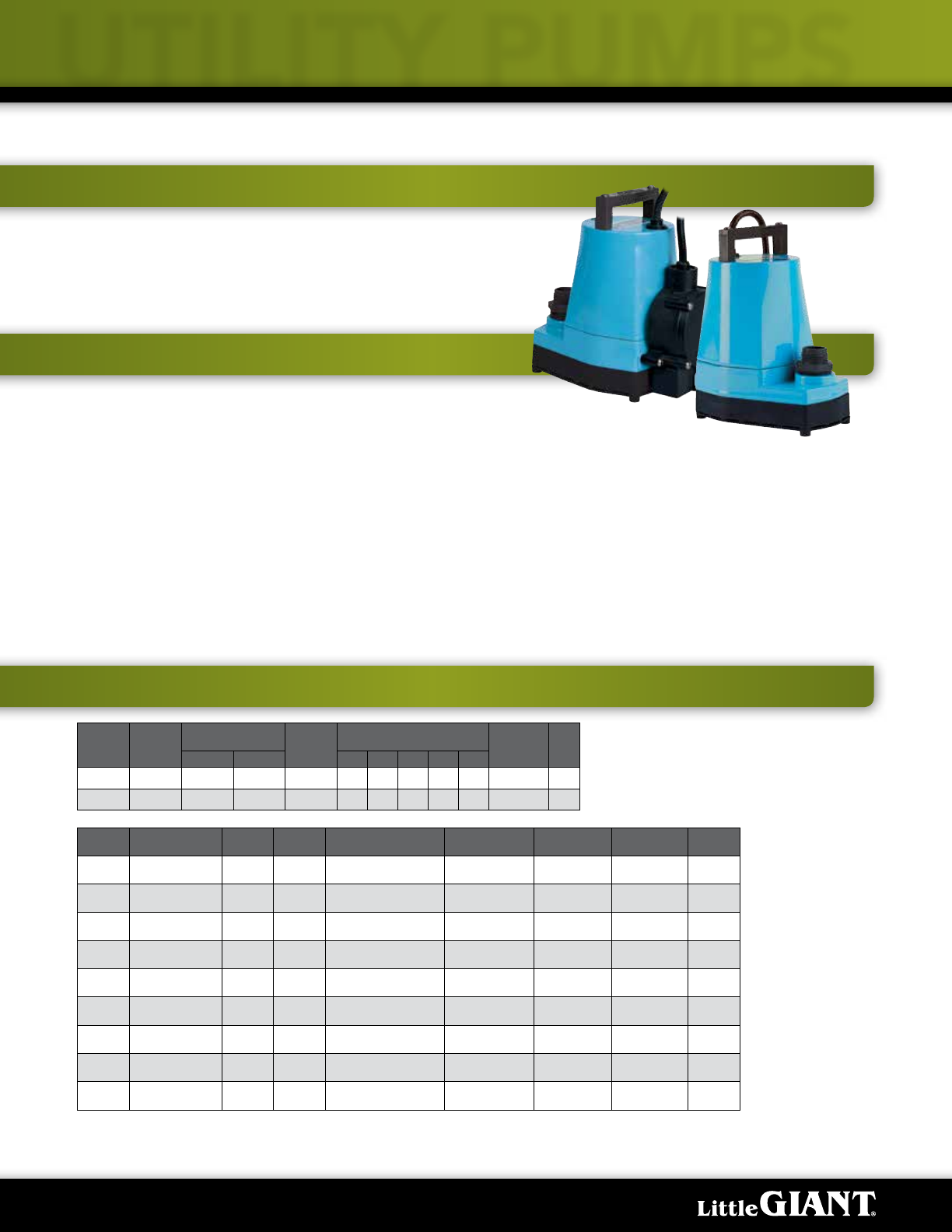

5 SERIES 1/6 HP
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Commercial, industrial, and home uses where water must be
transferred or recirculated
• 1/6 hp shaded pole motor with overload protection
• Designed for continuous duty
• Pumps down to 1/8" (38 mm)
• 1" FNPT (25.4 mm) discharge
• Removable inlet screen for easy cleaning
• Multiple switch options for automatic operation
• Multiple power cord lengths available
• 120 °F (49 °C) liquid temperature rating
• cCSAus on models 505300, 505350, 505400, 505486, 505000, 505025, and 505176
Volts Hz Amps Watts
Performance
(GPH @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 1' 3' 5' 10' 20'
115 60 5 6.4 380 1200 1170 1100 1000 520 26.3' 11.4
230 60 2.5 6.4 380 1200 1170 1100 1000 520 26.3' 11.4
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
505300 5-ASP 1/6 115 Piggyback Diaphragm 6" - 9"
15.2 cm - 23 cm
1" - 4"
2.5 cm - 10 cm
10'
3 m
9 lbs
4.08 Kg
505350 5-ASP-LL 1/6 115 Piggyback Diaphragm 2" - 3"
5 cm - 7.6 cm
0.5" - 1.5"
1.27 cm - 3.8 cm
18'
5.5 m
10.25 lbs
4.65 Kg
505400 5-ASP-FS 1/6 115 Integral Float Switch 10" - 12"
24.5 cm - 30.5 cm
2" - 4"
5.1 cm - 10.2 cm
10'
3 m
9 lbs
4.08 Kg
505486 5-MSPR (black pump) 1/6 115 Manual – – 10'
3 m
9 lbs
4.08 Kg
505000 5-MSP 1/6 115 Manual – – 10'
3 m
8.25 lbs
3.74 Kg
505500 5-MSP 1/6 115 Manual – – 10'
3 m
8.25 lbs
3.74 Kg
505025 5-MSP 1/6 115 Manual – – 25'
7.6 m
8.75 lbs
3.97 Kg
505176 5-MSP 1/6 115 Manual – – 10'
3 m
8.75 lbs
3.97 Kg
505202 5-MSP 1/6 230 Manual – – 12'
3.6 m (w/o plug)
8.25 lbs
3.74 Kg

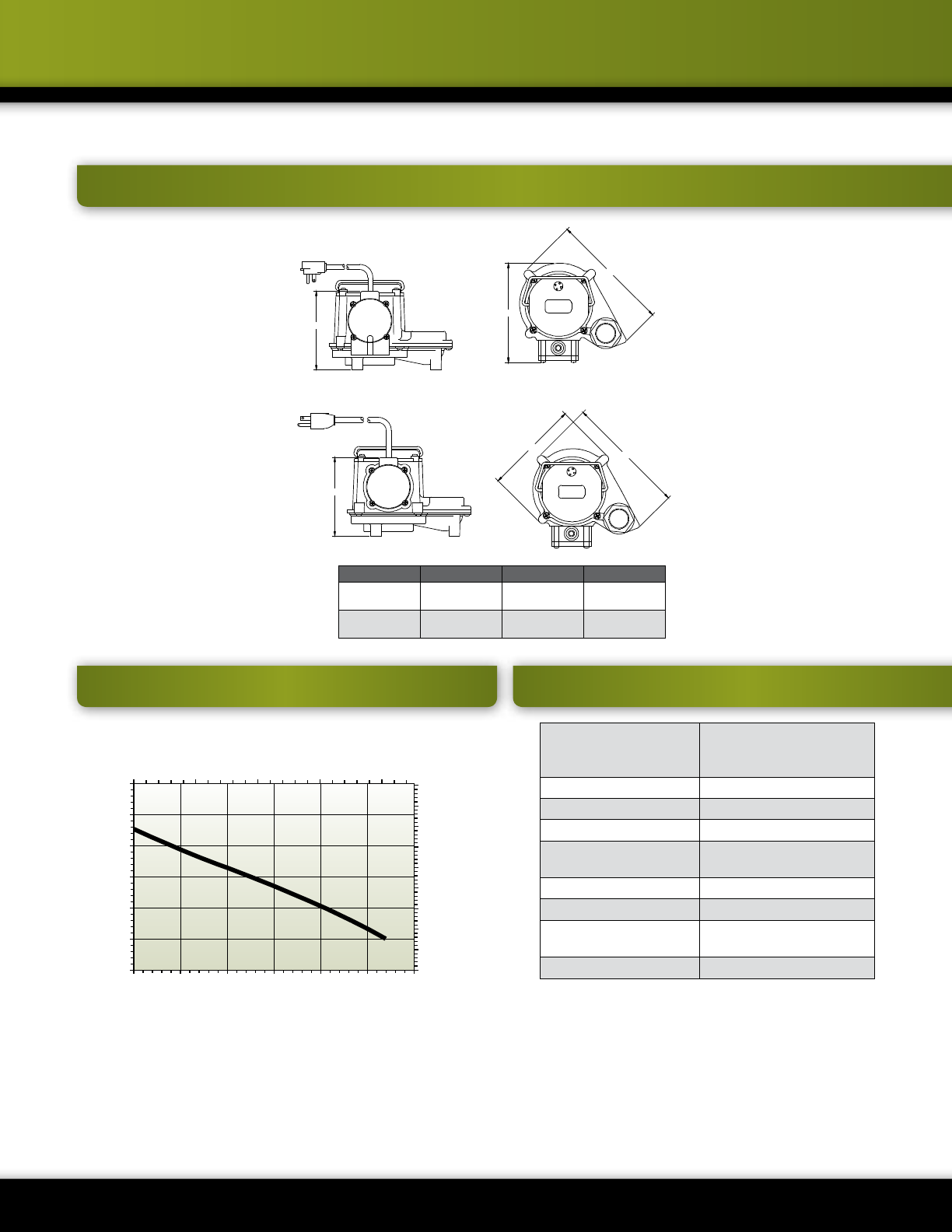

5-ASP
5-MSP
UTILITY PUMPS
9
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA CONSTRUCTION
Total Head in Feet
Capacity - Gallons per Hour
Capacity - Liters per Hour
Total Head in Meters
0
1
2
3
4
5
6
7
8
9
0 1000 2000 3000 4000 5000
0 250 500 750 1000 1250
0
5
10
15
20
25
30
Motor Housing Epoxy-coated cast aluminum
Impeller Material Nylon
Impeller Type Semi-open
Volute Nylon
Motor Shaft Stainless steel
Shaft Seal Fluoroelastomer (FKM)
Fasteners Stainless steel
Bearings Bronze sleeve
Power Cord SJTW
Spec Sheet 996573

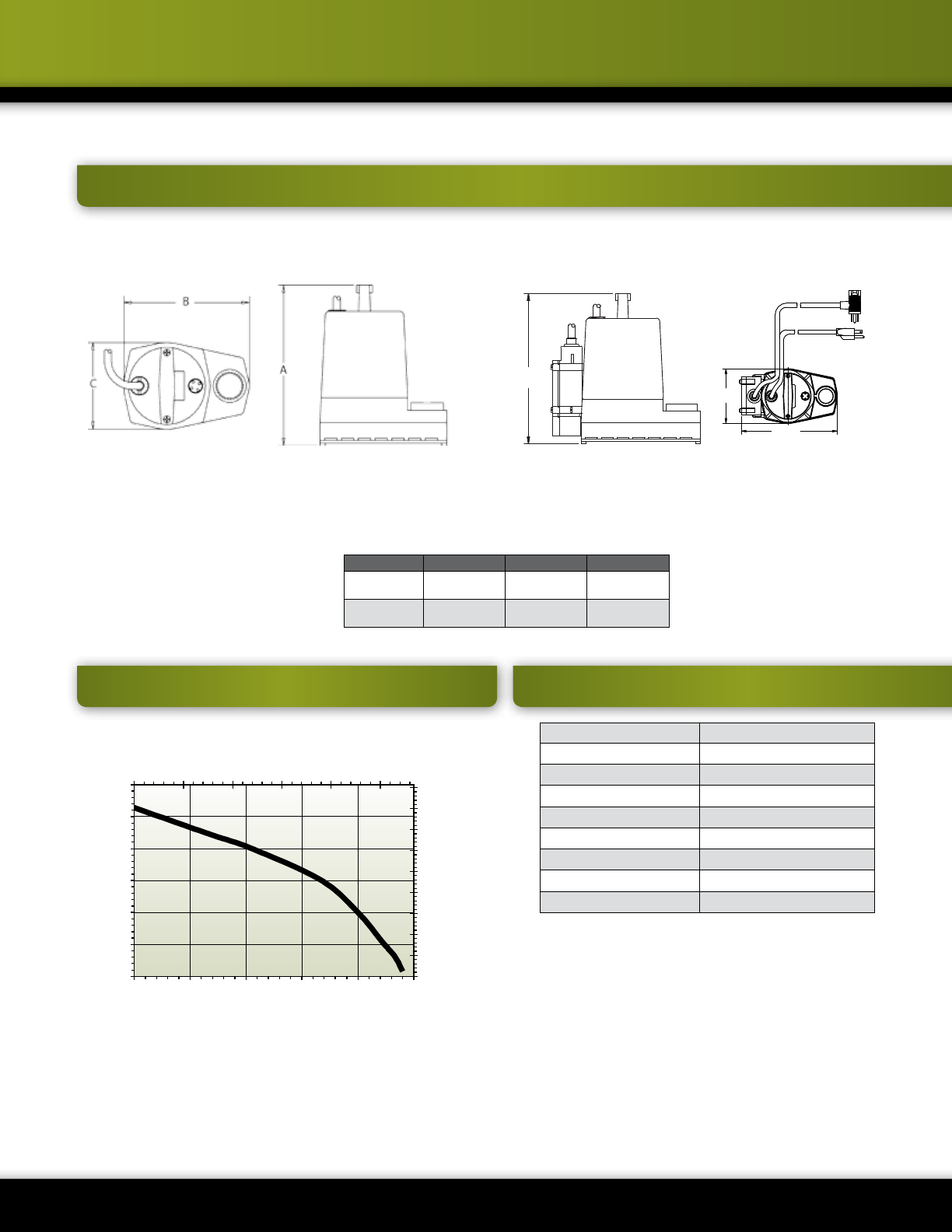

5 SERIES 1/6 HP
A
B
C
5-MSP 5-ASP
Model A B C
5-MSP 7.78"
19.76 cm
6.1"
15.49 cm
4.13"
10.49 cm
5-ASP 7.78"
19.76 cm
7.75"
19.69 cm
4.13"
10.49 cm
UTILITY PUMPS
10

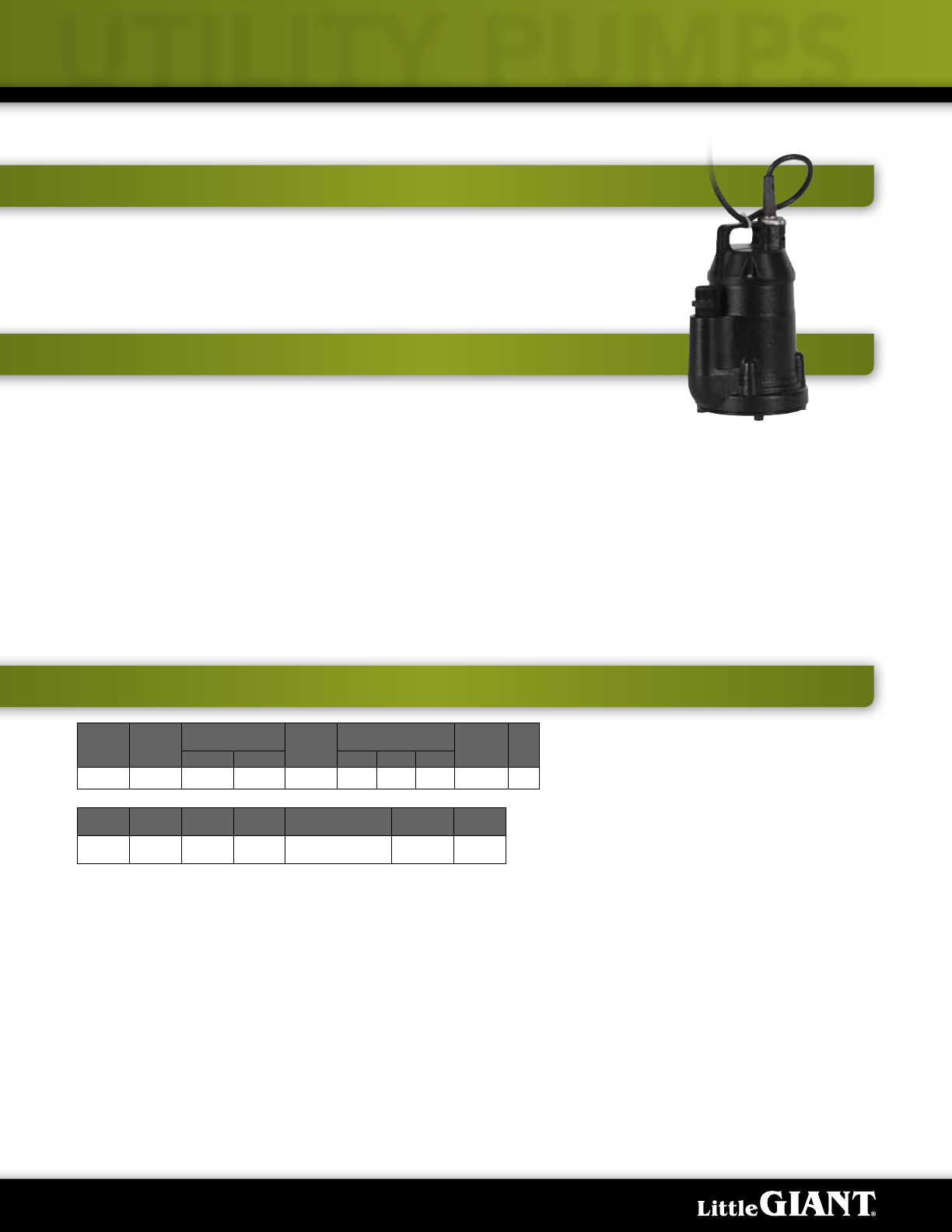

UP16 SERIES 1/6 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 60 2.1 5 200 20 14 7 19 8.2
Item No. Model HP Volts Switch Type/
Operation Cord Weight
620137 UP16 1/6 115 Manual 10'
3 m
8 lbs
3.63 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Commercial, industrial, and home dewatering and water transfer uses
• 1/6 hp oil-lled motor with overload protection
• Designed for continuous duty
• Pumps down to 1/4"
• Removable lter screen for easy cleaning
• Garden hose adapter
• 120 °F (49 °C) liquid temperature rating
• cCSAus listed
UTILITY PUMPS
11
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA CONSTRUCTION
Motor Housing Aluminum
Impeller Material Thermoplastic
Impeller Type Semi-open
Volute Aluminum
Motor Shaft Stainless steel
Shaft Seal Lip
Fasteners Stainless steel
Bearings Upper and lower ball bearings
Power Cord SJTW 18/3
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
1
2
3
4
5
6
0 25 50 75 100
0 10 10 15 20 25
0
5
10
15
20
Spec Sheet 996170
UP16 SERIES 1/6 HP
A B C D
8.7"
22.10 cm
10.67"
27.10 cm
6.2"
15.75 cm
5.2"
13.21 cm
UTILITY PUMPS
12

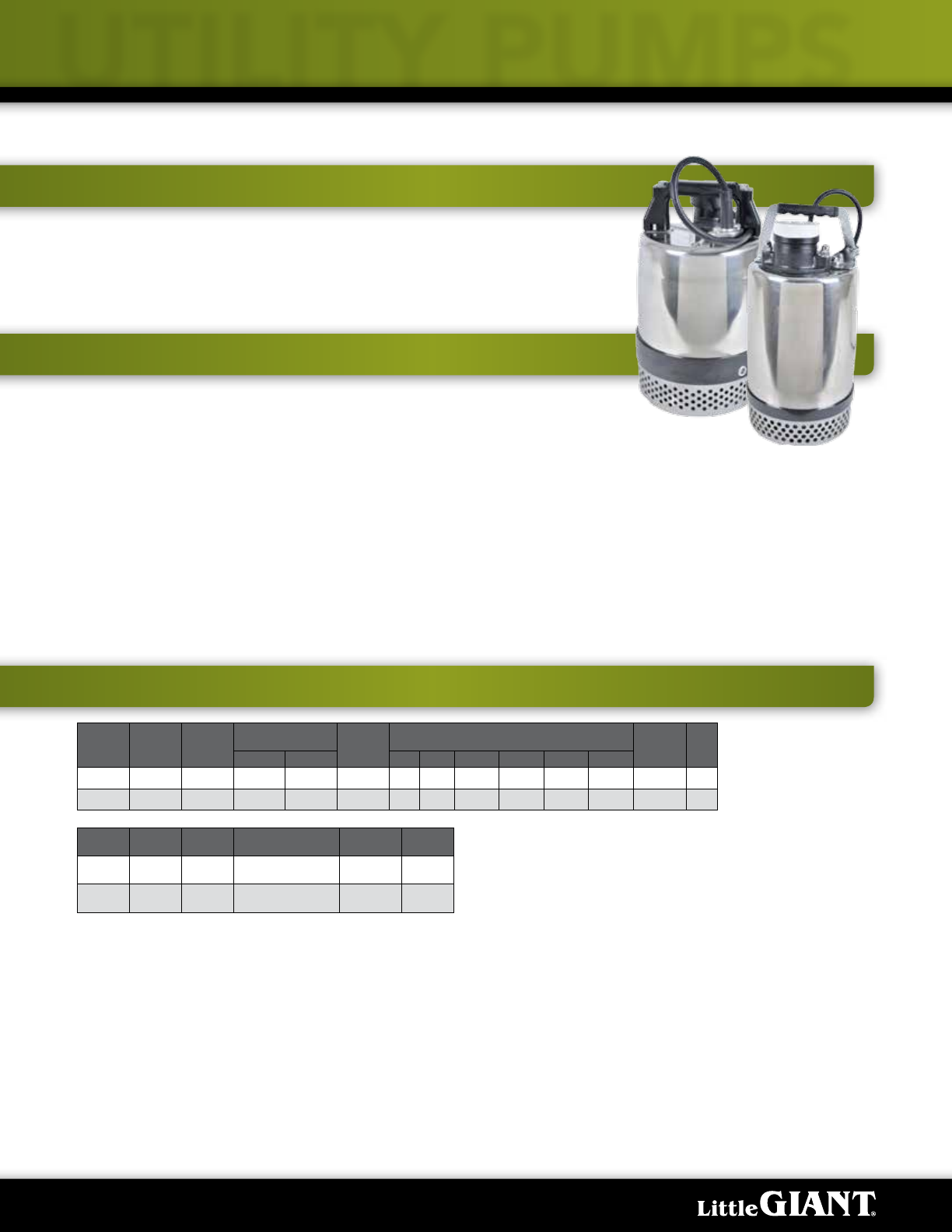

FLS/FS SERIES 1/2 HP, 1 HP
HP Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15' 20' 30' 40'
1/2 115 60 5 24 488 60 54 42 20 – – 37 16
1 115 60 10 47.6 950 80 76 73 68 54 38 52 22.5
Item No. Model Volts Switch Type/
Operation Cord Weight
620240 FLS-400 115 Manual 20'
6.1 m
24 lbs
10.89 Kg
620241 FS-750 115 Manual 20'
6.1 m
35 lbs
15.88 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Water transfer or recirculation and general construction dewatering
• 1/2 hp or 1 hp permanent split capacitor (PSC) motor with overload protection
• Designed for continuous duty
• 2" MNPT discharge
• 120 °F (49 °C) liquid temperature rating
• cCSAus listed
FLS-400
FL-750
UTILITY PUMPS

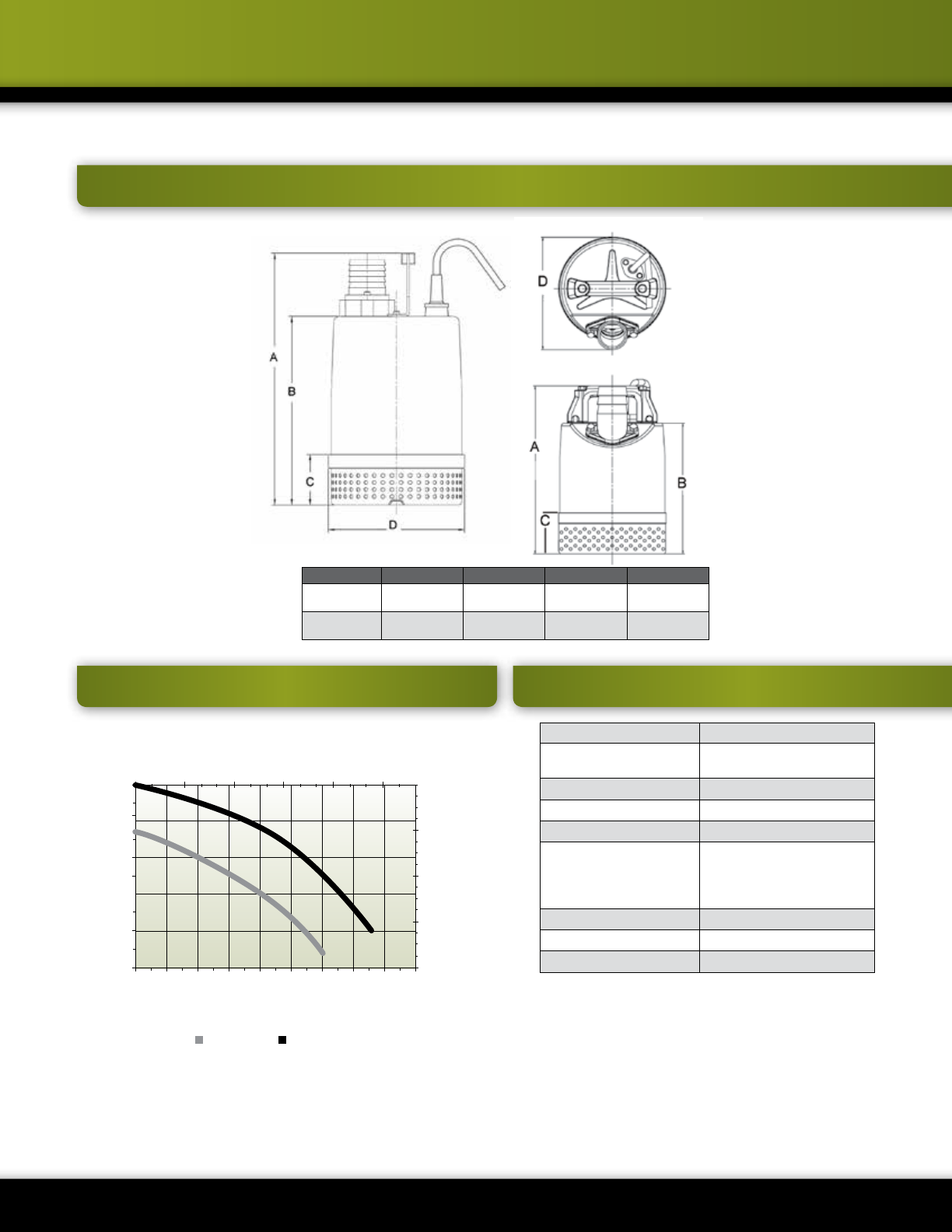

13
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA CONSTRUCTION
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
10
20
30
40
50
0 10 20 30 40 50 60 70 80 90
0
8
4
12
16
0 60 120 180 240 300
FS-750FLS-400
Motor Housing Stainless steel
Impeller Material Urethane rubber (620240)
Balance ductile iron (620241)
Impeller Type Semi-open
Volute Cast iron
Motor Shaft Stainless steel
Seals
Double mechanical seals
(lower - silicon carbide on
silicon carbide
upper - carbon on ceramic)
Fasteners Plated steel
Bearings Upper and lower ball bearings
Power Cord SJTW 14/3
Spec Sheet 996571
FLS/FS SERIES 1/2 HP, 1 HP
Model A B C D
FLS-400 11.93"
30.30 cm
9.3"
23.62 cm
2"
5.08 cm
7.99"
20.29 cm
FL-750 13.94"
35.41 cm
10.79"
27.41 cm
2.84"
7.21 cm
7.24"
18.39 cm
UTILITY PUMPS
14
B50S SERIES 1/2 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 20' 30' 40'
115/230 60 9.0/4.5 26.3 925 45 31 16 50 21.06
Item No. Model Volts Switch Type/
Operation Cord Weight
621814 B50S 1/60/115/230
Capacitor Start Manual 8'
20.32 cm
43 lbs
19.5 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Dewatering and water transfer
• 1/2 hp higher than NEMA service factor, dual compartment motor
• Cast iron casing with large chamber for self-priming
• Carbon/ceramic mechanical seal
• Semi-open, cast iron impeller
• Includes garden hose adapter
• 120 °F (49 °C) liquid temperature rating
UTILITY PUMPS
15
Hotline: 1.800.701.7894 www.franklinwater.com

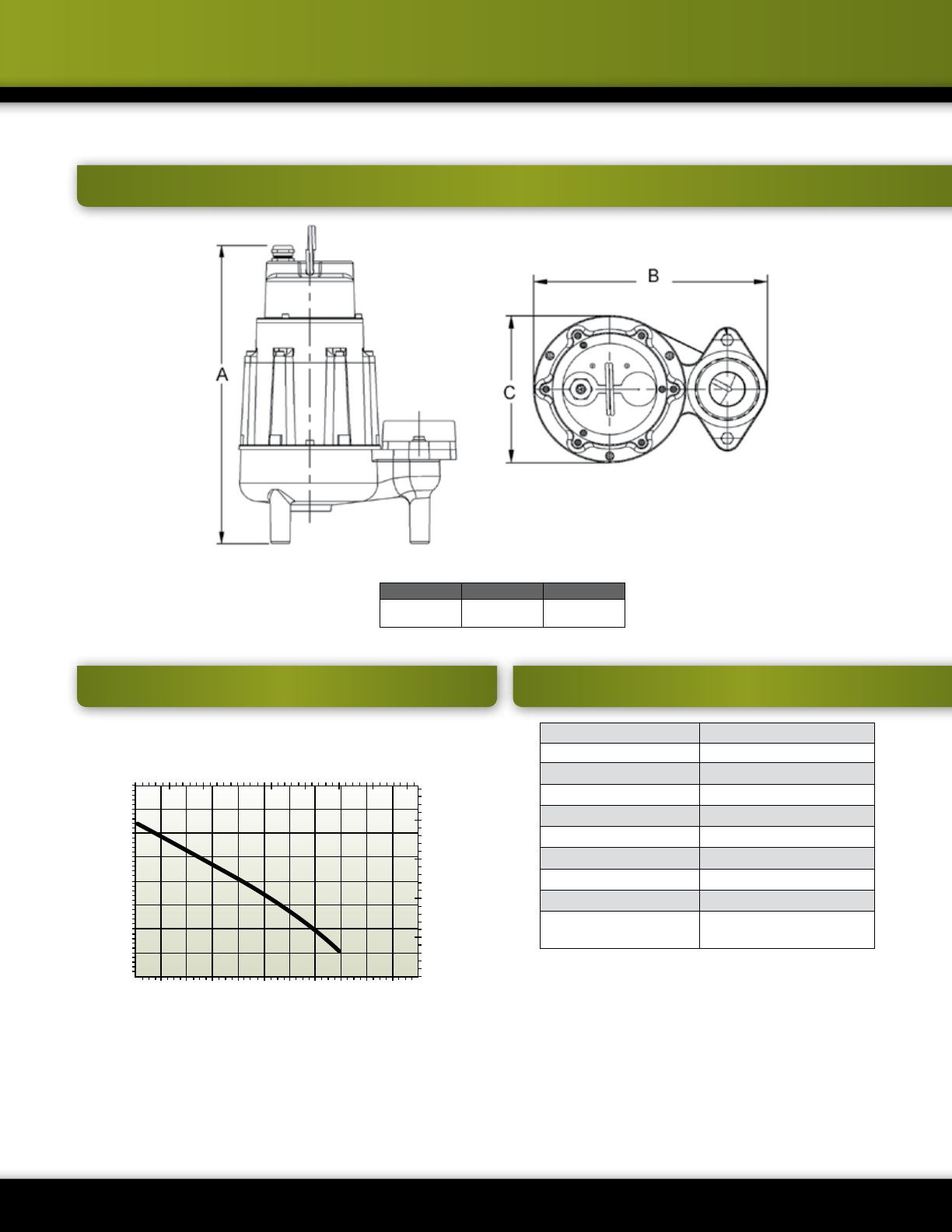

ENGINEERING DATA

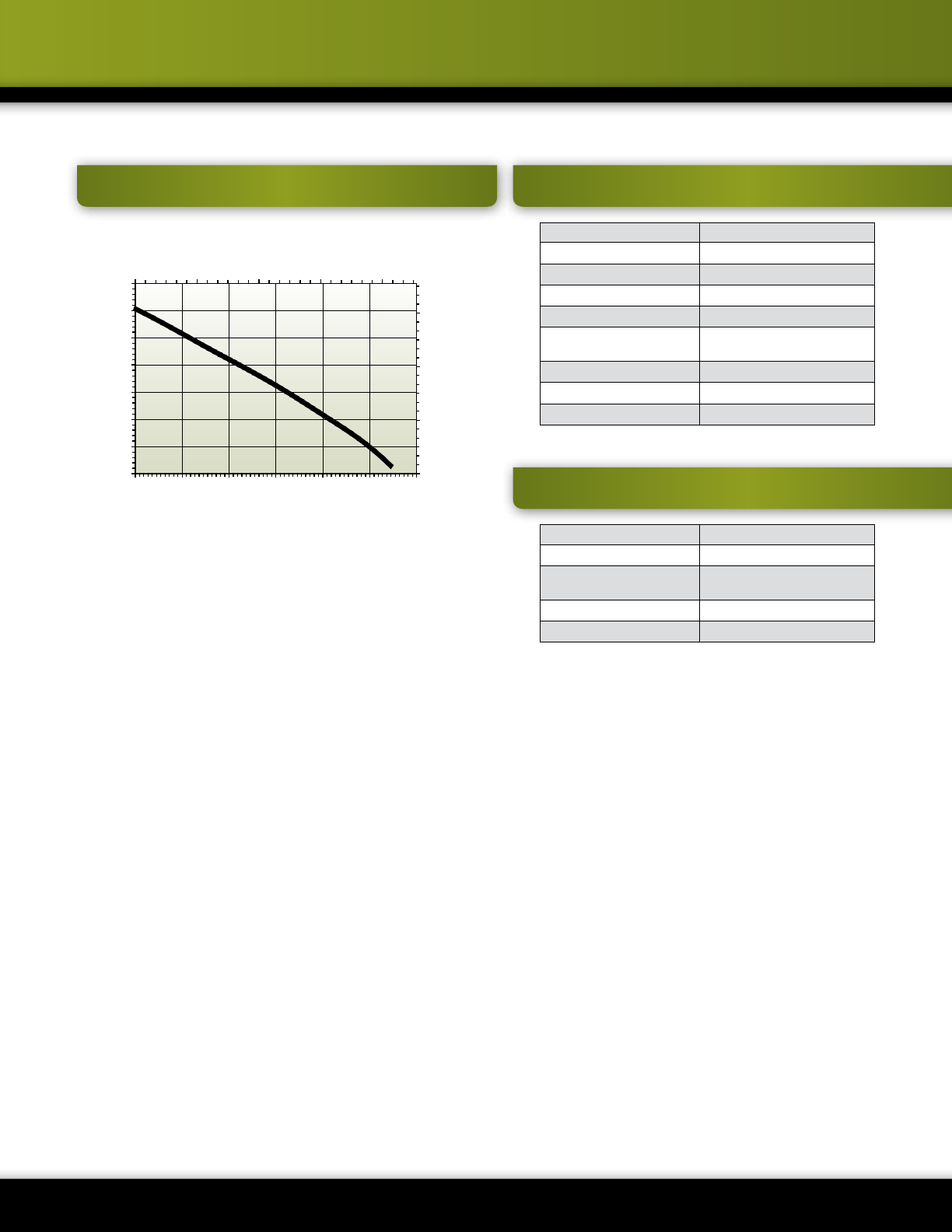

PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
2
4
6
8
10
12
14
0 50 100 150
0 10 20 30 40 50
0
10
20
30
40
50
Spec Sheet 996127
B50S SERIES 1/2 HP
CONSTRUCTION
Motor Housing Cast iron
Impeller Material Cast iron
Impeller Type Semi-open
Volute Cast iron
Motor Shaft Stainless steel
Seals Carbon/ceramic
mechanical seals
Fasteners Plated steel
Bearings Ball
Power Cord SJTW 16/3

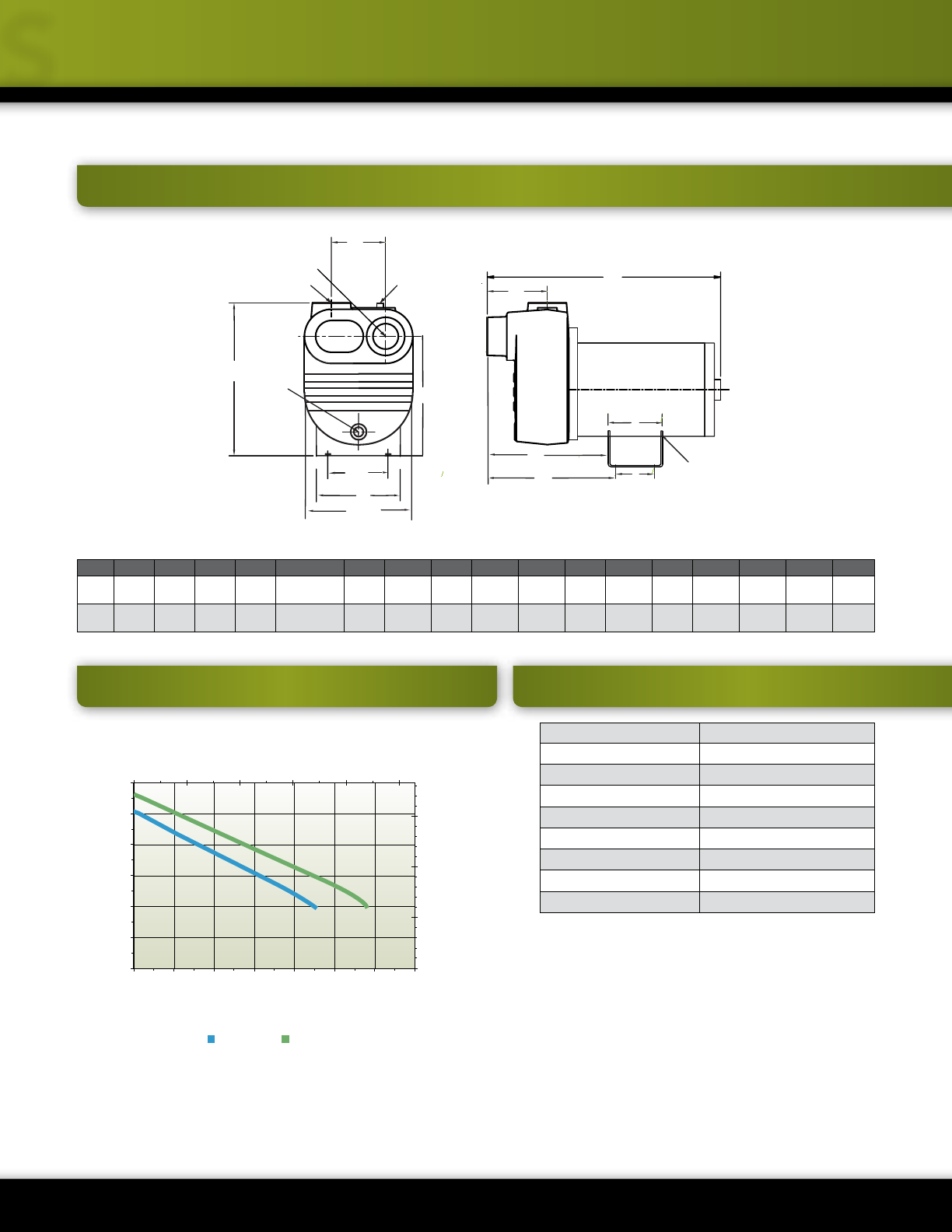

A
BC
D
E
F
G
H
J
K
LM
A B C D E F G H J K L M
1-1/4" NPT
3.18 cm
1-1/4" NPT
3.18 cm
1/2" NPT
1.27 cm
1/2" NPT
1.27 cm
4.25"
10.8 cm
10.5"
26.67 cm
4.9"
12.45 cm
7.6"
19.3 cm
20"
50.8 cm
3.1"
7.87 cm
6.8"
17.27 cm
3"
7.62 cm

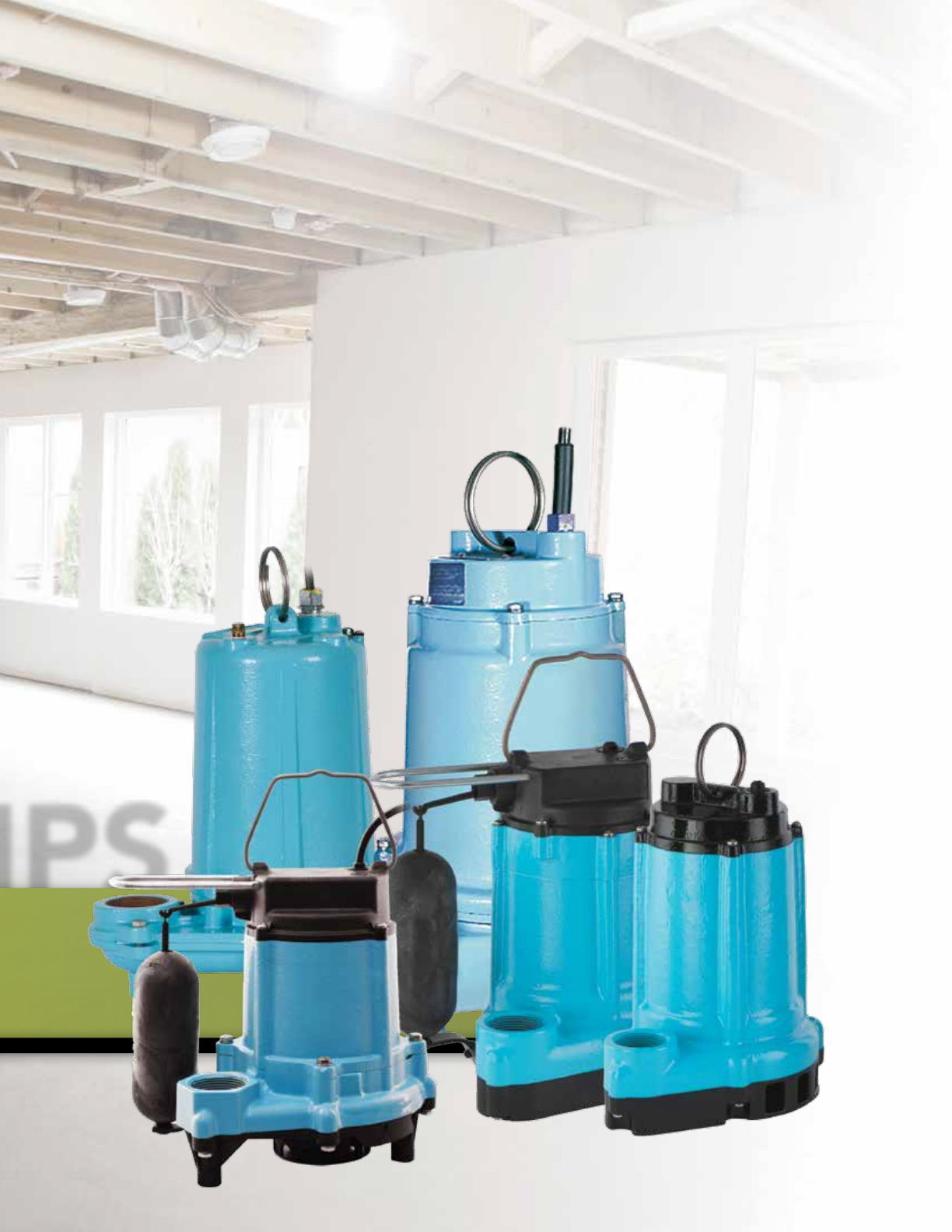

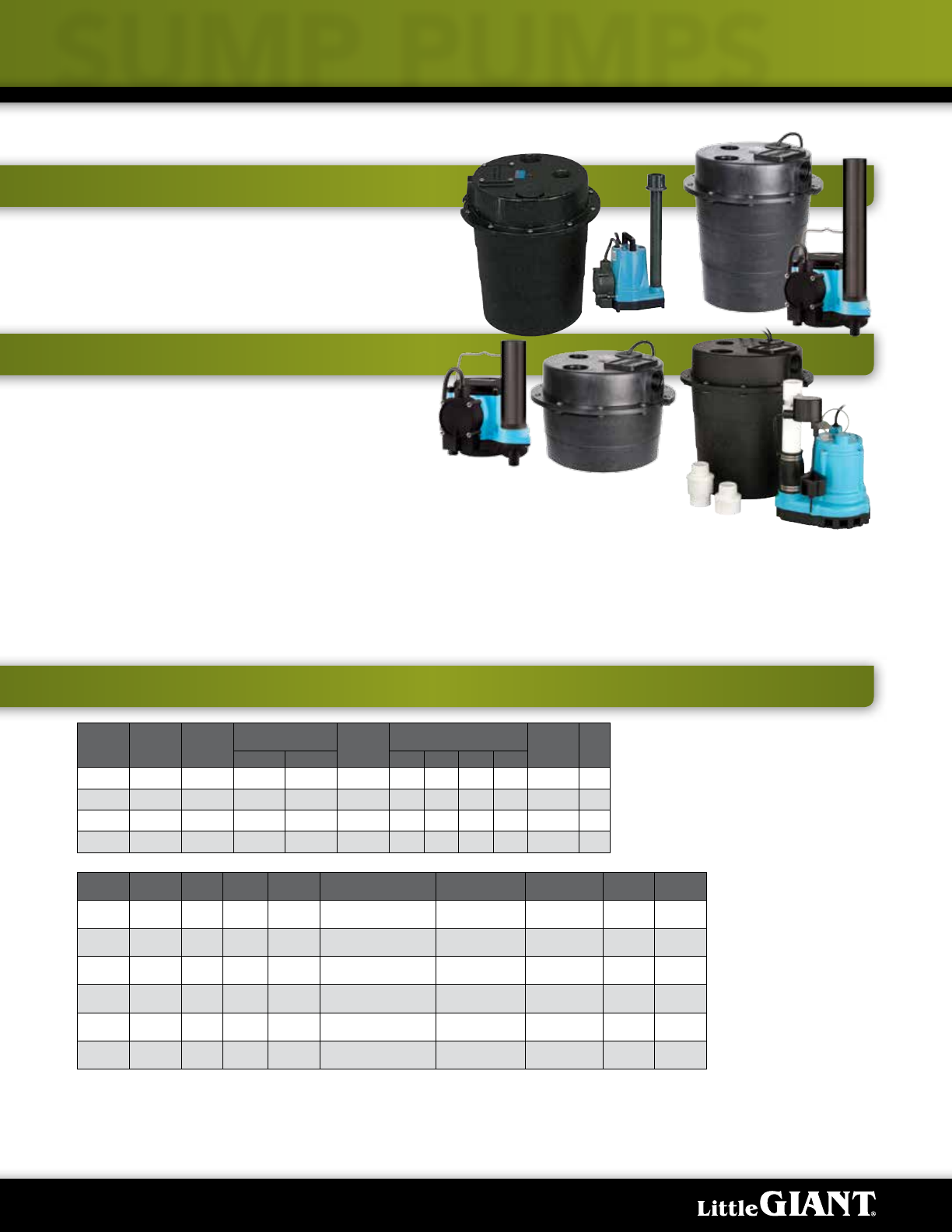

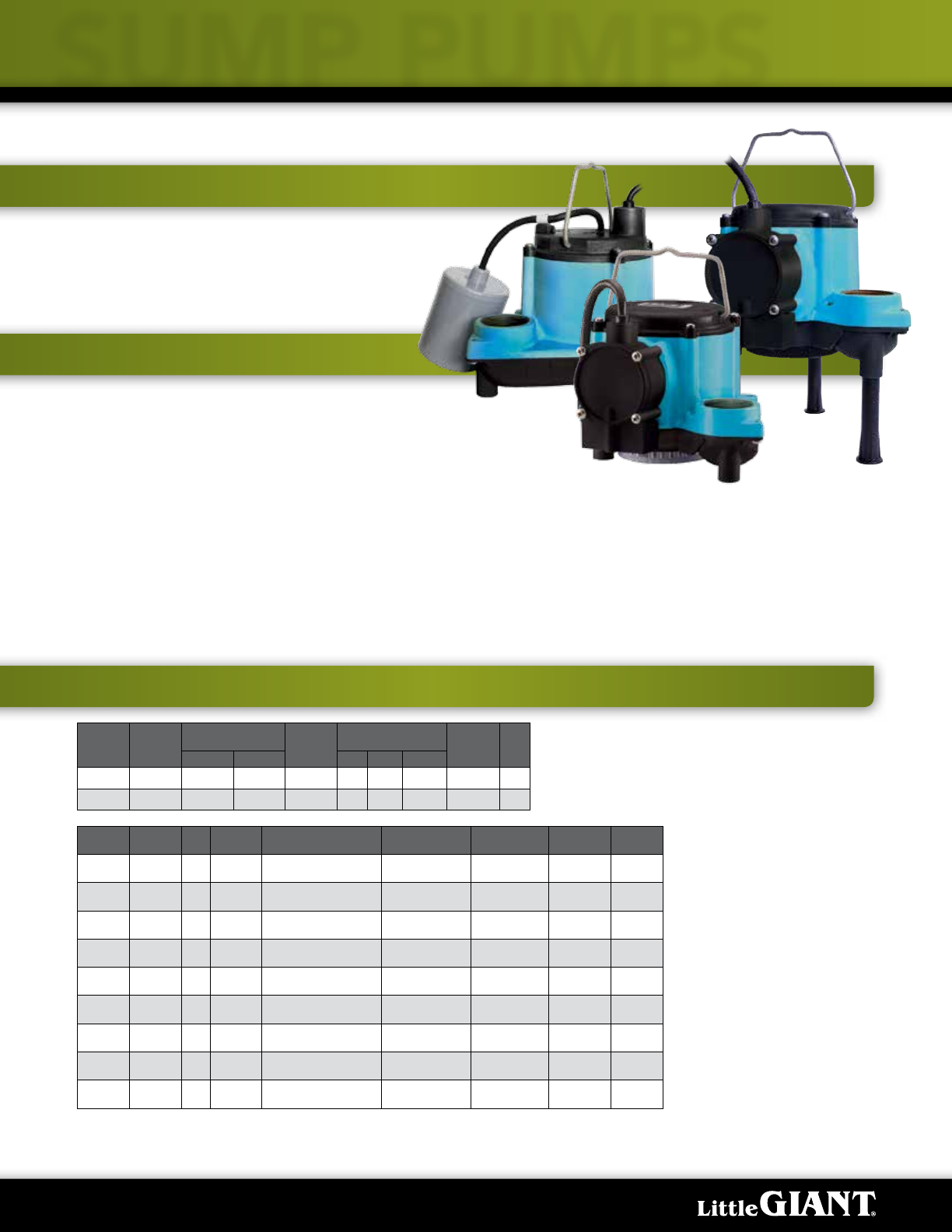

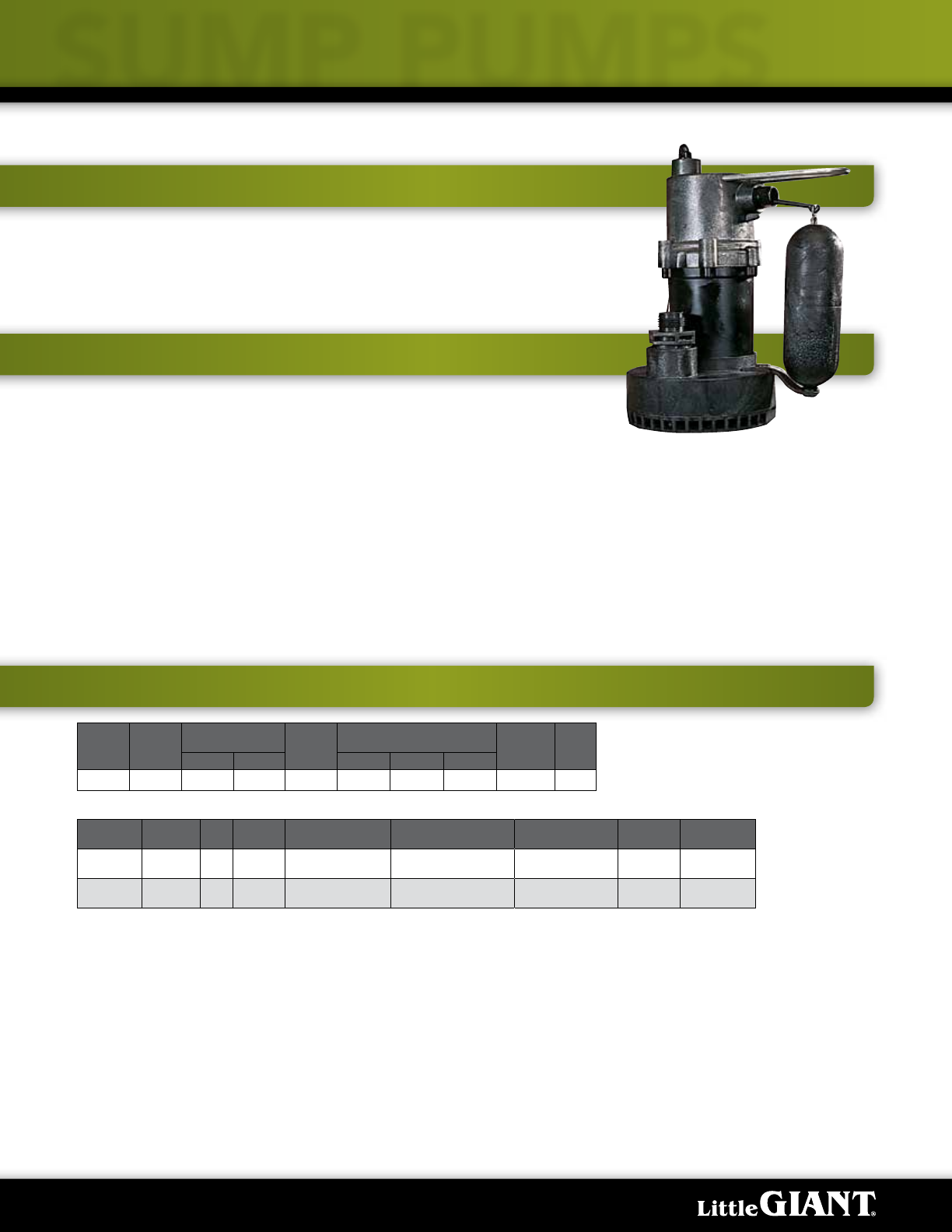

SUMP PUMPS
Removing standing water from a sump basin in a basement or crawl space are
typical uses of Little Giant’s sump pumps, but they can also be used in many other
applications for general dewatering and water transfer such as storm shelters,
transformer vaults, and laundry trays to name a few. With several horsepower,
performance, and switch options, Little Giant sump pumps offer reliable solutions
making them more than just sump pumps.
SUMP PUMPS
18
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 60 8.5 10.4 660 35 30 20 25 10.8
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
505700 5.5-ASP 1/4 115 Integral Snap-Action
Float
7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
10'
3 m
10.25 lbs
4.65 Kg
505701 5.5-ASP 1/4 115 Integral Snap-Action
Float
7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
25'
7.6 m
11 lbs
5 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Basement sumps
• Shaded pole motor with thermal overload protection
• Oil-lled motor housing
• Integral snap-action oat switch
• 1-1/4" FNPT (31.7 mm) discharge
• Screened inlet handles up to 3/8" (9.5 mm) solids
• 3/4" GHT (19 mm) garden hose adapter included
• 120 °F (49 °C) liquid temperature rating
• cCSAus listed
5.5 SERIES 1/4 HP
SUMP PUMPS
19
Hotline: 1.800.701.7894 www.franklinwater.com
Motor Housing Die-cast zinc alloy
Impeller Material Nylon
Impeller Type Non-clog
Volute Polypropylene
Motor Shaft 440C SS
Shaft Seal Nitrile
Fasteners Stainless steel
Bearings Sleeve
Power Cord SJTW-A
ENGINEERING DATA
PERFORMANCE DATA CONSTRUCTION
Spec Sheet 995527
5.5 SERIES 1/4 HP
Total Head in Feet
0
5
10
15
20
25
30
0 10 20 30 40 50
Capacity - Gallons per Minute
0
1
2
3
4
5
6
7
8
9
0 25 50 75 100 125 150 175
Capacity - Liters per Minute
Total Head in Meters

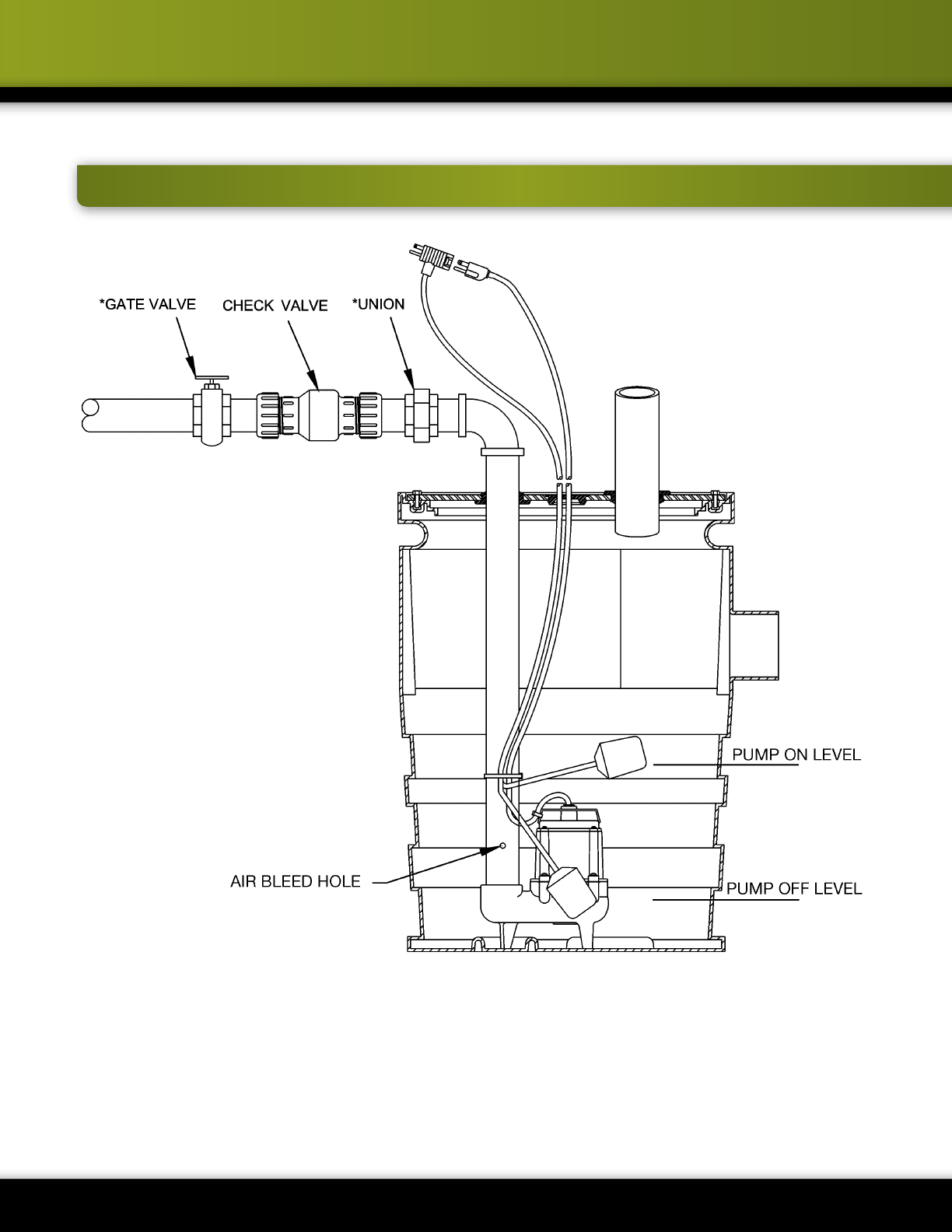

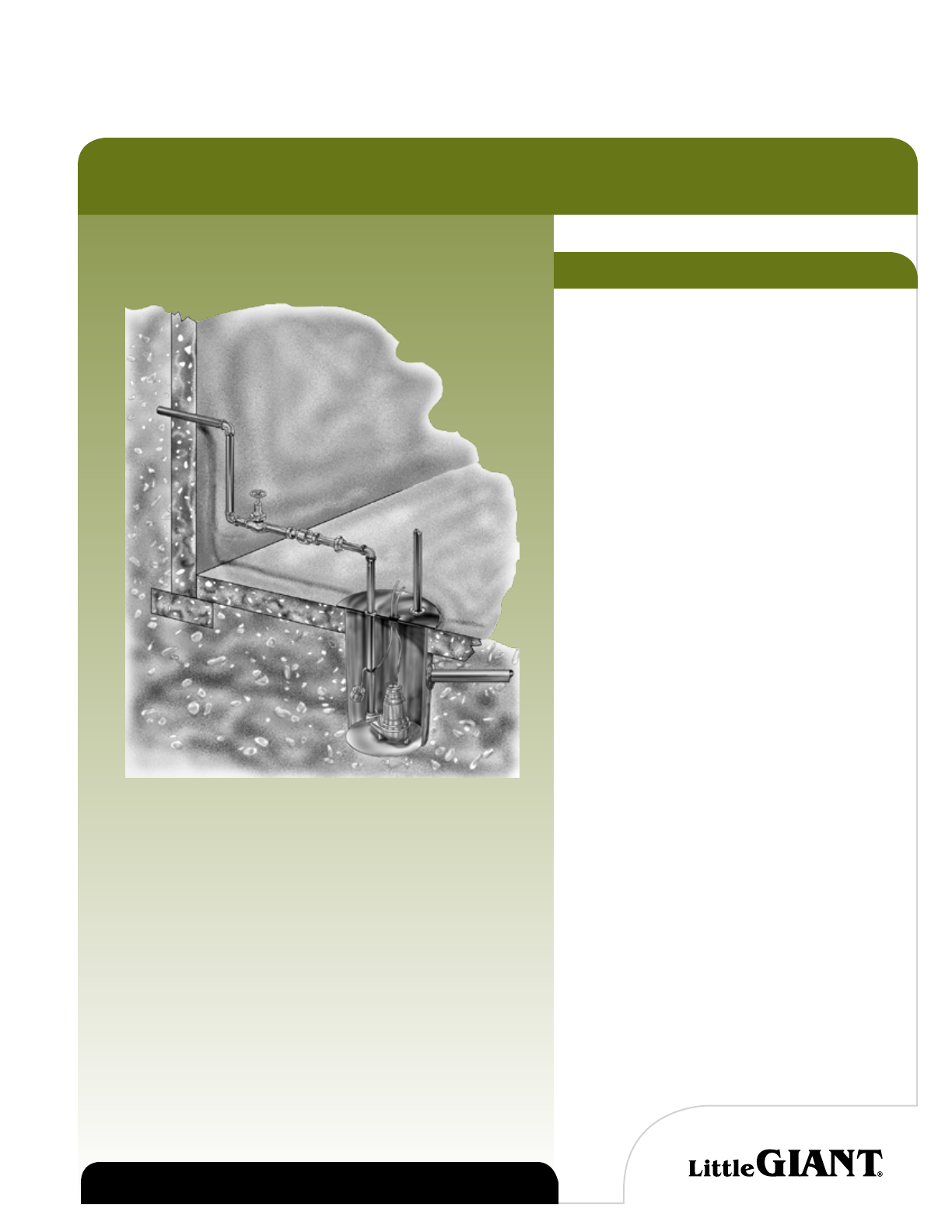

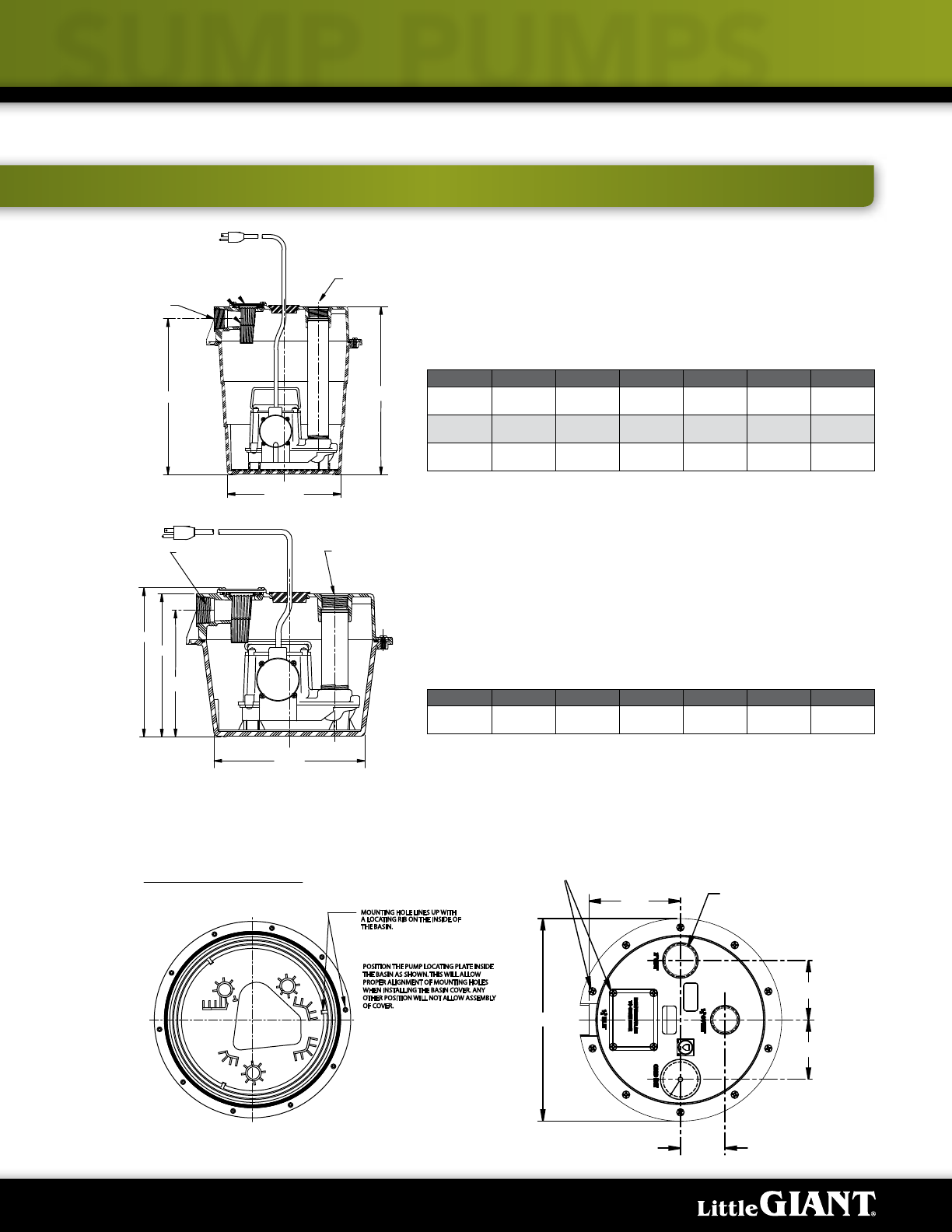

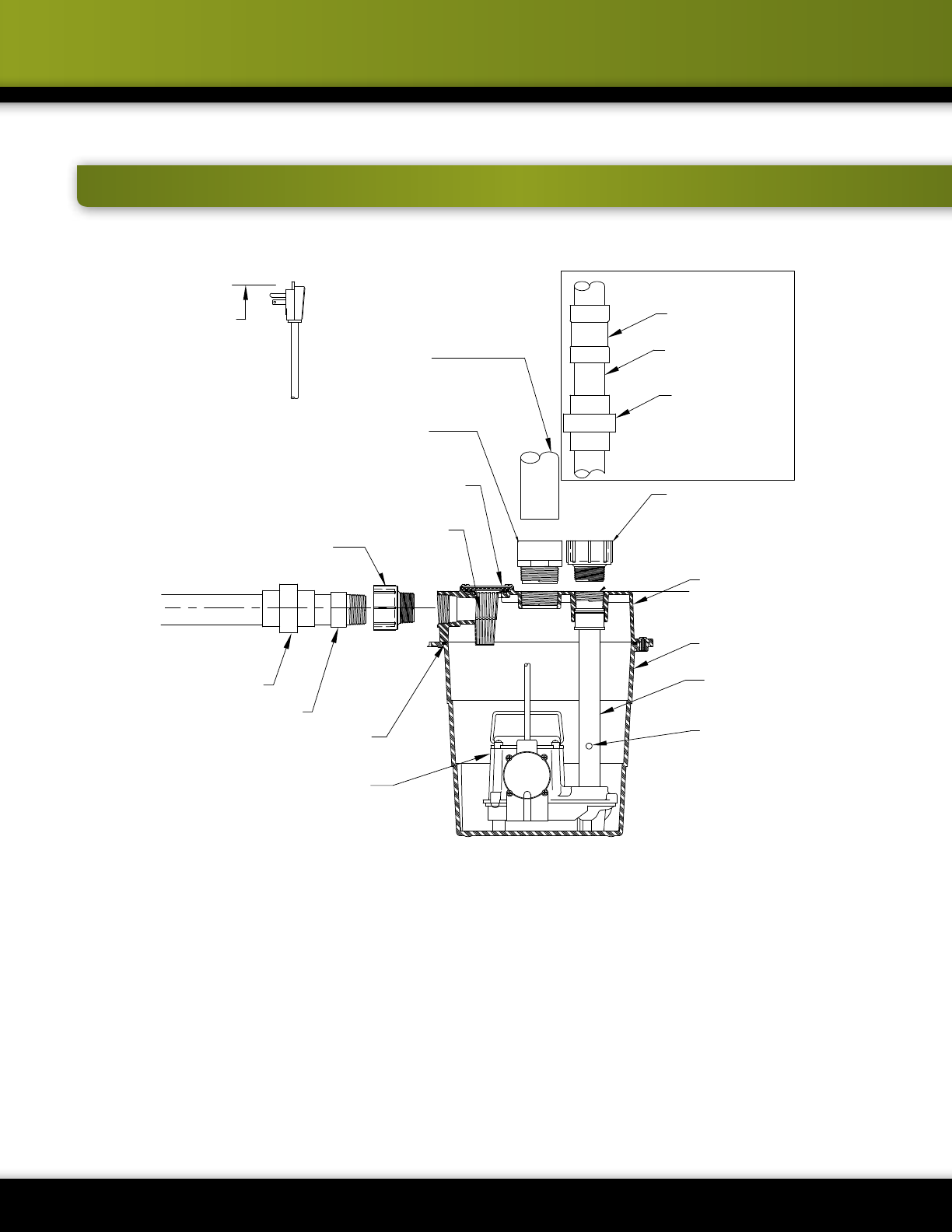

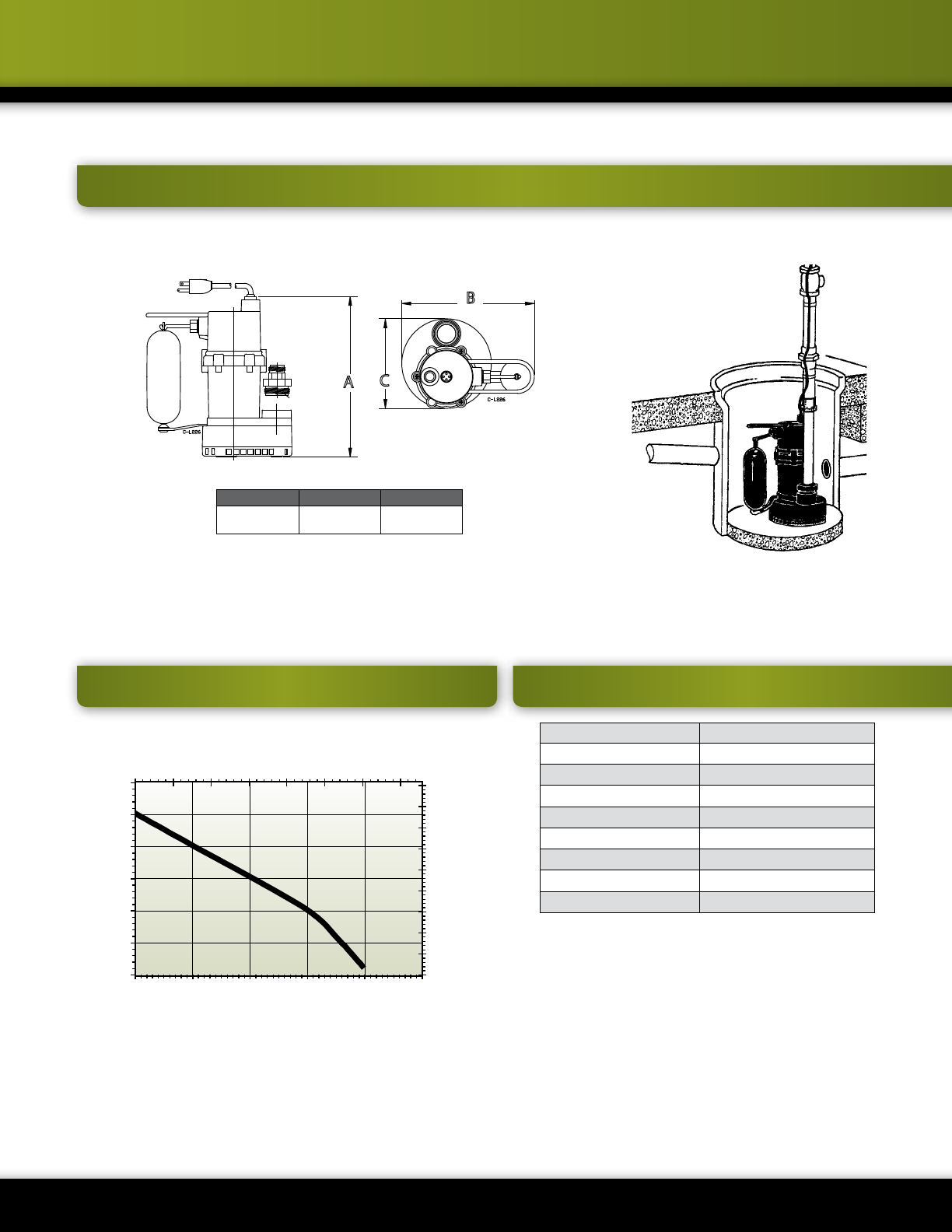

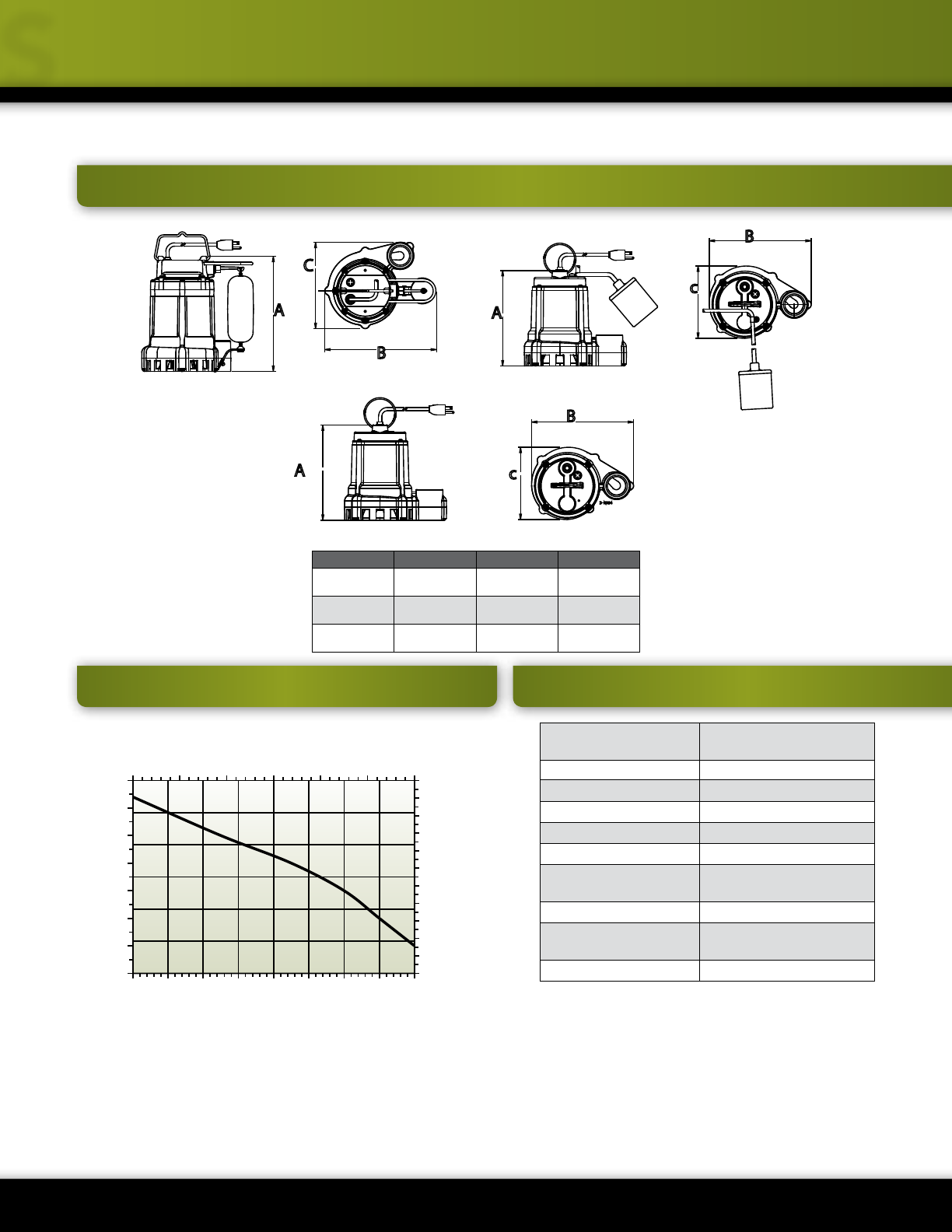

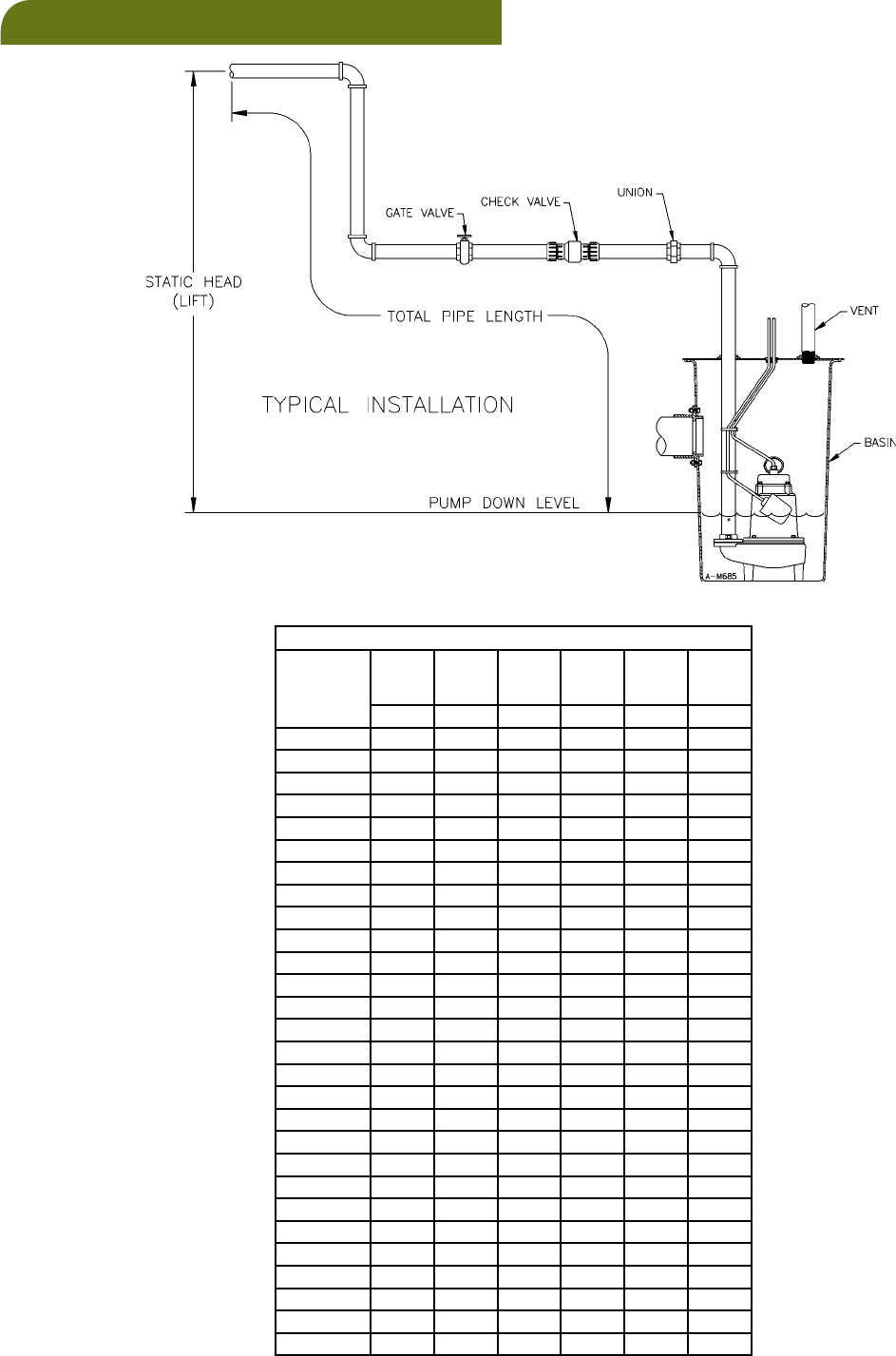

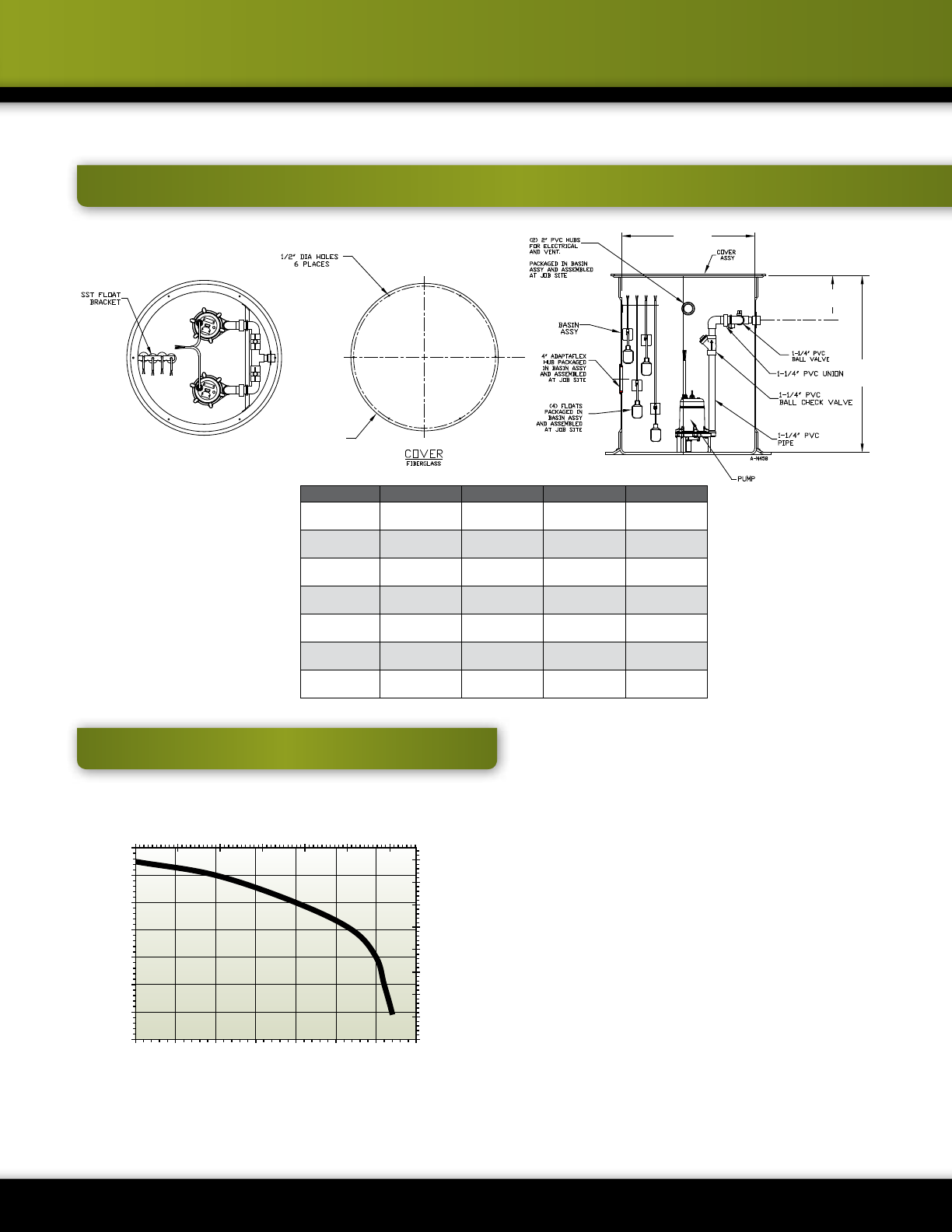

Typical Installation
A B C
10.61"
26.94 cm
9.02"
22.91 cm
6.0"
15.24 cm
B
C
A
SUMP PUMPS
20

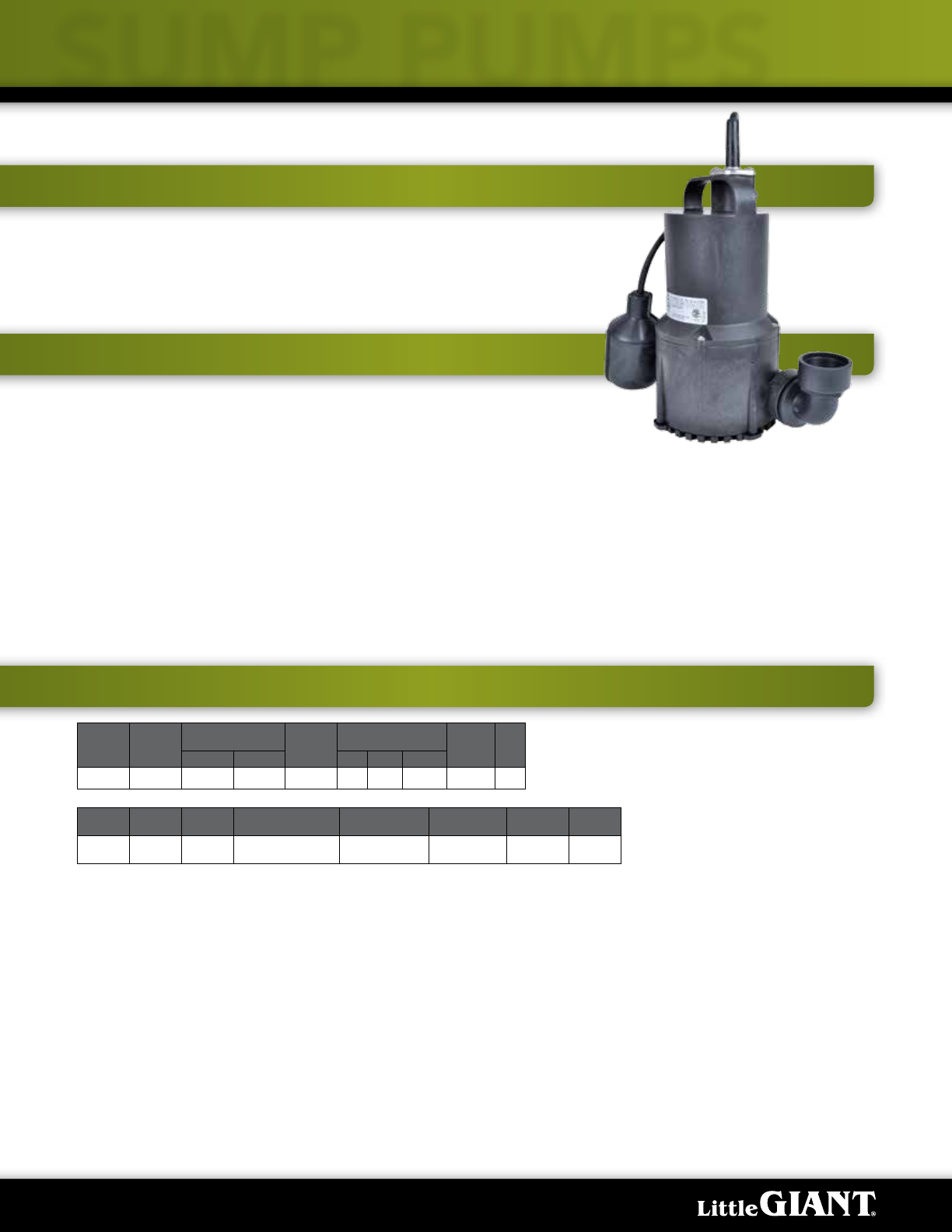

SP25 SERIES 1/4 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 60 3.2 6.5 290 24 19 12 21 9.1
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
620136 SP25A 1/4 115 Mechanical Float 13.4"
34 cm
7.5"
19 cm
10'
3 m
8.5 lbs
3.86 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Basement sumps • Dewatering • Water transfer
• Oil-free motor with thermal overload protection
• Designed for continuous duty
• 1-1/4" NPT (31.7 mm) discharge
• Handles up to 1/8" (3.18 mm) solids
• Built-in suction strainer
• Removable lter screen
• 120 °F (49 °C) liquid temperature rating
• cCSAus listed
SUMP PUMPS
21
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
5
10
15
20
25
0 5 10 15 20 25
0
2
4
6
0 20 40 60 80
CONSTRUCTION
Motor Housing Aluminum
Impeller Material Thermoplastic
Impeller Type Semi-open
Volute Thermoplastic
Motor Shaft Stainless steel
Shaft Seal Lip
Fasteners Stainless steel
Bearings Upper and lower ball bearings
Power Cord SJTW
Spec Sheet 996166

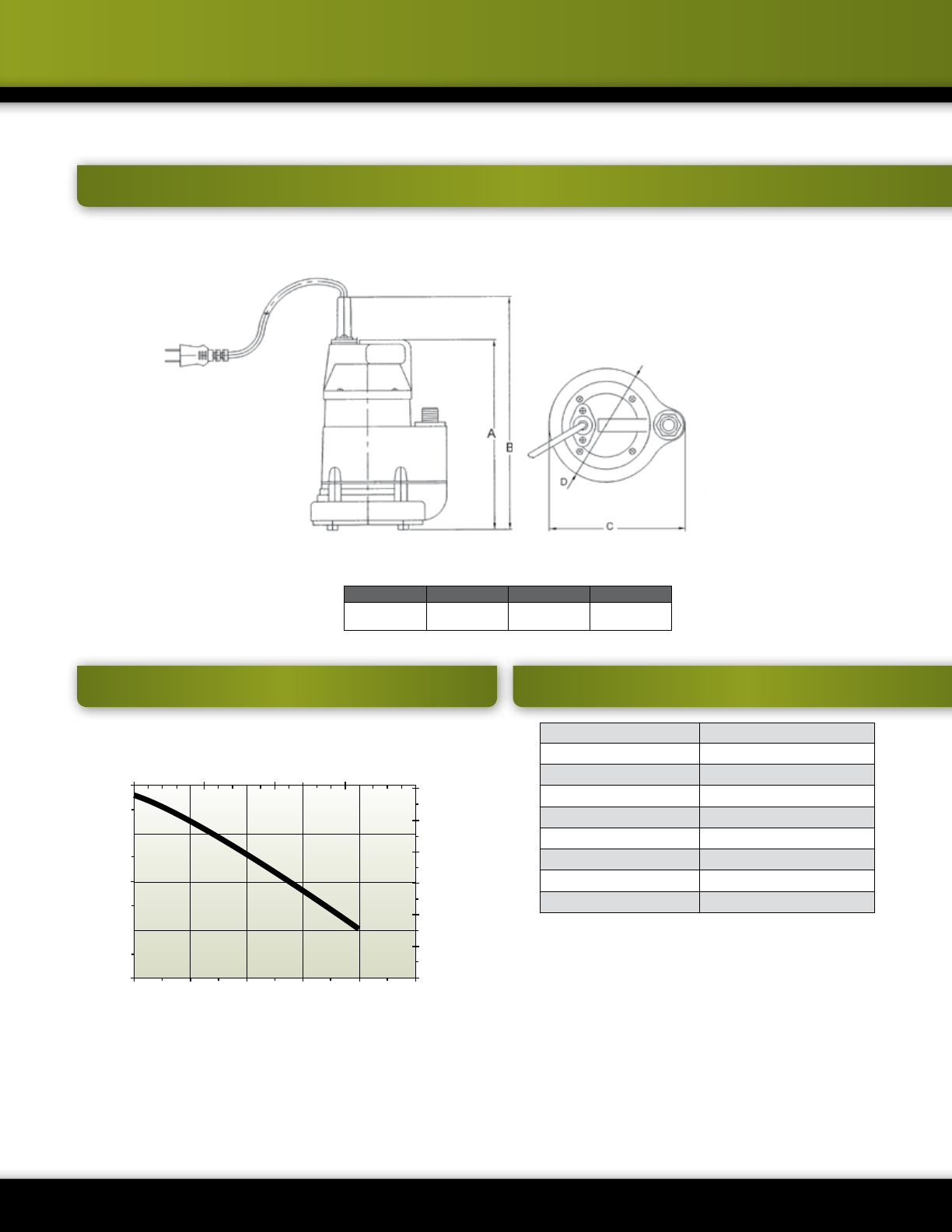

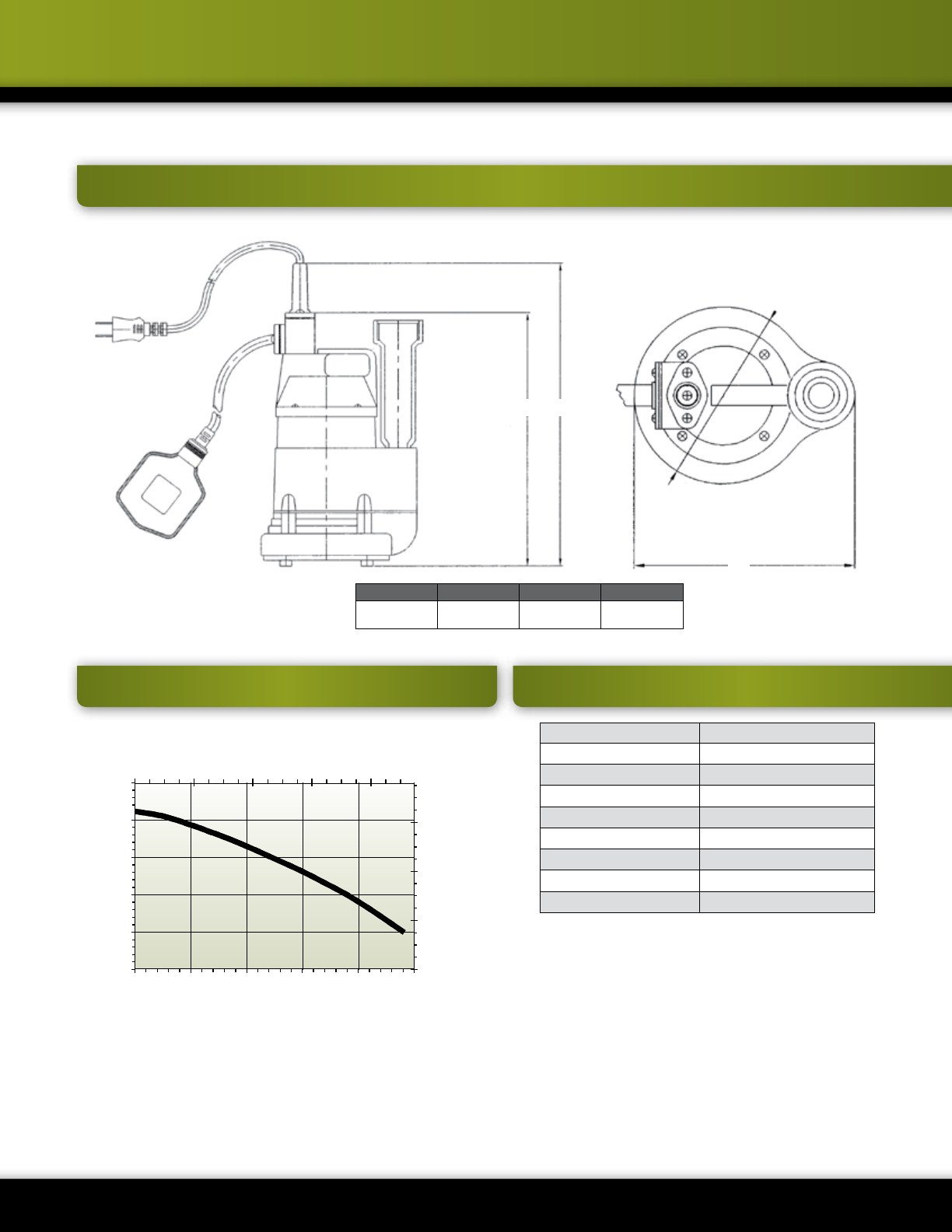

SP25 SERIES 1/4 HP
A B
C
D
A B C D
10.16"
25.81 cm
12.13"
30.81 cm
6.44"
16.36 cm
5.2"
13.21 cm
SUMP PUMPS
22
SP33 SERIES 1/3 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 60 3.5 6.4 355 30 22 15 23 10
Item No. Model Volts Switch Type/
Operation On Level Off Level Cord Weight
620135 SP33A 115 Mechanical Float 11.8"
29.9 cm
5.9"
14.9 cm
10'
3 m
10 lbs
4.55 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Basement sumps • Dewatering • Water transfer
• Oil-free motor with thermal overload protection
• Designed for continuous duty
• 1-1/4" NPT (31.7 mm) discharge
• Handles up to 1/4" (6 mm) solids
• Built-in suction strainer
• Removable lter screen
• 120 °F (49 °C) liquid temperature rating
• cCSAus listed
SUMP PUMPS
23
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
5
10
15
20
25
0 5 10 15 20 25 30 35
0
2
4
6
0 4020 60 80 100
CONSTRUCTION
Spec Sheet 996169
SP33 SERIES 1/3 HP
Motor Housing Thermoplastic
Impeller Material Thermoplastic
Impeller Type Semi-open
Volute Thermoplastic
Motor Shaft Stainless steel
Shaft Seal Lip
Fasteners Stainless steel
Bearings Upper and lower ball bearings
Power Cord SJTW
A B C
10"
25.4 cm
11.8"
29.97 cm
5.87"
14.09 cm
SUMP PUMPS
24

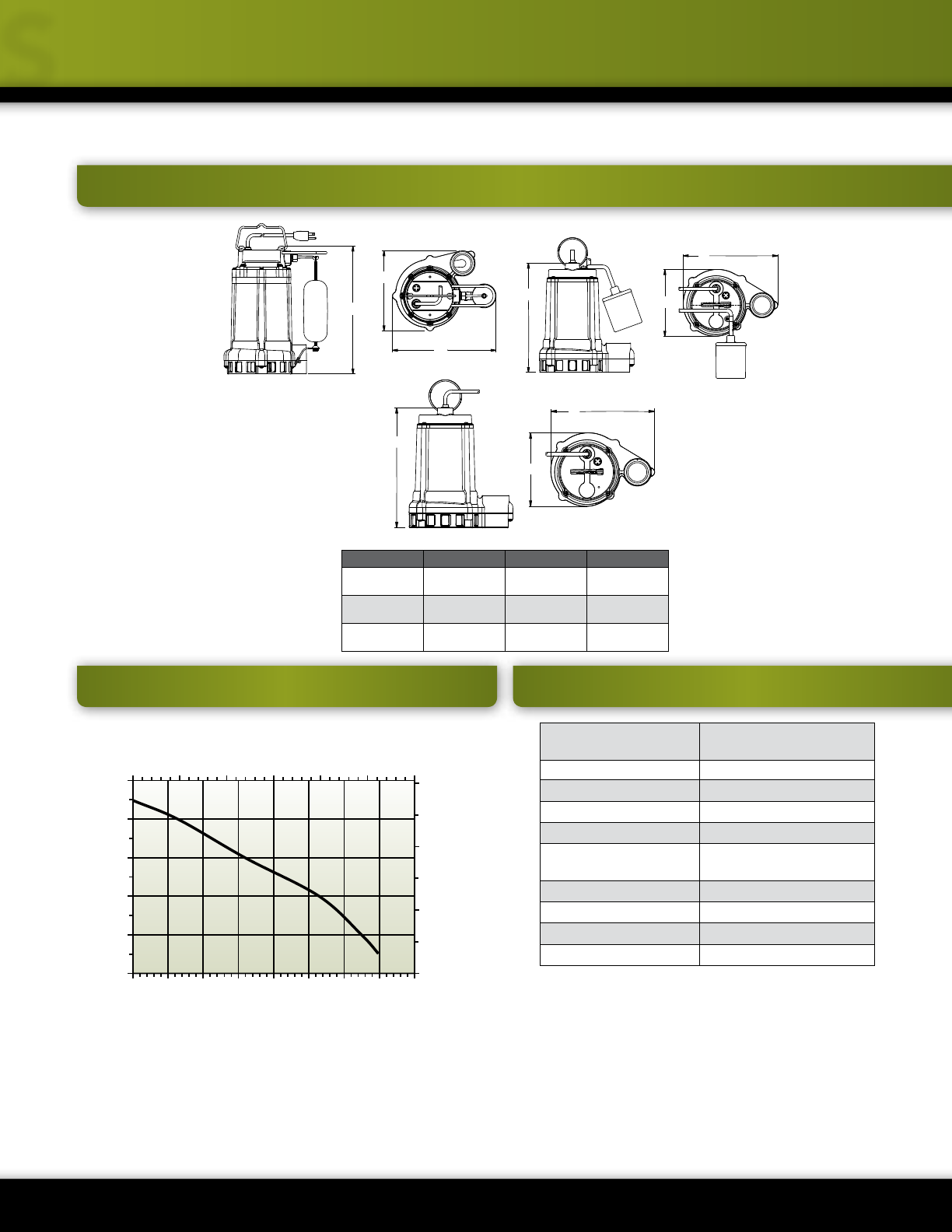

ESP33 SERIES 1/3 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 60 5.6 10.9 515 44 34 13 17.5 7.6
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
620186 ESP33AM 1/3 115 Piggyback Mechanical 12"
30.5 cm
5"
12.7 cm
10'
3 m
20 lbs
9.07 Kg
620185 ESP33AM-P 1/3 115 Piggyback Mechanical 12"
30.5 cm
3.5"
8.9 cm
10'
3 m
20 lbs
9.07 Kg
620120 ESP33AV 1/3 115 Vertical Mechanical 5"
12.7 cm
3.5"
8.9 cm
10'
3 m
20 lbs
9.07 Kg
620121 ESP33AV-P 1/3 115 Vertical Mechanical 5"
12.7 cm
3.5"
8.9 cm
10'
3 m
20 lbs
9.07 Kg
620089 ESP33M 1/3 115 Manual – – 10'
3 m
20 lbs
9.07 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Basement sumps • Dewatering • Water transfer • Light efuent
• Oil-free motor with thermal overload protection
• Designed for continuous duty
• Cast iron or thermoplastic motor cover and casing options
• Permanently lubricated upper/lower ball bearings with double lip seal
• 5 vane impeller
• 1-1/2" FNPT (38 mm) discharge, 1-1/4" (31.7 mm) reducer bushing included
• Handles up to 1/2" (12.7 mm) solids
• Multiple switch options for automatic operation
• 120 °F (49 °C) liquid temperature rating
• cCSAus listed
ESP33AV
ESP33AM
SUMP PUMPS
25
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
5
10
15
20
0 5 10 15 20 25 30 35 40 45
0
2
4
6
0 20 40 60 80 100 120 140 160
CONSTRUCTION
Motor Housing Zinc
Impeller Material Nylon
Volute Polypropylene
Motor Shaft 440C SS
Shaft Seal Nitrile
Power Cord SJTW-A
Spec Sheet 996167

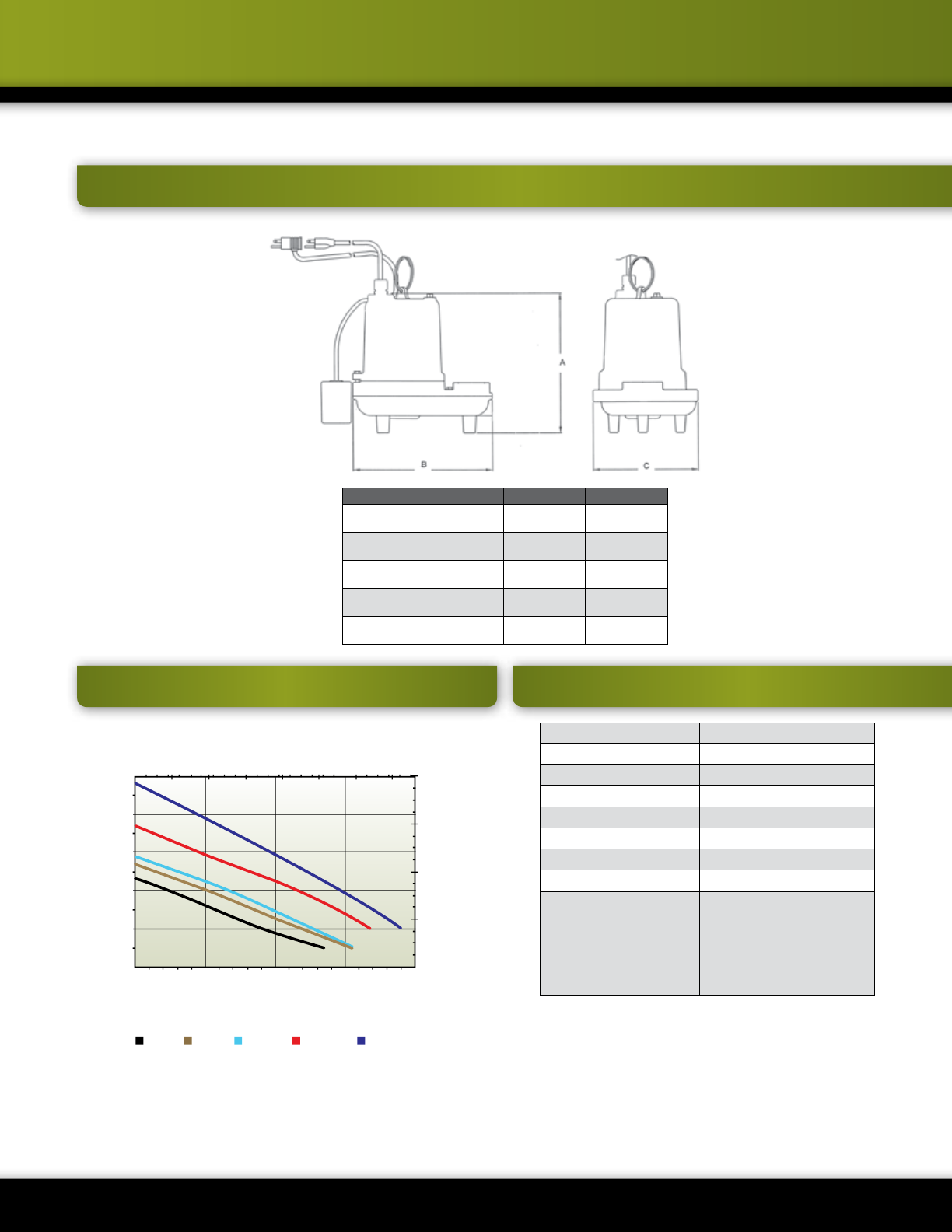

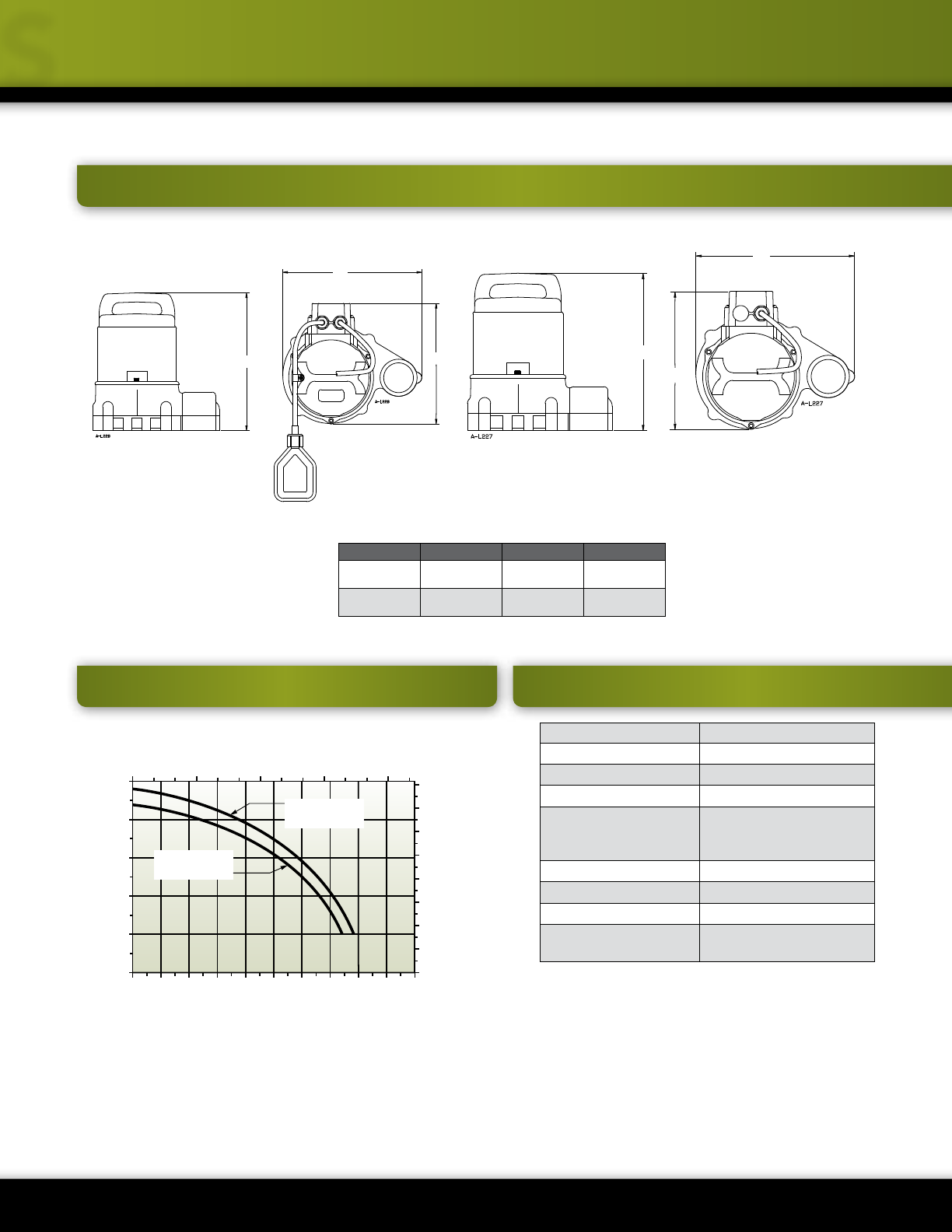

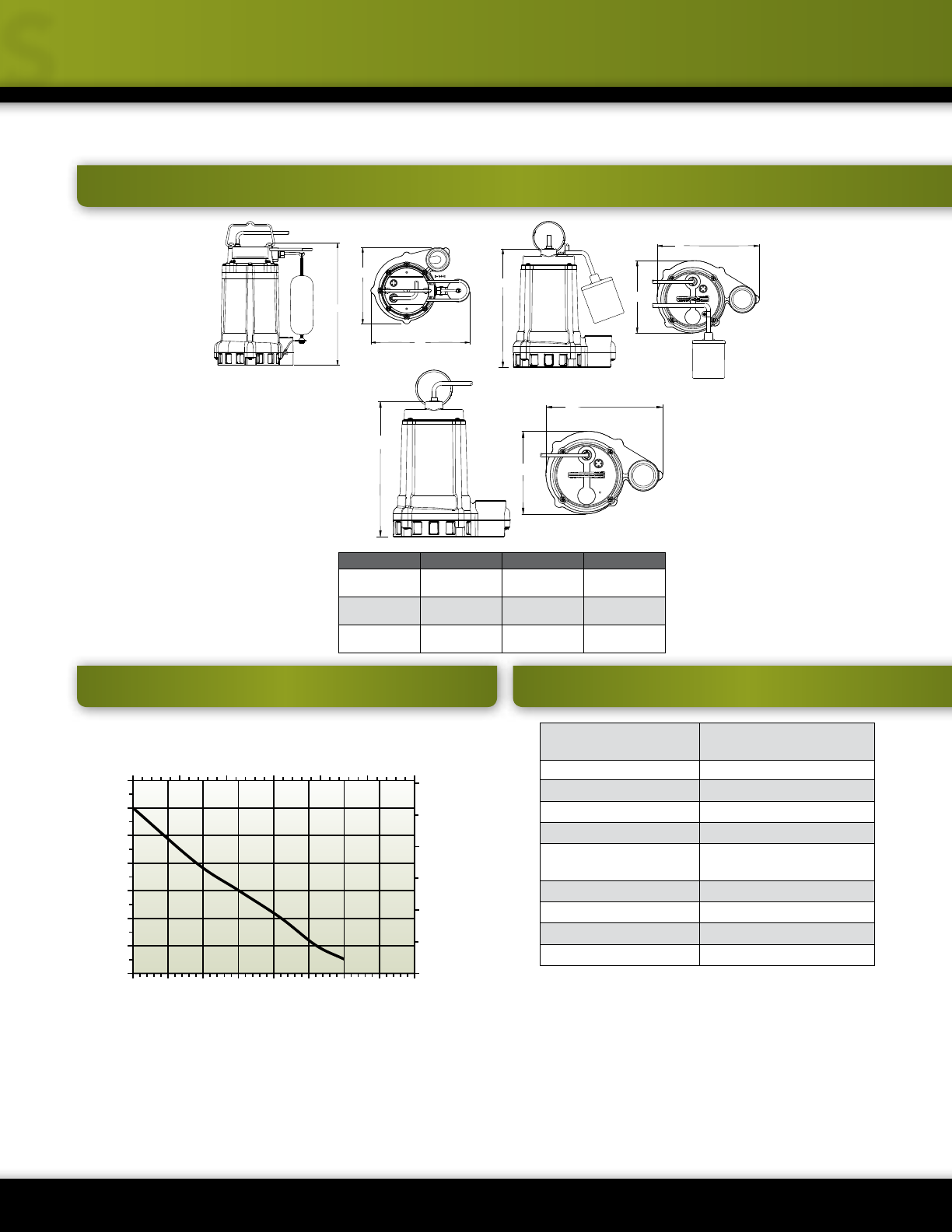

ESP33 SERIES 1/3 HP
Motor Housing Cast iron models ending in -P
are thermoplastic
Impeller Material Polypro
Impeller Type Semi-open
Volute Cast iron models ending in -P
are thermoplastic
Motor Shaft Stainless steel
Shaft Seal Double lip
Fasteners Stainless steel
Bearings Upper and lower
Power Cord SJTW
A B C
ESP33AM 6.97"
17.7 cm
10.39"
26.4 cm
8.27"
21 cm
ESP33AV 9.57"
24.3 cm
10.51"
26.7 cm
9.33"
23.7 cm
1-1/2"NPT
A
B
C
ESP33AM
1-1/2"NPT
A
ESP33AV
B
C
SUMP PUMPS
26

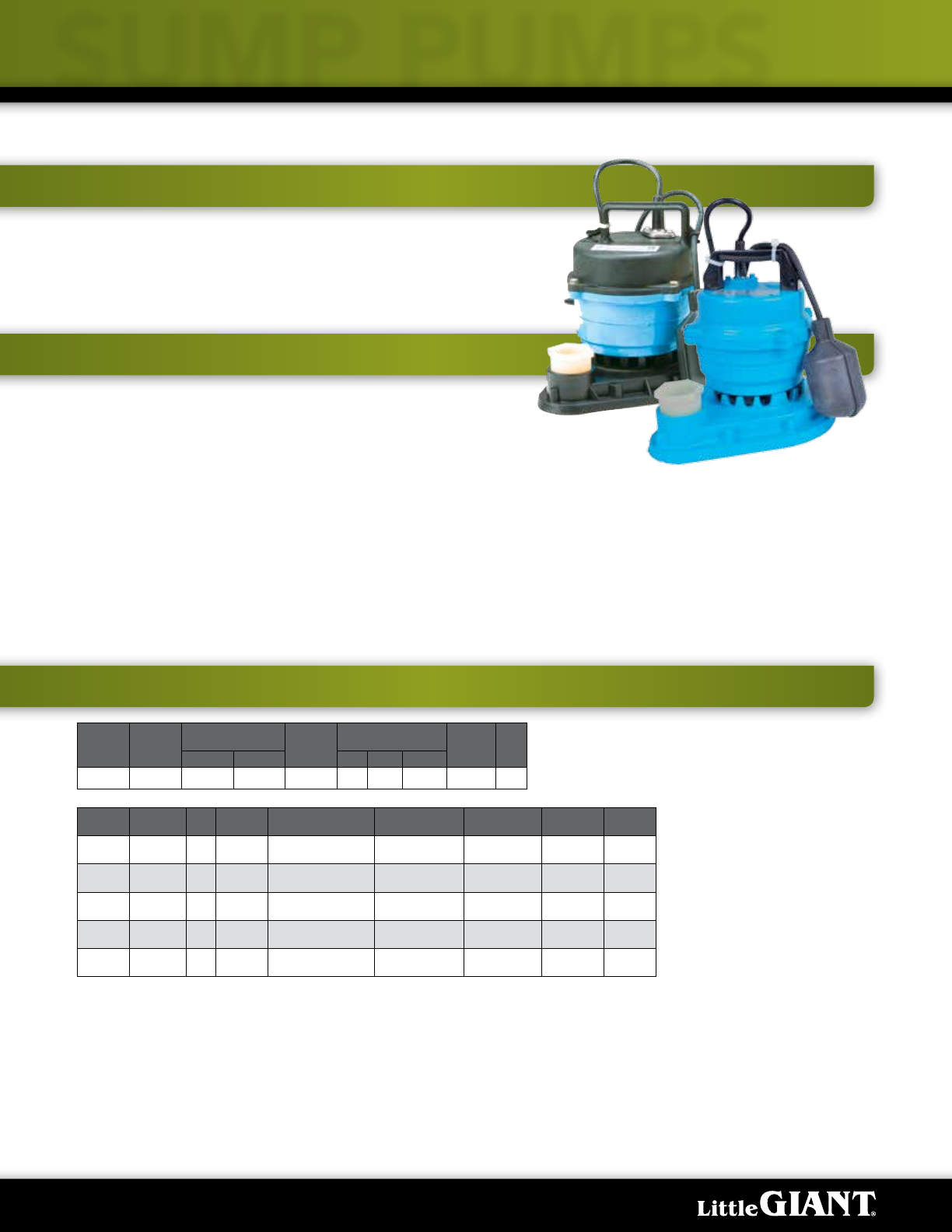

6 SERIES 1/3 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 50/60 9.0 14.3 720 46 29 12.5 18 7.8
230 50/60 4.5 6.3 720 46 29 12.5 18 7.8
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
506158 6-CIA 1/3 115 Integral Diaphragm 7" - 10"
17.8 cm - 25.4 cm
1" - 4"
2.5 cm - 10.2 cm
10'
3 m
18 lbs
8.16 Kg
*506162 6-CIA 1/3 115 Integral Diaphragm 7" - 10"
17.8 cm - 25.4 cm
1" - 4"
2.5 cm - 10.2 cm
10'
3 m
18.5 lbs
8.39 Kg
506125 6-CIA 1/3 115 Integral Diaphragm 7" - 10"
17.8 cm - 25.4 cm
1" - 4"
2.5 cm - 10.2 cm
25'
7.6 m
18.5 lbs
8.39 Kg
506166 6-CIA 1/3 230 Integral Diaphragm 7" - 10"
17.8 cm - 25.4 cm
1" - 4"
2.5 cm - 10.2 cm
10’
3 m
18.5 lbs
8.39 Kg
506171 6-CIA-RFS 1/3 115 Piggyback Mechanical Float 7" - 10"
17.8 cm - 25.4 cm
1" - 4"
2.5 cm - 10.2 cm
10'
3 m
17.75 lbs
8.05 Kg
506267 6-CIA-RS 1/3 115 Integral Diaphragm 7" - 10"
17.8 cm - 25.4 cm
1" - 4"
2.5 cm - 10.2 cm
10'
3 m
17.5 lbs
7.94 Kg
506266 6-CIM 1/3 230 Manual – – 12'
3.6 m
18.75 lbs
8.50 Kg
506271 6-CIM-R 1/3 115 Manual – – 10'
3 m
16.5 lbs
7.48 Kg
506274 6-CIM-R 1/3 115 Manual – – 25'
7.6 m
18 lbs
8.16 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Basement sumps • Dewatering • Water transfer
• Shaded pole motor with thermal overload protection
• Designed for continuous duty
• Oil-lled motor housing
• PVC riser legs (506162 only)
• 1-1/2" FNPT discharge (38 mm)
• 1-1/4" FNPT (31.7 mm) hose adapter included
• 3/4" GHT garden hose adapter included (506266, 506267, 506271, 506274 only)
• cCSAus listed (115 v models only)
6-CIA
6-CIA-RFS
6-CIA W/ LEGS
* Leg kit included
SUMP PUMPS
27
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
1
2
3
4
5
6
0 25 50 75 100 125 150 175
0
5
10
15
20
0 10 20 30 40 50
CONSTRUCTION
Spec Sheet 995201

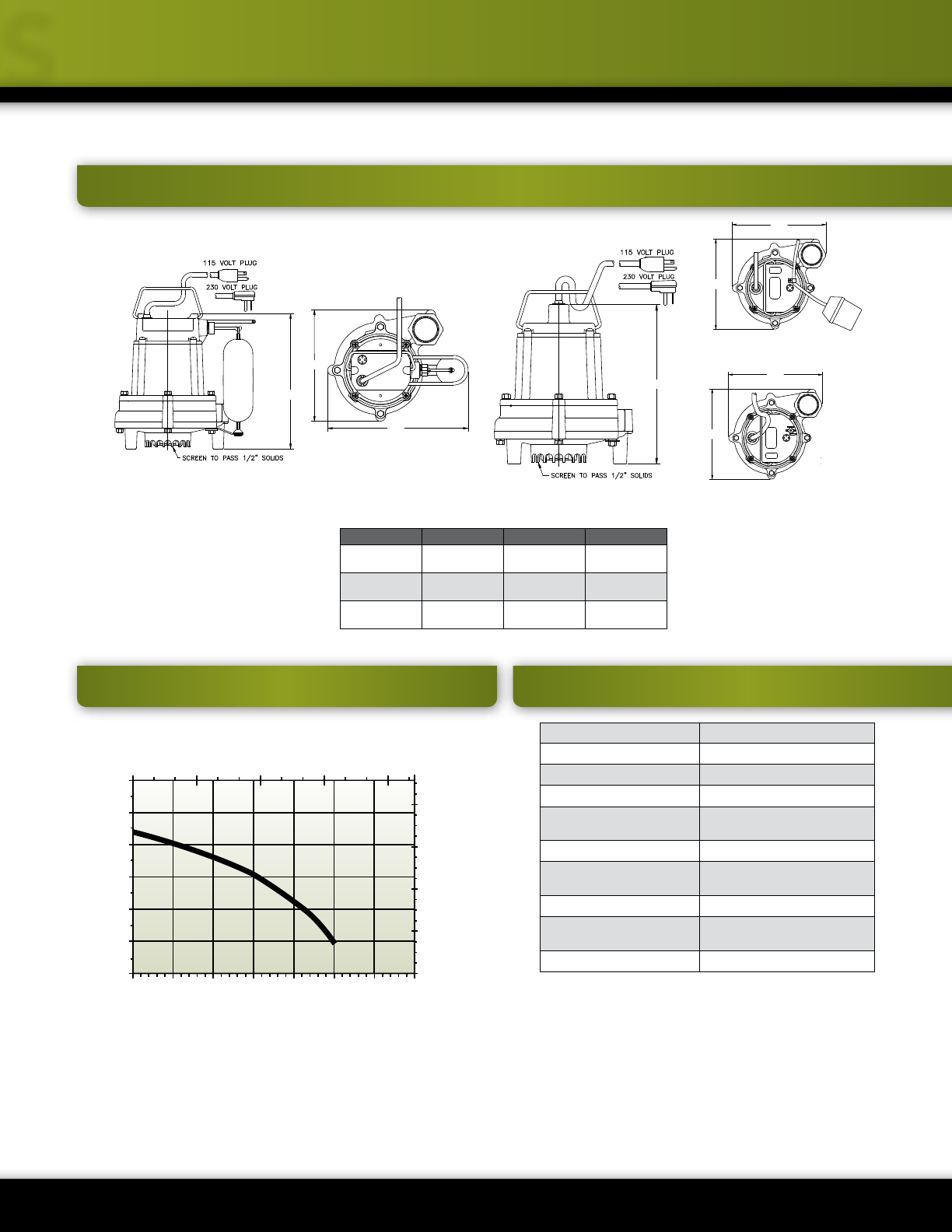

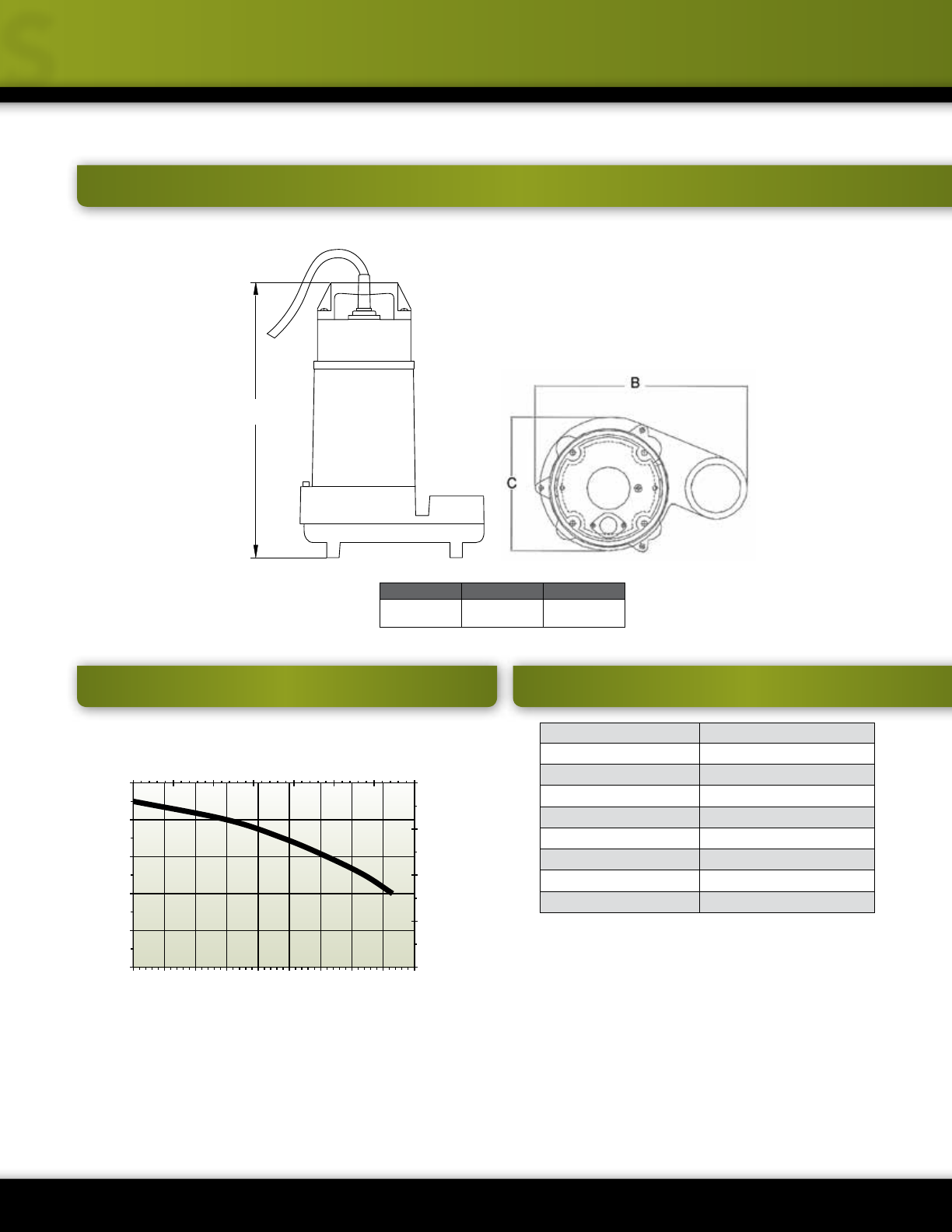

6 SERIES 1/3 HP
Motor Housing Epoxy-coated cast iron
Impeller Material Nylon
Impeller Type Non-clog
Volute Polypropylene
Motor Shaft CRS
Shaft Seal Mechanical shaft seal
nitrile with carbon and
ceramic faces
Fasteners Stainless steel
Bearings
Upper: Sintered iron/copper,
anged sleeve
Lower: Sintered iron/copper,
anged steel
Power Cord 18-3, SJOW-A
6-CIM-R
6-CIA
D
C
B
A
B
C
A
Model A B C D
6-CIM-R 7.25"
18.42 cm
9.5"
24.13 cm
7.2"
18.29 cm –
6-CIA 6"
15.24 cm
9.5"
24.13 cm
8.5"
21.59 cm
8.2"
20.83 cm
SUMP PUMPS
28

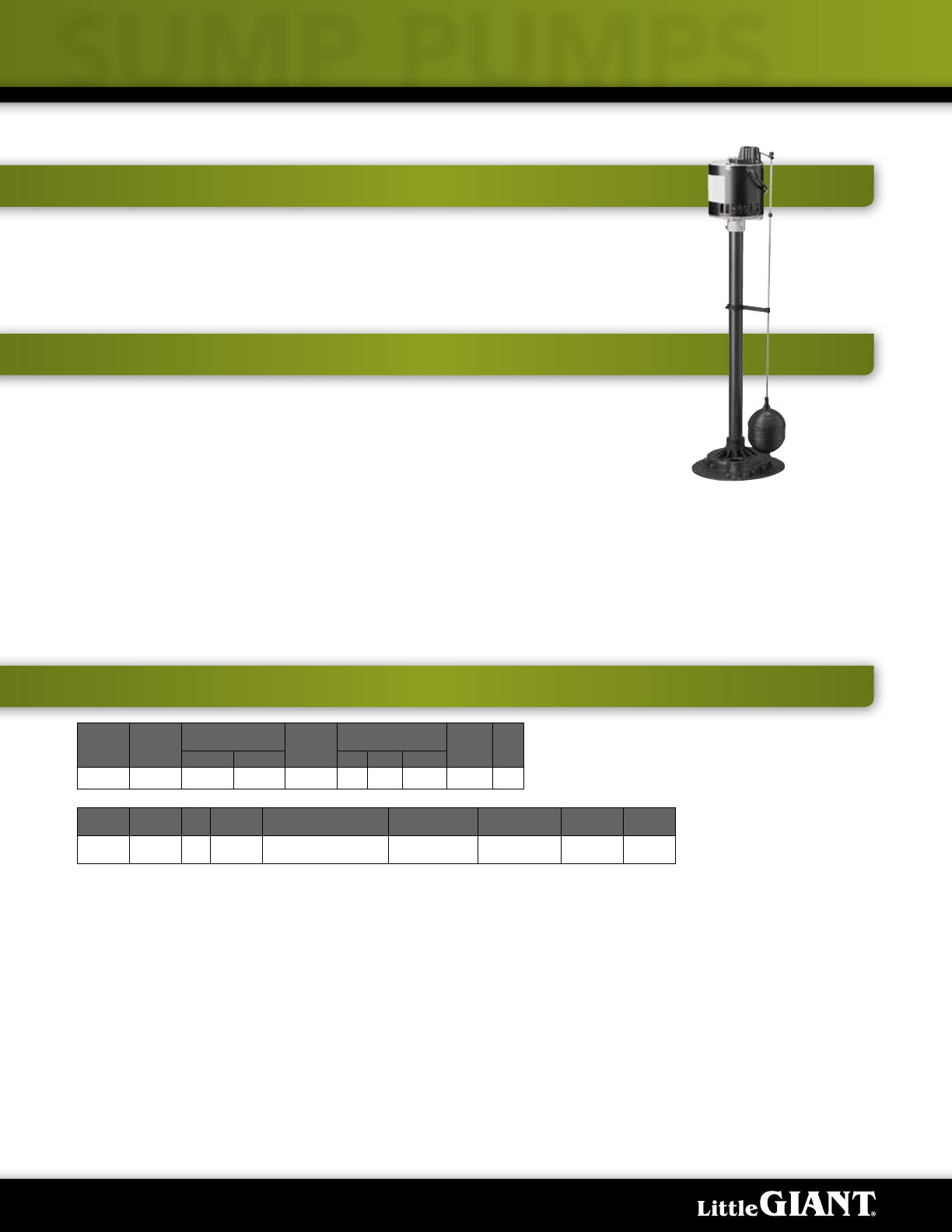

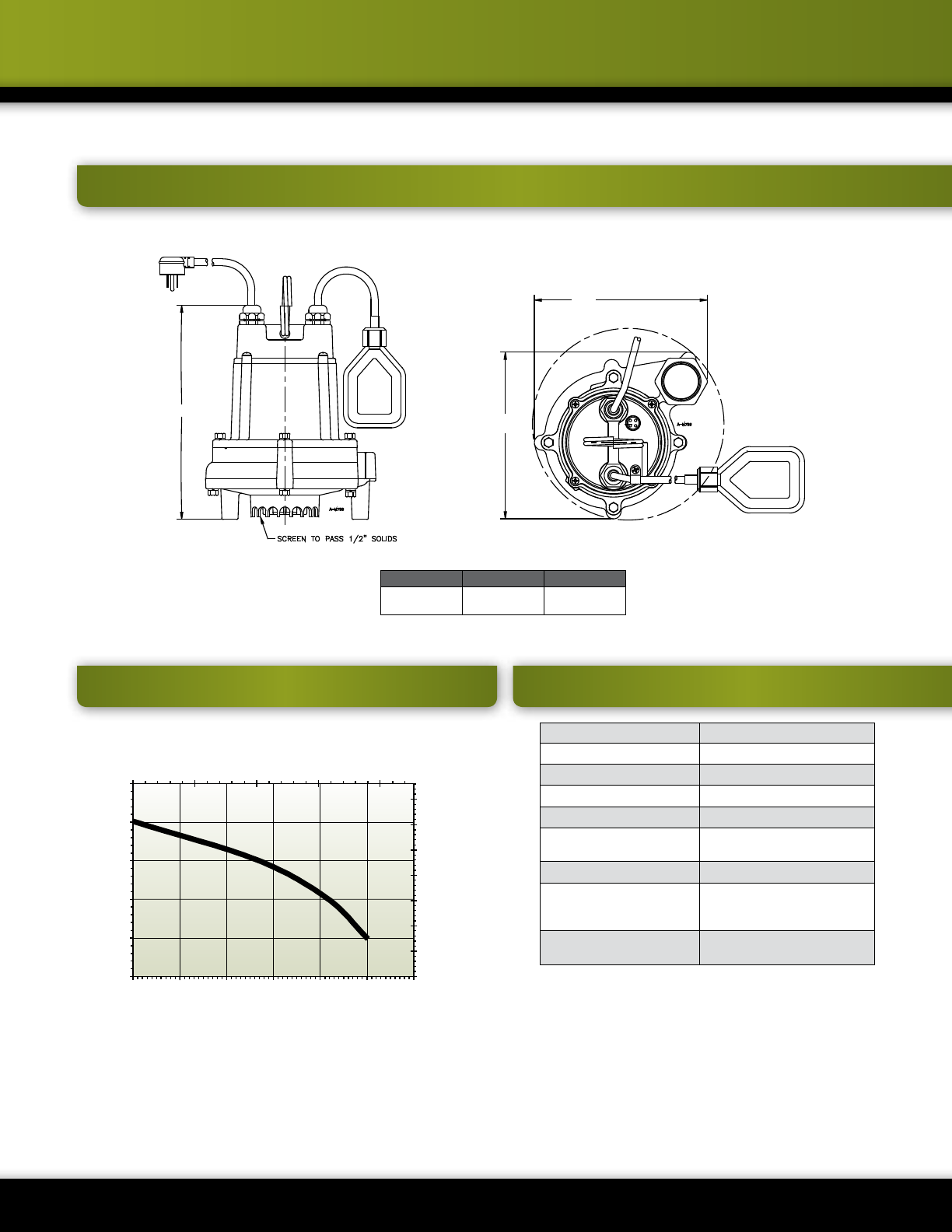

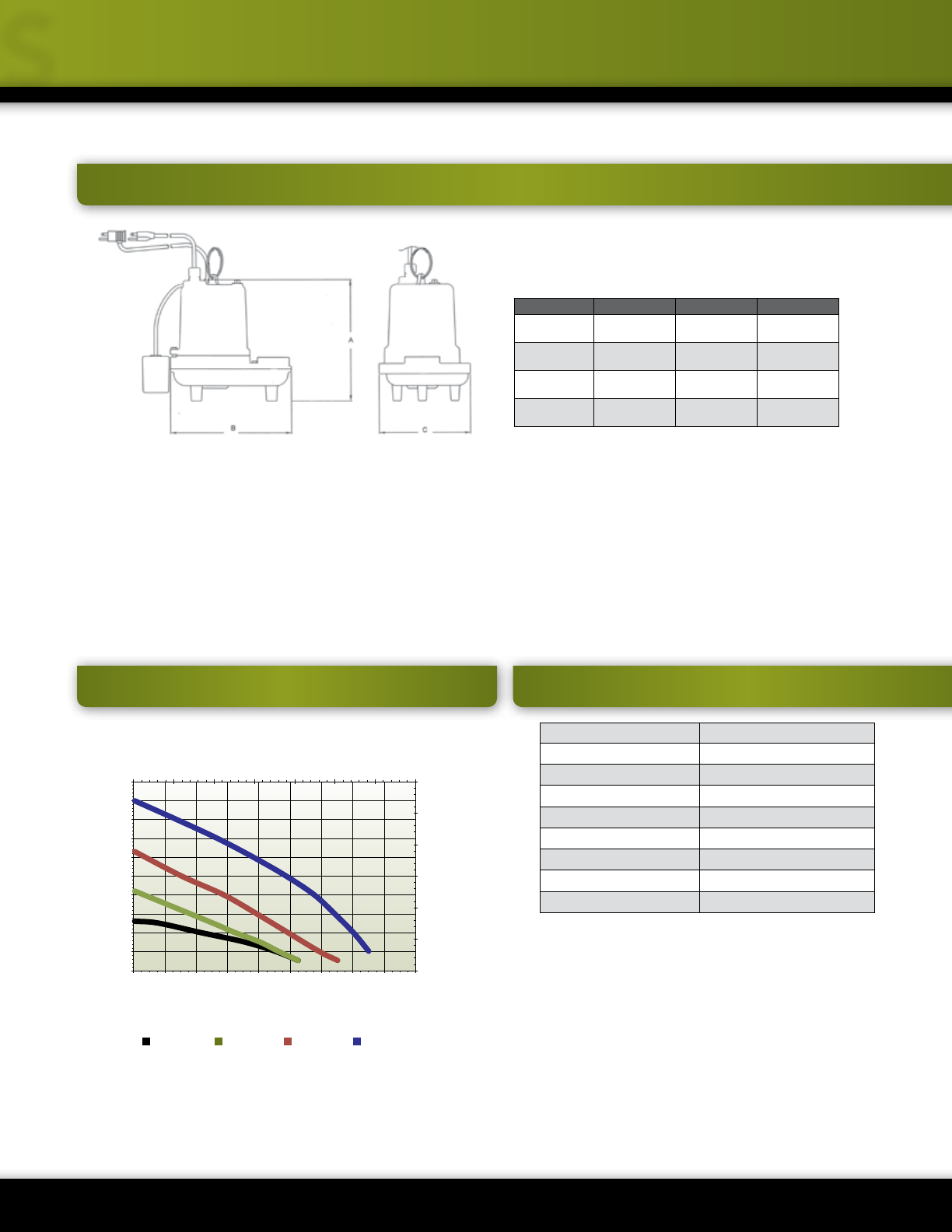

VS-P SERIES 1/3 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 60 4.0 11.2 316 47 34 10 17 7.4
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
547151 VS-P2800 1/3 115 Adjustable Snap-Action Float 10" - 5"
25.4 cm - 12.7 cm
9" - 4"
22.9 cm - 10.2 cm
8'
2 m
16 lbs
7.26 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Basement sumps • Dewatering • Water transfer
• Thermal overload protected motor
• Designed for continuous duty
• 1-1/4" FNPT (31.7 mm) discharge
• Handles up to 1/4" (6 mm) solids
• Adjustable snap-action oat switch
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed
SUMP PUMPS
29
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
1
2
3
4
5
6
0 25 50 75 100 125 150 175
0
5
10
15
20
0 10 20 30 40 50
CONSTRUCTION
Impeller Material PVC
Impeller Type Semi-open non-clog
Volute ABS
Drive Shaft PVC
Shaft Seal N/A
Fasteners Anodized steel
Power Cord 18-3, SJOW
Spec Sheet 995207

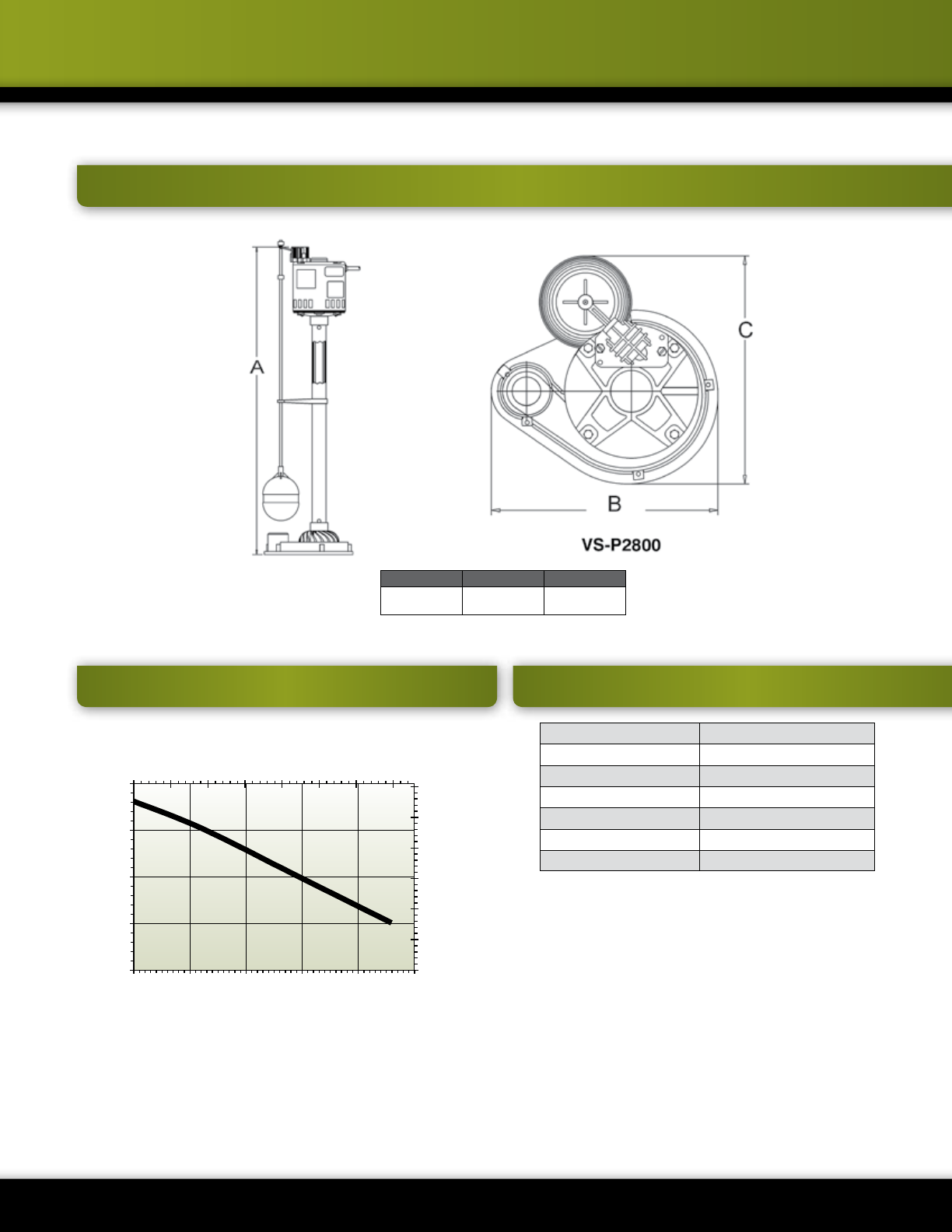

VS-P SERIES 1/3 HP
A B C
33"
81.28 cm
9.52"
24.18 cm
9.55"
24.26 cm
SUMP PUMPS
30

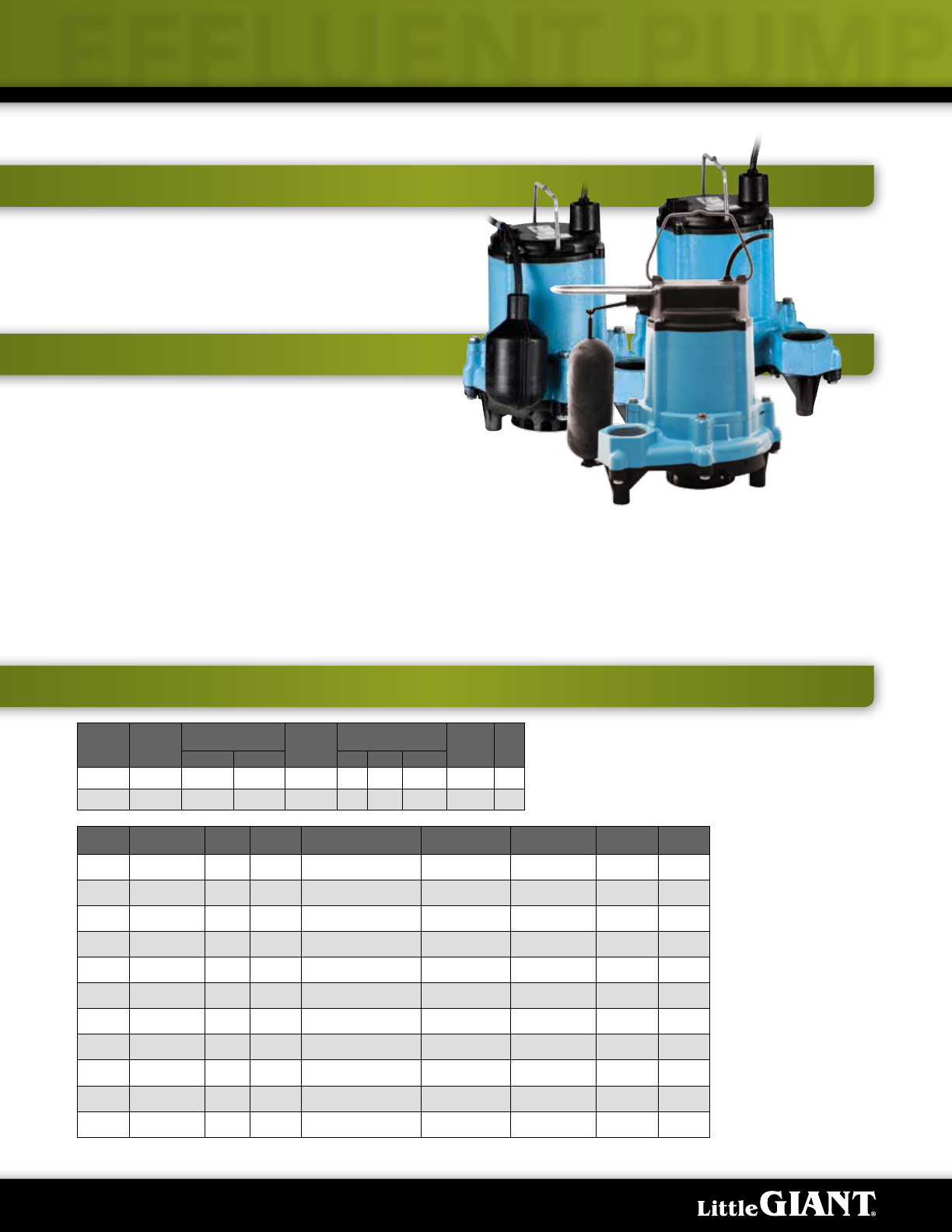

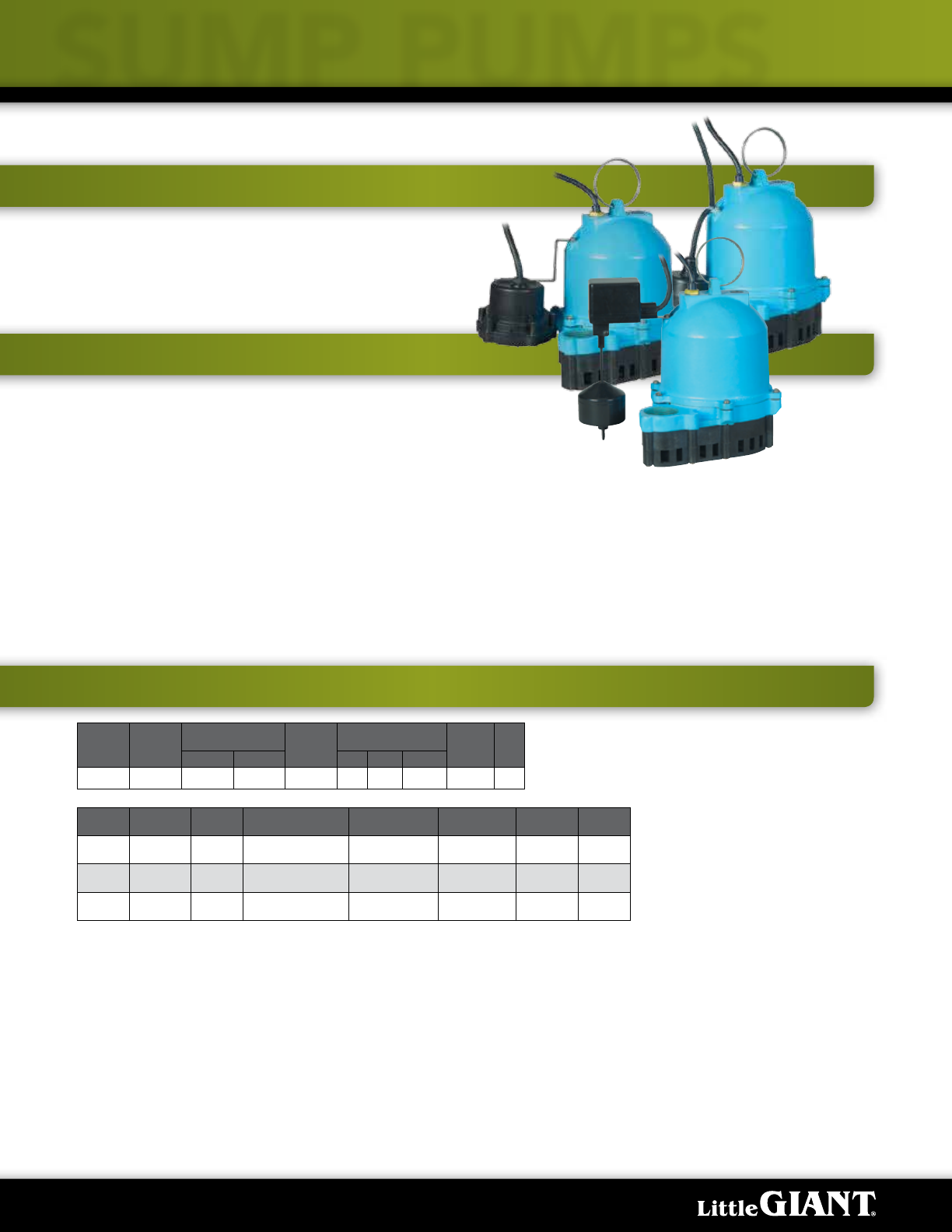

6EN SERIES 1/3 HP
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Basement sumps • Dewatering
• Water transfer • Light efuent
• Permanent split capacitor (PSC) motor with thermal
overload protection
• Designed for continuous duty
• 1-1/2" FNPT discharge (38 mm)
• Handles up to 1/2" (12.7 mm) solids
• Multiple switch options for automatic operation
• cCSAus listed
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 60 6 12 600 50 42 30 22 9.5
230 60 3 6.7 600 50 42 30 22 9.5
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
506630 6EN-CIA-SFS 1/3 115 Integral Snap-Action Float 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
10'
3 m
28 lbs
12.70 Kg
506631 6EN-CIA-SFS 1/3 115 Integral Snap-Action Float 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
20'
6.1 m
28 lbs
12.70 Kg
506635 6EN-CIA-SFS 1/3 230 Integral Snap-Action Float 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
10'
3 m
28 lbs
12.70 Kg
506636 6EN-CIA-SFS 1/3 230 Integral Snap-Action Float 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
20'
6.1 m
28 lbs
12.70 Kg
506619 6EN-CIA-RF 1/3 115 Piggyback Mechanical Float 12" - 14"
30.5 cm - 35.6 cm
5" - 7"
12.7 cm - 17.8 cm
20'
6.1 m
28 lbs
12.70 Kg
506620 6EN-CIA-RF 1/3 115 Piggyback Mechanical Float 12" - 14"
30.5 cm - 35.6 cm
5" - 7"
12.7 cm - 17.8 cm
10'
3 m
28 lbs
12.70 Kg
506610 6EN-CIM 1/3 115 Manual – – 10'
3 m
27 (lbs)
12.25 Kg
506611 6EN-CIM 1/3 115 Manual – – 20'
6.1 m
27 (lbs)
12.25 Kg
506615 6EN-CIM 1/3 230 Manual 10'
3 m
27 (lbs)
12.25 Kg
506616 6EN-CIM 1/3 230 Manual 20'
6.1 m
27 (lbs)
12.25 Kg
506641 6EN-CIM (Black) 1/3 115 Manual – – 20'
6.1 m
27 (lbs)
12.25 Kg
6EN-CIA-RF
6EN-CIM
6EN-CIA-SFS
SUMP PUMPS
31
Hotline: 1.800.701.7894 www.franklinwater.com

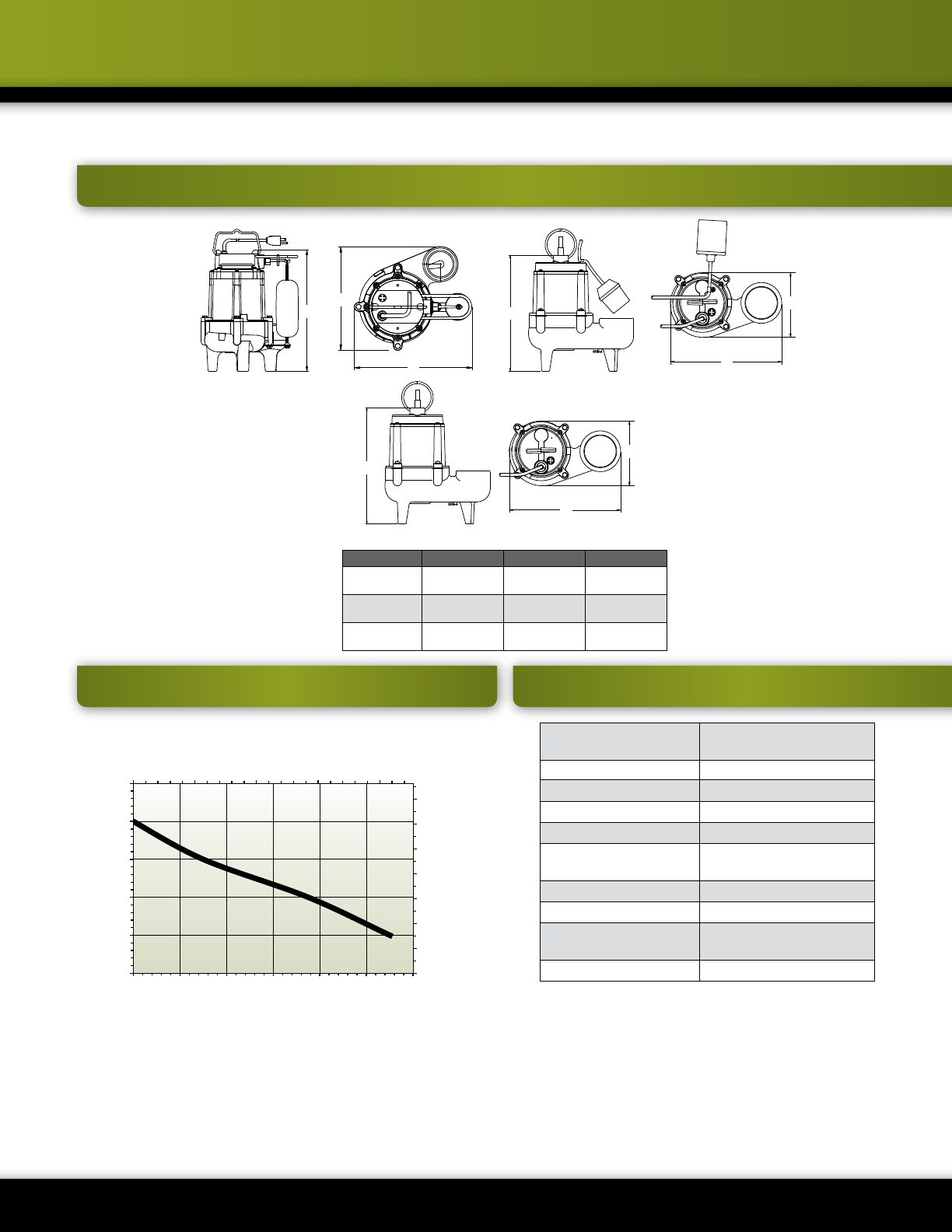

ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
2
4
6
8
0 60 120 180 240
0
5
10
15
20
25
30
0 10 20 30 40 50 60 70
CONSTRUCTION
Spec Sheet 996181

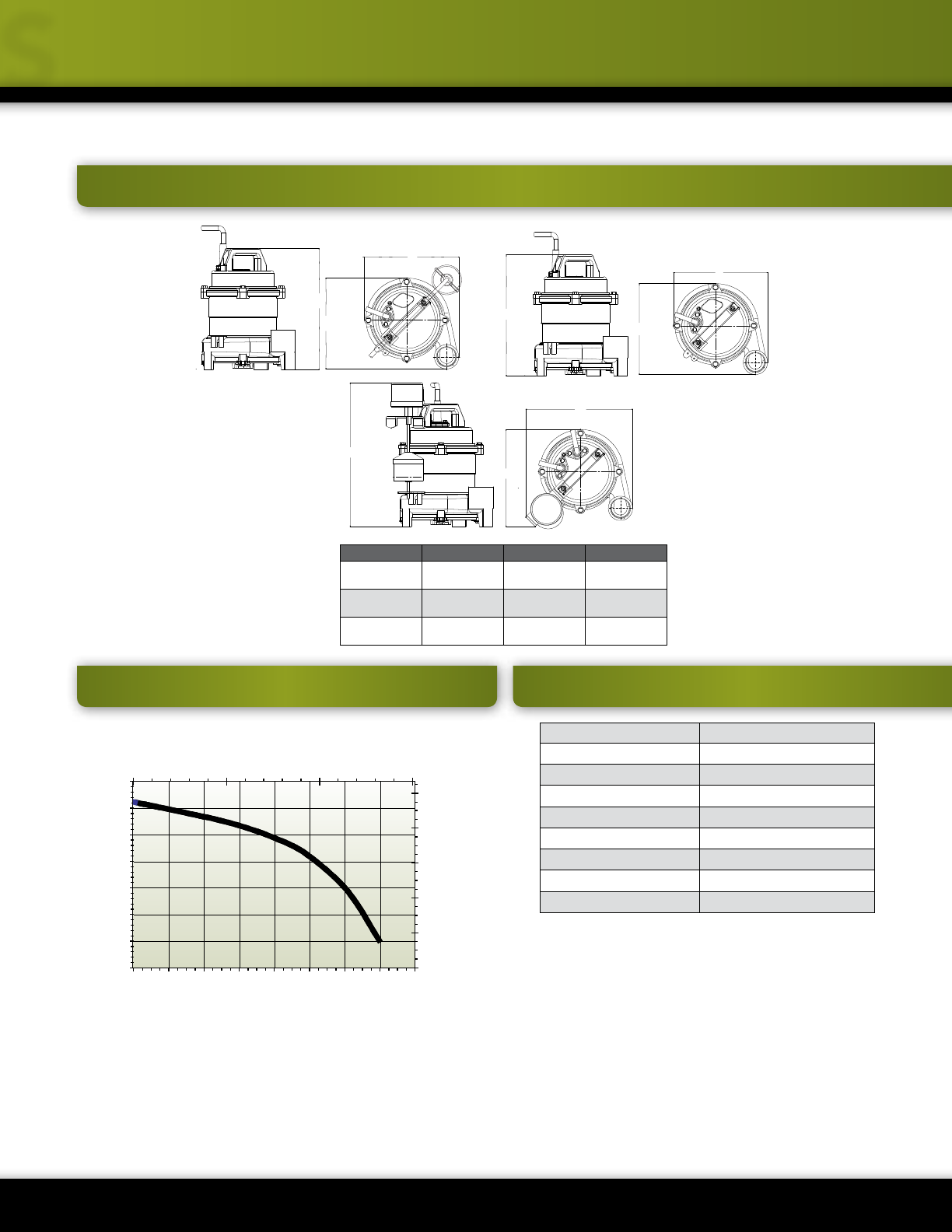

6EN SERIES 1/3 HP
Cover Polycarbonate
Motor Housing Epoxy-coated cast iron
Impeller Material Nylon
Impeller Type Vortex
Volute Epoxy-coated cast iron/
polypropylene
Motor Shaft Cold rolled steel
Mechanical Shaft Seal Nitrile with carbon &
ceramic faces
Fasteners Stainless steel
Bearings Upper and lower sintered
sleeve bearings
Power Cord SJTW (506612 with SJTOW)
6EN-CIA-SFS
6EN-CIM
6EN-CIA-RF
6EN-CIA-RF/6EN-CIM
A
B
C
A
B
C
B
C
Model A B C
6EN-CIA-SFS 10.18"
25.86 cm
10.6"
26.92 cm
8.39"
21.31 cm
6EN-CIA-RF 9.88"
25.09 cm
8.72"
22.14 cm
8.38"
21.29 cm
6EN-CIM 9.88"
25.09 cm
8.72"
22.14 cm
8.38"
21.29 cm
SUMP PUMPS
32

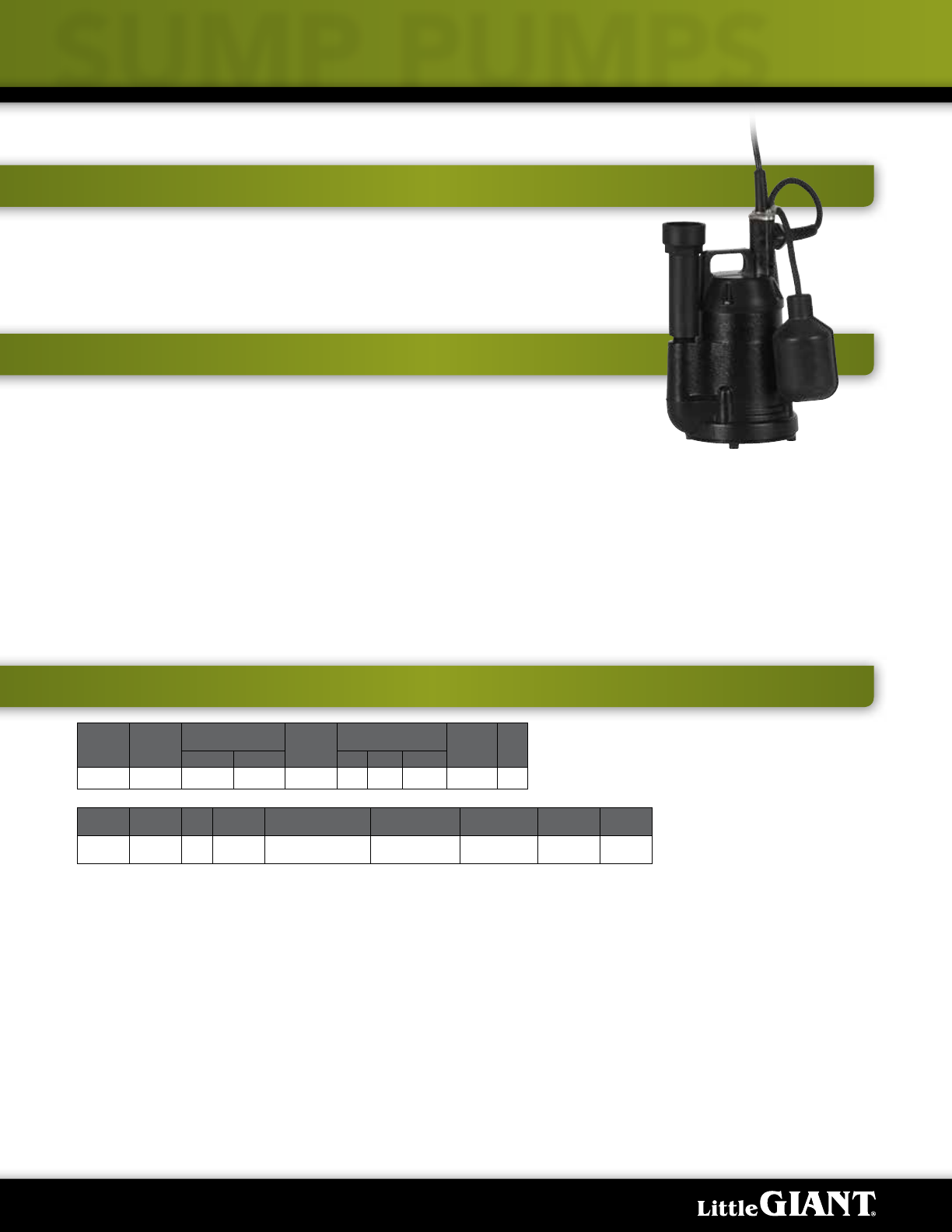

HT-6E SERIES (HIGH TEMPERATURE) 1/3 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 60 10.1 17 735 50 42 27 20 8.7
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
506600 HT-6E-CIA-FS 1/3 115 Integral Mechanical Float 11" - 14"
27.94 cm - 35.56 cm
2" - 4"
5.08 cm - 10.16 cm
15'
4.6 m
32 lbs
14.52 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Boiler blow-down sump pits • Transformer vaults
• Water transfer • Light efuent
• Shaded pole motor with thermal overload protection
• Designed for continuous duty
• 1-1/2" FNPT discharge (38 mm)
• Handles up to 1/2" (12.7 mm) solids
• Integral mechanical oat switch
• Up to 200 °F (93 °C)
• CSA listed
SUMP PUMPS
33
Hotline: 1.800.701.7894 www.franklinwater.com

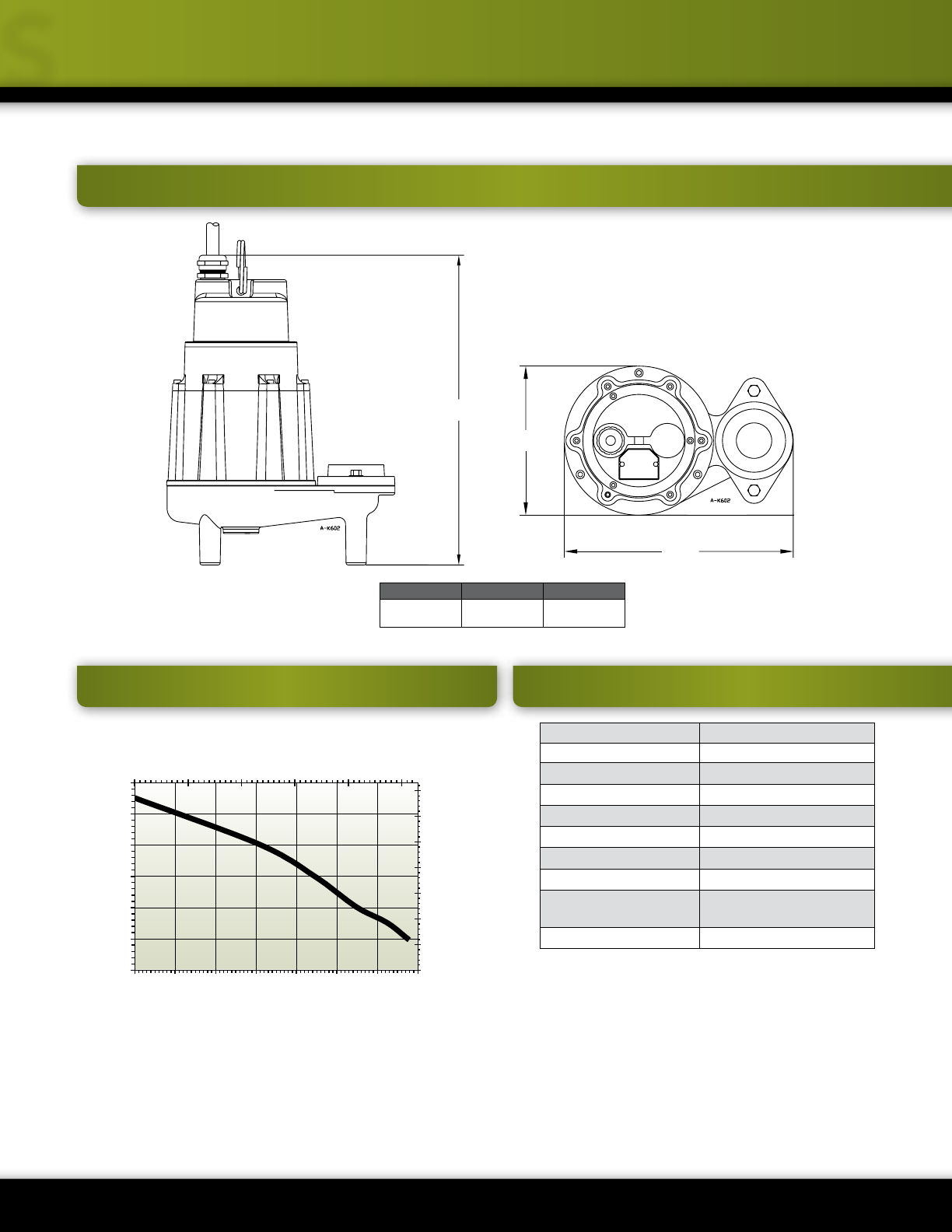

ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
5
10
15
20
25
0 10 20 30 40 50 60
0
1
2
3
4
5
6
7
0 50 100 150 200
CONSTRUCTION
Spec Sheet 995602

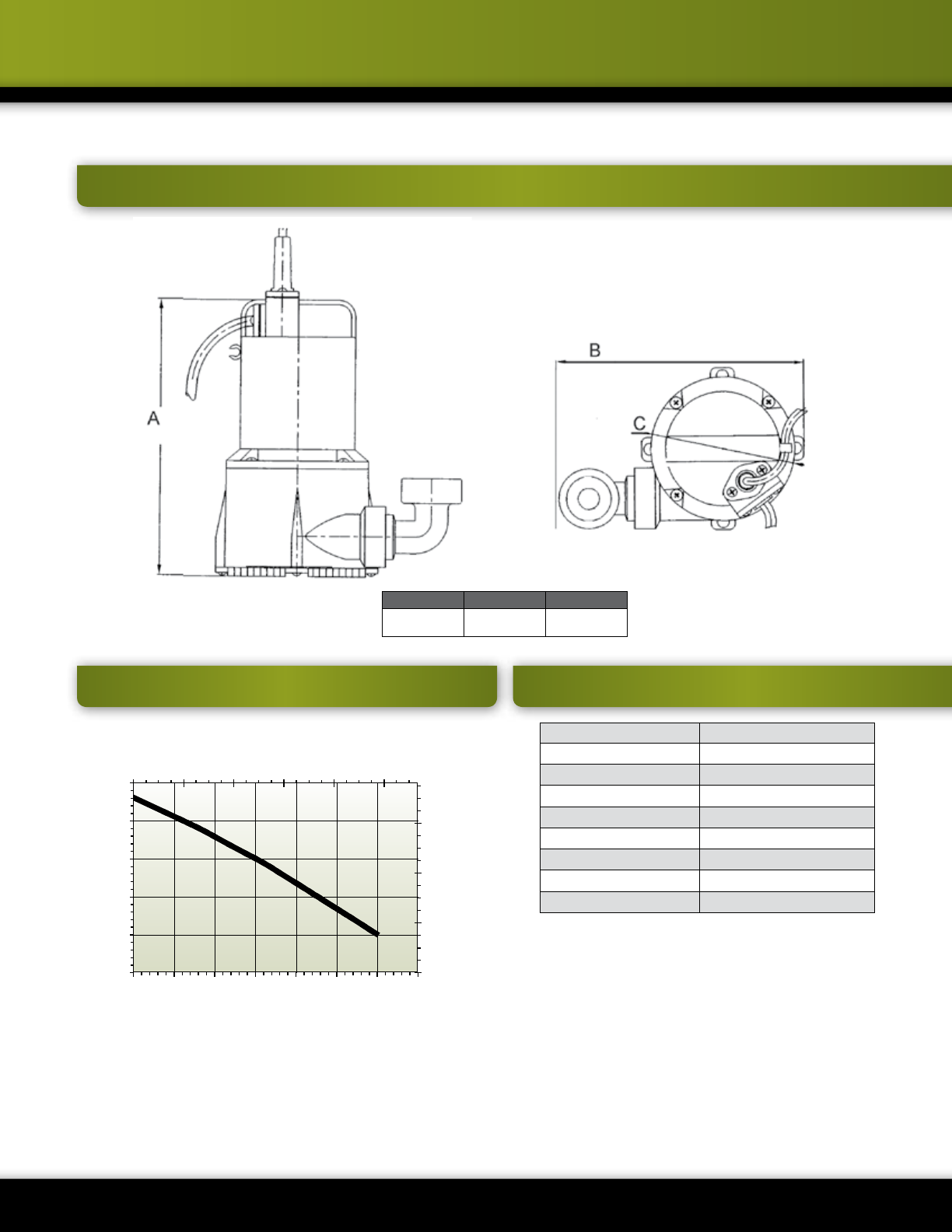

HT-6E SERIES (HIGH TEMPERATURE) 1/3 HP
Motor Housing Epoxy-coated cast iron
Impeller Material Nylon
Impeller Type Vortex
Volute Epoxy-coated cast iron
Motor Shaft Cold rolled steel
Mechanical Shaft Seal Stainless steel, carbon, and
Ni-Resist faces
Fasteners Stainless steel
Bearings Upper and lower: Oil-
impregnated, porous iron/
copper, anged
Power Cord 16-3 SJOW-A,
chlorinated polyethylene
A
B
C
A B C
10.9"
27.7 cm
8.8"
22.4 cm
8.5"
21.6 cm
SUMP PUMPS
34
ES33 SERIES 1/3 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 60 5.0 12 475 52 40 28 20 8.6
Item No. Model Volts Switch Type/
Operation On Level Off Level Cord Weight
506420 ES33D1-10 115 Piggyback Vertical
Diaphragm
7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
10'
3 m
30 lbs
3.61 Kg
506422 ES33V1-10 115 Piggyback Vertical
Mechanical
7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
10'
3 m
30 lbs
3.61 Kg
506424 ES33W1-10 115 Piggyback Mechanical
Float
7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
10'
3 m
30 lbs
3.61 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Basement sumps • Dewatering
• Water transfer • Light efuent
• Permanent split capacitor (PSC) motor with thermal
overload protection
• Designed for continuous duty
• 1-1/2" FNPT discharge (38 mm)
• Handles up to 3/8" (9.5 mm) solids
• Multiple switch options for automatic operation
• cCSAus listed
ES33D1
ES33V1
ES33W1
SUMP PUMPS
35
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
5
10
15
20
25
0 10 20 30 40 50 60
0
1
2
3
4
5
6
7
0 50 100 150 200
CONSTRUCTION

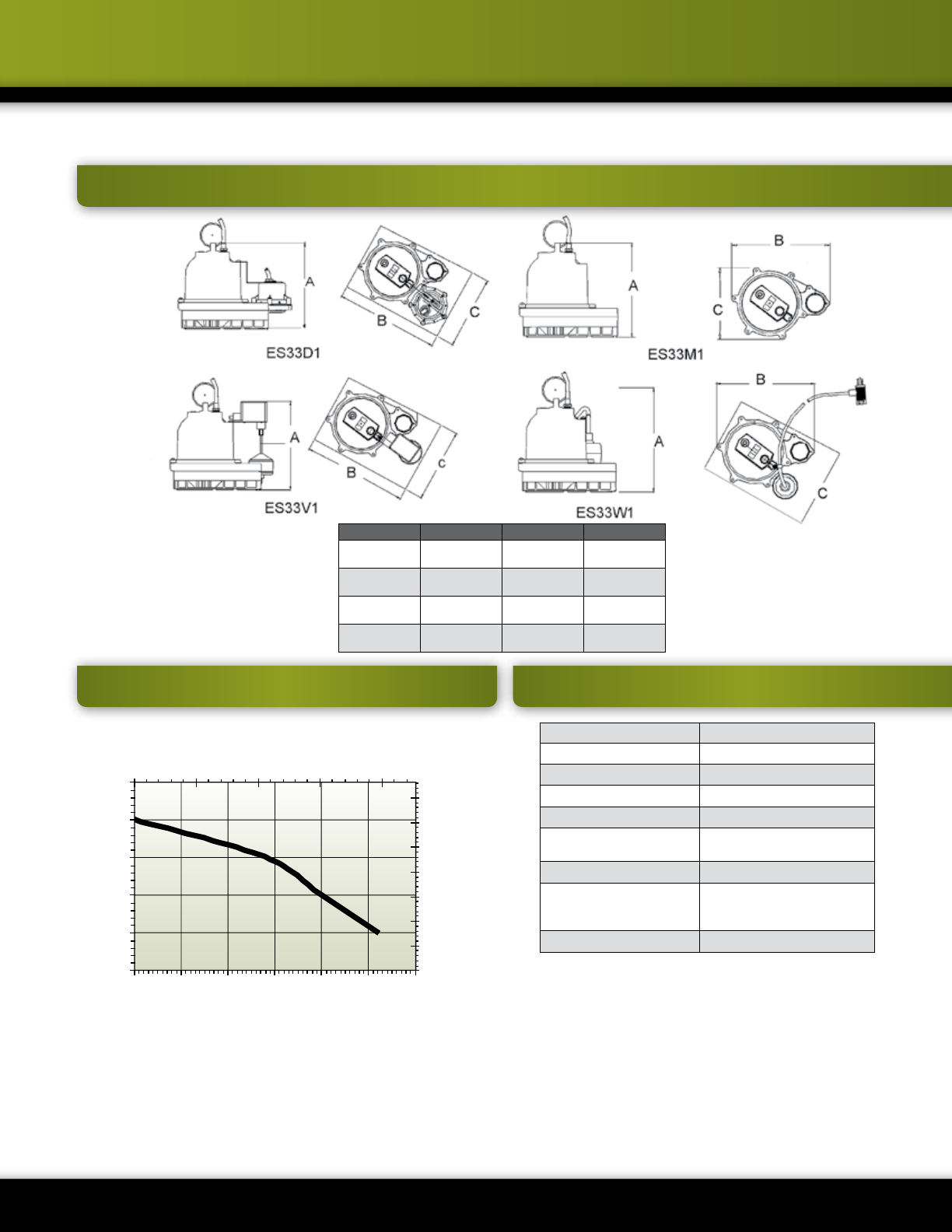

Spec Sheet 996112

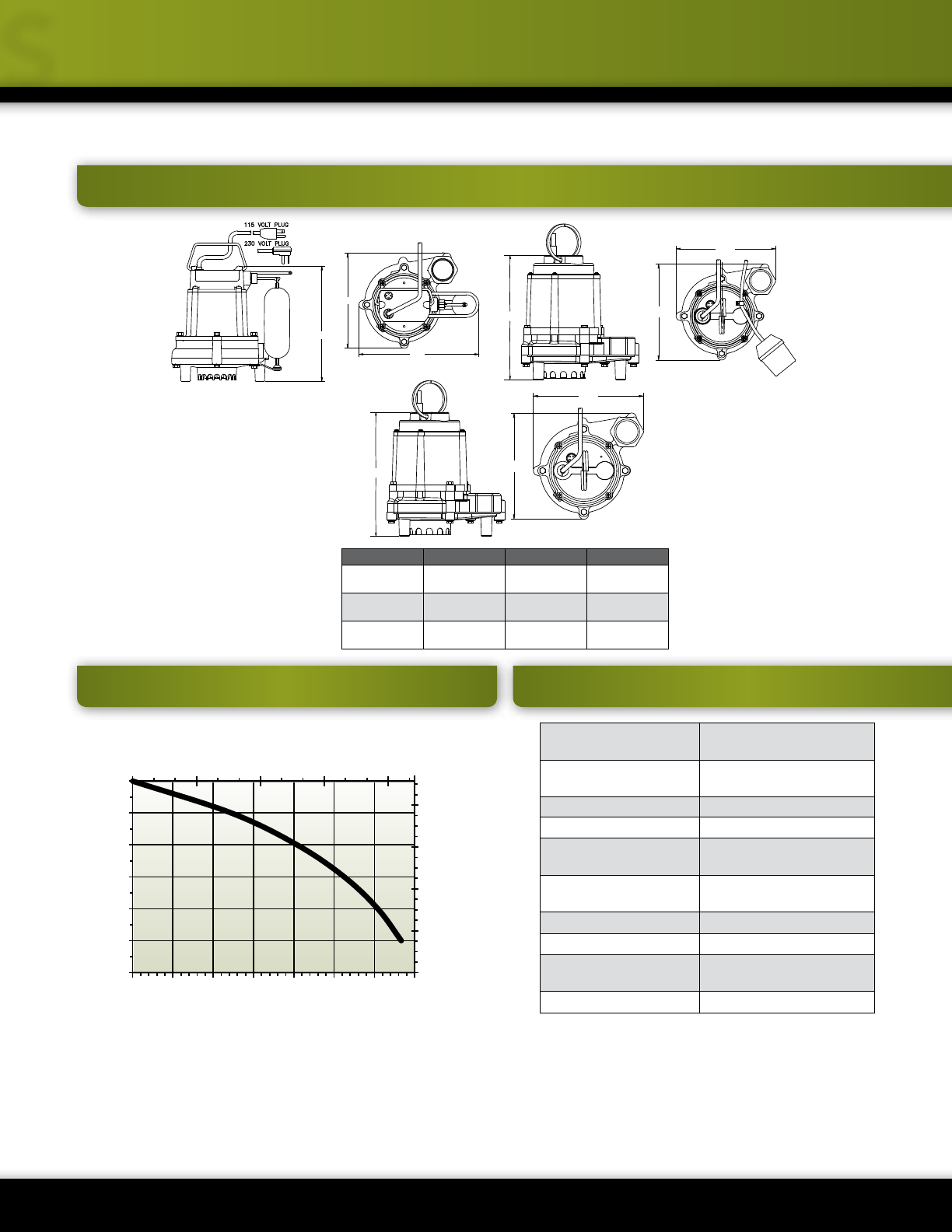

ES33 SERIES 1/3 HP
Motor Housing Epoxy-coated cast iron
Impeller Material Engineered composite
Impeller Type Recessed, Vortex
Volute Glass-lled polypropylene
Motor Shaft Cold rolled steel (not exposed)
Mechanical Shaft Seal Nitrile with carbon and
ceramic faces
Fasteners Stainless steel
Bearings Upper: Sintered iron/copper,
anged sleeve
Lower: Ball bearing
Power Cord 16/3 SJTW-A
Model A B C
ES33D1 9.5"
24.13 cm
11.25"
28.57 cm
9.75"
24.77 cm
ES33M1 9.5"
24.13 cm
10"
25.4 cm
8"
20.32 cm
ES33W1 10.5"
26.67 cm
11.25"
28.57 cm
10"
25.4 cm
ES33V1 9.5"
24.13 cm
10"
25.4 cm
8"
20.32 cm
SUMP PUMPS
36
8 SERIES 4/10 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 60 10 17 830 54 42 26 22.9 9.9
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
508157 8-CIA 4/10 115 Integral Diaphragm 7" - 10"
17.8 cm - 25.4 cm
1" - 4"
2.5 cm - 10.2 cm
10'
3 m
19 lbs
8.62 Kg
508158 8-CIA 4/10 115 Integral Diaphragm 7" - 10"
17.8 cm - 25.4 cm
1" - 4"
2.5 cm - 10.2 cm
25'
7.6 m
20.25 lbs
9.19 Kg
508357 8-CBA 4/10 115 Integral Diaphragm 7" - 10"
17.8 cm - 25.4 cm
1" - 4"
2.5 cm - 10.2 cm
10'
3 m
21.25 lbs
9.64 Kg
508057 8-CIM 4/10 115 Manual – – 10'
3 m
18.75 lbs
8.50 Kg
508058 8-CIM 4/10 115 Manual – – 25'
7.6 m
19.75 lbs
8.96 Kg
508257 8-CBM 4/10 115 Manual – – 10'
3 m
21 lbs
9.53 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Basement sumps • Dewatering • Water transfer
• Shaded pole motor with thermal overload protection
• Designed for continuous duty
• Oil-lled motor housing
• Cast iron or cast bronze pump housing
• 1-1/2" FNPT discharge (38 mm)
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed
8-CBM
8-CIA
SUMP PUMPS
37
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
1
2
3
4
5
6
7
8
9
0 50 100 150 200
0
5
10
15
30
25
20
0 10 20 30 40 6050
CONSTRUCTION
Motor Housing
Epoxy coated cast iron (CI) or
cast bronze (CBM and CBA
models)
Impeller Material Polypropylene
Impeller Type Non-clog
Volute Polypropylene
Mechanical Shaft Seal Nitrile with carbon and
ceramic faces
Fasteners Stainless steel
Shaft Cold rolled steel
Bearings Upper and lower: Sintered,
iron, anged sleeve
Power Cord 18-3, SJTW
Spec Sheet 995209
8 SERIES 4/10 HP
8-CIA/8-CBA
8-CIM/8-CBM
A
B
C
A
CB
Model A B C
8-CIA/8-CBA 6"
15.24 cm
9.5"
24.13 cm
8.5"
21.59 cm
8-CIM/8-CBM 6"
15.24 cm
9.5"
24.13 cm
7.25"
18.41 cm
SUMP PUMPS
38

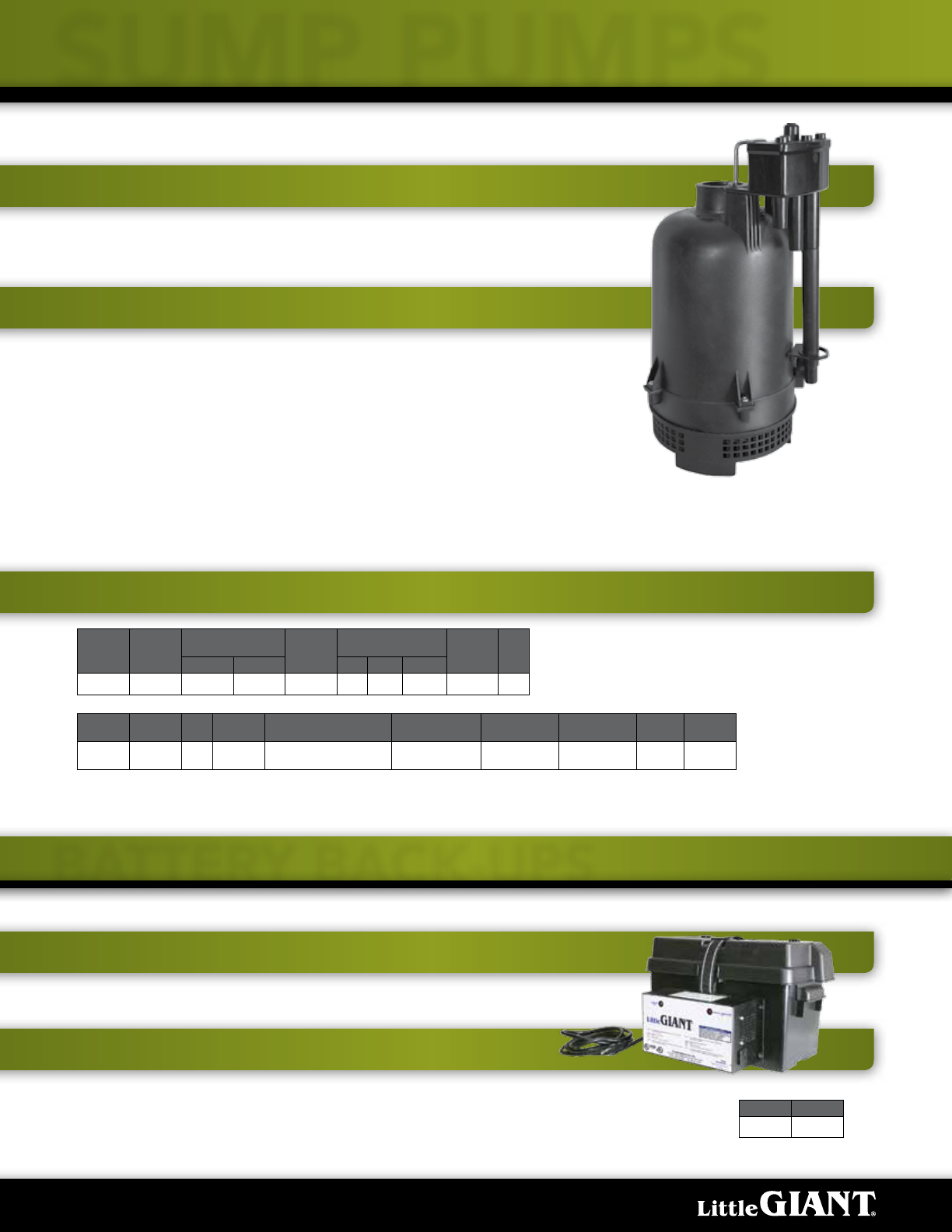

TSW SERIES 1/3 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 60 4.5 11.6 475 50 40 32 30 13.1
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Alarm Level Cord Weight
507700 TSW-SP 1/3 115 Integral Solid State Electronic 9.5" - 10.5"
24 cm - 27 cm
2.5" - 3.5"
6.4 cm - 9 cm
11" - 12"
28 cm - 30.5 cm
10'
3 m
17 lbs
7.71 Kg
APPLICATIONS
APPLICATIONS
FEATURES
FEATURES
SERIES SPECIFICATIONS
• Basement sumps • Flood control
Basement sumps • Flood control
• Eliminates need and cost of installing a “back-up” pump that operates when power is out.
• Converts pump to DC power in the event of a power failure
• Includes inverter, battery box, and battery cover strap (battery not included)
• Permanent split capacitor motor
• Designed to be installed suspended from basin cover
• Non-corrosive construction
• Integral IntelliPlug® provides high water alarm light and 85 dba
alarm with run light built in
• Leg kit raises up 2-1/4" (5.7 cm) if not used in basin
• 1-1/2" FNPT (38 mm) discharge
• Side screened inlet
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed

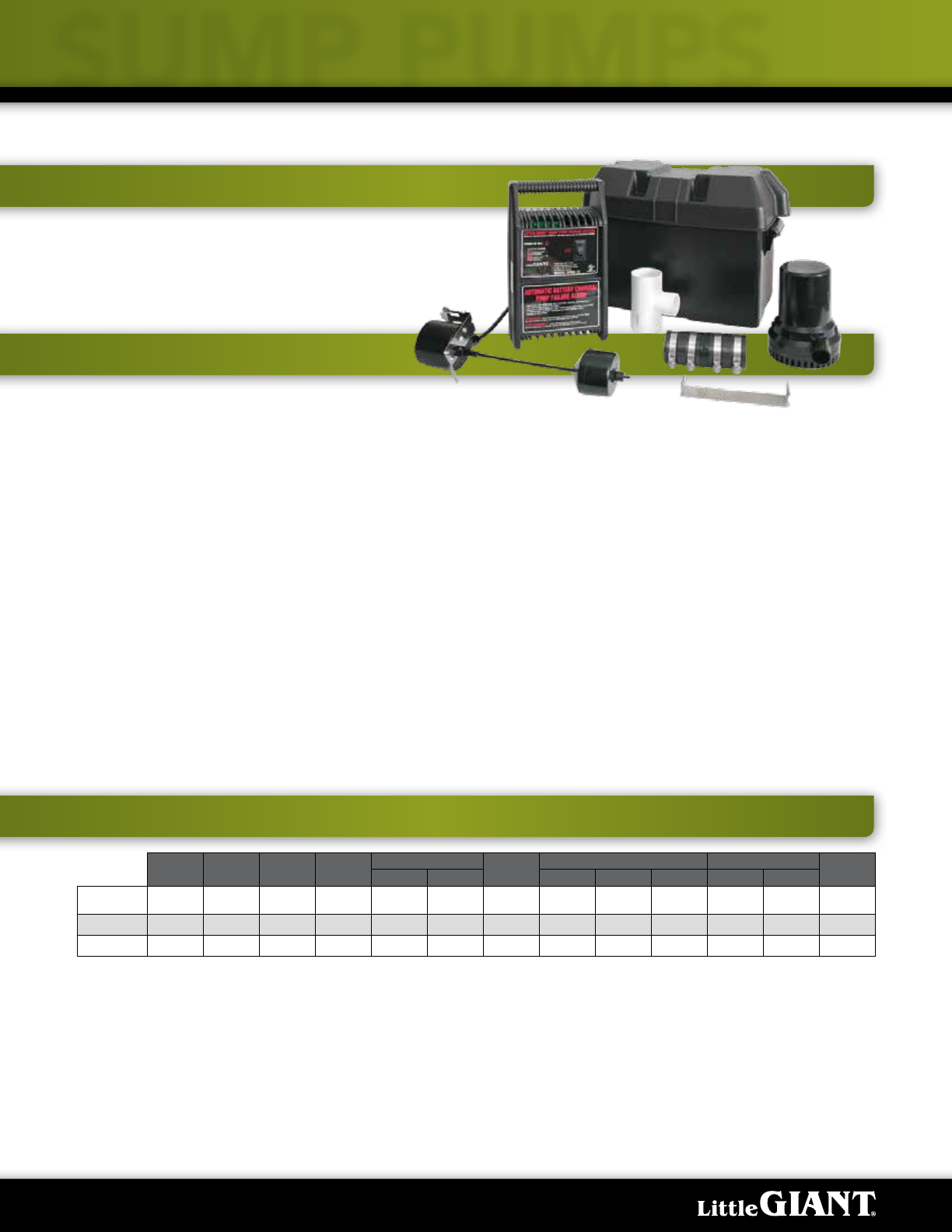

BATTERY BACK-UPS
TSW-APS 1/3 HP
Item No. Model
507701 TSW-APS
SUMP PUMPS
39
Hotline: 1.800.701.7894 www.franklinwater.com

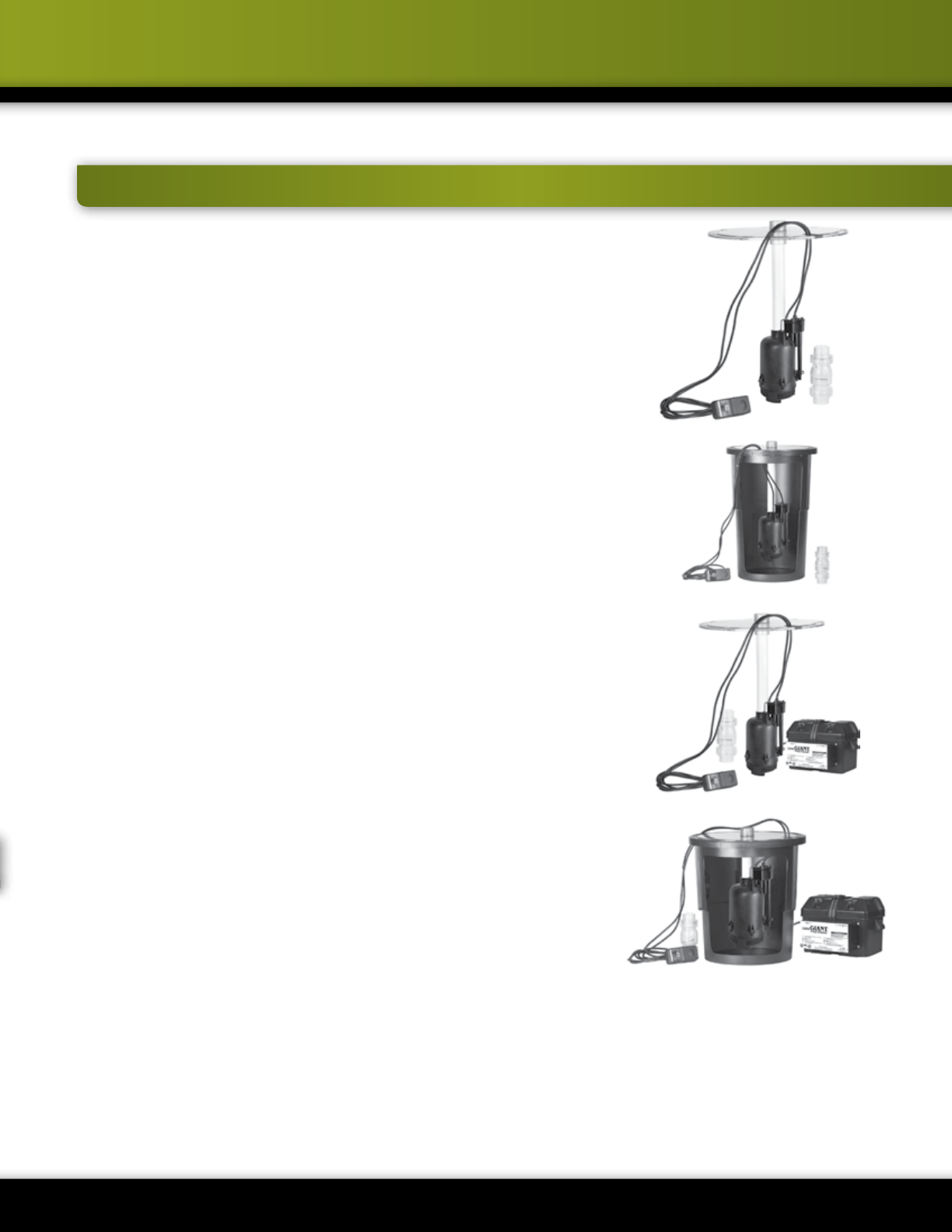

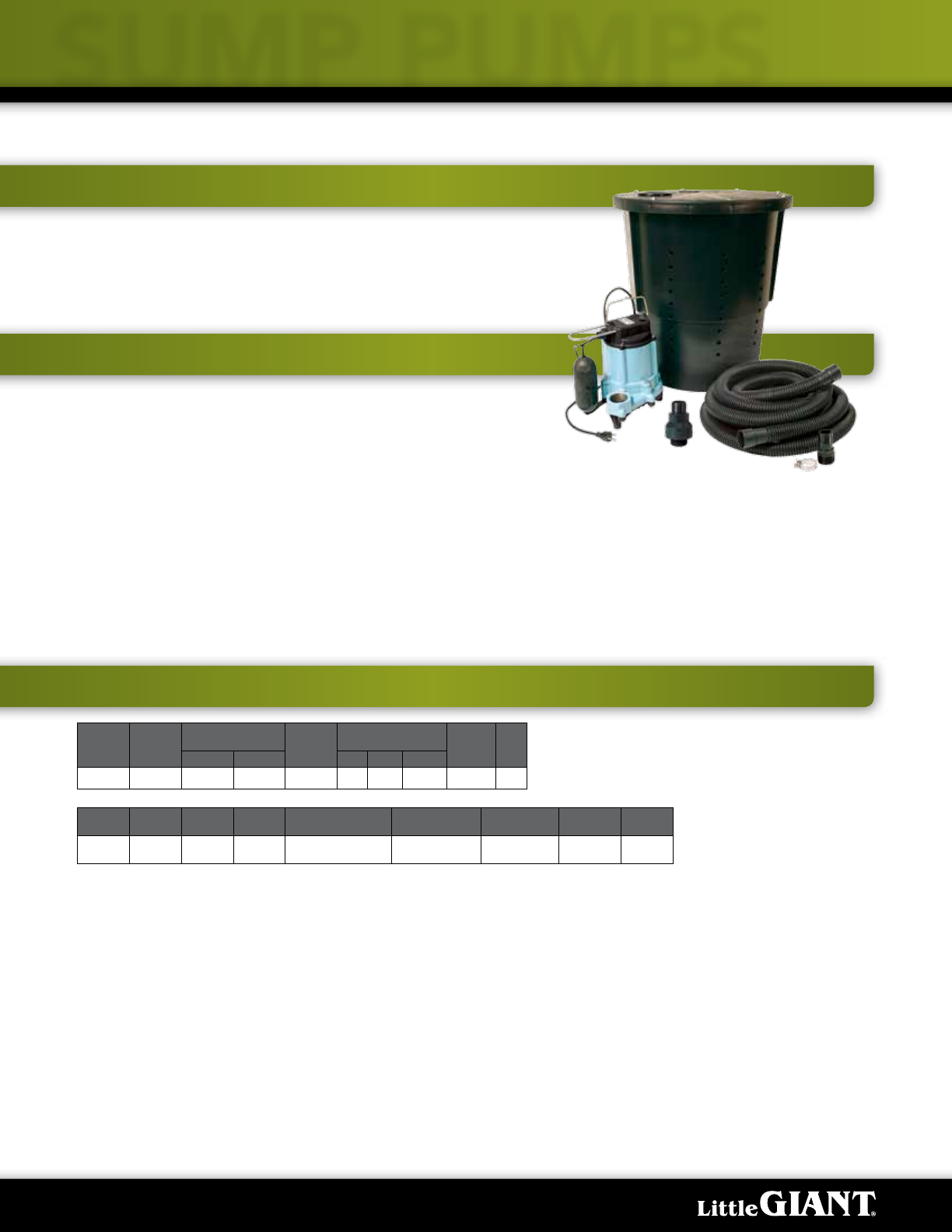

SYSTEMS & COMPONENTS
TSW SERIES 1/3 HP
TSW-D Series - System includes: Pump, 22" or 30" (56 cm or 76 cm) basin, clear
view cover assembly, discharge kit with clear check valve, and Auxiliary Power
System (TSW-APS)
507717, TSW-D22A [22" (56 cm) unit]
507719, TSW-D30A [30" (76 cm) unit]
TSW-A Series - System includes: Pump, clear view cover, and discharge kit
with clear check valve
507709, TSW-A22 (For use with 22" (56 cm) basin #507705, TSW-B1822A)
507710, TSW-A30 (For use with 30" (76 cm) basin #507707, TSW-B1830A)
TSW-B Series - System includes: Pump, 22" or 30" (56 cm or 76 cm) basin,
clear view cover assembly, and discharge kit with clear check valve
507711, TSW-B22A [22" (56 cm) unit]
507713, TSW-B30A [30" (76 cm) unit]
TSW-C Series - System includes: Pump, clear view cover assembly, discharge
kit with clear check valve, and Auxiliary Power System (TSW-APS)
507715, TSW-C22 [For use with 22" (56 cm) basin #507705, TSW-B1822A]
507716, TSW-C30 [For use with 30" (76 cm) basin #507707, TSW-B1830A]
Component Variations Available:
Item Model Description
507700 TSW-SP TSW Sump Pump
507701 TSW-APS Auxiliary Power System
507702 TSW-CVC Clear View Basin Cover
507703 TSW-DPK22 Discharge Kit for 22" (56 cm) Deep Basin
507704 TSW-DPK30 Discharge Kit for 30" (76 cm) Deep Basin
507705 TSW-B1822A 18" x 22" (45.7 cm x 56 cm) Poly Basin with Adapt-A-Flex Inlet Fitting
507707 TSW-B1830A 18" x 30" (45.7 cm x 76 cm) Basin with Adapt-A-Flex Inlet Fitting
507721 TSW-SP-C TSW Sump Pump and Auxiliary Power Supply
SUMP PUMPS
40
ABA
BC
D

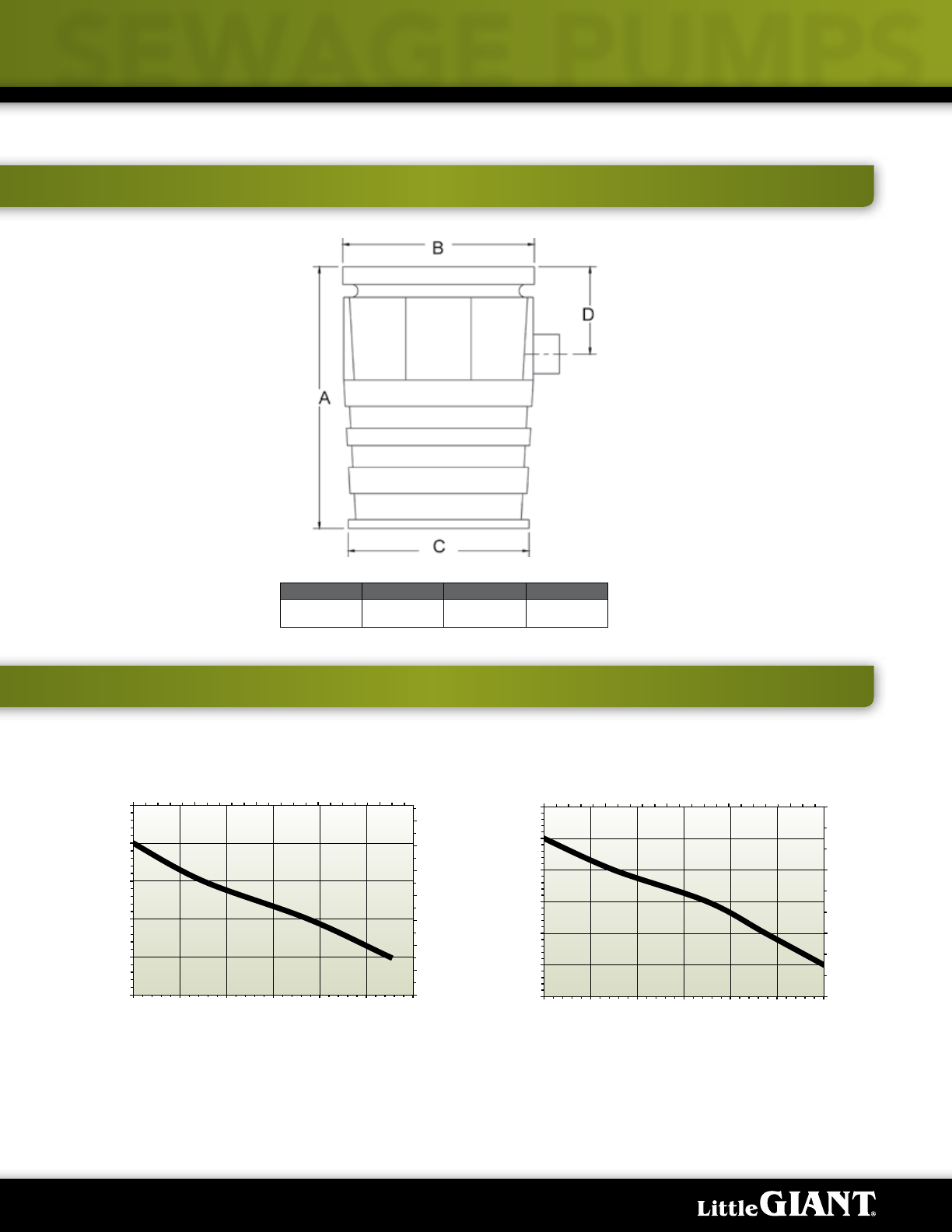

Overall dimensions without leg kit Overall dimensions with leg kit
A B C D
W/O Leg Kit 10"
25.4 cm
11.8"
29.97 cm
9.3"
23.62 cm
8.12"
20.62 cm
W/ Leg Kit 13"
33.02 cm
18.3"
46.48 cm
9.3"
23.62 cm
8.12"
20.62 cm
A B C
22"
56 cm
22"
56 cm
15"
38 cm
21"
53 cm
30"
76 cm
30"
76 cm
15"
38 cm –

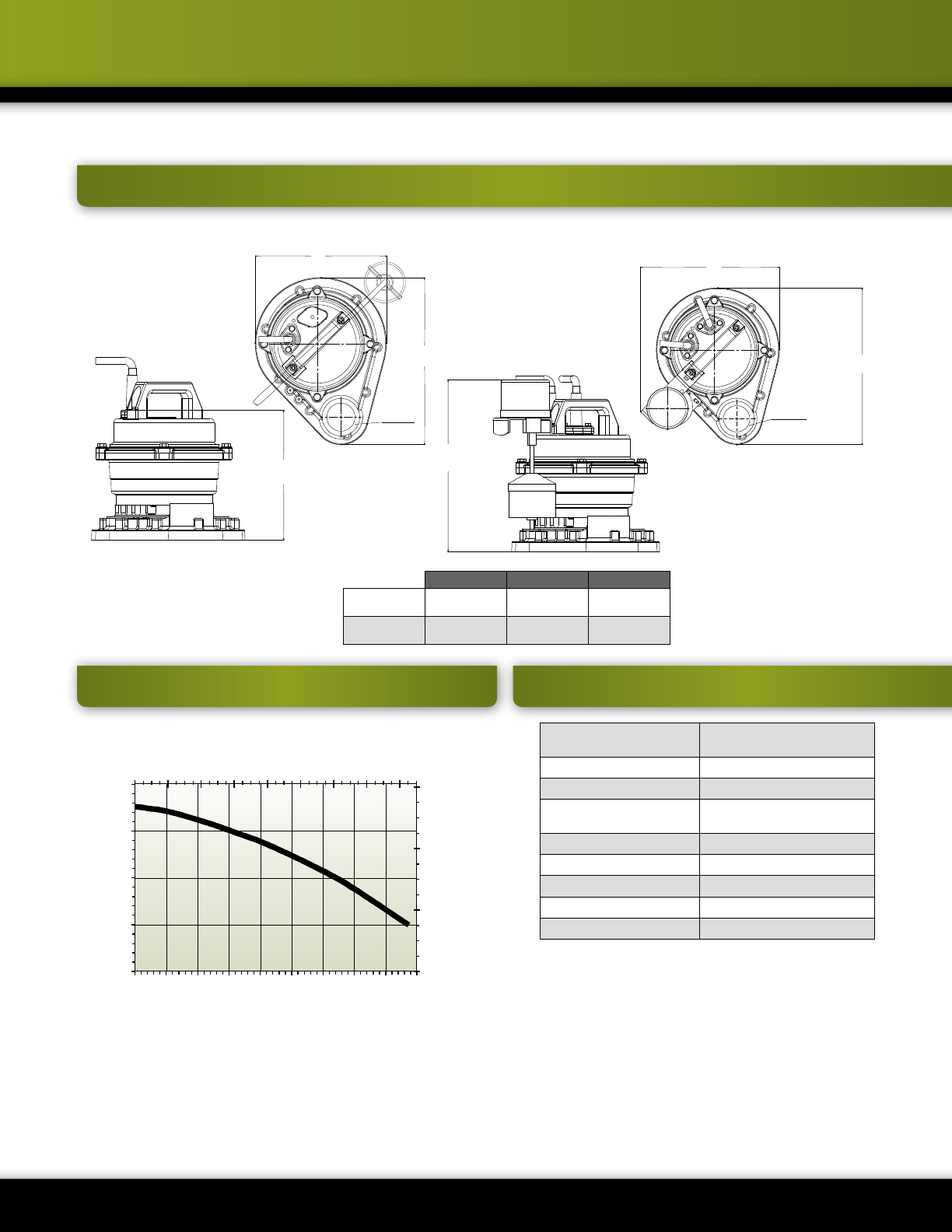

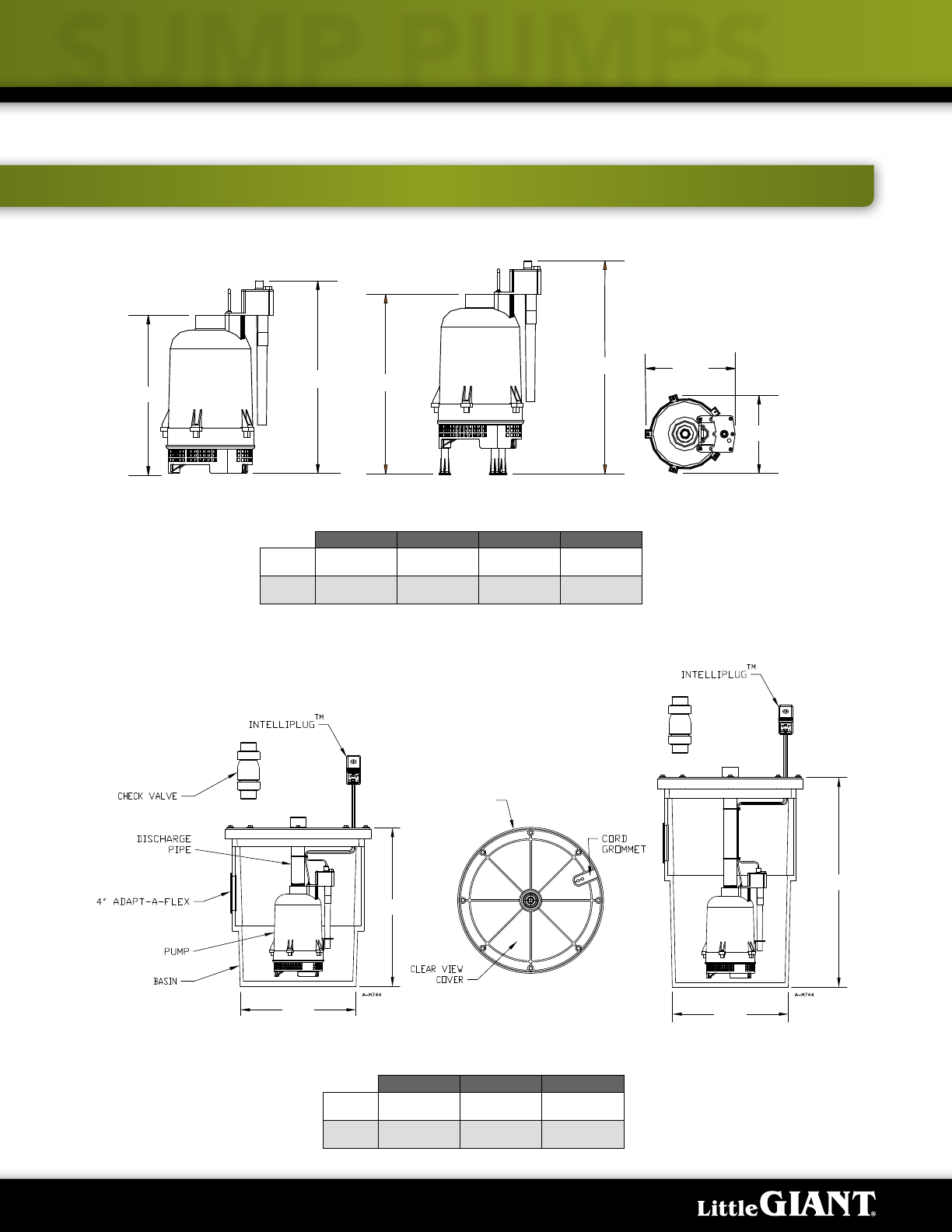

ENGINEERING DATA
A
A
B
30" (76 cm) Basin Package22" (56 cm) Basin Package
B
C
PUMP DIMENSIONS
BASIN DIMENSIONS
TSW SERIES 1/3 HP
SUMP PUMPS
41
Hotline: 1.800.701.7894 www.franklinwater.com
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0 50 100 150 200
0
.25
.5
.75
0 10 20 30 40 6050
0
5
10
15
20
25
30
35
CONSTRUCTION
BASIN CONSTRUCTION
Motor Housing Engineered thermoplastic
Impeller Material Engineered thermoplastic
Impeller Type Vortex
Volute Engineered thermoplastic
Motor Shaft Stainless steel
Shaft Seal Mechanical nitrile with carbon
ceramic faces
Fasteners Stainless steel
Bearings Upper and lower ball bearings
Power Cord SJTW-16
Clear View Basin Cover ABS
Basin Polypropylene
Basin Capacity (approx.) 22" (56 cm) basin – 22 gallons
30" (76 cm) basin – 30 gallons
Discharge Size 1-1/2" (38 mm)
Intake Size 4" Adapt-A-Flex**
** 4" hub available as an option
Spec Sheet 996733
TSW SERIES 1/3 HP
SUMP PUMPS
42
WRS SERIES 1/6 HP, 1/3 HP, 4/10 HP
HP Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15' 20'
1/6 115 60 5 6.4 380 15 12 8 – 21.00 9.1
1/3 115 60 9 14.3 720 46 29 13 –18.00 7.8
1/3 230 50/60 4.5 6.3 720 46 29 13 –18.00 7.8
4/10 115 60 9 17 920 80 63 54 40 29.00 9.1
Item No. Model HP Volts Tank Size Switch Type/
Operation On Level Off Level Cord Weight
505055 WRS-5 1/6 115 5 Gallon Piggyback Diaphragm 6" - 9"
15.2 cm - 23 cm
1" - 4"
2.5 cm - 10 cm
10'
3 m
19 lbs
8.62 Kg
506065 WRSC-6 1/3 115 3.5 Gallon Integral Diaphragm 4" - 7"
10.2 cm - 17.8 cm
1" - 3"
2.5 cm - 7.6 cm
10'
3 m
24 lbs
10.89 Kg
506066 WRSC-6 1/3 230 3.5 Gallon Piggyback Mechanical Float 4" - 7"
10.2 cm - 17.8 cm
1" - 3"
2.5 cm - 7.6 cm
10'
3 m
17.75 lbs
8.05 Kg
506055 WRS-6 1/3 115 5 Gallon Integral Diaphragm 7" - 10"
17.8 cm - 25.4 cm
1" - 4"
2.5 cm - 10.2 cm
10'
3 m
26 lbs
11.79 Kg
506056 WRS-6 1/3 230 5 Gallon Integral Diaphragm 7" - 10"
17.8 cm - 25.4 cm
1" - 4"
2.5 cm - 10.2 cm
10'
3 m
27 lbs
12.25 Kg
509268 WRS-9EN 4/10 115 5 Gallon Piggyback Vertical
Mechanical
7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
10'
3 m
35 lbs
15.88 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Impractical drainage areas • Under sinks
• Laundry trays
Drainosaur® & Drainosaur Jr.®
BASIN FEATURES
• 3.5 and 5 gallon size options
• Polypropylene, lightweight, corrosion resistant
• Designed with O-rings for water tight seal
• Cover includes removable lter for easy cleaning
• Cover includes 1/1/2" FNPT (38 mm) discharge and intake opening, and
2" FNPT (5 cm) vent opening
• IAPMO listed
• Pre-assembled, ready to install
PUMP FEATURES
• 1/6, 1/3, 4/10 hp options
• Multiple switch options
• cCSAus listed (pump only)
WRS-5
WRSC-6
WRS-6
WRS-9EN
SUMP PUMPS
43
Hotline: 1.800.701.7894 www.franklinwater.com

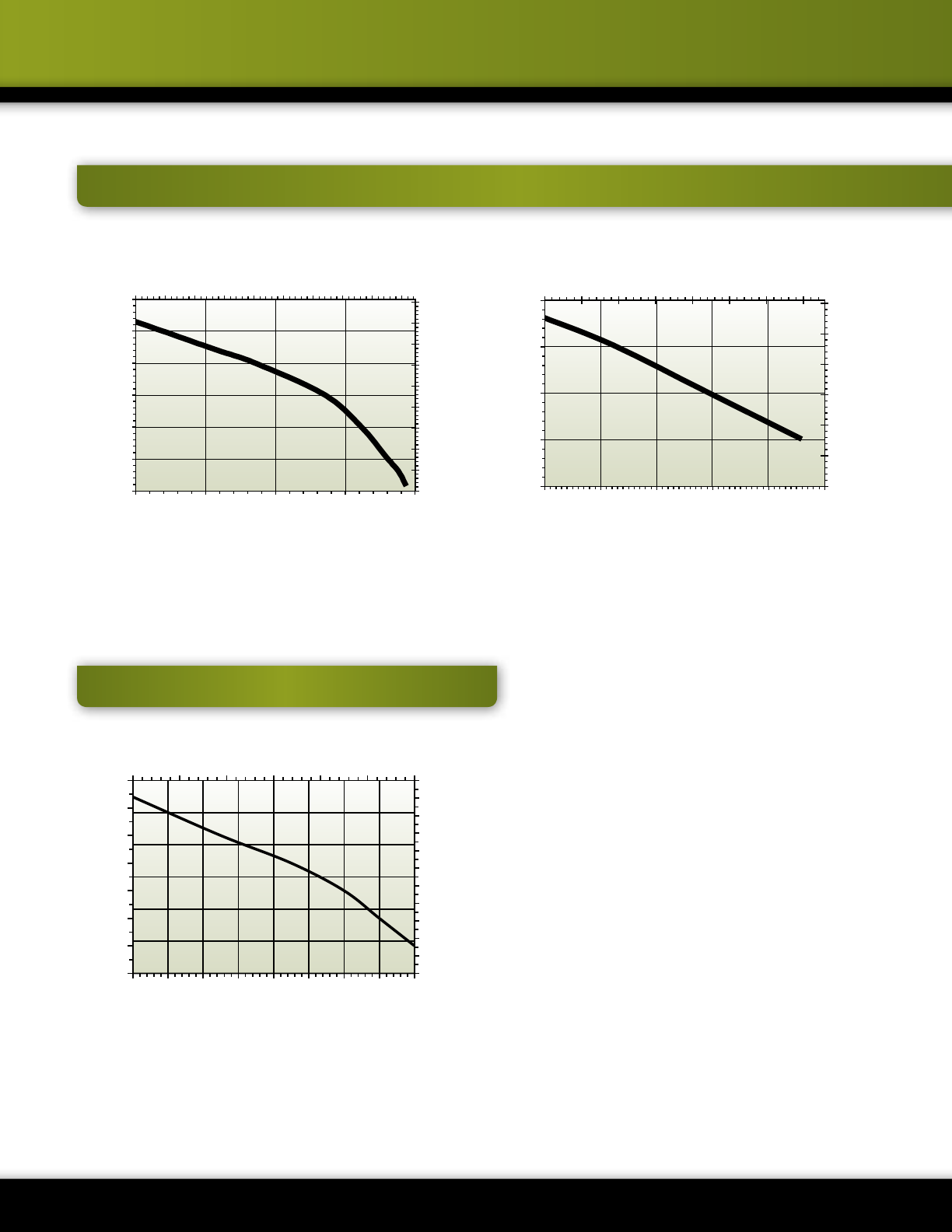

PERFORMANCE DATA
PERFORMANCE DATA
WRS-5 WRS-6 & WRSC-6
WRS-9EN
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
1
2
3
4
5
6
7
8
9
0 2010 4030 50 60 70 80 90
0 5 10 15 20
0
5
10
15
20
25
30
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
1
2
3
4
5
6
0 25 50 75 100 125 150 175
0
5
10
15
20
0 10 20 30 40 50
WRS SERIES 1/6 HP, 1/3 HP, 4/10 HP
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
1
2
3
4
5
6
7
8
9
10
11
0 50 100 150 200 250 300
0
5
10
15
20
25
30
35
0 10 20 30 40 50 60 70 80
SUMP PUMPS
44
WRS SERIES 1/6 HP, 1/3 HP, 4/10 HP
ENGINEERING DATA
WRS
WRSC
A
B
C
D
EF
AB
D
E
C
TO CLEAN FILTER
REMOVE THIS PLATE
2" VENT
1-" OUTLET
1
2
CORD EXIT
2
1
1-" INLET
6.50
14.50 DIA
4.25
4.25
3.19
TORQUE 11-13 IN-LBS.
(TYP. 14 PLACES)
2" FNPT VENT
993642 R
MOUNTING HOLE LINES UP WITH
A LOCATING RIB ON THE INSIDE OF
THE BASIN.
PLATE ALIGNMENT DIAGRAM
POSITION THE PUMP LOCATING PLATE INSIDE
THE BASIN AS SHOWN. THIS WILL ALLOW
PROPER ALIGNMENT OF MOUNTING HOLES
WHEN INSTALLING THE BASIN COVER. ANY
OTHER POSITION WILL NOT ALLOW ASSEMBLY
OF COVER.
Model A B C D E F
WRS-5 14.75"
37.74 cm
15.68"
39.83 cm
10.63"
27 cm
1-1/2" FNPT
3.81 cm
1-1/2" FNPT
3.81 cm –
WRS-6 14.75"
37.74 cm
15.68"
39.83 cm
10.63"
27 cm
1-1/2" FNPT
3.81 cm
1-1/2" FNPT
3.81 cm –
WRS-9EN 14.75"
37.74 cm
15.68"
39.83 cm
10.63"
27 cm
1-1/2" FNPT
3.81 cm
1-1/2" FNPT
3.81 cm –
Model A B C D E F
WRSC-6 10.55"
26.8 cm
10.06"
25.55 cm
8.9"
22.61 cm
10.63"
27 cm
1-1/2" FNPT
3.81 cm
1-1/2" FNPT
3.81 cm
SUMP PUMPS
45
Hotline: 1.800.701.7894 www.franklinwater.com
WRS SERIES 1/6 HP, 1/3 HP, 4/10 HP
Spec Sheet 996567
TYPICAL INSTALLATION
POWER CORD
(CORD GROMMET INCLUDED)
* BASIN VENT PIPE
2" MNPT REQUIRED FOR BASIN
COVER, IF PRESENT. VENT IS 1-1/2",
USE A 1-1/2” SLIP ADAPTER
1-1/2" SLIP X 2 MNPT ADAPTER IS
PROVIDED IF A 1-1/2" VENT IS REQUIRED.
FILTER ACCESS COVER
WITH O-RING
2" SLIP X 1-1/2" MNPT ADAPTER
PROVIDED. USE IF REQUIRED.
FILTER
*UNION
*INTAKE
COVER O-RING
PUMP
3/8" DIA. BLEED HOLE
IN DISCHARGE PIPE
DISCHARGE PIPE
BASIN
BASIN COVER
2" SLIP X 1-1/2"MNPT ADAPTER
PROVIDED. USE IF REQUIRED.
*CHECK VALVE
*DISCHARGE PIPE
*UNION
*NOT INCLUDED
WRS
SUMP PUMPS
46
CS-SS SERIES 1/3 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 60 6 12 600 50 42 30 22 9.5
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
(lbs)
14940655 CS-SS 1/3 115 Integral Snap-Action Float 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
20'
6 m
41 lbs
18.60 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Residential crawl spaces • Low lying areas
PACKAGE FEATURES
• 1/3 hp cast iron pump with overload protection
• 18" x 22" (46 cm x 56 cm) light weight perforated polypropylene basin
• Structural foam cover with slip t anges
• 1-1/4" x 24' (31.7 mm x 7.3 m) discharge hose kit
• 1-1/2" MNPT (38 mm) barbed check valve
• cCSAus listed (pump only)
SUMP PUMPS
47
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
2
4
6
8
0 60 120 180 240
0
5
10
15
20
25
30
0 10 20 30 40 50 60 70
PUMP CONSTRUCTION
BASIN CONSTRUCTION
Basin Polypropylene
Cover Structural foam
Spec Sheet 14940603
CS-SS SERIES 1/3 HP
Motor Housing Epoxy-coated cast iron
Impeller Material Nylon
Impeller Type Vortex
Volute Epoxy-coated cast iron/
polypropylene
Motor Shaft Cold rolled steel
Mechanical Shaft Seal Nitrile with carbon and
ceramic faces
Fasteners Stainless steel
Bearings Upper and lower sintered
sleeve bearings
Power Cord SJTW (506612 with SJTOW)
B
A
C
D
E
POWER CORD TO OUTLET
FLOOR JOISTS
GRAVEL BACKFILL
PERFORATED BASIN FOOTING
FOUNDATION
SLOPE DISCHARGE AWAY
FROM FOUNDATION
CRAWL SPACE
1-1/4" (31.7 mm)
sump pump
discharge hose kit
Screen to pass
1/2" (12.7 mm) solids
Little Giant
Model
6E-CIA-SFS
Cover
1-1/2" MNPT (38 mm) x
1-1/4" (31.7 mm)
barbed check valve
Basin
Typical Installation
A B C D E
22.1"
56.13 cm
21"
53.34 cm
4"
10.16 cm
1.5"
3.81 cm
0.5"
1.27 cm
SUMP PUMPS
48

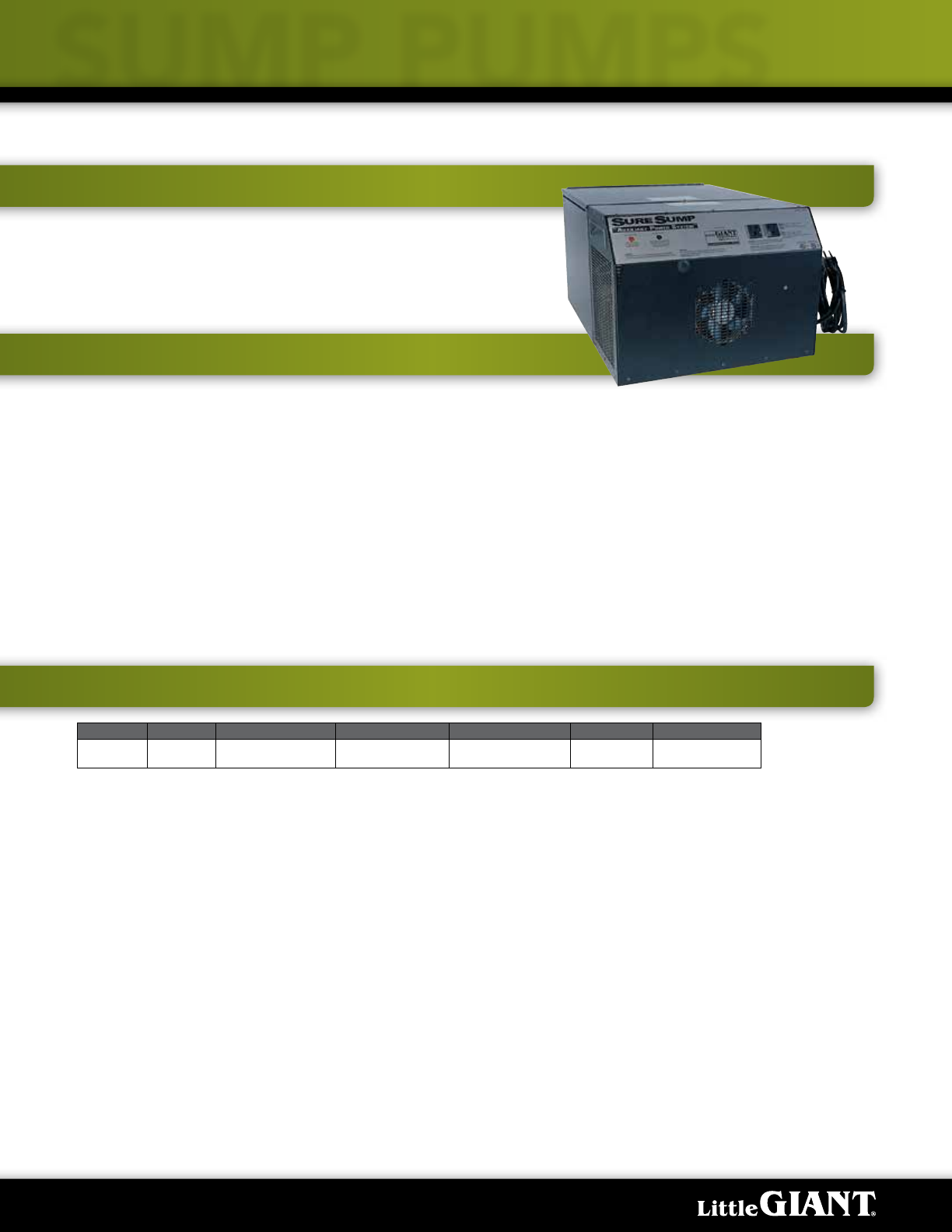

BATTERY BACK-UP
APPLICATIONS
FEATURES
• Sump, efuent, and sewage pump power backup system
• Fully automatic charging system
• Powers existing sump, efuent or sewage pump in the event of a power outage
• Operates 115 Volt pump up to 1/2 hp
• Advanced charging system that maintains battery voltage by timed increments
resulting in maximized battery life
• Batteries not included
• Easy installation with no modication or piping changes to existing pumping system
• Microprocessor monitors all electrical functions
• Indicator lights (LED) for:
– Inverter light
– Charge light
BATTERY BACK-UP SYSTEMSAPS-115
Item No. Model Input Output Max HP Cord Length Weight
513400 APS-115 60 Hz, 120 VAC, 12 Amps 120 VAC, 15 Amps at .80
Service factor (12 Amps) 1/2 9'
2.7 m
97 lbs
44 Kg
SERIES SPECIFICATIONS
SUMP PUMPS
49
Hotline: 1.800.701.7894 www.franklinwater.com
BATTERY BACK-UP
• Quality 16 gauge steel enclosure
• Baked-on epoxy nish inside and out to
prevent corrosion
• Hinged door for easy battery access
• Two piece construction for ease of installation
• Weight:
– Power head weight 70 lbs
– Battery enclosure weight 25 lbs
APS-115 BATTERY BACK-UP SYSTEMS
Spec Sheet 995236
ENGINEERING DATA
PERFORMANCE DATA CONSTRUCTION FEATURES
Duty Cycle (% of time pump is running)
Reserve Power (total hours of operation)
0
20
10
40
30
60
50
80
70
90
100
0 1 2 3 4 5 6 7 8 910 15 20 25 30 35 40 50 60 70 80 90
1/3 - 1/4 hp
1/2 hp
A B C D E
12"
30.48 cm
23"
58.42 cm
16-1/2"
41.91 cm
14-5/8"
37.15 cm
8-3/8"
21.27 cm
Typical Installation
SUMP PUMPS
50
• Secondary sump pump • Flood protection
• Emergency dewatering
BATTERY BACK-UP SYSTEMSSPBS-12
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
Item No. Model Volts Hz Amps Watts Performance (GPH @ Head) Shut-Off Weight
FLA Start 5' 10' 15' Feet PSI
Pump 506400 SPBS-12 12VDC 60 12 36 – 1360 1000 570 21 9.1 17.5 lbs
7.94 kg
Charge Input – – 120VAC 60 2 – 230 – –––– –
Charge Output – – 12VDC – 10 – – – –––– –
• 12 Volt DC pump
• The back‐up system is powered by a 12 Volt DC battery (not included). The battery
used should be a deep cycle marine battery rated from 105 to 140 amp‐hours. A 140
amp‐hour battery can provide in excess of nine (9) hours of continuous operation.
• Controller/Charger/Alarm, 10 amp
• A controller/charger monitors the battery condition and charges the battery when
required. It also alerts the homeowner when the system has operated or when
possible ooding conditions exist.
• Audible alarm:
– When pump runs (must be reset)
– When battery is discharged
• Indicator lights (LED) for:
– Power on
– Battery charging
– Battery fully charged
• Float switch
• Check valve for 12 volt pump
• PVC tee for connection to existing 1‐1/2 discharge pipe of primary pump
• Battery box (battery not included)
• Pump mounting bracket and clamp
SUMP PUMPS
51
Hotline: 1.800.701.7894 www.franklinwater.com
SPBS-12 BATTERY BACK-UP SYSTEMS
Spec Sheet 995202
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Hour
Capacity - Liters per Hour
Total Head in Meters
0
1
2
3
4
5
6
7
8
0 1600 3200 4800 6400
0
5
10
15
20
25
0 1000500 1500 2000
FULL FLOW
MONITORS AND MAINTAINS FULL BATTERY CHARGE CONTINUOUSLY
WILL NOT OVER CHARGE BATTERY
SOUNDS ALARM IF BACKUP PUMP RUNS OR
BATTERY FAILS TO CHARGE
12 VDC/10 AMP CAPACITY CHARGES BATTERY RAPIDLY
ONCE POWER IS RESTORED
ATTENTION:
AVERTISSEMENT:
ATTENTION:
READ INSTRUCTIONS AND BACK LABEL BEFORE USING.
USEZ INSTRUCTIONS AVANT USAGE.
NE PAS EXPOSER A LA PLUIE.
DO NOT EXPOSE TO RAIN. RISK OF EXPLOSIOVE GAS MIXTURE
MADE IN CANADA
AUTOMATIC BATTERY CHARGER/
PUMP FAILURE ALARM
ALARM
GREEN LIGHT
YELLOW LIGHT
CHARGED
CHARGING
R
LR91104
Press and hold to test
Press and release to reset
MODEL SPBS-12
RESET 78Y7
STATE OF CHARGE
POWER ON
R
R
If alarm will not reset check for defective battery
LISTED BATTERY CHARGERS
LITTLE GIANT SUMP PUMP BACKUP SYSTEM
READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR SERVICING SYSTEM
Mounting Kit
with Check Valve & Tee Float
Switch
Pump
10 Amp Charger
Controller/Alarm
Battery Box
(Battery Not Included)
Typical Installation
SUMP PUMPS
52
OS3 SERIES (OIL SENSING SUMP SYSTEM)
Item Model Volts Hertz HP Overload Range
506612 6EN-CIM 115 60 1/3 N/A
509232 9ENH-CIM 115 60 4/10 N/A
511572 10ENH-CIM 115 60 1/2 N/A
511576 10ENH-CIM 208-230 60 1/2 N/A
513390 OS3-1 115 60 1 Max. N/A
513391 OS3-1L-5-8 115 60 1 Max. 5-8 amps
513392 OS3-1L-7-10 115 60 1 Max. 7-10 amps
513393 OS3-1L-9-13 115 60 1 Max. 9-13 amps
513395 OS3-2 230 60 2 Max. N/A
513396 OS3-2L-5-8 230 60 2 Max. 5-8 amps
513397 OS3-2L-7-10 230 60 2 Max. 7-10 amps
513398 OS3-2L-9-13 230 60 2 Max. 9-13 amps
513380 OS3-6E-1** 115 60 1/3 N/A
513383 OS3-9ENH-1** 115 60 4/10 N/A
513384 OS3-10ENH-1** 115 60 1/2 N/A
513385 OS3-10ENH-2** 230 60 1/2 N/A
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Ideal for elevator sump pits, transformer vaults, and water-and-oil
prone conned spaces in accordance with ASME - A17
• Multiple indicator lights; power, pump run, high-water;
high oil, pump overload
• Single-piece sensor for easy installation
• ASME - A17 compliant
• Includes remote alarm
• Alarm panel can be connected to Oil Sensing Sump System’s
remote panel which contains audio/visual alarming
• Both the main panel and remote alarm panel have auxiliary contacts
for connection to a building’s automation system or SCADA system
** Includes pump in kit
SUMP PUMPS
53
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
TYPICAL INSTALLATION CONSTRUCTION
Sensor
Housing ABS
Probe Stainless steel
Float PVC
Control Panel
Enclosure Type 1
Power Cord 6' SJT, 120 VAC
Receptacle SJT, 120 VAC, 15 amp
Alarm Panel
Enclosure Type 1
Power Cord Plug in transformer, 120 VAC
Backup Power 9 VDC battery back-up
LED Indicators Trouble, high level, high oil
Audible Alarm 103 db buzzer, auto test/reset
Spec Sheet 995667
OS3 SERIES (OIL SENSING SUMP SYSTEM)
A
B
C
D
A B C D
10.6"
26.92 cm
4.4"
11.18 cm
4.2"
10.67 cm
1.6"
4.06 cm
EFFLUENT PUMPS
Dewatering, water transfer, efuent and wastewater removal can all be handled with
Little Giant efuent pumps. Ranging from 1/3 hp to 2 hp and shut-offs of 7' to 250',
Little Giant offers more performance choices for the job.
EFFLUENT PUMPS
EFFLUENT PUMPS
56

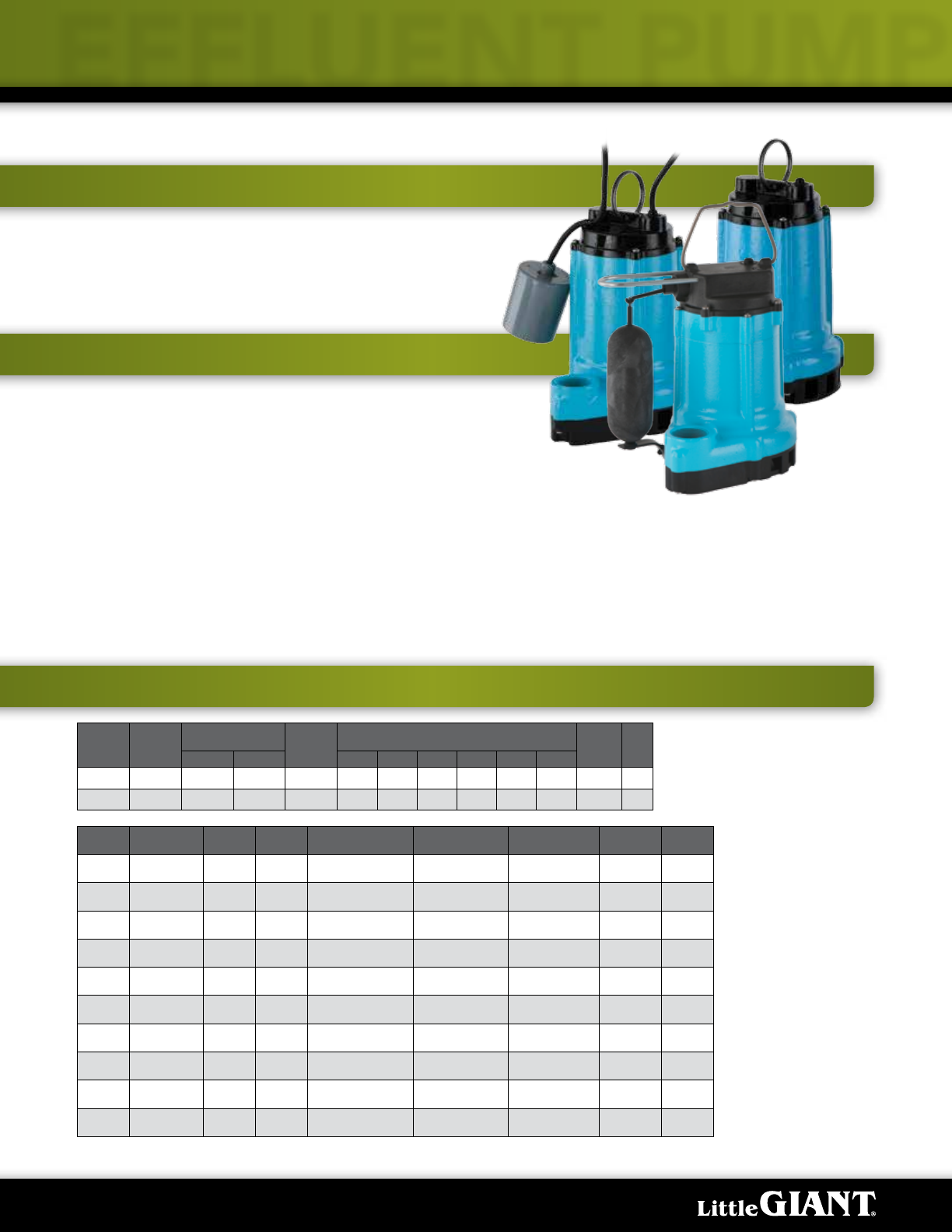

6EN SERIES 1/3 HP
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Basement sumps • Dewatering
• Water transfer • Light efuent
• Permanent split capacitor (PSC) motor with thermal
overload protection
• Designed for continuous duty
• 1-1/2" FNPT discharge (38 mm)
• Handles up to 1/2" (12.7 mm) solids
• Multiple switch options for automatic operation
• cCSAus listed
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 60 6 12 600 50 42 30 22 9.5
230 60 3 6.7 600 50 42 30 22 9.5
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
(lbs)
506630 6EN-CIA-SFS 1/3 115 Integral Snap-Action Float 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
10'
3 m
28 lbs
12.70 Kg
506631 6EN-CIA-SFS 1/3 115 Integral Snap-Action Float 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
20'
6.1 m
28 lbs
12.70 Kg
506635 6EN-CIA-SFS 1/3 230 Integral Snap-Action Float 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
10'
3 m
28 lbs
12.70 Kg
506636 6EN-CIA-SFS 1/3 230 Integral Snap-Action Float 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
20'
6.1 m
28 lbs
12.70 Kg
506619 6EN-CIA-RF 1/3 115 Piggyback Mechanical Float 12" - 14"
30.5 cm - 35.6 cm
5" - 7"
12.7 cm - 17.8 cm
20'
6.1 m
28 lbs
12.70 Kg
506620 6EN-CIA-RF 1/3 115 Piggyback Mechanical Float 12" - 14"
30.5 cm - 35.6 cm
5" - 7"
12.7 cm - 17.8 cm
10'
3 m
28 lbs
12.70 Kg
506610 6EN-CIM 1/3 115 Manual – – 10'
3 m
27 (lbs)
12.25 Kg
506611 6EN-CIM 1/3 115 Manual – – 20'
6.1 m
27 (lbs)
12.25 Kg
506615 6EN-CIM 1/3 230 Manual 10'
3 m
27 (lbs)
12.25 Kg
506616 6EN-CIM 1/3 230 Manual 20'
6.1 m
27 (lbs)
12.25 Kg
506641 6EN-CIM (Black) 1/3 115 Manual – – 20'
6.1 m
27 (lbs)
12.25 Kg
6EN-CIA-SFS
6EN-CIA-RF
6EN-CIM
EFFLUENT PUMPS
57
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
2
4
6
8
0 60 120 180 240
0
5
10
15
20
25
30
0 10 20 30 40 50 60 70
CONSTRUCTION
Spec Sheet 996181
6EN SERIES 1/3 HP
Cover Polycarbonate
Motor Housing Epoxy-coated cast iron
Impeller Material Nylon
Impeller Type Vortex
Volute Epoxy-coated cast iron/
polypropylene
Motor Shaft Cold rolled steel
Mechanical Shaft Seal Nitrile with carbon &
ceramic faces
Fasteners Stainless steel
Bearings Upper and lower sintered
sleeve bearings
Power Cord SJTW (506612 with SJTOW)
6EN-CIA-SFS
6EN-CIM
6EN-CIA-RF
6EN-CIA-RF/6EN-CIM
A
B
C
A
B
C
B
C
Model A B C
6EN-CIA-SFS 10.18"
25.86 cm
10.6"
26.92 cm
8.39"
21.31 cm
6EN-CIA-RF 9.88"
25.09 cm
8.72"
22.14 cm
8.38"
21.29 cm
6EN-CIM 9.88"
25.09 cm
8.72"
22.14 cm
8.38"
21.29 cm
EFFLUENT PUMPS
58

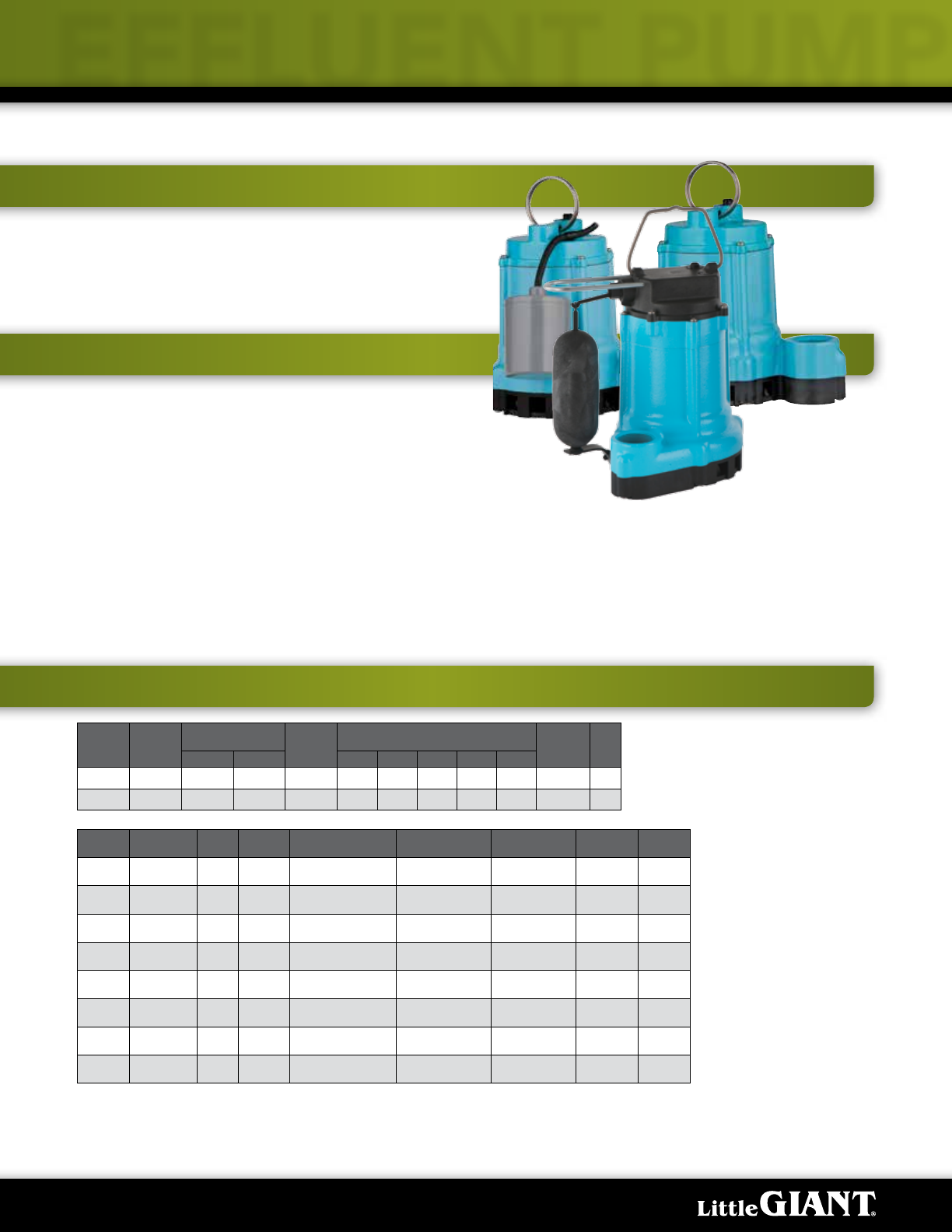

9EN SERIES 4/10 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15' 20' 25'
115 60 9 17 920 80 70 60 45 25 32 14.1
208/230 50/60 4 7.5 800 80 70 60 45 25 32 14.1
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
509260 9EN-CIA-SFS 4/10 115 Integral Float Switch 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
20'
6.1 m
27.5 lbs
12.47 Kg
509261 9EN-CIA-SFS 4/10 115 Integral Float Switch 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
30'
9.1 m
28.5 lbs
12.93 Kg
509209 9EN-CIA-RF 4/10 115 Piggyback Float Switch 9" - 14"
22.86 cm - 35.56 cm
2" - 6"
5 cm - 15.24 cm
20'
6.1 m
27.5 lbs
12.47 Kg
509210 9EN-CIA-RF 4/10 115 Piggyback Float Switch 9" - 14"
22.86 cm - 35.56 cm
2" - 6"
5 cm - 15.24 cm
30'
9.1 m
28.5 lbs
12.93 Kg
509221 9EN-CIA-RF 4/10 208-230 Piggyback Float Switch 9" - 14"
22.86 cm - 35.56 cm
2" - 6"
5 cm - 15.24 cm
20'
6.1 m
27.5 lbs
12.47 Kg
509207 9EN-CIM 4/10 115 Manual – – 20'
6.1 m
26.5 lbs
12.02 Kg
509208 9EN-CIM 4/10 115 Manual – – 30'
9.1 m
27.5 lbs
12.47 Kg
509219 9EN-CIM 4/10 208-230 Manual – – 20'
6.1 m
27 lbs
12.25 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Efuent wastewater removal • Dewatering
• Water transfer
• Permanent Split Capacitor (PSC)
• Designed for continuous duty
• Energy-saving low amp draw
• Cooler running motor
• 1-1/2" FNPT (38 mm) discharge
• Handles solids up to 3/4" (19 mm) diameter
• Multiple switch options for automatic operation
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed
9EN-CIA-RF
9EN-CIM
9EN-CIA-SFS
EFFLUENT PUMPS
59
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
* On SFS models
** On 30' 9EN-CIA-RF and 9EN-CIM models
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
1
2
3
4
5
6
7
8
9
10
11
0 50 100 150 200 250 300
0
5
10
15
20
25
30
35
0 10 20 30 40 50 60 70 80
CONSTRUCTION
Cover Epoxy-coated cast iron/
*Thermoplastic
Motor Housing Epoxy-coated cast iron
Impeller Material Thermoplastic elastomer
Impeller Type Non-clog
Volute Epoxy-coated cast iron
Motor Shaft Steel
Mechanical Shaft Seal Nitrile with carbon and
ceramic faces
Fasteners Stainless steel
Bearings Upper sintered sleeve and
lower ball bearing
Power Cord SJTW **SJTOW
Spec Sheet 996193
9EN SERIES 4/10 HP
A
B
c
c
B
A
A
115 VOLT PLUG
115 VOLT PLUG
C
B
9EN-CIA_SFS 9EN-CIA-RF
9EN-CIM
115 VOLT PLUG
Model A B C
9EN-CIA-SFS 10.76"
27.33 cm
10.54"
26.54 cm
8.07"
20.49 cm
9EN-CIA-RF 9.15"
23.24 cm
9.6"
24.38 cm
6.8"
17.27 cm
9EN-CIM 9.15"
23.24 cm
9.6"
24.38 cm
6.8"
17.27 cm
EFFLUENT PUMPS
60
9ENH SERIES 4/10 HP
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Efuent wastewater removal • Dewatering • Water transfer
• Permanent Split Capacitor (PSC)
• Designed for continuous duty
• Energy-saving low amp draw
• Cooler running motor
• 1-1/2" FNPT (38 mm) discharge
• Handles solids up to 3/4" (19 mm) diameter
• Multiple switch options for automatic operation
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 20' 30' 40'
115 60 9 16 1045 70 60 50 30 10 45 19.5
208-230 60 9 8.2 1045 70 60 50 30 10 45 19.5
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
509239 9ENH-CIA-SFS 4/10 115 Integral Float Switch 9" - 14"
22.86 cm - 35.56 cm
2" - 6"
5 cm - 15.24 cm
20'
6.1 m
38 lbs
17.24 Kg
509240 9ENH-CIA-SFS 4/10 115 Integral Float Switch 9" - 14"
22.86 cm - 35.56 cm
2" - 6"
5 cm - 15.24 cm
30'
9.1 m
39 lbs
17.69
509233 9ENH-CIA-RF 4/10 115 Piggyback Float Switch 9" - 12"
22.86 cm - 30.48 cm
3" - 6"
7.62 cm - 15.24 cm
20'
6.1 m
38 lbs
17.24 Kg
509234 9ENH-CIA-RF 4/10 115 Piggyback Float Switch 9" - 12"
22.86 cm - 30.48 cm
3" - 6"
7.62 cm - 15.24 cm
30'
9.1 m
39 lbs
17.69
509231 9ENH-CIM 4/10 115 Manual – – 20'
6.1 m
37 lbs
16.78 Kg
509232 9ENH-CIM 4/10 115 Manual – – 30'
9.1 m
38 lbs
17.24 Kg
509237 9ENH-CIA-RF 4/10 208-230 Piggyback Float Switch 9" - 12"
22.86 cm - 30.48 cm
3" - 6"
7.62 cm - 15.24 cm
20'
6.1 m
37 lbs
16.78 Kg
509238 9ENH-CIA-RF 4/10 208-230 Piggyback Float Switch 9" - 12"
22.86 cm - 30.48 cm
3" - 6"
7.62 cm - 15.24 cm
30'
9.1 m
38 lbs
17.24 Kg
509235 9ENH-CIM 4/10 208-230 Manual – – 20'
6.1 m
37 lbs
16.78 Kg
509236 9ENH-CIM 4/10 208-230 Manual – – 30'
9.1 m
38 lbs
17.24 Kg
9ENH-CIA-RF
9ENH-CIA-SFS
9ENH-CIM
EFFLUENT PUMPS
61
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
5
10
15
50 100 150 200 250 300
0
10
20
30
40
50
0
0
10 20 30 40 50 60 70 80
CONSTRUCTION
Cover Epoxy-coated cast iron/
*Thermoplastic
Motor Housing Epoxy-coated cast iron
Impeller Material Thermoplastic elastomer
Impeller Type Non-clog
Volute Epoxy-coated cast iron
Mechanical Shaft Seal Nitrile with carbon and
ceramic faces
Fasteners Stainless steel
Shaft Steel
Bearings Upper and lower ball bearing
Power Cord SJTW **SJTOW
* On SFS models
** On 30' 9ENH-CIA-RF and 9ENH-CIM models
Spec Sheet 996247
9ENH SERIES 4/10 HP
9ENH-CIM
9ENH-CIA-SFS 9ENH-CIA-RF
A
B
C
A
B
C
A
B
C
115 VOLT PLUG
Model A B C
9ENH-CIA-SFS 12.9"
32.77 cm
10.54"
26.54 cm
8.07"
20.49 cm
9ENH-CIA-RF 11.03"
28.01 cm
9.53"
24.21 cm
6.74"
17.12 cm
9ENH-CIM 11.03"
28.01 cm
9.53"
24.21 cm
6.74"
17.12 cm
EFFLUENT PUMPS
62
10EN SERIES 1/2 HP
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15' 20'
115 60 8 12 850 67 61 50 40 30 13
230 60 4 6.7 850 67 61 50 40 30 13
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
511330 10EN-CIA-SFS 1/2 115 Integral Snap-Action Float 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
10'
3 m
29 lbs
13.5 Kg
511331 10EN-CIA-SFS 1/2 115 Integral Snap-Action Float 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
20'
6.1 m
29 lbs
13.5 Kg
511225 10EN-CIA-SFS 1/2 230 Integral Snap-Action Float 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
10'
3 m
29 lbs
13.5 Kg
511336 10EN-CIA-SFS 1/2 230 Integral Snap-Action Float 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
20'
6.1 m
29 lbs
13.5 Kg
511320 10EN-CIA-RF 1/2 115 Piggyback Mechanical Float 12" - 14"
30.48 cm - 35.56 cm
5" - 7"
12.7 cm - 17.78 cm
10'
3 m
29 lbs
13.5 Kg
511321 10EN-CIA-RF 1/2 115 Piggyback Mechanical Float 12" - 14"
30.48 cm - 35.56 cm
5" - 7"
12.7 cm - 17.78 cm
20'
6.1 m
29 lbs
13.5 Kg
511310 10EN-CIM 1/2 115 Manual – – 10'
3 m
28 lbs
12.7 Kg
511311 10EN-CIM 1/2 115 Manual – – 10'
3 m
28 lbs
12.7 Kg
511315 10EN-CIM 1/2 230 Manual – – 10'
3 m
28 lbs
12.7 Kg
511316 10EN-CIM 1/2 230 Manual – – 20'
6.1 m
28 lbs
12.7 Kg
511342 10EN-CBA-SFS 1/2 115 Integral Snap-Action Float 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
10'
3 m
28 lbs
12.7 Kg
511343 10EN-CBA-SFS 1/2 115 Integral Snap-Action Float 7" - 10"
17.8 cm - 25.4 cm
2" - 5"
5 cm - 12.7 cm
10'
3 m
28 lbs
12.7 Kg
511341 10EN-CBM 1/2 115 Manual – – 10'
3 m
27 lbs
12.25 Kg
• Efuent wastewater removal • Dewatering • Water transfer
• Permanent Split Capacitor (PSC)
• Designed for continuous duty
• Energy-saving low amp draw
• Cooler running motor
• 1-1/2" FNPT (38 mm) discharge
• Handles solids up to 1/2" (12.7 mm) diameter
• Multiple switch options for automatic operation
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed
10EN-CIA-RF
10EN-CIA-SFS
10EN-CIM
EFFLUENT PUMPS
63
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Flow - Gallons per Minute
Flow - Liters per Minute
Total Head in Meters
0
2
4
6
8
0 60 120 180 240
0
5
10
15
20
25
30
0 10 20 30 40 50 60 70
CONSTRUCTION
Cover Polycarbonate
10EN-CIA-SFS Models
Cover Cast iron - 10EN-CIM and
10EN-CIA-RF models
Motor Housing Epoxy-coated cast iron
Impeller Material Nylon
Volute Epoxy-coated cast iron/
polypropylene
Mechanical Shaft Seal Nitrile with carbon and
ceramic faces
Fasteners Stainless steel
Shaft Cold rolled steel
Bearings Upper and lower sintered
sleeve bearings
Power Cord SJTW **SJTOW
Spec Sheet 996572
10EN SERIES 1/2 HP
A
C
B
A
B
C
10EN-CIA-RF
10EN-CIA-SFS
10EN-CIM
A
B
C
Model A B C
10EN-CIA-SFS 10.18"
25.86 cm
10.6"
26.92 cm
8.39"
21.31 cm
10EN-CIA-RF 9.87"
25.07 cm
8.72"
22.15 cm
8.38"
21.29 cm
10EN-CIM 9.87"
25.07 cm
8.72"
22.15 cm
8.38"
21.29 cm
* On SFS models
** On 30' 10EN-CIA-RF and 10EN-CIM models
EFFLUENT PUMPS
64
10ENH SERIES 1/2 HP
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Efuent wastewater removal • Dewatering • Water transfer
• Permanent Split Capacitor (PSC)
• Designed for continuous duty
• Energy-saving low amp draw
• Cooler running motor
• 1-1/2" FNPT (38 mm) discharge
• Handles solids up to 3/4" (19 mm) diameter
• Multiple switch options for automatic operation
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 20' 30' 40' 50'
115 60 9.5 16 1045 60 50 40 30 15 8 60 26
208-230 60 9.5 8.2 1045 60 50 40 30 15 8 60 26
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
511602 10ENH-CIA-SFS 1/2 115 Integral Float Switch 9" - 14"
22.86 cm - 35.56 cm
2" - 6"
5 cm - 15.24 cm
20'
6.1 m
38 lbs
17.24 Kg
511603 10ENH-CIA-SFS 1/2 115 Integral Float Switch 9" - 14"
22.86 cm - 35.56 cm
2" - 6"
5 cm - 15.24 cm
30'
9.1 m
39 lbs
17.69 Kg
511573 10ENH-CIA-RF 1/2 115 Piggyback Float Switch 9" - 12"
22.86 cm - 30.48 cm
3" - 6"
7.62 cm - 15.24 cm
20'
6.1 m
38 lbs
17.24 Kg
511574 10ENH-CIA-RF 1/2 115 Piggyback Float Switch 9" - 12"
22.86 cm - 30.48 cm
3" - 6"
7.62 cm - 15.24 cm
30'
9.1 m
39 lbs
17.69 Kg
511571 10ENH-CIM 1/2 115 Manual – – 20'
6.1 m
37 lbs
16.78 Kg
511572 10ENH-CIM 1/2 115 Manual – – 30'
9.1 m
38 lbs
17.24 Kg
511577 10ENH-CIA-RF 1/2 208-230 Piggyback Float Switch 9" - 12"
22.86 cm - 30.48 cm
3" - 6"
7.62 cm - 15.24 cm
20'
6.1 m
37 lbs
16.78 Kg
511578 10ENH-CIA-RF 1/2 208-230 Piggyback Float Switch 9" - 12"
22.86 cm - 30.48 cm
3" - 6"
7.62 cm - 15.24 cm
20'
6.1 m
37 lbs
16.78 Kg
511575 10ENH-CIM 1/2 208-230 Manual – – 20'
6.1 m
37 lbs
16.78 Kg
511576 10ENH-CIM 1/2 208-230 Manual – – 30'
9.1 m
38 lbs
17.24 Kg
10ENH-CIA-RF
10ENH-CIA-SFS
10ENH-CIM
EFFLUENT PUMPS
65
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
7
14
21
50 100 150 200 250 300
0
10
20
30
50
40
70
60
0
0
10 20 30 40 50 60 70 80
CONSTRUCTION
Cover Epoxy-coated cast iron/
*Thermoplastic
Motor Housing Epoxy-coated cast iron
Impeller Material Thermoplastic elastomer
Impeller Type Non-clog
Volute Epoxy-coated cast iron
Mechanical Shaft Seal Nitrile with carbon and
ceramic faces
Fasteners Stainless steel
Shaft Steel
Bearings Upper and lower ball bearing
Power Cord SJTW **SJTOW
Spec Sheet 996251
10ENH SERIES 1/2 HP
Model A B C
10ENH-CIA-SFS 12.9"
32.77 cm
10.45"
26.54 cm
8.07"
20.50 cm
10ENH-CIA-RF 11.03"
28.02 cm
9.53"
24.21 cm
6.74"
17.12 cm
10ENH-CIM 11.03"
28.02 cm
9.53"
24.21 cm
6.74"
17.12 cm
A
B
CA
B
C
10ENH-CIA-SFS 10ENH-CIA-RF
10ENH-CIM
A
B
C
* On SFS models
** On 30' 10ENH-CIA-RF and 10ENH-CIM models
EFFLUENT PUMPS
66

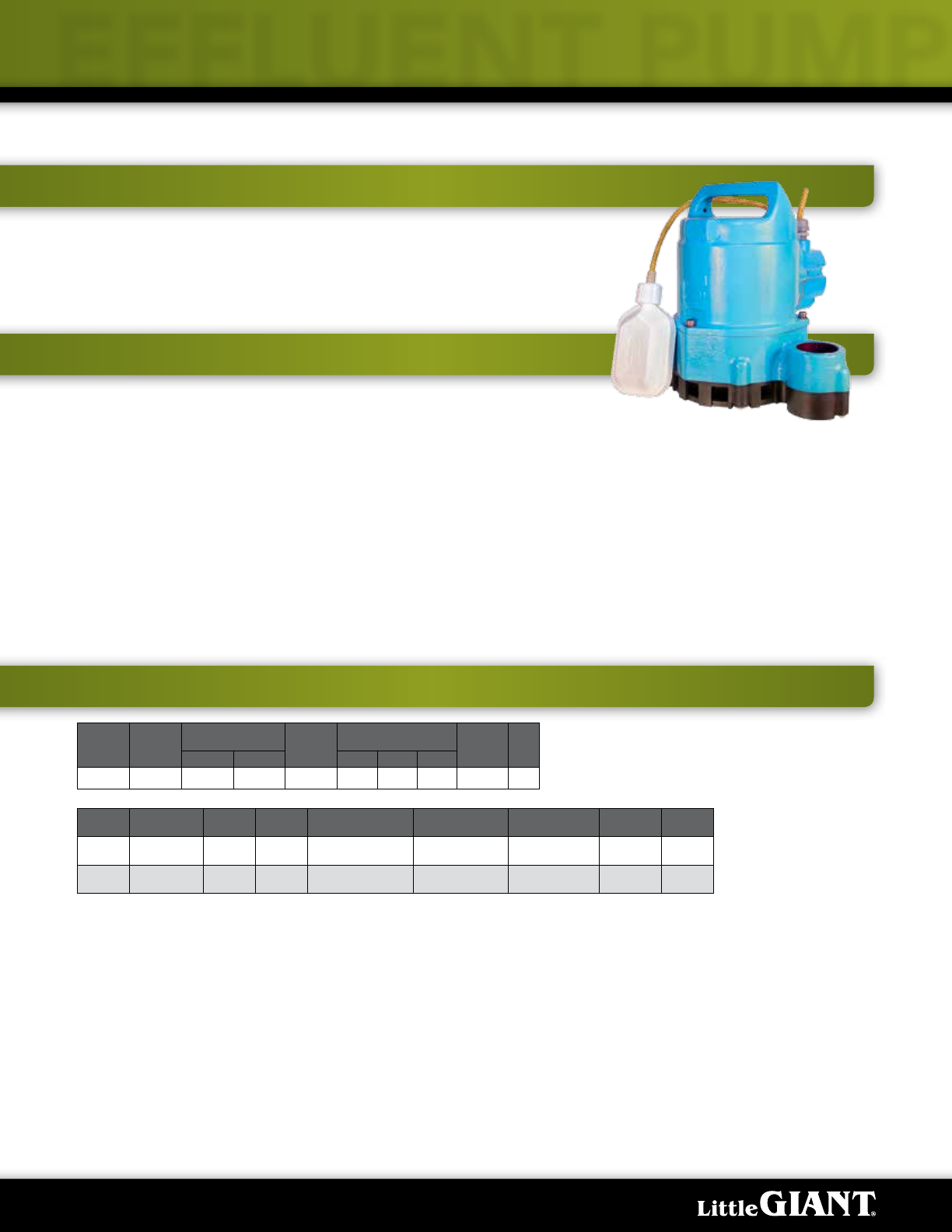

HT-10E HIGH TEMPERATURE 1/2 HP
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Boiler blow-down • Efuent wastewater removal • Sump pits
• Transformer vaults
• Split-phase motor
• Oil-lled motor housing
• Designed for continuous duty
• Handles solids up to 3/4" (19 mm) diameter
• Up to 200 °F (93 °C)
• CSA listed
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 20'
115 60 10.5 21 900 80 70 37 24 10.4
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
511700 HT-10E-CIA-FS 1/2 115 Integral Mechanical Float 10" - 12"
25.4 cm - 30.5 cm
2" - 4"
5 cm - 10.2 cm
15'
4.6 m
38 lbs
17.24 Kg
511600 HT-10E-CIM 1/2 115 Manual – – 15'
4.6 m
38 lbs
17.24 Kg
EFFLUENT PUMPS
67
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Flow - Gallons per Minute
Flow - Liters per Minute
Total Head in Meters
0
5
6
7
8
4
3
2
1
0 80 160
200 °F
Water Temp.
240 320
0
5
10
15
20
25
0 10 20 30 40 50 60 80 90 10070
73 °F
Water Temp.
CONSTRUCTION
Motor Housing Epoxy-coated cast iron
Impeller Material Nylon
Impeller Type Vortex
Volute Epoxy-coated cast iron
Mechanical Shaft Seal
Fluoroelastomer, stainless
steel, carbon, and
Ni-resist faces
Fasteners Stainless steel
Shaft Cold rolled steel
Bearings Upper and lower ball bearings
Power Cord 15' 16-3 SJOW-A,
chlorinated polyethylene
Spec Sheet 994347
HT-10E HIGH TEMPERATURE 1/2 HP
HT-10E-CIA-FS HT-10E-CIM
A
B
CA
B
C
Model A B C
HT-10E-CIA-FS 10.3"
26.16 cm
9.6"
24.38 cm
9.2"
23.37 cm
HT-10E-CIM 10.3"
26.16 cm
9.6"
24.38 cm
9.2"
23.37 cm
EFFLUENT PUMPS
68

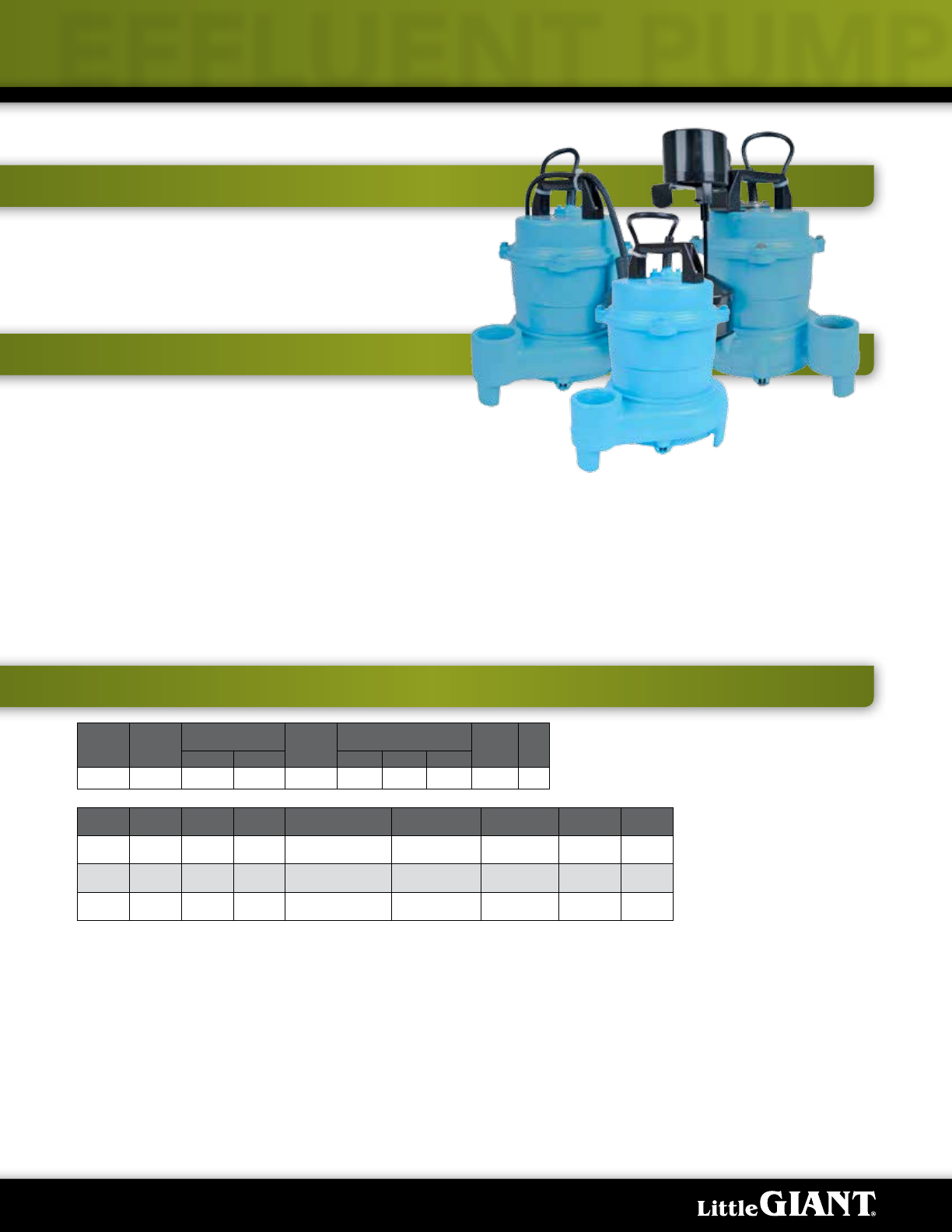

ESP50 SERIES 1/2 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 15' 20' 25'
115 60 6.7 12.9 650 61 51 36 31 13.4
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
620187 ESP50AM 1/2 115 Piggyback Mechanical 11.4"
28.9 cm
4.7"
11.9 cm
20'
6.1 m
24 lbs
10.89 Kg
620178 ESP50AV 1/2 115 Vertical Mechanical 7.5"
19.1 cm
4.5"
11.4 cm
20'
6.1 m
24 lbs
10.89 Kg
620174t ESP50M 1/2 115 Manual – – 20'
6.1 m
24 lbs
10.89 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Efuent wastewater removal • Dewatering
• Water transfer
• Oil-free motor
• Designed for continuous duty
• Handles solids up to 3/4" (19 mm) diameter
• 1-1/2" NPT (38 mm) discharge
• Multiple switch options for automatic operation
• 120 °F (49 °C) liquid temperature rating
• cCSAus listed
ESP50AM
ESP50M
ESP50AV
EFFLUENT PUMPS
69
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
5
10
15
20
25
30
35
0 10 20 30 40 50 60 70 80
0
2
4
6
8
10
0 100 200 300
CONSTRUCTION
Motor Housing Polypropylene
Impeller Material Polypropylene
Impeller Type Non-clog
Volute Polypropylene
Motor Shaft Polypropylene
Shaft Seal Carbon/ceramic
Fasteners Stainless steel
Bearings Upper and lower ball bearings
Power Cord SJTW
Spec Sheet 996176
ESP50 SERIES 1/2 HP
Model A B C
ESP50AM 10.59"
26.9 cm
8.23"
20.9 cm
7.95"
20.2 cm
ESP50M 10.59"
26.9 cm
9.33"
23.7 cm
8.46"
21.5 cm
ESP50AV 10.3"
26.16 cm
8.23"
20.9 cm
7.95"
20.2 cm
A
B
C
A
B
C
A
B
C
ESP50M
ESP50AV
ESP50AM
EFFLUENT PUMPS
70
14EH/16EH SERIES 1/2 HP, 1 HP
Pump Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 20' 30' 40' 50' 60'
14EH 115 60 12.5 22 1450 60 40 20 – – 50 21.6
208-240 60 5.7 11 1275 60 40 20 – – 50 21.6
16EH
230 60 10.2 30 2200 – 90 70 45 30 81 35.1
208-240 60 6.6 25 1350 – 90 70 45 30 81 35.1
460-380 60 3.2 12.5 1450 – 90 70 45 30 81 35.1
575 60 2.5 9.8 1450 – 90 70 45 30 81 35.1
Item No. Model HP Volts Cord Weight
514220 14EH-CIM 1/2 115 20'
6.1 m
82 lbs
37.19 Kg
514221 14H-CIM 1/2 115 20'
6.1 m
82 lbs
37.19 Kg
Item No. Model HP Volts Phase Cord Weight
514520 16EH-CIM 1/2 230 1* 20'
6.1 m
89 lbs
40.37 Kg
514530 16EH-CIM 1/2 208-240 3** 20'
6.1 m
82 lbs
37.19 Kg
514540 16EH-CIM 1/2 460-380 3** 20'
6.1 m
82 lbs
37.19 Kg
514550*** 16EH-CIM 1/2 575 3** 20'
6.1 m
82 lbs
37.19 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Permanent Split Capacitor (PSC) ball bearing motor
• High speed 3450 rpm
• Completely submersible, designed for continuous duty
• High head model
• 2" FNPT (51 mm) discharge
• Handles solids up to 3/4" (19 mm) diameter
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed (514550 CSA only)
• Efuent wastewater removal • Dewatering
• Water transfer
* Single-phase pumps can use a mechanical oat switch or a single-phase control panel for automatic on/off
** Three-phase pumps must have a three-phase control panel for automatic or manual operation
*** CSA only
14EH-CIM
16EH-CIM
EFFLUENT PUMPS
71
Hotline: 1.800.701.7894 www.franklinwater.com

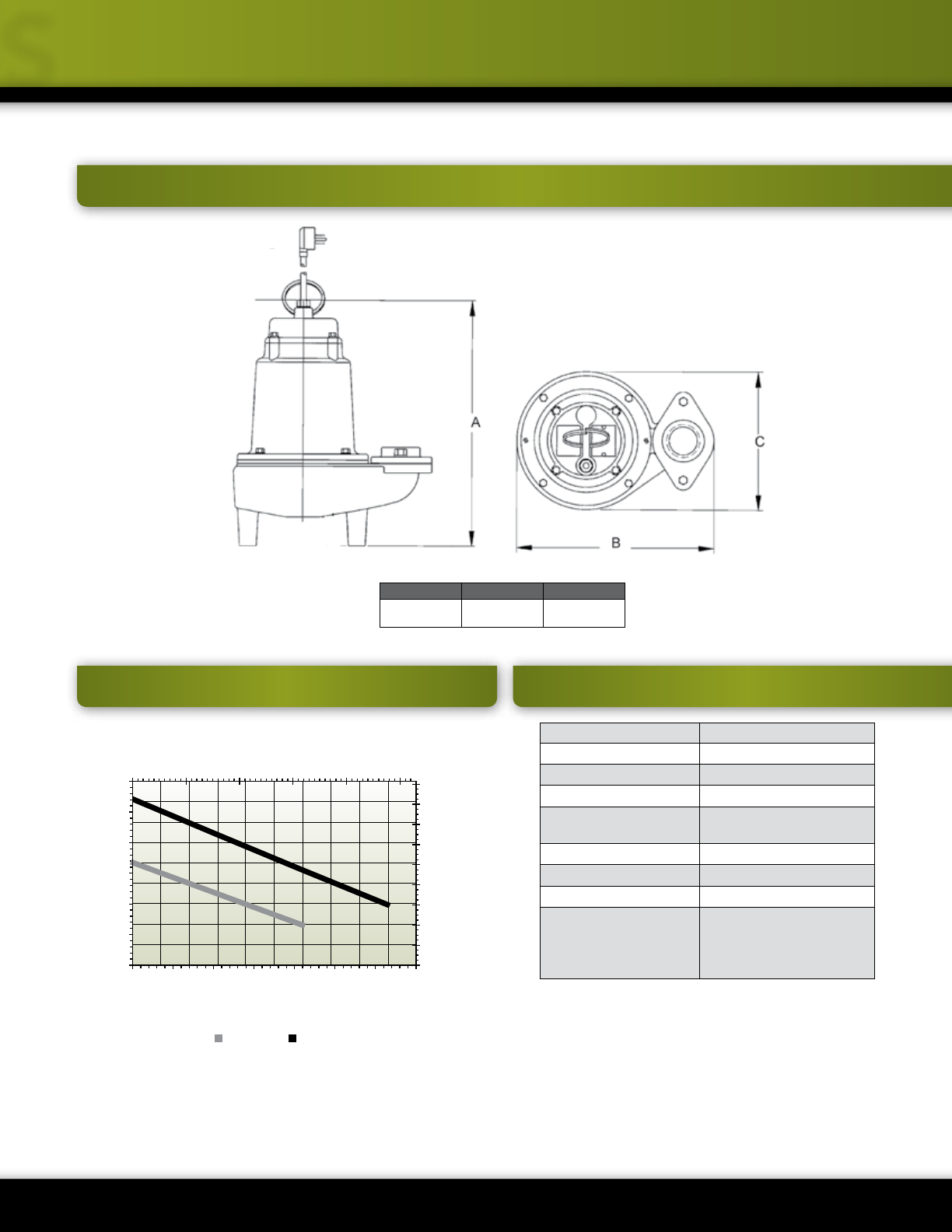

ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
16EH14EH
0
30
20
50
40
60
70
80
90
0 10 20 30 40 50 60 80 9070
0
5
10
15
20
25
0 50 100 150 200 250 300 350
10
100
CONSTRUCTION
Motor Housing Epoxy-coated cast iron
Impeller Material Epoxy-coated cast iron
Impeller Type Non-clog
Volute Epoxy-coated cast iron
Mechanical Shaft Seal Nitrile with carbon and
ceramic faces
Fasteners Stainless steel
Shaft Stainless steel
Bearings Upper and lower ball bearings
Power Cord
SJTW-A (514220, 514221,
and 514520)
SOW-A (514530, 514540,
and 514550)
Spec Sheet 996568

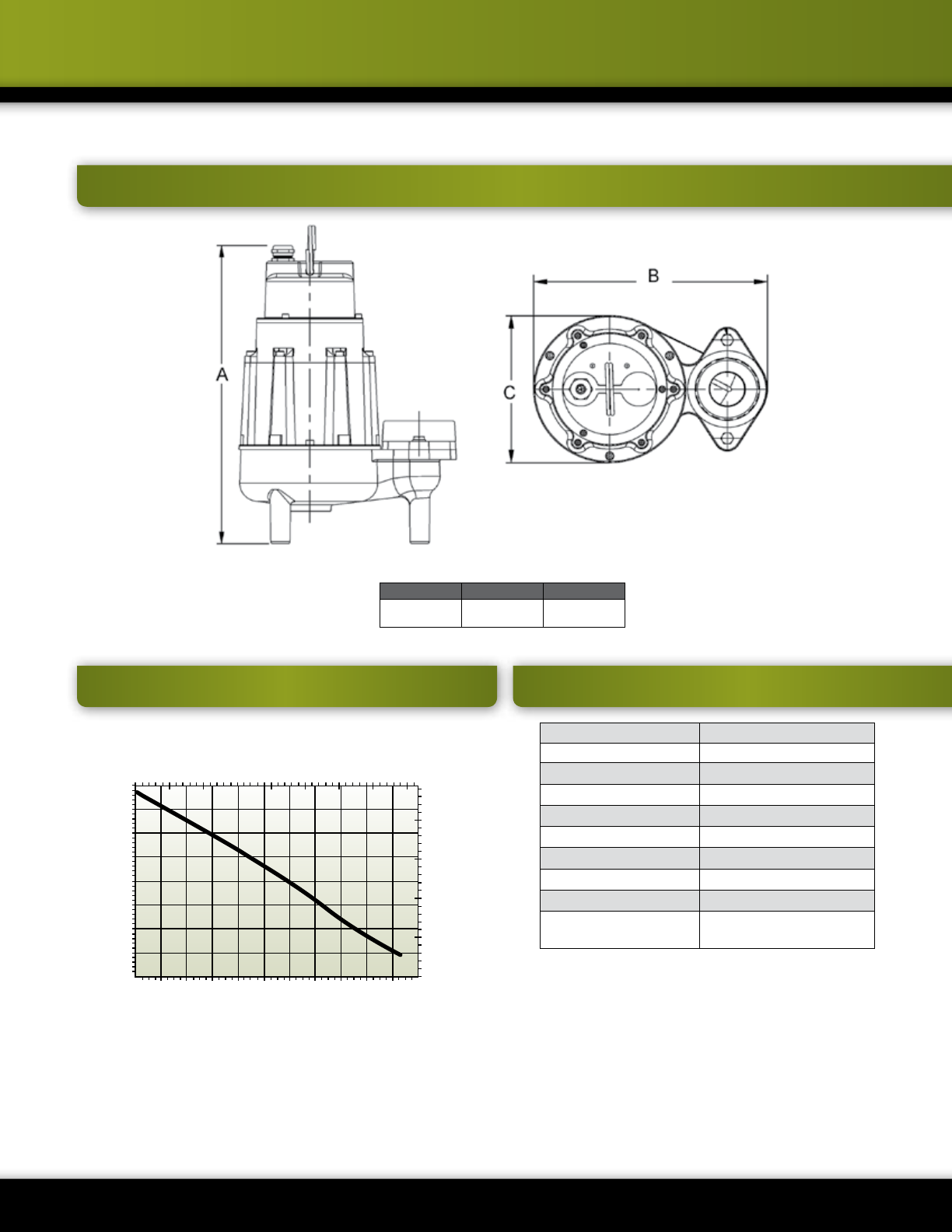

14EH/16EH SERIES 1/2 HP, 1HP
A B C
16.2"
41.15 cm
14.1"
35.81 cm
9.9"
25.15 cm
EFFLUENT PUMPS
72
WS EFFLUENT SERIES 1/3 HP, 1/2 HP, 1 HP
Item No. Model HP Volts Phase HZ Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15' 20' 25' 30' 35' 40' 45' 50' 60' 80'
620010 WS30M 1/3 115 1 60 10.4 50.4 1000 - - 70 45 15 - - - - - - - 28 12
620000 WS30AM 1/3 115 1 60 10.4 50.4 1000 - - 70 45 15 - - - - - - - 28 12
620231 WS50M-20 1/2 115 1 60 11.6 26.9 950 105 92 80 64 50 - - - - - - - 42 18.2
620233 WS50AM-20 1/2 115 1 60 11.6 26.9 950 105 92 80 64 50 - - - - - - - 42 18.2
620251 WS50M-12-20 1/2 208-230 1 60 9.7 32.6 1100 105 92 80 64 - - - - - - - - 42 18.2
620253 WS50AM-12-20 1/2 208-230 1 60 9.7 32.6 1100 105 92 80 64 50 - - - - - - - 42 18.2
620200 WS50HM 1/2 115 1 60 15 26.9 1100 - - 107 98 88 78 67 57 43 30 - - 63 27.3
620218 WS50HM-20 1/2 115 1 60 15 26.9 1470 - 115 107 98 88 78 67 57 43 30 - - 63 27.3
620219 WS50HAM-20 1/2 115 1 60 15 26.9 1470 - 115 107 98 88 78 67 57 43 30 - - 63 27.3
620220 WS50HM-12-20 1/2 208-230 1 60 9.7 32.6 1540 - 115 107 98 88 78 67 57 43 30 - - 63 27.3
620221 WS50HAM-12-20 1/2 208-230 1 60 9.7 32.6 1540 - 115 107 98 88 78 67 57 43 30 - - 63 27.3
620222 WS100HM-12-20 1 208-230 1 60 13.6 46.9 2660 - 150 145 140 134 128 121 115 106 97 76 27 90 39
620223 WS100HAM-12-20 1 208-230 1 60 13.6 46.9 2660 - 150 145 140 134 128 121 115 106 97 76 27 90 39
620207 WS100HM-32 1 208-230 3 60 6.2/6.4 16.7 2340 - 150 145 140 134 128 121 115 106 97 76 27 90 39
620206 WS100HM-34 1 460 3 60 3.1 16.7 2000 - 150 145 140 134 128 121 115 106 97 76 27 90 39
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Oil-lled motor
• Designed for high torque with automatic reset
• Piggyback mechanical oat option available for automatic operation
• 2" NPT (51 mm) discharge
• Handles solids up to 3/4" (19 mm) diameter
• 120 °F (49 °C) liquid temperature rating
• cCSAus listed
• Efuent wastewater removal • Dewatering
• Water transfer
Item No. Model Volts Switch Type/
Operation On Level Off Level Cord Weight
620010 WS30M 115 Manual – – 20' - 6.1 m 51 lbs - 22.68 Kg
620000 WS30AM 115 Piggyback Mechanical Float Switch Adjustable 20' - 6.1 m 53 lbs - 24.04 Kg
620231 WS50M-20 115 Manual – – 20' - 6.1 m 55 lbs - 24.95 kg
620233 WS50AM-20 115 Piggyback Mechanical Float Switch Adjustable 20' - 6.1 m 57 lbs - 25.85 Kg
620251 WS50M-12-20 208-230 Manual – – 20' - 6.1 m 56 lbs - 25.40 Kg
620253 WS50AM-12-20 208-230 Piggyback Mechanical Float Switch Adjustable 20' - 6.1 m 58 lbs - 26.31 Kg
620200 WS50HM 115 Manual – – 30' - 9.1 m 57 lbs - 35.85 Kg
620218 WS50HM-20 115 Manual – – 20' - 6.1 m 56 lbs - 25.40 Kg
620219 WS50HAM-20 115 Piggyback Mechanical Float Switch Adjustable 20' - 6.1 m 58 lbs - 26.31 Kg
620220 WS50HM-12-20 208-230 Manual – – 20' - 6.1 m 56 lbs - 25.40 Kg
620221 WS50HAM-12-20 208-230 Piggyback Mechanical Float Switch Adjustable 20' - 6.1 m 58 lbs - 26.31 Kg
620222 WS100HM-12-20 208-230 Manual – – 20' - 6.1 m 57 lbs - 25.85 Kg
620223 WS100HAM-12-20 208-230 Piggyback Mechanical Float Switch Adjustable 20' - 6.1 m 59 lbs - 26.76 Kg
620207 WS100HM-32 208-230 Manual – – 30' - 9.1 m 62 lbs - 28.12 Kg
620206 WS100HM-34 460 Manual – – 30' - 9.1 m 62 lbs - 28.12 Kg
WS30AM
WS50HAM
WS30AM
WS50HAM
EFFLUENT PUMPS
73
Hotline: 1.800.701.7894 www.franklinwater.com
Model A B C
WS30 11.25"
28.58 cm
4.68"
11.89 cm
9.38"
23.83 cm
WS50 13.75"
34.93 cm
4.68"
11.89 cm
9.38"
23.83 cm
WS50H 13.75"
34.93 cm
4.68"
11.89 cm
9.38"
23.83 cm
WS100H 13.75"
34.93 cm
4.68"
11.89 cm
9.38"
23.83 cm
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Flow - Gallons per Minute
Flow - Liters per Minute
Total Head in Meters
WS30M WS50M WS100HWS50H
0 20 40 60 80 100 120 140 160 180
0
10
20
30
40
50
60
70
80
90
100
0 100 200 300 400 500 600 700
0
5
10
15
20
25
30
CONSTRUCTION
Motor Housing Cast iron
Impeller Material Cast iron
Impeller Type Non-clog
Volute Cast iron
Motor Shaft Stainless steel
Shaft Seal Carbon/ceramic
Fasteners Stainless steel
Bearings Upper and lower ball bearings
Power Cord SJOW
Spec Sheet 996171
WS EFFLUENT SERIES 1/3 HP, 1/2 HP, 1 HP
EFFLUENT PUMPS
74
WSV50 EFFLUENT SERIES 1/2 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 20' 25' 30' 35' 40'
115 60 10.2 39 1100 83 74 62 48 30 45 19.5
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
620238 WSV50HM 1/2 115 – – – 20'
6.1 m
36 lbs
16.33 Kg
620239 WSV50HAM 1/2 115 Piggyback Mechanical Float Switch Adjustable Adjustable 20'
6.1 m
36 lbs
16.33 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Permanent Split Capacitor (PSC)
• Designed for high torque with automatic reset
• High head model
• Solids handling vortex impeller
• Piggyback mechanical oat option available for automatic operation
• 2" NPT (51 mm) discharge
• Handles solids up to 3/4" (19 mm) diameter
• 120 °F (49 °C) liquid temperature rating
• cCSAus listed
• Efuent wastewater removal • Dewatering
• Water transfer
WSV50HM
WSV50HAM
EFFLUENT PUMPS
75
Hotline: 1.800.701.7894 www.franklinwater.com

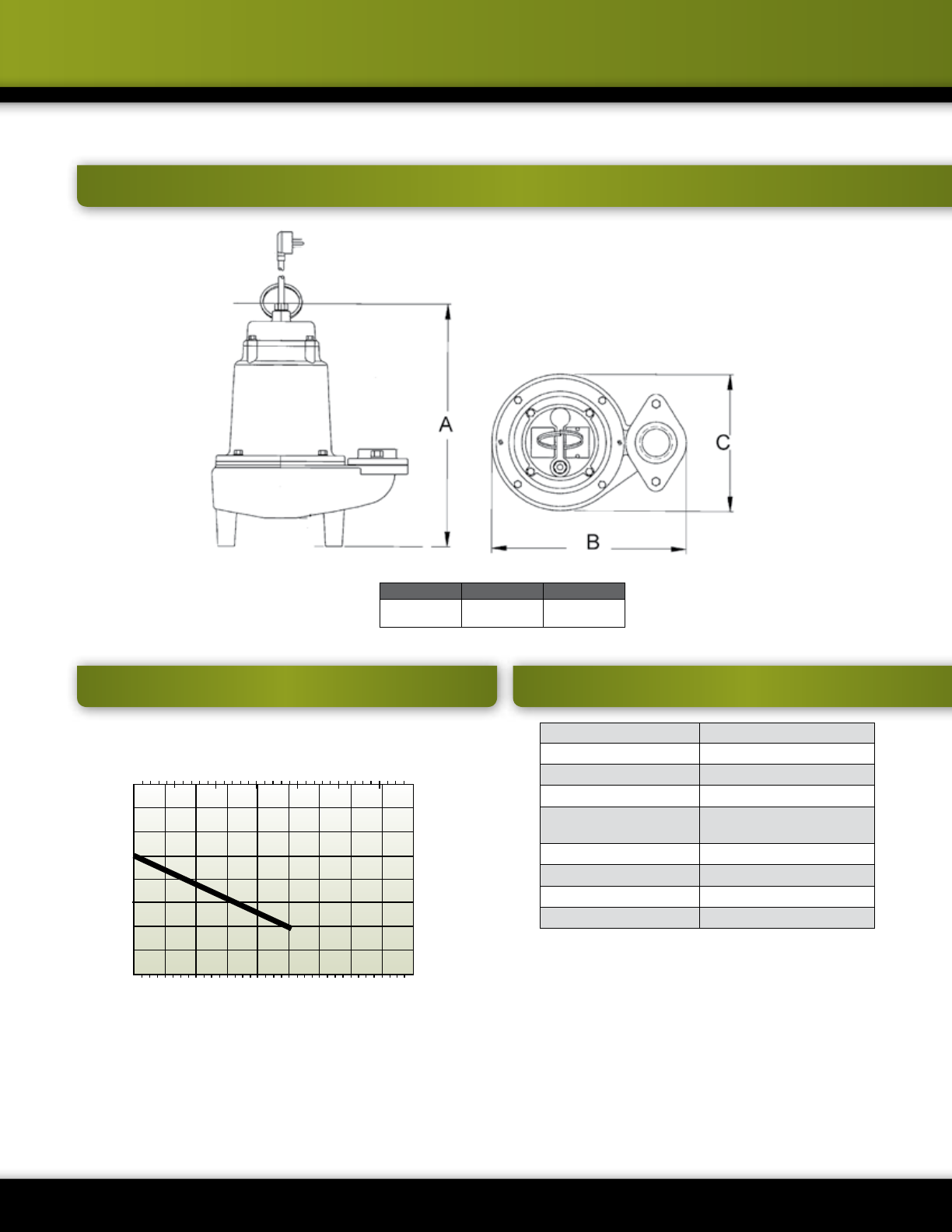

ENGINEERING DATA
PERFORMANCE DATA
0.0
4.0
8.0
12.0
16.0
0 50 100 150 200 250 300 350
0
10
20
30
40
50
0 10 20 30 40 50 60 70 80 90
Total Head in Feet
Flow - Gallons per Minute
Flow - Liters per Minute
Total Head in Meters
CONSTRUCTION
Motor Housing Cast iron
Impeller Material Cast iron
Impeller Type Vortex
Volute Cast iron
Motor Shaft Stainless steel
Shaft Seal Carbon/ceramic
Fasteners Stainless steel
Bearings Upper and lower ball bearings
Power Cord SJOW
Spec Sheet 996173
WSV50 EFFLUENT SERIES 1/2 HP
A
A B C
14.49"
36.8 cm
6.13"
15.57 cm
9.67"
24.56 cm
EFFLUENT PUMPS
76
20E SERIES 2 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 20' 30' 40' 60' 80'
230* 60 16.4 31 3872 135 125 110 89 62 110 47.6
460** 60 5.75 7.5 2571 135 125 110 89 62 110 47.6
200-208** 60 13.1 32 2478 135 125 110 89 62 110 47.6
230** 60 11.64 28.3 2476 135 125 110 89 62 110 47.6
Item No. Model HP Volts Phase Cord Weight
520200 20E-CIM 2 230 1* 20'
6.1 m
92 lbs
41.47 Kg
520230 20E-CIM 2 230 3** 30'
9.1 m
93.5 lbs
42.41 Kg
520250 20E-CIM 2 230 3** 20'
6.1 m
92 lbs
41.47 Kg
520275 20E-CIM 2 460 3** 20'
6.1 m
92 lbs
41.47 Kg
520225 20E-CIM 2 200-208 3** 20'
6.1 m
92 lbs
41.47 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Permanent Split Capacitor (PSC)
• Completely submersible, designed for continuous duty
• 2" NPT (51 mm) discharge
• Handles solids up to 3/4” (19 mm) diameter
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed
* Single-phase pumps can use a mechanical oat switch or a single-phase control panel for automatic on/off
** Three-phase pumps must have a three-phase control panel for automatic or manual operation
• Efuent wastewater removal • Dewatering
• Water transfer
EFFLUENT PUMPS
77
Hotline: 1.800.701.7894 www.franklinwater.com

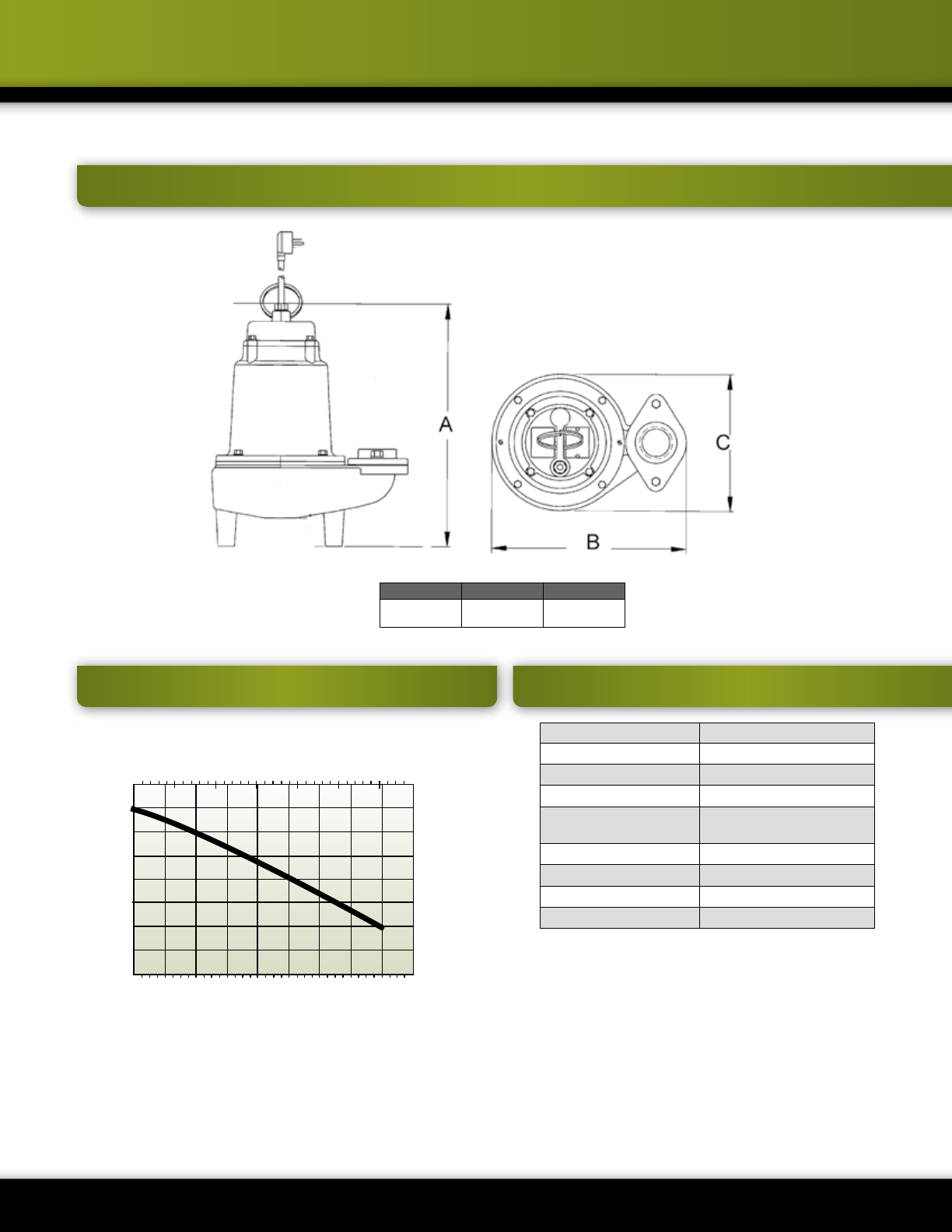

ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0 100 200 300 400 500
0
20
40
60
80
100
120
0 20 40 60 80 100 120 140
0
5
10
15
20
25
30
35
CONSTRUCTION
Cover Epoxy-coated cast iron
Motor Housing Epoxy-coated cast iron
Impeller Material Red brass
Impeller Type Vortex
Volute Epoxy-coated cast iron
Mechanical Shaft Seal Carbon/ceramic
Fasteners Stainless steel
Shaft Stainless steel
Bearings Upper and lower sintered
sleeve bearings
Power Cord SOOW
Spec Sheet 995211
20E SERIES 2 HP
A
B
C
A B C
17.75"
45.09 cm
12.93"
32.84 cm
8.42"
21.39 cm
EFFLUENT PUMPS
78
Item No Model HP Volts Hz Amps Watts Wires Well Size Performance (GPM @ Height in Feet)
FLA Start 50' 100' 150' 200' 250'
558221 WE10G05P4-21 1/2 115 60 10 64.4 670 24" 15 13 10 72
558222 WE10G05P4-22 1/2 230 60 5 23.2 670 24" 15 13 10 72
558223 WE20G05P4-21 1/2 115 60 10 64.4 670 24" 26 20 8 – –
558224 WE20G05P4-22 1/2 230 60 5 23.2 670 24" 26 20 8 – –
558225 WE30G05P4-21 1/2 115 60 10 64.4 670 24" 32 14 – – –
558226 WE30G05P4-22 1/2 230 60 5 23.2 670 24" 32 14 – – –

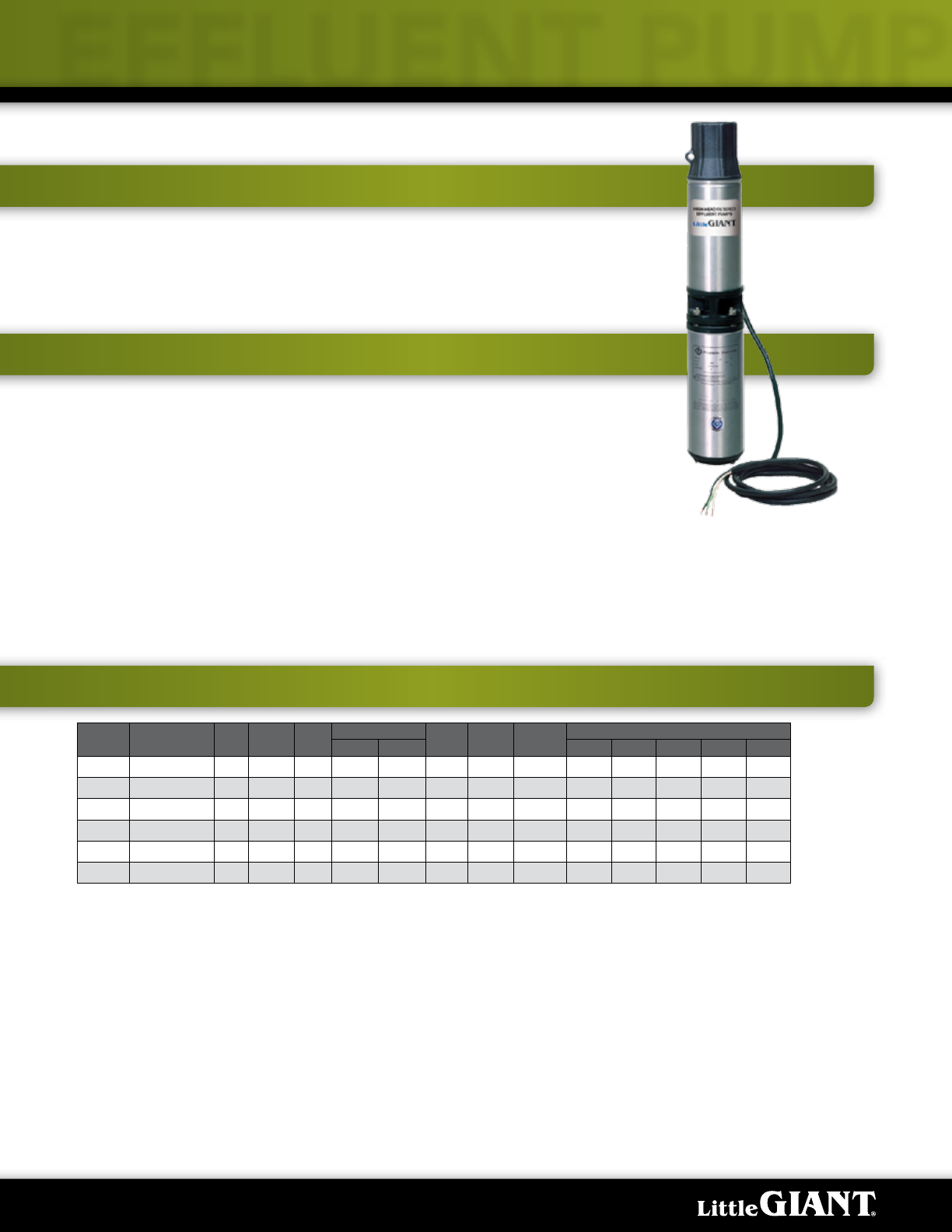

WE SERIES 1/2 HP
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• High head lter efuent • Filtered efuent service • Aeration
• Ornamental fountains • Water fountains
• Franklin Electric submersible motor
• Heavy duty, 300 V, 10’ (3 m) SJOW motor stripped leads
• Removable built-in check valve
• Non-corrosive thermoplastic discharge and motor brackets
• Proven “PPO” staging allows close tolerances and increased performance
• High quality top bearing for maximum durability and years of reliable service
• Hex rubber bearing has extra-large surface for shaft stability and multiple ow
channels for keeping particles away from bearing surfaces
• Stainless steel up thrust washer prevents excessive wear in service applications
• cCSAus listed
EFFLUENT PUMPS
79
Hotline: 1.800.701.7894 www.franklinwater.com

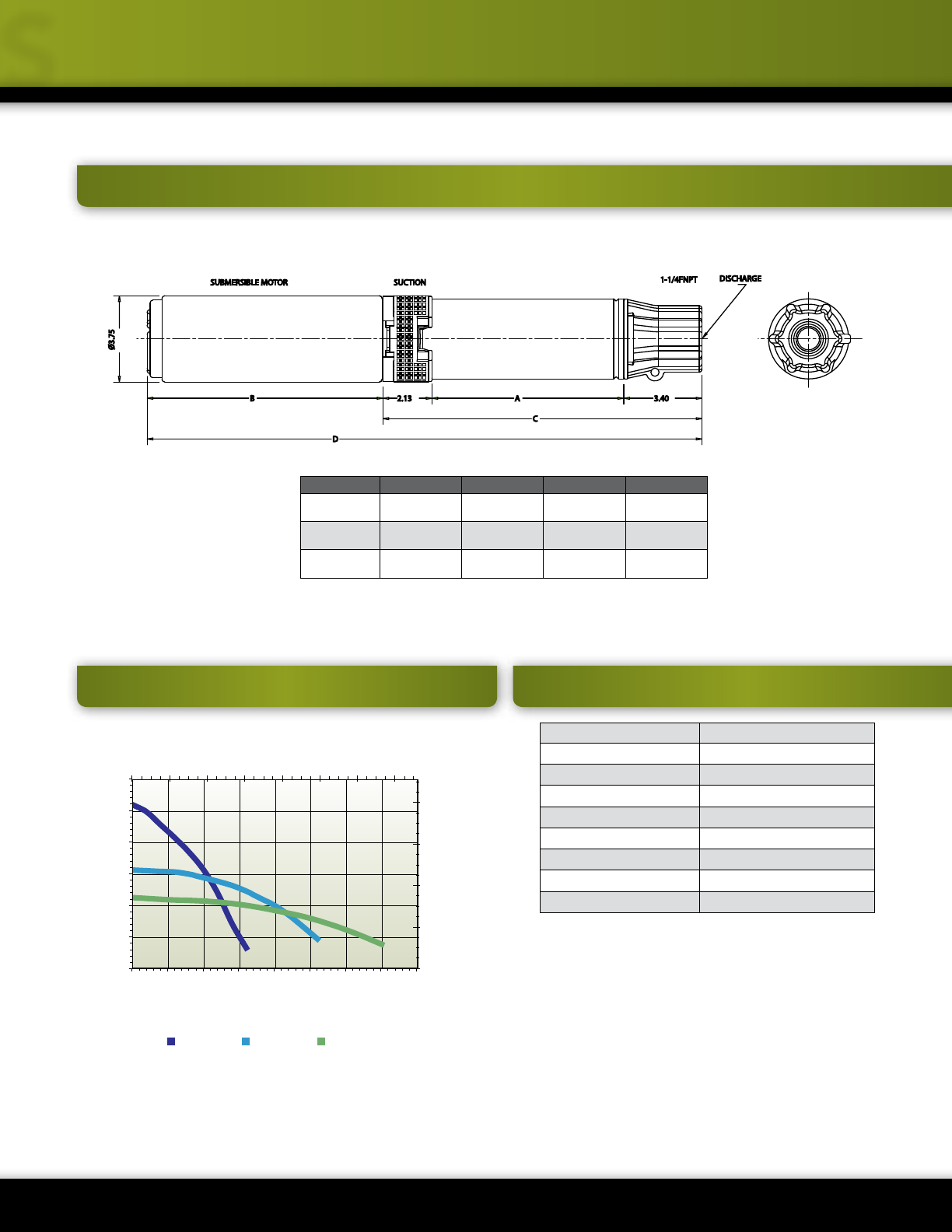

ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
50
100
150
200
250
300
0 5 10 15 20 25 30 35 40
0
20
40
60
80
0 20 40 60 80 100 120 140
20-WE2010-WE10 30-WE30
CONSTRUCTION
Motor Housing Stainless steel
Impeller Material Celcon
Diffuser Glass-lled PPO
Power Cord 10' SJOW
Check Valve Celcon
Fasteners Stainless steel
Shaft Stainless steel
Bearings PEEK
Discharge Glass-lled polypropylene
Spec Sheet 995119
WE SERIES 1/2 HP
SUBMERSIBLE MOTOR SUCTION DISCHARGE
Ø3.75
A3.402.13
B
1-1/4FNPT
C
D
Model A B C D
2-Wire 10 gpm 7"
17.78 cm
9.38"
23.83 cm
12.53"
31.83 cm
21.91"
55.65 cm
2-Wire 20 gpm 9"
22.86 cm
9.38"
23.83 cm
14.53"
36.91 cm
23.91"
60.73 cm
2-Wire 30 gpm 6.5"
16.51 cm
9.38"
23.83 cm
12.03"
30.56 cm
21.41"
54.38 cm
EFFLUENT PUMPS
80

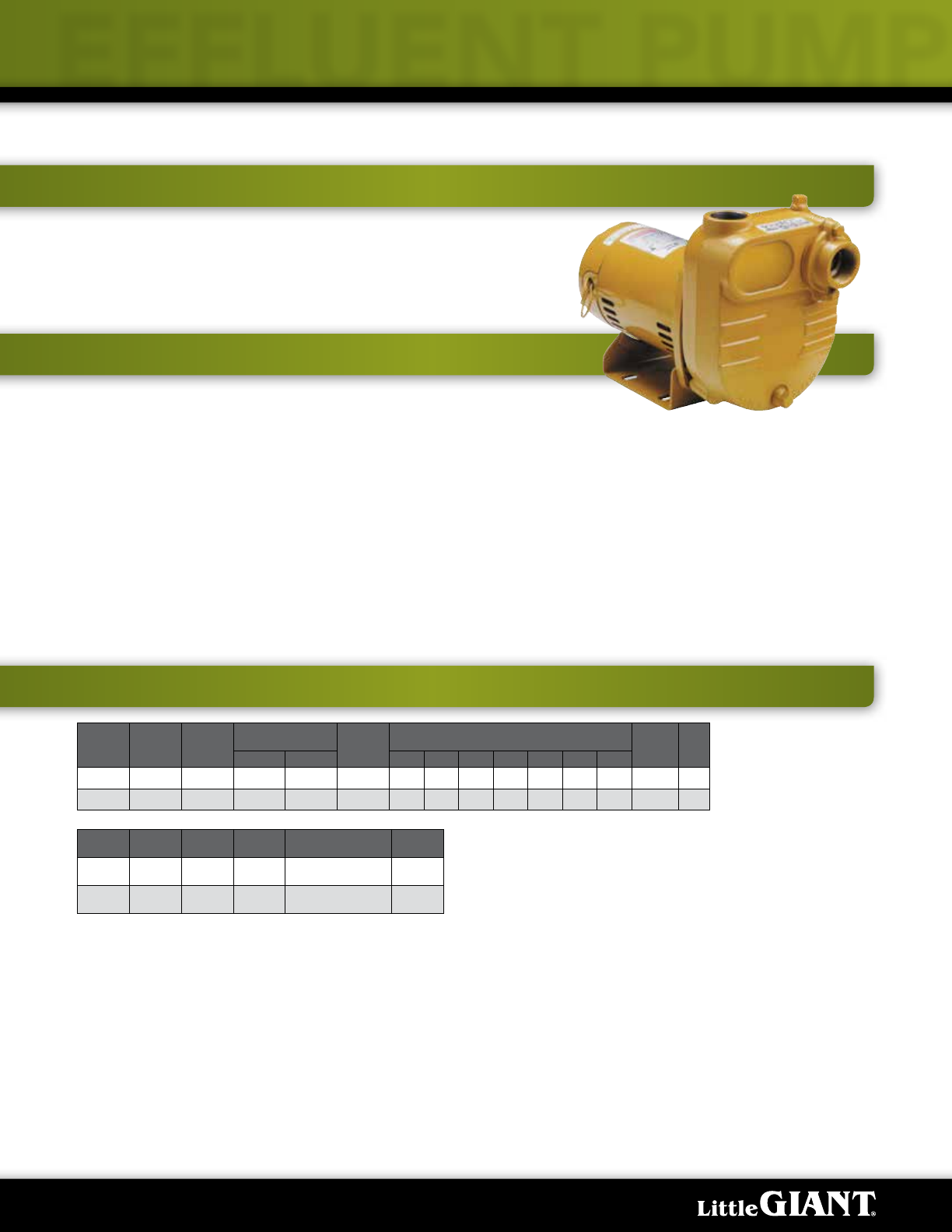

BE SERIES 1/2 HP, 3/4 HP
HP Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 20' 25' 30' 35' 40' 45' 50'
1/2 115/230 60 12.4/6.2 26.3 810 45 39 31 24 16 8 – 50 21.6
3/4 115/230 60 14.8/7.4 36.3 1000 58 53 44 36 29 18 10 56 23.8
Item No. Model HP Volts Switch Type/
Operation Weight
621815 BE-S50 1/2 115/230 Manual 42 lbs
19.05 Kg
621825 BE-S75 3/4 115/230 Manual 49
22.23 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Dewatering • Flood irrigation • Livestock watering
• Installations with septic tanks in areas with drainage problems
• Higher than NEMA service factor dual compartment motor
• Designed for continuous duty
• Built-in check valve
• Handles solids up to 1/4" (6.4 mm) diameter
• 1-1/4" (31.75 mm) NPT discharge
• 120 °F (49 °C) liquid temperature rating
• CSA listed
EFFLUENT PUMPS
81
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
BE-S50 BE-S75
0
10
20
30
40
50
60
0 10 20 30 40 50 60 70
0
5
10
15
0 50 100 150 200 250
CONSTRUCTION
Motor Housing Cast iron
Impeller Material Cast iron
Impeller Type Semi-open
Volute Cast iron
Motor Shaft Stainless steel
Shaft Seal Carbon/ceramic
Fasteners Plated steel
Bearings Upper and lower ball bearings
Power Cord None
Spec Sheet 996164
BE SERIES 1/2 HP, 3/4 HP
A
BC
D
E
R
O
Q
P
M
N
L
K
J
H
G
F
Model A B C D E F G H J K L M N O P Q R
BE-S50 1-1/4"
3.18 cm
1-1/4"
3.18 cm
1/2"
1.27 cm
1/2"
1.27 cm
.43" x .93"
1.09 x 2.36 cm
4.25"
10.8 cm
7.25"
18.42 cm
10"
25.4 cm
4.9"
12.45 cm
6.5"
16.51 cm
7.6"
19.3 cm
15.3"
38.86 cm
3.1"
7.87 cm
4.9"
12.45 cm
5.5"
13.97 cm
6.8"
17.27 cm
3"
7.62 cm
BE-S75 1-1/4"
3.18 cm
1-1/4"
3.18 cm
1/2"
1.27 cm
1/2"
1.27 cm
.43" x .93"
1.09 x 2.36 cm
4.25"
10.8 cm
7.25"
18.42 cm
10"
25.4 cm
4.9"
12.45 cm
6.5"
16.51 cm
7.6"
19.3 cm
15.3"
38.86 cm
3.1"
7.87 cm
4.9"
12.45 cm
5.5"
13.97 cm
6.8"
17.27 cm
3"
7.62 cm
SEWAGE PUMPS
It’s a dirty job, but Little Giant sewage pumps are made for the tough and demanding task
of efuent and wastewater transfer. For the home or in commercial or industrial applications,
Little Giant sewage pumps are designed with durability, reliability, and efciency as the
number one key advantages over the competition. With choices between 4/10 to 2 hp, manual
operation or automatic, multiple switch options, and the performance shut-off ranges between
18' and 130', these pumps are up to the task.
SEWAGE PUMPS
SEWAGE PUMPS
84

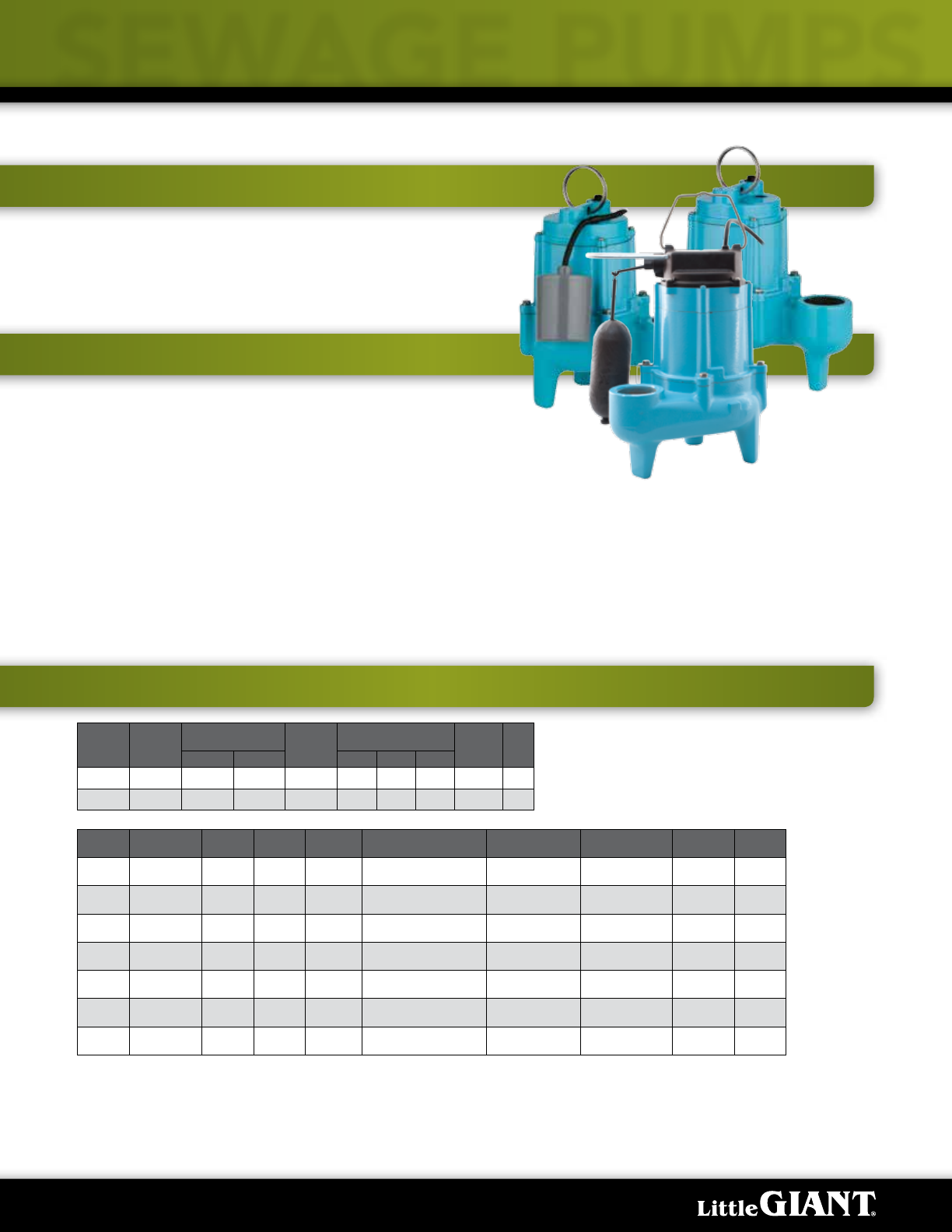

9SN SERIES 4/10 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 60 8.5 17 850 110 70 30 20 8.7
208/230 50/60 4 7.5 800 110 70 30 20 8.7
Item No. Model HP Volts Discharge Switch Type/
Operation On Level Off Level Cord Weight
509228 9SN-CIA-SFS 4/10 115 2" Integral Snap-Action Float 9" - 12"
22.26 cm - 30.48 cm
3" - 6"
7.62 cm - 15.24 cm
20'
6.1 m
35.5 lbs
16.1 Kg
509204 9SN-CIA-RF 4/10 115 2" Piggyback Mechanical Float 9" - 14"
22.86 cm - 35.56 cm
2" - 6"
5 cm - 15.24 cm
20'
6.1 m
35.5 lbs
16.1 Kg
509215 9SN-CIA-RF 4/10 115 3" Piggyback Mechanical Float 9" - 14"
22.86 cm - 35.56 cm
2" - 6"
5 cm - 15.24 cm
20'
6.1 m
35.5 lbs
16.1 Kg
509226 9SN-CIM 4/10 115 3" Manual – – 20'
6.1 m
35.5 lbs
16.1 Kg
509203 9SN-CIM 4/10 115 2" Manual – – 20'
6.1 m
34.5 lbs
15.65 Kg
509217 9SN-CIM 4/10 208-230 2" Manual – – 20'
6.1 m
36 lbs
16.33 Kg
509227 9SN-CIM 4/10 208-230 3" Manual – – 20'
6.1 m
36 lbs
16.33 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Sewage and efuent wastewater transfer • Dewatering
• Permanent Split Capacitor (PSC)
• Energy-saving low amp draw
• Cooler running motor
• Designed for continuous duty
• 2" FNPT (51 mm) and 3" FNPT (76.2 mm) discharge models
• Handles solids up to 2" (51 mm) diameter
• Multiple switch options for automatic operation
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed
9SN-CIA-RF
9SN-CIM
9SN-CIA-SFS
SEWAGE PUMPS
85
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0 20 40 60 80 120100
0
1
2
3
4
5
7
6
0
5
10
15
25
20
0 100 200 400300
CONSTRUCTION
Cover Epoxy-coated cast iron/
*Thermoplastic
Motor Housing Epoxy-coated cast iron
Impeller Material Nylon
Impeller Type Vortex
Volute Epoxy-coated cast iron
Mechanical Shaft Seal Nitrile with carbon and
ceramic faces
Fasteners Stainless steel
Shaft Steel
Bearings Upper sintered sleeve and
lower ball bearings
Power Cord SJTW **SJTOW
* On SFS models
** On 30' 9SN-CIA-RF and 9SN-CIM models
Spec Sheet 996194
9SN SERIES 4/10 HP
A
115 VOLT PLUG
C
B
A
A
B
B
C
C
9SN-CIA-SFS 9SN-CIA-RF
9SN-CIM
Model A B C
9SN-CIA-SFS 13.12"
33.33 cm
10.54"
26.77 cm
9.25"
23.5 cm
9SN-CIA-RF 11.4"
28.96 cm
11.64"
29.5 cm
6.8"
17.27 cm
9SN-CIM 11.4"
28.96 cm
11.64"
29.5 cm
6.8"
17.27 cm
SEWAGE PUMPS
86
10SN SERIES 1/2 HP
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 60 9.5 17 1000 120 95 70 25 10.9
208/230 50/60 4.5 7.5 900 120 95 70 25 10.8
Item No. Model HP Volts Discharge Switch Type/
Operation On Level Off Level Cord Weight
511346 10SN-CIA-SFS 1/2 115 2" Integral Snap-Action Float 9" - 12"
22.26 cm - 30.48 cm
3" - 6"
7.62 cm - 15.24 cm
20'
6.1 m
37.5 lbs
17.5 Kg
511323 10SN-CIA-RF 1/2 115 2" Piggyback Mechanical Float 9" - 14"
22.86 cm - 35.56 cm
2" - 6"
5 cm - 15.24 cm
20'
6.1 m
36.5 lbs
16.56 Kg
511326 10SN-CIA-RF 1/2 115 2" Piggyback Mechanical Float 9" - 14"
22.86 cm - 35.56 cm
2" - 6"
5 cm - 15.24 cm
20'
6.1 m
37.5 lbs
17.5 Kg
511344 10SN-CIM 1/2 115 3" Manual – – 20'
6.1 m
36.5 lbs
16.56 Kg
511322 10SN-CIM 1/2 115 2" Manual – – 20'
6.1 m
35.5 lbs
16.1 Kg
511328 10SN-CIM 1/2 208-230 2" Manual – – 20'
6.1 m
36 lbs
16.33 Kg
511345 10SN-CIM* 1/2 208-230 3" Manual – – 20'
6.1 m
36 lbs
16.33 Kg
• Permanent Split Capacitor (PSC)
• Energy-saving low amp draw
• Cooler running motor
• Designed for continuous duty
• 2" FNPT (51 mm) and 3" FNPT (76.2 mm) discharge models
• Handles solids up to 2" (51 mm) diameter
• Multiple switch options for automatic operation
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed
• Sewage and efuent wastewater transfer • Dewatering
10SN-CIA-RF
10SN-CIM
10SN-CIA-SFS
SEWAGE PUMPS
87
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0 20 40 60 80 120100
0
3
6
9
0
5
10
15
30
25
20
0 100 200 400300
CONSTRUCTION
Cover Epoxy-coated cast iron/
*Thermoplastic
Motor Housing Epoxy-coated cast iron
Impeller Material Thermoplastic elastomer
Impeller Type Non-clog
Volute Epoxy-coated cast iron
Mechanical Shaft Seal Nitrile with carbon and
ceramic faces
Fasteners Stainless steel
Shaft Steel
Bearings Upper sintered sleeve and
lower ball bearings
Power Cord SJTW **SJTOW
* On SFS models
** On 30' 10SN-CIA-RF and 10SN-CIM models
Spec Sheet 996196
10SN SERIES 1/2 HP
AC
B
A
A
B
B
C
C
10SN-CIA-SFS 10SN-CIA-RF
10SN-CIM
Model A B C
10SN-CIA-SFS 13.12"
33.33 cm
10.54"
26.77 cm
9.25"
23.5 cm
10SN-CIA-RF 11.4"
28.96 cm
11.64"
29.5 cm
6.8"
17.27 cm
10SN-CIM 11.4"
28.96 cm
11.64"
29.5 cm
6.8"
17.27 cm
SEWAGE PUMPS
88

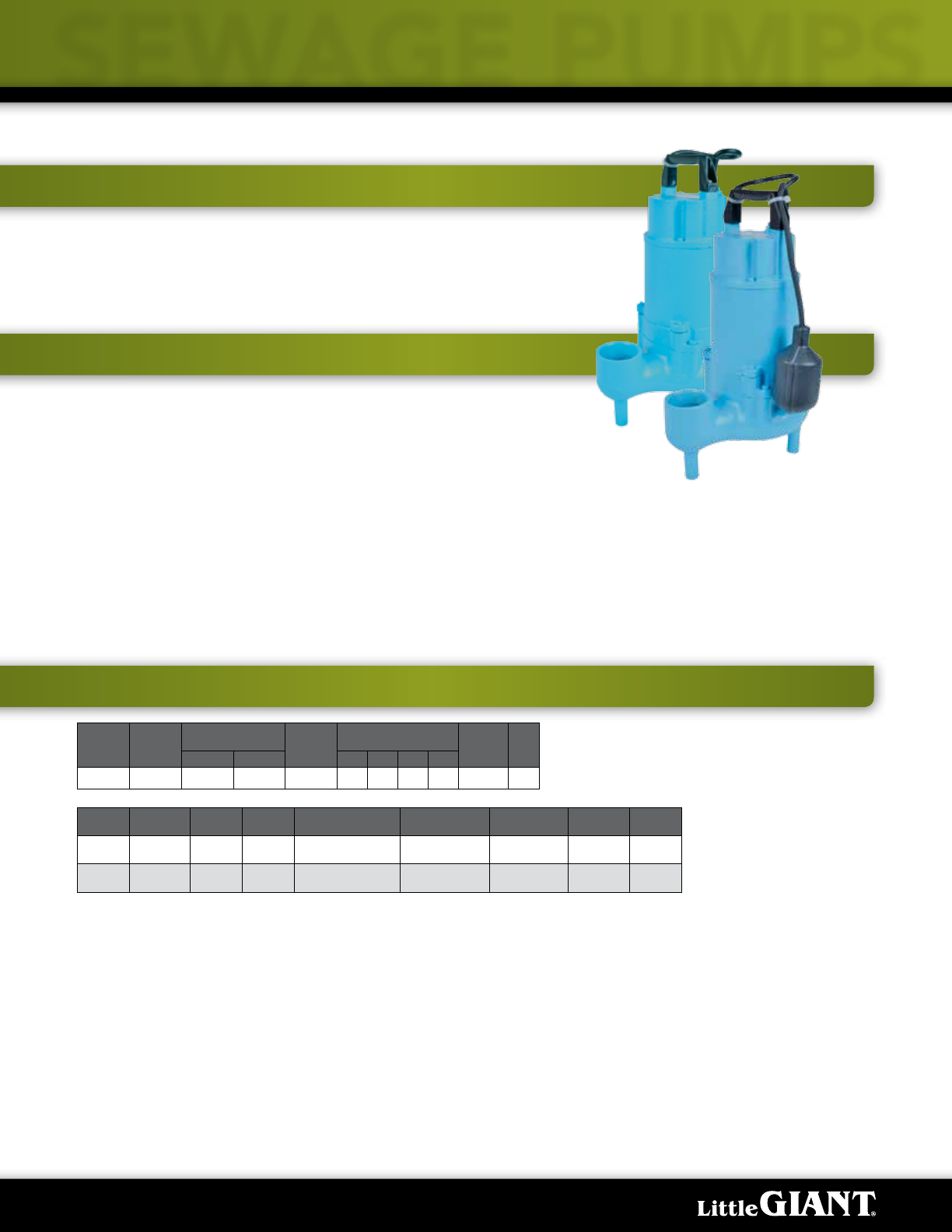

WSV52 SERIES 1/2 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15' 20'
115 60 6 12 650 90 75 57 35 25 10.8
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
620236 WSV52HAM 1/2 115 Piggyback Mechanical
Float Switch Adjustable Adjustable 20'
6.1 m
57 lbs
25.85 Kg
620235 WSV52HM 1/2 115 Manual – – 20'
6.1 m
55 lbs
24.95 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Ideal for handling raw sewage
• Commercial dewatering sump applications with up to 2" solids
• Oil-free permanent split capacitor (PSC) motor
• Designed for continuous duty
• 2" FNPT (51 mm) discharge
• Handles solids up to 2" (51 mm) diameter
• Power cord sealed at motor housing
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed
WSV52HM
WSV52HAM
SEWAGE PUMPS
89
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0 10 20 30 50 907040 8060
0
3
6
9
0
5
10
15
30
25
20
0 40 80 120 160 320200 240
CONSTRUCTION
Motor Housing Cast iron
Impeller Material Cast iron
Impeller Type Vortex
Volute Cast iron
Motor Shaft Stainless steel
Shaft Seal Carbon/ceramic
Fasteners Stainless steel
Bearings Upper and lower ball bearings
Power Cord SJOW
Spec Sheet 996174
WSV52 SERIES 1/2 HP
A
A B C
15.75"
40 cm
8.78"
22.3 cm
6.38"
16.21 cm
SEWAGE PUMPS
90

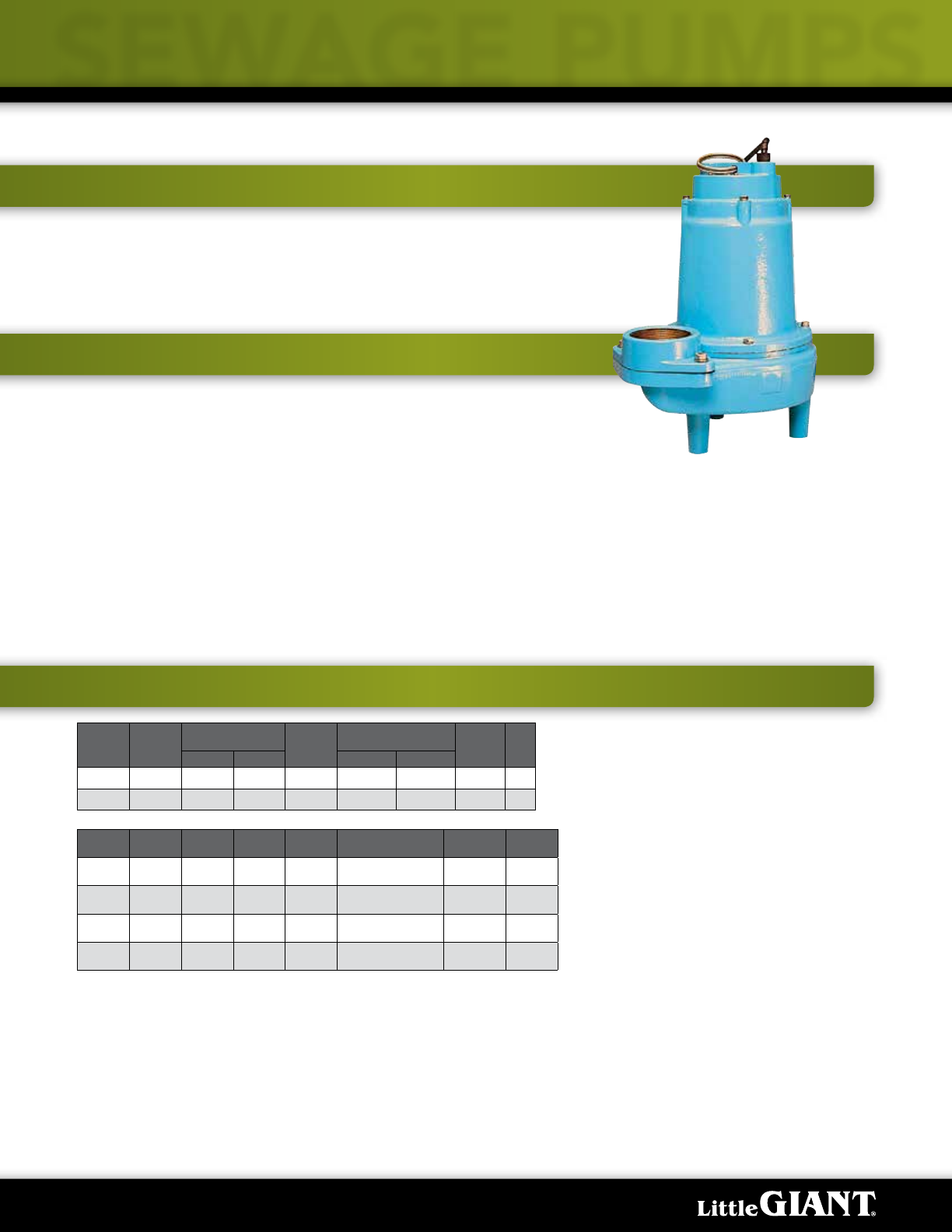

Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 10' 20'
115 60 11.6 21 1100 100 35 25 10.8
208-240 60 4.6 7.8 1100 100 35 25 10.8
Item No. Model HP Volts Discharge Switch Type/
Operation Cord Weight
514320 14S-CIM 1/2 115 2" Manual 20'
6.1 m
87 lbs
39.46 Kg
514420 14S-CIM* 1/2 115 3" Manual 20'
6.1 m
88 lbs
39.92 Kg
514321 14S-CIM 1/2 208 -240 2" Manual 20'
6.1 m
88 lbs
39.92 Kg
14940726 14S-CIM* 1/2 208 - 240 3" Manual 20'
6.1 m
88 lbs
39.92 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Permanent Split Capacitor (PSC)
• Designed for continuous duty
• 2" FNPT (51 mm) and 3" FNPT (76.2 mm) discharge models
• Handles solids up to 2" (51 mm) diameter
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed
14S SERIES 1/2 HP
• Sewage and efuent wastewater transfer • Dewatering
SEWAGE PUMPS
91
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Flow - Gallons per Minute
Flow - Liters per Minute
Total Head in Meters
0
5
10
25
30
15
20
35
40
0 100 200 300 400 500 600
0
2
4
6
8
12
10
0 20 40 60 10080 140 180120 160
CONSTRUCTION
Motor Housing Epoxy-coated cast iron
Impeller Material Epoxy-coated cast iron
Impeller Type Two-vane, non-clog
Volute Epoxy-coated cast iron
Mechanical Shaft Seal Nitrile with carbon and
ceramic faces
Fasteners Stainless steel
Shaft Stainless steel
Bearings Upper and lower ball bearings
Power Cord 16/3, STW
Spec Sheet 994351
14S SERIES 1/2 HP
A B C
16.15"
41.02 cm
14.07"
35.74 cm
9.89"
25.12 cm
SEWAGE PUMPS
92

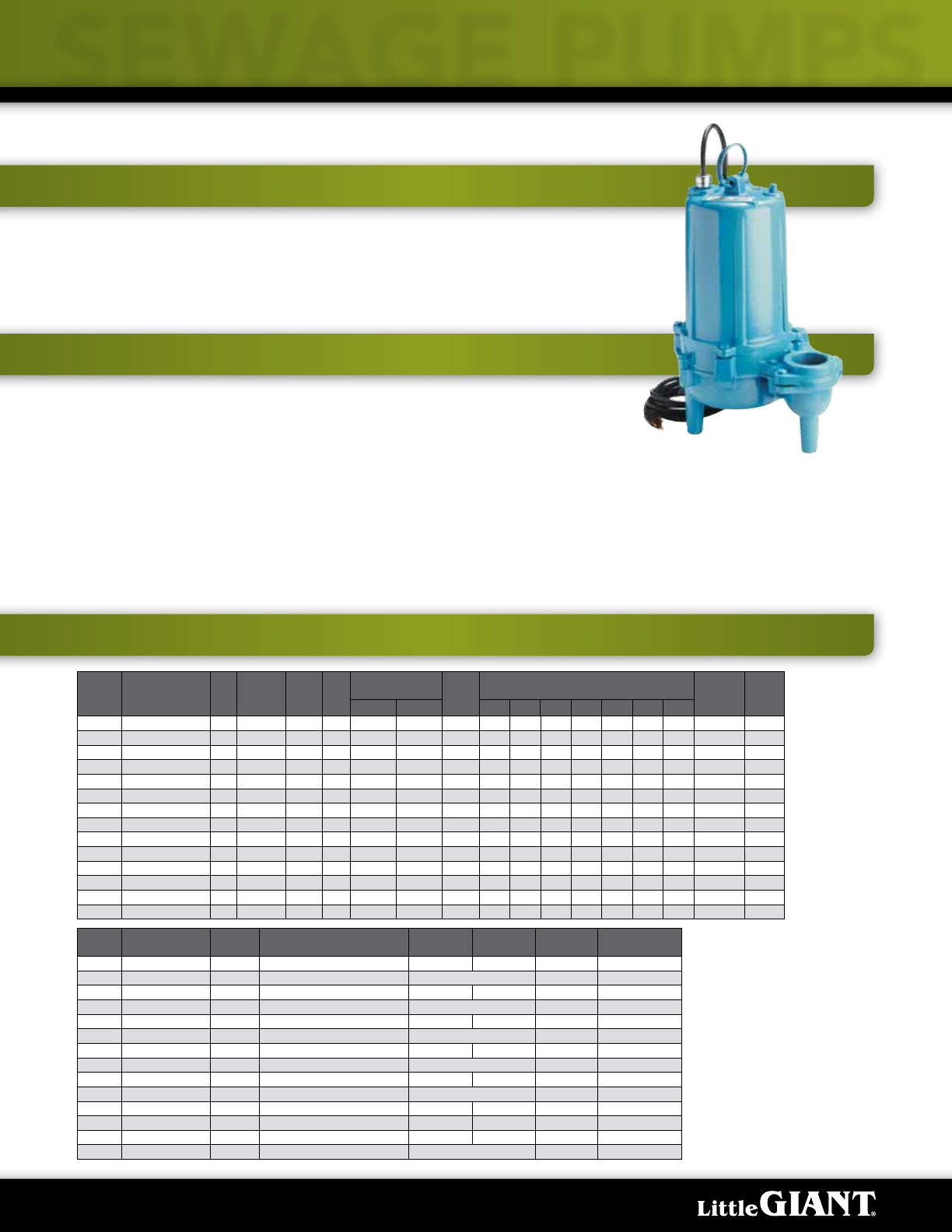

WS SERIES 1/2 HP, 1 HP
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Ideal for handling raw sewage
• Commercial dewatering sump applications with up to 2" solids
• All cast iron construction
• Oil-lled motor with double ball bearing capacitor start designed for
high torque with automatic reset (single-phase only)
• Designed for continuous duty
• Switch options for automatic operation
• 2" (50 mm) NPT
• Handles solids up to 2" (51 mm) diameter
• Power cord sealed at motor housing
• 120 °F (49 °C) liquid temperature rating
• cCSAus listed
Item No. Model HP Volts Phase HZ Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15' 20' 25' 30' 35'
620012 WS51M 1/2 115 1 60 11.6 47.4 940 155 120 83 52 14 - - 27 11.7
620002 WS51AM 1/2 115 1 60 11.6 47.4 940 155 120 83 52 - - - 27 11.7
620013 WS52M 1/2 115 1 60 11.6 47.4 940 135 90 47 14 - - - 23 10
620003 WS52AM 1/2 115 1 60 11.6 47.4 940 135 90 47 14 - - - 23 10
620254 WS52HM 1/2 115 1 60 15 26.9 1520 - 128 97 68 32 - - 29 12.5
620255 WS52HAM 1/2 115 1 60 15 26.9 1520 - 128 97 68 32 - - 29 12.5
620256 WS52HM-12 1/2 208-230 1 60 9.7 32.6 1480 - 128 97 68 32 - - 29 12.5
620257 WS52HAM-12 1/2 208-230 1 60 9.7 32.6 1480 - 128 97 68 32 - - 29 12.5
620203 WS102M-12 1 208-230 1 60 9.8/10.7 26.7 1735 - 168 144 118 85 46 - 37 16
620215 WS102AM-12 1 208-230 1 60 9.8/10.7 26.7 1735 - 168 144 118 85 46 - 37 16
620208 WS102M-32 1 208-230 3 60 4.3/4.58 6.8 1550 - 168 144 118 85 46 - 37 16
620209 WS102M-34 1 460 3 60 2.15 3.4 1490 - 168 144 118 85 46 - 37 16
620258 WS102HM-12 1 230 1 60 13.6 37.0 2330 - 190 170 148 124 100 74 48 20.8
620259 WS102HAM-12 1 230 1 60 13.6 37.0 2330 - 190 170 148 124 100 74 48 20.8
Item No. Model Volts Switch Type/
Operation On Level Off Level Cord Weight
620012 WS51M 115 Manual – – 20' - 6.1 m 55 lbs - 24.95 Kg
620002 WS51AM 115 Piggyback Mechanical Float Switch Adjustable 20' - 6.1 m 57 lbs - 25.85 Kg
620013 WS52M 115 Manual – – 20' - 6.1 m 57 lbs - 25.85 Kg
620003 WS52AM 115 Piggyback Mechanical Float Switch Adjustable 20' - 6.1 m 59 lbs - 26.76 Kg
620254 WS52HM 115 Manual – – 30' - 9.1 m 58 lbs - 26.31 Kg
620255 WS52HAM 115 Piggyback Mechanical Float Switch Adjustable 30' - 9.1 m 60 lbs - 27.22 Kg
620256 WS52HM-12 208-230 Manual – – 30' - 9.1 m 60 lbs - 27.22 Kg
620257 WS52HAM-12 208-230 Piggyback Mechanical Float Switch Adjustable 30' - 9.1 m 60 lbs - 27.22 Kg
620203 WS102M-12 208-230 Manual – – 20' - 6.1 m 62 lbs - 28.12 Kg
620215 WS102AM-12 208-230 Piggyback Mechanical Float Switch Adjustable 20' - 6.1 m 64 lbs - 29.03 Kg
620208 WS102M-32 208-230 Manual – – 20' - 6.1 m 63 lbs - 28.58 Kg
620209 WS102M-34 460 Manual – – 20' - 6.1 m 63 lbs - 28.58 Kg
620258 WS102HM-12 230 Manual – – 30' - 9.1 m 61 lbs - 27.67 Kg
620259 WS102HAM-12 230 Piggyback Mechanical Float Switch Adjustable 30' - 9.1 m 63 lbs - 28.58 Kg
SEWAGE PUMPS
93
Hotline: 1.800.701.7894 www.franklinwater.com
PERFORMANCE DATA
Total Head in Feet
Flow - Gallons per Minute
Flow - Liters per Minute
Total Head in Meters
0
10
20
30
40
50
0 100 200 300 400 500 600 700
0
4
8
12
16
0 50 100 150 200
WS52 WS51 WS52H WS102M WS102HM
CONSTRUCTION
Motor Housing Cast iron
Impeller Material Cast iron
Impeller Type Non-clog
Volute Cast iron
Motor Shaft Stainless steel
Shaft Seal Carbon/ceramic
Fasteners Stainless steel
Bearings Upper and lower ball bearings
Power Cord
SJTW - 620012, 620002,
620013, 620254, 620255,
620256, 620257, and
620258
SJOW - 620003, 620203,
620215, 620208, 620209,
and 620259
Spec Sheet 996172
WS SERIES 1/2 HP, 1 HP
Model A B C
WS51 13.25"
33.66 cm
12.25"
31.12 cm
9.38"
23.83 cm
WS52 14"
35.56 cm
12.25"
31.12 cm
9.38"
23.83 cm
WS52H 15.1"
38.36 cm
12.25"
31.12 cm
9.38"
23.83 cm
WS102 15.1"
38.36 cm
12.25"
31.12 cm
9.38"
23.83 cm
WS102H 15.1"
38.36 cm
12.25"
31.12 cm
9.38"
23.83 cm
ENGINEERING DATA
SEWAGE PUMPS
94

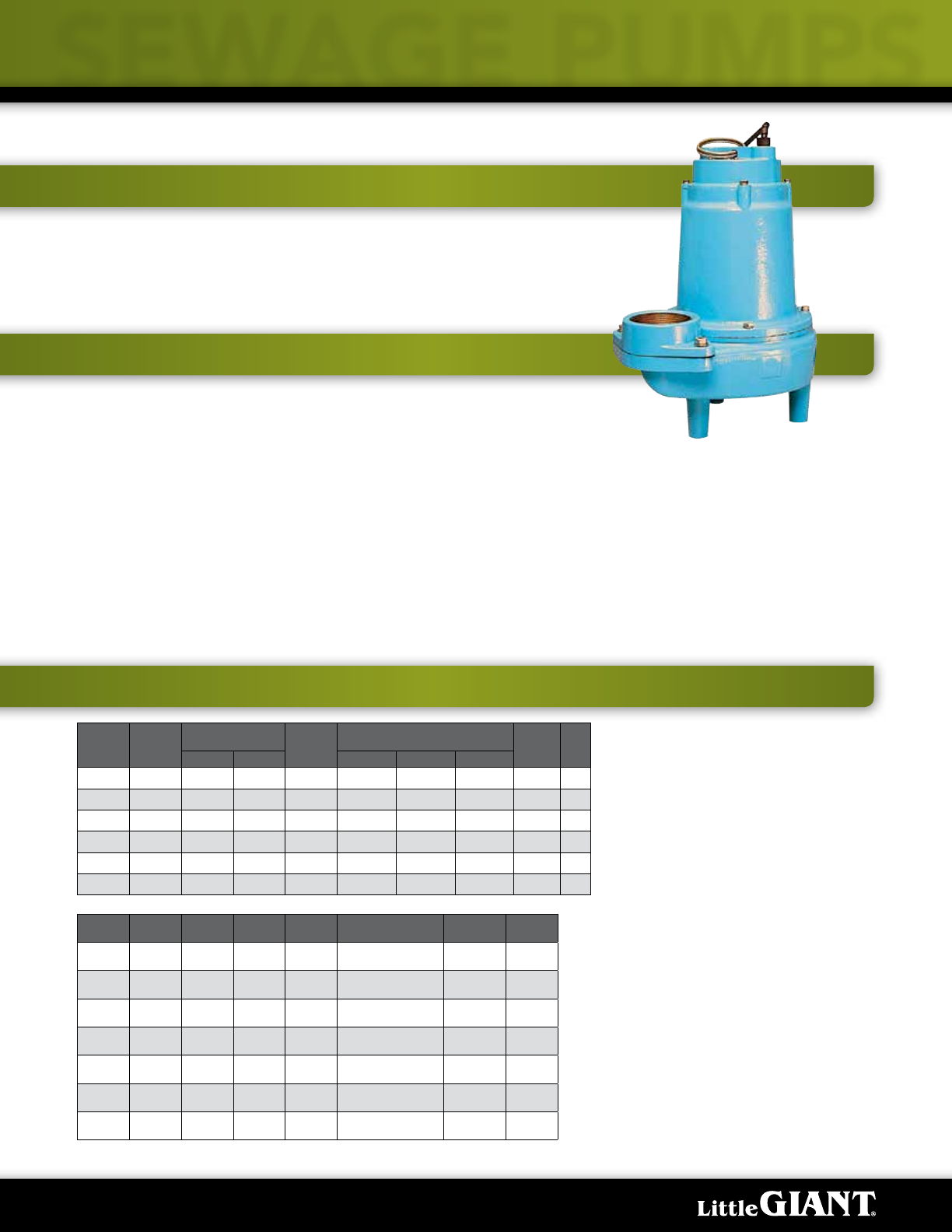

Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 10' 20' 30'
200-208 60 6.8 21 1500 160 100 40 35 15.1
208 60 11 18 2000 160 100 40 35 15.1
230 60 11 19.2 1900 160 100 40 35 15.1
230* 60 6.3 17.7 1500 160 100 40 35 15.1
380-460 50/60 3 9 850 160 100 40 35 15.1
575 60 2.5 7.2 1550 160 100 40 35 15.1
Item No. Model HP Volts Stages Switch Type/
Operation Cord Weight
514750 16S-CIM 1 200-208 3 Manual 20'
6.1 m
88 lbs
39.92 Kg
514625* 16S-CIM 1 200-208 1 Manual 20'
6.1 m
88 lbs
39.92 Kg
514620 16S-CIM 1 230 1 Manual 20'
6.1 m
94 lbs
42.64 Kg
514720* 16S-CIM 1 230 1 Manual 20'
6.1 m
89 lbs
40.37 Kg
514630 16S-CIM 1 230 1 Manual 20'
6.1 m
95 lbs
43.09 Kg
514730 16S-CIM 1 380-460 3 Manual 20'
6.1 m
90 lbs
40.82 Kg
514740 16S-CIM 1 575 3 Manual 20'
6.1 m
88 lbs
39.92 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Permanent Split Capacitor (PSC)
• Designed for continuous duty
• 3" FNPT (76.2 mm) discharge
• Handles solids up to 2" (51 mm) diameter
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed
* 3-phase
16S SERIES 1 HP
• Sewage and efuent wastewater transfer • Dewatering
SEWAGE PUMPS
95
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Flow - Gallons per Minute
Flow - Liters per Minute
Total Head in Meters
0
5
10
25
30
15
20
35
40
0 100 200 300 400 500 600
0
2
4
6
8
12
10
0 20 40 60 10080 140 180120 160
CONSTRUCTION
Motor Housing Epoxy-coated cast iron
Impeller Material Epoxy-coated cast iron
Impeller Type Two-vane, non-clog
Volute Epoxy-coated cast iron
Mechanical Shaft Seal Nitrile with carbon and
ceramic faces
Fasteners Stainless steel
Shaft Stainless steel
Bearings Upper and lower ball bearings
Power Cord 16/3 or 18/4, SOW or STW
Spec Sheet 994353
16S SERIES 1 HP
A B C
16.15"
41.02 cm
14.07"
35.74 cm
9.89"
25.12 cm
SEWAGE PUMPS
96
18S SERIES 1-1/2 HP
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Permanent Split Capacitor (PSC)
• Designed for continuous duty
• Capacitor and power cord connections are isolated from oil-lled
motor housing for ease of eld maintenance
• 3" FNPT (761 mm) discharge
• Handles solids up to 2" (51 mm) diameter
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 10' 20' 30' 40' 50'
200-208 60 16 31.0 3229 160 137 111 84 50 64 27.7
200-208* 60 13.5 32.0 1644 160 137 111 84 50 64 27.7
230 60 15.5 31.0 3512 160 137 111 84 50 64 27.7
230* 60 11.5 35.0 1512 160 137 111 84 50 64 27.7
460 60 5.3 17.5 1474 160 137 111 84 50 64 27.7
Item No. Model HP Volts Phase Switch Type/
Operation Cord Weight
520300 18S-CIM 1-1/2 208 1 Manual 20'
6.1 m
94 lbs
42.64 Kg
520302 18S-CIM 1-1/2 200-208 3 Manual 20'
6.1 m
96 lbs
43.54 Kg
520301 18S-CIM 1-1/2 230 1 Manual 20'
6.1 m
96 lbs
43.54 Kg
520303* 18S-CIM 1-1/2 230 3 Manual 20'
6.1 m
94 lbs
42.64 Kg
520304 18S-CIM 1-1/2 460 3 Manual 40'
12 m
94 lbs
42.64 Kg
* 3-phase
• Sewage and efuent wastewater transfer • Dewatering
SEWAGE PUMPS
97
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0 20 40 60 80 100 120 140 160 180 200 220
0
10
20
30
40
50
60
70
80
0 100 200 300 400 500 600600 700 800
0
5
10
15
20
CONSTRUCTION
Cover Epoxy-coated cast iron
Motor Housing Epoxy-coated cast iron
Impeller Material Red brass
Impeller Type Non-clog vortex
Volute Epoxy-coated cast iron
Mechanical Shaft Seal Carbon/ceramic
Fasteners Stainless steel
Shaft Stainless steel
Bearings Upper and lower ball bearings
Power Cord 14/3, SOW (1-phase); 14/4,
SOW (3-phase)
Spec Sheet 14940577
18S SERIES 1-1/2 HP
A B C
18.4"
46.74 cm
13"
33.02 cm
8.4"
21.34 cm
SEWAGE PUMPS
98

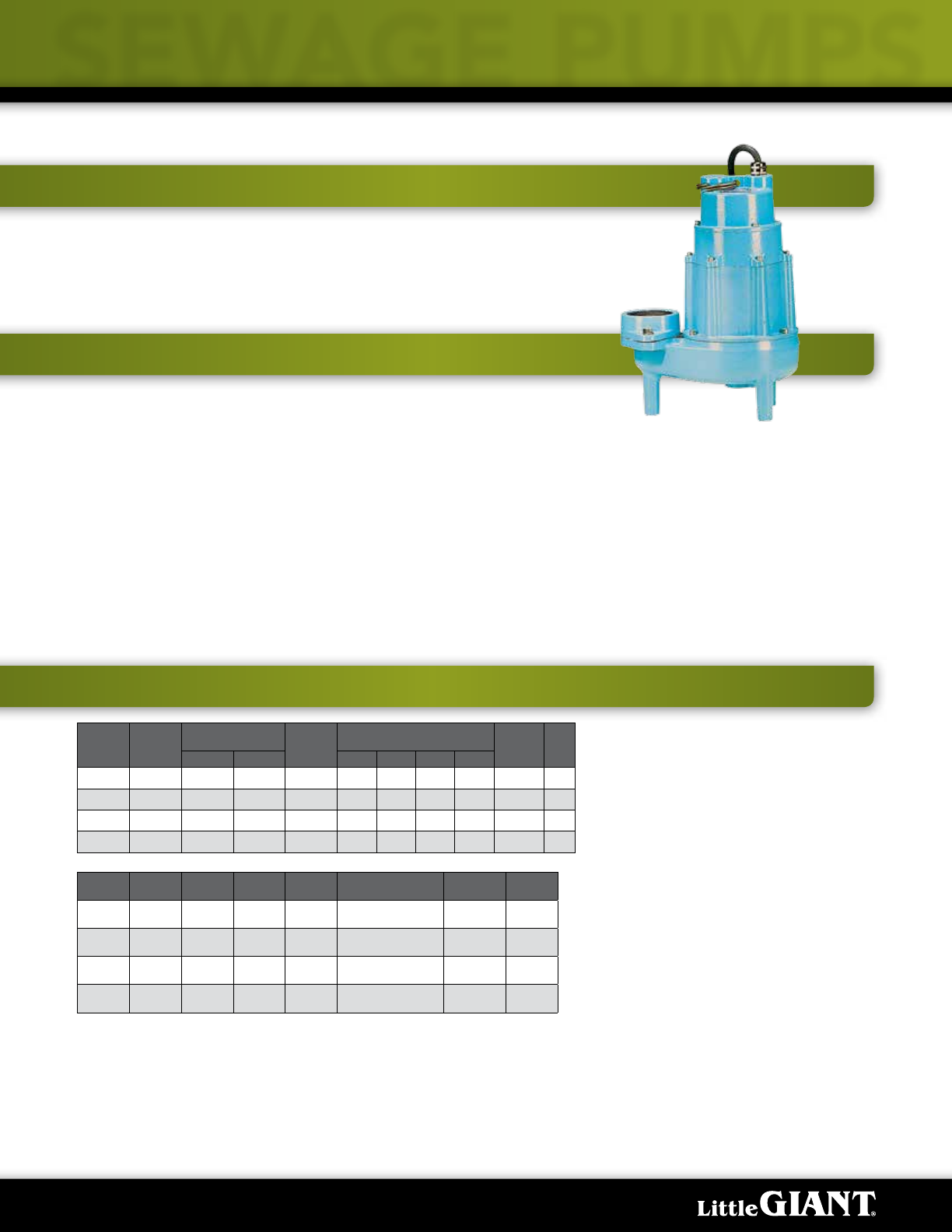

APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Permanent Split Capacitor (PSC)
• Designed for continuous duty
• Capacitor and power cord connections are isolated from oil-lled
motor housing for ease of eld maintenance
• 3" FNPT (761 mm) discharge
• Handles solids up to 2" (51 mm) diameter
• 140 °F (60 °C) liquid temperature rating
• cCSAus listed
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 10' 20' 30' 40'
200-208 60 14.5 32.0 2769 205 168 140 120 77 33.3
208-230 60 18 31.0 4118 205 168 140 120 77 33.3
230* 60 12.6 35.0 2686 205 168 140 120 77 33.3
460* 60 6.1 17.5 2771 205 168 140 120 77 33.3
Item No. Model HP Volts Phase Switch Type/
Operation Cord Weight
520125 20S-CIM 2 200-208 3 Manual 20'
6.1 m
96 lbs
43.54 Kg
520100 20S-CIM 2 208-230 1 Manual 20'
6.1 m
96 lbs
43.54 Kg
520150* 20S-CIM 2 230 3 Manual 20'
6.1 m
96 lbs
43.54 Kg
520175* 20S-CIM 2 460 3 Manual 20'
6.1 m
96 lbs
43.54 Kg
* 3-phase
20S SERIES 2 HP
• Sewage and efuent wastewater transfer • Dewatering
SEWAGE PUMPS
99
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0 20 40 60 80 100 120 140 160 180 200 220
0
10
20
30
40
50
60
70
80
0 100 200 300 400 500 600600 700 800
0
5
10
15
20
CONSTRUCTION
Cover Epoxy-coated cast iron
Motor Housing Epoxy-coated cast iron
Impeller Material Red brass
Impeller Type Vortex
Volute Epoxy-coated cast iron
Mechanical Shaft Seal Carbon/ceramic
Fasteners Stainless steel
Shaft Stainless steel
Bearings Upper and lower ball bearings
Power Cord
(Stripped Leads)
14/3, SOW (1-phase); 14/4,
SOW (3-phase)
Spec Sheet 995212
20S SERIES 2 HP
A B C
18.4"
46.74 cm
13"
33.02 cm
8.4"
21.34 cm
SEWAGE PUMPS
100

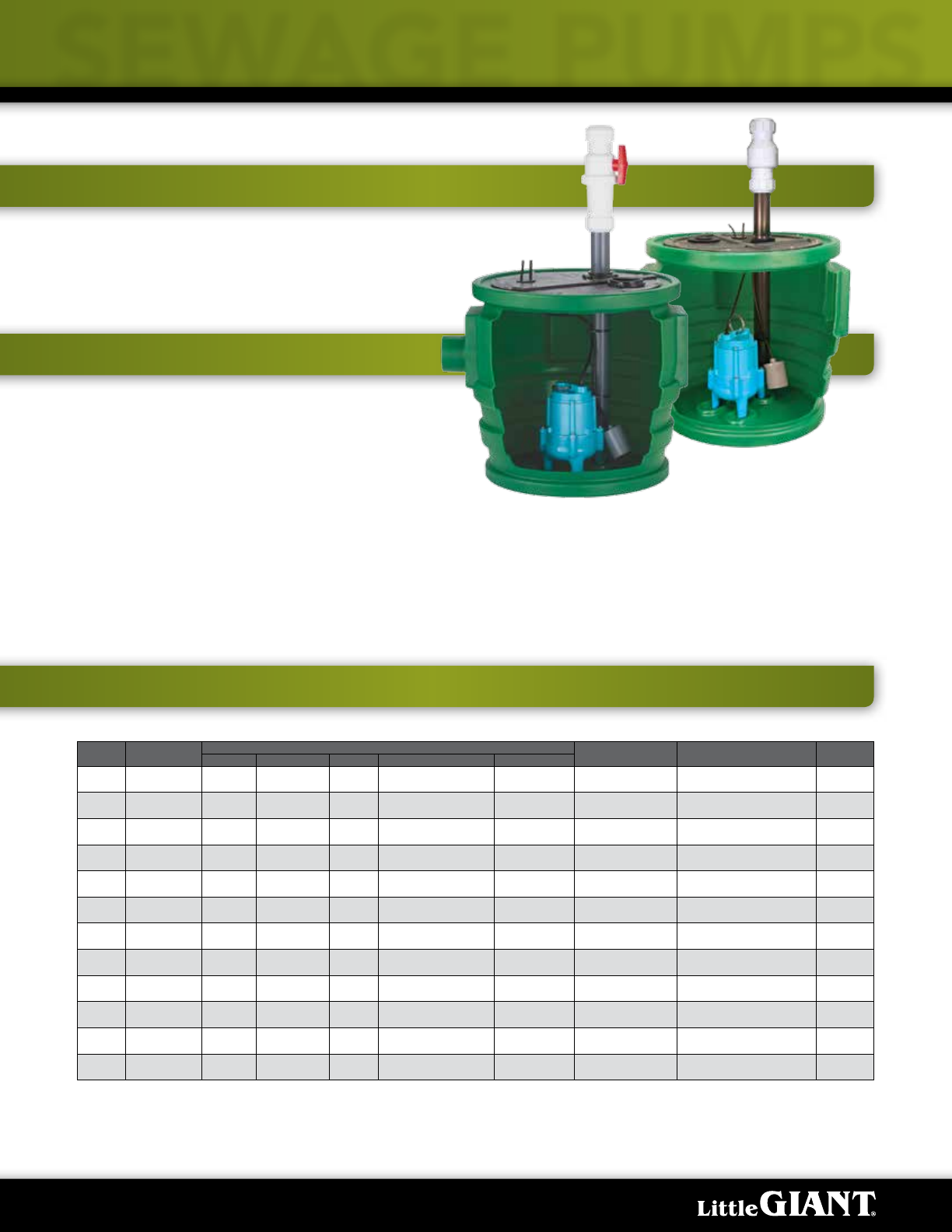

PACKAGE SYSTEMS
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Collection of sewage, efuent, drainage, or seepage water
• Roto-molded polyethylene basin
• Radial rib design for extra strength
• 360º molded handle for easy handling
• Molded torque stops at basin bottom to secure pump
• Anti-otation collar
• 4" molded external inlet hub for exible coupling
• Structural foam or IAPMO approved steel cover options available
• One- or two-piece cover options available
• Slip-t or bolt-on cover ange options available
• 4/10 hp or 1/2 hp sewage pump options available
• Basin size: 24" x 24" (61 cm x 61 cm)
Pre-Packaged
Item No. Model Cover Check Valve Alarm Pump HP
Style Material Flanges Vent Discharge
509631 9S-SMPXC-LG 1-Piece Structural Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2"
51 mm
2"
51 mm – 4/10
509632 9S-SMPXC-LG 1-Piece Structural Foam Bolt-On 2"
51 mm
2"
51 mm
2" Check
51 mm Check – 4/10
509637 9S-SMPXC-LG 2-Piece Structural Foam Bolt-On 2"
51 mm
2"
51 mm
2" Check
51 mm Check – 4/10
509650 9S-SMPXC-LG 2-Piece Structural Foam Bolt-On 2"
51 mm
3"
76 mm – – 4/10
509652 9S-SMPXC-LG 1-Piece Structural Foam Slip-Fit 2"
51 mm
3"
76 mm – – 4/10
509654 9S-SMPXC-LG 1-Piece Structural Foam Bolt-On 2"
51 mm
3"
76 mm – – 4/10
511631 10S-SMPXC-LG 1-Piece Structural Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2"
51 mm
2"
51 mm – 1/2
511632 10S-SMPXC-LG 1-Piece Structural Foam Bolt-On 2"
51 mm
2"
51 mm
2" Check
51 mm Check – 1/2
511637 10S-SMPXC-LG 2-Piece Structural Foam Bolt-On 2"
51 mm
2"
51 mm
2" Check
51 mm Check – 1/2
511650 10S-SMPXC-LG 2-Piece Structural Foam Bolt-On 2"
51 mm
3"
76 mm – – 1/2
511652 10S-SMPXC-LG 1-Piece Structural Foam Slip-Fit 2"
51 mm
3"
76 mm – – 1/2
511654 10S-SMPXC-LG 1-Piece Structural Foam Bolt-On 2"
51 mm
3"
76 mm – – 1/2
PIT+PLUS® JR PREMIUM SIMPLEX SYSTEMS
9S-SMPXC-LG (Slip-Fit)
9S-SMPXC-LG (Bolt-On)
SEWAGE PUMPS
101
Hotline: 1.800.701.7894 www.franklinwater.com
PACKAGE SYSTEMS
SERIES SPECIFICATIONS
Basin/Cover Assemblies
Pre-Assembled
Item No. Model Cover Check Valve Alarm Pump HP
Style Material Flanges Vent Discharge
509633 9S-SMPXC-LG 1-Piece Structural Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2"
51 mm
2" Check
51 mm Check – 4/10
509634 9S-SMPXC-LG1A 1-Piece Structural Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2"
51 mm
2" Check
51 mm Check Indoor High Water Alarm 4/10
509635 9S-SMPXC-LG 1-Piece Structural Foam Bolt-On 2"
51 mm
2"
51 mm
2" Check
51 mm Check – 4/10
509636 9S-SMPXC-LG1A 1-Piece Structural Foam Bolt-On 2"
51 mm
2"
51 mm
2" Check
51 mm Check Indoor High Water Alarm 4/10
509638 9S-SMPXC-LG 2-Piece Structural Foam Bolt-On 2"
51 mm
2"
51 mm
2" Check
51 mm Check – 4/10
509639 9S-SMPXC-LG1A 1-Piece Structural Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2"
51 mm
2" Ball/Check
51 mm Ball/Check Indoor High Water Alarm 4/10
509640 9S-SMPXC-LG 2-Piece Structural Foam Bolt-On 3"
76 mm
2"
51 mm
2" Ball/Check
51 mm Ball/Check – 1/2
509651 9S-SMPXC-LG 2-Piece Structural Foam Bolt-On 2"
51 mm
3"
76 mm – – 4/10
509653 9S-SMPXC-LG 1-Piece Structural Foam Slip-Fit 2"
51 mm
3"
76 mm – – 4/10
509655 9S-SMPXC-LG 1-Piece Structural Foam Bolt-On 2"
51 mm
3"
76 mm – – 4/10
511633 10S-SMPXC-LG 1-Piece Structural Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2"
51 mm
2" Check
51 mm Check – 1/2
511634 10S-SMPXC-LG1A 1-Piece Structural Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2"
51 mm
2" Check
51 mm Check Indoor High Water Alarm 1/2
511635 10S-SMPXC-LG 1-Piece Structural Foam Bolt-On 2"
51 mm
2"
51 mm
2" Check
51 mm Check – 1/2
511636 10S-SMPXC-LG1A 1-Piece Structural Foam Bolt-On 2"
51 mm
2"
51 mm
2" Check
51 mm Check Indoor High Water Alarm 1/2
511638 10S-SMPXC-LG 2-Piece Structural Foam Bolt-On 2"
51 mm
2"
51 mm
2" Check
51 mm Check – 1/2
511651 10S-SMPXC-LG 2-Piece Structural Foam Bolt-On 2"
51 mm
3"
76 mm – – 1/2
511653 10S-SMPXC-LG 1-Piece Structural Foam Slip-Fit 2"
51 mm
3"
76 mm – – 1/2
511655 10S-SMPXC-LG 1-Piece Structural Foam Bolt-On 2"
51 mm
3"
76 mm – – 1/2
Item No. Model Cover Detail
Style Material Flanges Vents Discharge
513092 BC2424CS-LG 1-Piece Structural Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2" or 3"
51 mm or 76 mm
513091 BC2424CS-LG 1-Piece Structural Foam Bolt-On 2"
51 mm
2"
51 mm
Note: Other Basin/Pump/Cover configurations are available. Please contact factory for information on package requirements not shown here.
Note: Basin and cover only
PIT+PLUS® JR PREMIUM SIMPLEX SYSTEMS
SEWAGE PUMPS
102

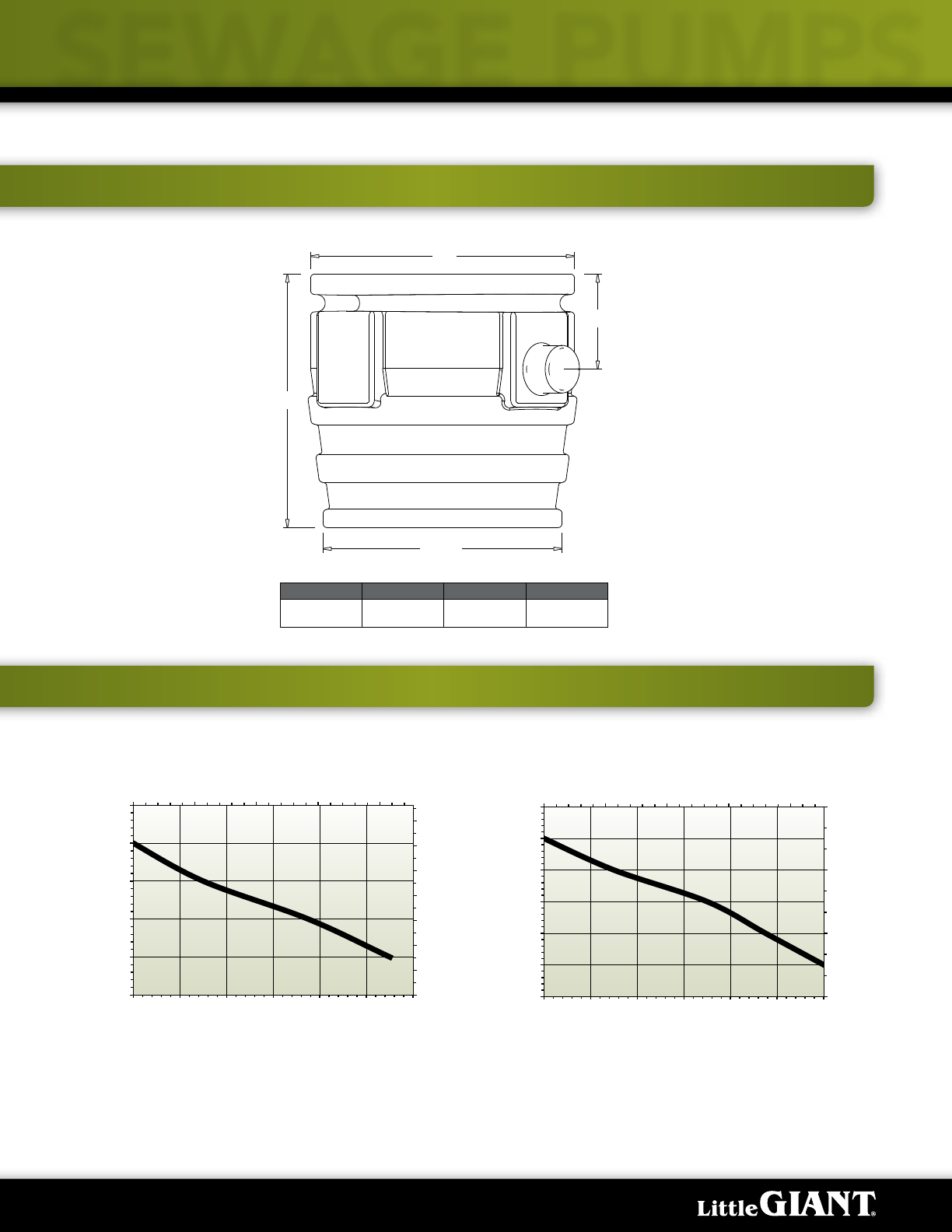

ENGINEERING DATA
PIT+PLUS® JR PREMIUM SIMPLEX SYSTEMS
PERFORMANCE DATA
A
B
C
D
9SN 10SN
A B C D
24"
60.96 cm
25"
63.5 cm
22"
55.88 cm
9"
22.86 cm
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0 20 40 60 80 120100
0
1
2
3
4
5
7
6
0
5
10
15
25
20
0 100 200 400300
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0 20 40 60 80 120100
0
3
6
9
0
5
10
15
30
25
20
0 100 200 400300
SEWAGE PUMPS
103
Hotline: 1.800.701.7894 www.franklinwater.com
Spec Sheet 995100
PIT+PLUS® JR PREMIUM SIMPLEX SYSTEMS
TYPICAL INSTALLATION
*Gate Valve *Union
Check Valve
*Not Included
SEWAGE PUMPS
104

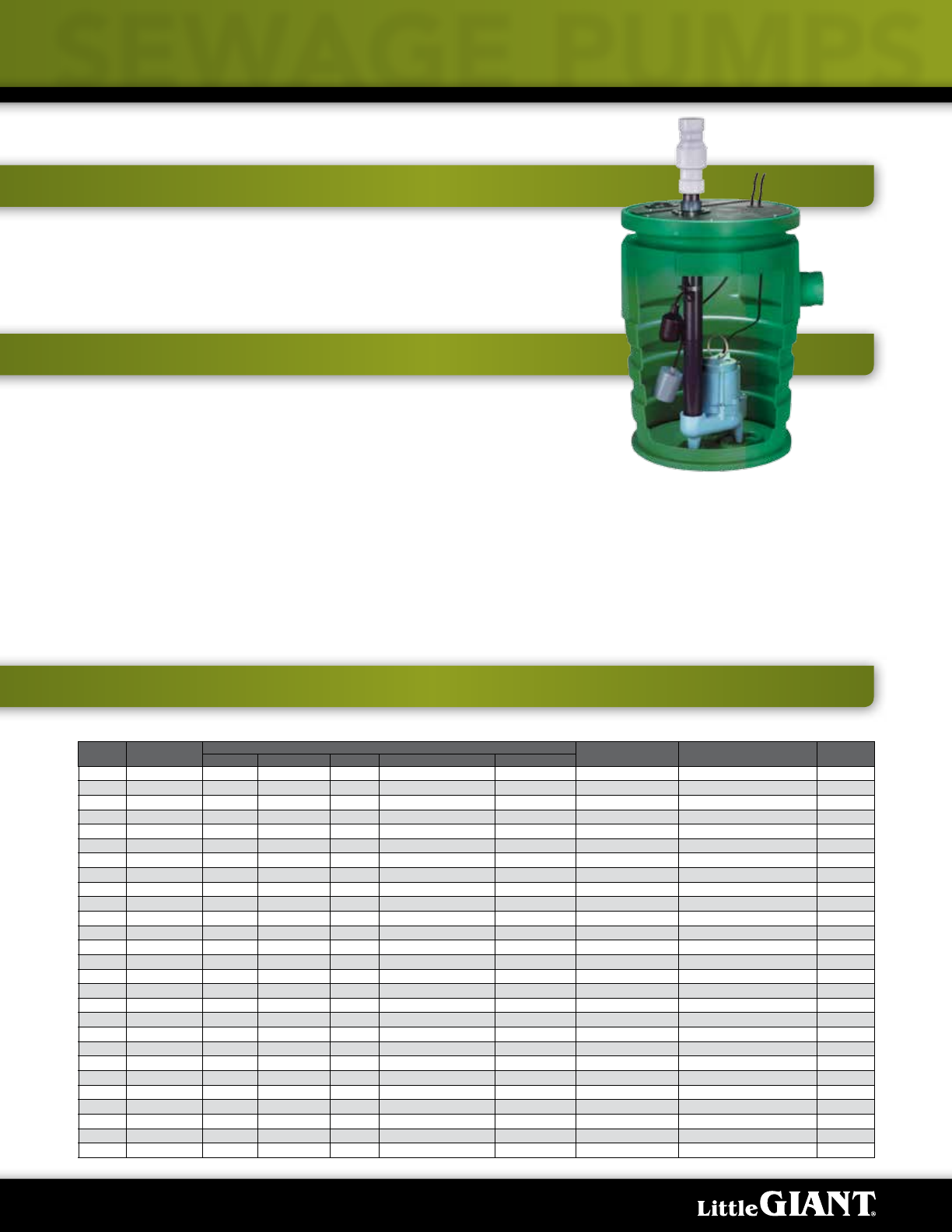

APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Collection of sewage, efuent, drainage, or seepage water
• Roto-molded polyethylene basin
• Radial rib design for extra strength
• 360º molded handle for easy handling
• Molded torque stops at basin bottom to secure pump
• Anti-otation collar
• 4" molded external inlet hub for exible coupling
• Structural foam or IAPMO approved steel cover options available
• One- or two-piece cover options available
• Slip-t or bolt-on cover ange options available
• 4/10 hp or 1/2 hp sewage pump options available
• Basin size: 20" x 30" (51 cm x 76 cm)
Pre-Packaged
Item No. Model Cover Check Valve Alarm Pump HP
Style Material Flanges Vent Discharge
509010 9S-SMPX-LG 2-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Ball/Check – 4/10
509011 9S-SMPX-LG 2-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check – 4/10
509012 9S-SMPX-LG 2-Piece Structural Foam Bolt-on 2" (51 mm) 3" (76 mm) N/A – 4/10
509013 9S-SMPX-LG 2-Piece Structural Foam Bolt-on 2" (51 mm) 3" (76 mm) 3" (76 mm) Check – 4/10
509014 9S-SMPX-LG1A 2-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check Indoor High Water Alarm 4/10
509015 9S-SMPX-LG3A 2-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check Indoor/Outdoor High Water Alarm 4/10
*509088 9S-SMPX-LG 1-Piece Structural Foam Slip-t 2" (51 mm) or 3" (76 mm) 2" (51 mm) 2" (51 mm) Ball/Check – 4/10
*509090 9S-SMPX-LG 1-Piece Structural Foam Slip-t 2" (51 mm) or 3" (76 mm) 2" (51 mm) 2" (51 mm) Check – 4/10
509092 9S-SMPX-LG 1-Piece Structural Foam Slip-t 2" (51 mm) 3" (76 mm) N/A – 4/10
509094 9S-SMPX-LG 1-Piece Structural Foam Slip-t 2" (51 mm) 3" (76 mm) 3" (76 mm) Check – 4/10
*509096 9S-SMPX-LG 1A 1-Piece Structural Foam Slip-t 2" (51 mm) or 3" (76 mm) 2" (51 mm) 2" (51 mm) Check Indoor High Water Alarm 4/10
*509098 9S-SMPX-LG 3A 1-Piece Structural Foam Slip-t 2" (51 mm) or 3" (76 mm) 2" (51 mm) 2" (51 mm) Check Indoor/Outdoor High Water Alarm 4/10
509106 9S-SMPX-LG 1-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Ball/Check – 4/10
509108 9S-SMPX-LG 1-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check – 4/10
509110 9S-SMPX-LG 1-Piece Structural Foam Bolt-on 2" (51 mm) 3" (76 mm) N/A – 4/10
509112 9S-SMPX-LG 1-Piece Structural Foam Bolt-on 2" (51 mm) 3" (76 mm) 3" (76 mm) Check – 4/10
509114 9S-SMPX-LG1A 1-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check Indoor High Water Alarm 4/10
509116 9S-SMPX-LG3A 1-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check Indoor/Outdoor High Water Alarm 4/10
511020 10S-SMPX-LG 2-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check – 1/2
511021 10S-SMPX-LG1A 2-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check Indoor High Water Alarm 1/2
511022 10S-SMPX-LG3A 2-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check Indoor/Outdoor High Water Alarm 1/2
*511069 10S-SMPX-LG 1-Piece Structural Foam Slip-t 2" (51 mm) or 3" (76 mm) 2" (51 mm) 2" (51 mm) Check – 1/2
*511071 10S-SMPX-LG1A 1-Piece Structural Foam Slip-t 2" (51 mm) or 3" (76 mm) 2" (51 mm) 2" (51 mm) Check Indoor High Water Alarm 1/2
*511073 10S-SMPX-LG3A 1-Piece Structural Foam Slip-t 2" (51 mm) or 3" (76 mm) 2" (51 mm) 2" (51 mm) Check – 1/2
511135 10S-SMPX-LG 1-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check – 1/2
511137 10S-SMPX-LG1A 1-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check Indoor High Water Alarm 1/2
511139 10S-SMPX-LG3A 1-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check Indoor/Outdoor High Water Alarm 1/2
PIT+PLUS®PREMIUM SIMPLEX SYSTEMS
SEWAGE PUMPS
105
Hotline: 1.800.701.7894 www.franklinwater.com
SERIES SPECIFICATIONS
Basin/Cover Assemblies
Pre-Assembled
Item No. Model Cover Detail
513244 BC2030CSLG Slip-t, 2V2D, 2V3D or 3V2D
513245 BC2030CSLG Bolt-on, 2V2D, 1-Piece
513340 BC2030CSLG Bolt-on, 2V3D, 1-Piece
513341 BC2030CSLG Bolt-on, 3V2D, 1-Piece
513342 BC2030CSLG Bolt-on, 3V3D, 1-Piece
513343 BC2030CSLG Bolt-on, 2V2D, 2-Piece
513344 BC2030CSLG Bolt-on, 2V3D, 2-Piece
513345 BC2030CSLG Bolt-on, 3V2D, 2-Piece
513346 BC2030CSLG Bolt-on, 3V3D, 2-Piece
513246 BC2030CSLG Slip-t, 2V2D, 1-Piece
Note: Other Basin/Pump/Cover configurations are available. Please contact factory for information on package requirements not shown here.
Note: Basin and cover only
PIT+PLUS® PREMIUM SIMPLEX SYSTEMS
Item No. Model Cover Check Valve Alarm Pump HP
Style Material Flanges Vent Discharge
*509089 9S-SMPX-LG 1-Piece Structural Foam Slip-t 2" (51 mm) 2" (51 mm) 2" (51 mm) Ball/Check 4/10
*509091 9S-SMPX-LG 1-Piece Structural Foam Slip-t 2" (51 mm) 2" (51 mm) 2" (51 mm) Check 4/10
509093 9S-SMPX-LG 1-Piece Structural Foam Slip-t 3" (76 mm) 3" (76 mm) N/A 4/10
509095 9S-SMPX-LG 1-Piece Structural Foam Slip-t 3" (76 mm) 3" (76 mm) 3" (76 mm) Check 4/10
*509097 9S-SMPX-LG1A 1-Piece Structural Foam Slip-t 3" (76 mm) 2" (51 mm) 2" (51 mm) Check Indoor High Water Alarm 4/10
*509099 9S-SMPX-LG3A 1-Piece Structural Foam Slip-t 3" (76 mm) 2" (51 mm) 2" (51 mm) Check Indoor/Outdoor High Water Alarm 4/10
†509118 9S-SMPX-LG 1-Piece (IAPMO) Steel Slip-t 3" (76 mm) 2" (51 mm) 2" (51 mm) Check 4/10
509101 9S-SMPX-LG1A 1-Piece Structural Foam Slip-t 2" (51 mm) or 3" (76 mm) 2" (51 mm) 2" (51 mm) Ball/Check Indoor High Water Alarm 4/10
509107 9S-SMPX-LG 1-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Ball/Check 4/10
509109 9S-SMPX-LG 1-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check 4/10
509111 9S-SMPX-LG 1-Piece Structural Foam Bolt-on 2" (51 mm) 3" (76 mm) N/A 4/10
509113 9S-SMPX-LG 1-Piece Structural Foam Bolt-on 2" (51 mm) 3" (76 mm) 3" (76 mm) Check 4/10
509115 9S-SMPX-LG1A 1-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check Indoor High Water Alarm 4/10
509117 9S-SMPX-LG3A 1-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check Indoor/Outdoor High Water Alarm 4/10
509016 9S-SMPX-LG 2-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Ball/Check 4/10
509017 9S-SMPX-LG 2-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check 4/10
509018 9S-SMPX-LG 2-Piece Structural Foam Bolt-on 2" (51 mm) 3" (76 mm) N/A 4/10
509019 9S-SMPX-LG 2-Piece Structural Foam Bolt-on 2" (51 mm) 3" (76 mm) 3" (76 mm) Check 4/10
509020 9S-SMPX-LG1A 2-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check Indoor High Water Alarm 4/10
509021 9S-SMPX-LG3A 2-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check Indoor/Outdoor High Water Alarm 4/10
*511070 10S-SMPX-LG 1-Piece Structural Foam Slip-t 3" (76 mm) 2" (51 mm) 2" (51 mm) Check 1/2
*511072 10S-SMPX-LG1A 1-Piece Structural Foam Slip-t 3" (76 mm) 2" (51 mm) 2" (51 mm) Check Indoor High Water Alarm 1/2
*511074 10S-SMPX-LG3A 1-Piece Structural Foam Slip-t 3" (76 mm) 2" (51 mm) 2" (51 mm) Check Indoor/Outdoor High Water Alarm 1/2
†511077 10S-SMPX-LG 1-Piece (IAPMO) Steel Slip-t 3" (76 mm) 2" (51 mm) 2" (51 mm) Check 1/2
511136 10S-SMPX-LG 1-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check 1/2
511138 10S-SMPX-LG1A 1-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check Indoor High Water Alarm 1/2
511140 10S-SMPX-LG3A 1-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check Indoor/Outdoor High Water Alarm 1/2
511023 10S-SMPX-LG 2-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check 1/2
511024 10S-SMPX-LG1A 2-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check Indoor High Water Alarm 1/2
511025 10S-SMPX-LG3A 2-Piece Structural Foam Bolt-on 2" (51 mm) 2" (51 mm) 2" (51 mm) Check Indoor/Outdoor High Water Alarm 1/2
SEWAGE PUMPS
106
ENGINEERING DATA
PIT+PLUS® PREMIUM SIMPLEX SYSTEMS
PERFORMANCE DATA
A B C D
30"
76.20 cm
22"
55.88 cm
20.75"
52.71 cm
10"
25.40 cm
9SN 10SN
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0 20 40 60 80 120100
0
1
2
3
4
5
7
6
0
5
10
15
25
20
0 100 200 400300
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0 20 40 60 80 120100
0
3
6
9
0
5
10
15
30
25
20
0 100 200 400300
SEWAGE PUMPS
107
Hotline: 1.800.701.7894 www.franklinwater.com
TYPICAL INSTALLATION
PIT+PLUS® PREMIUM SIMPLEX SYSTEMS
*Not Included
Spec Sheet 995253
SEWAGE PUMPS
108

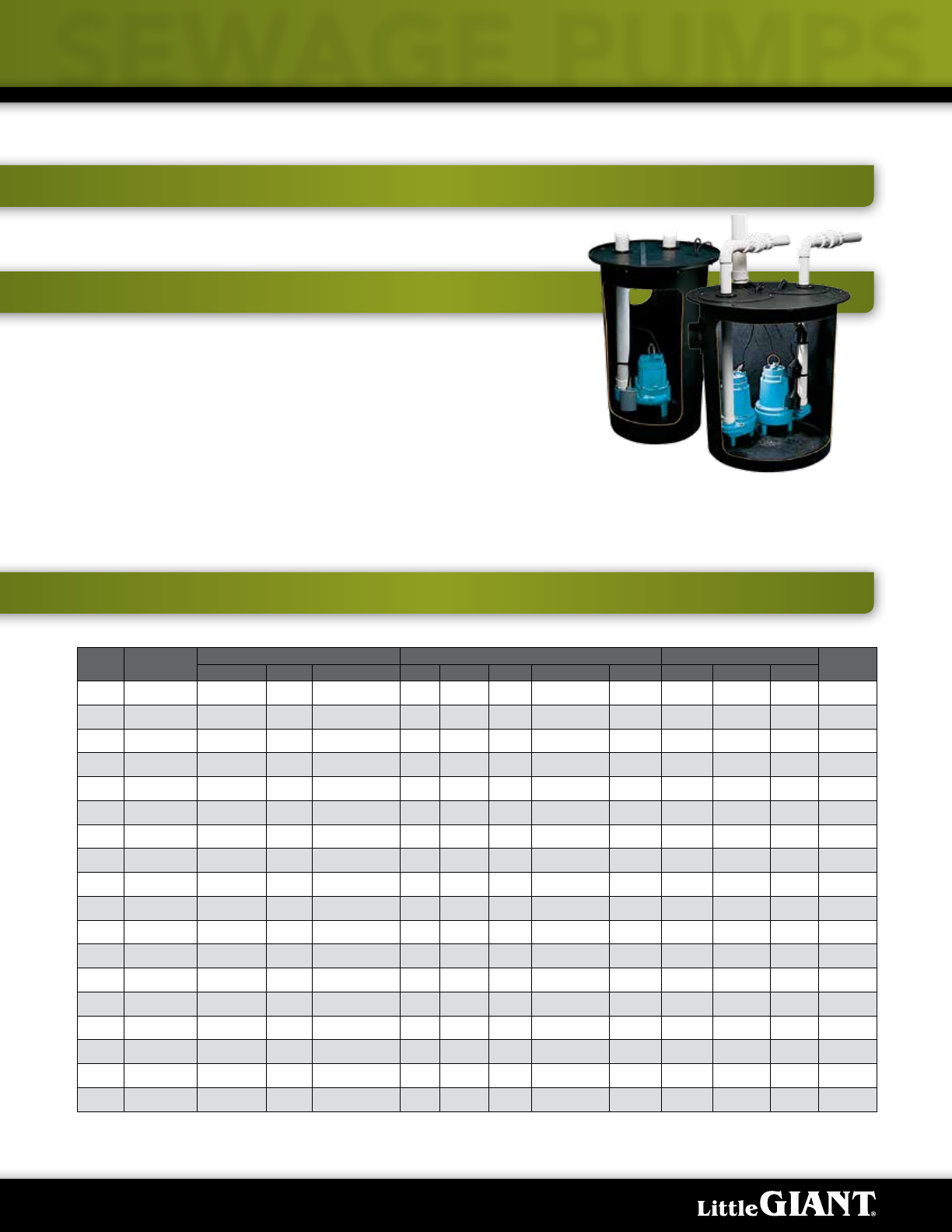

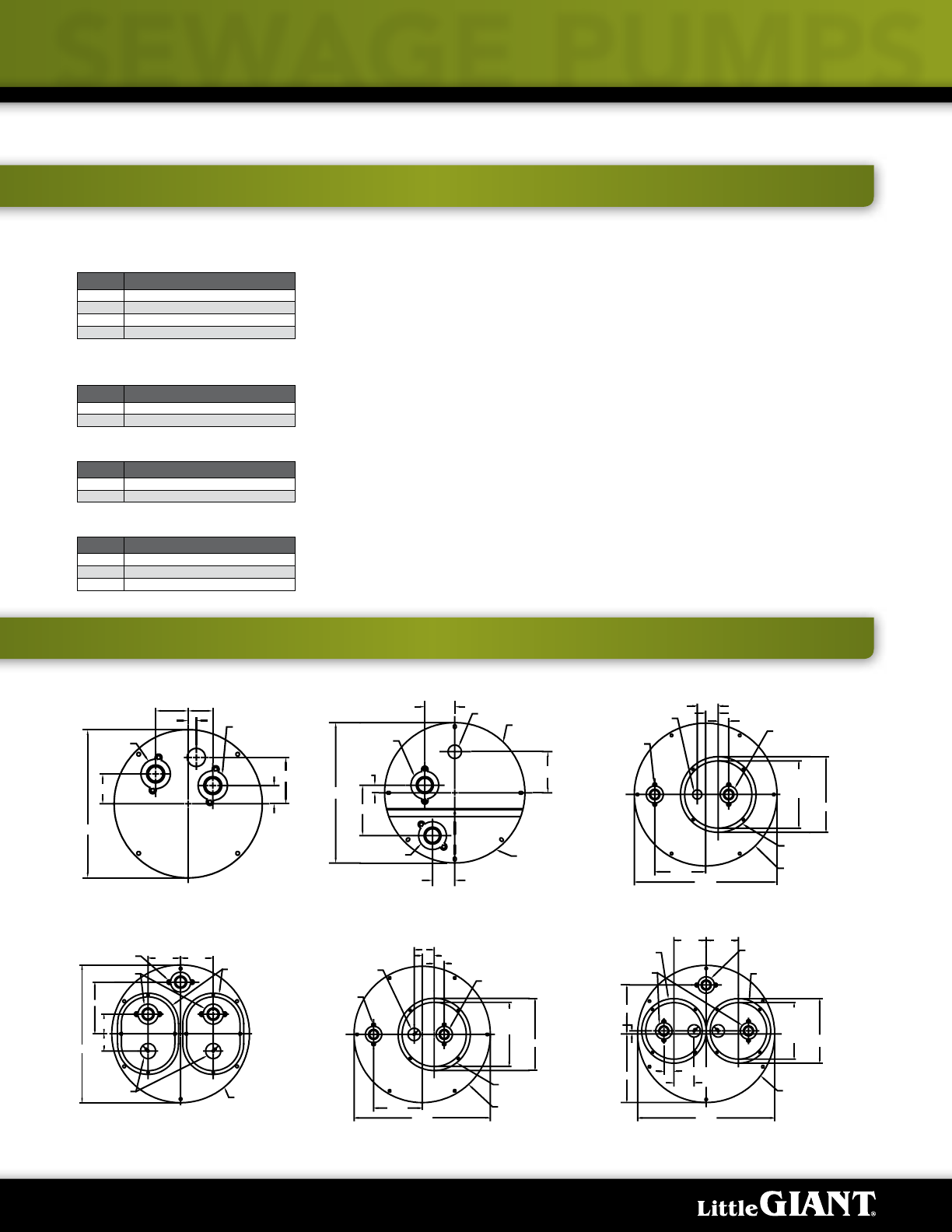

SIMPLEX AND DUPLEX SYSTEMS
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Collection of sewage, efuent, drainage or seepage water
• Basins available in high density polyethylene structural foam
[18" (46 cm), 24" (61 cm), & 30" (76 cm) dia.] or
berglass [36" (9.14 cm) dia]
• Complete with necessary sealing hardware and anges
• Available with 2" or 3" (51 mm or 76 mm) vent or discharge ange
• 4" inlet hub is included with the basin
• Water-tight and gas-tight when properly installed
• Durable steel gasketed cover standard on simplex and duplex basins
• One-piece, seam-free construction on basin
• Duplex covers include two access plates
• Ready-to-install for simple and economical installation
• Temperature rated up to 130 °F (54.4 °C)
Pre-Packaged Simplex Systems (assembly required)
Note: Other configurations are available. Please contact factory for information on package requirements not shown here.
* Inlet hole is not pre-cut
† Includes CVBV-2 (599160) check/ball combination
‡ Includes HWAB high water alarm (513288)
Item No. Model Basin Cover Pump Check
Valve
Size Style Inlet Hub Included Style Material Flanges Vent Discharge Pump No Pump Volts Pump HP
509007 9S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Snap-in Vinyl Hub
1-Piece Steel Slip-Fit 2"
51 mm
2"
51 mm 509204 115 4/10 940022
2" - 51 mm
509008 9S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Snap-in Vinyl Hub
2-Piece Steel Bolt-On 3"
76 mm
2"
51 mm 509204 115 4/10 940022
2" - 51 mm
509009 9S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Cast Iron Hub
1-Piece Steel Slip-Fit 2"
51 mm
2"
51 mm 509204 115 4/10 940022
2" - 51 mm
509029 9S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Snap-in Vinyl Hub
2-Piece Steel Bolt-On 2"
51 mm
3"
76 mm 509215 115 4/10 940022
2" - 51 mm
509030 9S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Cast Iron Hub
2-Piece Steel Bolt-On 2"
51 mm
3"
76 mm 509215 115 4/10 940022
2" - 51 mm
509041 9E-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Snap-in Vinyl Hub
2-Piece Steel Bolt-On 2"
51 mm
2"
51 mm 509209 115 4/10 940022
2" - 51 mm
509042 9S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam* Snap-in Vinyl Hub
2-Piece Steel Bolt-On 2"
51 mm
2"
51 mm 509204 115 4/10 940022
2" - 51 mm
509044 9S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Snap-in Vinyl Hub
2-Piece Steel Bolt-On 2"
51 mm
2"
51 mm 509204 115 4/10 940022
2" - 51 mm
509045 9S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Cast Iron Hub
2-Piece Steel Bolt-On 2"
51 mm
2"
51 mm 509204 115 4/10 940022
2" - 51 mm
509047 9S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Cast Iron Hub
2-Piece Steel Bolt-On 3"
76 mm
2"
51 mm 509204 115 4/10 940022
2" - 51 mm
509068 9S-SMPXRT-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet
1-Piece
Structural
Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2"
51 mm 509204 115 4/10 -
509069 9S-SMPXRT-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet
1-Piece
Structural
Foam Slip-Fit 2" or 3"
51 mm or 76 mm
3"
76 mm 509215 115 4/10 940023
3" - 76 mm
†509072 9S-SMPXRT-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet
1-Piece
Structural
Foam 2" or 3" 2" or 3" 2"
51 mm 509204 115 4/10 940026
2" - 51 mm
509074 9S-SMPXRT-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet
1-Piece
Structural
Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2"
51 mm 509204 115 4/10 940022
2" - 51 mm
509076 9S-SMPXRT-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet
1-Piece
Structural
Foam Slip-Fit 2"
51 mm
3"
76 mm 509215 115 4/10 -
509078 9S-SMPXRT-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet
1-Piece
Structural
Foam Slip-Fit 2"
51 mm
3"
76 mm 509215 115 4/10 940023
3" - 76 mm
511017 10S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Cast Iron Hub 1-Piece Steel Slip-Fit 2"
51 mm
2"
51 mm 511323 115 1/2 940022
2" - 51 mm
511018 10S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Snap-in Vinyl Hub 1-Piece Steel Slip-Fit 2"
51 mm
2"
51 mm 509215 115 1/2 940022
2" - 51 mm
9S-SMPX
14S-DPLX
SEWAGE PUMPS
109
Hotline: 1.800.701.7894 www.franklinwater.com
Pre-Packaged Simplex Systems (assembly required) [Continued]
Pre-Assembled Simplex Systems (ready to install)
Basin & Cover Assemblies - Simplex (pump not included)
* Inlet hole is not pre-cut
Note: Other configurations are available. Please contact factory for information on package requirements not shown here.
* Inlet hole is not pre-cut
† Includes CVBV-2 (599160) check/ball combination
‡ Includes HWAB high water alarm (513288)
Note: Other configurations are available. Please contact factory for information on package requirements not shown here.
* Inlet hole is not pre-cut
† Includes CVBV-2 (599160) check/ball combination
‡ Includes HWAB high water alarm (513288)
SERIES SPECIFICATIONS
SIMPLEX AND DUPLEX SYSTEMS
Item No. Model Basin Cover Pump Check
Valve
Size Style Inlet Hub Included Style Material Flanges Vent Discharge Pump No Pump Volts Pump HP
511019 10S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Snap-in Vinyl Hub
1-Piece Steel Slip-Fit 2"
51 mm
2"
51 mm 509215 115 1/2 940022
2" 51 mm
511042 10S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Snap-in Vinyl Hub
2-Piece Steel Bolt-On 2"
51 mm
2"
51 mm 511323 115 1/2 940022
2" 51 mm
511044 10S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Snap-in Vinyl Hub
2-Piece Steel Bolt-On 2"
51 mm
2"
51 mm 511323 115 1/2 940022
2" 51 mm
511045 10S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Cast Iron Hub
2-Piece Steel Bolt-On 2"
51 mm
2"
51 mm 511323 115 1/2 940022
2" 51 mm
511046 10S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Snap-in Vinyl Hub
2-Piece Steel Bolt-On 3"
76 mm
2"
51 mm 511323 115 1/2 940022
2" 51 mm
511047 10S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Cast Iron Hub
2-Piece Steel Bolt-On 3"
76 mm
2"
51 mm 511323 115 1/2 940022
2" 51 mm
511051 10S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Cast Iron Hub
2-Piece Steel Bolt-On 2"
51 mm
3"
76 mm 511344 115 1/2 940023
3" 76 mm
511054 10S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Snap-in Vinyl Hub
2-Piece Steel Bolt-On 2"
51 mm
3"
76 mm 511326 115 1/2 940023
3" 76 mm
511055 10S-SMPX 18" x 30"
46 cm x 76 cm
Structural
Foam Cast Iron Hub
2-Piece Steel Bolt-On 2"
51 mm
3"
76 mm 511326 115 1/2 940023
3" 76 mm
511065 10S-SMPXRT-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet
1-Piece
Structural
Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2"
51 mm 511323 115 1/2 940022
2" 51 mm
Item No. Model
Basin Cover Pump Check
Valve Alarm
Size Style Inlet Hub
Included Style Material Flanges Vent Discharge Pump No Pump
Volts
Pump
HP
509067 9S-SMPXRTA-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet 1-Piece Structural
Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2"
51 mm 14940107 115 4/10 940022
2" 51 mm
513288
Indoor High Water
†509071 9S-SMPXRT-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet 1-Piece Structural
Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2"
51 mm 14940107 115 4/10 940026
2" 51 mm -
509073 9S-SMPXRTA-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet 1-Piece Structural
Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2"
51 mm 14940107 115 4/10 940022
2" 51 mm -
509075 9S-SMPXRT-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet 1-Piece Structural
Foam Slip-Fit 2" or 3"
51 mm or 76 mm
3"
76 mm 509215 115 4/10 - -
509077 9S-SMPXRT-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet 1-Piece Structural
Foam Slip-Fit 2"
51 mm
3"
76 mm 509215 115 4/10 940023
3" 76 mm -
509079 9S-SMPXRTA-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet 1-Piece Structural
Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2"
51 mm 14940107 115 4/10 940022
2" 51 mm
513288
Indoor High Water
511064 10S-SMPXRT-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet 1-Piece Structural
Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2"
51 mm 511323 115 1/2 940022
2" 51 mm -
‡511079 10S-SMPXRTA-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet 1-Piece Structural
Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2" or 3"
51 mm or 76 mm 511323 115 1/2 940022
2" 51 mm
513288
Indoor High Water
620054 WSV52S-FP 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet 1-Piece Structural
Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2"
51 mm 620236 115 1/2 940022
2" 51 mm -
Item No. Model Basin Cover
Size Style Inlet Hub Included Style Material Flanges Vent Discharge
513100 BS1830CS2V2D 18" x 30"
46 cm x 76 cm
Structural
Foam* Snap-in Vinyl Hub
2-Piece Steel Bolt-On 2"
51 mm
2"
51 mm
513101 BS1830CS2V2D 18" x 30"
46 cm x 76 cm
Structural
Foam Snap-in Vinyl Hub 2-Piece Steel Bolt-On 2"
51 mm
2"
51 mm
513102 BS1830CS3V2D 18" x 30"
46 cm x 76 cm
Structural
Foam Snap-in Vinyl Hub 2-Piece Steel Bolt-On 3"
76 mm
2"
51 mm
513103 BB1830CS2V2D 18" x 30"
46 cm x 76 cm
Structural
Foam Cast Iron Hub
2-Piece Steel Bolt-On 2"
51 mm
2"
51 mm
513104 BB1830CS3V2D 18" x 30"
46 cm x 76 cm
Structural
Foam Cast Iron Hub 2-Piece Steel Bolt-On 3"
76 mm
2"
51 mm
SEWAGE PUMPS
110
Item No. Model Basin Cover
Size Style Inlet Hub Included Style Material Flanges Vent Discharge
513119 BS1830CS2V2D 18" x 30"
46 cm x 76 cm
Structural
Foam Snap-in Vinyl Hub
1-Piece Steel Bolt-On 2"
51 mm
2"
51 mm
513120 BS1830CS2V3D 18" x 30"
46 cm x 76 cm
Structural
Foam Cast Iron Hub 2-Piece Steel Bolt-On 2"
51 mm
3"
76 mm
513122 BS1830CS2V3D 18" x 30"
46 cm x 76 cm
Structural
Foam Snap-in Vinyl Hub 2-Piece Structural
Foam Bolt-On 2"
51 mm
3"
76 mm
513127 BB1830CS2V2D-K 18" x 30"
46 cm x 76 cm Fiberglass Cast Iron Hub
1-Piece Steel Slip-Fit 2"
51 mm
2"
51 mm
513128 BB1830CS3V2D-K 18" x 30"
46 cm x 76 cm Fiberglass Cast Iron Hub
1-Piece Steel Slip-Fit 3"
76 mm
2"
51 mm
513240 BS1830CSRT-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet
1-Piece
Structural
Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2" or 3"
51 mm or 76 mm
513241 BS1830CSRTNH-K 18" x 30"
46 cm x 76 cm
Roll Top
Poly
4" Adaptaex &
Multi-tite Grommet
1-Piece
Structural
Foam Slip-Fit 2" or 3"
51 mm or 76 mm
2" or 3"
51 mm or 76 mm
513105 BB2436CS2V2D 24" X 36"
61 cm x 91 cm
Structural
Foam Cast Iron Hub
1-Piece Cast Iron Bolt-On 2"
51 mm
2"
51 mm
513106 BB2436CS3V2D 24" X 36"
61 cm x 91 cm
Structural
Foam Cast Iron Hub
1-Piece Steel Bolt-On 3"
76 mm
2"
51 mm
513107 BB2436CS2V3D 24" X 36"
61 cm x 91 cm
Structural
Foam Cast Iron Hub
1-Piece Steel Bolt-On 2"
51 mm
3"
76 mm
513108 BB2436CS3V3D 24" X 36"
61 cm x 91 cm
Structural
Foam Cast Iron Hub
1-Piece Steel Bolt-On 3"
76 mm
3"
76 mm
513144 BB3036CS2V2D 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Hub
1-Piece Steel Bolt-On 2"
51 mm
2"
51 mm
513145 BB3036CS3V2D 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Hub
1-Piece Steel Bolt-On 3"
76 mm
2"
51 mm
513146 BB3036CS2V2D 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Hub
1-Piece Steel Bolt-On 2"
51 mm
3"
76 mm
513147 BB3036CS3V2D 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Hub
1-Piece Steel Bolt-On 3"
76 mm
3"
76 mm
Basin & Cover Assemblies - Simplex Systems (pump not included) [Continued]
SERIES SPECIFICATIONS
Item No. Model Basin Cover Pump Check
Valve Control Panel
Size Style Inlet Hub Included Style Material Vent Discharge Pump No Pump Volts Pump HP
14940697 9S-DPLX 24" x 36"
61 cm x 91.4 cm
Structural
Foam Cast Iron 1-Piece Steel 2"
51 mm
2"
51 mm 509203 115 4/10 940022
2" - 51 mm
513258
1221W120H6A17A
14940698 9S-DPLX 24" x 36"
61 cm x 91.4 cm
Structural
Foam Cast Iron 1-Piece Steel 2"
51 mm
2"
51 mm 509217 208-230 4/10 940022
2" - 51 mm
513258
1221W120H6A17A
14940728 9S-DPLX 24" x 36"
61 cm x 91.4 cm
Structural
Foam Cast Iron 1-Piece Steel 2"
51 mm
3"
76mm 509226 115 4/10 940023
3" - 76 mm
513258
1221W120H6A17A
14940729 9S-DPLX 24" x 36"
61 cm x 91.4 cm
Structural
Foam Cast Iron 1-Piece Steel 2"
51 mm
3"
76mm 509227 208-230 4/10 940023
3" - 76 mm
513258
1221W120H6A17A
14940699 10S-DPLX 24" x 36"
61 cm x 91.4 cm
Structural
Foam Cast Iron 1-Piece Steel 2"
51 mm
2"
51 mm 511322 115 1/2 940022
2" - 51 mm
513258
1221W120H6A17A
14940700 10S-DPLX 24" x 36"
61 cm x 91.4 cm
Structural
Foam Cast Iron 1-Piece Steel 2"
51 mm
2"
51 mm 511328 208-230 1/2 940022
2" - 51 mm
513258
1221W120H6A17A
14940701 10S-DPLX 24" x 36"
61 cm x 91.4 cm
Structural
Foam Cast Iron 1-Piece Steel 2"
51 mm
3"
76mm 511344 115 1/2 940023
3" - 76 mm
513258
1221W120H6A17A
14940730 10S-DPLX 24" x 36"
61 cm x 91.4 cm
Structural
Foam Cast Iron 1-Piece Steel 2"
51 mm
3"
76mm 14940725 208-230 1/2 940023
3" - 76 mm
513258
1221W120H6A17A
14940702 9S-DPLX 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Steel 2"
51 mm
2"
51 mm 509203 115 4/10 940022
2" - 51 mm
513258
1221W120H6A17A
14940703 9S-DPLX 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Steel 2"
51 mm
2"
51 mm 509217 208-230 4/10 940022
2" - 51 mm
513258
1221W120H6A17A
14940731 9S-DPLX 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Steel 3"
76mm
3"
76mm 509226 115 4/10 940023
3" - 76 mm
513258
1221W120H6A17A
14940732 9S-DPLX 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Steel 3"
76mm
3"
76mm 509227 208-230 4/10 940023
3" - 76 mm
513258
1221W120H6A17A
14940704 10S-DPLX 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Steel 2"
51 mm
2"
51 mm 511328 208-230 1/2 940022
2" - 51 mm
513258
1221W120H6A17A
14940705 10S-DPLX 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Steel 2"
51 mm
2"
51 mm 511328 208-230 1/2 940022
2" - 51 mm
513258
1221W120H6A17A
14940706 10S-DPLX 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Steel 3"
76mm
3"
76mm 511344 115 1/2 940023
3" - 76 mm
513258
1221W120H6A17A
14940733 10S-DPLX 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Steel 3"
76mm
3"
76mm 14940725 208-230 1/2 940023
3" - 76 mm
513258
1221W120H6A17A
14940707 14S-DPLX 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Steel 2"
51 mm
2"
51 mm 514320 115 1/2 940022
2" - 51 mm
513258
1221W120H6A17A
Pre-Packaged Duplex Systems (ready to install)
* Inlet hole is not pre-cut
SIMPLEX AND DUPLEX SYSTEMS
SEWAGE PUMPS
111
Hotline: 1.800.701.7894 www.franklinwater.com
Item No. Model Basin Cover
Size Style Inlet Hub Included Style Material Flanges Vent Discharge
513129 BB2436CD2V2D 24" x 36"
61 cm x 91.4 cm
Structural
Foam Cast Iron Hub 1-Piece Steel Bolt-On 2"
51 mm
2"
51 mm
513130 BB2436CD3V2D 24" x 36"
61 cm x 91.4 cm
Structural
Foam Cast Iron Hub 1-Piece Steel Bolt-On 3"
76 mm
2"
51 mm
513148 BB3036CS2V2D 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Hub 1-Piece Steel Bolt-On 2"
51 mm
2"
51 mm
513149 BB3036CS3V2D 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Hub 1-Piece Steel Bolt-On 3"
76 mm
2"
51 mm
513150 BB3036CD2V3D 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Hub 1-Piece Steel Bolt-On 2"
51 mm
3"
76 mm
513151 BB3036CS3V3D 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Hub 1-Piece Steel Bolt-On 3"
76 mm
3"
76 mm
513117 BB3636CD3V2D 36" x 36"
91.4 cm x 91.4 cm Fiberglass Cast Iron Hub 1-Piece Steel Bolt-On 3"
76 mm
2"
51 mm
513118 BB3636CD3V3D 36" x 36"
91.4 cm x 91.4 cm Fiberglass Cast Iron Hub 1-Piece Steel Bolt-On 3"
76 mm
3"
76 mm
513125 BB3636CD2V2D 36" x 36"
91.4 cm x 91.4 cm Fiberglass Cast Iron Hub 1-Piece Steel Bolt-On 2"
51 mm
2"
51 mm
513126 BB3636CS2V3D 36" x 36"
91.4 cm x 91.4 cm Fiberglass Cast Iron Hub 1-Piece Steel Bolt-On 2"
51 mm
3"
76 mm
Item No. Model Basin Cover Pump Check
Valve Control Panel
Size Style Inlet Hub Included Style Material Vent Discharge Pump No Pump Volts Pump HP
14940708 14S-DPLX 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Steel 2"
51 mm
2"
51 mm 514320 208-240 1/2 940022
2" - 51 mm
513258
1221W120H6A17A
14940709 14S-DPLX 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Steel 3"
76mm
3"
76mm 514420 115 1/2 940023
3" - 76 mm
513258
1221W120H6A17A
14940710 14S-DPLX 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Steel 3"
76mm
3"
76mm 14940726 208-240 1/2 940023
3" - 76 mm
513258
1221W120H6A17A
14940711 16S-DPLX 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Steel 3"
76mm
3"
76mm 514620 230 1 940023
3" - 76 mm
513258
1221W120H6A17A
14940712 20S-DLPX 30" x 36"
76 cm x 91.4 cm
Structural
Foam Cast Iron Steel 3"
76mm
3"
76mm 520100 208-230 2 940023
3" - 76 mm
513258
1221W120H6A17A
14940713 9S-DPLX 36" x 36"
91.4 cm x 91.4 cm
Structural
Foam Cast Iron Steel 2"
51 mm
2"
51 mm 509203 115 4/10 940022
2" - 51 mm
513258
1221W120H6A17A
14940714 9S-DPLX 36" x 36"
91.4 cm x 91.4 cm
Structural
Foam Cast Iron Steel 2"
51 mm
2"
51 mm 509217 208-230 4/10 940022
2" - 51 mm
513258
1221W120H6A17A
14940734 9S-DPLX 36" x 36"
91.4 cm x 91.4 cm
Structural
Foam Cast Iron Steel 3"
76mm
3"
76mm 509226 115 4/10 940023
3" - 76 mm
513258
1221W120H6A17A
14940735 9S-DPLX 36" x 36"
91.4 cm x 91.4 cm
Structural
Foam Cast Iron Steel 3"
76mm
3"
76mm 509227 208-230 4/10 940023
3" - 76 mm
513258
1221W120H6A17A
14940736 10S-DPLX 36" x 36"
91.4 cm x 91.4 cm
Structural
Foam Cast Iron Steel 3"
76mm
3"
76mm 14940725 208-230 1/2 940023
3" - 76 mm
513258
1221W120H6A17A
14940715 10S-DPLX 36" x 36"
91.4 cm x 91.4 cm
Structural
Foam Cast Iron Steel 2"
51 mm
2"
51 mm 511322 115 1/2 940022
2" - 51 mm
513258
1221W120H6A17A
14940716 10S-DPLX 36" x 36"
91.4 cm x 91.4 cm
Structural
Foam Cast Iron Steel 2"
51 mm
2"
51 mm 511328 208-230 1/2 940022
2" - 51 mm
513258
1221W120H6A17A
14940717 10S-DPLX 36" x 36"
91.4 cm x 91.4 cm
Structural
Foam Cast Iron Steel 3"
76mm
3"
76mm 511344 115 1/2 940023
3" - 76 mm
513258
1221W120H6A17A
14940718 14S-DPLX 36" x 36"
91.4 cm x 91.4 cm
Structural
Foam Cast Iron Steel 2"
51 mm
2"
51 mm 514320 115 1/2 940022
2" - 51 mm
513258
1221W120H6A17A
14940719 14S-DPLX 36" x 36"
91.4 cm x 91.4 cm
Structural
Foam Cast Iron Steel 2"
51 mm
2"
51 mm 514321 208-240 1/2 940022
2" - 51 mm
513258
1221W120H6A17A
14940720 14S-DPLX 36" x 36"
91.4 cm x 91.4 cm
Structural
Foam Cast Iron Steel 3"
76mm
3"
76mm 514420 115 1/2 940023
3" - 76 mm
513258
1221W120H6A17A
14940737 14S-DPLX 36" x 36"
91.4 cm x 91.4 cm
Structural
Foam Cast Iron Steel 3"
76mm
3"
76mm 14940726 208-240 1/2 940023
3" - 76 mm
513258
1221W120H6A17A
14940721 16S-DPLX 36" x 36"
91.4 cm x 91.4 cm
Structural
Foam Cast Iron Steel 3"
76mm
3"
76mm 514620 230 1 940023
3" - 76 mm
513258
1221W120H6A17A
14940722 20S-DLPX 36" x 36"
91.4 cm x 91.4 cm
Structural
Foam Cast Iron Steel 3"
76mm
3"
76mm 520100 208-230 2 940023
3" - 76 mm
513258
1221W120H6A17A
Pre-Packaged Duplex Systems (ready to install) [Continued]
Basin & Cover Assemblies - Duplex Systems (pump not included)
SERIES SPECIFICATIONS
SIMPLEX AND DUPLEX SYSTEMS
SEWAGE PUMPS
112
SERIES SPECIFICATIONS
ENGINEERING DATA
Item No. Model
113072 4" vinyl hub
113073 4" cast iron hub
113077 6" cast iron hub
113084 4" cast iron hub for 18" berglass basin
Item No. Model
113074 4" cast iron hub
113078 6" cast iron hub
Item No. Model
113075 4" cast iron hub
113079 6" cast iron hub
Item No. Model
113076 4" vinyl hub
113080 6" cast iron hub
113081 8" cast iron hub
Hub kits come complete with all hardware required for installation.
Hub Kits for 18" (46 cm) Dia. Basins
Hub Kits for 24" (61 cm) Dia. Basins
Hub Kits for 30" (76 cm) Dia. Basins
Hub Kits for 36" (91.4 cm) Dia. Basins
* No pre-cut hub hole
30" x 36" Duplex Cover30" x 36" Simplex Cover
18" x 30" Cover 18" x 30" Cover 24" x 36" Simplex Cover
24" x 36" Duplex Cover
2.52
6.41
4.13
20
.50
1.13
3.414.50
2" DISCHARG
E
FLANGE
2" VENT
FLANGE
CORD GROMMET
ACCESS COVE
R
STATIONARY
COVER
DISCHARGE
FLANGE
VENT FLANGE
4.375
20
.50
1.1256.00
3.25
STATIONA
RY
COVER
28
.00
CORD
GROMMETS
3.50
4.00
DISCHARGE
FLANGES
10.50
VENT
FLANGE 6.63
ACCESS
COVERS
6.63
VENT
FL
ANGE
CORD
GROMMET
STATIONARY
COVER
ACCESS
COVER
DISCHARGE
FLANGE
5.00
3.00
2.50
10.00
18.00
16.00 PUMP
ACCESS
OPENING
28.00
STATIONA
RY
COVER
ACCESS
COVER
CORD
GROMMET
VENT
FL
ANGE
DISCHARGE
FLANGE
5.00
3.00
2.50
16.00 PUMP
ACCESS
OPENING
18.00
12.13
34
.00
STATIONA
RY
COVER
ACCESS
COVER
DI
SCHARGE
FLANGE
ACCESS
COVER
VENT
FLANGE
8.00 8.00
12.13
17.00
34.00
2.50 TYP.
5.00 TYP.
16.00
14.00 PUMP
ACCESS
OPENING
TYP.
.75
SIMPLEX AND DUPLEX SYSTEMS
SEWAGE PUMPS
113
Hotline: 1.800.701.7894 www.franklinwater.com

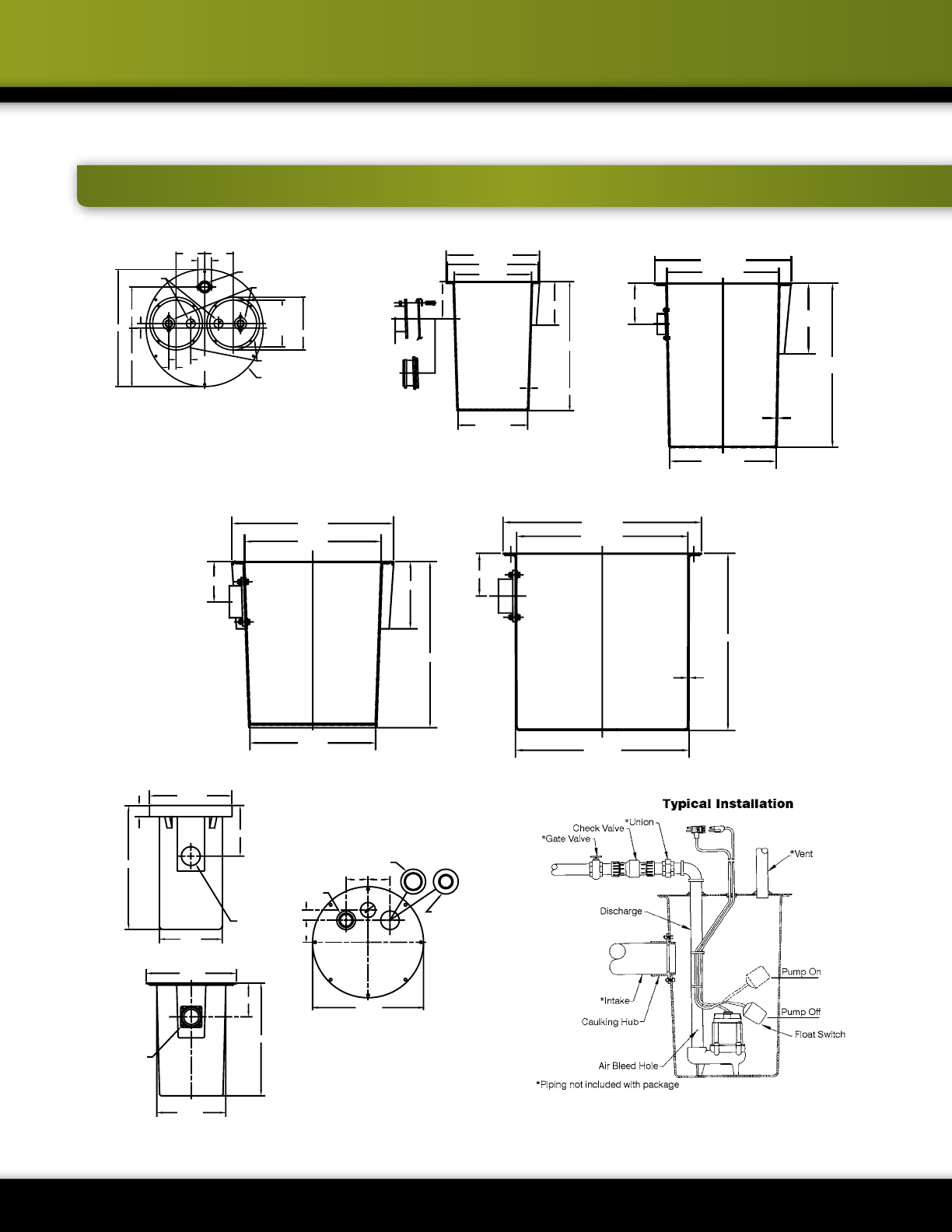

Spec Sheet 996566
30” x 36” Duplex Cover 24" x 36" Basin18" x 30" Basin
36" x 36" Duplex Basin30" x 36" Basin
30.00 O.D.
24.94 I.D.
9.00
14.50
36.00
.25 TYP.
22.50 I.D.
9.
00
36.00
30.50
15.00
37.0
0
28.00
ACCESS
COVERS
CORD
GROMMETS
STATIONARY
COVER
DISCHARGE
FLANGE
VENT
FLANGE
9.75 9.75
4.63 TYP.
20.00
40
.00
14.00
1.50
5.00 TYP.
2.50 TYP.
18.0
0
16.00 PUMP
ACCESS
OPENING
TYP.
9.
00
37.2
5
36.50 O.D.
.187 TYP.
36.00 O.D.
41.75 O.D.
Ø18.14
Ø20.63
21.75 O.D.
9.00
15.42
30.13
.20 TYP.
WALL THIC
KNESS
16.25 I.D.
4" or 6"
CA
ST IRON
4" SNAP-IN
VINYL HUB
4" INSIDE HUB
16.75
30.00
3.00
13.50
18.38
4" CAST
IRON HU
B
24.00
2" ADAPT-A-FLEX
DISCHARGE OR VENT
21.50
30.00
9.00
2" ADAPT-A-FLEX
DISCHARGE OR VE
NT
3" ADAPT-A-FLEX
DISCHARGE OR VENT
22.00
P/N 113056
113342
4.25
2.00
4.25 4.25
ENGINEERING DATA
SIMPLEX AND DUPLEX SYSTEMS
SEWAGE PUMPS
114

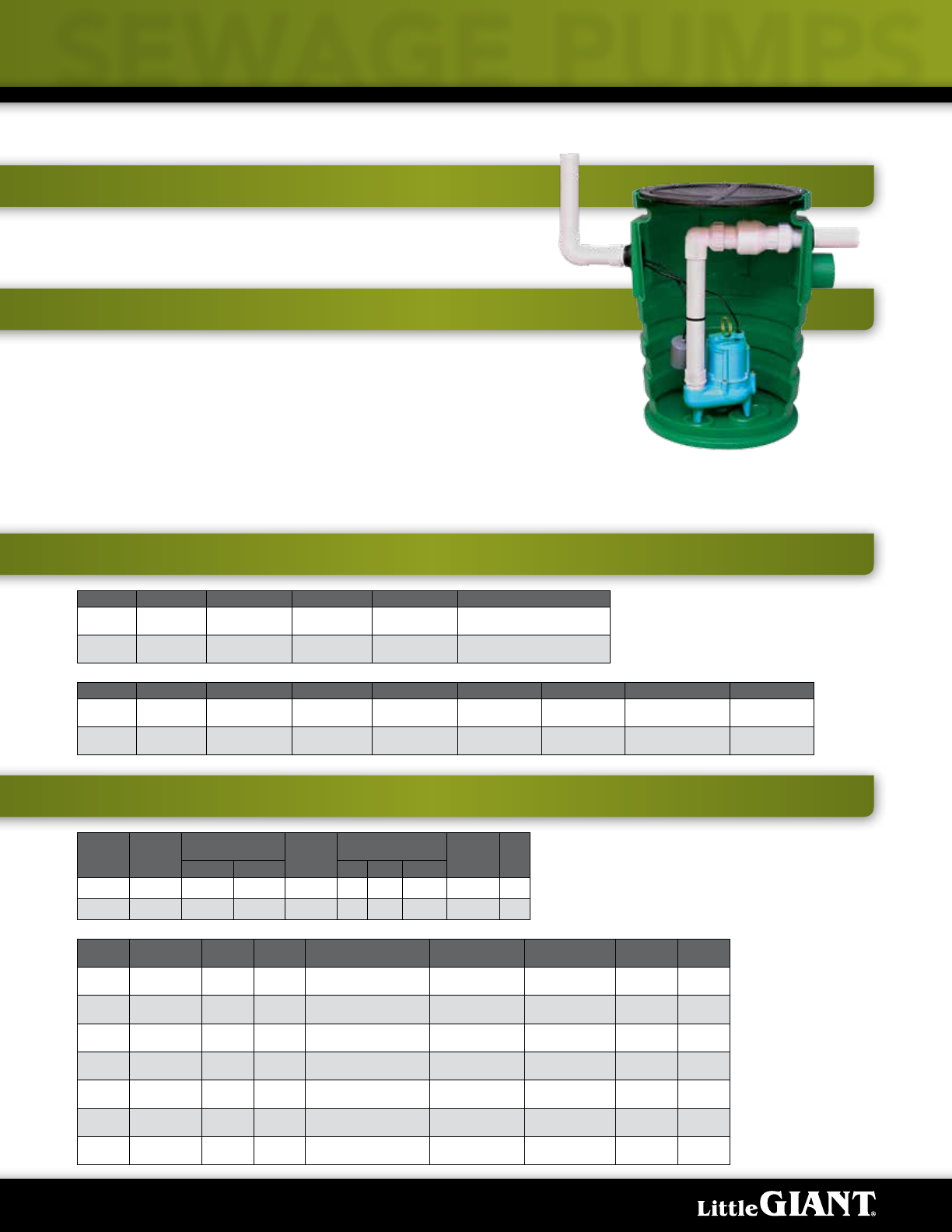

WCR SERIES WATER COLLECTION & REMOVAL SYSTEMS
Item No. Model Basin Size Cover Pump HP Pump Performance
509081 WCR-9SP 2" or 3"
51 mm or 76 mm Structural Foam 4/10 110 gpm @ 5'
416.4 lpm @ 1.5 m
509082 WCR-9SS 2" or 3"
51 mm or 76 mm Steel 4/10 110 gpm @ 5'
416.4 lpm @ 1.5 m
Item No. Model Discharge Check Valve Cover Pump HP Volts Pump Performance Weight
509081 WCR-9SP 2"
51 mm 2" Slip x Slip Structural Foam 4/10 115 110 gpm @ 5'
416.4 lpm @ 1.5 m
65 lbs
29.5 kg
509082 WCR-9SS 2"
51 mm 2" Slip x Slip Steel 4/10 115 110 gpm @ 5'
416.4 lpm @ 1.5 m
69 lbs
29.5 kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
PUMP SPECIFICATIONS
• Collection of sewage, efuent, drainage or seepage water
• Pre-packaged 20" x 30" (51 mm x 76 mm) polyethylene basin
with 4/10 hp sewage pump
• Handles up to 2"(51 mm) solids
• Options of structural foam or steel covers
• Includes schedule 40 PVC discharge piping with pre-drilled air-bleed hole
• Designed with side outlets for discharge and electrical cords
• Includes 2" (51 mm) bulkhead tting to easily route power cords out of basin
• Once installed, no digging required for system servicing
• cCSAus listed pump only
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 5' 10' 15'
115 60 8.5 17 850 110 70 30 20 8.7
208/230 50/60 4 7.5 800 110 70 30 20 8.7
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
509228 9SN-CIA-SFS 4/10 115 Integral Snap-Action Float 9" - 12"
22.26 cm - 30.48 cm
3" - 6"
7.62 cm - 15.24 cm
20'
6.1 m
35.5 lbs
16.1 Kg
509204 9SN-CIA-RF 4/10 115 Piggyback Mechanical Float 9" - 14"
22.86 cm - 35.56 cm
2" - 6"
5 cm - 15.24 cm
20'
6.1 m
35.5 lbs
16.1 Kg
509215 9SN-CIA-RF 4/10 115 Piggyback Mechanical Float 9" - 14"
22.86 cm - 35.56 cm
2" - 6"
5 cm - 15.24 cm
20'
6.1 m
35.5 lbs
16.1 Kg
509226 9SN-CIM 4/10 115 Manual – – 20'
6.1 m
35.5 lbs
16.1 Kg
509203 9SN-CIM 4/10 115 Manual – – 20'
6.1 m
34.5 lbs
15.65 Kg
509217 9SN-CIM 4/10 208-230 Manual – – 20'
6.1 m
36 lbs
16.33 Kg
509227 9SN-CIM 4/10 208-230 Manual – – 20'
6.1 m
36 lbs
16.33 Kg
SEWAGE PUMPS
115
Hotline: 1.800.701.7894 www.franklinwater.com

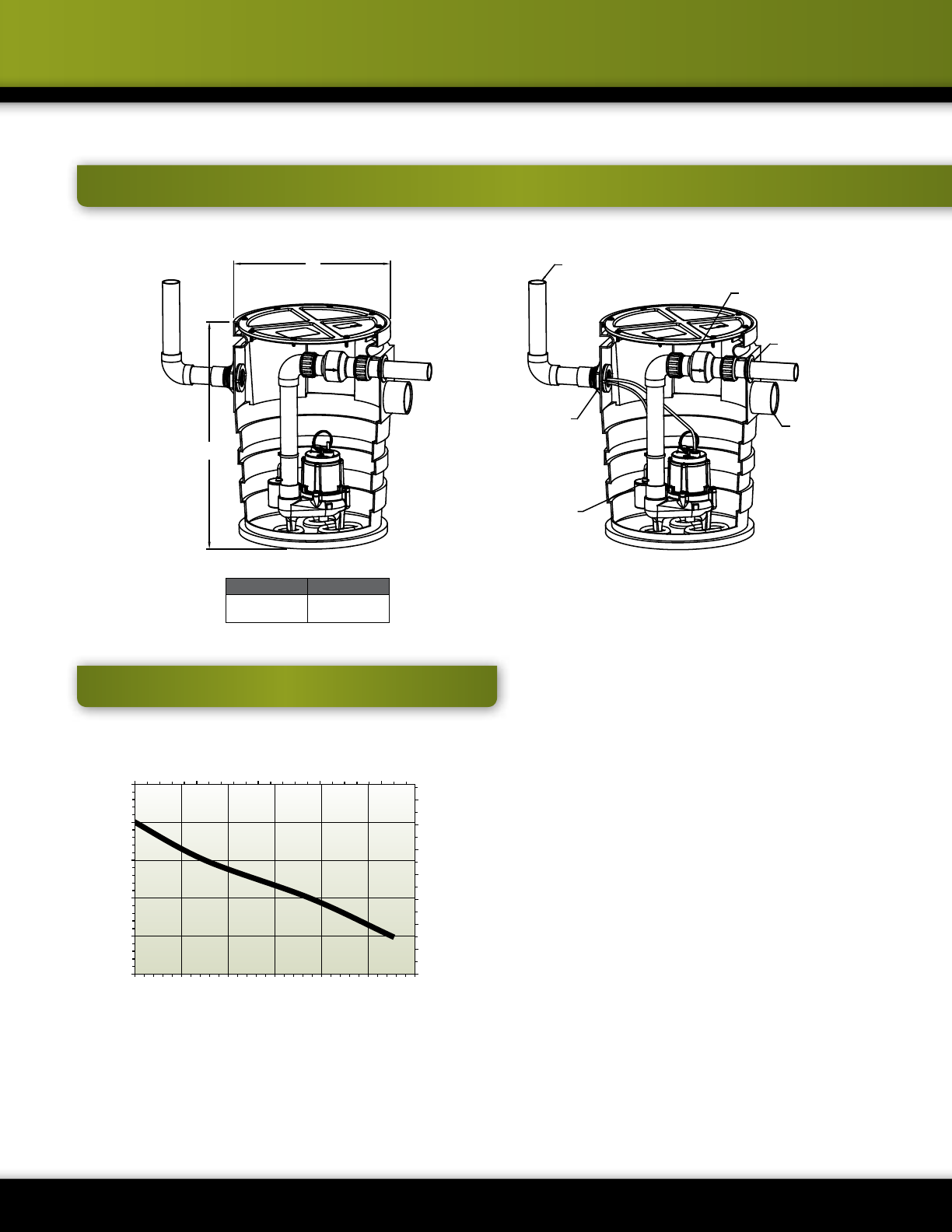

ENGINEERING DATA
Pump power cord and
oat cord to exit here
Check valve
compression x compression
2” Discharge
4” Inlet
Drill 3/16” air bleed hole
Approx. 2” to 3” above volute
Bulkhead tting
for electrical piping
Spec Sheet 995273
WCR SERIES WATER COLLECTION & REMOVAL SYSTEMS
A
B
A B
30"
76.2 cm
22"
55.88 cm
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0 20 40 60 80 120100
0
1
2
3
4
5
7
6
0
5
10
15
25
20
0 100 200 400300
PERFORMANCE DATA
Typical Installation
GRINDER PUMPS
If you have an application with high head conditions or difcult soil topography…
Little Giant grinder pumps are designed with over 414,000 cuts per minute and a
shut-off of 130’. These pumps are equipped to handle the demands of grinding
domestic sewage whether as a replacement pump or a packaged system...another
trusted, reliable product for a tough, demanding job.
GRINDER PUMPS
GRINDER PUMPS
118
GP SERIES 2 HP
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 20' 40' 60' 80' 100' 120'
208 60 13.9 68 3200 32 31 30 25 20 10 130 56
230 60 13.9 65 3200 32 31 30 25 20 10 130 56
Item No. Model HP Volts Switch Type/
Operation On Level Off Level Cord Weight
520885 GP-A201-20 2 208 Piggyback Mechanical Float
(no panel required)
23" - 25"
58.4 cm - 63.5 cm
9" - 11"
23 cm - 28 cm
20'
6.1 m
100 lbs
45.63 Kg
520875 GP-A231-20 2 230 Piggyback Mechanical Float
(no panel required)
23" - 25"
58.4 cm - 63.5 cm
9" - 11"
23 cm - 28 cm
20'
6.1 m
100 lbs
45.63 Kg
**520877 GP-A231-20 2 230 – – – 20'
6.1 m
100 lbs
45.63 Kg
520874 GP-A231-30 2 230 Piggyback Mechanical Float
(no panel required)
23" - 25"
58.4 cm - 63.5 cm
9" - 11"
23 cm - 28 cm
30'
9.1 m
104 lbs
47.17 Kg
520884 GP-A201-30 2 208 Piggyback Mechanical Float
(no panel required)
23" - 25"
58.4 cm - 63.5 cm
9" - 11"
23 cm - 28 cm
30'
9.1 m
104 lbs
47.17 Kg
520855 GP-M201-15 2 208 Manual – – 15'
4.6 m
82 lbs
37.19 Kg
520865 GP-M231-15 2 230 Manual – – 15'
4.6 m
81 lbs
36.74 Kg
520879 GP-M231-30 2 230 Manual – – 30'
9.1 m
81 lbs
36.74 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Low pressure sewer applications
• Sewage wastewater transfer for light commercial or residential applications
• Patented cutting system providing tight cutting clearances for superior cutting
action grinding 414,000 cuts per minute
• Single-phase, capacitor start/run motor with built-in overload protection
against over-current and over-temperature damage
• Brass 7-vane, angled face, non-clogging and balanced designed impeller
• Case hardened to 60 HRc 440 stainless steel cutter system
– Anti-roping design
– Field replaceable
• Upper and lower ball bearings
• 140 °F (60 °C) liquid temperature rating
• GP-M grinder pumps require control panel or capacitor kit specically
matched to pump for proper operation and third-party approvals
• Compact and easier to lift only 75 lbs (34 kg)
**No oat or leg kit, no panel required
GP-M
GP-A
GRINDER PUMPS
119
Hotline: 1.800.701.7894 www.franklinwater.com

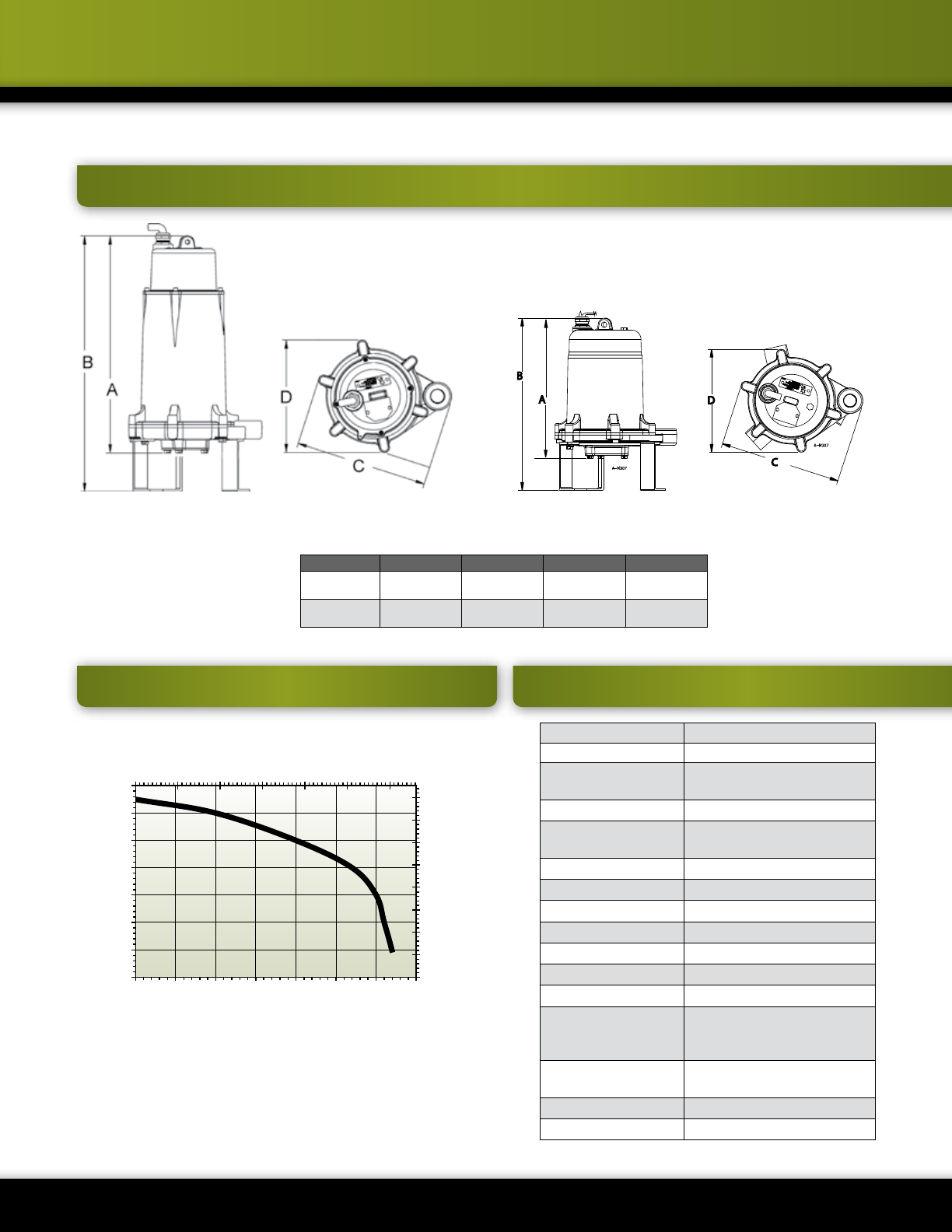

ENGINEERING DATA
PERFORMANCE DATA CONSTRUCTION
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
5
10
15
20
25
30
35
40
0
20
40
60
80
100
120
140
0 20 40 60 80 100 120
0 5 10 15 20 25 30 35
Motor Cover Cast iron with epoxy coating
Motor Cover O-Ring Nitrile
Motor Design Single-phase, capacitor start,
capacitor run
Insulation Class F
Overload Protection Internal, on winding thermal
protector
Motor Shaft AISI 300 series stainless steel
Ball Bearing-Upper Single row ball, 6203
Ball Bearing-Lower Single row ball, 6306
Seal Housing Cast iron with epoxy coating
Mechanical Seal Carbon/ceramic
Volute Cast iron with epoxy coating
Impeller Brass
Rotating Cutter
2 blade design, AISI 440C
stainless steel, through-hardened
to Rockwell 55-60C
Stationary Cutter AISI 440C stainless steel,
hardened to Rockwell 55-60C
External Hardware 300 series stainless steel
Power Cable Type SOW or SOW 14/3 AWG
Spec Sheet 996569
GP SERIES 2 HP
A
B
C
D
GP-A GP-M
Model A B C D
GP-A 18.61"
47.57 cm
21.56"
54.76 cm
11.5"
29.21 cm
9.63"
24.46 cm
GP-M 16.4"
41.66 cm
13.1"
33.27 cm
11.5"
29.21 cm
9.63"
24.46 cm
GRINDER PUMPS
120

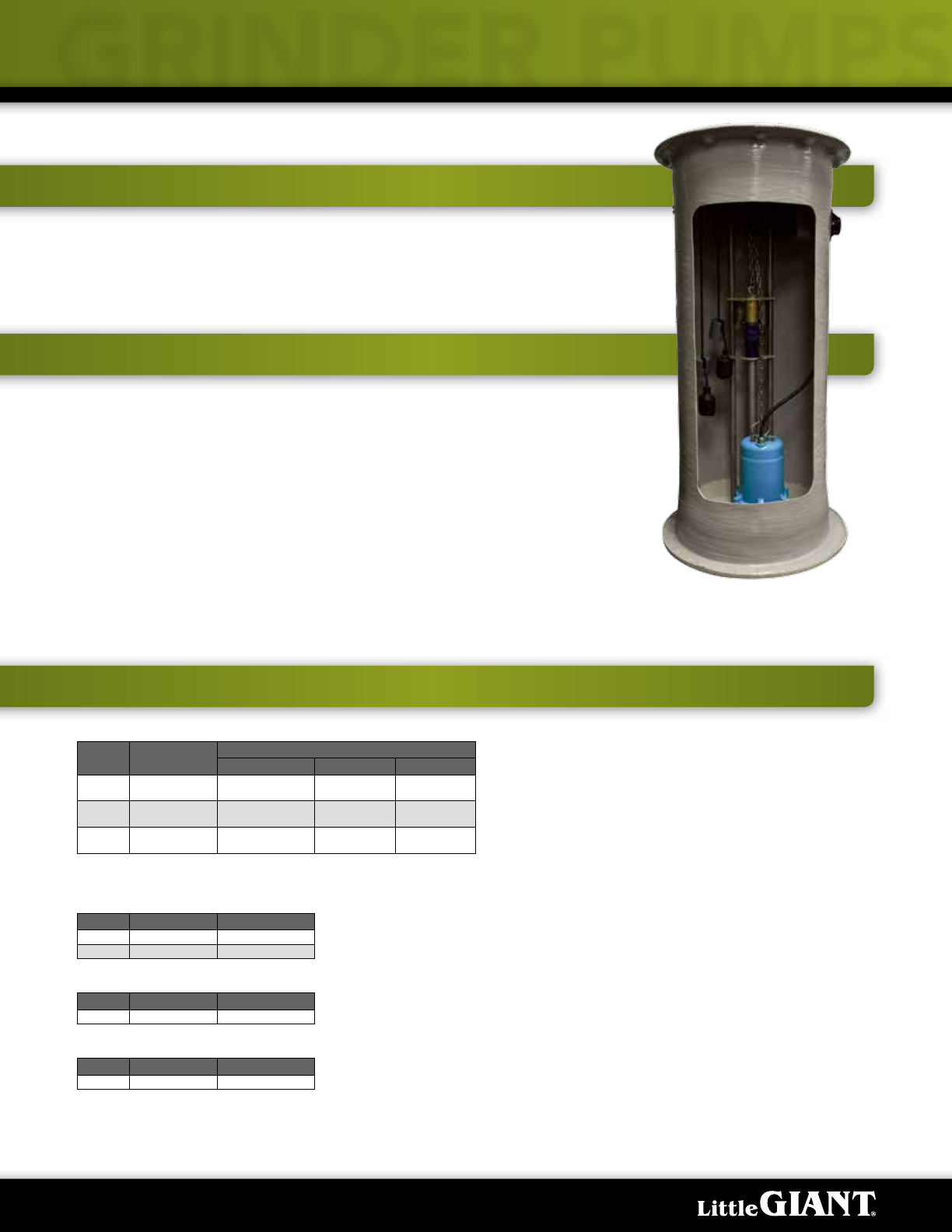

SIMPLEX GRINDER PACKAGES
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
PACKAGE SYSTEMS
• Pre-assembled with stainless steel rail system with sealing ange, discharge
pipe disconnect, three pre-set control oat switches, stainless steel
lifting chain, junction box, ball check valve, and shut-off valve
• Includes GP series 2 hp grinder pump (installed in eld), grinder control
panel/alarm with starting component matched to grinder motor
• Cover structural foam
Simplex Grinder Package System**
Item No. Model Basin
Size Style Description
520827 GP-SMPX2460 24" x 60"
61 cm x 152.4 cm Fiberglass BS2460FG
520828 GP-SMPX2472 24" x 72"
61 cm x 183 cm Fiberglass BS2472FG
520829 GP-SPMX2484 24" x 84"
61 cm x 213.4 cm Fiberglass BS2484FG
**Multiple Grinder Package configurations and Basin/Cover assemblies available. Please call
1.800.701.7894 for information on additional package specifications not shown here.
• Low pressure sewer applications
• Sewage wastewater transfer for light commercial or residential applications
Item No. Model Volts
513374 MGP-1C18-2 208/230
Item No. Model Volts
950266 CFSS 115/230
Control Panel
Control Floats
Item No. Model Volts
520865 GP-M231-15 230
520855 GP-M201-15 208
Pumps
GRINDER PUMPS
121
Hotline: 1.800.701.7894 www.franklinwater.com

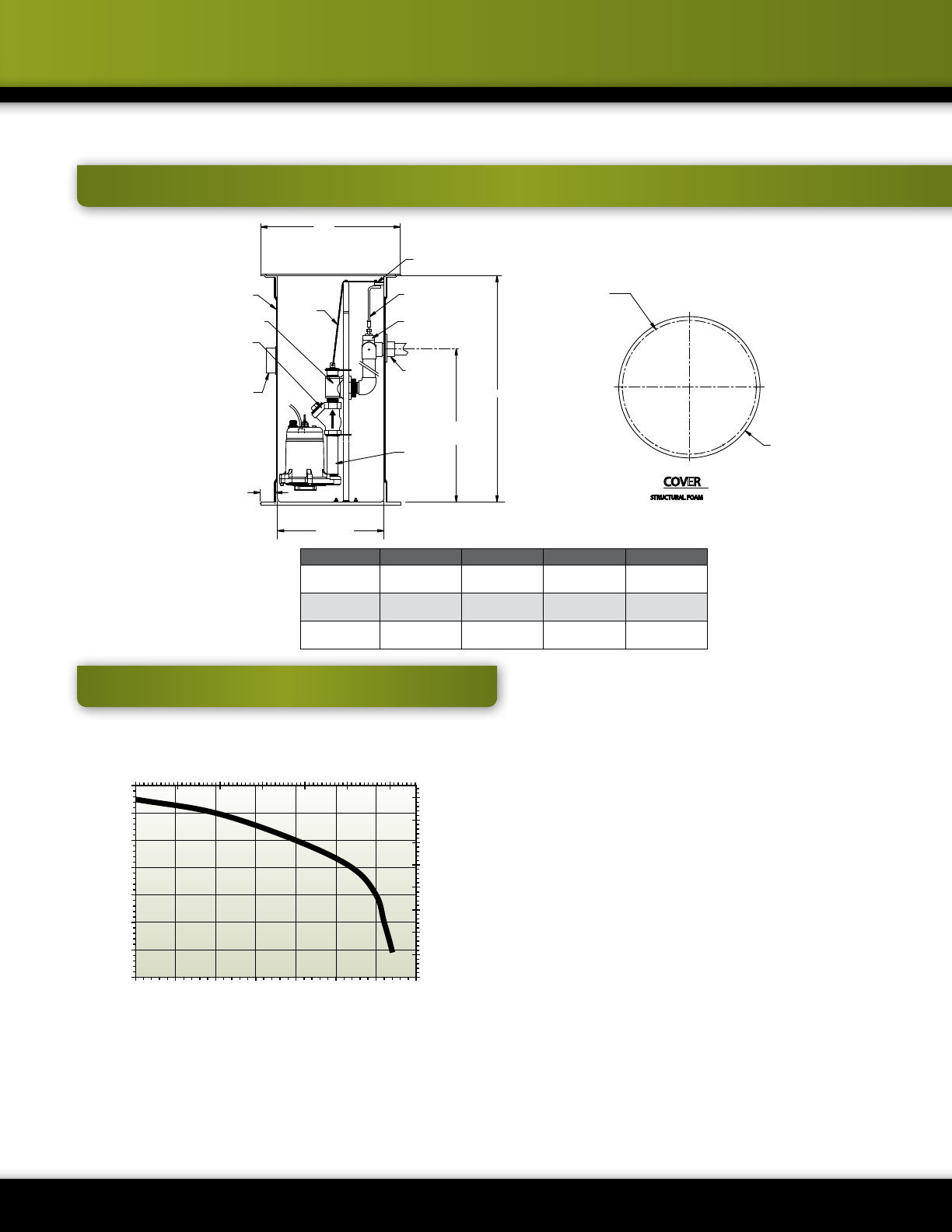

ENGINEERING DATA
PUMP PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
5
10
15
20
25
30
35
40
0
20
40
60
80
100
120
140
0 20 40 60 80 100 120
0 5 10 15 20 25 30 35
Spec Sheet 996154
SIMPLEX GRINDER PACKAGES
COVER
STRUCTURAL FOAM
4” Rubber Inlet Grommet
Cast Iron Ball Check Valve
Brass Disconnect
Fiberglass Basin
SST Support Brackets
SST Extension Handle
Brass Gate Valve
Discharge Coupling
36” Discharge
SST Nipple
SST Lifting Chain
3”
A
B
C
9/16 Dia. Holes
6 Places
D
Model A B C D
GP-SMPX2460 60"
152.4 cm
24"
60.96 cm
30"
76.2 cm
28"
71.12 cm
GP-SMPX2472 72"
182.88 cm
24"
60.96 cm
30"
76.2 cm
28"
71.12 cm
GP-SPMX2484 84"
213.36 cm
24"
60.96 cm
30"
76.2 cm
28"
71.12 cm
GRINDER PUMPS
122

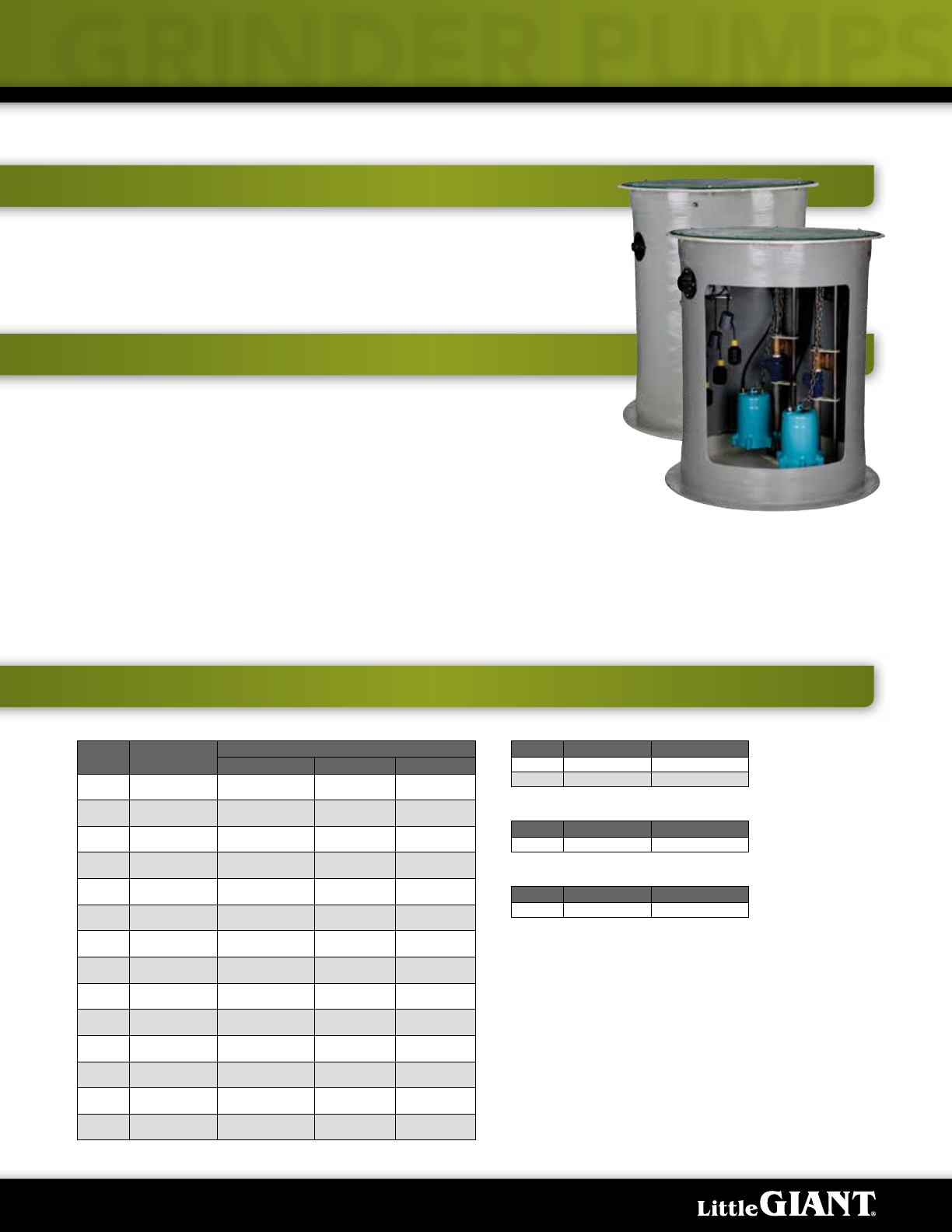

APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
PACKAGE SYSTEMS
• Two cast iron ball check valves
• Control panel with integral pump starting components
• Four control oat switches
• Stainless steel oat bracket
• Junction box
• Basins are heavy-duty berglass material. Duplex basins are 36" diameter,
and are available in 48", 60", 72", 84", 96", 108", and 120" depths
• 4" Adapt-A-Flex inlet hub
• Solid berglass cover, stainless steel rail system with sealing ange, discharge
pipe disconnect, stainless steel lifting chain, ball check valve, and shut-off valve
• Easy-to-follow installation instructions
Item No. Model Basin
Size Style Description
520760 GP-DPLX3648 36" x 48"
91.4 cm x 121.9 cm Fiberglass BS3648FG
520761 GP-DPLX3660 36" x 60"
91.4 cm x 152.4 cm Fiberglass BS3660FG
520762 GP-DPLX3672 36" x 72"
91.4 cm x 182.9 cm Fiberglass BS3672FG
520763 GP-DPLX3684 36" x 84"
91.4 cm x 213.4 cm Fiberglass BS3684FG
520764 GP-DPLX3696 36" x 96"
91.4 cm x 243.8 cm Fiberglass BS3696FG
520765 GP-DPLX36108 36" x 108"
91.4 cm x 274.3 cm Fiberglass BS36108FG
520766 GP-DPLX36120 36" x 120"
91.4 cm x 304.8 cm Fiberglass BS36120FG
520840 GP-DPLX3648 36" x 48"
91.4 cm x 121.9 cm Fiberglass BS3648FG
520841 GP-DPLX3660 36" x 60"
91.4 cm x 152.4 cm Fiberglass BS3660FG
520842 GP-DPLX3672 36" x 72"
91.4 cm x 182.9 cm Fiberglass BS3672FG
520843 GP-DPLX3684 36" x 84"
91.4 cm x 213.4 cm Fiberglass BS3684FG
520844 GP-DPLX3696 36" x 96"
91.4 cm x 243.8 cm Fiberglass BS3696FG
520845 GP-DPLX36108 36" x 108"
91.4 cm x 274.3 cm Fiberglass BS36108FG
520846 GP-DPLX36120 36" x 120"
91.4 cm x 304.8 cm Fiberglass BS36120FG
Item No. Model Volts
520865 GP-M231-15 230
520855 GP-M201-15 208
Item No. Model Volts
513375 MGPD-1C18 208/230
Item No. Model Volts
950266 CFSW 115/230
DUPLEX GRINDER PACKAGES
• Low pressure sewer applications
• Sewage wastewater transfer for light commercial or residential applications
Duplex Grinder Package System**
Control Panel
Pumps
Control Floats
**Multiple Grinder Package configurations and Basin/Cover assemblies available. Please call
1.800.701.7894 for information on additional package specifications not shown here.
GRINDER PUMPS
123
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PUMP PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
5
10
15
20
25
30
35
40
0
20
40
60
80
100
120
140
0 20 40 60 80 100 120
0 5 10 15 20 25 30 35
Model A B C D
GP-DPLX3648 48"
122 cm
12"
30.48 cm
42"
106.6 cm
40"
101.6 cm
GP-DPLX3660 60"
152.4 cm
36"
91.44 cm
42"
106.6 cm
40"
101.6 cm
GP-DPLX3672 72"
182.88 cm
36"
91.44 cm
42"
106.6 cm
40"
101.6 cm
GP-DPLX3684 84"
213.36 cm
36"
91.44 cm
42"
106.6 cm
40"
101.6 cm
GP-DPLX3696 96"
243.8 cm
36"
91.44 cm
42"
106.6 cm
40"
101.6 cm
GP-DPLX36108 108"
274.3 cm
48"
121.92 cm
42"
106.6 cm
40"
101.6 cm
GP-DPLX36120 120"
304.8 cm
48"
121.92 cm
42"
106.6 cm
40"
101.6 cm
Spec Sheet 996831
DUPLEX GRINDER PACKAGES
C
B
D
A
GRINDER PUMPS
124

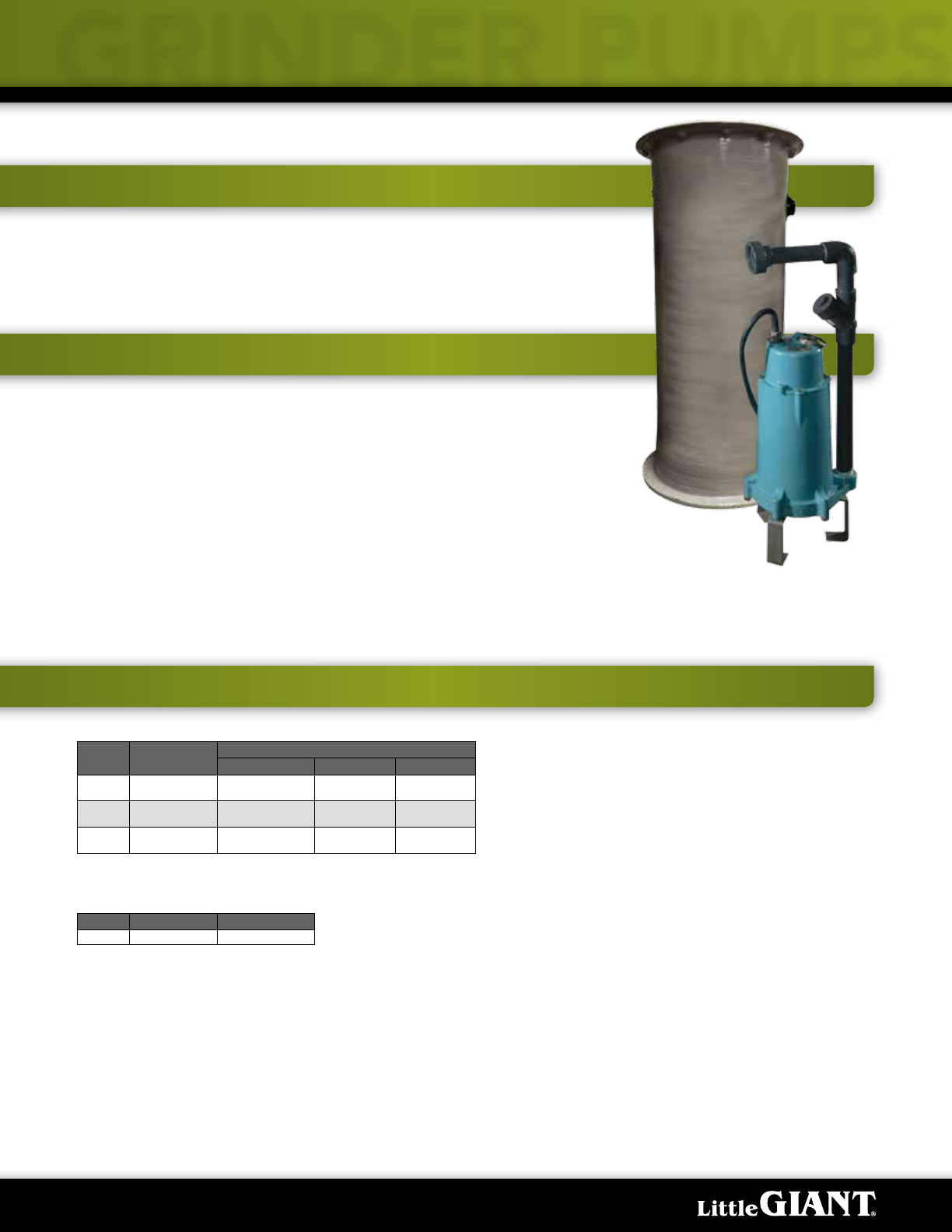

SIMPLEX HARD PIPED PACKAGES
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Fiberglass basin comes congured with hard pipe installation
• 1-1/4" SCH 80 PVC check valve and ball valve
• SCH 80 PVC discharge piping with union disconnect
• 4" Adapt-A-Flex inlet hub
• Cover is ribbed structural foam and green in color to blend with terrain
• 1-1/4" FNPT discharge ange factory installed
• 2 hp GP Series automatic grinder pump eliminates the need for a control panel
Simplex Grinder Hard Piped Package System**
Item No. Model Basin
Size Style Description
520824 GP-SMPXFG-HP 24" x 48"
61 cm x 122 cm Fiberglass BS2448FGHP
520825 GP-SMPXFG-HP 24" x 60"
61 cm x 152.4 cm Fiberglass BS2460FGHP
520826 GP-SMPXFG-HP 24" x 72"
61 cm x 182.9 cm Fiberglass BS2472FGHP
** Multiple Grinder Package configurations and Basin/Cover assemblies available. Please call
1.800.701.7894 for information on additional package specifications not shown here.
• Low pressure sewer applications
• Sewage wastewater transfer for light commercial or residential applications
Item No. Model Volts
520875 GP-A231-20 230
Pump
GRINDER PUMPS
125
Hotline: 1.800.701.7894 www.franklinwater.com

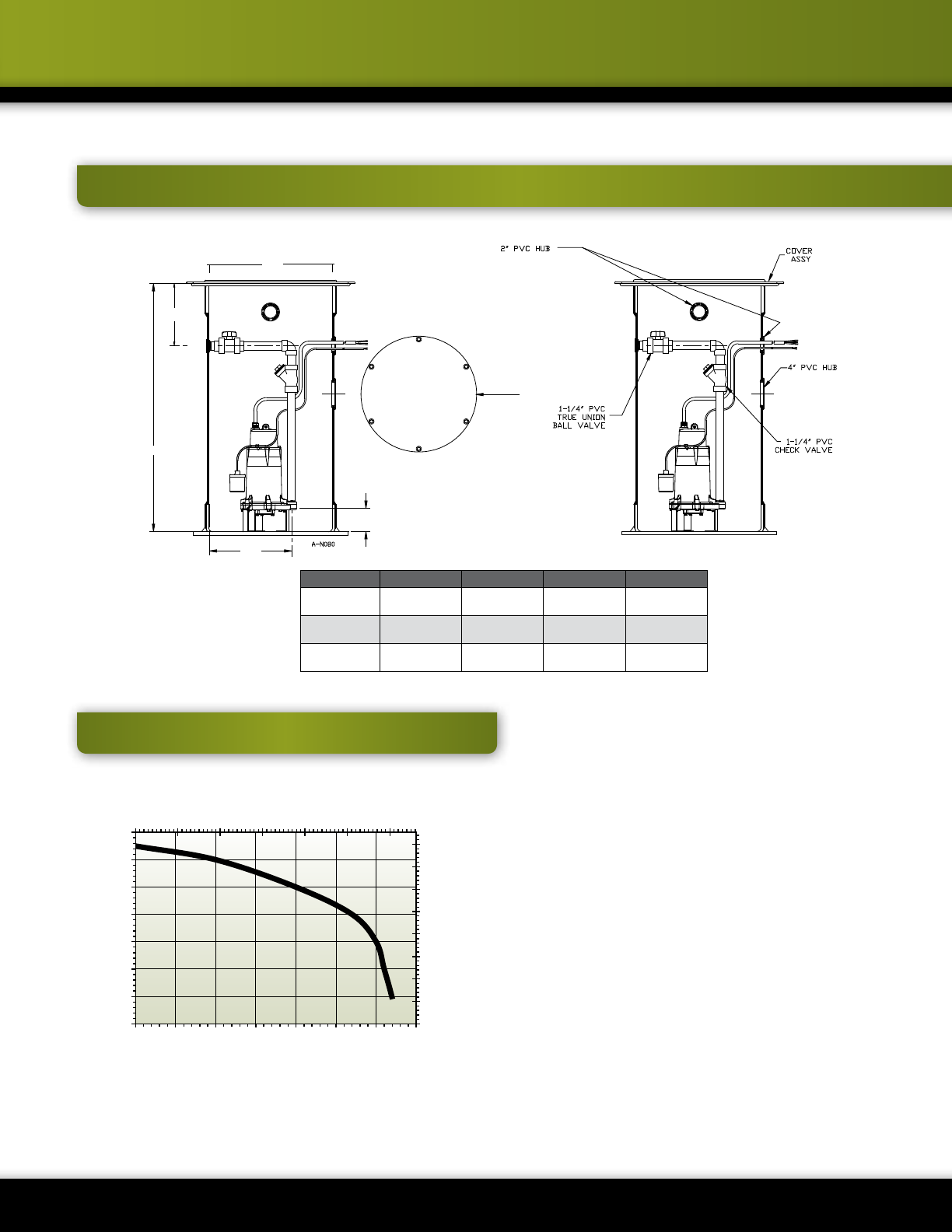

ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
5
10
15
20
25
30
35
40
0
20
40
60
80
100
120
140
0 20 40 60 80 100 120
0 5 10 15 20 25 30 35
Spec Sheet 995744
SIMPLEX HARD PIPED PACKAGES
C
A
B
D
E
F
Model A B C D
BS2448FG-HP 48"
122 cm
24"
60.96 cm
28"
71.2 cm
12"
30.48 cm
BS-2460FG-HP 60"
152.4 cm
24"
60.96 cm
28"
71.2 cm
24"
60.96 cm
BS2472FG-HP 72"
182.88 cm
24"
60.96 cm
28"
71.2 cm
36"
91.44 cm
GRINDER PUMPS
126

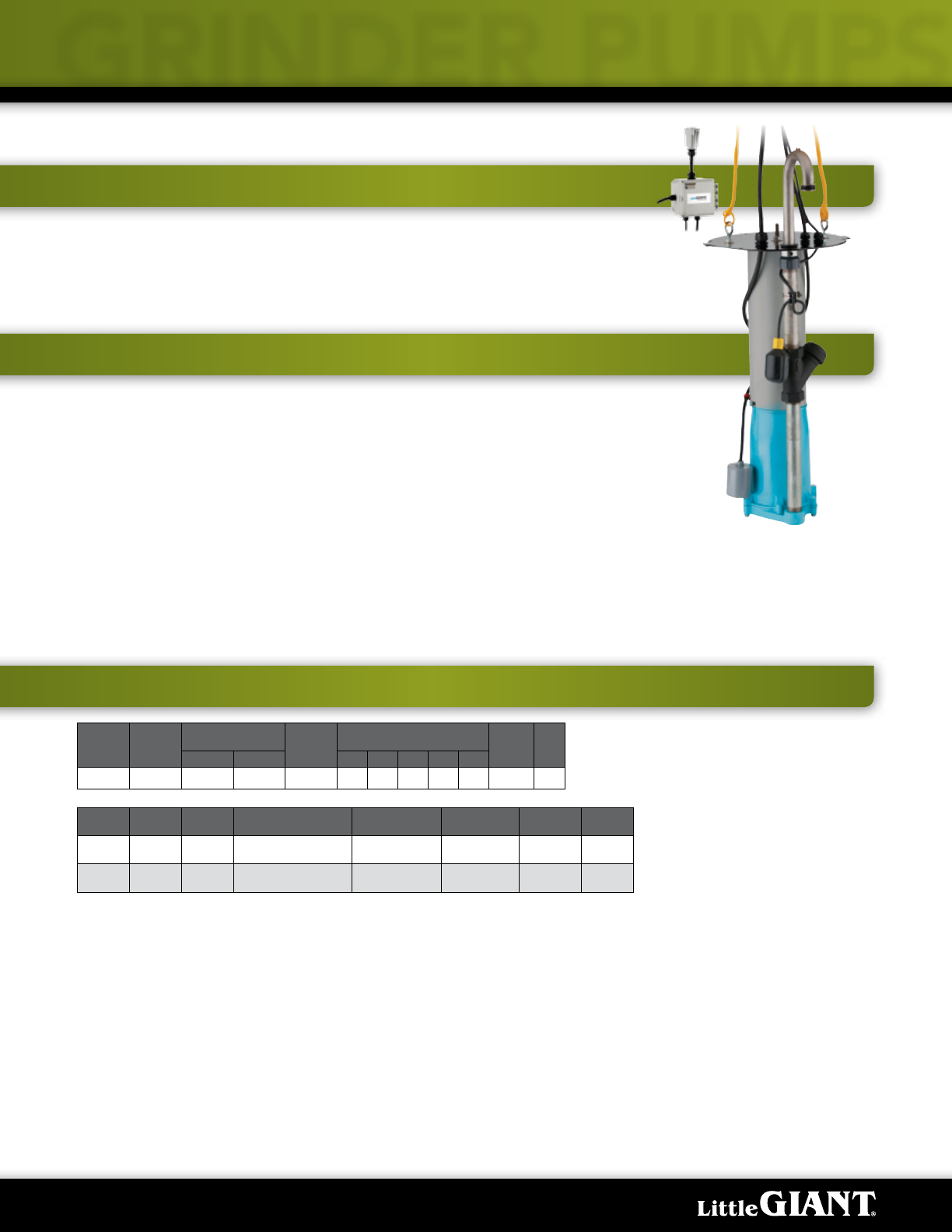

APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Solid berglass cover with non-skid surface and green in color
to blend with terrain
• Basin comes congured with hard pipe installation
• 4" Adapt-A-Flex inlet hub
• 1-1/4" FNPT discharge ange factory installed
• Control panel with integral pump starting components
• Four weighted control oats
• 2 hp GP Series sewage grinder pumps

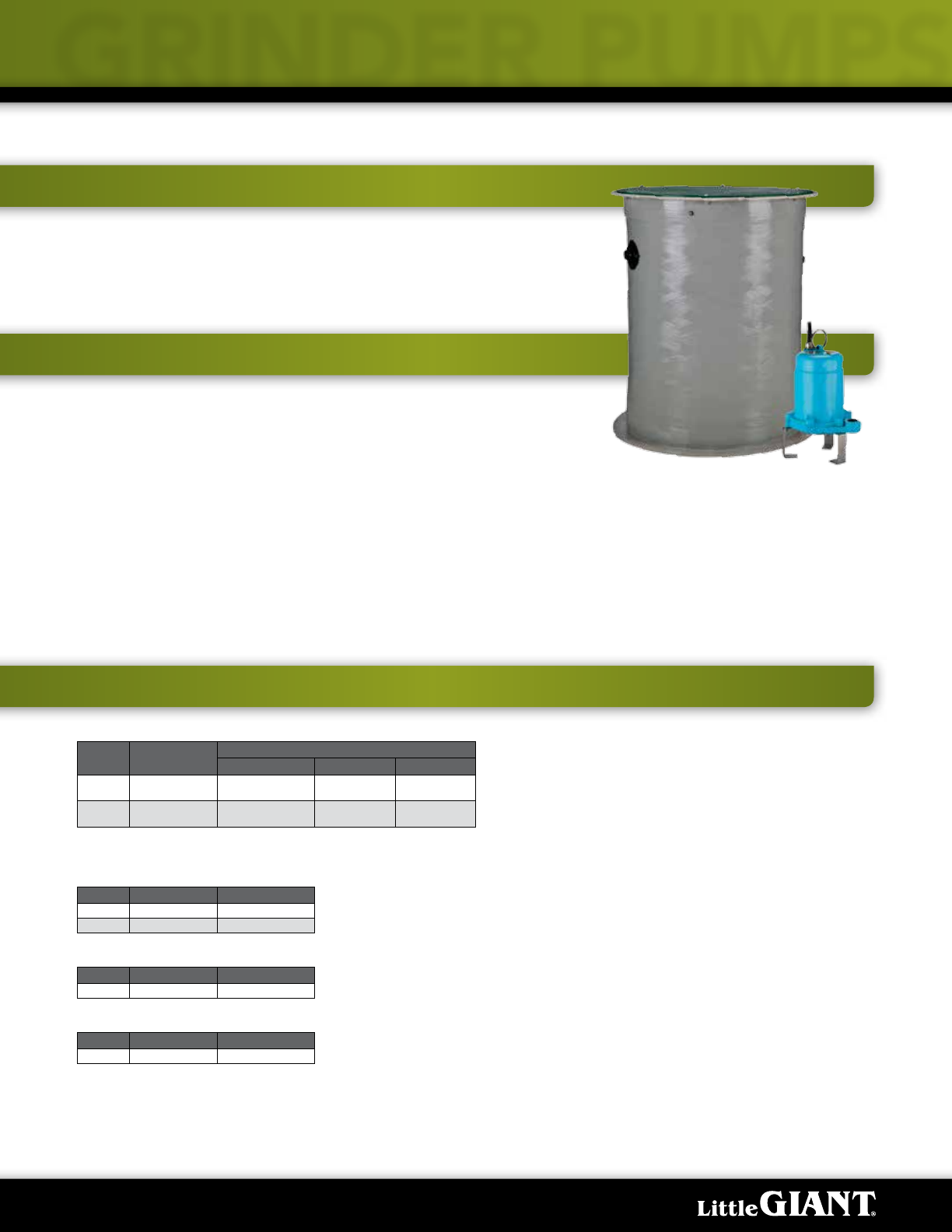

Duplex Grinder Hard Piped Package System**
Item No. Model Basin
Size Style Description
520767 GP-DPLXFG-HP 36" x 48"
61 cm x 122 cm Fiberglass BS3648FGHP
520847 GP-DPLXFG-HP 36" x 48"
61 cm x 122 cm Fiberglass BS3648FGHP
• Low pressure sewer applications
• Sewage wastewater transfer for light commercial or residential applications
DUPLEX HARD PIPED PACKAGES
** Multiple Grinder Package configurations and Basin/Cover assemblies available. Please call
1.800.701.7894 for information on additional package specifications not shown here.
Item No. Model Volts
520855 GP-M201-15 208
520865 GP-M231-15 230
Item No. Model Volts
513375 MGPD-1C18 208/230
Item No. Model Volts
950266 CFSW 115/230
Pump
Control Panel
Floats
GRINDER PUMPS
127
Hotline: 1.800.701.7894 www.franklinwater.com
DUPLEX HARD PIPED PACKAGES
ENGINEERING DATA
PUMP PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
5
10
15
20
25
30
35
40
0
20
40
60
80
100
120
140
0 20 40 60 80 100 120
0 5 10 15 20 25 30 35
C
B
D
A
Model A B C D
GP-DPLX3648 48"
122 cm
36"
91.44 cm
40"
101.6 cm
18"
45.72 cm
GP-DPLX3660 48"
122 cm
36"
91.44 cm
40"
101.6 cm
18"
45.72 cm
GRINDER PUMPS
128
GRINDER RETROFIT KIT
Volts Hz Amps Watts
Performance
(GPM @ Height in Feet) Shut-Off
(ft) PSI
FLA Start 40' 60' 80' 100' 120'
230 60 13.9 65 3200 31 30 25 20 10 130 56
Item No. Model Volts Switch Type/
Operation On Level Off Level Cord Weight
520835 GP-A-RFK 230 Piggyback Mechanical Float 23" - 25"
58.4 cm - 63.5 cm
9" - 11"
23 cm - 28 cm
20'
6.1 m
135 lbs
61.23 Kg
520836 GP-A-RFKT 230 Piggyback Mechanical Float 23" - 25"
58.4 cm - 63.5 cm
9" - 11"
23 cm - 28 cm
20'
6.1 m
135 lbs
61.23 Kg
APPLICATIONS
FEATURES
SERIES SPECIFICATIONS
• Low pressure sewage
• Direct simplex replacement grinder for positive displacement grinder systems
• Patented cutting system providing tight cutting clearances for superior cutting
action grinding 414,000 cuts per minute
• Rigid construction for ease of handling
• Fast, simple, and easy installation
• Epoxy-coated steel cover
• Water-tight junction box for ease of installation
• 2 hp 3450 rpm, high starting torque, automatic grinder pump with
mechanical oat switch
• Higher head capability to cover more applications
• 1-1/4" cast iron anti-siphon/check valve
• 1-1/4" NPT piping
• Telescoping discharge (520835 only)
• Adjustable alarm oat switch preset at factory
• Quick disconnect plug
GRINDER PUMPS
129
Hotline: 1.800.701.7894 www.franklinwater.com
ENGINEERING DATA
PERFORMANCE DATA
Total Head in Feet
Capacity - Gallons per Minute
Capacity - Liters per Minute
Total Head in Meters
0
5
10
15
20
25
30
35
40
0
20
40
60
80
100
120
140
0 20 40 60 80 100 120
0 5 10 15 20 25 30 35
CONSTRUCTION
Motor Cover Cast iron with epoxy coating
Motor Cover O-Ring Nitrile
Motor Design Single-phase, capacitor start,
capacitor run
Insulation Class F
Overload Protection Internal, on winding thermal
protector
Motor Shaft AISI 300 series stainless steel
Ball Bearing-Upper Single row ball, 6203
Ball Bearing-Lower Single row ball, 6306
Seal Housing Cast iron with epoxy coating
Mechanical Seal Carbon/ceramic
Volute Cast iron with epoxy coating
Impeller Brass
Rotating Cutter
Multi-blade design, AISI 440C
stainless steel, through-hardened
to Rockwell 55-60C
Stationary Cutter AISI 440C stainless steel,
hardened to Rockwell 55-60C
Power Cable Type SOOW or SOW 14/3 AWG
Spec Sheet 996382 and 996153
GRINDER RETROFIT KIT
A
B
C
D
Model A B C D
520835/
520836
32.27"
81.97 cm
16.75"
42.55 cm
6.5"
16.51 cm
8"
20.30 cm

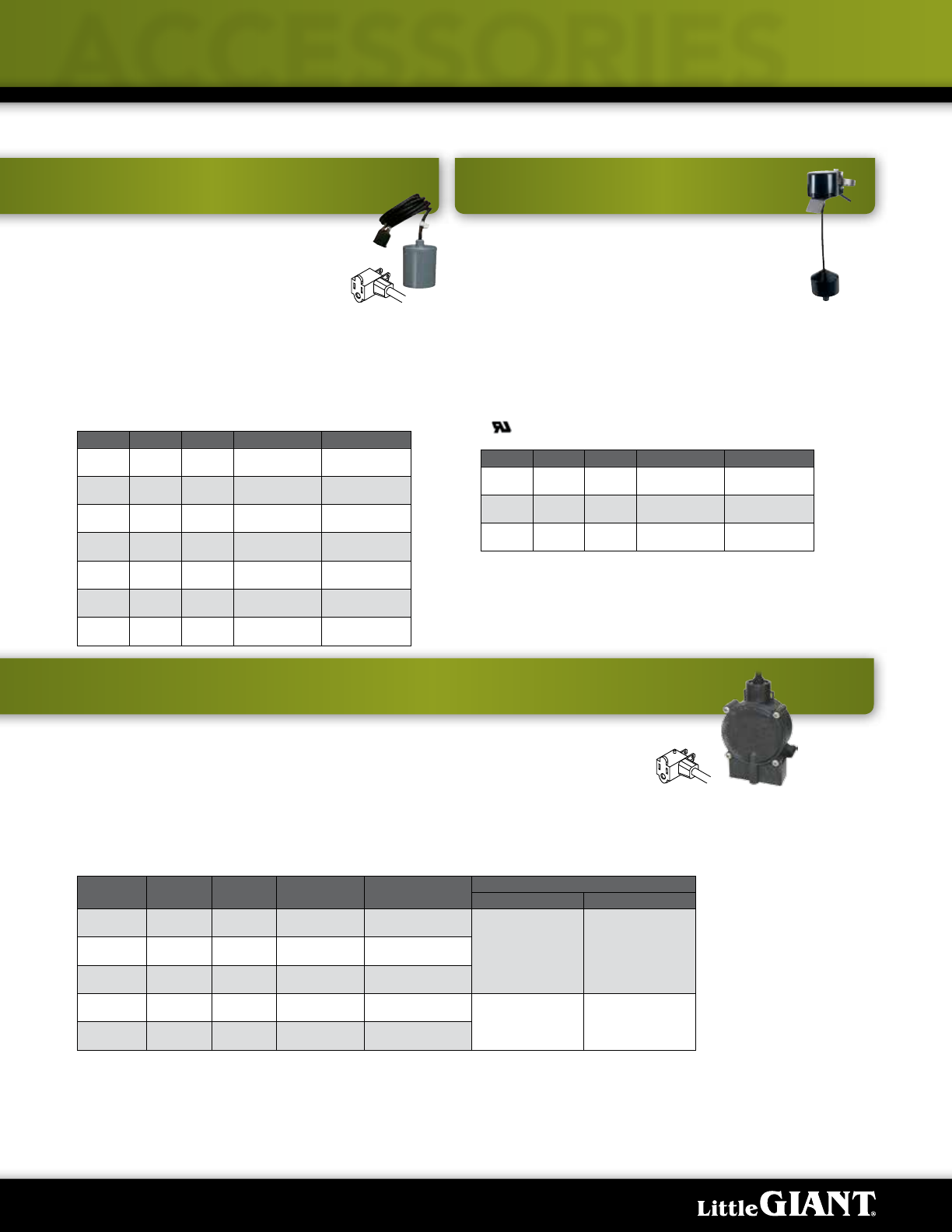

ACCESSORIES
130
ACCESSORIES
APPLICATIONS
• Converts manual pumps to automatic operation
FEATURES
• RS-5 converts any manual pump, up through 1/2 hp (115 V)
• RS-5-LL (low level) converts any manual pump, up through 1/3 hp (115 V)
• UL and CSA listing (115 V models only)
Item No. Model Volts Max. Amps Cord Mounted to 5-MSP pump
On Level Off Level
599008 RS-5 115 10 10'
3 m
6" - 9"
15.2 cm - 23 cm
1" - 4"
2.5 cm - 10.2 cm
599009 RS-5 115 10 18'
5.5 m
599010 RS-5 230 10 8'
2.4 m (w/o plug)
599014 RS-5LL 115 10 18'
5.5 m 2" - 3"
5 cm - 7.6 cm
1/2" - 1-1/2"
1.27 cm - 3.8 cm
599019 RS-5LL 115 10 25'
7.6 m
APPLICATIONS
• Residential sewage waste transfer
FEATURES
• RFSN-6, RFSN-9, and RFSN-10 convert any
manual pump, up through 1/2 hp (115 V) or
1 hp (230 V)
• RFSN-16 and RFSN-20 convert any manual pump,
up through 3/4 hp (115 V), or 2 hp (230 V)
• UL and CSA listing
APPLICATIONS
• Residential sewage waste transfer
FEATURES
• Converts any manual pump, up through 1/2 hp
(115 V) or 1 hp (230 V)
• Adjustable pumping range from 6.5" (16.5 cm)
to .75" (1.9 cm)
• Designed for use in conned areas
• Not sensitive to turbulence
• /CSA listing
ACCESSORIES
PIGGYBACK MECHANICAL VERTICAL
FLOAT SWITCH
PIGGYBACK DIAPHRAGM SWITCH
PIGGYBACK MECHANICAL FLOAT SWITCH
Item No. Model Volts Max. Amps Cord
599118 RFSN-6 115/230 13 10'
3 m
599117 RFSN-9 115/230 13 15'
4.6 m
599128 RFSN-9 208/230 13 15'
4.6 m
599210 RFSN-10 115/230 13 20'
6 m
599119 RFSN-10 115/230 13 20'
6 m
599211 RFSN-16 115/230 15 20'
6 m
599318 RFSN-20 125/230 20 20'
3 m (w/o plug)
Item No. Model Volts Max. Amps Cord
599261 RVMS-10 115/230 13 10'
3 m
599262 RVMS-15 115/230 13 15'
4.6 m
599263 RVMS-20 115/230 13 20'
6 m
ACCESSORIES
131
Hotline: 1.800.701.7894 www.franklinwater.com
ACCESSORIES
APPLICATIONS
• Pump control
FEATURES
• Controls pumps up to 1 hp (120 V)
and 2 hp (230 V)
• Adjustable pumping range of 1.75" (4.4 cm)
to 48" (122 cm)
• Consists of two oats, one of which contains
a holding relay, enabling the oats to function
in series
• and CSA listing
APPLICATIONS
• Switch repair kit
FEATURES
• Includes pressure switch bracket assembly, screw,
diaphragm, and O-ring
APPLICATIONS
• For automatic control of a pump in
water and sewage efuent applications
FEATURES
• Designed to operate in applications with limited
space, such as small sump chambers
• These models feature either a 6" (15.2 cm)
or 10" (25.4 cm) pumping range,
max 1/2 hp, 13 amps
• UL and CSA listing
APPLICATIONS
• Discharging water out of the
basement sump
FEATURES
• Kit works with all types of sump pumps
• Kit includes 1-1/4" x 24' (31.7 mm x 7.3 m)
corrugated polyethylene hose, ABS threaded
1-1/2" MNPT (38 mm) x 1-1/4" (31.7 mm)
barbed adapter and 1-1/4" MNPT (31.7 mm) x
1-1/4" (31.7 mm) barbed adapter and
galvanized steel clamp
ACCESSORIES
SUMP PUMP SWITCH REPAIR KIT
DOUBLE-FLOAT PIGGYBACK MECHANICAL
FLOAT SWITCH
SUMP PUMP DISCHARGE KITS
VERTICAL DIAPHRAGM SWITCH
Item No. Model Volts Max. Amps
14940410 15DFMMD1WP 115 13
14940411 15DFMMD2WOP 230 (w/o plug) 13
Item No. Model Volts Housing
599300 SPRK-1 6-CIA, 8-CIA, and 8-CBA √
599310 SPRK-1-ML 6-CIA-ML (used in WRSC-6) √
599320 SPRK-2 5-ASP, 6-CIA, 8-CIA, and 8-CBA –
599314 SPRK-2-ML 6-CIA-ML (used in WRSC-6) –
599350 SPRK-3 10-CIA and 12-CBA –
Item No. Model Volts Cord Pumping Range
599188 EDS-6-1-10 115 10'
3 m
6"
15.2 mm
599190 EDS10-1-10 115 10'
3 m
10"
25.4 mm
599166 VDS1506 115 15'
4.6 m
6"
15.2 mm
599169 VDS1510 115 15'
4.6 m
10"
25.4 mm
599167 VDS2010 115 20'
6 m
10"
25.4 mm
Item No. Model NPT
599303 SPDK
1-1/4"
31.7 mm
1-1/2"
38 mm
ACCESSORIES
132

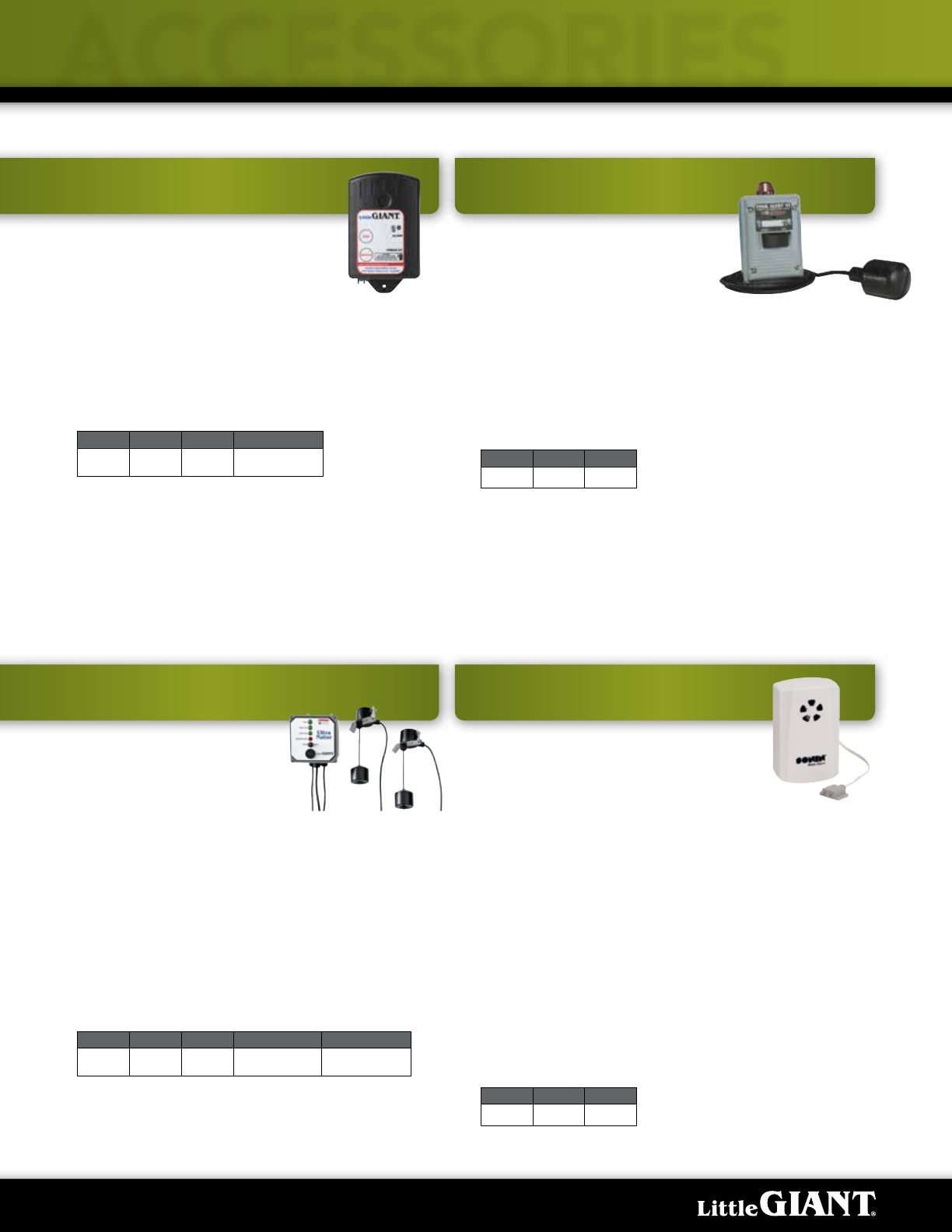

303HWXT ALARM
LOW VOLTAGE WATER ALARM
HWAB ALARM
INDOOR DUPLEX PUMP CONTROL
ALTERNATOR AND ALARM SYSTEM
ACCESSORIES
APPLICATIONS
• Indoor high water alarm
FEATURES
• NEMA 1 thermoplastic enclosure
• Mechanical oat switch with 15' (4.6 m) cable
• Alarm has red LED warning light, horn with silence
switch, and test button
• 9 VDC battery backup
• UL and CSA listing
APPLICATIONS
• Switch repair kit
FEATURES
• Easy-to-install, NEMA 1, 3/4 hp device
• Low-cost alternative to conventional duplex
control panels
• Operates two manual sump, sewage or
efuent pumps
• Alternates to standby pump if energized pump
fails to turn on
• Audible alarm and red light indicator
• Operates single-phase pumps with
15 max. run amps
• cULus listing
APPLICATIONS
• Indoor/outdoor high water alarm
FEATURES
• Type 3R watertight thermoplastic enclosure
• Mechanical oat switch with 15' (4.6 m) cable
• Alarm has red warning light, horn with silence
switch, and test button
• Includes pre-mounted terminal block so enclosure
can also be used as a junction box
• UL and CSA listing
APPLICATIONS
• Remote water sensor and alarm
• Warns of leaks and overows in bath,
kitchen, laundry, attic, basement, or
anywhere there is a potential for
leaks to occur
FEATURES
• Remote sensor detects water and sounds alarm
• 85 decibel alarm sounds for three days
• Sensor and alarm can be placed up to 6 ft apart
• Sensor has both suction cup and adhesive to
secure in place
• Includes wall mounting hardware
• Space saving design
• Circuit test/reset button ensures system is working
• Low battery signal when battery needs replaced
• Requires one 9 V battery (not included)
Item No. Model Volts Cord
513288 HWAB 115 6'
1.83 m
Item No. Model Volts Max. Amps Cord
513289 IDC-115 115 15 9.5'
2.9 m
Item No. Model Volts
513273 303HWXT 115
Item No. Model Volts
513273 HW-9 9V/DC
ACCESSORIES
133
Hotline: 1.800.701.7894 www.franklinwater.com

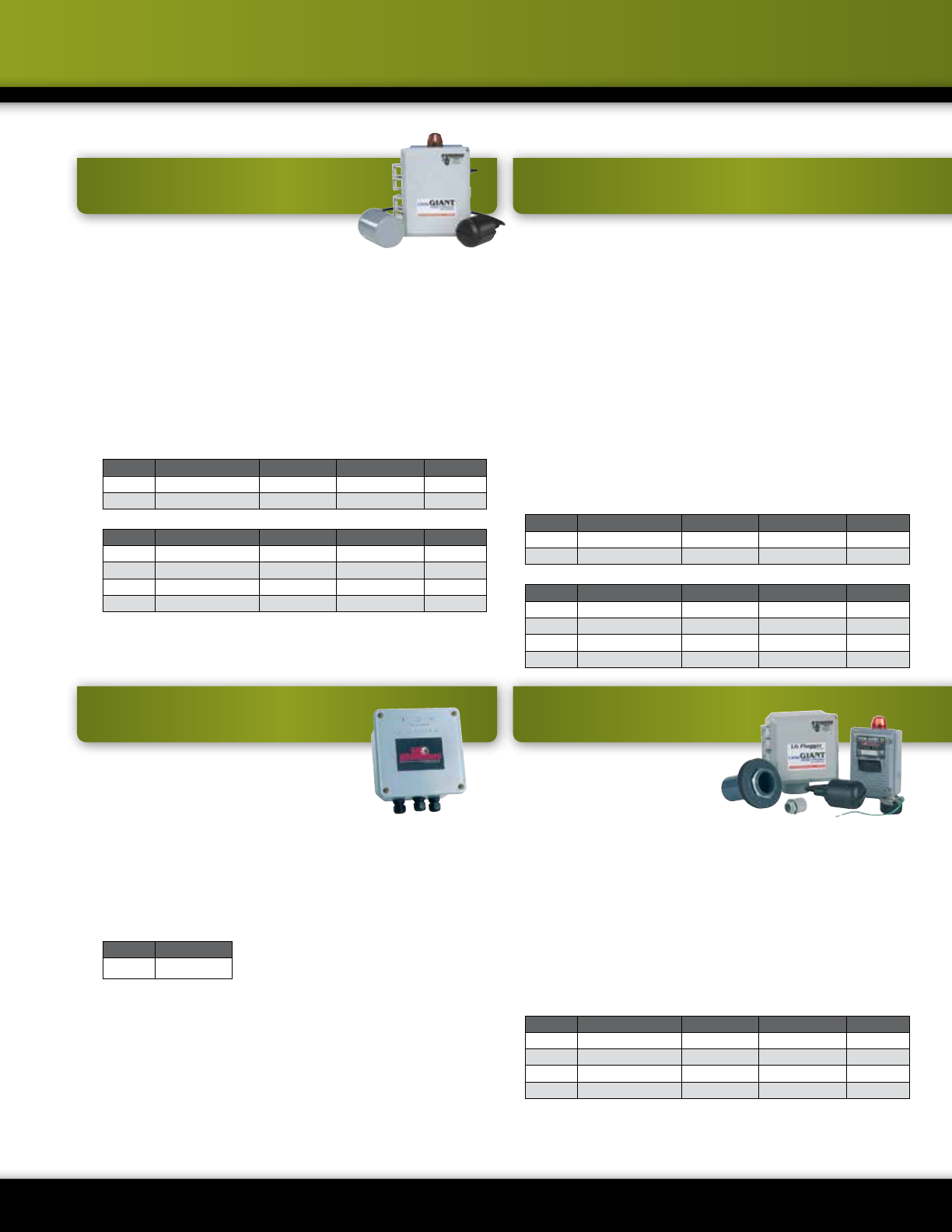

JUNCTION BOXES
CONTROLS (SIMPLEX SYSTEMS)
LG PLUGGER
CONTROLS (DUPLEX SYSTEMS)
ACCESSORIES
APPLICATIONS
• Indoor/outdoor simplex alarm system and pump control
FEATURES
• Includes control panel with audible alarm, silence
switch, and red alarm beacon
• Three oats, one each for high water, pump on and off
• Floats have 20' (6 m) power cords
•
HOA switch offers either hand, off or automatic operations
• Two oats - pump on/off and alarm, 513257 only
• UL and C-UL listing
APPLICATIONS
• Indoor/outdoor duplex alarm system and
pump control
FEATURES
• Includes duplex pump control and alarm devices
• Pump alternator
• Visual and audible alarm and light system with silence
• Three oats, one each for high water, pump on
and pump off (513258 only)
• Floats have 20' (6 m) power cords
• HOA switch offers either hand, off or
automatic operations
• UL and C-UL listing
APPLICATIONS
• For wiring a pumping
station installation
FEATURES
• Utilizes a receptacle to accept a 120 V or 230 V
piggyback plug and a pump plug
• Liquid-tight seal and strain relief for the cable
entering the junction box from the
pumping station
• Terminal strip that can be used for connecting an
alarm system to the junction box
• UL and CSA listing
APPLICATIONS
• Provides a convenient location
to connect all wiring required for
a typical pumping station, on-site
system, or other electrical installation
FEATURES
• NEMA 4X waterproof berglass
thermoplastic enclosure
Item No. Model
513281 JB66-3
Item No. Model Volts Hz Amps
513267 1121W120H17A 120/208/230 60 15-20
513257 1151W200H17A 115/230 60 0-15
Item No. Model Volts Hz Amps
513258 1221W120H6A17A 120/208/230 60 0-20
14940605 1221W120X6A 120/208/230 60 0-20
Item No. Model Volts Hz Amps
513265 3121W611H 208/240 60 13-18
513282 3121W201H17A 208/240/480 60 2.5-4
513284 3121W401H17A 208/240/480 60 6-10
513286 3121W511H17A 208/240/480 60 9-14
Single-Phase
Single-Phase
Three-Phase
Three-Phase
Item No. Model Volts Hz Amps
513283 3221W201H17A 208/240/480 60 2.5-4
513285 3221W401H17A 208/240/480 60 6-10
513287 3221W511H17A 208/240/480 60 9-14
513266 3221W611H17A 208/240/480 60 13-18
Item No. Model Volts Alarm Float
513290 JPB120V 120 – –
513292 JBP120V-TA1 120 101HW Yes
513294 JBP120V-TAXT 120 303HWXT Yes
513295 JBP230V-TAXT 230 303HWXT Yes
ACCESSORIES
134

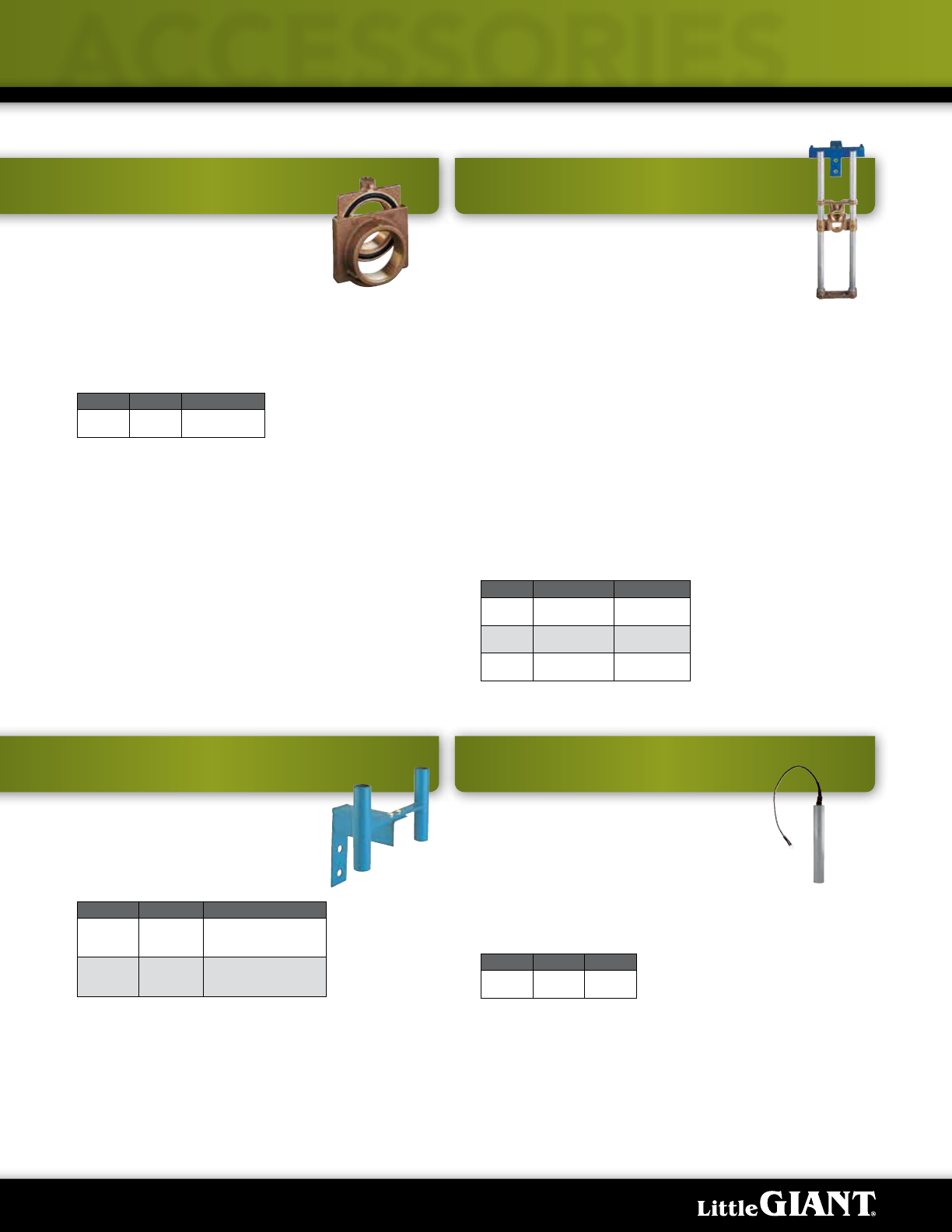

GUIDE RAIL SYSTEMS
SA-1 (SACRIFICIAL ANODE)
PUMP DISCONNECT
INTERMEDIATE GUIDE RAIL BRACKETS
ACCESSORIES
APPLICATIONS
• When discharge is no lower than
18" (46 cm) below grade or where
guide rails are not necessary
FEATURES
• Non guide rail disconnect
• Point of discharge should be above the liquid level
APPLICATIONS
• For installations with a total depth of over 5'
(1.5 m) when the discharge pipe is 18" (46 cm)
or more below grade, particularly when the
liquid level is above the discharge level*
FEATURES
• 3/4" (19 mm) IPS (iron pipe size) pipe rails should
be used on the 1-1/4" (31.7 mm) and 2" (51 mm)
system and 1-1/4" (31.7 mm) IPS pipe rail on the
3" (76 mm) system
• Brass foot guide supplied for use with steel pipe
• Guide rail brackets and steel stand-off brackets
included with each system to support the upper
end of the guide rail pipes
• One intermediate guide rail bracket is required for
every 10' (3 m) of rail (guide rail pipes, lifting
chain, and pull rod not included)
Item No. Model Disconnect
513302 PD-2 2"
51 mm
Item No. Model Discharge
513305 GR-3/4-114D 1-1/4"
31.7 mm
513301 GR-3/4 2"
51 mm
513300 GR-1-1/4 3"
76 mm
APPLICATIONS
• For use with guide rail systems
APPLICATIONS
• Magnesium accessory for use with
aluminum-body pumps
FEATURES
• Provides corrosion protection
• Lead wire
Item No. Model Guide Rail
513303 IGR-3/4
3/4"
19 mm
(for use with GR-3/4)
513304 IGR-1-1/4
1-1/4"
31.75 mm
(for use with GR-1-1/4)
Item No. Model Wire
599002 SA-1 8"
20 cm
All guide rail products can be used with any of the Franklin Electric, Little Giant efuent
and sewage pumps having a 1-1/4" (31.7 mm), 2" (51 mm), or 3" (76 mm) discharge.
*NOTE: Not for duplex installations. For guide rail information on duplex installations,
please consult the factory.
ACCESSORIES
135
Hotline: 1.800.701.7894 www.franklinwater.com

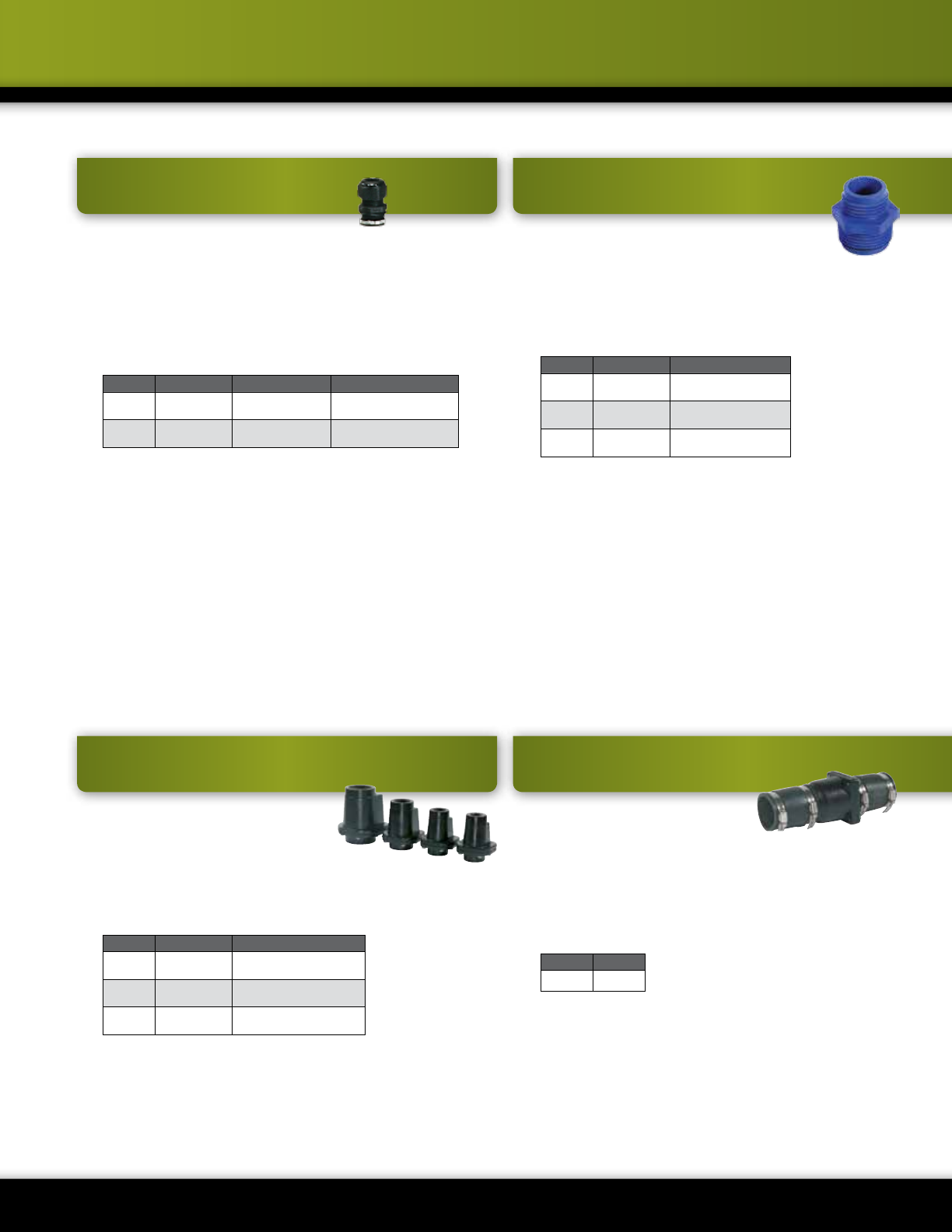

CAST IRON FULL FLOW CHECK VALVES
CORD CONNECTORS
CAST IRON SLIP X SLIP UNION
CHECK VALVE
DISCHARGE ADAPTERS
ACCESSORIES
APPLICATIONS
• Provides strain relief
FEATURES
• Cord connector is liquid tight
• Polyamide neoprene gland resist salt water,
weak acids/alkalis and other chemicals
FEATURES
• Vertical or horizontal installation
• Full-ow design
• Stops back ow of water
• Rated at 50 psi (115' [35 m] head) at 130 °F (55 ° C)
• Cast iron NPT
APPLICATIONS
• Allows use of garden hose with utility
and sump pumps
FEATURES
• Polypropylene, rust resistant
FEATURES
• Vertical or horizontal installation
• Allows passage of 1-1/2" (38 mm) solids
• Checks backow of water and sewer gas
• 2" (51 mm) ABS, PVC, steel pipe or copper piping
• Rated at 4.3 psi (10' [3 m] head) at 130 °F (55 °C)
• Cast iron NPT
Item No. Model Cord Wire/Cable (AWG)
599207 CC-1 .270" to .480"
6.9 mm - 12.2 mm
18/2, 18/3, 18/4, 16/2
16/3, 16/4, 14/2, 14/3
599213 CC-3 .545" to .709"
13.8 mm - 18 mm
14/2, 14/3, 14/4, 12/2
12/3, 12/4, 10/2, 10/3
Item No. Model Size
599030 GH-1 Adapter
(ts 5-MSP/ASP)
1" MNPT x 3/4" GHT
2.54 mm x 19 mm
599025 GH-3/4 Adapter 1-1/4" MNPT x 3/4" GHT
31.7 mm x 19 mm
599026 AD-6 Adapter
(6-pk)
1-1/2" MNPT x 1-1/4" FNPT
38 mm x 31.7 mm
Item No. Model Volts
599132 CVCI-112NPT 1-1/2"
38 mm
599133 CVCI-2NPT 2"
51 mm
599134 CVCI-3NPT 3"
76 mm
Item No. Model
599135 CVCI-2
ACCESSORIES
136

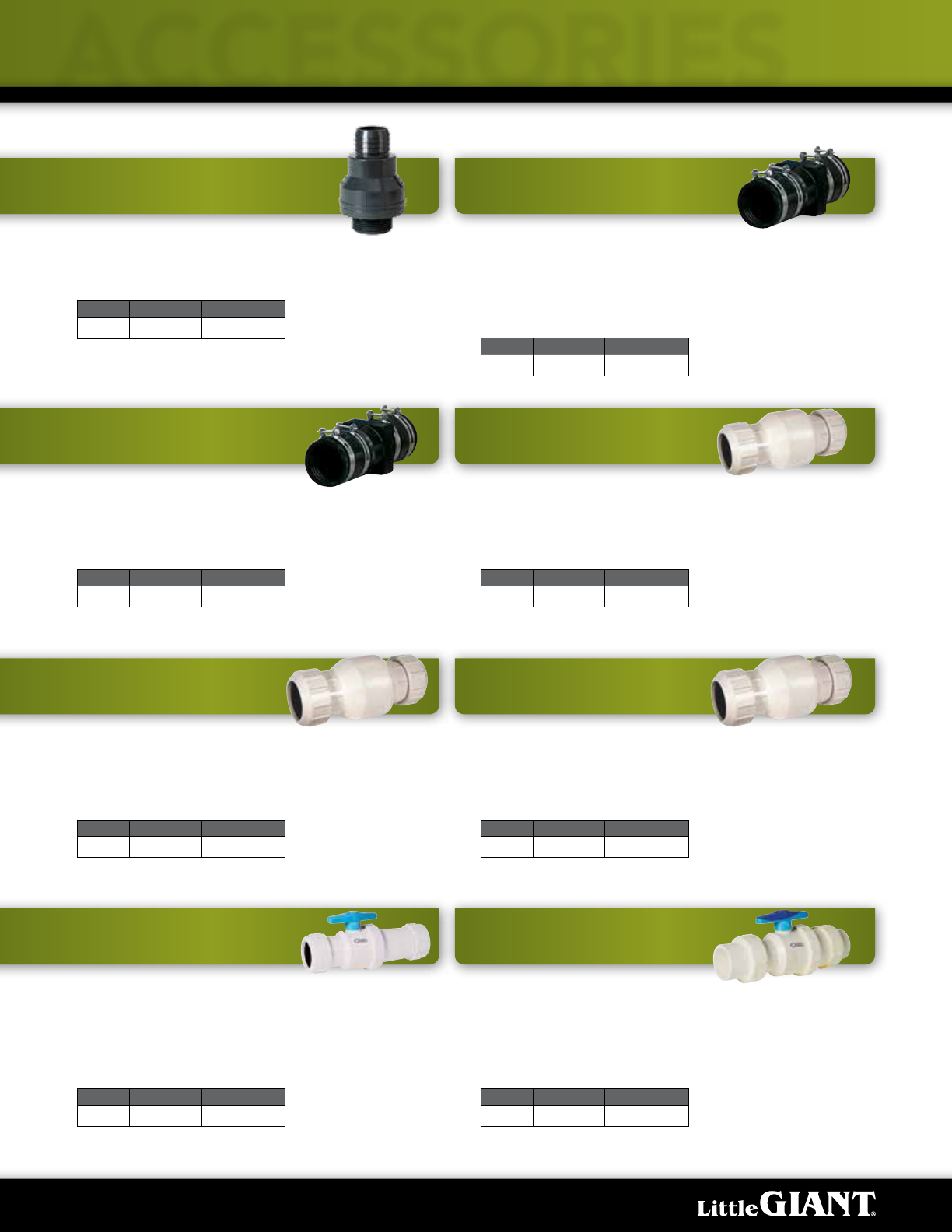

CV-114/112 CHECK VALVE
CV-SE1 CHECK VALVE
CV-SE3 CHECK VALVE
CVBV-2U CHECK VALVE
CV-112 CHECK VALVE
CV-SE CHECK VALVE
CV-SE2 CHECK VALVE
CVBV-2 CHECK VALVE
ACCESSORIES
FEATURES
• Universal check valve for sump pumps
• 1-1/2" MNPT (38 mm) x 1-1/2" (38 mm) ID tubing
FEATURES
• Hose-connected check valve for 2" (51 mm)
IPS pipe
• Allows passage of 3/4" (19 mm) solids
FEATURES
• Uses compression gaskets to connect to 2"
(51 mm) IPS pipe
• Full-ow design passes 2" (51 mm) solids
FEATURES
• PVC check valve/ball valve combination uses
compression gaskets to connect to 2" (51 mm)
IPS pipe
• Full-ow design passes 2" (51 mm) solids
FEATURES
• Sump pump check valve ts both 1-1/4" (31.7 mm)
and 1-1/2" (38 mm) pipe
• Full-ow, slip x slip design passes 1"
(25.4 mm) solids
FEATURES
• Uses compression gaskets to connect to 1-1/2"
(38 mm) IPS pipe
• Full-ow design passes 1-1/2" (38 mm) solids
FEATURES
• Uses compression gaskets to connect to 3"
(76 mm) IPS pipe
• Full-ow design passes 3" (76 mm) solids
FEATURES
• PVC check valve/ball valve combination uses
union ttings to connect 2" (51 mm) IPS pipe
• Full-ow design passes 2" (51 mm) solids
• Pressure rating: 100 psi @ 72BF
Item No. Model Material
577130 CV-112 PVC
Item No. Model Material
940021 CV-SE ABS
Item No. Model Material
940022 CV-SE2 PVC
Item No. Model Material
940021 CV-SE ABS
Item No. Model Material
559059 CV-114/112 ABS
Item No. Model Material
940019 CV-SE1 PVC
Item No. Model Material
940023 CV-SE3 PVC
Item No. Model Material
940019 CV-SE1 PVC
ACCESSORIES
137
Hotline: 1.800.701.7894 www.franklinwater.com
GRINDER LEG KIT
CAPACITIOR KIT
GP GRINDER SERIES
(CONTROL PANEL AND ALARM)
ACCESSORIES
Item No. Model Use
599078 GLK For GP series only
Item No. Model Volts
520857 GP-CK 208/230
APPLICATIONS
• Designed exclusively for the
GP Manual Grinder Series
FEATURES
• Properly sized start components maximize
efciency and service life of the GP grinders
• Color-coded terminal strip for ease of installation
• Circuit breaker, audible alarm, silence switch,
and red ashing light are enclosed in a NEMA 4X
waterproof enclosure
• Three oats (sold separately) control on, off, and
alarm functions
• UL and CSA listing
JUNCTION BOX ALARM KIT
Item No. Model
513297 JBAK
APPLICATIONS
• Designed specically for auto grinder installations
FEATURES
• Circuit breaker
• Labeled terminal block
• Alarm block
• Alarm oat
APPLICATIONS
• Grinders
FEATURES
• Includes three stainless steel support legs with
stainless steel hardware
• A special stainless steel leg kit is available for
“hard-piped” installations
• Easy to install, the legs raise the pump inlet area
to approximately 4" (102 mm) off the surface to
ensure clearance for solids to enter
APPLICATIONS
• For GP series
FEATURES
• Includes start capacitor, run capacitor, relay, end
caps, and mounting hardware
CONTROL FLOATS
APPLICATIONS
• For use with control panel and alarms
FEATURES
• Mechanically activated contacts
• Not sensitive to rotation
• 5 amp, 115/230 VAC, 50/60 Hz
Item No. Model Switch Cord
950266 CFSW Weighted control oat switch 20'
6 m
950267 CFST Control oat switch with
cable clamp
20'
6 m
Item No. Model Volts Floats
513374 MGP-1C18-2 208/230 3 oats required
Item No. Model Volts Floats
513375 MGPD-1C18 208/230 4 oats required
Simplex
Duplex
The GP Grinder Series requires a specic controller panel or capacitor kit
from Franklin Electric specically matched to the Little Giant pump for proper
operation and third-party approvals.
COMPOSITE CURVES
138
COMPOSITE CURVES
COMPOSITE CURVES
EFFLUENT COMPOSITE CURVES
6EN Series 9EN Series 9ENH Series 10EN Series
10ENH Series HT-10E Series HT-10E Series 200 °F ESP50 Series
14EH Series 16EH Series WS30 Series WS50M Series
WS100 Series WS50H Series WSV50 Series 20E Series
WE10 Series WE20 Series WE30 Series BE-S50 Series
BE-S75 Series 9ENH Series 208-230 V 10ENH Series 208-230 V
0 100 200 300 400 500 600 700 800
0
10
20
30
40
50
60
70
80
90
100
110
120
0 20 40 60 80 100 120 140 160 180 200 220
HEAD - METERS
FLOW - LITERS/MINUTE
FLOW - GALLONS/MINUTE
0
4
8
12
16
20
24
28
32
36
HEAD - FEET
COMPOSITE CURVES
139
Hotline: 1.800.701.7894 www.franklinwater.com
COMPOSITE CURVES
COMPOSITE CURVES
SEWAGE COMPOSITE CURVES
9SN Series 10SN Series WSV52 Series 14S Series
16S Series WS52 Series WS51 Series WS52H Series
WS102M Series WS102HM Series 18S Series 20S Series
0
2
4
6
8
10
12
14
16
18
20
22
24
26
0 100 200 300 400 500 600 700 800
0
10
20
30
40
50
60
70
80
90
0 20 40 60 80 100 120 140 160 180 200 220
HEAD - METERS
FLOW - LITERS/MINUTE
HEAD - FEET
FLOW - GALLONS/MINUTE
REFERENCE
REFERENCE
140
APPLICATIONS
Sump/Dewatering Efuent Sewage Under Counter/Utility Aerobic System
Maximum Solids Size: 1/4" Maximum Solids Size: 1/2"-3/4" Maximum Solids Size: 2" Maximum Solids Size Shown Maximum Solids Size: 0"
6-CIA / 506158
18' (5.5 m) shut-off
115 V, Automatic
1/3 hp, 1-1/2" (38 mm) discharge
9EN-CIA-RF / 509209
32' (9.8 m) shut-off
115 V, Automatic,
3/4" (19 mm) solids
4/10 hp, 1-1/2" (38 mm) discharge
9SN-CIA-RF / 509204
20' (6.1 m) shut-off
115 V, Automatic
4/10 hp, 2" (51 mm) discharge
WRSC-6 / 506065
Maximum solids size 1/4" (6.35 mm)
3.5-gallon basin, 115 V,
1/3 hp, 1-1/2" (38 mm) discharge
WE10G05P4-21 / 558221
10 gpm, 115 V, 1/2 hp
4" submersible
High head ltered efuent pump
6-CIM-R / 506271
18' (5.5 m) shut-off
115 V, Automatic
1/3 hp, 1-1/2" (38 mm) discharge
9EN-CIA-SFS / 509260
32' (9.8 m) shut-off
115 V, Automatic,
3/4" (19 mm) solids
4/10 hp, 1-1/2" (38 mm) discharge
10SN-CIA-SFS / 511346
25' (7.6 m) shut-off
115 V, Automatic
1/2 hp, 2" (51 mm) discharge
WRS-6 / 506055
Maximum solids size 1/4" (6.4 mm)
5-gallon basin, 115 V,
1/3 hp
WE10G05P4-22 / 558222
10 gpm, 230 V, 1/2 hp
4" submersible
High head ltered efuent pump
8-CIA / 506157
22' (6.7 m) shut-off
115 V, Automatic
4/10 hp, 1-1/2" (38 mm) discharge
10EN-CIM / 511310
30' (9.1 m) shut-off
115 V, Manual,
1/2" (12.7 mm) solids
1/2 hp, 1-1/2" (38 mm) discharge
16S-CIM / 514620
35' (10.7 m) shut-off
260 V, Manual
1 hp, 3" (6.2 mm) discharge,
20' (6.1 m) cord
WRS-9EN / 509268
Maximum solids size 3/4" (19.1 mm)
5-gallon basin, 115 V, 4/10 hp
WE20G05P4-21 / 558223
20 gpm, 115 V, 1/2 hp
4" submersible
High head ltered efuent pump
8-CIM / 508057
22' (6.7 m) shut-off
115 V, Manual
4/10 hp, 1-1/2" (38 mm) discharge
10EN-CIA-RF / 511320
30' (9.1 m) shut-off
115 V, Automatic,
1/2” (12.7 mm) solids
1/2 hp, 1-1/2" (38 mm) discharge
9S-SMPX-LG / 509635
Pit-Plus Jr. Package
24" x 24" (61 cm x 61 cm)
Green basin
4" inlet, 2" (51 mm) discharge
with 2" (51 mm) check valve
5-MSP / 505000
Not rated for solids
115 V, 1/6 hp, 1" (25.4 mm)
discharge
Pit dewatering
WE20G05P4-22 / 558224
20 gpm, 230 V, 1/2 hp
4" submersible
High head ltered efuent pump
6EN-CIM / 506610
22' (6.7 m) shut-off
115 V, Manual
1/3 hp, 1-1/2" (38 mm) discharge
10EN-CIA-SFS / 511330
30' (9.1 m) shut-off
115 V, Automatic,
1/2" (12.7 mm) solids
1/2 hp, 1-1/2" (38 mm) discharge
9S-SMPX-LG / 509109
Pit-Plus Package
20" x 30" (51 cm x 76 cm)
Green basin
4" inlet, 2" (51 mm) discharge
with 2" (51 mm) check valve
5-ASP / 505300
Not rated for solids
115 V, 1/6 hp, 1" (25.4 mm)
discharge
Pit dewatering, Automatic
WE30G05P4-21 / 558225
30 gpm, 115 V, 1/2 hp
4" submersible
High head ltered efuent pump
6EN-CIA-RF / 506620
22' (6.7 m) shut-off
115 V, Automatic
1/3 hp, 1-1/2" (38 mm) discharge
14EH-CIM / 514220
50' (15.2 m) shut-off
115 V, Manual, 3/4" (19.1 mm)
solids
1/2 hp, 2" (51 mm) discharge
9S-SMPRT-K / 509073
18" x 30" (46 cm x 76 cm)
Black RT basin
4" inlet, 2" (51 mm) discharge
with 2" (51 mm) check valve
360 / 555502
Not rated for solids, 115 V
1/10 hp, 3/4" GHT (19.1 mm)
discharge
Transfer pump WE30G05P4-21 / 558226
30 gpm, 230 V, 1/2 hp
4" submersible
High head ltered efuent pump
6EN-CIA-SFS / 506630
22' (6.7 m) shut-off
115 V, Automatic
1/3 hp, 1-1/2" (31.8 mm) discharge
9EN-CIA-RF / 509209
81' (24.7 m) shut-off
230 V, Manual, 3/4" (19.1 mm)
solids
1 hp, 2" (51 mm) discharge
GP-A231-20 / 520875
130' (39.6 m) shut-off
230 V, Automatic
2 hp, 1-1/4" (31.8 mm) discharge
20' (6.1 m) cord without plug
Grinder pump
UPSP-5 / 555101
Not rated for solids
115 V, 1/2 hp, 3/4" (19.1 mm)
GHT discharge
Self-priming pump
WHAT’S THE APPLICATION
Form 995897
REFERENCE
GUIDELINES FOR SIZING
Guidelines for Sizing
Wastewater • Water Systems • HVAC • Industrial • Engineered Products
Features
• These guidelines cover the steps which need
to be taken to accurately select the correct
sewage pump and applicable systems to use in
sewage ejectors.
Work through the five steps below to size
the system:
• System capacity (gpm required)
• Total head
• Pump selection
• Solids handling
• Basin size
• Simplex/Duplex system
Wastewater
141
Guidelines for Sizing
System Capacity
System Capacity refers to the rate of flow in gallons per
minute (gpm) necessary to efficiently maintain the system.
The “Fixture Unit” method is suggested for determining this
figure. This approach assigns a relative value to each fixture or
group of fixtures normally encountered. Determination of the
required System Capacity is as follows:
• List all fixtures involved in the installation and using
Figure 1, assign a Fixture Unit value to each. Add to
obtain total.
• Referring to Figure 2, locate the total Fixture Unit amount
along the horizontal axis of the graph and follow vertically
until intersecting the plotted line. Read the System
Capacity in gpm along the vertical axis.
FIXTURE DESCRIPTION UNIT
VALUE
TOTAL
USED
Bathroom group, consisting of lavatory, bathtub
or shower and (direct flush) water closet 10
Bathroom group, consisting of lavatory, bathtub
or shower and (flush tank) water closet 6
Bathtub with 1-1/2" trap 2
Bathtub with 2" trap 3
Bidet with 1-1/2" trap 3
Dental unit or cuspidor 1
Drinking fountain 1
Dishwasher (domestic type) 2
Kitchen sink (domestic) 2
Kitchen sink (domestic with waste grinder) 3
Lavatory with 1-1/2" trap 1
Lavatory (barber or beauty shop) 2
Laundry tray (2-compartment) 2
Shower stall 2
Shower (group), per head 3
Sink (service type with floor drain) 3
Sink (scullery) 4
Sink (surgeons) 3
Urinal (with flush valve) 8
Urinal (with flush tank) 4
Water closet (flush valve) 7
Water closet (flush tank) 3
Swimming pools (per 1000 gal. capacity) 1
Unlisted fixture with 1-1/4" trap size 2
Unlisted fixture with 1-1/2" trap size 3
Unlisted fixture with 2" trap size 4
Unlisted fixture with 2-1/2" trap size 5
Unlisted fixture with 3" trap size 6
Unlisted fixture with 4" trap size 7
Water softener (domestic) 4
Washing machine 2
TOTAL
Figure 1.
Total Head
Total Head is a combination of two components — static head
and friction head — and is expressed in feet (refer to Typical
Installation illustration, Figure 3).
Static Head is the actual vertical distance measured from the
minimum water level in the Basin to the highest point in the
discharge piping.
Friction Head is the additional head created in the discharge
system due to resistance to flow within its components. All
straight pipe, fittings, valves, etc. have a friction factor which
must be considered. These friction factors are converted to,
and expressed as, equivalent feet of straight pipe, which can
then be totaled and translated to friction head depending on
the flow and pipe size. Basically, this is reduced to four steps.
1. It will be necessary to determine the discharge pipe size. In
order to ensure sufficient fluid velocity to carry solids, (generally
accepted to be 2' per second), flows should be at least:
• 9 gpm through 1-1/4" pipe
• 13 gpm through 1-1/2" pipe
• 21 gpm through 2" pipe
• 30 gpm through 2-1/2" pipe
• 46 gpm through 3" pipe
2. The length of the discharge piping is measured from the
discharge opening of the pump to the point of final discharge,
following all contours and bends.
3. To determine the equivalent length of discharge piping rep-
resented by the various fittings and valves, refer to Figure
5 and total all values. Add this to the measured length of
discharge pipe and divide by 100 to determine the number
of 100' increments.
4. Refer to Figure 4 and find the required Pump Capacity
(determined from Figure 2). Follow gallons per minute to
pipe size being used. Multiply this number by the number
of 100' increments.
Add the Static Head and Friction Head to determine Total Head.
Figure 2.
200
100
90
80
70
60
50
40
30
20
10 10 20 30 40 50 60 8090100
70 200 300 400 500 600
142
Guidelines for Sizing
Figure 3.
PLASTIC PIPE: FRICTION LOSS (in feet of head) PER 100 FT
REQ'D
PUMP
CAPACITY
GPM
1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
ft ft ft ft ft ft
1
2 .10
3 .21 .10
4 .35 .16
5 .51 .24
6 .71 .33 .10
8 1.19 .55 .17
10 1.78 .83 .25 .11
15 3.75 1.74 .52 .22
20 6.39 2.94 .86 .36 .13
25 9.71 4.44 1.29 .54 .19
30 13.62 6.26 1.81 .75 .26
35 18.17 837 2.42 1.00 .35 .09
40 23.55 10.70 3.11 1.28 .44 .12
45 29.44 13.46 3.84 1.54 .55 .15
50 16.45 4.67 1.93 .66 .17
60 23.48 6.60 2.71 .93 .25
70 8.83 3.66 1.24 .33
80 11.43 4.67 1.58 .41
90 14.26 5.82 1.98 .52
100 7.11 2.42 .63
125 10.83 3.80 .95
150 5.15 1.33
175 6.90 1.78
200 8.90 2.27
250 3.36
300 4.85
350 6.53
Figure 4.
143
Guidelines for Sizing
FRICTION FACTORS FOR PIPE FITTINGS
IN TERMS OF EQUIVALENT FEET OF STRAIGHT PIPE
NOMINAL
PIPE SIZE
90°
ELBOW
45°
ELBOW
TEE
(THROUGH
FLOW)
TEE
(BRANCH
FLOW)
SWING
CHECK
VALVE
GATE
VALVE
1-1/4 3.5 1.8 2.3 6.9 11.5 0.9
1-1/2 4.0 2.2 2.7 8.1 13.4 1.1
2 5.2 2.8 3.5 10.3 17.2 1.4
2-1/2 6.2 3.3 4.1 12.3 20.3 1.7
3 7.7 4.1 5.1 15.3 25.5 2.0
Figure 5.
TOTAL HEAD REQUIRED
(A) STATIC HEAD
(B) TOTAL LENGTH OF PIPING
(C) TOTAL FRICTION FACTORS OF FITTINGS
(D) TOTAL (B+C)
(E) DIVIDED (D) BY 100
(F) HEAD LOSS PER 100 FT. OF PIPE (from Figure 4)
(G) FRICTION HEAD (ExF)
(H) TOTAL HEAD (A+G)
Pump Selection
Every centrifugal pump has a unique performance curve. This
curve illustrates the relationship of flow (gpm) to pressure
(Total Head) at any point. The pump will operate at any point
along this performance curve.
Pump capacity is therefore the flow the pump will generate
at any specific pressure. The object is to select a pump whose
performance curve passes either through or close to the
design condition, preferably above. Refer to Figure 7.
Solids Handling
Solids Handling requirements may be determined by local
codes and/or by the type of application and types of solids
anticipated. Unless otherwise stated by codes, a sewage
pump should have the capability of handling spherical
solids of at least 2" in diameter in installations involving a
water closet.
Basin Size
Basin selection is best accomplished by relating to required
System Capacity as determined by the Fixture Unit method.
Figure 6 shows recommended basin diameters, assuming the
normal pump differential (distance in inches between turn-on
and turn-off), and running time ranges from 15 seconds
to 4 minutes. Basin depth, however, should be at least 24"
below basin inlet for most pumps and deeper where greater
pumping differentials are anticipated.
NOTE: Since basin size is directly related to frequency of
pump operation, it is important to select a basin of sufficient
size to ensure that the pump does not short cycle.
The question of whether to use a Simplex or Duplex system
depends on the type of installation and/or local codes. Generally,
a determination can be made using the following guidelines.
1. Domestic: Simplex System is usually adequate.
2. Commercial: Optional — Depending on the type of business
and the need for uninterrupted sanitary drainage facilities.
3. Public or Industrial: Duplex System is essential.
While you are sizing the system and before you select the
pump, you will need to know and consider or make allowances
for the following:
• Volts/Phase/Hertz — What is available?
• Will the pump share a circuit?
• Does the home, business, etc. have circuit breakers or fuses?
• What is the breaker or fuse Amp rating? Make sure it is enough.
• Check local or state codes for:
— Solid size requirements
— Amp ratings/circuit cord size/ratings or type
— Pipe material/size/depth to bury
— Tank size/location
• Are there plans for future expansion? As in, adding
upstairs bath, basement plumbing, washing machine, etc.
144
Guidelines for Sizing
SYSTEM CAPACITY (GPM)
BASIN DIAMETER (inches)
18" 24" 30" 36" 42" 48"
20
25
30
35
40
45
50
60
70
80
90
100
125
150
175
200
225
GALLONS/FOOT
OF BASIN DEPTH 13.2 23.9 36.7 52.9 72.0 94.0
GALLONS IN 2-1/2'
OF BASIN DEPTH 33.0 59.7 91.7 132.2 180.0 235.0
BASIN SIZING
Figure 6.
Select minimum basin depth so that 2-1/2' of basin depth in gallons = Pump capacity in gpm
= Acceptable basin size
145
Guidelines for Sizing
Example Sizing Problem
What Pump Capacity would be required to handle the drainage
from a 4 bathroom home, also including a dishwasher, a washer,
a laundry tray, a kitchen sink, water softener, basement shower,
a 13,000 gallon pool, and a bar sink (1-1/2" trap)?
1. From Figure 1:
DESCRIPTION FIXTURE
UNITS
Four bathroom groups 24
Water softener 4
Dishwasher 2
Washing machine 2
Laundry tray 2
Kitchen sink with disposal 3
Basement shower 2
Swimming pool 13
Bar sink (unlisted 1-1/2") 3
FIXTURE UNITS TOTAL 55
2. Refer to Figure 2:
Find 55 fixture units on the horizontal axis. Follow vertically
until intersecting the line then horizontally to the left. The
Pump Capacity on the vertical axis is 30 gpm.
Determine the Total Head of the installation illustrated in
Figure 3, the Typical Installation Illustration:
1. That Static Head in this instance is 7'.
2. Friction Head:
a. Since the required Pump Capacity in this illustration of
30 gpm is less than the 46 gpm necessary to carry solids
through 3" pipe, 2" or 2-1/2" pipe should be used. If 3"
pipe is preferred or required, a Pump Capacity of at least
46 gpm is required.
b. Measurement of the length of the discharge pipe
totals 200'.
c. Refer to Figure 6 and note the friction factor in equivalent
feet for each fitting:
3 - 90° elbows, 2" 16 - equivalent feet
1 - gate valve, 2" 1 - equivalent foot
1 - swing check valve, 2" 17 - equivalent feet
Total: 34 - equivalent feet
Adding 34' to the measured pipe length, the total
effective pipe length becomes 234' or 2.34 100'
increments.
d. Refer to Figure 4, find the 30 gpm required Pump Capacity
on the left scale and follow over to the 2" PVC pipe size
column. Friction Head is 1.8 x 2.34 = 4.2'.
3. Total Head Required:
Total Head = Static Head + Friction Head
Example:
Total Head = 7 + 4.2
Total Head = 11.2
Due to the existence of water closets in this installation, a
pump with 2" Solids Handling capacity should be used unless
otherwise specifically stated by applicable codes. Use Figure
7 to select pump.
To determine the Basin size, find the Pump Capacity (30 gpm)
in the column on the left of Figure 6. Any Basin diameter of 18"
or greater is acceptable.
Since this application is domestic, a Simplex System is sufficient.
Summary: Recommended selections for this installation would
be a Simplex System utilizing an 18" or greater diameter Basin
and a 2" Solids Handling pump capable of delivering at least
30 gpm at 11'.
146
Guidelines for Sizing
Typical Single Family Dwelling Sewage Pump Chart
Note: The data contained herein is for reference only. Proper sizing and selection of sewage pumps requires consideration of many factors. Always
consult applicable local codes before installing any equipment. This chart is based on a residential application with not more than 34 fixture units
(values assigned to each plumbing fixture). The TDH (Total Dynamic Head) of the system is calculated based on total vertical lift, horizontal length of
discharge piping, and the friction losses for 2” diameter plastic pipe (3” diameter plastic pipe where the 16S pump is shown).
Summary Worksheet
Number of Fixture Units _____________________________________
Flow Rate - Gallons Per Minute _____________________________________
Total Head Required _____________________________________
Pump Selection _____________________________________
Total Length of Discharge Pipe in Feet
TOTAL
VERT.
LIFT
100' 150' 200' 250' 300' 350' 400' 450' 500' 550' 600' 650' 700' 750' 800'
TDH
PUMP
GPM
TDH
PUMP
GPM
TDH
PUMP
GPM
TDH
PUMP
GPM
TDH
PUMP
GPM
TDH
PUMP
GPM
TDH
PUMP
GPM
TDH
PUMP
GPM
TDH
PUMP
GPM
TDH
PUMP
GPM
TDH
PUMP
GPM
TDH
PUMP
GPM
TDH
PUMP
GPM
TDH
PUMP
GPM
TDH
PUMP
GPM
5'
6.3'
9SN
97 gpm
7.0'
9SN
95 gpm
7.5'
9SN
92 gpm
8.3'
9SN
88 gpm
8.9'
9SN
82 gpm
9.6'
9SN
77 gpm
10.2'
9SN
72 gpm
10.9'
9SN
67 gpm
11.5'
9SN
61 gpm
12.2'
9SN
54 gpm
12.8'
9SN
48 gpm
13.5'
9SN
43 gpm
14.1'
9SN
38 gpm
14.8'
9SN
32 gpm
15.4'
9SN
27 gpm
6'
7.3'
9SN
93 gpm
8.0'
9SN
89 gpm
8.6'
9SN
83 gpm
9.3'
9SN
78 gpm
9.9'
9SN
75 gpm
10.6'
9SN
69 gpm
11.2'
9SN
63 gpm
11.9'
9SN
57 gpm
12.5'
9SN
52 gpm
13.5'
9SN
43 gpm
13.8'
9SN
40 gpm
14.5'
9SN
33 gpm
15.1'
9SN
29 gpm
15.8'
9SN
25 gpm
16.4'
10SN
57 gpm
7'
8.3'
9SN
88 gpm
9.0'
9SN
81 gpm
9.6'
9SN
77 gpm
10.3'
9SN
70 gpm
10.9'
9SN
67 gpm
11.6'
9SN
59 gpm
12.2'
9SN
54 gpm
12.9'
9SN
47 gpm
13.5'
9SN
43 gpm
14.2'
9SN
36 gpm
14.8'
9SN
32 gpm
15.5'
9SN
26 gpm
16.1'
10SN
62 gpm
16.8'
10SN
54 gpm
17.4'
10SN
48 gpm
8'
9.3'
9SN
78 gpm
10.0'
9SN
76 gpm
10.6'
9SN
69 gpm
11.3'
9SN
62 gpm
11.9'
9SN
57 gpm
12.6'
9SN
50 gpm
13.2'
9SN
45 gpm
13.9'
9SN
39 gpm
14.5'
9SN
33 gpm
15.2'
9SN
28 gpm
15.8'
9SN
25 gpm
16.5'
10SN
56 gpm
17.1'
10SN
52 gpm
17.8'
10SN
46 gpm
18.4'
10SN
41 gpm
9'
10.3'
9SN
70 gpm
11.0'
9SN
65 gpm
11.6'
9SN
59 gpm
12.3'
9SN
53 gpm
12.9'
9SN
47 gpm
13.4'
9SN
44 gpm
14.2'
9SN
36 gpm
14.9'
9SN
30 gpm
15.5'
9SN
26 gpm
16.2'
10SN
60 gpm
16.8'
10SN
54 gpm
17.5'
10SN
48 gpm
18.1'
10SN
42 gpm
18.8'
10SN
39 gpm
19.4'
10SN
33 gpm
10'
11.3'
9SN
62 gpm
12.0'
9SN
56 gpm
12.6'
9SN
50 gpm
13.3'
9SN
44 gpm
13.9'
9SN
39 gpm
14.6'
9SN
33 gpm
15.2'
9SN
28 gpm
15.9'
10SN
62 gpm
16.5'
10SN
56 gpm
17.2'
10SN
50 gpm
17.8'
10SN
46 gpm
18.5'
10SN
40 gpm
19.1'
10SN
35 gpm
19.8'
10SN
32 gpm
20.4'
10SN
27 gpm
11'
12.3'
9SN
53 gpm
13.0'
9SN
46 gpm
13.6'
9SN
42 gpm
14.3'
9SN
35 gpm
14.9'
9SN
30 gpm
15.6'
9SN
25 gpm
16.2'
10SN
60 gpm
16.9' 1
10SN
53 gpm
17.5'
10SN
48 gpm
18.2'
10SN
42 gpm
18.8'
10SN
39 gpm
19.5'
10SN
33 gpm
20.1'
10SN
29 gpm
20.8'
10SN
25 gpm
21.4'
14S
27 gpm
12'
13.3'
9SN
44 gpm
14.0'
9SN
40 gpm
14.6'
9SN
33 gpm
15.3'
9SN
27 gpm
15.9'
10SN
62 gpm
16.6'
10SN
55 gpm
17.2'
10SN
50 gpm
17.9'
10SN
45 gpm
18.5'
10SN
40 gpm
19.2'
10SN
34 gpm
19.8'
10SN
32 gpm
20.5'
10SN
26 gpm
21.1'
14S
30 gpm
21.8'
14S
26 gpm
16.4'
16S
120 gpm*
13'
14.3'
9SN
35 gpm
15.0'
9SN
29 gpm
15.6'
9SN
25 gpm
16.3'
10SN
58 gpm
16.9'
10SN
53 gpm
17.6'
10SN
47 gpm
18.2'
10SN
42 gpm
18.9'
10SN
37 gpm
19.5'
10SN
33 gpm
20.2'
10SN
28 gpm
20.8'
10SN
25 gpm
22.0'
14S
25 gpm
17.6'
16S
113 gpm*
17.9'
16S
112 gpm*
18.2'
16S
111 gpm*
14'
15.3'
9SN
27 gpm
16.0'
10SN
61 gpm
16.6'
10SN
55 gpm
17.3'
10SN
49 gpm
17.9'
10SN
45 gpm
18.6'
14S
39 gpm
19.2'
10SN
34 gpm
19.9'
10SN
31 gpm
20.5'
10SN
26 gpm
21.2'
14S
29 gpm
21.8'
14S
26 gpm
17.6'
16S
113 gpm*
17.9'
16S
112 gpm*
18.2'
16S
111 gpm*
18.4'
16S
110 gpm*
15'
16.3'
10SN
58 gpm
17.0'
10SN
52 gpm
17.6'
10SN
47 gpm
18.3'
10SN
41 gpm
18.9'
10SN
37 gpm
19.6'
10SN
33 gpm
20.2'
10SN
28 gpm
20.9'
10SN
25 gpm
21.5'
14S
27 gpm
22.2'
14S
25 gpm
18.3'
16S
110 gpm*
18.6'
16S
109 gpm*
18.9'
16S
107 gpm*
19.2'
16S
105 gpm*
19.4'
16S
104 gpm*
16'
17.3'
10SN
49 gpm
18.0'
10SN
44 gpm
18.6'
10SN
39 gpm
19.3'
10SN
33 gpm
19.9'
10SN
31 gpm
20.6'
10SN
25 gpm
21.2'
14S
29 gpm
21.9'
14S
26 gpm
18.8'
16S
107 gpm*
19.1'
16S
105 gpm*
19.3'
16S
104 gpm*
19.6'
16S
103 gpm*
19.9'
16S
101 gpm*
20.2'
16S
98 gpm*
21.2'
16S
95 gpm*
17'
18.3'
10SN
41 gpm
19.0'
10SN
36 gpm
19.6'
10SN
33 gpm
20.3'
10SN
27 gpm
20.9'
10SN
25 gpm
21.6'
14S
26 gpm
22.2'
14S
25 gpm
19.5'
16S
103 gpm*
19.8'
16S
102 gpm*
20.0'
16S
100 gpm*
20.3'
16S
99 gpm*
20.6'
16S
98 gpm*
20.9'
16S
97 gpm*
21.2'
16S
95 gpm*
22.4'
16S
95 gpm*
18'
19.3'
10SN
33 gpm
20.0'
10SN
30 gpm
20.6'
10SN
25 gpm
21.3'
14S
28 gpm
21.9'
14S
26 gpm
19.9'
16S
101 gpm*
20.2'
16S
98 gpm*
20.5'
16S
98 gpm*
20.8'
16S
97 gpm*
21.1'
16S
96 gpm*
21.3'
16S
95 gpm*
22.6'
16S
93 gpm*
21.9'
16S
91 gpm*
22.2'
16S
90 gpm*
22.4'
16S
89 gpm*
19'
20.3'
10SN
27 gpm
21.0'
14S
30 gpm
21.6'
14S
26 gpm
22.3'
14S
25 gpm
20.7'
16S
98 gpm*
21.0'
16S
96 gpm*
21.2'
16S
95 gpm*
22.5'
16S
94 gpm*
21.8'
16S
92 gpm*
22.1'
16S
91 gpm*
22.3'
16S
90 gpm
22.6'
16S
86 gpm*
22.9'
16S
84 gpm*
23.2'
16S
82 gpm*
23.4'
16S
81 gpm*
20'
21.3'
14S
28 gpm
22.0'
14S
25 gpm
21.6'
16S
95 gpm*
21.9'
16S
95 gpm*
22.2'
16S
95 gpm*
22.5'
16S
88 gpm*
22.8'
16S
85 gpm*
23.1'
16S
83 gpm*
23.4'
16S
81 gpm*
23.7'
16S
80 gpm*
24.0'
16S
79 gpm*
24.3'
16S
78 gpm*
24.6'
16S
77 gpm*
24.9'
16S
76 gpm*
25.2'
16S
75 gpm*
147
Form 993391 — 01/13
Figure 7.
Guidelines for Sizing
0
6
12
18
24
0 118 236 354 472 590 708 826
0
10
20
30
40
50
60
70
80
0 20 40 60 80 100 120 140 160 180 200 220
Head - Meters
Flow - Liters/Minute
Head - Feet
Flow - Gallons/Minute
20S
18S
16S
ES60
14S
10SN
ES50
9SN
ES40
148
Franklin Electric engineers
design products for
easy installation, high
performance, long life, and
exceptional value.
More than 4,300 responsive employees
are ready to offer expert assistance.
Our 200,000 sq ft centrally
located warehouse in Oklahoma
City enables fast and complete
ll rates.
Corporate Headquarters
Serving all corners of the world with more than
14 manufacturing and distribution facilities.
GIANT ADVANTAGES
Recognized as the world’s leading manufacturer of submersible electric motors since 1944,
Franklin Electric has grown into a water systems enterprise providing innovative products for
a multitude of applications across the globe. North American markets include groundwater,
plumbing, hvac, agriculture, and municipal. Franklin Electric provides pumping solutions
to these primary markets, which include pumps, motors, drives, controls, protection
equipment, and packaged systems.
For over 70 years professionals in the water transfer market have trusted the Little Giant
brand for its reliable pump solutions, packaged system options, accessories, and total
value. With a vast offering of sump, sewage, efuent products; dewatering and trash
pumps; condensate pumps; magnetic drive pumps; low pressure sewer systems; water
garden products and a wide variety of utility pumps, Little Giant is the brand of choice to
hundreds of thousands worldwide representing Franklin’s commitment to quality, innovation,
availability, and service.
WASTEWATER
HVAC
INDUSTRIAL
WATER SYSTEMS
ENGINEERED PRODUCTS
WASTEWATER
P.O. Box 12010
Oklahoma City, OK 73157-2010
PH: 1-800-701-7894
FX: 1-800-678-7867
www.franklinwater.com
Form 995288 11-12Form 995580 07-14
PRODUCT CATALOG
UTILITY PUMPS
SUMP PUMPS
EFFLUENT PUMPS
SEWAGE PUMPS
GRINDER PUMPS
PACKAGE SYSTEMS
WASTEWATER
PRODUCT CATALOG
