Features
n Epoxy encapsulated motor
n 13.4' maximum lift
n 80 watts
n 3/8" MNPT discharge
n Thermal overload protection
n For submersible use only
Construction
n Motor — 1/28 HP epoxy encapsulated
n Maximum Flow Rate — 475 GPH @ 1'
n Maximum Head — 13.4'
n Intermittent Liquid Temp. up to — 120°F
n Intake — Screened
n Discharge — 3/8" MNPT
n Housing — Glass-filled polyester
n Cover — Glass-filled polyester
n Volute — Polypropylene
n Impeller — Nylon
n Shaft Seal — Viton®
n Screen — Polyethylene
n Electrical — 115V, 60 Hz

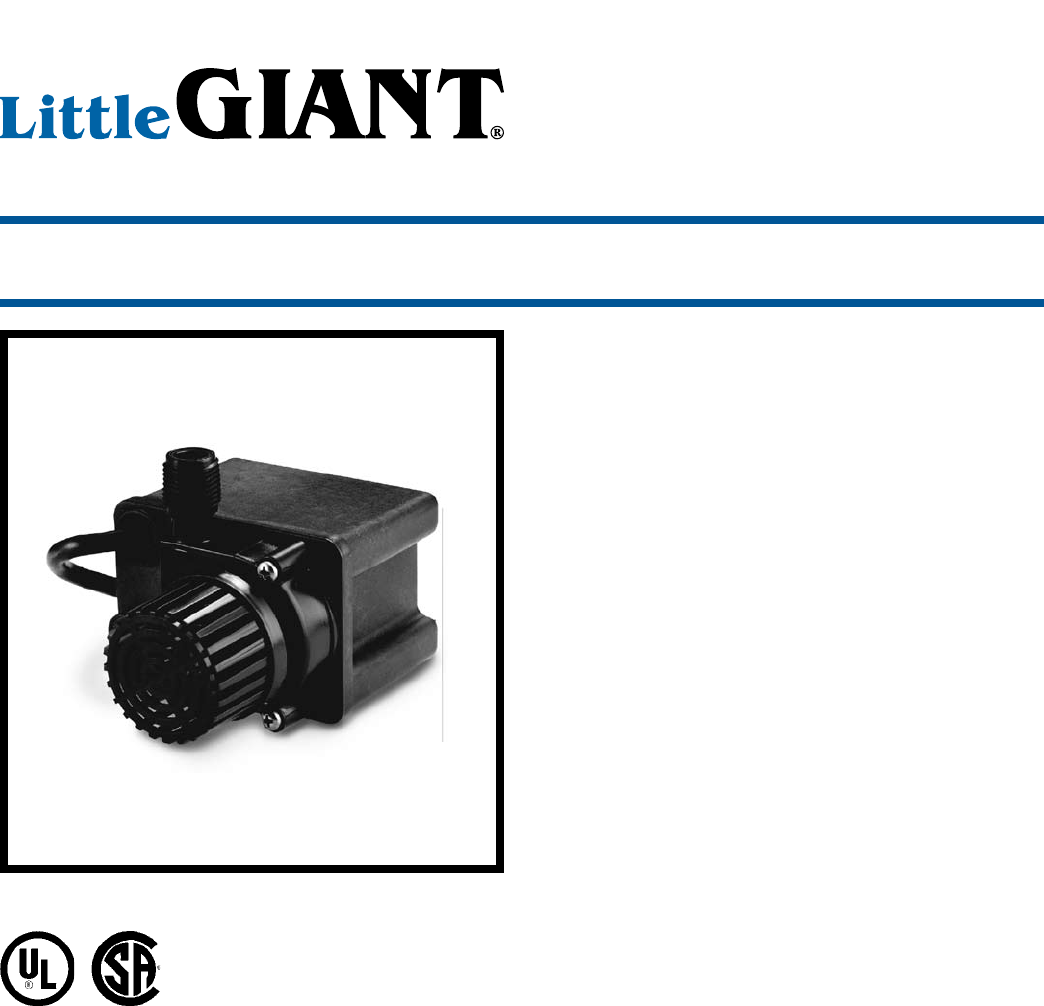

Submersibles
PE-2.5 Series
Small submersible epoxy encapsulated pump for commercial, industrial and home use. Applications include statuary
fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be
transferred or recirculated. This compact 475 GPH pump features a 1/4" MNPT discharge, 13.4' shut-off head capability,
screened inlet and a 6' power cord.
Form 995110 — 12/2000www.LittleGiantPump.com
0
2
4
6
8
10
12
14
16
0 100 200 300 400 500
FLOW - GALLONS/HOUR
HEA
D-
FEET
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
0 500 1000 1500
FLOW - L ITERS/HOUR
HEA
D -
METERS
PE-2.5 Series
Specifications
Replacement Parts
Model
No. Item No.
Discharge
Size Listing(s) HP Volts Hertz Amps Watts
Performance (GPH@Head) Shutoff Cord
Length (ft.)
Weight
(lbs.)1' 3' 5' 10' Ft. P.S.I.
PE-2.5F 518600 3/8" MNPT UL/CSA 1/28 115 60 1.4 80 475 440 395 205 13.4 5.8 6 4.67
Volute 118358
Impeller 118444
Screen 118911
Seal Ring 928011
Gasket 941001
PO Box 12010 • Oklahoma City, OK 73157
Phone: 800.701.7894 • Fax: 800.701.8046
