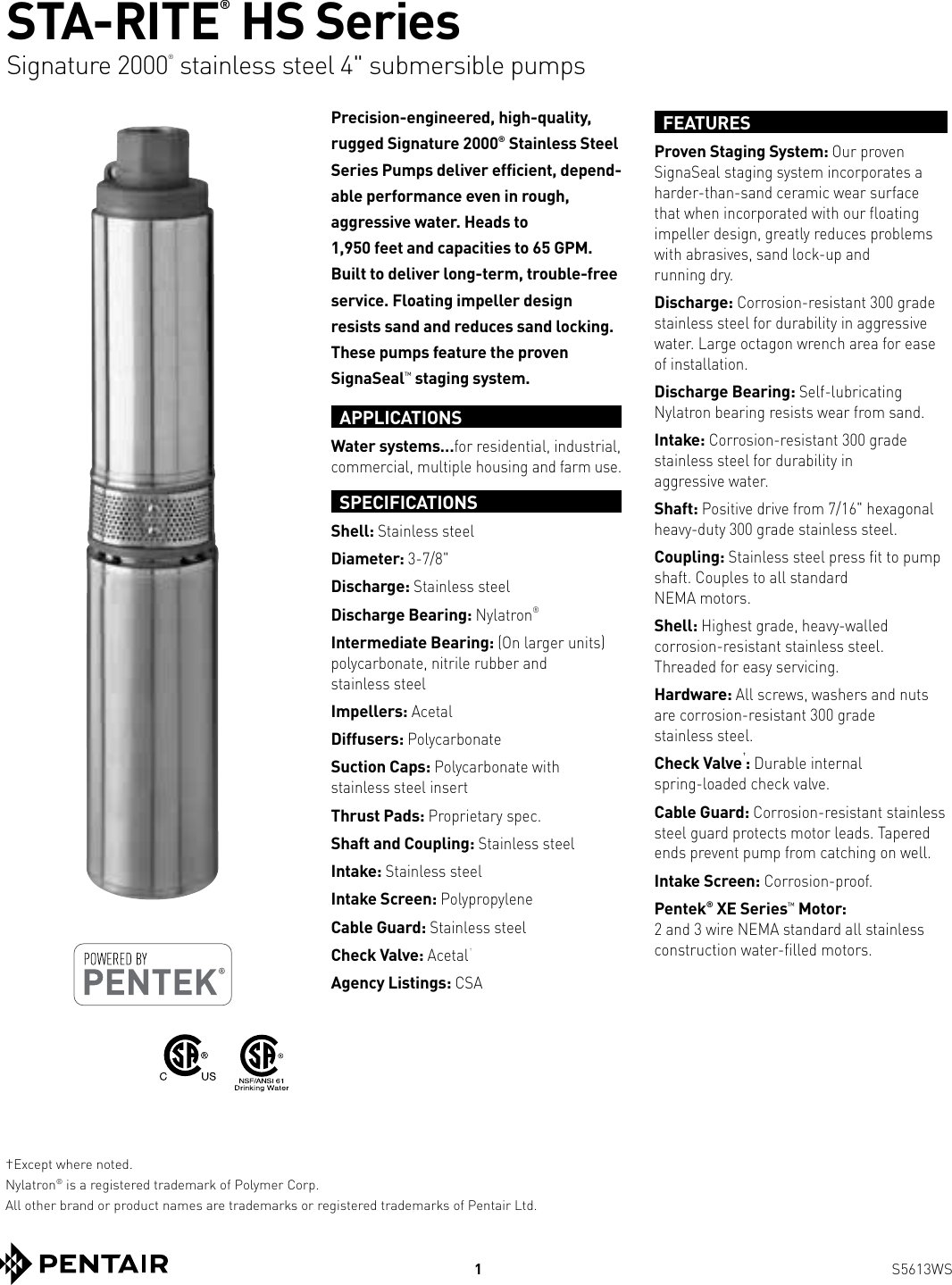

STA-RITE® HS Series
Signature 2000® stainless steel 4" submersible pumps
Precision-engineered, high-quality,
rugged Signature 2000® Stainless Steel
Series Pumps deliver efficient, depend-
able performance even in rough,
aggressive water. Heads to
1,950 feet and capacities to 65 GPM.
Built to deliver long-term, trouble-free
service. Floating impeller design
resists sand and reduces sand locking.
These pumps feature the proven
SignaSeal
™
staging system.
APPLICATIONS
Water systems…
for residential, industrial,
commercial, multiple housing and farm use.
SPECIFICATIONS
Shell:
Stainless steel
Diameter:
3-7/8"
Discharge:
Stainless steel
Discharge Bearing:
Nylatron
®
Intermediate Bearing:
(On larger units)
polycarbonate, nitrile rubber and
stainless steel
Impellers:
Acetal
Diffusers:
Polycarbonate
Suction Caps:
Polycarbonate with
stainless steel insert
Thrust Pads:
Proprietary spec.
Shaft and Coupling:
Stainless steel
Intake:
Stainless steel
Intake Screen:
Polypropylene
Cable Guard:
Stainless steel
Check Valve:
Acetal
†
Agency Listings:
CSA
†Except where noted.
Nylatron® is a registered trademark of Polymer Corp.
All other brand or product names are trademarks or registered trademarks of Pentair Ltd.
FEATURES
Proven Staging System:
Our proven
SignaSeal staging system incorporates a
harder-than-sand ceramic wear surface
that when incorporated with our floating
impeller design, greatly reduces problems
with abrasives, sand lock-up and
running dry.
Discharge:
Corrosion-resistant 300 grade
stainless steel for durability in aggressive
water. Large octagon wrench area for ease
of installation.
Discharge Bearing:
Self-lubricating
Nylatron bearing resists wear from sand.
Intake:
Corrosion-resistant 300 grade
stainless steel for durability in
aggressive water.
Shaft:
Positive drive from 7/16" hex agonal
heavy-duty 300 grade stainless steel.
Coupling:
Stainless steel press fit to pump
shaft. Couples to all standard
NEMA motors.
Shell:
Highest grade, heavy-walled
corrosion-resistant stainless steel.
Threaded for easy servicing.
Hardware:
All screws, washers and nuts
are corrosion-resistant 300 grade
stainless steel.
Check Valve†:
Durable internal
spring-loaded check valve.
Cable Guard:
Corrosion-resistant stainless
steel guard protects motor leads. Tapered
ends prevent pump from catching on well.
Intake Screen:
Corrosion-proof.
Pentek® XE Series
™
Motor:
2 and 3 wire NEMA standard all stainless
construction water-filled motors.
1S5613WS

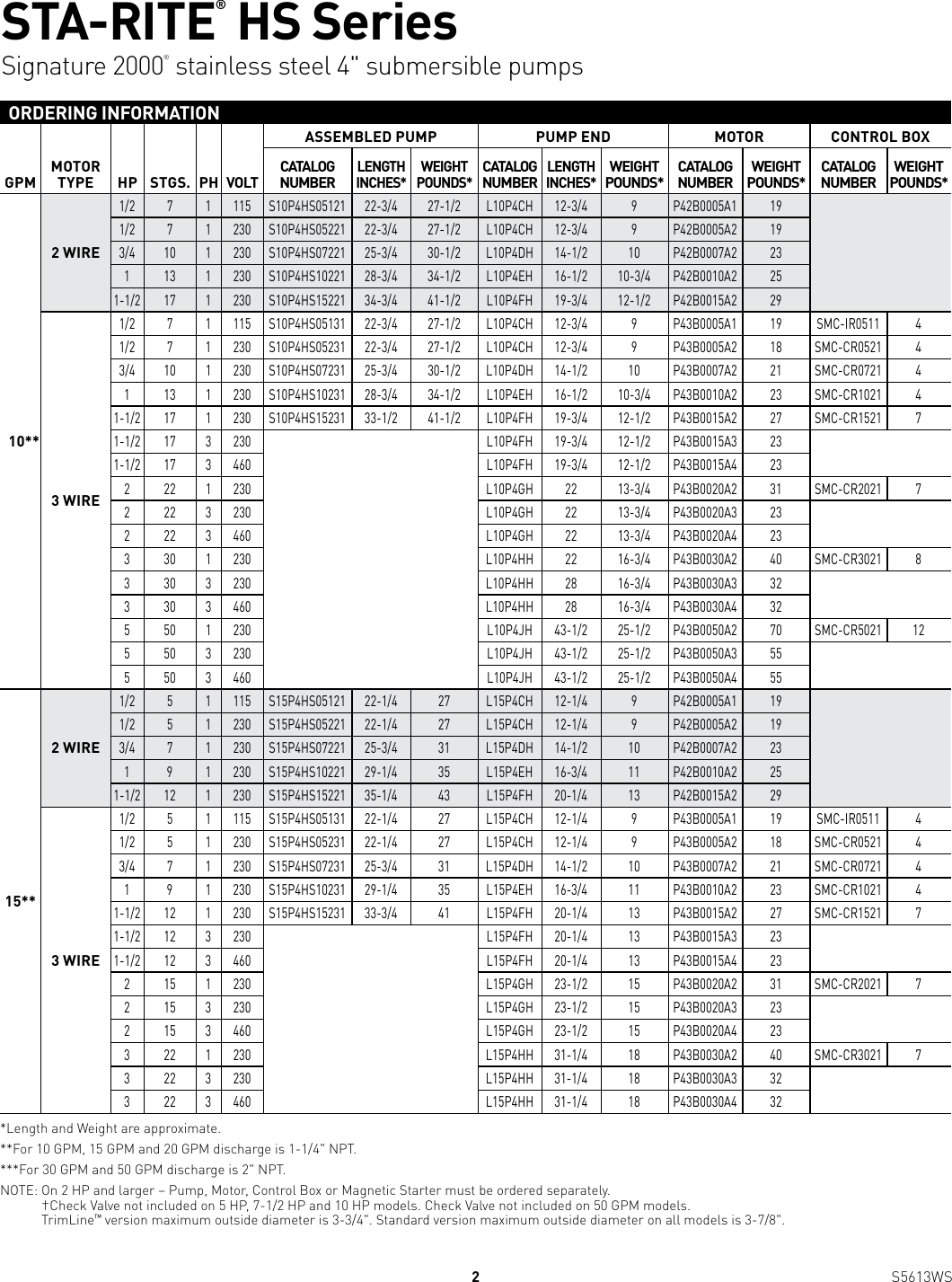

STA-RITE® HS Series
Signature 2000® stainless steel 4" submersible pumps
*Length and Weight are approximate.
**For 10 GPM, 15 GPM and 20 GPM discharge is 1-1/4" NPT.
***For 30 GPM and 50 GPM discharge is 2" NPT.
NOTE: On 2 HP and larger – Pump, Motor, Control Box or Magnetic Starter must be ordered separately.
†Check Valve not included on 5 HP, 7-1/2 HP and 10 HP models. Check Valve not included on 50 GPM models.
TrimLine
™
version maximum outside diameter is 3-3/4". Standard version maximum outside diameter on all models is 3-7/8".
ORDERING INFORMATION
GPM
MOTOR
TYPE HP STGS. PH VOLT
ASSEMBLED PUMP PUMP END MOTOR CONTROL BOX
CATALOG
NUMBER
LENGTH
INCHES*
WEIGHT
POUNDS*
CATALOG
NUMBER
LENGTH
INCHES*
WEIGHT
POUNDS*
CATALOG
NUMBER
WEIGHT
POUNDS*
CATALOG
NUMBER
WEIGHT
POUNDS*
10**
2 WIRE
1/2 7 1 115 S10P4HS05121 22-3/4 27-1/2 L10P4CH 12-3/4 9 P42B0005A1 19
1/2 7 1 230 S10P4HS05221 22-3/4 27-1/2 L10P4CH 12-3/4 9 P42B0005A2 19
3/4 10 1 230 S10P4HS07221 25-3/4 30-1/2 L10P4DH 14-1/2 10 P42B0007A2 23
1 13 1 230 S10P4HS10221 28-3/4 34-1/2 L10P4EH 16-1/2 10-3/4 P42B0010A2 25
1-1/2 17 1 230 S10P4HS15221 34-3/4 41-1/2 L10P4FH 19-3/4 12-1/2 P42B0015A2 29
3 WIRE
1/2 7 1 115 S10P4HS05131 22-3/4 27-1/2 L10P4CH 12-3/4 9 P43B0005A1 19 SMC-IR0511 4
1/2 7 1 230 S10P4HS05231 22-3/4 27-1/2 L10P4CH 12-3/4 9 P43B0005A2 18 SMC-CR0521 4
3/4 10 1 230 S10P4HS07231 25-3/4 30-1/2 L10P4DH 14-1/2 10 P43B0007A2 21 SMC-CR0721 4
1 13 1 230 S10P4HS10231 28-3/4 34-1/2 L10P4EH 16-1/2 10-3/4 P43B0010A2 23 SMC-CR1021 4
1-1/2 17 1 230 S10P4HS15231 33-1/2 41-1/2 L10P4FH 19-3/4 12-1/2 P43B0015A2 27 SMC-CR1521 7
1-1/2 17 3 230 L10P4FH 19-3/4 12-1/2 P43B0015A3 23
1-1/2 17 3 460 L10P4FH 19-3/4 12-1/2 P43B0015A4 23
2 22 1 230 L10P4GH 22 13-3/4 P43B0020A2 31 SMC-CR2021 7
2 22 3 230 L10P4GH 22 13-3/4 P43B0020A3 23
2 22 3 460 L10P4GH 22 13-3/4 P43B0020A4 23
3 30 1 230 L10P4HH 22 16-3/4 P43B0030A2 40 SMC-CR3021 8
3 30 3 230 L10P4HH 28 16-3/4 P43B0030A3 32
3 30 3 460 L10P4HH 28 16-3/4 P43B0030A4 32
5 50 1 230 L10P4JH 43-1/2 25-1/2 P43B0050A2 70 SMC-CR5021 12
5 50 3 230 L10P4JH 43-1/2 25-1/2 P43B0050A3 55
5 50 3 460 L10P4JH 43-1/2 25-1/2 P43B0050A4 55
15**
2 WIRE
1/2 5 1 115 S15P4HS05121 22-1/4 27 L15P4CH 12-1/4 9 P42B0005A1 19
1/2 5 1 230 S15P4HS05221 22-1/4 27 L15P4CH 12-1/4 9 P42B0005A2 19
3/4 7 1 230 S15P4HS07221 25-3/4 31 L15P4DH 14-1/2 10 P42B0007A2 23
1 9 1 230 S15P4HS10221 29-1/4 35 L15P4EH 16-3/4 11 P42B0010A2 25
1-1/2 12 1 230 S15P4HS15221 35-1/4 43 L15P4FH 20-1/4 13 P42B0015A2 29
3 WIRE
1/2 5 1 115 S15P4HS05131 22-1/4 27 L15P4CH 12-1/4 9 P43B0005A1 19 SMC-IR0511 4
1/2 5 1 230 S15P4HS05231 22-1/4 27 L15P4CH 12-1/4 9 P43B0005A2 18 SMC-CR0521 4
3/4 7 1 230 S15P4HS07231 25-3/4 31 L15P4DH 14-1/2 10 P43B0007A2 21 SMC-CR0721 4
1 9 1 230 S15P4HS10231 29-1/4 35 L15P4EH 16-3/4 11 P43B0010A2 23 SMC-CR1021 4
1-1/2 12 1 230 S15P4HS15231 33-3/4 41 L15P4FH 20-1/4 13 P43B0015A2 27 SMC-CR1521 7
1-1/2 12 3 230 L15P4FH 20-1/4 13 P43B0015A3 23
1-1/2 12 3 460 L15P4FH 20-1/4 13 P43B0015A4 23
2 15 1 230 L15P4GH 23-1/2 15 P43B0020A2 31 SMC-CR2021 7
2 15 3 230 L15P4GH 23-1/2 15 P43B0020A3 23
2 15 3 460 L15P4GH 23-1/2 15 P43B0020A4 23
3 22 1 230 L15P4HH 31-1/4 18 P43B0030A2 40 SMC-CR3021 7
3 22 3 230 L15P4HH 31-1/4 18 P43B0030A3 32
3 22 3 460 L15P4HH 31-1/4 18 P43B0030A4 32
2S5613WS

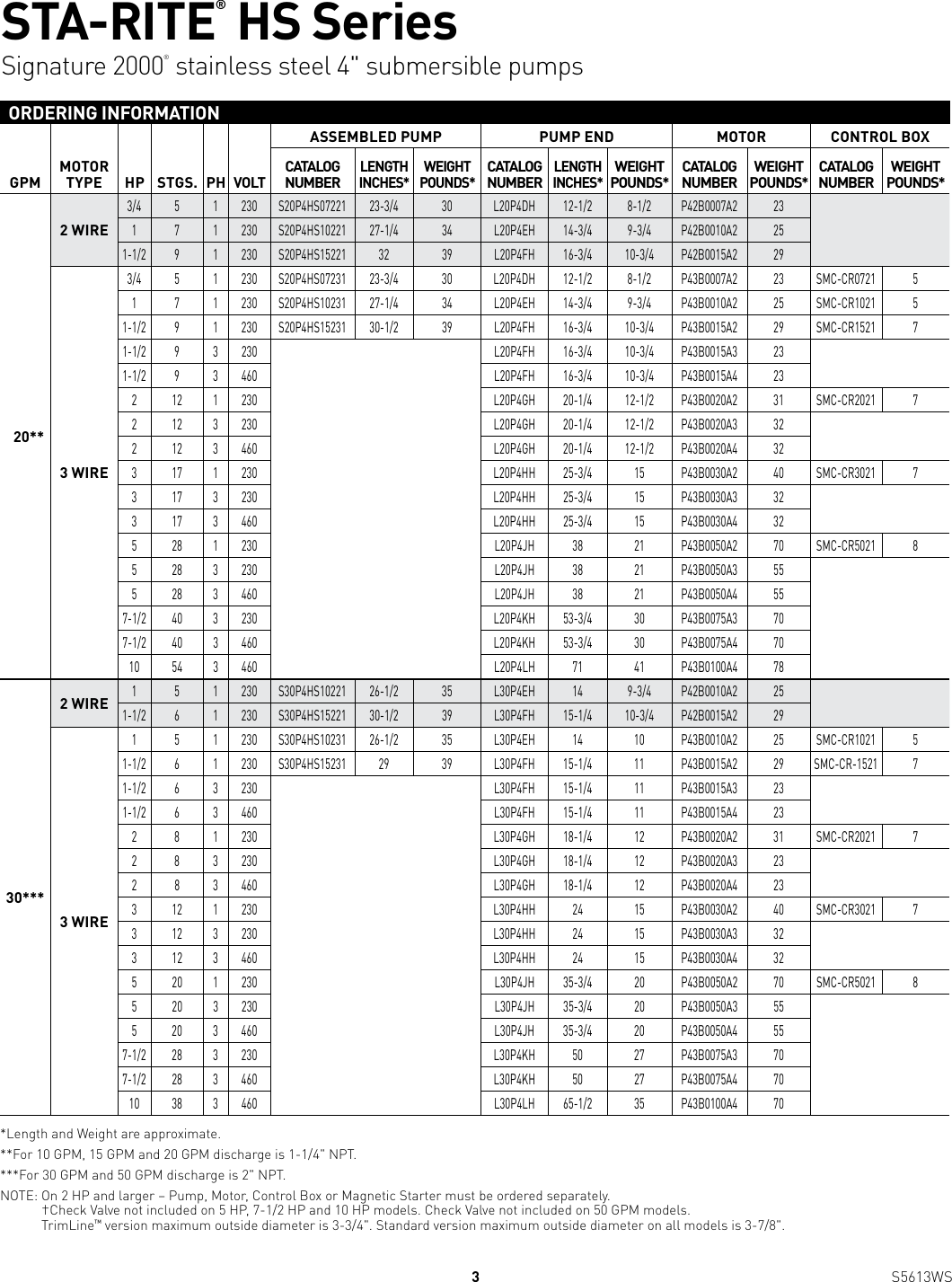

STA-RITE® HS Series
Signature 2000® stainless steel 4" submersible pumps
*Length and Weight are approximate.
**For 10 GPM, 15 GPM and 20 GPM discharge is 1-1/4" NPT.
***For 30 GPM and 50 GPM discharge is 2" NPT.
NOTE: On 2 HP and larger – Pump, Motor, Control Box or Magnetic Starter must be ordered separately.
†Check Valve not included on 5 HP, 7-1/2 HP and 10 HP models. Check Valve not included on 50 GPM models.
TrimLine
™
version maximum outside diameter is 3-3/4". Standard version maximum outside diameter on all models is 3-7/8".
ORDERING INFORMATION
GPM
MOTOR
TYPE HP STGS. PH VOLT
ASSEMBLED PUMP PUMP END MOTOR CONTROL BOX
CATALOG
NUMBER
LENGTH
INCHES*
WEIGHT
POUNDS*
CATALOG
NUMBER
LENGTH
INCHES*
WEIGHT
POUNDS*
CATALOG
NUMBER
WEIGHT
POUNDS*
CATALOG
NUMBER
WEIGHT
POUNDS*
20**
2 WIRE
3/4 5 1 230 S20P4HS07221 23-3/4 30 L20P4DH 12-1/2 8-1/2 P42B0007A2 23
1 7 1 230 S20P4HS10221 27-1/4 34 L20P4EH 14-3/4 9-3/4 P42B0010A2 25
1-1/2 9 1 230 S20P4HS15221 32 39 L20P4FH 16-3/4 10-3/4 P42B0015A2 29
3 WIRE
3/4 5 1 230 S20P4HS07231 23-3/4 30 L20P4DH 12-1/2 8-1/2 P43B0007A2 23 SMC-CR0721 5
1 7 1 230 S20P4HS10231 27-1/4 34 L20P4EH 14-3/4 9-3/4 P43B0010A2 25 SMC-CR1021 5
1-1/2 9 1 230 S20P4HS15231 30-1/2 39 L20P4FH 16-3/4 10-3/4 P43B0015A2 29 SMC-CR1521 7
1-1/2 9 3 230 L20P4FH 16-3/4 10-3/4 P43B0015A3 23
1-1/2 9 3 460 L20P4FH 16-3/4 10-3/4 P43B0015A4 23
2 12 1 230 L20P4GH 20-1/4 12-1/2 P43B0020A2 31 SMC-CR2021 7
2 12 3 230 L20P4GH 20-1/4 12-1/2 P43B0020A3 32
2 12 3 460 L20P4GH 20-1/4 12-1/2 P43B0020A4 32
3 17 1 230 L20P4HH 25-3/4 15 P43B0030A2 40 SMC-CR3021 7
3 17 3 230 L20P4HH 25-3/4 15 P43B0030A3 32
3 17 3 460 L20P4HH 25-3/4 15 P43B0030A4 32
5 28 1 230 L20P4JH 38 21 P43B0050A2 70 SMC-CR5021 8
5 28 3 230 L20P4JH 38 21 P43B0050A3 55
5 28 3 460 L20P4JH 38 21 P43B0050A4 55
7-1/2 40 3 230 L20P4KH 53-3/4 30 P43B0075A3 70
7-1/2 40 3 460 L20P4KH 53-3/4 30 P43B0075A4 70
10 54 3 460 L20P4LH 71 41 P43B0100A4 78
30***
2 WIRE
1 5 1 230 S30P4HS10221 26-1/2 35 L30P4EH 14 9-3/4 P42B0010A2 25
1-1/2 6 1 230 S30P4HS15221 30-1/2 39 L30P4FH 15-1/4 10-3/4 P42B0015A2 29
3 WIRE
1 5 1 230 S30P4HS10231 26-1/2 35 L30P4EH 14 10 P43B0010A2 25 SMC-CR1021 5
1-1/2 6 1 230 S30P4HS15231 29 39 L30P4FH 15-1/4 11 P43B0015A2 29 SMC-CR-1521 7
1-1/2 6 3 230 L30P4FH 15-1/4 11 P43B0015A3 23
1-1/2 6 3 460 L30P4FH 15-1/4 11 P43B0015A4 23
2 8 1 230 L30P4GH 18-1/4 12 P43B0020A2 31 SMC-CR2021 7
2 8 3 230 L30P4GH 18-1/4 12 P43B0020A3 23
2 8 3 460 L30P4GH 18-1/4 12 P43B0020A4 23
3 12 1 230 L30P4HH 24 15 P43B0030A2 40 SMC-CR3021 7
3 12 3 230 L30P4HH 24 15 P43B0030A3 32
3 12 3 460 L30P4HH 24 15 P43B0030A4 32
5 20 1 230 L30P4JH 35-3/4 20 P43B0050A2 70 SMC-CR5021 8
5 20 3 230 L30P4JH 35-3/4 20 P43B0050A3 55
5 20 3 460 L30P4JH 35-3/4 20 P43B0050A4 55
7-1/2 28 3 230 L30P4KH 50 27 P43B0075A3 70
7-1/2 28 3 460 L30P4KH 50 27 P43B0075A4 70
10 38 3 460 L30P4LH 65-1/2 35 P43B0100A4 70
3S5613WS
STA-RITE® HS Series
Signature 2000® stainless steel 4" submersible pumps
*Length and Weight are approximate.
**For 10 GPM, 15 GPM and 20 GPM discharge is 1-1/4" NPT.
***For 30 GPM and 50 GPM discharge is 2" NPT.
NOTE: Pump, Motor, Control Box or Magnetic Starter must be ordered separately.
Check Valve not included on 50 GPM models.

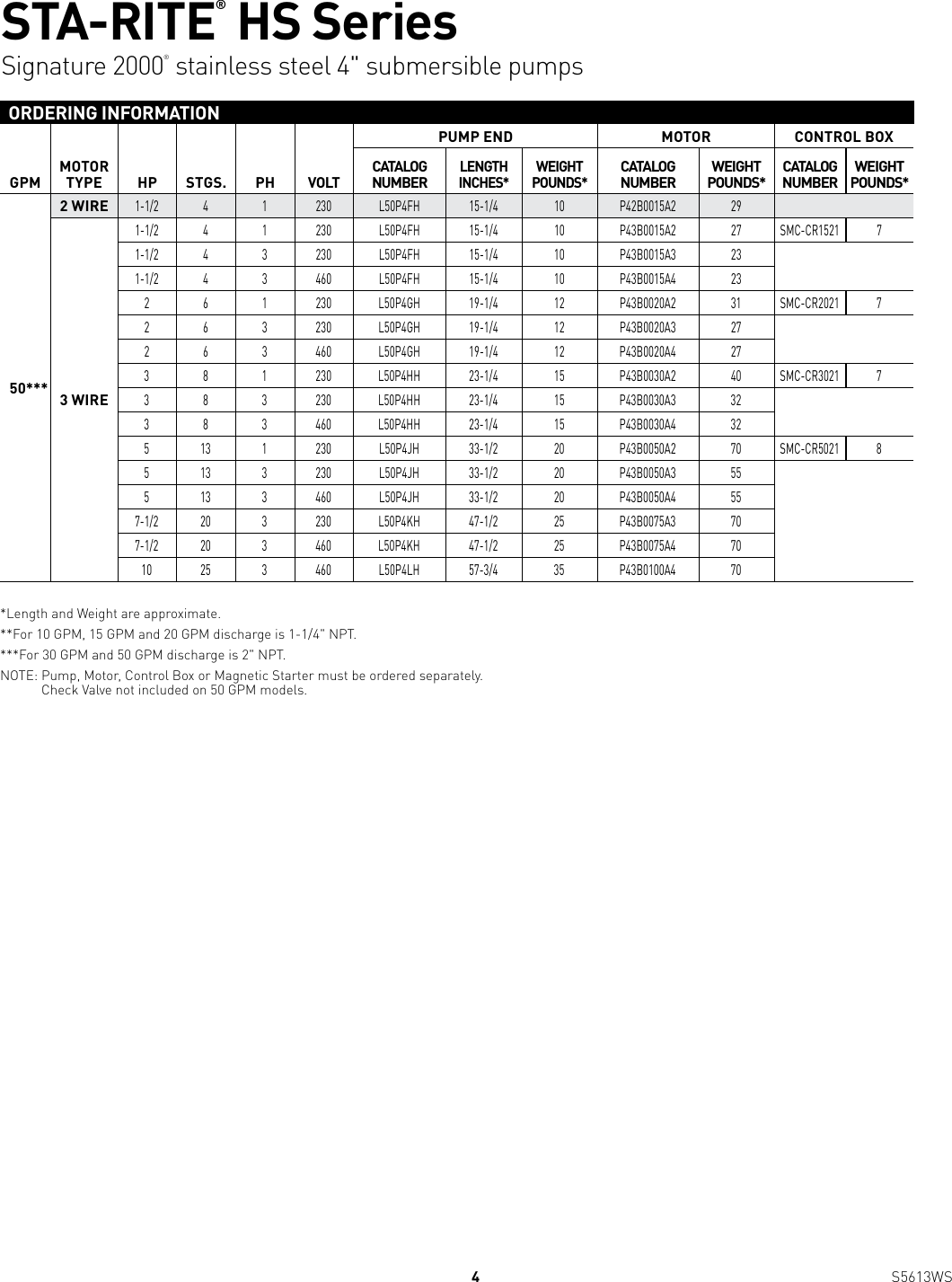

ORDERING INFORMATION
GPM
MOTOR
TYPE HP STGS. PH VOLT
PUMP END MOTOR CONTROL BOX
CATALOG
NUMBER
LENGTH
INCHES*
WEIGHT
POUNDS*
CATALOG
NUMBER
WEIGHT
POUNDS*
CATALOG
NUMBER
WEIGHT
POUNDS*
50***
2 WIRE
1-1/2 4 1 230 L50P4FH 15-1/4 10 P42B0015A2 29
3 WIRE
1-1/2 4 1 230 L50P4FH 15-1/4 10 P43B0015A2 27 SMC-CR1521 7
1-1/2 4 3 230 L50P4FH 15-1/4 10 P43B0015A3 23
1-1/2 4 3 460 L50P4FH 15-1/4 10 P43B0015A4 23
2 6 1 230 L50P4GH 19-1/4 12 P43B0020A2 31 SMC-CR2021 7
2 6 3 230 L50P4GH 19-1/4 12 P43B0020A3 27
2 6 3 460 L50P4GH 19-1/4 12 P43B0020A4 27
3 8 1 230 L50P4HH 23-1/4 15 P43B0030A2 40 SMC-CR3021 7
3 8 3 230 L50P4HH 23-1/4 15 P43B0030A3 32
3 8 3 460 L50P4HH 23-1/4 15 P43B0030A4 32
5 13 1 230 L50P4JH 33-1/2 20 P43B0050A2 70 SMC-CR5021 8
5 13 3 230 L50P4JH 33-1/2 20 P43B0050A3 55
5 13 3 460 L50P4JH 33-1/2 20 P43B0050A4 55
7-1/2 20 3 230 L50P4KH 47-1/2 25 P43B0075A3 70
7-1/2 20 3 460 L50P4KH 47-1/2 25 P43B0075A4 70
10 25 3 460 L50P4LH 57-3/4 35 P43B0100A4 70
4S5613WS
STA-RITE® HS Series
Signature 2000® stainless steel 4" submersible pumps

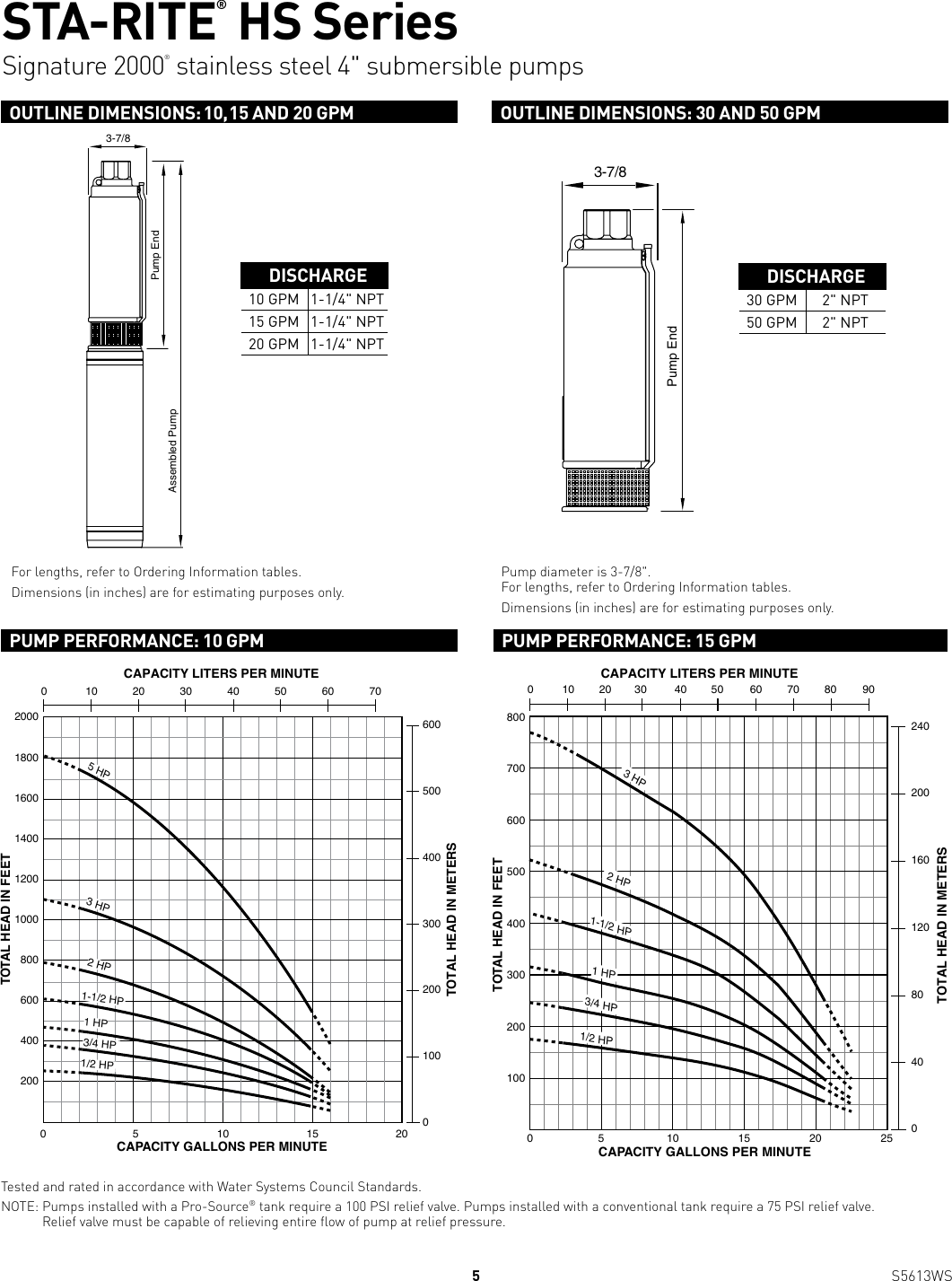

PUMP PERFORMANCE: 10 GPM
0 5
2000
1800
1600
1400
1200
1000
800
600
400
200
10 15 20
600
500
400
300
200
100
0
TOTAL HEAD IN FEET
CAPACITY GALLONS PER MINUTE
CAPACITY LITERS PER MINUTE
TOTAL HEAD IN METERS
10 70605040200 30
5 HP
3 HP
2 HP
1-1/2 HP
1 HP
3/4 HP
1/2 HP
PUMP PERFORMANCE: 15 GPM
800
700
600
500
400
300
200
100
0510 15 20
1-1/2 HP
1 HP
3/4 HP
1/2 HP
3 HP
25
240
200
160
120
80
40
0
TOTAL HEAD IN FEET
CAPACITY GALLONS PER MINUTE
CAPACITY LITERS PER MINUTE
TOTAL HEAD IN METERS
30 90807060402010050
2 HP
Tested and rated in accordance with Water Systems Council Standards.
NOTE: Pumps installed with a Pro-Source® tank require a 100 PSI relief valve. Pumps installed with a conventional tank require a 75 PSI relief valve.
Relief valve must be capable of relieving entire flow of pump at relief pressure.
OUTLINE DIMENSIONS: 10, 15 AND 20 GPM
3-7/8
Pump End
Assembled Pump
Pump diameter is 3-7/8".
For lengths, refer to Ordering Information tables.
Dimensions (in inches) are for estimating purposes only.
For lengths, refer to Ordering Information tables.
Dimensions (in inches) are for estimating purposes only.
OUTLINE DIMENSIONS: 30 AND 50 GPM
3-7/8
Pump End
DISCHARGE
10 GPM 1-1/4" NPT
15 GPM 1-1/4" NPT
20 GPM 1-1/4" NPT
DISCHARGE
30 GPM 2" NPT
50 GPM 2" NPT
5S5613WS
STA-RITE® HS Series
Signature 2000® stainless steel 4" submersible pumps

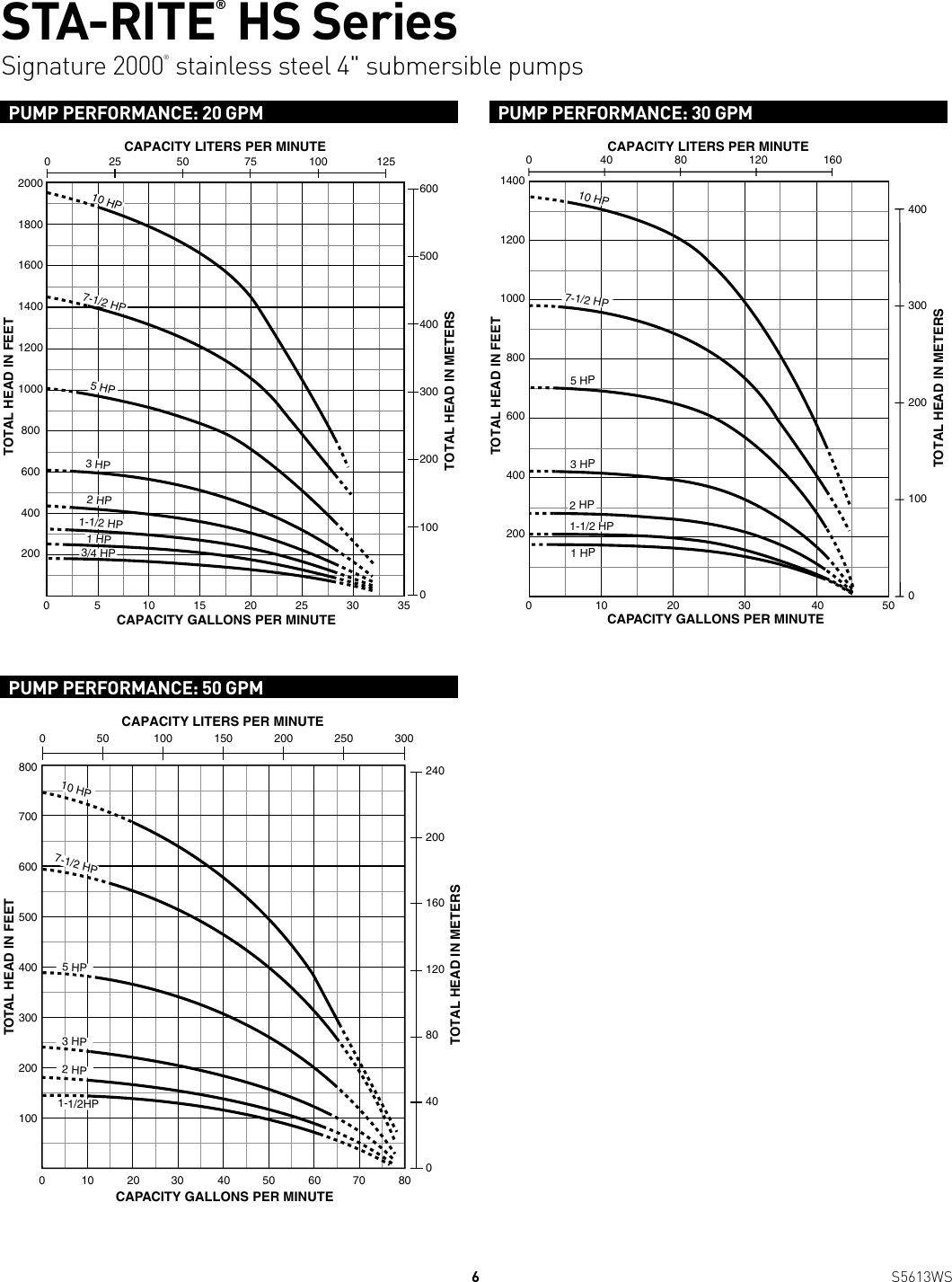

PUMP PERFORMANCE: 30 GPM
PUMP PERFORMANCE: 20 GPM
CAPACITY GALLONS PER MINUTE
TOTAL HEAD IN FEET
0510 20 25 3015 35
2000
1800
1600
1400
1200
1000
800
600
400
200
3 HP
1 HP
3/4 HP
1-1/2 HP
10 HP
7-1/2 HP
2 HP
5 HP
CAPACITY LITERS PER MINUTE
TOTAL HEAD IN METERS
75 12550250 100
600
500
400
300
200
100
0
PUMP PERFORMANCE: 50 GPM
TOTAL HEAD IN FEET
CAPACITY GALLONS PER MINUTE
100
200
300
400
500
600
700
800
02040608010 30 50 70
10 HP
7-1/2 HP
5 HP
3 HP
2 HP
1-1/2HP
240
200
160
120
80
40
0
CAPACITY LITERS PER MINUTE
TOTAL HEAD IN METERS
300250200150500 100
6S5613WS
STA-RITE® HS Series
Signature 2000® stainless steel 4" submersible pumps
CAUTION: DO NOT use pump at flow rates indicated by the symbol ‘—’. To do so can cause premature failure of unit. Pump warranty void when failure occurs
under these conditions. Tested and rated in accordance with Water Systems Council Standards.
NOTE: Pumps installed with a Pro-Source® tank require a 100 PSI relief valve. Pumps installed with a conventional tank require a 75 PSI relief valve.
Relief valve must be capable of relieving entire flow of pump at relief pressure.

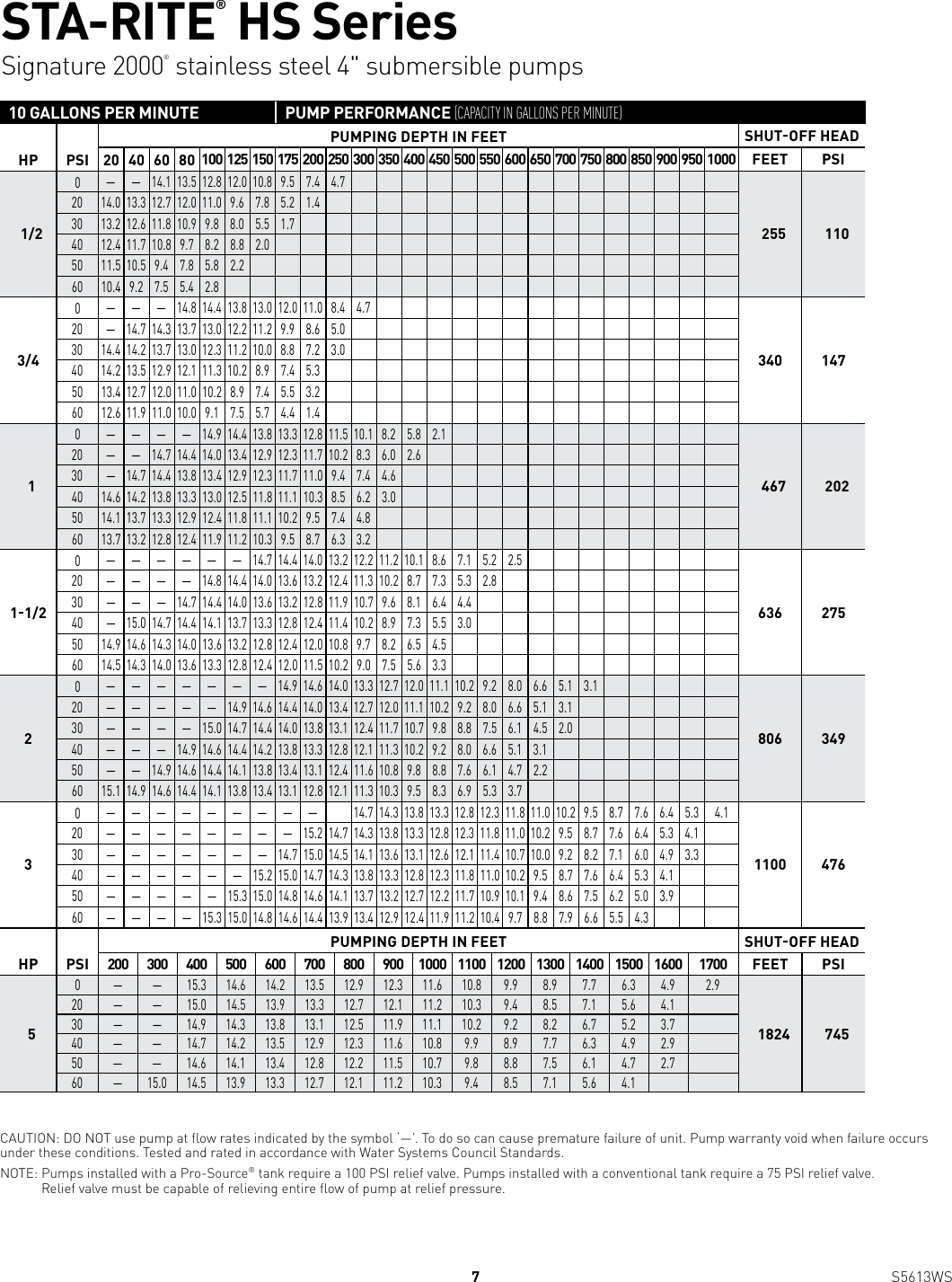

10 GALLONS PER MINUTE PUMP PERFORMANCE (CapaCity in Gallons per Minute)
HP PSI
PUMPING DEPTH IN FEET SHUTOFF HEAD
20 40 60 80 100 125 150 175 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 FEET PSI
1/2
0— — 14.1 13.5 12.8 12.0 10.8 9.5 7.4 4.7
255 110
20 14.0 13.3 12.7 12.0 11.0 9.6 7.8 5.2 1.4
30 13.2 12.6 11.8 10.9 9.8 8.0 5.5 1.7
40 12.4 11.7 10.8 9.7 8.2 8.8 2.0
50 11.5 10.5 9.4 7.8 5.8 2.2
60 10.4 9.2 7.5 5.4 2.8
3/4
0— — — 14.8 14.4 13.8 13.0 12.0 11.0 8.4 4.7
340 147
20 — 14.7 14.3 13.7 13.0 12.2 11.2 9.9 8.6 5.0
30 14.4 14.2 13.7 13.0 12.3 11.2 10.0 8.8 7.2 3.0
40 14.2 13.5 12.9 12.1 11.3 10.2 8.9 7.4 5.3
50 13.4 12.7 12.0 11.0 10.2 8.9 7.4 5.5 3.2
60 12.6 11.9 11.0 10.0 9.1 7.5 5.7 4.4 1.4
1
0— — — — 14.9 14.4 13.8 13.3 12.8 11.5 10.1 8.2 5.8 2.1
467 202
20 — — 14.7 14.4 14.0 13.4 12.9 12.3 11.7 10.2 8.3 6.0 2.6
30 — 14.7 14.4 13.8 13.4 12.9 12.3 11.7 11.0 9.4 7.4 4.6
40 14.6 14.2 13.8 13.3 13.0 12.5 11.8 11.1 10.3 8.5 6.2 3.0
50 14.1 13.7 13.3 12.9 12.4 11.8 11.1 10.2 9.5 7.4 4.8
60 13.7 13.2 12.8 12.4 11.9 11.2 10.3 9.5 8.7 6.3 3.2
11/2
0— — — — — — 14.7 14.4 14.0 13.2 12.2 11.2 10.1 8.6 7.1 5.2 2.5
636 275
20 — — — — 14.8 14.4 14.0 13.6 13.2 12.4 11.3 10.2 8.7 7.3 5.3 2.8
30 — — — 14.7 14.4 14.0 13.6 13.2 12.8 11.9 10.7 9.6 8.1 6.4 4.4
40 — 15.0 14.7 14.4 14.1 13.7 13.3 12.8 12.4 11.4 10.2 8.9 7.3 5.5 3.0
50 14.9 14.6 14.3 14.0 13.6 13.2 12.8 12.4 12.0 10.8 9.7 8.2 6.5 4.5
60 14.5 14.3 14.0 13.6 13.3 12.8 12.4 12.0 11.5 10.2 9.0 7.5 5.6 3.3
2
0— — — — — — — 14.9 14.6 14.0 13.3 12.7 12.0 11.1 10.2 9.2 8.0 6.6 5.1 3.1
806 349
20 — — — — — 14.9 14.6 14.4 14.0 13.4 12.7 12.0 11.1 10.2 9.2 8.0 6.6 5.1 3.1
30 — — — — 15.0 14.7 14.4 14.0 13.8 13.1 12.4 11.7 10.7 9.8 8.8 7.5 6.1 4.5 2.0
40 — — — 14.9 14.6 14.4 14.2 13.8 13.3 12.8 12.1 11.3 10.2 9.2 8.0 6.6 5.1 3.1
50 — — 14.9 14.6 14.4 14.1 13.8 13.4 13.1 12.4 11.6 10.8 9.8 8.8 7.6 6.1 4.7 2.2
60 15.1 14.9 14.6 14.4 14.1 13.8 13.4 13.1 12.8 12.1 11.3 10.3 9.5 8.3 6.9 5.3 3.7
3
0— — — — — — — — — 14.7 14.3 13.8 13.3 12.8 12.3 11.8 11.0 10.2 9.5 8.7 7.6 6.4 5.3 4.1
1100 476
20 — — — — — — — — 15.2 14.7 14.3 13.8 13.3 12.8 12.3 11.8 11.0 10.2 9.5 8.7 7.6 6.4 5.3 4.1
30 — — — — — — — 14.7 15.0 14.5 14.1 13.6 13.1 12.6 12.1 11.4 10.7 10.0 9.2 8.2 7.1 6.0 4.9 3.3
40 — — — — — — 15.2 15.0 14.7 14.3 13.8 13.3 12.8 12.3 11.8 11.0 10.2 9.5 8.7 7.6 6.4 5.3 4.1
50 — — — — — 15.3 15.0 14.8 14.6 14.1 13.7 13.2 12.7 12.2 11.7 10.9 10.1 9.4 8.6 7.5 6.2 5.0 3.9
60 — — — — 15.3 15.0 14.8 14.6 14.4 13.9 13.4 12.9 12.4 11.9 11.2 10.4 9.7 8.8 7.9 6.6 5.5 4.3
HP PSI
PUMPING DEPTH IN FEET SHUTOFF HEAD
200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 FEET PSI
5
0 — — 15.3 14.6 14.2 13.5 12.9 12.3 11.6 10.8 9.9 8.9 7.7 6.3 4.9 2.9
1824 745
20 — — 15.0 14.5 13.9 13.3 12.7 12.1 11.2 10.3 9.4 8.5 7.1 5.6 4.1
30 — — 14.9 14.3 13.8 13.1 12.5 11.9 11.1 10.2 9.2 8.2 6.7 5.2 3.7
40 — — 14.7 14.2 13.5 12.9 12.3 11.6 10.8 9.9 8.9 7.7 6.3 4.9 2.9
50 — — 14.6 14.1 13.4 12.8 12.2 11.5 10.7 9.8 8.8 7.5 6.1 4.7 2.7
60 — 15.0 14.5 13.9 13.3 12.7 12.1 11.2 10.3 9.4 8.5 7.1 5.6 4.1
7S5613WS
STA-RITE® HS Series
Signature 2000® stainless steel 4" submersible pumps
CAUTION: DO NOT use pump at flow rates indicated by the symbol ‘—’. To do so can cause premature failure of unit. Pump warranty void when failure occurs
under these conditions.
Tested and rated in accordance with Water Systems Council Standards.
NOTE: Pumps installed with a Pro-Source® tank require a 100 PSI relief valve. Pumps installed with a conventional tank require a 75 PSI relief valve.
Relief valve must be capable of relieving entire flow of pump at relief pressure.

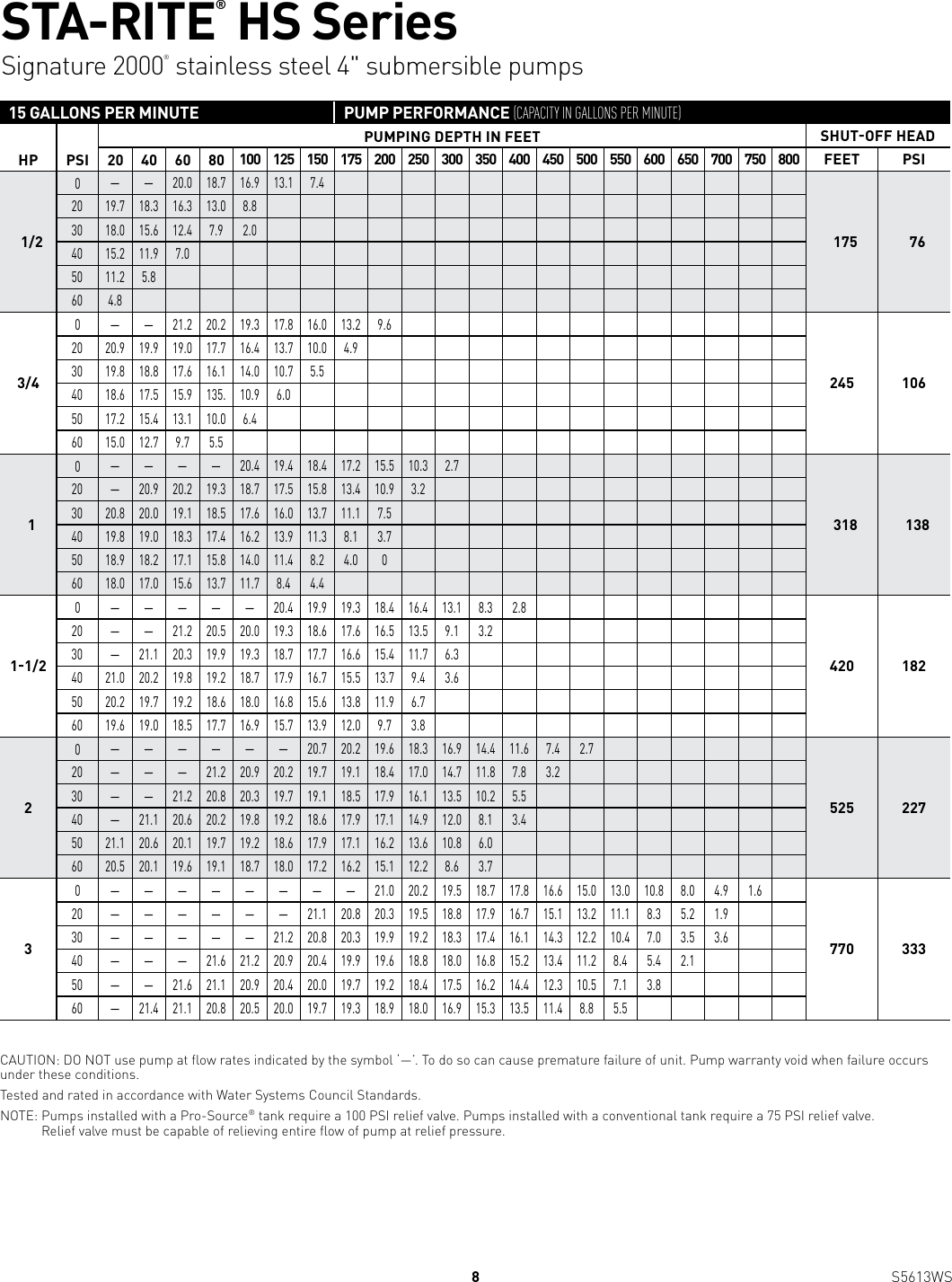

15 GALLONS PER MINUTE PUMP PERFORMANCE (CapaCity in Gallons per Minute)
HP PSI
PUMPING DEPTH IN FEET SHUTOFF HEAD
20 40 60 80 100 125 150 175 200 250 300 350 400 450 500 550 600 650 700 750 800 FEET PSI
1/2
0— — 20.0 18.7 16.9 13.1 7.4
175 76
20 19.7 18.3 16.3 13.0 8.8
30 18.0 15.6 12.4 7.9 2.0
40 15.2 11.9 7.0
50 11.2 5.8
60 4.8
3/4
0— — 21.2 20.2 19.3 17.8 16.0 13.2 9.6
245 106
20 20.9 19.9 19.0 17.7 16.4 13.7 10.0 4.9
30 19.8 18.8 17.6 16.1 14.0 10.7 5.5
40 18.6 17.5 15.9 135. 10.9 6.0
50 17.2 15.4 13.1 10.0 6.4
60 15.0 12.7 9.7 5.5
1
0— — — — 20.4 19.4 18.4 17.2 15.5 10.3 2.7
318 138
20 — 20.9 20.2 19.3 18.7 17.5 15.8 13.4 10.9 3.2
30 20.8 20.0 19.1 18.5 17.6 16.0 13.7 11.1 7.5
40 19.8 19.0 18.3 17.4 16.2 13.9 11.3 8.1 3.7
50 18.9 18.2 17.1 15.8 14.0 11.4 8.2 4.0 0
60 18.0 17.0 15.6 13.7 11.7 8.4 4.4
11/2
0— — — — — 20.4 19.9 19.3 18.4 16.4 13.1 8.3 2.8
420 182
20 — — 21.2 20.5 20.0 19.3 18.6 17.6 16.5 13.5 9.1 3.2
30 — 21.1 20.3 19.9 19.3 18.7 17.7 16.6 15.4 11.7 6.3
40 21.0 20.2 19.8 19.2 18.7 17.9 16.7 15.5 13.7 9.4 3.6
50 20.2 19.7 19.2 18.6 18.0 16.8 15.6 13.8 11.9 6.7
60 19.6 19.0 18.5 17.7 16.9 15.7 13.9 12.0 9.7 3.8
2
0— — — — — — 20.7 20.2 19.6 18.3 16.9 14.4 11.6 7.4 2.7
525 227
20 — — — 21.2 20.9 20.2 19.7 19.1 18.4 17.0 14.7 11.8 7.8 3.2
30 — — 21.2 20.8 20.3 19.7 19.1 18.5 17.9 16.1 13.5 10.2 5.5
40 — 21.1 20.6 20.2 19.8 19.2 18.6 17.9 17.1 14.9 12.0 8.1 3.4
50 21.1 20.6 20.1 19.7 19.2 18.6 17.9 17.1 16.2 13.6 10.8 6.0
60 20.5 20.1 19.6 19.1 18.7 18.0 17.2 16.2 15.1 12.2 8.6 3.7
3
0— — — — — — — — 21.0 20.2 19.5 18.7 17.8 16.6 15.0 13.0 10.8 8.0 4.9 1.6
770 333
20 — — — — — — 21.1 20.8 20.3 19.5 18.8 17.9 16.7 15.1 13.2 11.1 8.3 5.2 1.9
30 — — — — — 21.2 20.8 20.3 19.9 19.2 18.3 17.4 16.1 14.3 12.2 10.4 7.0 3.5 3.6
40 — — — 21.6 21.2 20.9 20.4 19.9 19.6 18.8 18.0 16.8 15.2 13.4 11.2 8.4 5.4 2.1
50 — — 21.6 21.1 20.9 20.4 20.0 19.7 19.2 18.4 17.5 16.2 14.4 12.3 10.5 7.1 3.8
60 — 21.4 21.1 20.8 20.5 20.0 19.7 19.3 18.9 18.0 16.9 15.3 13.5 11.4 8.8 5.5
8S5613WS
STA-RITE® HS Series
Signature 2000® stainless steel 4" submersible pumps
CAUTION: DO NOT use pump at flow rates indicated by the symbol ‘—’. To do so can cause premature failure of unit. Pump warranty void when failure occurs
under these conditions. Tested and rated in accordance with Water Systems Council Standards.
NOTE: Pumps installed with a Pro-Source® tank require a 100 PSI relief valve. Pumps installed with a conventional tank require a 75 PSI relief valve.
Relief valve must be capable of relieving entire flow of pump at relief pressure.

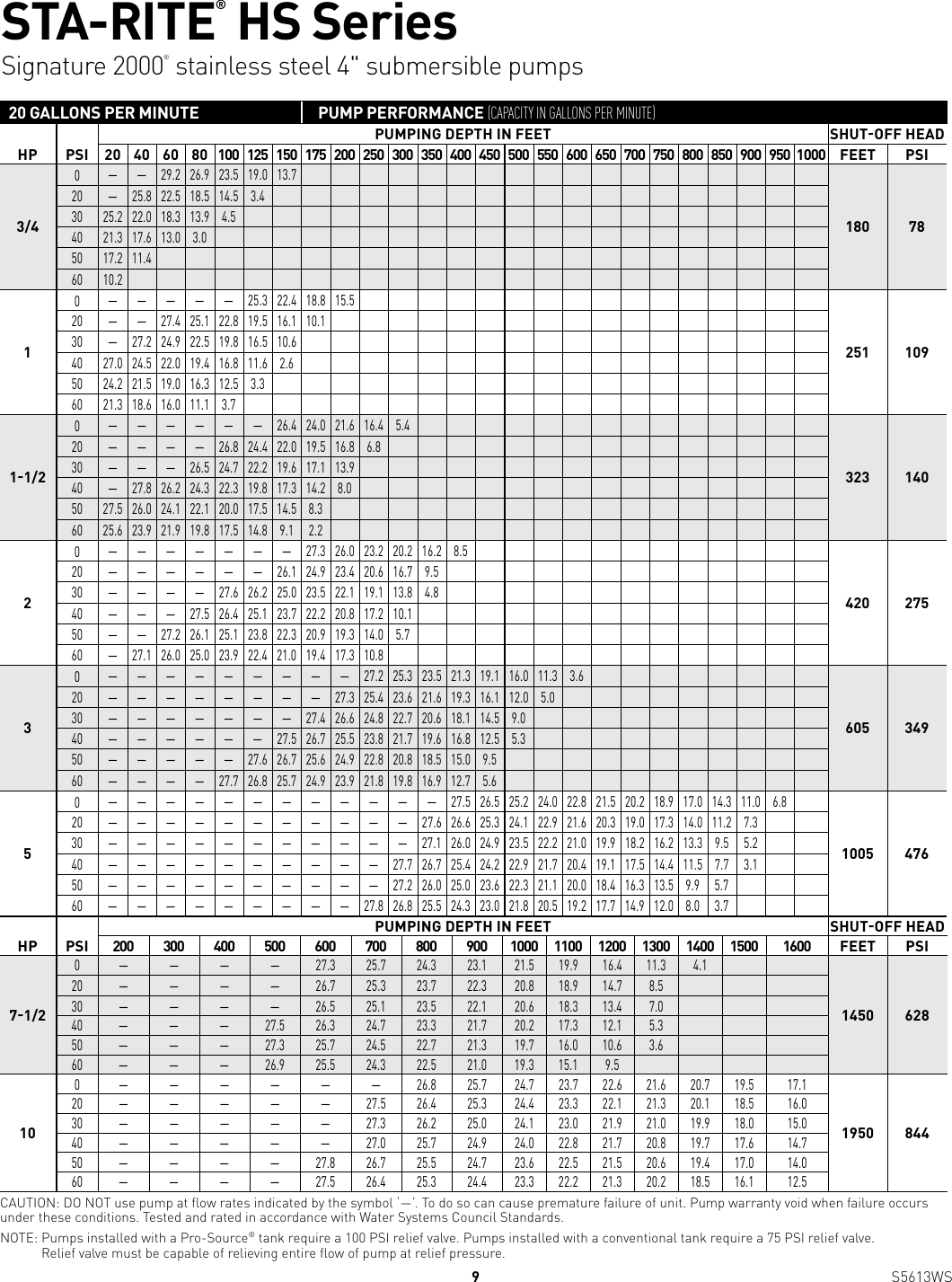

20 GALLONS PER MINUTE PUMP PERFORMANCE (CapaCity in Gallons per Minute)
HP PSI
PUMPING DEPTH IN FEET SHUTOFF HEAD
20 40 60 80 100 125 150 175 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 FEET PSI
3/4
0— — 29.2 26.9 23.5 19.0 13.7
180 78
20 — 25.8 22.5 18.5 14.5 3.4
30 25.2 22.0 18.3 13.9 4.5
40 21.3 17.6 13.0 3.0
50 17.2 11.4
60 10.2
1
0— — — — — 25.3 22.4 18.8 15.5
251 109
20 — — 27.4 25.1 22.8 19.5 16.1 10.1
30 — 27.2 24.9 22.5 19.8 16.5 10.6
40 27.0 24.5 22.0 19.4 16.8 11.6 2.6
50 24.2 21.5 19.0 16.3 12.5 3.3
60 21.3 18.6 16.0 11.1 3.7
11/2
0— — — — — — 26.4 24.0 21.6 16.4 5.4
323 140
20 — — — — 26.8 24.4 22.0 19.5 16.8 6.8
30 — — — 26.5 24.7 22.2 19.6 17.1 13.9
40 — 27.8 26.2 24.3 22.3 19.8 17.3 14.2 8.0
50 27.5 26.0 24.1 22.1 20.0 17.5 14.5 8.3
60 25.6 23.9 21.9 19.8 17.5 14.8 9.1 2.2
2
0— — — — — — — 27.3 26.0 23.2 20.2 16.2 8.5
420 275
20 — — — — — — 26.1 24.9 23.4 20.6 16.7 9.5
30 — — — — 27.6 26.2 25.0 23.5 22.1 19.1 13.8 4.8
40 — — — 27.5 26.4 25.1 23.7 22.2 20.8 17.2 10.1
50 — — 27.2 26.1 25.1 23.8 22.3 20.9 19.3 14.0 5.7
60 — 27.1 26.0 25.0 23.9 22.4 21.0 19.4 17.3 10.8
3
0— — — — — — — — — 27.2 25.3 23.5 21.3 19.1 16.0 11.3 3.6
605 349
20 — — — — — — — — 27.3 25.4 23.6 21.6 19.3 16.1 12.0 5.0
30 — — — — — — — 27.4 26.6 24.8 22.7 20.6 18.1 14.5 9.0
40 — — — — — — 27.5 26.7 25.5 23.8 21.7 19.6 16.8 12.5 5.3
50 — — — — — 27.6 26.7 25.6 24.9 22.8 20.8 18.5 15.0 9.5
60 — — — — 27.7 26.8 25.7 24.9 23.9 21.8 19.8 16.9 12.7 5.6
5
0— — — — — — — — — — — — 27.5 26.5 25.2 24.0 22.8 21.5 20.2 18.9 17.0 14.3 11.0 6.8
1005 476
20 — — — — — — — — — — — 27.6 26.6 25.3 24.1 22.9 21.6 20.3 19.0 17.3 14.0 11.2 7.3
30 — — — — — — — — — — — 27.1 26.0 24.9 23.5 22.2 21.0 19.9 18.2 16.2 13.3 9.5 5.2
40 — — — — — — — — — — 27.7 26.7 25.4 24.2 22.9 21.7 20.4 19.1 17.5 14.4 11.5 7.7 3.1
50 — — — — — — — — — — 27.2 26.0 25.0 23.6 22.3 21.1 20.0 18.4 16.3 13.5 9.9 5.7
60 — — — — — — — — — 27.8 26.8 25.5 24.3 23.0 21.8 20.5 19.2 17.7 14.9 12.0 8.0 3.7
HP PSI
PUMPING DEPTH IN FEET SHUTOFF HEAD
200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 FEET PSI
71/2
0 — — — — 27.3 25.7 24.3 23.1 21.5 19.9 16.4 11.3 4.1
1450 628
20 — — — — 26.7 25.3 23.7 22.3 20.8 18.9 14.7 8.5
30 — — — — 26.5 25.1 23.5 22.1 20.6 18.3 13.4 7.0
40 — — — 27.5 26.3 24.7 23.3 21.7 20.2 17.3 12.1 5.3
50 — — — 27.3 25.7 24.5 22.7 21.3 19.7 16.0 10.6 3.6
60 — — — 26.9 25.5 24.3 22.5 21.0 19.3 15.1 9.5
10
0 — — — — — — 26.8 25.7 24.7 23.7 22.6 21.6 20.7 19.5 17.1
1950 844
20 — — — — — 27.5 26.4 25.3 24.4 23.3 22.1 21.3 20.1 18.5 16.0
30 — — — — — 27.3 26.2 25.0 24.1 23.0 21.9 21.0 19.9 18.0 15.0
40 — — — — — 27.0 25.7 24.9 24.0 22.8 21.7 20.8 19.7 17.6 14.7
50 — — — — 27.8 26.7 25.5 24.7 23.6 22.5 21.5 20.6 19.4 17.0 14.0
60 — — — — 27.5 26.4 25.3 24.4 23.3 22.2 21.3 20.2 18.5 16.1 12.5
9S5613WS
STA-RITE® HS Series
Signature 2000® stainless steel 4" submersible pumps
CAUTION: DO NOT use pump at flow rates indicated by the symbol ‘—’. To do so can cause premature failure of unit. Pump warranty void when failure occurs
under these conditions. Tested and rated in accordance with Water Systems Council Standards.
NOTE: Pumps installed with a Pro-Source® tank require a 100 PSI relief valve. Pumps installed with a conventional tank require a 75 PSI relief valve.
Relief valve must be capable of relieving entire flow of pump at relief pressure.

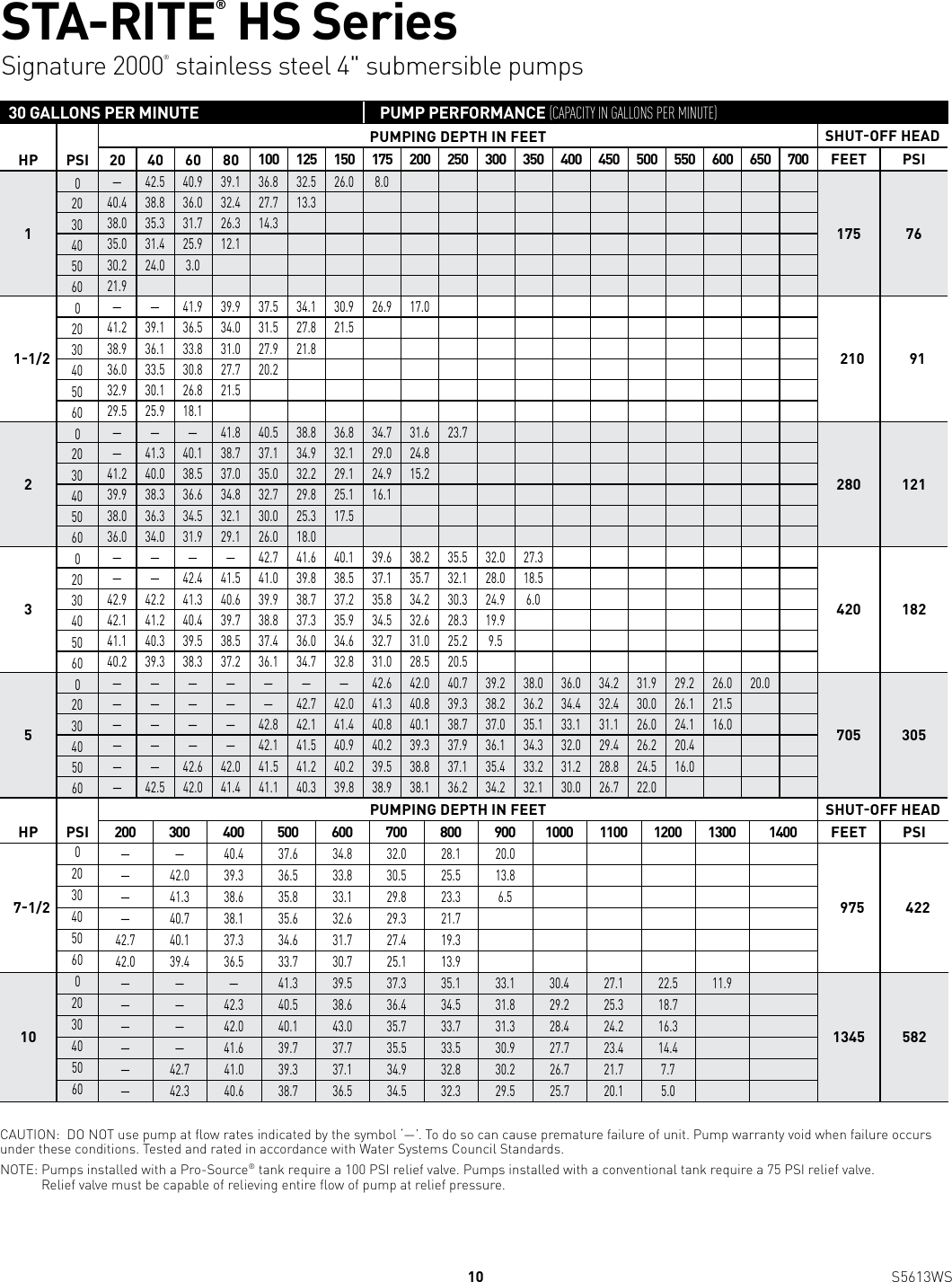

30 GALLONS PER MINUTE PUMP PERFORMANCE (CapaCity in Gallons per Minute)
HP PSI
PUMPING DEPTH IN FEET SHUTOFF HEAD
20 40 60 80 100 125 150 175 200 250 300 350 400 450 500 550 600 650 700 FEET PSI
1
0— 42.5 40.9 39.1 36.8 32.5 26.0 8.0
175 76
20 40.4 38.8 36.0 32.4 27.7 13.3
30 38.0 35.3 31.7 26.3 14.3
40 35.0 31.4 25.9 12.1
50 30.2 24.0 3.0
60 21.9
11/2
0— — 41.9 39.9 37.5 34.1 30.9 26.9 17.0
210 91
20 41.2 39.1 36.5 34.0 31.5 27.8 21.5
30 38.9 36.1 33.8 31.0 27.9 21.8
40 36.0 33.5 30.8 27.7 20.2
50 32.9 30.1 26.8 21.5
60 29.5 25.9 18.1
2
0— — — 41.8 40.5 38.8 36.8 34.7 31.6 23.7
280 121
20 — 41.3 40.1 38.7 37.1 34.9 32.1 29.0 24.8
30 41.2 40.0 38.5 37.0 35.0 32.2 29.1 24.9 15.2
40 39.9 38.3 36.6 34.8 32.7 29.8 25.1 16.1
50 38.0 36.3 34.5 32.1 30.0 25.3 17.5
60 36.0 34.0 31.9 29.1 26.0 18.0
3
0— — — — 42.7 41.6 40.1 39.6 38.2 35.5 32.0 27.3
420 182
20 — — 42.4 41.5 41.0 39.8 38.5 37.1 35.7 32.1 28.0 18.5
30 42.9 42.2 41.3 40.6 39.9 38.7 37.2 35.8 34.2 30.3 24.9 6.0
40 42.1 41.2 40.4 39.7 38.8 37.3 35.9 34.5 32.6 28.3 19.9
50 41.1 40.3 39.5 38.5 37.4 36.0 34.6 32.7 31.0 25.2 9.5
60 40.2 39.3 38.3 37.2 36.1 34.7 32.8 31.0 28.5 20.5
5
0— — — — — — — 42.6 42.0 40.7 39.2 38.0 36.0 34.2 31.9 29.2 26.0 20.0
705 305
20 — — — — — 42.7 42.0 41.3 40.8 39.3 38.2 36.2 34.4 32.4 30.0 26.1 21.5
30 — — — — 42.8 42.1 41.4 40.8 40.1 38.7 37.0 35.1 33.1 31.1 26.0 24.1 16.0
40 — — — — 42.1 41.5 40.9 40.2 39.3 37.9 36.1 34.3 32.0 29.4 26.2 20.4
50 — — 42.6 42.0 41.5 41.2 40.2 39.5 38.8 37.1 35.4 33.2 31.2 28.8 24.5 16.0
60 — 42.5 42.0 41.4 41.1 40.3 39.8 38.9 38.1 36.2 34.2 32.1 30.0 26.7 22.0
HP PSI
PUMPING DEPTH IN FEET SHUTOFF HEAD
200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 FEET PSI
71/2
0— — 40.4 37.6 34.8 32.0 28.1 20.0
975 422
20 — 42.0 39.3 36.5 33.8 30.5 25.5 13.8
30 — 41.3 38.6 35.8 33.1 29.8 23.3 6.5
40 — 40.7 38.1 35.6 32.6 29.3 21.7
50 42.7 40.1 37.3 34.6 31.7 27.4 19.3
60 42.0 39.4 36.5 33.7 30.7 25.1 13.9
10
0— — — 41.3 39.5 37.3 35.1 33.1 30.4 27.1 22.5 11.9
1345 582
20 — — 42.3 40.5 38.6 36.4 34.5 31.8 29.2 25.3 18.7
30 — — 42.0 40.1 43.0 35.7 33.7 31.3 28.4 24.2 16.3
40 — — 41.6 39.7 37.7 35.5 33.5 30.9 27.7 23.4 14.4
50 — 42.7 41.0 39.3 37.1 34.9 32.8 30.2 26.7 21.7 7.7
60 — 42.3 40.6 38.7 36.5 34.5 32.3 29.5 25.7 20.1 5.0
10 S5613WS
STA-RITE® HS Series
Signature 2000® stainless steel 4" submersible pumps
CAUTION: DO NOT use pump at flow rates indicated by the symbol ‘—’. To do so can cause premature failure of unit. Pump warranty void when failure occurs
under these conditions.
Tested and rated in accordance with Water Systems Council Standards.
NOTE: Pumps installed with a Pro-Source® tank require a 100 PSI relief valve. Pumps installed with a conventional tank require a 75 PSI relief valve.
Relief valve must be capable of relieving entire flow of pump at relief pressure.

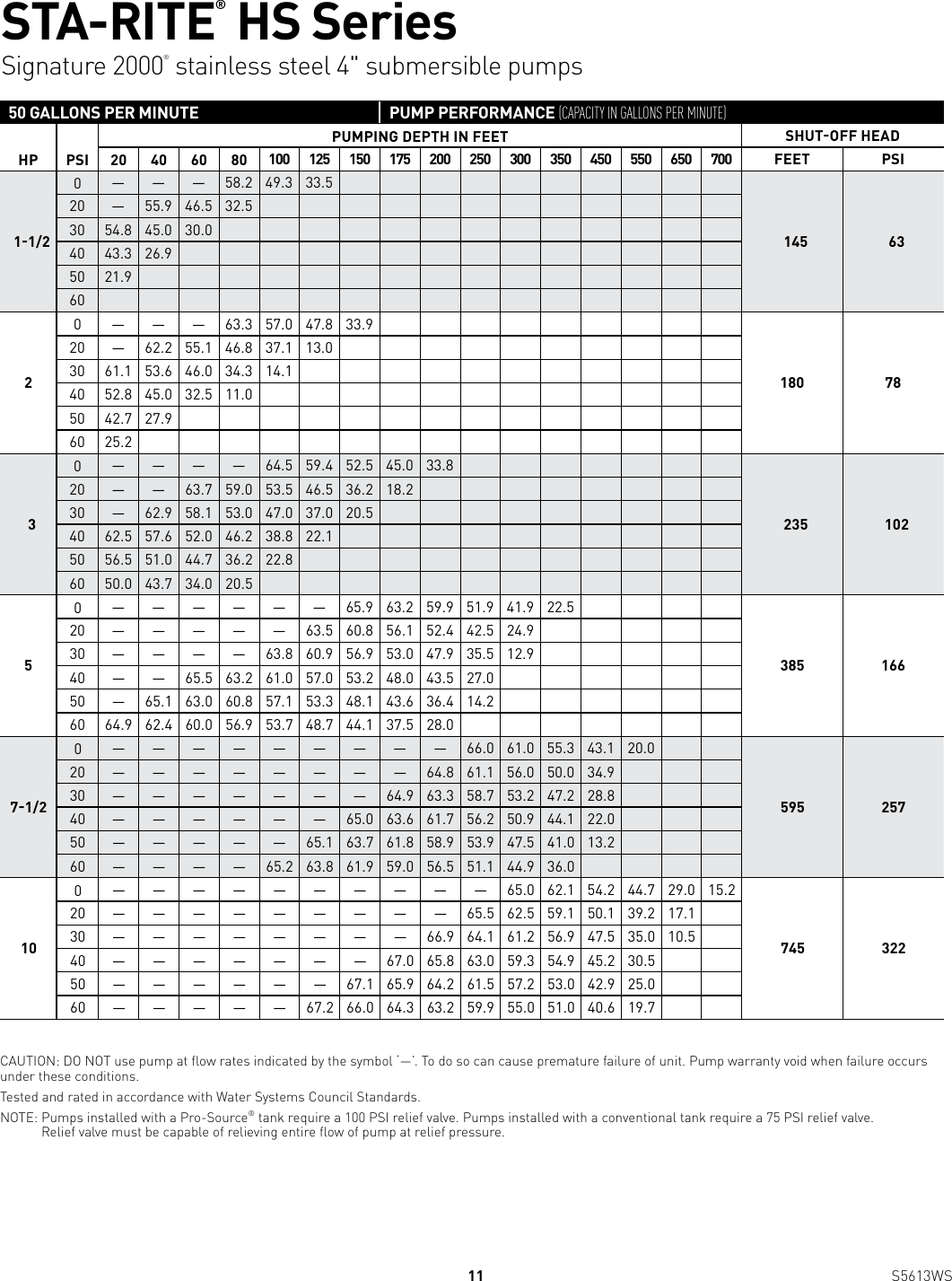

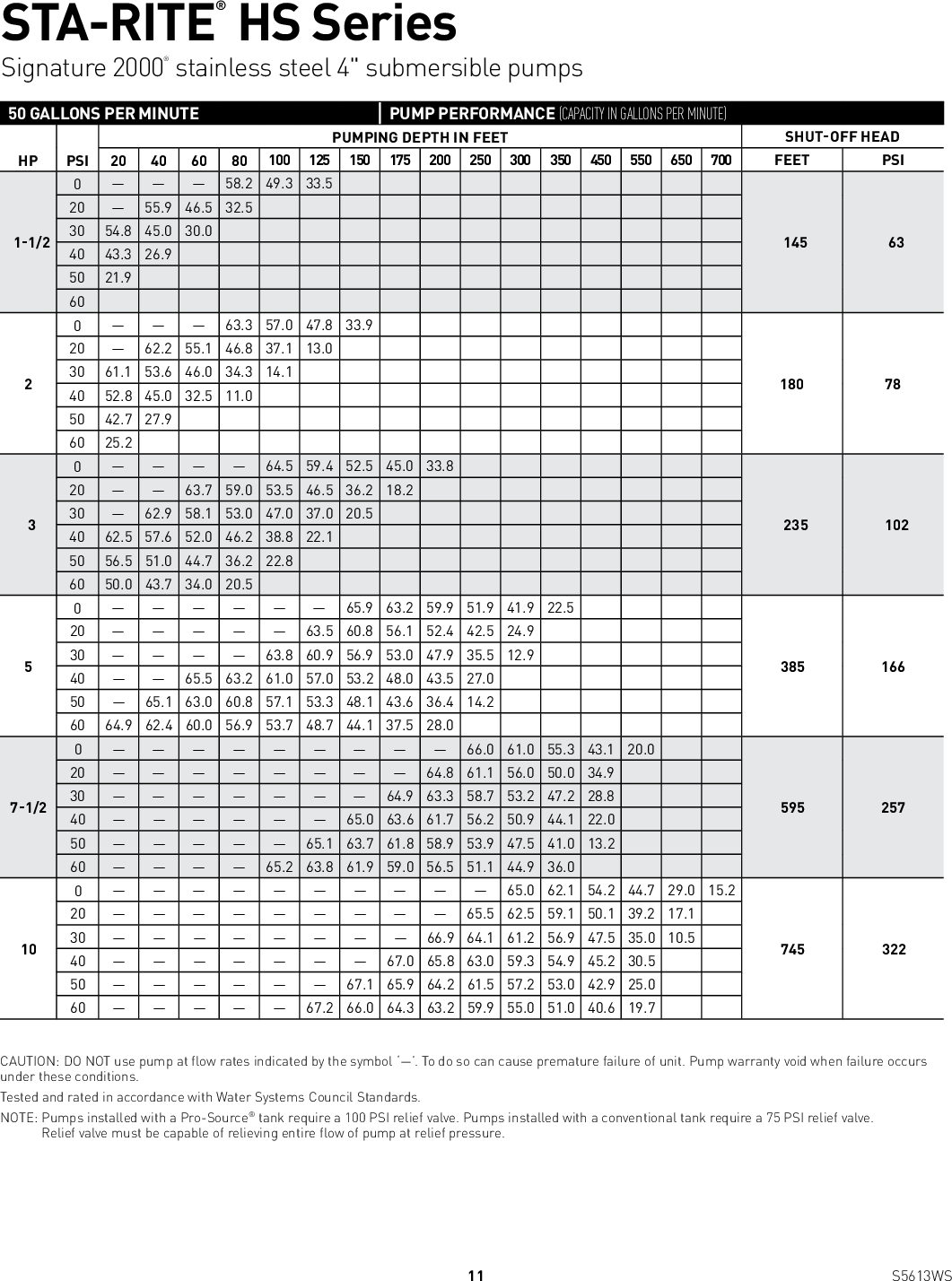

50 GALLONS PER MINUTE PUMP PERFORMANCE (CapaCity in Gallons per Minute)
HP PSI
PUMPING DEPTH IN FEET SHUTOFF HEAD
20 40 60 80 100 125 150 175 200 250 300 350 450 550 650 700 FEET PSI
11/2
0— — — 58.2 49.3 33.5
145 63
20 — 55.9 46.5 32.5
30 54.8 45.0 30.0
40 43.3 26.9
50 21.9
60
2
0— — — 63.3 57.0 47.8 33.9
180 78
20 — 62.2 55.1 46.8 37.1 13.0
30 61.1 53.6 46.0 34.3 14.1
40 52.8 45.0 32.5 11.0
50 42.7 27.9
60 25.2
3
0— — — — 64.5 59.4 52.5 45.0 33.8
235 102
20 — — 63.7 59.0 53.5 46.5 36.2 18.2
30 — 62.9 58.1 53.0 47.0 37.0 20.5
40 62.5 57.6 52.0 46.2 38.8 22.1
50 56.5 51.0 44.7 36.2 22.8
60 50.0 43.7 34.0 20.5
5
0— — — — — — 65.9 63.2 59.9 51.9 41.9 22.5
385 166
20 — — — — — 63.5 60.8 56.1 52.4 42.5 24.9
30 — — — — 63.8 60.9 56.9 53.0 47.9 35.5 12.9
40 — — 65.5 63.2 61.0 57.0 53.2 48.0 43.5 27.0
50 — 65.1 63.0 60.8 57.1 53.3 48.1 43.6 36.4 14.2
60 64.9 62.4 60.0 56.9 53.7 48.7 44.1 37.5 28.0
71/2
0— — — — — — — — — 66.0 61.0 55.3 43.1 20.0
595 257
20 — — — — — — — — 64.8 61.1 56.0 50.0 34.9
30 — — — — — — — 64.9 63.3 58.7 53.2 47.2 28.8
40 — — — — — — 65.0 63.6 61.7 56.2 50.9 44.1 22.0
50 — — — — — 65.1 63.7 61.8 58.9 53.9 47.5 41.0 13.2
60 — — — — 65.2 63.8 61.9 59.0 56.5 51.1 44.9 36.0
10
0— — — — — — — — — — 65.0 62.1 54.2 44.7 29.0 15.2
745 322
20 — — — — — — — — — 65.5 62.5 59.1 50.1 39.2 17.1
30 — — — — — — — — 66.9 64.1 61.2 56.9 47.5 35.0 10.5
40 — — — — — — — 67.0 65.8 63.0 59.3 54.9 45.2 30.5
50 — — — — — — 67.1 65.9 64.2 61.5 57.2 53.0 42.9 25.0
60 — — — — — 67.2 66.0 64.3 63.2 59.9 55.0 51.0 40.6 19.7
11 S5613WS
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.STA-RITE.COM PH: 888-782-7483 ORDERS FAX: 800-426-9446
Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
S5613WS (05/22/13)
Page 1 of 12 - 539669 2 Sta-Rite HS Seires 4-Inch Submersible Pump Brochure
Page 2 of 12 - 539669 2 Sta-Rite HS Seires 4-Inch Submersible Pump Brochure
Page 3 of 12 - 539669 2 Sta-Rite HS Seires 4-Inch Submersible Pump Brochure
Page 4 of 12 - 539669 2 Sta-Rite HS Seires 4-Inch Submersible Pump Brochure
Page 5 of 12 - 539669 2 Sta-Rite HS Seires 4-Inch Submersible Pump Brochure
Page 6 of 12 - 539669 2 Sta-Rite HS Seires 4-Inch Submersible Pump Brochure
Page 7 of 12 - 539669 2 Sta-Rite HS Seires 4-Inch Submersible Pump Brochure
Page 8 of 12 - 539669 2 Sta-Rite HS Seires 4-Inch Submersible Pump Brochure
Page 9 of 12 - 539669 2 Sta-Rite HS Seires 4-Inch Submersible Pump Brochure
Page 10 of 12 - 539669 2 Sta-Rite HS Seires 4-Inch Submersible Pump Brochure
Page 11 of 12 - 539669 2 Sta-Rite HS Seires 4-Inch Submersible Pump Brochure
Page 12 of 12 - 539669 2 Sta-Rite HS Seires 4-Inch Submersible Pump Brochure

Navigation menu
