SECTION
PAGE
DATE
1½", 2" & 3" Discharge
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
10
1B
www.cranepumps.com

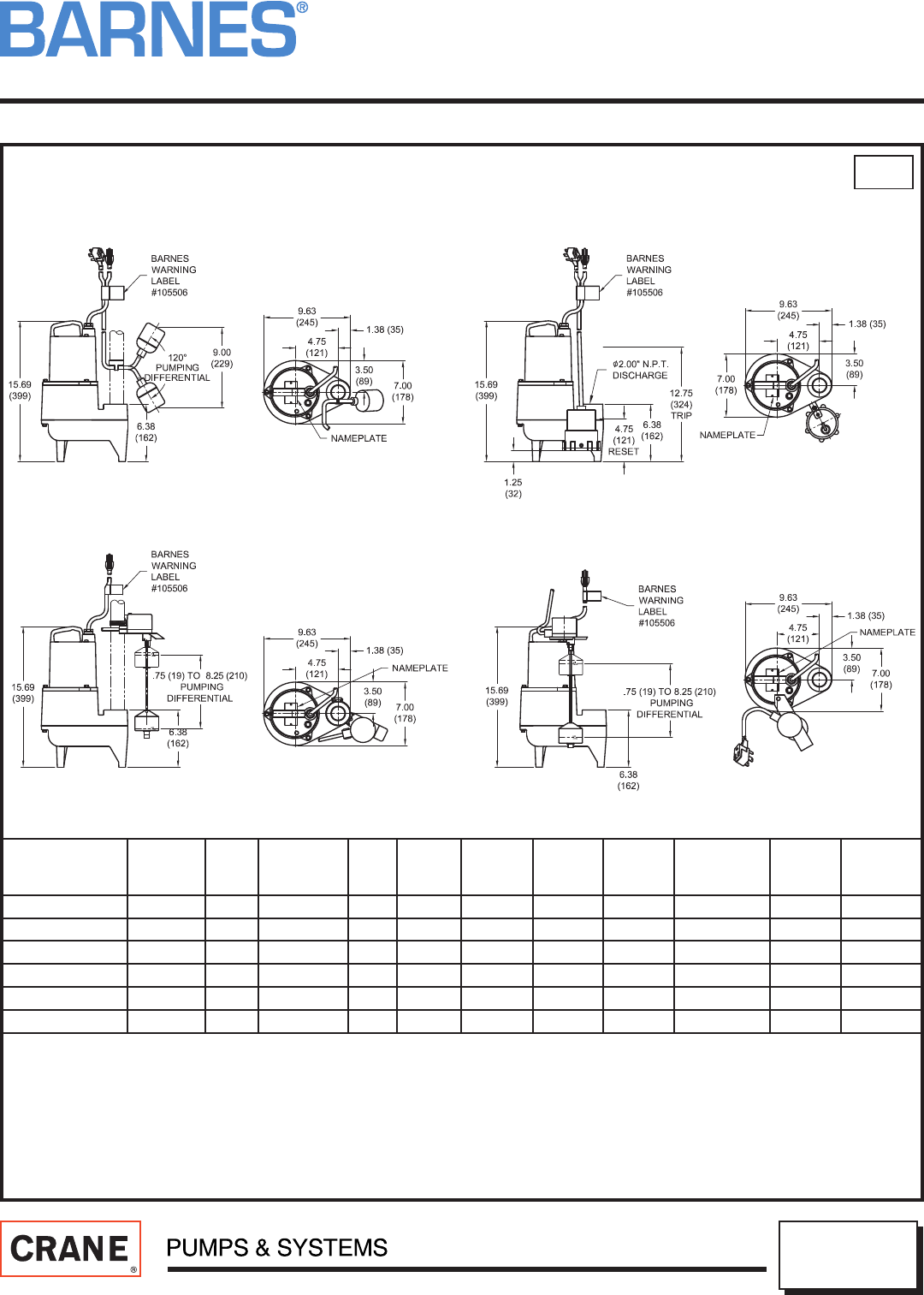

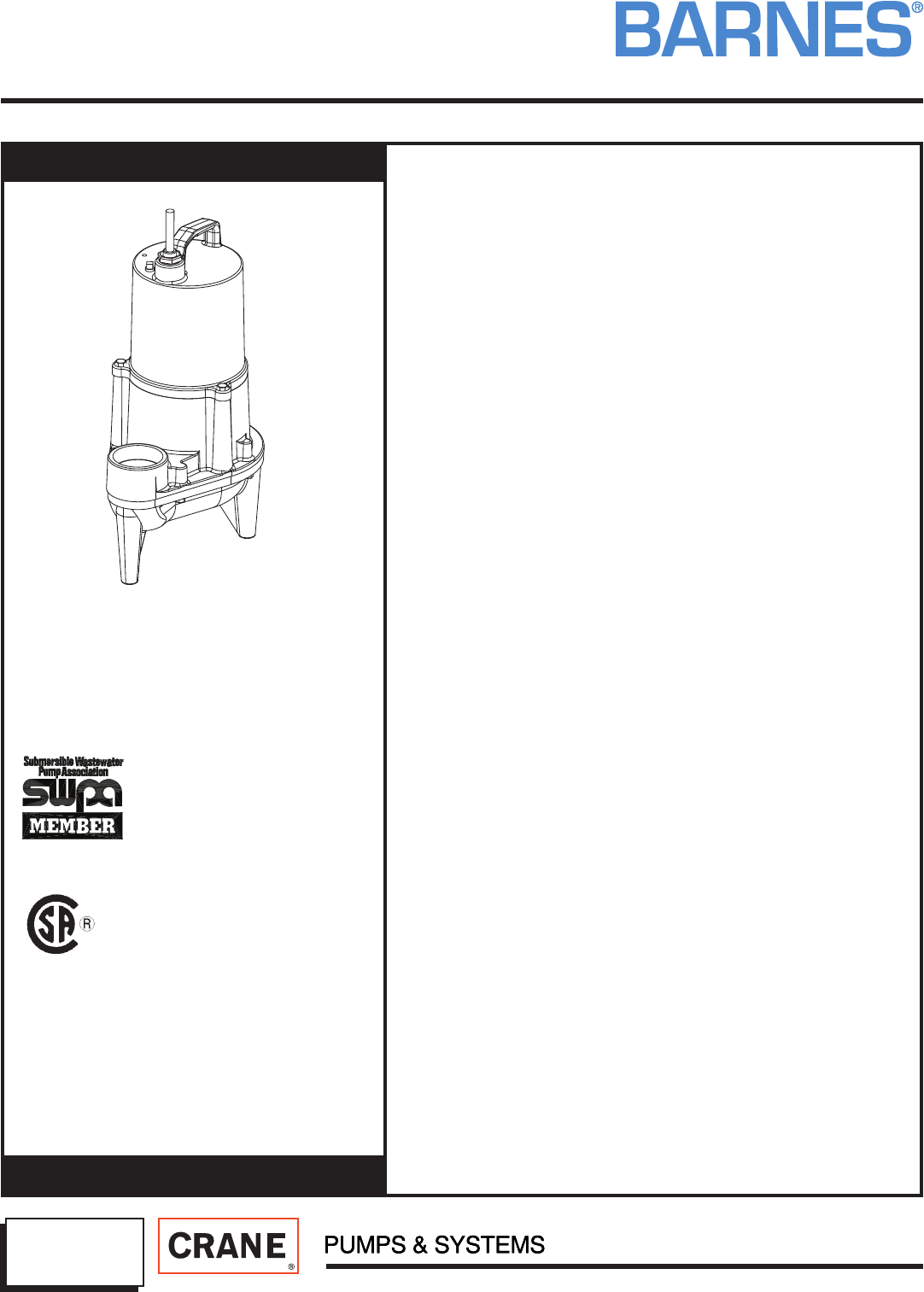

Series SEV412
2" Spherical Solids Handling
Manual & Automatic
DISCHARGE
...............................2” NPT, Female, Vertical
LIQUID TEMPERATURE .............77°F (25°C) Continuous
MOTOR HOUSING ......................Cast Iron
PUMP BODY ...............................Cast Iron
IMPELLER: Design ....................Multi-Vane, Vortex
Material ..................Cast Iron
SHAFT ........................................416 Stainless Steel
O-RINGS ...............................Buna-N
HARDWARE ................................300 Series Stainless Steel
PAINT ........................................... Air Dry Enamel
CORD ENTRY ..............................20 ft. (6m) Quick Disconnect Cord with
plug on 115 Volt, Pressure Gromment for
sealing and strain relief
SEAL: Design ....................Single Mechanical, Oil Filled Reservoir
Material ...................Carbon/Ceramic/Buna-N
Hardware -300 Series Stainless
SPEED .........................................3450 RPM (Nominal)
UPPER BEARING ........................Single Row, Ball, Oil Lubricated
LOWER BEARING .......................Single Row, Ball, Oil Lubricated
MOTOR: Design ....................Oil Filled
Insulation ...............Class B
SINGLE PHASE ...........................Permanent Split Capacitor (PSC)
Includes Overload Protection in Motor
LEVEL CONTROL:
SEV412 ...................None
SEV412A.................Wide Angle, Mechanical, 20 ft (6m) cord
Pipe Mounted
SEV412VF ..............Vertical Float, PVC, Snap Action
SEV412VFT ............Attached Vertical Float, PVC, Snap Action
SEV412AT ..............Wide Angle, Mechanical, 20 ft (6m) cord
Pump Mounted
SEV412DT ..............Diaphragm Switch, Pressure Operated,
Snap Action, Normally Open, 20 ft. (6m)
cord
RECOMMENDED:
Accessories .............Break Away Fitting (BAF)
Check Valve
Control Panel
Series: SEV
.5HP
, 3450RPM, 60Hz
DESCRIPTION:
SUBMERSIBLE NON-CLOG SEWAGE PUMP
DESIGNED FOR TYPICAL RAW SEWAGE
APPLICATIONS
1/14
CSA 108
UL 778
LR16567
C US
I&O Manual
1½", 2" & 3" Discharge
SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
11
1B
www.cranepumps.com
Series SEV412
2" Spherical Solids Handling
Manual & Automatic
inches
(mm)
IMPORTANT !
1.) PUMP MAY BE OPERATED “DRY” FOR EXTENDED PERIODS WITHOUT DAMAGE TO MOTOR AND/OR SEALS.
2.) THIS PUMP IS NOT APPROPRIATE FOR THOSE APPLICATIONS SPECIFIED AS CLASS I DIVISION I HAZARDOUS LOCATIONS.
3.) INSTALLATIONS SUCH AS DECORATIVE FOUNTAINS OR WATER FEATURES PROVIDED FOR VISUAL ENJOYMENT MUST BE INSTALLED IN ACCORDANCE
WITH THE NATIONAL ELECTRIC CODE ANSI/NFPA 70 AND/OR THE AUTHORITY HAVING JURISDICTION. THIS PUMP IS NOT INTENDED FOR USE IN
SWIMMING POOLS, RECREATIONAL WATER PARKS, OR INSTALLATIONS IN WHICH HUMAN CONTACT WITH PUMPED MEDIA IS A COMMON OCCURRENCE.
MODEL NO PART NO HP VOLT/PH Hz RPM
(Nom)
NEMA
START
CODE
FULL
LOAD
AMPS
LOCKED
ROTOR
AMPS
CORD
LENGTH
CORD
SIZE
CORD
TYPE
SEV412 101292 0.5 115/1 60 3450 H 10.50 18.6 20 ft. (6m) 14/3 SJTOW
SEV412A 101293 0.5 115/1 60 3450 H 10.50 18.6 20 ft. (6m) 14/3 SJTOW
SEV412VF 101294 0.5 115/1 60 3450 H 10.50 18.6 20 ft. (6m) 14/3 SJTOW
SEV412AT 103544 0.5 115/1 60 3450 H 10.50 18.6 20 ft. (6m) 14/3 SJTOW
SEV412VFT 110404 0.5 115/1 60 3450 H 10.50 18.6 20 ft. (6m) 14/3 SJTOW
SEV412DT 119614 0.5 115/1 60 3450 H 10.50 18.6 20 ft. (6m) 14/3 SJTOW
SEV412VF
SEV412A
SEV412 (Less Float)
SEV412AT (Attached to Motor Housing)
SEV412VFT
1/14
SEV412DT
I&O Manual
SECTION
PAGE
DATE
1½", 2" & 3" Discharge
12
1B
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
www.cranepumps.com
Series SEV412

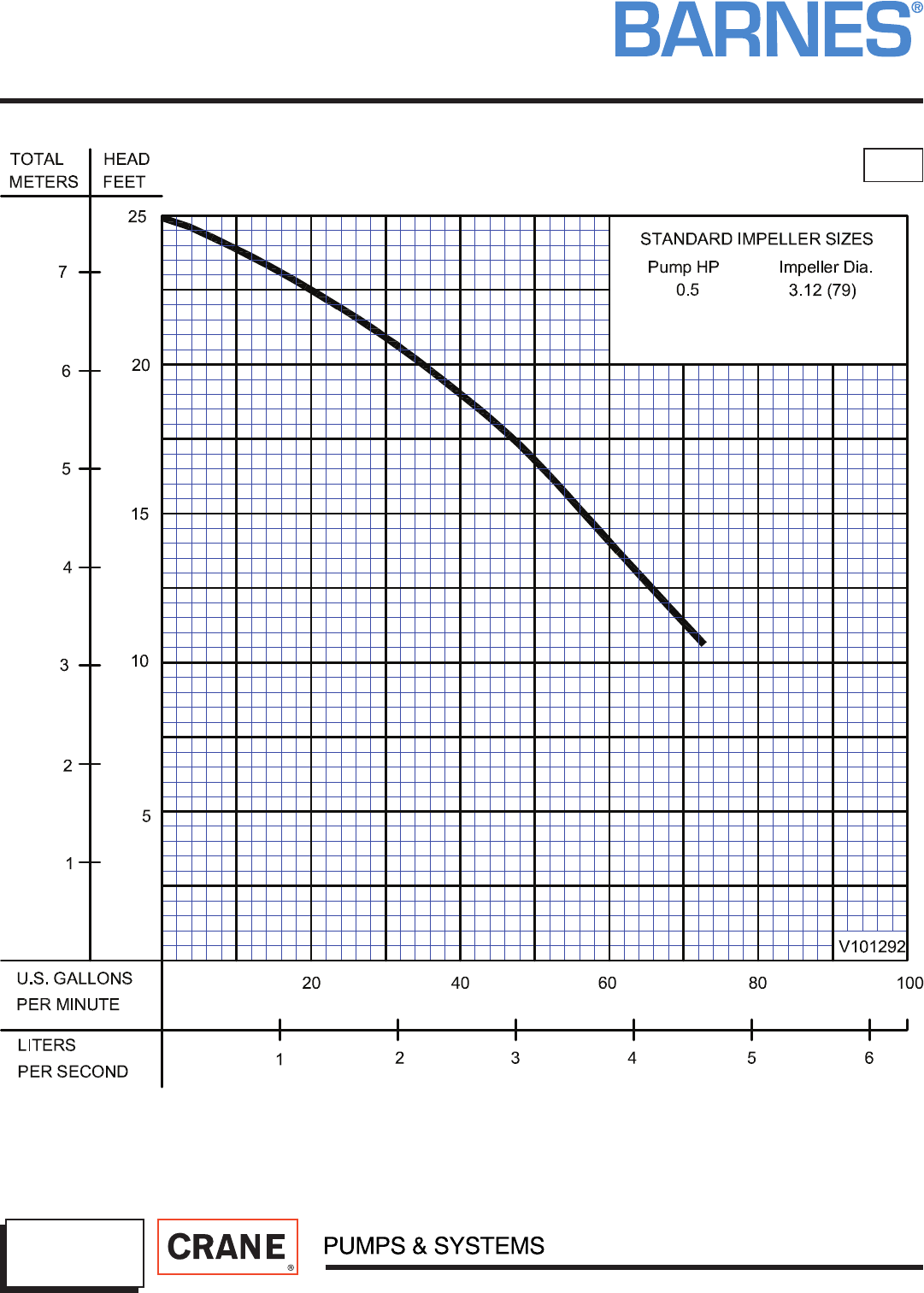

Performance Curve
.5HP, 3450RPM, 60Hz
Testing is performed with water, specifi c gravity 1.0 @ 68º F @ (20ºC), other fl uids may vary performance
inches
(mm)
3/13
