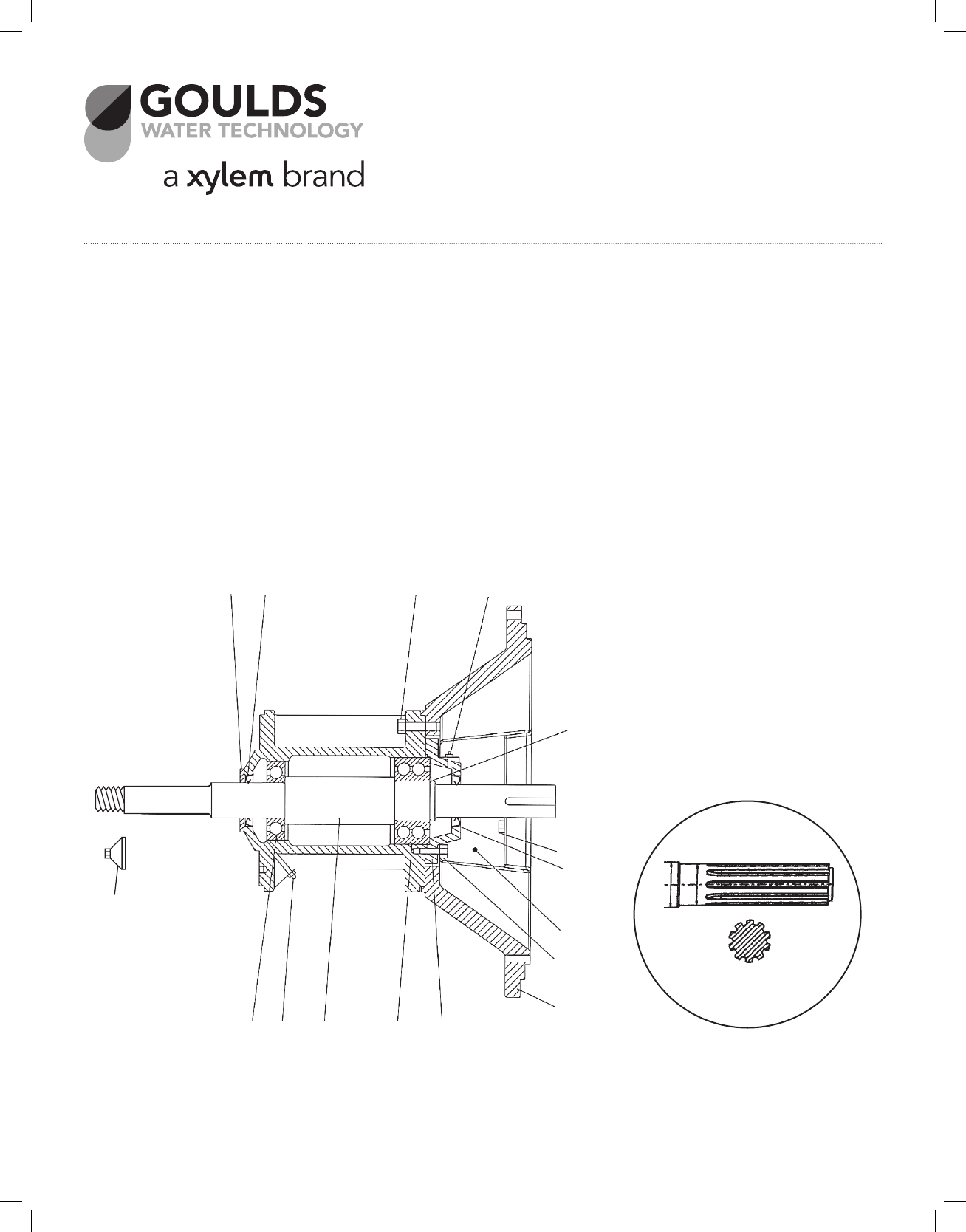

SPLINE SHAFT OPTION

SAE power frame for mod-

els 3756 mechanical seal

and packed box pumps

M/L-Group SAE

Power Frame REPAIR PARTS

REPAIR PARTS

RSAFRAME

ITEM NO. PART NO. DESCRIPTION MATERIAL PATTERN NO.

15K19 Power Frame Complete, L-Group – Mechanical Seal / Packed Box

15K21 Power Frame Complete, M-Group – Mechanical Seal

15K50 Power Frame Complete, M-Group – Spline Packed Box

15K56 Power Frame Complete, M-Group – Spline Mechanical Seal

15K49 Power Frame Complete, L-Group – Spline Mechanical Seal / Packed Box

1 1K147 Bearing Cover Cast Iron 59056

4K624 Shaft – M-Group – Mechanical Seal 4140

4K561 Shaft – L-Group 4140

2 4K647 Shaft – Spline – M-Group – Mechanical Seal 1144

4K650 Shaft – Spline – M-Group – Packed Box 1144

4K646 Shaft – Spline – L-Group 1144

3 4K293 Ball Bearing – Inboard Steel

4 4K469 Ball Bearing – Outboard Steel

5 5K163 Deflector Buna-N

6 5K164 Lip Seal – Outboard Buna/Steel

7 5K280 Lip Seal – Inboard Buna/Steel

8 5K246 Retaining Ring Steel

9 6K80 Grease Fitting – Frame and Bearing Cover Steel

10 13K80 Hex Head Cap Screw – Bearing Cover Zinc-Plated Steel

13K158B Lockwasher – Bearing Cover Zinc-Plated Steel

11 13K102 Hex Head Cap Screw – Frame Adapter Ring Zinc-Plated Steel

12 13K352 Impeller Nut – L-Group 304 SS

13K362 Impeller Nut – M-Group 304 SS

13 4K482 Guard, Adapter SAE 1, 2, 3 Galvanized Steel

4K483 Guard, Adapter SAE 4, 5 Steel

14 13K268 Cap Screw, Guard 304 SS

13k238 Washer, Guard Steel

1K384 Adapter Ring, SAE #1 Cast Iron 59474

15 1K385 Adapter Ring, SAE #2 – #3 Cast Iron 59475

1K386 Adapter Ring, SAE #4 – #5 Cast Iron 59476

For parts pricing and package stock quantities, refer to published parts price list using “K” part no. listed above.
