S12015FR, 1Ø

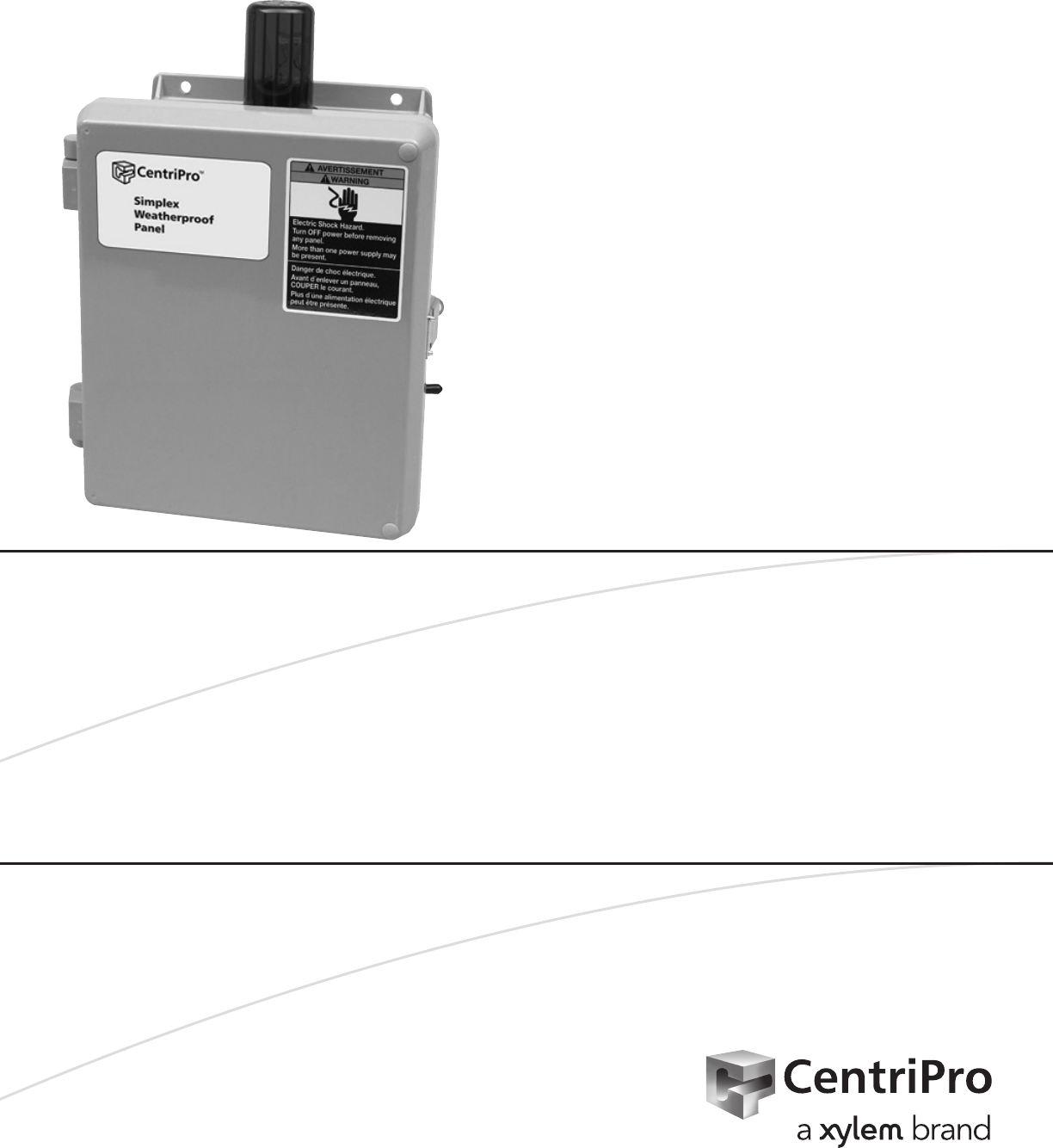

SIMPLEX CONTROL PANEL
TECHNICAL BROCHURE
BCPS120
PAGE 2
Wastewater
CentriPro
APPLICATIONS
Simplex liquid level controller, automatically maintains
pump operation, includes high level alarm warning for a
variety of sump, effluent, sewage and water transfer ap-
plications.
Order No. Maximum Float Switches
Running Amps (Model and Quantity)
S12015FR 15 (1) A2E33 pump switch
(1) A2N33 high level switch
SPECIFICATIONS
• Single-phase, 115 volt, 60 hertz
•NEMA 4X Fiberglass Deadfront Enclosure
• Full Inner Door
• Elapsed Time Meter
• Service Disconnect inside enclosure, pull-out type
• Float Switches – included with panel:
(1) A2E33, 20' SJE Pump Master Plus®
(1) A2N33, 20' SJE Sensor Float® control switch
•Hand-Off-Automatic(H-O-A)pumpselectionswitchon
inner door
•Acceptssingleordualpowerfeed
•NumberedTerminalStrip–screwtype
•NEMA4X,30wattRedAlarmLight
•NEMA4XAlarmHorn–95db.withexternalsilence
switch
•AlarmTestSwitchoninnerdoor
•PumpRunLightoninnerdoor
•Auxiliary Alarm Contacts
FEATURES
Rugged NEMA 4X construction withstands even the most
severe weather con ditions and prevents corrosion.
Hingeddoorwithlockablestainlesssteellatchforsafe
operation indoors and out.
Dead front, full inner door for operator safety-access
providedforH-O-Aswitch,pumprunlight,alarmtest
switch, ETM and pull-out service disconnect.
Highlevelalarmcircuitwithexternalalarmhornsilence
switch.
Alarm test switch on inner door insures proper operation
of the alarm circuit without the need to actuate the alarm
float.
Inside mounted pump run light.
Top mounted high intensity red light provides 360°
visibility.
Corrosion proof alarm horn.
Color coded wiring, screw type terminals, ensure ease of
field servicing.
Field wiring diagram, panel schematic and installation
instructions included.
EntireunitisULandCULlisted.
Non-modifiable – no options available.
PAGE 3
Wastewater
CentriPro
A
B
CD
E
F
G
Single Phase
A B C D E F G
6.3 11.5 14.3 10.8 5.5 6.0 9.3
120 VAC
SINGLE PHASE
60 HZ
SERVICE
DISCONNECT
* INSTALL JUMPER BETWEEN LA AND L1, N AND N IF A SEPARATE ALARM CIRCUIT IS NOT REQUIRED
** CONNECT 120 VAC CIRCUIT TO TERMINAL LA AND N FOR SEPARATE ALARM POWER.
**
LA **
NNL1
HAND
OFF
AUTO
ON-OFF FLOAT
RATED FOR 15 AMPS
12
34
PUMP MOTOR 15 AMP MAX.
ETM
RUN
HIGH LEVEL FLOAT
56
TEST
HORN
HIGH LEVEL
R1
R1
R1
SILENCE

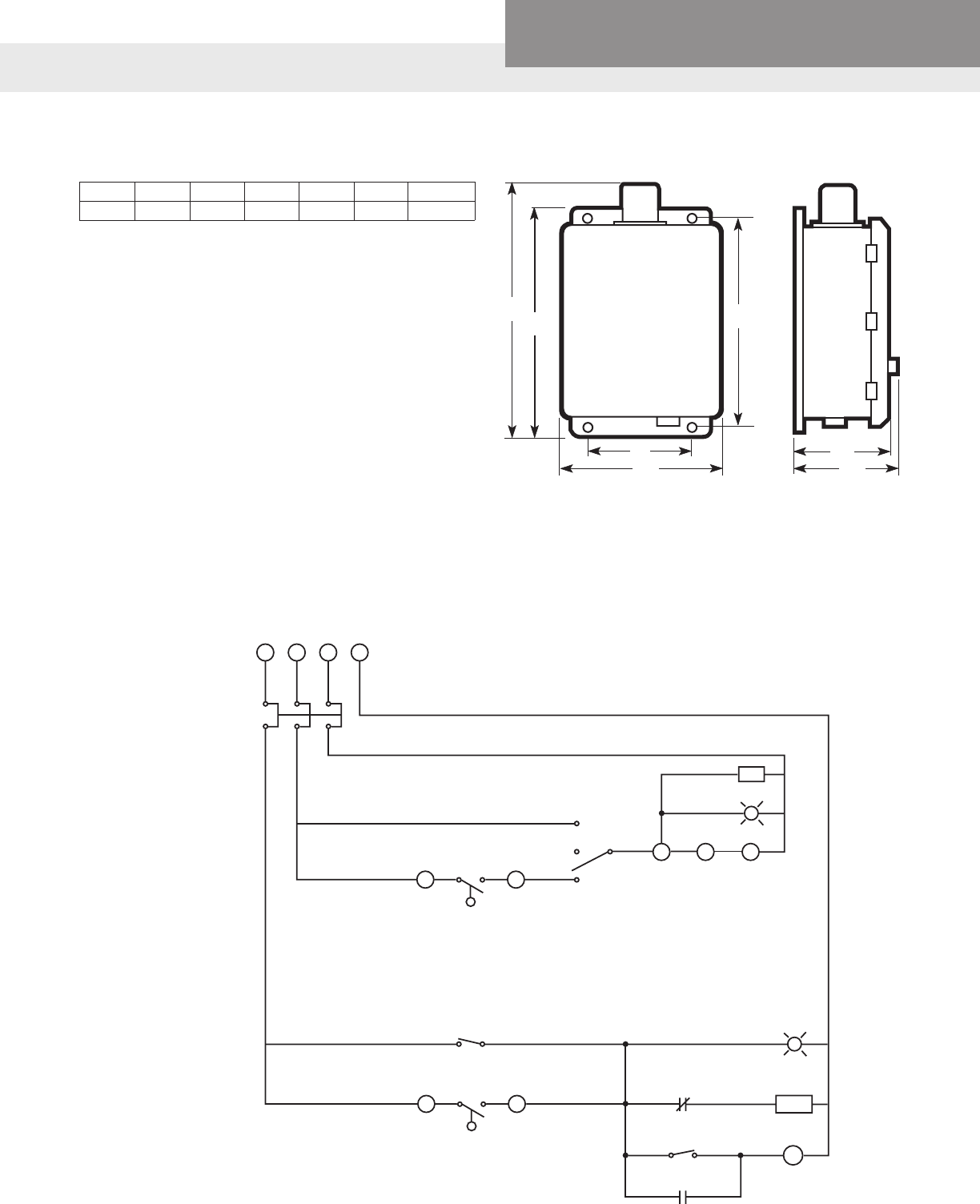

ENCLOSURE DIMENSIONS (IN INCHES)
WIRING DIAGRAM
LA L1 N
R1
TERMINAL BOARD 10
N1 23456
ON-OFF FLOAT
RATED FOR 15 AMPS
PUMP HIGH LEVEL FLOAT
SERVICE
DISCONNECT
10”
AH
SS3
SS1
H-O-A
PL1
RUN
SS2
TEST
ETM
5
7
6
3 9 4
1
8
AL
1
2

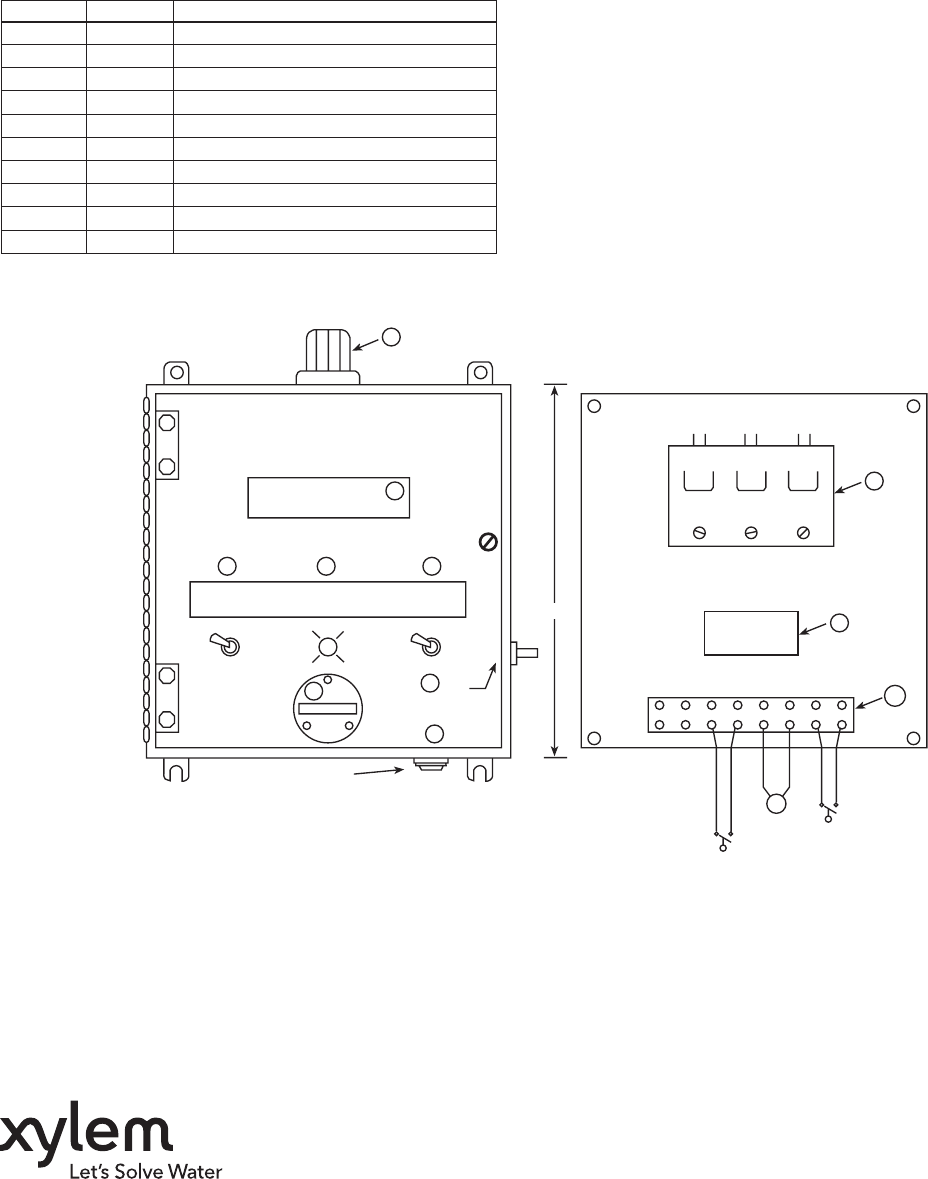

No. Item Description
1 DISC Service Disconnect
2 R1 Control Relays
 3 SS1 SwitchH-O-A
4 SS2 Switch Alarm Test
5 SS3 Switch Alarm Silence
6 ETM Running Time Meter
 7 AH AlarmHorn
 8 AL AlarmLight
 9 PL1 PumpRunLight
10 TB Wiring Terminal Board
COMPONENTS
Xylem, Inc.
2881 East Bayard Street Ext., Suite A
Seneca Falls, NY 13148
Phone: (866) 325-4210
Fax: (888) 322-5877
www.xyleminc.com/brands/centripro
CentriPro is a trademark of Xylem Inc. or one of its subsidiaries.
© 2012 Xylem, Inc. BCPS120 R4 March 2012
