FEATURES

Completely assembled basin kit for 3" and 4" connection

Simplex and duplex configurations available

CentriPro flanged elbow

Easy pump installation

Valves and piping complete

All piping PVC; galvanized and ductile iron available if requested

Guide rails

Installed stainless steel float bracket

Cast iron inlet hub shipped loose

Steel hatch cover

Stainless steel chain

Mechanical float switch included

3" and 4" Basin Package

TECHNICAL BROCHURE

BCPBPACK1

PAGE 2

Wastewater

CentriPro

• Basin in specified size

• Studs for slide rail attachment

• SS discharge coupling

• Nylon electric coupling

• 4" CI hub for inlet – shipped loose

• CentriPro flanged elbow

• SS upper guide rail bracket

• Conery SS intermediate guide rail bracket (used on

84" and deeper)

• 10' SS lift-out chain package(s)

• 2" Guide rail

• PVC SCH 80 discharge pipe

• PVC SCH 80 elbow

• PVC SCH 80 union

• SS Ext handle bracket

• C.I. valves

• Basin lifting lugs

• SS cross braces for upper guide rail bracket and

intermediate bracket

• SS oat bracket

• SS nuts, bolts and washers

• 3 (simplex) or 4 (duplex) mechanical oats and

weights

• Junction box NEMA 4X

• Steel hatch cover

(6) EQUALLY SPACED

9/16” Ø HOLES

—

—

AK INDUSTRIES

—

HOLD OPEN BAR

(2) HINGES

LOCK & HANDLE

—

—

—

—

2” VENT FLANGE

NOTE: MEASUREMENTS OF BASINS ARE ALL

I.D., IF NOT OTHERWISE SPECIFIED.

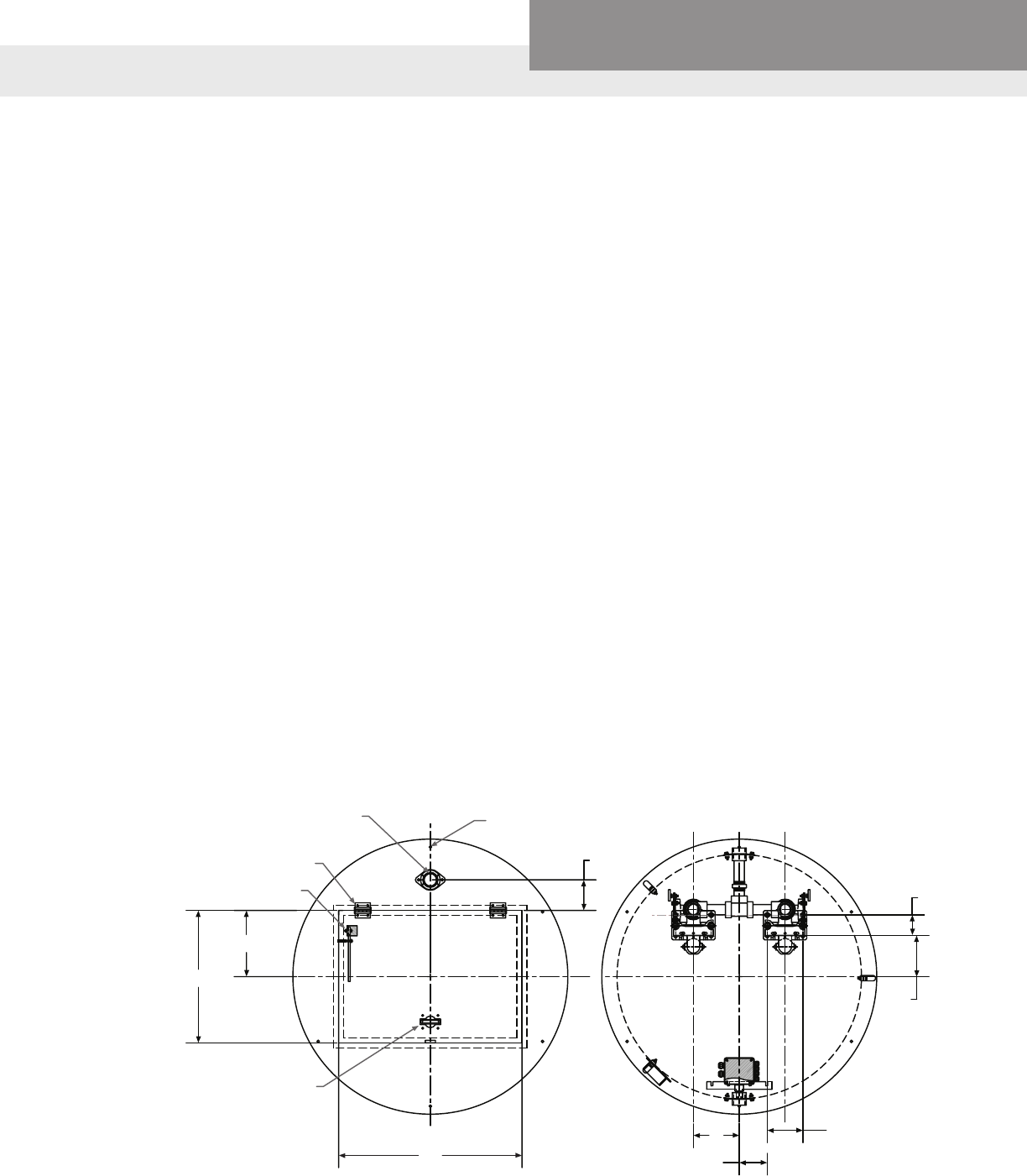

SAMPLE DRAWING

—

—

BILL OF MATERIALS FOR BASIN KITS

BASIN KIT TOP VIEW

PAGE 3

Wastewater

CentriPro

SIMPLEX – 3" DISCHARGE, 3" BASE ELBOW CONNECTION

Part No. Description Basin Size

S30B4860 48 x 60 Simplex Station 48 x 60

S30B4872 48 x 72 Simplex Station 48 x 72

S30B4884 48 x 84 Simplex Station 48 x 84

S30B4896 48 x 96 Simplex Station 48 x 96

S30B48108 48 x 108 Simplex Station 48 x 108

S30B48120 48 x 120 Simplex Station 48 x 120

DUPLEX – 3" DISCHARGE, 3" BASE ELBOW CONNECTION

D30B6060 60 x 60 Duplex Station 60 x 60

D30B6072 60 x 72 Duplex Station 60 x 72

D30B6084 60 x 84 Duplex Station 60 x 84

D30B6096 60 x 96 Duplex Station 60 x 96

D30B60108 60 x 108 Duplex Station 60 x 108

D30B60120 60 x 120 Duplex Station 60 x 120

SIMPLEX – 4" DISCHARGE, 4" BASE ELBOW CONNECTION

Part No. Description Basin Size

S40B4860 48 x 60 simplex Station 48 x 60

S40B4872 48 x 72 Simplex Station 48 x 72

S40B4884 48 x 84 Simplex Station 48 x 84

S40B4896 48 x 96 Simplex Station 48 x 96

S40B48108 48 x 108 Simplex Station 48 x 108

S40B48120 48 x 120 Simplex Station 48 x 120

DUPLEX – 4" DISCHARGE, 4" BASE ELBOW CONNECTION

D40B6060 60 x 60 Duplex Station 60 x 60

D40B6072 60 x 72 Duplex Station 60 x 72

D40B6084 60 x 84 Duplex Station 60 x 84

D40B6096 60 x 96 Duplex Station 60 x 96

D40B60108 60 x 108 Duplex Station 60 x 108

D40B60120 60 x 120 Duplex Station 60 x 120

ANTI-FLOTATION FLANGE

FIBERGLASS ENCAPSULATED

ASTM A-36 STEEL

NPT ELECTRICAL COUPLING

ENAMELED STEEL

304 STAINLESS STEEL FLOAT BRACK-

ET W/(4) CORD GRIPS FLOATS

COMPOSITE INLET HUB (DIFFERENT

SIZES AND TYPES AVAILABLE)

ELEV

HIGH LEVEL ALARM

ELEV

PUMP #2 ON

ELEV

PUMP #1 ON

ELEV

PUMP OFF

ELEV

INV ELEV

INV ELEV

UNION

SWING CHECK

VALVE BRASS

DISCHARGE PIPE

1¼" OR 2" GUIDERAIL

FLANGED 3" OR 4" SLIDE RAIL

3" 3"

ELEV

DISCHARGE COUPLING

STAINLESS STEEL

BRASS GATE VALVE

3⁄8" 304 STAINLESS STEEL

VALVE EXTENSION HANDLE

3⁄16" LIFTING CHAIN

304 STAINLESS STEEL

TEE

VENT

FLANGE

HINGED AND LOCKABLE

COVER – STEEL

DISCHARGE PIPE

• SCH80 PVC PIPE

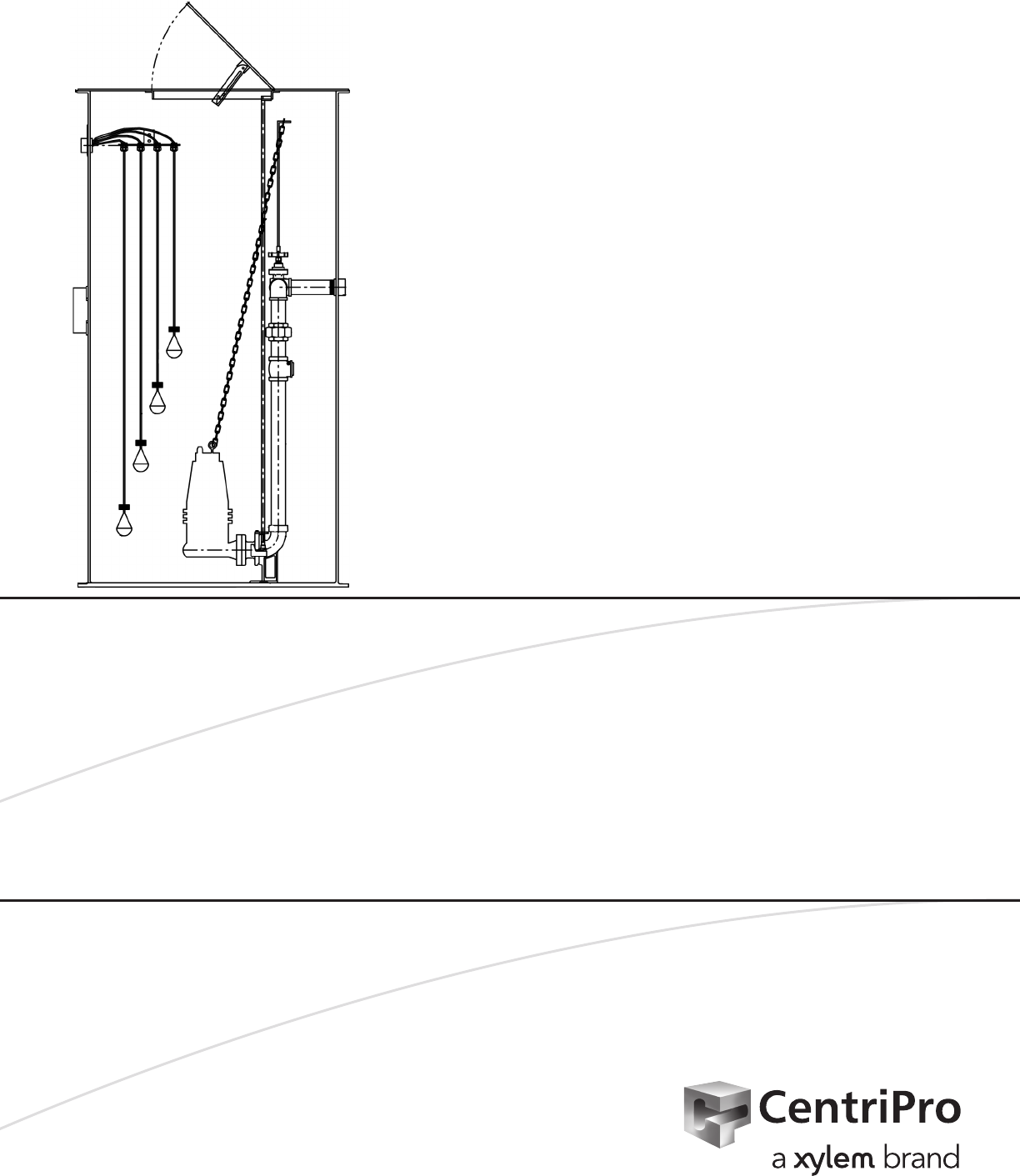

BASIN KIT DIMENSIONAL

BASIN KIT ORDER NUMBERS

BASIN KIT NOMENCLATURE

EXAMPLE: S 30 B 3048

Simplex / Duplex

Size of Pump Disconnect

Basin Kit

Size of Basin

Xylem, Inc.

2881 East Bayard Street Ext., Suite A

Seneca Falls, NY 13148

Phone: (866) 325-4210

Fax: (888) 322-5877

www.xyleminc.com/brands/centripro

CentriPro is a trademark of Xylem Inc. or one of its subsidiaries.

© 2012 Xylem Inc. BCPBPACK1 R1 April 2012
