Specifi cations:
CORD ......................................18/2 SJOW
PLUG .......................................None
FLOAT .....................................Polypropylene for use in water & sewage up to
140° (60° C).
WATER DEPTH .......................Maximum 30' (9m), 13 PSI
SWITCH:
P/N 125148: .....Snap Action, Normally Open
P/N 125149: .....Snap Action, Normally Closed
CLAMP ....................................Stainless Steel Construction. Range: 1" to 3" Dia.
MOUNTING SADDLE .............ABS/Nylon
SWITCH COMPONENT ELECTRICAL RATINGS:
125/250 VAC: ...Maximum Electrical Load: 5.0 Amps
Minimum Electrical Load: 100.0 Milliamps @ 12 VAC
ELECTRICAL CONFIGURATION:
P/N 125148: .....Normally Open
P/N 125149: .....Normally Closed
COLOR ....................................Black
PACKING ................................Pack Float Assembly, Clamp, Saddle &
Instruction Sheet in Individual Carton.
inches
(mm)

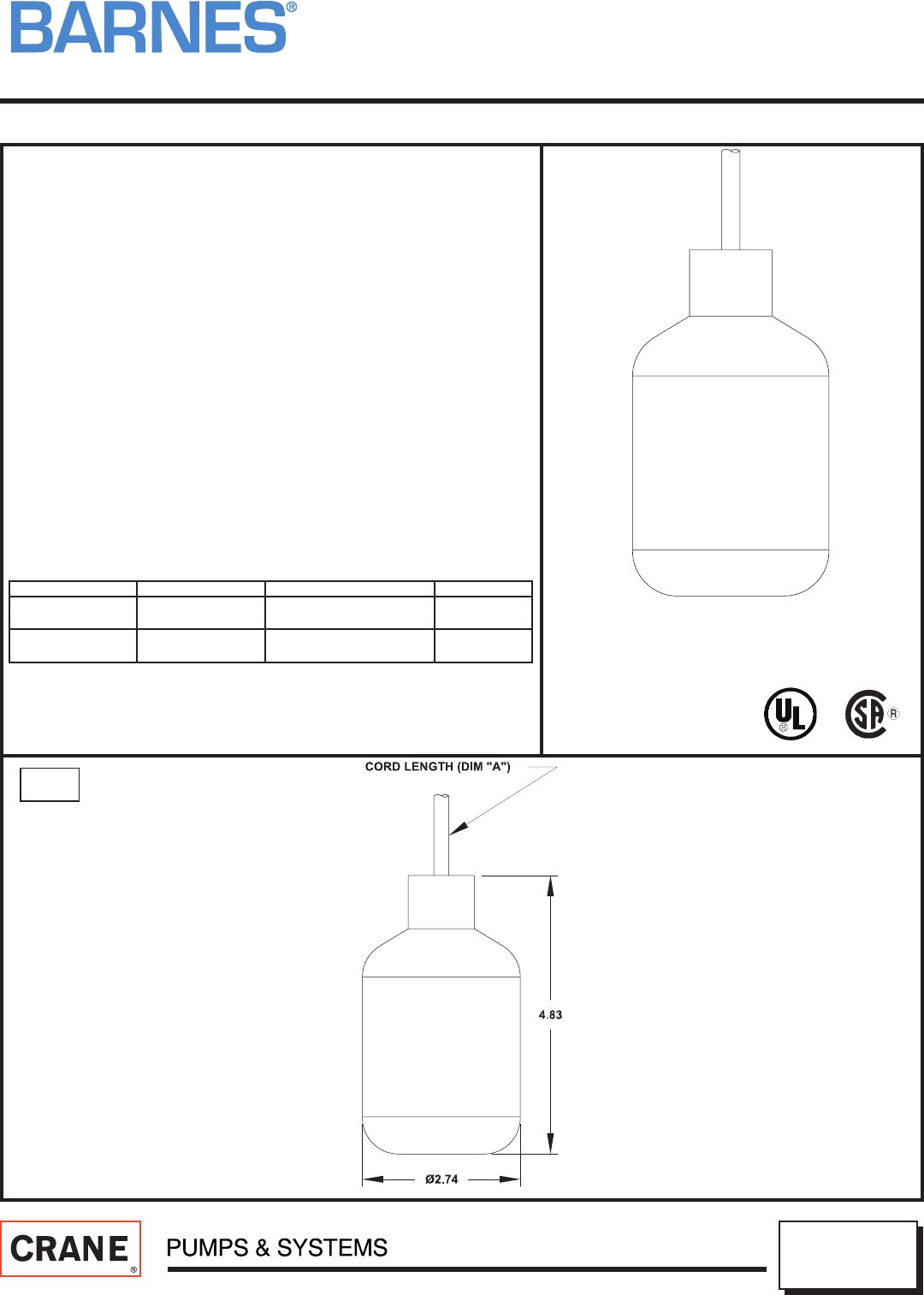

P/N: 125148
125149
Control Float
Pilot Duty
125/250 Volt
PART NUMBER CORD LENGTH TYPE INSTALLATION CONTACTS
125148 15', 30', 50', 100' Pipe Mounted
125/250 Volt OPEN
125149 15', 30', 50', 100' Pipe Mounted
125/250 Volt CLOSED
7/08
