SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
Repair Parts
33
RP
www.cranepumps.com

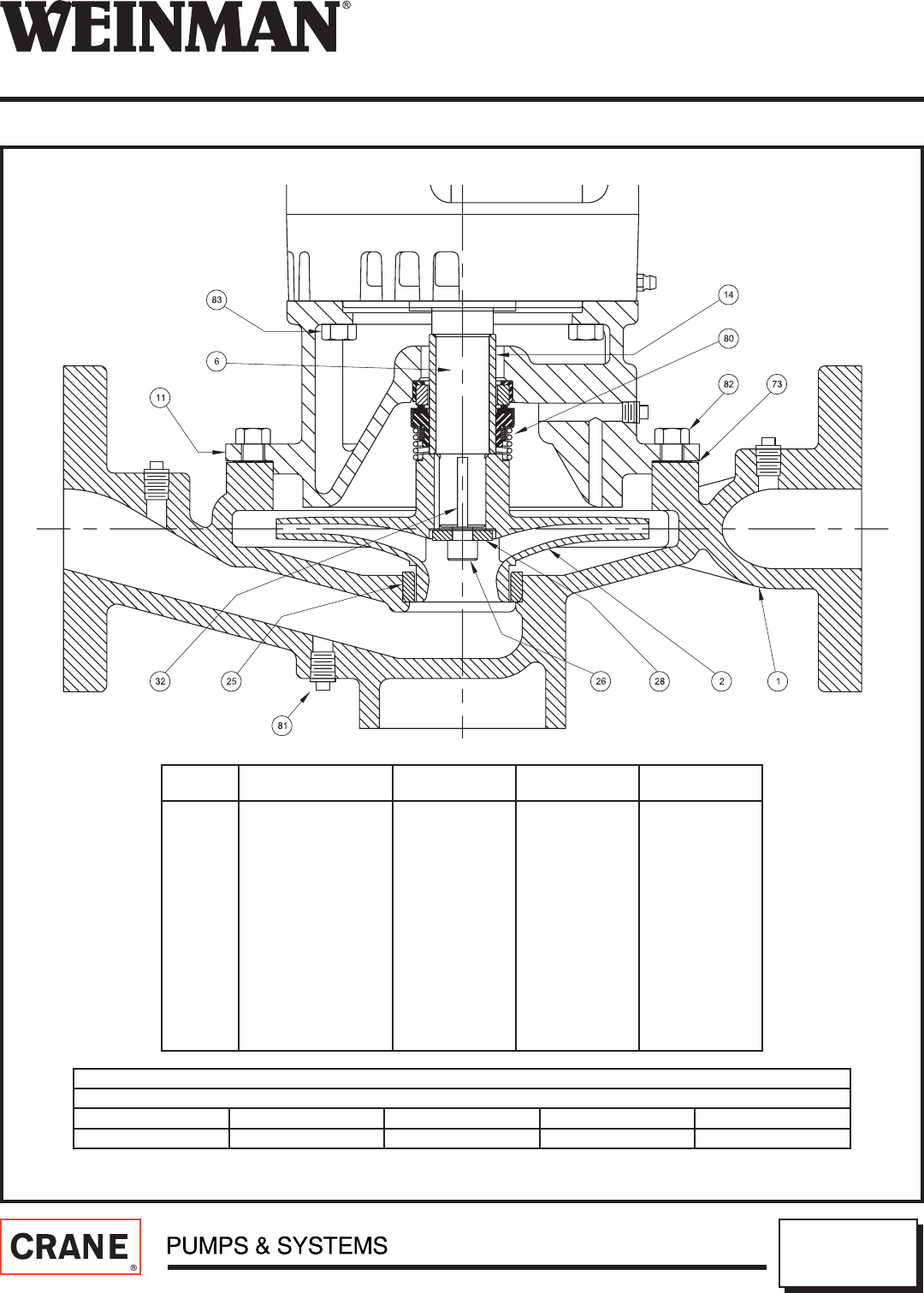

Assembly Parts
In-Line Unipumps
Bulletin Repair Parts - 320
Item No. Name of Part Std. Bronze
Fitted All Bronze All Iron
1
2
6
11
14
25
26
27
28
32
73
80
81
82
83
Casing
Impeller
Motor Shaft
Casing Cover
Shaft Sleeve
Casing Wear Ring
Impeller Screw
Casing Cover Ring
Impeller Washer
Impeller Key
Casing Gasket
Mechanical Seal
Plugs
Hex Nut
Cap Screw
Cast Iron
Bronze
Steel
Cast Iron
Bronze
Bronze
Stainless Steel
Bronze
Stainless Steel
Stainless Steel
Cellulose Fiber
See Below
Steel
Steel
Steel
Bronze
Bronze
Steel
Bronze
Bronze
Bronze
Stainless Steel
Bronze
Stainless Steel
Stainless Steel
Cellulose Fiber
See Below
Bronze
Bronze
Bronze
Cast Iron
Cast Iron
Steel
Cast Iron
Stainless Steel
Steel
Stainless Steel
Steel
Stainless Steel
Stainless Steel
Cellulose Fiber
See Below
Steel
Steel
Steel
Mechanical Seal - J Crane Type 21 Mat Code XP-171
Explanation of Material Code
Elastic Parts Rotating Face Metal Parts Stationary Seat Spring
Viton Carbon Stainless Steel Ni-Resist Stainless Steel
Maximum Working Pressure 125 PSI Maximum Temperature 250°F
2/09
SECTION
PAGE
DATE
Repair Parts
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
34
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
1507CV In-Line
320 Series 125# Flange Motor Frame Size Quantity
56J 143JM - 184JM 213JM - 215JM
1 Casing D9011-A2 D9011-A2 D9011-A2 1
2 Impeller B5833-4-B12 B5833-5-B12 B5833-5-B12 1
6 Motor Shaft B8483 B8484 B8500 1
11 Casing Cover C5826-2-A2 C8486-A2 C8486-10-A2 1
14 Shaft Sleeve - A5782-C9 A5782-C9 1
25 Casing Wear Ring A5453-C9 A5453-C9 A5453-C9 1
26 Impeller Screw Q16-44-J8 Q60-2-J3 Q60-2-J3 1
28 Impeller Washer - A5090-J3 A5090-J3 1
32 Impeller Key - Q21-17-J8 Q21-17-J8 1
73 Case Gasket A6345-L13 A6345-L13 A6345-L13 1
80 Mechanical Seal Q26-77-Y6 Q26-395-Y6 Q26-395-Y6 1
81 Plugs 04236 04236 04236 3
82 Cap Screw Q15-5-E26 Q15-5-E26 Q15-5-E26 6
83 Cap Screw - Q15-2-E26 Q15-19-E26 4
83 Stud Q17-4-E26 - - 4
83 Hex Nut Q18-19-E4 - - 4
N.S. Pipe Coupling Q29-68-E4 - - 1
N.S. Nipple Q29-103-E4 - - 1
N.S. Defl ector - H1936-2-K2 H1936-2-K2 1
N.S. Air Vent Valve - Q24-3-C2 Q24-3-C2 1
3/11
SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
Repair Parts
35
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
2007CV In-Line
320 Series 125# Flange Motor Frame Size Quantity
56J 143JM - 184JM 213JM - 215JM
1 Casing D9000-A2 D9000-A2 D9000-A2 1
2 Impeller B5839-6-B12 B5839-5-B12 B5839-5-B12 1
6 Motor Shaft B8483 B8484 B8500 1
11 Casing Cover C5826-2-A2 C8486-A2 C8486-10-A2 1
14 Shaft Sleeve - A5782-C9 A5782-C9 1
25 Casing Wear Ring A5226-C9 A5226-C9 A5226-C9 1
26 Impeller Screw Q16-44-J8 Q60-2-J3 Q60-2-J3 1
28 Impeller Washer - A5090-J3 A5090-J3 1
32 Impeller Key - Q21-17-J8 Q21-17-J8 1
73 Case Gasket A6345-L13 A6345-L13 A6345-L13 1
80 Mechanical Seal Q26-77-Y6 Q26-395-Y6 Q26-395-Y6 1
81 Plugs 04236 04236 04236 3
82 Cap Screw Q15-5-E26 Q15-5-E26 Q15-5-E26 6
83 Cap Screw - Q15-2-E26 Q15-19-E26 4
83 Stud Q17-4-E26 - - 4
83 Hex Nut Q18-41-E4 - - 4
N.S. Pipe Coupling Q29-68-E4 - - 1
N.S. Nipple Q29-103-E4 - - 1
N.S. Defl ector - H1936-2-K2 H1936-2-K2 1
N.S. Air Vent Valve - Q24-3-C2 Q24-3-C2 1
3/11
SECTION
PAGE
DATE
Repair Parts
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
36
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
2507CV In-Line
320 Series 125# Flange Motor Frame Size Quantity
143JM - 184JM 213JM - 215JM 254JM - 256JM
1 Casing D9021-A2 D9021-A2 D9021-A2 1
2 Impeller C3870-11-B12 C3870-11-B12 C3870-21-B12 1
6 Motor Shaft B8484 B8500 B8710 1
11 Casing Cover C8486-A2 C8486-10-A2 C9016-A2 1
14 Shaft Sleeve A5782-C9 A5782-C9 A9005-C9 1
25 Casing Wear Ring A6409-C9 A6409-C9 A6409-C9 1
26 Impeller Screw Q60-2-J3 Q60-2-J3 Q60-3-J3 1
28 Impeller Washer A5090-J3 A5090-J3 A6680-10-J3 1
32 Impeller Key Q21-17-J8 Q21-17-J8 Q21-15-J8 1
73 Case Gasket A6345-L13 A6345-L13 A6345-L13 1
80 Mechanical Seal Q26-395-Y6 Q26-395-Y6 Q26-373-Y6 1
81 Plugs 04236 04236 04236 3
82 Cap Screw Q15-5-E26 Q15-5-E26 Q15-5-E26 6
83 Cap Screw Q15-2-E26 Q15-19-E26 Q15-19-E26 4
N.S. Defl ector H1936-2-K2 H1936-2-K2 - 1
N.S. Bushing - - Q29-52-E4 1
N.S. Air Vent Valve Q24-3-C2 Q24-3-C2 Q24-3-C2 1
3/11
SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
Repair Parts
37
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
3007CV In-Line
320 Series 125# Flange Motor Frame Size Quantity
143JM - 184JM 213JM - 215JM 254JM - 256JM 284JM - 326JM
1 Casing D9015-A2 D9015-A2 D9015-A2 D9015-A2 1
2 Impeller B3878-12-B12 B3878-12-B12 B3878-22-B12 B3878-22-B12 1
6 Motor Shaft B8484 B8500 B8710 B8773 1
11 Casing Cover C8486-A2 C8486-10-A2 C9016-A2 C9017-A2 1
14 Shaft Sleeve A5782-C9 A5782-C9 A9005-C9 A9005-C9 1
25 Casing Wear Ring A6808-C9 A6808-C9 A6808-C9 A6808-C9 1
26 Impeller Screw Q60-2-J3 Q60-2-J3 Q60-3-J3 Q60-3-J3 1
27 Casing Cover Ring - - A6809-C9 A6809-C9
28 Impeller Washer A5090-J3 A5090-J3 A6680-J3 A6680-J3 1
32 Impeller Key Q21-17-J8 Q21-17-J8 Q21-5-J8 Q21-5-J8 1
73 Case Gasket A6345-L13 A6345-L13 A6345-L13 A6345-L13 1
80 Mechanical Seal Q26-395-Y6 Q26-395-Y6 Q26-373-Y6 Q26-373-Y6 1
81 Plugs 04236 04236 04236 04236 3
82 Cap Screw Q15-5-E26 Q15-5-E26 Q15-5-E26 Q15-5-E26 6
83 Cap Screw Q15-2-E26 Q15-19-E26 Q15-19-E26 Q15-4-E26 4
N.S. Pipe Coupling - - - Q29-68-E4 1
N.S. Nipple - - - Q29-69-E4 1
N.S. Defl ector H1936-2-K2 H1936-2-K2 - - 1
N.S. Bushing - - Q29-52-E4 - 1
N.S. Air Vent Valve Q24-3-C2 Q24-3-C2 Q24-3-C2 Q24-3-C2 1
3/11
SECTION
PAGE
DATE
Repair Parts
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
38
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
4007CV In-Line
320 Series 125# Flange Motor Frame Size Quantity
143JM - 184JM 213JM - 215JM 254JM - 256JM 284JM - 326JM
1 Casing D9022-A2 D9022-A2 D9022-A2 D9022-A2 1
2 Impeller B3885-13-B12 B3885-13-B12 B3885-12-B12 B3885-12-B12 1
6 Motor Shaft B8484 B8500 B8710 B8773 1
11 Casing Cover C8486-A2 C8486-10-A2 C9016-A2 C9017-A2 1
14 Shaft Sleeve A5782-C9 A5782-C9 A9005-C9 A9005-C9 1
25 Casing Wear Ring A6809-C9 A6809-C9 A6809-C9 A6809-C9 1
26 Impeller Screw Q60-2-J3 Q60-2-J3 Q60-3-J3 Q60-3-J3 1
28 Impeller Washer A5090-J3 A5090-J3 A6680-J3 A6680-J3 1
32 Impeller Key Q21-17-J8 Q21-17-J8 Q21-5-J8 Q21-5-J8 1
73 Case Gasket A6345-L13 A6345-L13 A6345-L13 A6345-L13 1
80 Mechanical Seal Q26-395-Y6 Q26-395-Y6 Q26-373-Y6 Q26-373-Y6 1
81 Plugs 04236 04236 04236 04236 3
82 Cap Screw Q15-5-E26 Q15-5-E26 Q15-5-E26 Q15-5-E26 6
83 Cap Screw Q15-2-E26 Q15-19-E26 Q15-19-E26 Q15-4-E26 4
N.S. Pipe Coupling - - Q29-68-E4 Q29-68-E4 1
N.S. Nipple - - Q29-69-E4 Q29-69-E4 1
N.S. Air Vent Valve Q24-3-C2 Q24-3-C2 Q24-3-C2 Q24-3-C2 1
N.S. Defl ector H1936-2-K2 - 1
N.S. Bushing Q29-52-E4 1
5/11
SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
Repair Parts
39
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
2095CV In-Line
320 Series 125# Flange Motor Frame Size Quantity
143JM - 184JM 213JM - 215JM 254JM - 256JM 284JM - 326JM
1 Casing D9001-A2 D9001-A2 D9001-A2 D9001-A2 1
2 Impeller C6390-B12 C6390-B12 C6390-11-B12 C6390-11-B12 1
6 Motor Shaft B8484 B8500 B8710 B8773 1
11 Casing Cover C9002-A2 C9002-A2 C9003-A2 C9004-A2 1
14 Shaft Sleeve A5782-C9 A5782-C9 A9005-C9 A9005-C9 1
25 Casing Wear Ring A6409-C9 A6409-C9 A6409-C9 A6409-C9 1
26 Impeller Screw Q60-2-J3 Q60-2-J3 Q60-3-J3 Q60-3-J3 1
28 Impeller Washer A5090-J3 A5090-J3 A6680-J3 A6680-J3 1
32 Impeller Key Q21-17-J8 Q21-17-J8 Q21-5-J8 Q21-5-J8 1
73 Case Gasket A9008-L13 A9008-L13 A9008-L13 A9008-L13 1
80 Mechanical Seal Q26-395-Y6 Q26-395-Y6 Q26-373-Y6 Q26-373-Y6 1
81 Plugs 04236 04236 04236 04236 3
82 Cap Screw Q15-19-E26 Q15-19-E26 Q15-19-E26 Q15-19-E26 8
83 Cap Screw Q15-5-E26 Q15-19-E26 Q15-19-E26 Q15-4-E26 4
N.S. Pipe Coupling - - - Q29-68-E4 1
N.S. Nipple - - - Q29-69-E4 1
N.S. Seal Sleeve A9010-C9 A9010-C9 A9009-C9 A9009-C9 1
N.S. Air Vent Valve Q24-3-C2 Q24-3-C2 Q24-3-C2 Q24-3-C2 1
3/11
SECTION
PAGE
DATE
Repair Parts
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
40
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
2595CV In-Line
320 Series 125# Flange Motor Frame Size Quantity
143JM - 184JM 213JM - 215JM 254JM - 256JM 284JM - 326JM
1 Casing D9012-A2 D9012-A2 D9012-12-1-A2 D9012-12-1-A2 1
2 Impeller 3734-1-B12 3734-1-B12 B9013-10-B12 B9013-10-B12 1
6 Motor Shaft B8484 B8500 B8710 B8773 1
11 Casing Cover C9002-A2 C9002-A2 C9003-A2 C9004-A2 1
14 Shaft Sleeve A5782-C9 A5782-C9 A9005-C9 A9005-C9 1
25 Casing Wear Ring A6430-C9 A6430-C9 A6430-C9 A6430-C9 1
26 Impeller Screw A60-2-J3 A60-2-J3 A60-3-J3 A60-3-J3 1
28 Impeller Washer A5090-J3 A5090-J3 A6680-J3 A6680-J3 1
32 Impeller Key Q21-17-J8 Q21-17-J8 Q21-5-J8 Q21-5-J8 1
73 Case Gasket A9008-L13 A9008-L13 A9008-L13 A9008-L13 1
80 Mechanical Seal Q26-395-Y6 Q26-395-Y6 Q26-373-Y6 Q26-373-Y6 1
81 Plugs 04236 04236 04236 04236 3
82 Cap Screw Q15-19-E26 Q15-19-E26 Q15-19-E26 Q15-19-E26 8
83 Cap Screw Q15-5-E26 Q15-19-E26 Q15-19-E26 Q15-4-E26 4
N.S. Pipe Coupling - - Q29-68-E4 Q29-68-E4 1
N.S. Nipple - - Q29-69-E4 Q29-69-E4 1
N.S. Defl ector - - H1936-2-K2 -
N.S. Seal Sleeve A9010-C9 A9010-C9 A9009-C9 A9009-C9 1
N.S. Air Vent Valve Q24-3-C2 Q24-3-C2 Q24-3-C2 Q24-3-C2 1
3/15
SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
Repair Parts
41
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
3095CV In-Line
320 Series 125# Flange Motor Frame Size Quantity
143JM - 184JM 213JM - 215JM 254JM - 256JM 284JM - 326JM
1 Casing D9014-A2 D9014-A2 D9014-A2 D9014-A2 1
2 Impeller 2946-1-B12 2946-1-B12 B3912-12-B12 B3912-12-B12 1
6 Motor Shaft B8484 B8500 B8710 B8773 1
11 Casing Cover C9002-A2 C9002-A2 C9003-A2 C9004-A2 1
14 Shaft Sleeve A5782-C9 A5782-C9 A9005-C9 A9005-C9 1
25 Casing Wear Ring A9018-C9 A9018-C9 A9018-C9 A9019-C9 1
26 Impeller Screw Q60-2-J3 Q60-2-J3 Q60-3-J3 Q60-3-J3 1
27 Casing Cover Ring - - - A6953-C9
28 Impeller Washer A5090-J3 A5090-J3 A6680-J3 A6680-J3 1
32 Impeller Key Q21-17-J8 Q21-17-J8 Q21-5-J8 Q21-5-J8 1
73 Case Gasket A9008-L13 A9008-L13 A9008-L13 A9008-L13 1
80 Mechanical Seal Q26-395-Y6 Q26-395-Y6 Q26-373-Y6 Q26-373-Y6 1
81 Plugs 04236 04236 04236 04236 3
82 Cap Screw Q15-19-E26 Q15-19-E26 Q15-19-E26 Q15-19-E26 8
83 Cap Screw Q15-5-E26 Q15-19-E26 Q15-19-E26 Q15-4-E26 4
N.S. Pipe Coupling - - - Q29-68-E4 1
N.S. Nipple - - - Q29-69-E4 1
N.S. Defl ector - H1936-2-K2 - -
N.S. Seal Sleeve A9010-C9 A9010-C9 A9009-C9 A9009-C9 1
N.S. Bushing - - Q29-52-E4 Q29-52-E4
N.S. Air Vent Valve Q24-3-C2 Q24-3-C2 Q24-3-C2 Q24-3-C2 1
3/11
SECTION
PAGE
DATE
Repair Parts
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
42
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
4095CV In-Line
320 Series 125# Flange Motor Frame Size Quantity
143JM - 184JM 213JM - 215JM 254JM - 256JM 284JM - 326JM
1 Casing D9023-A2 D9023-A2 D9023-A2 D9023-A2 1
2 Impeller B3983-5-B12 B3983-5-B12 B3983-12-B12 D9024-B12 1
6 Motor Shaft B8484 B8500 B8710 B8773 1
11 Casing Cover C9002-A2 C9002-A2 C9003-A2 C9004-A2 1
14 Shaft Sleeve A5782-C9 A5782-C9 A9005-C9 A9005-C9 1
25 Casing Wear Ring A6623-C9 A6623-C9 A6623-C9 A9025-C9 1
26 Impeller Screw Q60-2-J3 Q60-2-J3 Q60-3-J3 Q60-3-J3 1
27 Casing Cover Ring - - A6953-C9 A6953-C9
28 Impeller Washer A5090-J3 A5090-J3 A6680-J3 A6680-J3 1
32 Impeller Key Q21-17-J8 Q21-17-J8 Q21-5-J8 Q21-5-J8 1
73 Case Gasket A9008-L13 A9008-L13 A9008-L13 A9008-L13 1
80 Mechanical Seal Q26-395-Y6 Q26-395-Y6 Q26-373-Y6 Q26-373-Y6 1
81 Plugs 04236 04236 04236 04236 3
82 Cap Screw Q15-19-E26 Q15-19-E26 Q15-19-E26 Q15-19-E26 8
83 Cap Screw Q15-5-E26 Q15-19-E26 Q15-19-E26 Q15-4-E26 4
N.S. Pipe Coupling - - Q29-68-E4 Q29-68-E4 1
N.S. Nipple - - Q29-69-E4 Q29-69-E4 1
N.S. Seal Sleeve A9026-C9 A9026-C9 A9009-C9 A9009-C9 1
N.S. Air Vent Valve Q24-3-C2 Q24-3-C2 Q24-3-C2 Q24-3-C2 1
1/12
SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
Repair Parts
43
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
1507CV In-Line
320 Series 250# Flange
(Cast Iron / Ductile Iron)
Motor Frame Size
Quantity
56J 143JM - 184JM 213JM - 215JM
1 Casing D9011-10 D9011-10 1
2 Impeller B5833-6-B12 D5833-9-B12 1
6 Motor Shaft B8483 B8484 B8500 1
11 Casing Cover C5826-4 C8486-3 1
14 Shaft Sleeve B8820-C9 A7355-4-C9 1
25 Casing Wear Ring A5453-C9 A5453-C9 1
26 Impeller Screw Q16-44-J8 Q60-2-J3 1
28 Impeller Washer - A5090-J3 1
32 Impeller Key - A7356-J8 1
73 Case Gasket A7444-L13 A7444-L13 1
80 STD. Bal. Mechanical Seal Q26-409-Y6 Q26-415-Y47 1
81 Plugs 04236 04236 3
82 Cap Screw Q15-5-E26 Q15-5-E26 12
83 Stud Q17-4-E26 Q17-4-E26 4
83 Hex Nut Q18-19-E4 Q18-19-E4 4
N.S. Pipe Coupling A8821-L13 - 1
N.S. Nipple Q29-68-E4 - 1
N.S. Seal Sleeve Q29-69-E4 - 1
N.S. Air Vent Valve - Q41-39-K9 1
Cap Screws for Ductile Iron = Grade 8
Cap Screws for Cast Iron = Grade 5
3/11
SECTION
PAGE
DATE
Repair Parts
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
44
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
2007CV In-Line
320 Series 250# Flange
(Cast Iron / Ductile Iron)
Motor Frame Size Quantity
56J 143JM - 184JM 213JM - 215JM
1 Casing D9000-10 D9000-10 D9000-10 1
2 Impeller B5839-7-B12 B5839-8-B12 B5839-8-B12 1
6 Motor Shaft B8483 B8484 B8500 1
11 Casing Cover C5826-4 C8486-3 C8486-10-1 1
14 Shaft Sleeve - A7355-4-C9 A7355-4-C9 1
25 Casing Wear Ring A5226-C9 A5226-C9 A5226-C9 1
26 Impeller Screw Q16-44-J8 Q60-2-J3 Q60-2-J3 1
28 Impeller Washer - A5090-J3 A5090-J3 1
32 Impeller Key - A7356-J8 A7356-J8 1
73 Case Gasket A7444-L13 A7444-L13 A7444-L13 1
80 STD. Bal. Mechanical Seal Q26-409-Y6 Q26-415-Y47 Q26-415-Y47 1
81 Plugs 04236 04236 04236 3
82 Cap Screw Q15-5-E26 Q15-5-E26 Q15-5-E26 12
83 Cap Screw Q15-5-E26 Q15-2-E26 Q15-19-E26 4
N.S. Pipe Coupling Q29-68-E4 - - 1
N.S. Nipple Q29-69-E4 - - 1
N.S. Shaft Sleeve O-Ring - Q41-39-K9 Q41-39-K9 1
Cap Screws for Ductile Iron = Grade 8
Cap Screws for Cast Iron = Grade 5
3/11
SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
Repair Parts
45
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
2507CV In-Line
320 Series 250# Flange
(Cast Iron / Ductile Iron)
Motor Frame Size Quantity
143JM - 184JM 213JM - 215JM
1 Casing D9021-10 D9021-10 1
2 Impeller C3870-13-B12 C3870-13-B12 1
6 Motor Shaft B8484 B8500 1
11 Casing Cover C8486-3 C8486-10-1 1
14 Shaft Sleeve A7355-4-C9 A7355-4-C9 1
25 Casing Wear Ring A6409-C9 A6409-C9 1
26 Impeller Screw Q60-2-J3 Q60-2-J3 1
28 Impeller Washer A5090-J3 A5090-J3 1
32 Impeller Key A7356-J8 A7356-J8 1
73 Case Gasket A7444-L13 A7444-L13 1
80 STD. Bal. Mechanical Seal Q26-415-Y47 Q26-415-Y47 1
81 Plugs 04236 04236 3
82 Cap Screw Q15-5-E26 Q15-5-E26 12
83 Cap Screw Q15-2-E26 Q15-19-E26 4
N.S. Shaft Sleeve O-Ring Q41-39-K9 Q41-39-K9 1
Cap Screws for Ductile Iron = Grade 8
Cap Screws for Cast Iron = Grade 5
3/11
SECTION
PAGE
DATE
Repair Parts
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
46
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
3007CV In-Line
320 Series 250# Flange
(Cast Iron / Ductile Iron)
Motor Frame Size Quantity
143JM - 184JM 213JM - 215JM 254JM - 256JM
1 Casing D9015-10 D9015-10 D9015-10 1
2 Impeller B3878-13-B12 B3878-13-B12 B3878-23-B12 1
6 Motor Shaft B8484 B8500 B8710 1
11 Casing Cover C8486-3 C8486-10-1 C9016-1 1
14 Shaft Sleeve A7355-4-C9 A7355-4-C9 A9007-4-C9 1
25 Casing Wear Ring A6808-C9 A6808-C9 A6808-C9 1
26 Impeller Screw Q60-2-J3 Q60-2-J3 Q60-3-J3 1
27 Casing Cover Ring - - A6809-C9 1
28 Impeller Washer A5090-J3 A5090-J3 A6680-J3 1
32 Impeller Key A7356-J8 A7356-J8 A7356-3-J8 1
73 Case Gasket A7444-L13 A7444-L13 A7444-L13 1
80 STD. Bal. Mechanical Seal Q26-415-Y47 Q26-415-Y47 Q26-416-Y47 1
81 Plugs 04236 04236 04236 3
82 Cap Screw Q15-5-E26 Q15-5-E26 Q15-5-E26 12
83 Cap Screw Q15-5-E26 Q15-5-E26 Q15-19-E26 4
N.S. Pipe Coupling - - Q29-68-E4 1
N.S. Nipple - - Q29-69-E4 1
N.S. Shaft Sleeve O-Ring Q41-39-K9 Q41-39-K9 Q41-31-K9 1
Cap Screws for Ductile Iron = Grade 8
Cap Screws for Cast Iron = Grade 5
5/11
SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
Repair Parts
47
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
4007CV In-Line
320 Series 250# Flange
(Cast Iron / Ductile Iron)
Motor Frame Size Quantity
143JM - 184JM 213JM - 215JM 254JM - 256JM
1 Casing (-A2/-A12) D9022-10 D9022-10 D9022-10 1
2 Impeller B3885-14-B12 B3885-14-B12 B3885-15-B12 1
6 Motor Shaft B8484 B8500 B8710 1
11 Casing Cover (-A2/-A12) C8486-3 C8486-10-1 C9016-1 1
14 Shaft Sleeve A7355-4-C9 A7355-4-C9 A9007-4-C9 1
25 Casing Wear Ring A6809-C9 A6809-C9 A6809-C9 1
26 Impeller Screw Q60-2-J3 Q60-2-J3 Q60-3-J3 1
28 Impeller Washer A5090-J3 A5090-J3 1
32 Impeller Key A7356-J8 A7356-J8 A7356-3-J8 1
73 Case Gasket A7444-L13 A7444-L13 A7444-L13 1
80 STD. Bal. Mechanical Seal Q26-415-Y47 Q26-415-Y47 Q26-416-Y47 1
81 Plugs 04236 04236 04236 3
82 Cap Screw Q15-5-E26 Q15-5-E26 Q15-5-E27 12
83 Cap Screw Q15-2-E26 Q15-19-E26 Q15-19-E26 4
N.S. Pipe Coupling - - Q29-68-E4 1
N.S. Nipple - - Q29-69-E4 1
N.S. Shaft Sleeve O-Ring Q41-39-K9 Q41-39-K9 Q41-39-K9 1
Cap Screws for Ductile Iron = Grade 8
Cap Screws for Cast Iron = Grade 5
3/11
SECTION
PAGE
DATE
Repair Parts
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
48
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
2095CV In-Line
320 Series 250# Flange
(Cast Iron / Ductile Iron)
Motor Frame Size Quantity
143JM - 184JM 213JM - 215JM 254JM - 256JM
1 Casing (-A2/-A12) D9001-10 D9001-10 D9001-10 1
2 Impeller C6390-B12 C6390-B12 C6390-11-B12 1
6 Motor Shaft B8484 B8500 B8710 1
11 Casing Cover (-A2/-A12) C9002-1 C9002-1 C9003-1 1
14 Shaft Sleeve A7355-3-C9 A7355-3-C9 1
25 Casing Wear Ring A6409-C9 A6409-C9 A6409-C9 1
26 Impeller Screw Q60-2-J3 Q60-2-J3 Q60-3-J3 1
28 Impeller Washer A5090-J3 A5090-J3 1
32 Impeller Key A7356-J8 A7356-J8 A7356-2-J8 1
73 Case Gasket A7771-1-L13 A7771-1-L13 A7771-1-L13 1
80 STD. Bal. Mechanical Seal Q26-415-Y47 Q26-415-Y47 Q26-415-Y47 1
81 Plugs 04236 04236 04236 3
82 Cap Screw Q15-19-E26 Q15-19-E26 Q15-19-E26 16
83 Cap Screw Q15-5-E26 Q15-19-E26 Q15-19-E26 4
N.S. Pipe Coupling - - Q29-68-E4 1
N.S. Nipple - - Q29-69-E4 1
N.S. Shaft Sleeve O-Ring Q41-32-K9 Q41-32-K9 Q41-31-K9 1
Cap Screws for Ductile Iron = Grade 8
Cap Screws for Cast Iron = Grade 5
3/11
SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
Repair Parts
49
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
2595CV In-Line
320 Series 250# Flange
(Cast Iron / Ductile Iron)
Motor Frame Size Quantity
143JM - 184JM 213JM - 215JM 254JM - 256JM
1 Casing (-A2/-A12) D9012-11 D9012-11 D9012-11 1
2 Impeller 3734-1-B12 SEE BELOW D6390-11-B12 1
2 Impeller 1750RPM - 3734-1-B12 -
2 Impeller 3500RPM - C9013-B12 -
6 Motor Shaft B8484 B8500 B8710 1
11 Casing Cover (-A2/-A12) C9002-1 C9002-1 C9003-1 1
14 Shaft Sleeve A7355-3-C9 A7355-3-C9 A9007-5-C9 1
25 Casing Wear Ring A6430-C9 A6430-C9 A6430-C9 1
26 Impeller Screw Q60-2-J3 Q60-2-J3 Q60-3-J3 1
28 Impeller Washer A5090-J3 A5090-J3 1
32 Impeller Key A7356-J8 A7356-J8 A7356-2-J8 1
73 Case Gasket A7771-1-L13 A7771-1-L13 A7771-1-L13 1
80 STD. Bal. Mechanical Seal Q26-415-Y47 Q26-415-Y47 Q26-416-Y47 1
81 Plugs 04236 04236 04236 3
82 Cap Screw Q15-9-E26 Q15-19-E26 Q15-19-E27 16
83 Cap Screw Q15-5-E26 Q15-19-E26 Q15-19-E27 4
N.S. Pipe Coupling - - Q29-68-E4 1
N.S. Nipple - - Q29-69-E4 1
N.S. Shaft Sleeve O-Ring Q41-32-K9 Q41-32-K9 Q41-32-K9 1
Cap Screws for Ductile Iron = Grade 8
Cap Screws for Cast Iron = Grade 5
3/11
SECTION
PAGE
DATE
Repair Parts
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
50
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
3095CV In-Line
320 Series 250# Flange
(Cast Iron / Ductile Iron)
Motor Frame Size Quantity
143JM - 184JM 213JM - 215JM
1 Casing (-A2/-A12) D9014-10 D9014-10 1
2 Impeller 2946-1-B12 2946-1-B12 1
6 Motor Shaft B8484 B8500 1
11 Casing Cover (-A2/-A12) C9002-1 C9002-1 1
14 Shaft Sleeve A7355-3-C9 A7355-3-C9 1
25 Casing Wear Ring A9018-C9 A9018-C9 1
26 Impeller Screw Q60-2-J3 Q60-2-J3 1
28 Impeller Washer A5090-J3 A5090-J3 1
32 Impeller Key A7356-J8 A7356-J8 1
73 Case Gasket A7771-1-L13 A7771-1-L13 1
80 STD. Bal. Mechanical Seal Q26-415-Y47 Q26-415-Y47 1
81 Plugs 04236 04236 3
82 Cap Screw Q15-19-E26 Q15-19-E26 16
83 Cap Screw Q15-5-E26 Q15-19-E26 4
N.S. Shaft Sleeve O-Ring Q41-32-K9 Q41-32-K9 1
Cap Screws for Ductile Iron = Grade 8
Cap Screws for Cast Iron = Grade 5
3/11
SECTION
PAGE
DATE
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
Repair Parts
51
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
4095CV In-Line
320 Series 250# Flange
(Cast Iron / Ductile Iron)
Motor Frame Size Quantity
213JM - 215JM 254JM - 256JM 284JM - 326JM
1 Casing (-A2/-A12) D9023-10 D9023-10 D9023-10 1
2 Impeller B3983-5-B12 B3983-5-B12 D9024-B12 1
6 Motor Shaft B8500 B8710 B8773 1
11 Casing Cover (-A2/-A12) C9002-1 C9003-1 C9004-1 1
14 Shaft Sleeve A7355-3-C9 A9007-5-C9 A9007-5-C9 1
25 Casing Wear Ring A6623-C9 A6623-C9 A9025-C9 1
26 Impeller Screw Q60-2-J3 Q60-3-J3 Q60-3-J3 1
- A6953-C9 A6953-C9 1
28 Impeller Washer A5090-J3 A6680-J3 A6680-J3 1
32 Impeller Key A7356-J8 A7356-2-J8 A7356-2-J8 1
73 Case Gasket A7771-1-L13 A7771-1-L13 A7771-1-L13 1
80 STD. Bal. Mechanical Seal Q26-415-Y47 Q26-416-Y47 Q26-416-Y47 1
81 Plugs 04236 04236 04236 3
82 Cap Screw Q15-19-E26 Q15-19-E26 Q15-19-E26 16
83 Cap Screw Q15-19-E26 Q15-19-E26 Q15-4-E26 4
N.S. Pipe Coupling - Q29-68-E4 Q29-68-E4 1
N.S. Nipple - Q29-69-E4 Q29-69-E4 1
N.S. Shaft Sleeve O-Ring Q41-32-K9 Q41-31-K9 Q41-31-K9 1
Cap Screws for Ductile Iron = Grade 8
Cap Screws for Cast Iron = Grade 5
3/11
SECTION
PAGE
DATE
Repair Parts
USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598
A Crane Co. Company
52
RP
www.cranepumps.com
Parts List
Bulletin Repair Parts - 320
6012CV In-Line
320 Series 125# Flange
(Cast Iron)
Motor Frame Size Quantity
56J 143JM-184JM 213JM-215JM 254JM-256JM 284JM-326JM
1 Casing (CI) N.A. N.A. N.A. 0118033 0118033 1
2Impeller N.A. N.A. N.A. 0067456 0067456 1
6 Motor Shaft N.A. N.A. N.A. N.A. N.A.
11 Casing Cover (CI) N.A. N.A. N.A. 0118083 0118083 1
14 Shaft Sleeve N.A. N.A. N.A. 0118275 0118275 1
25 Casing Wear Ring N.A. N.A. N.A. 0008190 0008190 1
26 Impeller Screw N.A. N.A. N.A. 0053315 0053315 1
27 Casing Cover Ring N.A. N.A. N.A. 0068172 0068172 1
28 Impeller Washer N.A. N.A. N.A. 0068347 0068347 1
32 Impeller Key N.A. N.A. N.A. 0068337 0068337 1
73 Case Gasket N.A. N.A. N.A. 0088149 0088149 1
80 STD. Bal. Mechanical Seal N.A. N.A. N.A. 0118330 0118330 1
81 Plugs N.A. N.A. N.A. 0006224 0006224 1
82 Cap Screw N.A. N.A. N.A. 0000431 0000431 8
83 Cap Screw N.A. N.A. N.A. 0000431 0000431 4
N.S. Shaft Sleeve O-Ring N.A. N.A. N.A. - -
N.S. Nipple N.A. N.A. N.A. - -
N.S. Shaft Sleeve O-Ring N.A. N.A. N.A. - -
Cap Screws for Cast Iron = Grade 5
3/11

Navigation menu
