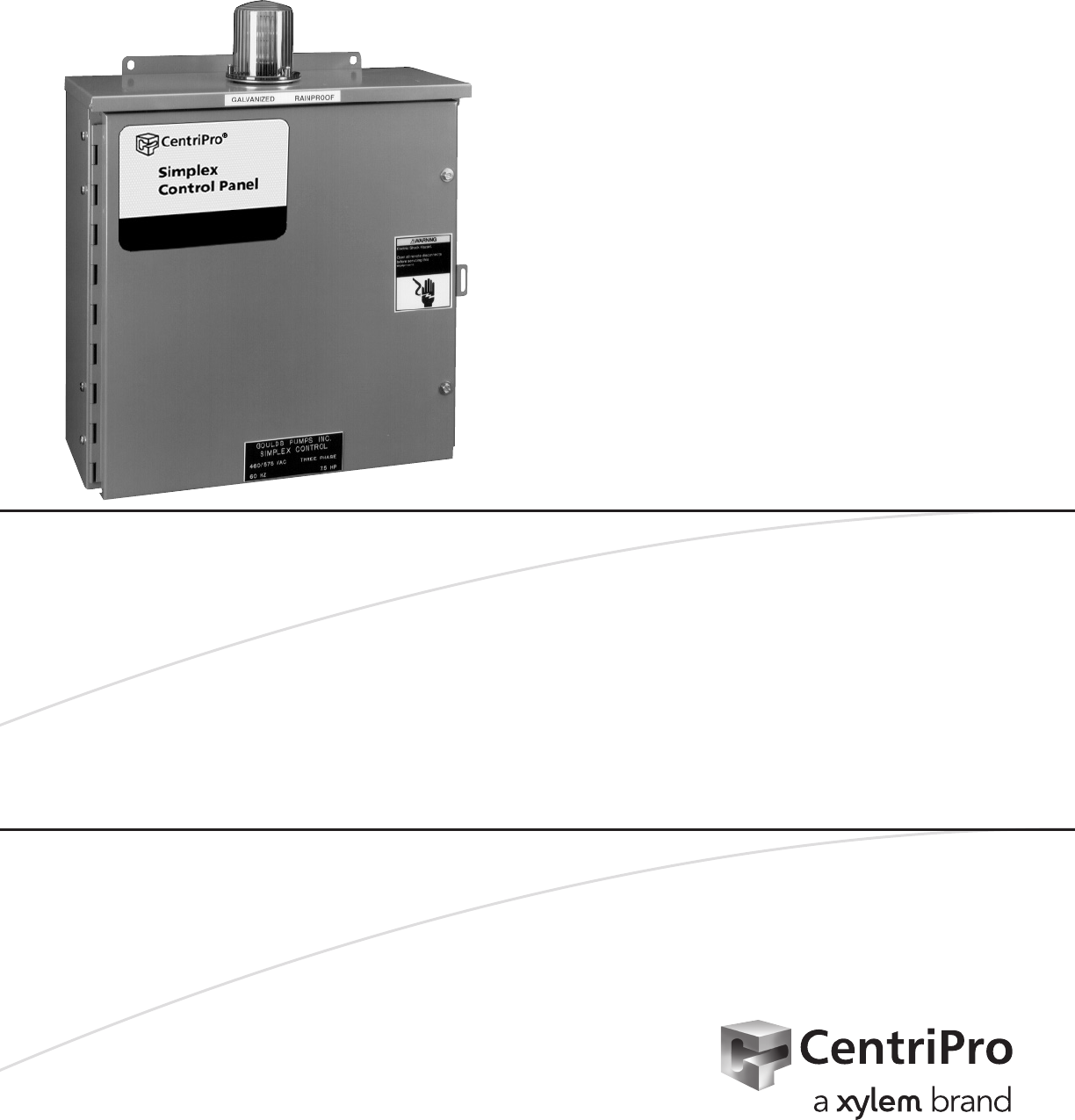

W3 SIMPLEX WASTEWATER
CONTROL PANELS
TECHNICAL BROCHURE
BCPW3P R9
PAGE 2
Wastewater
CentriPro
Enclosure Options – if options are required please order the panel as W3- – – – – SPL followed by the desired op-
tions listed in numeric order on your purchase order. If more than three options are needed please complete
and fax us a Panel Quote Request Form along with the engineer’s (end user’s) written specications.
Fax requests to Technical Support at (315) 568-7644
THREE PHASE, 60 HZ
Provides automatic or manual pump operation, three leg motor protection and optional recommended seal
failure and over temperature circuits.
FEATURES
NEMA 3R, raintight, dead-front enclosure
Pump circuit breakers
Control circuit transformers
Transformer circuit breaker (primary side)
Surge arrestor
Control circuit fusing
NEMA Rated Starter with solid-state, Class 5, 10, 20,
30, adjustable overloads. The solid-state, adjustable
overload also provides protection against phase-loss
or single-phasing, and phase on balance.
Locking hasp
Manual reset high level alarm circuit
Flashing red Lexan alarm light
Pump run lights
Hand-off-auto selectors.
Provision for separate 120 VAC control circuit.
All panels and options UL and CSA listed.
Dry contacts for remote alarm activation
Notes:
• Level control switches required, order switches
separately.
• Audible alarm devices, bell or horn, are not included
as standard equipment.
Order No. HP Volts Order No. HP Volts Where Used
W3-7532 7½ 208/230 W3-7534 7½ 460/575
4NS
4XD
4DWC
4XWC
GV
W3-1132 10 208/230 W3-1134 10 460/575
W3-1532 15 208/230 W3-1534 15 460/575
W3-2132 20 208/230 W3-2134 20 460/575
W3-3132 30 208/230 W3-2534 25 460/575
Field adjustable from 230 to 208 VAC and 460 to 575 VAC. W3-3134 30 460/575
Rating Optional Enclosures Order No.
NEMA 4 Steel, Hinged Door 3175
NEMA 4X Fiberglass, Hinged Door 3185
NEMA 12 Steel, Hinged Door 3195
NOTE: Consult factory for enclosure types not listed.
PAGE 3
Wastewater
CentriPro

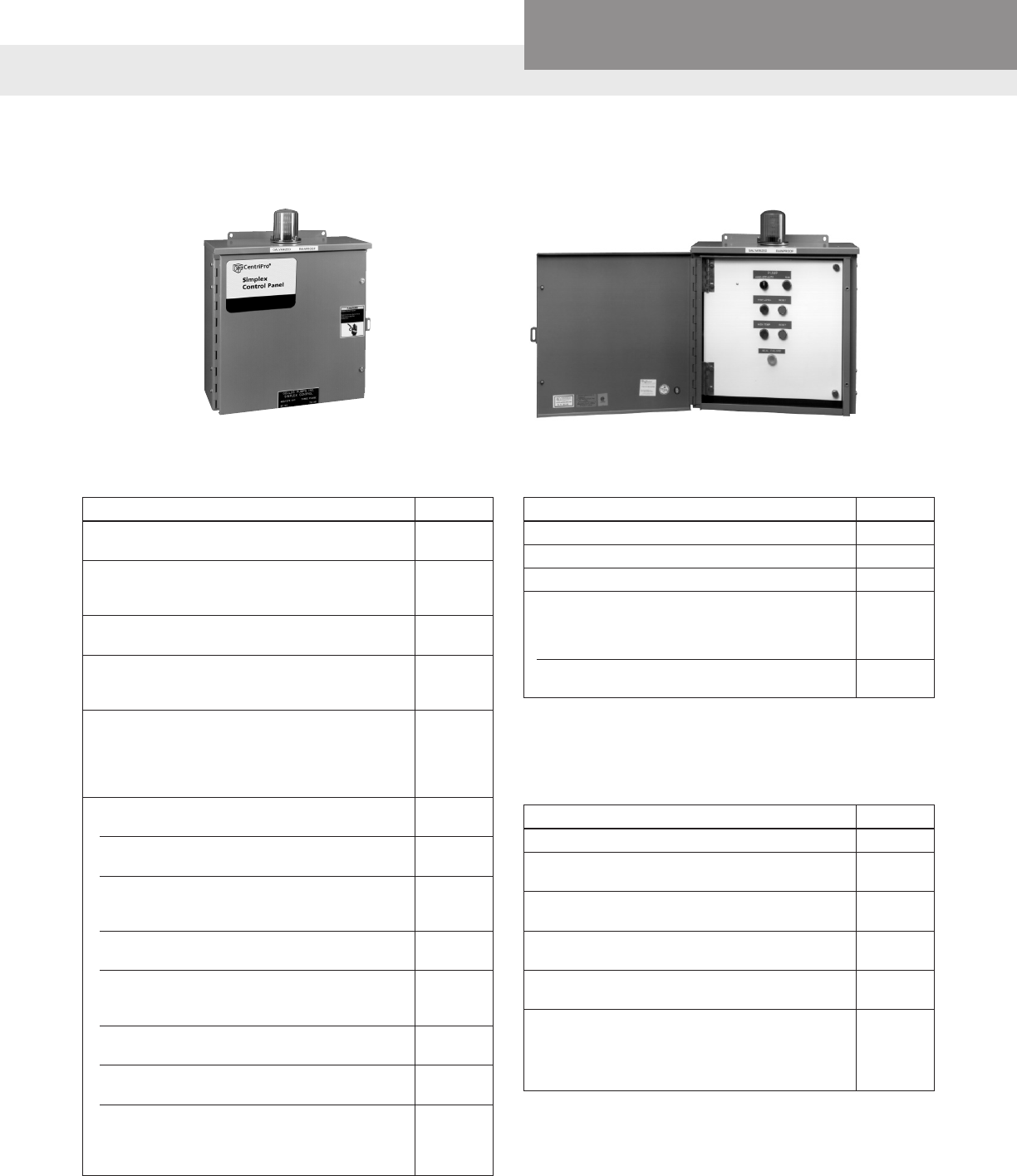

Control Panel Options
ALARM CIRCUITS ALARM DEVICES (can be added to simplex or duplex controls)
ADDITIONAL ACCESSORIES
Order No.
1. Additional alarm circuit. (Provides a second high
or low level alarm system.) 3310L
2. Guaranteed pump submergence circuit.
(Overrides manual and automatic operation of
pumps.)
3320
3. Extra set of dry contacts. (Used for signal of
remote alarm device.)
Call
Factory
4. Low voltage, phase loss and reversal circuit.
(Three phase only, stops pumps and closes non-
powered contacts.)
3370
5. Seal fail/high temperature circuit. Monitors
moisture sensor/monitors heat sensor. (Seal fail
3351/high temperature 3356 recommended.)
A. Seal fail with test push button and pilot light.
(No pump shutdown.)
3350
B. Seal fail with test push button, pilot light and
manual reset. (No pump shutdown.) 3351
C. Seal fail with test push button, pilot light,
manual reset and pump shutdown. 3352
D. Seal fail with test push button, pilot light,
manual reset and dry contacts. (No pump
shutdown.)
3353
E. High temperature with pump shutdown, test
push button, auto reset and no pilot light. 3355
F. High temperature with pump shutdown, test
push button, auto restart and manual reset
pilot light.
3356
G. High temperature with pump shutdown, auto
reset and no pilot light. 3357
H. High temperature with pump shutdown,
manual restart and pilot light. 3358
I. Simplex Mini CAS, seal fail and high temp.
(control and status) circuit for 1GA, 2GA;
15GDS/GXS or 20GDS/GXS; GV Plus and
Impact pumps.
3805
Order No.
4" bell with silence 6425
Grille Horn with silence 6450
Flashing red light – Lexan 6480
Remote alarm panel (includes: 4" bell silencer
switch, and indicator light; rated NEMA 3/3R)
A. Alarm requiring separate power; 115 V power
supply (Signaled by dry contacts in main panel.)
6500
B. Alarm to be powered by main panel. (Signaled
by powered contacts in main panel.) 6510
NOTE: When ordering alarm devices, please note desired voltage
and mounting location; top, side, front, etc.
Order No.
1. Condensation heater – 115 V 3710
2. Elapsed time meter. (Mounted inside cabinet
indicates pump run time.) 3740
3. Cycle counter. (Mounted inside cabinet indicates
number of pump starts.) 3750
4. Intrinsically safe controls. (One required for each
oat.) 3760
5. Float switch test push buttons. (Overrides oat
switches to simulate operation of level controls.) 3780
6. Convenience outlet (GFI) with circuit breaker
protection, mounted internally.
Single phase, 20 amp includes
1.5 KVA transformer
3785
Xylem Inc.
2881 East Bayard Street Ext., Suite A
Seneca Falls, NY 13148
Phone: (866) 325-4210
Fax: (888) 322-5877
www.centripro.com
CentriPro is a trademark of Xylem Inc. or one of its subsidiaries.
© 2015 Xylem Inc. BCPW3P R9 January 2015
