Product Information Packet

EM3581T

1HP,1760RPM,3PH,60HZ,143T,0519M,TEFC,F1

Copyright © All product information within this document is subject to Baldor Electric Company copyright © protection, unless otherwise noted.

Page 2 of 10

Product Information Packet: EM3581T - 1HP,1760RPM,3PH,60HZ,143T,0519M,TEFC,F1

Part Detail

Revision: KStatus: PRD/A Change #: Proprietary: No

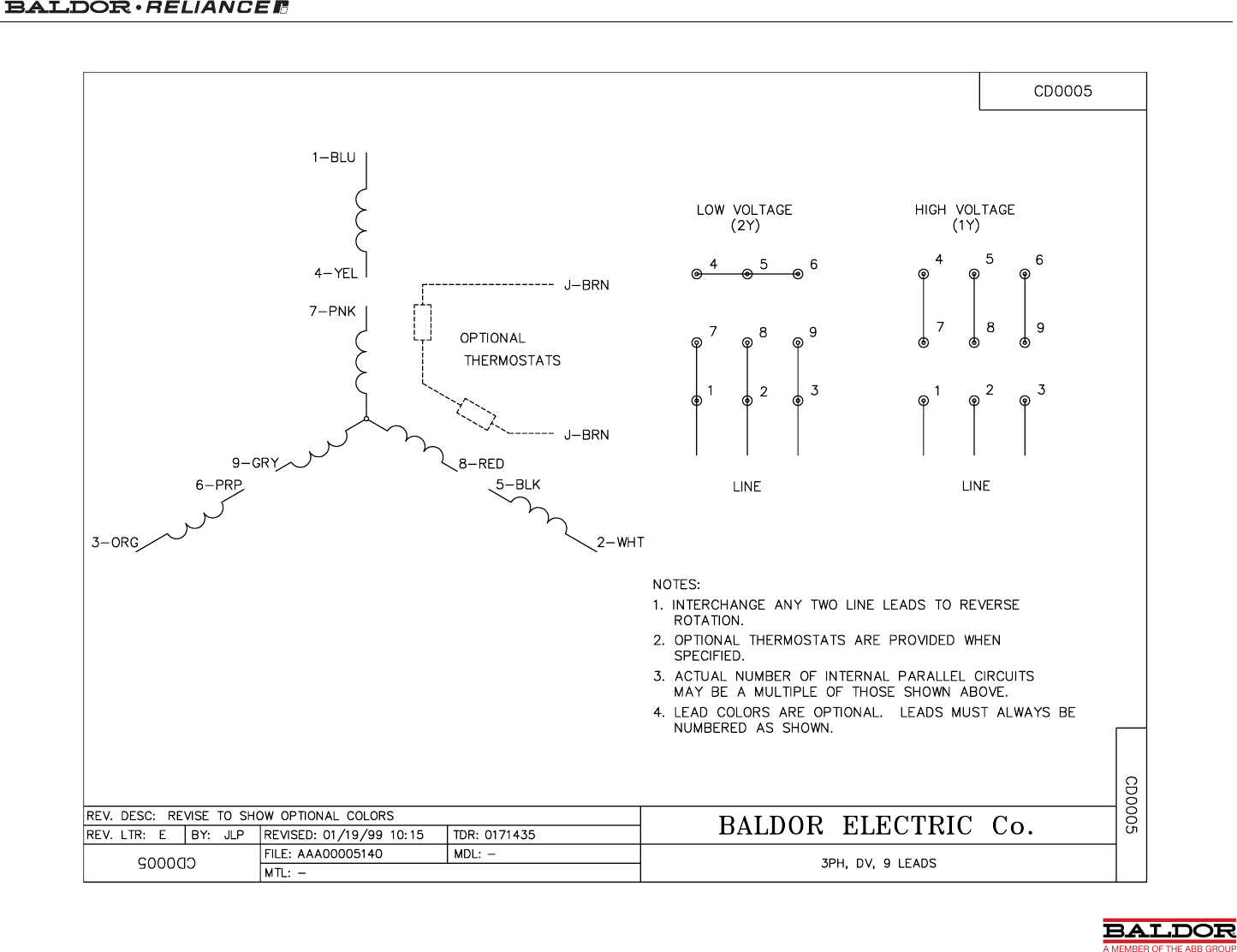

Type: AC Prod. Type: 0518M Elec. Spec: 05WGX122 CD Diagram: CD0005

Enclosure: TEFC Mfg Plant: Mech. Spec: 05C001 Layout: 05LYC001

Frame: 143T Mounting: F1 Poles: 04 Created Date: 08-03-2010

Base: RG Rotation: RInsulation: FEff. Date: 10-16-2015

Leads: 9#18 Replaced By:

Literature: Elec. Diagram:

Page 3 of 10

Product Information Packet: EM3581T - 1HP,1760RPM,3PH,60HZ,143T,0519M,TEFC,F1

Nameplate NP3441LUA

CAT.NO. EM3581T

SPEC. 05C001X122G1

HP 1

VOLTS 230/460

AMP 3/1.5

RPM 1760

FRAME 143T HZ 60 PH 3

SER.F. 1.15 CODE LDES BCL F

NEMA-NOM-EFF 85.5 PF 71

RATING 40C AMB-CONT

CC 010A USABLE AT 208V 3.1

DE 6205 ODE 6203

ENCL TEFC SN

VPWM INVERTER READY

CT6-60H(10:1)VT3-60H(20:1

50Hz 1HP 190/380V 3.6/1.8A SF1.0

Page 4 of 10

Product Information Packet: EM3581T - 1HP,1760RPM,3PH,60HZ,143T,0519M,TEFC,F1

Parts List

Part Number Description Quantity

SA201056 SA 05C001X122G1 1.000 EA

RA188361 RA 05C001X122G1 1.000 EA

34FN3002B01 EXTERNAL FAN, PLASTIC, .637/.639 HUB W/ 1.000 EA

S/P107-000-001 SUPER E PROC'S-FS, WS & CK PLTS 1.000 EA

06CB3000 BALDOR CONDUIT BOX CAST 1.000 EA

06GS1000 GASKET,CONDUIT BOX 1.000 EA

51XW2520A12 SCREW, HEX SER SLT HD, ZN, 1/4-20 X .75 2.000 EA

51XW2520A12 .25-20 X .75, TAPTITE II, HEX WSHR SLTD 2.000 EA

11XW1032G06 10-32 X .38, TAPTITE II, HEX WSHR SLTD U 1.000 EA

HW3001B02 1RASS CUP WASHER W/GROUND SYMBOL TAB, 1.000 EA

35EP1100A02 FR ENDPLATE, TEFC W/GREASER 1.000 EA

HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA

HW5100A03SP WAVY WASHER (W1543-017) 1.000 EA

35EP1102A02 PU ENDPLATE, MACH 1.000 EA

HW4500A01 1641B(ALEMITE)400 UNIV, GREASE FITT 1.000 EA

HA3100A37 THRUBOLT 10-32 X 8.500 4.000 EA

XY1032A02 10-32 HEX NUT DIRECTIONAL SERRATION 4.000 EA

51XB1214A16 12-14X1.00 HXWSSLD SERTYB 1.000 EA

35FH4005A02SP IEC FH W/GREASER - W/PRIMER 1.000 EA

51XW1032A06 10-32 X .38, TAPTITE II, HEX WSHR SLTD S 3.000 EA

06CB3500 BALDOR CONDUIT BOX LID 1.000 EA

06GS1001 BALDOR CONDUIT BOX GASKET 1.000 EA

HW2501D13SP KEY, 3/16 SQ X 1.375 1.000 EA

HA7000A01 KEY RETAINER 7/8" DIA SHAFT 1.000 EA

Page 5 of 10

Product Information Packet: EM3581T - 1HP,1760RPM,3PH,60HZ,143T,0519M,TEFC,F1

Parts List (continued)

Part Number Description Quantity

85XU0407S04 4X1/4 U DRIVE PIN STAINLESS 2.000 EA

MJ1000A02 GREASE, POLYREX EM EXXON (USe 4824-15A) 0.050 LB

MG1000Y03 MUNSELL 2.53Y 6.70/ 4.60, GLOSS 20, 0.022 GA

LC0005E01 CONN.DIA./WARNING LABEL (LC0005/LB1119N) 1.000 EA

NP3441LUA ALUM SUPER-E VPWM INV READY UL 1.000 EA

36PA1000 PKG GRP, PRINT PK1016A06 1.000 EA

MN416A01 TAG-INSTAL-MAINT no wire (1400/bx) 11/14 1.000 EA

Page 6 of 10

Product Information Packet: EM3581T - 1HP,1760RPM,3PH,60HZ,143T,0519M,TEFC,F1

Accessories

Part Number Description Multiplier

35-1300 C FACE KIT A8

Page 7 of 10

Product Information Packet: EM3581T - 1HP,1760RPM,3PH,60HZ,143T,0519M,TEFC,F1

AC Induction Motor Performance Data

Record # 53432 - Typical performance - not guaranteed values

Winding: 05WGX122-R023 Type: 0519M Enclosure: TEFC

Nameplate Data 460 V, 60 Hz:

High Voltage Connection

Rated Output (HP) 1Full Load Torque 2.97 LB-FT

Volts 230/460 Start Configuration direct on line

Full Load Amps 3/1.5 Breakdown Torque 12.5 LB-FT

R.P.M. 1760 Pull-up Torque 6.16 LB-FT

Hz 60 Phase 3Locked-rotor Torque 8.49 LB-FT

NEMA Design Code BKVA Code LStarting Current 12.1 A

Service Factor (S.F.) 1.15 No-load Current 1 A

NEMA Nom. Eff. 85.5 Power Factor 71 LinelineRes.@25ºC 15.2Ω

Rating - Duty 40C AMB-CONT Temp. Rise @ Rated Load 30°C

S.F. Amps Temp. Rise @ S.F. Load 35°C

Rotor inertia 0.112 LB-FT2

Load Characteristics 460 V, 60 Hz, 1 HP

% of Rated Load 25 50 75 100 125 150 S.F.

Power Factor 30 49 62 71 76 80 74

Efficiency 72 81.9 84.8 85.8 85.4 84.5 85.6

Speed 1791 1781 1772 1761 1749 1737 1754

Line amperes 1.05 1.15 1.33 1.54 1.79 2.07 1.69

Page 8 of 10

Product Information Packet: EM3581T - 1HP,1760RPM,3PH,60HZ,143T,0519M,TEFC,F1

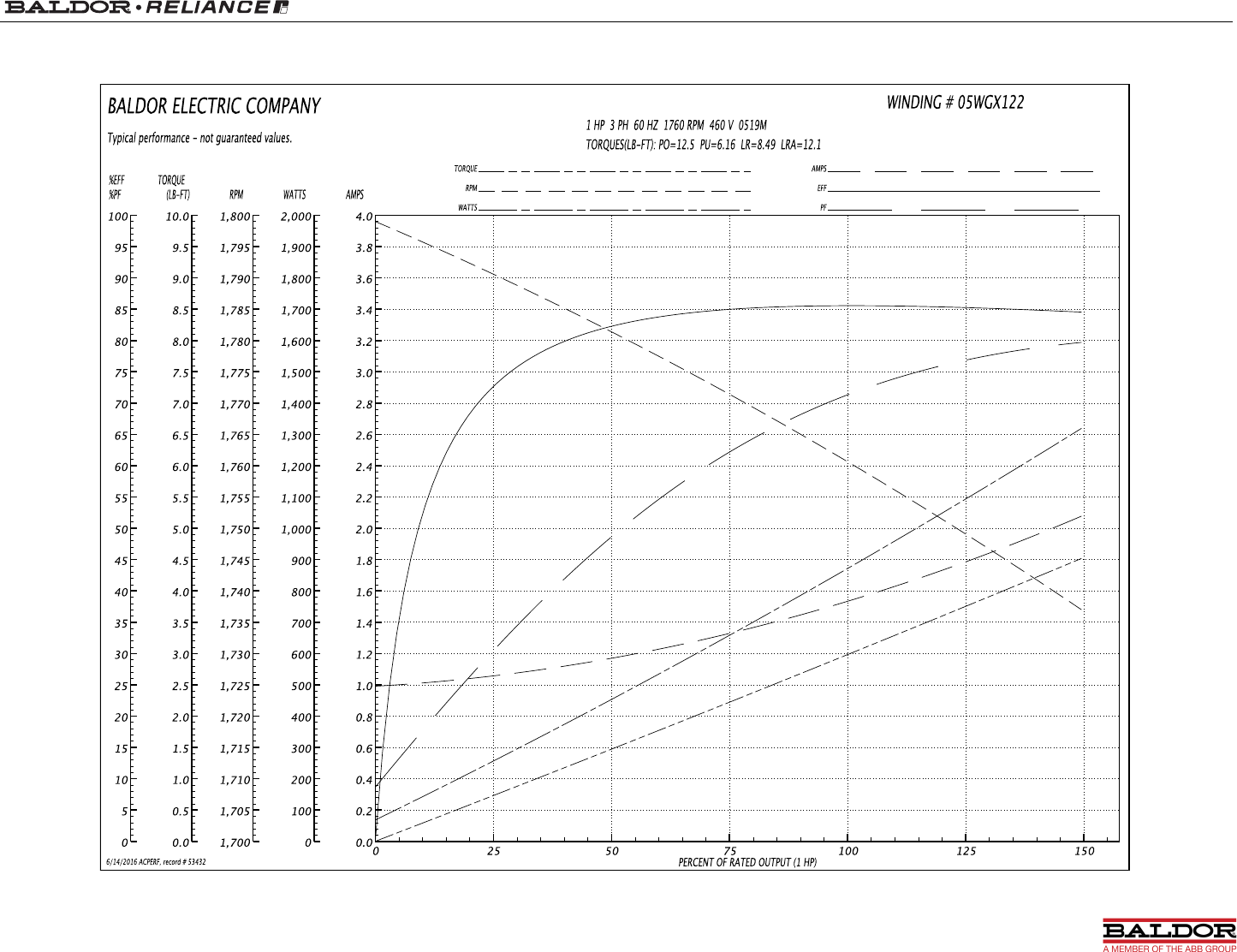

Performance Graph at 460V, 60Hz, 1.0HP Typical performance - Not guaranteed values

Page 9 of 10

Product Information Packet: EM3581T - 1HP,1760RPM,3PH,60HZ,143T,0519M,TEFC,F1

6.50

10.38

7.50

5.19

2.75 2.75

3.50

-

.06

+

.00

6.38

LEAD HOLE

1.09 DIA.

4.00

4.00

5.00

5.88

7.19

2.25

2.50

2.25

.8750

.8745

(513-535) =

12.53

GREASE FITTING

(EA. END)

8 HOLES

.38 DIA.

.19 KEY

1.38 LONG

D

C

B

A

A

B

C

D

1

2

3

4

5

6

7

8

8

7

6

5

4

3

2

1

E

F

E

F

05LYC001

000000568497

05LYC001

10:40:05 11/23/2010

J

ENMATR0

CHG SHEET SIZE

05LYC001

REF:

TDR:

VERSION:

MODEL NO.

REVISED:

BY:

REV:

REV. DESC:

HORZ 143-5T TEFC 305M

BALDOR ELECTRIC Co.

D

02

D

C

B

A

A

B

C

D

1

2

3

4

5

6

7

8

8

7

6

5

4

3

2

1

05LYC001

B

HORZ 143-5T TEFC 305M

REV. DESC:

REV:

BY:

REVISED:

MODEL NO.

VERSION:

TDR:

REF:

05LYC001

CHG SHEET SIZE

ENMATR0

J

10:40:05 11/23/2010

000000568497

02

05LYC001

CUSTOMER IS RESPONSIBLE FOR DETERMINING THAT BALDOR'S PRODUCT WILL PERFORM SUITABLY IN THE INTENDED APPLICATION
