547766 4 Berkeley B1WP Type B Repair Parts

: Pump 547766 4 Berkeley B1Wp Type B Repair Parts 547766_4_Berkeley B1WP Type B Repair Parts pdf

Open the PDF directly: View PDF PDF.
Page Count: 6

© 2013 Pentair Ltd. All Rights Reserved. S4855BK
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.berkeleypumps.COM PH: 888-237-5353 ORDERS FAX: 800-321-8793
Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
1789 0595
1
810
69
73
2
13A (7/8 U)
13B (1-1/4 U)
14A (7/8 U)
14B (1-1/4 U)
17A (7/8 U)
17B (1-1/4 U)
801A (7/8 U)
801B (1-1/4 U)
802
800A (4-1/2 AK)
800B (8-1/2 AK)
26A (7/8 U)
26B (1-1/4 U)
800C (8-1/2 AK)
800A (4-1/2 AK)
71
Section CC
Page 10.1
Date March 4, 2013
Supersedes 01/01/04

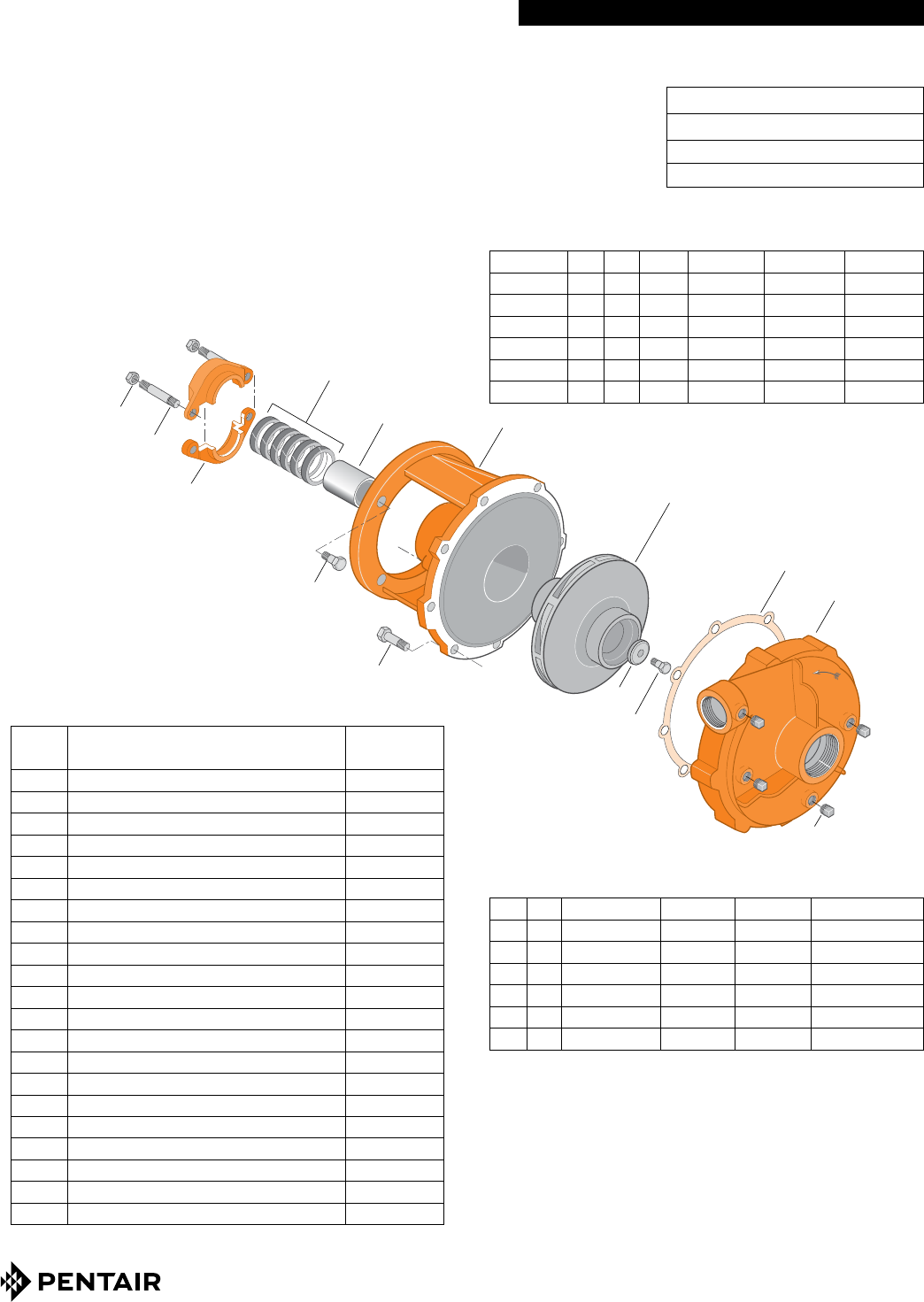

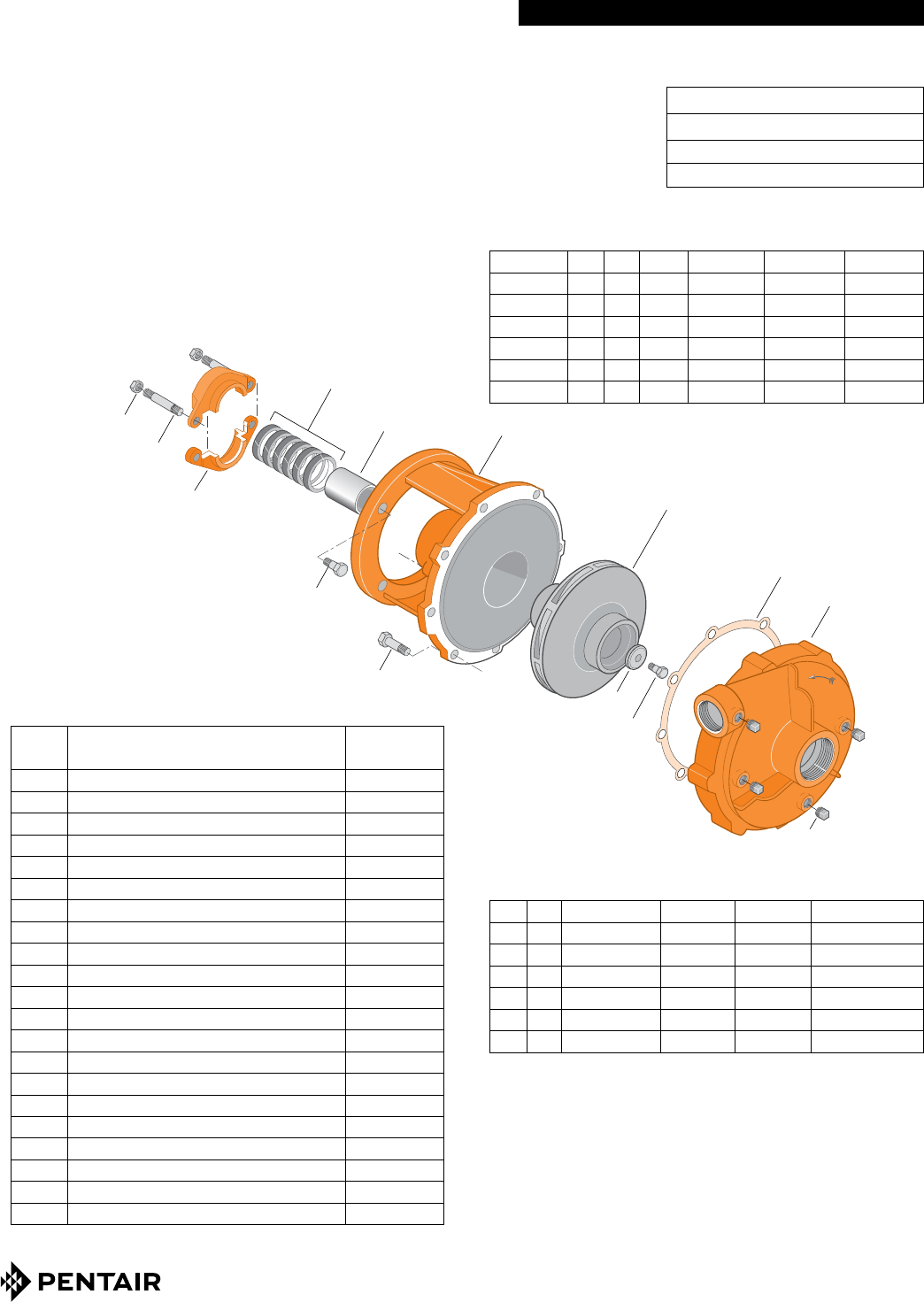

ELECTRIC MOTOR DRIVE
Threaded Case (NPT), Packing Construction
BERKELEY® B1WP
Bronze Impeller
TYPE ‘‘B’’ SINGLE STAGE CENTRIFUGAL PUMP
Table I
B/M No. HP PH RPM "U" Dim. Imp. Dia. Imp. No.
B55567
These B/M Numbers
Are No Longer Available.
See Page 10.1.1 for Current Models.
B53697
B55568
B55569
B58132
B55570
Table II
HP PH Bracket No. "AK" Fit "U" Dim. Motor Frame
3 1 H00950 4-1/2" 7/8" 182JP
3 3 H00950 4-1/2" 7/8" 154JP
5 1 H00950 4-1/2" 7/8" 184JP
5 3 H00950 4-1/2" 7/8" 182JP
7.5 1 L03827 8-1/2" 1-1/4" 213JP
7.5 3 H00950 4-1/2" 7/8" 184JP
Item
No.
Part
Description
Part
Number
1 Case, Volute L04022
2 Impeller See Table I
13A Rings, Packing (Set of 7) S15094
13B Rings, Packing (Set of 6) S13470
14A Sleeve, Shaft (2 Req.) S00619
14B Sleeve, Shaft S05149
17A Gland, Packing B82469
17B Gland, Packing B82470
26A Screw, Impeller 3/8 - 16 x 1" S23566
26B Screw, Impeller 1/2 - 13 x 1-1/4" S23621
32 Key, 3/16 x 1-1/4" (See Note) S34383
69 Washer, Impeller S16239
71 Bracket See Table II
73 Gasket, Volute S05126
800A Capscrew, 3/8 - 16 x 1" (12 Req.) S26826
800B Capscrew, 3/8 - 16 x 1-1/8" (8 Req.) S26827
800C Capscrew, 1/2 - 13 x 1-1/2" (4 Req.) S26916
801A Stud, 3/8 - 16 x 3" (2 Req.) S04439
801B Stud, 3/8 - 16 x 4" (2 Req.) S08303
802 Nut, Hex 3/8 - 16 (2 Req.) S23343
810 Plug, Pipe 1/4 NPT (4 Req.) S23715
NOTE: For an explanation of the tabulated material found on
this page and for impeller key location, refer to Supplement A
located at the beginning of this section.
© 2013 Pentair Ltd. All Rights Reserved. S4855BK
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.berkeleypumps.COM PH: 888-237-5353 ORDERS FAX: 800-321-8793
Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
1789 0595
1
810
69
73
2
13A (7/8 U)
13B (1-1/4 U)
14A (7/8 U)
14B (1-1/4 U)
17A (7/8 U)
17B (1-1/4 U)
801A (7/8 U)
801B (1-1/4 U)
802
800A (4-1/2 AK)
800B (8-1/2 AK)
26A (7/8 U)
26B (1-1/4 U)
800C (8-1/2 AK)
800A (4-1/2 AK)
71
Section CC
Page 10.1.1
Date March 4, 2013
Supersedes 01/01/04
ELECTRIC MOTOR DRIVE
Threaded Case (NPT), Packing Construction
BERKELEY® B1WP
Bronze Impeller
TYPE ‘‘B’’ SINGLE STAGE CENTRIFUGAL PUMP
Table I
B/M No. HP PH RPM "U" Dim. Imp. Dia. Imp. No.
B55567S 3 1 3600 7/8" 5.75" H05454
B53697S 3 3 3600 7/8" 5.75" H05454
B55568S 5 1 3600 7/8" 6.69" H05455
B55569S 5 3 3600 7/8" 6.69" H05455
B58132S 7.5 1 3600 1-1/4" 7.50" H05457
B55570S 7.5 3 3600 7/8" 7.50" L07923
Table II
HP PH Bracket No. "AK" Fit "U" Dim. Motor Frame
3 1 H00950 4-1/2” 7/8” 182JP
3 3 H00950 4-1/2” 7/8” 154JP
5 1 H00950 4-1/2” 7/8” 184JP
5 3 H00950 4-1/2” 7/8” 182JP
7.5 1 L03827 8-1/2” 1-1/4” 213JP
7.5 3 H00950 4-1/2” 7/8” 184JP
Item
No.
Part
Description
Part
Number
1 Case, Volute L04022
2 Impeller See Table I
13A Rings, Packing (Set of 7) S15094
13B Rings, Packing (Set of 6) S13470
14A Sleeve, Shaft (2 Req.) S00619
14B Sleeve, Shaft S05149
17A Gland, Packing B82469
17B Gland, Packing B82470
26A Screw, Impeller 3/8 - 16 x 1" S23566
26B Screw, Impeller 1/2 - 13 x 1-1/4" S23621
32 Key, 3/16 x 1-1/4" (See Note) S34383
69 Washer, Impeller S16239
71 Bracket See Table II
73 Gasket, Volute S05126
800A Capscrew, 3/8 - 16 x 1" (12 Req.) S26826
800B Capscrew, 3/8 - 16 x 1-1/8" (8 Req.) S26827
800C Capscrew, 1/2 - 13 x 1-1/2" (4 Req.) S26916
801A Stud, 3/8 - 16 x 3" (2 Req.) S04439
801B Stud, 3/8 - 16 x 4" (2 Req.) S08303
802 Nut, Hex 3/8 - 16 (2 Req.) S23343
810 Plug, Pipe 1/4 NPT (4 Req.) S23715
NOTE: For an explanation of the tabulated material found on
this page and for impeller key location, refer to Supplement A
located at the beginning of this section.
© 2013 Pentair Ltd. All Rights Reserved. S4855BK
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.berkeleypumps.COM PH: 888-237-5353 ORDERS FAX: 800-321-8793
Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
1710 0295 A
T
r
u
a
r
c
1
810
815
800A
800B (4-1/2 AK)
800C (8-1/2 AK)
805
71
26
69
73
2
89
14
Section CC
Page 10.2
Date March 4, 2013
Supersedes 01/01/04

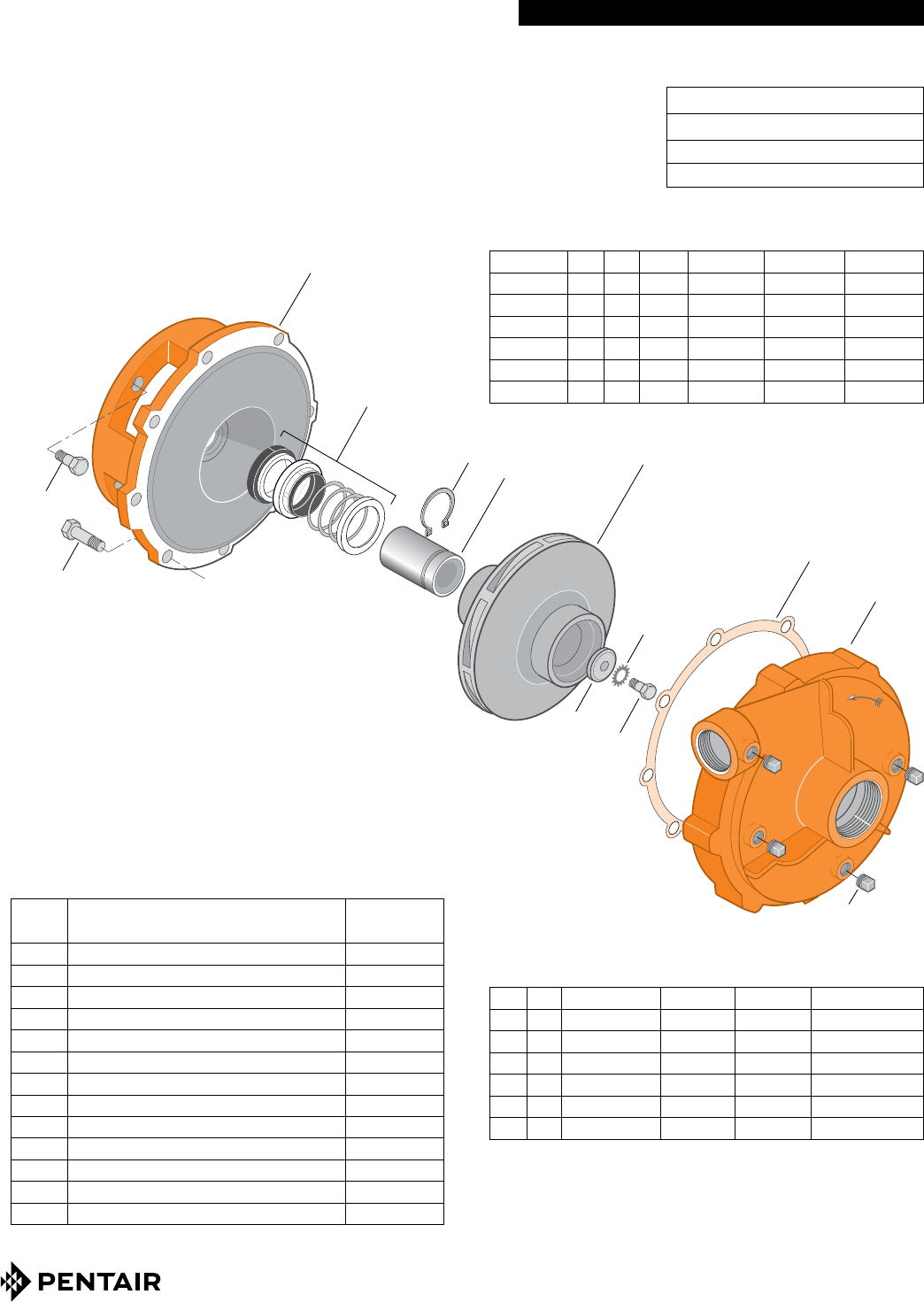

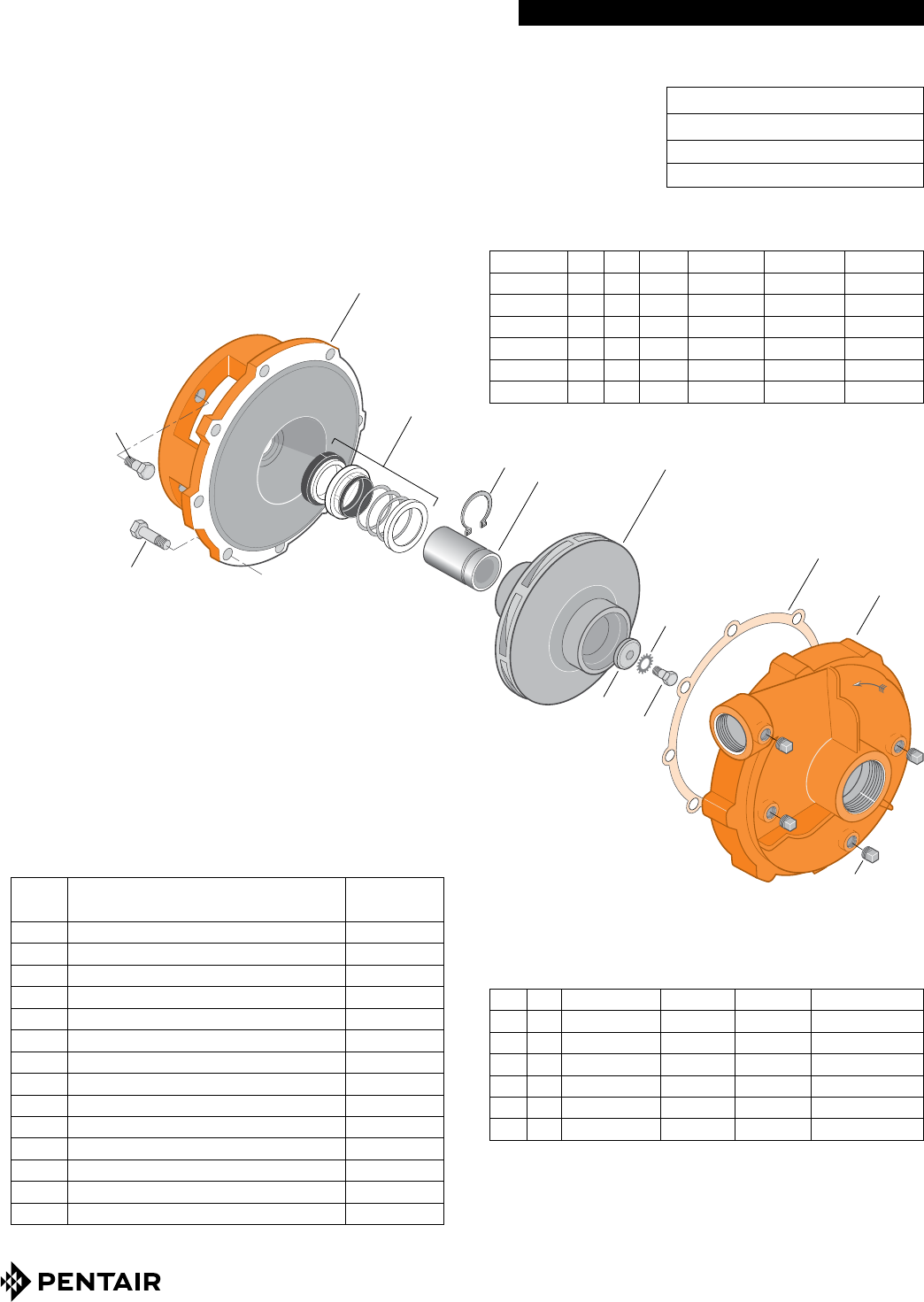

ELECTRIC MOTOR DRIVE
Threaded Case (NPT), Mechanical Shaft Seal Construction
BERKELEY® B1WPS
Bronze Impeller
TYPE ‘‘B’’ SINGLE STAGE CENTRIFUGAL PUMP
Table I
B/M No. HP PH RPM "U" Dim. Imp. Dia. Imp. No.
B54485
These B/M Numbers
Are No Longer Available.
See Page 10.2.1 for Current Models.
B54486
B54487
B54488
B54489
B54490
Table II
HP PH Bracket No. "AK" Fit "U" Dim. Motor Frame
3 1 L05332 4-1/2" 7/8" 182JM
3 3 L05332 4-1/2" 7/8" 154JM
5 1 L05332 4-1/2" 7/8" 184JM
5 3 L05332 4-1/2" 7/8" 182JM
7.5 1 L05331 8-1/2" 7/8" 213JM
7.5 3 L05332 4-1/2" 7/8" 184JM
Item
No.
Part
Description
Part
Number
1 Case, Volute L04022
2 Impeller See Table I
14 Sleeve, Shaft S19310L
26 Screw, Impeller 3/8 - 16 x 1" S23566
32 Key, 3/16 x 1-1/4" (See Note) S34383
69 Washer, Impeller S16239
71 Bracket See Table II
73 Gasket, Volute S05126
89 Seal, Mechanical Shaft S32014
800A Capscrew, 3/8 - 16 x 1" (8 Req.) S26826
800B Capscrew, 3/8 - 16 x 7/8" (4 Req.) S26825
800C Capscrew, 1/2 - 13 x 1" (4 Req.) S26192
810 Plug, Pipe 1/4 NPT (4 Req.) S23715
815 Ring, Retaining S11207
NOTE: For an explanation of the tabulated material found on
this page and for impeller key location, refer to Supplement A
located at the beginning of this section.
© 2013 Pentair Ltd. All Rights Reserved. S4855BK
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.berkeleypumps.COM PH: 888-237-5353 ORDERS FAX: 800-321-8793
Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
1710 0295 A
T
r
u
a
r
c
1
810
815
800A
800B (4-1/2 AK)
800C (8-1/2 AK)
805
71
26
69
73
2
89
14
Section CC
Page 10.2.1
Date March 4, 2013
Supersedes 01/01/04
ELECTRIC MOTOR DRIVE
Threaded Case (NPT), Mechanical Shaft Seal Construction
BERKELEY® B1WPS
Bronze Impeller
TYPE ‘‘B’’ SINGLE STAGE CENTRIFUGAL PUMP
Table I
B/M No. HP PH RPM "U" Dim. Imp. Dia. Imp. No.
B54485S 3 1 3600 7/8" 5.75" H05454
B54486S 3 3 3600 7/8" 5.75" H05454
B54487S 5 1 3600 7/8" 6.69" H05455
B54488S 5 3 3600 7/8" 6.69" H05455
B54489S 7.5 1 3600 7/8" 7.50" L07923
B54490S 7.5 3 3600 7/8" 7.50" L07923
Table II
HP PH Bracket No. "AK" Fit "U" Dim. Motor Frame
3 1 L05332 4-1/2" 7/8" 182JM
3 3 L05332 4-1/2" 7/8" 154JM
5 1 L05332 4-1/2" 7/8" 184JM
5 3 L05332 4-1/2" 7/8" 182JM
7.5 1 L05331 8-1/2" 7/8" 213JM
7.5 3 L05332 4-1/2" 7/8" 184JM
Item
No.
Part
Description
Part
Number
1 Case, Volute L04022
2 Impeller See Table I
14 Sleeve, Shaft S19310L
26 Screw, Impeller 3/8 - 16 x 1" S23566
32 Key, 3/16 x 1-1/4" (See Note) S34383
69 Washer, Impeller S16239
71 Bracket See Table II
73 Gasket, Volute S05126
89 Seal, Mechanical Shaft S32014
800A Capscrew, 3/8 - 16 x 1" (8 Req.) S26826
800B Capscrew, 3/8 - 16 x 7/8" (4 Req.) S26825
800C Capscrew, 1/2 - 13 x 1" (4 Req.) S26192
810 Plug, Pipe 1/4 NPT (4 Req.) S23715
815 Ring, Retaining S11207
NOTE: For an explanation of the tabulated material found on
this page and for impeller key location, refer to Supplement A
located at the beginning of this section.
© 2013 Pentair Ltd. All Rights Reserved. S4855BK
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.berkeleypumps.COM PH: 888-237-5353 ORDERS FAX: 800-321-8793
Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
1789 0595
1
810
69
73
2
13A (7/8 U)
13B (1-1/4 U)
14A (7/8 U)
14B (1-1/4 U)
17A (7/8 U)
17B (1-1/4 U)
801A (7/8 U)
801B (1-1/4 U)
802
800A (4-1/2 AK)
800B (8-1/2 AK)
26A (7/8 U)
26B (1-1/4 U)
800C (8-1/2 AK)
800A (4-1/2 AK)
71
Section CC
Page 10.3
Date March 4, 2013
Supersedes 10/01/95
ELECTRIC MOTOR DRIVE
Threaded Case (NPT), Packing Construction
BERKELEY® B1WP
Silicon Bronze Impeller
TYPE ‘‘B’’ SINGLE STAGE CENTRIFUGAL PUMP
Table I
B/M No. HP PH RPM "U" Dim. Imp. Dia. Imp. No.
B55567S 3 1 3600 7/8" 5.75" H05454
B53697S 3 3 3600 7/8" 5.75" H05454
B55568S 5 1 3600 7/8" 6.69" H05455
B55569S 5 3 3600 7/8" 6.69" H05455
B58132S 7.5 1 3600 1-1/4" 7.50" H05457
B55570S 7.5 3 3600 7/8" 7.50" L07923
Table II
HP PH Bracket No. "AK" Fit "U" Dim. Motor Frame
3 1 H00950 4-1/2" 7/8" 182JP
3 3 H00950 4-1/2" 7/8" 154JP
5 1 H00950 4-1/2" 7/8" 184JP
5 3 H00950 4-1/2" 7/8" 182JP
7.5 1 L03827 8-1/2" 1-1/4" 213JP
7.5 3 H00950 4-1/2" 7/8" 184JP
Item
No.
Part
Description
Part
Number
1 Case, Volute L04022
2 Impeller See Table I
13A Rings, Packing (Set of 7) S15094
13B Rings, Packing (Set of 6) S13470
14A Sleeve, Shaft (2 Req.) S00619
14B Sleeve, Shaft S05149
17A Gland, Packing S00393
17B Gland, Packing S12034
26A Screw, Impeller 3/8 - 16 x 1" S23566
26B Screw, Impeller 1/2 - 13 x 1-1/4" S23621
32 Key, 3/16 x 1-1/4" (See Note) S34383
69 Washer, Impeller S16239
71 Bracket See Table II
73 Gasket, Volute S05126
800A Capscrew, 3/8 - 16 x 1" (12 Req.) S26826
800B Capscrew, 3/8 - 16 x 1" (8 Req.) S26826
800C Capscrew, 1/2 - 13 x 1-1/2" (4 Req.) S26916
801A Stud, 3/8 - 16 x 3" (2 Req.) S004439
801B Stud, 3/8 - 16 x 4" (2 Req.) S08303
802 Nut, Hex 3/8 - 16 (2 Req.) S23343
810 Plug, Pipe 1/4 NPT (4 Req.) S23715
NOTE: For an explanation of the tabulated material found on
this page and for impeller key location, refer to Supplement A
located at the beginning of this section.
© 2013 Pentair Ltd. All Rights Reserved. S4855BK
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.berkeleypumps.COM PH: 888-237-5353 ORDERS FAX: 800-321-8793
Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
1710 0295
T
r
u
a
r
c
1
810
815
800A
800B
805
71
26
69
73
2
89
14
Section CC
Page 10.4
Date March 4, 2013
Supersedes 09/01/95
ELECTRIC MOTOR DRIVE
Threaded Case (NPT), Mechanical Shaft Seal Construction
BERKELEY® B1WPS
Silicon Bronze Impeller
TYPE ‘‘B’’ SINGLE STAGE CENTRIFUGAL PUMP
Table I
B/M No. HP PH RPM "U" Dim. Imp. Dia. Imp. No.
B54485S 3 1 3600 7/8" 5.75" H05454
B54486S 3 3 3600 7/8" 5.75" H05454
B54487S 5 1 3600 7/8" 6.69" H05455
B54488S 5 3 3600 7/8" 6.69" H05455
B54489S 7.5 1 3600 7/8" 7.50" L07923
B54490S 7.5 3 3600 7/8" 7.50" L07923
Table II
HP PH Bracket No. "AK" Fit "U" Dim. Motor Frame
3 1 L05332 4-1/2" 7/8" 182JM
3 3 L05332 4-1/2" 7/8" 154JM
5 1 L05332 4-1/2" 7/8" 184JM
5 3 L05332 4-1/2" 7/8" 182JM
7.5 1 L05331 8-1/2" 7/8" 213JM
7.5 3 L05332 4-1/2" 7/8" 184JM
Item
No.
Part
Description
Part
Number
1 Case, Volute L04022
2 Impeller See Table I
14 Sleeve, Shaft S19310
26 Screw, Impeller 3/8 - 16 x 1" S23566
32 Key, 3/16 x 1-1/4" (See Note) S34383
69 Washer, Impeller S16239
71 Bracket See Table II
73 Gasket, Volute S05126
89 Seal, Mechanical Shaft S32014
800A Capscrew, 3/8 - 16 x 1" (8 Req.) S26826
800B Capscrew, 3/8 - 16 x 7/8" (4 Req.) S26825
810 Plug, Pipe 1/4 NPT (4 Req.) S23715
815 Ring, Retaining S11207
NOTE: For an explanation of the tabulated material found on
this page and for impeller key location, refer to Supplement A
located at the beginning of this section.

Navigation menu
