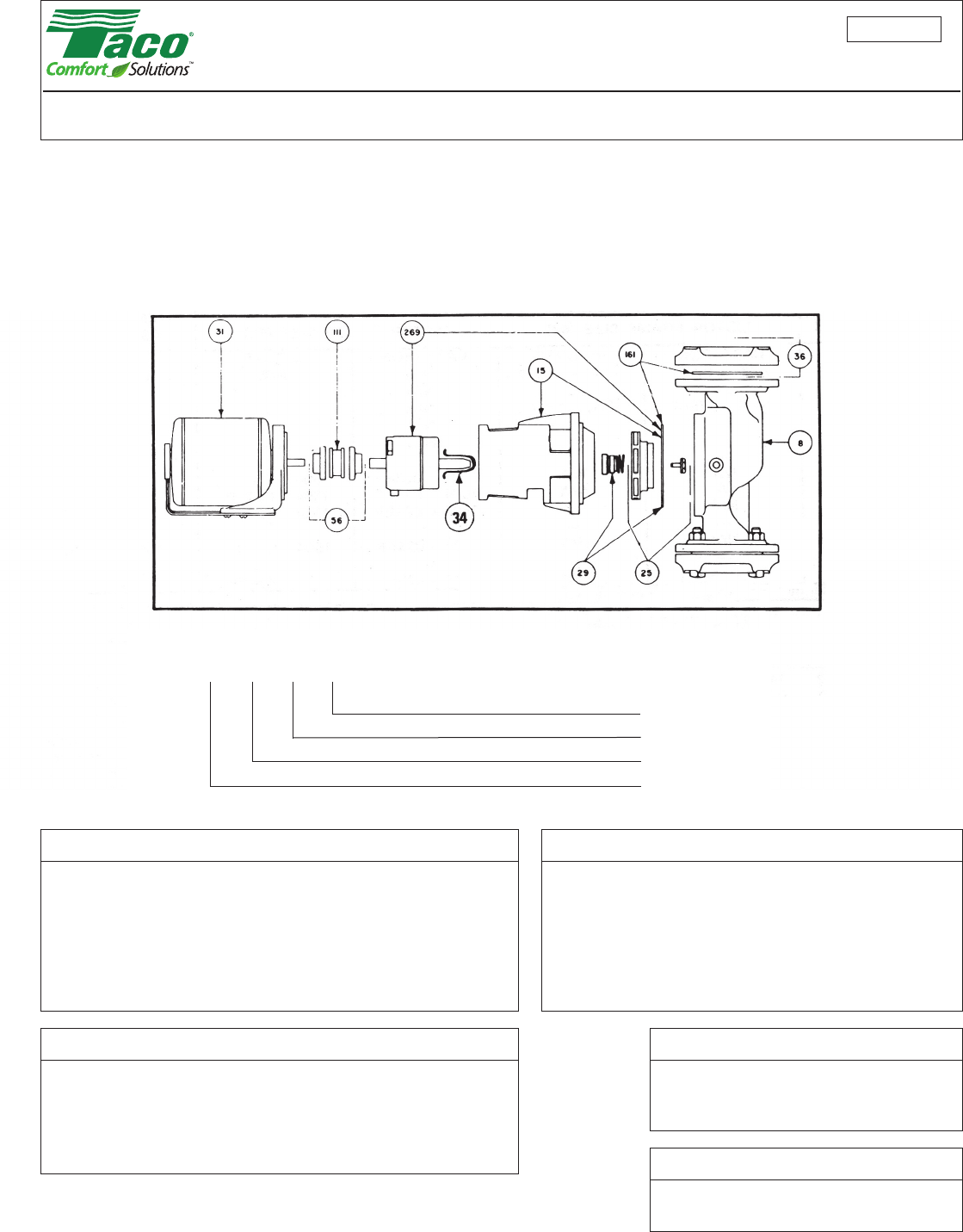

Replacement Parts List

Cartridge Design Pumps

121 thru 138 Pumps / 1600 Series Pumps

A Taco Family Company

304-001

SUPERSEDES: April 1, 2012 EFFECTIVE: January 12, 2017

IMPORTANT: When ordering, always specify part number, part name, and complete model number of pump.

Nameplate located on front of casing. For OEM models, please consult OEM.

MATERIAL OF CONSTRUCTION

X O O O

A CAST IRON PUMP & IMPELLER (OBSOLETE)

B ALL BRONZE PUMP & IMPELLER (OBSOLETE)

C CAST IRON PUMP AND BRONZE IMPELLER (OBSOLETE)

D ALL STAINLESS STEEL PUMP & IMPELLER

E CAST IRON PUMP AND STAINLESS STEEL IMPELLER

N ALL STAINLESS STEEL PUMP & IMPELLER (NSF 61 ONLY)

BRACKET DESIGN

O X O O O

1, 2 & 3 CURRENT STYLE PUMPS

MOTOR FRAME SIZE*/SHAFT DIA.

O O O X O

1 48 FRAME (1/4, 1/3, 1/2 HP) 1/2”

2 56 FRAME (3/4, 1 HP) 5/8”

3 56 FRAME (1 1/2, &2 HP) 5/8”

4 56 FRAME (3 HP) 5/8”

*Refer to standard motors only. See nameplate for other motors.

FLANGE TYPE

O O O O X

N NPT (STANDARD)

D DIN (EXPORT)

WATER SEAL KIT, ITEM #29 5/8” SHAFT

O O X O O

E (Standard) 1600-868CRP Ceramic/Carbon/EPT

(replaces 1600-846CRP, 1600-170RP and 1600 170ERP)

S (High Temp) 1600-868SRP Sealide-C/Sealide-C/Viton

(replaces 1600-846SRP and 1600-170HRP)

REPLACEMENT PARTS FOR (-9) AND SERIAL NUMBER CARTRIDGE DESIGN PUMPS

Form No. F304-001

BODY GASKETS WEAR RING

CAST IRON / BRZ / SS BRONZE -

used on SS casings only

1600 - 024RP

“

133 - 014RP

1600 - 024RP

133 - 014RP

“

1618 - 006

133 - 014RP

“

“

1618 - 006

“

1600 - 908L

1600 - 908L

1600 - 907L

1600 - 906L

N/A

1600 - 906L

1600 - 906L

1600 - 907L

1600 - 907L

1600 - 907L

1600 - 907L

1600 - 907L

ITEM #8 REPLACEMENT BODY

PUMP MOD. NO CAST IRON STAINLESS STEEL

(replaces bronze)

121

122

131, 32, 33 & 38’

1600, 10, 11’

1602, 1604’

1612, 14, 15

1616, 18, 19

1620, 22, 24

1630, 1632

1634, 1635

1636, 1638

1640, 1641

121-018RP

133-150RP

1610 001RP

N/A

1614-001RP

1618-004RP

1634-001RP

“

“

1640-002RP

“

121-018SRP

“

133-150SRP

1610-001SRP

N/A

1614-001SRP

1618-004SRP

1634-001SRP

“

“

1640-002SRP

“

ITEM #15 REPLACEMENT BRACKET ITEM #161

GASKET KIT

PUMP MOD. NO. MOTOR FRAME SIZE (48) MOTOR FRAME SIZE (56)

121, 122

1600, 10, 11

1602, 1604

1612, 20, 30

131, 132

1615 *

133, 138

1614, 22, 24

1632, 34

1635 *

1616, 36

1619 *

1638, 40, 41

CAST IRON

1600-155RP

“

1600-175RP

“

“

-

N/A

N/A

N/A

-

N/A

-

N/A

BRONZE / SS

1600-156RP

“

1600-176RP

“

“

-

N/A

N/A

N/A

-

N/A

-

N/A

CAST IRON

N/A

N/A

N/A

N/A

N/A

-

1604-023RP

1604-023RP

1604-023RP

-

1604-025RP

-

1604-025RP

BRONZE / SS

N/A

N/A

N/A

N/A

N/A

-

1604-024RP

1604-024RP

1604-024RP

-

1604-026RP

-

1604-026RP

1600-050RP

“

“

“

“

“

“

“

“

“

1618-006RP

“

“

*Select bracket, per motor frame size code in serial number

ITEM #25 REPLACEMENT IMPELLER ASSEMBLY

PUMP NO. (-9)PUMPS CURRENT

DIA

-9 CURRENT PUMP NO. (-9) PUMPS CURRENT DIA.

121, 122

131

132

133

138

1600

1602

1604

1610

1611*

1612

1614

1615*

1616

121-142SRP

131-075SRP

132-063SRP

133-075SRP

138-037SRP

1600-179SRP

1602-025SRP

1604-028SRP

1610-019SRP

N/A

1612-019SRP

1614-018SRP

N/A

1616-002SRP

121-142SRP

1630-023SRP

1630-023SRP

1632-022SRP

1634-023SRP

1610-020SRP

N/A

N/A

1610-019SRP

1611-001SRP

1612-019SRP

1614-01SRP

1615-001SRP

1616-002SRP

4.30

4.80

5.20

5.75

6.25

4.75

4.30

4.40

4.90

5.65

6.15

4.50

1618

1619*

1620

1622

1624

1630

1632

1634

1635*

1636

1638

1640

1641*

1618-001SRP

N/A

1620-022SRP

1622-020SRP

1624-040SRP

1630-022SRP

1632-022SRP

1634-023SRP

N/A

1636-001SRP

1638-001SRP

1640-001SRP

N/A

N/A

1619-001SRP

N/A

N/A

N/A

1630-022SRP

1632-022SRP

1634-023SRP

1635-001SRP

1636-001SRP

1638-001SRP

N/A

1641-001SRP

7.900

5.100

5.850

6.500

4.900

5.650

6.150

-

6.400

6.900

7.900

-

5.500

6.200

4.750

-

5.750

6.35

-

7.100

*When ordering, please advise diameter of impeller.

MOTOR ASSEMBLY LESS MOTOR

HP 115/60/1 115/230/60/1 200/60/3 230/460/60/3

¼

1⁄3

½

¾

1

1½

2

3

121-056RP

121-056RP

N/A

N/A

N/A

N/A

N/A

N/A

N/A

132-033RP

133-031RP

133-031RP

133-031RP

1636-004RP

N/A

N/A

N/A

132-033RP

133-031RP

133-031RP

133-031RP

1636-004RP

1636-004RP

N/A

N/A

132-033RP

133-031RP

133-031RP

133-031RP

1636-004RP

1636-004RP

121-079RP Motor Assy. L/Motor, for 56 Frame Motors on 48 Frame Pumps

OTHER REPLACEMENT PARTS

ITEM# DESCRIPTION PART NUMBER WHERE USED

34

56

56

111

111

111

269

56

56

SHAFT SLEEVE

COUPLER 4J (5/8 X 5/8”)

COUPLER 5J (5/8 X 5/8”)

RUBBER INSERT

RUBBER INSERT

RUBBER INSERT

CARTRIDGE ASSY.

ADAPTER PLATE

IMPELLER BOLT

IMPELLER WASHER

COUPLER 3J (5/8 X 1/2”)

COUPLER 4J (5/8 X 1/2”)

1600-205RP

1624-053RP

1624-041RP

1624-004RP

1624-020RP

900-512

1600-160RP-1

1600-194RP

1600-215RP

1600-151RP

1624-043RP

1624-030RP

All -9 and Serial Number Pumps

Inline Pumps ¾ thru 2 HP, 56 frame motor

All Inline Pumps 3 HP

All 4J Couplers

All 3J Couplers

All 5J Couplers

All 9- and Serial Number Pumps

All (Left Hand Thread)

All

All

All Inline Pumps 1/4 & 1/3 HP

Inline Pumps 1/2 HP, 48 frame motor

Note (1) When replacing item #8 body on 131, 132, 133, 138 and 1600C—1&—9, you must also order current style impeller.

Note (2) Body for the 1602 & 1604 are no longer available. Consult factory.

ITEM #31 REPLACEMENT MOTOR ASSEMBLY *

HP 115/60/1 115/230/60/1 200-230/460/60/3 **

1⁄4

1⁄3

1⁄2

3⁄4

1

11⁄2

2

3

121-151RP

131-143RP

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

132-096RP

133-119RP

138-119RP

1636-013RP

1638-012RP

N/A

N/A

N/A

1661-022RP

1661-023RP

1661-024RP

1661-025RP

1661-026RP

1661-027RP

HP 200-230/460/60/3

Motor No. **

** Replaces below

230/460/60/3 200/60/3

1⁄4

1⁄3

1⁄2

3⁄4

1

11⁄2

2

3

1661-022RP

1661-023RP

1661-024RP

1661-025RP

1661-026RP

1661-027RP

132-097RP

133-134RP

138-142RP

1636-010RP

1638-010RP

1640-010RP

132-066RP

133-140RP

138-148RP

1636-019RP

1638-015RP

1640-013RP

*When ordering other than standard, refer to nameplate, then consult factory.

** Replaces 200/60/3 and 230/460/60/3 models below.

ITEM #36 REPLACEMENT FLANGE SET

PUMP MOD. NO. STAINLESS STEEL

(replaces bronze) CAST IRON CURRENT OLD STYLE PUMPS

121

122

131, 32, 33 & 38

1600, 10, 11

1602, 1604

1612, 14, 15

1616, 18, 19

1620, 22, 24

1630, 1632

1634, 1635

1636, 1638

1640, 1641

1600-033SRP

1600-034SRP

“

1600-031SRP

“

“

1600-032SRP

“

“

“

1600-174SRP

“

1600-033RP

1600-034RP

“

1600-031RP

“

“

1600-032RP

“

“

“

1600-174RP

“

133-152RP

“

“

1600-169RP

“

“

“

“

“

“

“

“

131-019RP

“

“

1600-009RP

“

“

“

“

“

“

N/A

N/A

Telephone: (401) 942-8000 Fax: 942-2360

T Telephone: (905) 564-9422 Fax: (905) 564-9436

V

A Taco Family Company

2016

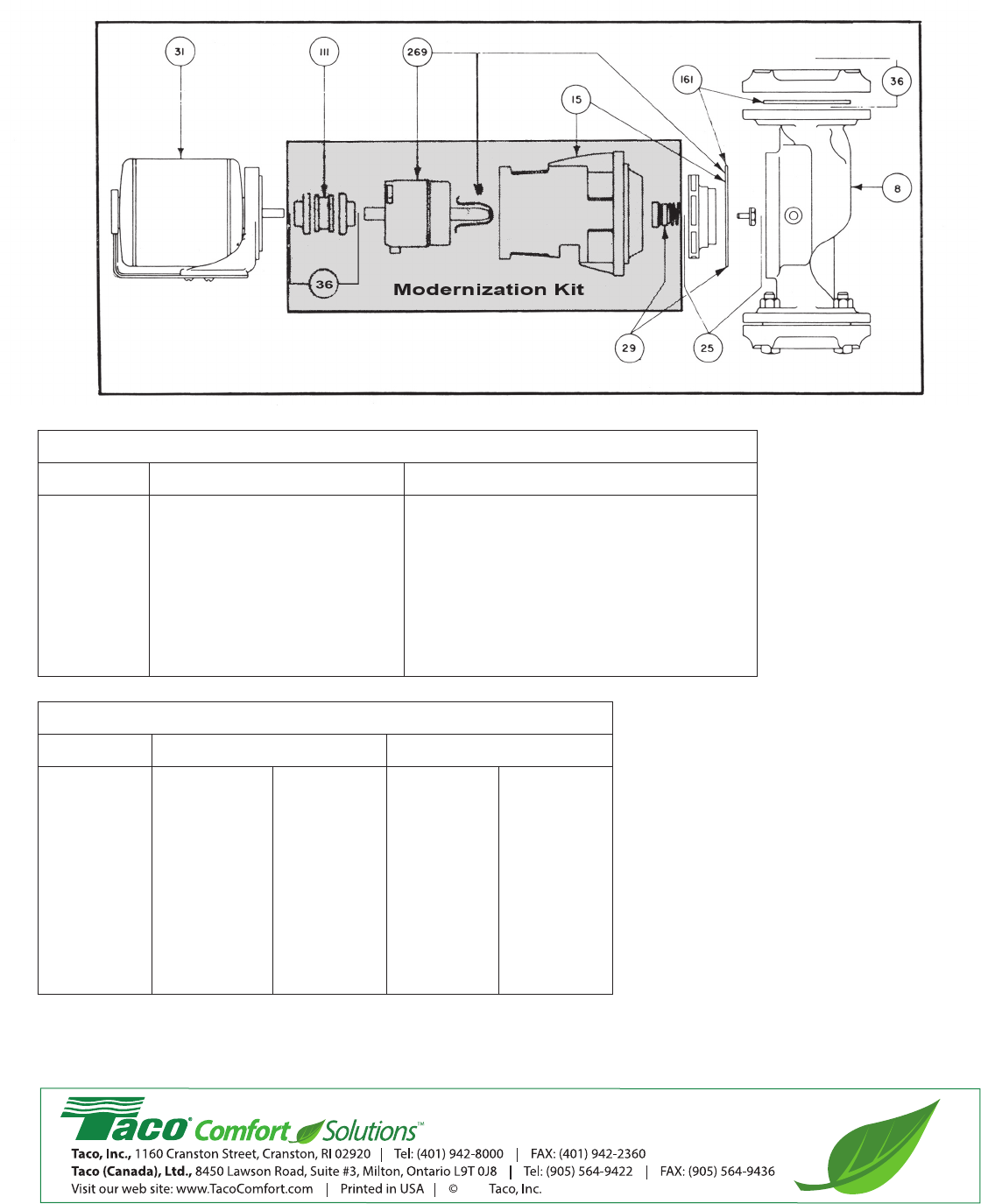

REPLACEMENT PARTS FOR OLD STYLE PUMPS AND CIRCULATORS *

*121+122-3-7, 132+133-3-6; 1600, 1602, 1604, 1610, 1612, 1614, 1620, 1622,1624, 1630, 1632, 1634-1 +C1.

OTHER REPLACEMENT PARTS

ITEM# DESCRIPTION WHERE USED

ITEM #8

ITEM #25

ITEM #29

ITEM #31

ITEM #36

ITEM #56

ITEM #111

ITEM #161

BODY

IMPELLER AND SHAFT ASSEMBLY

SEAL KIT (1/2”)

MOTOR ASSEMBLY

FLANGE SET

COUPLER

RUBBER INSERT

GASKET KIT

Same as —9 and Serial Number Pumps.

No longer available. Must purchase Item #74

Modernization Kit listed below, Plus -9 IMPELLER

Part No. 1600-055RP

Same as -9 and Serial Number Pumps.

Same as -9 and Serial Number Pumps.

Same as -9 and Serial Number Pumps.

Same as -9 and Serial Number Pumps.

Same as -9 and Serial Number Pumps.

ITEM #74 MODERNIZATION KIT **

PUMP NO. MOTOR FAME SIZE (48) MOTOR FAME SIZE (56)

121,122

131, 1322

133, 138

1600, 1610

1602, 16042

1612, 16202

16302

1614, 1622

1624, 1632

1634

CAST IRON

121-154RP

131-144RP

N/A

121-154RP

131-144RP

“

“

N/A

N/A

N/A

BRONZE

122-002RP

132-145RP

N/A

122-002RP

132-145RP

“

“

N/A

N/A

N/A

CAST IRON

N/A

133-147RP

“

N/A

133-147RP

133-147RP

“

“

“

“

BRONZE

N/A

138-153RP

“

N/A

133-147RP

138-153RP

“

“

“

“

Note (2) Select modernization kit per motor frame size. Select impellers per selection chart on previous page, under —9 column.
