Service Parts Catalog

• Circulators & Centrifugal Pumps

• Hydronic Specialties

• Engineered Specialties

• Centrifugal Pump Accessories

PART LISTS

HS-300F-PL

Table of Contents

Circulators & Pumps Page

Circulator Exploded View . . . . . . . . . . . . . . . . . . . . . . . 3

Series 60 Maintenance Free Exploded View . . . . . . . . 4

Series PD & Series 60 Exploded View . . . . . . . . . . . . . 5

Series 1522 Exploded View . . . . . . . . . . . . . . . . . . . . . 6

Exploded View of Bearing Assemblies . . . . . . . . . . . . . 7

How to Select Parts for Circulators & Pumps . . . . . . . . 8

Little Red® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Series PL™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Series 100® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Series HV & 2” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Series PR, 2-1/2”, LD-3 & HD-3 . . . . . . . . . . . . . . . . . . . 12

Obsolete Circulator Models 1”, 1-1/4”, 1-1/2”,

2” and HV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Obsolete Models 1-1/2” & HV . . . . . . . . . . . . . . . . . . . . . 14

Series PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

How to Select Parts for

Maintenance Free Series 60 Pumps . . . . . . . . . . . . . . . . 16

Standard Size Designations . . . . . . . . . . . . . . . . . . 17

Sizes 1 x 1 x 5-1/4 and 1-1/4 x 1-1/4 x 5-1/4 . . . . . . . . . . 18

Sizes 1-1/2 x 1-1/2 x 5-1/4 and 2 x 2 x 5-1/4 . . . . . . . . . . 19

Sizes 3 x 3 x 5-1/4 . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Sizes 1-1/2 x 1-1/2 x 6-1/4 and 2 x 2 x 6-1/4 . . . . . . . . . . 21

Sizes 1-1/2 x 1-1/2 x 7 and 2 x 2 x 7 . . . . . . . . . . . . . . 22

Maintenance Free Series 60 Couplers . . . . . . . . . . . 23

How to Select Parts for Series 60 or

Series 1522 Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Series 60 Sleeve Bearing Pumps:

Standard Size Designations . . . . . . . . . . . . . . . . . . . . . 25

Sizes 1AA and 1-1/4AA . . . . . . . . . . . . . . . . . . . . . . . 26

Sizes 1-1/2AA and 2AA . . . . . . . . . . . . . . . . . . . . . . . 27

Sizes 1-1/2A and 2A . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Sizes 2-1/2F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Power Pack Selection . . . . . . . . . . . . . . . . . . . . . . . 30

Bearing Assembly Selection . . . . . . . . . . . . . . . . . . 31

Series 1522 Pumps:

Standard Designations . . . . . . . . . . . . . . . . . . . . . . . . . 32

Sizes 3/4AAB and 1AAB . . . . . . . . . . . . . . . . . . . . . . 33

Sizes 1-1/4AAB and 1-1/2AAB . . . . . . . . . . . . . . . . . . . 34

Seal Selection Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Hydronic Specialties Page

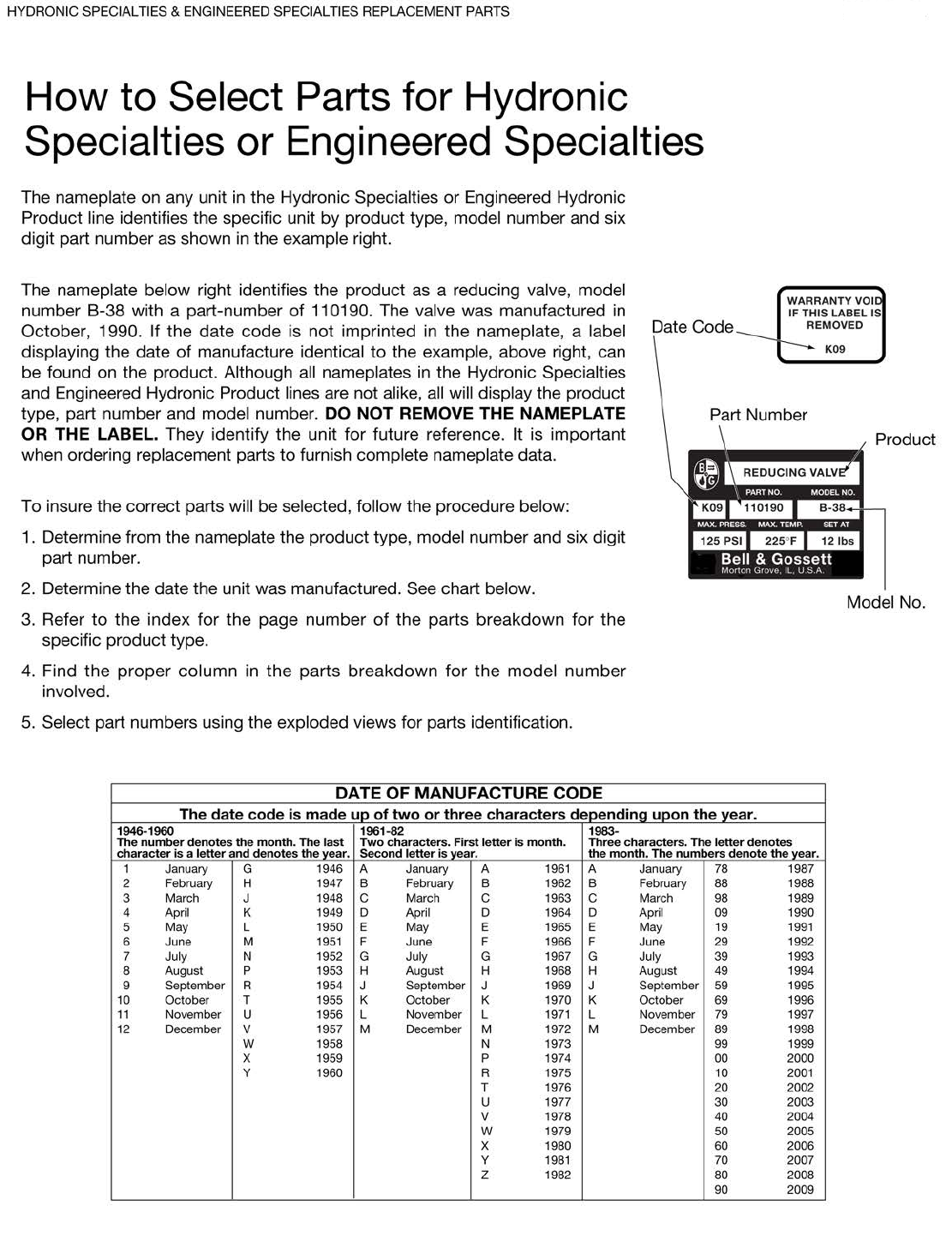

How to Select Parts for Hydronic Specialties or

Engineered Specialities . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Flo-Control™ Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Pressure Reducing Valve & Dual Unit Valves . . . . . . . . 38

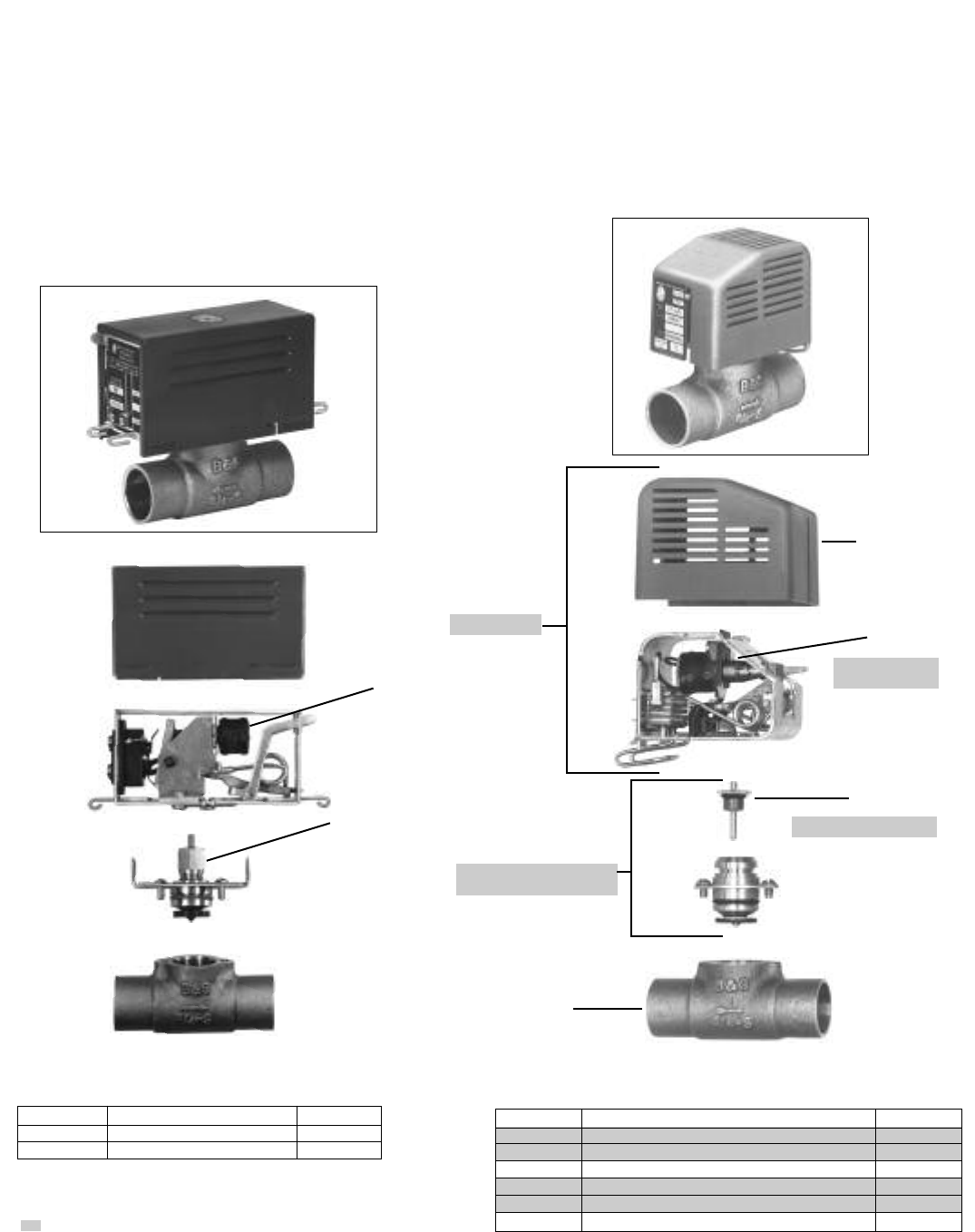

Comfort-Trol® and Modumate Zone Valves . . . . . . . . . 39

Enhanced Air Separators . . . . . . . . . . . . . . . . . . . . . . . 40

107A Air Vent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Engineered Specialties

Bladder Tanks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Thermoo® Balancer . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Thermoo® Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Circuit Setter® Balance Valves Exploded Views . . . . . . 44

Circuit Setter® Ball Style Valves . . . . . . . . . . . . . . . . . . 45

Circuit Setter® Globe Style Valves . . . . . . . . . . . . . . . . 46

Centrifugal Pump Accessories

How to Select Parts for Centrifugal

Pump Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Triple Duty® Valves:

Model 3DX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Models with Grooved Connections . . . . . . . . . . . . . 49

Angle Pattern Models . . . . . . . . . . . . . . . . . . . . . . . 50

Straight Pattern Models . . . . . . . . . . . . . . . . . . . . . . 51

Reduced Port Models . . . . . . . . . . . . . . . . . . . . . . . 52

Suction Diffusers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Suction Diffuser Plus . . . . . . . . . . . . . . . . . . . . . . . . . 54

Circulator Replacement Parts

“Where Used” List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Hydronic Specialties, Engineered Specialties &

Centrifugal Pump Accessories Replacement

Parts “Where Used” List . . . . . . . . . . . . . . . . . . . . . . . . . . 63

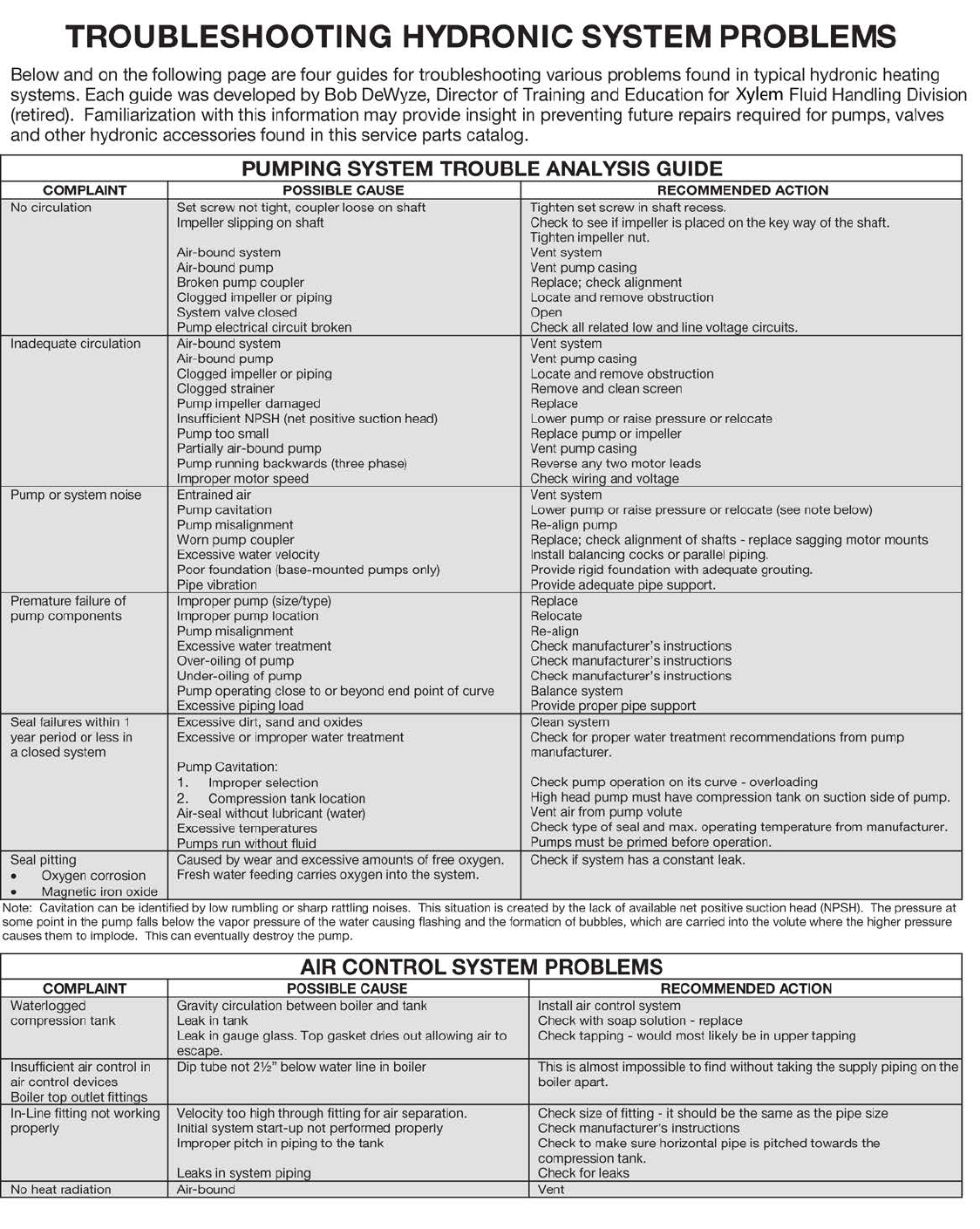

Troubleshooting Hydronic Systems . . . . . . . . . . . . . . . 71

HS-300F-PL

CIRCULATOR REPLACEMENT PARTS HS-300F-PL

BEARING ASSEMBLY

OIL WELL

COVER

햹IMPELLER*

햾헅

헀FRONT

BEARING**

BEARING

BRACKET

햿

SHAFT

& SLEEVE

FRONT

BEARING

GASKET

헁

IMPELLER

KEY 햽

햳

햺IMPELLER

NUT

햲PUMP

BODY

햶

햷POWER PACK

COUPLER

OIL

WICK

SEAL KIT

BODY

GASKET

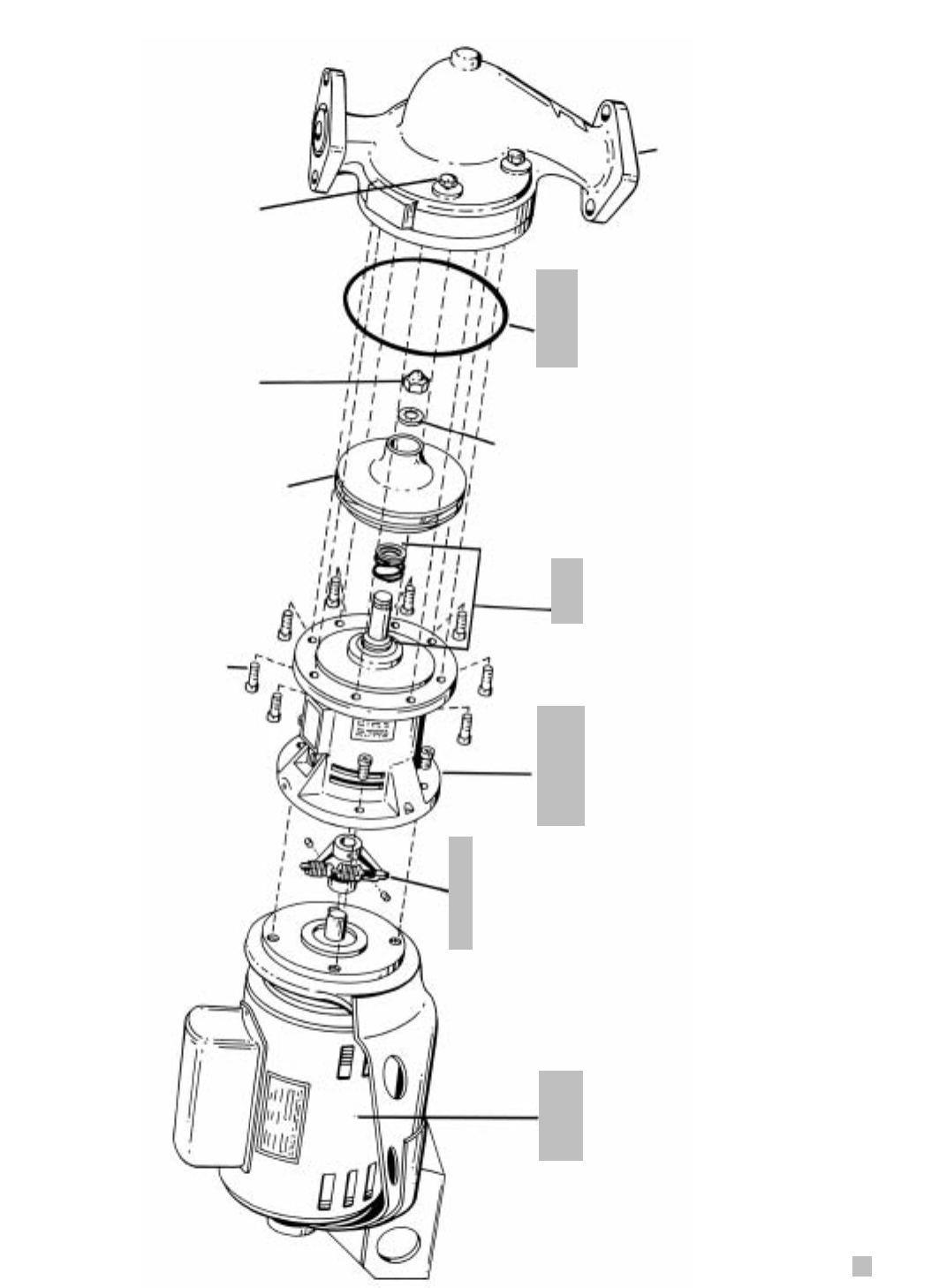

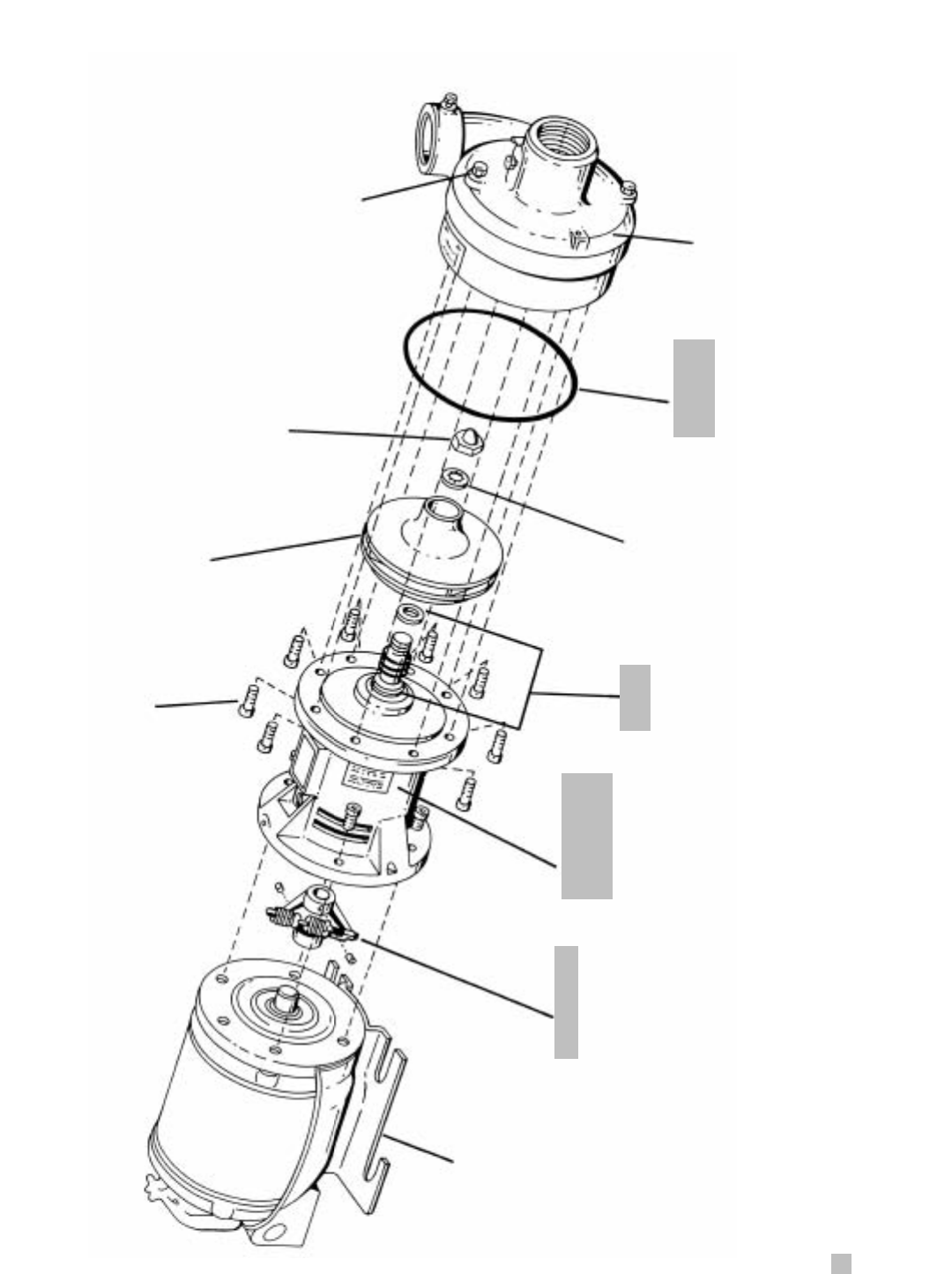

Circulator

Exploded View

For Series 100, Series HV, 2",

PR, 21/2", LD-3 &HD-3 Models

*Impeller not always included in Bearing Assembly.

**Shown rotated 90º.

– Factory recommended spare parts.

햵

RING MOTOR

MOUNT SET

CIRCULATOR OR CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

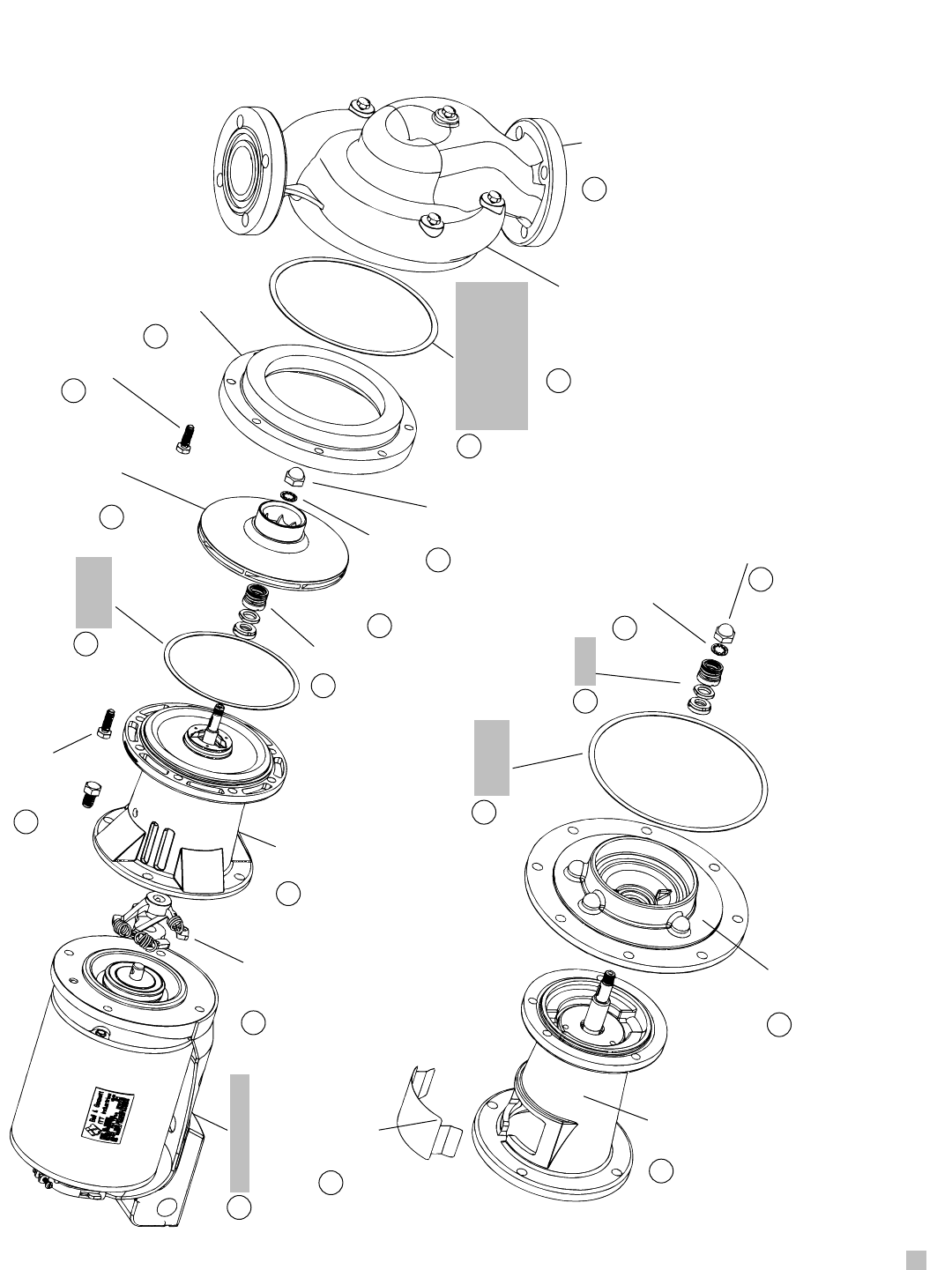

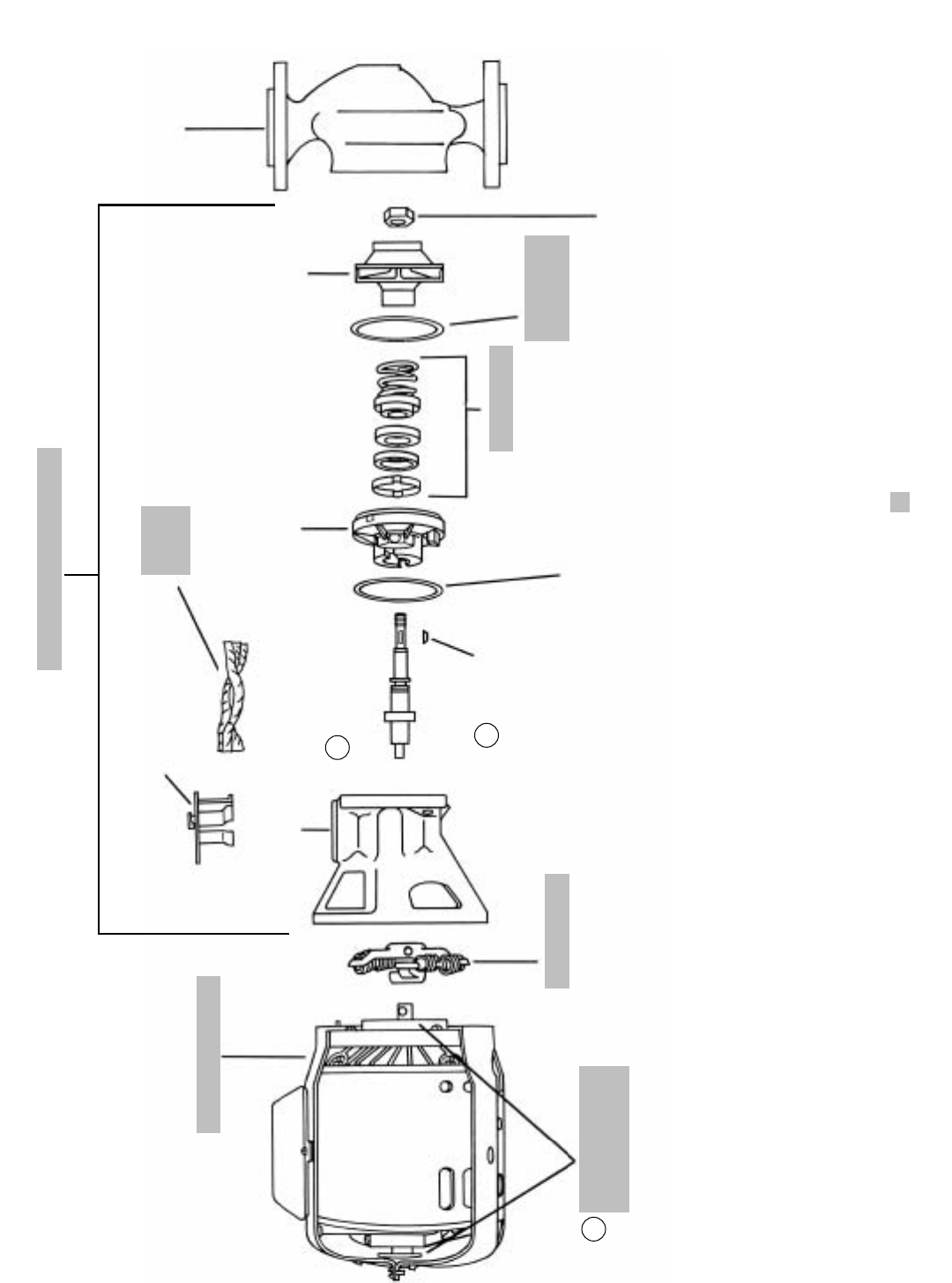

Series 60 Maintenance Free Pump

Exploded View

POWER PACK COUPLER

BEARING

ASSEMBLY

(SMALL)

VOLUTE

CAPSCREW (8)

VOLUTE

GASKET

SEAL

IMPELLER

WASHER

IMPELLER

NUT

ADAPTER RING

CAPSCREW (8)

(Sizes 11/2x11/2x61/4

and 2x2x61/4 only)

ADAPTER RING

(Sizes 11/2x11/2x61/4

and 2x2x61/4 only)

VOLUTE

DRAIN PLUG (5)

ADAPTER RING

GASKET

(Size 11/2x11/2x61/4

and 2x2x61/4 only)

VOLUTE

GASKET

IMPELLER

WASHER

IMPELLER

NUT

BEARING

ASSEMBLY

(LARGE)

SEAL

COVER

PLATE

COUPLER

COVER

– Factory recommended spare parts.

햶

햺

햹IMPELLER

IMPELLER

NUT

POWER

PACK

햷햵

VOLUTE

CAPSCREW (8)

햸

COUPLER

햴

VOLUTE

햲

IMPELLER

WASHER

햻VOLUTE

DRAIN PLUG (5)

SEAL

햽BODY

GASKET

햳

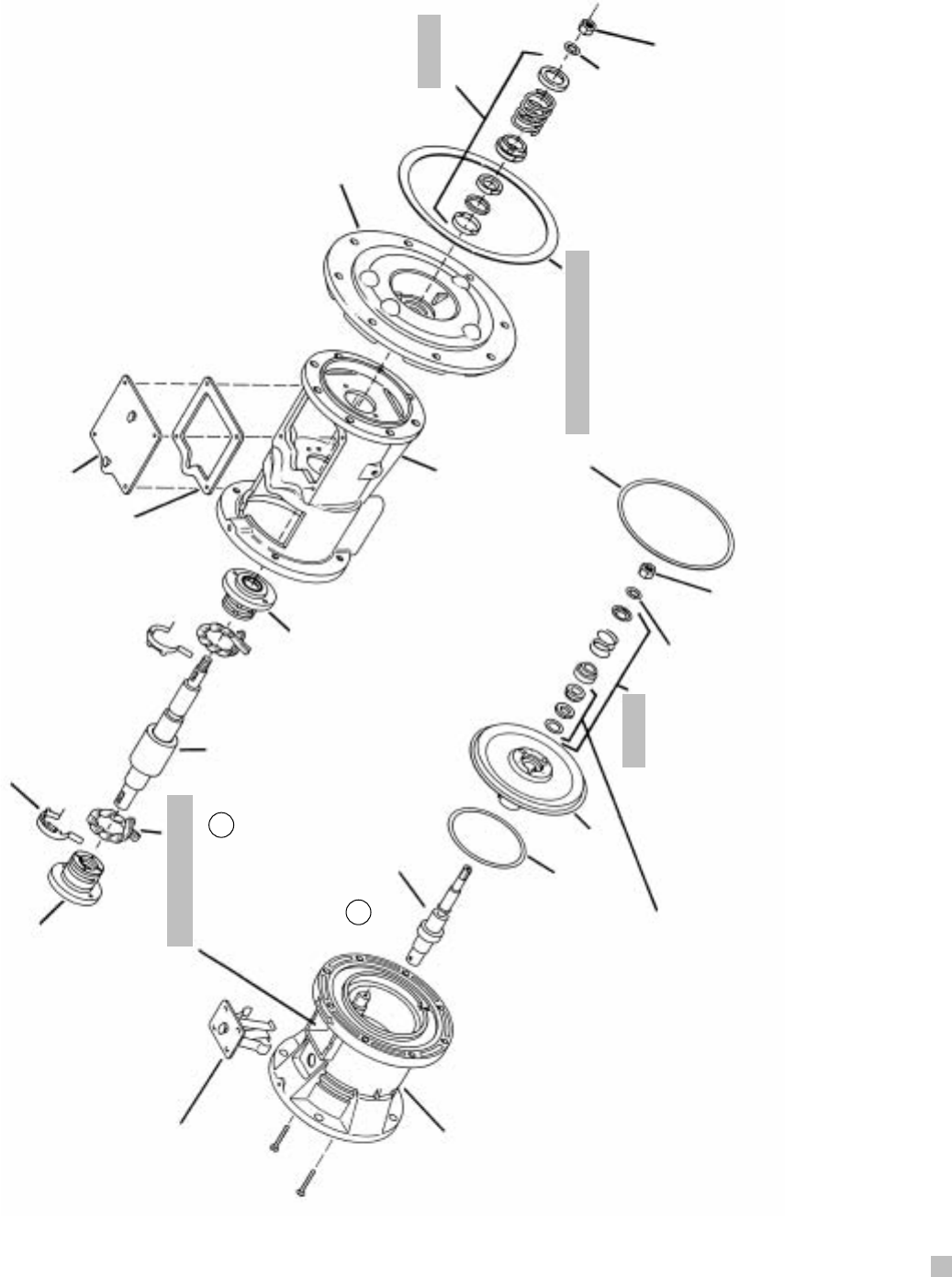

CIRCULATOR OR CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

Series PD & Series 60 – Sleeve Bearing Pumps

Exploded View

– Factory recommended spare parts.

BEARING

ASSEMBLY

COUPLER BEARING

ASSEMBLY

SEAL

BODY

GASKET

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

햶

햺

햹IMPELLER

IMPELLER

NUT

POWER

PACK

햷

햵

VOLUTE

CAPSCREW (8)

햸

햴

VOLUTE

햲

IMPELLER

WASHER

햻VOLUTE

DRAIN PLUG (4)

햽

햳

– Factory recommended spare parts.

Series 1522 Pump

Exploded View

SEAL

OIL WICK (2)

햽

햾

IMPELLER

NUT

IMPELLER

WASHER

FRONT

BEARING

헀

BEARING

BRACKET

햳

OIL WELL

COVER

헁

햾

IMPELLER

WASHER

헄

SHAFT

& SLEEVE

SEAL

햿

햺

BEARING

BRACKET

햿

IMPELLER

NUT

햺

FRONT

BEARING

GASKET

OIL WELL

GASKET

BODY GASKET

COVER

PLATE

햽

OIL WELL

COVER

REAR BEARING

헂

헅

헆

헀FRONT

BEARING

OIL WICK

RETAINER (2)

햴

SHAFT

& SLEEVE

PD 35 & 37,

SERIES 60 “AA”

& SERIES 1522

PD 38, 39 & 40

SERIES 60 “A”

& SERIES 60 21/2 F

INTEGRAL WITH BRACKET ON

MODELS MANUFACTURED FROM

JUNE 1957 TO JUNE 1961. (FA DATE CODE.)

USE SEAL ONLY, PART NUMBER 118680.

CIRCULATOR OR CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

Series PD, Series 60 – Sleeve Bearing &

Series 1522 Bearing Assemblies

Exploded View

– Factory recommended spare parts.

NOTE: Use liquid sealant in place of bearing

gaskets on PD38, PD39 & PD40 pumps.

헃

햴

HS-300F-PL

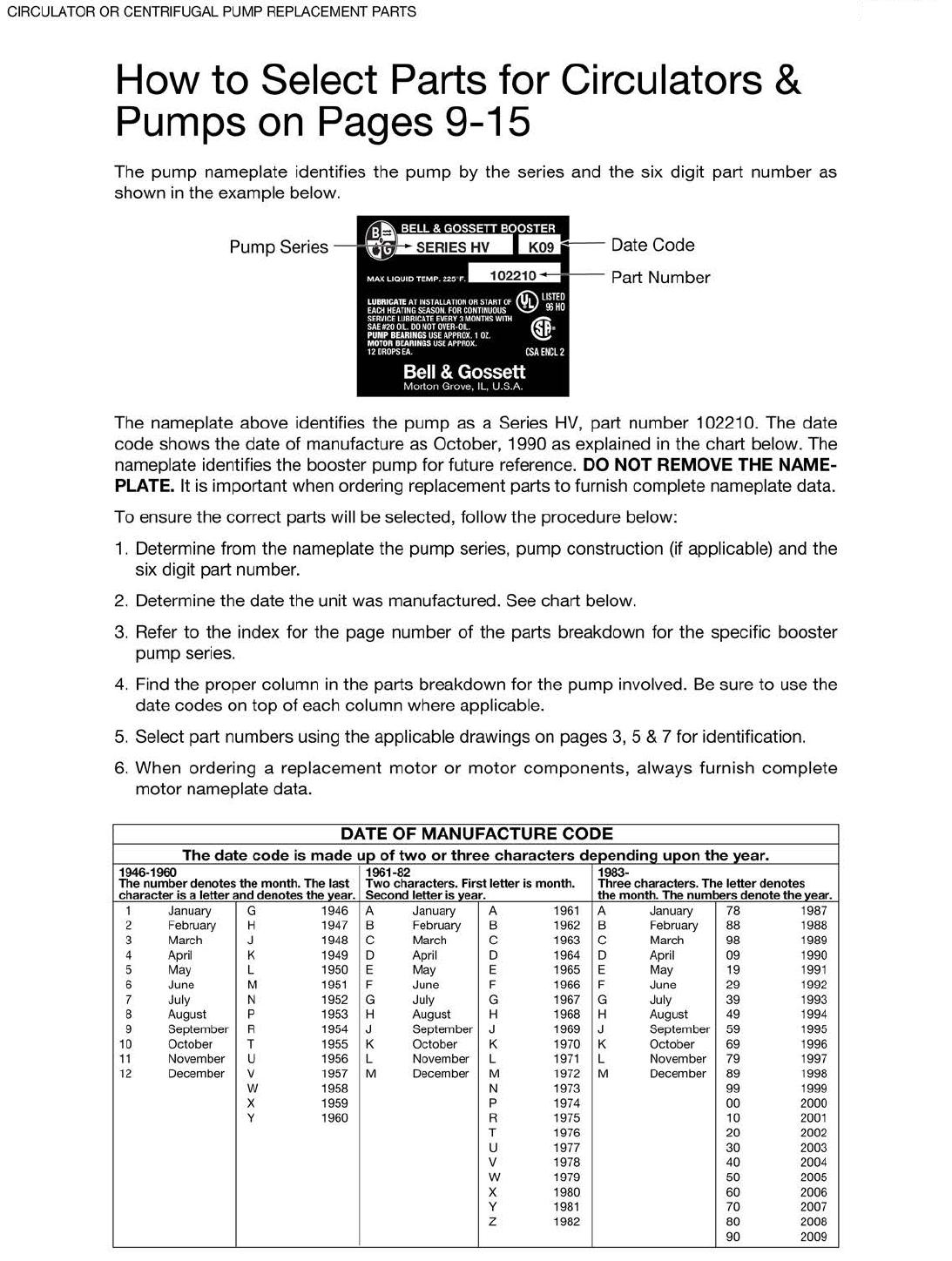

CIRCULATOR REPLACEMENT PARTS HS-300F-PL

PARTS FOR SERIES 100

BEARING ASSEMBLIES

1May be used in place of 189034/189034LF manufactured after 2004 (date code “40”).

2May be used in place of 189161/189161LF manufactured after 2004 (date code “40”).

**For Built-To-Order pumps, see the seal selection chart on page 35.

– Factory recommended spare parts.

NOTE: Refer to page 3 for exploded view of circulator.

+Cast Iron type. For Stamped Steel, use 189110.

*115V only. For 230V, use 111035.

NOTE:

#75 Circulator is a Series 100 w/ 3/4" flanges.

#100 Circulator is a Series 100 w/ 1" flanges.

#125 Circulator is a Series 100 w/ 11/4" flanges.

#150 Circulator is a Series 100 w/ 11/2" flanges.

MODELS MANUFACTURED AFTER NOVEMBER, 1956 (“11U” DATE CODE)

100 NFI 100 BI 100 AB 100 BNFI

ITEM NO. DESCRIPTION 106189 106190 106192 106197

1 Body 118339 118339 118413LF 118413LF

Body Capscrew (4 required) P40020 P40020 P40020 P40020

4 Bearing Assembly 118844LF1118844LF1189034LF 189034LF

4 & 8 Bearing Assembly with NFI Impeller 189134LF2NONE NONE 189161LF

Bracket Capscrew (4 required) P04770 P04770 P04770 P04770

8 Impeller 189132LF 118431LF 118431LF 189132LF

5 Coupler Assembly 118705+ 118705+ 118705+ 118705+

Flange (3/4") P00739 P00739 P00789 P00789

Flange (1") P00792 P00792 P00836 P00836

Flange (11/4") P03250 P03250 P00837 P00837

Flange (11/2") P03430 P03430 P2000085 P2000085

Flange Gasket Set 118368 118368 118368 118368

Fastener Package w/ Flange Gaskets P64910 P64910 P64910 P64910

6 Power Pack 111034* 111034* 111034* 111034*

22 Ring Motor Mount Set 118223 118223 118223 118223

5 & 22 Coupler & Ring Mount Set 118706 118706 118706 118706

ITEM NO. DESCRIPTION 118844LF1189134LF2189034LF 189161LF

13 Bearing Bracket P77119 P77119 P77119 P77119

2 Body Gasket P04080 P04080 P04080 P04080

14 Front Bearing 189071 189071 189071 189071

15 Front Bearing Gasket P80815 P80815 P80815 P80815

27 Impeller Key P04940 P04940 P04940 P04940

Impeller Gasket P57000 P57000 P57000 P57000

9 Impeller Nut P2000236 P2000236 P2000236 P2000236

12 Oil Well Cover P81238 P81238 P81238 P81238

19 Oil Wick Set 118395 118395 118395 118395

11 Seal Kit** 118681LF 118681LF 118681LF 118681LF

21 Shaft & Sleeve 189035LF 189035LF 189035LF 189035LF

8 Impeller (NFI) NONE 189132LF NONE 189132LF

CIRCULATOR REPLACEMENT PARTS HS-300F-PL

PARTS FOR SERIES HV & 2"

2" MODEL MANUFACTURED AFTER JANUARY, 1976 (“AT” DATE CODE)

BEARING ASSEMBLIES

*For Built-To-Order pumps, see the seal selection chart on page 35.

**Use same replacement parts for obsolete bearing assemblies 189120 or 189122.

***Use same replacement parts for obsolete bearing assembly 189136.

+Cast Iron type. For Stamped Steel, use 189110.

N/A - Not Available.

– Factory recommended spare parts.

NOTE: Refer to page 3 for exploded view of typical circulator.

SERIES HV MANUFACTURED AFTER JANUARY, 1976 (“AT” DATE CODE)

HV NFI HV BI HV AB HV BNFI

ITEM NO. DESCRIPTION 102210 102230 102231 102213

1 Body 189124 189124 189125LF 189125LF

Body Capscrew (4 required) P03470 P03470 P03470 P03470

4 Bearing Assembly 189165LF 189165LF 189165LF 189165LF

4 & 8 Bearing Assembly with Impeller 189166LF NONE NONE 189166LF

8 Impeller 189128LF P07792 P07792 189128LF

5 Coupler Assembly 118705+ 118705+ 118705+ 118705+

Flange (1") P00802 P00802 P00804 P00804

Flange (11/4") P03300 P03300 P2000088 P2000088

Flange (11/2") P03410 P03410 P2000090 P2000090

Flange Gasket Set 118373 118373 118373 118373

Fastener Package w/ Flange Gaskets P64940 P64940 P64940 P64940

6 Power Pack 111061 111061 111061 111061

22 Ring Motor Mount Set 118223 118223 118223 118223

5 & 22 Coupler & Ring Mount Set 118706 118706 118706 118706

2" NFI 2" BI 2" AB 2" BNFI

ITEM NO. DESCRIPTION 102214 102232 102233 102217

1 Body 189126 189126 189127LF 189127LF

Body Capscrew (4 required) P03470 P03470 P03470 P03470

4 Bearing Assembly 189165LF 189165LF 189165LF 189165LF

4 & 8 Bearing Assembly with Impeller 189166LF N/A N/A 189166LF

8 Impeller 189128LF P07792 P07792 189128LF

5 Coupler Assembly 118705+ 118705+ 118705+ 118705+

Flange (2") F14200 F14200 P2000078 P2000078

Flange Gasket Set 118378 118378 118378 118378

Fastener Package w/ Flange Gaskets P65031 P65031 P65030 P65030

6 Power Pack 111061 111061 111061 111061

15 Ring Motor Mount Set 118223 118223 118223 118223

5 & 22 Coupler & Ring Mount Set 118706 118706 118706 118706

ITEM NO. DESCRIPTION 189165LF** 189166LF***

13 Bearing Bracket P77139 P77139

2 Body Gasket P04890 P04890

14 Front Bearing P77308LF P77308LF

15 Front Bearing Gasket P80816 P80816

27 Impeller Key P04940 P04940

Impeller Gasket NONE P57000

9 Impeller Nut P2000236 P2000236

12 Oil Well Cover P81239 P81239

19 Oil Wick Set 118395 118395

11 Seal Kit* 118681LF 118681LF

21 Shaft & Sleeve 189035LF 189035LF

8 Impeller NONE 189128LF

CIRCULATOR REPLACEMENT PARTS HS-300F-PL

+ Cast Iron type. For Stamped Steel, use 189110.

*For Built-To-Order pumps, see the seal selection chart on page 36.

**For 115V only. For 230V, use 111033.

***For 115V only. For 230V, use 111041.

1On IB pumps, P04650 lockwasher & P04670 nut may be used.

왔Includes flange gaskets.

왖Pumps are furnished with sleeve bearing motors. Ball bearing motors are available as replacement only and are

completely interchangeable.

– Factory recommended spare parts.

NOTE: Refer to page 3 for exploded view of typical circulator.

SERIES PR, 21/2", LD-3 & HD-3 MANUFACTURED AFTER 1950

BEARING ASSEMBLY

PARTS FOR SERIES PR, 21/2", LD-3 & HD-3

PR 21/2" LD-3 HD-3

102206(IB) 102218 (IB) 102222 (IB) 102226 (IB)

102207 (BI) 102219 (BI) 102223 (BI) 102227 (BI)

ITEM NO. DESCRIPTION 102208 (AB) 102220 (AB) 102224 (AB) 102228 (AB)

1 Body (Cast Iron) 118637 118644 118644 118644

1 Body (Brass) P2000052 P07610 P07610 P07610

Body Capscrew (4 required) P03470 P03470 P03470 P03470

4 Bearing Assembly 189105LF 189105LF 189105LF 189105LF

8 Impeller (Steel) 118830 118676 118676 118675

8 Impeller (Brass) 118612LF 118440LF 118440LF 118439LF

5 Coupler Assembly 118705+ 118723 118723 118723

Flange (Steel) - P03560 F74000 F74000

Flange (Brass) - P2000093 P2000081 P2000081

Flange for PR Only (Steel, 3/4") P00739 ---

Flange for PR Only (Brass, 3/4") P00789 ---

Flange for PR Only (Steel, 1") P00792 ---

Flange for PR Only (Brass, 1") P00836 ---

Flange for PR Only (Steel,11/4") P03250 ---

Flange for PR Only (Brass, 11/4") P00837 ---

Flange for PR Only (Steel, 11/2") P03430 ---

Flange for PR Only (Brass, 11/2") P2000085 ---

Flange Gasket Set 118368 118129 118129 118129

Fastener Package P64910왔P65130 P65130 P65130

6 Power Pack – Sleeve Bearing 111031** 111040*** 111040*** 111042

6 Power Pack – Ball Bearing NONE 1699239왖1699239왖1699240왖

22 Ring Motor Mount Set 118223 118228 118228 118228

5 & 22 Coupler & Ring Mount Set 118706 118724 118724 118724

ITEM NO. DESCRIPTION 189105LF

13 Bearing Bracket P77177

2 Body Gasket P05800

14 Front Bearing P77087

15 Front Bearing Gasket P80816

27 Impeller Key P04940

Impeller Gasket P57000

9 Impeller Nut P20002361

12 Oil Well Cover P81239

19 Oil Wick Set 118395

11 Seal Kit* 118681LF

21 Shaft & Sleeve 189035LF

CIRCULATOR REPLACEMENT PARTS HS-300F-PL

PARTS FOR OBSOLETE CIRCULATORS

N/A - Not Available

+Cast Iron type. For Stamped Steel, use 189110.

*Used with iron body only. Use impeller 118436 with brass body pumps.

**115V only. For 230V, use 111033.

BEARING ASSEMBLIES

1 Use same replacement parts for obsolete bearing assemblies 189100 or 189104.

2 Replaces obsolete bearing assemblies 189101, 189102 & 189103.

왖On IB pumps, P04650 lockwasher & P04670 nut may be used.

왔For Built-To-Order pumps, see the seal selection chart on page 35.

– Factory recommended spare parts.

NOTE: Refer to page 3 for exploded view of typical circulator.

MANUFACTURED BETWEEN JANUARY, 1951 AND AUGUST, 1976

JAN. 1951 – AUG. 1976, 1M-HT JAN. 1951 – AUG. 1975, 1M-HR

ITEM NO. DESCRIPTION 1" 11/4"1

1/2" 2" 1" HV 11/4" HV 11/2" HV

1 Body (Cast Iron or Brass) All Bodies are Obsolete

Body Capscrew (4 required) P03470 P03470 P03470 P03470 P03470 P03470 P03470

4 Bearing Assemblies:

4 For C.I. Models w/ Steel Impeller 189162 189162 189162 189163 189163 189163 189163

4 For C.I. Models w/ Brass Impeller 189162 189162 189162 189163 189163 189163 189163

4 For All Bronze Models N/A N/A 189163LF 189163LF 189163LF 189163LF 189163LF

8 Impeller (Steel) 118665 118666 118666 118668 118668 118668 118668

8 Impeller (Brass) 118434LF 118435LF* 118435LF* 118436LF 118436LF 118436LF 118436LF

5 Coupler Assembly 118705+ 118705+ 118705+ 118705+ 118705+ 118705+ 118705+

Flange (Steel) N/A P03250 P03410 F14200 P00802 P03300 P03410

Flange (Brass) P00804 P2000088 P2000090 P2000078 P00804 P2000088 P2000090

Flange Gasket Set 118351 118368 118373 118065 118373 118373 118373

Fastener Package w/ Flange Gaskets P64230 P64910 P64930 F91600 P64930 P64930 P64930

6 Power Pack 111031** 111031** 111031** 111031** 111031** 111031** 111031**

22 Ring Motor Mount Set 118223 118223 118223 118223 118223 118223 118223

ITEM NO. DESCRIPTION 18916211891632

13 Bearing Bracket P77106 P77106

2 Body Gasket P04890 P04890

14 Front Bearing P77308 P77309

15 Front Bearing Gasket P80816 P80816

27 Impeller Key P04940 P04940

Impeller Gasket P57000 P57000

9 Impeller Nut P2000236왖P2000236

12 Oil Well Cover P81239 P81239

19 Oil Wick Set 118395LF 118395LF

11 Seal Kit왔118681LF 118681LF

21 Shaft & Sleeve 189035LF 189035LF

CIRCULATOR REPLACEMENT PARTS HS-300F-PL

PARTS FOR OBSOLETE CIRCULATORS

APRIL - OCT. 1975 –

FEB. – SEPT. 1976 SEPT. 1976 SEPT. – DEC. 1976 APRIL 1976

BT-JT DT-JT JT-MT KR-DT

N/A – Not Available

+Cast Iron type. For Stamped Steel, use 189110.

* For Built-To-Order pumps, see the seal selection chart on page 35.

(a) Replacement parts for obsolete model 189121.

(b) Replacement parts for obsolete model 189129.

– Factory recommended spare parts.

NOTE: Refer to page 3 for exploded view of typical circulator.

BEARING ASSEMBLIES

MANUFACTURED BETWEEN:

11/2" HV

IB BI AB IB BI AB

ITEM NO. DESCRIPTION 102033 102034 102036 102308 102309 102311

1 Body (Cast Iron or Brass) All Bodies are Obsolete

Body Capscrew (4 required) P03470 P03470 P03470 P03470 P03470 P03470

4 Bearing Assembly 189165 189165LF N/A N/A N/A N/A

8 Impeller 118666 118435LF 118436LF 118668 118436LF 118436LF

5 Coupler Assembly 118705+ 118705+ 118705+ 118705+ 118705+ 118705+

Flange (1") -- -P00802 P00802 P00804

Flange (11/4") -- -P03300 P03300 P2000088

Flange (11/2") P03410 P03410 P2000090 P03410 P03410 P2000090

Flange Gasket Set 118373 118373 118373 118373 118373 118373

Fastener Package w/ Flange Gaskets P64940 P64940 P64930 P64940 P64940 P64930

6 Power Pack 111061 111061 111061 111061 111061 111061

22 Ring Motor Mount Set 118223 118223 118223 118223 118223 118223

5 & 22 Coupler & Ring Mount Set 118706 118706 118706 118706 118706 118706

ITEM NO. DESCRIPTION 189165LF HVIB (a) HVBI (b) 11/2 "AB & HVAB (c)

13 Bearing Bracket P77139 P77139 P77139 P77139

2 Body Gasket P04890 P04890 P04890 P04890

14 Front Bearing P77308LF P77309 P77309 P77309

15 Front Bearing Gasket P80816 P80816 P80816 P80816

27 Impeller Key P04940 P04940 P04940 P04940

Impeller Gasket P57000 NONE NONE P57000

9 Impeller Nut P2000236 J91702 J91702 P2000236

12 Oil Well Cover P81239 P81239 P81239 P81239

19 Oil Wick Set 118395 118395 118395 118395

11 Seal Kit* 118681LF 118681LF 118681LF 118681LF

21 Shaft & Sleeve 189035LF 189035LF 189035LF 189035LF

CIRCULATOR REPLACEMENT PARTS HS-300F-PL

PARTS FOR SERIES PD

SLEEVE BEARING ASSEMBLIES

왖On IB pumps, P04650 lockwasher & P04670 nut may be used.

왔For Built-to-Order pumps, see the seal selection chart on page 36.

NOTE: Sleeve bearing (oil lubricated) and XL-11™ bearing assemblies (maintenance-free) are interchangeable.

See Bearing Assembly Cross Reference chart on page 31.

IB, AB AI IB AI AB

ITEM NO. DESCRIPTION 186863LF 186865 185260 185261 185262

13 Bearing Bracket P77179 P77179 P57282 P57282 P57282

17 Coverplate NONE NONE P57246 P2000095 P57246

2 Body Gasket P57410 P57410 P57700 P57700 P57700

Coupler Key NONE NONE H32400 H32400 H32400

Impeller Key P04940 P04940 P49358 P49358 P49358

3 Impeller Washer P57000왖P04650 P11150 P11150 P11220

9 Impeller Nut P2000236왖P04670 P45910 P45910 P08480

12 Oil Well Cover P81239 P81239 P57302 P57302 P57302

18 Oil Well Gasket NONE NONE P57300 P57300 P57300

19 Oil Wick Set 118395 118395 P04883 P04883 P04883

(2 req’d) (2 req’d) (2 req’d)

20 Oil Wick Retainer (2 required) NONE NONE P12422 P12422 P12422

14 Front Bearing P77216 P77215 185241 185241 185241

16 Rear Bearing NONE NONE 185240 185240 185240

15 Front Bearing Gasket P80816 P80816 NONE NONE NONE

11 Seal Kit왔118681LF 186681LF 186499LF 186433 186499LF

21 Shaft & Sleeve 189035LF P81960 118469 P08725 118469

Manufactured Prior To Manufactured Date

B40 Date Code (3 PH) Code B40 & After (3 PH)

E40 Date Code (1 PH) Code E40 & After (1 PH)

ITEM NO. DESCRIPTION PD-35 PD-37 PD-39+ PD-38 PD-40 PD-38 PD-40

1 Body (Cast Iron) 118449 118449 P08460 P08460 P08460 P08460 P08460

1 Body (Bronze) P2000014 P2000014 P2000012 P2000012 P2000012 P2000012 P2000012

7 Body Capscrew (8 required) P10620 P10620 P40020 P40020 P40020 P40020 P40020

4 Bearing Assembly:

For Cast Iron Models 186863 186863 185260 185260 185260 185333 185333

For Bronze Models 186863LF 186863LF 185262LF 185262LF 185262LF 185334LF 185334LF

8 Impeller (Steel) 118630 118629 118452 P08709 118452 P08709 118452

8 Impeller (Brass) 118627LF 118626LF 118453LF P08690 118453LF P08690 118453LF

Fastener Package w/

Flange Gaskets P65130* P65130* P09540 P09540 P09540 P09540 P09540

Flange Gasket Set 118129 118129 118129 118129 118129 118129 118129

Flange (Steel) F74000 F74000 A24600 A24600 A24600 A24600 A24600

Flange (Brass) P2000081 P2000081 A40000 A40000 A40000 A40000 A40000

6 Power Pack (1 Phase) 111044 111047 N/A N/A N/A 169232 169236

6 Power Pack (3 Phase) 111046 111049 N/A N/A N/A 169233 169237

Ring Motor Mount Set 118228 118228 118848 118848 NONE 118848 118848

Coupler & Ring Mount Set 118474** 118474** NONE NONE NONE NONE NONE

*Does not include flange gaskets.

**Set includes 118473 coupler & 118228 motor mounts.

+ For replacement parts purpose only. The PD-39 pump is no longer available.

N/A – No longer available. See note below.

NOTE: Sleeve bearing (oil lubricated) power packs and maintenance-free ball bearing power packs are interchangeable.

Refer to the Power Pack Cross Reference chart on page 30.

- Factory recommended spare parts.

NOTE: Refer to pages 4 & 7 for exploded views of pump and bearing assembly.

COUPLER SELECTION TABLE

- Factory recommended spare parts.

PUMP SHAFT SIZE PUMP SERIES HP FRAME SIZE MOTOR SHAFT SIZE COUPLER NO.

1/2" PD-35 & PD-37 1/2 & 3/4B&G 1/2" 118473

1/2" PD-37 w/ Maint. Free Motor 3/4B&G 1/2" 185329

1/2" PD-35 & PD-37 1/2 & 3/456-57-65 5/8" 118709

1/2" PD-35 & PD-37 1/2 & 3/466-75 3/4" 118708

5/8" PD-38 & PD-39 1 56 5/8" 186004

5/8" PD-38 & PD-39 1 B&G 1/2" 185330

w/ Maint. Free Motor

5/8" PD-40 1 & 11/256-145TZ 5/8" 186003

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

How to Select Parts for Maintenance

Free Series 60, Pages 17-23

The pump nameplate identifies the pump by model number, pump construction and

impeller diameter as shown below.

The BTO nameplate above identifies the pump as a Series 60, size 11/4x51/4in bronze

fitted (BF) construction. The impeller diameter is 41/4" and is capable of pumping 30

GPM at 15 FT. The motor horsepower is 1/4, the RPM is 1750. The serial number specifi-

cally identifies the unit for future reference. DO NOT REMOVE THE NAMEPLATE. It is

important when ordering replacement parts to furnish complete nameplate data.

Following the procedure below will result in proper parts selection.

1. Determine from the nameplate the model number, pump construction and impeller

diameter.

2. Refer to the index for the page number of the parts breakdown for the specific

model pump.

3. Find the proper column in the parts breakdown for the pump construction involved.

4. Select part numbers using the numbered drawings on page 4 for identification.

BELL & GOSSETT PUMP 

SIZE

PUMP

CAP.



MOTOR

CAP. 

SERIAL

NO. 



11/4x51/4 BF 41/4

30 GPM 15 FT

1/4HP 1750RPM

1598200 K99

CSA

ENCL

Pump Size

Capacity &

Head

Motor

Horsepower

Pump Construction Pump Series

Impeller

Diameter

Serial Number Date Manufactured

(October, 1999)

Pump Size

BELL & GOSSETT PUMP 

SIZE

PUMP

CAP.



MOTOR

CAP. 

SERIAL

NO. 



604S

172707

CSA

ENCL

Pump Model

Number

Part Number

Date Manufactured

(October, 1999)

11/4x51/4 K99

NAMEPLATE FOR

BUILT-TO-ORDER PUMPS

NAMEPLATE FOR

STOCK PUMPS

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

*Adapter ring gasket P58542 must also be ordered when bearing assembly is replaced on all 61⁄4" pumps.

– Factory recommended spare parts.

Note: Refer to page 4 for exploded view of pump.

(6) MOTOR (5) (4) (8)

EQUIVALENT 1 PHASE 3 PHASE BEARING IMPELLER

PUMP SIZE SIZE HP 115/208-230 208-230/460 COUPLER ASSEMBLY DIAMETER IMPELLER

601S & 601T 1x1x51/41/4169224 169225 118473 185332LF 43/8" P82878

B601S & B601T 1x1x51/41/4169224 169225 118473 185332LF 43/8" P82878

602S & 602T 1x1x51/41/3169226 169227 118473 185332LF 427/32" P82877

B602 & B602T 1x1x51/41/3169226 169227 118473 185332LF 427/32" P82877

603S & 603T 1x1x51/41/2169228 169229 118473 185332LF 51/4" P58541

B603S & B603T 1x1x51/41/2169228 169229 118473 185332LF 51/4" P58541

604S & 604T 11/4x11/4x51/41/4169224 169225 118473 185332LF 43/8" P82878

B604S & B604T 11/4x11/4x51/41/4169224 169225 118473 185332LF 43/8" P82878

605S & 605T 11/4x11/4x51/41/3169226 169227 118473 185332LF 427/32" P82877

B605S & B605T 11/4x11/4x51/41/3169226 169227 118473 185332LF 427/32" P82877

606S & 606T 11/4x11/4x51/41/2169228 169229 118473 185332LF 51/4" P58541

B606S & B606T 11/4x11/4x51/41/2169228 169229 118473 185332LF 51/4" P58541

607S & 607T 11/2x11/2x51/41/3169226 169227 118473 185332LF 43/8" P82881

B607S & B607T 11/2x11/2x51/41/3169226 169227 118473 185332LF 43/8" P82881

608S & 608T 11/2x11/2x51/41/2169228 169229 118473 185332LF 415/16" P82880

B608S & B608T 11/2x11/2x51/41/2169228 169229 118473 185332LF 415/16" P82880

609S & 609T 11/2x11/2x51/43/4169230 169231 118473 185332LF 51/4" P58538

B609S & B609T 11/2x11/2x51/43/4169230 169231 118473 185332LF 51/4" P58538

610S & 610T 2x2x51/41/2169228 169229 185329 185332LF 41/8" P82883

B610S & B610T 2x2x51/41/2169228 169229 185329 185332LF 41/8" P82883

611S & 611T 2x2x51/43/4169230 169231 118473 185332LF 43/4" P82882

B611S & B611T 2x2x51/43/4169230 169231 118473 185332LF 43/4" P82882

612S & 612T 2x2x51/41 169232 169233 185329 185332LF 51/4" P58536

B612S & B612T 2x2x51/41 169232 169233 185329 185332LF 51/4" P58536

613S & 613T 11/2x11/2x61/43/4169230 169231 185329 185332LF* 53/4" P82884

614S & 614T 11/2x11/2x61/41 169232 169233 185329 185332LF* 61/4" P58564

B614S & B614T 11/2x11/2x61/41 169232 169233 185329 185332LF* 61/4" P58564

615S & 615T 2x2x61/43/4169230 169231 185329 185332LF* 55/8" P82885

B615S & B615T 2x2x61/43/4169230 169231 185329 185332LF* 55/8" P82885

616S & 616T 2x2x61/41 169232 169233 185329 185332LF* 67/32" P58562

617S & 617T 11/2x11/2x7 11/2169236 169237 186003 185333LF 61/2" P57460

618T 11/2x11/2x7 2 NONE 169238 186003 185333LF 7" P57440

619T 2x2x7 2 NONE 169238 186003 185333LF 61/2" P82137

620T 2x2x7 3 NONE 169234 185331 185333LF 7" P57580

621S & 621T 11/2x11/2x61/41/2169228 169229 118473 185332LF* 47/8" P58661

B621S & B621T 11/2x11/2x61/41/2169228 169229 118473 185332LF* 47/8" P58661

622S & 622T 11/2x11/2x7 3/4169230 169231 186410 185333LF 51/2" P58662

623S & 623T 11/2x11/2x7 1 169232 169233 185330 185333LF 6" P58663

624S & 624T 2x2x7 1 169232 169233 185330 185333LF 511/16" P58664

625S & 625T 2x2x7 11/2169236 169237 186003 185333LF 61/8" P58665

626S & 626T 3x3x51/43/4169230 169231 185329 185333LF 43/8" P83023

B626S & B626T 3x3x51/43/4169230 169231 185329 185333LF 43/8" P83023

627S & 627T 3x3x51/411/2169236 169237 P75421 185333LF 51/4" P58636

B627S & B627T 3x3x51/411/2169236 169237 P75421 185333LF 51/4" P58636

PARTS FOR MAINTENANCE FREE SERIES 60

STANDARD SIZE DESIGNATIONS

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

PARTS FOR MAINTENANCE FREE SERIES 60

ITEM BRONZE ALL

NO. DESCRIPTION FITTED BRONZE

1 Volute 186386 186931LF

10 Volute Drain Plug (5 Req’d) P39020 P39470

7 Volute Capscrew (8 Req’d) P10620 P10620

2 Volute Gasket P57410 P57410

8 Impeller (State Diameter) P58541 P58541

Impeller Key P04940 P04940

9 Impeller Nut P2000236 P2000236

3 Impeller Washer P04660 P04660

Flange (2 Req’d) P01510 P00794

Fastener Package P64910 P64910

Flange Gasket Set 118368 118368

1x1x51⁄4

ITEM BRONZE ALL

NO. DESCRIPTION FITTED BRONZE

1 Volute 186386 186931LF

10 Volute Drain Plug (5 Req’d) P39020 P39470

7 Volute Capscrew (8 Req’d) P10620 P10620

2 Volute Gasket P57410 P57410

8 Impeller (State Diameter) P58541 P58541

Impeller Key P04940 P04940

9 Impeller Nut P2000236 P2000236

3 Impeller Washer P04660 P04660

Flange (2 Req’d) P03250 P03251

Fastener Package P64910 P64910

Flange Gasket Set 118368 118368

11⁄4x11⁄4x51⁄4

1 PHASE 3 PHASE RING

HP 115/208-230 208-230/460 MOUNTS

1/4169224 169225 118228

1/3169226 169227 118228

1/2169228 169229 118228

3/4169230 169231 118228

ITEM NO. 5 COUPLERS

ITEM NO. 6 POWER PACKS

1Buna/Carbon/Ceramic 2EPT/Carbon/Tungsten Carbide 3Viton/Carbon/Ceramic

*Includes pre-assembled faceplate, nose cone, shaft and bearings. Wave spring and volute gasket are also supplied.

XL-11™BEARING ASSEMBLIES (FOR BF OR AB PUMPS)

ITEM MODELS WITH COPPER MODELS WITH STAINLESS

NO. DESCRIPTION SHAFT SLEEVE STEEL SHAFT SLEEVE

4 Bearing Assy. – Includes the Following: 185332LF 185355LF 185356LF 185357LF 185358LF 185359LF

11 Seal Kit No. 118681LF 185230LF 186875 118681LF 185230LF 186875

Seal Type Buna-N1EPT2Viton3Buna-N1EPT2Viton3

XL-11™Small Bearing Frame Repair Kit* 185335LF 185335LF 185335LF 185336 185336 185336

2 Volute Gasket P57410 P57410 P57410 P57410 P57410 P57410

See chart on page 23

- Factory recommended spare parts.

NOTE: Refer to page 4 for exploded view of pump.

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

ITEM BRONZE ALL

NO. DESCRIPTION FITTED BRONZE

1 Volute 186389 186932LF

10 Volute Drain Plug (5 Req’d) P39020 P39470

7 Volute Capscrew (8 Req’d) P10620 P10620

2 Volute Gasket P57410 P57410

8 Impeller (State Diameter) P58538 P58538

Impeller Key P04940 P04940

9 Impeller Nut P2000236 P2000236

3 Impeller Washer P04660 P04660

Flange (2 Req’d) P03410 P2000090

Fastener Package w/ Flange Gaskets P64940 P64930

Flange Gasket Set 118373 118373

11⁄2x11⁄2x51⁄4

PARTS FOR MAINTENANCE FREE SERIES 60

ITEM BRONZE ALL

NO. DESCRIPTION FITTED BRONZE

1 Volute 186392 186933LF

10 Volute Drain Plug (5 Req’d) P39020 P39470

7 Volute Capscrew (8 Req’d) P10620 P10620

2 Volute Gasket P57410 P57410

8 Impeller (State Diameter) P58536 P58536

Impeller Key P04940 P04940

9 Impeller Nut P2000236 P2000236

3 Impeller Washer P04660 P04660

Flange (2 Req’d) F14200 P2000078

Fastener Package w/ Flange Gaskets (2 Req’d) P65031 P65030

Flange Gasket Set 118378 118378

Motor Ring Adapter P76944 P76944

2x2x51⁄4

ITEM NO. 6 POWER PACKS

1Buna/Carbon/Ceramic 2EPT/Carbon/Tungsten Carbide 3Viton/Carbon/Ceramic

*Includes pre-assembled faceplate, nose cone, shaft and bearings. Wave spring and volute gasket are also supplied.

XL-11™BEARING ASSEMBLIES (FOR BF OR AB PUMPS)

ITEM MODELS WITH COPPER MODELS WITH STAINLESS

NO. DESCRIPTION SHAFT SLEEVE STEEL SHAFT SLEEVE

4 Bearing Assy. – Includes the Following: 185332LF 185355LF 185356LF 185357LF 185358LF 185359LF

11 Seal Kit No. 118681LF 185230LF 186875 118681LF 185230LF 186875

Seal Type Buna-N1EPT2Viton3Buna-N1EPT2Viton3

XL-11™Small Bearing Frame Repair Kit* 185335LF 185335LF 185335LF 185336 185336 185336

2 Volute Gasket P57410 P57410 P57410 P57410 P57410 P57410

1 PHASE 3 PHASE RING

HP 115/208-230 208-230/460 MOUNTS

1/4169224 169225 118228

1/3169226 169227 118228

1/2169228 169229 118228

3/4169230 169231 118228

1 169232 169233 118848

11/2169236 169237 NONE

ITEM NO. 5 COUPLERS

See chart on page 23

- Factory recommended spare parts.

NOTE: Refer to page 4 for exploded view of pump.

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

PARTS FOR MAINTENANCE FREE SERIES 60

ITEM NO. 6 POWER PACKS

Buna/Carbon/Ceramic

EPT/Carbon/Tungsten Carbide

Viton/Carbon/Ceramic

*Includes pre-assembled faceplate, nose cone, shaft and bearings. Wave spring and volute gasket are also supplied.

**Does not include flange gaskets.

XL-11™BEARING ASSEMBLIES (FOR BF OR AB PUMPS)

3x3x51⁄4

ITEM BRONZE ALL

NO. DESCRIPTION FITTED BRONZE

1 Volute 118449 P2000014

10 Volute Drain Plug (5 Req’d) P39020 P39470

7 Volute Capscrew (8 Req’d) P10620 P01850

2 Volute Gasket P57410 P57410

8 Impeller (State Diameter) P58536 P58536

Impeller Key P04940 P04940

9 Impeller Nut P2000236 P2000236

3 Impeller Washer P04660 P04660

Flange (2 Req’d) F74000 P2000081

Fastener Package** P65130 P65130

Flange Gasket Set 118129 118129

Motor Ring Adapter P76944 P76944

ITEM MODELS WITH COPPER MODELS WITH STAINLESS

NO. DESCRIPTION SHAFT SLEEVE STEEL SHAFT SLEEVE

4 Bearing Assy. – Includes the Following: 185332LF 185355LF 185356LF 185357LF 185358LF 185359LF

11 Seal Kit No. 118681LF 185230LF 186875 118681LF 185230LF 186875

Seal Type Buna-N

EPT

Viton

Buna-N

EPT

Viton

XL-11

™

Small Bearing Frame Repair Kit* 185335LF 185335LF 185335LF 185336 185336 185336

2 Volute Gasket P57410 P57410 P57410 P57410 P57410 P57410

1 PHASE 3 PHASE RING

HP 115/208-230 208-230/460 MOUNTS

1/3169226 169227 118228

1/2169228 169229 118228

3/4169230 169231 118228

1 169232 169233 118848

11/2169236 169237 NONE

ITEM NO. 5 COUPLERS

See chart on page 23

- Factory recommended spare parts.

NOTE: Refer to page 4 for exploded view of pump.

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

PARTS FOR MAINTENANCE FREE SERIES 60

11⁄2x11⁄2x61⁄4

ITEM BRONZE ALL

NO. DESCRIPTION FITTED BRONZE

1 Volute 186935 186671LF

10 Volute Drain Plug (5 Req’d) P39020 P39470

7 Volute Capscrew (8 Req’d) P10620 P01850

2 Volute Gasket P57410 P57410

23 Adapter Ring P58576 P2000097

24 Adapter Ring Capscrew (8 Req’d) DJ0034 P10620

25 Adapter Ring Gasket P58542 P58542

8 Impeller (State Diameter) P58564 P58564

Impeller Key P04940 P04940

9 Impeller Nut P2000236 P2000236

3 Impeller Washer P04660 P04660

Flange (2 Req’d) P03410 P2000090

Fastener Package w/ Flange Gaskets P64940 P64930

Flange Gasket Set 118373 118373

Motor Ring Adapter P76944 P76944

1Buna/Carbon/Ceramic 2EPT/Carbon/Tungsten Carbide 3Viton/Carbon/Ceramic

*Includes pre-assembled faceplate, nose cone, shaft and bearings. Wave spring and volute gasket are also supplied.

**Adapter Ring Gasket P58542 must also be ordered when bearing assembly is replaced on all 61⁄4" pumps.

XL-11™BEARING ASSEMBLIES (FOR BF OR AB PUMPS)

2x2x61⁄4

ITEM BRONZE ALL

NO. DESCRIPTION FITTED BRONZE

1 Volute 186936 186672LF

10 Volute Drain Plug (5 Req’d) P39020 P39470

7 Volute Capscrew (8 Req’d) P10620 P10620

2 Volute Gasket P57410 P57410

23 Adapter Ring P58576 P2000097

24 Adapter Ring Capscrew (8 Req’d) DJ0034 P10620

25 Adapter Ring Gasket P58542 P58542

8 Impeller (State Diameter) P58562 P58562

Impeller Key P04940 P04940

9 Impeller Nut P2000236 P2000236

3 Impeller Washer P04660 P04660

Flange (2 Req’d) F14200 P2000078

Fastener Package w/ Flange Gaskets (2 Req’d) P65031 P65030

Flange Gasket Set 118378 118378

Motor Ring Adapter P76944 P76944

ITEM MODELS WITH COPPER MODELS WITH STAINLESS

NO. DESCRIPTION SHAFT SLEEVE STEEL SHAFT SLEEVE

4 Bearing Assy. – Includes the Following: 185332LF** 185355LF** 185356LF** 185357LF** 185358LF** 185359LF**

11 Seal Kit No. 118681LF 185230LF 186875 118681LF 185230LF 186875

Seal Type Buna-N1EPT2Viton3Buna-N1EPT2Viton3

XL-11™Small Bearing Frame Repair Kit* 185335LF 185335LF 185335LF 185336 185336 185336

2 Volute Gasket P57410 P57410 P57410 P57410 P57410 P57410

ITEM NO. 6 POWER PACKS

1 PHASE 3 PHASE RING

HP 115/208-230 208-230/460 MOUNTS

1/2169228 169229 118228

3/4169230 169231 118228

1 169232 169233 118848

11/2169236 169237 NONE

ITEM NO. 5 COUPLERS

See chart on page 23

- Factory recommended spare parts.

NOTE: Refer to page 4 for exploded view of pump.

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

PARTS FOR MAINTENANCE FREE SERIES 60

11⁄2x11⁄2x7

ITEM BRONZE ALL

NO. DESCRIPTION FITTED BRONZE

1 Volute 186390 186934LF

10 Volute Drain Plug (5 Req’d) P39020 P39470

7 Volute Capscrew (8 Req’d) P40020 P52310

2 Volute Gasket P57700 P57700

8 Impeller (State Diameter) P57440 P57440

Impeller Key P49358 P49358

9 Impeller Nut P2000220 P2000220

3 Impeller Washer P11220 P11220

Flange (2 Req’d) P03410 P2000090

Fastener Package w/ Flange Gaskets P64940 P64930

Flange Gasket Set 118373 118373

2x2x7

ITEM BRONZE ALL

NO. DESCRIPTION FITTED BRONZE

1 Volute 186937 186938LF

10 Volute Drain Plug (5 Req’d) P39020 P39470

7 Volute Capscrew (8 Req’d) P40020 P52310

2 Volute Gasket P57700 P57700

8 Impeller (State Diameter) P57580 P57580

Impeller Key P49358 P49358

9 Impeller Nut P2000220 P2000220

3 Impeller Washer P11220 P11220

Flange (2 Req’d) F14200 P2000078

Fastener Package w/ Flange Gaskets (2 Req’d) P65031 P64930

Flange Gasket Set 118378 118378

ITEM MODELS WITH COPPER MODELS WITH STAINLESS

NO. DESCRIPTION SHAFT SLEEVE STEEL SHAFT SLEEVE

FOR BRONZE FITTED (BF) PUMPS

4 Bearing Assy. –

Includes the Following: 185333LF 185360LF 185361LF 185362LF 185363LF 185364LF

11 Seal Kit No. 186499LF 185223LF CF 186499LF 185223LF CF

Seal Type

Buna-N1

EPT2Viton3Buna-N1EPT2Viton3

XL-11™Lrg. Bearing

Frame Repair Kit* 185337LF 185337LF 185337LF 185338 185338 185338

2 Volute Gasket P57700 P57700 P57700 P57700 P57700 P57700

12 Cover Plate P2000095 P2000095 P2000095 P2000095 P2000095 P2000095

16 Coupler Cover P03982 P03982 P03982 P03982 P03982 P03982

FOR ALL BRONZE (AB) PUMPS

4 Bearing Assy. –

Includes the Following: 185334LF 185365LF 185366LF 185367LF 185368LF 185369LF

11 Seal Kit No. 186499LF 185223LF CF 186499LF 185223LF CF

Seal Type

Buna-N1

EPT2Viton3Buna-N1EPT2Viton3

XL-11™Lrg. Bearing

Frame Repair Kit* 185337LF 185337LF 185337LF 185338 185338 185338

2 Volute Gasket P57700 P57700 P57700 P57700 P57700 P57700

12 Cover Plate P2000095 P2000095 P2000095 P2000095 P2000095 P2000095

16 Coupler Cover P03982 P03982 P03982 P03982 P03982 P03982

1Buna/Carbon/Ceramic 2EPT/Carbon/Tungsten Carbide 3Viton/Carbon/Ceramic CF – Contact Factory

*Includes pre-assembled shaft, sleeve and bearings. Wave spring and volute gasket are also supplied.

XL-11™BEARING ASSEMBLIES (FOR BF OR AB PUMPS)

ITEM NO. 6 POWER PACKS

1 PHASE 3 PHASE RING

HP 115/208-230 208-230/460 MOUNTS

3/4169230 169231 118228

1 169232 169233 118848

11/2169236 169237 NONE

2 NONE 169238 NONE

3 NONE 169234 NONE

ITEM NO. 5 COUPLERS

See chart on page 23

– Factory recommended spare parts. NOTE: Refer to page 4 for exploded view of pump.

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

ITEM NO. 5 COUPLERS

PUMP MOTOR MOTOR MOTOR ELASTOMERIC

PUMP SHAFT HP FRAME SHAFT STANDARD COUPLER

MODEL SIZE (60 hz) SIZE SIZE COUPLER OPTION

1x1x51⁄41⁄4–1⁄2B&G POWER 118473 185329

11⁄4x11⁄4x51⁄43⁄4– 1 PACK 185329 185329

11⁄2x11⁄2x51⁄41⁄4–1⁄256 5⁄8" 185330 185330

11⁄2x11⁄2x61⁄41⁄2"1

1⁄256C 5⁄8" P75421 P75421

2x2x51⁄411⁄2143TC 7⁄8" P75422 P75422

2x2x61⁄41 –1

1⁄2143 / 145 7⁄8" P58598 P58598

3x3x51⁄4

3⁄4B&G POWER 186410 185330

1 PACK 185330 185330

11⁄2x11⁄2x7 5⁄8"3⁄4–1 56 5⁄8" 186004 186004

2x2x7 11⁄2– 3 56 5⁄8" 186003 186003

11⁄2– 3 143 / 145 7⁄8" 185331 185331

3 182 / 184 11⁄8" P77281 P77281

PARTS FOR MAINTENANCE FREE SERIES 60

– Factory recommended spare parts.

NOTE: Refer to page 4 for exploded view of pump.

1⁄2"

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

How to Select Parts for Series 60 &

1522 Pumps on Pages 25-34

The pump nameplate identifies the pump by model number, pump construction and

impeller diameter as shown below.

The nameplate above identifies the pump as a Series 60, size 11/4AA in bronze-fitted (BF)

construction. The impeller diameter is 43/8" and is capable of pumping 21 GPM at 14 FT.

The motor horsepower is 1/4, the RPM is 1750. The serial number specifically identifies

the unit for future reference. DO NOT REMOVE THE NAMEPLATE. It is important when

ordering replacement parts to furnish complete nameplate data.

Following the procedure below will result in proper parts selection.

1. Determine from the nameplate the model number, pump construction and impeller

diameter.

2. Refer to the index for the page number of the parts breakdown for the specific model

pump.

3. Find the proper column in the parts breakdown for the pump construction involved.

4. Select part numbers using the numbered drawings on pages 5, 6 & 7 for identification.

BELL & GOSSETT PUMP

SIZE

PUMP

CAP.

MOTOR

CAP.

SERIAL

NO.

AA 4

HP 1750RPM

21 GPM 14 FT

1598200 A19

CSA

ENCL

Impeller

Diameter

Pump Series

Pump Model Number

Pump Construction

Date Manufactured (January, 1991)

(See complete date code list on

page 8.)

Serial Number

Motor

Horsepower

Capacity & Head

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

+115V only. For 230V, use 169036.

*Trim impeller to diameter shown.

N/A – No longer available. See note below

– Factory recommended spare parts.

Note: Sleeve bearing power packs and maintenance-free ball bearing power packs are interchangeable.

Refer to the Power Pack Cross Reference chart on page 30.

Refer to pages 5 & 7 for exploded view of pump and bearing assembly.

(6) SLEEVE BEARING

POWER PACK (5) (8)

STANDARD EQUIVALENT 1 PHASE 3 PHASE IMPELLER

PUMP SIZE SIZE HP 115/230 208-230/460 COUPLER DIAMETER IMPELLER

60-1S & 60-1T 1"AA 1/4169035+ 169037 118473 51/4" 186359LF

60-2S & 60-2T 11/4"AA 1/3169038 169039 118473 51/4" 186359LF

60-3S & 60-3T 11/2"AA 1/2111044 111046 118473 51/4" 186368LF

60-4S & 60-4T 2"AA 3/4111047 111049 118473 51/4" 118626LF

60-5S & 60-5T 11/2"A 1/2111044 111046 116410 53/4" P57447

60-6S & 60-6T 11/2"A 3/4111047 111049 116410 61/2" P57445*

60-7S & 60-7T 11/2"A 1 N/A N/A 186004 7" P57445

60-8S & 60-8T 2"A 3/4111047 111049 186410 55/8" P57452*

60-9S & 60-9T 2"A 1 N/A N/A 186004 61/8" P57451*

60-10T 2"A 11/2– N/A 186003 63/4" P57450*

60-10S 1"AA 1/4169035+ – 118473 51/4" 186359LF

60-11S & 60-11T 11/4"AA 1/4169035+ 169037 118473 53/16" 186360LF

60-B11S 11/4"AA 1/4169035+ – 118473 53/16" 186360LF

60-13S & 60-13T 11/2"AA 1/2111044 111046 118473 51/4" 186368LF

60-B13S & 60-B13T 11/2"AA 1/2111044 111046 118473 51/4" 186368LF

60-14S & 60-14T 2"AA 3/4111047 111049 118473 51/4" 118626LF

60-B14S & 60-B14T 2"AA 3/4111047 111049 118473 51/4" 118626LF

60-15S & 60-15T 11/2"A 1/2111044 111046 186410 53/4" P57447

60-16S & 60-16T 11/2"A 3/4111047 111049 186410 63/8" P57446

60-17S & 60-17T 11/2"A 1 N/A N/A 186004 7" P57445

60-19S & 60-19T 2"A 1 N/A N/A 186004 6" P57452

60-20S & 60-20T 2"A 11/2N/A N/A 186003 61/2" P57451

60-21T 2"A 2– N/A 186003 7" P57450

60-22T 21/2"F 3– 169221 P77279 73/4" P57584

PARTS FOR SERIES 60

STANDARD SIZE DESIGNATIONS

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

PARTS FOR SERIES 60

COUPLER SELECTION

– Factory recommended spare parts.

*Steel Impeller.

NOTE: Refer to pages 5 & 7 for exploded view of pumps and bearing assembly.

SLEEVE BEARING POWER PACK SELECTION

See chart on page 30

1AA

11/4AA

ITEM BRONZE ALL ALL

NO. DESCRIPTION FITTED BRONZE IRON

1 Volute 186384 186385LF 186384

10 Volute Drain Plug (5 Required) P39020 P39470 P39020

7 Volute Capscrew (8 Required) P10620 P01850 P10620

8 Impeller (State Dia.) P56550 P56550 P60350*

Flange (2) P01510 P00836 P01510

Fastener Package w/ Flange Gaskets P64910 P64900 P64910

Flange Gasket Set 118368 118368 118368

4 Bearing Assembly Consisting of: 186863LF 186863LF 186865

13 Bearing Bracket P77179 P77179 P77179

14 Front Bearing P77216 P77216 P77215

15 Front Bearing Gasket P80816 P80816 P80816

21 Shaft Assembly 189035LF 189035LF P81960

11 Seal Kit 118681LF 118681LF 186681LF

2 Body Gasket P57410 P57410 P57410

Impeller Key P04940 P04940 P04940

9 Impeller Nut P2000236 P2000236 P04670

3 Impeller Washer P57000 P57000 P04650

12 Oil Well Cover P81239 P81239 P81239

19 Oil Wick Set 118395 118395 118395

ITEM BRONZE ALL ALL

NO. DESCRIPTION FITTED BRONZE IRON

1 Volute 186386 186931LF 186386

10 Volute Drain Plug (5 Required) P39020 P39470 P39020

7 Volute Capscrew (8 Required) P10620 P01850 P10620

8 Impeller (State Dia.) P56550 P56550 P60350*

Flange (2 Required) P03250 P00837 P03250

Fastener Package w/ Flange Gaskets P64910 P64900 P64910

Flange Gasket Set 118368 118368 118368

4 Bearing Assembly Consisting of: 186863LF 186863LF 186865

13 Bearing Bracket P77179 P77179 P77179

14 Front Bearing P77216 P77216 P77215

15 Front Bearing Gasket P80816 P80816 P80816

21 Shaft Assembly 189035LF 189035LF P81960

11 Seal Kit 118681LF 118681LF 186681LF

2 Body Gasket P57410 P57410 P57410

Impeller Key P04940 P04940 P04940

9 Impeller Nut P2000236 P2000236 P04670

3 Impeller Washer P57000 P57000 P04650

12 Oil Well Cover P81239 P81239 P81239

19 Oil Wick Set 118395 118395 118395

ITEM NO. PUMP SHAFT SIZE HP FRAME SIZE MOTOR SHAFT SIZE STANDARD COUPLER EXPF. COUPLER

51/2"—B&G 1/2" 118473 P77234

51/2" — 56 5/8" 118709 118635

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

PARTS FOR SERIES 60

11/2AA

*Steel Impeller

**Use 185329 sleeve-type coupler with 3⁄4HP maintenance-free ball bearing motor.

*Steel Impeller

2AA

COUPLER SELECTION

– Factory recommended spare parts.

NOTE: Refer to pages 5 & 7 for exploded view of pump and bearing assembly.

SLEEVE BEARING POWER PACK SELECTION

See chart on page 30

ITEM BRONZE ALL ALL

NO. DESCRIPTION FITTED BRONZE IRON

1 Volute 186389 186932LF 186389

10 Volute Drain Plug (5 Required) P39020 P39470 P39020

7 Volute Capscrew (8 Required) P10620 P01850 P10620

8 Impeller (State Diameter) P56740 P56740 P61010*

Flange (2 Required) P03410 P2000090 P03410

Fastener Package w/ Flange Gaskets P64940 P64930 P64940

Flange Gasket Set 118373 118373 118373

4 Sleeve Bearing Assembly Consisting of: 186863LF 186863LF 186865

13 Bearing Bracket P77179 P77179 P77179

14 Front Bearing P77216 P77216 P77215

15 Front Bearing Gasket P80816 P80816 P80816

21 Shaft Assembly 189035LF 189035LF P81960

11 Seal Kit 118681LF 118681LF 186681LF

2 Body Gasket P57410 P57410 P57410

Impeller Key P04940 P04940 P04940

9 Impeller Nut P2000236 P2000236 P04670

3 Impeller Washer P57000 P57000 P04650

12 Oil Well Cover P81239 P81239 P81239

19 Oil Wick Set 118395 118395 118395

ITEM BRONZE ALL ALL

NO. DESCRIPTION FITTED BRONZE IRON

1 Volute 186392 186933LF 186392

10 Volute Drain Plug (5 Required) P39020 P39470 P39020

7 Volute Capscrew (8 Required) P10620 P01850 P10620

8 Impeller (State Diameter) P56810 P56810 P61550*

Flange (2 Required) F14200 P2000078 F14200

Fastener Package w/ Flange Gaskets (2) P65030 P65031 P65030

Flange Gasket Set 118378 118378 118378

4 Sleeve Bearing Assembly Consisting of: 186863LF 186863LF 186865

13 Bearing Bracket P77179 P77179 P77179

14 Front Bearing P77216 P77216 P77215

15 Front Bearing Gasket P80816 P80816 P80816

21 Shaft Assembly 189035LF 189035LF P81960

11 Seal Kit 118681LF 118681LF 186681LF

2 Body Gasket P57410 P57410 P57410

Impeller Key P04940 P04940 P04940

9 Impeller Nut P2000236 P2000236 P04670

3 Impeller Washer P57000 P57000 P04650

12 Oil Well Cover P81239 P81239 P81239

9 Oil Wick Set 118395 118395 118395

ITEM NO. PUMP SHAFT SIZE HP FRAME SIZE MOTOR SHAFT SIZE STANDARD COUPLER EXPF. COUPLER

51/2"—B&G 1/2" 118473** P77234

51/2" — 56C 5/8" 118709 118635

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

PARTS FOR SERIES 60

11/2A

COUPLER SELECTION

*Includes P57303 Lip Seal.

ITEM BRONZE ALL ALL

NO. DESCRIPTION FITTED BRONZE IRON

1 Volute 186390 186934LF 186390

10 Volute Drain Plug (5 Required) P39020 P39470 P39020

7 Volute Capscrew (8 Required) P40020 P52310 P40020

8 Impeller (State Dia.) P57445 P57445 P57500

Flange (2 Required) P03410 P2000090 P03410

Fastener Package w/ Flange Gaskets P64940 P64930 P64940

Flange Gasket Set 118373 118373 118373

4 Sleeve Bearing Assembly Consisting of: 185260LF 185262LF 185261LF

13 Bearing Bracket P57282 P57282 P57282

17 Coverplate P57246 P2000095 P57246

14 Front Bearing* 185241 185241 185241

16 Rear Bearing 185240 185240 185240

21 Shaft Assembly 118469LF 118469LF P08725

Coupler Key H32400 H32400 H32400

11 Seal Kit 186499LF 186499LF 186433

2 Body Gasket P57700 P57700 P57700

Impeller Key P49358 P49358 P49358

9 Impeller Nut P45910 P2000220 P45910

3 Impeller Washer P11150 P11220 P11150

12 Oil Well Cover P57302 P57302 P57302

18 Oil Well Gasket P57300 P57300 P57300

19 Oil Wick (2 Required) P04883 P04883 P04883

20 Oil Wick Retainer (2 Required) P12422 P12422 P12422

ITEM BRONZE ALL ALL

NO. DESCRIPTION FITTED BRONZE IRON

1 Volute 186937 186938LF 186937

10 Volute Drain Plug (5 Required) P39020 P39470 P39020

7 Volute Capscrew (8 Required) P40020 P52310 P40020

8 Impeller (State Dia.) P57450 P57450 N/A

Flange (2 Required) F14200 P2000078 F14200

Fastener Package w/ Flange Gaskets (2) P65030 P65031 P65030

Flange Gasket Set 118378 118378 118378

4 Sleeve Bearing Assembly Consisting of: 185260LF 185262LF 185261LF

13 Bearing Bracket P57282 P57282 P57282

17 Coverplate P57246 P2000095 P57246

14 Front Bearing* 185241 185241 185241

16 Rear Bearing 185240 185240 185240

21 Shaft Assembly 118469LF 118469LF P08725

Coupler Key H32400 H32400 H32400

11 Seal Kit 186499LF 186499LF 186433

2 Body Gasket P57700 P57700 P57700

Impeller Key P49358 P49358 P49358

9 Impeller Nut P45910 P2000220 P45910

3 Impeller Washer P11150 P11220 P11150

12 Oil Well Cover P57302 P57302 P57302

18 Oil Well Gasket P57300 P57300 P57300

19 Oil Wick (2 Required) P04883 P04883 P04883

20 Oil Wick Retainer (2 Required) P12422 P12422 P12422

ITEM NO. PUMP SHAFT SIZE HP FRAME SIZE MOTOR SHAFT SIZE STANDARD COUPLER EXPF. COUPLER

55/8"1/2, 3/4B&G 1/2" 186410 P77237

55/8"156 5/8" 186004 186004

55/8"1143TZ 5/8" 186004 186004

55/8"1

1/2, 2 56 5/8" 186003 186003

55/8"1

1/2, 2 145TZ 5/8" 186003 186003

– Factory recommended spare parts.

NOTE: Refer to pages 5 & 7 for exploded view of pump and bearing assembly.

SLEEVE BEARING POWER PACK SELECTION

See chart on page 30

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

PARTS FOR SERIES 60

COUPLER SECTION

21/2F

ITEM NO. DESCRIPTION BRONZE FITTED ALL BRONZE

1 Volute P57232 P2000060

10 Volute Drain Plug (5 Required) P39040 P39480

7 Volute Capscrew (12 Required) P03470 S04180

8 Impeller (State Diameter) P57583 P57583

4 Bearing Assembly Consisting of: 185264LF 185265

13 Bearing Bracket P57282 P57282

17 Coverplate P57242 P2000062

14 Front Bearing* 185241 185241

16 Rear Bearing 185240 185240

21 Shaft Assembly 118469 118469

Coupler Key H32400 H32400

11 Seal Kit 186499LF 186499LF

2 Body Gasket P57701 P57701

Impeller Key P49358 P49358

9 Impeller Nut P45910 P2000220

3 Impeller Washer P11150 P11220

12 Oil Well Cover P57302 P57302

18 Oil Well Gasket P57300 P57300

19 Oil Wick (2 Required) P04883 P04883

20 Oil Wick Retainer (2 Required) P12422 P12422

ITEM NO. PUMP SHAFT SIZE HP FRAME SIZE MOTOR SHAFT SIZE STANDARD COUPLER EXPF. COUPLER

55/8"1

1/2, 2 145TZ 5/8" 186003 186003

55/8"3145TC 7/8" P77279 P77279

55/8"3182TC 11/8" P77281 P77281

*Includes P57303 Lip Seal.

– Factory recommended spare parts.

NOTE: Refer to pages 5 & 7 for exploded view of pump and bearing assembly.

SLEEVE BEARING POWER PACK SELECTION

See chart on page 30

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

POWER PACK SELECTION FOR

SERIES 60 & PD PUMPS

SLEEVE BEARING POWER PACK SELECTION

ITEM 1 PHASE 3 PHASE RING

NO. HP 115/230V 208-230/460V MOUNTS

6 1/4 169035* 169037 118228

6 1/3 169038 169039 118228

6 1/2 111044 111046 118228

6 3/4 111047+ 111049+ 118228

†A/N †A/N 1 6 118848**

A/N A/N 2/1-1 6 118848**

A/N - 2 6 118848

6 3 - ENON )CT541( 122961

6 3 - 169223+ (182TC) NONE

.630961 rebmun trap esu ,V032 roF .ylno V511 *

+For 200V only, use part number 169222.

** For 3 phase only. Motor mounts for single phase power packs not available.

+ When replacing this sleeve bearing motor with the new maintenance free ball bearing motor, the 118473

spring-type coupler must be changed to the 185329 sleeve-type coupler.

† When replacing this old sleeve bearing motor with the new maintenance free ball bearing motor, the 5/8" x 5/8"

coupler part number 186004 must be changed to the 5/8" x 1/2" coupler part number 185330.

NOTE: Sleeve bearing power packs and maintenance-free ball bearing power packs are interchangeable.

When replacing a sleeve bearing power pack with a ball bearing power pack, the old motor bracket

must be removed from the pump and discarded. The ball bearing power pack is bolted directly to the

.ylbmessa gniraeb

POWER PACK CROSS REFERENCE

EERF-ECNANETNIAM

GNIRAEB LLAB GNIRAEB EVEELS

MOTOR POWER PACK MOTOR POWER PACK

HP PH VOLTAGE MOUNTS PART NO VOLTAGE MOUNTS PART NO.

1/4 1 115/230 118228 169035/169036 115/208-230 118228 169224

1/4 3 208-230/460 118228 169037 208-230/460 118228 169225

1/3 1 115/230 118228 169038 115/208-230 118228 169226

1/3 3 208-230/460 118228 169039 208-230/460 118228 169227

1/2 1 115/230 118228 111044 115/208-230 118228 169228

1/2 3 208-230/460 118228 111046 208-230/460 118228 169229

3/4 1 115/230 118228 111047 115/208-230 118228 169230

3/4 3 208-230/460 118228 111049 208-230/460 118228 169231

1 1 115/230 N/A N/A 115/208-230 118848 169232

1 3 208-230/460 118848 N/A 208-230/460 118848 169233

1-1/2 1 115/230 N/A N/A 115/208-230 NONE 169236

1-1/2 3 208-230/460 118848 N/A 208-230/460 NONE 169237

2 3 208-230/460 118848 N/A 208-230/460 NONE 169238

3 3 208-230/460 NONE 169221 208-230/460 NONE 169234

N/A – No Longer Available

Factory recommended spare parts.

Note: Refer to page 5 for exploded view of pump.

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

POWER PACK SELECTION FOR

SERIES 60 & PD PUMPS

BEARING ASSEMBLY CROSS REFERENCE

GNIRAEB ™11-LX GNIRAEB EVEELS

PUMP PUMP BEARING ASSEMBLY BEARING ASSEMBLY

EZIS .ON TRAP .ON TRAP EPYT EZIS

LLAMS LF*233581 3LF68681 BA ro FB ,BI "AA" 06 ,73-DP ,53-DP

EGRAL **3LF33581 0LF62581 FB ro BI "A" 06 ,04-DP ,93-DP ,83-DP

EGRAL *LF*433581 2LF62581 BA "A" 06 ,04-DP ,93-DP ,83-DP

A/N A/N 4LF62581 FB "F" 06

A/N A/N 562581 BA "F" 06

.elbaegnahcretni era seilbmessa gniraeb 11-LX dna seilbmessa gniraeb eveelS :ETON

* The 185332 Bearing Assembly is 5/8" longer than the AA sleeve bearing frame

** When replacing a sleeve bearing assembly (oil-lubricated) with a new XL-11 bearing assembly on the larger PD's and 60 "A"

.deriuqer si tik retpada na ,kcap rewop "7 dellatsni-yrotcaf lanigiro eht evah taht spmup ezis

ADAPTER KIT FOR XL-11™

MAINTENANCE-FREE BEARING RETROFIT

MOTOR MOTOR ADAPTER KIT

HP PHASE PART NUMBER

053581 1 1

153581 3 1

253581 1 2/1-1

353581 3 2/1-1

453581 3 2

XL-11™ BEARING ASSEMBLIES

EGRAL LLAMS METI

433581 333581 233581 NOITPIRCSED .ON

11 Seal Kit 118681LF 186499LF 186499LF

XL-11™ Bearing Frame Repair Kit* 185335LF 185337LF 185337LF

2 Volute Gasket P57410 P57700 P57700

P2000095 64275P ENON etalprevoC 21

28930P 28930P ENON revoC relpuoC

* Includes pre-assembled shaft, sleeve and bearings, wave spring and volute gasket.

Factory recommended spare parts.

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

PARTS FOR SERIES 1522

STANDARD SIZE DESIGNATIONS

1+115V Only. For 230V, use 196041.

– Factory recommended spare parts.

NOTE: Refer to pages 6 & 7 for exploded view of pump and bearing assembly.

ITEM NO. 66 8 5

PUMP BUILT-TO-ORDER 1 PHASE 3 PHASE IMPELLER

SIZE PART NO. EQUIVALENT SIZE HP 115/230 TRI-VOLT RPM IMPELLER DIAMETER COUPLER

1S-1 173014LF 3/4"AAB 1/4169040+ – 1750 186359LF 51/4" 118473

1T-1 173057 3/4"AAB 1/4– 169042 1750 186359LF 51/4" 118473

2S-1 173078LF 1"AAB 1/3169043 – 1750 186359LF 51/4" 118473

2T-1 173079 1"AAB 1/3– 169045 1750 186359LF 51/4" 118473

3S-1 173080LF 11/4"AAB 1/2169047 – 1750 186368 51/4" 118473

3T-1 173081LF 11/4"AAB 1/2– 169049 1750 186368 51/4" 118473

4S 173082LF 11/2"AAB 3/4169051 – 1750 118626LF 51/4" 118473

4T 173083LF 11/2"AAB 3/4– 169053 1750 118626LF 51/4" 118473

5S-1 Obsolete 3/4"AAB 1/2169048 – 3450 186363 4" 118709

5T-1 Obsolete 3/4"AAB 1/2– 169050 3450 186363 4" 118709

6S-1 Obsolete 1"AAB 3/4169052 – 3450 186366LF 37/8" 118709

6T-1 Obsolete 1"AAB 3/4– 169054 3450 186366LF 37/8" 118709

7S-1 Obsolete 3/4"AAB 3/4169052 – 3450 186362LF 43/8" 118709

7T-1 Obsolete 3/4"AAB 3/4– 169054 3450 186362LF 43/8" 118709

8S-1 Obsolete 11/4"AAB 1 169055 – 3450 186371LF 35/8" 118709

8T-1 Obsolete 11/4"AAB 1–169056 3450 186371LF 35/8" 118709

9S-1 Obsolete 3/4"AAB 11/2169057 – 3450 186360LF 53/16" 118709

9T-1 Obsolete 3/4"AAB 11/2– 169058 3450 186360LF 53/16" 118709

11T Obsolete 11/2"AAB 2–169060 3450 186373LF 315/16" 118709

12S-1 Obsolete 3/4"AAB 1 169055 – 3450 186361LF 411/16" 118709

12T-1 Obsolete 3/4"AAB 1 – 169056 3450 186361LF 411/16" 118709

14S Obsolete 3/4"AAB 1/3169044 – 3450 186364LF 37/16" 118709

14T Obsolete 3/4"AAB 1/3– 169046 3450 186364LF 37/16" 118709

15T-1 Obsolete 1"AAB 2–169060 3450 186359LF 51/4" 118709

16S-1 Obsolete 11/4"AAB 11/2169057 – 3450 186370LF 41/8" 118709

16T-1 Obsolete 11/4"AAB 11/2– 169058 3450 186370LF 41/8" 118709

17S Obsolete 11/2"AAB 11/2169057 – 3450 186375LF 311/16" 118709

17T Obsolete 11/2"AAB 11/2– 169058 3450 186375LF 311/16" 118709

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

PARTS FOR SERIES 1522

3/4AAB

1AAB

POWER PACK SELECTION

*Steel Impeller.

**Doesn't include body gasket, impeller nut or impeller gasket.

N/A – Not Available

+115V Only. For 230V, use 196041

왔For replacement purposes only. 1522 pumps ar no longer available with this option.

– Factory recommended spare parts.

NOTE: Refer to pages 6 & 7 for exploded view of pump and bearing assembly.

ITEM BRONZE ALL ALL

NO. DESCRIPTION FITTED BRONZE IRON SS BFE

1 Volute 186074 186333LF 186074 N/A 186074

10 Volute Drain Plug (4 Req'd)) P39020 P39470 P39020 P39030 P39020

7 Volute Capscrew (8 Req'd) P10620 P01850 P10620 P00660 P10620

8 Impeller (State Diameter) P56550 P56550 P60350* N/A P56550

4 Bearing Assembly Consisting of: 186863LF 186863LF 186865 N/A P10316**

13 Bearing Bracket P77179 P77179 P77179 P77198 P77179

14 Front Bearing P77216 P77216 P77215 P77217 P77216

15 Front Bearing Gasket P80816 P80816 P80816 P80816 P80816

21 Shaft 189035LF 189035LF P81960 P59991 189035LF

11 Seal 118681LF 118681LF 186681LF 186875 185230LF

2 Body Gasket P57410 P57410 P57410 P57410 P57410

Impeller Key P04940 P04940 P04940 P04945 P04940

9 Impeller Nut P2000236 P2000236 P04670 P00651 P44200

3 Impeller Washer P57000 P57000 P04650 P04660 P57000

12 Oil Well Cover P81239 P81239 P81239 P81239 P81239

19 Oil Wick Set 118395 118395 118395 118395 118395

Flat Head Capscrew (4 Req'd) NONE NONE NONE P51190 NONE

17 Coverplate NONE NONE NONE P09421 NONE

ITEM BRONZE ALL ALL

NO. DESCRIPTION FITTED BRONZE IRON SS BFE

1 Volute 186075 P2000016 186075 N/A 186075

10 Volute Drain Plug (4 Req'd) P39020 P39470 P39020 P39030 P39020

7 Volute Capscrew (8 Req'd) P10620 P01850 P10620 P00660 P10620

8 Impeller (State Diameter) P56550 P56550 P60350* N/A P56550

4 Bearing Assembly Consisting of: 186863LF 186863LF 186865 N/A P10316**

13 Bearing Bracket P77179 P77179 P77179 P77198 P77179

14 Front Bearing P77216 P77216 P77215 P77217 P77216

15 Front Bearing Gasket P80816 P80816 P80816 P80816 P80816

21 Shaft 189035LF 189035LF P81960 P59991 189035

11 Seal 118681LF 118681LF 186681LF 186875 185230

2 Body Gasket P57410 P57410 P57410 P57410 P57410

Impeller Key P04940 P04940 P04940 P04945 P04940

9 Impeller Nut P2000236 P2000236 P04670 P00651 P44200

3 Impeller Washer P57000 P57000 P04650 P04660 P57000

12 Oil Well Cover P81239 P81239 P81239 P81239 P81239

19 Oil Wick Set 118395 118395 118395 118395 118395

Flat Head Capscrew (4 Req'd) NONE NONE NONE P51190 NONE

17 Coverplate NONE NONE NONE P09421 NONE

1PH, 115/230V 1PH, 230/460V 3PH, 208-230/460V 3PH, 208-230/460V MOUNTING

ITEM NO. HP 1725 RPM 3450 RPM왔1725 RPM 3450 RPM왔RINGS

61/4169040+ NONE 169042 NONE 118228

61/3169043 169044 169045 169046 118228

61/2169047 169048 169049 169050 118228

63/4169051 169052 169053 169054 118228

61 NONE 169055 NONE 169056 NONE

1/2NONE 169057 NONE 169058 NONE

62 NONE N/A NONE 169060 NONE

COUPLER SELECTION

ITEM NO. PUMP SHAFT SIZE HP FRAME SIZE MOTOR SHAFT SIZE STANDARD EXPLOSION PROOF

51/2"—B&G 1/2" 118473 P77234

51/2" — B&G 5/8" 118709 118635

51/2" — 56C 5/8" 118709 118635

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

PARTS FOR SERIES 1522

11/4AAB

11/2AAB

COUPLER SELECTION

POWER PACK SELECTION

ITEM BRONZE ALL ALL

NO. DESCRIPTION FITTED BRONZE IRON SS BFE

1 Volute 186081 P2000018 186081 N/A 186081

10 Volute Drain Plug (4 Req'd) P39020 P39470 P39020 P39030 P39020

7 Volute Capscrew (8 Req'd) P10620 P01850 P10620 P00660 P10620

8 Impeller (State Diameter) P56740 P56740 P61010* N/A P56740

4 Bearing Assembly Consisting of: 186863LF 186863LF 186865 N/A P10316**

13 Bearing Bracket P77179 P77179 P77179 P77198 P77179

14 Front Bearing P77216 P77216 P77215 P77217 P77216

15 Front Bearing Gasket P80816 P80816 P80816 P80816 P80816

21 Shaft 189035 189035 P81960 P59991 189035

11 Seal 118681LF 118681LF 186681LF 186875 185230

2 Body Gasket P57410 P57410 P57410 P57410 P57410

Impeller Key P04940 P04940 P04940 P04945 P04940

9 Impeller Nut P2000236 P2000236 P04670 P00651 P44200

3 Impeller Washer P57000 P57000 P04650 P04660 P57000

12 Oil Well Cover P81239 P81239 P81239 P81239 P81239

19 Oil Wick Set 118395 118395 118395 118395 118395

Flat Head Capscrew (4 Req'd) NONE NONE NONE P51190 NONE

17 Coverplate NONE NONE NONE P09421 NONE

ITEM BRONZE ALL ALL

NO. DESCRIPTION FITTED BRONZE IRON SS BFE

1 Volute 186087 186334 186087 N/A 186087

10 Volute Drain Plug (4 Req'd) P39020 P39470 P39020 P39030 P39020

7 Volute Capscrew (8 Req'd) P10620 P01850 P10620 P00660 P10620

8 Impeller (State Diameter) P56810 P56810 P61550* N/A P56810

4 Bearing Assembly Consisting of: 186863LF 186863LF 186865 N/A P10316**

13 Bearing Bracket P77179 P77179 P77179 P77198 P77179

14 Front Bearing P77216 P77216 P77215 P77217 P77216

15 Front Bearing Gasket P80816 P80816 P80816 P80816 P80816

21 Shaft 189035 189035 P81960 P59991 189035

11 Seal 118681LF 118681LF 186681LF 186875 185230

2 Body Gasket P57410 P57410 P57410 P57410 P57410

Impeller Key P04940 P04940 P04940 P04945 P04940

9 Impeller Nut P2000236 P2000236 P04670 P00651 P44200

3 Impeller Washer P57000 P57000 P04650 P04660 P57000

12 Oil Well Cover P81239 P81239 P81239 P81239 P81239

19 Oil Wick Set 118395 118395 118395 118395 118395

Flat Head Capscrew (4 Req'd) NONE NONE NONE P51190 NONE

17 Coverplate NONE NONE NONE P09421 NONE

ITEM NO. PUMP SHAFT SIZE HP FRAME SIZE MOTOR SHAFT SIZE STANDARD EXPLOSION PROOF

51/2"—B&G 1/2" 118473 P77234

51/2" — B&G 5/8" 118709 118635

51/2" — 56C 5/8" 118709 118635

1PH, 115/230V 1PH, 230/460V 3PH, 208-230/460V 3PH, 208-230/460V MOUNTING

ITEM NO. HP 1725 RPM 3450 RPM왔1725 RPM 3450 RPM왔RINGS

61/4169040+ NONE 169042 NONE 118228

61/3169043 169044 169045 169046 118228

61/2169047 169048 169049 169050 118228

63/4169051 169052 169053 169054 118228

61 NONE 169055 NONE 169056 NONE

1/2NONE 169057 NONE 169058 NONE

62 NONE N/A NONE 169060 NONE

*Steel Impeller.

**Doesn't include body gasket, impeller nut or impeller gasket.

N/A – Not Available

+115V Only. For 230V, use 196041

왔For replacement purposes only. 1522 pumps ar no longer available with this option.

– Factory recommended spare parts.

NOTE: Refer to pages 6 & 7 for exploded view of pump and bearing assembly.

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

SEAL SELECTION CHART

Obs. – Obsolete pump models.

EPT – Ethyl Propylene Terpolymer (not oil resistant).

– Factory recommended spare parts.

SEAL SEAL ONLY NO. ELASTOMER SEAL BODY SEAT INSERT

KIT* NO. (LESS SEAT INSERT) FOR PUMP MODEL(S) MATERIAL CONSTRUCTION MATERIAL

118681LF 118680LF Series 100, HV, 2", PR, LD-3, HD-3, Buna-N Brass Ceramic

(KIT #7) PD-35, PD-37, Series 60 “AA”, 1522,

Obs. 1", Obs. 11/4", Obs. 11/2", Obs. HV,

Obs. 2", MF 60 with 51/4" and 61/4" impellers

185222 – Series 100, HV, 2", PR, LD-3, HD-3, EPT Steel Tungsten

(KIT #13) PD-35, PD-37, Series 60 “AA”, 1522, Carbide

Obs. 1", Obs. 11/4", Obs. 11/2",

Obs. HV, Obs. 2"

185223LF – PD-38, PD-40, Series 60”A”, Series 60 EPT Steel Tungsten

(KIT #14) 21/2F, Obs. PD-39, MF 60 with 7" impellers Carbide

185224 – PD-38, PD-40, Series 60 “A", EPT Steel Tungsten

(KIT #15) Series 60 21/2F, Obs. PD-39 Carbide

185227 – PD-38, PD-40, Series 60 “A”, Teflon Stainless Steel Ceramic

(KIT #18) Series 60 21/2F, Obs. PD-39

185230LF 118682 Series 100, HV, 2", PR, LD-3, HD-3, EPT Brass Tungsten

(KIT #12) PD-35, PD-37, Series 60 “AA”, 1522, Carbide

Obs. 1", Obs. 11/4", Obs. 11/2", Obs. HV,

Obs. 2", MF 60 with 51/4" and 61/4" impellers

186433 – PD-38, PD-40, Series 60 “A”, Buna-N Steel Ceramic

(KIT #5) Series 60 21/2F, Obs. PD-39

186499LF – PD-38, PD-40, Series 60 “A”, Series 60 Buna-N Brass Ceramic

(KIT #2) 21/2F, Obs. PD-39, MF 60 with 7" impellers

186681 – Series 100, HV, 2", PR, LD-3, HD-3, Buna-N Steel Ceramic

(KIT #6) PD-35, PD-37, Series 60 “AA”, 1522,

Obs. 1", Obs. 11/4", Obs. 11/2",

Obs. HV, Obs. 2"

186875 P59861 Series 100, HV, 2", PR, LD-3, HD-3, Viton Stainless Steel Ceramic

PD-35, PD-37, Series 60 “AA”, 1522,

Obs. 1", Obs. 11/4", Obs. 11/2", Obs. HV,

Obs. 2", MF 60 with 51/4" and 61/4" impellers

189144LF – PL-30, PL-30B, PL-36, PL-36B, PL-45, EPT Brass SiC

PL-45B, PL-50, PL-50B, PL-75, PL-75B

189174LF – PL-130/2, PL130B/2, PL-130/3, PL-130B/3 EPT Brass SiC

189577LF – PL-55, PL-55B EPT Brass SiC

HS-300F-PL

HYDRONIC SPECIALTIES REPLACEMENT PARTS HS-300F-PL

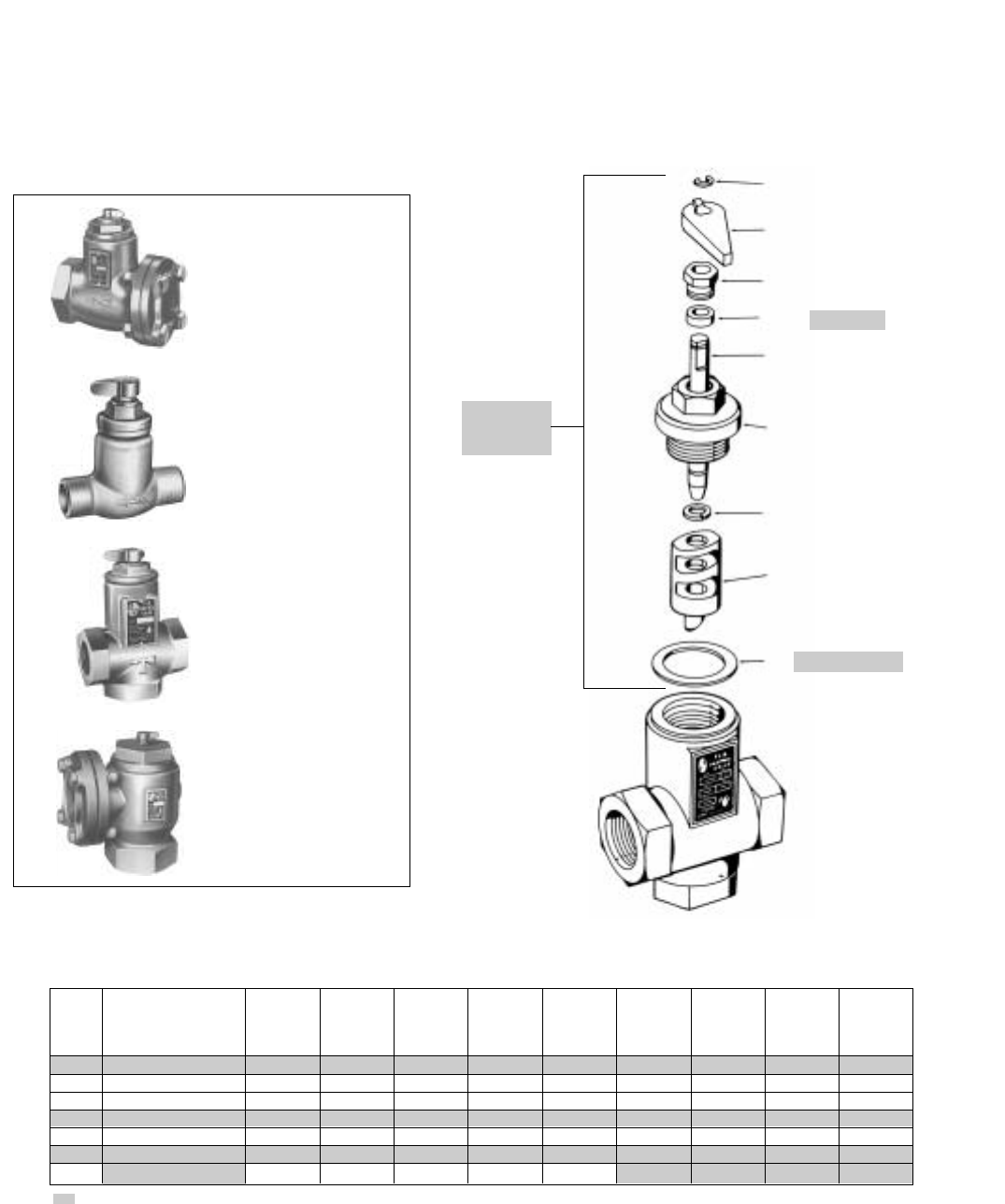

PARTS FOR FLO-CONTROL VALVES

햴PACKING NUT

햷VALVE CAP

RING GASKET

햺

SNAP RING

햸

DISC

햹

햶

햵

햳HANDLE

햲

햻

RETAINER RING

DYNA

DISC

ASSEMBLY

VALVE STEM

PACKING

STRAIGHT PATTERN

BRONZE STRAIGHT

PATTERN

STRAIGHT ANGLE

PATTERN

ANGLE PATTERN

– Factory recommended spare parts.

NOTE: Consult factory if parts other than those listed above are required.

A-21/2A-3

107006 107007

ITEM SA-3/4SA-1 SA-11/4SA-11/2SB-3/4SA-2 S-21/2S-3 S-4

NO. DESCRIPTION 107034 107018 107019 107020 107024 107021 107014 107015 107004

10 Dyna Disc Assembly 189168 118117 118094 118095 118864 118095 118096 118096 118118

1 Retainer Ring J92350 F02800 F20800 F20800 J92350 F20800 F22200 F22200 F06800

3 Packing Nut 118056 118056 118056 118056 118056 118056 118056 118056 F16600

4 Packing 118057 118057 118057 118057 118057 118057 118057 118057 F17000

7 Snap Ring F42800 F42800 F42800 F42800 F42800 F42800 F42800 F42800 NONE

9 Ring Gasket F43000 F44400 F47200 F49000 V56936 F49000 F27800 F27800 F19000

Flange Gasket NONE NONE NONE NONE NONE F26200 G82750 G86500 F17400

HS-300F-PL

HYDRONIC SPECIALTIES REPLACEMENT PARTS HS-300F-PL

PARTS FOR COMFORT-TROL/

OBSOLETE MODUMATE ZONE VALVES

ITEM NO. DESCRIPTION PART NO.

1 Heat Motor Kit 189143

2 Seal & Seat Assembly 189060

– Factory recommended spare parts.

ASSEMBLED MODUMATE VALVE (M-1)

OBSOLETE

햴

COVER

햲

OPERATOR

햳

햵

HEAT MOTOR

ASSEMBLY

햶

GLAND ASSEMBLY

BONNET & RETAINER

ASSEMBLY

햲

HEAT MOTOR

KIT

햳

SEAL & SEAT

ASSEMBLY

ASSEMBLED COMFORT-TROL VALVE

BODY

햷

ITEM NO. DESCRIPTION PART NO.

1 Operator 109024

2 Bonnet & Retainer Assembly (6 Pack) 189139

3 Cover V01340

4 Heat Motor Assembly (6 Pack) 189137

5 Gland Assembly (6 Pack) 189138

6 Body (CTS-7524) V01103

HS-300F-PL

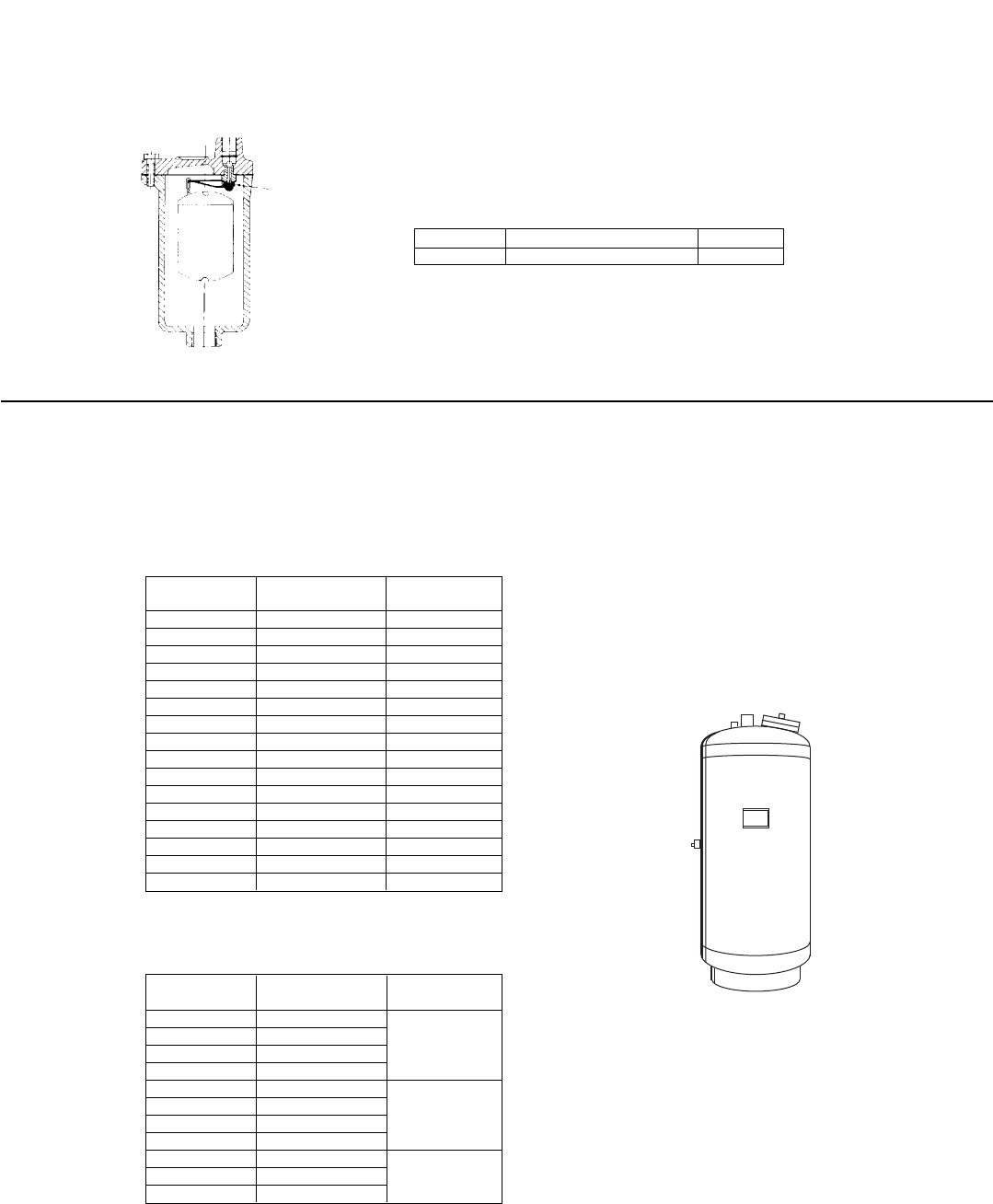

TANK TANK BLADDER

PART NUMBER MODEL NUMBER PART NUMBER

116782 B-35 LA

116783 B-50 LA 189594

116784 B-85 LA

116785 B-100 LA

116786 B-130 LA

116787 B-165 LA 189595

116788 B-200 LA

116789 B-300 LA

116790 B-400 LA

116791 B-500 LA 189596

116792 B-600 LA

HYDRONIC & ENGINEERED SPECIALTIES REPLACEMENT PARTS HS-300F-PL

PARTS FOR MODEL 107A HIGH CAPACITY AIR VENT

ITEM NO. DESCRIPTION PART NO.

1 Lever, Button & Gasket 118855

MODEL 107A VENT

햲

REPLACEMENT BLADDER PARTS

FOR THE B & B-LA SERIES TANKS

SERIES “B” REPLACEMENT BLADDERS

TANK TANK BLADDER

PART NUMBER MODEL NUMBER PART NUMBER

116550 B-200 189579

116551 B-300 189580

116552 B-400 189581

116553 B-500 189582

116554 B-600 189583

116555 B-800 189584

116556 B-1000 189585

116557 B-1200 189586

116558 B-1400 189587

116559 B-1600 189588

116560 B-2000 189589

116793 B-2500 189590

116794 B-3000 189591

116795 B-3500 189592

116796 B-4000 189593

116819 B-5000 189597

SERIES “B-LA” REPLACEMENT BLADDERS

HS-300F-PL

ENGINEERED SPECIALTIES REPLACEMENT PARTS HS-300F-PL

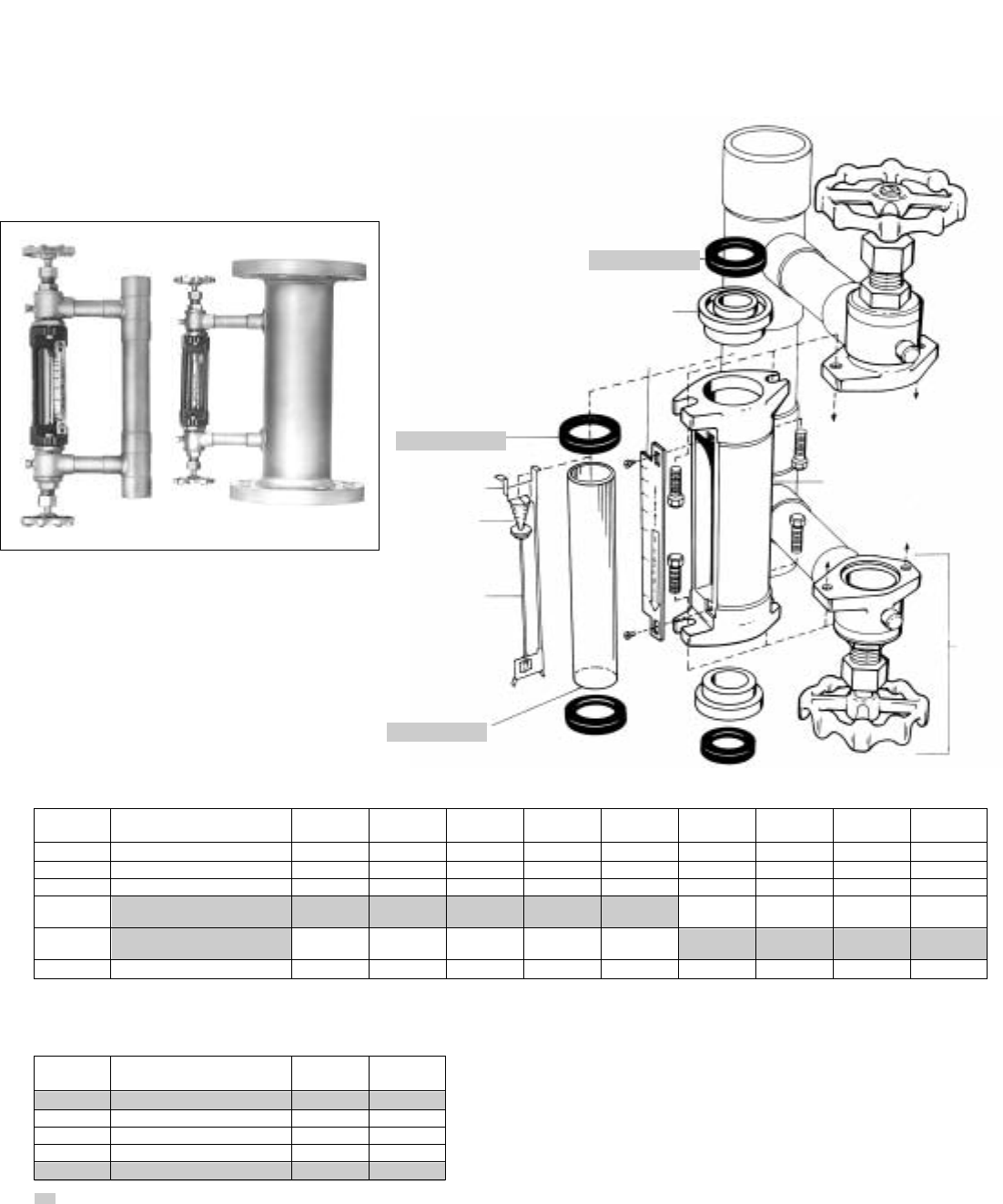

PARTS FOR THERMOFLO INDICATORS

– Factory recommended spare parts.

햴

SPRING

햷

TUBE GLASS

햶

햵

햳

HANGER 햲

SEALING RING

GUIDE WIRE

햹

BODY

햸

ANGLE

VALVE

RETAINER

RING

SCALE

PLATE

햳

SEALING RING

햺

ASSEMBLED THERMOFLO

INDICATOR

TFI-11/4TFI-11/2TFI-2 TFI-21/2TFI-3 TFI-4 TFI-5 TFI-6 TFI-8

ITEM NO. DESCRIPTION 140001 140002 140003 140004 140005 140006 140007 140008 140009

1 Body G92500 ➞➞➞➞➞➞➞➞

3 Retainer Ring (2 req’d) G92000 ➞➞➞➞➞➞➞➞

9 Angle Valve (2 req’d) G95000 ➞➞➞➞➞➞➞➞

Glass Tube Kit New Style

(Clear) 189111 ➞➞➞➞NONE NONE NONE NONE

Glass Tube Kit Old Style

(Etched) 118820 ➞➞➞➞➞➞➞➞

8 Scale Plate G95594 G95595 G95596 G95597 G95598 G95915 G95916 G95917 G95918

CLEAR ETCHED

ITEM NO. DESCRIPTION 189111 118820

4 Tube Glass G91900 G91904

7 Hanger F69000 ➞

5 Guide Wire F69200 ➞

6 Spring F66800 ➞

2 Sealing Ring (4 required) F67200 ➞

GLASS TUBE KITS

READOUT VALVE

ENGINEERED SPECIALTIES REPLACEMENT PARTS HS-300F-PL

CIRCUIT SETTER BALANCE VALVES

*Exploded view for obsolete Vane Style Valve is not shown. Replacement parts are not available.

– Factory recommended spare parts.

햵

햴

햲

INDICATOR

RING

KNOB

NAME PLATE

BALL STYLE VALVES VANE STYLE VALVE*

SMALL DESIGN BALL STYLE VALVE

1/2" – 1" LARGE DESIGN BALL STYLE VALVE

11/4" – 3"

NAME PLATE

햲KNOB

INDICATOR STOP

햴

햵

ENGINEERED SPECIALTIES REPLACEMENT PARTS HS-300D-PL

PARTS FOR CIRCUIT SETTERS (CONTINUED)

*Also use Readout Valve model RV-125A, P/N 113100 (50 pairs per package).

**Also use Readout Probe model RP-250B, P/N 113102 (6 pairs per package). 1

†– CB-4 manufactured after March 2001.

– Factory recommended spare parts.

CIRCUIT SETTER ”RF” & CIRCUIT SETTER PLUS

BALL STYLE VALVES (see page 44 for exploded view of current style valves)

Valves Manuf. Valves Manuf. Valves Manuf. Valves Manuf. Valves Manuf.

before July 2000 July 2000 & After July 2000 & After before Jan. 2004 Jan. 2004 & After

(G00 Date Code) (G00 Date Code) (G00 Date Code) (A40 Date Code) (A40 Date Code) All Valves

MODEL NO. PART NO. KNOB INDICATOR STOP READOUT VALVE READOUT PROBE

RF-1/2S 117410 G10105 G10105 -

RF-3/4S 117411 G10105 G10105 -

CB-1/2117414 G95951 G95951 -

CB-1/2S 117412 G95951 G95951 -

CB-3/4117415 G95951 G95951 -

CB-3/4S 117413 G95951 G95951 -

CB-1 117416 G95951 G95951 -

CB-1S 117401 G95951 G95951 -

CB-11/4117103 - G96831 G96839 G97030 (1 Pair)* V58050 (Each) G97032 (1 Pair)**

CB-11/4S 117402 - G96831 G96839 (1/8" NPT) (1/4" NPT)

CB-11/2117104 - G96831 G96839

CB-11/2S 117403 - G96831 G96839

CB-2 117105 - G96831 G96839

CB-2S 117404 - G96831 G96839

CB-21/2117106 - G96831 G96839

CB-21/2F 117116 - G96831 G96839

CB-3 117107 - G96831 G96839

CB-3F 117117 - G96831 G96839

CB-4† 117035 - G96831 G96839

ENGINEERED SPECIALTIES REPLACEMENT PARTS HS-300D-PL

PARTS FOR CIRCUIT SETTERS (CONTINUED)

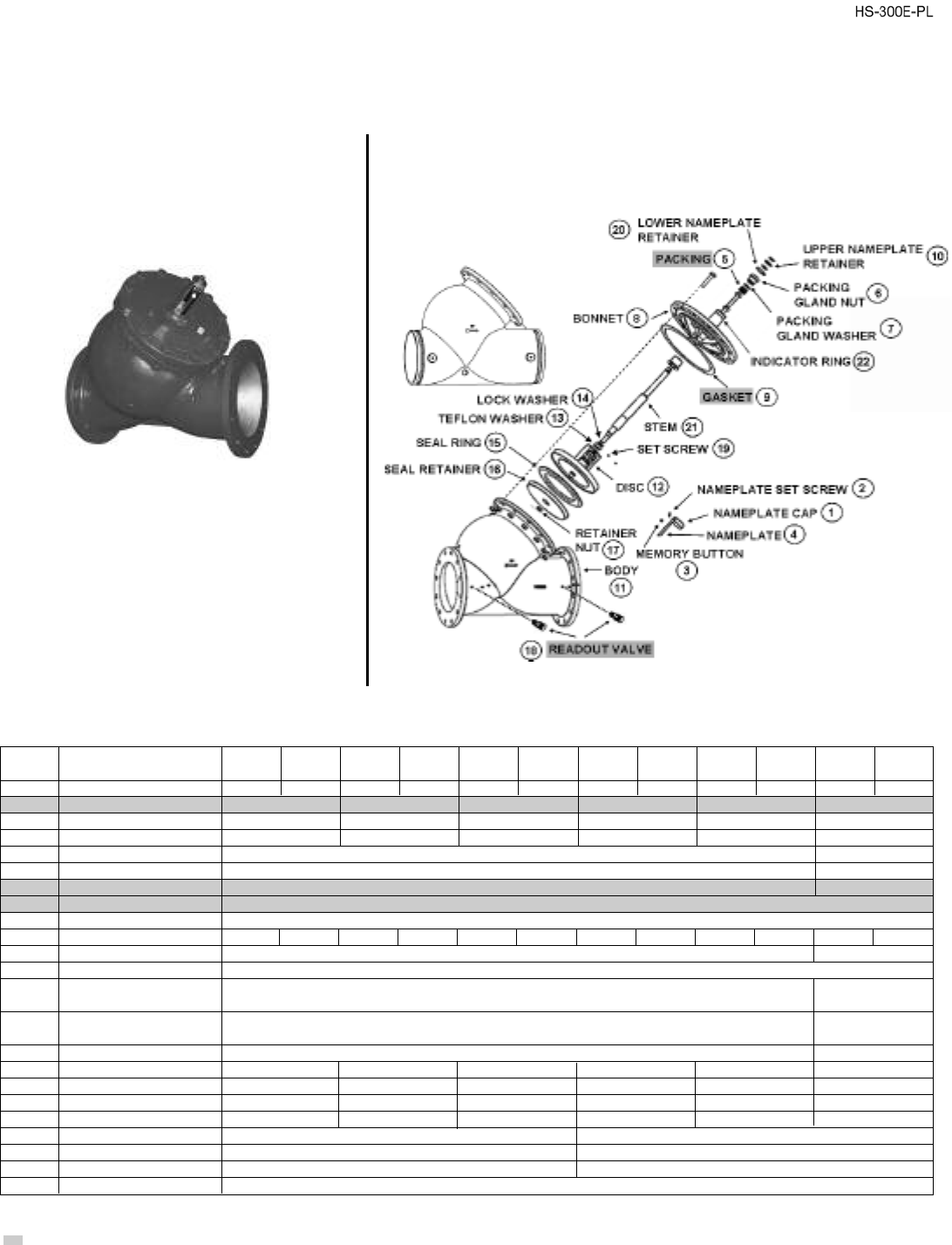

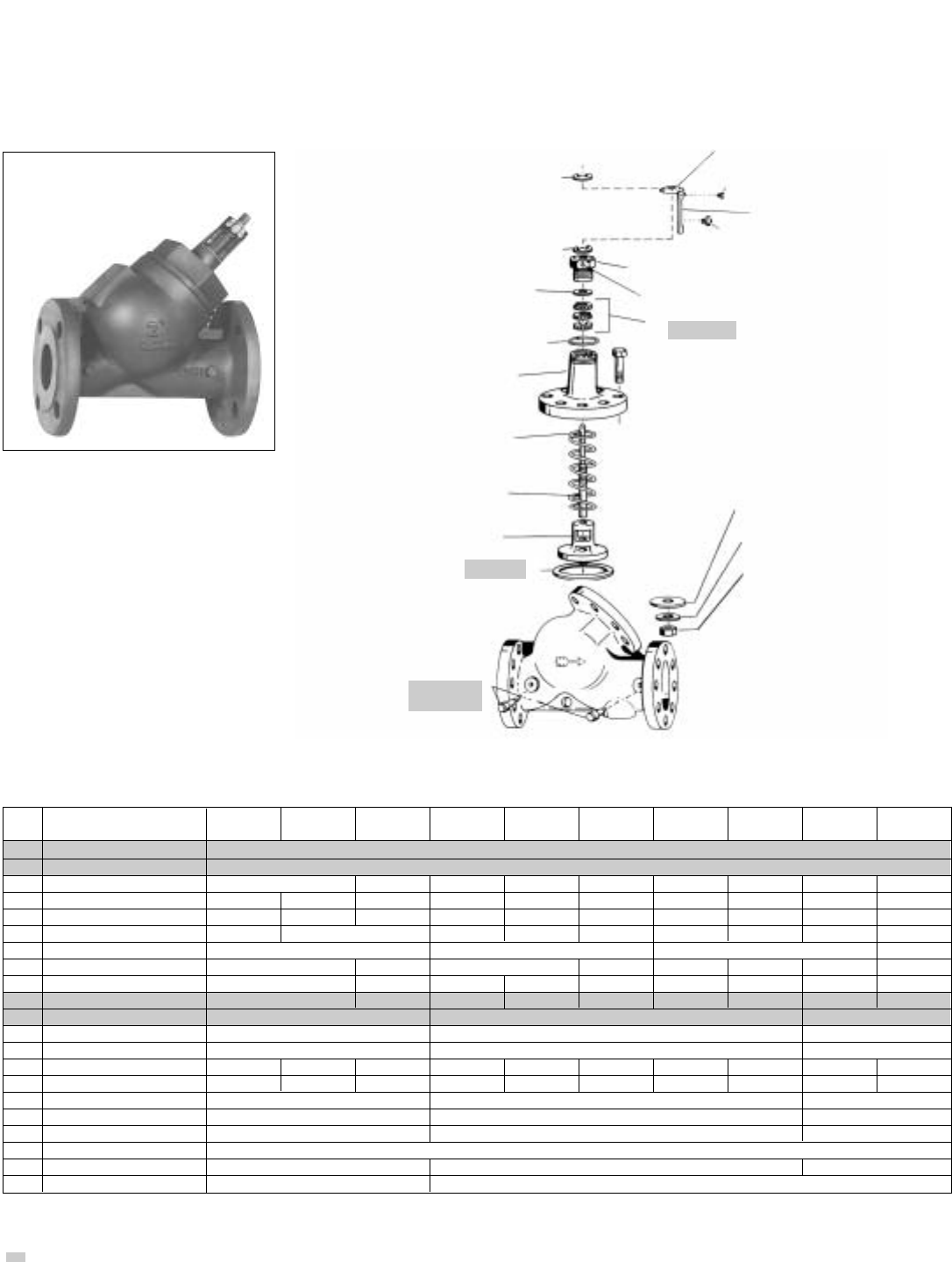

GLOBE STYLE VALVE

*Body assembly includes seat ring.

**When replacing the disc, all six disc parts are necessary.

– Factory recommended spare parts.

GLOBE STYLE VALVES

ITEM CB-4F CB-4G CB-5F CB-5G CB-6F CB-6G CB-8F CB-8G CB-10F CB-10G CB-12F CB-12G

NO. DESCRIPTION 117470 117476 117471 117477 117472 117478 117473 117479 117474 117480 117475 117481

11 Body Assembly* V50833 V18802 V50834 V50821 V50835 V50822 V50836 V50823 V50837 V50824 V50838 V50825

9 Gasket V29400 V32801 V33001 V35000 V36400 V36401

8 Bonnet V51128 V51130 V51132 V51134 V51136 V51138

21 Stem V59171 V59172 V59173 V59174 V59175 V59176

6 Packing Gland Nut V51281 V51183

7 Packing Gland Washer V51282 V51184

5 Packing V51096 (3 Req'd) V51097 (4 Req'd)

18 Readout Valve (1 set) G97010

3 Memory Button V56880

4 Nameplate 290501 228622 290502 228623 290503 228624 290504 228625 290505 228626 290506 228627

1 Nameplate Cap V51114 V51119

2 Nameplate Screw (2 req’d) J92135

10 Upper Nameplate

Retainer V51091 V51183

20 Lower Nameplate

Retainer V51094 V51184

22 Indicator Ring V51181 J94171

Disc Assembly** V51765 V51766 V51767 V51768 V50991 –

12 Disc** G10009 G10010 G10011 G10012 V50992 V50993

15 Seal Ring** V50935 V50936 V50937 V50938 V50939 V50940

16 Seal Retainer G10013 G10014 G10015 G10016 V50994 V50995

17 Retainer Nut** J91635 J91636

14 Lockwasher** G10027 G10035

13 Teflon Washer** G10031 G10039

19 Set Screw** J92020

HS-300F-PL

CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300F-PL

PARTS FOR TRIPLE DUTY VALVES (CONTINUED)

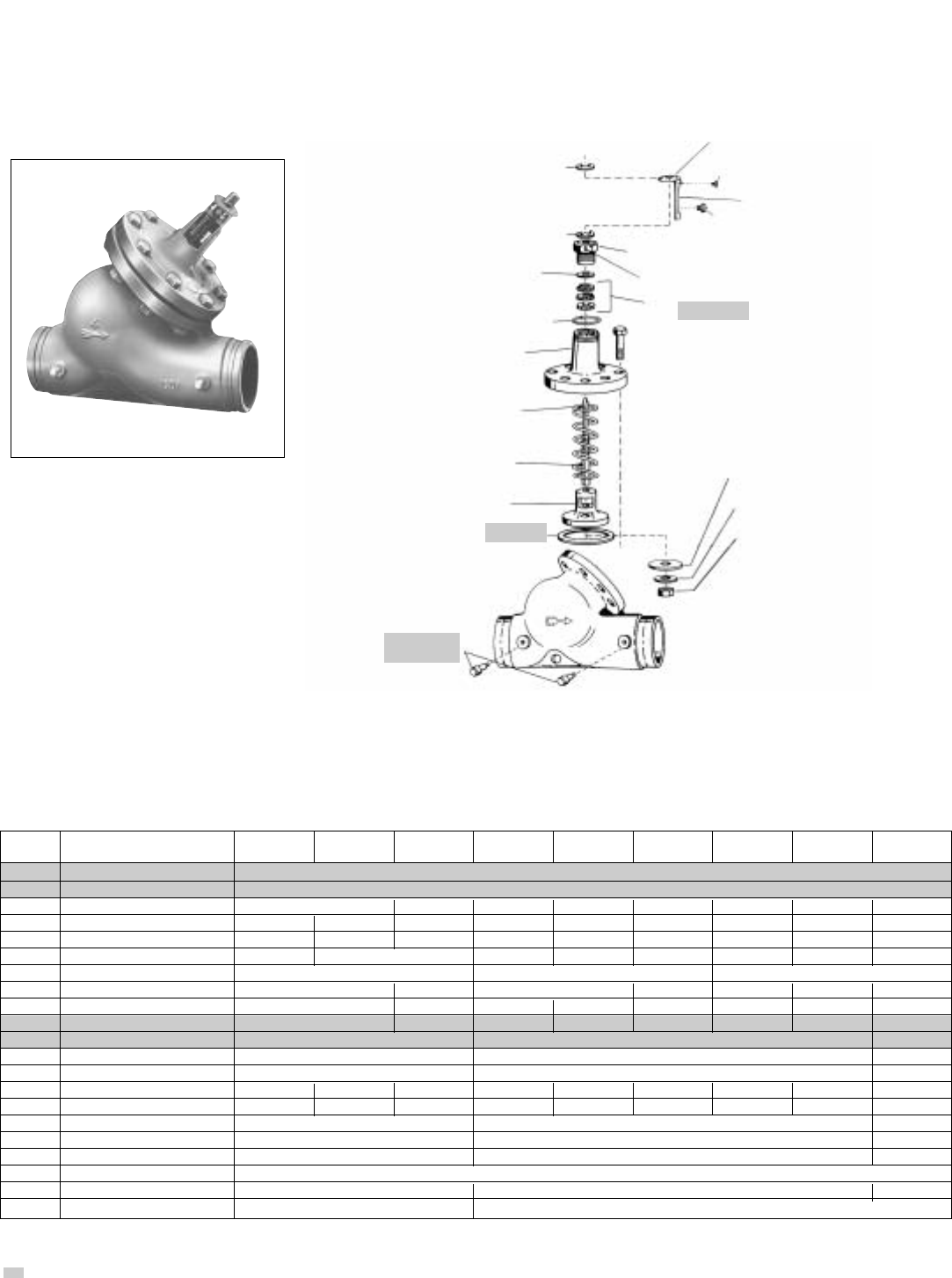

MODELS WITH GROOVED CONNECTIONS

*Disc Assembly for valves 2" through 10" includes disc, seal ring, seal retainer, and retainer nut. Disc Assembly not available for 3DS-12G.

**Disc only.

– Factory recommended spare parts.

ASSEMBLED TRIPLE

DUTY VALVE

ITEM 3DS-2G 3DS-21/2G 3DS-3G 3DS-4G 3DS-5G 3DS-6G 3DS-8G 3DS-10G 3DS-12G

NO. DESCRIPTION 132150 132151 132152 132153 132154 132155 132156 132157 132158

10 Readout Valve Set G97030 (or Readout Valve model RV-125A, P/N 113100 [50 pairs per package])

Readout Probe Set G97032 (or Readout Probe model RP-250B, P/N 113102 [6 pairs per package])

7 Stem V50922 V50924 V50925 V50926 V50927 V50928 V50929 V50930

8 Disc Assembly* V51756 V51757 V51758 V51759 V51760 V51761 V51762 V51764 V56884**

16 Seal Ring* V50932 V50933 V50934 V50935 V50936 V50937 V50938 V50939 V50940

15 Seal Retainer* V50942 V58164 V50945 V50946 V50947 V50948 V50949 V50950

14 Retainer Nut* J91634 J91635 J91636

6 Spring V50952 V50953 V50954 V50955 V50956 V50957 V50958

5 Bonnet V51811 V51813 V51142 V51815 V51817 V51819 V51821 V51841

9 Gasket F27800 F19000 V29400 V32801 V33001 V35000 V36400 V36401

17 Packing F17000 (1 Piece) V51096 (3 Pieces) V51097 (4)

18 Packing Gland Nut F16600 V51281 V51183

3 Packing Gland Washer NONE V51282 V51184

11 Body V50818 V50819 V50820 V18802 V50821 V50822 V50823 V50824 V50825

20 Nameplate V51823 V51824 V51825 V51826 V51827 V51828 V51829 V51830 V51831

1 Upper Nameplate Retainer V51090 V51091 V51092

2 Lower Nameplate Retainer V51093 V51094 V51095

22 Nameplate Cap V51111 V51114 V51119

21 Nameplate Screw (2 req’d) J92135

4 Indicator Ring V51180 V51181 J94171

19 Memory Button V56879 V56880

READOUT

VALVE

PACKING

햴

BONNET

햷

햶

햵

햳LOWER NAMEPLATE

RETAINER

INDICATOR RING

햲UPPER NAMEPLATE

RETAINER

햸

햹

SPRING

햺

햻

STEM

GASKET

햽STRAIGHT PATTERN BODY

WITH GROOVED CONNECTIONS

FOR MECHANICAL COUPLINGS

NOTE: DISC IS NOT AVAILABLE

SEPARATELY ON 2" THROUGH

10" VALVES. YOU MUST ORDER

THE DISC ASSEMBLY.

헂

DISC

헃

PACKING

GLAND WASHER

헅

헆

헄

SEAL RING

헁SEAL RETAINER

헀RETAINER NUT

쎻

NAMEPLATE CAP

NAMEPLATE SCREW

NAMEPLATE

MEMORY BUTTON

PACKING GLAND NUT

SET SCREW

CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300F-PL

PARTS FOR TRIPLE DUTY VALVES (CONTINUED)

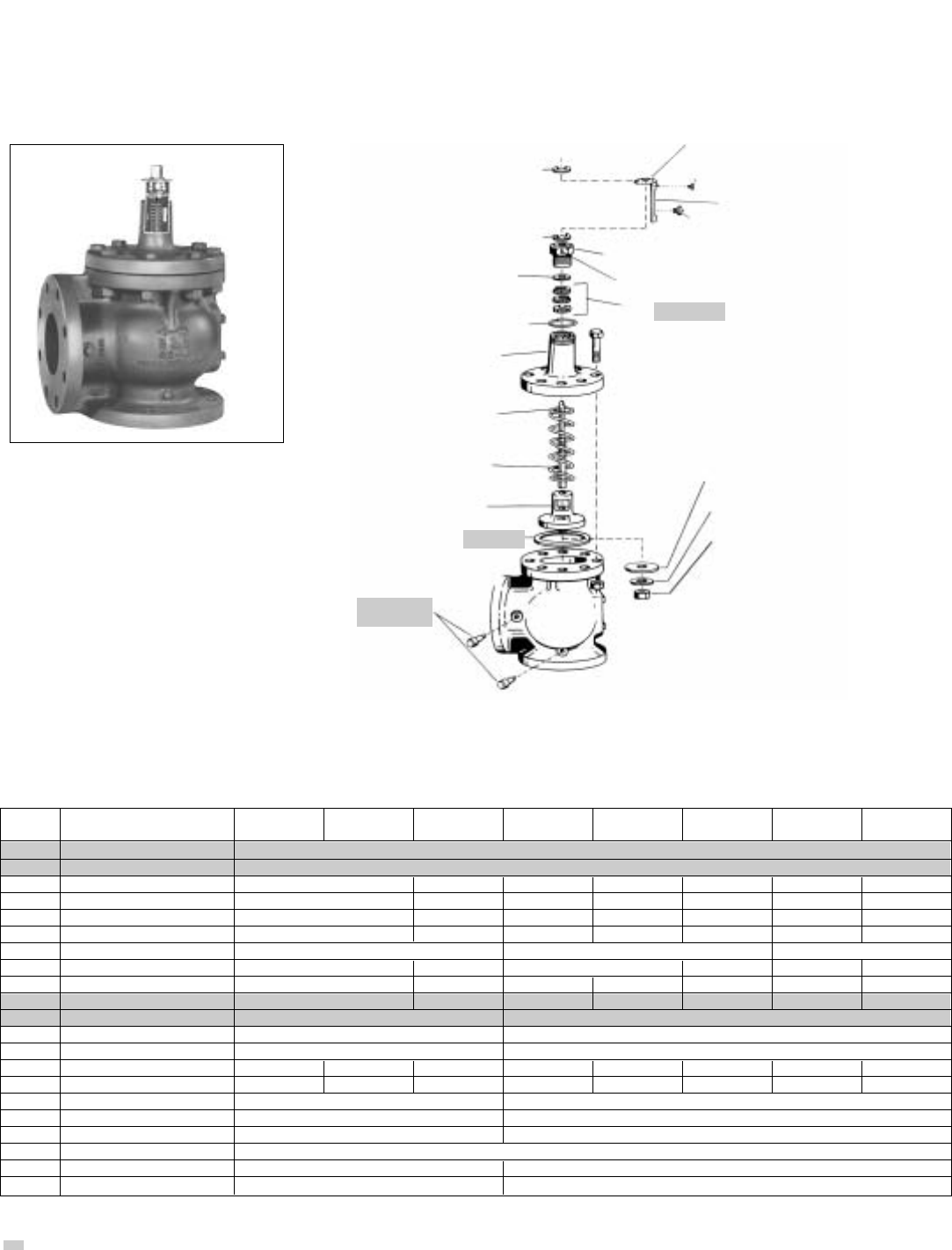

ANGLE PATTERN MODELS

*Disc Assembly includes disc, seal ring, seal retainer, and retainer nut.

– Factory recommended spare parts.

ASSEMBLED TRIPLE

DUTY VALVE

ITEM 3D-2S 3D-21/2S 3D-3S 3D-4S 3D-5S 3D-6S 3D-8S 3D-10S

NO. DESCRIPTION 132131 132132 132133 132134 132135 132136 132137 132138

10 Readout Valve Set G97030 (or Readout Valve model RV-125A, P/N 113100 [50 pairs per package])

Readout Probe Set G97032 (or Readout Probe model RP-250B, P/N 113102 [6 pairs per package])

7 Stem V50922 V50924 V50925 V50926 V50927 V50928 V50929

8 Disc Assembly* V51756 V51758 V51759 V51760 V51761 V51762 V51763

16 Seal Ring* V50932 V50934 V50935 V50936 V50937 V50938 V50939

15 Seal Retainer* V50942 V58164 V50945 V50946 V50947 V50948 V50949

14 Retainer Nut* J91634 J91635 J91636

6 Spring V50952 V50953 V50954 V50955 V50956 V50957

5 Bonnet V51122 V51126 V51128 V51130 V51132 V51134 V51136

9 Gasket F27800 F19000 V29400 V32801 V33001 V35000 V36400

17 Packing F17000 (1 Piece) V51096 (3 Pieces)

18 Packing Gland Nut F16600 V51281

3 Packing Gland Washer NONE V51282

12 Body V50810 V50811 V50812 V50813 V50814 V50815 V50816 V50817

20 Nameplate V50971 V50972 V50973 V50974 V50975 V50976 V50977 V50978

1 Upper Nameplate Retainer V51090 V51091

2 Lower Nameplate Retainer V51093 V51094

22 Nameplate Cap V51111 V51114

21 Nameplate Screw (2 req’d) J92135

4 Indicator Ring V51180 V51181

19 Memory Button V56879 V56880

햴

BONNET

햷

햶

햵

햳LOWER NAMEPLATE

RETAINER

INDICATOR RING

햲UPPER NAMEPLATE

RETAINER

햸

햹

SPRING

햺

STEM

GASKET

햾ANGLE PATTERN

BODY WITH FLANGED

CONNECTIONS

헂

DISC

헃

PACKING

GLAND WASHER

헅

헆

헄

SEAL RING

헁SEAL RETAINER

헀RETAINER NUT

쎻

NAMEPLATE CAP

NAMEPLATE SCREW

NAMEPLATE

MEMORY BUTTON

PACKING GLAND NUT

SET SCREW

PACKING

READOUT

VALVE

NOTE: DISC IS NOT AVAILABLE

SEPARATELY. YOU MUST

ORDER THE DISC ASSEMBLY.

햻

CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300F-PL

PARTS FOR TRIPLE DUTY VALVES (CONTINUED)

ITEM 3DS-2S 3DS-21/2S 3DS-3S 3DS-4S 3DS-5S 3DS-6S 3DS-8S 3DS-10S 3DS-12S 3DS-14S

NO. DESCRIPTION 132121 132122 132123 132124 132125 132126 132127 132128 132129 132120

10 Readout Valve Set G97030 (or Readout Valve model RV-125A, P/N 113100 [50 pairs per package])

Readout Probe Set G97032 (or Readout Probe model RP-250B, P/N 113102 [6 pairs per package])

7 Stem V50922 V50924 V50925 V50926 V50927 V50928 V50929 V50930 V50778

8 Disc Assembly* V51756 V51757 V51758 V51759 V51760 V51761 V51762 V51763 V50920** V50754**

16 Seal Ring* V50932 V50933 V50934 V50935 V50936 V50937 V50938 V50939 V50940 V50793

15 Seal Retainer* V50942 V58164 V50945 V50946 V50947 V50948 V50949 V50950 V50750

14 Retainer Nut* J91634 J91635 J91636 J91637

6 Spring V50952 V50953 V50954 V50955 V50956 V50957 V50958 V51083

5 Bonnet V51122 V51126 V51128 V51130 V51132 V51134 V51136 V51138 V51140

9 Gasket F27800 F19000 V29400 V32801 V33001 V35000 V36400 V36401 V36402

17 Packing F17000 (1 Piece) V51096 (3 Pieces) V51097 (4 Pieces)

18 Packing Gland Nut F16600 V51281 V51183

3 Packing Gland Washer NONE V51282 V51184

13 Body V50830 V50831 V50832 V50833 V50834 V50835 V50836 V50837 V50838 V50839

20 Nameplate V50961 V50962 V50963 V50964 V50965 V50966 V50967 V50968 V50969 V50896

1 Upper Nameplate Retainer V51090 V51091 V51092

2 Lower Nameplate Retainer V51093 V51094 V51095

22 Nameplate Cap V51111 V51114 V51119

21 Nameplate Screw (2 req’d) J92135

4 Indicator Ring V51180 V51181 J94171

19 Memory Button V56879 V56880

STRAIGHT PATTERN MODELS

*Disc Assembly for valves 2" through 10" includes disc, seal ring, seal retainer, and retainer nut. Disc Assembly not available for 3DS-12S and 3DS-14S.

**Disc only.

– Factory recommended spare parts.

ASSEMBLED TRIPLE

DUTY VALVE

햴

BONNET

햷

햶

햵

햳LOWER NAMEPLATE

RETAINER

INDICATOR RING

햲UPPER NAMEPLATE

RETAINER

햸

햹

SPRING

햺

STEM

GASKET

STRAIGHT PATTERN BODY

WITH FLANGED CONNECTIONS

헂

DISC

헃

PACKING

GLAND WASHER

헅

헆

헄

SEAL RING

헁SEAL RETAINER

헀RETAINER NUT

쎻

NAMEPLATE CAP

NAMEPLATE SCREW

NAMEPLATE

MEMORY BUTTON

PACKING GLAND NUT

SET SCREW

PACKING

NOTE: DISC IS NOT AVAILABLE

SEPARATELY ON 2" THROUGH

10" VALVES. YOU MUST ORDER

THE DISC ASSEMBLY.

햻햿

READOUT

VALVE

BODY ASSEMBLY

HEX NUT

GASKET

RETAINER NUT

SEAL RETAINER

SEAL RING

DISC

SPRING

CAPSCREW

INDICATOR RING

STEM

PACKING

MEMORY BUTTON

NAMEPLATE

NAMEPLATE SCREW

BONNET

PACKING

GLAND NUT

SET SCREW

LOWER NAMEPLATE

RETAINER

NAMEPLATE WASHER

NAMEPLATE CAP

UPPER NAMEPLATE

RETAINER

READOUT

VALVES

CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300F-PL

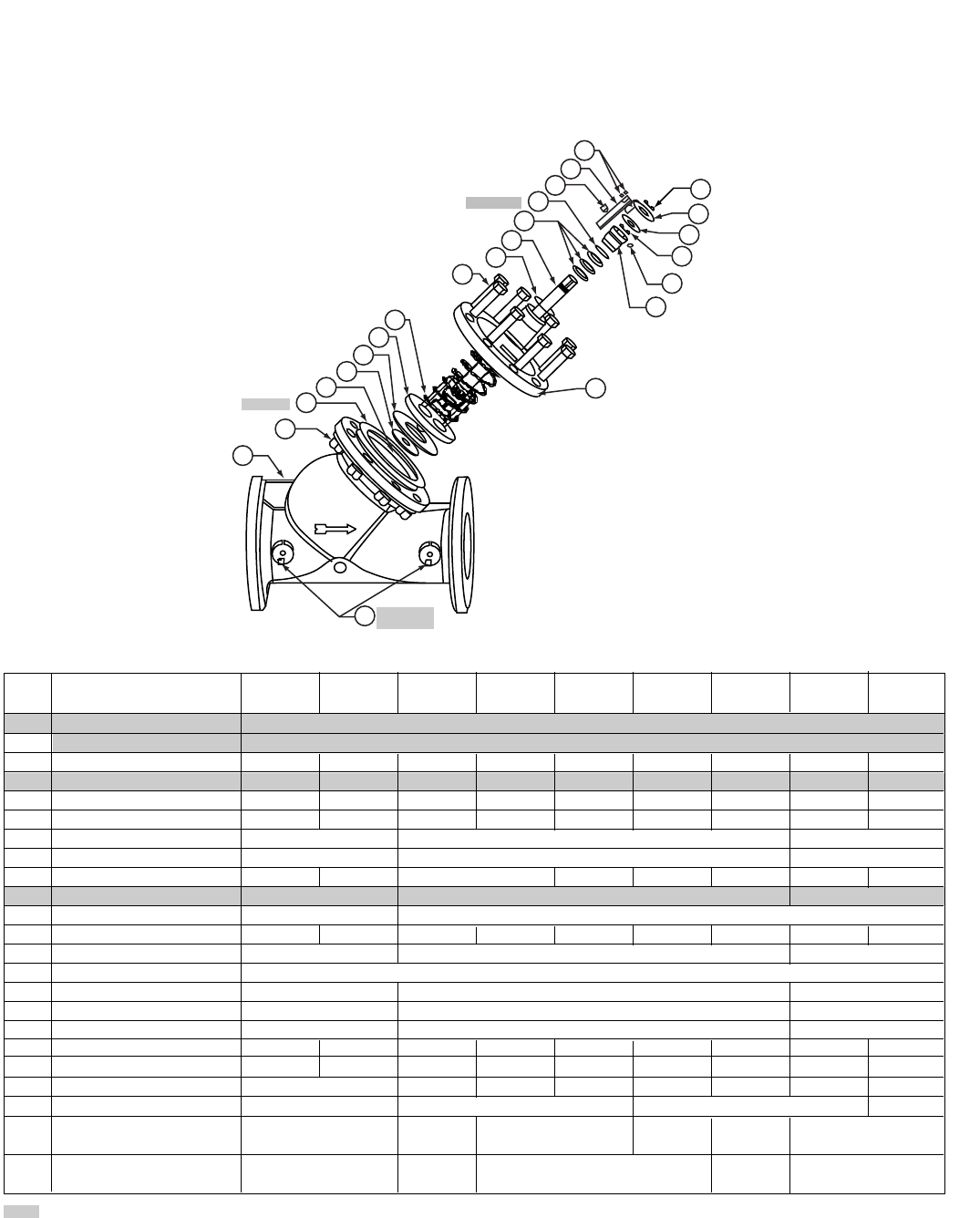

PARTS FOR TRIPLE DUTY VALVES – REDUCED PORT

– Factory recommended spare part.

* Disc Assembly for 3" through 12" valves includes disc, seal ring, seal retainer and retainer nut. Disc Assembly not available for 3DS-14B

and 3DS-16B.

**Disc only.

NOTE: DISC IS NOT AVAILABLE

SEPARATELY ON 3" THROUGH

12" VALVES. YOU MUST ORDER

THE DISC ASSEMBLY.

ITEM

3DS-3B 3DS-4B 3DS-5B 3DS-6B 3DS-8B 3DS-10B 3DS-12B 3DS-14B 3DS-16B

NO. DESCRIPTION 132160 132161 132162 132163 132164 132165 132166 132167 132168

10 Readout Valve Set G97030 (or Readout Valve model RV-125A, P/N 113100 [50 pairs per package])

Readout Probe Set G97032 (or Readout Probe model RP-250B, P/N 113102 [6 pairs per package])

13 Body V51958 V51961 V51964 V51967 V51970 V51973 V51976 V51979 V51982

9 Gasket F27800 F19000 V29400 V32801 V33001 V35000 V36400 V36401 V36402

5 Bonnet V51122 V51126 V51128 V51130 V51132 V51134 V51136 V51138 V51140

7 Stem V50922 V50924 V50925 V50926 V50927 V50928 V50929 V50930 V50778

18 Packing Gland Nut F16600 V51281 V51183

3 Packing Gland Washer NONE V51282 V51184

6 Spring V50952 V50953 V50954 V50955 V50956 V50957 V50958 V51083

17 Packing F17000 V51096 ( 3 pieces) V51097 (4 pieces)

19 Memory Button V56879 V56880

20 Nameplate V57089 V57090 V57091 V57092 V57093 V57094 V57095 V57096 V57097

22 Nameplate Cap V51111 V51114 V51119

21 Nameplate Screw (2 req’d) J92135

1 Upper Nameplate Retainer V51090 V51091 V51092

2 Lower Nameplate Retainer V51093 V51094 V51095

4 Indicator Ring V51180 V51181 J94171

8 Disc Assembly* V51757 V51758 V51759 V51760 V51761 V51762 V51763 V50920** V50754**

16 Seal Ring* V50933 V50934 V50935 V50936 V50937 V50938 V50939 V50940 V50793

15 Seal Retainer* V58164 V50945 V50946 V50947 V50948 V50949 V50950 V50750

14 Retainer Nut* J91634 J91635 J91636 J91637

24 Capscrew NONE J92017 M06690 DJ0157 M06720 DJ0157

(8 req’d) (8 req’d) (8 req’d) (10 req’d) (12 req’d)

25 Hex Nut NONE T33740 T35840 T39830 T35840

(8 req’d) (8 req’d) (10 req’d) (12 req’d)

CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300F-PL

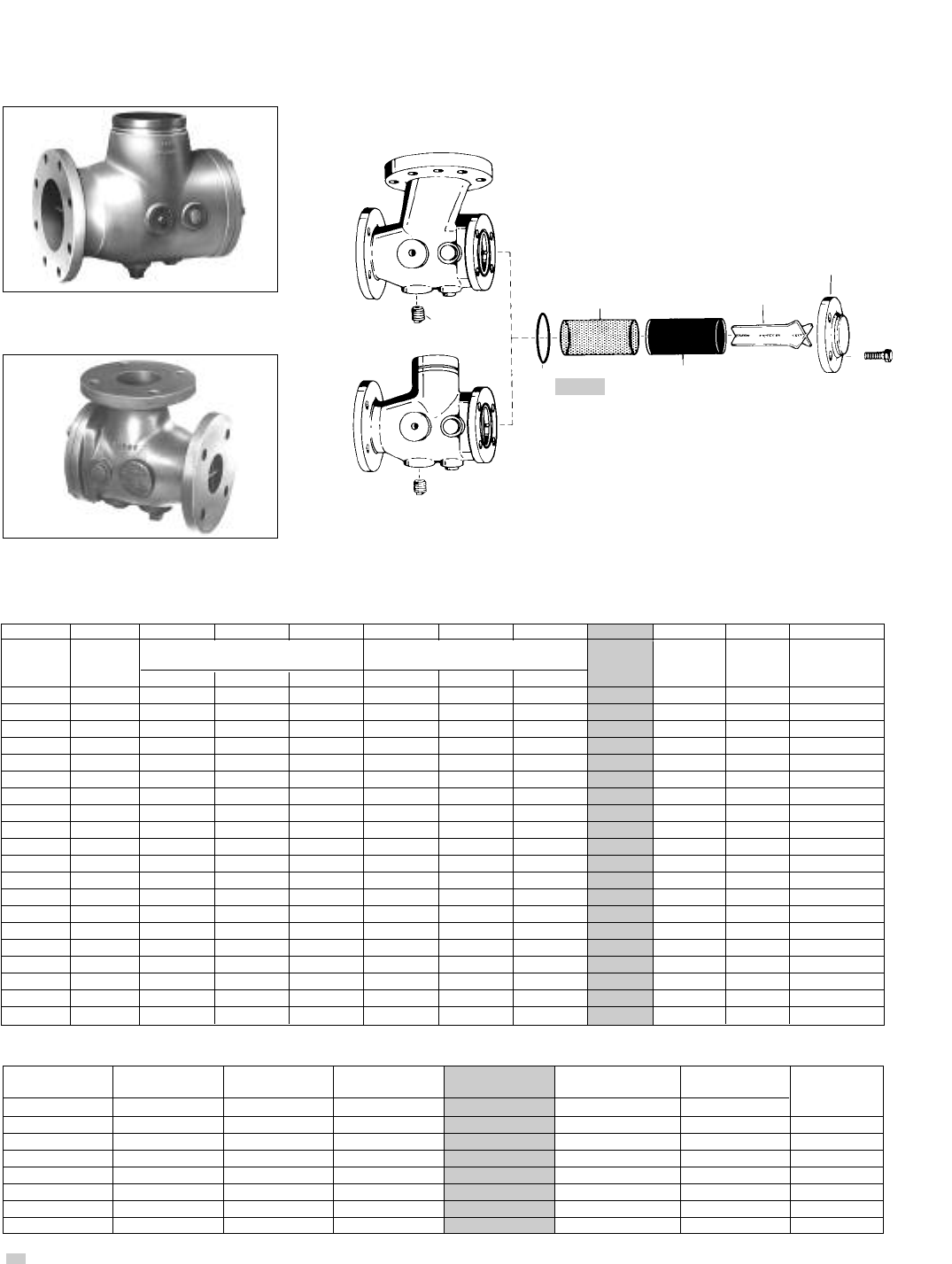

PARTS FOR SUCTION DIFFUSERS

SUCTION DIFFUSER

W/ GROOVED CONNECTIONS

ASSEMBLED SUCTION

DIFFUSER

BODY WITH

FLANGED

CONNECTION

햵

DRAIN

PLUG

BODY WITH GROOVED

CONNECTIONS FOR

MECHANICAL COUPLINGS

햶

햴STRAINER

START-UP STRAINER

(REMOVED FROM DIFFUSER

AFTER INITIAL CIRCULATION

AND CLEANING OF THE

SYSTEM)

햳BAFFLE

(FLOW

STRAIGHTENING

VANES

햲COVERPLATE

O-RING

START-UP

ITEM NO. 235 1 4

STRAINER

MODEL NO. PART NO. BAFFLE STRAINER O-RING COVERPLATE DRAIN PLUG PART NO.

SDG-21/2115040 A07029 A91288 J94141 A07016 M06420 A91268

SDG-3 115041 A07030 A91282 J94130 A07018 M06420 A91262

SDG-4 115042 A07031 A91283 J94131 A07020 M06420 A91263

SDG-5 115043 A07032 A91284 J94142 A07022 M06420 A91264

SDG-6 115044 A07033 A91285 J94143 A07024 M06420 A91265

SDG-8 115045 A07034 A91286 J94144 A07026 M06420 A91266

SDG-10 115046 A07035 A91287 J94145 A07028 M06420 A91267

ITEM NO. 23 23514

“X” MODELS WITH STEEL “Z” MODELS WITH STAINLESS START-UP

COMPONENTS STEEL COMPONENTS COVER- DRAIN STRAINER

SIZE MODEL PART NO. BAFFLE STRAINER PART NO. BAFFLE STRAINER O-RING PLATE PLUG PART NO.

2x11/2BA-3 115019 A91554 A91270 115060 A91563 A91280 J94140 A91242 M06420 A91260

2x2 BB-3 115036 A91555 A91271 115050 A91564 A91281 J94141 A91244 M06420 A91261

21/2x2 CB-3 115037 A91555 A91271 115051 A91564 A91281 J94141 A91244 M06420 A91261

21/2x21/2CC-3 115038 A91556 A91278 115052 A07029 A91288 J94141 A91244 M06420 A91268

3x11/2DA-3 115021 A91555 A91271 115061 A91564 A91281 J94141 A91244 M06420 A91261

3x2 DB-3 115022 A91555 A91271 115062 A91564 A91281 J94141 A91244 M06420 A91261

3x21/2DC-3 115039 A91556 A91278 115053 A07029 A91288 J94141 A91244 M06420 A91268

3x3 DD-3 115024 A91557 A91272 115063 A07030 A91282 J94130 A91246 M06420 A91262

4x21/2EC-3 115075 A91556 A91278 115076 A07029 A91288 J94141 A91244 M06420 A91268

4x3 ED-3 115025 A91557 A91272 115064 A07030 A91282 J94130 A91246 M06420 A91262

4x4 EE-3 115026 A91558 A91273 115065 A07031 A91283 J94131 A91248 M06420 A91263

5x4 FE-3 115027 A91558 A91273 115066 A07031 A91283 J94131 A91248 M06420 A91263

5x5 FF-3 115029 A91559 A91274 115068 A07032 A91284 J94142 A91250 M06420 A91264

6x4 GE-3 115028 A91558 A91273 115067 A07031 A91283 J94131 A91248 M06420 A91263

6x5 GF-3 115030 A91559 A91274 115069 A07032 A91284 J94142 A91250 M06420 A91264

6x6 GG-3 115031 A91560 A91275 115070 A07033 A91285 J94143 A91252 M06420 A91265

8x6 HG-3 115032 A91560 A91275 115071 A07033 A91285 J94143 A91252 M06420 A91265

8x8 HH-3 115033 A91561 A91276 115072 A07034 A91286 J94144 A91254 M06420 A91266

10x8 JH-3 115035 A91561 A91276 115074 A07034 A91286 J94144 A91254 M06420 A91266

10x10 JJ-3 115034 A91562 A91277 115073 A07035 A91287 J94145 A91256 M06420 A91267

MODELS WITH NPT OR FLANGED CONNECTIONS

MODELS WITH GROOVED CONNECTIONS

– Factory recommended spare parts.

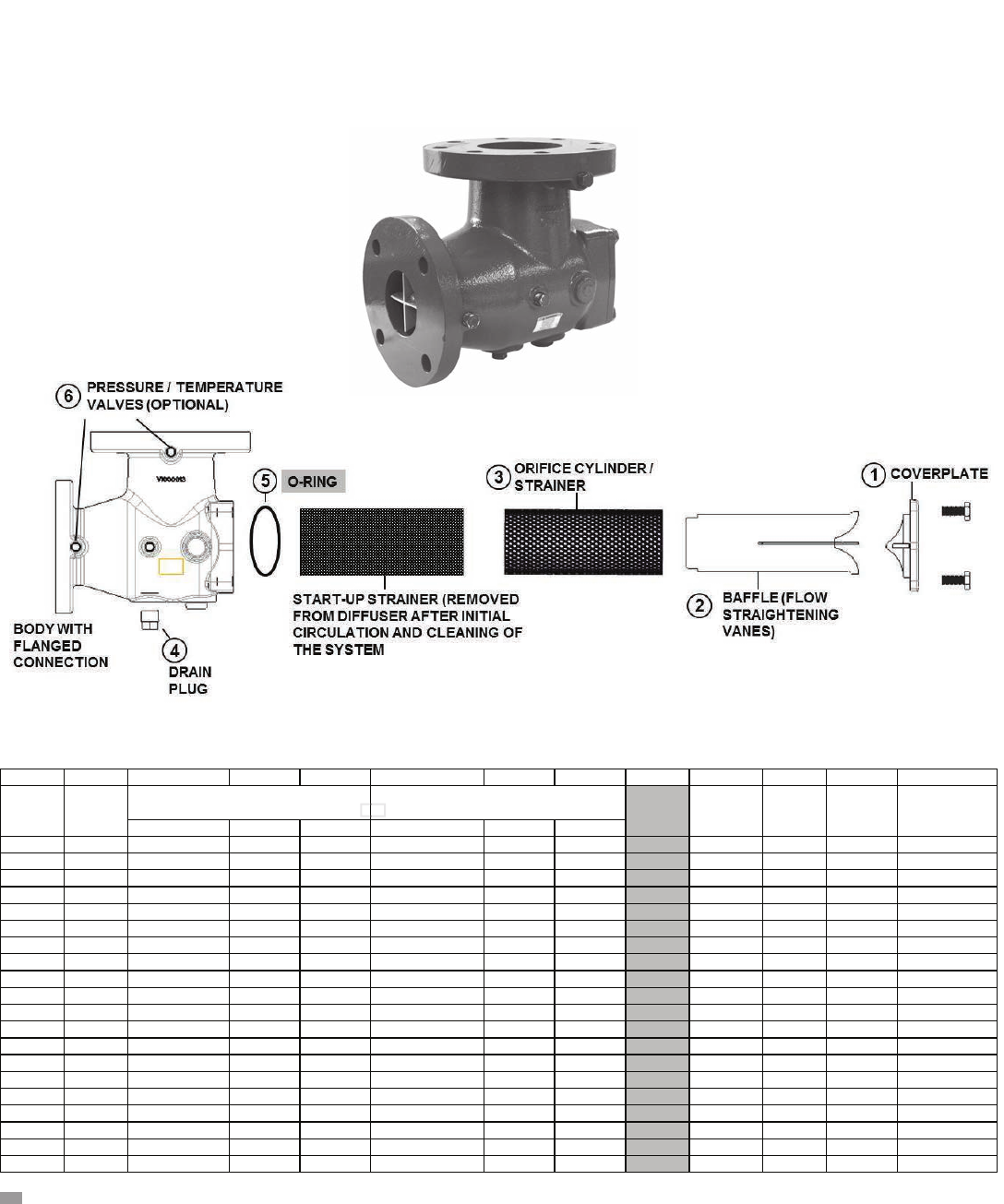

PARTS FOR SUCTION DIFFUSER PLUS

ItemNo. 2 3 2 3 5 1 4 6

PARTNO. BAFFLE STRAINER PARTNO. BAFFLE STRAINER

2x1½ BA3 115112/115412 V1000941 V1000939 115170/115470 V1001002 V1000998 J94140 V1000945 M06420 V58050PK V1000940

2x2 BB3 115114/115414 V1000977 V1000975 115172/115472 V1001005 V1001008 J94141 V1000981 M06420 V58050PK V1000976

2½x2 CB3 115115/115415 V1000977 V1000975 115173/115473 V1001005 V1001008 J94141 V1000981 M06420 V58050PK V1000976

2½x2½ CC3 115117/115417 V1000986 V1000984 115175/115475 V1000995 V1000993 J94141 V1000990 M06420 V58050PK V1000985

3x1½ DA3 115113/115413 V1000950 V1000948 115171/115471 V1001222 V1001223 J94141 V1000981 M06420 V58050PK V1000949

3x2 DB3 115116/115416 V1000977 V1000975 115174/115474 V1001005 V1001008 J94141 V1000981 M06420 V58050PK V1000976

3x2½ DC3 115118/115418 V1000986 V1000984 115176/115476 V1000995 V1000993 J94141 V1000990 M06420 V58050PK V1000985

3x3 DD3 115120/115420 V1001013 V1001011 115178/115478 V1001057 V1001056 J94130 V1000921 M06420 V58050PK V1001012

4x2½ EC3 115119/115419 V1000986 V1000984 115177/115477 V1000995 V1000993 J94141 V1000990 M06420 V58050PK V1000985

4x3 ED3 115104/115404 V1000917 V1000915 115179/115479 V1001203 V1001201 J94130 V1000921 M06420 V58050PK V1000916

4x4 EE3 115121/115421 V1001094 V1001092 115180/115480 V1001060 V1001074 J94131 V1001098 M06420 V58050PK V1001093

5x4 FE3 115122/115422 V1001094 V1001092 115181/115481 V1001060 V1001074 J94131 V1001098 M06420 V58050PK V1001093

5x5 FF3 115124/115424 V1001040 V1001038 115183/115483 V1001078 V1001076 J94142 V1000936 M06420 V58050PK V1001039

6x4 GE3 115123/115423 V1001094 V1001092 115182/115482 V1001060 V1001074 J94131 V1001098 M06420 V58050PK V1001093

6x5 GF3 115111/115411 V1000932 V1000930 115184/115484 V1001198 V1001196 J94142 V1000936 M06420 V58050PK V1000931

6x6 GG3 115125/115425 V1001049 V1001047 115185/115485 V1001183 V1001181 J94143 V1001053 M06420 V58050PK V1001048

8x6 HG3 115126/115426 V1001049 V1001047 115186/115486 V1001183 V1001181 J94143 V1001053 M06420 V58050PK V1001048

8x8 HH3 115127/115427 V1001067 V1001065 115187/115487 V1001188 V1001186 J94144 V1001071 M06420 V58050PK V1001066

10x8 JH3 115128/115428 V1001067 V1001065 115188/115488 V1001188 V1001186 J94144 V1001071 M06420 V58050PK V1001066

10x10 JJ3 115129/115429 V1001085 V1001083 115189/115489 V1001193 V1001191 J94145 V1001089 M06420 V58050PK V1001084

STARTUP

STRAINERPART

NO.

"X"MODELSWITHSTEELCOMPONENTS

"Z"MODELSWITHSTAINLESSSTEEL

COMPONENTS

MODELSIZE

ORING

PRESS/

TEMP

VALVES

COVER

PLATE

DRAIN

PLUG

– Factory recommended spare parts.

HS-300F-PL

CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

111031 PR, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV 1/6HP, 1PH, 115V

111033 PR, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV 1/6HP, 1PH, 230V

111034 Series 100 1/12HP, 1PH, 115V

111035 Series 100 1/12HP, 1PH, 230V

111039 Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV 1/6HP, 3PH, 208-230/460V

111040 21/2", LD-3 1/4HP, 1PH, 115V

111041 21/2", LD-3 1/4HP, 1PH, 230V

111042 HD-3 1/3HP, 1PH, 115/230V

111044 PD-35S, 60-13S, 60-B13S, 60-15S, 60 1AA, 60 11/4"AA, 60 11/2"AA, 60 2AA, 1/2HP, 1PH, 115/230V

60 11/2"A, 60 2A Obs. 60-3S, Obs. 60-5S

111046 PD-35T, 60-13T, 60-B13T, 60-15T, 60 1AA, 60 11/4AA, 60 11/2"AA, 60 2AA, 1/2HP, 3PH, 208-230/460V

60 11/2A, 60 2A, Obs. 60-3T, Obs. 60-5T

111047 PD-37S, 60-14S, 60-B14S, 60-16S, 60 11/2AA, 60 2AA, 60 11/2A, 60 2A, 3/4HP, 1PH, 115/230V

Obs. 60-4S, Obs. 60-6S, Obs. 60-8S

111049 PD-37T, 60-14T, 60-B14T, 60-16T, 60 11/2AA, 60 2AA, 60 11/2A, 60 2A, 3/4HP, 3PH, 208-230/460V

Obs. 60-4T, Obs. 60-6T

111061 HV, 2", Obs. 11/2", Obs. HV 1/6HP, 1PH, 115V

169035 60-10S, 60-11S, 60B-11S, 60 1AA, 60 11/4AA, 60 11/2AA, 60 2AA, 1/4HP, 1PH, 115V

Obs. 60-1S

169036 60-10S, 60-11S, 60B-11S, 60 1AA, 60 11/4AA, 60 11/2AA, 60 2AA 1/4HP, 1PH, 230V

169037 60-11T, 60 1AA, 60 11/4AA, 60 11/2AA, 60 2AA, Obs. 60-1T 1/4HP, 3PH, 208-230/460V

169038 60 1AA, 60 11/4AA, 60 11/2AA, 60 2AA, Obs. 60-2S 1/3HP, 1PH, 115/230V

169039 60 1AA, 60 11/4AA, 60 11/2AA, 60 2AA, Obs. 60-2T 1/3HP, 3PH, 208-230/460V

169040 1522 1S, 3/4AAB, 1522 1AAB, 1522 11/4AAB, 1522 11/2AAB 1/4HP, 1PH, 115V

169041 1522 3/4AAB, 1522 1AAB, 1522 11/4AAB, 1522 11/2AAB 1/4HP, 1PH, 230V

169042 1522 1T, 1522 3/4AAB, 1522 1AAB, 1522 11/4AAB, 1522 11/2AAB 1/4HP, 3PH, 208-230/460V

169043 1522 2S, 1522 3/4AAB, 1522 1AAB, 1522 11/4AAB, 1522 11/2AAB 1/3HP, 1PH, 115/230V

169044 Obs. 1522 14S, Obs. 1522 3/4AAB 1/3HP, 1PH, 115/230V, 3450 RPM

169045 1522 2T, 1522 3/4AAB, 1522 1AAB, 1522 11/4AAB, 1522 11/2AAB 1/3HP, 3PH, 208-230/460V

169046 Obs. 1522 14T, Obs. 1522 3/4AAB 1/3HP, 3PH, 208-230/460V, 3450 RPM

169047 1522 3S, 1522 3/4AAB, 1522 1AAB, 1522 11/4AAB, 1522 11/2AAB 1/2HP, 1PH, 115/230V

169048 Obs. 1522 5S, Obs. 1522 3/4AAB, Obs. 1522 1AAB 1/2HP, 1PH, 115/230V, 3450 RPM

169049 1522 3T, 1522 3/4AAB, 1522 1AAB, 1522 11/4AAB, 1522 11/2AAB 1/2HP, 3PH, 208-230/460V

169050 Obs. 1522 5T, Obs. 1522 3/4AAB, Obs. 1522 1AAB 1/2HP, 3PH, 208-230/460V, 3450 RPM

169051 1522 4S, 1522 11/4AAB, 1522 11/2AAB 3/4HP, 1PH, 115/230V

169052 Obs. 1522 6S, Obs. 1522 7S, Obs. 1522 3/4AAB, Obs. 1522 1AAB, 3/4HP, 1PH, 115/230, 3450 RPM

Obs. 1522 11/4AAB

169053 1522 4T, 1522 11/4AAB, 1522 11/2AAB 3/4HP, 3PH, 208-230/460V

169054 Obs. 1522 6T, Obs. 1522 7T, Obs. 3/4AAB, Obs. 1522 1AAB, 3/4HP, 3PH, 208-230/460V, 3450 RPM

Obs. 1522 11/4AAB

169055 Obs. 1522 8S, Obs. 1522 12S, Obs. 1522 3/4AAB, Obs. 1522 1AAB, 1HP, 1PH, 115/230V, 3450 RPM

Obs. 1522 11/4AAB, Obs. 1522 11/2AAB

169056 Obs. 1522 8T, Obs. 1522 12T, Obs. 1522 3/4AAB, Obs. 1522 1AAB, 1HP, 3PH, 208-230/460V, 3450 RPM

Obs. 1522 11/4AAB, Obs. 1522 11/2AAB

169057 Obs. 1522 9S, Obs. 1522 16S, Obs. 1522 17S, Obs. 1522 3/4AAB, 11/2HP, 1PH, 230V,3450 RPM

Obs. 1522 1AAB, Obs. 1522 11/4AAB, Obs. 1522 11/2AAB

169058 Obs. 1522 9T, Obs. 1522 16T, Obs. 1522 17T, Obs. 1522 3/4AAB, 11/2HP, 3PH, 208-230/460V, 3450 RPM

Obs. 1522 1AAB, Obs. 1522 11/4AAB, Obs. 1522 11/2AAB

169060 Obs. 1522 11T, Obs. 1522 15T, Obs. 1522 3/4AAB, Obs. 1522 1AAB, 2HP, 3PH, 208-230/460V, 3450 RPM

Obs. 60 11/4AAB, Obs. 1522 11/2AAB

169221 60 21/2F 3HP, 3PH, 208-230/460V, 145TC Frame

169222 60 21/2F 3HP, 3PH, 200V, 182TC Frame

169223 60 21/2F 3HP, 3PH, 208-230/460V, 182TC Frame

169224 MF 60 1 x 51/4, MF 60 11/4x 51/4, MF 60 11/2x 51/41/4HP, 1PH, 115/208-230V, 1725 RPM

169225 MF 60 1 x 51/4, MF 60 11/4x 51/41/4HP, 3PH, 208-230/460V, 1725 RPM

169226 MF 60 with 51/4" impellers 1/3HP, 1PH, 115/208-230V, 1725 RPM

169227 MF 60 with 51/4" impellers 1/3HP, 3PH, 208-230/460V, 1725 RPM

169228 MF 60 with 51/4" & 61/4"impellers 1/2HP, 1PH, 115/208-230V, 1725 RPM

169229 MF 60 with 51/4" & 61/4"impellers 1/2HP, 3PH, 208-230/460V, 1725 RPM

*All motors are 1725 RPM unless otherwise specified.

CF – contact factory for where used.

NOTE: Obs. = Obsolete Pump Model, MF = Maintenance Free

CIRCULATOR & CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

“WHERE USED” LIST

POWER PACK & MOTORS

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

169230 All MF 60 3/4HP, 1PH, 115/208-230V, 1725 RPM

169231 All MF 60 3/4HP, 3PH, 208-230/460V, 1725 RPM

169232 All MF 60 except 1 x 51/4, 11/4x 51/4, PD-38, PD-39 1HP, 1PH, 115/208-230V, 1725 RPM

169233 All MF 60 except 1 x 51/4, 11/4x 51/4, PD-38, PD-39 1HP, 3PH, 208-230/460V, 1725 RPM

169234 MF 60 11/2x 7, MF 60 2 x 7 3HP, 3PH, 208-230/460V, 1725 RPM

169236 All MF 60 except 1 x 51/4, 11/4x 51/4, PD-40 11/2HP, 1PH, 115/208-230V, 1725 RPM

169237 All MF 60 except 1 x 51/4, 11/4x 51/4, PD-40 11/2HP, 3PH, 115/208-230V, 1725 RPM

169238 MF 60 11/2x 7, MF 60 2 x 7 2HP, 3PH, 208-230/460V, 1725 RPM

118223 Series 100, HV, 2", PR, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

118228 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, 60 “A”, 1522

118848 PD-38, Obs. PD-39 , Series 60, MF 60

118473 PD-35, PD-37, 60 “AA”, 1522, MF 60 with 51/4" and 61/4" impellers 1/2" x 1/2", spring type

118635 PD-35, PD-37, 60 “AA”, 1522 5/8" x 1/2", 3 piece type

118705 Series 100, HV, 2", PR, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. HV, Obs. 2" Cast Iron, 1/2" x 1/2", spring type

118708 PD-35, PD-37, 60 “AA” 3/4" x 5/8", spring type

118709 PD-35, PD-37, 60 “AA”, 1522 5/8" x 1/2", spring type

118723 21/2", LD-3, HD-3, Obs. HLD-3, Obs. HHD-3 1/2" x 1/2", spring type

118732 Obs. HV, Obs. 2", Obs. PR, Obs. 1", Obs. 11/4", Obs. 11/2" Reversing duty

185329 MF 60 with 51/4" & 61/4" impellers

185330 MF 60

185331 MF 60 with 7" impellers

186003 PD-40, 60 “A”, 60 21/2F, MF 60 with 7" impellers 5/8" Shaft Dia

186004 PD-38, Obs. PD-39, 60 “A”, MF 60 with 7" impellers 5/8" Shaft Dia

186410 PD-38, PD-40, Obs. PD-39, 60 “A” 5/8" x 1/2", spring type

189110 Series 100, HV, 2", PR, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. HV, Obs. 2" Stamped Steel, 1/2" x 1/2", spring type

P58598 MF 60 with 51/4" & 61/4" impellers 1/2" x 7/8", 3 piece

P62190 HV, 2", PR, Obs. 1", Obs. 11/4", Obs. 11/2" Explosion Proof, 1/2" x 1/2", 3 piece

P62320 60 “AA” Explosion Proof, 7/8" x 1/2", 3 piece

P75421 MF 60 with 51/4" & 61/4" impellers 1/2" x 5/8", 3 piece

P75422 MF 60 with 51/4" & 61/4" impellers 1/2" x 7/8", 3 piece

P77234 PD-35, PD-37, 60 “AA” 1522 Explosion Proof, 1/2" x 1/2",

3 piece type

P77237 60 “A” Explosion Proof, 1/2" x 5/8",

3 piece type

P77279 60-22T, 60 21/2F Explosion Proof, 7/8" x 5/8",

3 piece type

P77281 60 21/2F, MF 60 with 7" impellers Explosion Proof, 11/8" x 5/8",

3 piece type

118474 PD-35, PD-37, 60 “AA”, 60 “A”, 1522 1/3-3/4HP power packs only

118706 Series 100, HV, 2", PR Includes Cast Iron coupler

118707 HV, PR, 2", Obs. 11/4", Obs. 11/2"

118724 21/2", LD-3, HD-3

118844 Series 100 Cast Iron models only

185260 PD-38, PD-40, Obs. PD-39, 60 “A” Bronze Fitted models only

185261 PD-38, PD-40, Obs. PD-39, 60 “A” All Iron models only

185262 PD-38, PD-40, Obs. PD-39, 60 “A” Bronze models only

185264 60 21/2F Bronze Fitted models only

185265 60 21/2F Bronze models only

185332 MF 60 with 51/4" & 61/4" impellers Copper Shaft Sleeve, Buna-N seal

185333 MF 60 with 7" impellers, PD-38, PD-40 Copper Shaft Sleeve, Buna-N seal

185334 MF 60 with 7" impellers, PD-38, PD-40 Copper Shaft Sleeve, Buna-N seal

185355 MF 60 with 51/4" & 61/4" impellers Copper Shaft Sleeve, EPT seal

185356 MF 60 with 51/4" & 61/4" impellers Copper Shaft Sleeve, Viton seal

185357 MF 60 with 51/4" & 61/4" impellers Stn. Stl. Shaft Sleeve, Buna-N seal

185358 MF 60 with 51/4" & 61/4" impellers Stn. Stl. Shaft Sleeve, EPT seal

185359 MF 60 with 51/4" & 61/4" impellers Stn. Stl. Shaft Sleeve, Viton seal

185360 MF 60 with 7" impellers BF Const., Copper Shaft Sleeve,

EPT seal

185361 MF 60 with 7" impellers BF Const., Copper Shaft Sleeve,

Viton seal

185362 MF 60 with 7" impellers BF Const., Stn. Stl. Shaft Sleeve,

Buna-N seal

COUPLERS

“WHERE USED” LIST (CONTINUED)

CF – contact factory for where used.

NOTE: Obs. = Obsolete Pump Model, MF = Maintenance Free

COUPLER

& RING

MOUNT

SETS

BEARING ASSEMBLIES

CIRCULATOR & CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

MOTOR

MOUNTS

SETS

POWER PACK &

MOTORS

(CONTINUED)

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

185363 MF 60 with 7" impellers BF Const., Stn. Stl. Shaft Sleeve,

EPT seal

185364 MF 60 with 7" impellers BF Const., Stn. Stl. Shaft Sleeve,

Viton seal

185365 MF 60 with 7" impellers AB Const., Copper Shaft Sleeve,

EPT seal

185366 MF 60 with 7" impellers AB Const., Copper Shaft Sleeve,

Viton seal

185367 MF 60 with 7" impellers AB Const., Stn. Stl. Shaft Sleeve,

Buna-N seal

185368 MF 60 with 7" impellers AB Const., Stn. Stl. Shaft Sleeve,

EPT seal

185369 MF 60 with 7" impellers AB Const., Stn. Stl. Shaft Sleeve,

Viton seal

186863 PD-35, PD-37, 60 “AA”, 1522 Bronze Fitted or All Bronze models

186865 PD-35, PD-37, 60 “AA”, 1522 All Iron models only

189034 Series 100 Bronze models only

189105 PR, 21/2", LD-3, HD-3 Cast Iron or Bronze models

189134 Series 100 Cast Iron models only,

includes NFI impeller

189161 Series 100 Bronze models only,

includes NFI Impeller

189162 Obs. 1", Obs. 11/4", Obs. 11/2" Cast Iron or Bronze models

189163 Obs. 11/2", Obs. 2", Obs. HV Cast Iron models with Bronze impellers

189165 HV, 2", Obs 11/2" Cast Iron or Bronze models

189166 HV, 2" Cast Iron or Bronze models,

includes NFI Impeller

P10316 1522 BFE models only, includes EPT seal

P04080 Series 100

P04890 HV, 2", Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

P05800 PR, 21/2", LD-3, HD-3

P15691 Obs. LR-20BF, Obs. LR-15B, Obs. LR-20B, Obs. LR-12BF, Obs. LR-12B,

All Series PL Models except PL-55 and PL-55B

P57410 PD-35, PD-37, 60 “AA”, 1522, MF 60 with 51/4" & 61/4" impellers

P57700 PD-38, PD-40, Obs. PD-39, 60 “A”, MF 60 with 7" impellers

P57701 60 21/2F

P83025 PL-55 and PL-55B

P57282 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

P77106 Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

P77119 Series 100

P77139 HV, 2", Obs. 11/2", Obs. HV

P77177 PR, 21/2", LD-3, HD-3

P77179 PD-35, PD-37, 60 “AA”, 1522

P77198 Obs. 1522 Stainless Steel models only

P09421 Obs. 1522 models only Stainless Steel

P57242 60 21/2F BF Construction

P2000062 60 21/2F AB Construction

P57246 PD-38, PD-40, Obs. PD-39, 60 “A”

P2000095 PD-38, PD-40, Obs. PD-39, 60 “A” AB Construction

118395 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, 1522,

Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

P04883 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F 2 required

185241 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

189071 Series 100

P77087 PR, 21/2", LD-3, HD-3

P77215 PD-35, PD-37, 60 “AA”, 1522 All Iron models only

P77216 PD-35, PD-37, 60 “AA”, 1522

P77217 Obs. 1522 Stainless Steel models only

P77308LF HV, 2", Obs. 1", Obs. 11/4", Obs. 11/2"

P77309 Obs. 2", Obs. HV Cast Iron models

P77309 Obs. 11/2", Obs. 2", Obs. HV Bronze models only

CIRCULATOR & CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

“WHERE USED” LIST (CONTINUED)

COVER-

PLATES

WICK

SETS

FRONT BEARINGS BEARING

BRACKETS BODY GASKETS BEARING ASSEMBLIES (CONTINUED)

NOTE: Obs. = Obsolete Pump Model, MF = Maintenance Free

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

118697 PD-35, PD-37, Obs. 60 “AA”, Obs. 1522 For Obs. Replacement

Bearing Assembly Models:

118478, 118479, 118480

185240 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

118680 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, Seal less seat insert

1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV, MF 60 with

51/4" x 61/4" impellers

118681 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”,

1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV , MF 60 with

51/4" x 61/4" impellers

118682 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, Seal less seat insert

1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

185222 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, 1522, EPT Elastomer

Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

185223 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F, MF 60 with 7" impellers EPT Elastomer

185224 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F EPT Elastomer

185227 All PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F Teflon Elastomer

185230 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, EPT Elastomer

1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV, MF 60 with

51/4" x 61/4" impellers

186433 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

186499 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F, MF 60 with 7" impellers

186681 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”,

1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

186875 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, Viton Elastomer

1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV, MF 60 with

51/4" x 61/4" impellers

189144 PL-30, PL-36, PL-45, PL-50, PL-75

189174 PL-130

189577 PL-55

P59861 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, Seal less seat insert

1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

118469 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

189035 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, 1522,

Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

P08725 PD-38, PD-40, Obs. PD-39, 60 “A” All Iron models only

P81960 PD-35, PD-37, 60 “AA”, 1522 All Iron models only

118339 Series 100 Cast Iron

118413 Series 100 Bronze

118449 PD-35, PD-37, MF 60 3 x 51/4Cast Iron

118637 PR Cast Iron

118644 21/2", LD-3, HD-3 Cast Iron

186074 1522 3/4AAB Cast Iron

186075 1522 1AAB Cast Iron

186081 1522 11/4AAB Cast Iron

186087 1522 11/2AAB Cast Iron

186333 1522 3/4AAB Bronze

186334 1522 11/2AAB Bronze

186384 60 1AA Cast Iron

186385 60 1AA Bronze

186386 60 11/4AA, MF 60 1 x 51/4, MF 60 11/4x 51/4Cast Iron

186389 60 11/2A, MF 60 11/2x 51/4, MF 60 2 x 51/4Cast Iron

186390 60 11/2A, MF 60 11/2x 7 Bronze

186392 60 2AA, MF 60 2 x 51/4Cast Iron

186671 MF 60 11/2x 61/4AB Construction

186672 MF 60 2 x 61/4AB Construction

186931 60 11/4AA, MF 60 1 x 51/4, MF 60 11/4x 51/4AB Construction

186932 60 11/2AA, MF 60 11/2x 51/4AB Construction

186933 60 2AA, MF 60 2 x 51/4AB Construction

186934 60 11/2A, MF 60 11/2x 7 AB Construction

186935 MF 60 11/2x 61/4BF Construction

186936 MF 60 2 x 61/4BF Construction

186937 60 2A, MF 60 2 x 7 BF Construction

186938 60 2A, MF 60 2 x 7 AB Construction

CIRCULATOR & CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

“WHERE USED” LIST (CONTINUED)

PUMP BODIES & VOLUTES

NOTE: Obs. = Obsolete Pump Model, MF = Maintenance Free

SEAL KITS

SHAFTS &

SLEEVES

REAR

BEARINGS

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

189124 HV Cast Iron

189125 HV Bronze

189126 2" Cast Iron

189127 2" Bronze

P2999952 PR Bronze

P07610 21/2", LD-3, HD-3 Bronze

P2000012 PD-38, PD-40, Obs. PD-39 Bronze

P08460 PD-38, PD-40, Obs. PD-39 Cast Iron

P2000014 PD-35, PD-37, MF 60 3 x 51/4Bronze

P2000016 Obs. 1522 1AAB Bronze

P2000018 Obs. 1522 11/4AAB Bronze

P57232 Series 60 21/2F BF Construction

P2000060 Series 60 21/2F AB Construction

P00660 Obs. 1522 Stainless Steel models only, 8 required

P01850 60 “AA”, 1522, MF 60 with 51/4" impeller All Bronze models only, 8 required

P03470 HV, 2", PR, 21/2", LD-3, HD-3, 60 21/2F, Obs. 1", Obs. 11/4", 60 21/2F Bronze Fitted only, 12 required

Obs. 11/2", Obs. HV, Obs. 2" all other circulators, 4 required

P10620 PD-35, PD-37, 60 “AA”, 1522, MF 60 with 51/4" and 61/4" impellers For all Cast Iron and All Iron models

P40020 Series 100, PD-38, PD-40, Obs. PD-39, MF 60 with 7" impeller, For all Series 100 models, 4 required.

60 “A” For all Bronze Fitted or All Iron PD,

60 “A” or 1522 models, 8 required

P52310 60 “A”, MF 60 with 7" impeller All Bronze models only

S04180 60 21/2F All Bronze models only

P39020 60 “AA”, 60 “A”, 1522, All MF 60 All Cast Iron or All Iron models,

5 required for Series 60,

4 required for 1522

P39030 Obs. 1522 Stainless Steel models only, 4 required

P39040 60 21/2F Bronze Fitted models only, 5 required

P39470 60 “AA”, 60 “A”, 1522, All MF 60 All Bronze models only, 5 required for

Series 60, 4 required for 1522

P39480 60 21/2F All Bronze models only, 5 required

118431 Series 100 Brass – 23/4" Diameter

118434 Obs. 1" Brass – 31/16" Diameter

118435 Obs. 11/4", Obs. 11/2" Brass – 35/16" Diameter

118436 Obs. HV, Obs. 2", Obs. 11/4", Obs. 11/2" Brass – 33/8" Diameter

118439 HD-3 Brass – 41/4" Diameter

118440 21/2", LD-3 Brass – 37/8" Diameter

118452 PD-40, Obs. PD-39 Cast Iron – 6" Diameter

118453 PD-40, Obs. PD-39 Brass – 6" Diameter

118612 PR Brass – 41/4" Diameter

118626 PD-37, Obs. 60-14S, Obs. 60-14T, Obs. 60-B14S, Obs. 60-B14T, Brass – 51/4" Diameter

Obs. 60-4S, Obs. 60-4T, 1522 4S, 1522 4T

118627 PD-35 Brass – 43/4" Diameter

118629 PD-37 Steel – 51/4" Diameter

118630 PD-35 Steel – 43/4" Diameter

118665 Obs. 1" Steel – 31/2" Diameter

118666 Obs. 11/4", Obs. 11/2" Steel – 35/16" Diameter

118668 Obs. HV, Obs. 2" Steel – 33/8" Diameter

118675 HD-3 Steel – 41/4" Diameter

118676 21/2", LD-3 Steel – 37/8" Diameter

118830 PR Steel – 41/4" Diameter

186359 Obs. 60-10S, Obs. 60-1S, Obs. 60-1T, Obs. 60-2S, Obs. 60-2T, 1522 1S, Bronze – 51/4" Diameter

1522 1T, 1522 2S, 1522 2T, Obs. 1522 15T

186360 Obs. 60-11S, Obs. 60-11T, Obs. 60-B11S, Obs. 1522 9S, Obs. 1522 9T Bronze – 53/16" Diameter

186361 Obs. 1522 12S, Obs. 1522 12T Bronze – 411/16" Diameter

186362 Obs. 1522 7S, Obs. 1522 7T Bronze – 43/8" Diameter

186363 Obs. 1522 5S, Obs. 1522 5T Bronze – 4" Diameter

CIRCULATOR & CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

“WHERE USED” LIST (CONTINUED)

IMPELLERS

NOTE: Obs. = Obsolete Pump Model, MF = Maintenance Free

BODY OR VOLUTE

CAPSCREWS

VOLUTE DRAIN

PLUGS

PUMP BODIES & VOLUTES

(CONTINUED)

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

186364 Obs. 1522 14S, Obs. 1522 14T Bronze – 37/16" Diameter

186366 Obs. 1522 6S, Obs. 1522 6T Bronze – 37/8" Diameter

186368 Obs. 60-13S, Obs. 60-13T, Obs. 60-B13S, Obs. 60-B13T, Obs. 60-3S, Bronze – 51/4" Diameter

Obs. 60-3T, 1522 3S, 1522 3T

186370 Obs. 1522 16S, Obs. 1522 16T Bronze – 41/8" Diameter

186371 Obs. 1522 8S, Obs. 1522 8T Bronze – 35/8" Diameter

186373 Obs. 1522 11T Bronze – 315/16" Diameter

186375 Obs. 1522 17S, Obs. 1522 17T Bronze – 311/16" Diameter

189128 HV, 2" NFI – 33/8" Diameter

189132 Series 100 NFI – 23/4" Diameter

189169 PL-50, PL-50B, PL-75, PL-75B NFI – 2" Diameter

189170 PL-30, PL-30B, PL-36, PL-36B NFI – 31/16" Diameter

189171 PL-45, PL-45B NFI – 23/4" Diameter

189172 PL-55, PL-55B

189173 PL-130, PL-130B

P07792 HV, 2" Bronze – 33/8" Diameter

P08690 PD-38 Bronze – 53/4" Diameter

P08709 PD-38 Cast Iron – 53/4" Diameter

P15627 Obs. LR-20BF, Obs. LR-15B, Obs. LR-20B NFI – 21/4" Diameter

P15629 Obs. LR-12BF, Obs. LR-12B NFI – 21/2" Diameter

P56550 60 1AA, 60 11/4AA, 1522 3/4AAB, 1522 1AAB Bronze – 51/4" Diameter

P56740 60 11/2AA, 1522 11/4AAB Bronze – 51/4" Diameter

P56810 1522 11/2AAB, 60 2AA Bronze – 51/4" Diameter

P57440 MF 60 11/2x 7, 60-618T Bronze – 7" Diameter

P57445 Obs. 60-17S, Obs. 60-17T, 60 11/2A, Obs. 60-6S, Obs. 60-6T, Bronze – 7" Diameter

Obs. 60-7S, Obs. 60-7T

P57446 Obs. 60-16S, Obs. 60-16T Bronze – 63/8" Diameter

P57447 Obs. 60-15S, Obs. 15T, Obs. 60-5S, Obs. 60-5T Bronze – 53/4" Diameter

P57450 Obs. 60-21T, 60 2A, Obs. 60-10T Bronze – 63/4" Diameter

P57451 Obs. 60-20S, Obs. 60-20T, Obs. 60-9S, Obs. 60-9T Bronze – 61/8" Diameter

P57452 Obs. 60-19S, Obs. 60-19T, Obs. 60-8S, Obs. 60-8T Bronze – 55/8" Diameter

P57460 60-617S, 60-617T Bronze – 61/2" Diameter

P57500 60 11/2A Cast Iron– 7" Diameter

P57580 MF 60 2 x 7, 60-620T Bronze – 7" Diameter

P57583 60 21/2F Bronze – 8" Diameter

P57584 Obs. 60-22T Bronze – 73/4" Diameter

P58536 MF 60 2 x 51/4and 3 x 51/4, 60-627S, 60-627T, 60-B627S, 60-B627T

P58538 MF 60 11/2x 51/4, 60-609S, 60-609T, 60-B609S, 60-B609T

P58541 MF 60 1 x 51/4and 11/4 x 51/4, 60-603S, 60-603T, 60-B603S, 60-B603T,

60-606S, 60-606T, 60-B606S, 60-B606T

P58562 MF 60 2 x 61/4, 60-616S, 60-616T

P58564 MF 60 11/2x 61/4, 60-614S, 60-614T, 60-B614S, 60-B614T

P58661 60-621S, 60-621T, 60-B621S, 60-B621T

P58662 60-622S, 60-622T Bronze – 51/2" Diameter

P58663 60-623S, 60-623T Bronze – 6" Diameter

P58664 60-624S, 60-624T

P58665 60-625S, 60-625T Bronze – 61/8" Diameter

P60350 60 1AA, 60 11/4AA, 1522 3/4AAB, 1522 1AAB Steel – 51/4" Diameter

P61010 60 11/2AA, 1522 11/4AAB Steel – 51/4" Diameter

P61550 60 2AA, 1522 11/2AAB Steel – 51/4" Diameter

P82137 60-619T Bronze – 61/2" Diameter

P82877 60-602S, 60-602T, 60-B602S, 60-B602T, 60-605S, 60-605T, 60-B605S, Bronze – 53/4" Diameter

60-B605T

P82878 60-601S, 60-601T, 60-B601S, 60-B601T, 60-604S, 60-604T, 60-B604S, Bronze – 43/8" Diameter

60-B604T

P82880 60-608S, 60-608T, 60-B608S, 60-B608T Bronze – 415/16" Diameter

P82881 60-607S, 60-607T, 60-B607S, 60-B607T Bronze – 43/8" Diameter

P82882 60-611S, 60-611T, 60-B611S, 60-B611T Bronze – 43/4" Diameter

P82883 60-610S, 60-610T, 60-B610S, 60-B610T Bronze – 41/8" Diameter

P82884 60-613S, 60-613T

P82885 60-615S, 60-615T, 60-B615S, 60-B615T

P83023 60-626S, 60-626T, 60-B626S, 60-B626T

CIRCULATOR & CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

CF – contact factory for where used.

NOTE: Obs. = Obsolete Pump Model, MF = Maintenance Free

“WHERE USED” LIST (CONTINUED)

IMPELLERS (CONTINUED)

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

A24600 PD-38, PD-40, Obs. PD-39 Steel – 3"

A40000 PD-38, PD-40, Obs. PD-39 Brass – 3"

F14200 2", Obs. 2", 60 2AA, 60 2A, PL-75, PL-130, MF 60 2" Steel – 2"

P2000078 2", Obs. 2", 60-B14S, 60-B14T, 60 2AA, 60 2A, PL-75B, PL-130B, MF 60 2" Bronze – 2"

F74000 LD-3, HD-3, PD-35, PD-37, PL-130, MF 60 3 x 51/4Steel – 3"

P2000081 LD-3, HD-3, PD-35, PD-37, PL-130B, MF 60 3 x 51/4Brass – 3"

P00739 PL-30, PL-36, PL-55, Obs. LR-250BF, Obs. LR-12, Obs. LR-12BF, Steel – 3/4"

Series 100, PR

P2000085 PL-30B, PL-36B, Series 100, LR, PR, PL-55B Brass – 11/2"

P00789 PL-30B, PL-36B, PL-55B, LR, Series 100, PR Brass – 3/4"

P00792 PL-30, PL-36, Series 100, Obs. LR, PR, 60 1AA, PL-55 Steel – 1"

P00802 PL-45, PL-50, HV, Obs. HV Steel – 1"

P00804 PL-45B, PL-50B, HV, Obs. 1", Obs. HV Brass – 1"

P00836 LR-20B, LR-12B, LR-15B, PL-30B, PL-36B, Series 100, PR, PL-55B Brass – 1"

P00837 LR-20B, LR-12B, LR-15B, PL-30B, PL-36B, Series 100, PR, PL-55B Brass – 11/4"

P01510 MF 60 1 x 51/4, 60 1"AA

P03250 PL-30, PL-36, PL-55, Series 100, Obs. LR, PR, Obs. 11/4", 60 11/4AA, Steel – 11/4"

MF60 11/4x 51/4

P03300 PL-45, PL-50, HV, Obs. HV Steel – 11/4"

P03410 PL-45, PL-50, HV, Obs. 11/2", Obs. HV, 60 11/2AA, 60 11/2A, MF 60 11/2" Steel – 11/2"

P03430 PL-30, PL-36, Series 100, Obs. LR, PR, PL-55 Steel – 11/2"

P03560 21/2", PL-130 Steel – 21/2"

P2000088 PL-45B, PL-50B, HV, Obs. 11/4", Obs. HV Brass – 11/4"

P2000090 PL-45B, PL-50B, HV, Obs. 11/2", Obs. HV, 60 11/2AA, 60 11/2A, MF 60 11/2" Brass – 11/2"

P2000093 21/2", PL-130B Brass – 21/2"

118060 Obs. HV, Obs. 11/4"

118062 Obs. 11/2"

118065 Obs. 2"

118129 21/2", LD-3, HD-3, PD-35, PD-37, PD-38, PD-40, Obs. PD-39, MF 60

3 x 51/4, PL-130

118351 Obs. Series 100, Obs. 1"

118368 Obs. LR, PL-30, PL-36, Series 100, PR, 60 1AA, 60 11/4AA, PL-55,

Obs. 11/4", MF 60 1 x 51/4, MF 60 11/4x 51/4

118373 PL-45, PL-50, HV, Obs. 11/2", Obs. HV, 60 11/2AA, 60 11/2A, MF 60 11/2"

118378 2", 60 2AA, 60 2A, MF 60 2", PL-75, PL-130

P15692 Obs. LR Not a set, 2 required

F91600 Obs. 2"

P09540 PD-38, PD-40, Obs. PD-39, PL-130

P15696 Obs. LR

P64230 Obs. 1"

P64900 60 1AA, 60 11/4AA

P64910 Obs. LR, PL-30, PL-36, Series 100, 60 1AA, 60 11/4AA, Obs. 11/4",

MF 60 1 x 51/4and 11/4x 51/4

P64930 60 11/2AA, 60 11/2A Obs. 11/2", Obs. HV, MF 60 11/2" Series 60 All Bronze models only

P64940 PL-45, PL-50, HV, 60 11/2AA, 60 11/2A, Obs. HV, Obs. 11/2", MF 60 11/2" Series 60 Bronze Fitted and

All Iron models only

P65030 2", 60 2AA, 60 2A, MF 60 2" Series 60 Bronze Fitted and

All Iron models only

P65031 PL-75, PL-130, 2", MF 60 2", 60 2AA, 60 2A

P65128 PR

P65130 21/2", LD-3, HD-3, PD-35, PD-37, MF 60 3 x 51/4Does not include flange gaskets

P83031 PL-55, PL-55B

CIRCULATOR & CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

CF – contact factory for where used.

NOTE: Obs. = Obsolete Pump Model, MF = Maintenance Free

“WHERE USED” LIST (CONTINUED)

FLANGESFLANGE GASKET SETSFASTENER PACKS

CIRCULATOR & CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300F-PL

NOTE: Obs. = Obsolete Pump Model

CATEGORY PART NO. PART DESCRIPTION WHERE USED NOTES/SPECIFICATION

H32400 Coupler Key PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

J91702 Impeller Nut Obs. HV Cast Iron models only

M15784 Capacitor Obs. LR 220V

M15788 Capacitor Obs. LR-15B 220V

P00651 Impeller Nut Obs. 1522 Stainless Steel models

P04650 Impeller Lockwasher 60 AA, 1522

P04660 Impeller Washer Obs. 1522, MF 60 51/4" and 61/4"

P04670 Impeller Nut PD-35, PD-37, 60 AA, 1522 AI Construction

P04940 Impeller Key Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37,

60 “AA”, 1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2",

Obs. HV, MF 60 51/4" and 61/4"

P04945 Impeller Key Obs. 1522 Stainless Steel models only

P08480 Impeller Nut PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F, MF 60 7" All Bronze model only

P11150 Impeller Washer 60 21/2F, PD-38, PD-40, Obs. PD-39, 60 A

P11220 Impeller Washer PD-38, PD-40, Obs. PD-39, MF 60 7", 60 A, 60 21/2F AB Construction

P12422 Oil Wick Retainer PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

P15210 Assembly Tool Obs. LR

P15683 Seat Cup Obs. LR

P15697 Impeller Nut Obs. LR

P15698 Impeller Tube Obs. LR

P15775 Oil Tube Obs. LR

P44200 Impeller Nut Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37,

60 “AA”, 1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2",

Obs. HV, MF 60 51/4" and 61/4"

P45910 Impeller Nut PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F Cast Iron Models Only

P49358 Impeller Key 60 “A”, 21/2F, PD-38, PD-40, Obs. PD-39, MF 60 7"

P51190 Flat head Capscrew Obs. 1522

P57000 Impeller Gasket Series 100, HV, 2”, PR, 21/2”, LD-3, HD-3, PD-35, PD-37,

60 “AA”, 1522, Obs. 11/2", Obs. 2", Obs. HV, Obs. 1",

Obs. 11/4"

P57300 Oil Well Gasket PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

P57302 Oil Well Cover PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

P70712 Ceramic Insert Obs. LR

P80815 Front Bearing Gasket Series 100

P80816 Front Bearing Gasket HV, 2", Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV, PR,

21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, 1522

P81238 Oil Well Cover Series 100

P81239 Oil Well Cover HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”,

1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

“WHERE USED” LIST (CONTINUED)

MISCELLANEOUS PUMP PARTS

HYDRONIC SPECIALTIES, ENGINEERED SPECIALTIES & CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300F-PL

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

A03720 EAS-11/2, EAS-2

A03835 EAS-1, EAS-11/4

A07029 SDG-21/2, CC-3Z, DC-3Z, EC-3Z Stainless Steel

A07030 SDG-3, DD-3Z, ED-3Z Stainless Steel

A07031 SDG-4, EE-3Z, FE-3Z, GE-3Z Stainless Steel

A07032 SDG-5, FF-3Z, GF-3Z Stainless Steel

A07033 SDG-6, GG-3Z, HG-3Z Stainless Steel

A07034 SDG-8, HH-3Z, JH-3Z Stainless Steel

A07035 SDG-10, JJ-3Z Stainless Steel

A91554 Obs. DB, BA-3X Steel

A91555 BB-3X, CB-3X, DA-3X, DB-3X Steel

A91556 CC-3X, DC-3X, EC-3X Steel

A91557 DD-3X, ED-3X Steel

A91558 EE-3X, FE-3X, GE-3X Steel

A91559 FF-3X, GF-3X Steel

A91560 GG-3X, HG-3X Steel

A91561 HH-3X, JH-3X Steel

A91562 JJ-3X Steel

A91563 Obs. DB, BA-3Z Stainless Steel

A91564 BB-3Z, CB-3Z, DA-3Z, DB-3Z Stainless Steel

189579 B-200

189580 B-300

189581 B-400

189582 B-500

189583 B-600

189584 B-800

189585 B-1000

189586 B-1200

189587 B-1400

189588 B-1600

189589 B-2000

189590 B-2500

189591 B-3000

189592 B-3500

189593 B-4000

189594 B-35 LA, B-50 LA, B-85 LA, B-100 LA

189595 B-130 LA, B-165 LA, B-200 LA, B-300 LA

189596 B-400 LA, B-500 LA, B-600 LA

189597 B-5000

A03715 EAS-1

A03716 EAS-11/4

A03831 EAS-11/2

A03832 EAS-2

G92500 TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3, TFI-4, TFI-5, TFI-6, TFI-8

V01103 CTS-7524

V18802 CB-4G, 3DS-4G

V50807 3DX-1

V50808 3DX-11/4

V50809 3DX-11/2

V50810 3D-2S

V50811 3D-21/2S

V50812 3D-3S

V50813 3D-4S

V50814 3D-5S

V50815 3D-6S

V50816 3D-8S

V50817 3D-10S

V50818 3DS-2G

V50819 3DS-21/2G

V50820 3DS-3G

V50821 CB-5G, 3DS-5G

V50822 CB-6G, 3DS-6G

V50823 CB-8G, 3DS-8G

V50824 CB-10G, 3DS-10G

V50825 CB-12G, 3DS-10G

V50830 3DS-2S

V50831 3DS-21/2S

V50832 3DS-3S

V50833 CB-4F, 3DS-4S

V50834 CB-5F, 3DS-5S

“WHERE USED” LIST

BAFFLESBLADDERSBODIES

NOTE: Obs. = Obsolete Model

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

V50835 CB-6F, 3DS-6S

V50836 CB-8F, 3DS-8S

V50837 CB-10F, 3DS-10S

V50838 CB-12F, 3DS-12S

V50839 3DS-14S

V51958 3DS-3B

V51961 3DS-4B

V51964 3DS-5B

V51967 3DS-6B

V51970 3DS-8B

V51973 3DS-10B

V51976 3DS-12B

V51979 3DS-14B

V51982 3DS-16B

G10001 CB-4F

G10002 CB-5F

G10003 CB-6F

G10004 CB-8F

G10060 CB-4G

G10061 CB-5G

G10062 CB-6G

G10063 CB-8G

V50986 CB-10G

V50987 CB-12F

V50988 CB-12G

V51021 CB-10F

V51122 3D-2S, 2DS-2S, 3D-21/2, 3DS-21/2S, 3DS-2S, 3DS-3B

V51126 3D-3S, 3DS-3S, 3DS-4B

V51128 3D-4S, 3DS-4S, 3DS-5B

V51130 3D-5S, 3DS-5S, 3DS-6B

V51132 3D-6S, 3DS-6S, 3DS-8B

V51134 3D-8S, 3DS-8S, 3DS-10B

V51136 3D-10S, 3DS-10S, 3DS-12B

V51138 3DS-12S, 3DS-14B

V51140 3DS-14S, 3DS-16B

V51142 3DS-4G

V51811 3DS-2G, 2DS-21/2G

V51813 3DS-3G

V51815 3DS-5G

V51817 3DS-6G

V51819 3DS-8G

V51821 3DS-10G

V51841 3DS-12G

G10030 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

G10038 CB-8F, CB-8G

V51010 CB-10F, CB-10G

V51011 CB-12F, CB-12G

A03722 EAS-11/2, EAS-2

A03834 EAS-1, EAS-11/4

V50690 3DX-1

V50693 3DX-11/4

V50696 3DX-11/2

A07016 SDG-21/ 2

A07018 SDG-3

A07020 SDG-4

A07022 SDG-5

A07024 SDG-6

A07026 SDG-8

A07028 SDG-10

A91242 BA-3X, BA-3Z

A91244 BB-3X, BB-3Z, CB-3X, CB-3Z, CC-3X, CC-3Z, DA-3X, DA-3Z,

DB-3X, DB-3Z, DC-3X, DC-3Z

A91246 DD-3X, DD-3Z, ED-3X, ED-3Z

A91248 EE-3X, EE-3Z, FE-3X, FE-3Z, GE-3X, GE-3Z

A91250 FF-3X, FF-3Z, GF-3X, GF-3Z

A91252 GG-3X, GG-3Z, HG-3X, HG-3Z

A91254 HH-3X, HH-3Z, JH-3X, JH-3Z

A91256 JJ-3X, JJ-3Z

COVERPLATES

HYDRONIC SPECIALTIES, ENGINEERED SPECIALTIES & CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300F-PL

“WHERE USED” LIST (CONTINUED)

BONNETS

BUSH-

INGS

CAPS BODIES

HYDRONIC SPECIALTIES, ENGINEERED SPECIALTIES & CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300F-PL

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

V50855 3DX-1

V50856 3DX-11/4

V50857 3DX-11/2

G10009 CB-4F, CB-4G

G10010 CB-5F, CB-5G

G10011 CB-6F, CB-6G

G10012 CB-8F, CB-8G

V50697 3DX-1

V50698 3DX-11/4

V50699 3DX-11/2

V50754 3DS-14S, 3DS-16B

V50920 3DS-12S, 3DS-14B

V50992 CB-10F, CB-10G

V50993 CB-12F, CB-12G

V56884 3DS-12G

V51756 3DS-2G, 3D-2S, 3D-21/2S, 3DS-2S

V51757 3DS-21/2G, 3DS-21/2S, 3DS-3B

V51758 3DS-3G, 3D-3S, 3DS-3S, 3DS-4B

V51759 3DS-4G, 3D-4S, 3DS-4S, 3DS-5B

V51760 3DS-5G, 3D-5S, 3DS-5S, 3DS-6B

V51761 3DS-6G, 3D-6S, 3DS-6S, 3DS-8B

V51762 3DS-8G, 3D-8S, 3DS-8S, 3DS-10B

V51763 3D-10S, 3DS-10S, 3DS-12B

V51764 3DS-10G

118858 3DX-11/4

118859 3DX-11/2

118860 3DX-1

118094 SA-11/4

118095 SA-11/2, SA-2

118096 A-21/2, S-21/2, A-3, S-3

118117 SA-1

118118 S-4

118864 SB-3/4

189168 SA-3/4

F17400 S-4

F26200 SA-2

G82750 A-21/2, S-21/2

G86500 A-3, S-3

F19000 S-4, 3D-3S, 3DS-3G, 3DS-3S, 3DS-4B

F27800 A-21/2, S-21/2, A-3, S-3, 3D-2S, 3DS-2G, 3DS-2S,

3D-21/2S, 3DS-21/2G, 3DS-21/2S, 3DS-3B

F43000 SA-3/4, Obs. SA-3/4, Obs. SB-3/4

F44400 SA-1, 3DX-1

F47200 SA-11/4, 3DX-11/4, SA-11/2, SA-2

F49000 SA-11/2, SA-2, 3DX-11/2

V29400 CB-4F, CB-4G, 3D-4, 3DS-4G, 3DS-4S, 3DS-5B

V32801 3D-5S, 3DS-5G, 3DS-5S, CB-5F, CB-5G, 3DS-6B

V33001 CB-6F, CB-6G, 3D-6S, 3DS-6G, 3DS-6S, 3DS-8B

V35000 CB-8F, CB-8G, 3D-8S, 3DS-8G, 3DS-8S, 3DS-10B

V36400 CB-10F, CB-10G, 3D-10S, 3DS-10G, 3DS-10S, 3DS-12B

V36401 CB-12F, CB-12G, 3DS-12G, 3DS-12S, 3DS-14B

V36402 3DS-14S, 3DS-16B

V56936 SB-3/4

DYNA DISC

ASSEMBLIES

“WHERE USED” LIST (CONTINUED)

DISCS

DISC

ASSEMBLIES

FLANGE

GASKETS

DISC

KITS

GASKETS

NOTE: Obs. = Obsolete Model

DATA

PLATES

HYDRONIC SPECIALTIES, ENGINEERED SPECIALTIES & CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300F-PL

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

G10032 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

G10040 CB-8F, CB-8G, CB-10F, CB-10G

V51003 CB-12F, CB-12G

118098 TB-3/4

118820 TFI-4, TFI-5, TFI-6, TFI-8

118822 TB-1

189111 TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3

F13400 SA-3/4, SA-1, SA-11/4, SA-11/2, SB-3/4, SA-2, A-21/2, S-21/2, A-3, S-3,

Obs. SA-3/4, Obs. SB-3/4, 3DX-1, 3DX-11/4, 3DX-11/2

F17800 S-4

G10028 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G Indicator Lock

G10036 CB-8F, CB-8G, CB-10F, CB-10G Indicator Lock

G96839 CB-11/4, CB-11/4S, CB-11/2, CB-11/2S, CB-2, CB-2S, CB-21/2, CB-21/2F, Indicator Stop

CB-3, CB-3F, CB-4

V51012 CB-12F, CB-12G Indicator Lock

J94171 3DS-12G, 3DS-12S, 3DS-14S, 3DS-14B, 3DS-16B

V51180 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2S, 3DS-21/2G, 3DS-21/2S, 3D-3S,

3DS-3G, 3DS-3S, 3DS-3B, 3DS-4B

V51181 3D-4S, 3DS-4G, 3DS-4S, 3D-5S, 3DS-5G, 3DS-5S, 3D-6S, 3DS-6G,

3DS-6S, 3D-8S, 3DS-8G, 3DS-8S, 3D-10S, 3DS-10G, 3DS-10S,

3DS-5B, 3DS-6B, 3DS-8B, 3DS-10B, 3DS-12B

G10105 RF-1/2S, RF-3/4S

G95951 CB-1/2, CB-1/2S, CB-3/4, CB-3/4S, CB-1, CB-1S

G96831 CB-11/4, CB-11/4S, CB-11/2, CB-11/2S, CB-2,

CB-2S, CB-21/2, CB-21/2F, CB-3, CB-3F, CB-4

G10027 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

G10035 CB-8F, CB-8G, CB-10F, CB-10G, CB-12F, CB-12G

V51093 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2S, 3DS-21/2G, 3DS-21/2S, 3D-3S,

3DS-3G, 3DS-3S, 3DS-3B, 3DS-4B

V51094 3D-4S, 3DS-4G, 3DS-4S, 3D-5S, 3DS-5G, 3DS-5S, 3D-6S, 3DS-6G,

3DS-6S, 3D-8S, 3DS-8G, 3DS-8S, 3D-10S, 3DS-10G, 3DS-10S,

3DS-5B, 3DS-6B, 3DS-8B. 3DS-10B, 3DS-12B

V51095 3DS-12G, 3DS-12S, 3DS-14S, 3DS-14B, 3DS-16B

G10017 CB-4F

G10018 CB-5F

G10019 CB-6F

G10020 CB-8F

G10064 CB-4G

G10065 CB-5G

G10066 CB-6G

G10067 CB-8G

V50896 3DS-14S

V50961 3DS-2S

V50962 3DS-21/2S

V50963 3DS-3S

V50964 3DS-4S

V50965 3DS-5S

V50966 3DS-6S

V50967 3DS-8S

V50968 3DS-10S

V50969 3DS-12S

V50971 3D-2S

V50972 3D-21/2S

V50973 3D-3S

“WHERE USED” LIST (CONTINUED)

GLAND

WASH-

ERS

GLASS-

TUBE

KITS

HAN-

DLES

INDICATOR

LOCKS OR

INDICATOR

STOPS

INDICATOR

RINGS

KNOBS

LOCK-

WASH-

ERS

LOWER

NAMEPLATE

RETAINERS

NAMEPLATES

NOTE: Obs. = Obsolete Model

HYDRONIC SPECIALTIES, ENGINEERED SPECIALTIES & CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300F-PL

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

V50974 3D-4S

V50975 3D-5S

V50976 3D-6S

V50977 3D-8S

V50978 3D-10S

V50996 CB-10F

V50997 CB-12F

V50998 CB-10G

V50999 CB-12G

V51823 3DS-2G

V51824 3DS-21/2G

V51825 3DS-3G

V51826 3DS-4G

V51827 3DS-5G

V51828 3DS-6G

V51829 3DS-8G

V51830 3DS-10G

V51831 3DS-12G

V57089 3DS-3B

V57090 3DS-4B

V57091 3DS-5B

V57092 3DS-6B

V57093 3DS-8B

V57094 3DS-10B

V57095 3DS-12B

V57096 3DS-14B

V57097 3DS-16B

G10025 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G, CB-8F, CB-8G,

CB-10F, CB-10G

V51005 CB-12F, CB-12G

V51111 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2S, 3DS-21/2G, 3DS-21/2S, 3D-3S,

3DS-3G, 3DS-3S. 3DS-3B, 3DS-4B

V51114 3D-4S, 3DS-4G, 3DS-4S, 3D-5S, 3DS-5G, 3DS-5S, 3D-6S, 3DS-6G,

3DS-6S, 3D-8S, 3DS-8G, 3DS-8S, 3D-10S, 3DS-10G, 3DS-10S,

3DS-5B, 3DS-6B, 3DS-8B, 3DS-10B. 3DS-12B

V51119 3DS-12G, 3DS-12S, 3DS-14S, 3DS-14B, 3DS-16B

A03719 EAS-11/2, EAS-2

A03841 EAS-1, EAS-11/4

J94130 SDG-3, DD-3X, DD-3Z, ED-3X, ED-3Z

J94131 SDG-4, EE-3X, EE-3Z, FE-3X, FE-3Z, GE-3X, GE-3Z

J94140 BA-3X, BA-3Z

J94141 SDG-21/2, BB-3X, BB-3Z, CB-3X, CB-3Z, CC-3X, CC-3Z,

DA-3X, DA-3Z, DB-3X, DB-3Z, DC-3X, DC-3Z, EC-3X, EC-3Z

J94142 SDG-5, FF-3X, FF-3Z, GF-3X, GF-3Z

J94143 SDG-6, GG-3X, GG-3Z, HG-3X, HG-3Z

J94144 SDG-8, HH-3X, HH-3Z, JH-3X, JH-3Z

J94145 SDG-10, JJ-3X, JJ-3Z

F17000 S-4, 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2S, 3DS-21/2G,

3DS-21/2S, 3D-3S, 3DS-3G, 3DS-3S, 3DS-3B, 3DS-4B

G10033 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

G10041 CB-8F, CB-8G, CB-10F, CB-10G

V51004 CB-12F, CB-12G

V51096 3D-4S, 3DS-4G, 3DS-4S, 3D-5S, 3DS-5G, 3DS-5S, 3D-6S, 3DS-6G,

3DS-6S, 3D-8S, 3DS-8G, 3DS-8S, 3D-10S, 3DS-10G, 3DS-10S,

3DS-5B, 3DS-6B, 3DS-8B, 3DS-10B, 3DS-12B

V51097 3DS-12G, 3DS-12S, 3DS-14S, 3DS-14B, 3DS-16B

118057 SA-3/4, SA-1, SA-11/4, SA-11/2, SB-3/4, SA-2, A-21/2, S-21/2, A-3, S-3,

Obs. SA-3/4, Obs. SB-3/4, TB-3/4, TB-1, 3DX-1, 3DX-11/4, 3DX-11/2

F16600 S-4, 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2S, 3DS-21/2G, 3DS-21/2S,

3D-3S, 3DS-3G, 3DS-3S, 3DS-3B, 3DS-4B

G10026 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

G10034 CB-8F, CB-8G, CB-10F, CB-10G

V51002 CB-12F, CB-12G

V51183 3DS-12G, 3DS-12S, 3DS-14S, 3DS-14B, 3DS-16B

V51281 3D-4S, 3DS-4G, 3DS-4S, 3D-5S, 3DS-5G, 3DS-5S, 3D-6S, 3DS-6G,

3DS-6S, 3D-8S, 3DS-8G, 3DS-8S, 3D-10S, 3DS-10G, 3DS-10S,

3DS-5B, 3DS-6B, 3DS-8B, 3DS-10B, 3DS-12B

118056 SA-3/4, SA-1, SA-11/4, SA-11/2, SB-3/4, SA-2, A-21/2, S-21/2, A-3, S-3,

Obs. SA-3/4, Obs. SB-3/4, 3DX-1, 3DX-11/4, 3DX-11/2

“WHERE USED” LIST (CONTINUED)

NAMEPLATES (CONTINUED)NAMEPLATE CAPSO-RINGSPACKING

PACKING GLAND NUTS

NOTE: Obs. = Obsolete Model

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

G10032 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

G10040 CB-8F, CB-8G, CB-10F, CB-10G

V51003 CB-12F, CB-12G

V51184 3DS-12G, 3DS-12S, 3DS-14S, 3DS-14B, 3DS-16B

V51282 3D-4S, 3DS-4G, 3DS-4S, 3D-5S, 3DS-5G, 3DS-5S, 3D-6S, 3DS-6G,

3DS-6S, 3D-8S, 3DS-8G, 3DS-8S, 3D-10S, 3DS-10G, 3DS-10S, 3DS-5B,

3DS-6B, 3DS-8B, 3DS-10B, 3DS-12B

J91634 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2S, 3DS-21/2G, 3DS-21/2S, 3D-3S,

3DS-3G, 3DS-3S, 3DS-3B, 3DS-4B

J91635 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G, 3DS-4G, 3DS-5G,

3DS-6G, 3DS-6S, 3DS-5S, 3DS-4S, 3D-4S, 3D-5S, 3D-6S, 3DS-5B,

3DS-6B, 3DS-8B

J91636 CB-8F, CB-8G, CB-10F, CB-10G, CB-12F, CB-12G, 3D-8S, 3DS-8G,

3DS-8S, 3D-10S, 3DS-10G, 3DS-10S, 3DS-12G, 3DS-12S, 3DS-10B,

3DS-12B, 3DS-14B

J91637 3DS-14S, 3DS-16B

F02800 SA-1, Obs. SA-3/4, Obs. SB-3/4, 3DX-1

F06800 S-4

F20800 SA-11/4, SA-11/2, SA-2, 3DX-11/4, 3DX-11/2

F22200 A-21/2, S-21/2, A-3, S-3

G92000 TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3, TFI-4, TFI-5, TFI-6, TFI-8,

TB-3/4, TB-1

G10029 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

G10037 CB-8F, CB-8G, CB-10F, CB-10G

J92344 3DX-1, 3DX-11/4, 3DX-11/2

J92345 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

J92346 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

J92347 CB-8F, CB-8G, CB-10F, CB-10G

J92348 CB-8F, CB-8G, CB-10F, CB-10G

J92349 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G, CB-8F, CB-8G,

CB-10F, CB-10G

J92350 SA-3/4, SB-3/4

V51008 CB-12F, CB-12G

G95594 TFI-11/4

G95595 TFI-11/2

G95596 TFI-2

G95597 TFI-21/2

G95598 TFI-3

G95915 TFI-4

G95916 TFI-5

G95917 TFI-6

G95918 TFI-8

G10013 CB-4F, CB-4G

G10014 CB-5F, CB-5G

G10015 CB-6F, CB-6G

G10016 CB-8F, CB-8G

V50686 3DX-1

V50687 Obs. 3DX-11/4

V50688 3DX-11/2

V50750 3DS-14S, 3DS-16B

V50942 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2S, 3DS-21/2G, 3DS-21/2S,

3D-3S, 3DS-3G, 3DS-3S, 3DS-3B

V50945 3D-4S, 3DS-4G, 3DS-4S, 3DS-5B

V50946 3D-5S, 3DS-5G, 3DS-5S, 3DS-6B

V50947 3D-6S, 3DS-6G, 3DS-6S, 3DS-8B

V50948 3D-8S, 3DS-8G, 3DS-8S, 3DS-10B

V50949 3D-10S, 3DS-10G, 3DS-10S, 3DS-12B

V50950 3DS-12G, 3DS-12S, 3DS-14B

V50994 CB-10F, CB-10G

V50995 CB-12F, CB-12G

V56889 3DX-11/4

V58164 3DS-3G, 3D-3S, 3DS-3S, 3DS-4B

HYDRONIC SPECIALTIES, ENGINEERED SPECIALTIES & CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300F-PL

“WHERE USED” LIST (CONTINUED)

PACKING GLAND

WASHERS

RETAINER OR

JAM NUTS

RETAINER RINGSSCALE PLATESSEAL RETAINERS

NOTE: Obs. = Obsolete Model

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

V50781 3DX-1

V50782 3DX-11/4

V50783 3DX-11/2

V50793 3DS-14S, 3DS-16B

V50932 3D-2, 3DS-2G, 3DS-2S, 3D-21/2S

V50933 3DS-21/2G, 3DS-21/2S, 3DS-3B

V50934 3D-3, 3DS-3G, 3DS-3S , 3DS-4B

V50935 CB-4F, CB-4G, 3D-4, 3DS-4G, 3DS-4S, 3DS-15B

V50936 CB-5F, CB-5G, 3D-5S, 3DS-5G, 3DS-5S, 3DS-6B

V50937 CB-6F, CB-6G, 3D-6S, 3DS-6G, 3DS-6S, 3DS-8B

V50938 CB-8F, CB-8G, 3D-8S, 3DS-8G, 3DS-8S, 3DS-10B

V50939 CB-10F, CB-10G, 3D-10S, 3DS-10G, 3DS-10S, 3DS-12B

V50940 CB-12F, CB-12G, 3DS-12G, 3DS-12S, 3DS-14B

J91999 CB-12G

J92020 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G, CB-8F, CB-8G, CB-10F,

CB-10G, CB-12F

F66200 TB-1

F66800 TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3, TFI-4, TFI-5, TFI-6,

TFI-8, TB-3/4

V50952 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2, 3DS-21/2G, 3DS-21/2S, 3DS-3B

V50953 3D-3S, 3DS-3G, 3DS-3S, 3DS-4B

V50954 3D-4S, 3DS-4G, 3DS-4S, 3D-5S, 3DS-5G, 3DS-5S, 3DS-5B, 3DS-6B

V50955 3D-6S, 3DS-6G, 3DS-6S, 3DS-8B

V50956 3D-8S, 3DS-8G, 3DS-8S, 3DS-10B

V50957 3D-10S, 3DS-10G, 3DS-10S, 3DS-12B

V50958 3DS-12G, 3DS-12S, 3DS-14B

V51077 3DX-1

V51078 3DX-11/4

V51079 3DX-11/2

V51083 3DS-14S, 3DS-16B

A91260 BA-3X, BA-3Z

A91261 BB-3X. BB-3Z, CB-3X, CB-3Z, DA-3X, DA-3Z, DB-3X, DB-3Z

A91262 DD-3X, DD-3Z, ED-3X, ED-3Z, SDG-3

A91263 EE-3X, EE-3Z, FE-3X, FE-3Z, GE-3X, GE-3Z. SDG-4

A91264 FF-3X, FF-3Z, GF-3X, GF-3Z, SDG-5

A91265 GG-3X, GG-3Z, HG-3X, HG-3Z, SDG-6

A91266 HH-3X, HH-3Z, JH-3X, JH-3Z, SDG-8

A91267 JJ-3X, JJ-3Z, SDG-10

A91268 CC-3X, CC-3Z, DC-3X, DC-3Z, EC-3X, EC-3Z, SDG-21/2

G10005 CB-4F, CB-4G

G10006 CB-5F, CB-5G

G10007 CB-6F, CB-6G

G10008 CB-8F, CB-8G

V50767 3DX-1

V50768 3DX-11/4

V50769 3DX-11/2

V50778 3DS-14S, 3DS-16B

V50922 3D-2S, 3DS-2G,3DS-2S, 3D-21/2, 3DS-21/2S, 3DS-21/2G, 3DS-3B

V50924 3D-3S, 3DS-3G, 3DS-3S, 3DS-4B

V50925 3D-4S, 3DS-4G, 3DS-4S, 3DS-5B

V50926 3D-5S, 3DS-5G, 3DS-5S, 3DS-6B

V50927 3D-6S, 3DS-6G, 3DS-6S, 3DS-8B

V50928 3D-8S, 3DS-8G, 3DS-8S, 3DS-10B

V50929 3D-10S, 3DS-10G, 3DS-10S, 3DS-12B

V50930 3DS-12G, 3DS-12S, 3DS-14B

V50989 CB-10F, CB-10G

V50990 CB-12F, CB-12G

HYDRONIC SPECIALTIES, ENGINEERED SPECIALTIES & CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300F-PL

“WHERE USED” LIST (CONTINUED)

SET

SCREWS

SPRINGS

START-UP

STRAINERS

STEMS

NOTE: Obs. = Obsolete Model

SEAL RINGS

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

A91270 Obs. BZ-3, Obs. BA-3, BA-3X Steel

A91271 BB-3X, CB-3X, DA-3X, DB-3X Steel

A91272 DD-3X, ED-3X Steel

A91273 EE-3X, FE-3X, GE-3X Steel

A91274 FF-3X, GF-3X Steel

A91275 GG-3X, HG-3X Steel

A91276 HH-3X, JH-3X Steel

A91277 JJ-3X Steel

A91278 CC-3X, DC-3X, EC-3X Steel

A91280 Obs. BZ-3, Obs. BA-3Z, BA-3Z Stainless Steel

A91281 BB-3Z, CB-3Z, DA-3Z, DB-3Z Stainless Steel

A91282 Obs. DC-3, DD-3Z, ED-3Z, SDG-3 Stainless Steel

A91283 EE-3Z, FE-3Z, GE-3Z, SDG-4 Stainless Steel

A91284 SDG-5, FF-3Z, GF-3Z Stainless Steel

A91285 GG-3Z, HG-3Z, SDG-6 Stainless Steel

A91286 HH-3Z, JH-3Z, SDG-8 Stainless Steel

A91287 JJ-3Z, SDG-10 Stainless Steel

A91288 CC-3Z, DC-3Z, SDG-21/2, EC-3Z Stainless Steel

118036 B-38, B-38TU, F-3, F-8, F-3TU, F-8TU, FB-38, FB-38TU, 6, 8, 8TU

189160 B7-12, 7

G10031 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

G10039 CB-8F, CB-8G, CB-10F, CB-10G, CB-12F, CB-12G

G91900 TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3 Clear glass

G91904 TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3, TFI-4, TFI-5, TFI-6, TFI-8 Etched glass

G91908 TB-3/4

G91910 TB-1

V51090 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2S, 3DS-21/2G, 3DS-21/2S,

3D-3S, 3DS-3G, 3DS-3S, 3DS-3B, 3DS-4B

V51091 3D-4S, 3DS-4G, 3DS-4S, 3D-5S, 3DS-5G, 3DS-5S, 3D-6S, 3DS-6G,

3DS-6S, 3D-8S, 3DS-8G, 3DS-8S, 3D-10S, 3DS-10G, 3DS-10S,

3DS-5B, 3DS-6B, 3DS-8B, 3DS-10B, 3DS-12B

V51092 3DS-12G, 3DS-12S, 3DS-14S, 3DS-14B, 3DS-16B

CATEGORY PART NO. PART DESCRIPTION WHERE USED NOTES/SPECIFICATION)

109024 Operator CT-24, CTS-7524, CTF-10024

113100 Readout Valve Sets All Circuit Setter Models & All Triple Duty Valve Models 50 pairs per package

113102 Readout Probe Sets All Circuit Setter Models & All Triple Duty Valve Models 6 pairs per package

118029 Diaphragm All Pressure Reducing Valve & Dual Unit Valve Models

118855 Lever, Button & Gasket 107A

118861 PRV Repair Kit All Pressure Reducing Valve & Dual Unit Valve Models

189137 Heat Motor Assembly CT-24, CTS-7524, CTF-10024 6 per package

189138 Gland Assembly CT-24, CTS-7524, CTF-10024 6 per package

189139 Bonnet & Retainer CT-24, CTS-7524, CTF-10024 6 per package

Assembly

189143 Heat Motor Kit Obs. M-1

A03717 Diffuser EAS-11/2, EAS-2

A03718 Wire Brush EAS-11/2, EAS-2

A03723 Air Vent EAS-2

A03836 Diffuser EAS-1, EAS-11/4

A03837 Wire Brush EAS-1, EAS-11/4

A03842 Air Vent EAS-1, EAS-11/4, EAS-11/2

F42800 Snap Ring SA-3/4, SA-1, SA-11/4, SA-11/2, SB-3/4, SA-2, A-21/2, S-21/2,

A-3, S-3, Obs. SA-3/4, Obs. SB-3/4, 3DX-1, 3DX-11/4, 3DX-11/2

F62800 Indicator Disc TB-3/4

F67200 Sealing Ring TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3, TFI-4, TFI-5, TFI-6,

TFI-8, TB-3/4, TB-1 4 required

F69000 Hanger TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3, TFI-4, TFI-5, TFI-6,

TFI-8, TB-3/4, TB-1

F69200 Guide Wire TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3, TFI-4, TFI-5, TFI-6,

TFI-8, TB-3/4, TB-1

G95000 Angle Valve TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3, TFI-4, TFI-5,

TFI-6, TFI-8 2 required

G97030 Readout Valve Set All Circuit Setter Models & All Triple Duty Valve Models

G97032 Readout Probe Set All Circuit Setter Models & All Triple Duty Valve Models

J92135 Nameplate Screw CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G, CB-8F,

CB-8G, CB-10F, CB-10G, CB-12F, CB-12G, All Triple Duty 2 required

Valve Models except 3DX-1, 3DX-11/4& 3DX-11/2

V01340 Cover CT-24, CTS-7524, CTF-10024

V14609 Strainer Nut All Pressure Reducing Valve & Dual Unit Valve Models

V50740 Retainer 3DX-1, 3DX-11/4, 3DX-11/2

V51657 Tail Piece Gasket B-38TU, F-3TU, F-8TU, FB-38TU, 8TU

V51658 Rubber Check Valve All Pressure Reducing Valve & Dual Unit Valve Models Round

HYDRONIC SPECIALTIES, ENGINEERED SPECIALTIES & CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300F-PL

TUBE

GLASS

UPPER

NAMEPLATE

RETAINERS

MISCELLANEOUS VALVE PARTS

“WHERE USED” LIST (CONTINUED)

STRAINER &

GASKET KITS

TEFLON

WASHERS

NOTE: Obs. = Obsolete Model

STRAINERS

HS-300F-PL

TROUBLESHOOTING HYDRONIC SYSTEM PROBLEMS

(CONT.)

VALVE SYSTEM TROUBLE ANALYSIS GUIDE

COMPLAINT POSSIBLE CAUSE RECOMMENDED ACTION

No circulation

Relief valve opens

Valve drips

Set screw not tight, coupler loose on shaft

Defective relief valve

Compression tank undersized

Waterlogged compression tank

Run-away burner

Fuel valve stuck in open position

Pump not operating

High limit control fails

Defective reducing valve

System operating pressure too high

Dirt on seal

Tighten set screw in shaft recess

Replace

Check for proper size - replace

Install air control system or drain tank

Check controls

Check valve

Check pump

Check control

Clean or replace

Check static pressure and temperature operation

Lift handle rapidly to discharge dirt - still drips - replace

Reducing valve failures

Reducing valve does not

reduce pressure

Relief valve pops - hot or

cold

Valve does not feed

Strainer plugged

Valve seat scaled shut

City pressure too high for valve

Reducing valve sticking in open position

Check if valve is scaled

Clean or replace

Turn adjustment screw all the way down to free - if it doesn’t - replace

Check valve limitation and replace with higher pressure-rated valve.

Check valve, replace if necessary

Flo-control valve

problems-

Gravity circulation

Pulsating action

Zone valves will not

operate (see note below)

Dirt on seat

Stem not turned down all the way

Valve body not installed in a horizontal position

Air in upper part of valve body

Thermostat not working properly

Power pill burned out

Sticking seal assembly valve will not seal

Take cover off and wipe seat

Turn handle on stem all the way and seat

If in a vertical position, change to horizontal, use straight or angle valve

Open cover and vent

Check thermostat

Check & replace - check electrical connections

Check and clean stem and seat for build-up of mineral scale

Note: If valve does not operate, install in a manual full open or partial position to prevent freeze-up.

MISCELLANEOUS SYSTEM PROBLEMS

COMPLAINT POSSIBLE CAUSE RECOMMENDED ACTION

Insufficient heat in one or

more zones

Air binding

Clogged zone piping

Defective zone valve

Unbalanced circuits

Undersized radiation

Broken coupler on pump

Motor burn-out

Power off

Install air control

Locate and remove obstruction

Repair or replace

Balance

Add radiation or more insulation - increase water temperature

Check alignment of shafts - replace sagging motor mounts

Check pump motor

Check electrical connections - power source

Overheating - cold or

mild weather

Gravity circulation

Defective flo-control valve

Zone valve stuck in open position

Thermostat not operating

Flo-control valve stem in open position

Fuel valve stuck in open position

Controls not operating properly

Install flo-control valve

Clean or repair or replace

Check - repair or replace

Check - replace

Close valve

Check - replace if needed

Check

Pounding or

waterhammer

Lack of system pressure

Over-sized compression tank

Excessive boiler temperature

Pumping into the boiler using high head pumps

Use of solenoid valves

Check if static pressure is correct for system

See note below

Check to see if water is circulating through boiler - stuck fuel valve

(1)

Increase static pressure above pump head if possible.

(2)

Move pump to pump away from boiler and discharge into system.

Do not use on hydronic systems.

Crackling sound Boiler full of lime (mineral compounds) Clean and flush

Note: If a compression tank is so large that system pressure does not build-up in the proper range with temperature increase, boiling may occur in piping or radiation at the

high point of the system, particularly when pumping into the boiler.

For additional hydronic system troubleshooting information, contact your local Bell & Gossett Representative.

Xylem Inc.

8200 N. Austin Avenue

Morton Grove, Illinois 60053

Phone: (847) 966-3700

Fax: (847) 965-8379

www.bellgossett.com

Bell & Gossett is a trademark of Xylem Inc. or one of its subsidiaries.

1) The tissue in plants that brings water upward from the roots;

2) a leading global water technology company.

We’re 12,500 people unied in a common purpose: creating innovative solutions

to meet our world’s water needs. Developing new technologies that will improve

the way water is used, conserved, and re-used in the future is central to our work.

We move, treat, analyze, and return water to the environment, and we help people

use water efciently, in their homes, buildings, factories and farms. In more than

150 countries, we have strong, long-standing relationships with customers who

know us for our powerful combination of leading product brands and applications

expertise, backed by a legacy of innovation.

For more information on how Xylem can help you, go to www.xyleminc.com

Xylem

HS 300C PL 548326 1 Bell & Gossett Fastener Pkg Replacement Parts List

Navigation menu

Versions of this User Manual:

Views

Navigation
