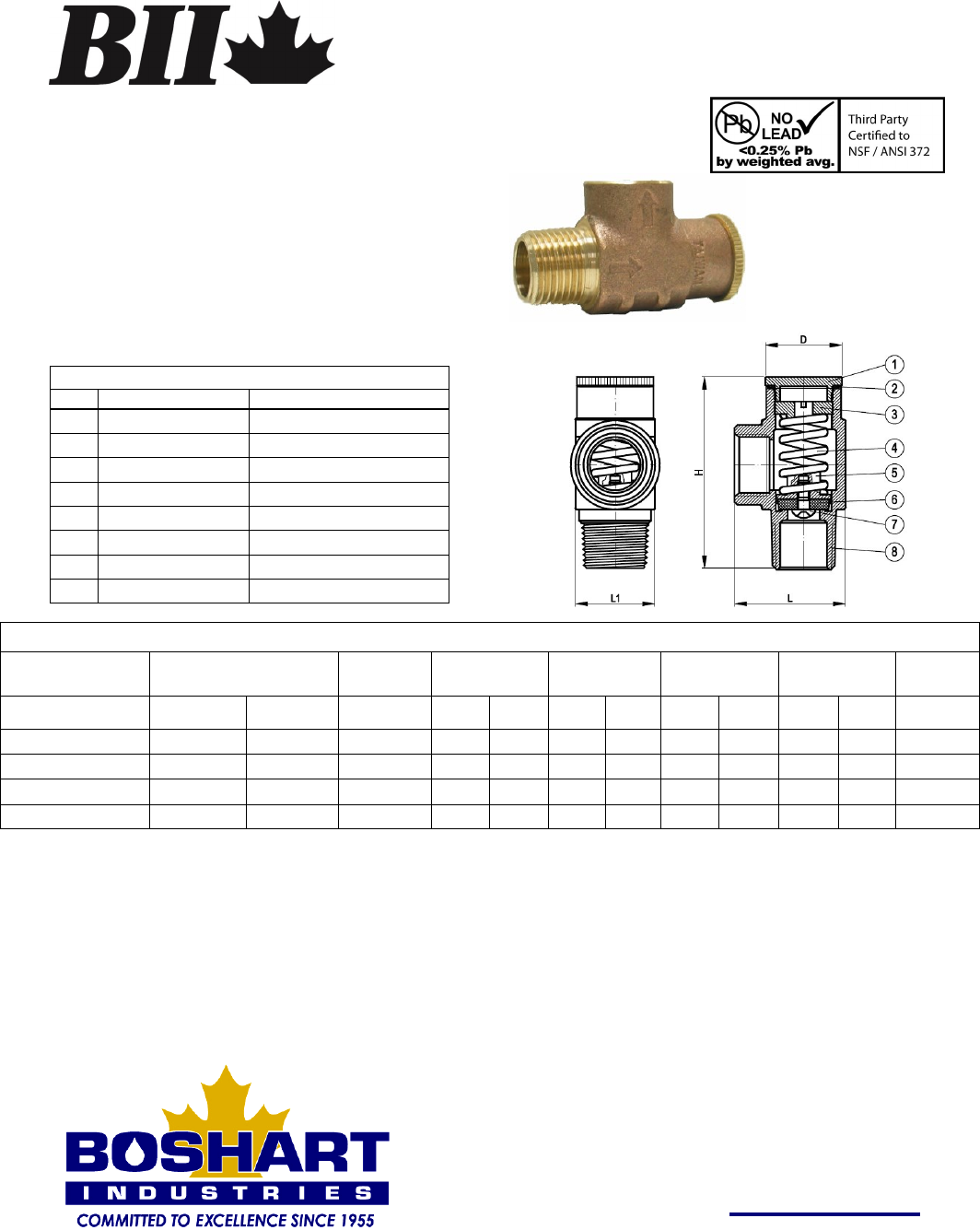

RVNB-NL SERIES

NO LEAD BRASS RELIEF VALVES

© Copyright 2016 Boshart Industries Inc. All Rights Reserved. Printed in Canada 02-2016

BII-RVNB-NL-0816(1311LT)

25 Whaley Ave., Milverton, Ontario, Canada N0K 1M0

Tel: (519)-595-4444 Toll Free: (800)-561-3164

Fax: (519)-595-4380 Web: www.boshart.com

Specification:



Threads conform to ANSI/ASME B1.20.1



Operating Temperature: 40 - 160°F (5 - 71°C)

Certification:



NSF/ANSI Standard 372 Certified

MATERIAL LIST

No. Description Materials

1 Bonnet NL Brass C89550

2 Washer Fibre H

3 Spring Cup NL Brass C89550

4 Spring 304 Stainless Steel

5 Seat NL Brass C89550

6 Seat Packing Buna-N Rubber

7 Seat Screw Steel C2600W

8 Body NL Brass C89550

DIMENSIONS

Part No. Size Factory

Pre-Set H L D L1 Weight

Inlet Outlet PSI inches mm inches mm inches mm inches mm grams

RVNB05-075NL 1/2" MPT 1/2" FPT 75 2.45 62.2 1.44 36.5 0.98 25.0 1.02 26.0 149

RVNB05-100NL 1/2" MPT 1/2" FPT 100 2.45 62.2 1.44 36.5 0.98 25.0 1.02 26.0 149

RVNB07-075NL 3/4" MPT 1/2" FPT 75 2.45 62.2 1.44 36.5 0.98 25.0 1.02 26.0 162

RVNB07-100NL 3/4" MPT 1/2" FPT 100 2.45 62.2 1.44 36.5 0.98 25.0 1.02 26.0 162

Pressure relief valves are recommended for all cold water system installations to protect against damage to

piping and pressure tanks. Valves will be sold at factory pre-set PSI only. Accuracy +/- 15% of factory pre-set

PSI. While field adjustments are not recommended the approximate operating range has been provided by the

manufacturer. Any changes made to the pre-set pressure is entirely at the risk of the person/company who

makes the adjustment. Any changes made should be thoroughly tested for accuracy at the time of installation.

Neither the manufacturer or Boshart Industries will assume liability or responsibility caused as a result of

adjusting the relief valve setting. If the pressure setting is adjusted, it will void any warranty or return of the

product. Relief valves must be installed so that they drain to a floor drain, sump or other safe location with an

air brake. If an outlet pipe is used then it must be at least the same diameter as the relief valve outlet.

For cold water use only. These valves are not T & P valves that are required with water heaters.
