: Pump 548374 2 Sje Rhombus 322 Control Panel Specifications 548374_2_SJE Rhombus 322 Control Panel Specifications pdf

Open the PDF directly: View PDF PDF.
Page Count: 2

Three phase, duplex alternating pump control with override.
The Model 322 control panel is designed to alternately control two 208/240/480V three phase pumps in industrial and commercial
water and sewage systems. The alternating action equalizes pump wear. In addition to the alternating pump control, this system
provides override control should either pump fail. If an alarm condition occurs, the alarm switch activates the audio/visual alarm
system. Common applications include lift stations, pump chambers, and irrigation systems.
MODEL 322 Control Panel

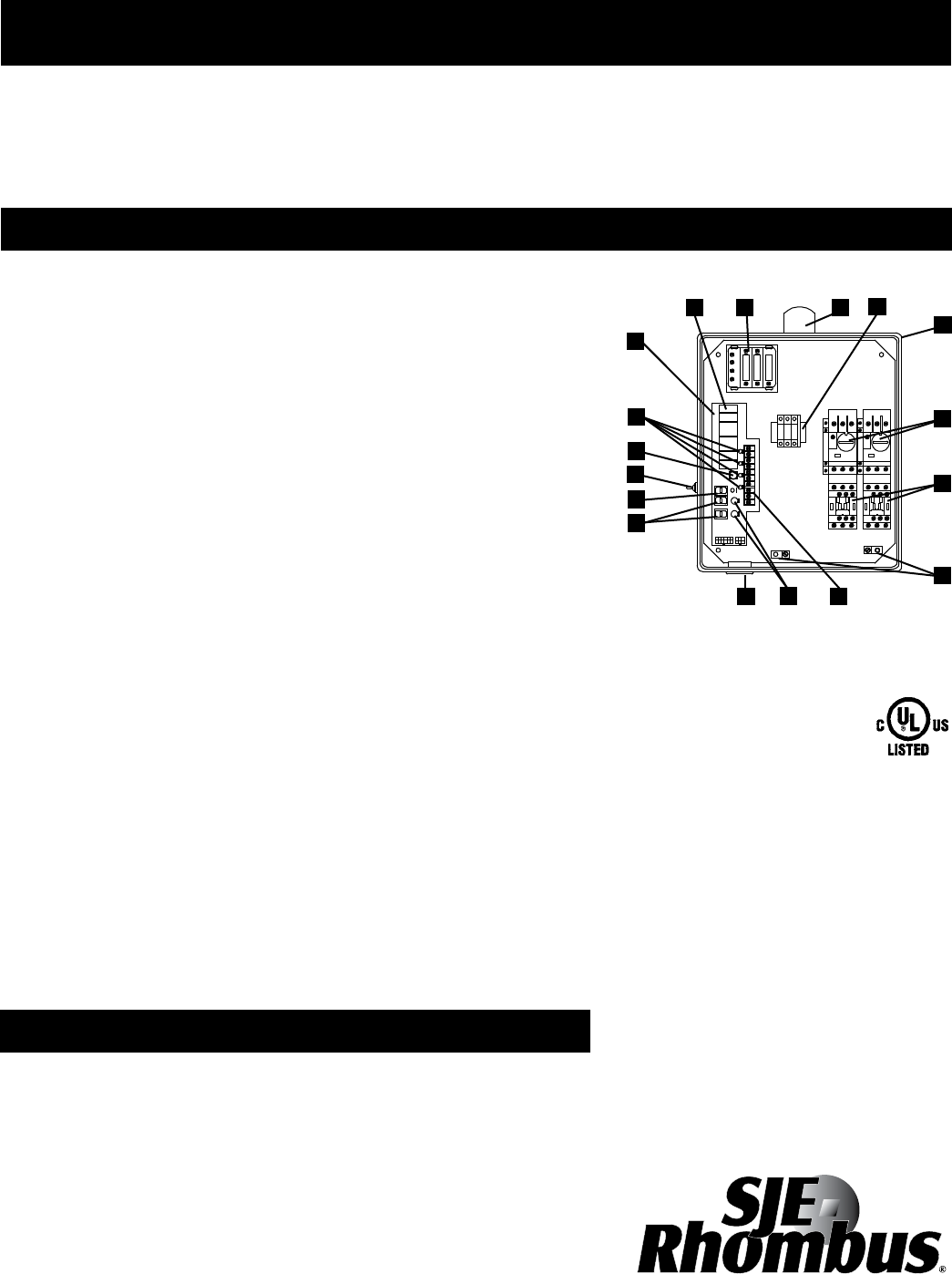

1. Enclosure measures 14 x 12 x 6 inches (35.56 x 30.48 x 15.24 cm)
NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting
feet for outdoor or indoor use).
2. IEC Motor Contactors control pumps by switching electrical lines.
3. Multi-Tap Transformer (208/240/480 VAC primary) provides 120V
control/alarm voltage. or 600VAC primary transformer.
4. Motor Protective Switches provide adjustable overload, branch circuit
protection and pump disconnect.
5. Alternating Circuit Board provides pump control and alternation
(U.S. Patent # 5,909,532).
6. Green Pump Run Indicator Lights (mounted on circuit board).
7. Alarm/Control Fuse (mounted on circuit board).
8. Float Status Indicator Lights (mounted on circuit board).
9. Float Switch Terminal Block (mounted on circuit board).
10. Input Power Terminal Block
11. Ground Lugs
12. HOA Switches for manual pump control (mounted on circuit board).
13. Control ON/OFF Switch (mounted on circuit board).
NOTE: Schematic/Wiring Diagram is located inside the panel on enclosure
cover.
STANDARD ALARM PACKAGE
14. Red Alarm Beacon provides 360° visual check of alarm condition.
15. Alarm Horn provides audio warning of alarm condition (83 to 85 decibel
rating).
16. Exterior Alarm Test/Normal/Silence Switch allows horn and light to be
tested and horn to be silenced in an alarm condition. Alarm automatically
resets once alarm condition is cleared.
17. Horn Silence Relay (mounted on circuit board).
NOTE: other options available.
FEATURES
n
Entire control system (panel and switches) is UL Listed to meet and/or
exceed industry safety standards
n
Dual safety certication for the United States and Canada
n
Standard package includes three 20' SignalMaster® control switches
n
Complete with step-by-step installation instructions
n
Five-year limited warranty
PANEL COMPONENTS
SEE BACKSIDE FOR COMPLETE LISTING OF AVAILABLE OPTIONS.
Model Shown 3221W511X
11
7
6
4
314
17
8
13
10
1
9
15
12
2
16
5
PO Box 1708, Detroit Lakes, MN 56502
1-888-DIAL-SJE • 1-218-847-1317
1-218-847-4617 Fax
email: customer.service@sjerhombus.com
www.sjerhombus.com B.45
9500068B-WEB
© SJE-Rhombus 12/16
MODEL 322...............................................................................................................................................$1983.00
ALARM PACKAGE
0 = select options or no alarm package...................................................................................................- $35.00
1 = alarm package (includes test/normal/silence switch, fuse, red light, & horn) ......................................... Base _________
ENCLOSURE RATING
W = Weatherproof, NEMA 4X (engineered thermoplastic) ............................................................................Base
PUMP FULL LOAD AMPS
208/240/480V 600V
001 = 1.0-1.6 FLA 005 = 1.0-1.6 FLA .................................................................................... Base
101 = 1.6-2.5 FLA 105 = 1.6-2.5 FLA .................................................................................... Base
201 = 2.5-4.0 FLA 205 = 2.5-4.0 FLA .................................................................................... Base
301 = 4.0-6.3 FLA 305 = 4.0-6.3 FLA .................................................................................... Base
401 = 6.0-10.0 FLA 405 = 6.0-10.0 FLA .................................................................................. Base
511 = 9.0-14.0 FLA 515 = 9.0-14.0 FLA ............................................................................... $60.00
611 = 13.0-18.0 FLA 615 = 13.0-18.0 FLA .............................................................................. $60.00
621 = 17.0-23.0 FLA 625 = 17.0-23.0 FLA ............................................................................. $80.00
701 = 20.0-25.0 FLA 705 = 20.0-25.0 FLA ............................................................................. $80.00 _________
FLOAT SWITCH APPLICATION
H or L = pump down or pump up (select 17 option) .......................................................................................Base
X = no oats ..............................................................................................................................................- $75.00 _________
OPTIONS Listed below
Total Options ________
Enclosure Upsize ________
TOTAL LIST PRICE______
322 W
MODEL
Alarm Package
Enclosure Rating
Pump Full Load Amps
Float Switch Application
Options: Elapsed Time Meter, Event (cycle) Counter,
SJE SignalMaster® / pipe clamp
If additional features are required, call the factory for a quote on an Engineered Custom control panel.
1A Red beacon only / no audio ................................$20.00
1C Horn only / no visual ........................................... $20.00
3A Alarm asher ......................................................$35.00
3B Manual alarm reset .............................................$90.00
H 4A Redundant off ....................................................$40.00
(select option 4D if oats included)
4B Red redundant off indicator & alarm ................... $60.00
(must select 4A also)
4D Redundant off oat
(must select 4A option) (select 17 option) .........$25.00
H 5A Thermal cutout/heat sensor auto .......................$80.00
reset (for pumps w/thermal switch leads)
H 5 E Seal failure circuit & red indicator .................... $315.00
(2 wire)
6A Auxiliary alarm contact, form C ..........................$15.00
 8A Elapsed time meter ..........................................$110.00
H 8C Event (cycle) counter ..........................................$90.00
*10A Clear inner swing-out door w/dead ..................$190.00
front (lights and switches mounted on inner door)
*Panels ordered with this option cannot be returned.
10E Lockable latch ....................................................$40.00
10G Lightning arrestor .............................................$200.00
10K Anti-condensation heater .................................$125.00
11C NEMA 1 alarm panel (select option 6A) ............$80.00
11D NEMA 4X alarm panel (select option 6A) .....................$250.00
H14B Main disconnect (rotary style, mounted through door, non-fused,
padlockable in the OFF-position, door interlock in the ON-position)
H 0-10 FLA (total of both pumps) ........................................$285.00
H 10-20 FLA (total of both pumps) ......................................$325.00
H 20-50 FLA (total of both pumps) ......................................$680.00
16A 10' cord in lieu of 20' (per oat) .........................................- $2.00
16B 15' cord in lieu of 20' (per oat) ........................................ - $1.00
16C 30' cord in lieu of 20' (per oat) ...........................................$5.00
16D 40' cord in lieu of 20' (per oat) .........................................$15.00
17A SJE SignalMaster® / pipe clamp l (per oat) ................. - $2.00
17B SJE SignalMaster® / externally weighted l (per oat) .......$5.00
17C Sensor Float® / internally weighted s(per oat) ................ $5.00
17D Sensor Float® / externally weighted s (per oat) ............... $7.00
17E Sensor Float® Mini / pipe clamp s(per oat) ...................- $2.00
17F Sensor Float® Mini / externally weighted s(per oat) ...... $5.00
17J Sensor Float® / pipe clamp s(per oat) ............................$0.00
19B Lead lag selector switch ....................................................$15.00
19F Fourth oat to separate alarm function from lag ................ $25.00
19T TOA (Test/Off/Automatic) switches and pump run lights
through door mounted ....................................................$160.00
19U HOA (Hand/Off/Automatic) switches and pump run lights
through door mounted ...................................................$150.00
19X Door mounted pump run indicator .....................................$40.00
lMechanically-activated sMercury-activated
CODE DESCRIPTION LIST PRICE CODE DESCRIPTION LIST PRICE
SAMPLE 322 ........... $1983.00
1 .................. Base
W .................. Base
401 .................. Base
H .................. Base
8A ............. $110.00
8C ............... $90.00
17A ................ -$6.00
Enclosure Upsize ............... $50.00
TOTAL LIST PRICE $2227.00
ENCLOSURE UPSIZE - If you selected one or more of the H options,
add a one-time $50.00 list enclosure upsize
s
H
322 1 W 401 H 8AC 17A
