www.sjerhombus.com Toll Free 1-888-342-5753 Phone 218-847-1317
• Compact 8 x 6 x 4” enclosure
design is an ideal solution
for residential applications
• Universal pump voltage and
control/alarm power; one
panel handles three voltages
(120/208/240V)
• Integral mounting tabs for
easy installation
• Integral padlockable latch
for added safety
• Innovative design of internal
components allows for quick,
simple installation

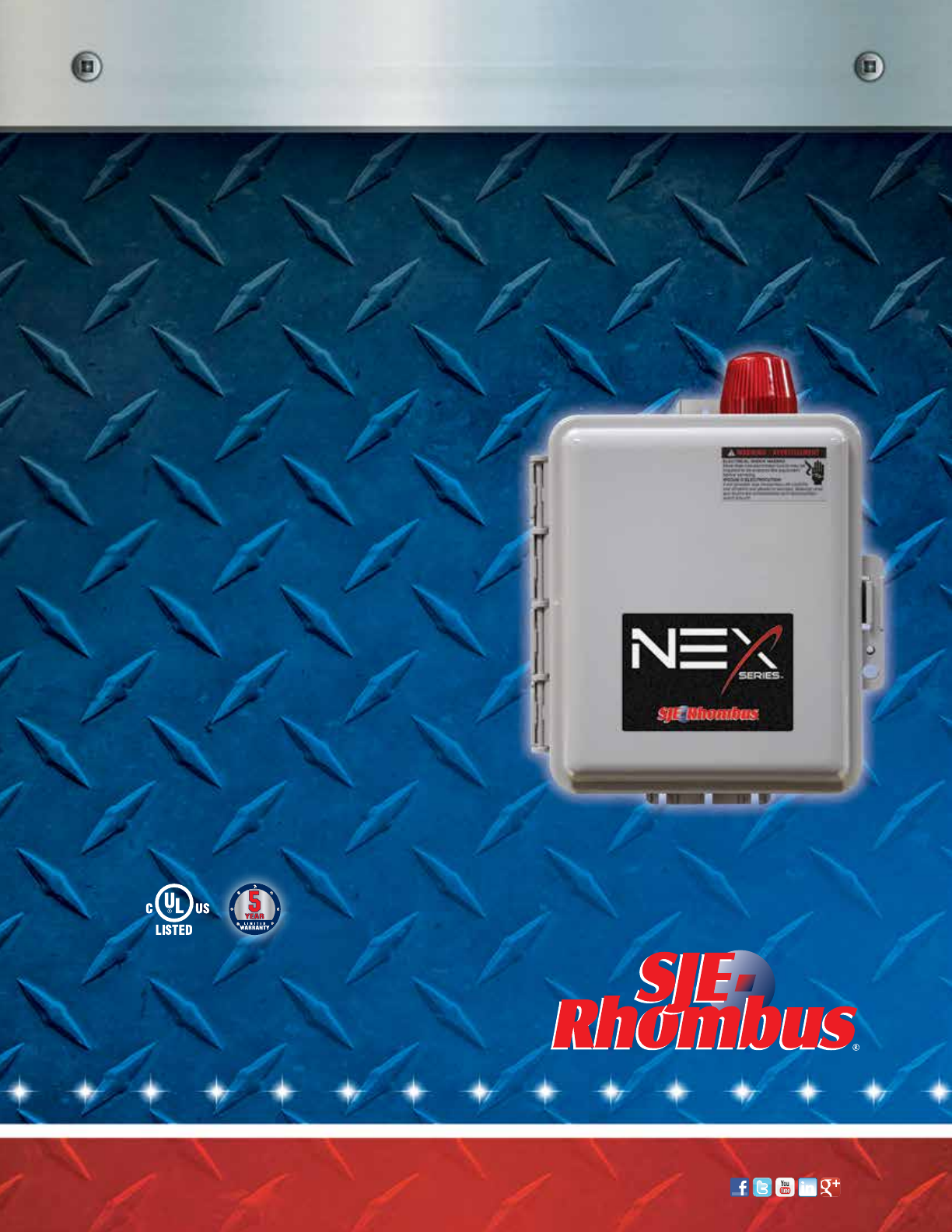

nex Series™ panel
Compact Single Phase Simplex
Control Panel
Patent Pending
www.sjerhombus.com Toll Free 1-888-342-5753 Phone 218-847-1317
©2016 SJE-Rhombus Rev 06/16
nex Series™ panel
Single Phase Simplex Control Panel
Function
The NEX Series™ panel is designed to control one single
phase pump in water and wastewater applications. Two control
switches activate a power relay to turn the pump on and off. If
an alarm condition occurs, an additional alarm switch activates
the audible/visual alarm system. The compact design (8 x
6 x 4”) is ideal for residential applications. Universal pump
voltage and control/alarm power allow the NEX Series™ panel
to handle three voltages (120/208/240V). The innovative
internal design of components and integral mounting tabs
make installation quick and simple.
Part No. Description
• 1046436 NEX, 120/208/240V, 0-12 Amps, Floats*
• 1046437 NEX, 120/208/240V, 9-20 Amps, Floats*
• 1047662
NEX, 120/208/240V, 0-12 Amps, No Floats
• 1047663
NEX, 120/208/240V, 9-20 Amps, No Floats
*
Includes (3) 20’ SJE SignalMaster® control switches

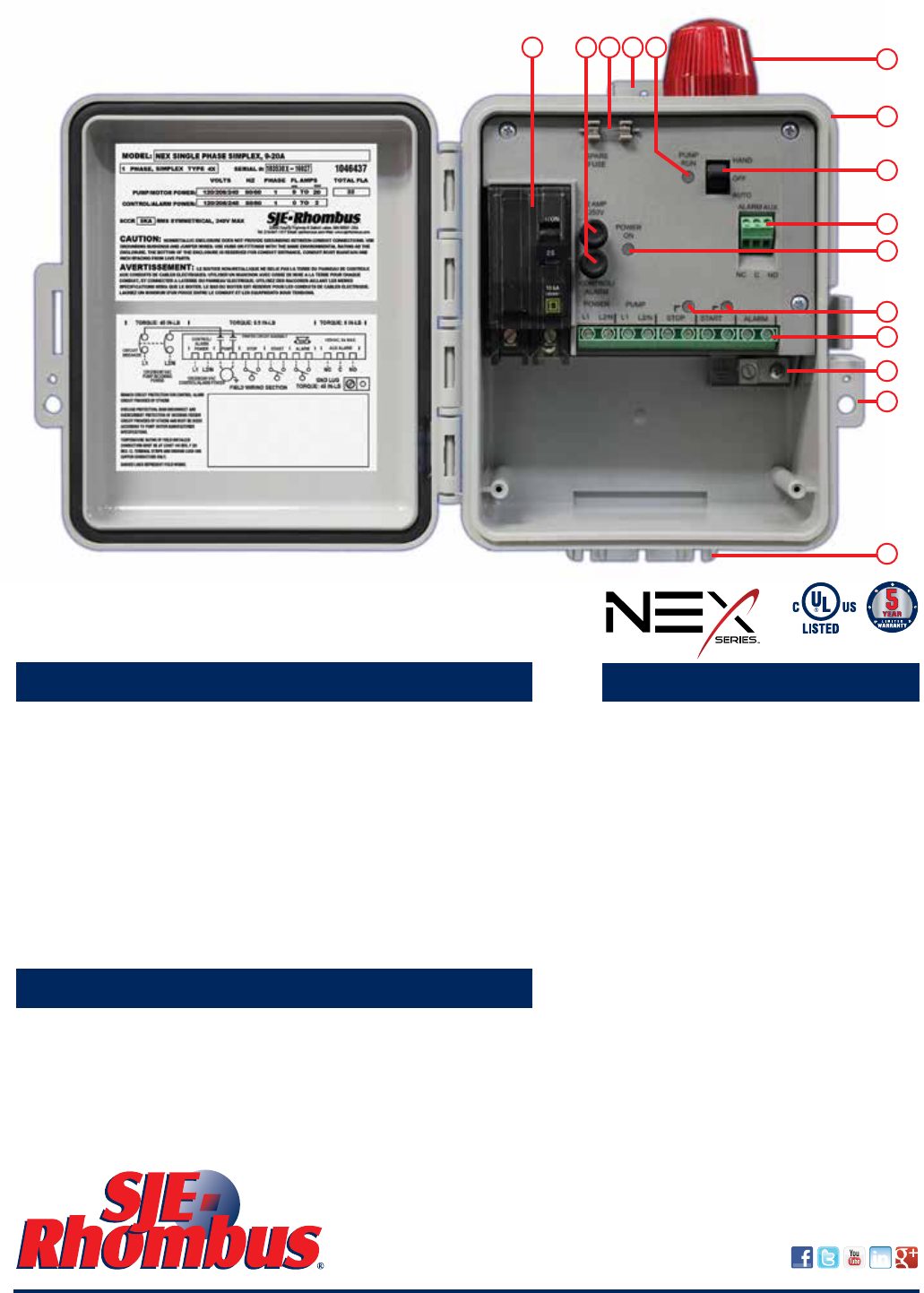

Components
1. NEMA 4X outdoor rated enclosure
2. Red LED alarm beacon
3. HOA selector switch
4. Auxiliary alarm contacts
5. Green control/alarm power
indicator
6. Red float status indicators
(stop/start)
7. Field wiring terminal block
8. Ground lug
9. Integral padlockable latch
10. Integral mounting tabs
11. Pump circuit breaker
12. Control/alarm fuses
13. Spare fuse
14. Green pump run indicator
Not Shown: Alarm piezo horn
and
test/silence push button
11 12 1013 14
1
3
4
5
9
10
8
7
6
2
Patent Pending
