Sump, Efuent and Sewage Controls
Control Panels, Alarms and Float Switches
From the Controls Leader You Trust
www.sjerhombus.com
EZ Series® Single Phase
Simplex Demand/Timed Dose
and Duplex Demand
• Designed to control one or two
single phase 120/208/240V pump(s)
• Panel Features: NEMA 4X
enclosure, locking latch, red LED
alarm beacon on cover, external
indicators for control power, alarm
power and pump run, external
test/silence switch, digital display,
pump run button, menu buttons, large
terminal block, circuit breakers, and
pump run relay
• Digital Display Features: float
status, elapsed time pump run, cycle
counter, alarm counts, float error
count, auxiliary alarm counter, timer
override count (TD only), on time (TD
only), off time (TD only)
EZ Series® Plugger
• Built-in high water alarm and recepta-
cle to accept a 120V or 230V pump and
a piggy-back pump switch
• Panel Features: NEMA 4X enclo-
sure, locking latch, red LED alarm bea-
con, audible alarm, alarm fuse, external
test/normal/silence switch

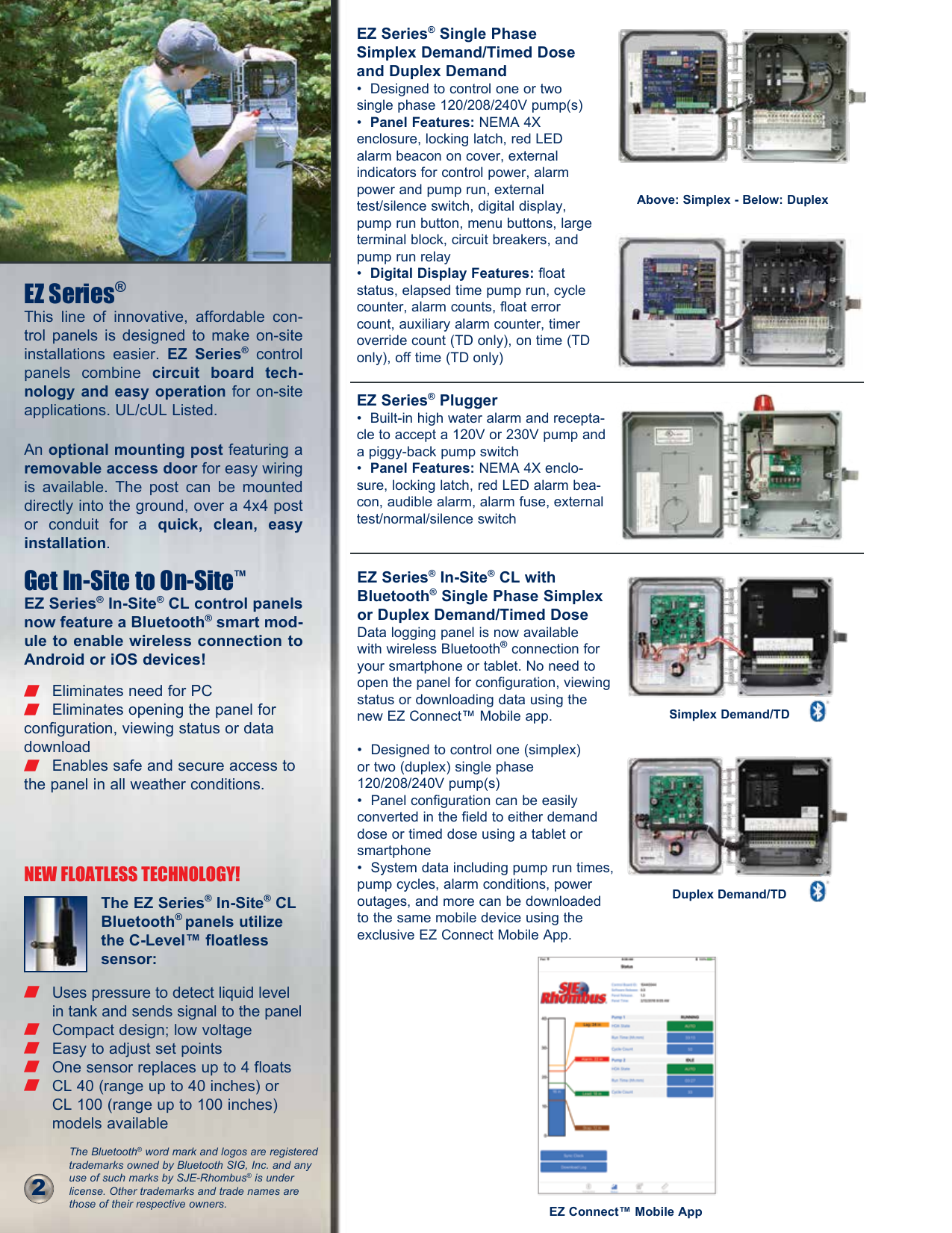

EZ Series®
This line of innovative, affordable con-
trol panels is designed to make on-site
installations easier. EZ Series® control
panels combine circuit board tech-
nology and easy operation for on-site
applications. UL/cUL Listed.
An optional mounting post featuring a
removable access door for easy wiring
is available. The post can be mounted
directly into the ground, over a 4x4 post
or conduit for a quick, clean, easy
installation.
Get In-Site to On-Site™
EZ Series® In-Site® CL control panels
now feature a Bluetooth® smart mod-
ule to enable wireless connection to
Android or iOS devices!
n
Eliminates need for PC
n
Eliminates opening the panel for
configuration, viewing status or data
download
n
Enables safe and secure access to
the panel in all weather conditions.
NEW FLOATLESS TECHNOLOGY!
The EZ Series® In-Site® CL
Bluetooth®
panels utilize
the C-Level™ floatless
sensor:
n
Uses pressure to detect liquid level
in tank and sends signal to the panel
n
Compact design; low voltage
n
Easy to adjust set points
n
One sensor replaces up to 4 floats
n
CL 40 (range up to 40 inches) or
CL 100 (range up to 100 inches)
models available
Above: Simplex - Below: Duplex
Simplex Demand/TD
Duplex Demand/TD
EZ Connect™ Mobile App
EZ Series® In-Site® CL with
Bluetooth® Single Phase Simplex
or Duplex Demand/Timed Dose
Data logging panel is now available
with wireless Bluetooth® connection for
your smartphone or tablet. No need to
open the panel for configuration, viewing
status or downloading data using the
new EZ Connect™ Mobile app.
• Designed to control one (simplex)
or two (duplex) single phase
120/208/240V pump(s)
• Panel configuration can be easily
converted in the field to either demand
dose or timed dose using a tablet or
smartphone
• System data including pump run times,
pump cycles, alarm conditions, power
outages, and more can be downloaded
to the same mobile device using the
exclusive EZ Connect Mobile App.
2
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any
use of such marks by SJE-Rhombus® is under
license. Other trademarks and trade names are
those of their respective owners.
Installer Friendly Series®
The Installer Friendly Series® control pan-
els utilize embedded circuit board tech-
nology to provide greater control of septic
systems via a simple-to-use touch pad
on the inner door for programming and
monitoring pump and float operation for
on-site applications. UL/cUL Listed.
Touch Pad Display Features:
n
Easy programming for pump control
n
Pump run indicator(s)
n
Float status indicators, including
float out-of-sequence alarm
n
HOA pump control switch(es)
n
Hand mode safety feature
n
6 digit LED display includes:
• Elapsed time meter(s)
• Cycle counter(s)
• Alarm counter
•
Lead/lag selector toggles pump
operation
in duplex models
• Float error counter
• Override counter in timed dose models
NEW FLOATLESS TECHNOLOGY!
In addition to floats, all IFS
panels are available with the
C-Level™ floatless sensor:
n
Uses pressure to detect liquid level
in tank and sends signal to the
IFS panel
n
Compact design; low voltage
n
Easy to adjust set points
n
One sensor replaces up to 4 floats
n
CL 40 (range up to 40 inches) or CL
100 (range up to 100 inches)
models available
IFS Single Phase or Three Phase
Simplex or Duplex Demand/
Timed Dose
• Designed to control one or two
120/208/240V (single phase) or
208/240/480V (three phase) pumps in
water and sewage installations
• Digital display is standard feature
• Panel configuration can be easily
converted in the field to either demand
dose or timed dose
IFS Single Phase Simplex or
Duplex Capacitor Start/Run
• Designed to control one (simplex)
or two (duplex) 120/208/240V
single phase pump(s) in water and
sewage installations
• IEC motor contactor controls pump
by switching electrical lines
• Capacitor start module - must be
ordered separately or supplied
IFS In-Site® Single Phase
Simplex or Duplex Demand/
Timed Dose
Get In-Site to On-Site Systems™
Data logging control panel features
a USB port on the inner door. Plug
in the flash drive (included with pre-
loaded software) to download up
to 20,000 system events, including
pump run times, pump cycles, alarm
events, power outages, and service
calls. Quick and easy-to-read
reports make identifying system
conditions easy.
• Designed to control one (simplex)
or two (duplex) single phase
120/208/240V pump(s)
• Panel configuration can be easily
converted in the field to either
demand dose or timed dose
DEMAND
DOSE
TIMED
DOSE
000000
Event Log Screen displays a complete
list of all system events
Daily Events Screen summarizes all
events occurring daily
3
Installer Friendly Series®
Single Phase Simplex Drip
• Designed to control one 120/230V
single phase pump. Features a touch
pad for programming rest for standard
time, rest for peak enable time, spin
filter flush time, dose time, field flush
time, and field drain time
• NEMA 4X enclosure
• UL/cUL Listed
4
Model 111 Single Phase Simplex
• Provides a reliable means of
controlling one 120/208/240V
single phase pump in water and
wastewater applications
• NEMA 1 or NEMA 4X enclosure
• UL/cUL Listed
NEX Series™ Single Phase Simplex
• Designed to control one single phase pump
in water and wastewater applications
• Universal pump voltage and control/alarm
power allows the panel to handle three
voltages (120/208/240V)
• Compact NEMA 4X enclosure
• UL/cUL Listed
Model 112 Single Phase Simplex
• Provides a reliable means of
controlling one 120/208/240V
single phase pump in water
and wastewater applications
• NEMA 4X enclosure
• UL/cUL Listed
RLS Panel Simplex and Duplex
• Designed to control one or two
120/208/240V single phase pump(s).
• Utilizes magnetic motor contactor
to control pump
• Standard components allow for easy
troubleshooting and service
• UL/cUL Listed
Model 122 Single Phase Duplex
• Designed to alternately control two
120/208/240V single phase pumps in
water and wastewater applications
• NEMA 1 or NEMA 4X enclosure
• Alternating pump control with override
equalizes pump wear
• UL/cUL Listed
Model 312 Three Phase Simplex
• Provides a reliable means of
controlling one 208/240/480V
three phase pump in commercial
and industrial water and
wastewater applications
• NEMA 4X enclosure
• IEC motor contactor control
• UL/cUL Listed
Model 322 Three Phase Duplex
• Designed to alternately control two
208/240/480V three phase pumps in
commercial and industrial water and
wastewater applications.
• NEMA 4X enclosure.
• Alternating pump control with over-
ride equalizes pump wear.
• UL/cUL Listed.
Build-A-Panel™
SJE-Rhombus Build-A-Panel™ control
panels offer pump control and alarm
notification in one convenient pack-
age for a variety of on-site applications,
including pump chambers, sump pump
basins, irrigation systems, lift stations
and more.
Build-A-Panel™ Control Panel Models:
n
RLS Panels Simplex/Duplex
n
NEX Series™ Simplex
n
Single Phase Simplex (111, 115, 112)
n
Single Phase Duplex (122)
n
Three Phase Simplex (312)
n
Three Phase Duplex (322)
n
Capacitor Start/Run (113, 123)
n
Intrinsically Safe (114, 124, 314, 324)
n
Time Dosing (TD, DTD, PS11/PS12)
n
Plugger Products (JBP, PS Patrol®,
UltraNator™, SJE Oil Spotter™,
SJE Oil Spotter™ Auto)
n
Water Well (126)
n
Select Start™ Starter Boxes
Build-A-Panel™ control panels are the
right option for your installation. Ordering
by options provides you with greater
flexibility, allowing you customize
“standard” control panels to suit your
specific needs, whether adding an elapsed
time meter, cycle counter or changing float
switches. Your Build-A-Panel™ control
panels will be delivered quickly, at an
affordable price. UL/cUL Listed.
Each Build-A-Panel™ control panel
comes complete with float switches, elec-
trical schematics, float terminal blocks,
step-by-step installation instructions and
are backed by a five-year limited war-
ranty.
Need your panel in a hurry? Don’t
worry! SJE-Rhombus offers the Panel
Express Program to expedite your pan-
els as fast as the next day! Learn more
at www.sjerhombus.com
Model 115 Single Phase Simplex
• Provides a reliable means of
controlling one 120/208/240V
single phase pump in water
and wastewater applications
• NEMA 1 or NEMA 4X enclosure
• Pump switch turns pump on/off
• Alarm switch activates alarm
• UL/cUL Listed
5

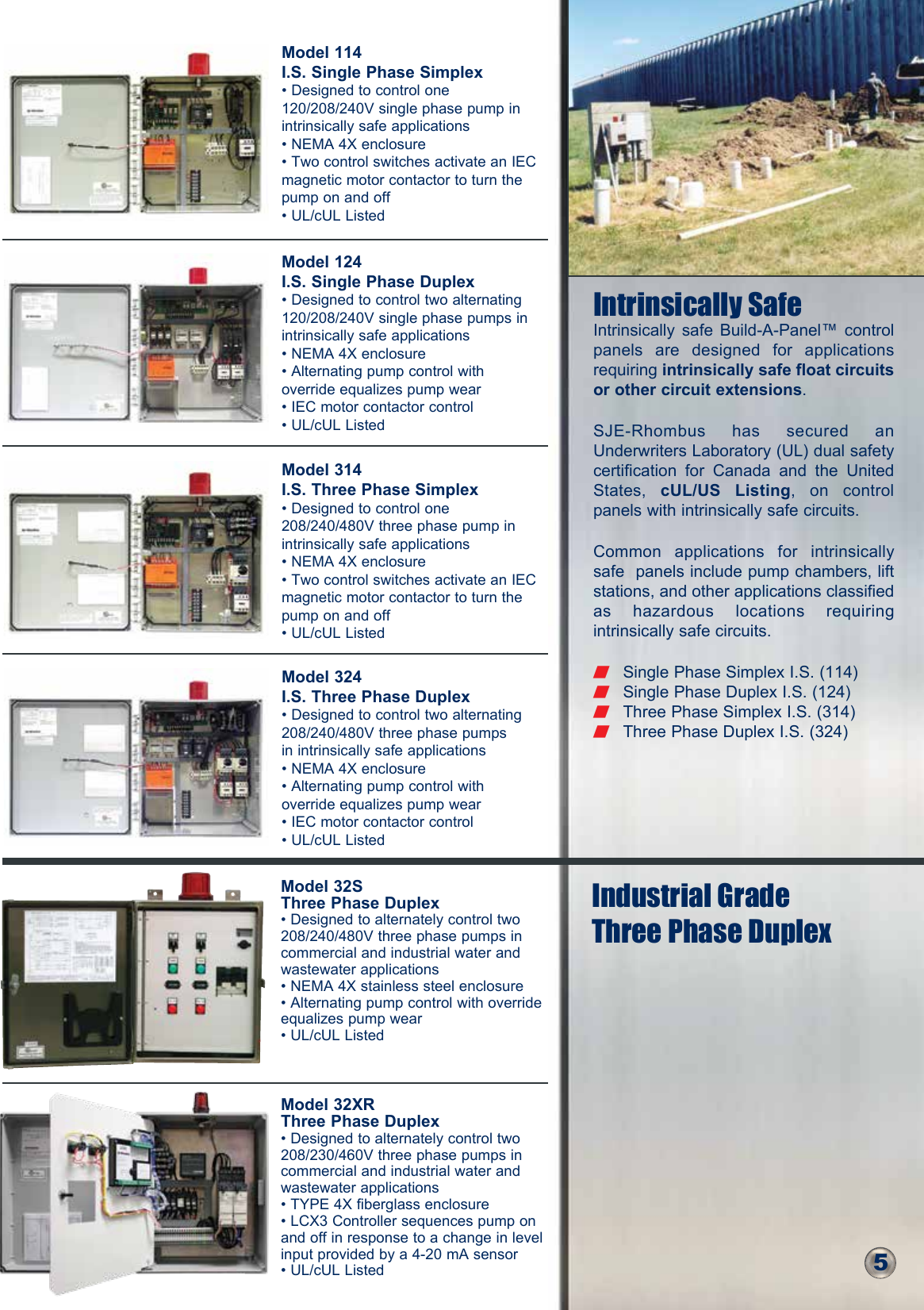

Model 114
I.S. Single Phase Simplex
• Designed to control one
120/208/240V single phase pump in
intrinsically safe applications
• NEMA 4X enclosure
• Two control switches activate an IEC
magnetic motor contactor to turn the
pump on and off
• UL/cUL Listed
Model 124
I.S. Single Phase Duplex
• Designed to control two alternating
120/208/240V single phase pumps in
intrinsically safe applications
• NEMA 4X enclosure
• Alternating pump control with
override equalizes pump wear
• IEC motor contactor control
• UL/cUL Listed
Model 314
I.S. Three Phase Simplex
• Designed to control one
208/240/480V three phase pump in
intrinsically safe applications
• NEMA 4X enclosure
• Two control switches activate an IEC
magnetic motor contactor to turn the
pump on and off
• UL/cUL Listed
Model 324
I.S. Three Phase Duplex
• Designed to control two alternating
208/240/480V three phase pumps
in intrinsically safe applications
• NEMA 4X enclosure
• Alternating pump control with
override equalizes pump wear
• IEC motor contactor control
• UL/cUL Listed
Intrinsically Safe
Intrinsically safe Build-A-Panel™ control
panels are designed for applications
requiring intrinsically safe float circuits
or other circuit extensions.
SJE-Rhombus has secured an
Underwriters Laboratory (UL) dual safety
certification for Canada and the United
States, cUL/US Listing, on control
panels with intrinsically safe circuits.
Common applications for intrinsically
safe panels include pump chambers, lift
stations, and other applications classified
as hazardous locations requiring
intrinsically safe circuits.
n
Single Phase Simplex I.S. (114)
n
Single Phase Duplex I.S. (124)
n
Three Phase Simplex I.S. (314)
n
Three Phase Duplex I.S. (324)
Model 32S
Three Phase Duplex
• Designed to alternately control two
208/240/480V three phase pumps in
commercial and industrial water and
wastewater applications
• NEMA 4X stainless steel enclosure
• Alternating pump control with override
equalizes pump wear
• UL/cUL Listed
Model 32XR
Three Phase Duplex
• Designed to alternately control two
208/230/460V three phase pumps in
commercial and industrial water and
wastewater applications
• TYPE 4X fiberglass enclosure
• LCX3 Controller sequences pump on
and off in response to a change in level
input provided by a 4-20 mA sensor
• UL/cUL Listed
Industrial Grade
Three Phase Duplex
6
Model 123
Single Phase Duplex
• Provides a reliable means of
controlling two alternating
120/208/240V pumps requiring exter-
nal starting components
• NEMA 4X enclosure
• Capacitor start/run pump control
with override
• UL/cUL Listed
Model TD
Single Phase Simplex
• Designed to control one
120/208/240V single phase pump in
timed dose applications
• NEMA 4X enclosure
• Programmable timer/motor
contactor control with override
• UL/cUL Listed
PS11/PS12
Single Phase
• Provides reliable means of controlling
both pump chamber and sand filter
pumps in an onsite septic installation
• Two independent motor contactor
control/programmable timed dosing
control panel
• NEMA 4X enclosure
• PS11 (120V) PS12 (240V)
• UL/cUL Listed
Capacitor Start/Run
SJE-Rhombus offers motor control pan-
els designed specifically for grinder pump
applications or other pumps requiring
external motor starter kits. Common
applications include pump chambers
and lift stations. UL/cUL Listed.
n
Single Phase Simplex (113)
n
Single Phase Duplex (123)
Timed Dose
For systems requiring a timed dose
(sand filter, pressure distribution, mound
systems, etc.). Timed dosing control
panels feature a programmable timer
which activates the magnetic motor
contactors to turn the pump(s) on and
off. UL/cUL Listed.
n
Single Phase Simplex (TD)
n
Single Phase Simplex and Duplex -
Sand Filter (PS11,PS12)
Model 113
Single Phase Simplex
• Provides a reliable means of
controlling one 120/208/240V single
phase pump requiring external
starting components
• NEMA 4X rated enclosure
• Capacitor start/run pump control
• UL/cUL Listed

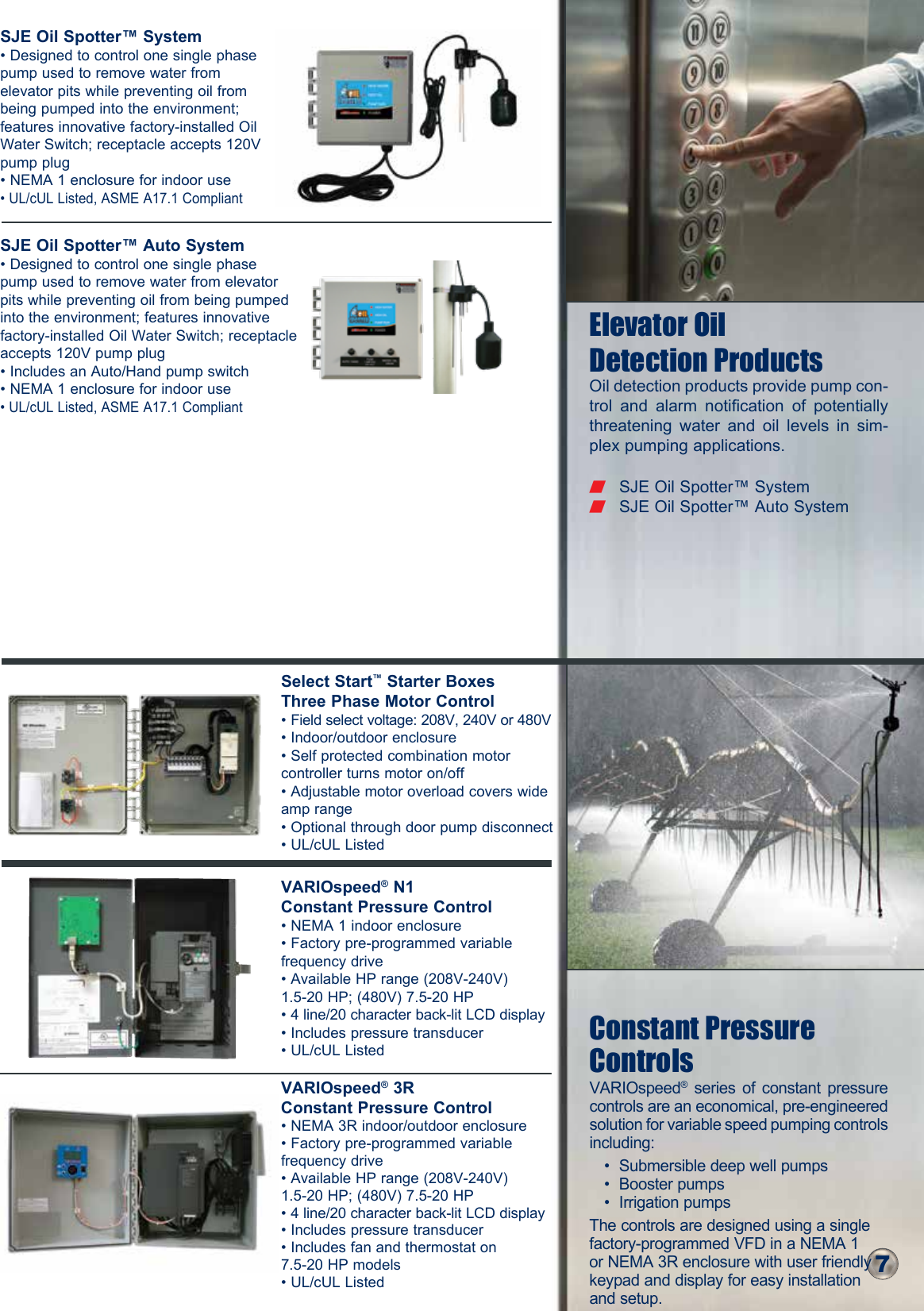

Select Start™ Starter Boxes
Three Phase Motor Control
• Field select voltage: 208V, 240V or 480V
• Indoor/outdoor enclosure
• Self protected combination motor
controller turns motor on/off
• Adjustable motor overload covers wide
amp range
• Optional through door pump disconnect
• UL/cUL Listed
VARIOspeed® N1
Constant Pressure Control
• NEMA 1 indoor enclosure
• Factory pre-programmed variable
frequency drive
• Available HP range (208V-240V)
1.5-20 HP; (480V) 7.5-20 HP
• 4 line/20 character back-lit LCD display
• Includes pressure transducer
• UL/cUL Listed
VARIOspeed® 3R
Constant Pressure Control
• NEMA 3R indoor/outdoor enclosure
• Factory pre-programmed variable
frequency drive
• Available HP range (208V-240V)
1.5-20 HP; (480V) 7.5-20 HP
• 4 line/20 character back-lit LCD display
• Includes pressure transducer
• Includes fan and thermostat on
7.5-20 HP models
• UL/cUL Listed
Elevator Oil
Detection Products
Oil detection products provide pump con-
trol and alarm notification of potentially
threatening water and oil levels in sim-
plex pumping applications.
n
SJE Oil Spotter™ System
n
SJE Oil Spotter™ Auto System
Constant Pressure
Controls
VARIOspeed® series of constant pressure
controls are an economical, pre-engineered
solution for variable speed pumping controls
including:
• Submersible deep well pumps
• Booster pumps
• Irrigation pumps
The controls are designed using a single
factory-programmed VFD in a NEMA 1
or NEMA 3R enclosure with user friendly
keypad and display for easy installation
and setup.
7
SJE Oil Spotter™ System
• Designed to control one single phase
pump used to remove water from
elevator pits while preventing oil from
being pumped into the environment;
features innovative factory-installed Oil
Water Switch; receptacle accepts 120V
pump plug
• NEMA 1 enclosure for indoor use
• UL/cUL Listed, ASME A17.1 Compliant
SJE Oil Spotter™ Auto System
• Designed to control one single phase
pump used to remove water from elevator
pits while preventing oil from being pumped
into the environment; features innovative
factory-installed Oil Water Switch; receptacle
accepts 120V pump plug
• Includes an Auto/Hand pump switch
• NEMA 1 enclosure for indoor use
• UL/cUL Listed, ASME A17.1 Compliant
8
PS Patrol® System
• Enhanced design features a sleek, angled removable
clear cover for easy access field wiring
• Red LEDs illuminate top of cover in alarm condition for
360۫ visual
• Receptacle for connection of pump and piggy-back
pump switch
• Includes cord seal
• Pedestal rated for outdoor use
• Available with or without mounting post
• CSA Certified
Model 126
Single Phase Duplex
• Designed to alternately control two
120/208/240V single phase pumps
in water well applications; provides
override control to maintain pressure
• NEMA 1 or NEMA 4X enclosure
• Available with contactors or
without contactors
• UL/cUL Listed
JB Plugger System
• Easy-to-install junction box which pro-
vides a convenient location to
connect all wiring required for pump
station applications; features a recep-
tacle to accept a 120/230V pump plug
and/or a piggy-back pump switch
• NEMA 4X enclosure, hinged door
• UL/cUL Listed
Ultra Nator™ System
• Control/alarm system designed to
control two single phase alternating
pumps; features two receptacles for
easy pump connections and facto-
ry-installed pump activation and alarm
activation switches
• NEMA 1 enclosure for indoor use
• Audible and visual alarm
• UL/cUL Listed
Plugger Products
Plugger products feature a receptacle
to accept a 120/230V pump plug and/
or a piggy-back plug for typical pumping
station applications.
n
JB Plugger System
n
Ultra Nator™ System
n
PS Patrol® System
Water Well
With duplex alternation between two
wells, this system provides override
control to maintain system pressure
upon high demand or should either
pump fail in water well applications.
9
Tank Alert® Alarms
Tank Alert® liquid level alarms visually and
audibly warn of threatening liquid level
conditions in lift pump chambers, sump
pump basins, holding tanks, sewage and
non-potable water applications. Each
alarm can serve as either a high or low
level alarm, depending upon the float
switch model used.
n
MySpy® WiFi Messenger Alarm
n
Tank Alert® AB Alarm
n
Tank Alert® AB DUO Alarm
n
Tank Alert® I Alarm
n
Tank Alert® EZ Alarm
n
Tank Alert® XT Alarm
n
Tank Alert® 4X Alarm
The Tank Alert® AB, XT and 4X alarms
offer optional auxiliary alarm contacts
for easy attachment of remove devices.
Tank Alert® AB Alarm
• The Tank Alert® AB indoor alarm offers
auto reset and battery backup features.
The horn sounds when a potentially
threatening liquid level occurs
• NEMA 1 rated for indoor use
•
Red alarm light, green power light,
alarm test switch, horn silence switch
• UL Listed; CSA Certified
MySpy® WiFi Messenger Alarm
• Easy-to-install indoor alarm with WiFi
connectivity, remote notification, battery
backup and auto reset. Notifies the
user locally (audible/visual alarm) and
remotely via SMS test messages and/or
emails over a WiFi or Ethernet network
to a smartphone, tablet or computer
• NEMA 1 rated for indoor use
• UL Listed; CSA Certified
Tank Alert® AB DUO Alarm
• Indoor DUO alarm system monitors
two levels conditions
• NEMA 1 rated for indoor use
•
Alarm test switch, horn silence switch
• LED indicator lights (red - alarm 1;
yellow - alarm 2; green power on)
• Battery backup
• CSA Certified
Tank Alert® I Alarm
• The Tank Alert® I indoor alarm sounds
when a potentially threatening liquid
level occurs. Alarm (when installed on
separate circuit) operates even if pump
circuit fails
• NEMA 1 rated for indoor use
•
Red alarm light, green power light,
alarm test switch, horn silence switch
• UL Listed; CSA Certified
Tank Alert® EZ Alarm
• Tank Alert® EZ indoor/outdoor alarm fea-
tures removable cover for easy installation
• Sleek, innovative design features a dis-
tinct 2-color molded enclosure
• Integrated LED beacon
• External mounting tabs
•
Alarm test/silence switch
•
DUO models available
• CSA Certified
Tank Alert® XT Alarm
• The Tank Alert® XT indoor/outdoor
alarm meets NEC standards for junction
boxes. OPTION: Pre-mounted termi-
nal block so enclosure can be used as
junction box for cord splices
• Rain-tight outdoor enclosure
• Automatic alarm reset, horn silence
switch, alarm test switch
• UL Listed; CSA Certified
Tank Alert® 4X Alarm
• The Tank Alert® 4X indoor/outdoor
alarm sounds when a potentially threat-
ening liquid level condition occurs
• NEMA 4X enclosure
• Automatic alarm reset, alarm
test/normal/silence switch
• Optional auxiliary alarm contacts
• UL/cUL Listed
Peace of Mind 24/7
WiFi Monitoring
Email/Text Notications
No Monthly Fees
Battery Backup
MySpy™ WiFi
Messenger
10
Level Monitoring
Level monitoring products utilizes the
new, innovative floatless technology
of the C-Level™ sensor for continuous
level monitoring in on-site applications.
The C-Level™ Sensor:
n
Uses pressure to detect level in tank
n
Compact design; low voltage
n
Easy to adjust set points
n
One sensor replaces up to 4 floats
n
Options available include 4’ or 8’
vent tube with 20’ or 40’ wire
n
CL 40 (range up to 40 inches) or
CL 100 (range up to 100 inches)
models available
Accessories
SJE-Rhombus provides a wide variety
of accessories to complete any on-site
water and wastewater installation.
Home Protection
In addition to on-site accessories, home
protection products offer homeowners
added peace of mind. The auto dialer
and home temperature monitor provide
notification of threatening conditions,
such as high liquid level or low tempera-
ture.
C-Con™ Converter Box
• Allows most control panels to
utilize floatless C-Level™ sensor
• NEMA 1 rated for indoor use
• Can be mounted inside a panel
• Green power on indicator
• Four adjustable output set points with
red LED status indicators
• Adjust pump start/stop and alarm levels
from converter box
• Simulate button for testing proper wir-
ing of outputs
• Factory-installed input/output wires
• Alternative to mercury switches
• UL/cUL Listed
SJE Level Monitor™ CL
• Monitors tank levels using floatless
C-Level™ sensor
• NEMA 1 rated for indoor use
• Power on and alarm indicators
• 10 segment LED bar graph
displays level in the tank
• Test/silence, alarm level and set buttons
• Various cable lengths to monitor
tanks up to 300 feet away
• Auxiliary contacts for Class II circuits
Home Protection Products
• Auto Dialer is a single channel voice
dialer that delivers recorded message to
warn of potentially threatening condition
• Home Temperature Monitor switch pro-
vides a means to monitor environmental
temperature.
Float Accessories
• Cable Clamp Assembly provides strain relief
and anchor of cables
• Float Brackets (4-6 floats) for installation
of float switches
• Pipe Mounting Bracket to secure discharge
pipe to basin wall
• Cable Weight/Cable Weight Mini provide
pivot point for floats
• ETM records total pump run time
• Vertical Reed Switch is alternate control
switch for specific needs
• Anchor and Chain for suspended float switch
installations
Control Panel Accessories
• Junction Boxes provide convenient
location to connect and protect wiring
• Cord Seal provides strain relief and a
liquid-tight seal for 1-4 or 1-6 cables
• Cable Connectors (round or flat) for liq-
uid-tight seal and strain relief
• Hub Assembly provides liquid-tight con-
duit attachment location
• Panel Mounting Post provides easy
installation of control panels
• Riser Mounting Kit secures panel
mounting post to tank riser
• Simplex/Duplex Installation Kit provides
easy weather-proof wire installation for
control panels
• C-Level™ Simulator is designed to generate an adjustable C-Level simulation
signal
• 4-20mA Simulator is designed to generate an adjustable 4-20mA signal from
loop power
U.S. Patent No.
8,336,385 and 8,567,242.
Additional Patents Pending.
Available with CL40 model only.
Pump Switches
Wide-angle pump switches directly control pumps up
to 3 HP at 250 VAC. Each switch features an adjust-
able pumping range.
Control Switches
Narrow-angle control switches accurately monitor
high (normally open) or low (normally closed) liquid
level conditions in water and sewage applications to
activate control panels and alarms. Select models
have colored caps for easy identification.
11
Type of Pump Max Pump Max Pump Pumping
Pump Switch Activation Control Run Current Start Current Range
SJE PumpMaster® WPS Mechanical 13A, 120V 85A, 120V 7 to 36
13A, 230V 85A, 230V inches
SJE PumpMaster® Mechanical 1/2 HP, 120V 13A, 120V 85A, 120V 7 to 36
1 HP, 230V 13A, 230V 85A, 230V inches
SJE PumpMaster® Plus Mechanical 3/4 HP, 120V 15A, 120V 85A, 120V 7 to 36
2 HP, 230V 15A, 230V 85A, 230V inches
SJE PumpMaster® SPDT Mechanical 1/2 HP, 120V 13A, 120V 85A, 120V 7 to 36
(Single Pole, Double Throw)
1 HP, 230V 13A, 230V 85A, 230V inches
Double Float® Master Mechanical 15 FLA, 90 LRA 15A, 120V 90A, 120V 4 to 48 inches
120 or 240V 15A, 240V 90A, 240V (wider available)
SJE AmpMaster® Mechanical 1 1/2 HP, 120V 20A, 125V 120A, 125V 9 to 24
3 HP, 250V 20A, 250V 120A, 250V inches
SJE VerticalMaster® Mechanical 1/2 HP, 120V 13A, 120V 60A, 120V .75 to 6.5
(For Limited Space Applications)
1 HP, 230V 12A, 230V 60A, 230V inches
SJE MicroMaster® AC/DC Mechanical Use pump run
10A, 12VDC/125VAC
100A, 12VDC 8 to 36
and start current
8A, 250VAC
60A, 125V/250V inches
SJE MicroMaster® Plus WS Mechanical Use pump run 13A, 125V 78A, 125V 8 to 36
and start current 13A, 250V 78A, 250V inches
Junior Super Single® Mercury 1/2 HP, 120V 13A, 120V 40A, 120V 6.5 to 19
1 HP, 230V 8A, 230V 20A, 230V inches
Super Single® Mercury 1 HP, 120V 15A, 120V 55A, 120V 6.5 to 13.5
2 HP, 230V 12A, 230V 35A, 230V inches
Double Float® Mercury 1 HP, 120V 15A, 120V 55A, 120V 1.75 to 48 inches
2 HP, 230V 12A, 230V 35A, 230V (wider available)
SJE HiTempMaster™ Mechanical Use pump run 13A, 120V 78A, 125V 8 to 36
and start current 13A, 230V 78A, 250V inches
Type of Control Electrical Mounting
Control Switch Activation Differential Rating Options
EZconnex® Float Mechanical
Narrow 1.5 inches; Wide 4 inches
125 VAC/30 VDC
Mounting clamp
Connection System above or below horizontal
0.160mA-1A; 5VDC 1mA min.
SJE MegaMaster® Mechanical Approximately 10° 1 mA - 1 amp Float Bracket
above or below horizontal 4VDC - 125VAC
SJE SignalMaster® Mechanical Approximately 1.5 inches 5 amp Mounting clamp or
(NO - Yellow Cap; NC - White Cap)
above or below horizontal 125V or 250V cable weight
SJE SignalMaster® SPDT Mechanical Approximately 1.5 inches 5 amp Mounting clamp or
(Single Pole, Double Throw; Green Cap)
above or below horizontal 125V or 250V cable weight
SJE MilliAmpMaster® Mechanical
Narrow 1.5 inches; Wide 4 inches
0.160 - 100 mA Mounting clamp or
(Narrow-Angle or Wide-Angle; Blue Cap)
above or below horizontal 5V - 125V cable weight
Sensor Float® Mercury Approximately .5 inches 5 amp Mounting clamp, cable
above or below horizontal 120V or 230V weight, internal weight
Sensor Float® Mini Mercury Approximately .5 inches 5 amp Mounting clamp
above or below horizontal 120V or 230V or cable weight
1/2 HP, 120V
1 HP, 230V
min load: 120V, 100 mA
9500004AB © 2016 SJE-Rhombus Rev 12/16
22650 County Highway 6, PO Box 1708
Detroit Lakes, MN 56502 USA
Toll Free: 1-888-DIAL-SJE (1-888-342-5753)
Phone: 218-847-1317
Fax: 218-847-4617
Email: sje@sjerhombus.com
www.sjerhombus.com
Follow us on:
About SJE-Rhombus®
SJE-Rhombus provides smart control solutions
for today’s growing environmental challenges. We
combine over 40 years of expertise in pump con-
trols with the latest technology to deliver energy
efficient, cost-effect products for a wide variety
of residential, commercial, municipal and industri-
al applications.
No matter the application, SJE-Rhombus has a control solution to fit your needs, whether it’s a simple float
switch or septic tank alarm to control panels utilizing embedded circuit board technology for advanced
programming, monitoring and reporting of your system. And it we don’t have it in our standard catalog, we
can design and build a custom control solution to meet your exact specifications.
New product designs endure extensive in-house and field testing before submittal to recognized indepen-
dent laboratories for safety testing and approval (UL, cUL, CSA). This commitment to quality ensures you
a dependable, trouble-free product. We are so confident in our products that we offer an industry-leading
five-year limited warranty.
With corporate headquarters located in central Minnesota, SJE-Rhombus has eight locations across the
USA and Asia. Because SJE-Rhombus is 100% employee-owned, each employee has a personal
stake in the success of the company. From engineering to production to customer service, each and every
employee-owner takes great pride in providing the quality products and service that SJE-Rhombus offers.
After all, our success is measured by your satisfaction.
SJE-Rhombus offers the best one-on-one customer support in the industry. Our friendly, knowledge-
able staff is prepared to answer any questions, from assisting in selecting the correct product for the appli-
cation to answering installation questions in the field. Learn more about us at www.sjerhombus.com.
In addition to many state on-site and rural water associations,
SJE-Rhombus® is proud to be members of these national industry associations:
