Are you ready for an easy-to-use, reliable control panel
to use with your subsurface drip irrigation system?
SJE-Rhombus Controls introduces the innovative
Installer Friendly Series®Drip irrigation control panel.
The IFS Drip irrigation panel controls one single phase
pump (120V or 230V) and two valves (flush and spin
valves). At a glance, you can monitor system cycles, float
status, pump run status, and more. Programming has
never been easier with the simple-to-use touch pad
display on the inner door. With a touch, you can easily
program system functions, including:
■
Rest for standard time
■
Rest for peak enable time
■
Spin filter flush time
■
Dose time
■
Field flush time
■
Field drain time

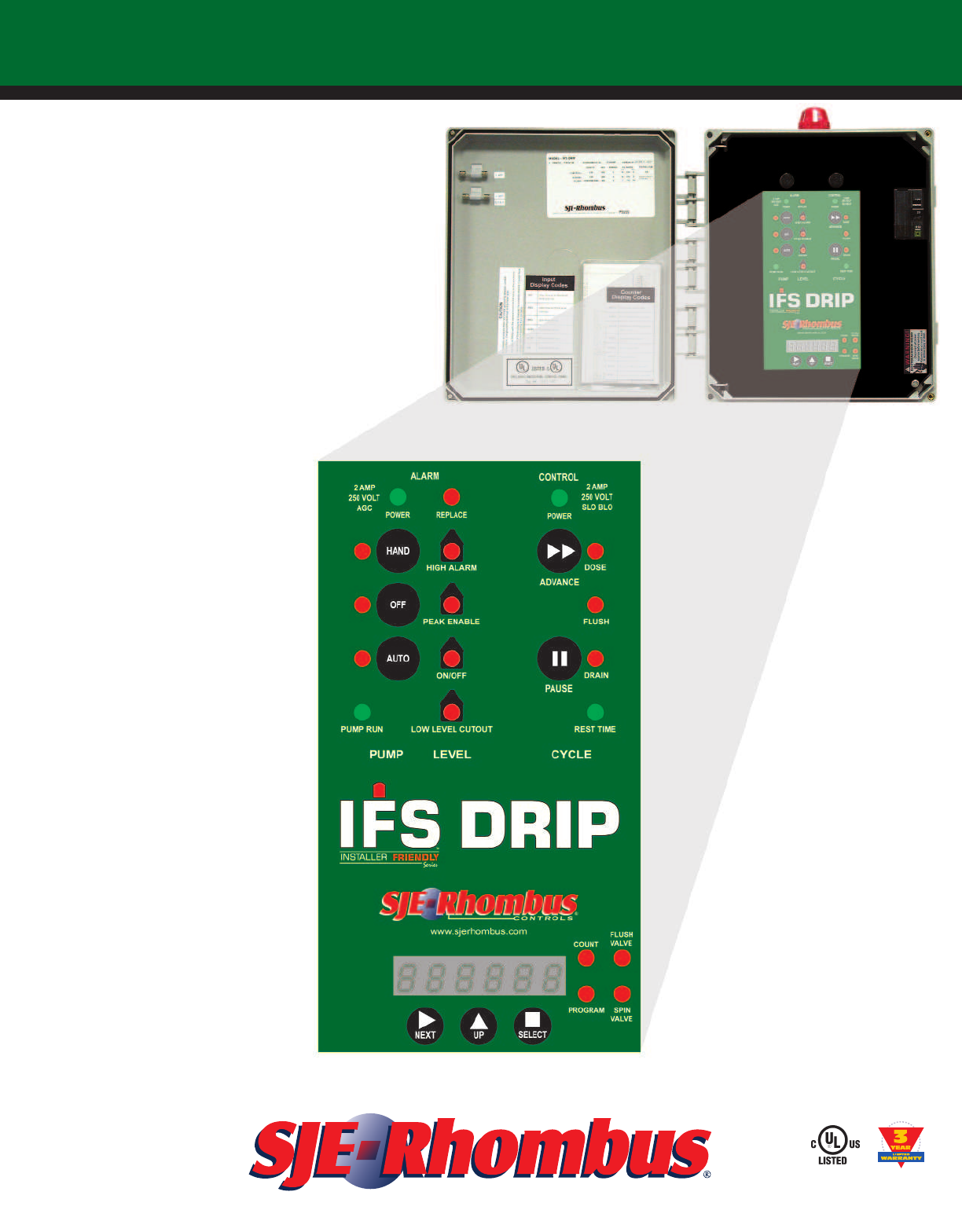

TOUCH PAD DISPLAY FEATURES:
LED indicator lights for:
■
Pump run
■
Rest time
■
Float status, including float
out-of-sequence alarm
■
Cycles: dose, flush, drain
■
Separate control and alarm fuses
with power indicators; replacement
indicator for alarm fuse
■
HAND/OFF/AUTO pump control
■
Count
■
Program
■
Flush valve
■
Spin valve
■
Advance and pause buttons allow
user to cycle through system
functions for testing
Digital display features:
■
High water alarm count
■
Float status sequence error count
■
Low level cutout float open low
alarm count
■
Standard dose count
■
Power-fail count
■
Pump on/off cycle count
■
Pump run time
■
Peak dose count
Installer Friendly Series®Drip Panels
See reverse side for IFS Drip installation
diagram, part number and pricing!
IFS DRIP PANEL FEATURES:
■
Innovative circuit board design
creates additional space inside
for wiring panel
■
Inner door for added safety
■
Controls 24 VAC or 120 VAC
solenoid valves (spin, flush)
■
Alarm beacon and horn (85
decibel rating) provides visual and
audio warning of alarm condition
■
Test/Normal/Silence switch
■
Large, easy-to-use terminal
blocks
■
Input display code and counter
display code labels on inside
cover for viewing/programming
digital display
■
Pump circuit breaker for branch
circuit protection and pump
disconnect
■
NEMA 4X weatherproof enclosure
for indoor/outdoor use
■
Float/pump wiring diagram
mounted to backplate
■
Includes four float switches
■
UL/cUL Listed
■
Three-year limited warranty
©SJE-Rhombus 07/11
VentVent
Flush
Manifold
Supply
Manifold
Drip Line
Drip Line
Drip Line
Spin Filter
Spin Valve
Flush Valve
Supply
Pre-Treatment Tank Dose Tank
Pump
High Alarm
Peak Enable
On / Off
Low Level Cutout
Installer Friendly Series®Drip Panels
1-888-DIAL-SJE (1-888-342-5753)
■
www.sjerhombus.com ©SJE-Rhombus 07/11
IFS Drip Control Panel Operation:
Four (4) float switches (low level, timer on/off, peak enable, and high alarm floats) control the operation. Timers internal to the
PCB control the pump dosing cycles. When the liquid level activates the timer on float, the following operations occur:
1. Rest time
2. The pump turns on and the spin filter valve opens for the user-programmed length of time.
3. The spin filter valve closes and the pump continues to run for the user-programmed dose time.
4. The pump continues to run and the flush valve opens for the user-programmed length of time.
5. The pump turns off and the flush valve remains open for the user-programmed drain time.
6. The flush valve closes for the user-programmed off time.
