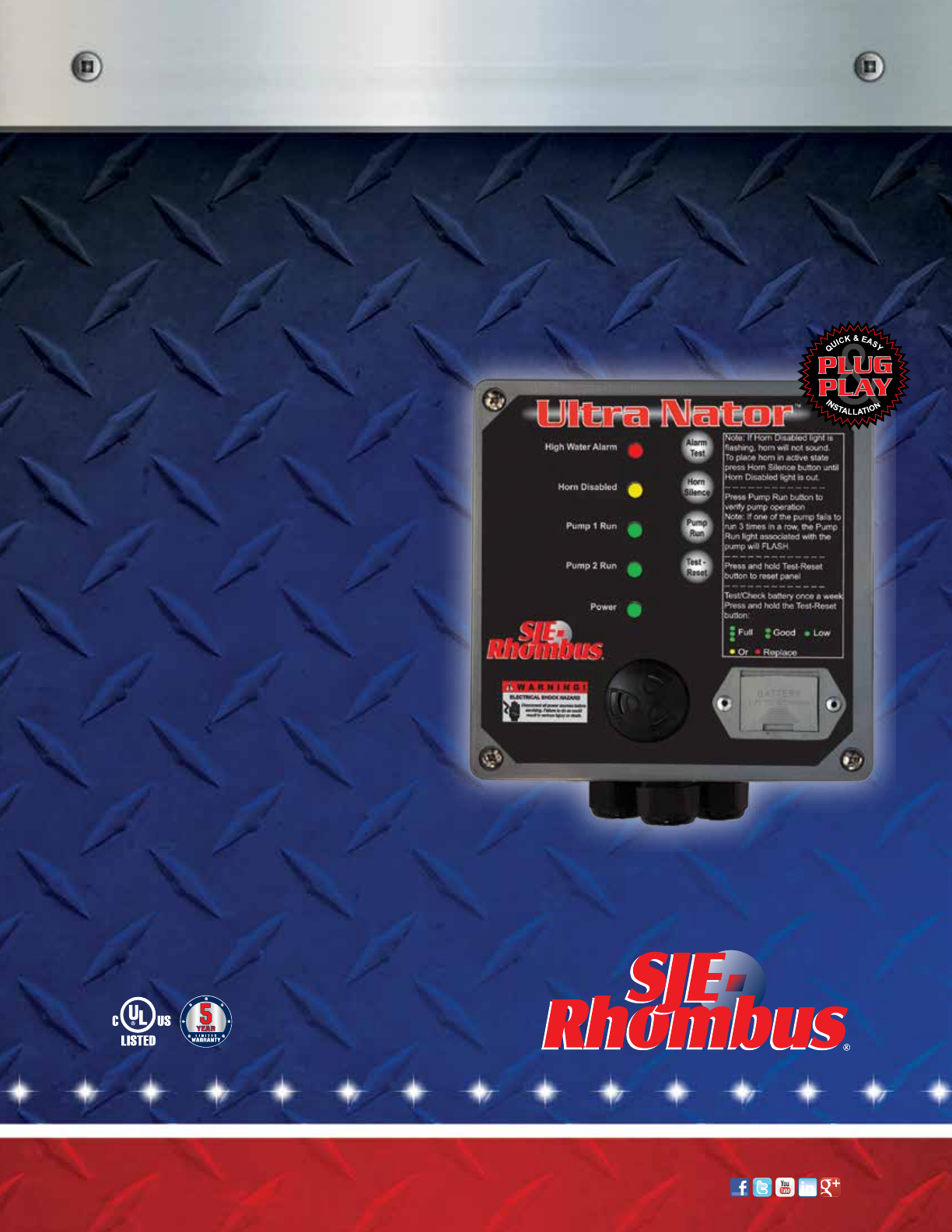

ULTRA NATOR™
Pump Alternating Control
and Alarm System
• Controls two alternating single
phase pumps in duplex pump
applications
• Sleek touch pad buttons:
• Alarm test
• Horn silence
• Manual pump run
• Test and reset
• LED indicators:
• High water alarm (red)
• Horn disabled (yellow)
• Pump 1 and Pump 2 run (green)
• Power on (green)
• Reference chart for panel operation
• 9V battery back-up for alarm
• Includes auxiliary contacts
www.sjerhombus.com Toll Free 1-888-342-5753 Phone 218-847-1317
©2014 SJE-Rhombus Rev 08/14
Ultra nator™
Pump Alternating Control and or Alarm System
Function
The Ultra Nator™ control and alarm system controls two al-
ternating 120V 1 HP or 15 Amp single phase pumps in duplex
pump applications.
The plug and play design features a factory-installed 10’
power cord, oats and pump receptacles (no eld wiring re-
quired to quickly connect two pumps).
The new 9V battery back-up alarm system maintains the
alarm function if primary power is lost; you can quickly test
the battery condition with the battery test function. The new
pump failure indicator alerts you to potential pump problems,
such as non-operating pumps, problems with outow plumb-
ing, or if the water inow is greater than pumping capacity. The
quick reference chart on the panel front helps the operator
diagnose problems quickly.
Features
• Plug and play for quick and easy installation
• LED indicators for: High water alarm; Horn disabled;
Pump 1 run; Pump 2 run; Power on
• Sleek touch pad buttons for alarm test, horn silence,
manual pump run, test and reset
• Includes auxiliary contacts to interface with remote
alarms, auto-dialers, or home security systems
• Angled receptacles to accept standard or right angled
pump plugs
Models Description
• 1029624 Ultra Nator™ & two 10’ SJE MicroMasters®
• 1030108 Ultra Nator™ & two 10’ SJE VerticalMaster® II
• 1030109 Ultra Nator™ & one 10’ SJE VerticalMaster® II
and one 10’ Vertical Reed Switch
• 1031346 Ultra Nator™ & two 20’ SJE MicroMasters®
• 1032893 Ultra Nator™ & two 20’ SJE VerticalMaster® II
Operation

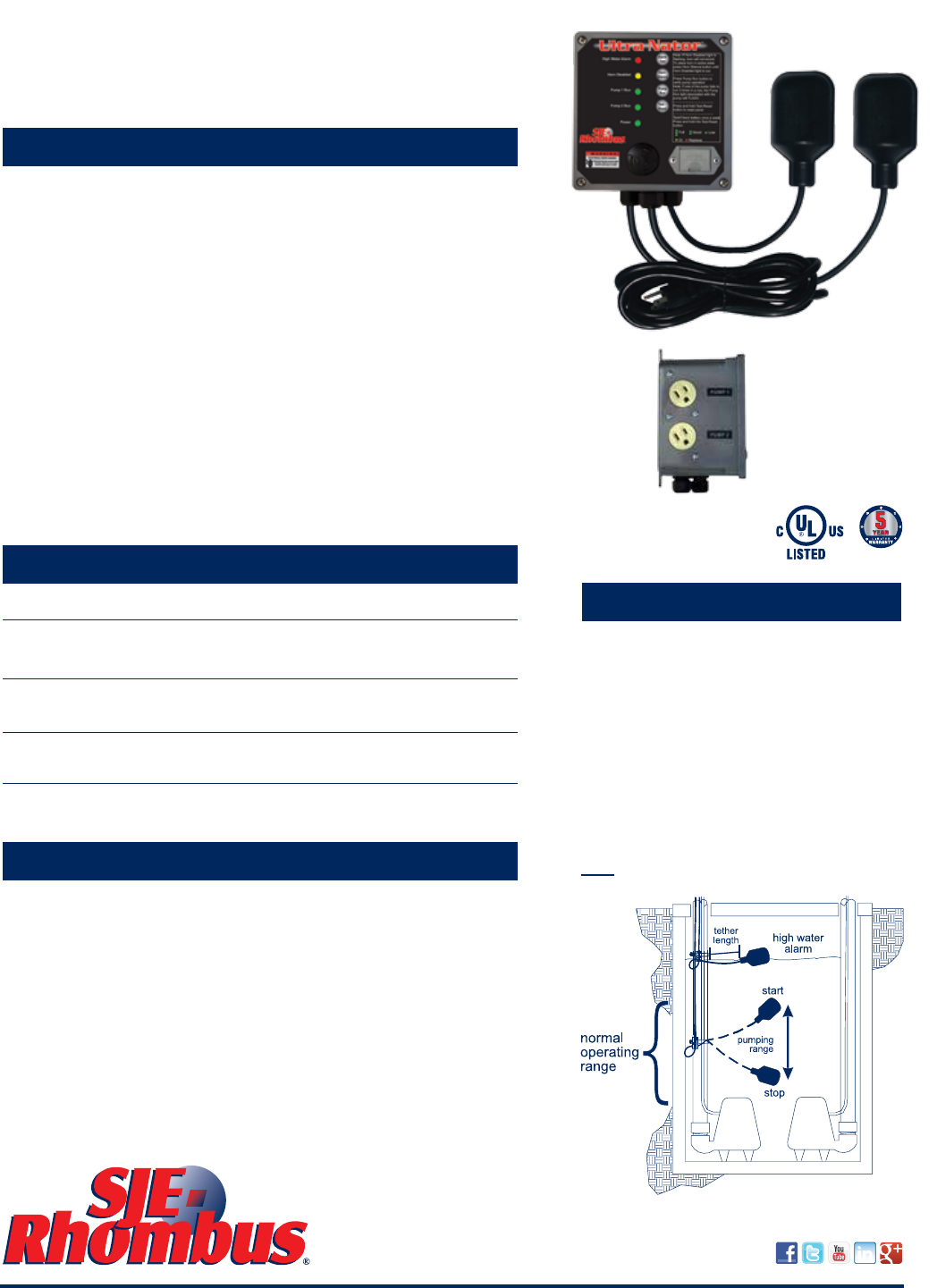

Shown: PN 1029624
Ultra Nator™ with
SJE MicroMaster®
switches
In normal operation pumps will alter-
nate based on the pump switch level.
If an alarm condition occurs (top oat
activates), the alarm light and horn turn
on. The pump in use will turn off and
the other pump will turn on. Pumping
will continue until the pump switch de-
activates (bottom oat).
NOTE: The Ultra Nator™ will only run
one pump at a time.
