ITT
Goulds Pumps

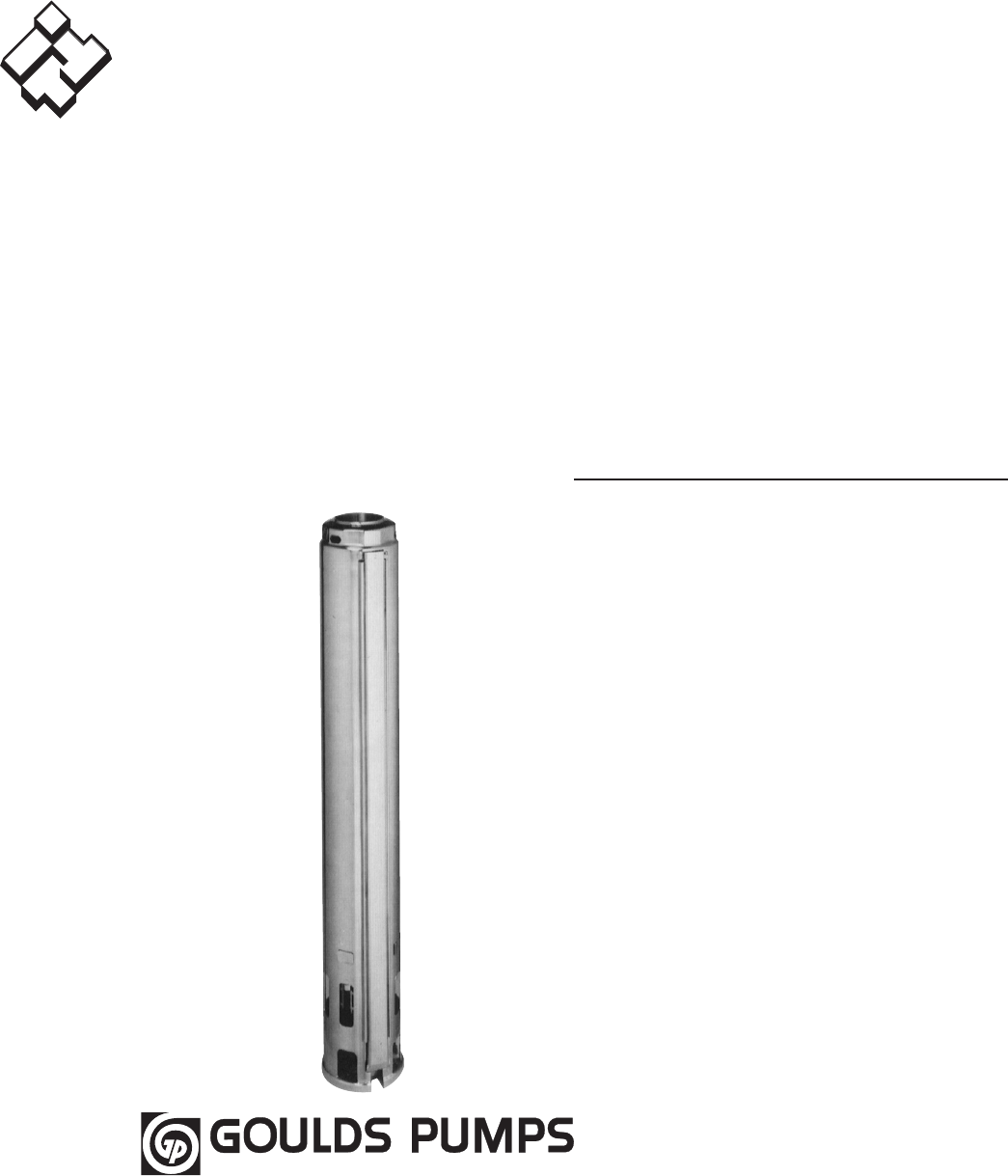

70L, 90L, 150L, 200L, 300L
Stainless Steel 6" Submersible Pumps
60 Hz High Capacity
For 6" and larger wells
Residential Water Systems
FEATURES
n Powered for Continuous Operation: All ratings are
within the working limits of the motor manufacturer.
Pump can be operated continuously with no fear of
damage to the motor.
n Field Serviceable: Easy to install and service.
All parts easily dismantled if field service is ever
necessary.
n Diverse Application: Designed for commercial,
municipal and agricultural water needs.
n Stainless Steel Casing: Durable in the most
corrosive waters.
n Bearings: Replaceable fluted NBR bearings allow
excellent abrasives handling and wear resistance.
n Built-in Check Valve: Positive sealing, stainless
steel check valve assembly incorporated into
discharge head.
n Bowls: Stainless with pressed in NBR wear rings.
70L and 90L are a flat bowl design. 150L, 200L and
300L are a turbine bowl design.
n Impellers: Rugged stainless steel construction
resists mineral and algae deposits.
n Stainless Steel Shaft Sleeve: Corrosion resistant.
n Four-Fluted Shaft Design: Four sided stainless steel
shaft eliminates impeller keys and provides positive
drive.
n Coupling: Heavy duty stainless steel, splined
coupling for maximum load-carrying capability.
n Suction Strainer: Stainless steel strainer restricts
gravel and other debris from entering the pump.
n Cable Guard: Stainless steel cable guard surrounds
and protects motor leads.
n Fasteners: All fasteners are stainless steel.
n NEMA Design Motors: Stainless steel casing and
epoxy coated end bells resist corrosion. Water filled
design provides a constant supply of lubrication.
Hermetically sealed stator assures moisture free
windings. Durable Kingsbury type thrust bearing
absorbs all thrust. Replaceable motor lead assembly.
Goulds Pumps is a brand of ITT
Residential and Commercial Water.
www.goulds.com
Engineered for life
2
ITT
GOULDS PUMPS
Residential Water Systems
SYSTEM COMPONENTS
n Pump/Water End:
• 6" Pump with 3" NPT discharge.
• 4" Motor Adapter on 3 and 5 HP models.
• 6" Motor Adapter on 7.5 HP and larger models.
n Motor:
• 4" motor required for 3 HP and 5 HP pumps.
• 6" motor required for 7.5 HP and larger pumps.
n Control Box: Required for all single phase motors.
n Magnetic Starter: A magnetic starter and heaters*
are required for all three phase units.
* Requires 3 ambient compensated (K type) quicktrip
heaters.
WATER ENDS AND MOTORS MUST BE ORDERED
SEPARATELY AND ARE PACKAGED SEPARATELY.
Goulds Pumps is ISO 9001 Registered.
ORDER NUMBER CODE
Part Name Material
Shaft and Coupling 420, 421 Series SS
Motor Adapter and 304 Series SS
Discharge Head
Bearing NBR
Shaft Sleeves 304 Series SS
Bowl 304 Series SS
Diffuser and Impeller 304 Series SS
Casing 304 Series SS
Fasteners 304 Series SS
Cable Guard 304 Series SS
Suction Strainer 304 Series SS
Casing Nut 316L
Powder Metal
Wear Rings NBR
“L” SERIES MATERIALS OF CONSTRUCTION
Horsepower
Code = HP
Pump Size/
Gallons
per minute
at Best
Efficiency Point
70 L 03
Pump Series
90
150
200
300
03 = 3
05 = 5
07 = 7.5
10 = 10
15 = 15
20 = 20
25 = 25
30 = 30
40 = 40
SPECIFICATIONS
Model Horsepower Discharge Recommended GPM GPM at Best Minimum Rotation①
Connection Operating Range Efficiency Well Size
70L 3 – 25 3" NPT 25 – 100 70 6" CCW
90L 5 – 30 3" NPT 40 – 130 90 6" CCW
150L 5 – 40 3" NPT 50 – 240 150 6" CCW
200L 7.5 – 40 3" NPT 70 – 310 200 6" CCW
300L 5 – 40 3" NPT 100 – 450 300 6" CCW
① Rotation when viewed from pump discharge end.
3
ITT
GOULDS PUMPS
Residential Water Systems
WATER END (PUMP) DATA
Required Motor Water End
Series Order No. Stages HP Diameter Length Weight (lb)
70L03 3 3 4" 22.6 27
70L05 5 5 4" 25.8 31
70L07 7 7.5 6" 29.0 35
70L 70L10 10 10 6" 33.5 42
70L15 15 15 6" 41.3 55
70L20 20 20 6" 45.0 66
70L25 25 25 6" 56.6 77
90L05 3 5 4" 22.7 27
90L07 5 7.5 6" 25.9 31
90L10 7 10 6" 29.0 35
90L 90L15 11 15 6" 35.1 44
90L20 15 20 6" 41.3 55
90L25 19 25 6" 47.4 64
90L30 22 30 6" 52.0 71
150L05 2 5 4" 28.0 31
150L07 3 7.5 6" 32.5 35
150L10 4 10 6" 36.9 41
150L 150L15 6 15 6" 45.8 52
150L20 8 20 6" 54.5 64
150L25 10 25 6" 63.4 76
150L30 12 30 6" 72.1 88
150L40 16 40 6" 89.8 110
200L07 2 7.5 6" 28.0 31
200L10 3 10 6" 32.5 35
200L15 5 15 6" 41.3 47
200L 200L20 6 20 6" 45.8 53
200L25 8 25 6" 54.5 64
200L30 10 30 6" 63.4 77
200L40 13 40 6" 76.5 95
300L05 1 5 4" 23.5 24
300L10 2 10 6" 28.0 31
300L15 3 15 6" 32.5 35
300L 300L20 5 20 6" 41.6 46
300L25 6 25 6" 45.8 53
300L30 7 30 6" 50.1 57
300L40 10 40 6" 63.4 77
4

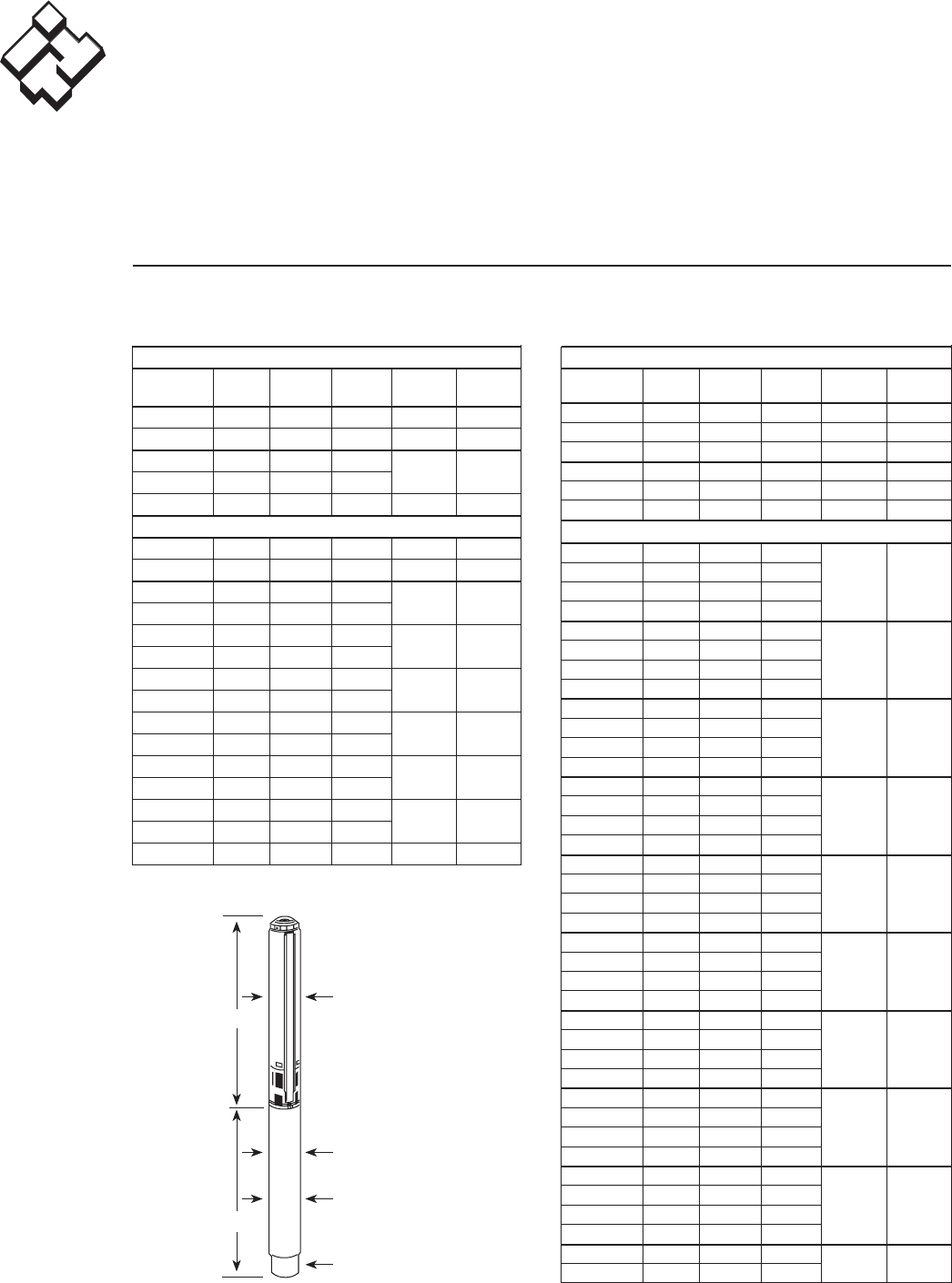

ITT
GOULDS PUMPS
Residential Water Systems
WATER END (PUMP) DATA
NOTE: 4" Diameter motors are required for 3 and 5 HP “L” Series pumps
6" Diameter motors are required for 7.5 HP and larger “L” Series pumps.
CentriPro Motors
Single Phase Motors – Dimensions and Weights
Motor HP Motor Volts Length Weight
Order No. Dia. (inches) (lbs)
N/A 3 4" – – –
N/A 5 4" – – –
6M071 7.5 6" 230 29.9 128
6M101 10 6" 230
6M151 15 6" 230 33.5 148
Three Phase Motors – Dimensions and Weights
N/A 3 4" – – –
N/A 5 4" – – –
6M072 7.5 6" 230 24.8 99
6M074 7.5 6" 460
6M102 10 6" 230 27.0 110
6M104 10 6" 460
6M152 15 6" 230 29.9 128
6M154 15 6" 460
6M202 20 6" 230 31.5 137
6M204 20 6" 460
6M252 25 6" 230 36.2 161
6M254 25 6" 460
6M302 30 6" 230 38.2 176
6M304 30 6" 460
6M404 40 6" 460 40.6 187
Franklin Electric Motors
Single Phase Motors – Dimensions and Weights
Motor HP Motor Volts Length Weight
Order No. Dia. (inches) (lbs)
S09940 3 4" 230 19.1 41
S09940HT 3 4" 230 22.2 55
S10940 5 4" 230 28.2 70
S11970 7.5 6" 230 28.0 125
S12970 10 6" 230 30.6 143
S13970 15 6" 230 33.1 156
Three Phase Motors – Dimensions and Weights
S09978 3 4" 200
S09970 3 4" 230 16.1 35
S09975 3 4" 460
S09979 3 4" 575
S09978HT 3 4" 200
S09970HT 3 4" 230 19.2 42
S09975HT 3 4" 460
S09979HT 3 4" 575
S10978 5 4" 200
S10970 5 4" 230 22.2 55
S10975 5 4" 460
S10979 5 4" 575
S11978 7.5 6" 200
S11971 7.5 6" 230 24.2 110
S11972 7.5 6" 460
S11979 7.5 6" 575
S12978 10 6" 200
S12971 10 6" 230 25.4 118
S12972 10 6" 460
S12979 10 6" 575
S13978 15 6" 200
S13971 15 6" 230 28.0 131
S13972 15 6" 460
S13979 15 6" 575
S14978 20 6" 200
S14971 20 6" 230 30.6 147
S14972 20 6" 460
S14979 20 6" 575
S15978 25 6" 200
S15971 25 6" 230 33.1 158
S15972 25 6" 460
S15979 25 6" 575
S16978 30 6" 200
S16971 30 6" 230 35.7 176
S16972 30 6" 460
S16979 30 6" 575
S17972 40 6" 460 40.8 206
S17979 40 6" 575
MOTOR
W.E.
DISCHARGE 3" NPT
5.46"
Effective
diameter
with cable
guard
3¾" (4" Motor)
53⁄8" (6" F.E. Motors)
5½" (6" CP Motors)
5
ITT
GOULDS PUMPS
Residential Water Systems
Model 70L
SELECTION CHART
Horsepower Range 3 – 25, Recommended Range 25 – 100 GPM, 60 Hz, 3450 RPM
Pump Depth to Water in Feet/Ratings in GPM (Gallons per Minute)
Model HP PSI 25 50 75 100 125 150 175 200 250 300 350 400 450 500 550 600 650 700 800 900
1000 1100 1200
0 100 91 80 65
20 92 82 70 41
70L03 3 30 82 70 42
3 Stages 40 72 43
50 43
60
0 96 89 83 78 70
20 98 92 85 78 72 60
70L05 5 30 98 92 85 78 72 60
5 Stages 40 93 86 79 73 60 40
50 86 79 73 62 40
60 79 73 62 40
0 98 95 90 86 77 64
20 100 95 91 86 82 77 65
70L07 7.5 30 100 95 91 86 82 77 72 54
7 Stages 40 100 96 92 87 83 78 73 66 40
50 96 92 88 83 78 73 66 56
60 92 89 83 78 73 66 56 40
0 100 97 91 85 76 70 56
20 98 94 92 85 78 71 58
70L10 10 30 98 94 92 88 82 74 65 48
10 Stages 40 98 95 92 89 87 78 71 60 40
50 98 95 92 89 86 82 75 65 49
60 98 95 92 89 86 82 79 71 60 40
0 97 93 88 84 80 75 70 62 50
20 97 93 88 85 81 75 70 63 51
70L15 15 30 99 95 91 87 83 78 73 67 58 44
15 Stages 40 99 98 94 89 85 81 76 71 64 53
50 99 98 96 91 87 83 78 73 67 58 44
60 99 98 96 94 89 85 81 76 71 64 53
0 100 98 94 91 87 84 81 78 70 58
20 100 97 94 91 87 85 82 79 74 65 48
70L20 20 30 99 96 93 90 86 83 80 77 72 62 42
20 Stages 40 100 97 95 91 87 85 82 79 75 71 59
50 99 96 93 90 86 83 80 77 72 68 55
60 100 97 95 91 88 85 82 79 75 71 66 50
0 99 97 95 92 90 87 82 76 70 60 45
20 99 97 95 93 90 87 85 79 74 66 53
70L25 25 30 98 96 93 91 89 86 83 78 72 64 51
25 Stages 40 100 97 95 92 90 87 85 82 77 71 61 46
50 98 96 93 91 89 86 83 81 75 69 58 41
60 100 97 95 92 90 87 85 82 80 74 67 55
6
ITT
GOULDS PUMPS
Residential Water Systems
Model 90L
SELECTION CHART
Horsepower Range 5 – 30, Recommended Range 40 – 130 GPM, 60 Hz, 3450 RPM
Pump Depth to Water in Feet/Ratings in GPM (Gallons per Minute)
Model HP PSI 25 50 75 100 125 150 175 200 250 300 350 400 450 500 550 600 650 700 800 900
1000 1100
0 125 115 100 87 67
20 115 102 90 75
90L05 5 30 102 90 74
3 Stages 40 91 73
50 73
60
0 125 117 112 105 97 90 68
20 127 116 113 107 98 91 80 69
90L07 7.5 30 119 113 107 98 91 80 69 50
5 Stages 40 115 107 100 92 81 70 50
50 107 100 92 81 70 50
60 100 93 82 70 50
0 127 123 118 113 109 98 87 70
20 128 125 119 114 110 104 97 88 74
90L10 10 30 128 125 119 114 110 104 97 93 81 62
7 Stages 40 126 120 115 111 105 99 93 89 75 50
50 120 115 112 105 100 94 89 82 63
60 115 112 106 100 94 89 82 75 50
0 130 127 125 123 117 112 105 98 91 82 70 50
20 127 125 124 120 118 112 106 99 91 82 73 55
90L15 15 30 127 125 124 120 118 115 108 103 95 87 78 65
11 Stages 40 128 126 124 120 118 115 113 107 99 91 83 73 57
50 128 127 124 121 118 116 113 109 103 95 87 78 67
60 127 124 121 118 116 113 109 107 100 92 83 73 57
0 130 128 124 121 117 112 108 102 97 92 85 77 51
20 129 127 124 121 117 113 108 103 98 93 86 78 70
90L20 20 30 129 127 125 123 118 115 110 106 101 95 87 83 75 62
15 Stages 40 129 127 125 123 121 117 113 108 103 98 93 86 79 71 56
50 129 127 126 123 121 119 115 110 106 102 95 89 83 75 63
60 129 127 126 123 121 119 117 113 108 103 98 93 86 79 71 56
0 128 126 123 120 117 113 110 106 102 98 88 77 55
20 128 127 124 121 117 113 111 107 103 99 94 84 67
90L25 25 30 128 127 125 122 118 116 112 108 104 102 97 92 80 62
19 Stages 40 129 127 126 123 121 117 113 111 107 103 99 94 90 77 57
50 129 127 126 125 122 119 116 112 108 104 102 97 92 87 75
60 129 128 126 125 123 121 117 113 110 107 103 99 94 90 84 68
0 128 126 123 120 118 115 112 109 105 98 92 82 68
20 129 126 123 121 118 115 112 109 106 103 95 87 76 57
90L30 30 30 130 127 124 122 119 116 113 110 107 104 101 93 84 72 52
22 Stages 40 130 129 126 123 121 118 115 112 109 106 103 99 92 83 68
50 130 129 127 125 122 119 117 114 110 107 104 101 98 90 80 65
60 130 129 127 126 123 121 118 115 112 109 106 103 99 96 87 77 59
7
ITT
GOULDS PUMPS
Residential Water Systems
Model 150L
SELECTION CHART
Horsepower Range 5 – 40, Recommended Range 50 – 240 GPM, 60 Hz, 3450 RPM
Pump Depth to Water in Feet/Ratings in GPM (Gallons per Minute)
Model HP PSI 25 50 75 100 125 150 175 200 250 300 350 400 450 500 550 600 650 700 800 900
0 200 180 140
20 195 150 100
150L05 5 30 150 100
2 Stages 40 100
50
60
0 238 200 200 172 140 100
20 228 200 183 150 120 66
150L07 7.5 30 203 182 152 120 68
3 Stages 40 182 153 120 70
50 155 122 71
60 122 72
0 233 221 209 189 168 140 73
20 238 225 212 193 175 148 121 82
150L10 10 30 226 213 195 176 150 121 84
4 Stages 40 214 197 177 151 122 85
50 198 178 152 123 86
60 178 152 123 87
0 237 230 222 215 203 178 144
20 238 232 224 217 206 195 181 150 110
150L15 15 30 239 232 225 217 207 195 182 168 133 88
6 Stages 40 232 225 218 208 196 183 170 152 112 63
50 225 219 208 197 183 170 152 133 90
60 219 209 197 184 170 152 135 112 63
0 238 234 230 223 210 193 170 143 110
20 240 236 232 225 220 212 196 173 148 116 80
150L20 20 30 236 232 226 220 212 206 188 162 132 101
8 Stages 40 236 232 227 220 213 207 198 175 150 118 82
50 232 227 220 213 207 199 189 165 135 102
60 227 221 213 208 200 190 177 151 120 82
0 238 235 232 223 212 199 183 165 143 120
20 240 237 233 229 223 212 201 185 168 147 122 95
150L25 25 30 237 233 229 224 219 208 195 178 160 136 112 82
10 Stages 40 233 229 224 220 213 202 187 168 148 124 97 67
50 229 225 220 214 208 196 178 160 137 112 83
60 225 220 215 208 203 188 169 150 125 98
0 240 237 232 223 215 204 191 178 162 144 124 103
20 238 236 232 225 217 206 193 180 163 147 128 106 82
150L30 30 30 238 236 232 228 222 212 201 188 174 157 138 118 95 72
12 Stages 40 236 232 229 226 217 207 193 180 165 148 128 107 83
50 232 229 226 222 212 201 188 174 158 138 120 96 72
60 229 226 222 218 208 195 182 166 149 130 110 85
0 239 235 231 231 218 211 202 192 182 170 142 111
20 239 236 232 226 220 212 203 195 184 172 160 132 99
150L40 40 30 238 234 229 223 216 209 200 190 179 167 153 123 88
16 Stages 40 237 232 227 220 212 204 195 184 172 161 146 115 80
50 234 229 224 217 209 200 190 179 168 153 139 108 72
60 232 228 221 212 204 195 184 172 161 147 132 100 62
8
ITT
GOULDS PUMPS
Residential Water Systems
Model 200L
SELECTION CHART
Horsepower Range 7.5 – 40, Recommended Range 70 – 310 GPM, 60 Hz, 3450 RPM
Pump Depth to Water in Feet/Ratings in GPM (Gallons per Minute)
Model HP PSI 25 50 75 100 125 150 175 200 250 300 350 400 450 500 550 600 650 700
0 290 230 157
20 240 157 90
200L07 7.5 30 170 90
2 Stages 40 95
50
60
0 290 250 208 155 100
20 300 252 220 160 110
200L10 10 30 255 218 170 112
3 Stages 40 190 175 115
50 180 125 90
60 130
0 300 290 265 240 215 158 90
20 293 270 245 220 195 167 90
200L15 15 30 295 270 250 220 195 168 132
5 Stages 40 298 270 250 225 200 170 137 95
50 275 250 225 200 170 140 105
60 250 228 205 170 140 110
0 305 285 265 247 205 155 95
20 310 290 270 250 230 205 155 100
200L20 20 30 310 290 270 250 230 205 185 130
6 Stages 40 310 290 270 255 230 210 190 160 100
50 290 270 255 230 210 190 160 130
60 270 255 230 210 190 160 135 100
0 303 290 260 228 195 157 155
20 305 292 278 264 232 198 160 120
200L25 25 30 306 293 278 264 248 218 180 143 98
8 Stages 40 306 293 280 265 248 233 200 162 123
50 307 295 282 266 250 235 220 185 148 100
60 308 296 282 268 250 235 220 204 165 127
0 290 265 243 215 188 157 125 88
20 300 292 268 244 218 190 160 130 90
200L30 30 30 302 290 280 257 225 205 175 145 110
10 Stages 40 303 291 281 270 245 220 190 164 130 90
50 303 293 282 270 260 233 208 180 148 115
60 303 293 283 270 260 240 222 198 166 135 97
0 295 280 260 240 225 205 180 155 130
20 300 280 265 245 225 205 180 155 132 100
200L40 40 30 305 290 275 255 235 215 195 170 145 115
13 Stages 40 305 300 280 265 245 225 205 185 160 135 105
50 305 300 290 275 255 235 218 195 170 145 120
60 305 300 290 280 265 245 225 206 185 160 135 105
9
ITT
GOULDS PUMPS
Residential Water Systems
Model 300L
SELECTION CHART
Horsepower Range 5 – 40, Recommended Range 100 – 450 GPM, 60 Hz, 3450 RPM
Pump Depth to Water in Feet/Ratings in GPM (Gallons per Minute)
Model HP PSI 10 25 50 75 100 125 150 175 200 250 300 350 400 450 500 550
0 410 180
20 160
300L05 5 30
1 Stage 40
50
60
0 390
20 380 300 205
300L10 10 30 270 205 100
2 Stages 40 150 100
50 100
60
0 440 390 330 270 200 100
20 400 340 280 215 120
300L15 15 30 340 285 215 120
3 Stages 40 290 218 140
50 220 140
60 142
0 450 420 390 355 320 280 195
20 455 425 395 363 327 292 250 205
300L20 20 30 425 395 363 327 293 250 205 155
5 Stages 40 395 363 327 295 253 208 158
50 365 328 295 255 210 160
60 330 300 260 220 165
0 465 440 415 388 360 330 270 183
20 445 420 395 365 355 307 275 198
300L25 25 30 445 420 397 365 337 309 275 240
6 Stages 40 422 398 367 340 310 276 242 208
50 400 370 343 312 280 245 210 165
60 373 345 315 283 248 212 168 123
0 485 450 435 410 387 362 312 255 185 112
20 438 415 393 365 343 317 260 200 110
300L30 30 30 438 416 393 368 345 318 292 235 165
7 Stages 40 440 418 395 370 347 321 294 365 200 115
50 420 398 373 349 323 296 268 240 170
60 400 375 350 325 300 270 242 210 132
0 450 433 420 388 353 320 280 240 192 140
20 438 422 405 393 355 303 282 243 195 143
300L40 40 30 438 422 406 393 373 340 308 264 220 172 115
10 Stages 40 440 425 408 393 374 360 323 288 245 200 150
50 441 427 410 395 375 361 342 308 268 225 178 110
60 442 428 411 397 378 362 345 328 290 250 204 157
10
ITT
GOULDS PUMPS
Residential Water Systems

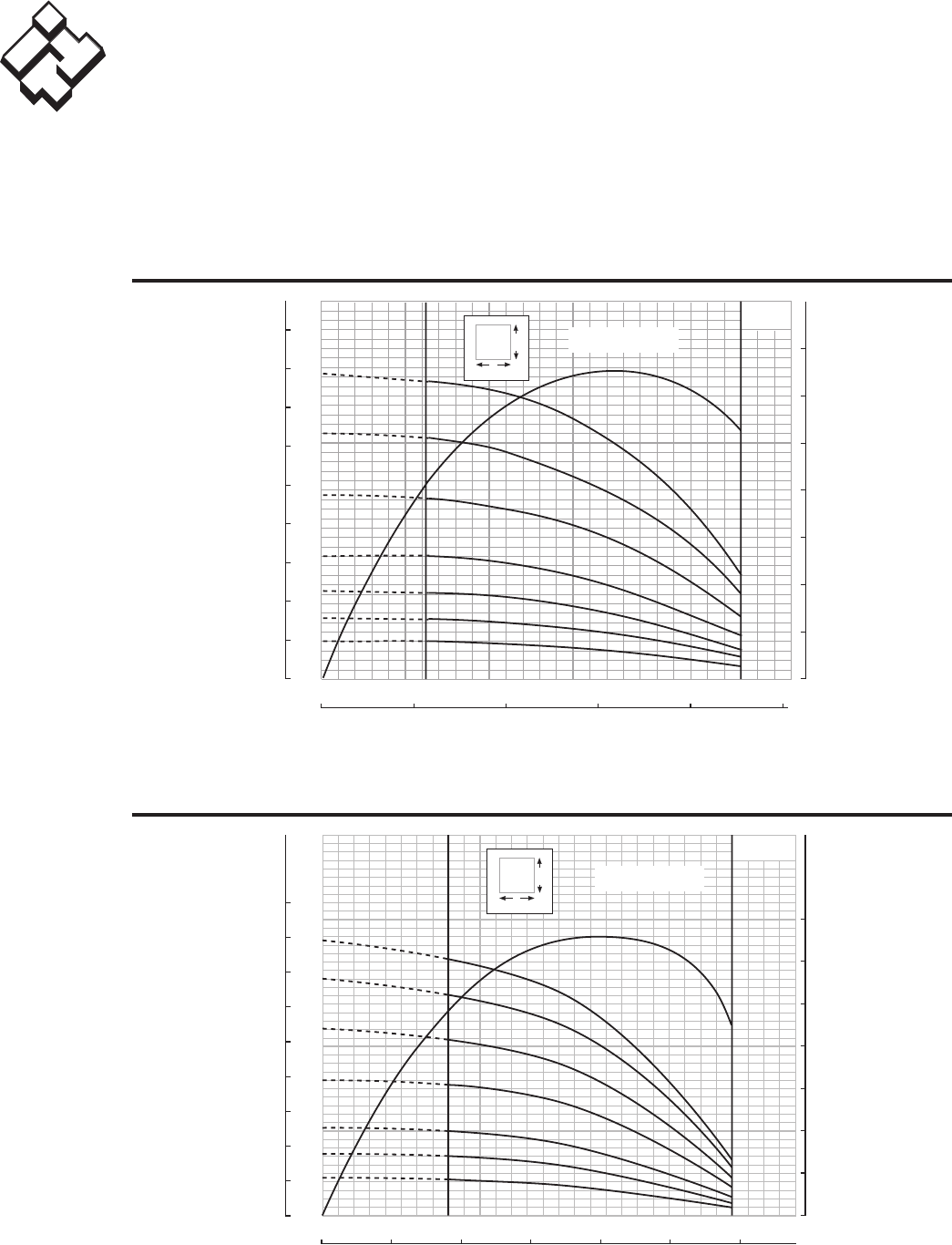

Model 70L
RPM 3450
60 Hz
0
450
400
250
100
0
1400
1000
600
400
200
1200
800
0
0
5 15
20 40 60 80 100 0
60
50
40
30
20
10
TOTAL DYNAMIC HEAD
CAPACITY
GPM
m3/hr
EFFICIENCY – %
FEETMETERS
10 20
300
150
350
200
50
70
25
EFFICIENCY
70L25
25 STG.
70L20
20 STG.
70L15
15 STG.
70L10
10 STG.
70L07
7 STG.
70L05 5 STG.
70L03 3
STG.
RECOMMENDED RANGE
25 – 100 GPM
40
Ft.
4
GPM
Curve Reference SU 0019ROO

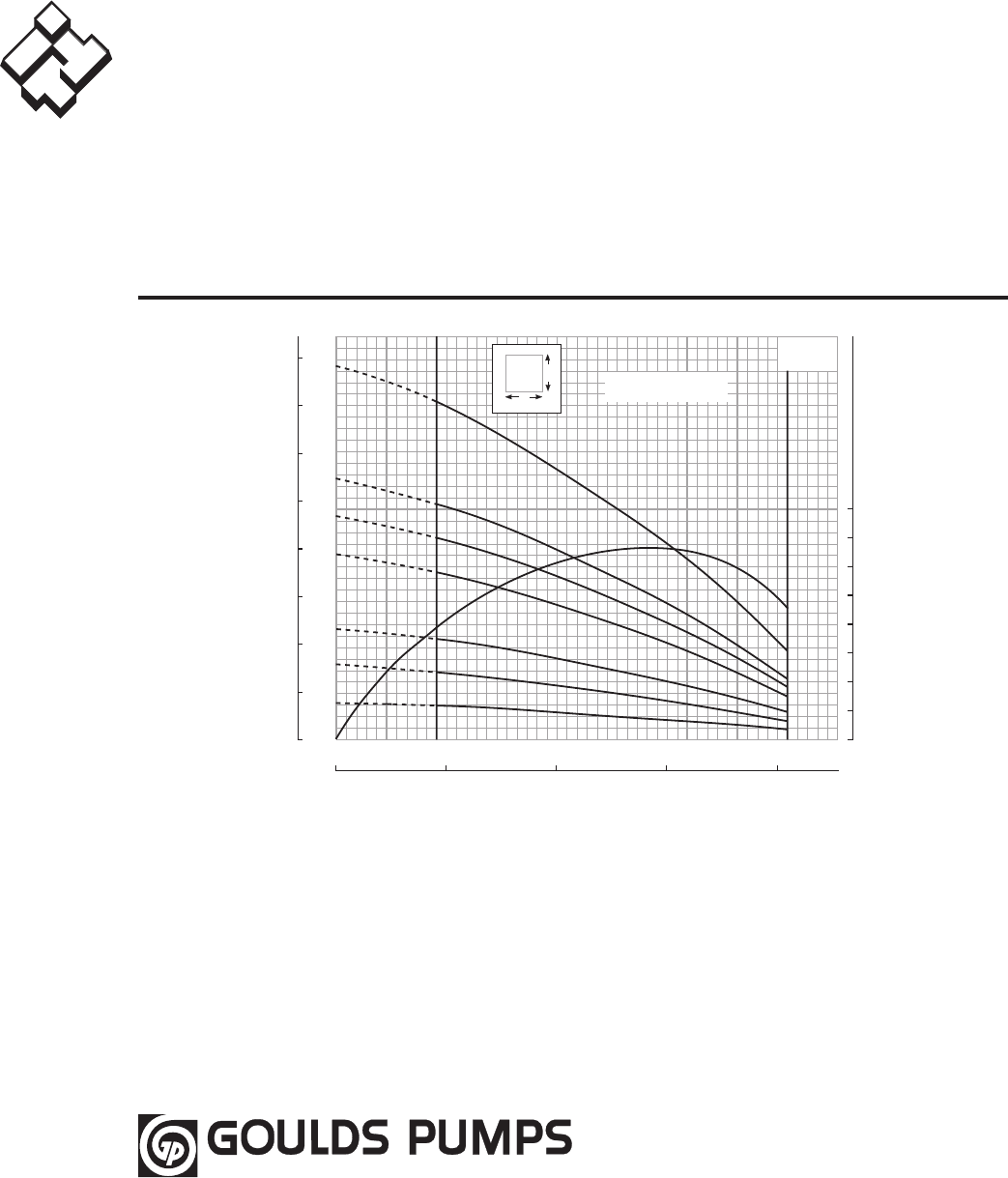

Model 90L
0
450
400
250
100
0
1400
1000
600
400
200
1200
800
0
0
5 15 25
25 50 75 100 125 150
0
60
50
40
30
20
10
TOTAL DYNAMIC HEAD
CAPACITY
GPM
m3/hr
EFFICIENCY – %
FEETMETERS
10 20 30
300
150
350
200
50
70
EFFICIENCY
90L30
22 STG.
90L25
19 STG.
90L20
15 STG.
90L15
11 STG.
90L10
7 STG.
90L07
5 STG.
90L05
3 STG.
RPM 3450
60 Hz
RECOMMENDED RANGE
40 – 130 GPM
40
Ft.
5
GPM
Curve Reference SU 0020ROO
11
ITT
GOULDS PUMPS
Residential Water Systems

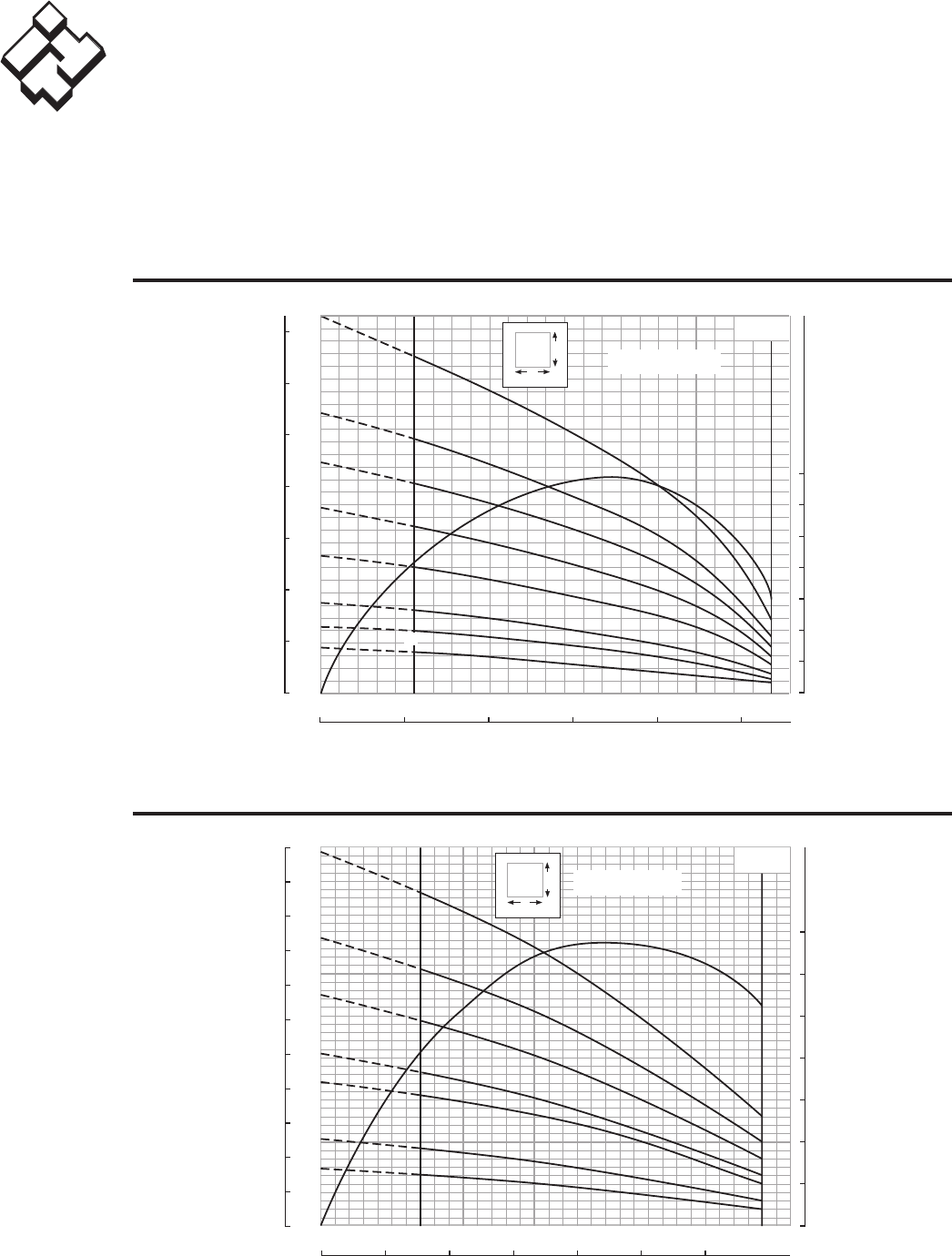

Model 150L
150L40
16 STG.
150L30
12 STG.
150L25
10 STG.
150L20
8 STG.
150L15
6 STG.
150L05
2 STG.
150L10
4 STG.
RPM 3450
60 Hz
RECOMMENDED RANGE
50 – 240 GPM
150L07 3 STG.
EFFICIENCY
40
Ft.
10
GPM
00 50 100 150 200 250
200
400
600
800
1000
1200
0
50
100
150
200
250
300
350
0 10 20 30 40 50
0
10
20
30
40
50
60
70
METERS FEET
CAPACITY
TOTAL DYNAMIC HEAD
EFFICIENCY – %
GPM
m3/hr
Model 200L
RPM 3450
60 Hz
200L40
13 STG.
200L30
10 STG.
200L25
8 STG.
200L20
6 STG.
200L15
5 STG.
200L10
3 STG.
200L07
2 STG.
EFFICIENCY
RECOMMENDED RANGE
70 – 310 GPM
20
Ft.
10
GPM
0
225
200
125
50
0
900
500
300
200
100
600
400
0
0
10 30 50
50 100 150 200 250 300 0
60
50
40
30
20
10
TOTAL DYNAMIC HEAD
CAPACITY
GPM
m3/hr
EFFICIENCY – %
FEETMETERS
20 40 60
150
75
175
100
25
70
700
800
275
250
Curve Reference SU 0008ROO
Model 300L
ITT
Goulds Pumps and the ITT Engineered Blocks Symbol are
registered trademarks and tradenames of ITT Corporation.
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
B70-300L June, 2006
© 2006 ITT Corporation
Engineered for life
Residential Water Systems

Navigation menu
