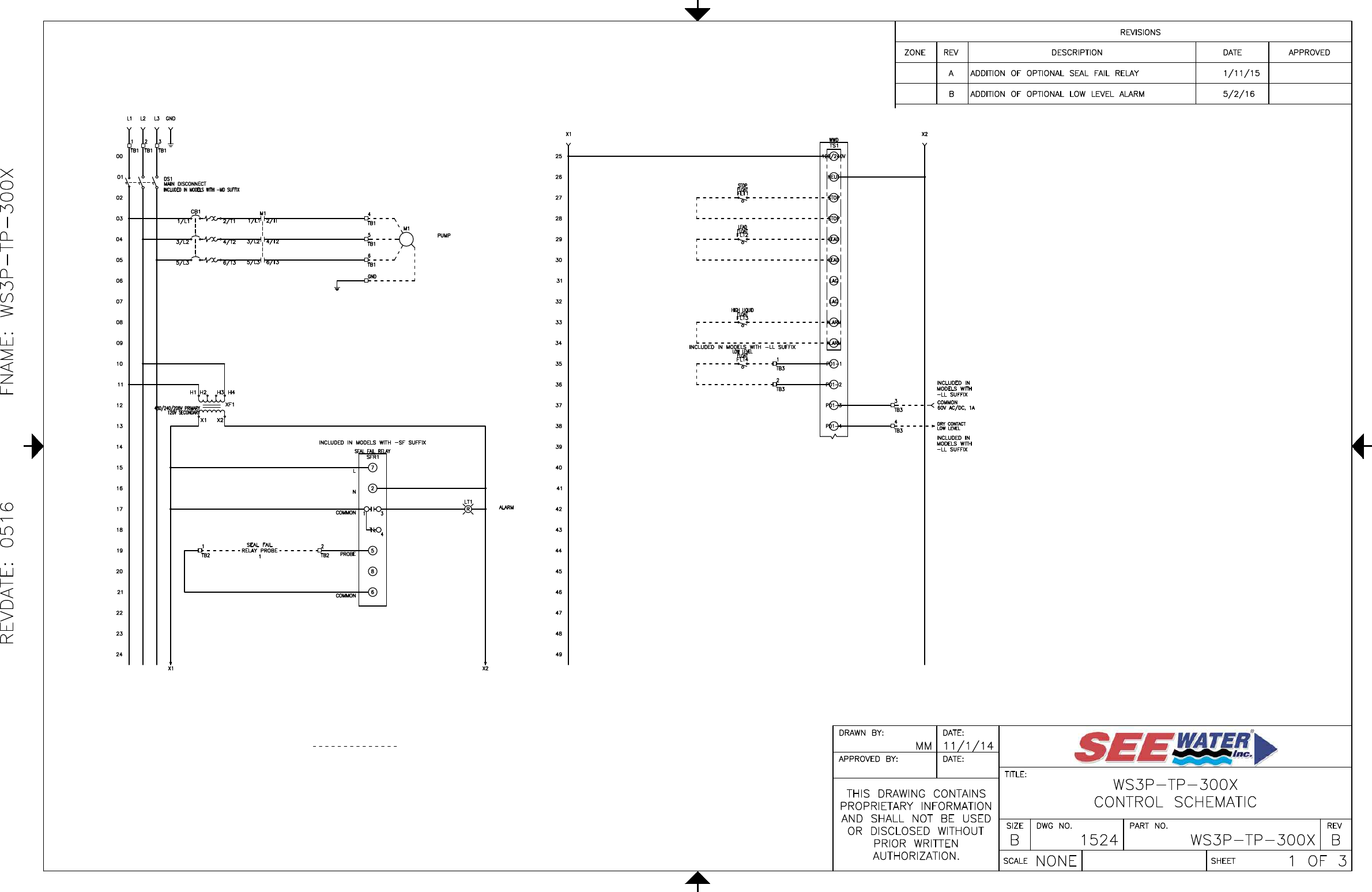

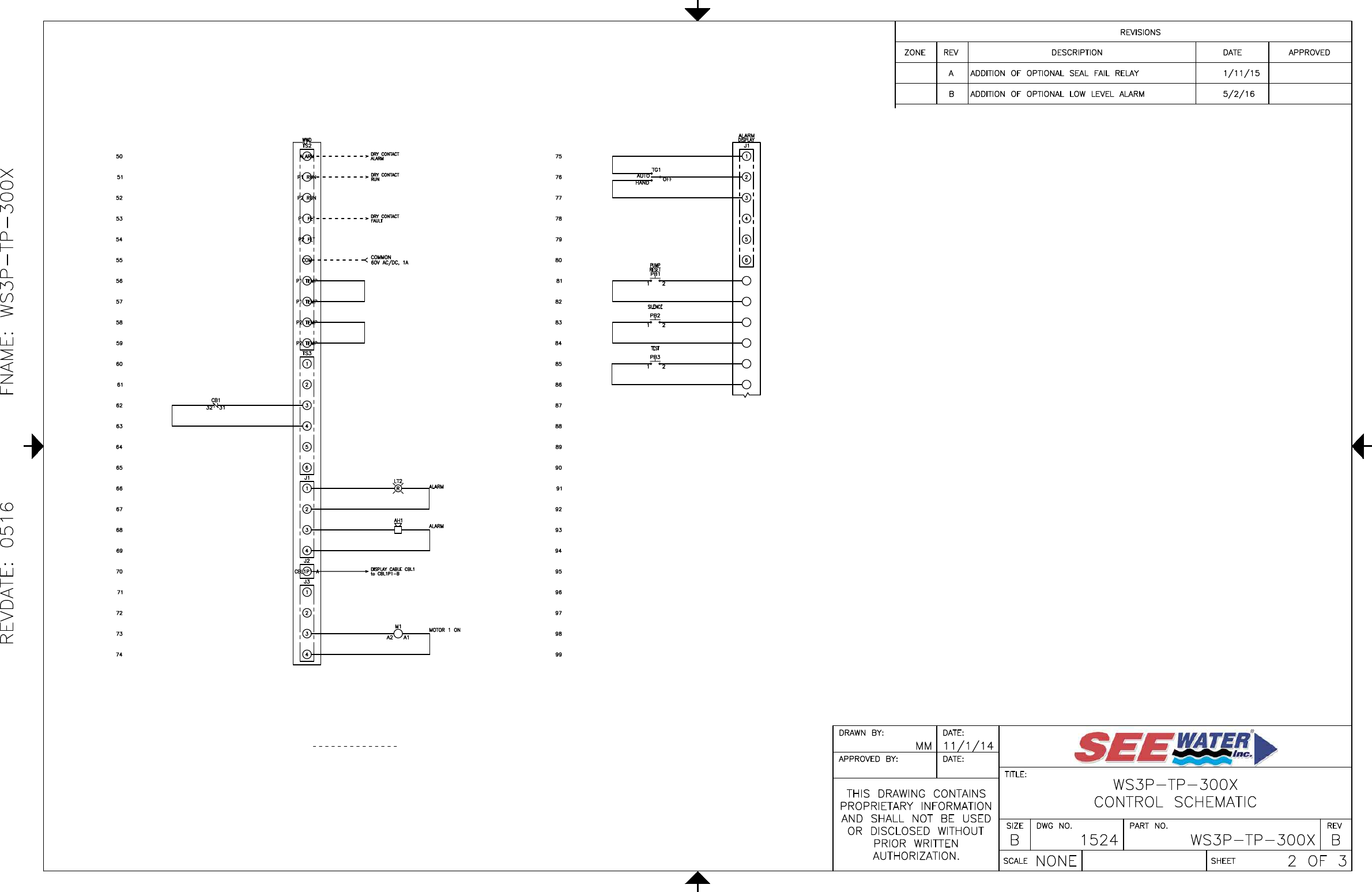

3 551290 See Water Inc. Three Phase Simplex Demand WS3P TP Pump Control Panel Wiring Diagram
: Pump 551290 3 See Water Inc. Three Phase Simplex Demand Ws3P-Tp Pump Control Panel Wiring Diagram 551290_3_See Water Inc. Three Phase Simplex Demand WS3P-TP Pump Control Panel Wiring Diagram pdf
Open the PDF directly: View PDF
.
Page Count: 3
USE COPPER CONDUCTORS ONLY.
BRANCH CIRCUIT PROTECTION SHALL BE PROVIDED BY THE
INSTALLER: MUST BE SIZED ACCORDING TO PUMP/MOTOR
MANUFACTURING SPECIFICATIONS.
VERIFY CORRECT OPERATION OF CONTROL PANEL AFTER
INSTALLATION IS COMPLETE.
MULTI-TAP TRANSFORMER
CONNECT FACTORY TAGGED WIRES TO L1 & L2 ON TERMINAL
BLOCK 3 AND CONNECT TO APPROPRIATE TRANSFORMER
PRIMARY VOLTAGE TAP. SEE BELOW FOR CONNECTIONS:
FOR 208V OPERATION, CONNECT L1 & L2 TO TRANSFORMER
TAPS H1 & H2.
FOR 240V OPERATION, CONNECT L1 & L2 TO TRANSFORMER
TAPS H1 & H3.
FOR 480v OPERATION, CONNECT L1 & L2 TO TRANSFORMER
TAPS H1 & H4.

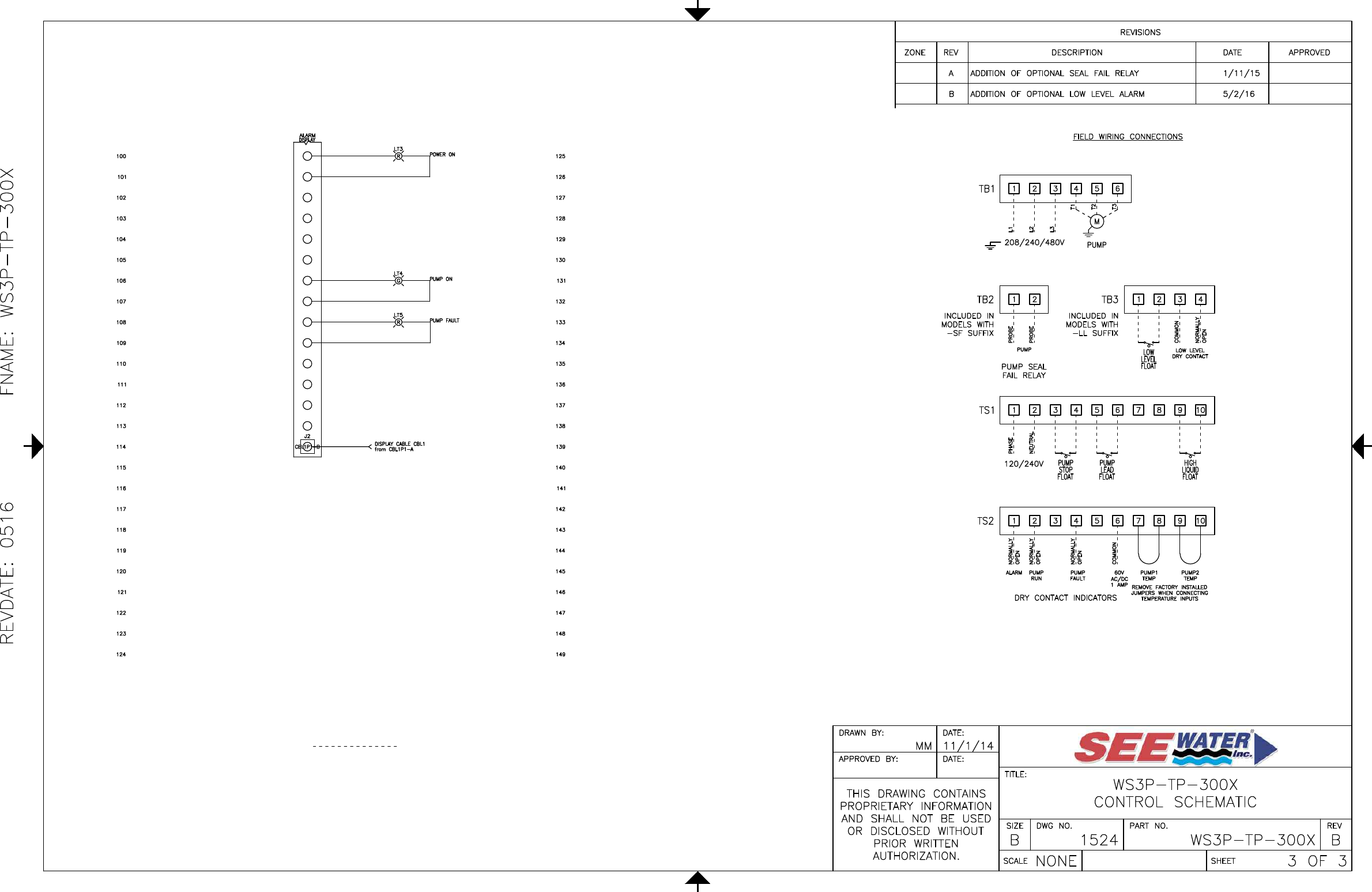

DASHED LINE INDICATES
FIELD WIRING.
USE COPPER CONDUCTORS ONLY.
BRANCH CIRCUIT PROTECTION SHALL BE PROVIDED BY THE
INSTALLER: MUST BE SIZED ACCORDING TO PUMP/MOTOR
MANUFACTURING SPECIFICATIONS.
VERIFY CORRECT OPERATION OF CONTROL PANEL AFTER
INSTALLATION IS COMPLETE.
MULTI-TAP TRANSFORMER
CONNECT FACTORY TAGGED WIRES TO L1 & L2 ON TERMINAL
BLOCK 3 AND CONNECT TO APPROPRIATE TRANSFORMER
PRIMARY VOLTAGE TAP. SEE BELOW FOR CONNECTIONS:
FOR 208V OPERATION, CONNECT L1 & L2 TO TRANSFORMER
TAPS H1 & H2.
FOR 240V OPERATION, CONNECT L1 & L2 TO TRANSFORMER
TAPS H1 & H3.
FOR 480v OPERATION, CONNECT L1 & L2 TO TRANSFORMER
TAPS H1 & H4.
DASHED LINE INDICATES
FIELD WIRING.
USE COPPER CONDUCTORS ONLY.
BRANCH CIRCUIT PROTECTION SHALL BE PROVIDED BY THE
INSTALLER: MUST BE SIZED ACCORDING TO PUMP/MOTOR
MANUFACTURING SPECIFICATIONS.
VERIFY CORRECT OPERATION OF CONTROL PANEL AFTER
INSTALLATION IS COMPLETE.
MULTI-TAP TRANSFORMER
CONNECT FACTORY TAGGED WIRES TO L1 & L2 ON TERMINAL
BLOCK 3 AND CONNECT TO APPROPRIATE TRANSFORMER
PRIMARY VOLTAGE TAP. SEE BELOW FOR CONNECTIONS:
FOR 208V OPERATION, CONNECT L1 & L2 TO TRANSFORMER
TAPS H1 & H2.
FOR 240V OPERATION, CONNECT L1 & L2 TO TRANSFORMER
TAPS H1 & H3.
FOR 480v OPERATION, CONNECT L1 & L2 TO TRANSFORMER
TAPS H1 & H4.
DASHED LINE INDICATES
FIELD WIRING.
